user reference guide

IBM ®

Bluetooth UltraPort

Module from IBM

User’s Reference Guide

OPTIONS

by IBM

First Edition (February 2001)

The following paragraph does not apply to the United Kingdom

of any country where such provisions are inconsistent with local

law:

INTERNATIONAL BUSINESS MACHINES CORPORATION

PROVIDES THIS PUBLICATION "AS IS" WITHOUT ANY WAR-

RANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE LIMITED WAR-

RANTIES OF MERCHANTABILITY OF FITNESS FOR A PAR-

TICULAR PURPOSE. Some states do not allow disclaimers or

express or implied warranties in certain transactions; therefore, this

statement may not apply to you.

This publication could include technical or typographical errors.

Changes are periodically made to the information herein; these

changes will be incorporated in new editions of the publication. IBM

may make improvements or changes in the products or the programs

described in this publication at any time.

It is possible that this publication may contain reference to, or infor-

mation about, IBM products (machines and programs), programming,

or services that are not announced in your country. Such references or

information must not be construed to mean that IBM intends to

announce such IBM products, programming, or services in your

country.

Requests for technical information about IBM products should be

made to your IBM authorized dealer or your IBM marketing repre-

sentative.

Note to U.S. Government users - Documentation related to restricted

rights - Use, duplication or disclosure is subject to restrictions set

forth in GSA ADP Schedule Contract with IBM Corp.

Contents

About the Bluetooth UltraPort Module

from IBM

Registering your product

About the Product

Parts and Parts Numbers

Hardware, Software, and OS requirements

Computers that need an external USB connector

Installation Procedure

Safety Warnings

Safety Statements

Physical Installation of the Module

Step 1 - Physical Installation of the interposer and the mod-

ule.fmPhysical Installation on laptops with a bay

Physical Installation on laptops wihtout a bay and on desktop com-

puters

Physical Installation on X20 Series

Installation of the module’s clip-on cover

Installation of the Drivers

Installation of the software on a laptop

Installation of the software on a desktop

Updating the system BIOS

Installation of the Applications

Installation the applications on laptops

Installation the applications on desktops

Using IBM Ultraport Bluetooth

Hints and Tips

Working with the Bluetooth Ultraport Module’s Applications

The Bluetooth Ultraport Module’s Control Panel

Getting Help

How to open the software online user’s guide

In Addition

Appendix A. Help and Service Information

Appendix B. Product Warranties

Registering Your Product

Thank you for purchasing the Bluetooth UltraPort Module from IBM.

Please take a few moments to register your product and provide us

with information that will help IBM to better serve you in the future.

Your feedback is valuable to us in developing products and services

that are important to you, as well as in developing better ways to

communicate with you. Register your product on the IBM site at:

http://www.ibm.com/pc/register

IBM will send you information and updates on your registered prod-

uct unless you indicate on the Web site questionnaire that you do not

want to receive further information.

About the Product

The Bluetooth UltraPort Module from IBM (sometimes referred as

USB device) is a device allowing your ThinkPad to communicate

with other devices without the use of a cable. It is fast becoming a

must-have communication tool.

The Bluetooth UltraPort Module from IBM is “Plug & Play” compat-

ible, which makes installation simple.

If you are using a supported IBM ThinkPad, the IBM UltraPort Blue-

tooth is configured automatically when you connect it to you com-

puter. In addition you will need to use a USB cable to connect your

ThinkPad to the Bluetooth UltraPort Module from IBM. These extra

parts are provided with the product.

Using the Bluetooth UltraPort Module from IBM and the accompa-

nying software, you can spice up your communication needs and be

synchronized all the time when on the move.

1/ The list of laptops supported is as follows:

ThinkPad T20/T21/T22

ThinkPad A20/A21

ThinkPad X20/X21

Thinkpad TransNote

ThinkPad i Series

ThinkPad 600/E/X

ThinkPad 570/E

ThinkPad 390E/X

ThinkPad 240/X/Z

Note: Some of these laptop have an UltraPort connector, other don't

have an UltraPort connector and need to be attached through the

external USB connector.

2/ The list of desktops supported is as follows:

NetVista A60

NetVista A60i

NetVista A40

NetVista A40i

NetVista X40i

NetVista A40/p

NetVista S40/p

NetVista X40

NetVista A20

NetVista A20i

All of the desktop systems will be connected via the external USB

connector.

Parts and Parts Numbers

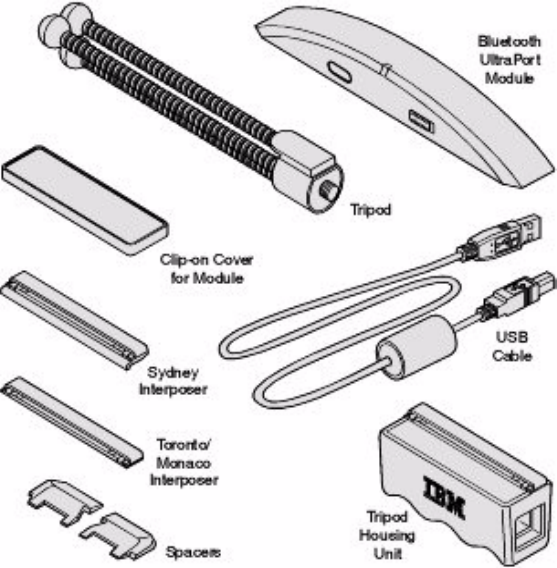

When you open the box containing the Bluetooth UltraPort Module

from IBM, you can see the following content:

• The IBM Ultraport Bluetooth module (USB module)

• The IBM system BIOS update CD

• The Bluetooth Ultraport CD

• A parts kit including:

•A USB cable

• Interposers (2)

•Spacers (2, for X20 Series ThinkPad systems)

• The clip-on cover for IBM Ultraport Bluetooth

•A tripod

• A tripod housing unit

Please not that for each part you have a FRU part number and an IBM

part number. Find these part numbers below:

Part Name FRU Number IBM Part Number

Adapter ASM 08K6108

Bluetooth UltraPort

Module 09N9813

Here are some of them: The numbers on the left are IBM FRU part

numbers with descriptions etc.

04P3072 Interposers and cover FRU

27L0542 USB CABLE FRU

08K6108 Adapter ASM FRU

08K6449 Tripod FRU

09N9813 Bluetooth UltraPort FRU Module

22P4907 Bluetooth UltraPort Sydney Spacers FRU

Bob.

let me know if this is unclear.

Note: You need the USB only if you use a desktop computer or one

of the following laptops:

ThinkPad i Series

ThinkPad 600/E/X

ThinkPad 570/E

ThinkPad 390E/X

ThinkPad 240/X/Z

NetVista A60

NetVista A60i

NetVista A40

Bluetooth UltraPort

Sydney Spacers 22P4907

Interposers and

Cover 04P3072

Tripod 08K6449

USB Cable 27L0542

NetVista A40i

NetVista X40i

NetVista A40/p

NetVista S40/p

NetVista X40

NetVista A20

NetVista A20i

Hardware, Software, and OS Require-

ments

The Bluetooth UltraPort Module from IBM can be attached to the

UltraPort bay located at the top of the display on the following Think-

Pad systems: T20, A20p, and X20 Series ThinkPad.

The UltraPort Bluetooth device can also be attached to

your ThinkPad system using the external USB cable and

adapter.

If you use one of the above systems, you can either use the Blue-

tooth UltraPort Module from IBM or the external USB connec-

tion.

Note: The UltraPort Bluetooth device can also be attached to the fol-

lowing ThinkPad systems using the external USB connection:

If you do not use one the above systems, you will still be able to

use the Bluetooth UltraPort Module from IBM via the external

USB connection. The other systems that you can use are the fol-

lowing:

Your ThinkPad must fulfill the following requirements:

• Required disk space to load the software: At least 25 MB

• A CD-ROM drive or a DVD drive

• Windows 98 SE, Windows 2000, or Windows Me

About Windows Versions

To check which version of Windows you are using, do the following:

•Click Start, Settings, and Control Panel

•Click System

• Read the numbers under System

They indicate which version of Windows you are using.

Computers that need an external USB

connector

There are two types of laptops and depending on the laptop you are

using the Bluetooth UltraPort Module installation procedure is differ-

ent. The list of laptops supported is as follows:

ThinkPad T20/T21/T22

ThinkPad A20/A21

ThinkPad X20(unique portofino connector)/X21

Thinkpad TransNote

The above systems do not require an external USB connector.

There are other systems that do not have a portofino connector and

that require an external USB connector. They are:

ThinkPad i Series

ThinkPad 600/E/X

ThinkPad 570/E

ThinkPad 390E/X

ThinkPad 240/X/Z

NetVista A60

NetVista A60i

NetVista A40

NetVista A40i

NetVista X40i

NetVista A40/p

NetVista S40/p

NetVista X40

NetVista A20

NetVista A20i

Installation Procedure

Whether you use a laptop (supported or not supported) or a desktop

computer, the installation procedure is the same:

Install physically the module on the bay of your computer

You have to either install the module on top of your ThinkPad or con-

nect it to the USB cable

Turn on the computer and insert the CD in the CD drive

Install the software

This include installing the Intel stack, the TDK applications, and the

device drivers

You can now start using the Bluetooth UltraPort Module from IBM.

Very important: If you are installing your Bluetooth UltraPort Mod-

ule on the bay of your computer, you need to stick to this installation

procedure as you will not be able to operate your Bluetooth UltraPort

module if you choose another installation sequence.

Note if you plan to install the Bluetooth UltraPort Module on the bay

of your computer: Your Bluetooth UltraPort Module is not hot-plug-

gable therefore it needs to be installed on the bay before the computer

is turned on. Your Bluetooth UltraPort Module from IBM will not

work if you turn on your computer, then install physically the mod-

ule. If you remove it, if you decide to use it again, you need to turn off

your computer, reinstall it physically on the bay, thne turn on your

computer again.

Note if you plan to install the Bluetooth UltraPort using the USB

cable: In case you install your Bluetooth UltraPort Module using a

the USB cable, you will be able to install physically the module, then

turn on the computer and install the drivers and the applications. You

will also be able to turn on your computer, then connect the module to

the tripod and the computer using the cable, then install the drivers

and the applications.

Note regarding Bluetooth and the wake-up mode: Your Bluetooth

UltraPort Module from IBM does not support the wake-up mode,

therefore it will not be able to come out from Standby or Hibernation

mode. If you were using your Bluetooth UltraPort Module from IBM,

and then decided to put your computer in standby or hibernation

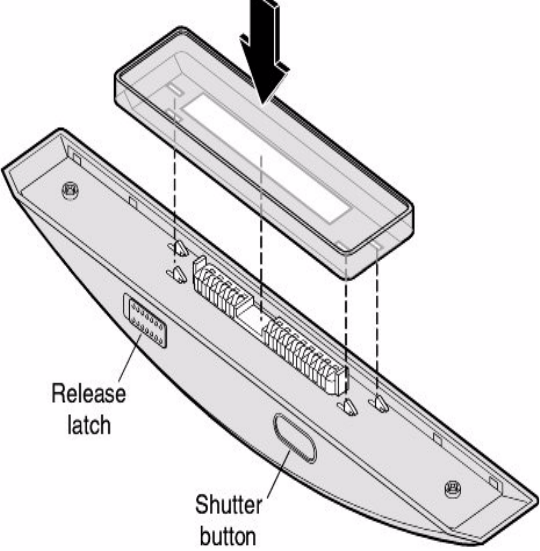

mode, you need to physically turn on the module using the shutter

button to use Bluetooth again.

Safety Warnings

Please make sure you read the following points before you start using

your Bluetooth UltraPort Module:

Only avoid using it in airplanes and hospitals. If you need to travel

with the Bluetooth UltraPort module from IBM and have to go to a

hospital or to any place where electronic equipment is used, switch

off the unit completely, or remove it.

Make sure the your Bluetooth UltraPort Module is kept at a distance

of at least 22 cm of a pacemaker. The Bluetooth UltraPort Module

may impact the functioning of the pacemaker. As you may not know

who has and who hasn't a pacemaker, make sure you have removed

the module from your computer whenever you are in a crowd.

As a rule make sure you don't use your module when you are close to

any electronic equipment. This includes fire detectors, automatic

doors, etc. Keep your Bluetooth UltraPort Module at a distance of at

least 2m from any OA, AV piece of equipment, and at least 3m away

from a microwave oven. If you work too cloose to a TV set or a radio

receiver, you may not be able to communicate with other devices and

at the same time your Bluetooth equipment may impact the quality of

your TV image or the quality of the reception of your radio receiver.

Do not detach the UltraPort device while an application is running.

Although your ThinkPad computer has two USB ports, use only one

port at a time for a camera. You cannot use cameras in both ports at

the same time. If your ThinkPad has a UltraPort connector, you can

choose either the connector or a USB port.

Do not put an operating cellular phone near the computer when using

the Ultraport Bluetooth device. It might cause a system malfunction.

Safety Statements

Please note the two following Underwriters Laboratories Inc.'s

notices:

" This product is for use only with UL Listed personal computers."

"The long-term characteristics or the possible physiological effects

of radio frequency (RF)electromagnetic fields associated with this

equipment have not been evaluated."

In addition:

This device complies with Part 15 of the FCC rules and with RSS-

210 of Industry Canada. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Important

Please note the following:

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment gen-

erates, uses and can radiate radio frequency energy and, if not

installed and used in accordancewith the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or televi-

sion reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by

one or more of the following measures:--Reorient or relocate the

receiving antenna.--Increase the separation between the equipment

and receiver.--Connect the equipment into an outlet on a circuit dif-

ferent from that to which the receiver is connected.--Consult the

dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved IBM Corporation

could void the user's authority to operate the equipment.

Installing the Bluetooth UltraPort

Module from IBM on a ThinkPad

Your product is a combination of hardware and software.

Before you start using IBM Ultraport Bluetooth, check the following:

• Your computer runs on one of the following platform: Windows

98 SE, Windows 2000

• Your IBM Ultraport Bluetooth kit contains the following items:

•The Bluetooth UltraPort Module from IBM (USB device)

•The IBM system BIOS update CD

• The IBM Ultraport Bluetooth CD

•A parts kit including:

•A USB cable

• Interposers

•Spacers (for X20 Series ThinkPad systems)

• The clip-on cover for IBM Ultraport Bluetooth

•A tripod

• A tripod housing unit

• You are using one of the following IBM ThinkPads: X20, T20,

or A20p, as well as some other non IBM systems.

Note: If you are not using an IBM ThinkPad, you will still be able to

use IBM Ultraport Bluetooth via the USB cable provided in the kit.

Other non IBM systems you can use with the Bluetooth UltraPort

Module from IBM are the following:

Important: Before you install IBM Ultraport Bluetooth take a

moment to review the hardware and software listed above and make

sure that everything works properly.As you examine the IBM

UltraPort Bluetooth kits items, look for any physical damage. Con-

firm that IBM UltraPort Bluetooth inserts correctly. Retain the ship-

ping container to use in the unlikely event that you need to return the

IBM™ UltraPort Bluetooth device for service.

Step 1 - Physical Installation of the inter-

poser and the module

The first step of the installation if you are a ThinkPad user is to install

the interposers.

If you are a desktop user, you don't need interposers. Please refer

tothe chapter Installing the module on a desktop computer.

When you open the box, you will see that two interposers are

included. If you are using anything else than a x20 series ThinkPad,

you need to use the Monaco/Toronto interposer.

If you are a x20 series ThinkPad user, you need to use the Sydney

interposer.

To install the interposer, do the following:

• With a pin, lift the plastic that is covering the USB port

• Remove the plastic cover completely

Now you can see the port without the cover. Next step you need to

screw the interposer on the port.

The interposer is shown below:

You can see that it folds in two.The interposer is made of a plastic

flap and a metal part.

Important: there is only one correct way to screw the interposer on

the computer: the flap should face the keyboard. Look at the picture

below:

You can see that there are two screwing points.

• Using a Phillips headset screwdriver, screw the interposer on the

port

Next step is to install the Bluetooth UltraPort Module on the inter-

poser.

• Take the Bluetooth UltraPort Module making sure that the

release latch is on the left

As you can see on the lower part of the module the Bluetooth

UltraPort Module has 5 pins on the right and 8 on the left. These pins

on the module should match the connectors on the port:

There are also two notches on the module and two holes on the port

that should match.

• Clip in the module on the port

You have completed the physical installation of the Bluetooth

UltraPort Module.

Physical Installation on X20 Series

If you are a X20 Series user you need to install the two spacers on

your UltraPort device before installing it on your laptop. The two

spacers are included in the kit. They are shaped after the module and

fit perfectly.

Procedure:

• Peel the tape off the left spacer and attach it to the bottom left of

the module

• Match the spacer to the slot of the module firmly

• Attach the right spacer to the bottom right of the module

• Match the spacer to the slots of the module firmly

For how to connect the module to your computer, refer to Physical

Installation on laptops.

Installing the module on a desktop

computer

Do the following:

• Make sure the computer is off

• Take the USB cable and connect it to the USB port

• Connect the USB cable to the tripod

You can see a release latch on the right of the module.

• Slide it to the left and clip the module on the tripod

There is a shutter button on the left.

• Turn it on

• Turn on your computer

• Insert the CD in the CD (DVD) drive

• Select Run in the Start menu

• Browse until you find the IBM UltraPort Bluetooth software

• Select Bluetooth UltraPort Module

• Select a suitable language for the setup process

• Click OK

• Click Next

• Click Finish

The Install wizard starts.

The computer is installing the software.

Making sure the software is correctly installed

To make sure the Bluetooth UltraPort Module has been properly

installed, proceed as follows:

• Click the My Computer folder

• Click C

• Click Program Files

You should see a newly created folder named TDK Systems Europe.

If you cannot see this folder, repeat the installation procedure.

Note: Another way to check that this software has been correctly

installed is to check in the taskbar that the control panel icon is visi-

ble.

Installation of the module's clip-on cover

Installation of the drivers on laptops

Before running the IBM UltraPort Bluetooth application, you must

install it from the CD onto your hard disk. You cannot run the install

program from the CD. Installation instructions are available below.

Note: Please refer to the previous section (Required Hardware) to

make sure that you have the required hardware and that your IBM

UltraPort Bluetooth kit is in good working order.

Once you have inserted the software's CD in your computer the

installation procedure should start automatically. If this is not the

case, please read the following paragraph.

Note: Before installing the software, you need to sit the Bluetooth

UltraPort Module from IBM on your computer. The device is deliv-

ered with a small plastic cover that you need to remove and replace

by the interposer. Please refer to the UltraPort section

Installation of IBM Ultraport Bluetooth on a ThinkPad

The IBM UltraPort Bluetooth software works only with the Windows

98 Second Version platform. It may work at a later stage with Win-

dows 2000 as well.

To install the Portofino device, proceed as follows:

• Make sure your computer is switched off

• Make sure the interposer is there

• If not, put it there

• Open your ThinkPad

• Place the Bluetooth UltraPort Module from IBM on the top of the

cover, inserting it in the dedicated port

• Turn on your ThinkPad

• Insert the CD in the CD (DVD) drive

• Select Run in the Start menu

• Browse until you find the IBM UltraPort Bluetooth software

• Select IBM UltraPort Bluetooth

• Select a suitable language for the setup process

• Click OK

• Click Next

• Click Finish

The Install wizard starts.

The computer is installing the software.

Making sure the software is correctly installed

To make sure IBM UltraPort Bluetooth has been properly installed,

proceed as follows:

• Click the My Computer folder

• Click C

• Click Program Files

You should see a newly created folder named TDK Systems Europe.

If you cannot see this folder, repeat the installation procedure.

Note: Another way to check that this software has been correctly

installed is to check in the task bar that the program's icon is visible.

Installation Procedure for the spacer (X20 Series)

Installation of the drivers on desktops

Updating the System BIOS

You must update the BIOS (basic input/output system) of your

ThinkPad computer to use the Bluetooth UltraPort module.

Below is a list of BIOS versions that need to be updated prior to use

the Bluetooth UltraPort module. The latest Flash BIOS Update

program file can be obtained from each folder:

Note that the BIOS versions listed in the following list may not be the

latest as IBM keeps updating the BIOS. Please make sure to

download and update to the latest BIOS available on the web:

http://www.pc.ibm.com/support

Installation Instructions

Note:

Make sure you of the following:

• You need an AC adapter and a charged battery pack to update the

system program.

• If your computer is attached to any kind of port replicator, turn

off the computer and detach it before proceeding.

• Before using Flash Update with Windows 98 Second Edition,

IBM recommends that you download and apply the "Windows

ThinkPad Model Folder Name in CD-ROM

T20 BIOS\TPT20\US

T21 BIOS\TPT21\US

T22 BIOS\TPT22\US

A20p BIOS\TPA20p\US

A21p/A22 BIOS\TPA21p\US

X20 / X21/ i Series1620 BIOS\TPX20\US

98 Second Edition Shutdown Supplement" from the Microsoft

Support WWW Site.

Information regarding this supplement can be found at:

http://support.microsoft.com/support/kb/articles/Q239/8/87.ASP

Follow this procedure:

Open the above link

• Click on http:www.microsoft.com/windows 98/downloads/cor-

porate.asp

• Scroll down to “Windows 98 Second Edition Shutdown Supple-

ment”

• Click on it

• Click Next

• Accept the License to download the file

• Run the executable that you just downloaded

Instructions:

1. Print these instructions or display on another computer

2. Firmly connect the AC adapter to the computer

3. Start Windows 95/98/Me/2000 or Windows NT 4.0 on the target

computer

4. Make the temporary directory on the hard drive (for instance,

C:\Temp)

5. Copy the ThinkPad BIOS Update Utility from the Setup CD

6. Store the file into the temporary directory. (e.g. C:\Temp)

7. Click on the Start button

8. Click on Run

9. Specify filename with the full path name where you stored

ThinkPad Update Utility

10. Press Enter

When the procedure is completed, the system is automatically turned

off.

Warning!!

Do not turn off or suspend the computer until the update has been

completed.

IF YOU TURN OFF OR SUSPEND THE COMPUTER WHILE

THE UPDATE IS STILL IN PROGRESS, THE SYSTEM

BOARD MAY HAVE TO BE REPLACED.

After the update has been completed, do the following to confirm the

change is correctly applied:

1. Make sure that no diskette is inserted in the diskette drive

2. Turn on the computer

The "Press F1 for IBM BIOS Setup Utility" message is displayed at

the lower-left area of the screen.

3. Press the F1 key

A password prompt may appear.

4. Type the correct password

5. Check "BIOS Version"

Installation of the Applications on laptops

Installation of the Applications on desk-

tops

How to Open the Software Online User’s

Guide

To be able to read online instruction, you need to install Adobe Acro-

bat Reader.

To read online instruction, proceed as follows:

1. Insert the Portofino Software CD-ROM

Now, you need to install Adobe Acrobat. To do so, proceed as fol-

lows:

2. Click Start

3. Click Run

4. Type x: \ACROBAT\cc

x is the drive letter of the CD-ROM or DVD drive. cc is the language

code. It is one of the following:

Brazilian Portuguese: BP

Chinese, Simplified: CH

English: US

French: FR

German: DE

Italian: IT

Japanese: JP

Spanish: SP

5. Double click xxxx.EXE

xxxx.EXE is the file name in the directory. It is one of the following:

AR40POR for BP (Brazilian Portuguese)

AR40chs for CH (Chinese Simplified)

AR40DEU for DE (German)

AR40FRA for FR (French)

AR40ITA for IT (Italian)

AR40JPN for JP (Japanese)

AR40ESL for ES (Spanish)

AR405ENG for US (English)

About Online Help

You can open the UltraPort Bluetooth Module online help by clicking

the Help in the menu bar, or by pressing F1. Help provides you with

links to the online version of this User’s Reference Guide. The design

of the Help function is similar to the Windows Help.

Working with the Bluetooth Bluetooth

UltraPort Module’s Applications

Applications currently encompasses the following software:

• OBEX for Bluetooth

•OBEX Server

• File Transfer Application

• vCard Exchange Application

• Outlook Integration

• Bluetooth Modem

•Chat

• Synchronization

IBM Ultraport Bluetooth’s Control Panel

The Bluetooth Ultraport Control Panel allows you to customize set-

tings.

In order to open the IBM Ultraport Bluetooth Control Panel, double-

click on the pink IBM Ultraport Bluetooth icon located in the lower

right corner.

You will be displayed the window shown below:

The Properties and Policies window is made of three tabs:

• General

• Security

•Power

General Tab

You can see in the lower part of the screen the Basic Settings. Once

the device is on, the ON radio button is selected. In order to turn off

IBM Ultraport Bluetooth, you can either select the OFF radio button,

or turn off the device hardware that sits on your computer.

In order to access the Security Tab, just click it.

Security Tab

The Security Tab allows you to set up the security level. There are 6

levels, the sixth level being the one with maximum security.

Hints and Tips

Appendix A.

Help and Service Information

Online Technical Support

Online Technical Support is available during the life of your product.

Online Assistance can be obtained through the Personal Computing

Support Web site and the IBM Automated Fax system.

During the warranty period, assistance for replacement or exchange

of defective components is available. In addition, if your IBM option

is installed in an IBM computer, you might be entitled to service at

your location. Your technical support representative can help you

determine the best alternative.

Telephone Technical Support

Marketing, installation, and configuration support through the Help-

Center will be withdrawn or made available for a fee, at IBM’s dis-

cretion.

TABLE 1. Online Technical Support

IBM Personal Comput-

ing Support Web Site

http://www.ibm.com/pc/support/

IBM Automated Fax

System

1-800-426-3395 (U.S. and Canada)

Appendix B.

Product Warranties

The warranty statement consists of two parts: Part 1 and Part 2. Part 1

varies by country. Part 2 is the same for both statements.Be sure to

read both the Part 1 that applies to your country and Part 2.

• United States, Puerto Rico, and Canada (Z125-4753-05 11/97)

(Part 1 - General Terms on page 2-3)

• Worldwide except Canada, Puerto Rico, Turkey, and United

States

(Z125-5697-01 11/97)

• (Part 1 General terms on page 2-5)

• Worldwide Country-Unique Terms

(Part 2 -Country-Unique Terms on page 2-8)

IBM Statement of Limited Warranty for United

States, Puerto Rico, and Canada (Part 1 - General

Terms)

This statement of Limited Warranty includes Part 1 -General Terms

and Part 2 - Country-unique Terms. The terms of Part 2 may replace

or modify those of Part 1. The warranties provided by IBM in this

statement of Limited Warranty apply only to Machines purchase for

your use, and not for resale, from IBM or your reseller. The term

“Machine” does not include any software programs, whether pre-

loaded with the Machine, installed subsequently or otherwise. Unless

IBM specifies otherwise, the following warranties apply only in the

countries where you acquire the Machine. Nothing in this Statement

of Warranty affects any statutory right of consumers that cannot be

waived or limited by contract. If you have any questions, contact

IBM or your reseller.

The IBM Warranty for Machines

IBM warrants that each Machine 1) is free from defects in materials

and workmanship and 2) conforms to IBM’s Official Published Spec-

ifications. The warranty period for a Machine is a specified, fixed

period commencing on its Date of Installation. The date on your sales

receipt is the Date of Installation, unless IBM or your reseller informs

you otherwise.

During the warranty period IBM or your reseller, if approved by IBM

to provide warranty service, will provide repair and exchange service

for the Machine, without charge, under the type of service designated

for the Machine and will manage and install engineering changes that

apply to the Machine.

If a Machine does not function as warranted during the warranty

period, and IBM or your reseller are unable to either 1) make is do so

or 2) replace it with one that is at least functionally equivalent, you

may return it to your place of purchase and your money will be

refunded. The replacement may not be new, but will be in good work-

ing order.

Extent of Warranty

The warranty does not cover the repair or exchange of a Machine

resulting from misuse, accident, unsuitable physical or operating

environment, improper maintenance by you, or failure caused by a

Machine - IBM Portofino

Warranty Period* - One year

*Contact your place of purchase for warranty service informa-

tion. Some IBM Machines are eligible for On-site warranty ser-

vice depending on the country where service is performed.

product for which IBM is not responsible. The warranty is voided by

removal or alteration of Machine or parts identification labels.

THESE WARRANTIES ARE YOUR EXCLUSIVE WARRAN-

TIES AND REPLACE ALL OTHER WARRANTIES OR CON-

DITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OR CONDI-

TIONS OF MECHANTABILITY AND FITNESS FOR A PAR-

TICULAR PURPOSE. THESE WARRANTIES GIVE YOU

SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE

OTHER RIGHTS WHICH VARY FROM JURISDICTION TO

JURISDICTION. SOME JURISDICTIONS DO NOT ALLOW

THE EXCLUSION OR LIMITATION OF EXPRESS OR

IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION OR

LIMITATION MAY NOT APPLY TO YOU. IN THAT EVENT,

SUCH WARRANTIES ARE LIMITED IN DURATION TO THE

WARRANTY PERIOD. NO WARRANTIES APPLY AFTER

THAT PERIOD.

Items Not Covered by Warranty

IBM does not warrant uninterrupted or error-free operation of a

Machine.

Unless specified otherwise, IBM provides non -IBM Machines

WIHOUT WARRANTIES OF ANY KIND.

Warranty Service

To obtain warranty service for the Machine, contact your reseller of

IBM. In the United States, call IBM at 1-800-722-2227. In Canada,

call IBM at 1-800-565-3344. You may be required to present proof of

purchase.

IBM or your reseller provides certain types of repair and exchange

service, either at your location or at a service center, to keep

Machines in, or restore them to, conformance with their Specifica-

tions. IBM or your reseller will inform you of the available types of

service for a Machine based on its country of installation. IBM may

repair the failing Machine or exchange it at its discretion.

When warranty service involves the exchange of a Machine or part,

the item IBM or your reseller replaces becomes its property and the

replacement yours. You represent that all removed items are genuine

and unaltered. The replacement may not be new, but will be in good

working order and at least functionally equivalent to the item

replaced. The replacement assumes the warranty service status of the

replaced item.

Any feature, conversion, or upgrade IBM or your reseller services

must be installed on a Machine, which is 1) for certain Machines, the

designated, serial-numbered Machine and 2) at an engineering-

change level compatible with the feature, conversion, or upgrade.

Many features, conversions, or upgrades involve the removal of parts

and their return to IBM. A part that replaces a removed part will

assume the warranty service status of the removed part.

Before IBM or your reseller exchanges a Machine or part, you agree

to remove all features, parts, options, alterations, and attachments not

under warranty service.

You also agree to:

1. ensure that the Machine is free of any legal obligations or restric-

tions that prevent its exchange;

2. obtain authorization from the owner to have IBM or your reseller

service a Machine that you do not own; and

3. where applicable, before service is provided

a. follow the problem determination, problem analysis, and ser-

vice request procedures that IBM or your reseller provides,

b. secure all programs, data, and funds contained in a Machine,

c. provide IBM or your reseller with sufficient, free, and safe

access to your facilities to permit them to fulfill their obliga-

tions, and

d. inform IBM or your reseller of changes in a Machine’s loca-

tion.

IBM is responsible for loss of, or damage to, your Machine while it is

1) in IBM’s possession or 2) in transit in those cases where IBM is

responsible for the transportation charges.

Neither IBM nor your reseller is responsible for any of your confi-

dential, proprietary or personal information contained in a Machine

which you return to IBM or your reseller for any reason. You should

return all such information from the Machine prior to its return.

Production Status

Each IBM Machine is manufactured from new parts, or new and used

parts. In some cases, the Machine may not be new and may have been

previously installed. Regardless of the Machine’s production status,

IBM’s appropriate warranty terms apply.

Limitation of Liability

Circumstances may arise where, because of a default on IBM’s part

or other liability, you are entitled to recover damages from IBM. In

each such instance, regardless of the basis on which you are entitled

to claim damages from IBM (including fundamental breach, negli-

gence, misrepresentation, or other contract or tort claim), IBM is lia-

ble for no more than

damages for bodily injury (including death) and damage to real prop-

erty and tangible personal property; and

the amount of any other actual direct damages, up to the greater of

U.S. $100,000 (or equivalent in local currency) or the charges (if

recurring, 12 months’ charges apply) for the Machine that is the sub-

ject of the claim.

This limit also applies to IBM’s suppliers and your reseller. It is the

maximum for which IBM, its suppliers, and your reseller are collec-

tively responsible.

UNDER NO CIRCUMSTANCES IS IBM LIABLE FOR ANY

OF THE FOLLOWING: 1) THIRD-PARTY CLAIMS

AGAINST YOU FOR DAMAGES (OTHER THAN THOSE

UNDER THE FIRST ITEM LISTED ABOVE); 2) LOSS OF, OR

DAMAGE TO, YOUR RECORDS OR DATA; OR 3) SPECIAL,

ACCIDENTAL, OR INDIRECT DAMAGES (INCLUDING

LOST PROFITS OR SAVINGS), EVEN IF IBM, ITS SUPP-

LIRES OR YOUR RESELLER IS INFORMED OF THEIR

POSSIBILITY. SOME JURISDICTIONS DO NOT ALLOW

THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITA-

TIONS OR EXCLUSION MAY NOT APPLY TO YOU.

IBM Statement of Warranty Worldwide except Can-

ada, Puerto Rico, Turkey, United States (Part 1 - Gen-

eral Terms).

This statement of Warranty includes Part 1 - General Terms and Part

2 - Country-unique Terms. The terms of Part 2 may replace or

modify those of Part 1. The warranties provided by IBM in this

Statement of Warranty apply only to Machines you purchase for your

use, and not for resale, from IBM or your reseller. The term

“Machine” does not include any software programs, whether pre-

loaded with the Machine, installed subsequently or otherwise. Unless

IBM specifies otherwise, the following warranties apply only in the

country where you acquire the Machine. Nothing in this Statement of

Warranty affects any statutory rights of consumers that cannot be

waived or limited by contract. If you have any questions, contact

IBM or your reseller.

The IBM Warranty for Machines

BM warrants that each Machine 1) is free from defects in materials
