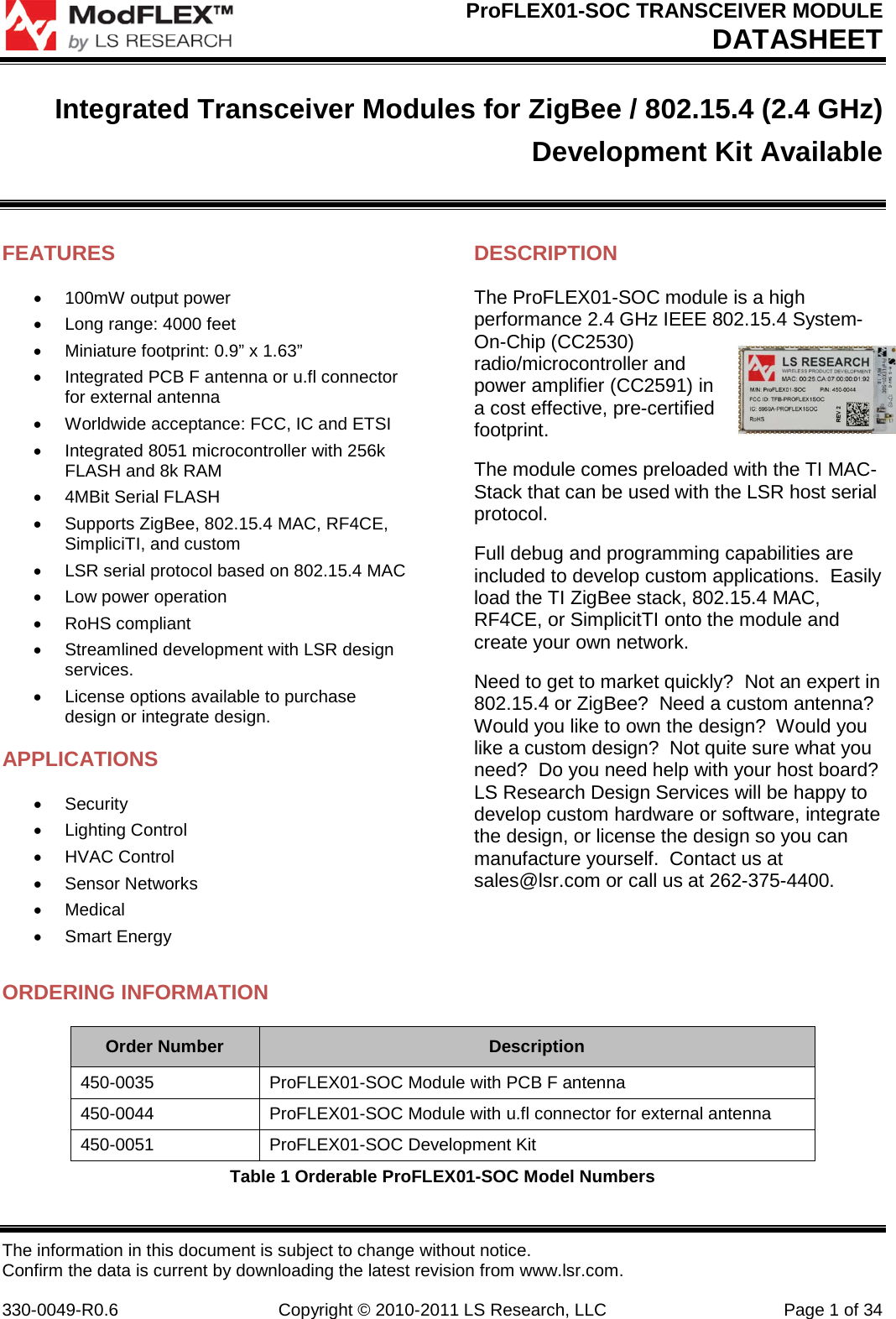

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 1 of 34 Integrated Transceiver Modules for ZigBee / 802.15.4 (2.4 GHz) Development Kit AvailableFEATURES • 100mW output power • Long range: 4000 feet • Miniature footprint: 0.9” x 1.63” • Integrated PCB F antenna or u.fl connector for external antenna • Worldwide acceptance: FCC, IC and ETSI • Integrated 8051 microcontroller with 256k FLASH and 8k RAM • 4MBit Serial FLASH • Supports ZigBee, 802.15.4 MAC, RF4CE, SimpliciTI, and custom • LSR serial protocol based on 802.15.4 MAC • Low power operation • RoHS compliant • Streamlined development with LSR design services. • License options available to purchase design or integrate design. APPLICATIONS • Security • Lighting Control • HVAC Control • Sensor Networks • Medical • Smart Energy DESCRIPTION The ProFLEX01-SOC module is a high performance 2.4 GHz IEEE 802.15.4 System-On-Chip (CC2530) radio/microcontroller and power amplifier (CC2591) in a cost effective, pre-certified footprint. The module comes preloaded with the TI MAC-Stack that can be used with the LSR host serial protocol. Full debug and programming capabilities are included to develop custom applications. Easily load the TI ZigBee stack, 802.15.4 MAC, RF4CE, or SimplicitTI onto the module and create your own network. Need to get to market quickly? Not an expert in 802.15.4 or ZigBee? Need a custom antenna? Would you like to own the design? Would you like a custom design? Not quite sure what you need? Do you need help with your host board? LS Research Design Services will be happy to develop custom hardware or software, integrate the design, or license the design so you can manufacture yourself. Contact us at sales@lsr.com or call us at 262-375-4400. ORDERING INFORMATION Order Number Description 450-0035 ProFLEX01-SOC Module with PCB F antenna 450-0044 ProFLEX01-SOC Module with u.fl connector for external antenna 450-0051 ProFLEX01-SOC Development Kit Table 1 Orderable ProFLEX01-SOC Model Numbers

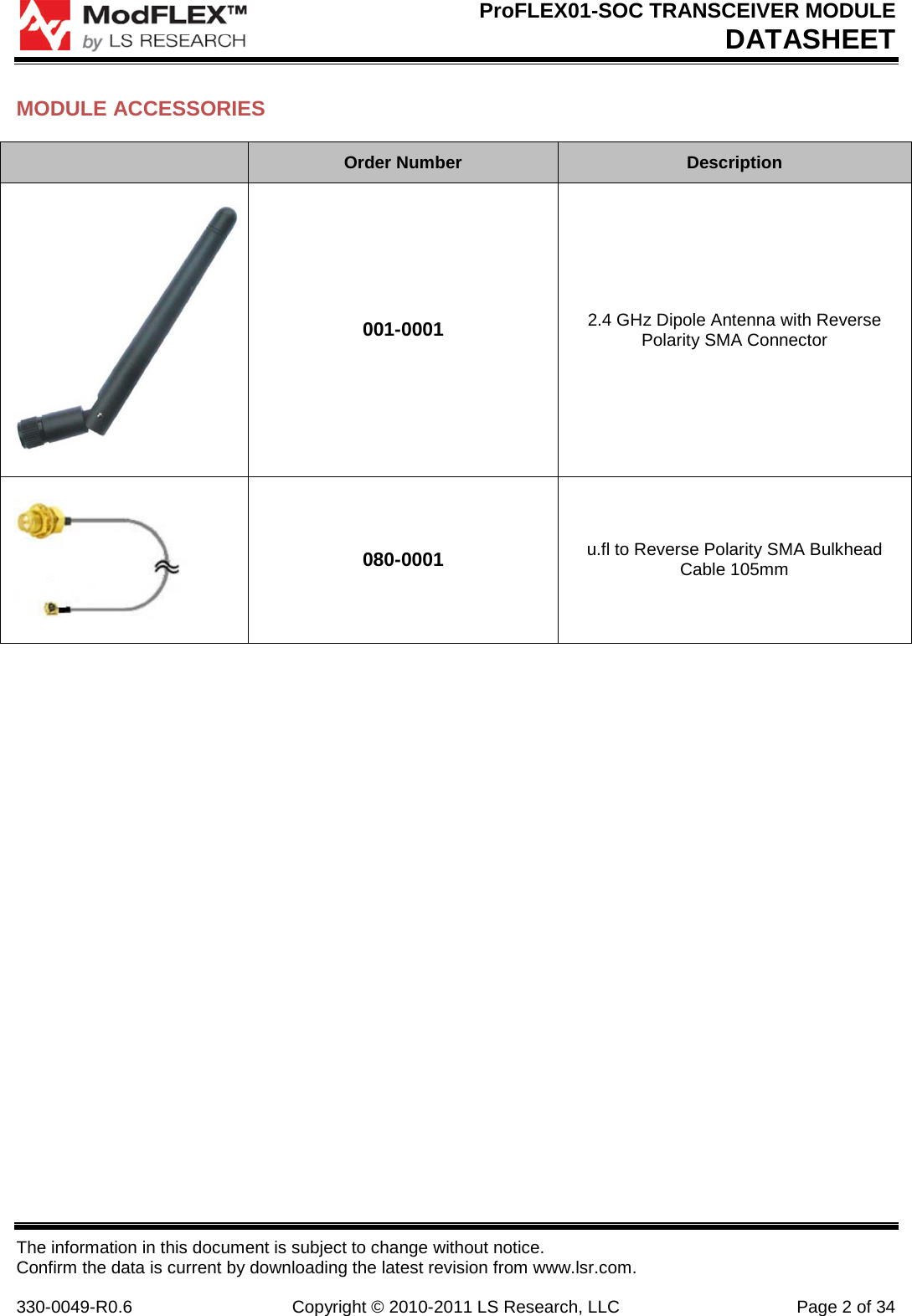

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 2 of 34 MODULE ACCESSORIES Order Number Description 001-0001 2.4 GHz Dipole Antenna with Reverse Polarity SMA Connector 080-0001 u.fl to Reverse Polarity SMA Bulkhead Cable 105mm

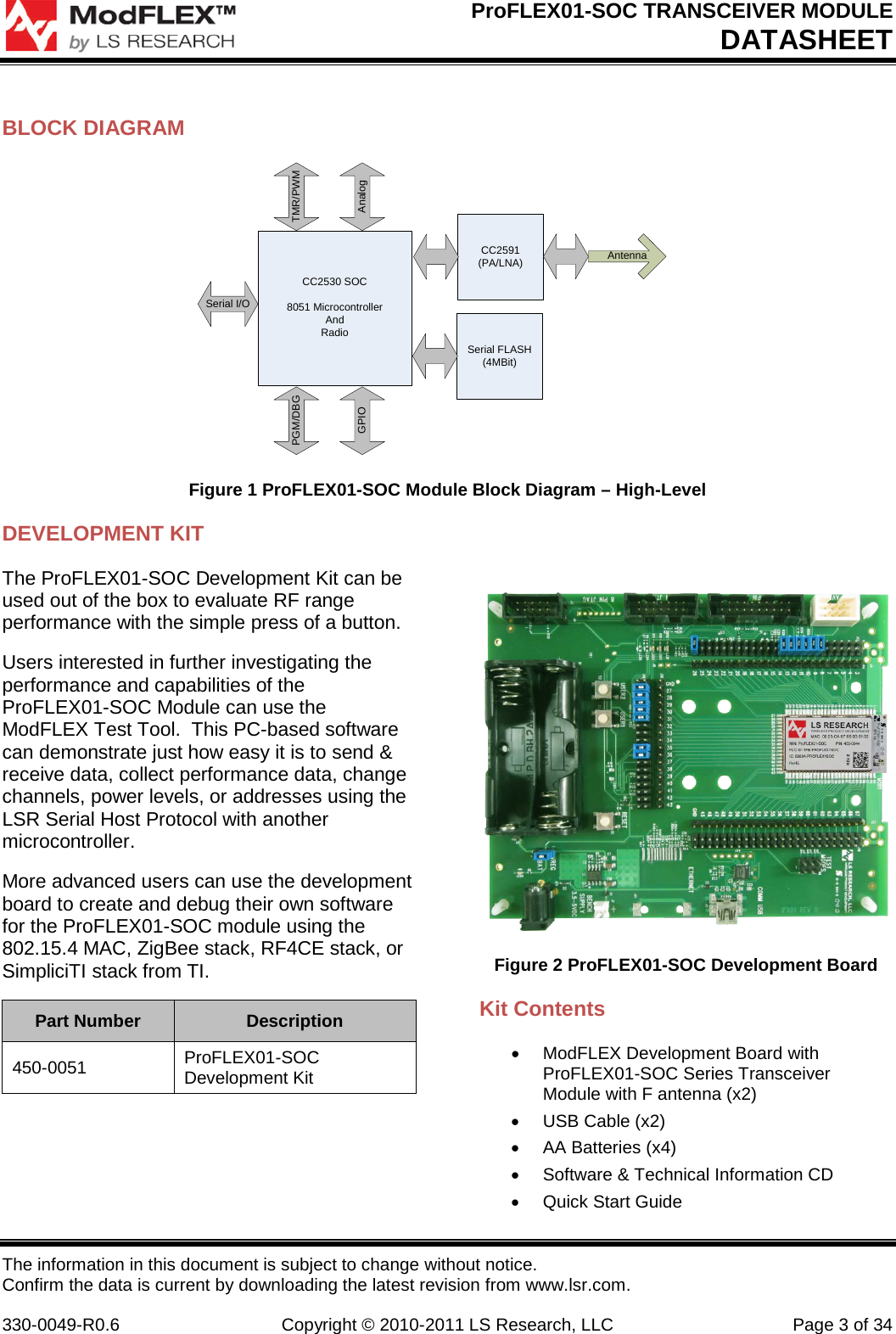

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 3 of 34 BLOCK DIAGRAM CC2530 SOC8051 MicrocontrollerAndRadioCC2591(PA/LNA) AntennaSerial I/OAnalogGPIOPGM/DBG TMR/PWMSerial FLASH(4MBit) Figure 1 ProFLEX01-SOC Module Block Diagram – High-Level DEVELOPMENT KITThe ProFLEX01-SOC Development Kit can be used out of the box to evaluate RF range performance with the simple press of a button. Users interested in further investigating the performance and capabilities of the ProFLEX01-SOC Module can use the ModFLEX Test Tool. This PC-based software can demonstrate just how easy it is to send & receive data, collect performance data, change channels, power levels, or addresses using the LSR Serial Host Protocol with another microcontroller. More advanced users can use the development board to create and debug their own software for the ProFLEX01-SOC module using the 802.15.4 MAC, ZigBee stack, RF4CE stack, or SimpliciTI stack from TI. Part Number Description 450-0051 ProFLEX01-SOC Development Kit Figure 2 ProFLEX01-SOC Development Board Kit Contents • ModFLEX Development Board with ProFLEX01-SOC Series Transceiver Module with F antenna (x2) • USB Cable (x2) • AA Batteries (x4) • Software & Technical Information CD • Quick Start Guide
ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 4 of 34 TABLE OF CONTENTS FEATURES .......................................................................................................................... 1 APPLICATIONS ................................................................................................................... 1 DESCRIPTION ..................................................................................................................... 1 ORDERING INFORMATION ................................................................................................ 1 MODULE ACCESSORIES ................................................................................................... 2 BLOCK DIAGRAM ............................................................................................................... 3 DEVELOPMENT KIT............................................................................................................ 3 Kit Contents ................................................................................................................................................. 3 MODULE PINOUT AND PIN DESCRIPTIONS .................................................................... 6 MODULE OVERVIEW ........................................................................................................ 10 SOC Microcontroller ................................................................................................................................. 10 SOC Radio.................................................................................................................................................. 10 PA/LNA ....................................................................................................................................................... 12 Antenna Options ....................................................................................................................................... 12 Serial FLASH Memory ............................................................................................................................... 13 MODES OF OPERATION .................................................................................................. 14 Host Microcontroller ................................................................................................................................. 14 Software Stacks ........................................................................................................................................ 15 DEVELOPMENT TOOLS ................................................................................................... 17 TI CC-DEBUGGER ..................................................................................................................................... 17 IAR Embedded Workbench for 8051 ....................................................................................................... 17 ELECTRICAL SPECIFICATIONS ...................................................................................... 18 Absolute Maximum Ratings ..................................................................................................................... 18 Recommended Operating Conditions .................................................................................................... 18 General Characteristics ............................................................................................................................ 19 RF Characteristics .................................................................................................................................... 20 SOLDERING RECOMMENDATIONS ................................................................................ 23 Recommended Reflow Profile for Lead Free Solder ............................................................................. 23 CLEANING ......................................................................................................................... 24
ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 5 of 34 OPTICAL INSPECTION ..................................................................................................... 24 REWORK ........................................................................................................................... 24 SHIPPING, HANDLING, AND STORAGE ......................................................................... 24 Shipping ..................................................................................................................................................... 24 Handling ..................................................................................................................................................... 24 Moisture Sensitivity Level (MSL) ............................................................................................................. 24 Storage ....................................................................................................................................................... 24 Repeating Reflow Soldering .................................................................................................................... 24 AGENCY STATEMENTS ................................................................................................... 25 MECHANICAL DATA......................................................................................................... 30 PCB Footprint ............................................................................................................................................ 30 General Module Dimensions .................................................................................................................... 31 COMPATIBILITY ................................................................................................................ 32 MODULE REVISION HISTORY ......................................................................................... 33 Rev A .......................................................................................................................................................... 33 CONTACTING LS RESEARCH ......................................................................................... 34

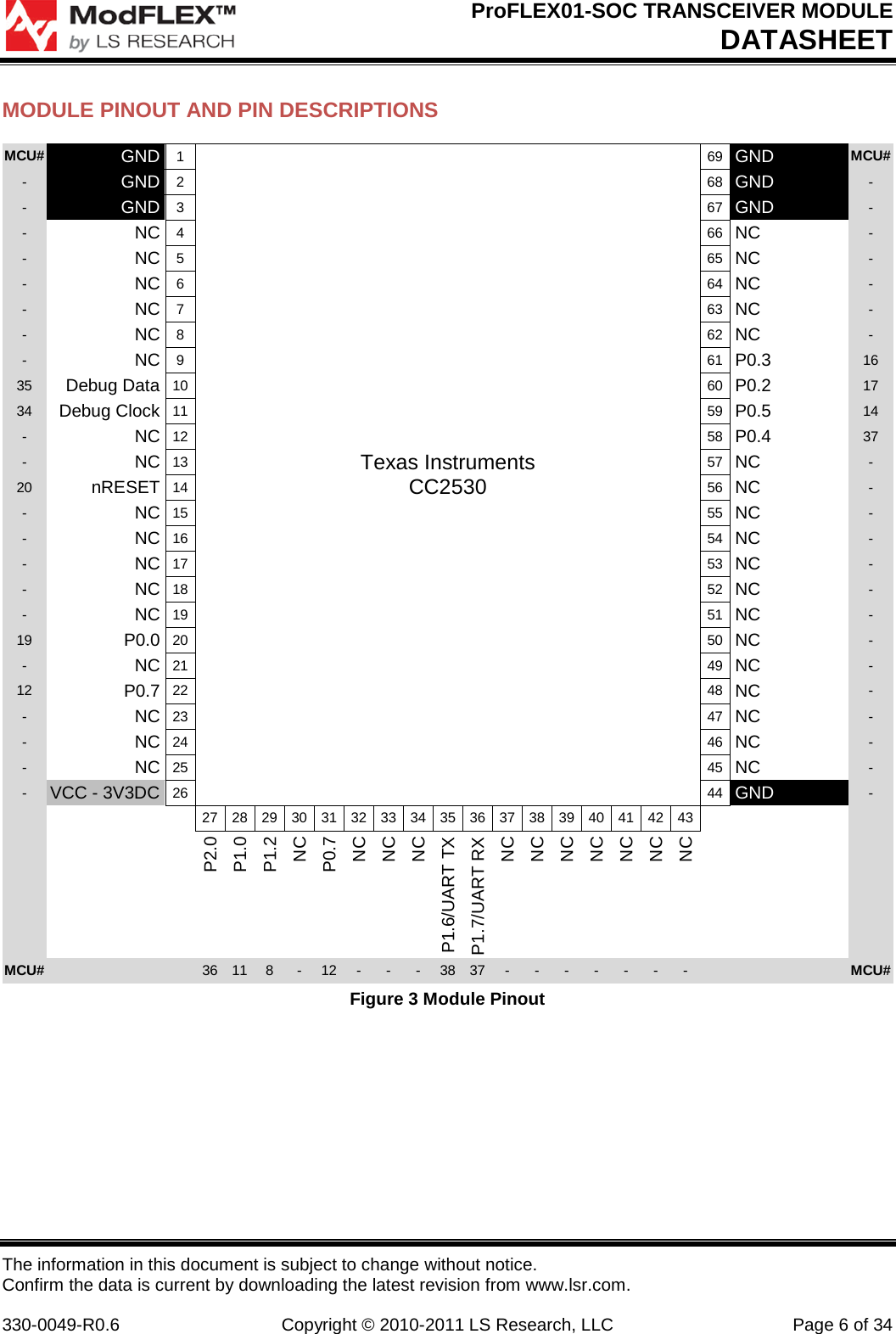

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 6 of 34 MODULE PINOUT AND PIN DESCRIPTIONS MCU# GND 1 Texas Instruments CC2530 69 GND MCU# - GND 2 68 GND - - GND 3 67 GND - - NC 4 66 NC - - NC 5 65 NC - - NC 6 64 NC - - NC 7 63 NC - - NC 8 62 NC - - NC 9 61 P0.3 16 35 Debug Data 10 60 P0.2 17 34 Debug Clock 11 59 P0.5 14 - NC 12 58 P0.4 37 - NC 13 57 NC - 20 nRESET 14 56 NC - - NC 15 55 NC - - NC 16 54 NC - - NC 17 53 NC - - NC 18 52 NC - - NC 19 51 NC - 19 P0.0 20 50 NC - - NC 21 49 NC - 12 P0.7 22 48 NC - - NC 23 47 NC - - NC 24 46 NC - - NC 25 45 NC - - VCC - 3V3DC 26 44 GND - 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 P2.0 P1.0 P1.2 NC P0.7 NC NC NC P1.6/UART TX P1.7/UART RX NC NC NC NC NC NC NC MCU# 36 11 8 - 12 - - - 38 37 - - - - - - - MCU# Figure 3 Module Pinout

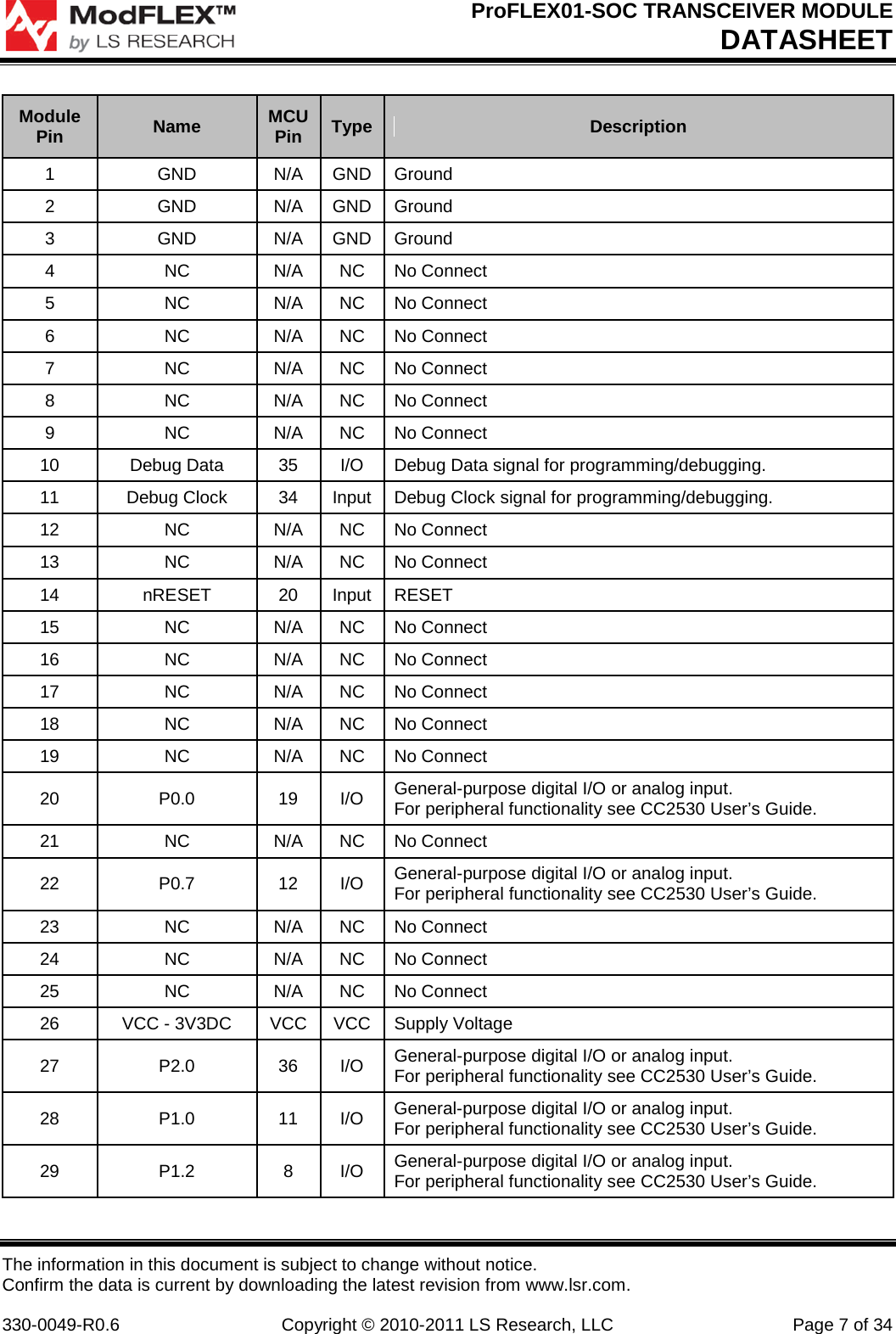

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 7 of 34 Module Pin Name MCU Pin Type Description 1 GND N/A GND Ground 2 GND N/A GND Ground 3 GND N/A GND Ground 4 NC N/A NC No Connect 5 NC N/A NC No Connect 6 NC N/A NC No Connect 7 NC N/A NC No Connect 8 NC N/A NC No Connect 9 NC N/A NC No Connect 10 Debug Data 35 I/O Debug Data signal for programming/debugging. 11 Debug Clock 34 Input Debug Clock signal for programming/debugging. 12 NC N/A NC No Connect 13 NC N/A NC No Connect 14 nRESET 20 Input RESET 15 NC N/A NC No Connect 16 NC N/A NC No Connect 17 NC N/A NC No Connect 18 NC N/A NC No Connect 19 NC N/A NC No Connect 20 P0.0 19 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 21 NC N/A NC No Connect 22 P0.7 12 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 23 NC N/A NC No Connect 24 NC N/A NC No Connect 25 NC N/A NC No Connect 26 VCC - 3V3DC VCC VCC Supply Voltage 27 P2.0 36 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 28 P1.0 11 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 29 P1.2 8 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide.

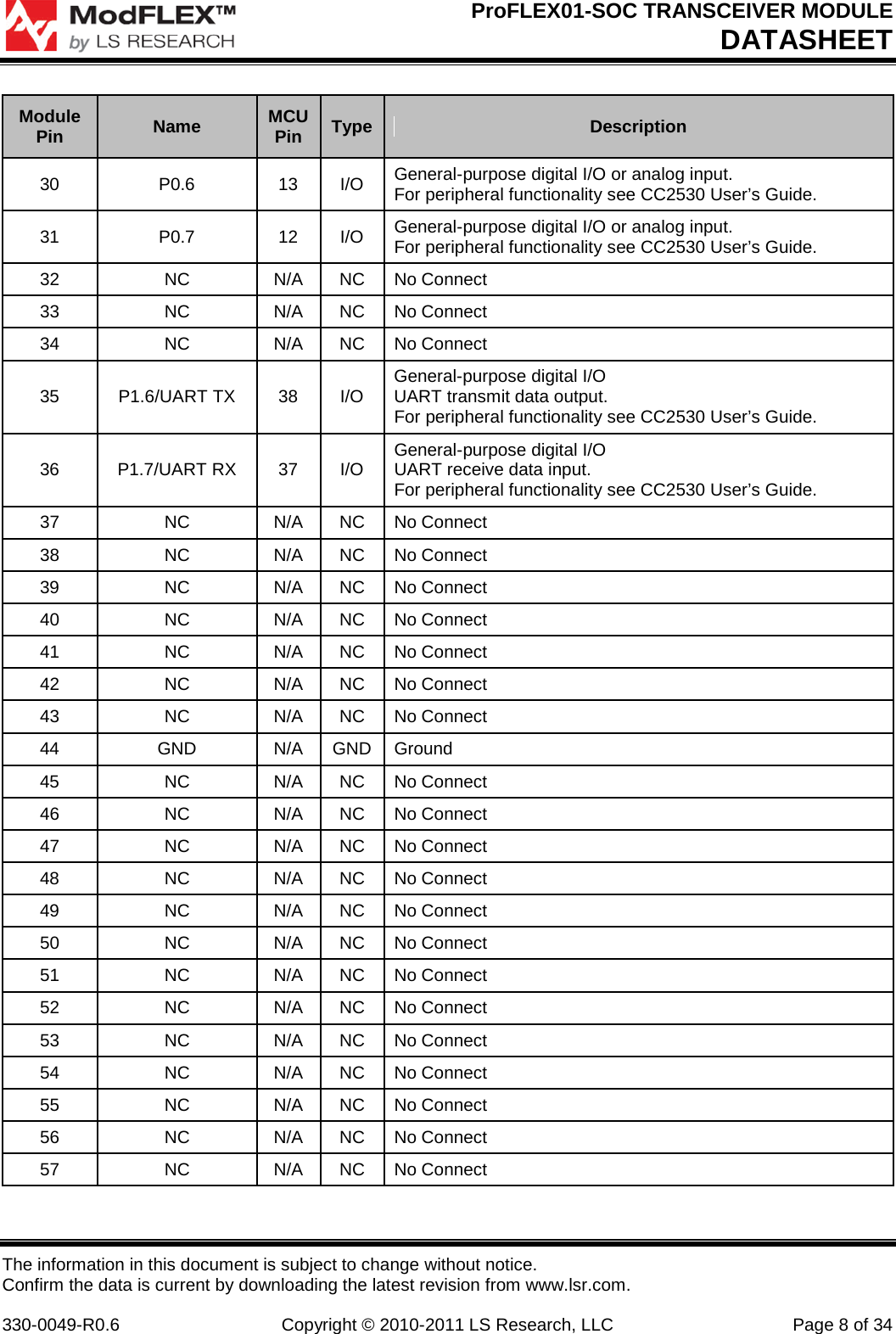

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 8 of 34 Module Pin Name MCU Pin Type Description 30 P0.6 13 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 31 P0.7 12 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 32 NC N/A NC No Connect 33 NC N/A NC No Connect 34 NC N/A NC No Connect 35 P1.6/UART TX 38 I/O General-purpose digital I/O UART transmit data output. For peripheral functionality see CC2530 User’s Guide. 36 P1.7/UART RX 37 I/O General-purpose digital I/O UART receive data input. For peripheral functionality see CC2530 User’s Guide. 37 NC N/A NC No Connect 38 NC N/A NC No Connect 39 NC N/A NC No Connect 40 NC N/A NC No Connect 41 NC N/A NC No Connect 42 NC N/A NC No Connect 43 NC N/A NC No Connect 44 GND N/A GND Ground 45 NC N/A NC No Connect 46 NC N/A NC No Connect 47 NC N/A NC No Connect 48 NC N/A NC No Connect 49 NC N/A NC No Connect 50 NC N/A NC No Connect 51 NC N/A NC No Connect 52 NC N/A NC No Connect 53 NC N/A NC No Connect 54 NC N/A NC No Connect 55 NC N/A NC No Connect 56 NC N/A NC No Connect 57 NC N/A NC No Connect

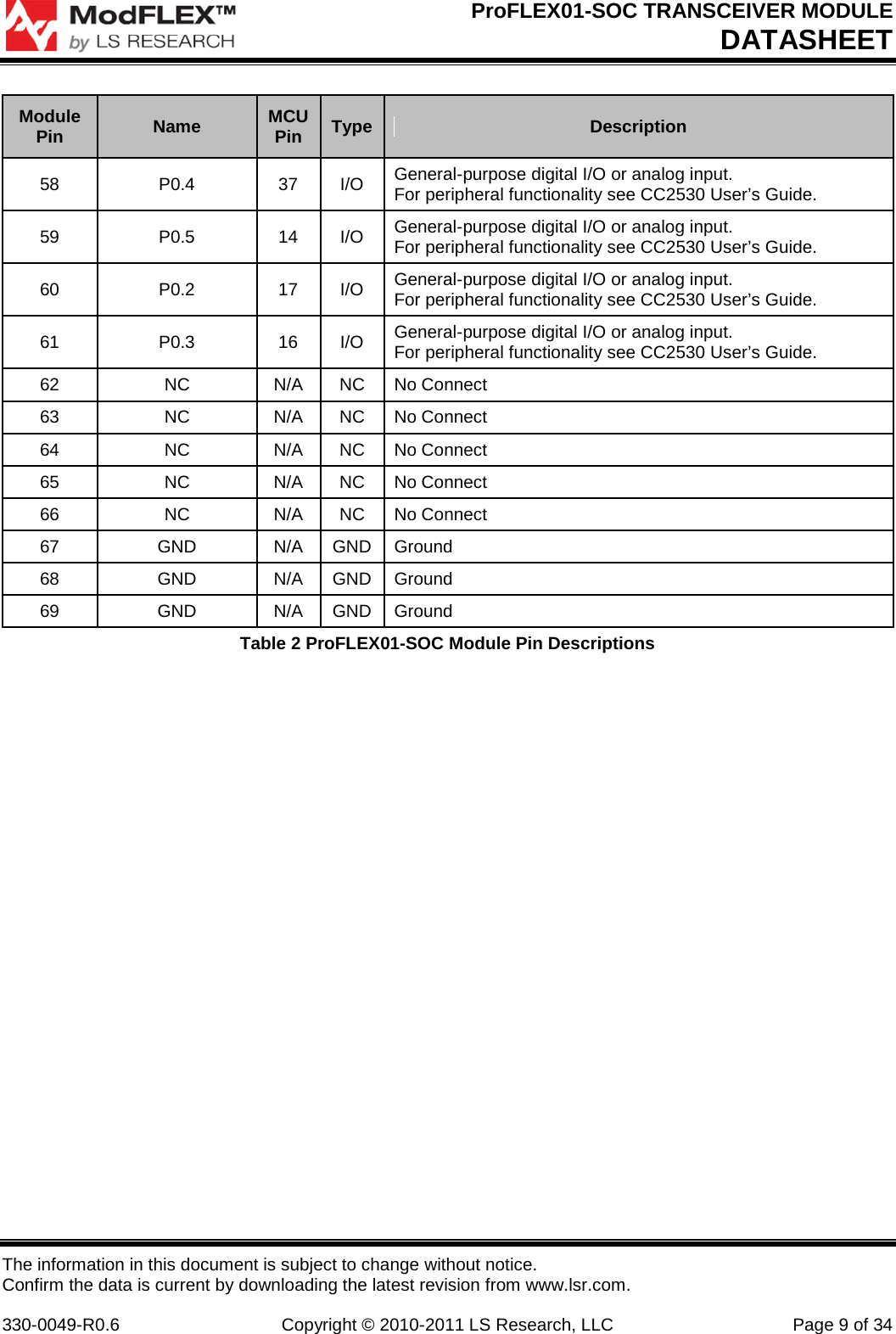

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 9 of 34 Module Pin Name MCU Pin Type Description 58 P0.4 37 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 59 P0.5 14 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 60 P0.2 17 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 61 P0.3 16 I/O General-purpose digital I/O or analog input. For peripheral functionality see CC2530 User’s Guide. 62 NC N/A NC No Connect 63 NC N/A NC No Connect 64 NC N/A NC No Connect 65 NC N/A NC No Connect 66 NC N/A NC No Connect 67 GND N/A GND Ground 68 GND N/A GND Ground 69 GND N/A GND Ground Table 2 ProFLEX01-SOC Module Pin Descriptions

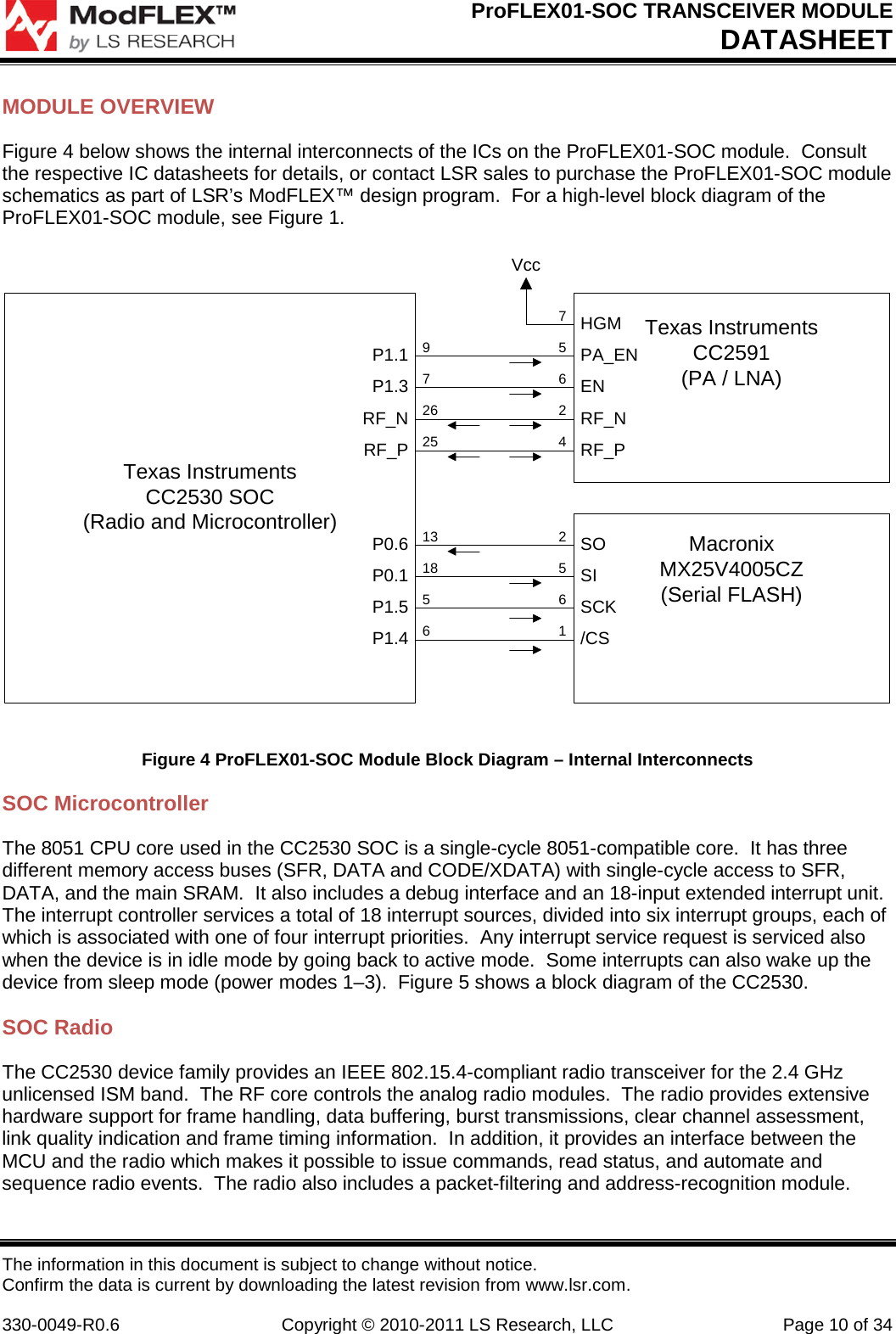

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 10 of 34 MODULE OVERVIEW Figure 4 below shows the internal interconnects of the ICs on the ProFLEX01-SOC module. Consult the respective IC datasheets for details, or contact LSR sales to purchase the ProFLEX01-SOC module schematics as part of LSR’s ModFLEX™ design program. For a high-level block diagram of the ProFLEX01-SOC module, see Figure 1. Texas InstrumentsCC2530 SOC(Radio and Microcontroller)Texas InstrumentsCC2591(PA / LNA)MacronixMX25V4005CZ(Serial FLASH)SOSISCK/CSP0.6P0.1P1.5P1.4PA_ENENP1.1P1.3HGMVccRF_NRF_PRF_NRF_P972625131856256156247 Figure 4 ProFLEX01-SOC Module Block Diagram – Internal Interconnects SOC Microcontroller The 8051 CPU core used in the CC2530 SOC is a single-cycle 8051-compatible core. It has three different memory access buses (SFR, DATA and CODE/XDATA) with single-cycle access to SFR, DATA, and the main SRAM. It also includes a debug interface and an 18-input extended interrupt unit. The interrupt controller services a total of 18 interrupt sources, divided into six interrupt groups, each of which is associated with one of four interrupt priorities. Any interrupt service request is serviced also when the device is in idle mode by going back to active mode. Some interrupts can also wake up the device from sleep mode (power modes 1–3). Figure 5 shows a block diagram of the CC2530. SOC Radio The CC2530 device family provides an IEEE 802.15.4-compliant radio transceiver for the 2.4 GHz unlicensed ISM band. The RF core controls the analog radio modules. The radio provides extensive hardware support for frame handling, data buffering, burst transmissions, clear channel assessment, link quality indication and frame timing information. In addition, it provides an interface between the MCU and the radio which makes it possible to issue commands, read status, and automate and sequence radio events. The radio also includes a packet-filtering and address-recognition module.

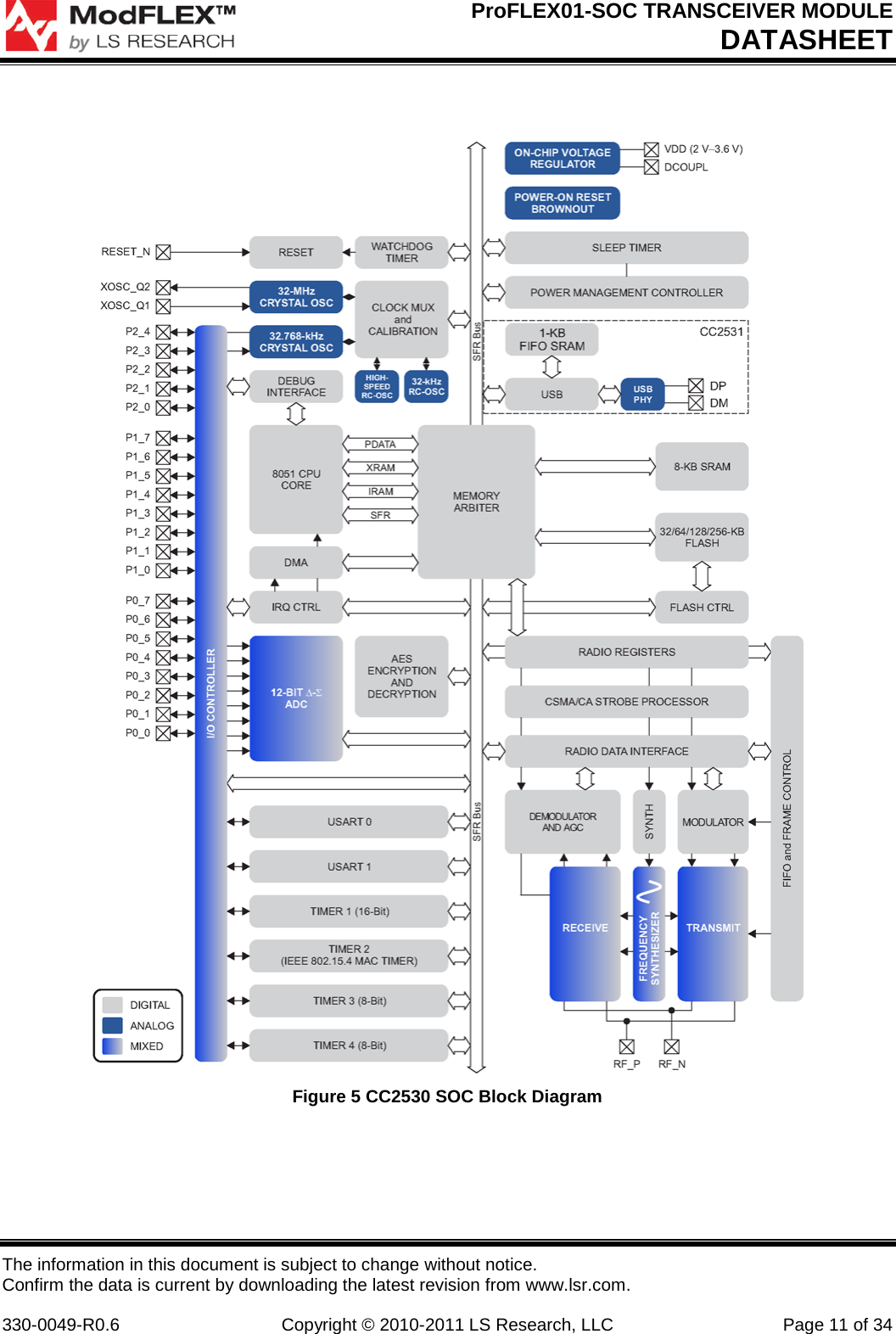

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 11 of 34 Figure 5 CC2530 SOC Block Diagram

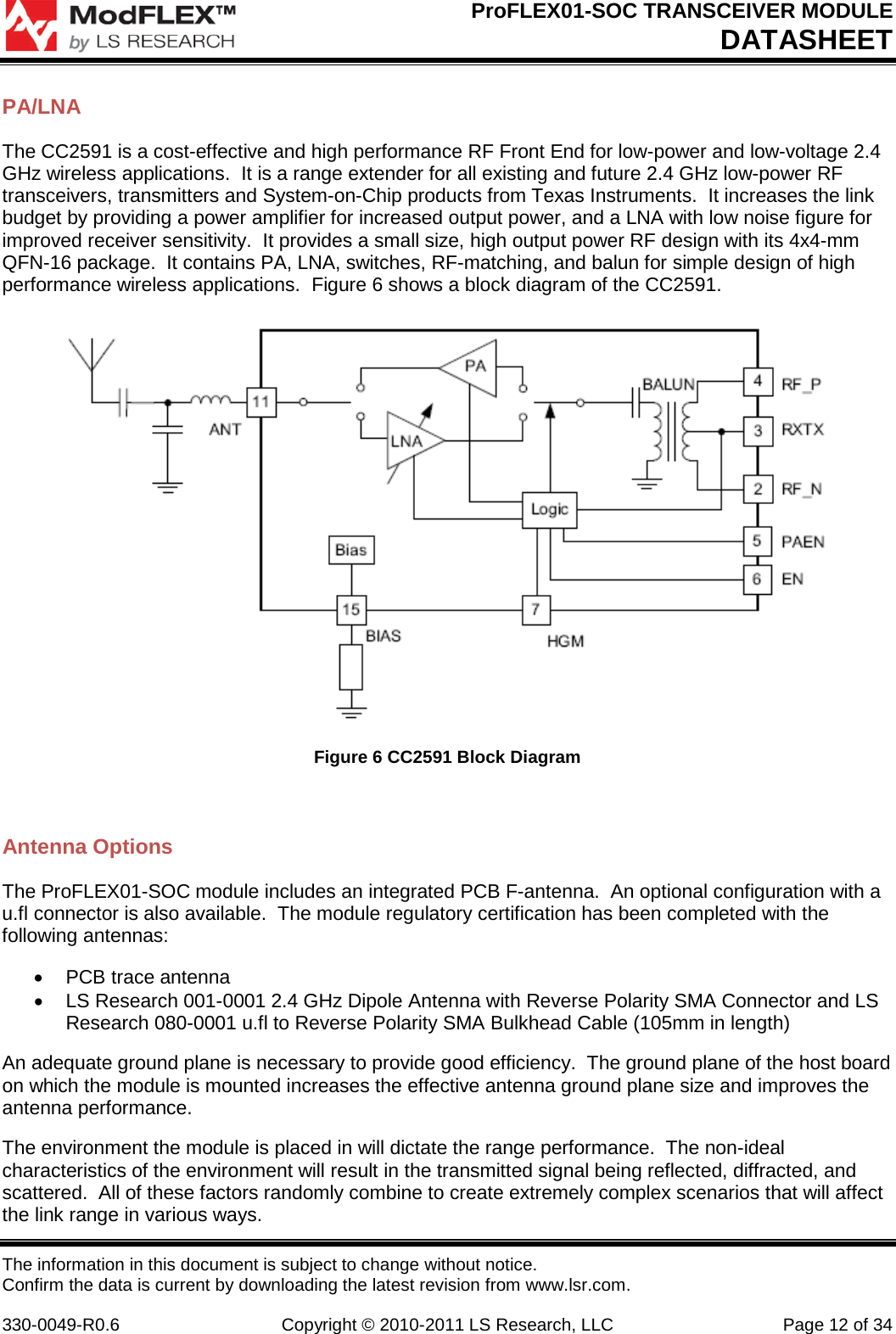

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 12 of 34 PA/LNA The CC2591 is a cost-effective and high performance RF Front End for low-power and low-voltage 2.4 GHz wireless applications. It is a range extender for all existing and future 2.4 GHz low-power RF transceivers, transmitters and System-on-Chip products from Texas Instruments. It increases the link budget by providing a power amplifier for increased output power, and a LNA with low noise figure for improved receiver sensitivity. It provides a small size, high output power RF design with its 4x4-mm QFN-16 package. It contains PA, LNA, switches, RF-matching, and balun for simple design of high performance wireless applications. Figure 6 shows a block diagram of the CC2591. Figure 6 CC2591 Block Diagram Antenna Options The ProFLEX01-SOC module includes an integrated PCB F-antenna. An optional configuration with a u.fl connector is also available. The module regulatory certification has been completed with the following antennas: • PCB trace antenna • LS Research 001-0001 2.4 GHz Dipole Antenna with Reverse Polarity SMA Connector and LS Research 080-0001 u.fl to Reverse Polarity SMA Bulkhead Cable (105mm in length) An adequate ground plane is necessary to provide good efficiency. The ground plane of the host board on which the module is mounted increases the effective antenna ground plane size and improves the antenna performance. The environment the module is placed in will dictate the range performance. The non-ideal characteristics of the environment will result in the transmitted signal being reflected, diffracted, and scattered. All of these factors randomly combine to create extremely complex scenarios that will affect the link range in various ways.

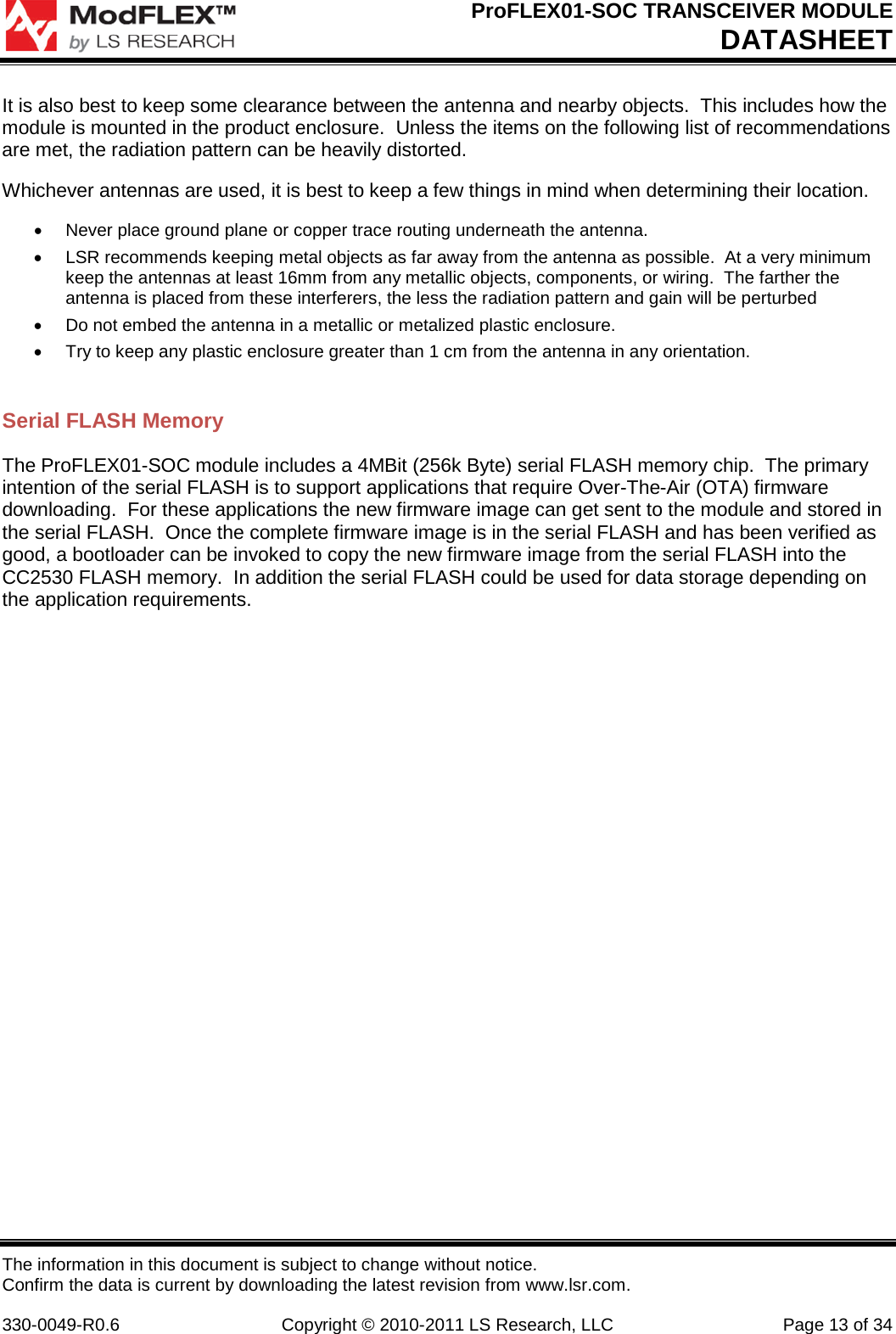

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 13 of 34 It is also best to keep some clearance between the antenna and nearby objects. This includes how the module is mounted in the product enclosure. Unless the items on the following list of recommendations are met, the radiation pattern can be heavily distorted. Whichever antennas are used, it is best to keep a few things in mind when determining their location. • Never place ground plane or copper trace routing underneath the antenna. • LSR recommends keeping metal objects as far away from the antenna as possible. At a very minimum keep the antennas at least 16mm from any metallic objects, components, or wiring. The farther the antenna is placed from these interferers, the less the radiation pattern and gain will be perturbed • Do not embed the antenna in a metallic or metalized plastic enclosure. • Try to keep any plastic enclosure greater than 1 cm from the antenna in any orientation. Serial FLASH Memory The ProFLEX01-SOC module includes a 4MBit (256k Byte) serial FLASH memory chip. The primary intention of the serial FLASH is to support applications that require Over-The-Air (OTA) firmware downloading. For these applications the new firmware image can get sent to the module and stored in the serial FLASH. Once the complete firmware image is in the serial FLASH and has been verified as good, a bootloader can be invoked to copy the new firmware image from the serial FLASH into the CC2530 FLASH memory. In addition the serial FLASH could be used for data storage depending on the application requirements.

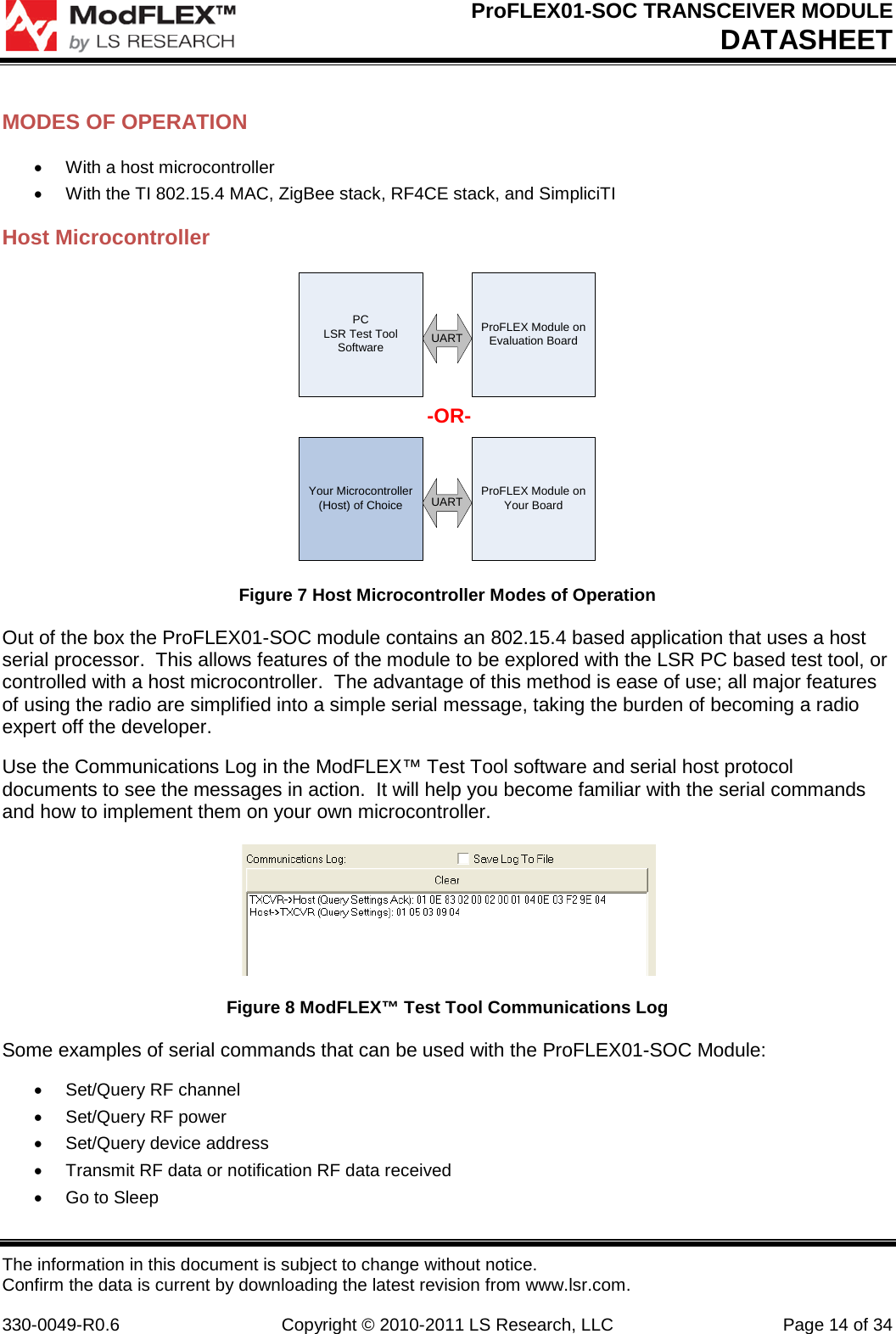

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 14 of 34 MODES OF OPERATION • With a host microcontroller • With the TI 802.15.4 MAC, ZigBee stack, RF4CE stack, and SimpliciTI Host Microcontroller ProFLEX Module on Evaluation BoardUARTPCLSR Test Tool SoftwareProFLEX Module on Your BoardYour Microcontroller (Host) of Choice UART-OR- Figure 7 Host Microcontroller Modes of Operation Out of the box the ProFLEX01-SOC module contains an 802.15.4 based application that uses a host serial processor. This allows features of the module to be explored with the LSR PC based test tool, or controlled with a host microcontroller. The advantage of this method is ease of use; all major features of using the radio are simplified into a simple serial message, taking the burden of becoming a radio expert off the developer. Use the Communications Log in the ModFLEX™ Test Tool software and serial host protocol documents to see the messages in action. It will help you become familiar with the serial commands and how to implement them on your own microcontroller. Figure 8 ModFLEX™ Test Tool Communications Log Some examples of serial commands that can be used with the ProFLEX01-SOC Module: • Set/Query RF channel • Set/Query RF power • Set/Query device address • Transmit RF data or notification RF data received • Go to Sleep

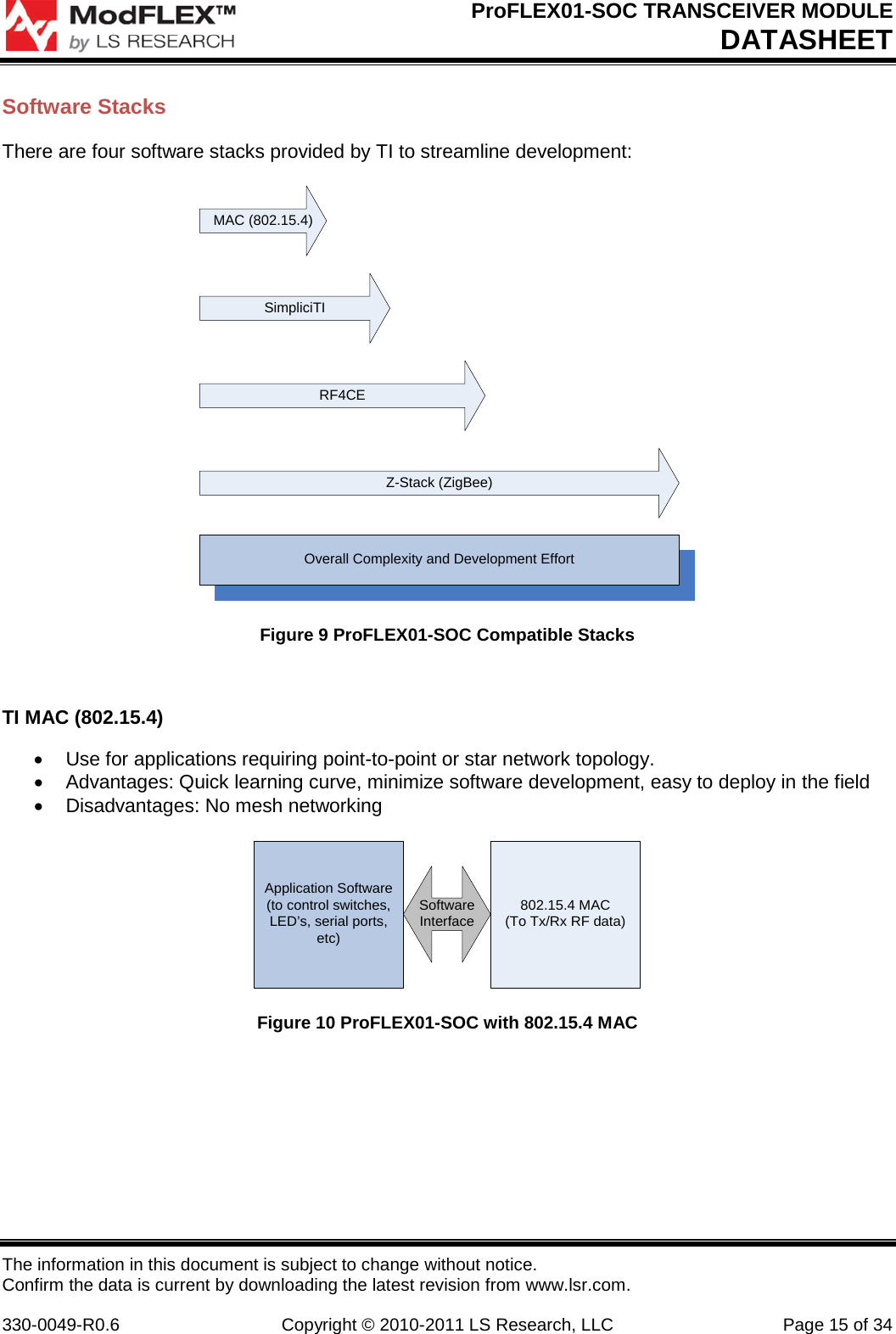

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 15 of 34 Software Stacks There are four software stacks provided by TI to streamline development: MAC (802.15.4)Z-Stack (ZigBee)Overall Complexity and Development EffortRF4CESimpliciTI Figure 9 ProFLEX01-SOC Compatible Stacks TI MAC (802.15.4) • Use for applications requiring point-to-point or star network topology. • Advantages: Quick learning curve, minimize software development, easy to deploy in the field • Disadvantages: No mesh networking 802.15.4 MAC(To Tx/Rx RF data)Application Software(to control switches, LED’s, serial ports, etc)Software Interface Figure 10 ProFLEX01-SOC with 802.15.4 MAC

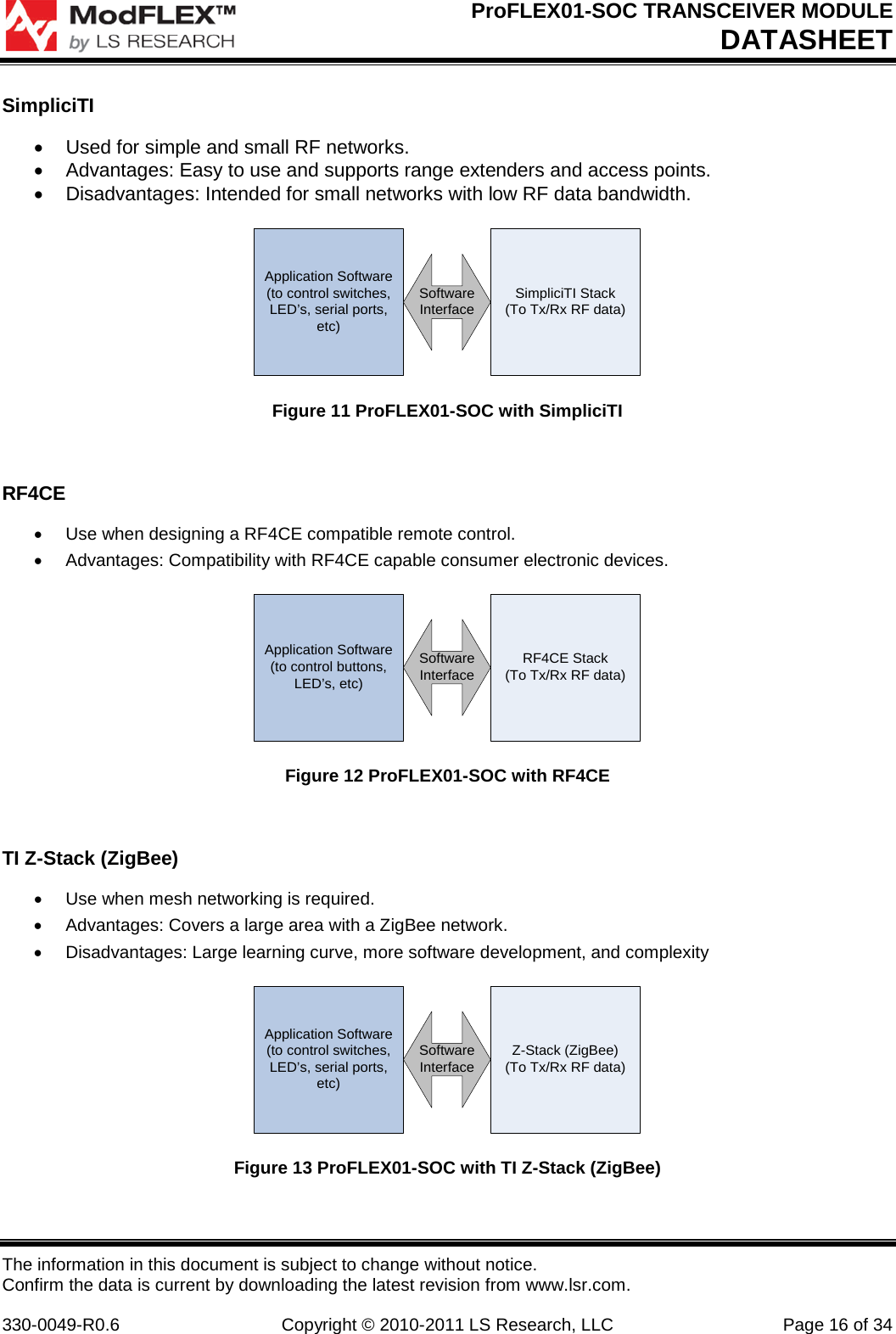

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 16 of 34 SimpliciTI • Used for simple and small RF networks. • Advantages: Easy to use and supports range extenders and access points. • Disadvantages: Intended for small networks with low RF data bandwidth. SimpliciTI Stack(To Tx/Rx RF data)Application Software(to control switches, LED’s, serial ports, etc)Software Interface Figure 11 ProFLEX01-SOC with SimpliciTI RF4CE • Use when designing a RF4CE compatible remote control. • Advantages: Compatibility with RF4CE capable consumer electronic devices. RF4CE Stack(To Tx/Rx RF data)Application Software(to control buttons, LED’s, etc)Software Interface Figure 12 ProFLEX01-SOC with RF4CE TI Z-Stack (ZigBee) • Use when mesh networking is required. • Advantages: Covers a large area with a ZigBee network. • Disadvantages: Large learning curve, more software development, and complexity Application Software(to control switches, LED’s, serial ports, etc)Software Interface Z-Stack (ZigBee)(To Tx/Rx RF data) Figure 13 ProFLEX01-SOC with TI Z-Stack (ZigBee)

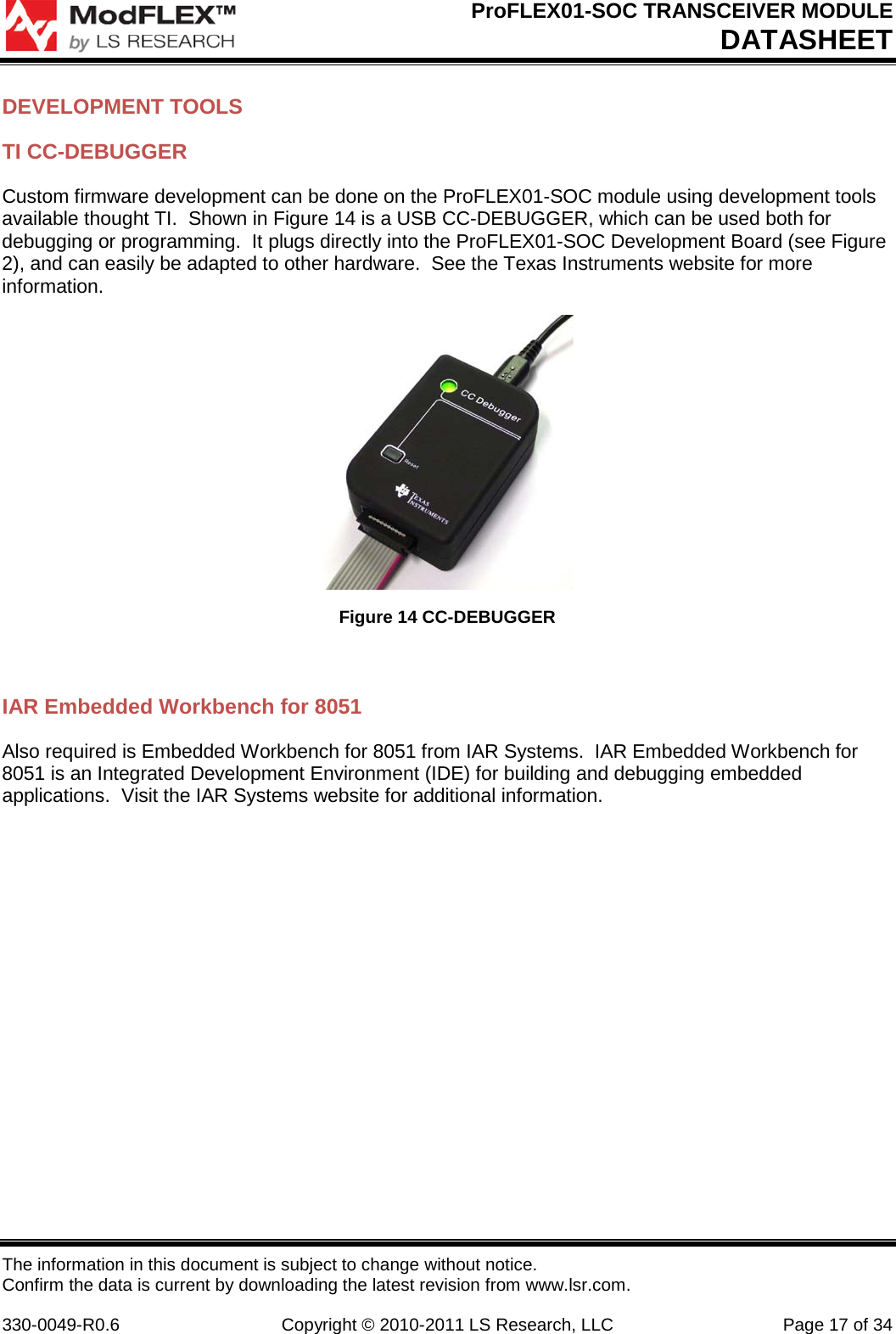

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 17 of 34 DEVELOPMENT TOOLS TI CC-DEBUGGER Custom firmware development can be done on the ProFLEX01-SOC module using development tools available thought TI. Shown in Figure 14 is a USB CC-DEBUGGER, which can be used both for debugging or programming. It plugs directly into the ProFLEX01-SOC Development Board (see Figure 2), and can easily be adapted to other hardware. See the Texas Instruments website for more information. Figure 14 CC-DEBUGGER IAR Embedded Workbench for 8051 Also required is Embedded Workbench for 8051 from IAR Systems. IAR Embedded Workbench for 8051 is an Integrated Development Environment (IDE) for building and debugging embedded applications. Visit the IAR Systems website for additional information.

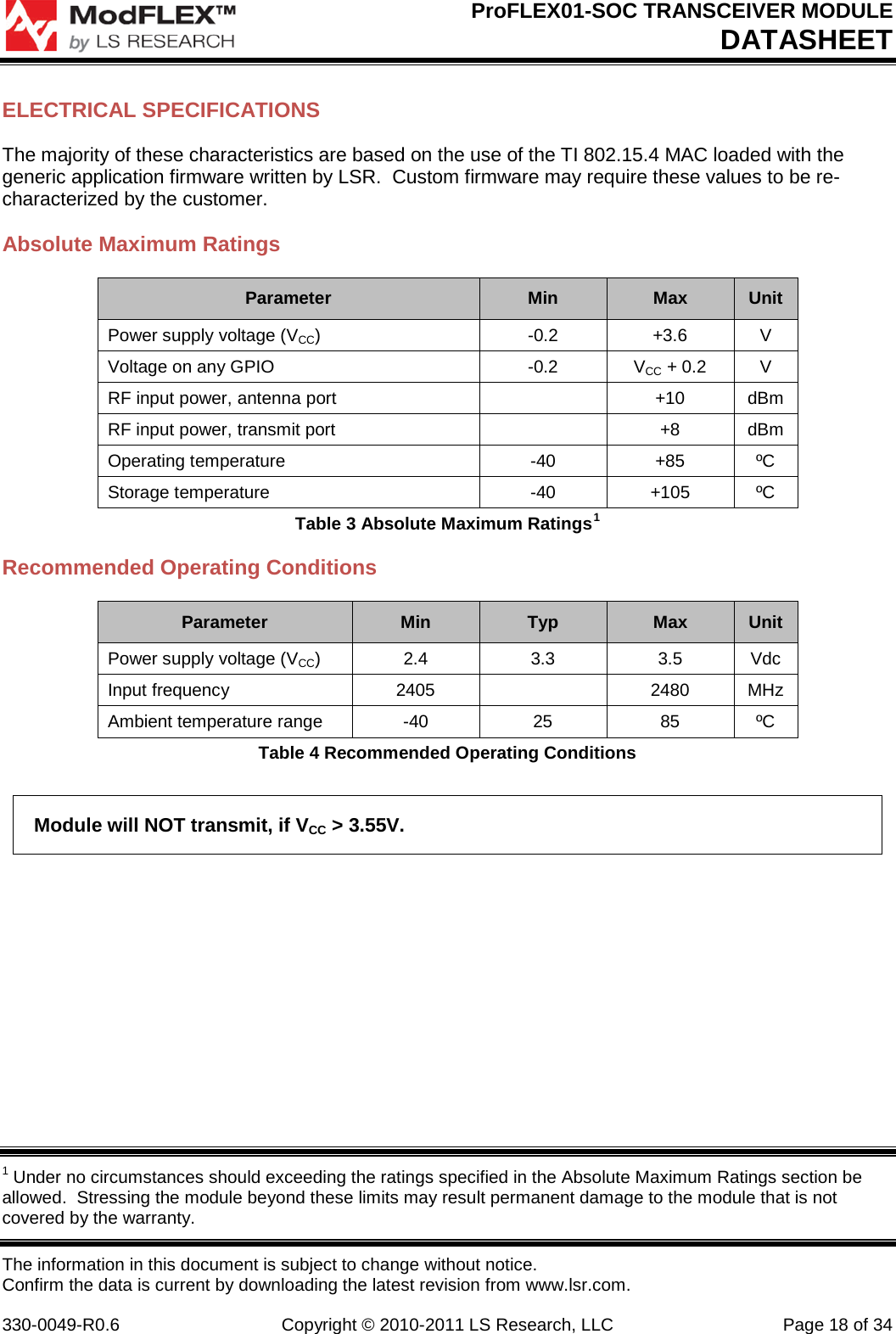

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 18 of 34 ELECTRICAL SPECIFICATIONS The majority of these characteristics are based on the use of the TI 802.15.4 MAC loaded with the generic application firmware written by LSR. Custom firmware may require these values to be re-characterized by the customer. Absolute Maximum Ratings Parameter Min Max Unit Power supply voltage (VCC) -0.2 +3.6 V Voltage on any GPIO -0.2 VCC + 0.2 V RF input power, antenna port +10 dBm RF input power, transmit port +8 dBm Operating temperature -40 +85 ºC Storage temperature -40 +105 ºC Table 3 Absolute Maximum Ratings1Recommended Operating Conditions Parameter Min Typ Max Unit Power supply voltage (VCC) 2.4 3.3 3.5 Vdc Input frequency 2405 2480 MHz Ambient temperature range -40 25 85 ºC Table 4 Recommended Operating Conditions Module will NOT transmit, if VCC > 3.55V. 1 Under no circumstances should exceeding the ratings specified in the Absolute Maximum Ratings section be allowed. Stressing the module beyond these limits may result permanent damage to the module that is not covered by the warranty.

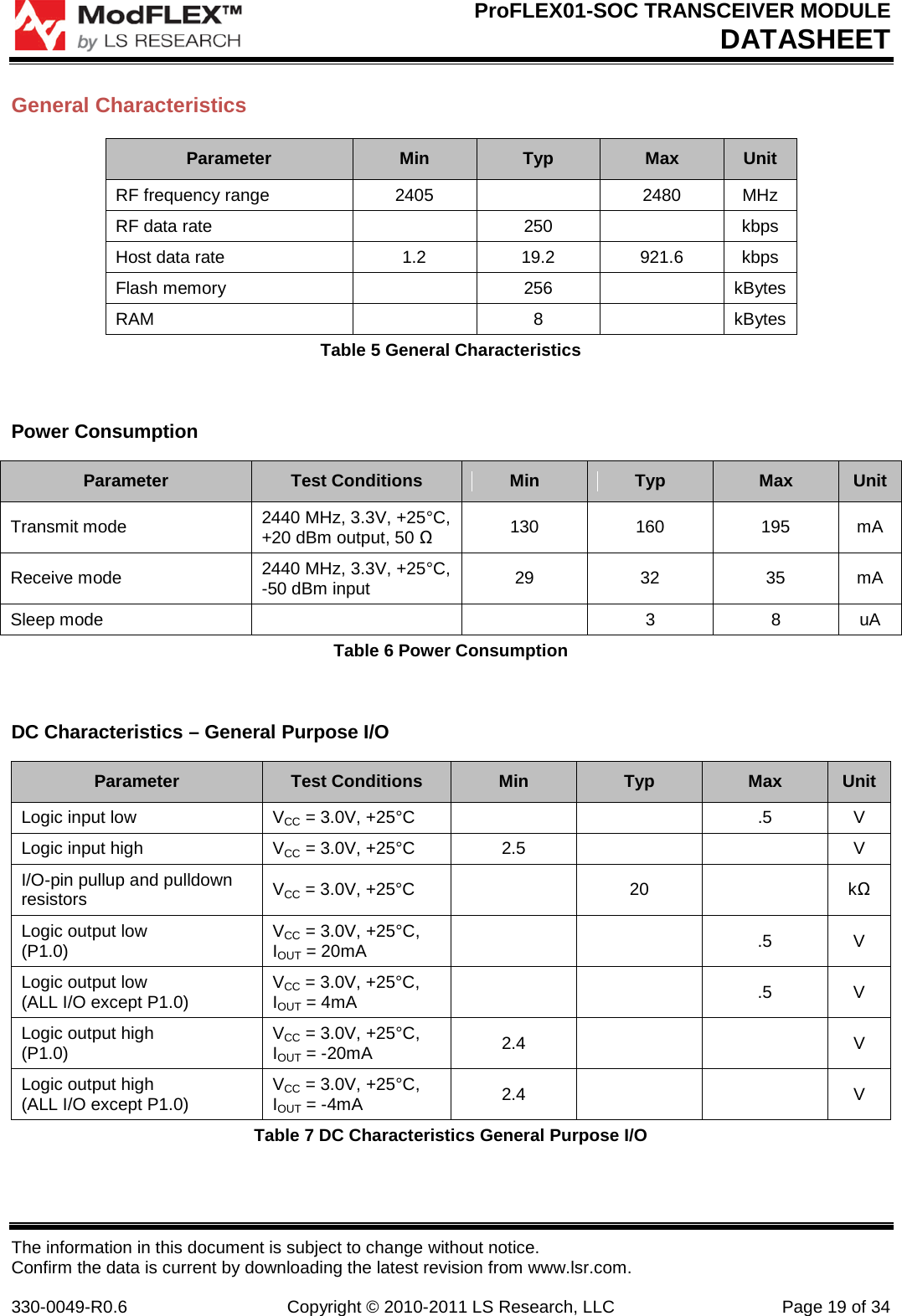

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 19 of 34 General Characteristics Parameter Min Typ Max Unit RF frequency range 2405 2480 MHz RF data rate 250 kbps Host data rate 1.2 19.2 921.6 kbps Flash memory 256 kBytes RAM 8 kBytes Table 5 General Characteristics Power Consumption Parameter Test Conditions Min Typ Max Unit Transmit mode 2440 MHz, 3.3V, +25°C, +20 dBm output, 50 Ω 130 160 195 mA Receive mode 2440 MHz, 3.3V, +25°C, -50 dBm input 29 32 35 mA Sleep mode 3 8 uA Table 6 Power Consumption DC Characteristics – General Purpose I/O Parameter Test Conditions Min Typ Max Unit Logic input low VCC = 3.0V, +25°C .5 V Logic input high VCC = 3.0V, +25°C 2.5 V I/O-pin pullup and pulldown resistors VCC = 3.0V, +25°C 20 kΩ Logic output low (P1.0) VCC = 3.0V, +25°C, IOUT = 20mA .5 V Logic output low (ALL I/O except P1.0) VCC = 3.0V, +25°C, IOUT = 4mA .5 V Logic output high (P1.0) VCC = 3.0V, +25°C, IOUT = -20mA 2.4 V Logic output high (ALL I/O except P1.0) VCC = 3.0V, +25°C, IOUT = -4mA 2.4 V Table 7 DC Characteristics General Purpose I/O

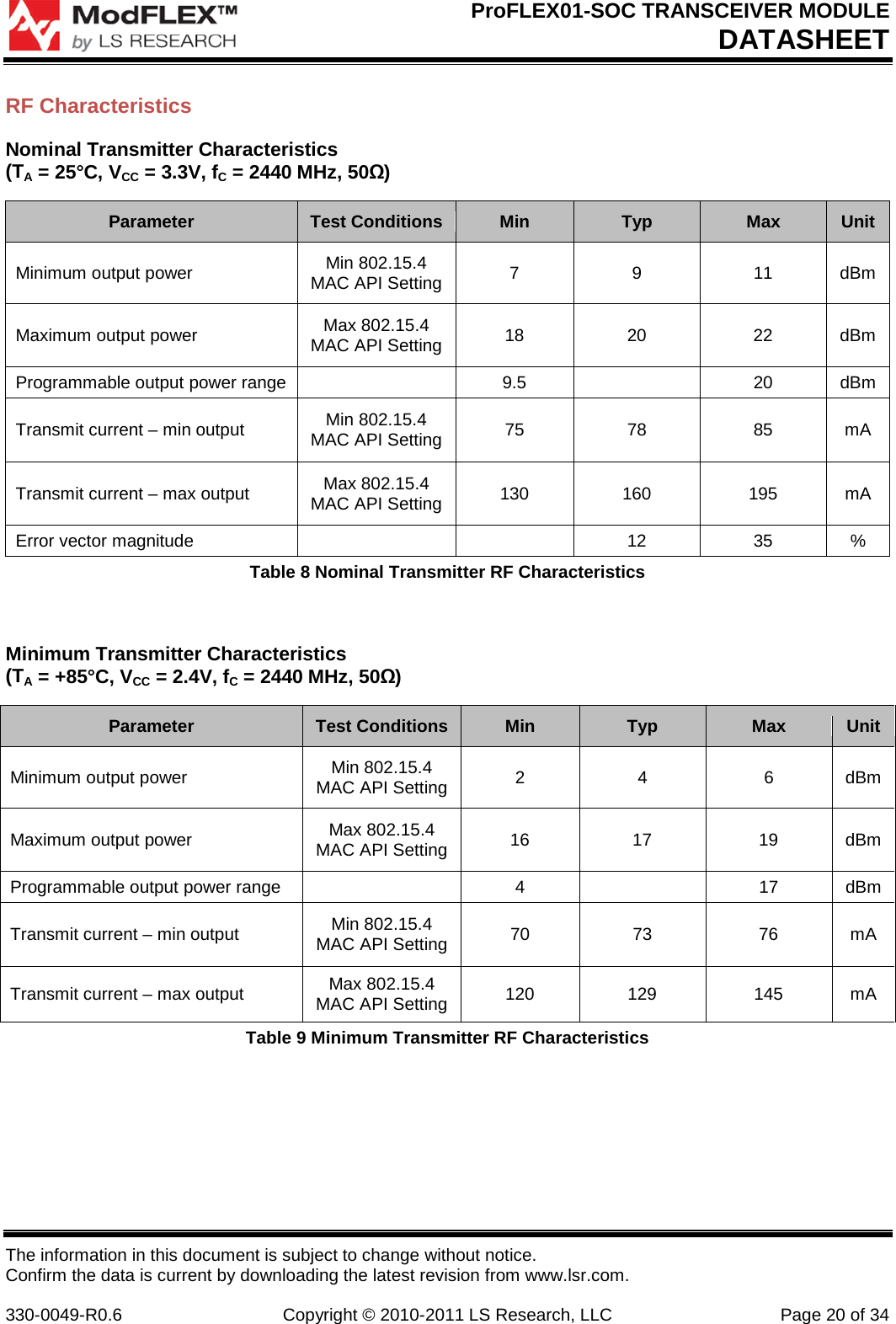

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 20 of 34 RF Characteristics Nominal Transmitter Characteristics (TA = 25°C, VCC = 3.3V, fC = 2440 MHz, 50Ω) Parameter Test Conditions Min Typ Max Unit Minimum output power Min 802.15.4 MAC API Setting 7 9 11 dBm Maximum output power Max 802.15.4 MAC API Setting 18 20 22 dBm Programmable output power range 9.5 20 dBm Transmit current – min output Min 802.15.4 MAC API Setting 75 78 85 mA Transmit current – max output Max 802.15.4 MAC API Setting 130 160 195 mA Error vector magnitude 12 35 % Table 8 Nominal Transmitter RF Characteristics Minimum Transmitter Characteristics (TA = +85°C, VCC = 2.4V, fC = 2440 MHz, 50Ω) Parameter Test Conditions Min Typ Max Unit Minimum output power Min 802.15.4 MAC API Setting 2 4 6 dBm Maximum output power Max 802.15.4 MAC API Setting 16 17 19 dBm Programmable output power range 4 17 dBm Transmit current – min output Min 802.15.4 MAC API Setting 70 73 76 mA Transmit current – max output Max 802.15.4 MAC API Setting 120 129 145 mA Table 9 Minimum Transmitter RF Characteristics

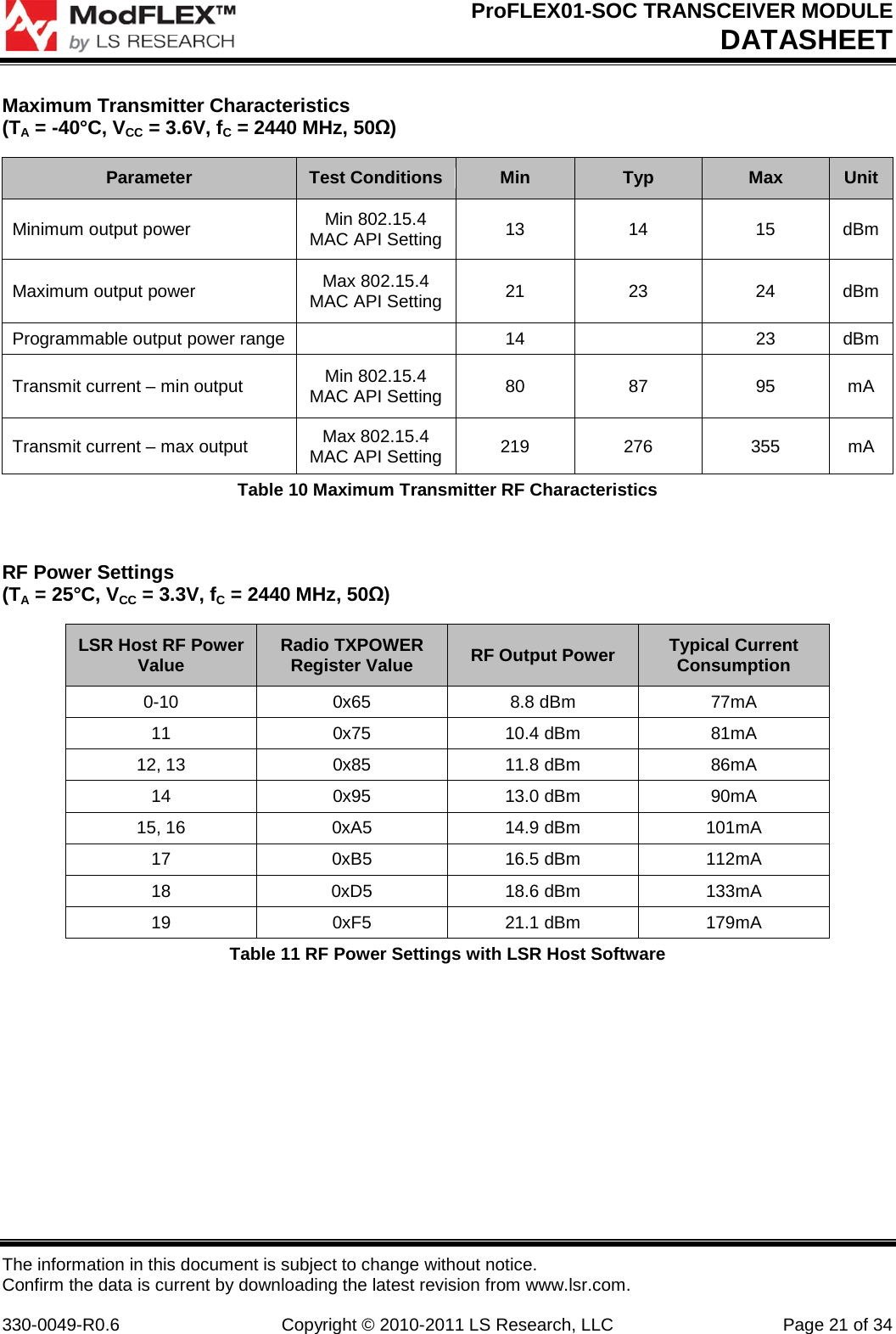

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 21 of 34 Maximum Transmitter Characteristics (TA = -40°C, VCC = 3.6V, fC = 2440 MHz, 50Ω) Parameter Test Conditions Min Typ Max Unit Minimum output power Min 802.15.4 MAC API Setting 13 14 15 dBm Maximum output power Max 802.15.4 MAC API Setting 21 23 24 dBm Programmable output power range 14 23 dBm Transmit current – min output Min 802.15.4 MAC API Setting 80 87 95 mA Transmit current – max output Max 802.15.4 MAC API Setting 219 276 355 mA Table 10 Maximum Transmitter RF Characteristics RF Power Settings (TA = 25°C, VCC = 3.3V, fC = 2440 MHz, 50Ω) LSR Host RF Power Value Radio TXPOWER Register Value RF Output Power Typical Current Consumption 0-10 0x65 8.8 dBm 77mA 11 0x75 10.4 dBm 81mA 12, 13 0x85 11.8 dBm 86mA 14 0x95 13.0 dBm 90mA 15, 16 0xA5 14.9 dBm 101mA 17 0xB5 16.5 dBm 112mA 18 0xD5 18.6 dBm 133mA 19 0xF5 21.1 dBm 179mA Table 11 RF Power Settings with LSR Host Software

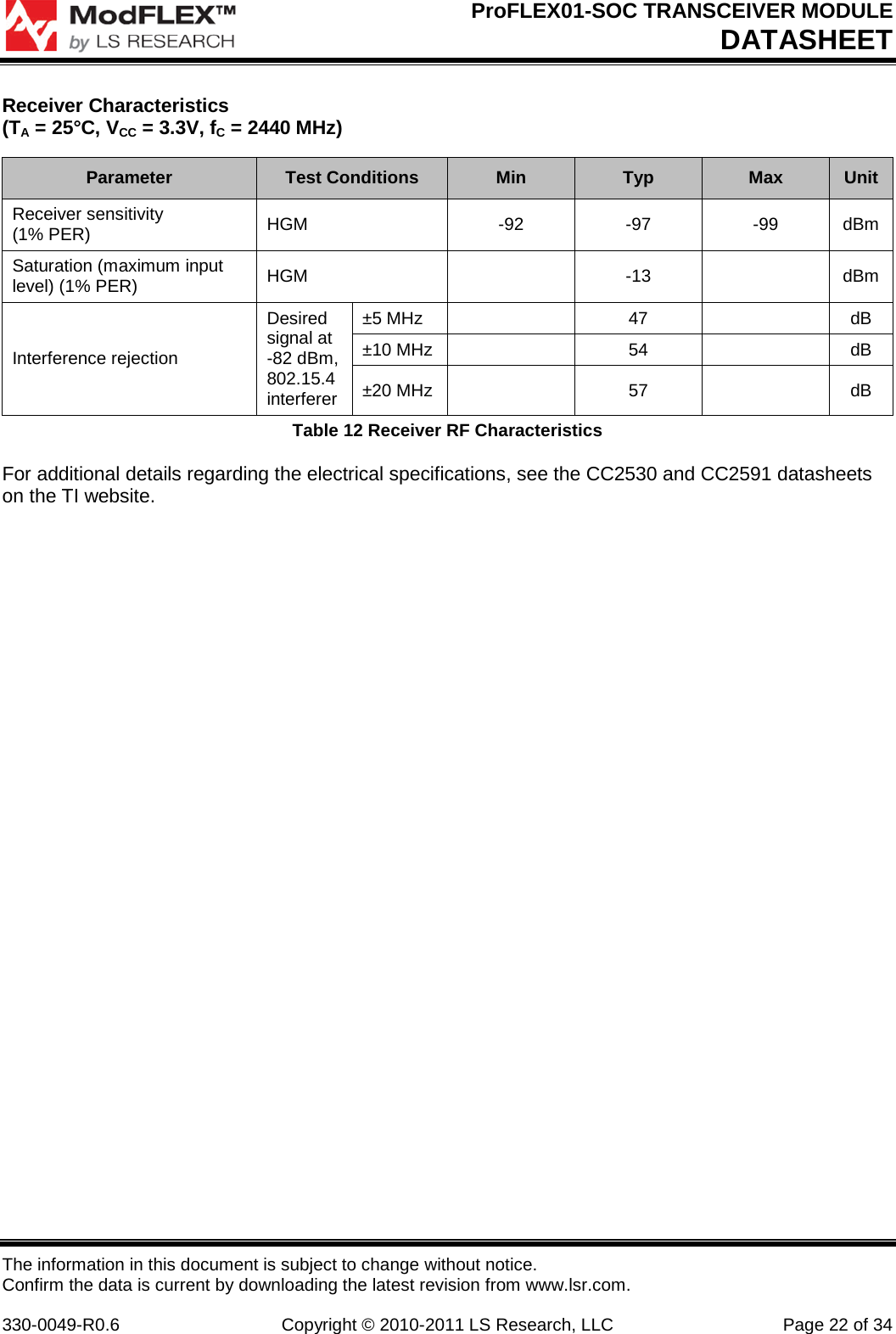

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 22 of 34 Receiver Characteristics (TA = 25°C, VCC = 3.3V, fC = 2440 MHz) Parameter Test Conditions Min Typ Max Unit Receiver sensitivity (1% PER) HGM -92 -97 -99 dBm Saturation (maximum input level) (1% PER) HGM -13 dBm Interference rejection Desired signal at -82 dBm, 802.15.4 interferer ±5 MHz 47 dB ±10 MHz 54 dB ±20 MHz 57 dB Table 12 Receiver RF Characteristics For additional details regarding the electrical specifications, see the CC2530 and CC2591 datasheets on the TI website.

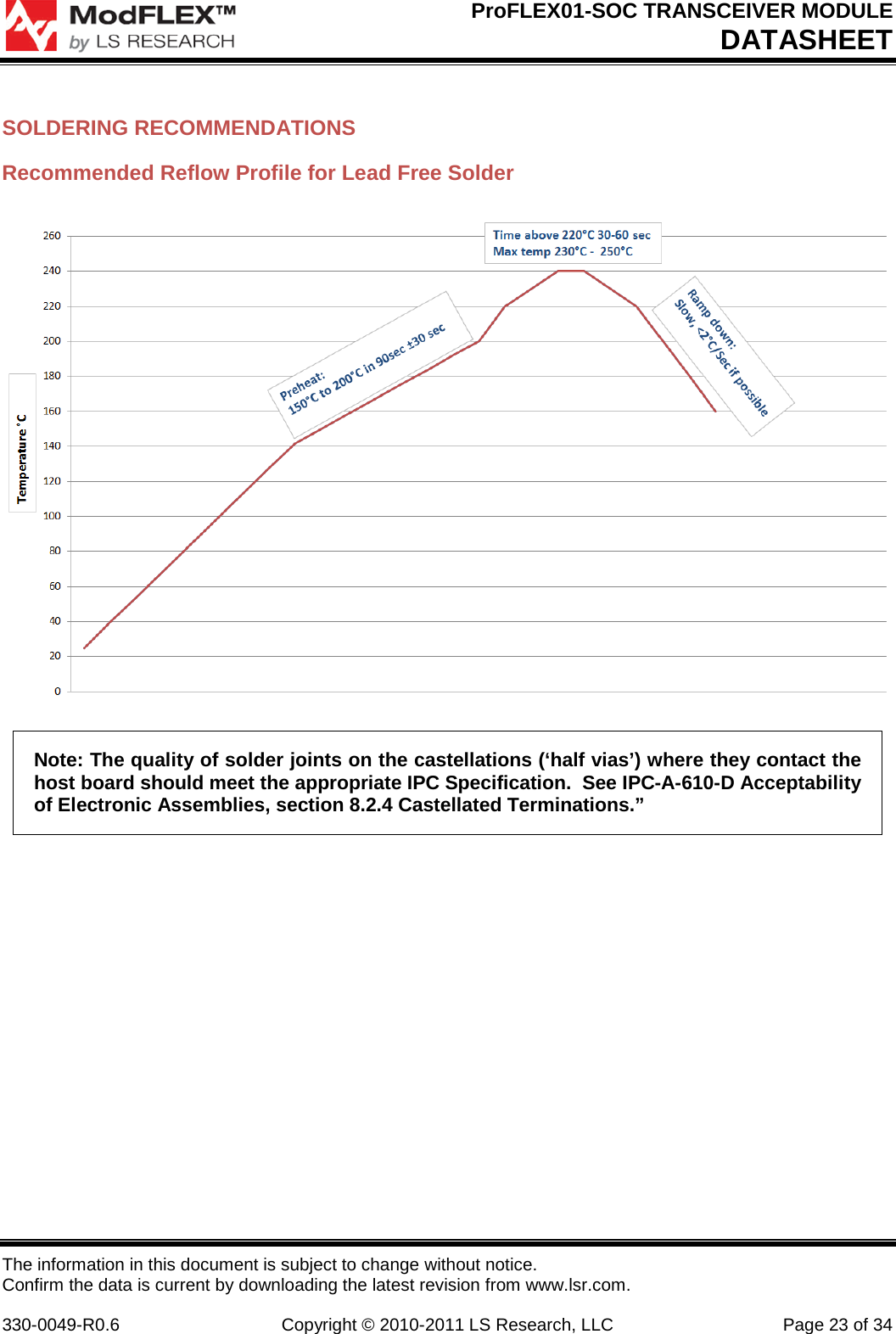

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 23 of 34 SOLDERING RECOMMENDATIONS Recommended Reflow Profile for Lead Free Solder Note: The quality of solder joints on the castellations (‘half vias’) where they contact the host board should meet the appropriate IPC Specification. See IPC-A-610-D Acceptability of Electronic Assemblies, section 8.2.4 Castellated Terminations.”

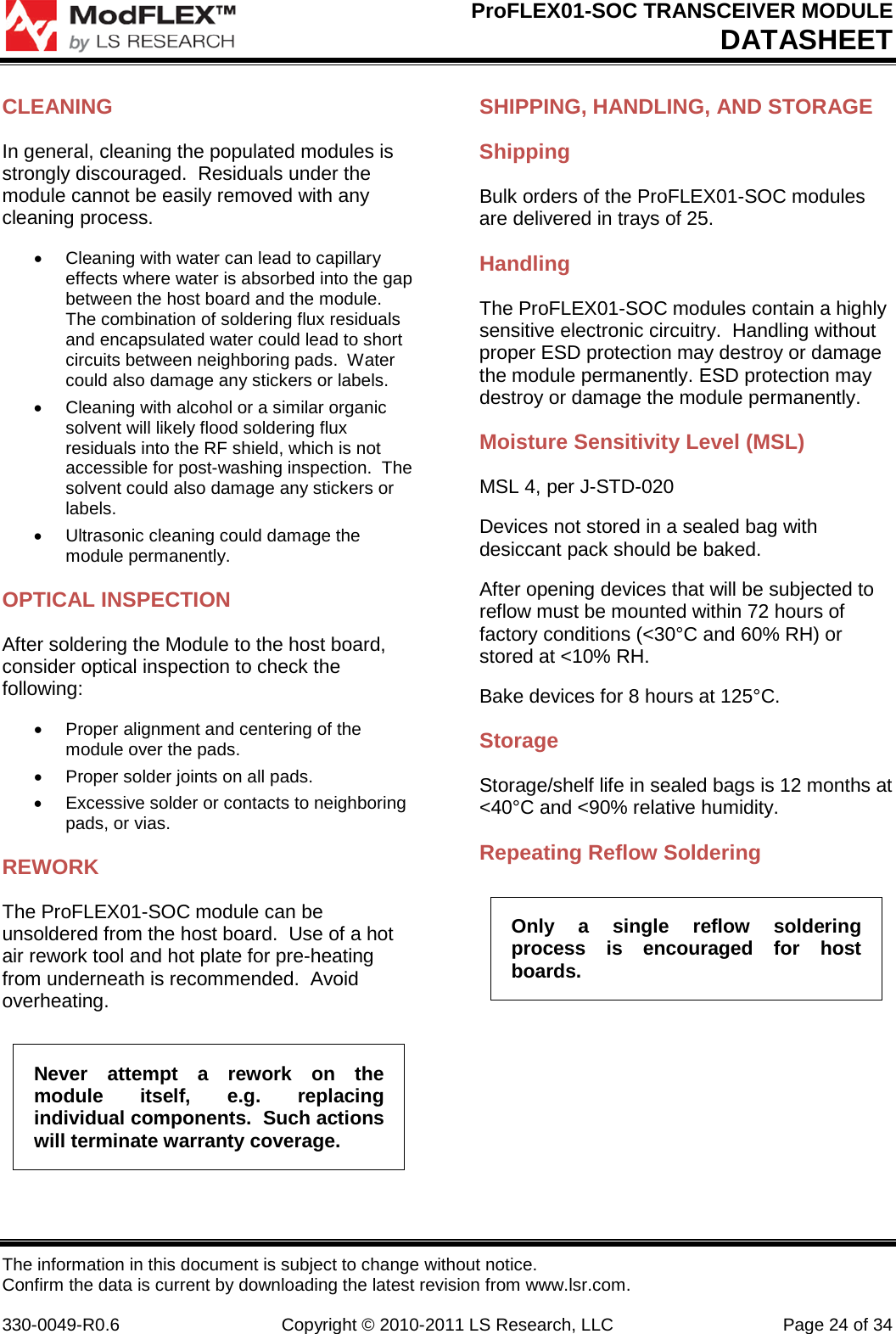

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 24 of 34 CLEANING In general, cleaning the populated modules is strongly discouraged. Residuals under the module cannot be easily removed with any cleaning process. • Cleaning with water can lead to capillary effects where water is absorbed into the gap between the host board and the module. The combination of soldering flux residuals and encapsulated water could lead to short circuits between neighboring pads. Water could also damage any stickers or labels. • Cleaning with alcohol or a similar organic solvent will likely flood soldering flux residuals into the RF shield, which is not accessible for post-washing inspection. The solvent could also damage any stickers or labels. • Ultrasonic cleaning could damage the module permanently. OPTICAL INSPECTION After soldering the Module to the host board, consider optical inspection to check the following: • Proper alignment and centering of the module over the pads. • Proper solder joints on all pads. • Excessive solder or contacts to neighboring pads, or vias. REWORK The ProFLEX01-SOC module can be unsoldered from the host board. Use of a hot air rework tool and hot plate for pre-heating from underneath is recommended. Avoid overheating. Never attempt a rework on the module itself, e.g. replacing individual components. Such actions will terminate warranty coverage. SHIPPING, HANDLING, AND STORAGE Shipping Bulk orders of the ProFLEX01-SOC modules are delivered in trays of 25. Handling The ProFLEX01-SOC modules contain a highly sensitive electronic circuitry. Handling without proper ESD protection may destroy or damage the module permanently. ESD protection may destroy or damage the module permanently. Moisture Sensitivity Level (MSL) MSL 4, per J-STD-020 Devices not stored in a sealed bag with desiccant pack should be baked. After opening devices that will be subjected to reflow must be mounted within 72 hours of factory conditions (<30°C and 60% RH) or stored at <10% RH. Bake devices for 8 hours at 125°C. Storage Storage/shelf life in sealed bags is 12 months at <40°C and <90% relative humidity. Repeating Reflow Soldering Only a single reflow soldering process is encouraged for host boards.
ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 25 of 34 AGENCY STATEMENTS Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

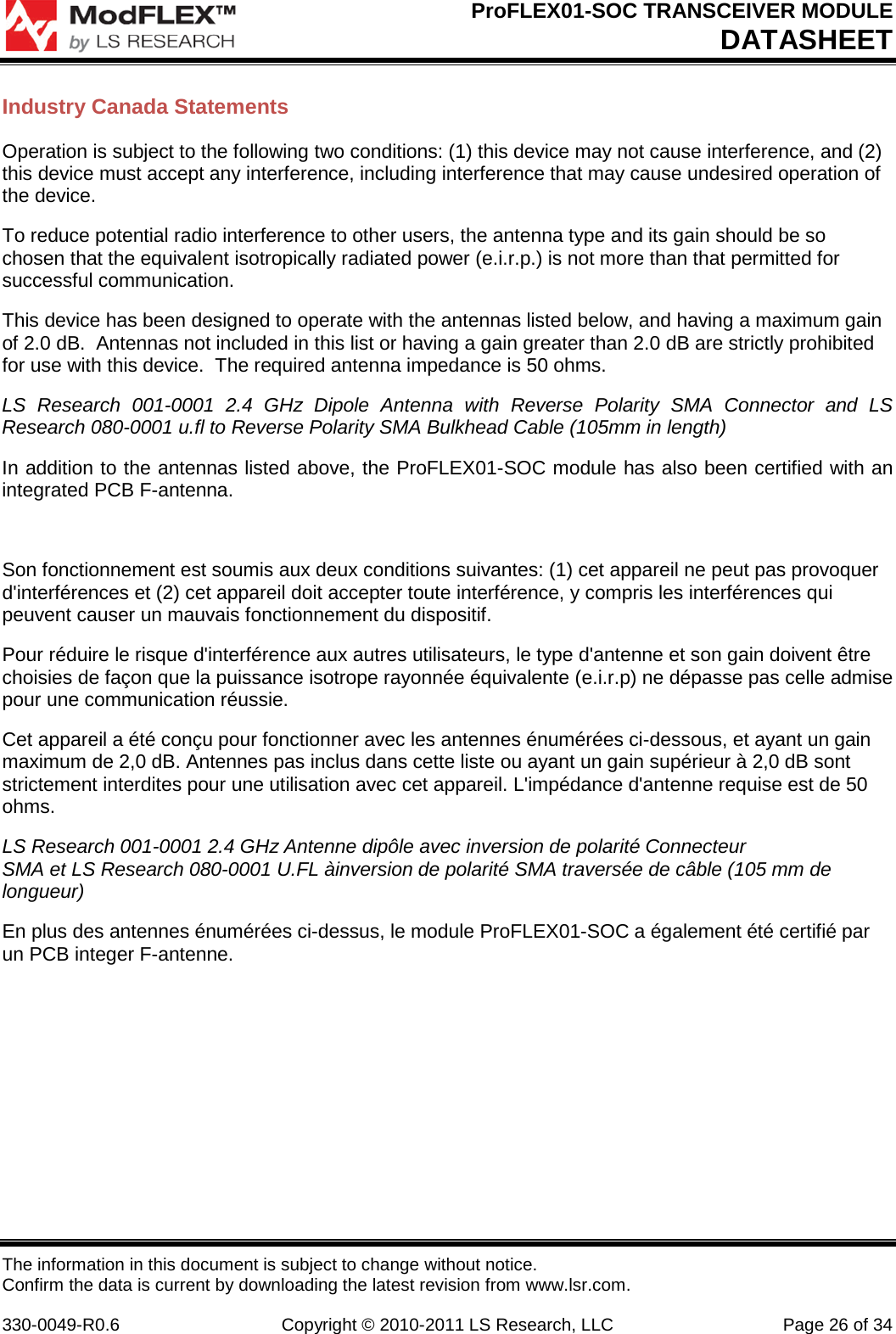

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 26 of 34 Industry Canada Statements Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device has been designed to operate with the antennas listed below, and having a maximum gain of 2.0 dB. Antennas not included in this list or having a gain greater than 2.0 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. LS Research 001-0001 2.4 GHz Dipole Antenna with Reverse Polarity SMA Connector and LS Research 080-0001 u.fl to Reverse Polarity SMA Bulkhead Cable (105mm in length) In addition to the antennas listed above, the ProFLEX01-SOC module has also been certified with an integrated PCB F-antenna. Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. Pour réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (e.i.r.p) ne dépasse pas celle admise pour une communication réussie. Cet appareil a été conçu pour fonctionner avec les antennes énumérées ci-dessous, et ayant un gain maximum de 2,0 dB. Antennes pas inclus dans cette liste ou ayant un gain supérieur à 2,0 dB sont strictement interdites pour une utilisation avec cet appareil. L'impédance d'antenne requise est de 50 ohms. LS Research 001-0001 2.4 GHz Antenne dipôle avec inversion de polarité Connecteur SMA et LS Research 080-0001 U.FL àinversion de polarité SMA traversée de câble (105 mm de longueur) En plus des antennes énumérées ci-dessus, le module ProFLEX01-SOC a également été certifié par un PCB integer F-antenne.

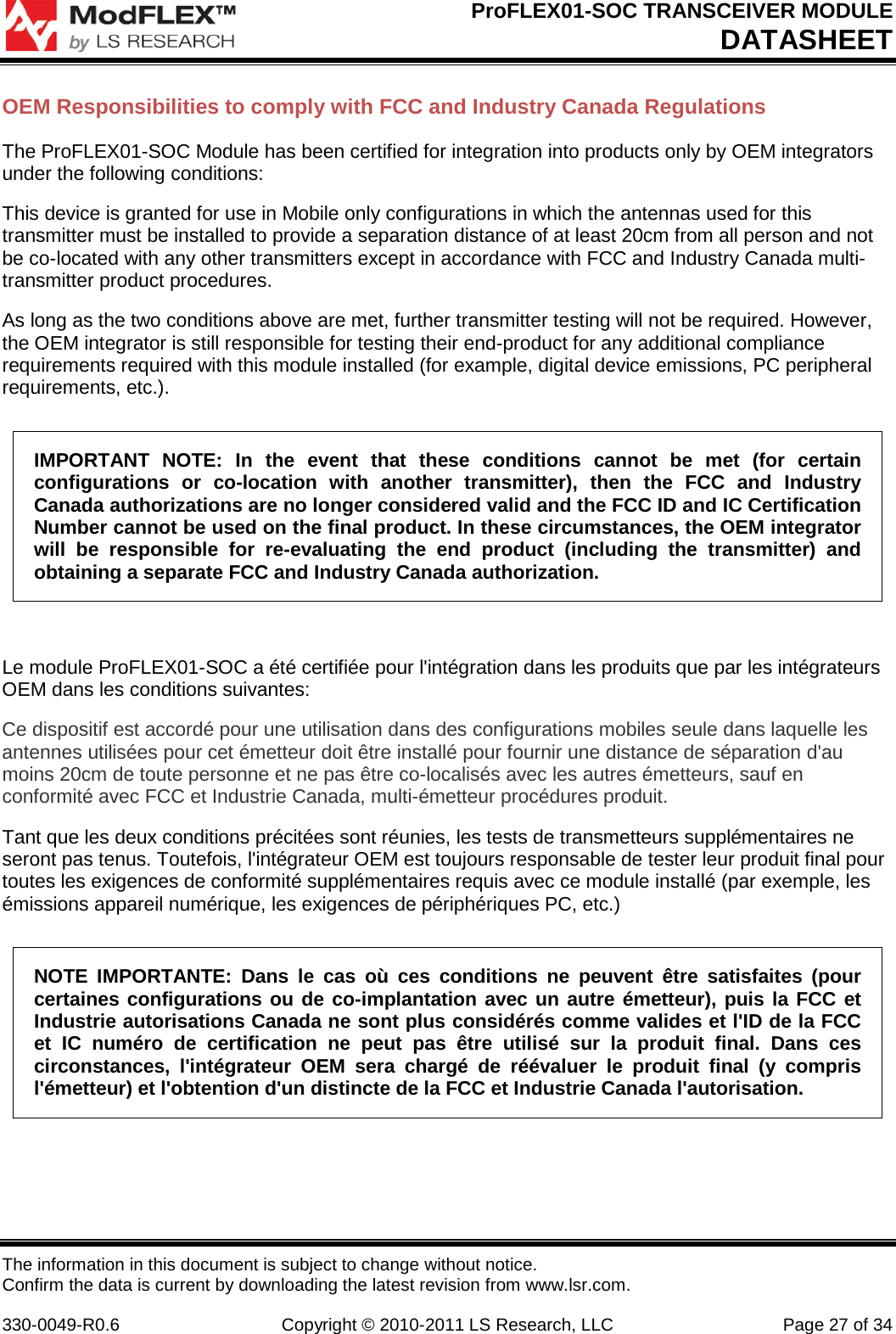

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 27 of 34 OEM Responsibilities to comply with FCC and Industry Canada Regulations The ProFLEX01-SOC Module has been certified for integration into products only by OEM integrators under the following conditions: This device is granted for use in Mobile only configurations in which the antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all person and not be co-located with any other transmitters except in accordance with FCC and Industry Canada multi-transmitter product procedures. As long as the two conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for certain configurations or co-location with another transmitter), then the FCC and Industry Canada authorizations are no longer considered valid and the FCC ID and IC Certification Number cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC and Industry Canada authorization. Le module ProFLEX01-SOC a été certifiée pour l'intégration dans les produits que par les intégrateurs OEM dans les conditions suivantes: Ce dispositif est accordé pour une utilisation dans des configurations mobiles seule dans laquelle les antennes utilisées pour cet émetteur doit être installé pour fournir une distance de séparation d'au moins 20cm de toute personne et ne pas être co-localisés avec les autres émetteurs, sauf en conformité avec FCC et Industrie Canada, multi-émetteur procédures produit. Tant que les deux conditions précitées sont réunies, les tests de transmetteurs supplémentaires ne seront pas tenus. Toutefois, l'intégrateur OEM est toujours responsable de tester leur produit final pour toutes les exigences de conformité supplémentaires requis avec ce module installé (par exemple, les émissions appareil numérique, les exigences de périphériques PC, etc.) NOTE IMPORTANTE: Dans le cas où ces conditions ne peuvent être satisfaites (pour certaines configurations ou de co-implantation avec un autre émetteur), puis la FCC et Industrie autorisations Canada ne sont plus considérés comme valides et l'ID de la FCC et IC numéro de certification ne peut pas être utilisé sur la produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'un distincte de la FCC et Industrie Canada l'autorisation.

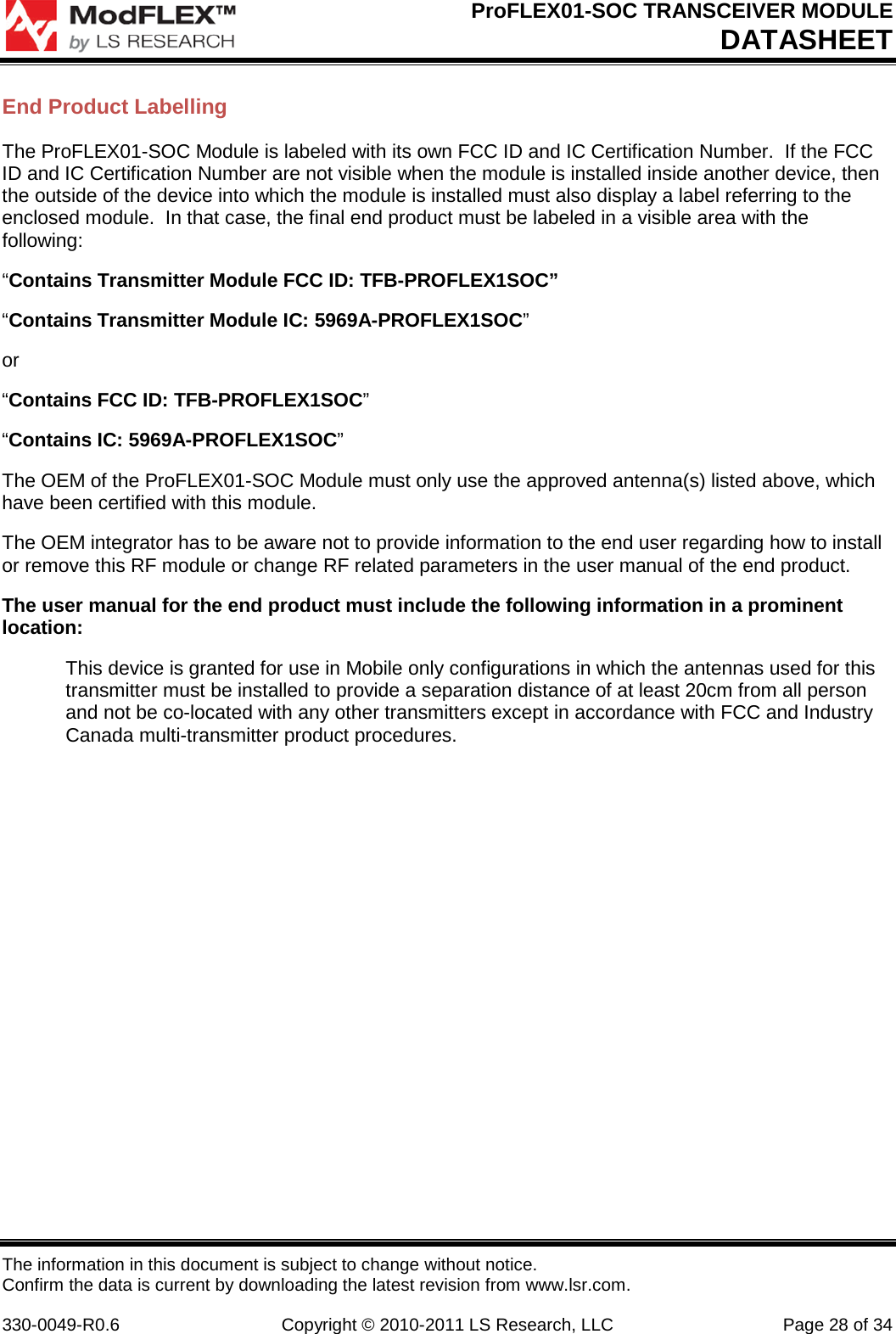

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 28 of 34 End Product Labelling The ProFLEX01-SOC Module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and IC Certification Number are not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the final end product must be labeled in a visible area with the following: “Contains Transmitter Module FCC ID: TFB-PROFLEX1SOC” “Contains Transmitter Module IC: 5969A-PROFLEX1SOC” or “Contains FCC ID: TFB-PROFLEX1SOC” “Contains IC: 5969A-PROFLEX1SOC” The OEM of the ProFLEX01-SOC Module must only use the approved antenna(s) listed above, which have been certified with this module. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module or change RF related parameters in the user manual of the end product. The user manual for the end product must include the following information in a prominent location: This device is granted for use in Mobile only configurations in which the antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all person and not be co-located with any other transmitters except in accordance with FCC and Industry Canada multi-transmitter product procedures.
ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 29 of 34 Le ProFLEX01-SOC Module est étiqueté avec sa propre ID de la FCC et IC numéro de certification. Si l'ID de la FCC et IC numéro de certification ne sont pas visibles lorsque le module est installé à l'intérieur d'un autre appareil, puis l'extérieur de l'appareil dans lequel le module est installé doit également afficher une étiquette mentionnant le module ci-joint. Dans ce cas, le produit final doivent être étiquetés dans un endroit visible de ce qui suit: Module émetteur Contient FCC ID: TFB-PROFLEX1SOC Module émetteur Contient IC: 5969A-PROFLEX1SOC ou Contient FCC ID: TFB-PROFLEX1SOC Contient IC: 5969A-PROFLEX1SOC Le constructeur d'équipements de l'ProFLEX01-SOC module ne doit utiliser l'antenne approuvée (s) ci-dessus, qui ont été certifiés avec ce module. L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou de supprimer ce module RF ou RF changer les paramètres liés au mode d'emploi du produit final. Le manuel d'utilisation pour le produit final doit comporter les informations suivantes dans un endroit bien en vue: Ce dispositif est accordé pour une utilisation dans des configurations mobiles seule dans laquelle les antennes utilisées pour cet émetteur doit être installé pour fournir une distance de séparation d'au moins 20cm de toute personne et ne pas être co-localisés avec les autres émetteurs, sauf en conformité avec FCC et Industrie Canada, multi-émetteur procedures produit.

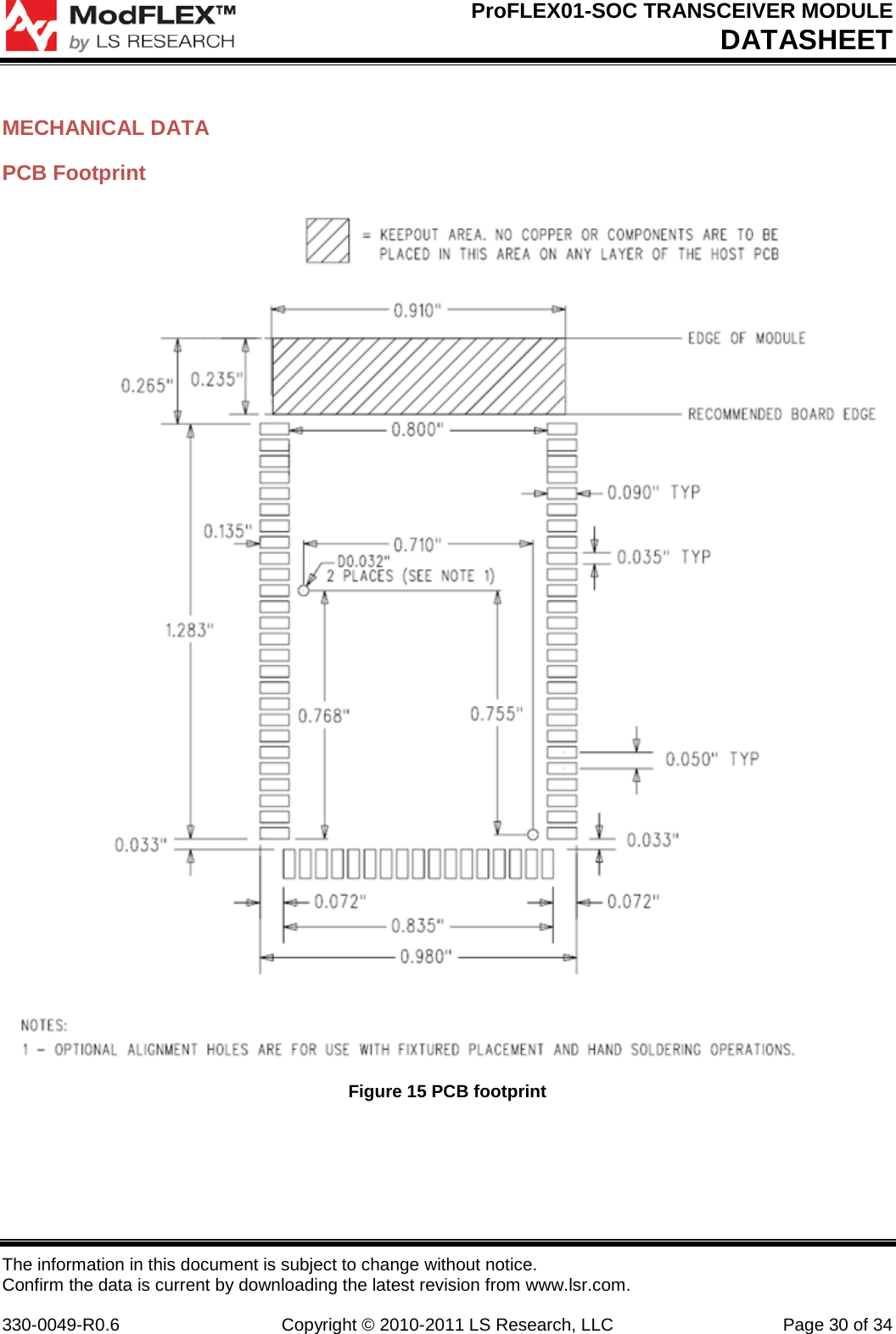

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 30 of 34 MECHANICAL DATA PCB Footprint Figure 15 PCB footprint

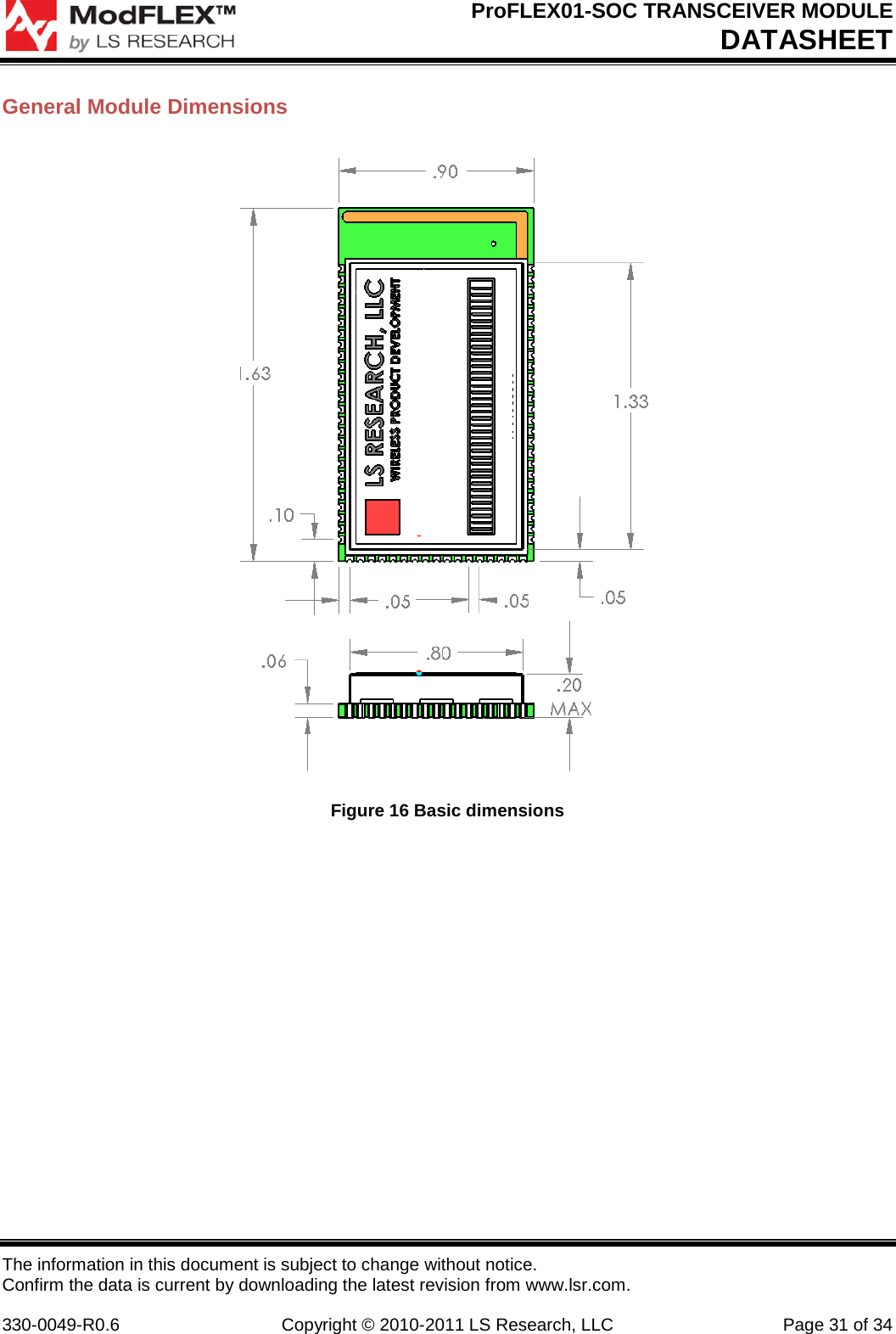

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 31 of 34 General Module Dimensions Figure 16 Basic dimensions

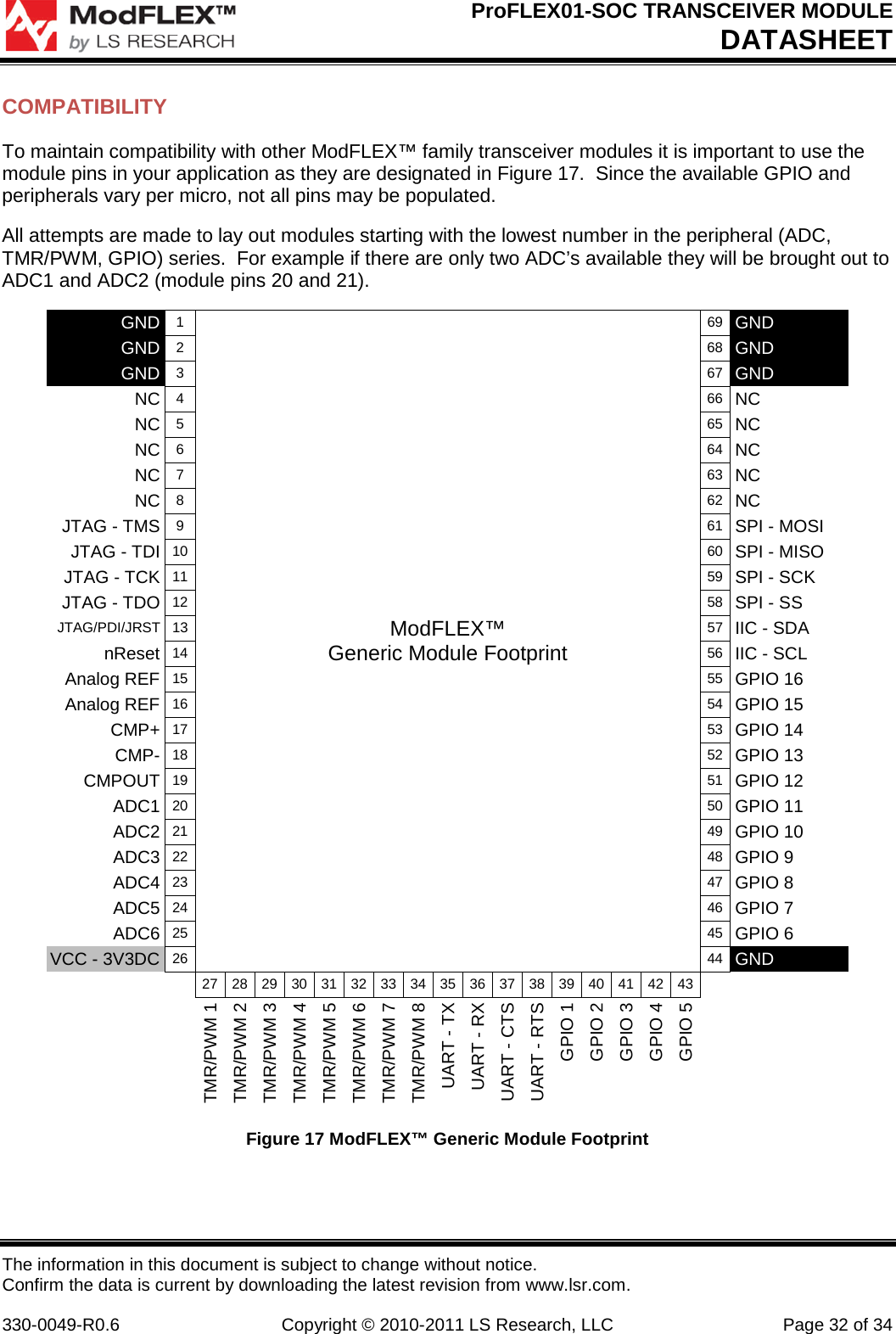

ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 32 of 34 COMPATIBILITY To maintain compatibility with other ModFLEX™ family transceiver modules it is important to use the module pins in your application as they are designated in Figure 17. Since the available GPIO and peripherals vary per micro, not all pins may be populated. All attempts are made to lay out modules starting with the lowest number in the peripheral (ADC, TMR/PWM, GPIO) series. For example if there are only two ADC’s available they will be brought out to ADC1 and ADC2 (module pins 20 and 21). GND 1 ModFLEX™ Generic Module Footprint 69 GND GND 2 68 GND GND 3 67 GND NC 4 66 NC NC 5 65 NC NC 6 64 NC NC 7 63 NC NC 8 62 NC JTAG - TMS 9 61 SPI - MOSI JTAG - TDI 10 60 SPI - MISO JTAG - TCK 11 59 SPI - SCK JTAG - TDO 12 58 SPI - SS JTAG/PDI/JRST 13 57 IIC - SDA nReset 14 56 IIC - SCL Analog REF 15 55 GPIO 16 Analog REF 16 54 GPIO 15 CMP+ 17 53 GPIO 14 CMP- 18 52 GPIO 13 CMPOUT 19 51 GPIO 12 ADC1 20 50 GPIO 11 ADC2 21 49 GPIO 10 ADC3 22 48 GPIO 9 ADC4 23 47 GPIO 8 ADC5 24 46 GPIO 7 ADC6 25 45 GPIO 6 VCC - 3V3DC 26 44 GND 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 TMR/PWM 1 TMR/PWM 2 TMR/PWM 3 TMR/PWM 4 TMR/PWM 5 TMR/PWM 6 TMR/PWM 7 TMR/PWM 8 UART - TX UART - RX UART - CTS UART - RTS GPIO 1 GPIO 2 GPIO 3 GPIO 4 GPIO 5 Figure 17 ModFLEX™ Generic Module Footprint
ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 33 of 34 MODULE REVISION HISTORY Rev A • Initial production release.
ProFLEX01-SOC TRANSCEIVER MODULE DATASHEET The information in this document is subject to change without notice. Confirm the data is current by downloading the latest revision from www.lsr.com. 330-0049-R0.6 Copyright © 2010-2011 LS Research, LLC Page 34 of 34 CONTACTING LS RESEARCH Headquarters LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012-2636 USA Tel: 1(262) 375-4400 Fax: 1(262) 375-4248 Website www.lsr.com Technical Support forum.lsr.com Sales Contact sales@lsr.com The information in this document is provided in connection with LS Research (hereafter referred to as “LSR”) products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of LSR products. EXCEPT AS SET FORTH IN LSR’S TERMS AND CONDITIONS OF SALE LOCATED ON LSR’S WEB SITE, LSR ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL LSR BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF LSR HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. LSR makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. LSR does not make any commitment to update the information contained herein. Unless specifically provided otherwise, LSR products are not suitable for, and shall not be used in, automotive applications. LSR’s products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.
