Users Manual

Bluetooth Activation Kit
User Guide
The information contained in this document is subject to change without notice. TDK Systems Europe makes no warranty of
any kind with regard to this material including, but not limited to, the implied warranties of merchant ability and fitness for a
particular purpose. TDK Systems Europe shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
© Copyright 2003 TDK Systems Europe Limited.
All rights reserved.
This document contains information that is protected by copyright. All rights reserved. No part of this document may be
photocopied, reproduced, or translated to another language without the prior written consent of TDK Systems Europe.
Other product or company names used in this publication are for identification purposes only and may be trademarks of their
respective owners.
Before You Begin
Congratulations on your purchase of the TDK Systems Bluetooth
Activation Kit. The Bluetooth Activation Kit brings Bluetooth to the
following PC Cards:
• TDK Global Freedom 5660
• TDK Global Pro ISDN
Package Contents

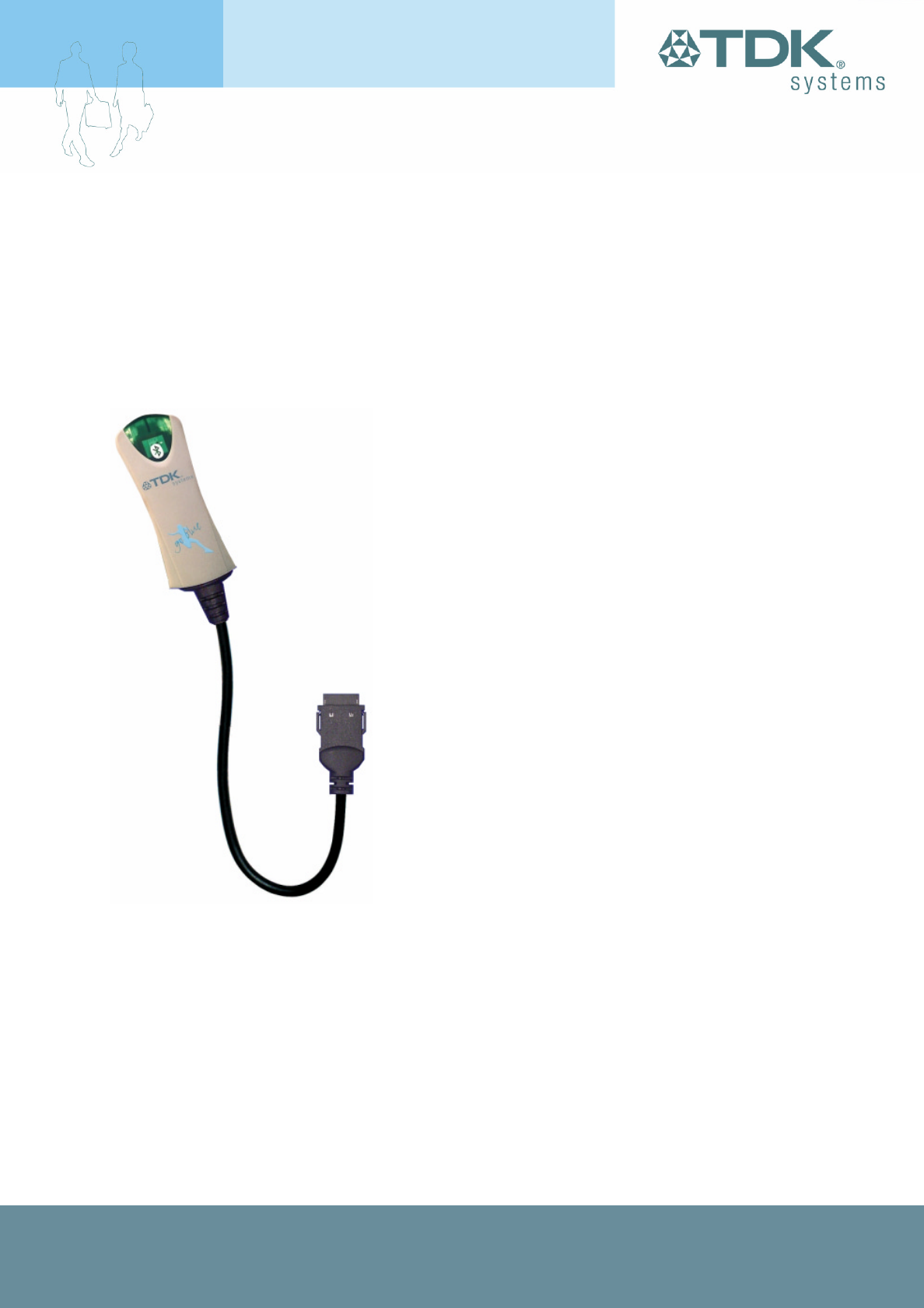

• Bluetooth Activator
• Installation CD
• Quick Start Guide
Ensure these items are present and undamaged.
Bluetooth Information
Bluetooth is a wireless communication technology. It is designed to
replace the traditional cable connections currently used to link
compatible devices. These can be cable connections between
computers and printers, computers and mobile phones and between
mobile phones and headsets. Bluetooth is designed to operate in the
internationally recognised ISM (Industrial, Scientific and Medical)
frequency band. Within the ISM band (2.4GHz – 2.48GHz) Bluetooth
transmissions hop between 79 separate frequencies 1,600 times every
second. Bluetooth is a low power radio designed for short range
communication of about 10 metres and has an impressive peak data
throughput of 723Kbps.
Getting Started
Installing the Software
1. Insert the CD into the CD/DVD drive on your PC. The CD should
start automatically and present you with an installation menu.
If the CD fails to start automatically, click on the Start button, select
Run and type D:\Setup.exe (assuming your CD/DVD drive is D) then
press Enter or click OK.
2. Choose Install Bluetooth Activation Utility to start the InstallShield
Wizard.
3. Click Next.
4. Choose to accept the default folder by clicking Next, or change the
location by using the Change option.
5. Click Install.
6. When the install has completed click Finish.
7. If you are prompted to restart Windows, click Yes.
Upgrading the PC Card
Your PC Card may need to be upgraded before you can use it with the
Activator.
1. If the Bluetooth Activation Utility is not already running, click Start >
Programs > TDK Systems then select Bluetooth Activation
Utility.

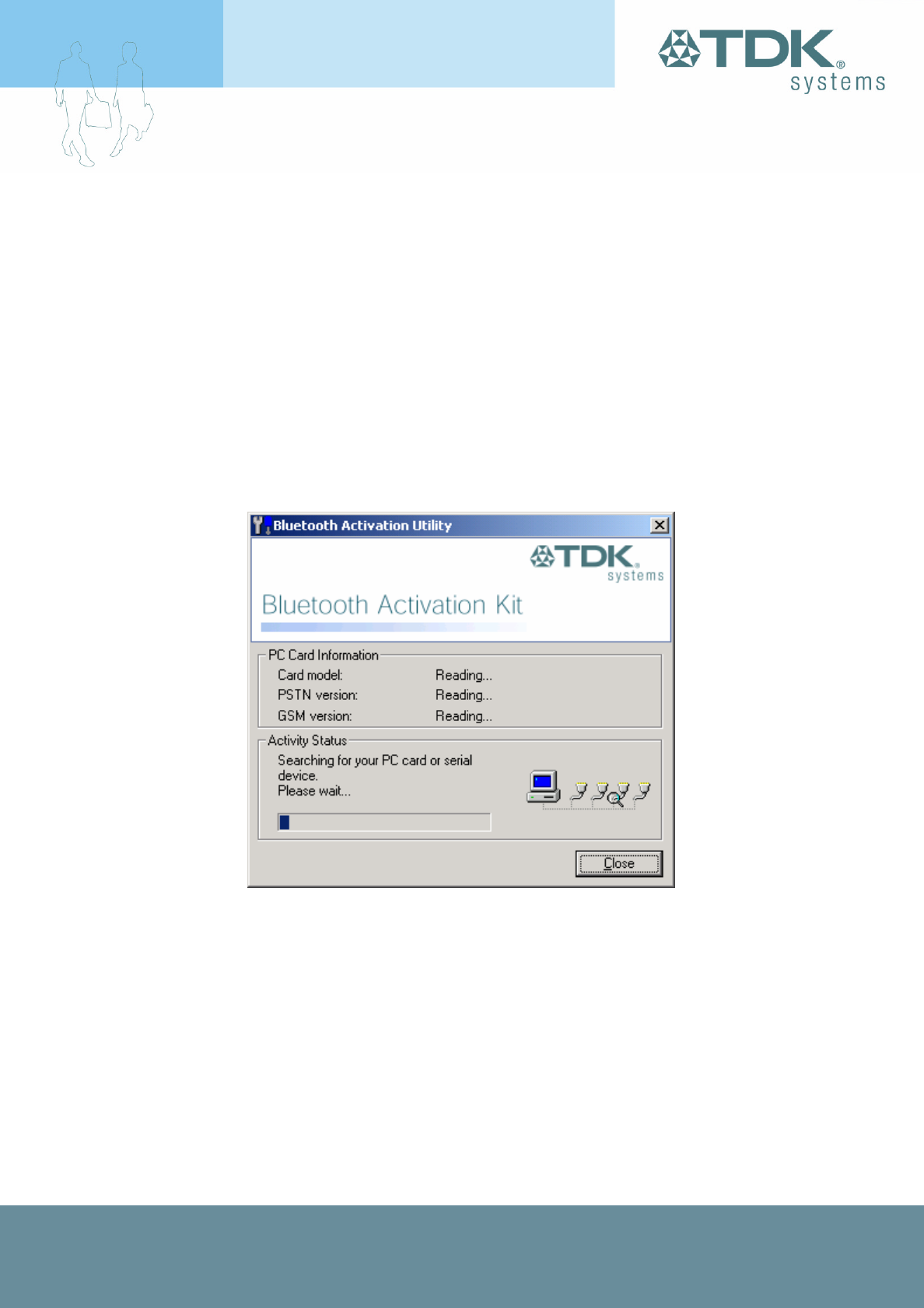

2. The Bluetooth Activation Utility will search for your TDK Global
Freedom 5660 or TDK Global Pro ISDN automatically.
3. If your PC Card needs to be upgraded, ensure the Bluetooth
Activator is disconnected from the PC Card and click Upgrade.
4. The upgrade will take approximately 1 minute to complete.
Connecting the Bluetooth Activator

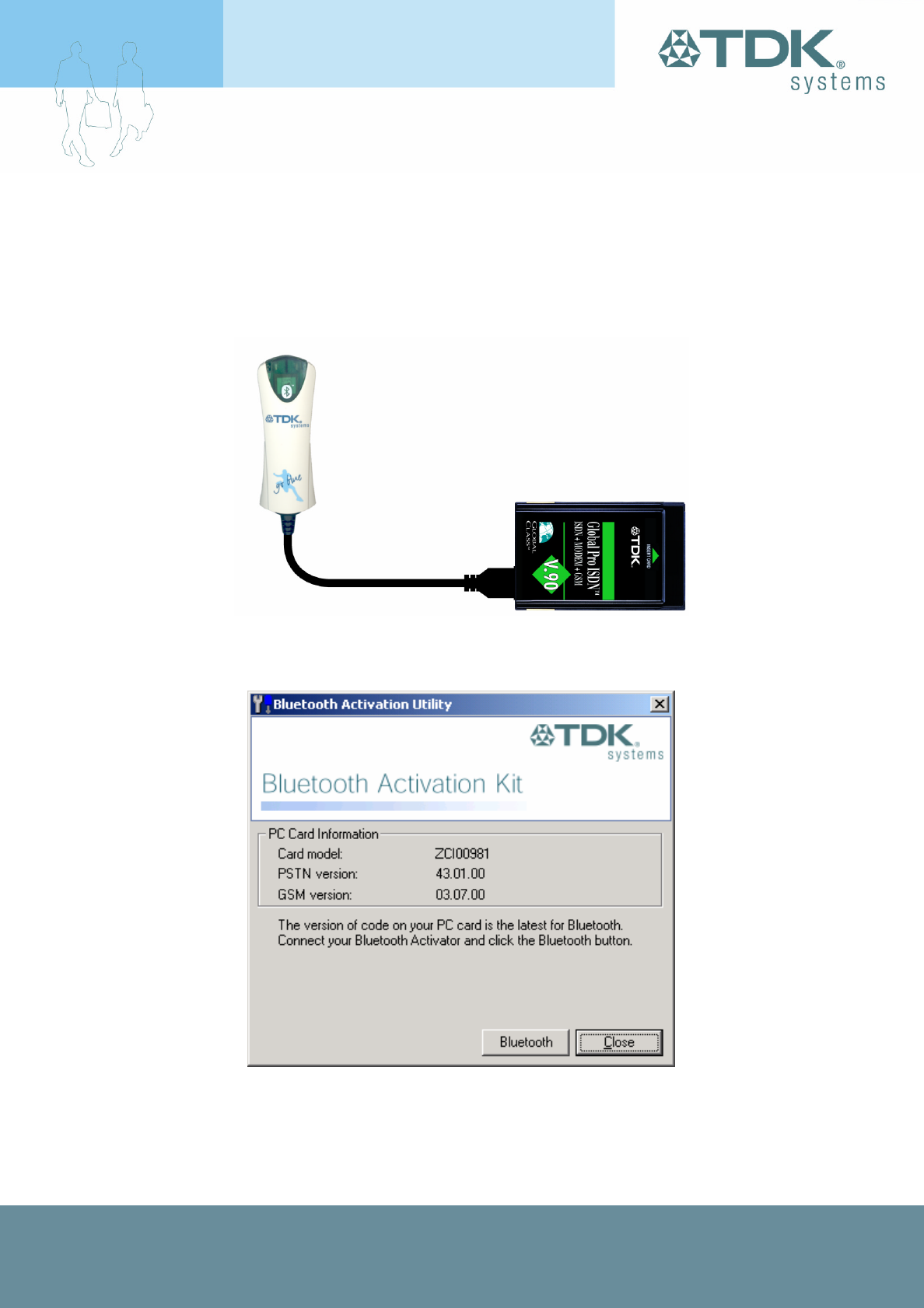

1. Once your PC Card has been successfully upgraded, you will be
prompted to connect your Bluetooth Activator.
2. Connect your Bluetooth Activator and click Bluetooth.
Connecting to remote Bluetooth devices
Pairing (also referred to as bonding) is the process of creating a trusted
relationship between two Bluetooth devices. This will establish a secure
link between the devices and enable quick access to the services
provided on the remote Bluetooth device.

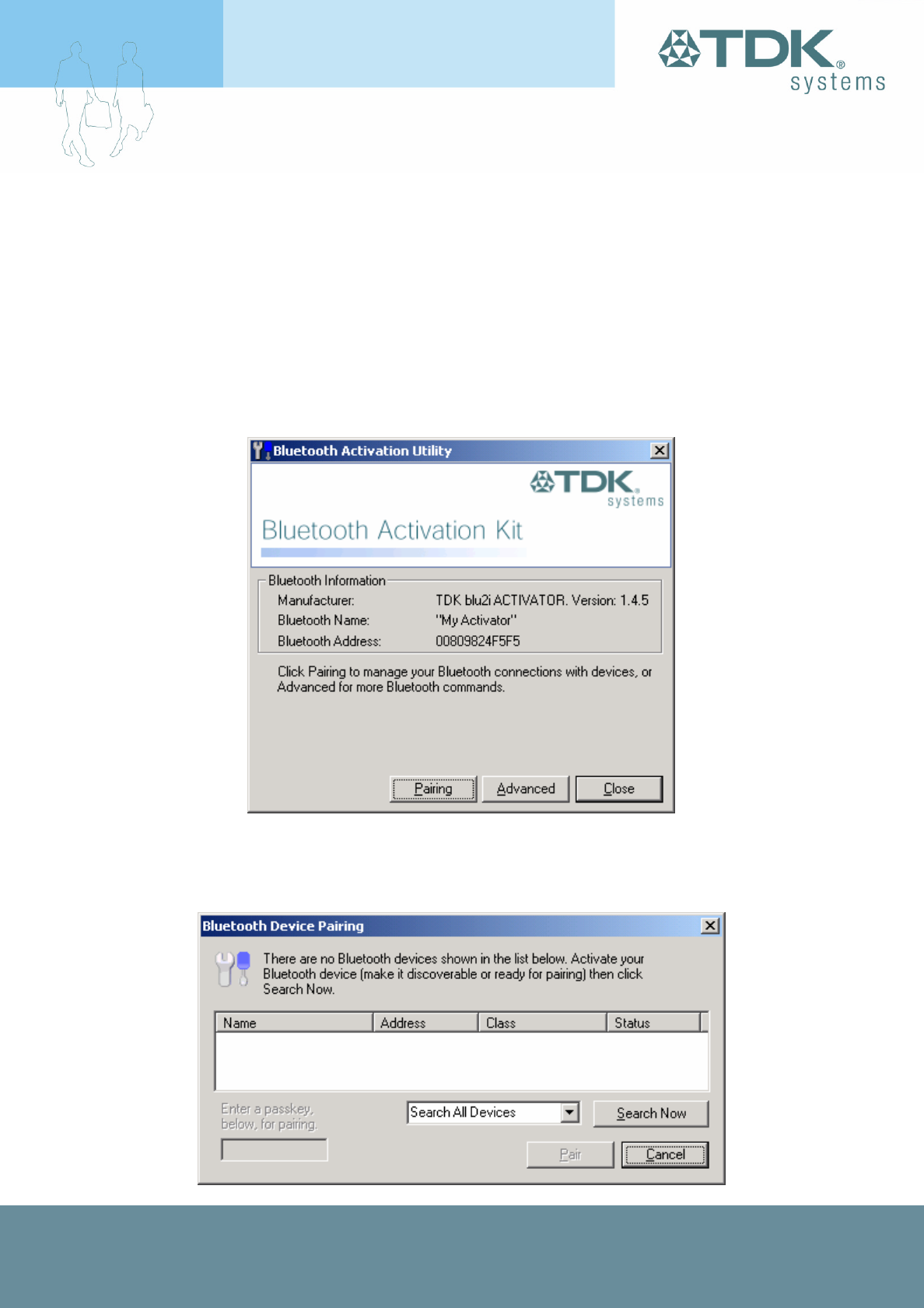

1. Click Pairing.
2. Click Search Now to search for other Bluetooth devices within
range. If any devices are discovered they will be displayed.

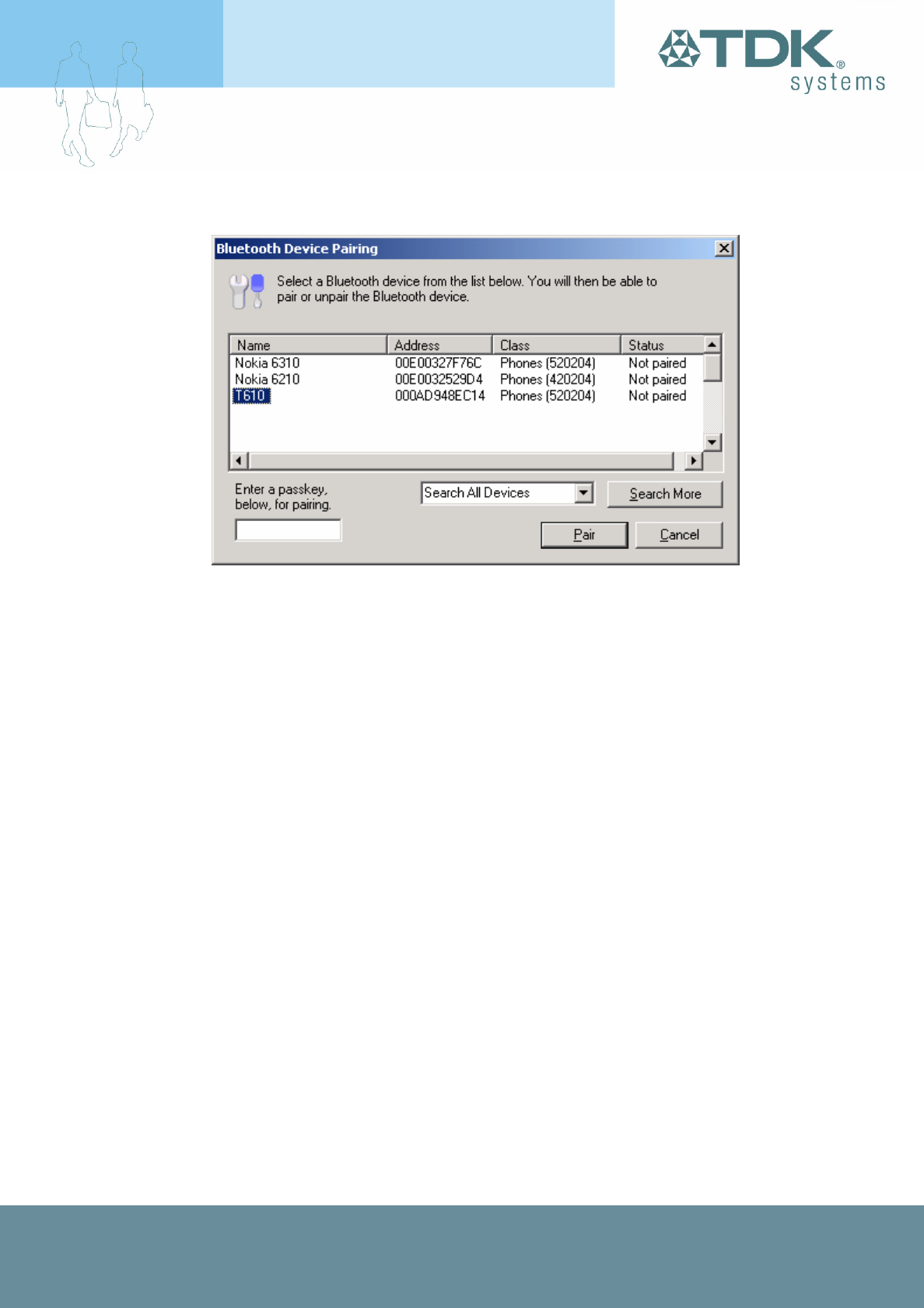

3. Select the remote Bluetooth device you wish to pair with.
4. Enter a passkey of your choice (the passkey can be up to 16
characters long and must be numerical) and click Pair.
Note: Passkeys are also called Personal Identification Numbers, or
PIN codes.
5. Click OK.
6. Enter the same passkey on the remote Bluetooth device.
7. If the pairing is successful, a connection will be made to the default
service on the remote Bluetooth device.
Note: The Bluetooth Activation kit cannot be used with Windows Dial-Up
Networking.
Technical Support
If you are experiencing problems with the Bluetooth Activation Kit please
look through the information below.
Frequently Asked Questions
Question
I have successfully used the Bluetooth Activation Kit to connect to my
Sony Ericsson T610. When I tried to connect to my Nokia 6210 the
connection could not be established. Why is this?
Answer
It appears that your Bluetooth Activation Kit is fully functional. You could
be trying to connect to the service which is unavailable on this phone.
Try setting the S101 register to $1103 to resolve this.
Windows 95/98/Me/NT2000
Click Start > Programs > TDK Systems > Bluetooth Activation Utility
Click Advanced.
Use the drop-down list to select the ATSn=m-Set S Register.
Enter 101 in the Number (n) field and $1103 in the Number (m) field.
Windows XP
Click Start > All Programs > TDK Systems > Bluetooth Activation
Utility
Click Advanced.
Use the drop-down list to select the ATSn=m-Set S Register.
Enter 101 in the Number (n) field and $1103 in the Number (m) field.
If you are still experiencing problems please refer to the Advanced 'AT'
Command Set Guide included on the CD.
Web site: http://www.tdksystems.com
E-mail: support@tdksystems.com
Appendix A
Technical Information
Supply voltage: 5V
Operating temperature: -20°C – +75°C
Nominal RF output power: 4mW (6dBm)
Maximum RF output power: 4mW (6dBm)
Range: up to 100 metres, free space.
Weight: 41g
Bluetooth specification: Version 1.1
Bluetooth power class: 1
Power Requirements
When connected to the Global Freedom 5660 V.90.
Mode Current
Idle 88mA
Scanning 153mA
When connected to the Global Pro ISDN V.90.
Mode Current
Idle 227mA
Scanning 283mA
Supported Operating Systems
• Windows 95 (Requires Internet Explorer 5 or above)
• Windows 98
• Windows Millennium Edition
• Windows NT 4.0 (Requires Service Pack 6a)
• Windows 2000
• Windows XP
Appendix B
Declaration of Conformity
“Declaration of Conformance; this product contains the Approved
Bluetooth portion of the TDK blu2i Serial Module as listed on the
Bluetooth Qualified Product Listing. The Bluetooth Identifier is B01000,
product ID TRBLU20-001A1. The listings can be found at
http://qualweb.opengroup.org”
Appendix C
Warranty
TDK warrants that its products shall conform to TDK’s published
specifications and remain free from defects in materials and
workmanship under normal, proper and intended use for a period of two
(2) years from date of purchase, provided that proof of purchase be
furnished with any returned equipment.
If during the warranty period any component part of the equipment
becomes defective by reason of material or workmanship, and TDK is
immediately notified of such defect, TDK shall at its option supply a
replacement part or request return of equipment, freight prepaid, to its
designated facility for repair. In the event no trouble is found on products
returned for repair, TDK reserves the right to charge the customer its
standard published repair charge.
This warranty shall not apply to any products that have been subject to
misuse, bending, twisting, neglect, alteration, improper installation,
testing or unauthorized repair performed by anyone other than a TDK
designated repair facility. Any non-warranty repairs or maintenance shall
be at TDK’s standard rates in effect at the time.
This warranty is in lieu of all other warranties, whether expressed,
implied, or statutory, including but not limited to, implied warranties or
merchantability and fitness for a particular purpose. In no event shall
TDK be liable, whether in contract, in part, or on any other basis, for any
damage sustained by its customers or any other person arising from or
related to loss of use, failure or interruption in the operation of any
products, or delay in maintenance, or for incidental, consequential, in
direct, or special damages or liabilities, or for loss of revenue, loss of
business, or other financial loss arising out of or in connection with the
sale, lease, maintenance, use, performance, failure, or interruption of
these products.
