FCAR TECHNOLOGY MAXIBT100 MOTORCYCLE DIAGNOSTIC TOOL User Manual
SHENZHEN FCAR TECHNOLOGY CO.,LTD MOTORCYCLE DIAGNOSTIC TOOL
User manual
product manual
1
1.Product Brief Introduction
FV100 is a vehicle diagnostic VCI box developed by FCAR company to fit the host computer of the Android
operating system, support Bluetooth,USB two communication modes, can be used with F7S series or F8S series
diagnostics, suitable for 12V or 24V models, covering Cummins, Bosch, Weichai, Yuchai, Xichai, Chaochai and GM,
Ford, Audi, Volkswagen, BMW, Honda, Toyota, Mercedes-Benz, Land Rover and more than 300 types of vehicle
software around the world.

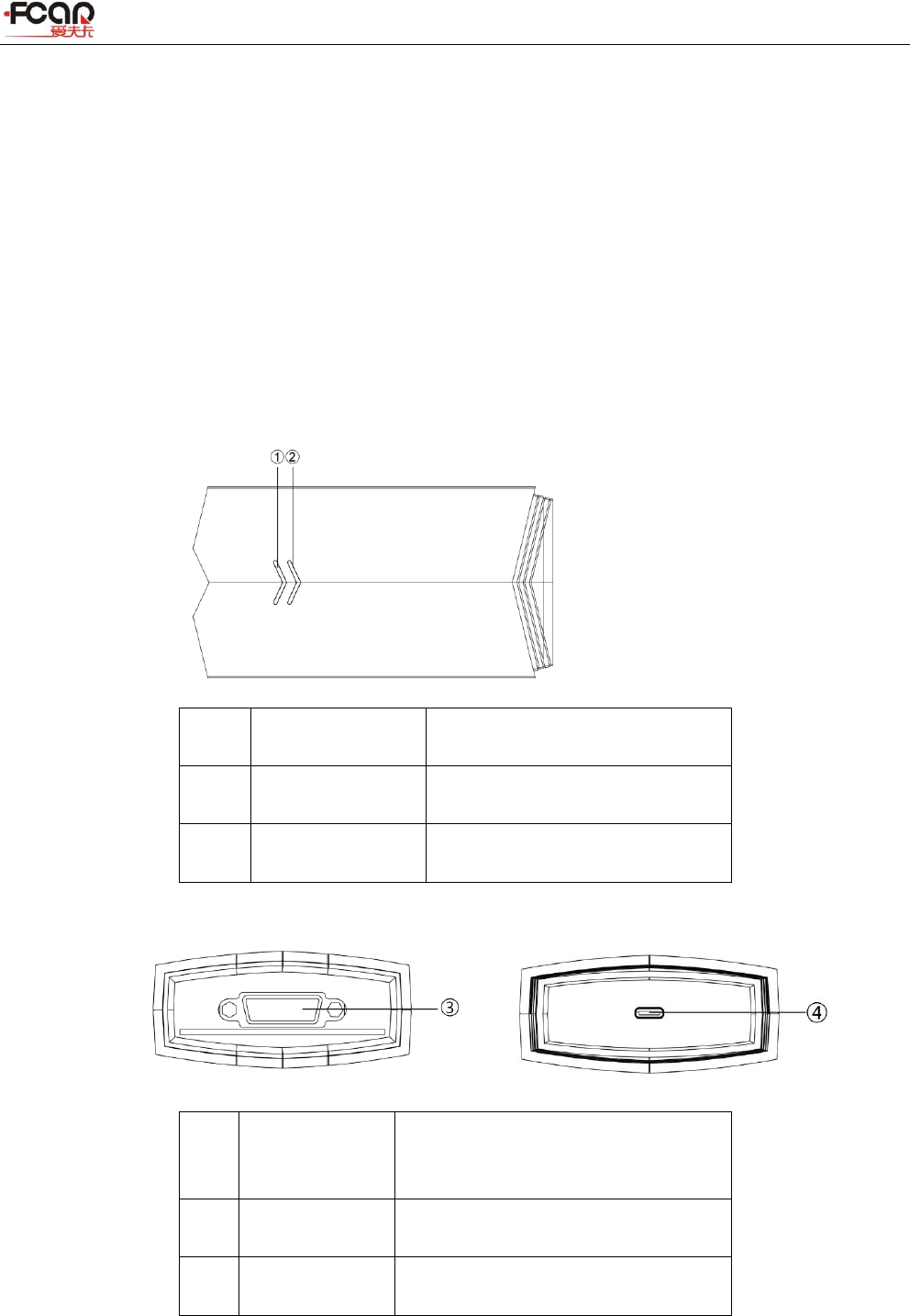

2.FV100 Structure Specification:
Order
number
Name
Describe
①
Power indicator
light
The red light is on when power supplying
②
Diagnosis indicator
light
The green light flashing when
communicating with a vehicle
Order
numb
er
Name
Describe
○
3
DB15 interface
Connect with the main test line and connect the
vehicle through the diagnostic connector
④
USB Type-C
interface
Connect with a tablet host or upgrade FV100
then using
product manual
2
FV100 Main Parameter
CPU
Cortex®-M3
Frequency
72MHZ
Bluetooth
V2.1+EDR, BT3.0, BT4.1
Memory
128KB
3. Connection Method
Connecting the vehicle electronic control system with the diagnostic program through FV100, we can read
vehicle diagnostic information, view the data stream, and perform the function of action test, etc, for the specific
vehicle diagnosis methods, please see the instructions for the use of the diagnostic instrument,the following are only
for FV100 connection methods and usage notes.
To build a good communication between the diagnostic program and the vehicle, you need to do the following:
1） Connect the FV100 with the vehicle diagnosis seat and supply the power;
2） Build communication between FV100 and tablet host through Bluetooth pairing or USB data cable.
3） View the VCI connection status in the upper right corner of the screen ( see 3.2 ) , vehicle diagnostics can be
performed if the connection is successful.
3.1 FV100 Connecting to Vehicle
FV100 needs to determine whether the diagnostic seat of the test vehicle is a standard OBD- Ⅱ
interface or a non-standard OBD- Ⅱ interface before connecting to the vehicle.
Vehicles compatible with OBD- Ⅱ management system require only one standard OBD Ⅱ -16
connector to be connected to the vehicle diagnostic seat and provide power supply
Vehicles that are not compatible with OBD- Ⅱ management systems need to select the
corresponding connectors; some vehicles need to supply power to VCI boxes through other sources of
power for the vehicles.
Here are the instructions for these two ways of connecting.
Connection of Standard OBD- Ⅱ Interface
A vehicle connecting to the standard OBD- Ⅱ interface only needs to be connected using an
integrated main test line OBD connector, and no other connections are required, as shown in figure
product manual
3
3.1-1.

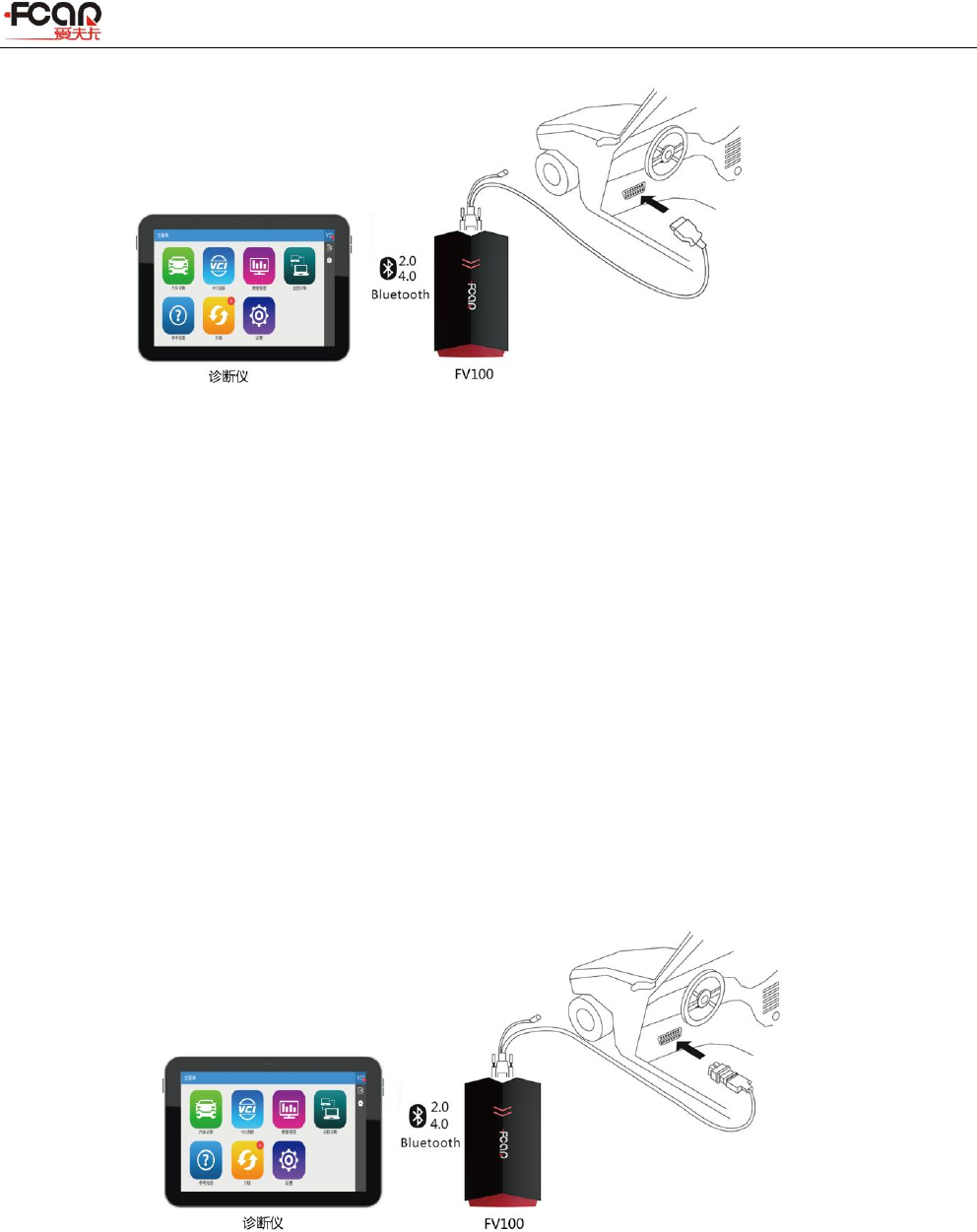

Figure 3.1-1 connection of standard OBD-
Ⅱ
interface
Operaion Instructions:
1) Determine the location and the interface of the diagnostic seat;
2) Connect one end of the main test line to the DB15 interface of the FV100 and lock the fastening
bolt;
3) Connect the other end of the main test line to the vehicle diagnosis seat.
4) At this point, the FV100 is powered by the vehicle diagnostic seat and the power indicator lights
are on.
Note: After the test completed, rotate the fixed bolt first, then gently pull down the main test line to
avoid damage to the diagnostic interface.
Vehicles that connect to non-OBD- Ⅱ interfaces need to connect the main test line to the
corresponding dedicated connector, as shown in figure 3.1-2
Figure 3.1-2 connection of non-OBD-
Ⅱ
interface
1) Determine the location and he interface of the diagnostic seat, and if it needs an external power
supply;
2) Connect one end of the main test line to the DB15 interface of the FV100 and lock the fastening
bolt;
product manual
4
3) Connect the other end of the main test line to the special connector corresponding to the car;
4) Connect the special connector connected to the main test line with the vehicle diagnostic seat;
5) At this point, the FV100 is powered by the vehicle diagnostic seat and the power indicator lights
are on(If not, it may be that the vehicle diagnostic seat does not have a power supply and can be
powered to the FV100 by a cigarette lighter or a battery holder).
3. 2 FV100 connection to host
After the FV100 is connected to the vehicle, it is necessary to match the connection between the
host and the FV100 before the vehicle diagnosis can be carried out; FV100 supports two ways to
communicate with tablet hosts: Bluetooth pairing and USB connections.

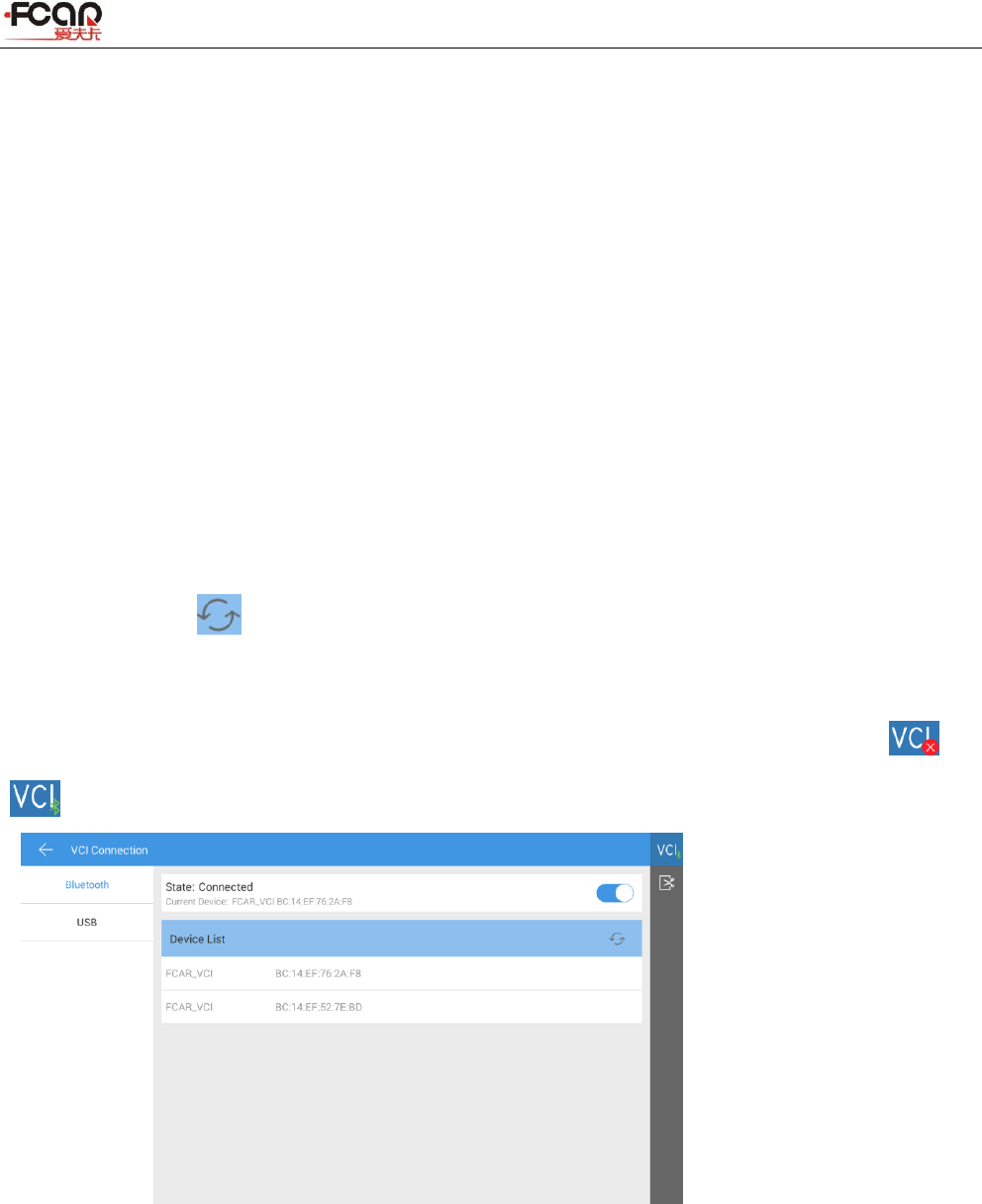

Through Bluetooth pairing:
1) Turn on the tablet host power supply
2) Select [VCI connection] on the main function menu; select connection mode [Bluetooth]
3) Click the scan icon on the right side of the device list, the system automatically scans
nearby Bluetooth devices;
4) Select target Bluetooth to match.
5) Match complete, the VCI icon in the upper right corner of the screen from “” to
“ ” ,indicates a successful Bluetooth match，vehicle diagnostics can be carried out.
Note: if the Bluetooth device can not be found, the transmitter may be too weak, at this time, be
as close as possible to the FV100.
USB connection is the fastest way to communicate between tablet host and FV100；Please use
our factory configuration of special USB cable for connection, after the connection completed, the
product manual
5
VCI icon in the upper right corner of the screen from “” to “ ”, indicates a successful
Bluetooth match，vehicle diagnostics can be carried out.
Note: two types of connection can not be used at the same time!
4. Notes for maintenance and use
This machine is not allowed to be dismantled without authorization;
Avoid a strong collision with the machine;
Avoid bringing the machine closer to the magnetic field;
Do not put the machine in a quake-prone, dusty, humid or hot place;
When the host is dirty, please turn off the power first, it needs soft cloth and neutral detergent to
clean the host, do not use water and chemical solvents to clean the machine, such as banana water,
engine cleaning agent, gasoline, etc.
Please unplug the power plug when not in use to avoid the aging of electrical components caused
by long time electrification;
product manual
