FDY Digital Electronics W3A Wall-Mounted Smart Home Speaker User Manual 1

Shenzhen FDY Digital Electronics Co.,Ltd. Wall-Mounted Smart Home Speaker 1

Contents

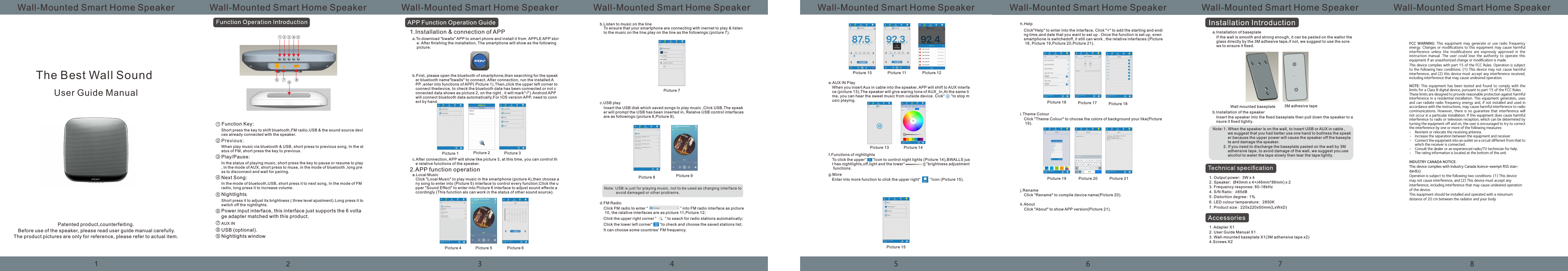

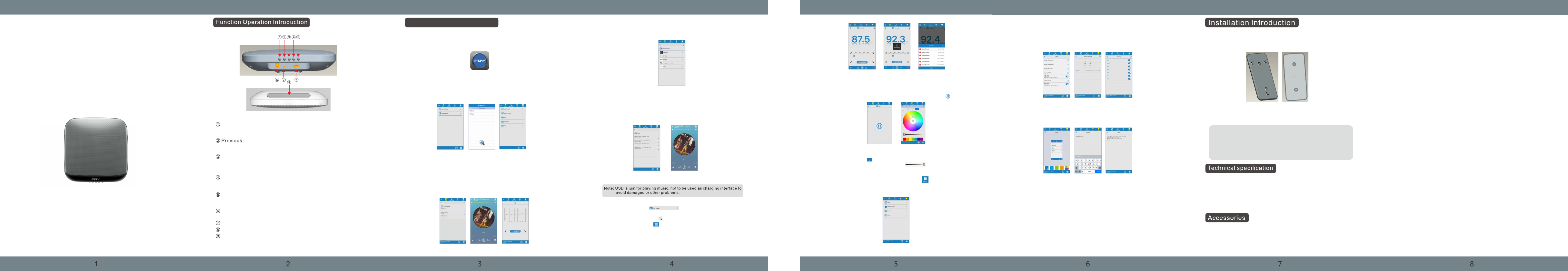

User manual

Wall-Mounted Smart Home Speaker Wall-Mounted Smart Home Speaker Wall-Mounted Smart Home Speaker Wall-Mounted Smart Home Speaker Wall-Mounted Smart Home Speaker Wall-Mounted Smart Home Speaker Wall-Mounted Smart Home Speaker Wall-Mounted Smart Home Speaker
The Best Wall Sound
User Guide Manual
Patented product,counterfeiting.
Before use of the speaker, please read user guide manual carefully.
The product pictures are only for reference, please refer to actual item.
Function Key:
Short press the key to shift bluetooth,FM radio,USB & the sound source devi
ces already connected with the speaker.
When play music via bluetooth & USB, short press to previous song, In the st
atus of FM, short press the key to previous.
Play/Pause:
In the status of playing music, short press the key to pause or resume to play
, in the mode of AUX, short press to muse, in the mode of bluetooth ,long pre
ss to disconnect and wait for pairing.
Next Song:
In the mode of bluetooth,USB, short press it to next song, In the mode of FM
radio, long press it to increase volume.
Nightlights
Short press it to adjust its brightness ( three level ajustment).Long press it to
switch off the nightlights.
Power input interface, this interface just supports the 6 volta
ge adapter matched with this product.
AUX IN
USB (optional).
Nightlights window
APP Function Operation Guide
1.Installation & connection of APP
a.To download "bwalls" APP to smart phone and install it from APPLE APP stor
e. After nishing the installation, The smartphone will show as the following
picture:
b.First, please open the bluetooth of smartphone,then searching for the speak
er bluetooth name"bwalls" to connect, After connection, run the installed A
PP ,enter into functions of APP( Picture 1),Then,click the upper left corner to
connect thedevice, to check the bluetooth data has been connected or not c
onnected data shows as picture 2, on the right , it will mark"√").Android APP
will connect bluetooth data automatically,For IOS version APP, need to conn
ect by hand.
c.After connection, APP will show like picture 3, at this time, you can control th
e relative functions of the speaker.
2.APP function operation
a.Local Music
Click "Local Music" to play music in the smartphone (picture 4),then choose a
ny song to enter into (Picture 5) interface to control every function;Click the u
pper "Sound Effect" to enter into Picture 6 interface to adjust sound effects a
ccordingly (This function als can work in the status of other sound source).
b.Listen to music on the line
To ensure that your smartphone are connecting with inernet to play & listen
to the music on the line,play on the line as the followings:(picture 7).
c.USB play
Insert the USB disk which saved songs to play music ,Click USB,The speak
er will prompt the USB has been inserted in, Relatve USB control interfaces
are as followings:(picture 8,Picture 9).
d.FM Radio
Click FM radio to enter “ ” into FM radio interface as picture
10, the ralative interfaces are as picture 11,Picture 12;
Click the upper right corner “ ” to seach for radio stations automatically;
Click the lower left corner“ ”to check and choose the saved stations list;
It can choose some countries' FM frequency.
e.AUX IN Play
When you insert Aux in cable into the speaker, APP will shift to AUX interfa
ce (picture 13),The speaker will give waring tone of AUX_In,At the same ti
me, you can hear the sweet music from outside device. Cick“ ”to stop m
usic playing.
f.Functions of nightlights
To click the upper “ ”Icon to control night lights (Picture 14),BWALLS jus
t has nightlights,off,light and the lower“ ”brightness adjustment
functions.
g.More
Enter into more function to click the upper right“ ”Icon (Picture 15).
h.Help
Click"Help" to enter into the interface, Click "+" to add the starting and endi
ng time,and date that you want to set up . Once the function is set up, even
smartphone is switchedoff, it still can work , the relative interfaces:(Picture
18, Picture 19,Picture 20,Picture 21).
i.Theme Colour
Click "Theme Colour" to choose the colors of background your like(Picture
19).
j.Rename
Click "Rename" to compile device name(Picture 20).
k.About
Click "About" to show APP version(Picture 21).
a.Installation of baseplate
If the wall is smooth and strong enough, it can be pasted on the wallor the
glass directly by the 3M adhesive tape,if not, we suggest to use the scre
ws to ensure it xed.
Wall mounted baseplate 3M adhesive tape
b.Installation of the speaker
Insert the speaker into the xed baseplate then pull down the speaker to e
nsure it xed tightly.
1. When the speaker is on the wall, to insert USB or AUX in cable ,
we suggest that you had better use one hand to buttress the speak
er because the upper power will cause the speaker off the basepla
te and damage the speaker.
Note:
2. If you need to discharge the baseplate pasted on the wall by 3M
adhensive tape, to avoid damage of the wall, we suggest you use
alcohol to water the tape slowly then tear the tape lightly.
1. Output power: 3W x 4
2. Speaker: Ø40mm x 4+(46mm*86mm) x 2
3. Frequency response: 80-18kHz
4. S/N Ratio:≥85dB
5. Distortion degree:1%
6. LED colour temperature:2850K
7. Product size:220x220x50mm(LxWxD)
1. Adapter X1
2. User Guide Manual X1
3. Wall-mounted baseplate X1(3M adhensive tape x2)
4.Screws X2
Picture 1 Picture 2 Picture 3
Picture 4 Picture 5 Picture 6
Picture 7
Picture 8 Picture 9
Picture 10 Picture 11 Picture 12
Picture 13 Picture 14
Picture 15
Picture 16
Picture 19 Picture 20 Picture 21
Picture 17 Picture 18
FCC WARNING: This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment may cause harmful
interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The rating information is located at the bottom of the unit.
INDUSTRY CANADA NOTICE:
This device complies with Industry Canada licence-exempt RSS stan-
dard(s).
Operation is subject to the following two conditions: (1) This device
may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation
of the device.
This equipment should be installed and operated with a minumum
distance of 20 cm between the radiator and your body.
