Note: This User Guide relates to Software Version Release 2.33
Introduction
The FE Technologies V5 Self Loan Station is a modern, state-of-the-art system that can be
used by library patrons to borrow and return items, unlock media cases, check their borrowing
status and renew items.
The system has the following features:
• Blended customisable LED Halo
• Portrait oriented 23” touchscreen featuring
SAW (Sound Acoustic Wave) technology, able
to list 20 items at a time on one screen
• The ability to checkout up to 15 items at a
time
• Integrated printer
• Integrated CCD barcode scanner, capable of
scanning barcodes from library cards, mobile
phones and QR codes (other membership
card reader types are also available.
• Slim design with large robust tabletop
• Optional integrated DVD Unlocker,
compatible with OneTime™ lockable DVD
cases
• Optional integrated coin acceptor
• Optional integrated EFTPOS payment facility
• Separate floor mounting plate for ease of installation
• Customer changeable table top insert
• AS/NZS1428 compliant.

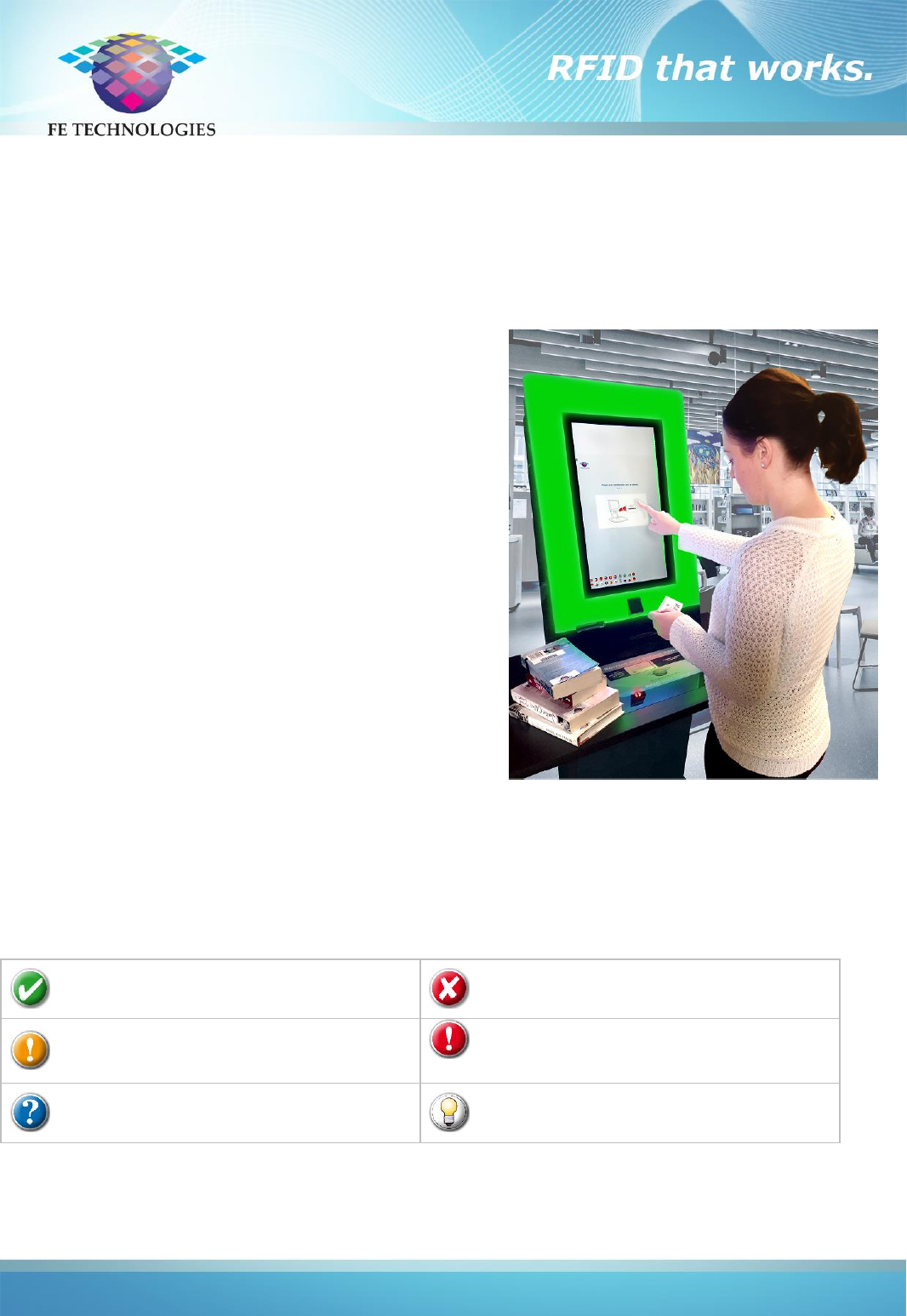

Document Legend:
Do’s (recommended action)
Don’t (not recommended action)
Note (a note of advice)
Caution (A note of warning or
caution)
(FAQ) Frequently asked question
Tips for effective usage
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 5
Optional features
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 6

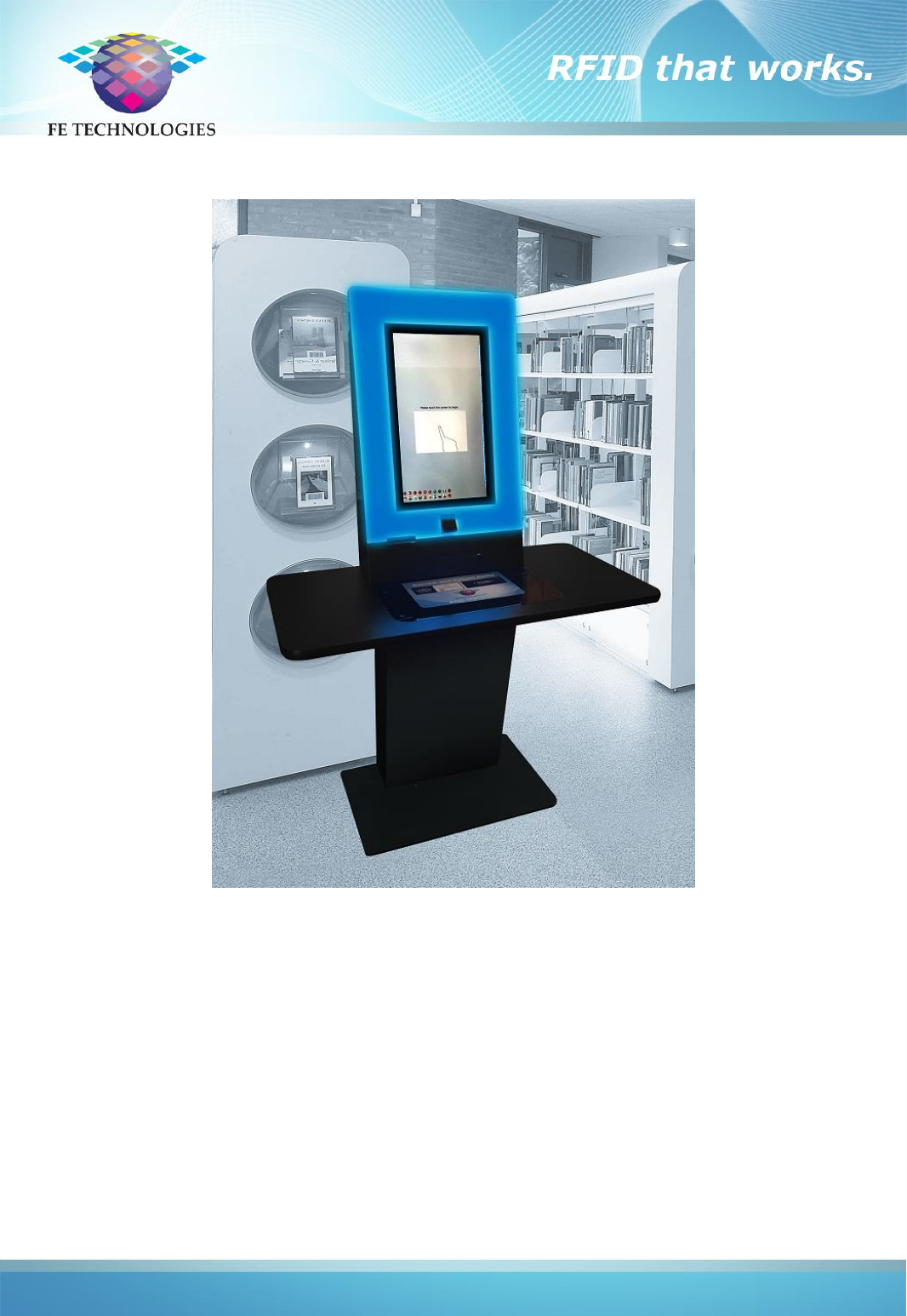

Self-Loan Station Key Components
The FE Technologies Self Loan station features a computer with a 23’ portrait-oriented
integrated touch screen, a CCD barcode scanner, receipt printer and a table top with integrated
RFID reading platform and instruction insert. A DVD unlocking unit, coin acceptor and EFTPOS
pin pad are available as options.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 7
Installation Options:
The unit can be installed as a standalone unit, mounted on a wall or placed on existing desktop
furniture. Two units can also be placed back to back. For more details, please see the V5 Self
Loan Station Architect Pack.
Key Functions
View account status
Renew items
View reservations
Unlock media cases
Administration (System administration, encoding tags, checking tags, close program,
shut down computer, secure remote assistance)
Several choices of workflows
Language options
Offline mode
Increase/decrease font size
Optional Features (LMS dependant and conditions apply)
Sorted Returns (Return items with patron assisted sorting)
Key functions available to users of the Self
Loan Station include:
Scan and authenticate patron
o Barcode (optional password /
pin for payment accounts)
o Manual ID and Password entry
using on screen key board
o Charge-Coupled Device (CCD)
scanner

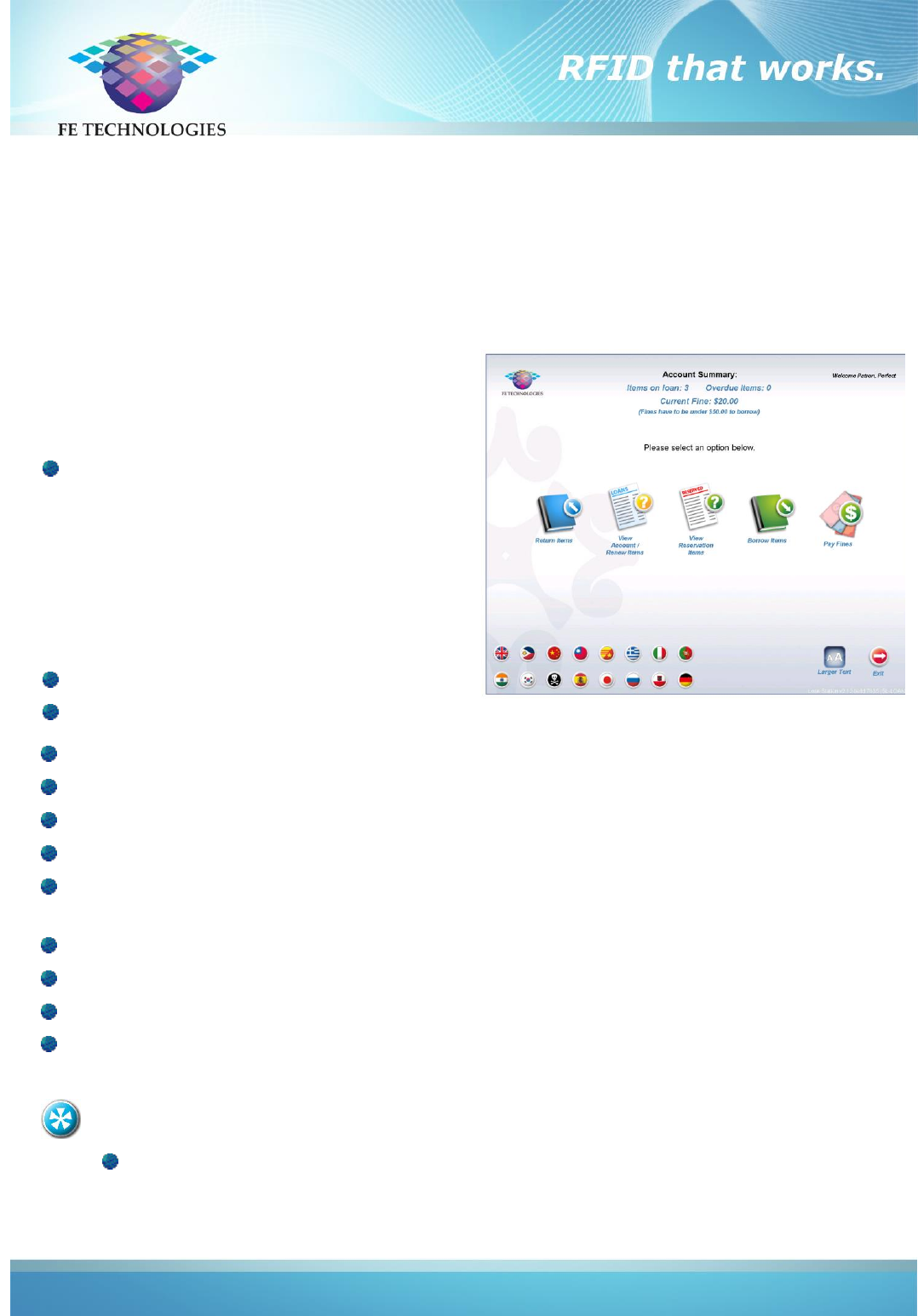

Display summary information on login
Borrow items
Enhanced Borrow Items
Return items
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 8
Enhanced Unlock media cases
Pay Fines
- Cash
- EFTPOS
- Charge Print card solutions
• Bear Solutions
• Monitor
• Pharos
• InePro
• Papercut
Membership Card Reader Options
The Self Loan Station has the following options available for patron membership card reading:
CCD reader – reads barcodes including electronic barcodes stored on mobile devices
Gemalto contact card reader
Omnikey 5421 card reader
Magnetic card reader (MSR250HK)
Receipt Printing Options
The following can be printed via the Self Loan Station’s receipt printer:
Reprint receipt
Print rejected offline transactions report
Print Smart Shelf Reports
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 9
Only qualified personnel should edit CSS as incorrect editing can render your self-loan
station unstable or inoperable.

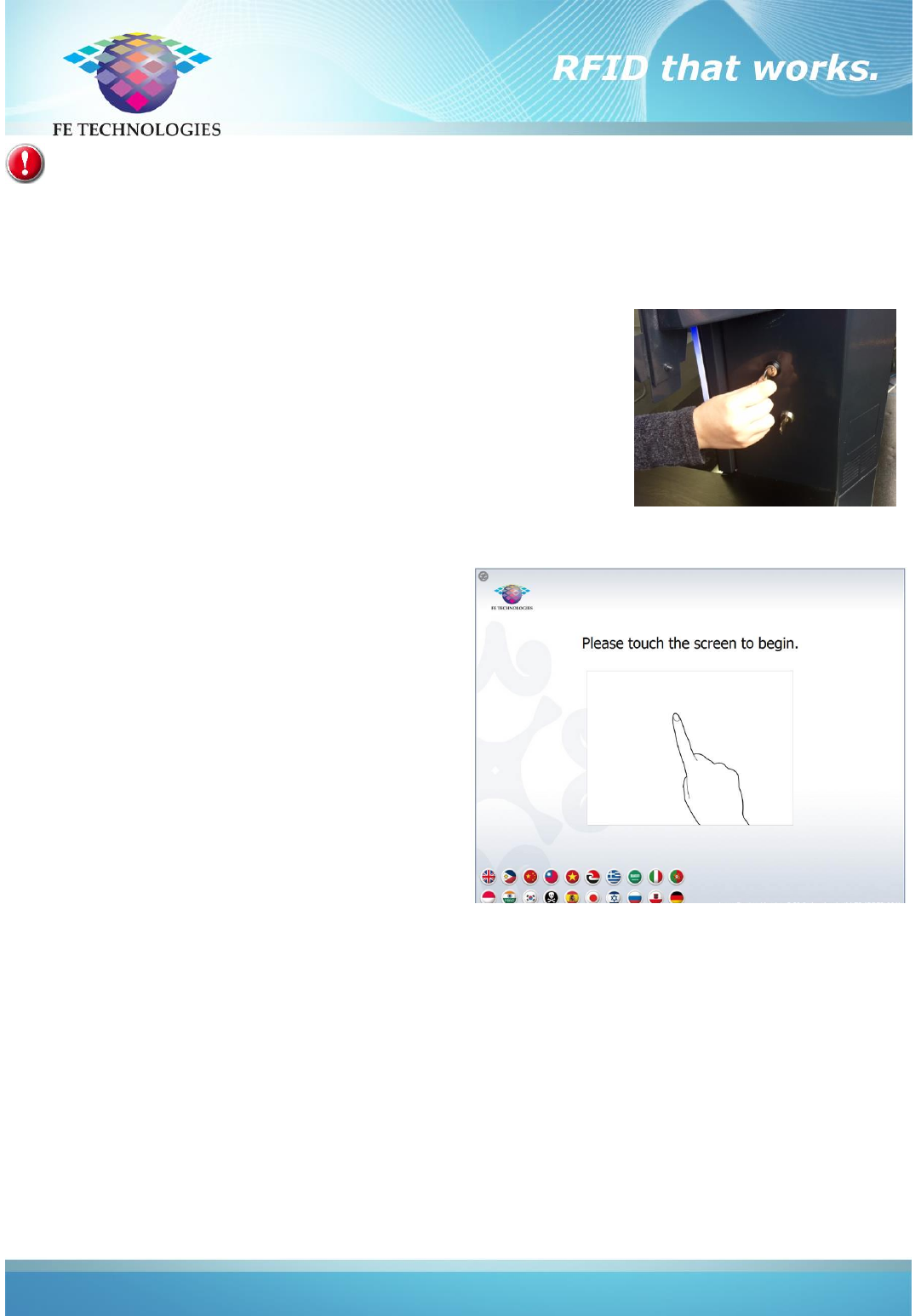

Key Switch
On the right-hand side of the Self Loan Station are two
keyholes, similar to an ignition switch. Inserting the key into the
top keyhole (provided to you upon installation) and turning it
clockwise powers on the unit. The bottom keyhole is to gain
access to the front panel of the unit (which can also be
performed by scanning the administrator’s card. – this is
discussed later in this document.)
Common Starting Pages:
Screen Saver Page: This page helps prolong
the life of the Self Loan Station by switching
off the barcode scanner, RFID reader etc. and
placing computer in standby mode. This page
can also be used for displaying information
and advertisements.
An optional copyright disclaimer is available at
the start session also. The patron must agree
to the disclaimer before proceeding. If the
patron declines the session will end.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 10

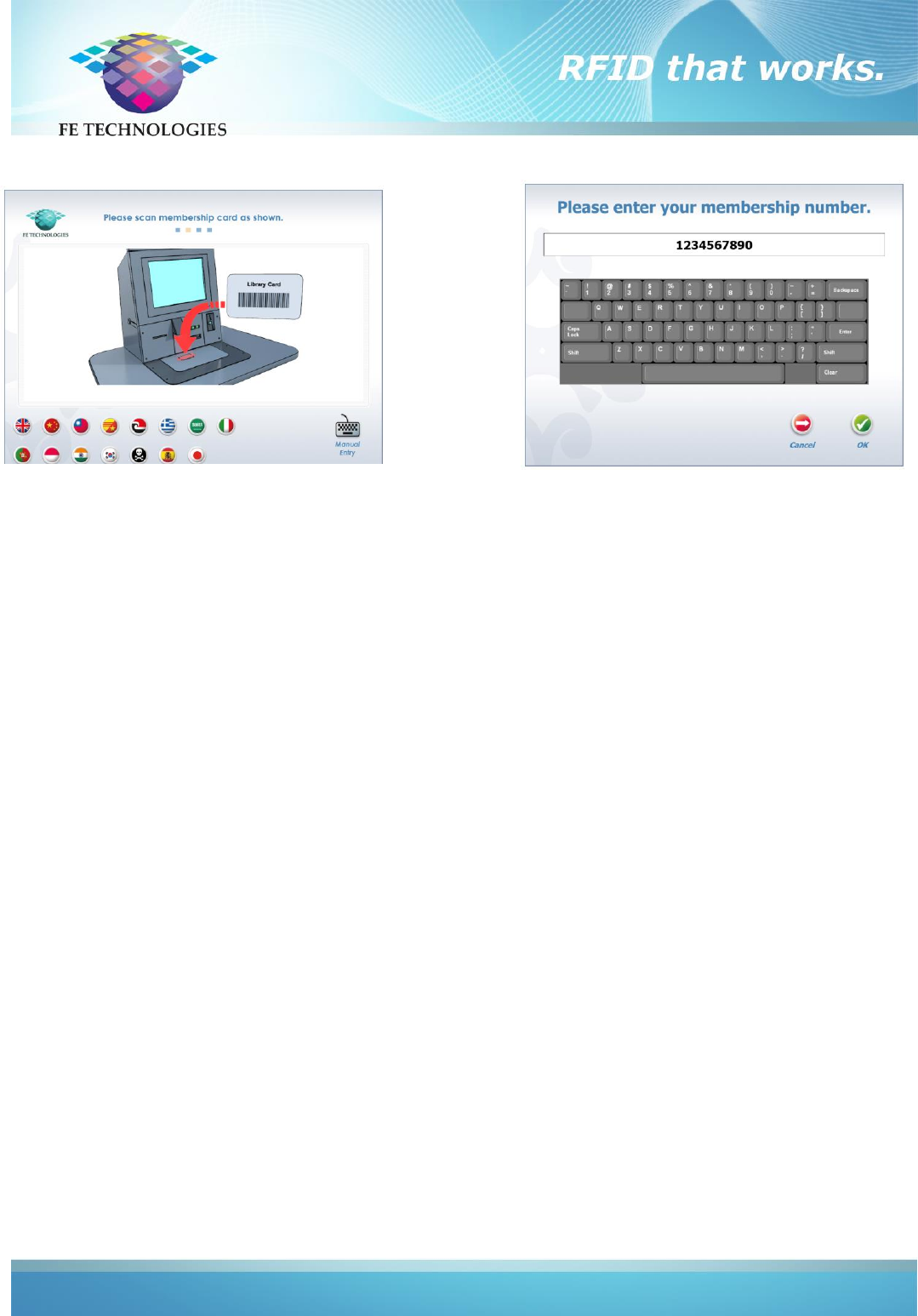

Patron Authentication page:
This requests patrons to scan their membership card. An animation on the screen shows the
patrons where to place their card for scanning. The instructions insert on the table top displays
a picture of the correct location to place the card for scanning. It is also possible to enable
manual entry of their Patron Number followed by the password or pin using the onscreen
keyboard.
Language option buttons are also available on these pages.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 11
Borrow Items
This function allows the patron to borrow library items.
Selecting ‘Borrow Items’ prompts patrons to place their items
on the RFID platform
When the items are placed on the platform, they are

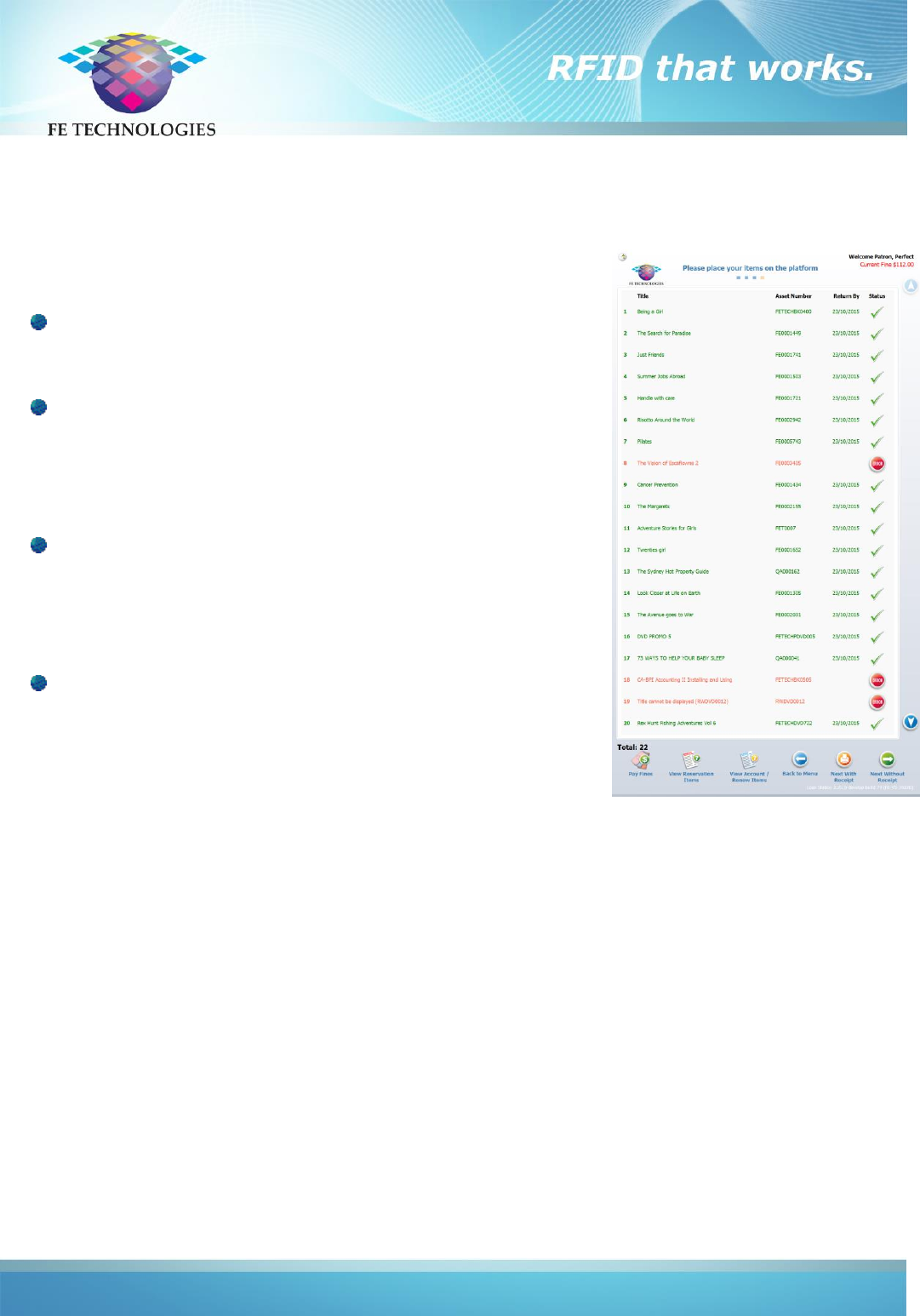

instantly ‘read’ and displayed as a list showing title,
asset number, due date and status.

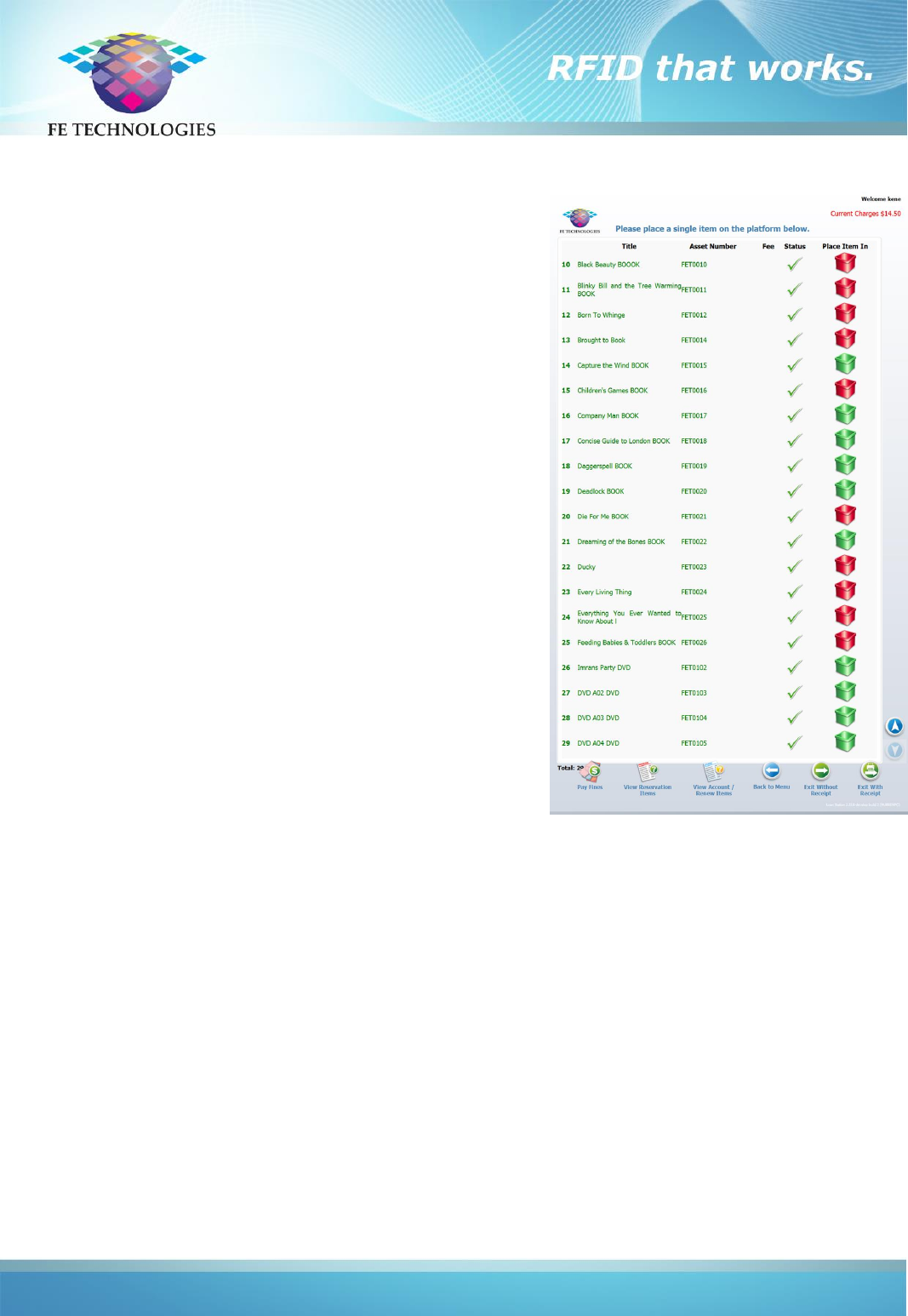

The portrait-oriented screen will display a list of up to
20 items, but we recommend that patrons are
instructed to borrow up to 15 items at a time – a large
stack of items may obscure the screen and become
unwieldy.

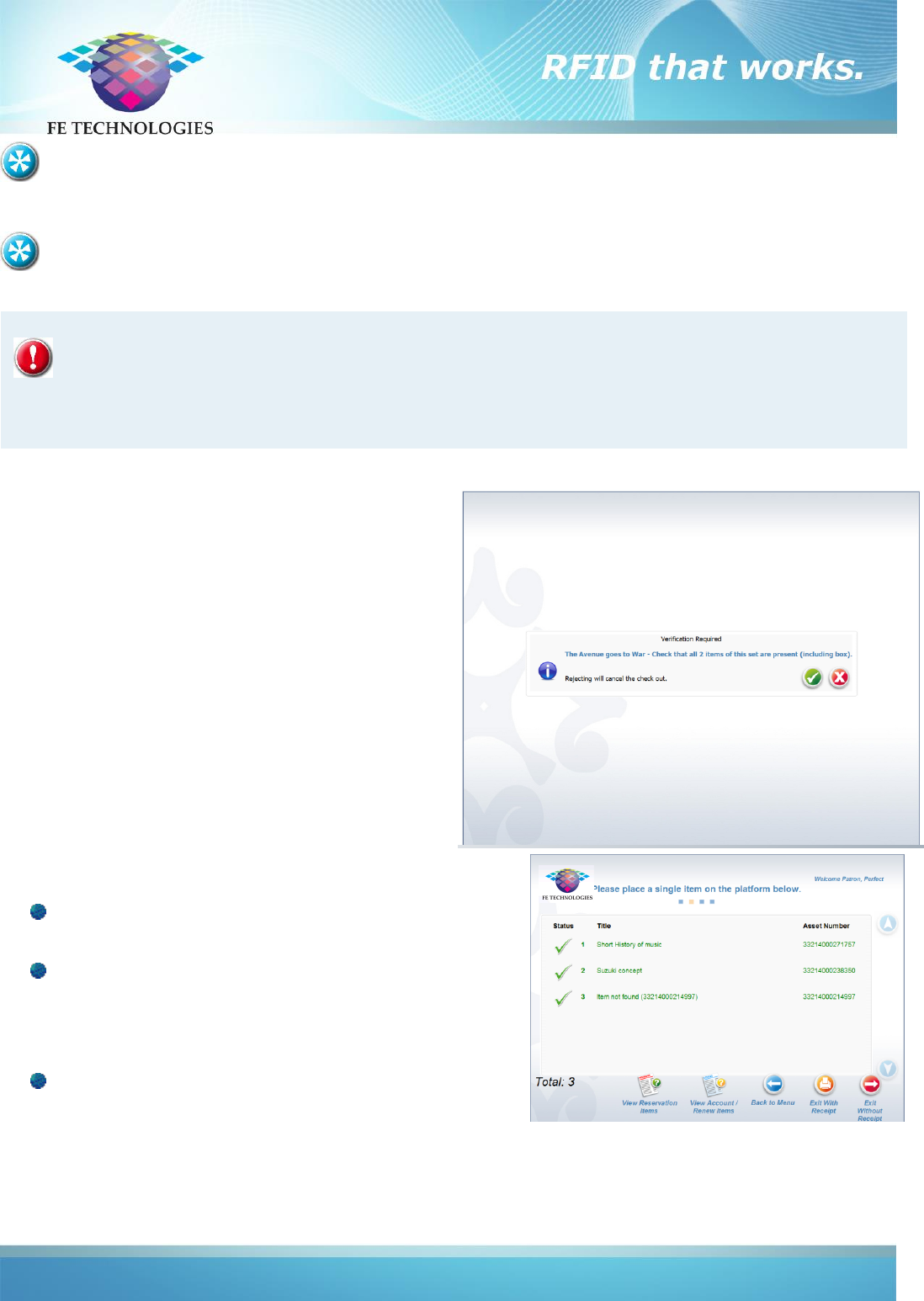

Items that have been successfully issued will have a
green tick beside them. Those with a red error beside
them indicate that the item has not been issued.
Pressing the error button will provide more details on
why the item was not issued.
Patrons may add more items once they have removed
previously scanned items.
Once all items have been processed, the optional ‘Unlock DVD’
function can be enabled (if present), and the patron will be
guided to unlock the DVD cases that they have borrowed.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 12
Enhanced Borrow Item
This function allows the patron to borrow library items. It executes the same functionality as
“Borrow Items” detailed above. However, it uses a more elaborate layout, requires reduced
screen scrolling and is more suitable for libraries where the average number of loans per
transaction is high.
Borrow items and Enhanced borrow items are mutually exclusive i.e., only one of these
functions may be enabled.
Selecting ‘Borrow Items’ prompts patrons
to place their items on the RFID platform

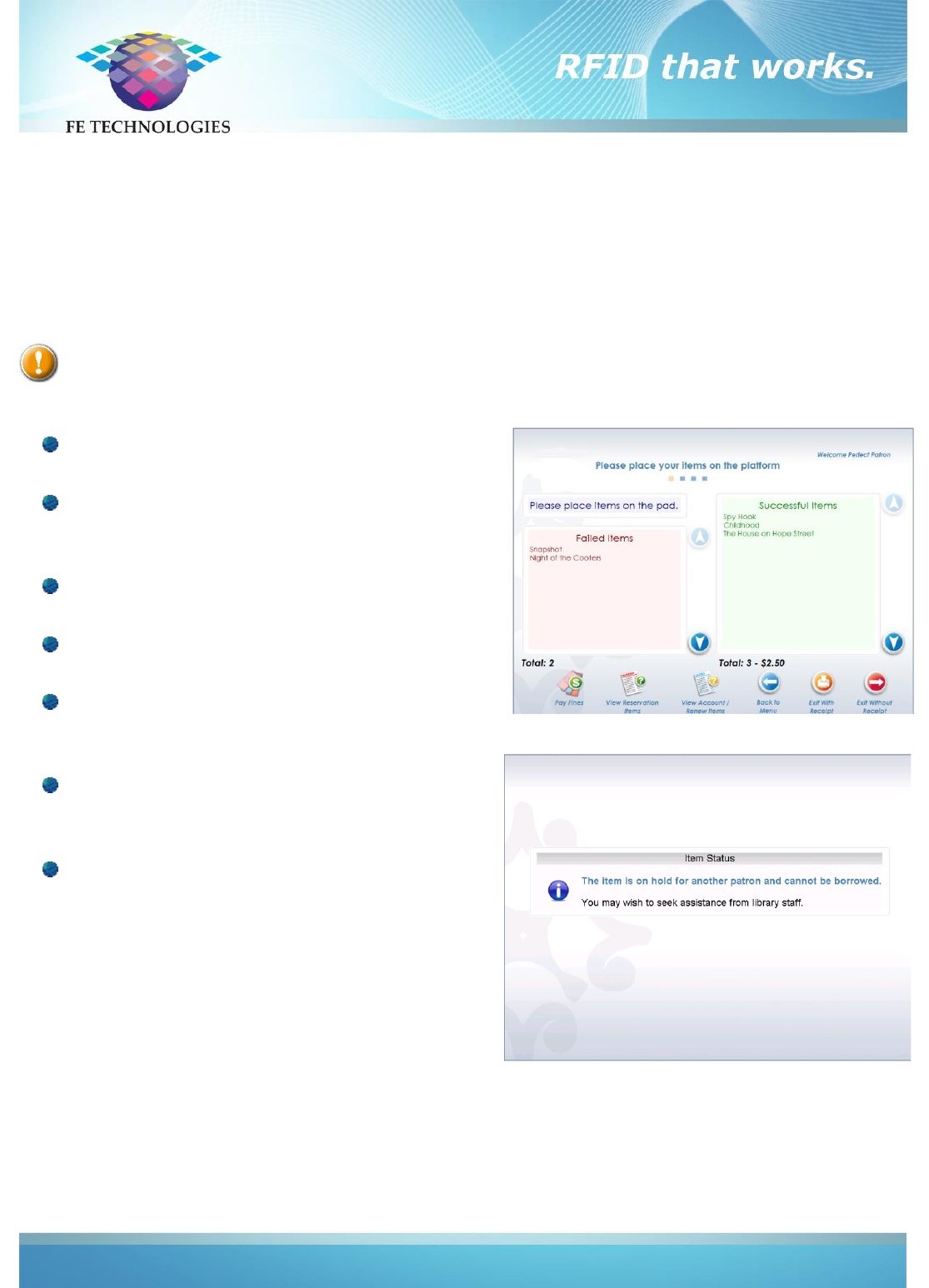

When the items are placed on the
platform, items are processed in
sequence, but are listed in two columns.
Successful items are recorded in a
column on the right in a green colour.
Failed items are recorded in a column on
the left in a red colour.
Touching the failed item will display an
error message and instructions (this is
customisable).
It is also possible to issue a two part
receipt clearly showing the successful
and unsuccessful items separately.
Patrons may add more items once they
have removed previously scanned items.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 13
Once all items have been processed, the optional ‘Unlock DVD’ function can be enabled (if
present), and the patron will be guided to unlock the DVD cases that they have borrowed.
Unlock DVD Cases
This is an optional function that requires the purchase of additional hardware and custom
locked DVD cases.
Patrons can place a mixture of book and DVD items on the pad during the “Borrow Items”
procedure. If DVD items are detected, a list of borrowed DVD items will appear onscreen, and
an onscreen animation will commence prompting the patron to insert the DVD case into the
unlocker.
If DVD cases that have not been borrowed are inserted in the unlocker, a message will
appear on the computer screen, the unlocker will emit a red light and an audible alarm
and the patron will be unable to fully insert the DVD case into the unlocker to unlock it.
Once all DVD cases have been unlocked, patrons may proceed by selecting ‘Exit’, which
completes the transaction, prints a receipt and logs the patron out. (The screen returns to the
screen saver page.)

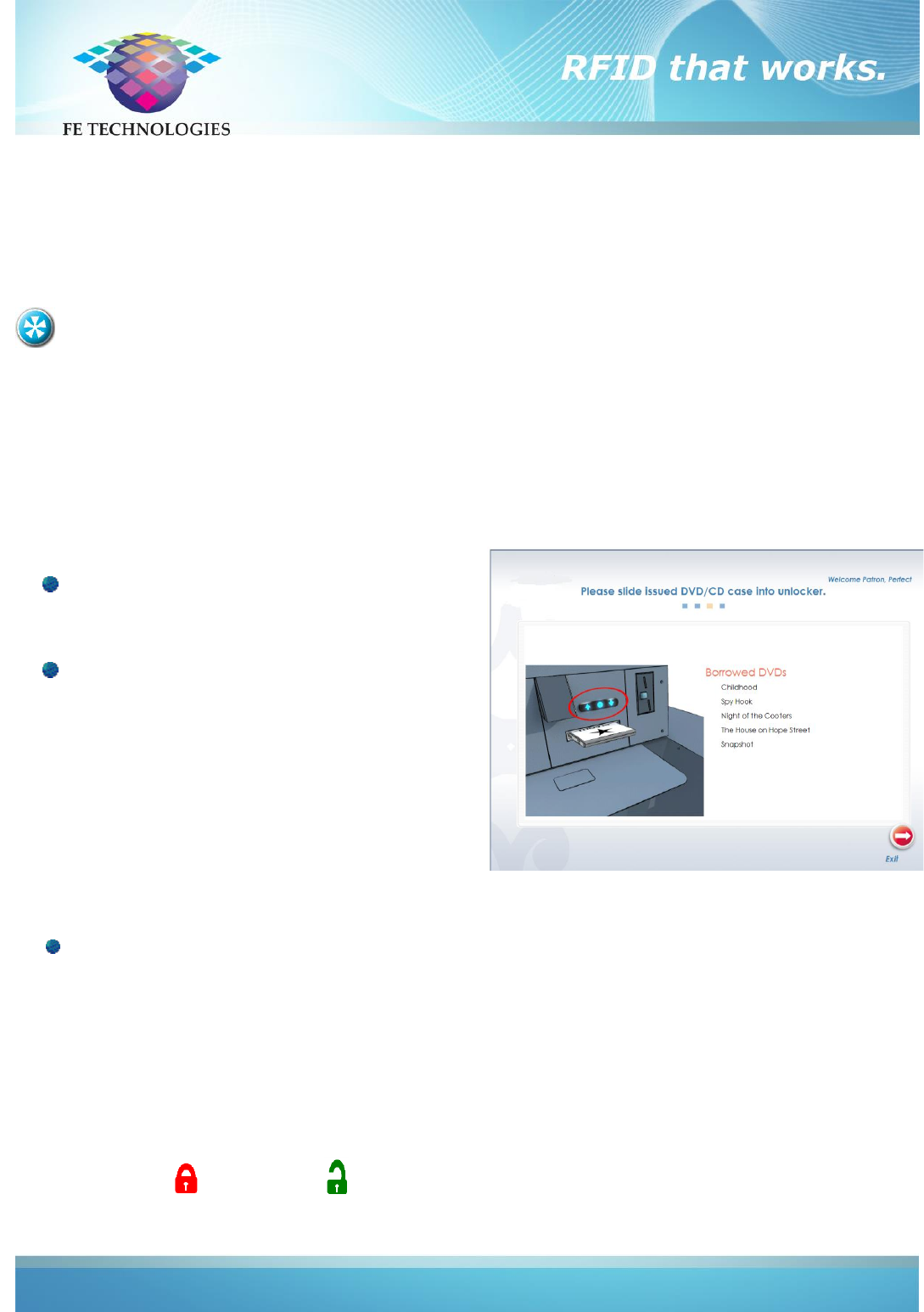

Only Onetime™ lockable DVD cases are compatible with the DVD unlocker system. These cases
case have a red and a green marker to show whether the case is locked or unlocked.
LED lights on the integrated DVD unlocker
guide the patron and will indicate a
successful unlock
When the DVD case has been correctly
inserted into the unlocker, the DVD is
unlocked, the light will turn blue and a
message on the screen will instruct the
patron to remove the DVD case from the
unlocker and double check that it is
unlocked by opening the case.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 14
When using the ISO 28560 data format, the system can be configured to only present the
DVD menu when DVDs are borrowed.
When using the Self Loan Station hardware, the system will present a list of borrowed
items requiring unlocking along with the lock status as they are processed.
Set items
When Type 2 set management is used (where
the first item of a set only is tagged, indicating
the number of items that make up the set), a
Set Verification message is displayed
prompting the patron to confirm that they
have placed all parts of the set on the pad.
The Set item is then only checked out to the
Patron if there a positive confirmation to the
Set Verification message.
Return Items
This function allows the patron to return library
items.
Selecting ‘Return Items’ instructs the patron to
place their items on the RFID platform
When the items are placed on the platform,
they are instantly ‘read’ and displayed as a list
showing title, asset number, due date and
status.
Items that have been successfully returned
will have a green tick beside them. Those with
a red error beside them indicate that the item
For the system to work properly, the DVD Cases must be tagged exactly as detailed in
the Tagging procedure in the Retrospective tagging manual. The DVD Slicks must also be
inserted in the correct orientation.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 15
has not been returned. Pressing the error button will provide more details on why the
item was not returned.
Patrons may add more items once they have removed previously scanned items.

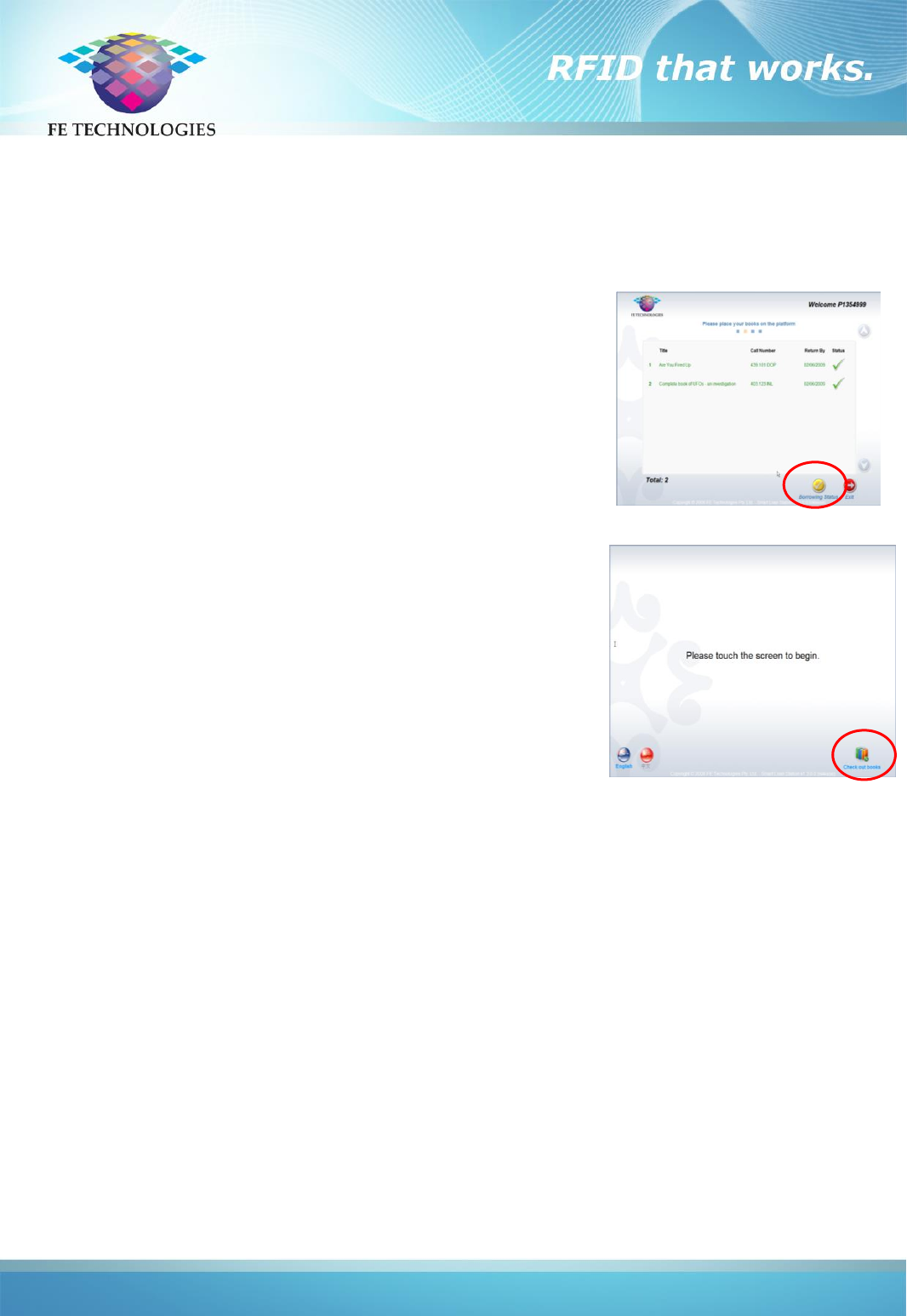

Once all items have been have been processed, patrons may proceed by selecting ‘Exit’, which
completes the transaction, prints a receipt and logs the patron out. (The screen returns to the
screen saver page).
You will need to provide a suitable receptacle for patrons to place the returned items.
You will also need to reprocess the returned items, using either the Sort Assistant or the
Circulation Assistant to determine its sort criteria (ready to shelf, on hold etc.).
Sorted Returns – One at a time sorting
The ‘Sorted Return’ function is dependent on the SIP2 capabilities of the LMS and while it is
available to all customers, it is only operational when used with a compatible LMS. FE
Technologies can assess the suitability of your LMS for this function. A number of bins or other
receptacles are required to be present adjacent to the Self Loan Station to enable patrons to
place the items once they have been checked in. For example, a shelving trolley, a blue bin and
a red bin can be used to sort items to be shelved; those that need to go to other locations and
those that are on hold. Alternately, a shelving trolley and a bin may be used to sort items that
are to be shelved from all other items that have alerts and hence need to be reprocessed.
Note that only one item at a time can be returned. If more than one item is placed on the pad
an error message will advise the patron to remove all items and place a single item only on the
pad.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 16
Standard returns and sorted returns functions are mutually exclusive i.e., only one of these
functions can be enabled in a Self-Loan Station.

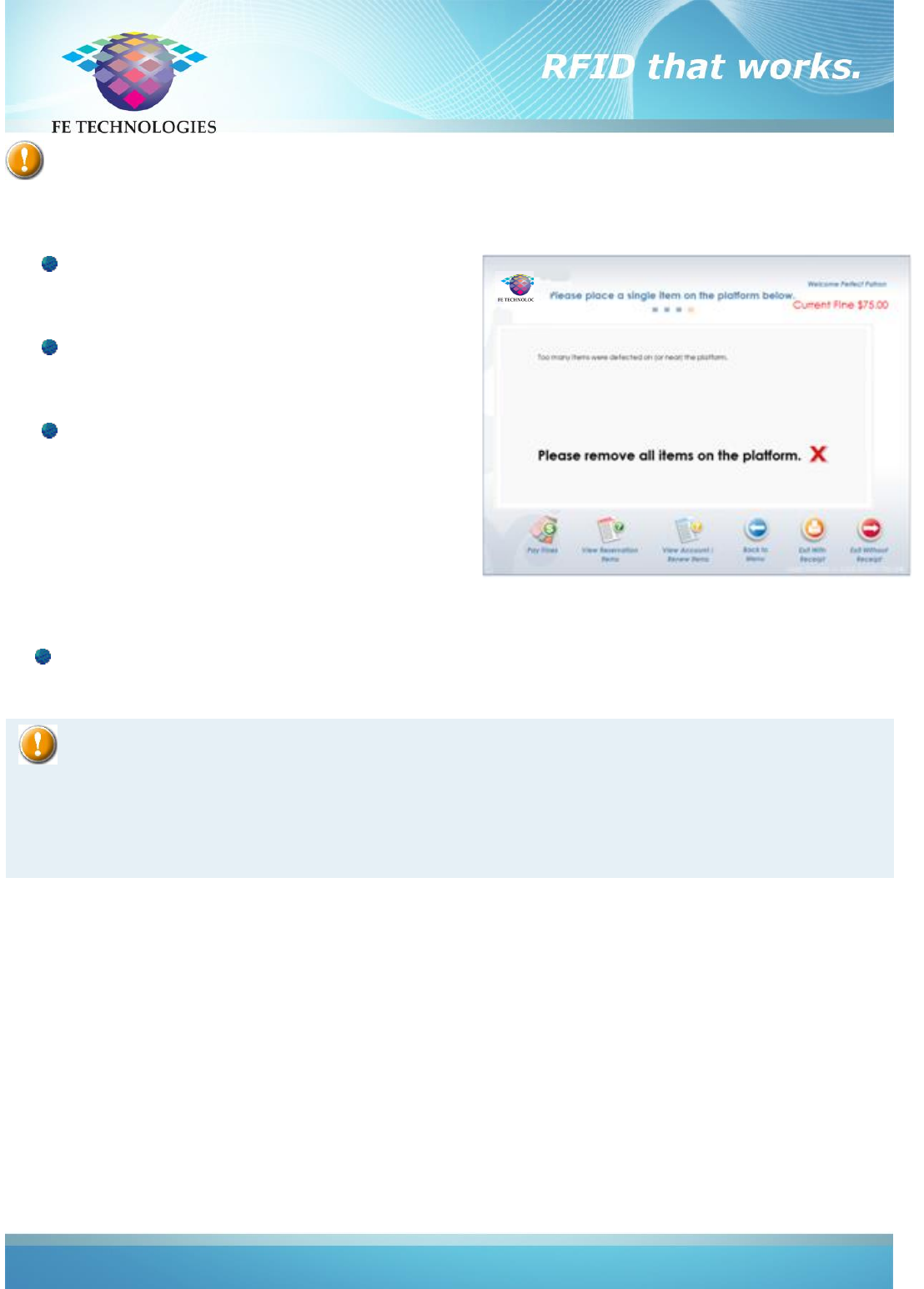

If the patron places multiple items on the platform, an error message is displayed
requesting the patron to remove all items and place them on one at a time
The various sorting options available depend on the capabilities of the LMS used by the
library. You also need a quick way of identifying items that have been incorrectly placed in
the bin to be shelved. This can be seamlessly done using the “Find Exception Items”
feature of the Mobile Scanning Unit.
Selecting ‘Return Items’ instructs the
patron to place their items on the RFID
platform one item at a time.
When an item is placed on the RFID
platform, it is instantly read and
processed.

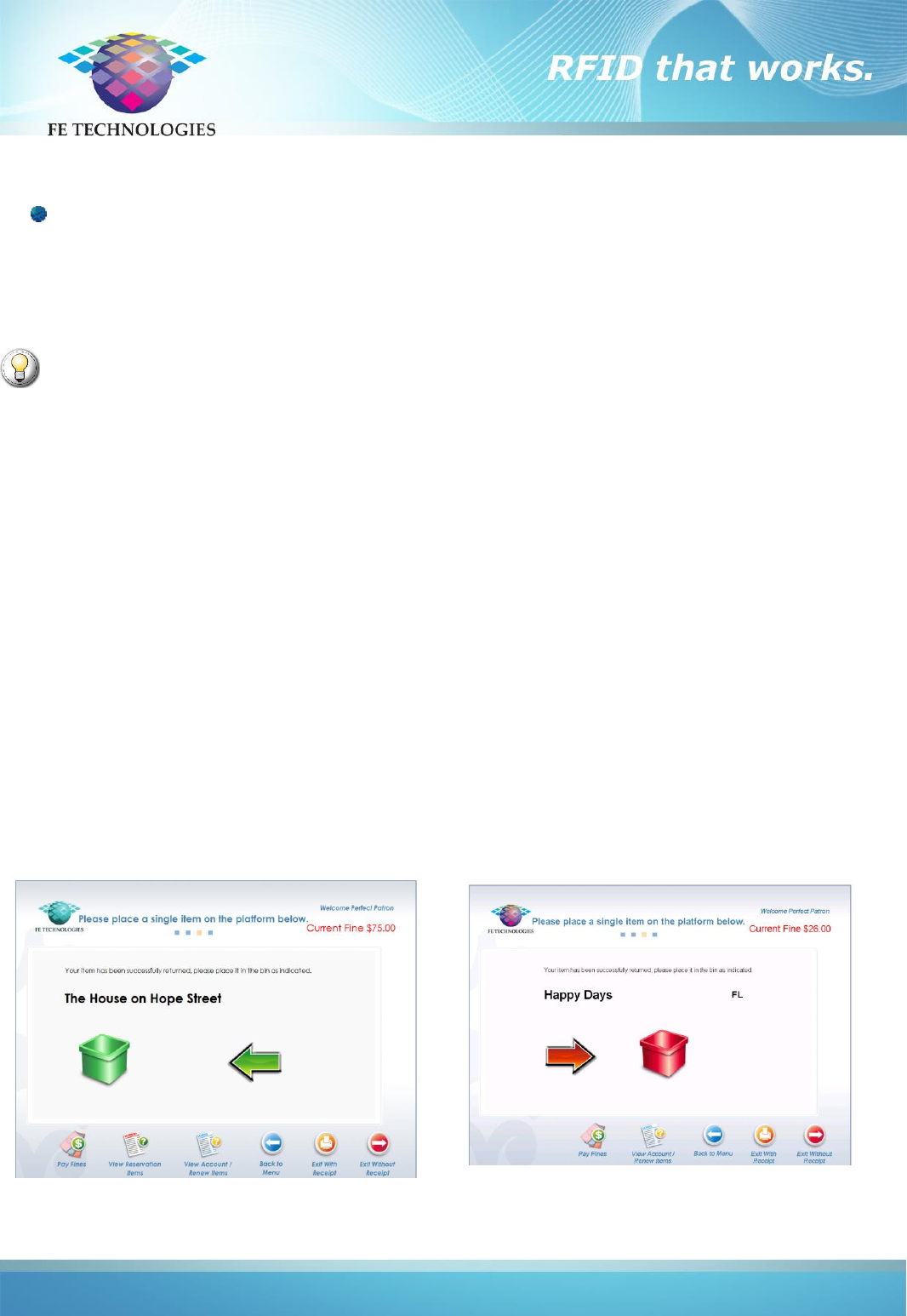

The system then displays the sort
criteria. This page can be easily
customised with text and image
instructions for the patron. E.g. an
arrow pointing to the left and a picture
of a shelving trolley, instructing patrons
to place the item on the trolley, for
items that are to be shelved.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 17
Sorted Returns – Multiple Items
You can also select to have Sorted Returns where the
patron can return multiple items at a time. Up to 15
items can be placed on the reader pad of the Self Loan
Station and a customisable graphic (for example a red
or green bin and/or arrow to show the location of the
bin) will show the patron where to place each item.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 18
Account Status / Renew Items
A patron’s account status lists all the items on loan to
the patron, their call numbers and due dates, as well
as:
any fines owing
Charged items – items that carry a charge will
prompt the patron to pay for the item during the
borrowing process
an option to renew items
(individually or all at once)
an option to print (or email if available) a receipt
Other function buttons such as pay fines, view
reserved items, back to main menu etc. can also
be added to this screen
The physical item is not required to renew items.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 19

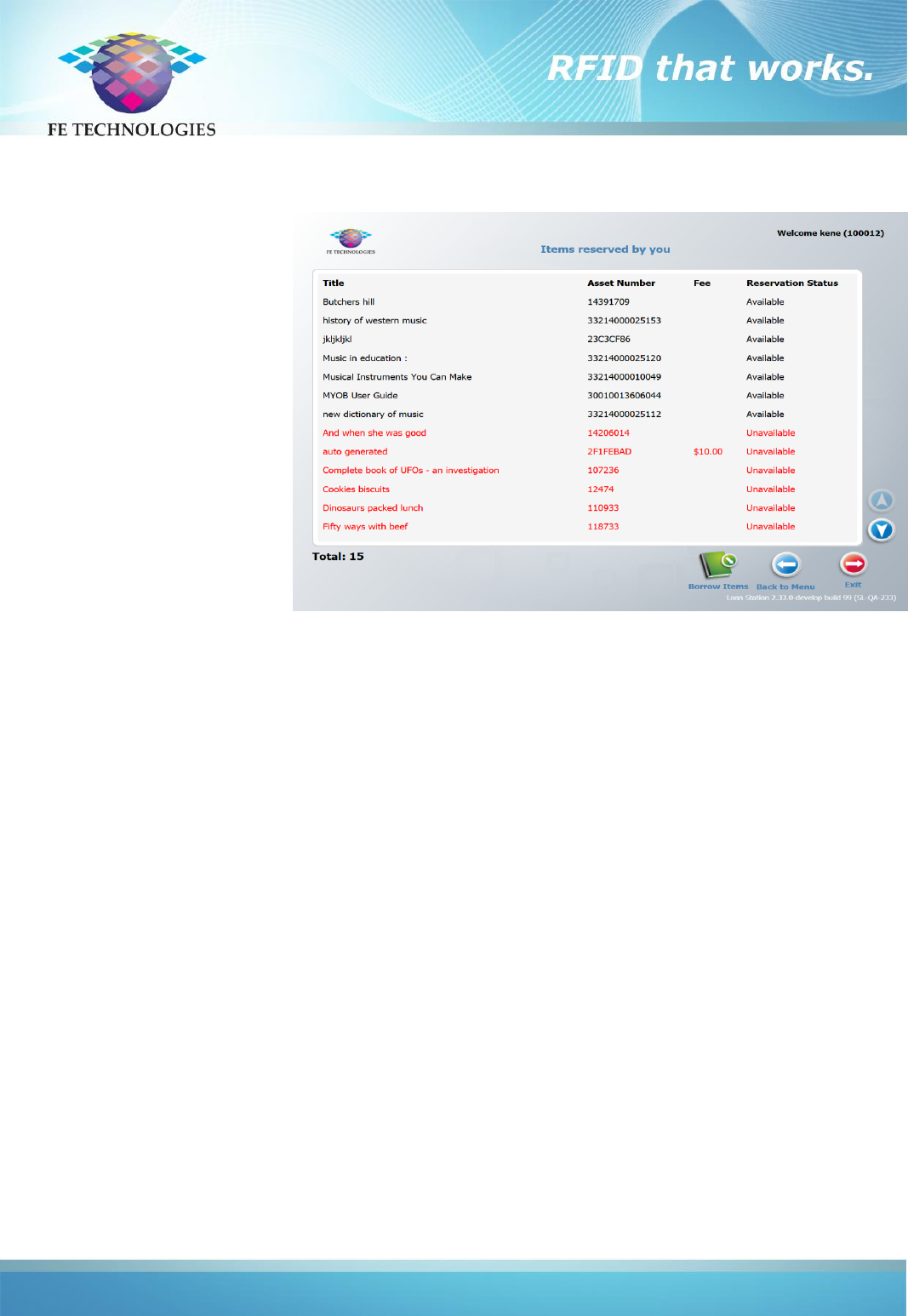

View reserved items:
This function is dependent
on the capability of the LMS,
as not all LMS’s support this
function via SIP2. It displays
a list of items (by title)
currently reserved by the
patron and their status.
Items that are available now
are listed first, and in black.
the item is now available.
Items listed last in red are
still unavailable.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 20

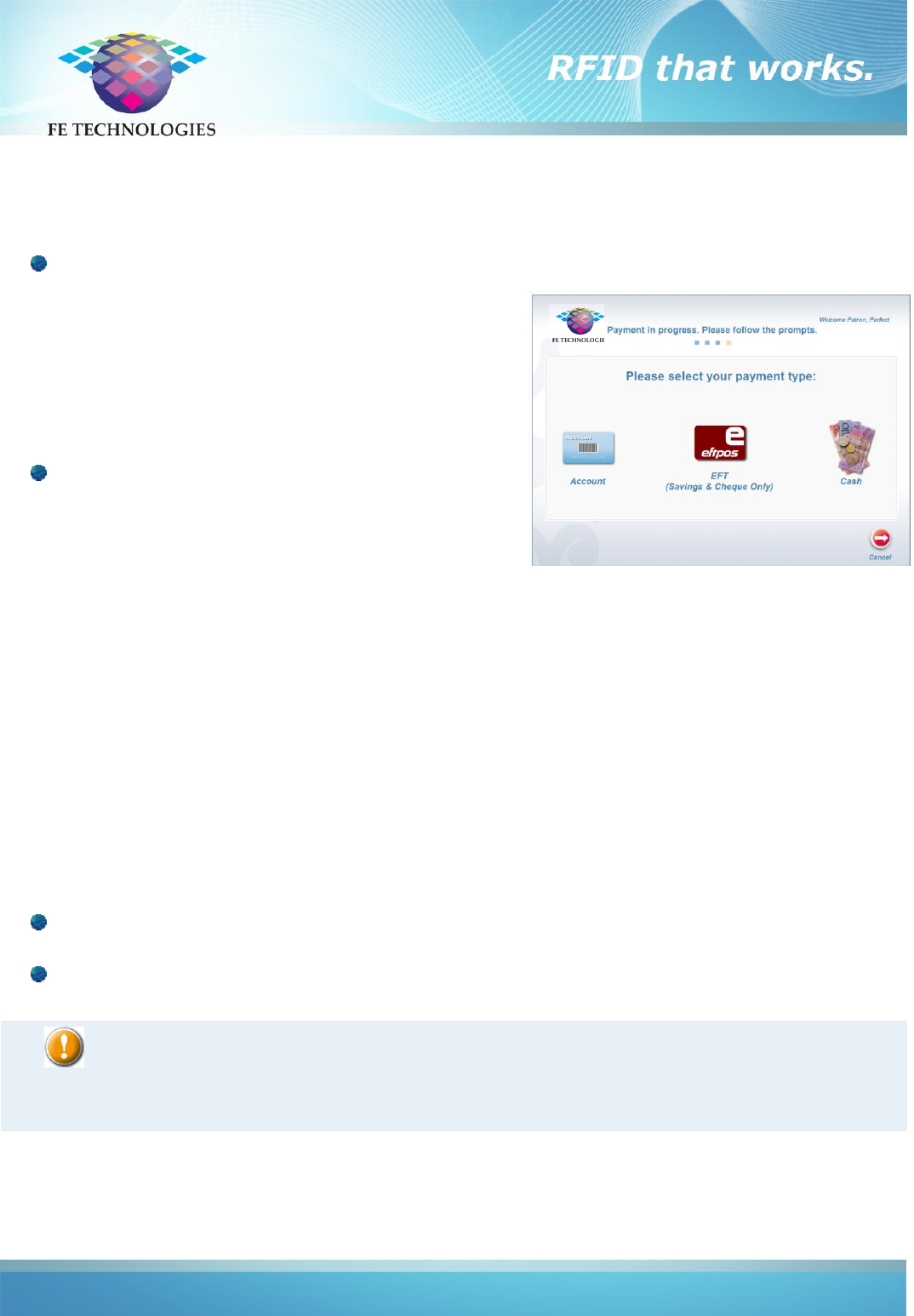

Payment Options
Various payment gateways are available to enable the patron to pay fines and charges. The
Self Loan Station can be configured to work with the following gateways:
EFTPOS: This gateway can be used to allow
the patron to pay using their Bank Account via
their savings or checking accounts. This option
requires optional pin pad hardware to be
purchased. This option also incurs additional
third party setup and monthly fees and
charges such as those from the bank and
clearinghouse that clears the funds.
Third party cost recovery systems:
Integration to selected third party cost
recovery solution (such as photocopy vending
and print release systems) that uses a
compatible central account management
system is possible. The FE Technologies Library RFID system currently integrates to the
following third party systems. If your current vendor is not listed below, a custom
development can be undertaken to include your vendor (conditions and charges apply).
• Bear Solutions
• Monitor
• InePro
• Pharos
• Papercut
NOTE: You may be required to purchase account management modules and additional licences
from your cost recovery solution provider. Stored value cards (as opposed to central account)
are not supported.
Coin acceptor: A compact coin acceptor is available as an optional add-on. The Self
Loan Station has provisioning for installing this into the main unit.
Note acceptor: A compact note acceptor is available as an optional add-on, but cannot
be installed if an integrated DVD unlocker is also installed.
Change dispensing is not currently supported.
Payment options require an LMS that supports payments via SIP2 (Request 37 and
Response 38). FE Technologies can provide you with tools to test if your LMS supports
these functions.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 21
Charge up account
Patrons can select to charge up their
account via the Self Loan Station. From
the opening screen they select “Add
Credit”. Patrons can choose EFT or cash
to put credit onto their account. A
numerical keyboard allows them to enter
the required amount and they’ll then be
directed to interact with the EFTPOS pin
pad for EFTPOS or the coin acceptor for
cash payment.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 22
Work Flows and Skins:
The Self Loan Station workflows can be customised to provide a personalised option of
navigating the system functions. Some examples of the available work flows are listed below:
“Borrow Items Only” Work Flow
When this flow is activated, patrons scan their membership
card at the ‘opening’ screen, and are taken directly to the
‘Borrow Items’ screen, which features a ‘Borrowing Status’
button to enable patrons to view their borrowing status as
required.
The ‘Borrowing Status’ screen can also feature the addition of
a ‘Borrow Items’ button.
“Return Items Only” Work Flow
When this work flow is active, the ‘scan and authenticate”
screen is usually not used which negates the need for the
patron to scan their card. The screen can also feature a
‘Borrow Items’ button, which will take the patron to the ‘Scan
Card’ screen. Receipts are issued for returned items.
Custom work flow
There are several work flow options included with the
system. If one of the workflows provided does not meet your requirements, a custom workflow
can be created to meet your needs.
NOTE: Additional development costs may be applicable.
Additional features
The Member Alert, Session Timeout and Indicator features provide added benefits to both the
patron and library staff.

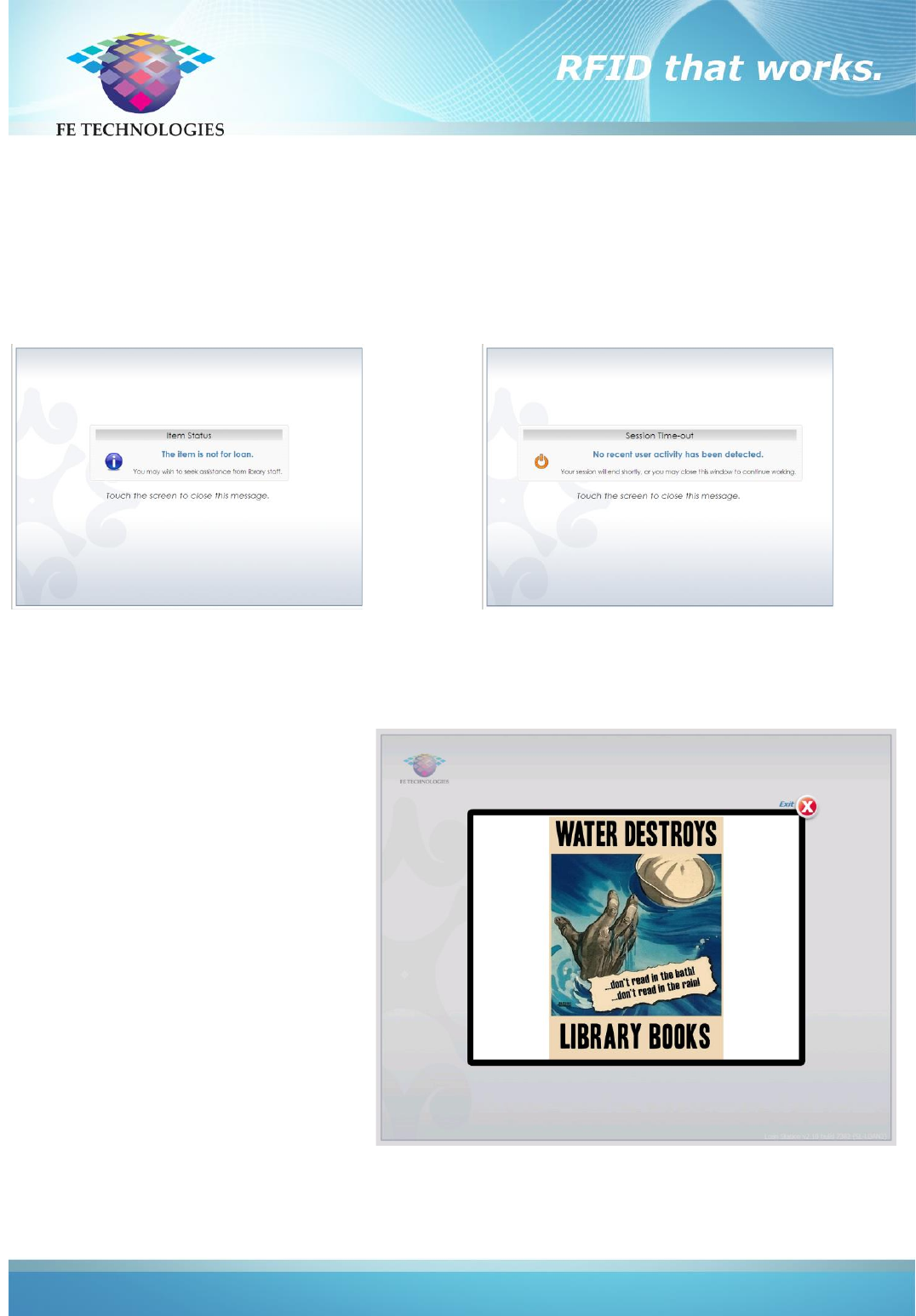

Member Alert
Member Alert (below left) is used to communicate current messages to the patron, such as
informing them that an item they had placed on hold is now available for collection (LMS
Dependant).
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 23
Session Timeout
If an active Self Loan Station screen has not detected any activity for a defined period of time
(which is a configurable value), a Session Timeout screen will appear. Patrons can touch the
screen to reset this timer and continue using the system. If there is no response to the Session
Timeout screen for a defined period of time (which is also a configurable value), the system will
log itself out.
Advertising
Libraries can choose to display an
advertisement (or community
announcement, library information
or any other information or
imagery) at the start screen. This
is simply a URL of an image or
series of images of the library’s
choice. The patron can simply click
the “X” in the top right of the
image to exit the advertisement
and continue with using the Self
Loan Station.
This is configurable via the
Management Console.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 24
Indicators
Indicators are icons that may appear in the top left corner of every Self Loan Station operating
screen (excluding the screen saver). The indicators are designed to give an immediate visual
cue to the librarian about the status of some key system functions. The currently supported
indicators are listed below:
Indicator
Description
Action Required
System is operating in offline
mode.
Investigate why the LMS is
offline. NOTE: Once the LMS
comes back online, the system
will process all queued
transactions
Rejected offline transactions
exist.
The LMS has rejected offline
transactions that were processed
by the system after the LMS
came back online. Print a
“rejected transactions” report and
manually process these via the
LMS client.
In the Management
Console, you can setup the
URL for the advertisement
from:
Configuration>Loan
Station>Group>Advertise
ment URL.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 25
Paper is low in receipt printer.
Load paper soon (about 10 - 15
receipts can be printed before the
paper runs out).
Paper is out in receipt printer.
Load paper immediately
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 26
Administration functions

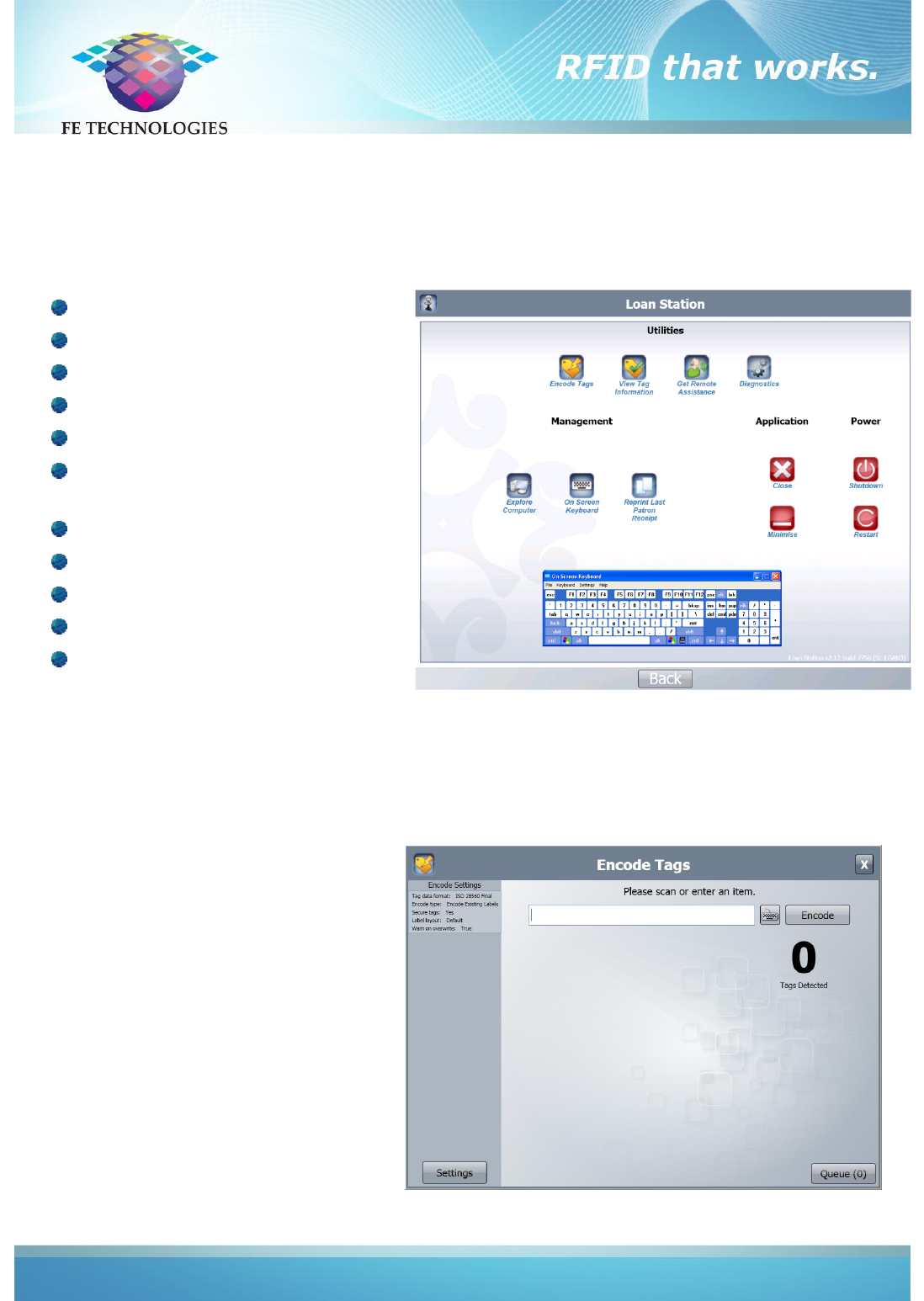

Administration functions, such as, encoding or checking a tag, are accessible on the Self Loan
Station by library staff. Access these functions by scanning your administration card. The
‘Administrator Functions’ screen will become visible, giving the following options:
Encode Tag
Place the RFID tagged item that is to
be encoded on the pad and scan or
enter the item. Select encode to
encode that data onto the tag.
The Encode settings are listed on the
left hand side. (These are
configurable via the Management
Console.)
Encode Tag
Tag Info Viewer
Remote Assistance
Diagnostics
Explore Computer
On Screen Keyboard (pictured at
left)
Reprint Receipt
Close Program
Shutdown Computer
Minimise
Restart
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 27
Tag Information Viewer
The ‘Tag Info Viewer’ function is used to read the information encoded in a tag. This function
can be used to verify that the details encoded on a tag match the item.
Place the item on the pad, the screen will display the details of the tag(s) that the RFID
pad is able to read.
Remote Assistance
Close Program
Selecting ‘Close program’ will shut down the Self Loan Station program and return the library
staff to the desktop.
Diagnostics
This is for FE Technologies to test various functionalities.
Explore Computer
To access other applications on the terminal.
On Screen Keyboard
Access to a keyboard when/if required.
Reprint Receipt
Reprint a patron receipt

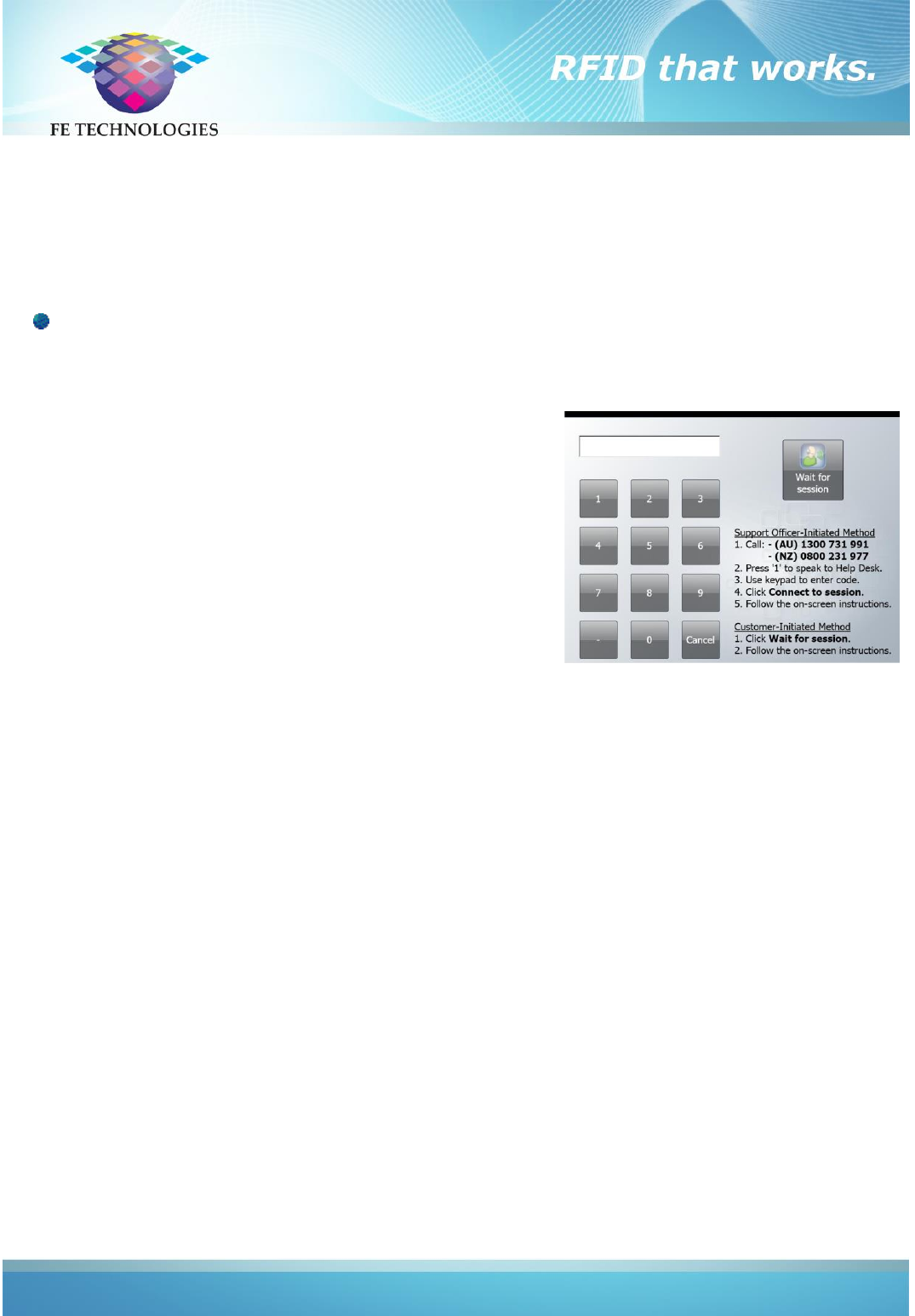

This program allows you to get remote support from FE
Technologies. Using this program, you can give access
to a remote support person who can diagnose and
resolve issues. If you have not prearranged a remote
session follow the instructions for the Support Officer-
Initiated Method. If you have prearranged a remote
session follow the instructions for Customer-Initiated
Method.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 28
Print Test Receipt
Prints a test receipt to verify that the printer paper has been replaced successfully and can
assist in cutting paper to prevent it from having to be fed through the front panel.
Close Program
Shuts Self Loan Station program down
Shutdown Computer
Selecting ‘Shutdown Computer’ will close all programs and turn off the computer.
Back
Selecting ‘Back’ will return the library staff to the ‘opening’ screen of the Self Loan Station.
Payment admin functions:
(Not shown on screenshot)
If EFTPOS payment option is enabled, you can perform the following functions
Reprint receipts
Settlement enquiry
Settlement cut over
Keyless entry - unlock panel
The front panel of the Self Loan Station allows access to the receipt printer for changing receipt
paper, and also to the coin box if this option has been installed. Scan your Administrator Card
(supplied during installation). Select “Unlock panel”. The front of the unit will automatically
open. It will automatically lock upon closing.
Note that you can also gain access to the front panel by inserting your administrator’s key
– provided upon installation). On the right-hand side of the Self Loan Station are two keyholes,
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 29
similar to an ignition switch. Inserting the key into the bottom keyhole and turning it clockwise
opens the front panel.
Receipt printer
The receipt printer is a thermal printer and is behind the front flap panel of the self-loan
station.
Replacing the thermal paper roll
The receipt printer uses thermal paper media. This can be purchased from major office supplies
stores.

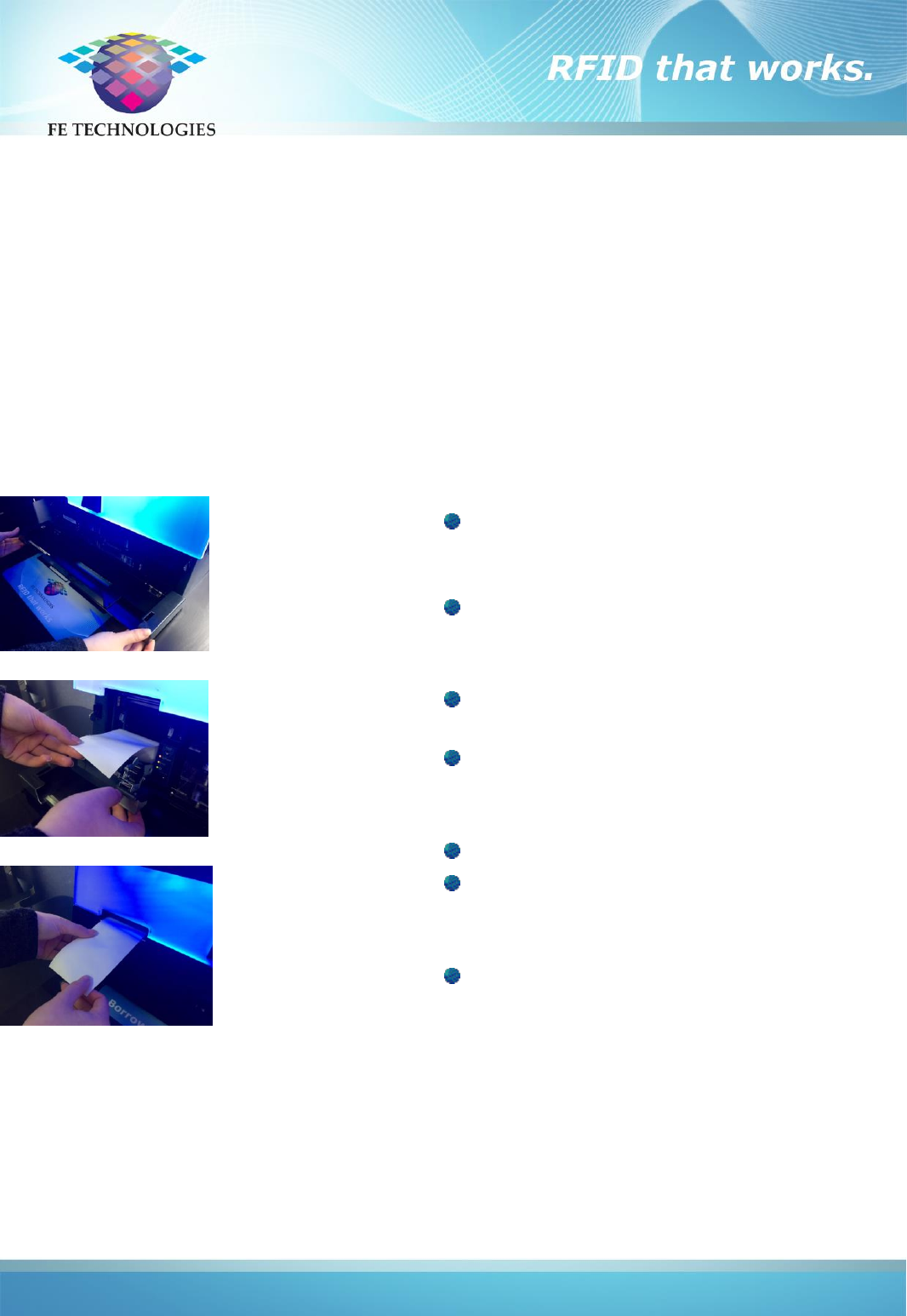

Unlock front flap panel at the front
of Self Loan Station to access the
printer.
Press the button on the printer to
open the cover.
Remove the used roll paper core
and insert a new roll of paper.
Ensure the direction of the paper
roll is oriented as shown.
Close the cover.
Make sure the printer panel is
locked in place.
Press the Print test receipt button
on the screen.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 30
Printer Troubleshooting
Issue
Action required
Error LED on (not flashing)
and not printing
If the PAPER OUT light is on, the roll paper is not
installed or is near the end.
If the PAPER OUT light is off, the printer cover is
not closed properly.
Error LED flashing and not
printing
(no paper jam)
If printing stopped due to the head overheating,
it will resume automatically when it cools.
If overheating is not the cause, turn the printer
off, then back on after 10 seconds.
Paper jam
Turn the printer off and press the cover
open button.
Remove jammed paper, reinstall the roll
and close the cover.
If paper is caught in the cutter and you
cannot open the printer cover, open the
cutter cover, as shown below.
Turn the knob until you see a triangle in
the opening. This returns the cutter blade
to its normal position.
Close the cutter cover.
Open printer cover and remove the
jammed paper.
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 31
Safety instructions
Do not expose the Self Loan Station to liquids, rain, moisture or high temperatures, as
it may cause electric shock to personnel.
Do not attempt to repair or service any hardware on the Self Loan Station other than
what is detailed in this manual. Work undertaken by unauthorised personnel can cause
injury or electric shock to themselves or to others and void the warranty.
If the Self Loan Station is unbolted for any reason, it should be carefully stored away
from any public use. It must be re-bolted/secured in place before used again. It is an
Occupational Health & Safety requirement to secure the Self Loan Station prior to use.
Ensure unit is securely fastened to prevent it from tipping over during use. FE
Technologies staff will advise on the most appropriate method of securing the unit ( this
applies to freestanding units only)
There is a possibility that library staff could trap their fingers in the bottom door when
changing paper etc.
Children should not be permitted to climb on, sit on or hang from the desk of the left loan
station to prevent risk of falling.
FCC ID: 2AM6N-FE-V5LOAN
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Warning: Any changes or modifications not expressively approved by FE technologies could void the user's
authority to operate this equipment
This document is supplied as ‘Commercial In Confidence’ business documentation. The contents of this document
may not be released to a third party without prior consent of FE Technologies or its authorised representatives.
User Documentation © FE Technologies 2015 Document No. 17.1 Issue No. 1.0 32
Support Options
For any queries or to log a support call, please contact
FE Technologies Customer Care Centre via one of the following forum:
Online Support
http://www.fetechgroup.com.au/online-support.html
Email: support@fetechgroup.com
Phone Support
1300 731 991 – Australia
0800 231977 – New Zealand
+85 2 3008 5757 – Hong Kong
+60 3 2788 4847 – Malaysia
+65 3158 0074 – Singapore
801 4033 – Brunei

Navigation menu
