FENDA TECHNOLOGY NSHBTSS116 Bluetooth Shelf Speakers User Manual NS HBTSS116 16 0274 QSG V1 ai
SHENZHEN FENDA TECHNOLOGY CO., LTD. Bluetooth Shelf Speakers NS HBTSS116 16 0274 QSG V1 ai
Users Manual
QUICK SETUP GUIDE
Bluetooth
Bookshelf
Speakers
NSHBTSS116
TURNING YOUR SPEAKER ON AND OFF
Move the ON/OFF switch on the side of your speaker to
the ON position. When you rst turn on your speakers, the
LED blinks GREEN to indicate they are in AUX mode.
Switch to Bluetooth mode by pressing the Bluetooth
button on the remote, or by pressing the Volume/Source
on the speaker twice. When the speakers are in Bluetooth
pairing mode, the indicator LED blinks blue.
CONNECTING WITH BLUETOOTH
1 Make sure that your Bluetooth device is turned on and
within 33 feet (10 meters) of your speaker.
2 On your speaker, press the Volume/Source Knob twice
to select Bluetooth. Your speaker enters pairing mode
and the LED blinks blue.
Note: Press and hold the Volume/Source Knob to return to
pairing mode.
3 Turn on your Bluetooth device and turn on Bluetooth.
Set your device to pairing mode, then select
NS-HBTSS116. See the instructions that came with
your Bluetooth device for information about pairing.
4 If you are asked for a password, enter 0000. When
pairing is complete, the LED lights solid blue.
5 To disconnect from the paired Bluetooth device, press
and hold the Volume/Source Knob on your speaker
for three seconds. Your speaker disconnects from the
Bluetooth device and enters pairing mode again.
RECONNECTING TO A PAIRED DEVICE
When your speaker is not paired to a device, the LED
blinks blue slowly.
Remote Control

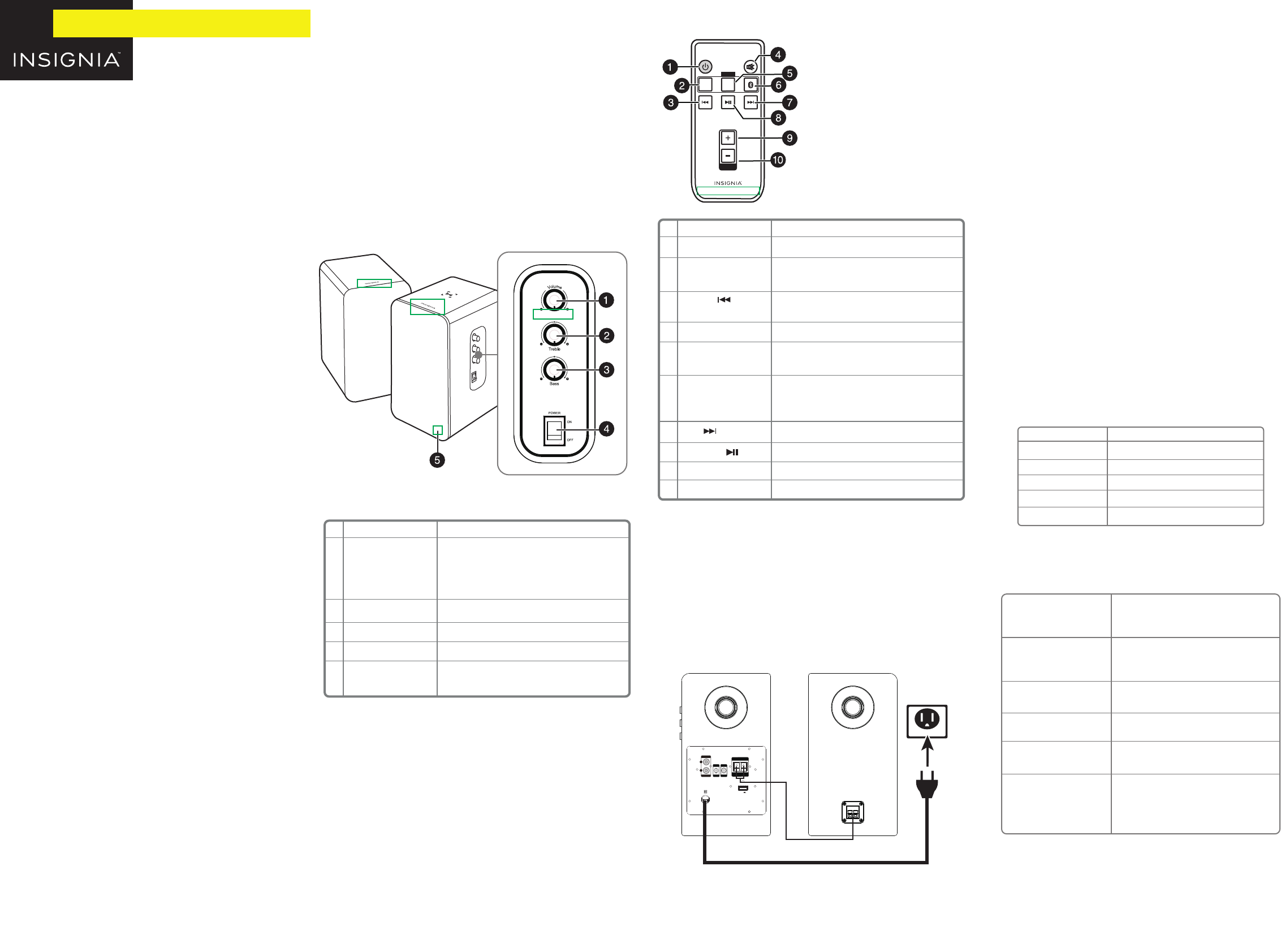

CONNECT THE SPEAKERS
Connect the Power cable
Plug the power cable into a power outlet or surge
protector.
Connect the speakers
Speakers are connected using the speaker wire that is
provided. Connect the red wire to the red (+) terminals
and the black wire to the black (-) terminals. Use enough
wire to position the speakers where you want them.
PACKAGE CONTENTS
• Speakers (2)
• 3.5 mm cable (included)
• RCA input cable
• Speaker Wire
• Remote control w/batteries
• Quick Setup Guide
FEATURES
• Wirelessly stream from any Bluetooth device
• Volume, treble, and bass controls on the side panel
• NFC for easy Bluetooth paring
• High ecient energy saving design for low power
consumption
Your speaker loses
the Bluetooth
connection if you...
Turn o your speaker.
Move the Bluetooth device out
of range.
Turn o your Bluetooth device.
Turn o Bluetooth on your
Bluetooth device.
Connect your Bluetooth device
to another Bluetooth device.
To reconnect...
Turn on your speaker. Your speaker searches for
the last connected Bluetooth device and
reconnects.
Make sure that your Bluetooth device is within 33
feet of your speaker.
Turn on your Bluetooth device, then make sure
that Bluetooth is on.
Turn on Bluetooth on your Bluetooth device.
Disconnect your Bluetooth device from the other
Bluetooth device, then set your device to pairing
mode. Select NS-HBTSS116 on your Bluetooth
device.
# ITEM
1 Volume/Source knob
2 Treble knob
3 Bass knob
4 On/O switch
5 Indicator LED
DESCRIPTION
Switch mode and control the volume.
Press repeatedly to cycle through the available
modes (AUX [default], RCA, and Bluetooth).
Hold down to turn on standby mode.
Adjusts the treble level.
Adjusts the bass level.
Turns the power on or o.
Indicates the mode (Standby, AUX, and RCA) and
pairing status of the speakers.
Standby/source
POWER MUTE
VOL
AUX RCA
SOURCE
Before using your new product, please read
these instructions to prevent any damage.
# ITEM
1 POWER
2 AUX
3 Previous
4 MUTE
5 RCA
6 Bluetooth mode
7 Next
8 Play/Pause
9 VOL +
10 VOL -
DESCRIPTION
Press to active into standby mode.
Press to enter AUX mode. The green LED indicator
light blinks slowly.
Press to select the previous song while in Bluetooth
mode.
Press to mute or unmute the sound.
Press to enter RCA mode. The green LED indicator
lights solid.
Press to enter Bluetooth mode. The blue LED
indicator turns on. When in Bluetooth mode, press
and hold to enter pairing mode.
Press to select next song while in Bluetooth mode.
Press to play/pause while in Bluetooth mode.
Turns the volume up.
Turns the volume down.
LED
Blinks blue
Solid blue
Solid red
Blinks green
Solid green
DESCRIPTION
Speaker is in pairing mode
Speaker is paired
Standby mode
AUX Mode
RCA Mode
Power cable
Speaker Wire
USB 5V 1A
120V~ 60Hz
0.6A
INPUT
L SPEAKER
OUTPUT
AUX
OUTPUT
SUB
L
R
RCA
Flat size (W×H): 16.58 x 11.69 in (421.22 × 296.93 mm.)
Final folded size: 4.145 x 11.69 in (105.305 × 296.93 mm.)
NSHBTSS116RC
v1
R3
V1 ENGLISH 16-0274
PAIRING A BLUETOOTH DEVICE SUPPORTING
NFC
If your Bluetooth device supports Near Field
Communication (NFC), make sure that the NFC
feature is active. Touch the NFC area of your
Bluetooth device to the top of your NS-HBTSS116
speaker in order to automatically pair.
Note: If your phone has NFC support but it is running an
OS below Android 4.1, you will need to download an NFC
Bluetooth APP from Google play or a similar online store.
LISTENING TO MUSIC
1 Press the Volume/Source knob on your speaker,
then connect to your Bluetooth device.
2 Begin playback on your Bluetooth device.
3 Adjust the volume on your speaker by pressing
the + or - buttons.
Note: Use the controls on your Bluetooth device or on
the included remote control to control playback.

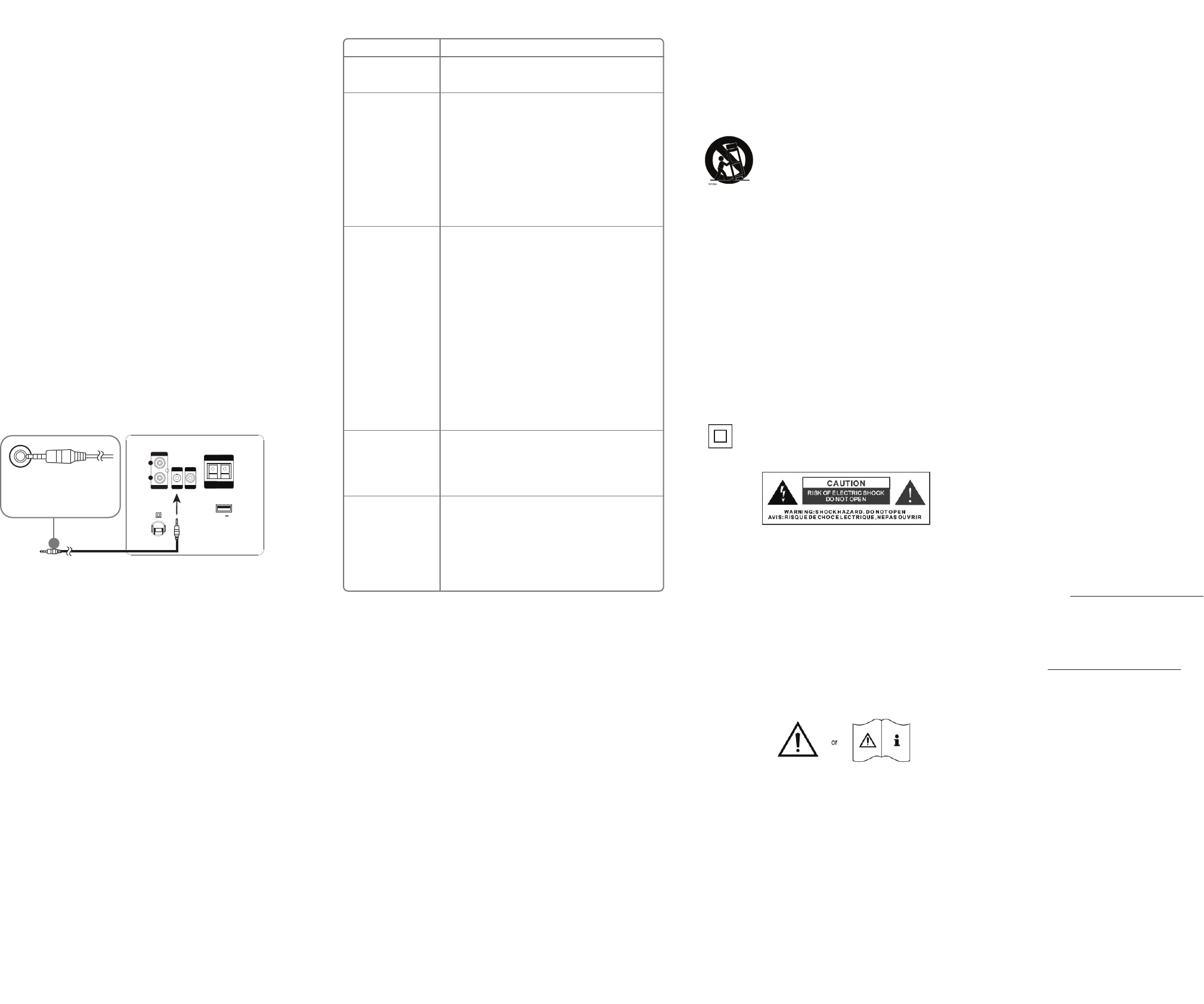

PLAYBACK USING AUX IN
1 Connect an external sound source, such as an MP3
player, by plugging a 3.5 mm audio cable
(included) into the INPUT AUX jack on your
speaker.
2 Press the Volume/Source knob to enter AUX
mode. The LED lights green.
3 Start playback on the external device.
4 Press + and – to adjust the volume.
5 Control playback using the controls on the audio
device.
TROUBLESHOOTING
IMPORTANT SAFETY INSTRUCTIONS
• Never expose the product to re as this could result in personal injury.
• Do not store the product in an extremely cold or warm environment.
• Never dismantle the product.
• Never let children play with the product.
• Do not expose the product to dampness or moisture.
• The product should not be exposed to dripping or splashing.
1. Read these instructions – All the safety and operating instructions should be
read before this product is operated.
2. Keep these instructions – The safety and operating instructions should be
retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating
instructions should be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near
water or moisture – for example, in a wet basement or near a swimming pool,
and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacture’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.
PROBLEM
No power
No sound or low
volume
Cannot establish
Bluetooth connection
My Bluetooth device
keeps unpairing
“NS-HBTSS116” does
not appear on my
Bluetooth device
SOLUTION
• Make sure that your speaker is plugged in.
• Make sure that your speaker is turned on.
• Make sure that your Bluetooth device is turned on,
Bluetooth is turned on, and NS-HBTSS116 is selected.
• Turn up the volume on your speaker.
• Turn up the volume on your Bluetooth device.
• Make sure that your Bluetooth device is not muted.
• Make sure that your speaker is not paired to another
Bluetooth device.
• Make sure that your Bluetooth device is not paired to
another Bluetooth device.
• Shorten the distance between your speaker and your
Bluetooth device.
• Turn your devices o, then on. Re-pair your speaker and
your Bluetooth device.
• Make sure that your speaker is not paired to another
Bluetooth device.
• Make sure that your speaker and Bluetooth device are both
in pairing mode.
• Make sure that your Bluetooth device supports Bluetooth
v4.0 and below.
• Make sure that your Bluetooth device is not connected to
any other device.
• Make sure that you have selected NS-HBTSS116 on your
Bluetooth device.
• Shorten the distance between your speaker and your
Bluetooth device.
• If the battery on your Bluetooth device is low, recharge the
battery.
• Shorten the distance between your speaker and your
Bluetooth device.
• Put your speaker into pairing mode, then refresh your list of
Bluetooth devices. For more information, see the
documentation that came with your Bluetooth device.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two
blades and a third grounding prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart or rack is
used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualied personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
15. Do not install this equipment in a conned or building-in space such as a book
case or similar unit, and remain a well ventilation conditions. The ventilation
should not be impeded by covering the ventilation openings with items such as
newspaper, table-cloths, curtains etc.
16. WARNING：To reduce the risk of re or electric shock, do not expose this apparatus
to rain or moisture. The apparatus shall not be exposed to dripping or splashing
and that objects lled with liquids, such as vases, shall not be placed on apparatus.
17. WARNING: The mains plug is used as disconnect device, the disconnect device shall
remain readily operable.
18. This equipment is a Class II or double insulated electrical appliance.
It has been designed in such a way that it does not require a safety
connection to electrical earth.
19. This lightning ash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product’s enclosure that may be of sucient magnitude to constitute a
risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualied personnel.
- The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance instructions in the
literature accompanying the appliance.
20. The equipment shall be used at maximum 35 degree C ambient temperature.
21. The batter(battery or batteries of battery pack)shall not be exposed to excessive
heat such as sunshine,re or the like.
22.
WARNING
DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD
[The remote control supplied with] This product contains a coin/button cell battery. If
the coin/button cell battery is swallowed, it can cause severe internal burns in just 2
hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does not
close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body,
seek immediate medical attention.
LEGAL NOTICES
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution:
Changes or modications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
RSS-Gen & RSS-210 statement:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
RSS-102 Statement:
This equipment complies with Industry Canada radiation exposure limits set forth for an
uncontrolled environment.
Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies
pour un environnement non contrôlé.
RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines. This equipment should be installed and
operated with minimum distance between 20 cm the radiator your body: Use only the supplied
antenna.
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
1-877-467-4289 (U.S. and Canada)
01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2016 Best Buy. All rights reserved.
Made in China
USB 5V 1A
120V~ 60Hz
0.6A
INPUT
L SPEAKER
OUTPUT
AUX
OUTPUT
SUB
L
R
RCA
To audio output such as
CD/MP3/digital music player.
3.5 mm cable
(included)
Back of speaker
