FILOTEL HD509N000001 Android OTT Box User Manual ZaapTV

FILOTEL S.A. Android OTT Box ZaapTV

User manual

HD509N User’s GuideHow to use the HD509N set-top box


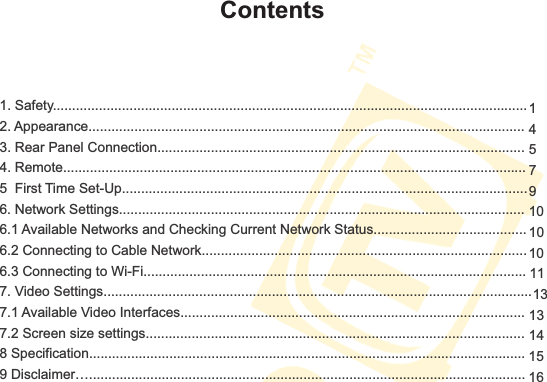

Contents1. Safety............................................................................................................................ 12. Appearance.................................................................................................................. 43. Rear Panel Connection................................................................................................ 54. Remote......................................................................................................................... 75 First Time Set-Up.......................................................................................................... 96. Network Settings.......................................................................................................... 106.1 Available Networks and Checking Current Network Status........................................ 106.2 Connecting to Cable Network..................................................................................... 106.3 Connecting to Wi-Fi.................................................................................................... 117. Video Settings................................................................................................................137.1 Available Video Interfaces.......................................................................................... 137.2 Screen size settings................................................................................................... 148 Specification.................................................................................................................. 159 Disclaimer….................................................................................................................. 16

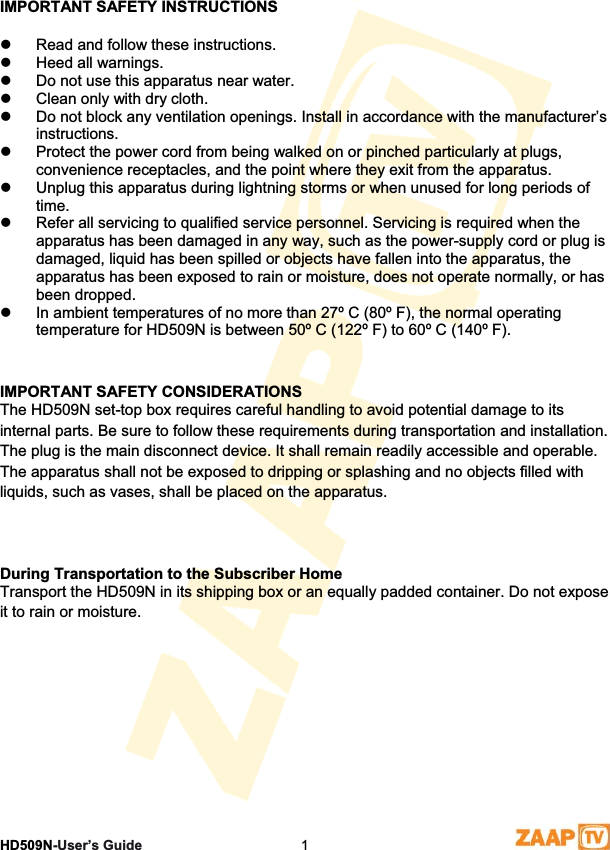

1 SafetyHD509N-User’s Guide 1IMPORTANT SAFETY INSTRUCTIONS z Read and follow these instructions. z Heed all warnings. z Do not use this apparatus near water. z Clean only with dry cloth. z Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.z Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. z Unplug this apparatus during lightning storms or when unused for long periods of time.z Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. z In ambient temperatures of no more than 27º C (80º F), the normal operating temperature for HD509N is between 50º C (122º F) to 60º C (140º F). IMPORTANT SAFETY CONSIDERATIONS The HD509N set-top box requires careful handling to avoid potential damage to its internal parts. Be sure to follow these requirements during transportation and installation. The plug is the main disconnect device. It shall remain readily accessible and operable. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. During Transportation to the Subscriber Home Transport the HD509N in its shipping box or an equally padded container. Do not expose it to rain or moisture.

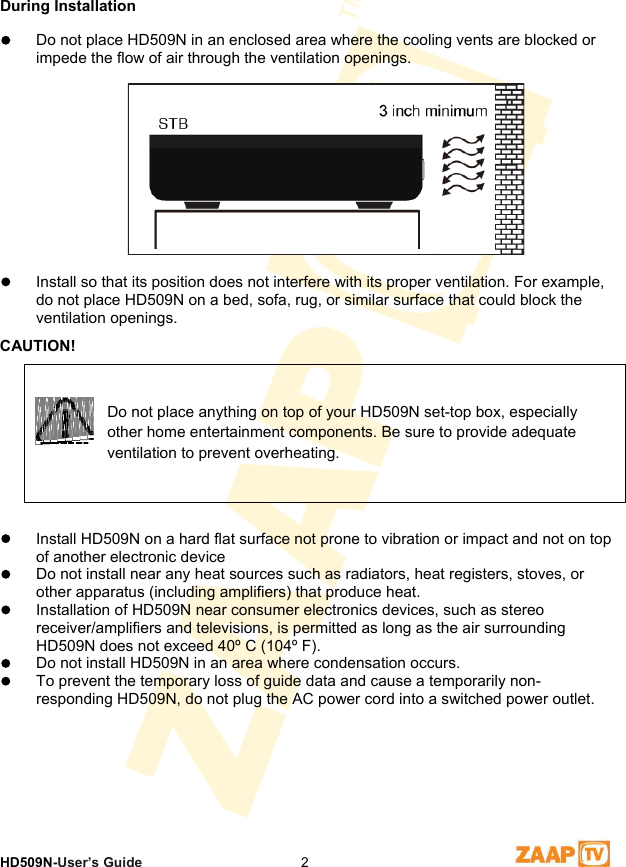

1 SafetyHD509N-User’s Guide 2During Installation Do not place HD509N in an enclosed area where the cooling vents are blocked or impede the flow of air through the ventilation openings. Install so that its position does not interfere with its proper ventilation. For example, do not place HD509N on a bed, sofa, rug, or similar surface that could block the ventilation openings. CAUTION! Do not place anything on top of your HD509N set-top box, especially other home entertainment components. Be sure to provide adequate ventilation to prevent overheating. ources such as radiators, heat registers, stoves, or plifiers) that produce heat. d as long as the air surrounding Install HD509N on a hard flat surface not prone to vibration or impact and not on top of another electronic device Do not install near any heat sother apparatus (including am Installation of HD509N near consumer electronics devices, such as stereo receiver/amplifiers and televisions, is permitteHD509N does not exceed 40º C (104º F). Do not install HD509N in an area where condensation occurs. To prevent the temporary loss of guide data and cause a temporarily non-responding HD509N, do not plug the AC power cord into a switched power outlet.

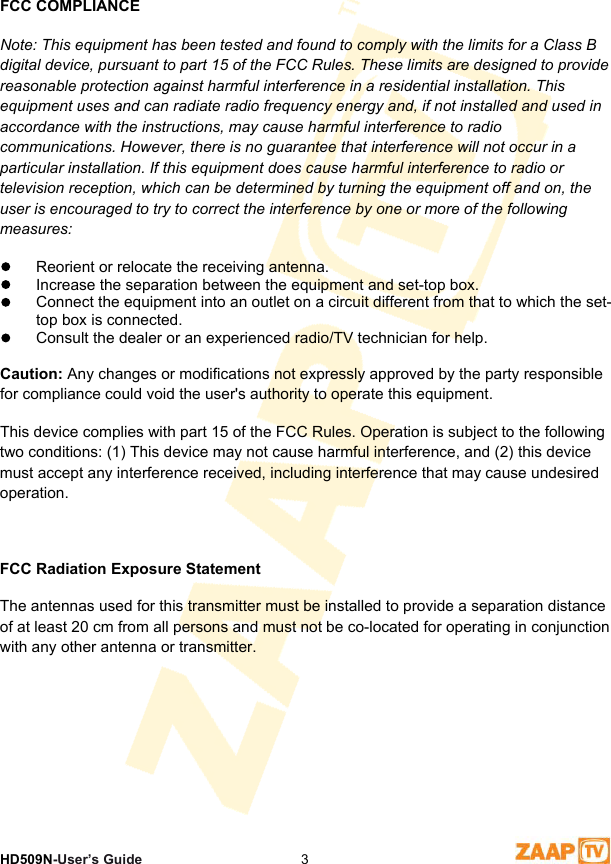

1 SafetyHD509N-User’s Guide 3FCC COMPLIANCE es cause harmful interference to radio or Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dotelevision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and set-top box. Connect the equipment into an outlet on a circuit different from that to which the set-top box is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter.

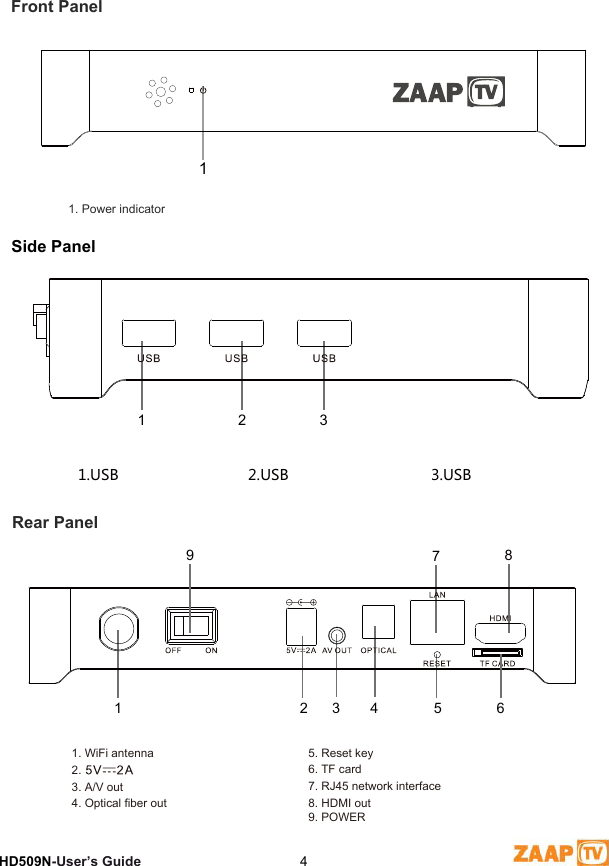

2 AppearanceHD509N-User’s Guide 4Front Panel1. Power indicatorSide Panel Rear Panel11.USB 2.USB 3.USB 123458 71. WiFi antenna2. 3. A/V out4. Optical fiber out5. Reset key6. TF card7. RJ45 network interface8. HDMI out9. POWER6 912 3

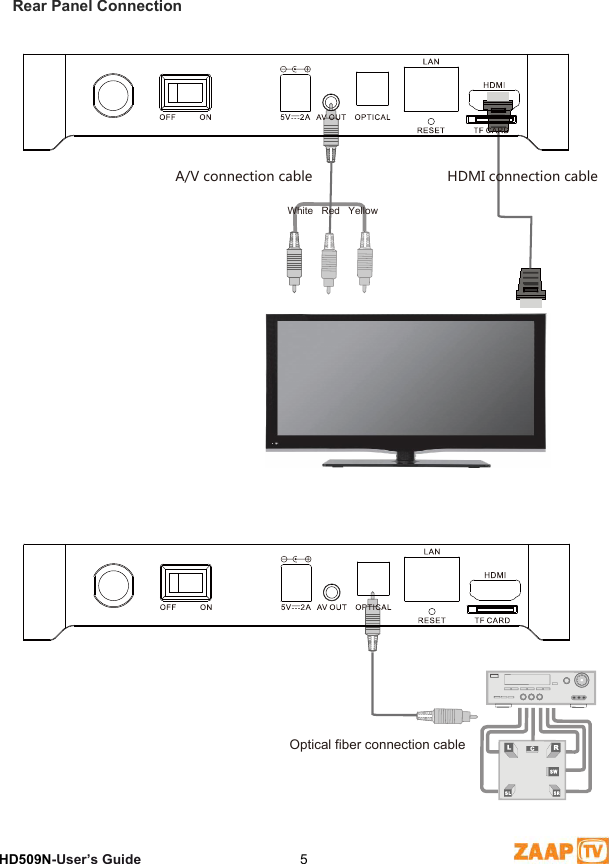

3 Rear Panel ConnectionHD509N-User’s Guide 5Rear Panel ConnectionOptical fiber connection cableHDMI connection cableA/V connection cableWhite Red Yellow

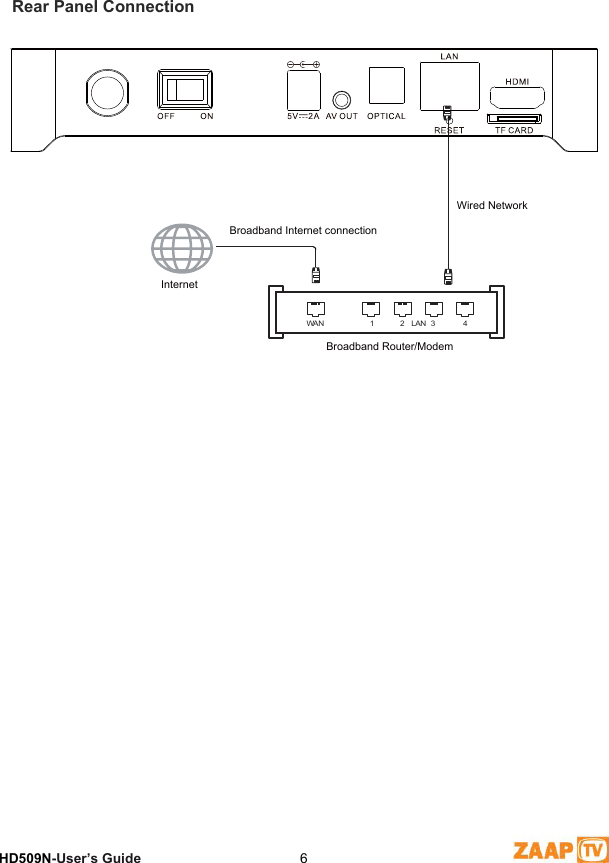

3 Rear Panel ConnectionHD509N-User’s Guide 6Rear Panel ConnectionInternetBroadband Internet connectionBroadband Router/ModemWired NetworkWAN 1 2 LAN 3 4

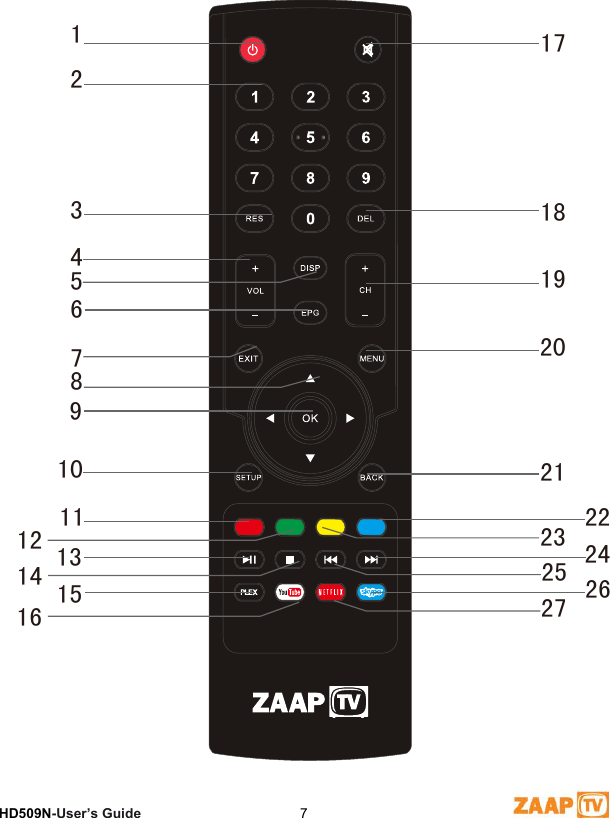

4RemoteHD509N-User’s Guide 7123467851014159111312171819212420222325 2616 27

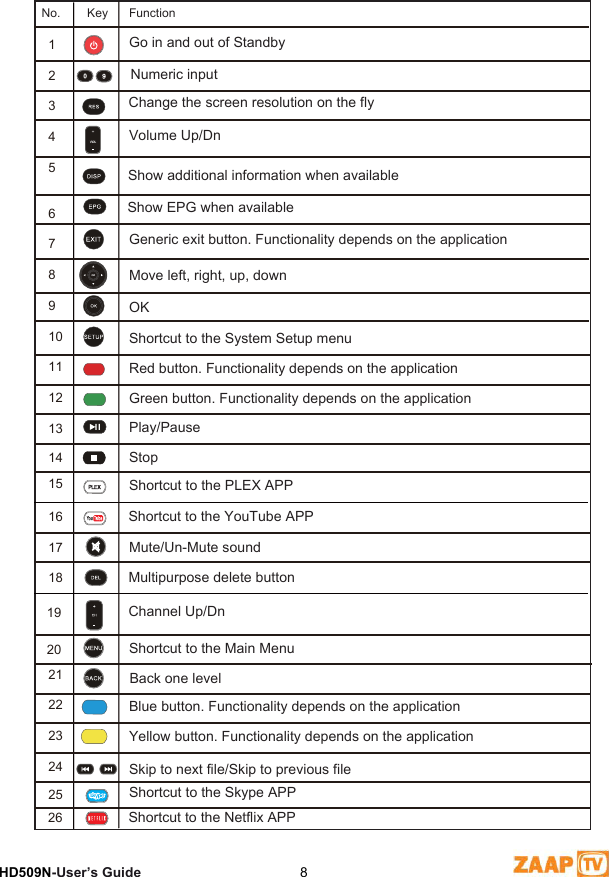

4RemoteHD509N-User’s Guide 81234567891011121314151617182122232425Shortcut to the Main MenuGo in and out of StandbyVolume Up/Dn Shortcut to the System Setup menuMute/Un-Mute soundSkip to next file/Skip to previous fileRed button. Functionality depends on the application1920 No. Key FunctionNumeric inputGeneric exit button. Functionality depends on the applicationMove left, right, up, downOKGreen button. Functionality depends on the applicationPlay/PauseStop Blue button. Functionality depends on the applicationYellow button. Functionality depends on the application26Change the screen resolution on the flyShow additional information when available Show EPG when availableShortcut to the PLEX APP Shortcut to the YouTube APPMultipurpose delete buttonChannel Up/DnBack one levelShortcut to the Skype APPShortcut to the Netflix APP

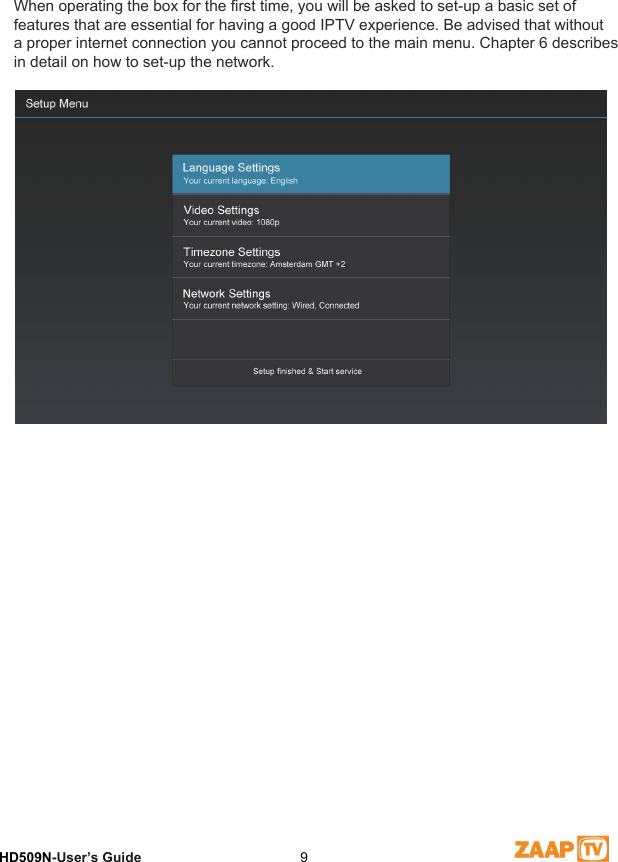

5First Time Set-UpHD509N-User’s Guide 9When operating the box for the first time, you will be asked to set-up a basic set of features that are essential for having a good IPTV experience. Be advised that without a proper internet connection you cannot proceed to the main menu. Chapter 6 describes in detail on how to set-up the network.

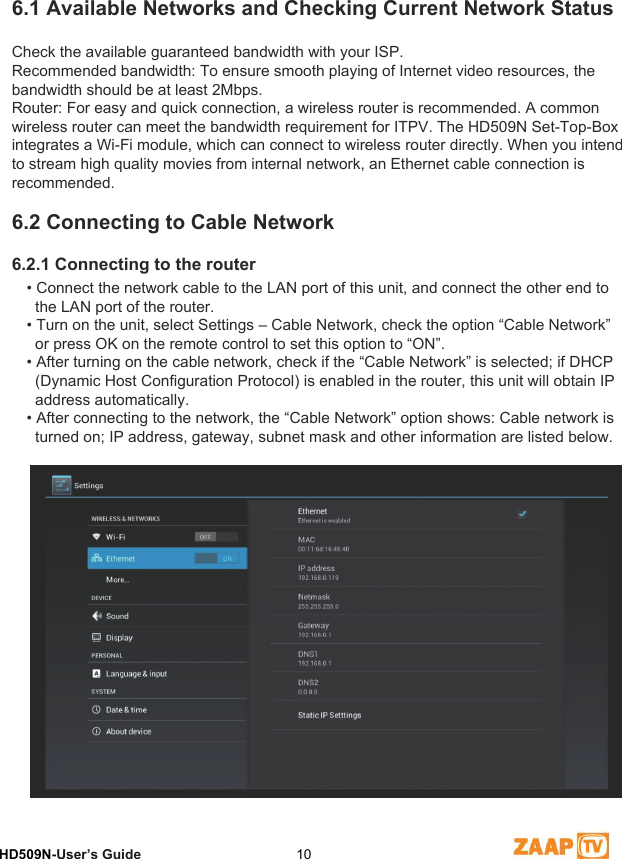

6Network SettingsHD509N-User’s Guide 106.1 Available Networks and Checking Current Network StatusCheck the available guaranteed bandwidth with your ISP.Recommended bandwidth: To ensure smooth playing of Internet video resources, the bandwidth should be at least 2Mbps.Router: For easy and quick connection, a wireless router is recommended. A common wireless router can meet the bandwidth requirement for ITPV. The HD509N Set-Top-Boxintegrates a Wi-Fi module, which can connect to wireless router directly. When you intend to stream high quality movies from internal network, an Ethernet cable connection is recommended.6.2 Connecting to Cable Network6.2.1 Connecting to the router• Connect the network cable to the LAN port of this unit, and connect the other end to the LAN port of the router.• Turn on the unit, select Settings – Cable Network, check the option “Cable Network” or press OK on the remote control to set this option to “ON”.• After turning on the cable network, check if the “Cable Network” is selected; if DHCP (Dynamic Host Configuration Protocol) is enabled in the router, this unit will obtain IP address automatically.• After connecting to the network, the “Cable Network” option shows: Cable network is turned on; IP address, gateway, subnet mask and other information are listed below.

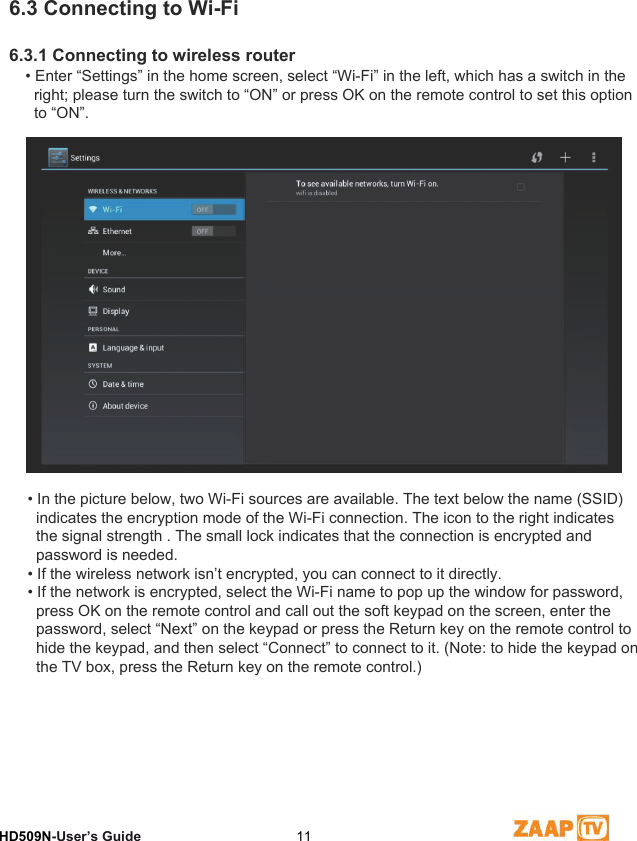

6Network SettingsHD509N-User’s Guide 116.3 Connecting to Wi-Fi6.3.1 Connecting to wireless router• Enter “Settings” in the home screen, select “Wi-Fi” in the left, which has a switch in the right; please turn the switch to “ON” or press OK on the remote control to set this option to “ON”.• In the picture below, two Wi-Fi sources are available. The text below the name (SSID) indicates the encryption mode of the Wi-Fi connection. The icon to the right indicates the signal strength . The small lock indicates that the connection is encrypted and password is needed.• If the wireless network isn’t encrypted, you can connect to it directly.• If the network is encrypted, select the Wi-Fi name to pop up the window for password, press OK on the remote control and call out the soft keypad on the screen, enter the password, select “Next” on the keypad or press the Return key on the remote control to hide the keypad, and then select “Connect” to connect to it. (Note: to hide the keypad on the TV box, press the Return key on the remote control.)

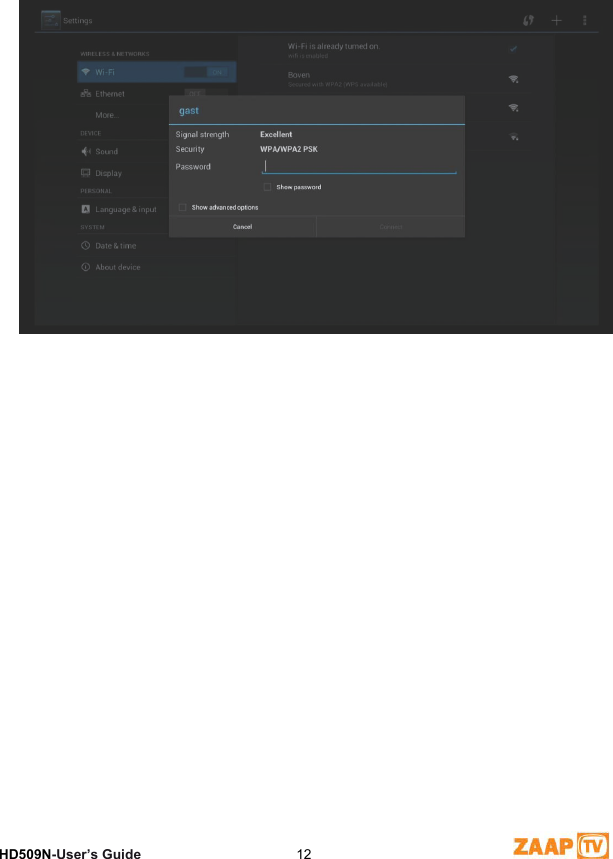

6Network SettingsHD509N-User’s Guide 12

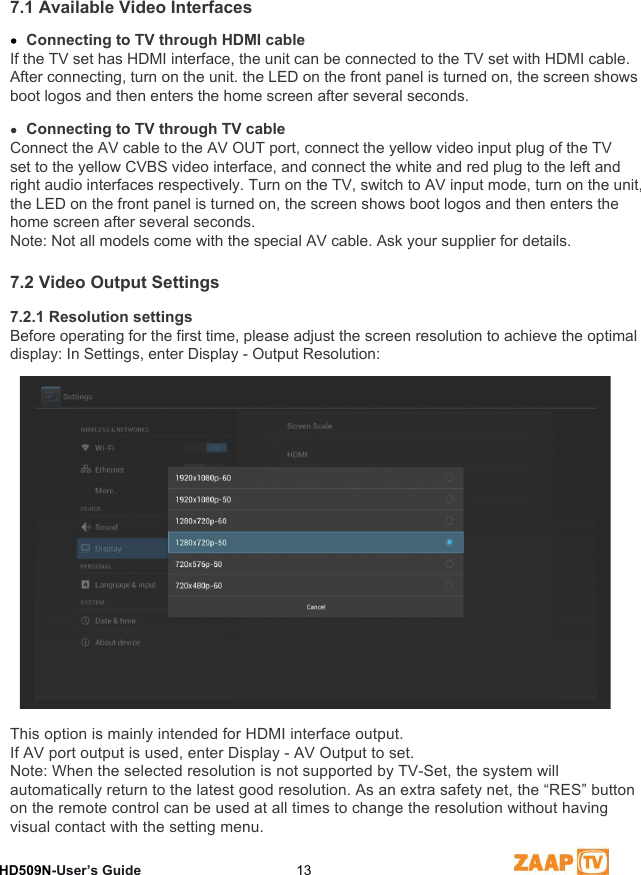

7 Video Settings HD509N-User’s Guide 137.1 Available Video InterfacesConnecting to TV through HDMI cableIf the TV set has HDMI interface, the unit can be connected to the TV set with HDMI cable. After connecting, turn on the unit. the LED on the front panel is turned on, the screen shows boot logos and then enters the home screen after several seconds.Connecting to TV through TV cable Connect the AV cable to the AV OUT port, connect the yellow video input plug of the TVset to the yellow CVBS video interface, and connect the white and red plug to the left and right audio interfaces respectively. Turn on the TV, switch to AV input mode, turn on the unit, the LED on the front panel is turned on, the screen shows boot logos and then enters the home screen after several seconds.Note: Not all models come with the special AV cable. Ask your supplier for details.7.2 Video Output Settings7.2.1 Resolution settingsBefore operating for the first time, please adjust the screen resolution to achieve the optimal display: In Settings, enter Display - Output Resolution:This option is mainly intended for HDMI interface output.If AV port output is used, enter Display - AV Output to set.Note: When the selected resolution is not supported by TV-Set, the system will automatically return to the latest good resolution. As an extra safety net, the “RES” button on the remote control can be used at all times to change the resolution without having visual contact with the setting menu.

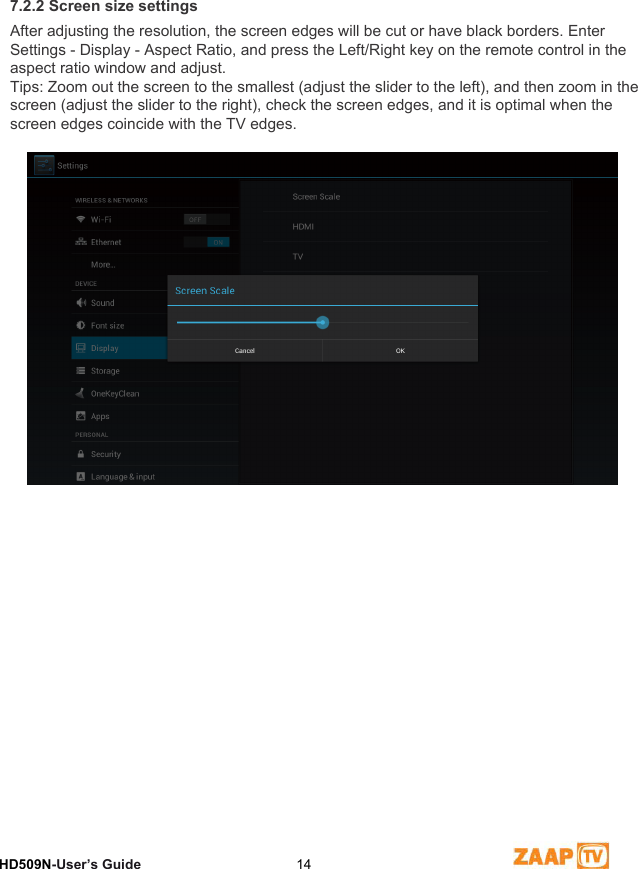

7 Video Settings HD509N-User’s Guide 147.2.2 Screen size settingsAfter adjusting the resolution, the screen edges will be cut or have black borders. Enter Settings - Display - Aspect Ratio, and press the Left/Right key on the remote control in the aspect ratio window and adjust.Tips: Zoom out the screen to the smallest (adjust the slider to the left), and then zoom in the screen (adjust the slider to the right), check the screen edges, and it is optimal when the screen edges coincide with the TV edges.

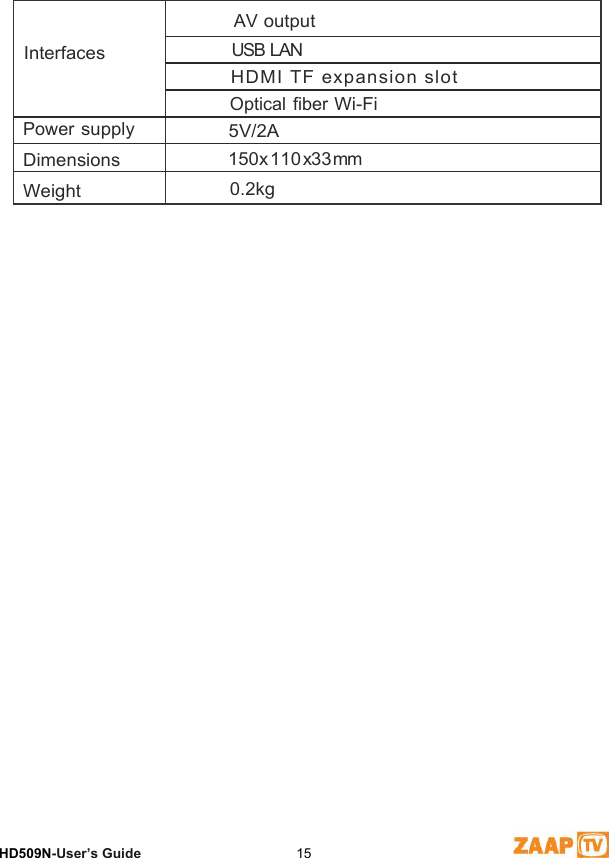

8 SpecificationsHD509N-User’s Guide 15AVoutputUSB LANHDMI TF expansionslotInterfacesOptical fiber Wi-FiPowersupply5V/2ADimensions 150x110x33mmWeight0.2kg

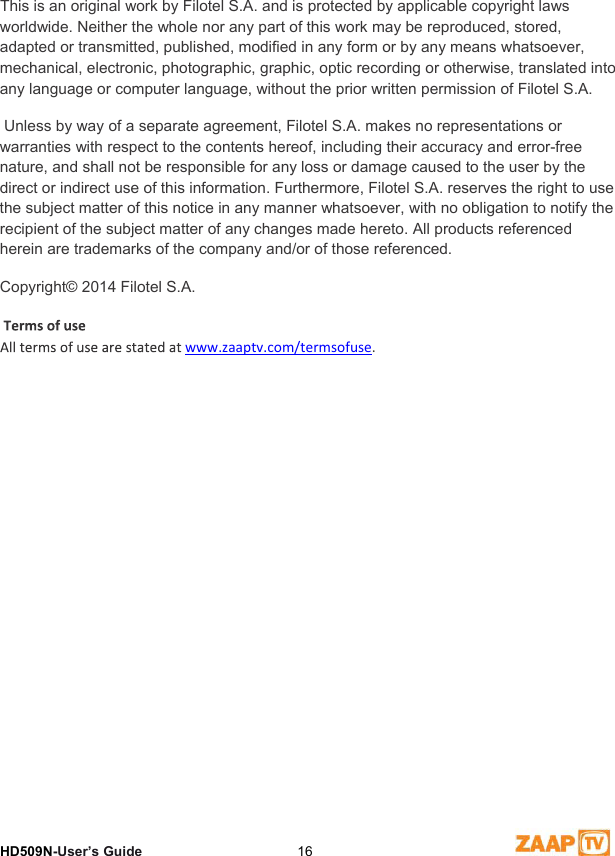

9 DisclaimerHD509N-User’s Guide 16This is an original work by Filotel S.A. and is protected by applicable copyright laws worldwide. Neither the whole nor any part of this work may be reproduced, stored, adapted or transmitted, published, modified in any form or by any means whatsoever, mechanical, electronic, photographic, graphic, optic recording or otherwise, translated into any language or computer language, without the prior written permission of Filotel S.A. Unless by way of a separate agreement, Filotel S.A. makes no representations or warranties with respect to the contents hereof, including their accuracy and error-free nature, and shall not be responsible for any loss or damage caused to the user by the direct or indirect use of this information. Furthermore, Filotel S.A. reserves the right to use the subject matter of this notice in any manner whatsoever, with no obligation to notify the recipient of the subject matter of any changes made hereto. All products referenced herein are trademarks of the company and/or of those referenced. Copyright© 2014 Filotel S.A. www.zaaptv.com/termsofuse.
