1. Specifications of the Product
1.1 Environmental Specifications
1.2 Mechanical Specifications
1.3 Cable Specifications
1.4 Electrical Specifications
1.5 Acoustic Specifications
2. Product drawing
2.1 Outside View
3. FCC &IC Statement
* page 3 of 7*
1.Specifications of the products
1.1 Environmental Specifications
All materials must be complied with ROHS, Reach, and California 65 environmental
standard
1.2 Mechanical Specifications
1.2.1 Dimension：14.5mm*23mm*26.5mm
1.2.2 Weight： 15.3g（Ear buds only）
1.2.3 Charge Port：Micro USB
1.2.4 Main Board：Multiple functional button.
MFB: Power/off/pair/Vol+/Vol-/Play/pause/Call ect.
1.2.5 Testing detail please refer to item 6 (Reliability testing)
1.3 Cable Specifications
1.3.1 Cable: Flat reflecting cable, 4.0*1.4 mm, 9 groups of core wire, L=550mm
1.3.2 Test spec refers to item 6 (Reliability Testing)
1.4 Electrical Specifications
1.4.1 Battery: Li-polymer battery, 3.7V, 120mAH (60 mAH *2)
1.4.2 Charge: DC5V, 100mAH
1.4.3 Bluetooth Spec.
Bluetooth version：V4.0, support HSP、HFP、A2DP、AVRCP
Device name: Transit Micro Sport
Transmission Range (Hz)：2.40GHz~2.48GHz
Distance: 10 meters
RF radiate：Class II I (-6dBm~+0dBm)
Sensitivity of receiving：-85dBm
1.4.4 User interface
1.4.4.1 Operation of play mode:
* page 4 of 7*
Power On： Press and hold MFB 1.5s until the light turns blue, if there is
already a device connected, automatically connect the previous device,
otherwise enter pairing mode, the red and blue light blinks alternately.
Power Off: Option1: When device is on, press and hold MFB 4 seconds,
the LED will flash red for 1 second, Bluetooth Ear bud will shut down.
Option 2: When the two ear cups touch together, it will shut
down.
Pair: 1. If you have paired your earbuds before, they will automatically
connect the previous device when turned on. If there’s no previous
device, it will enter pairing mode, the LED will flash red and blue, if
connected, the LED flashes blue twice per 5 seconds
2. Press Vol+/Vol- simultaneously, disconnect current device and enter
pairing mode again, the LED flash blue and red.
Play: When it connected to device, press “Play” button to start playing
music, blue light flashes slowly per 7 seconds.
Pause: When playing music, short press “Play” button once to pause music,
blue light flashes slowly per 5 second.
Volume Up: Short press the up button once quickly. Your earbuds will
sound a high pitched tone when you have reached their maximum
volume.
Volume Down: Short press the down button once quickly. Your earbuds
will sound a low pitched tone when you have reached their minimum
volume.
Track Forward: press and hold the vol+ button 1 second
Track Back: press and hold the vol- 2 button 1 second
Voice active: press and hold “Play” button 1s to activate mobile phone
voice function, blue light flashes slowly per 5 seconds; double click this
button, to end the voice mode.
Stand by: Under pairing mode, if there is no device to connect, it goes into
standby state in 3 minutes
Automatic Power off：In the standby mode, if there is no device to connect,
it shut down automatically in 2 minutes.
1.4.4.2 Operation of call mode:
Answer a call: When there’s an incoming call, press “play” button to
answer the call. Toggles audio alter between phone and earphone when
long press.
Reject a call: When there’s an incoming call, press and hold “play” button
1second to reject the call, back to current mode.
End a call: Press and hold “play” button to end an active call, back to
current mode.
* page 5 of 7*
Second Call: When there’s a second incoming call, press "play" button
access the second call, current call will be remained, and then press and
hold the "Play" button 1second to switch between the second call and
the previous call, short press "play" button to end the current call.
Volume Up: Short press the up button once quickly. Your earbuds will
sound a high pitched tone when you have reached their maximum
volume.
Volume Down: Short press the down button once quickly. Your earbuds
will sound a low pitched tone when you have reached their minimum
volume.
1.4.5 Working time:
Stand by time: more than 120 Hours
Play time： 10 Hours with 60% volume
Talk time： 15 Hours
Charging time：About 1 Hour
1.5 Acoustic specifications
1.5.1 Microphone
Type: Omni- direction, Electret microphone.
Sensitivity: -42 dB @1 K Hz, 2.5V
Operating voltage: 2~10 V
Frequency response：100 Hz~ 8K Hz
Resistance：More than 2.2K Ohm
1.5.2 Speaker Unit
Dimension: 6 mm
Type: Dynamic, Fe-Fe-Be magnet, 9u diaphragm.
Impedance: 32 Ohm
The sound pressure level (SPL): 98 dB +/-3 @ 1K Hz, 1mW input
Frequency response： 20 Hz~ 15K Hz
Power rating：4mW
Power Maximum：10mW
* page 6 of 7*
2 Product Drawing：

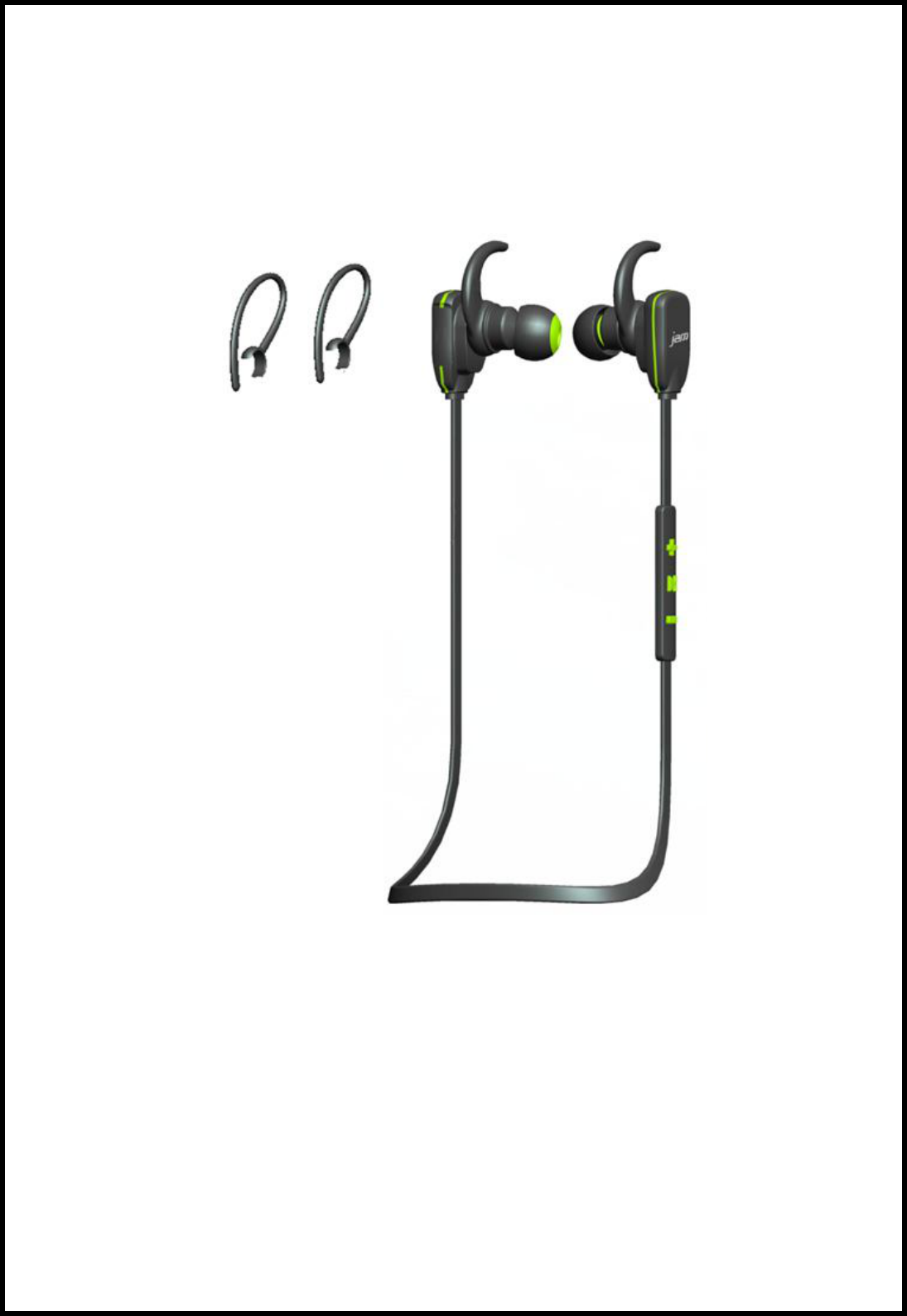

2.1 Outside View
* page 7 of 7*
3 FCC & IC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause interferen
ce, and (2) This device must accept any interference, including interference that may cause u
ndesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radi
o exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
