FKA Distributing WM1805 Bluetooth Speaker User Manual 5 User Maunnl ok
HoMedics, Inc. Bluetooth Speaker 5 User Maunnl ok
User Manual
Operation Description
Microphone “—”button Play/Pause button Blue/red light “+”button
Usb Charge port(600mA) Line in port
Button function：
Play/Pause button：Long press is power on/power off/reject call/switch call 1 and call
2/ r e j e c t 2 nd call.Default is Bluetooth mode after power on.
Short press is play/pause/answer call or hang up,support third party calling.
“+”Button:Volume plus,bluetooth volume synchronize with IOS.Long press is next
track.
"—"Button,volume down,bluetooth volume synchronize with IOS.Long press is
previous.
Buttons associative function:
“+”and “—”,long press at the same time is disconnect bluetooth.
LED indicator:
1. When disconnect bluetooth, red and blue light flash fast alternately,blue light
flash slow when connected bluetooth successfully.
2.When charging condition,red light keeps on,red light goes off after fully charged.
3.When AUX IN condition,blue light slow flash(every 3 seconds flash one time)

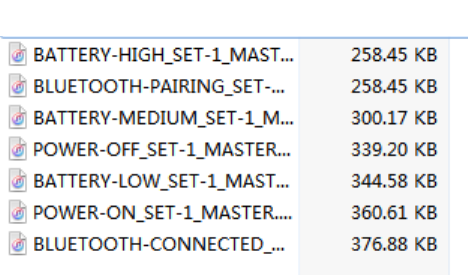

Prompt tone：total has seven prompt tones:
BATTERY HIGH prompt tone play one time when battery voltage is 4.1V;
BATTERY MEDIUM prompt tone play one time when battery voltage is 3.8V;
BATTERY LOW prompt tone start play one time every 10 minutes when battery
voltage is 3.6V,when play 4 times and after 5 minutes will power off automatically
Charge:use DC 5v-2000mA USB port charger to charge,charging current is 2000mA
when 3.7V.
Bluetooth pairing name:
US version WM1805 is Blackweb_RGD_A013
When disconnect bluetooth , power off automatically after 2 minutes.
When connected bluetooth,power off automatically after 15 minutes no-operation.
Quiescent current:less than 20uA
Bluetooth transmission range:exceeded 10 meters.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
