User manual

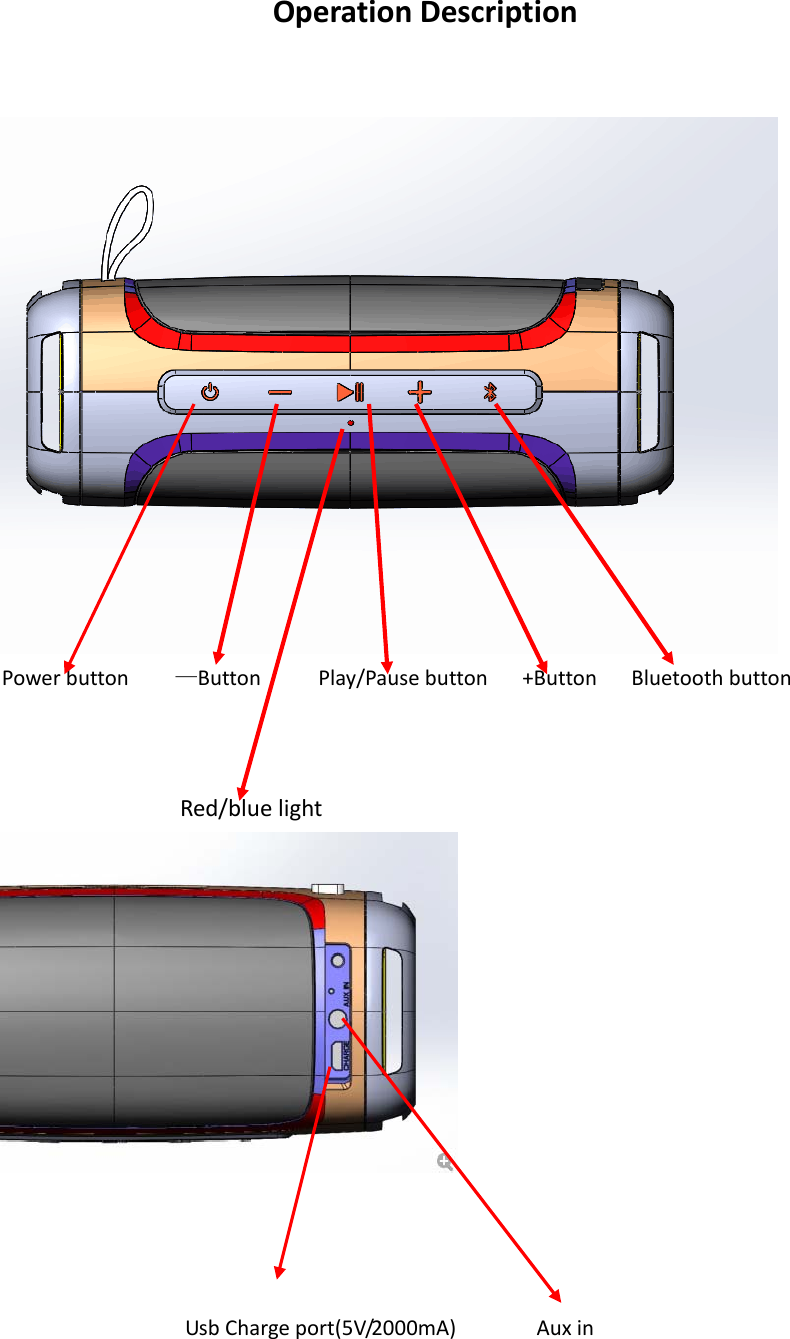

Operation Description Power button —Button Play/Pause button +Button Bluetooth button Red/blue light Usb Charge port(5V/2000mA) Aux in

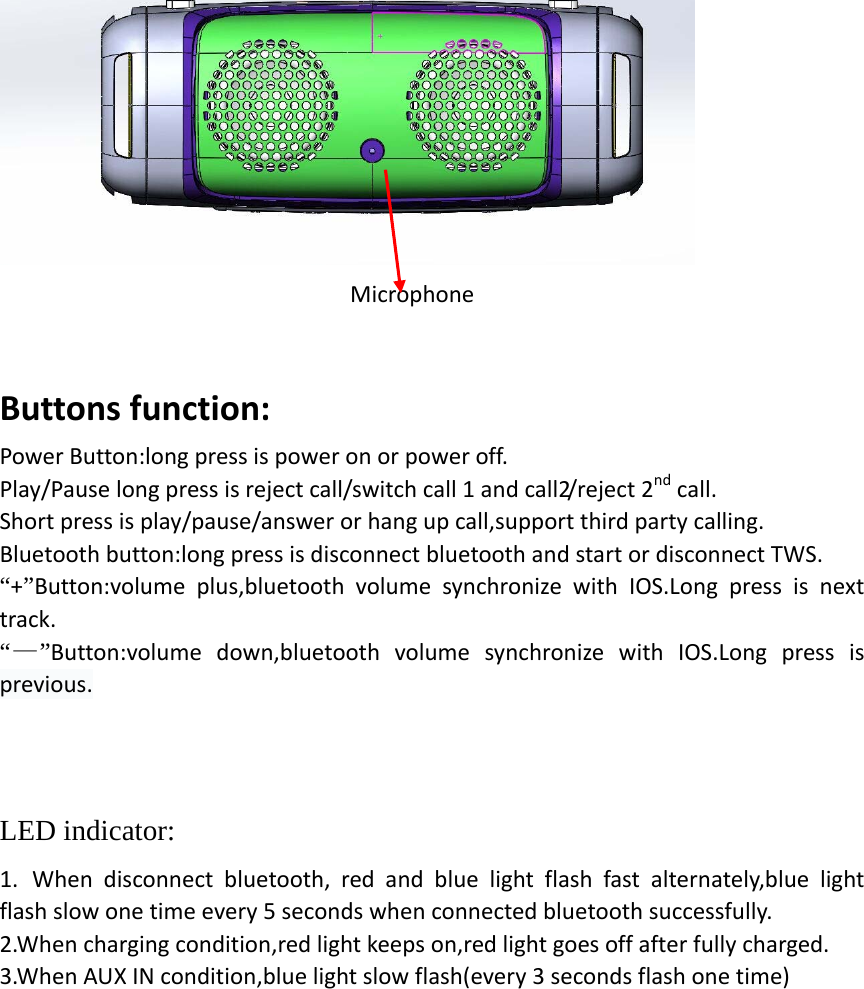

Microphone Buttons function: Power Button:long press is power on or power off. Play/Pause long press is reject call/switch call 1 and call2/reject 2nd call. Short press is play/pause/answer or hang up call,support third party calling. Bluetooth button:long press is disconnect bluetooth and start or disconnect TWS. “+”Button:volume plus,bluetooth volume synchronize with IOS.Long press is next track. “—”Button:volume down,bluetooth volume synchronize with IOS.Long press is previous. LED indicator: 1. When disconnect bluetooth, red and blue light flash fast alternately,blue light flash slow one time every 5 seconds when connected bluetooth successfully. 2.When charging condition,red light keeps on,red light goes off after fully charged. 3.When AUX IN condition,blue light slow flash(every 3 seconds flash one time)

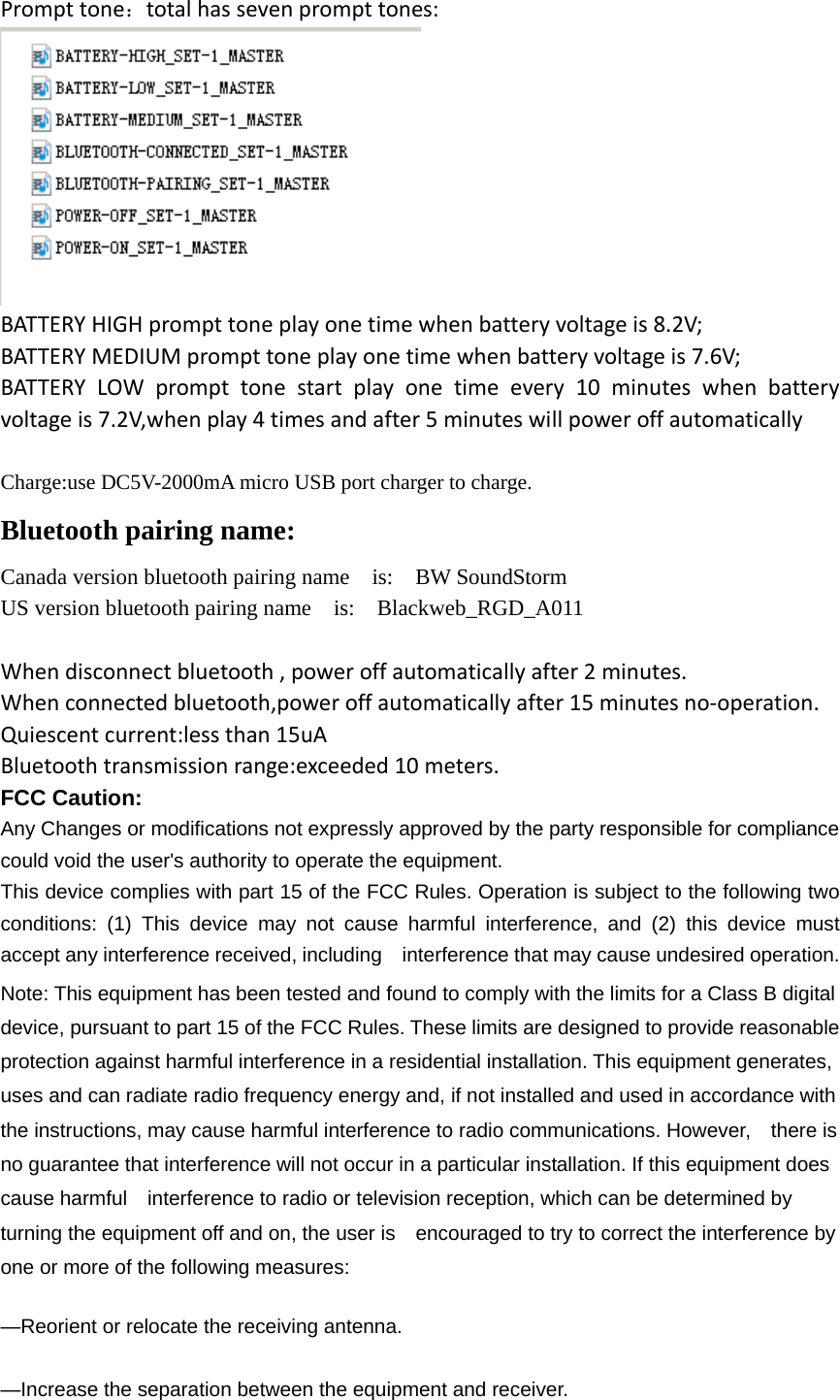

Prompt tone：total has seven prompt tones: BATTERY HIGH prompt tone play one time when battery voltage is 8.2V; BATTERY MEDIUM prompt tone play one time when battery voltage is 7.6V; BATTERY LOW prompt tone start play one time every 10 minutes when battery voltage is 7.2V,when play 4 times and after 5 minutes will power off automatically Charge:use DC5V-2000mA micro USB port charger to charge. Bluetooth pairing name: Canada version bluetooth pairing name is: BW SoundStorm US version bluetooth pairing name is: Blackweb_RGD_A011 When disconnect bluetooth , power off automatically after 2 minutes. When connected bluetooth,power off automatically after 15 minutes no-operation. Quiescent current:less than 15uA Bluetooth transmission range:exceeded 10 meters. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver.

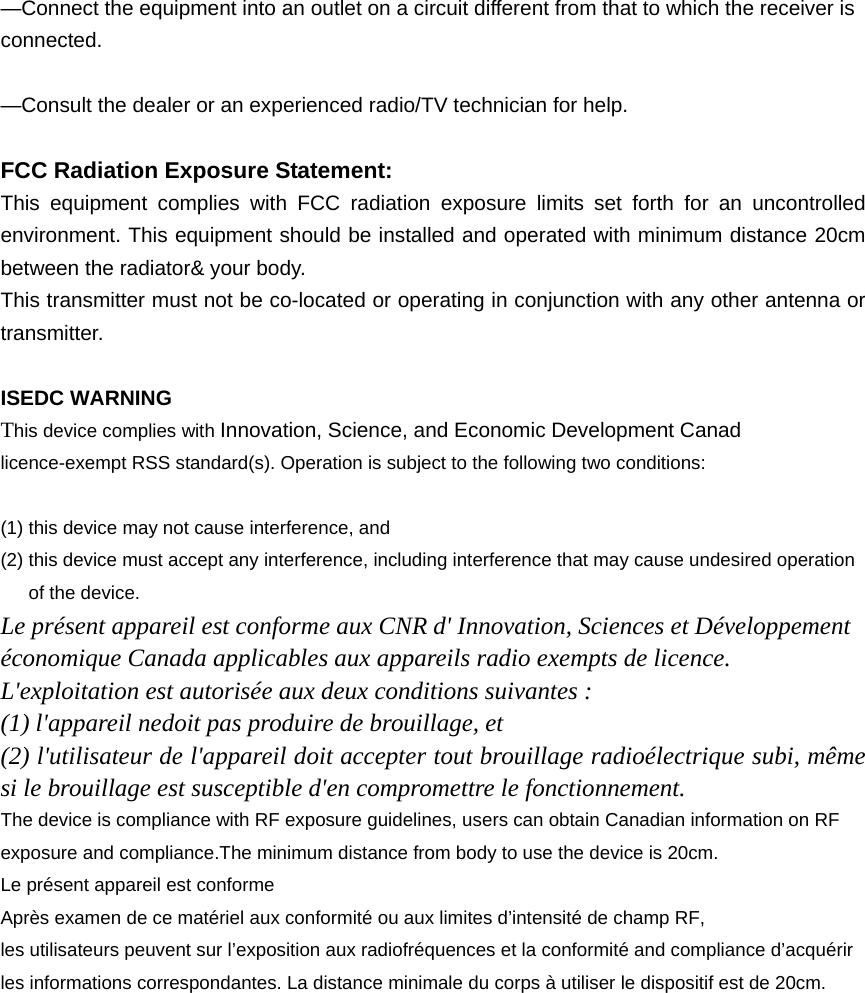

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ISEDC WARNING This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.The minimum distance from body to use the device is 20cm. Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes. La distance minimale du corps à utiliser le dispositif est de 20cm.
