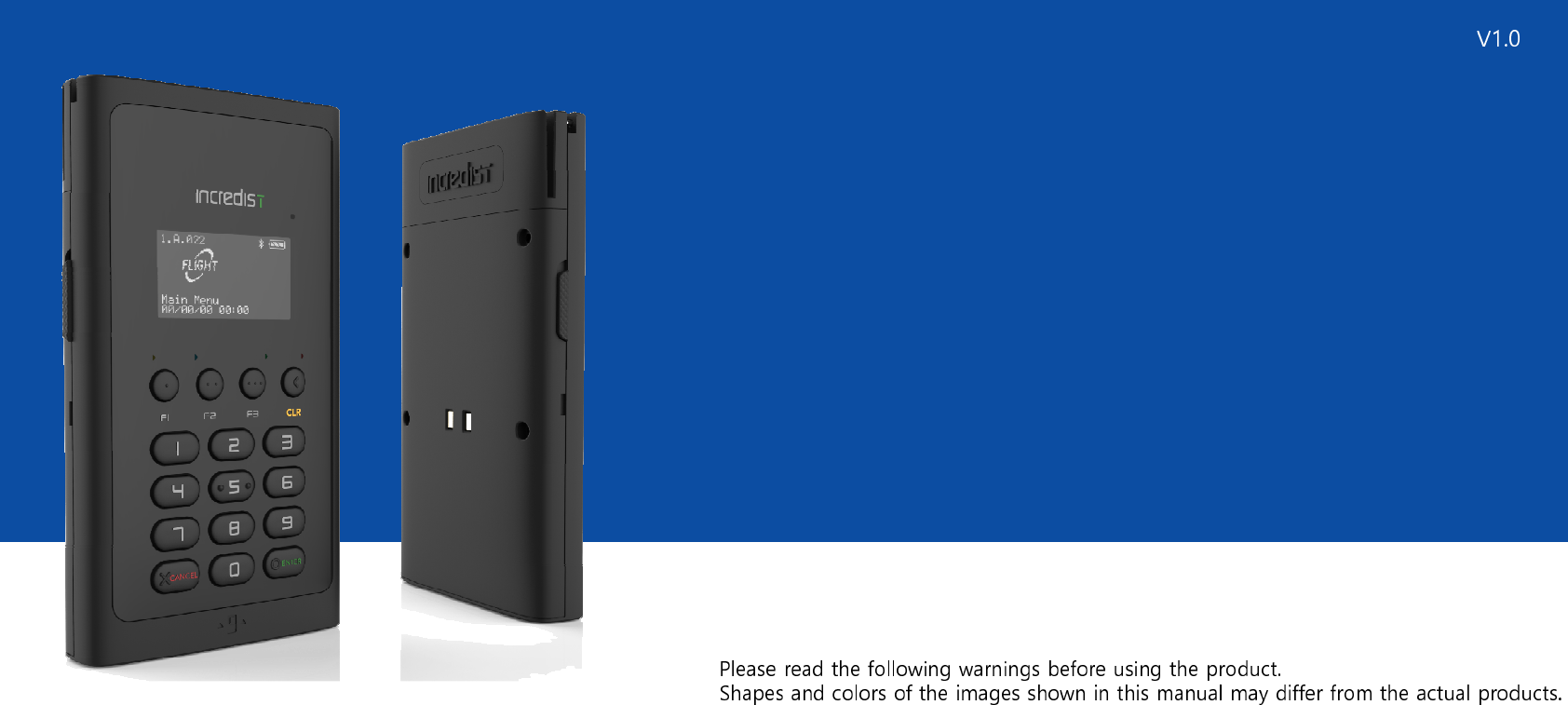

FLIGHT SYSTEM CONSULTING BNBI002 INCREDIST PREMIUM User Manual
FLIGHT SYSTEM CONSULTING Inc. INCREDIST PREMIUM Users Manual
Contents
- 1. User Manual
- 2. Users Manual
Users Manual
User Manual
User’s guidance
•
•
•
•
•
•
Contents
Warnings Before Using Product 4
Tips for using product 5
Quality assurance 5
Package contents 5
Overview 6
LCD Display 7
Using cards 8

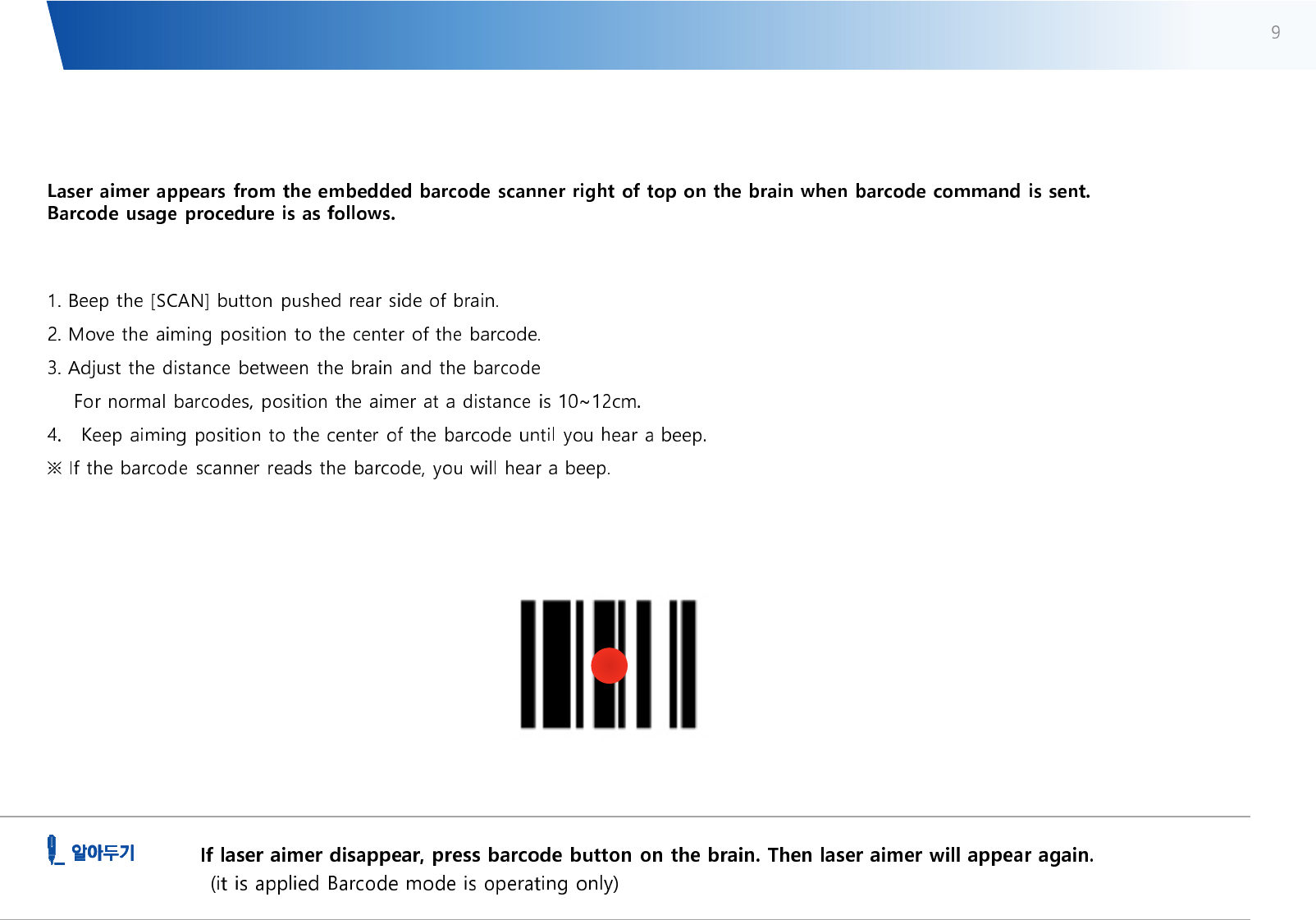

Using the barcode scanner 9
How to Charge 10
Specification 11

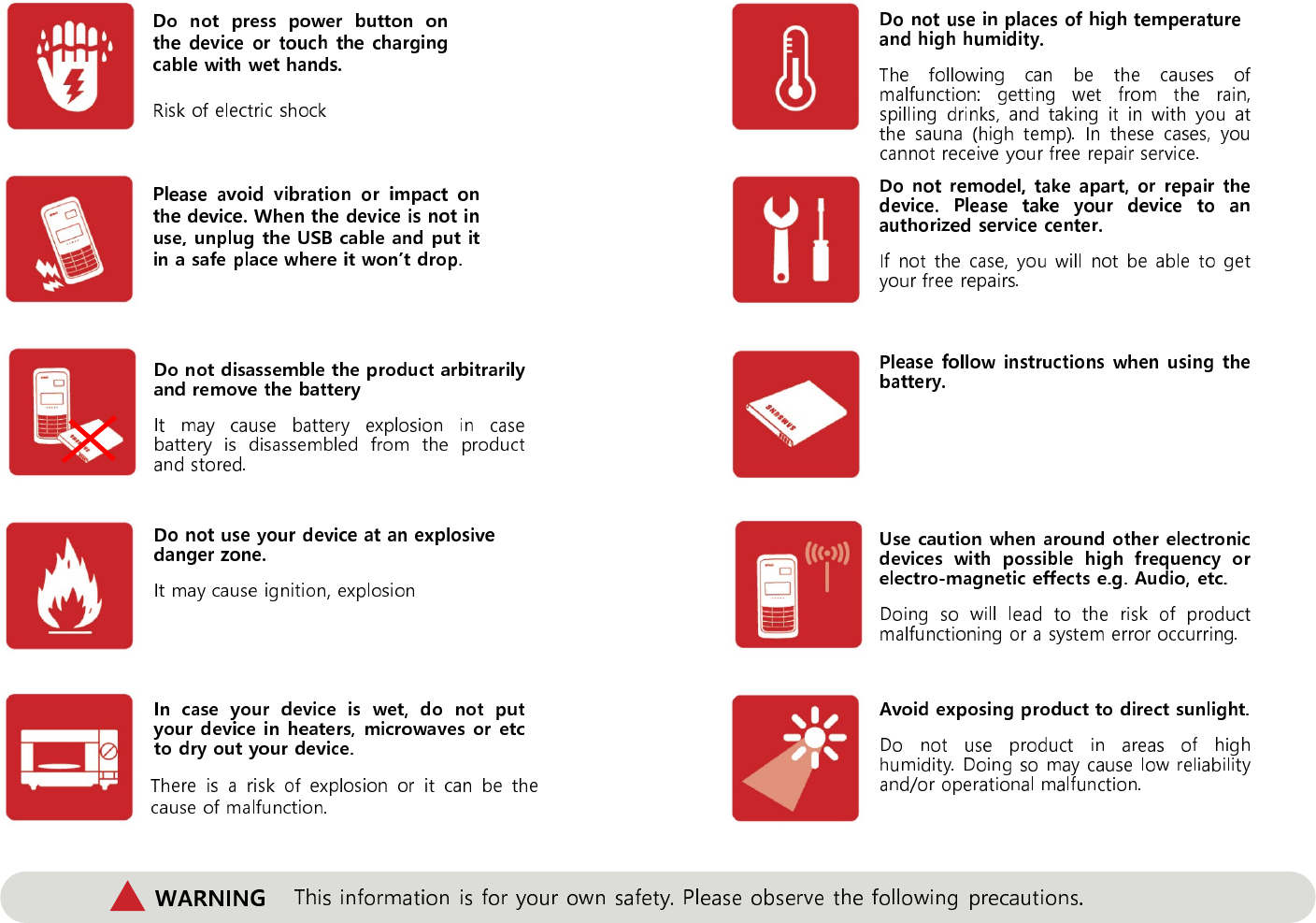

Warnings Before Using Product
!

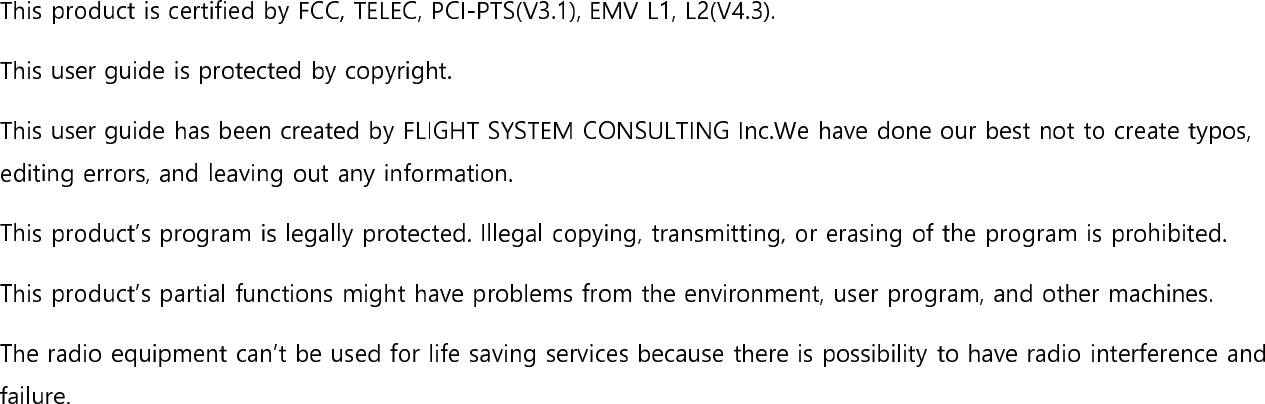

Quality assurance

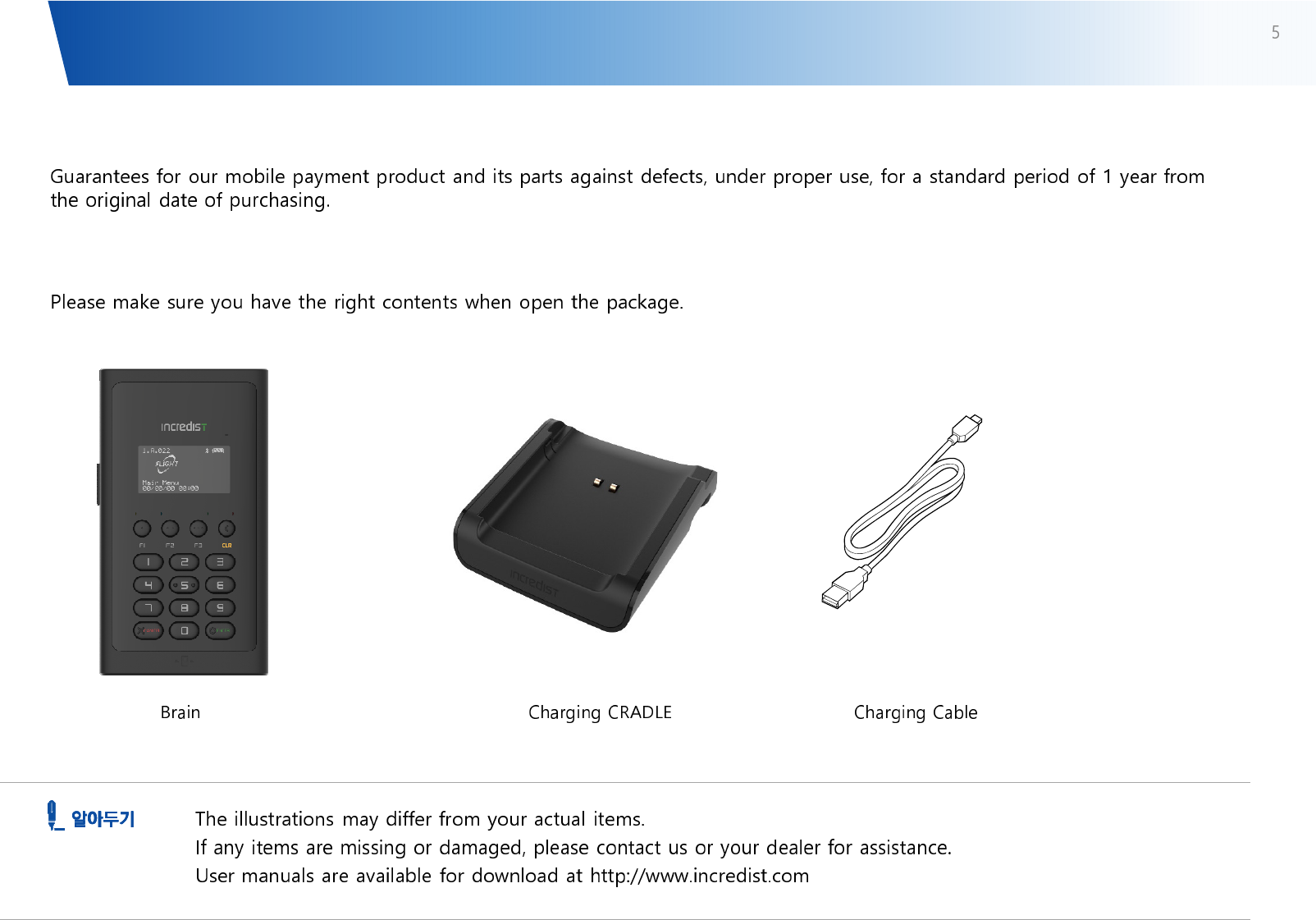

Package contents
•
•
•
Tips for Using Product

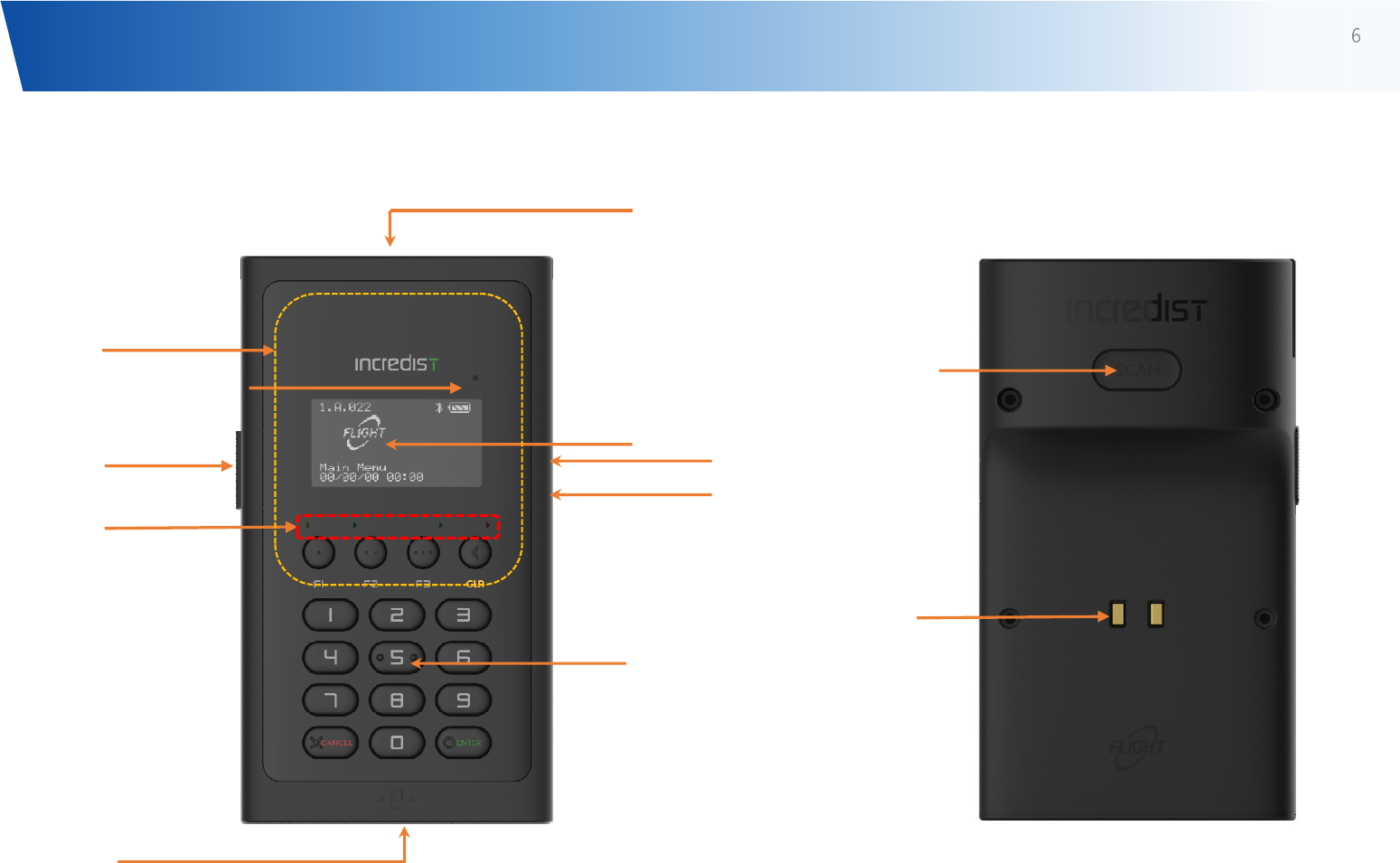

IC Card
MSR
Micro USB
RESET BUTTON
LCD
PIN PAD
Power Button
Contactless
LED
Barcode SCAN Button
Power Terminal
Tips for Using Product
Overview
Battery Charging
BLUE
EMV Read Mode
ORANGE
Barcode Read mode
GREEN
Contactless Mode
RED
MSR Read Mode
LED
Date Time
Bluetooth
Battery
Charging
Tips for Using Product

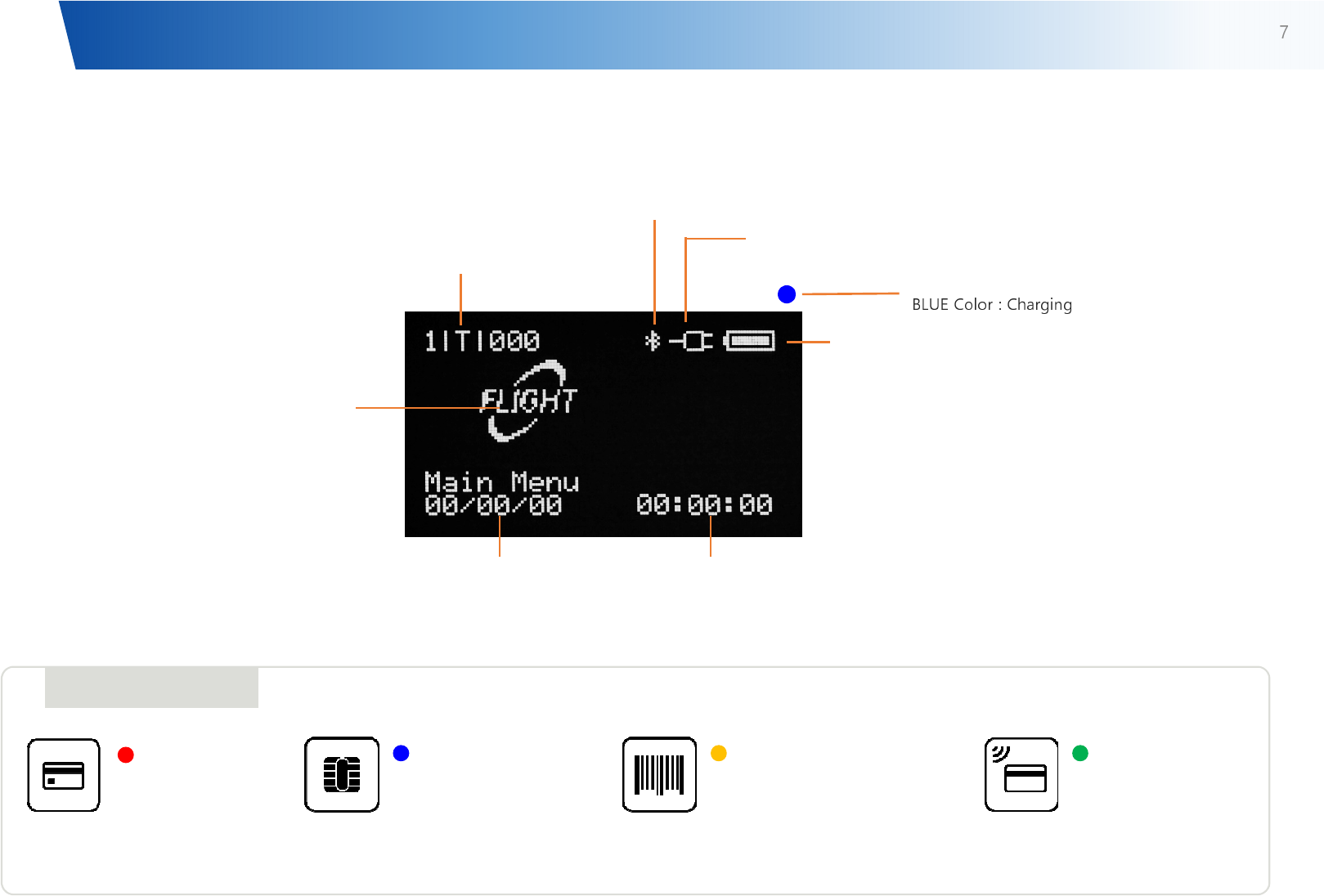

LCD Display
Firmware Version
Logo
Front
Tips for Using Product

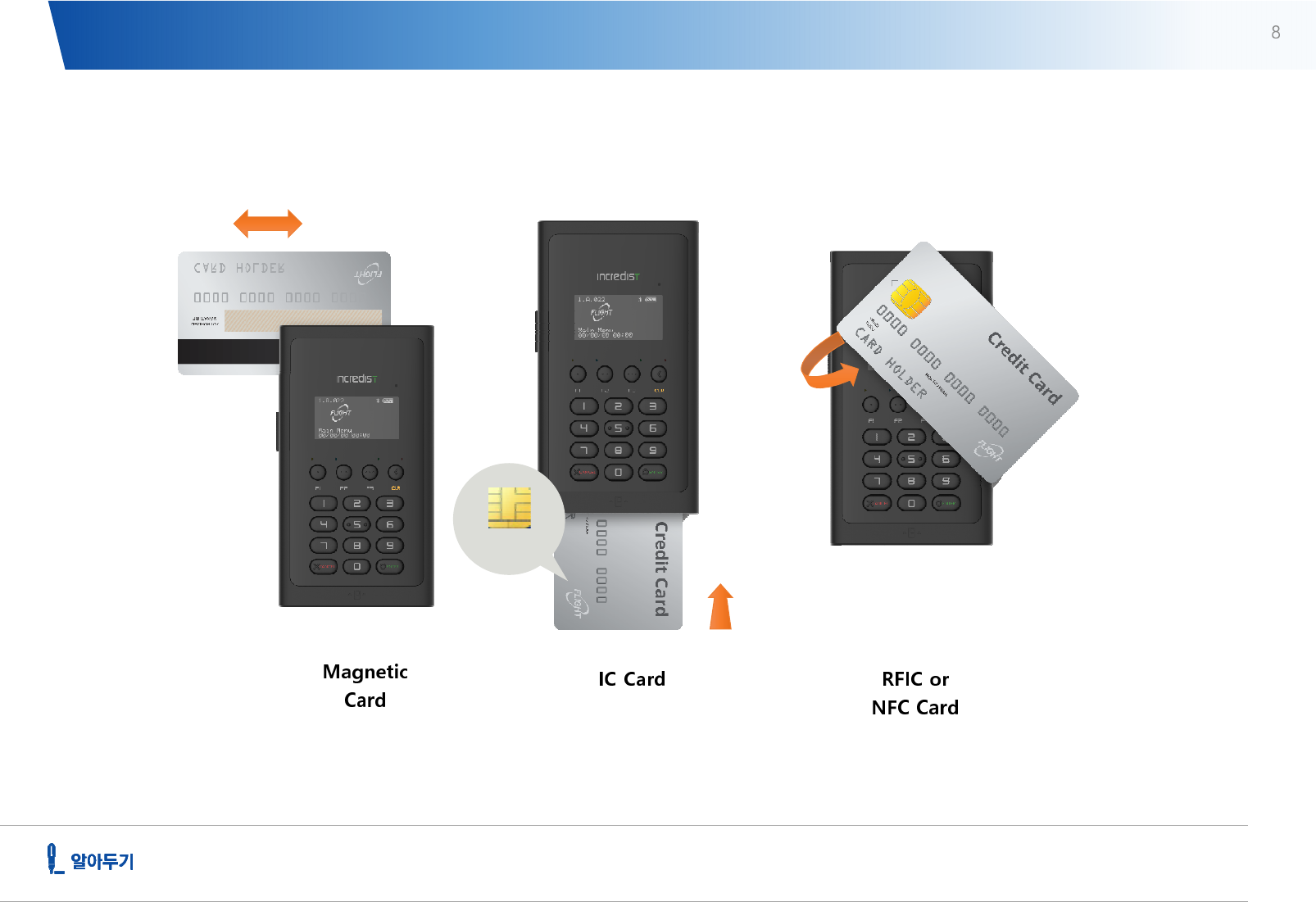

Using cards
•Please make sure whether foreign substance exist before MSR & IC Card insert. It may cause product failure.
Using the barcode scanner
•
Tips for Using Product

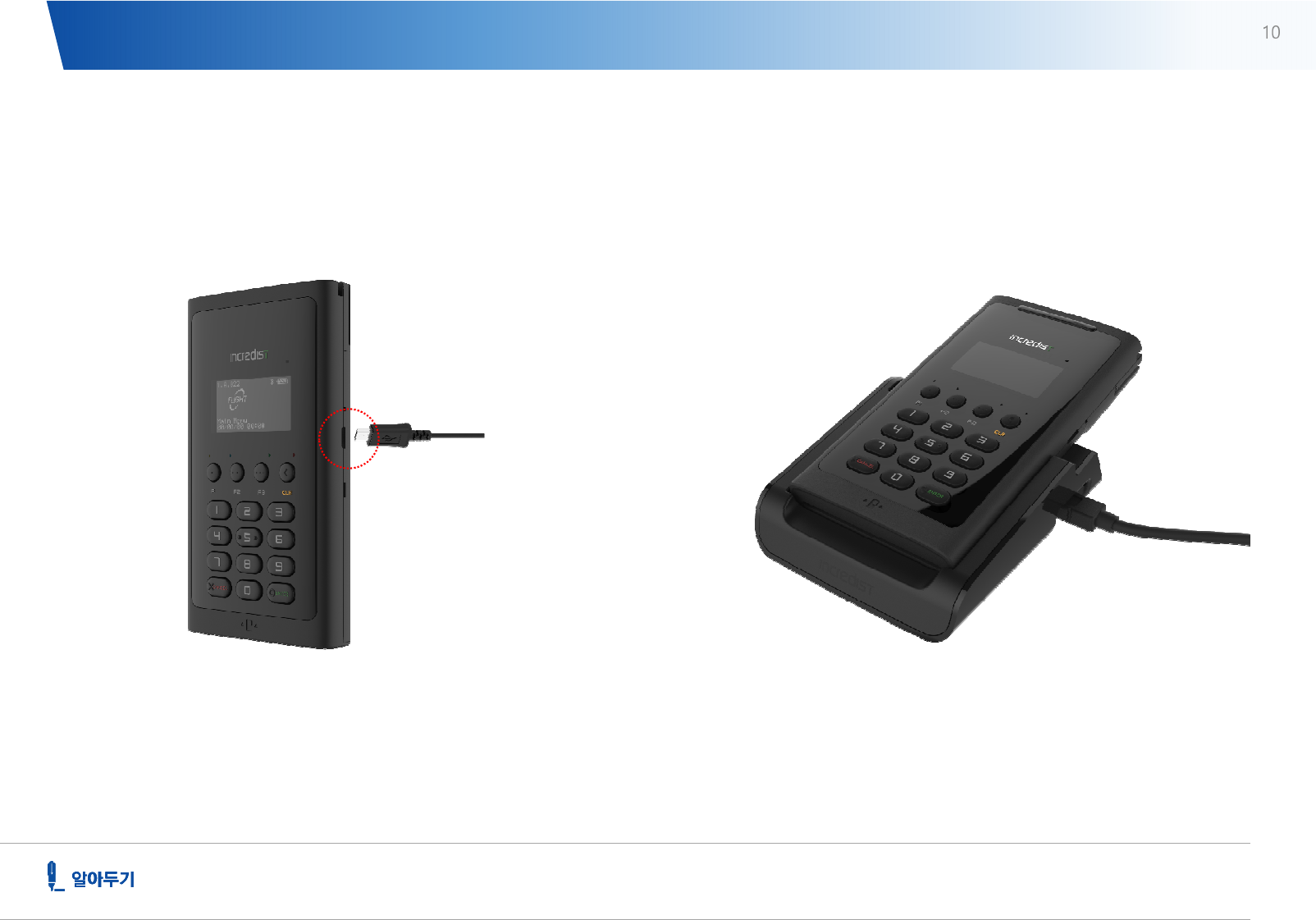

How to Charge
Using Micro USB charing adaptor Using charging CRADLE)
•Please use 5V/500mA charger.
•Please make sure that turn off brain’s power during charging
Tips for Using Product
Feature Parameters
MCU Secure MCU
Memory Flash 1 Mbyte
SDRAM 256 Kbyte
LCD Screen
Screen Size 2.3"
Pixel 128 X 64 DOT
Characters 8 Line, 16 Characters (each line)
Card readers
Mag stripe Reader ISO7810/7811, RAW Mode support, 3 Track
encrypted Head Bi-directional swipe
Smart Card Reader ISO7816, 1 Slot, on/off line support EMV Compliant, JIS I/II
Contactless Reader 13.56MHz, ISO/IEC 14443 A/B Type, Felica
Socket SAM None
Pin Pad KEYS 13 Keys & 3 functional keys
Method Physical
Encryption RSA1024, RSA2048, DES, T-DES, AES128, AES256
Key Management DUKPT, Fixed
Buzzer Yes
LED 5ea 2xBlue, Red, Green, Orange
Barcode Reader Zebra SE4710 2D barcode PDF-417, microPDF-417, QR, etc.
Connectivity Wireless communication Bluetooth 4.0 (BLE)
Terminal connectivity micro USB USB full speed
Battery Li-ion Battery, 3.7V, 920mAh
Dimensions Appox. 120(L) x 28(H) x 66(W)mm
Weight 170g
Power Charge 2 hour 5V/500mA
Environment 0°C / 10% ~ 50°C / 90%
Certification FCC, CE, PCI-PTS(V4.0), EMV L1, L2(V4.3)
Specification
Tips for Using Product
17
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation
.
European Union Regulatory Notice
Compliance with these directives implies conformity to harmonized European standards (European Norms) that
are listed in the
EU Declaration of Conformity issued by Inkel corporation for this product or product family. This compliance is
indicated by the following
conformity marking placed on the product.
The wireless telecommunications functionality of this product may be used in the following EU and EFTA
countries:
Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy,
Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovak Republic,
Slovenia, Spain, Sweden,
Switzerland, and United Kingdom.
This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
T+81-3-3440-6100 F+81-3-5791-2241 Eatsuko@flight.co.jp
