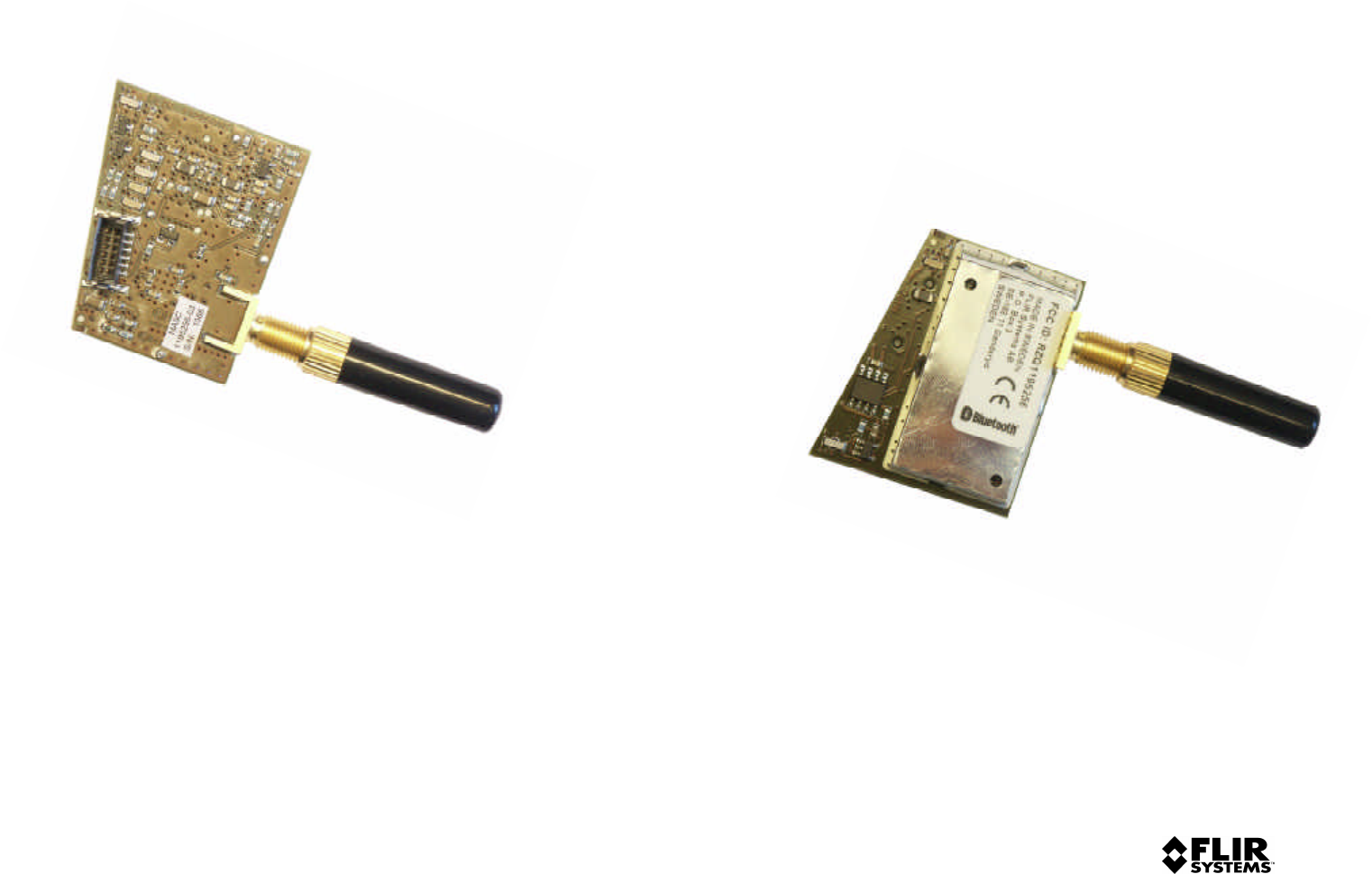

FLIR Systems AB Bluetooth Module MA9C 1558018
Users Manual
Document: 1 558 018 FLIR Systems AB
Rev: A P.O. Box 3
SE-182 11 Danderyd
SWEDEN
Users Manual MA9C
I
Table of contents
FCC regulation text....................................................1
Copyrights and trademarks.........................................2
Installation requirements............................................3
Power requirements: ..................................................4
Environmental requirements: .....................................4
Radio characteristics ..................................................4
Antenna: ....................................................................5
5
Antenna:
Use ONLY the antenna supplied with the module.
4
Power requirements:
Supply voltage: 3,3V ±5%
Supply current: 50mA
Environmental requirements:
Operating temperature: -15 to +70 °C
Storage temperature: -40 to +85 °C
Radio characteristics
Output power: 1mW
Sensitivity 0.001% BER: -82dBm
1
FCC regulation text
This device complies with part 15 of the FCC Rules.
Operation is subject to the following of two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
2
Copyrights and trademarks
The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by FLIR
Systems AB is under license. Other trademarks and trade
names are those of their respective owners.
3
Installation requirements
The end user product must be labeled in a visible area
with the following:
Containing FCC ID: RZQ1195256
The Radio Module shall be connected to an external
supply source (SELV) which provides
reinforced/double insulation from the AC-mains.
The MA9C board must be enclosed in a conductive or
non-conductive casing.
