FLIR Systems FLIRE7850 Infrared Camera User Manual
FLIR Systems AB Infrared Camera
User Manual
User’s manual
FLIR Exx series
User’s manual
FLIR Exx series
#T810190; r. AB/39747/39747; en-US iii
Table of contents
1 Disclaimers ......................................................................................1
1.1 Legal disclaimer .......................................................................1
1.2 Usage statistics ........................................................................ 1
1.3 Changes to registry ...................................................................1
1.4 U.S. Government Regulations......................................................1
1.5 Copyright ................................................................................1
1.6 Quality assurance .....................................................................1
1.7 Patents...................................................................................1
1.8 EULATerms ............................................................................1
1.9 EULATerms ............................................................................1
2 Safety information .............................................................................3
3 Notice to user ...................................................................................7
3.1 User-to-user forums ..................................................................7
3.2 Calibration...............................................................................7
3.3 Accuracy ................................................................................7
3.4 Disposal of electronic waste ........................................................7
3.5 Training ..................................................................................7
3.6 Documentation updates .............................................................7
3.7 Important note about this manual..................................................7
3.8 Note about authoritative versions..................................................8
4 Customer help ..................................................................................9
4.1 General ..................................................................................9
4.2 Submitting a question ................................................................9
4.3 Downloads ............................................................................ 10
5 Quick start guide ............................................................................. 11
5.1 Procedure............................................................................. 11
5.2 To keep in mind ...................................................................... 11
6 Register the camera......................................................................... 12
6.1 General ................................................................................ 12
6.2 Procedure............................................................................. 12
7 Camera parts ..................................................................................17
7.1 View from the front .................................................................. 17
7.1.1 Figure........................................................................ 17
7.1.2 Explanation................................................................. 17
7.2 View from the rear................................................................... 18
7.2.1 Figure........................................................................ 18
7.2.2 Explanation................................................................. 18
7.3 Laser distance meter and laser pointer ........................................ 19
7.3.1 General...................................................................... 19
7.3.2 Laser transmitter and receiver......................................... 19
7.3.3 Difference in position .................................................... 20
7.3.4 Laser warning label....................................................... 20
7.3.5 Laser rules and regulations ............................................ 20
8 Screen elements ............................................................................. 21
8.1 Figure .................................................................................. 21
8.2 Explanation ........................................................................... 21
8.3 Status icons........................................................................... 21
8.4 Swipe-down menu .................................................................. 22

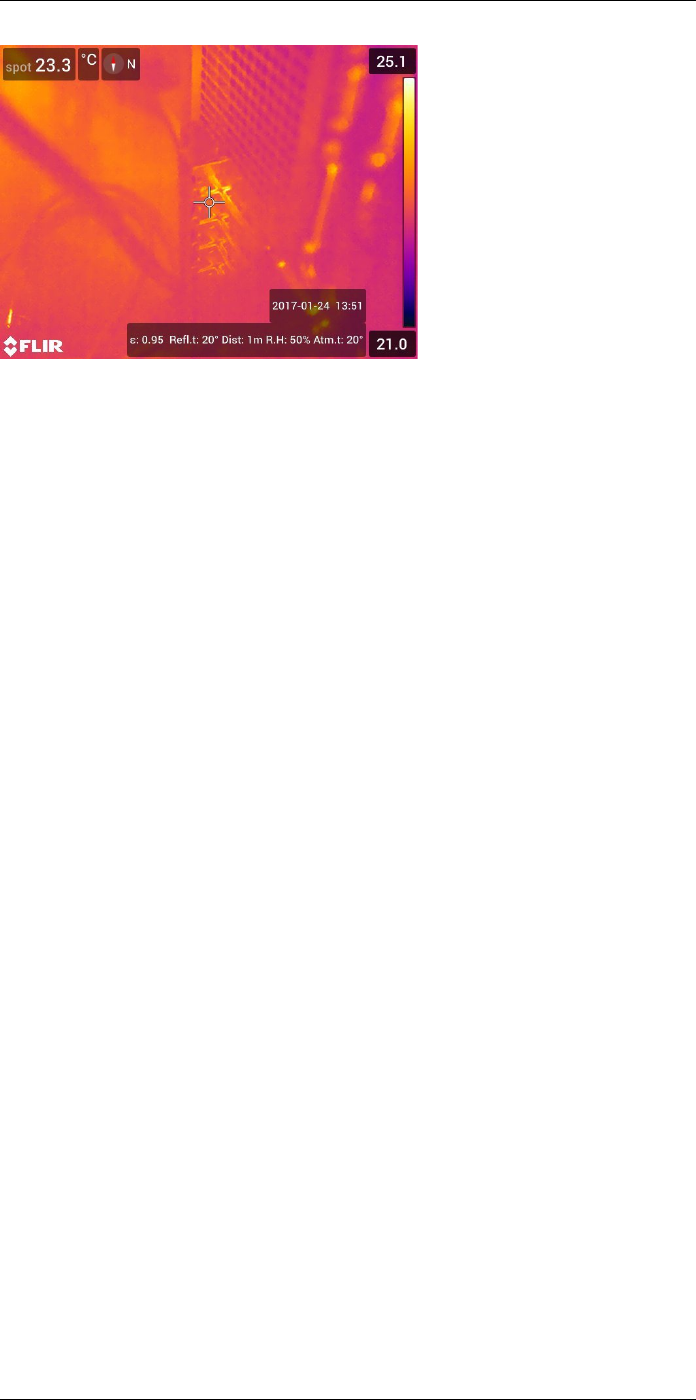

8.5 Image overlay information......................................................... 22
9 Navigating the menu system ............................................................. 24
9.1 General ................................................................................ 24
9.2 Navigating using the navigation pad............................................ 24
10 Handling the camera........................................................................ 25
10.1 Charging the battery................................................................ 25
#T810190; r. AB/39747/39747; en-US v
Table of contents
10.1.1 General...................................................................... 25
10.1.2 Using the USB battery charger to charge the battery ............ 25
10.1.3 Using the stand-alone battery charger to charge the
battery....................................................................... 26
10.1.4 Charging the battery using a USB cable connected to a
computer.................................................................... 26
10.2 Removing the battery............................................................... 27
10.3 Turning on and turning off the camera.......................................... 27
10.4 Adjusting the infrared camera focus manually ............................... 28
10.4.1 Figure........................................................................ 28
10.4.2 Procedure .................................................................. 28
10.5 Autofocusing the infrared camera ............................................... 28
10.5.1 General...................................................................... 28
10.5.2 Figure........................................................................ 29
10.5.3 Procedure .................................................................. 29
10.6 Continuous autofocus .............................................................. 29
10.6.1 General...................................................................... 29
10.6.2 Procedure .................................................................. 30
10.7 Saving an image..................................................................... 30
10.8 Operating the laser distance meter ............................................. 31
10.8.1 General...................................................................... 31
10.8.2 Figure........................................................................ 31
10.8.3 Procedure .................................................................. 32
10.9 Measuring areas..................................................................... 32
10.9.1 General...................................................................... 32
10.9.2 Procedure .................................................................. 32
10.10 Connecting external devices and storage media ............................ 32
10.10.1 General...................................................................... 32
10.10.2 Figure........................................................................ 33
10.10.3 Explanation................................................................. 33
10.11 Moving files to a computer ........................................................ 33
10.11.1 General...................................................................... 33
10.11.2 Procedure .................................................................. 34
10.12 Assigning functions to the programmable button............................ 34
10.12.1 General...................................................................... 34
10.12.2 Procedure .................................................................. 35
10.13 Using the camera lamp as a flash ............................................... 36
10.13.1 General...................................................................... 36
10.13.2 Procedure .................................................................. 36

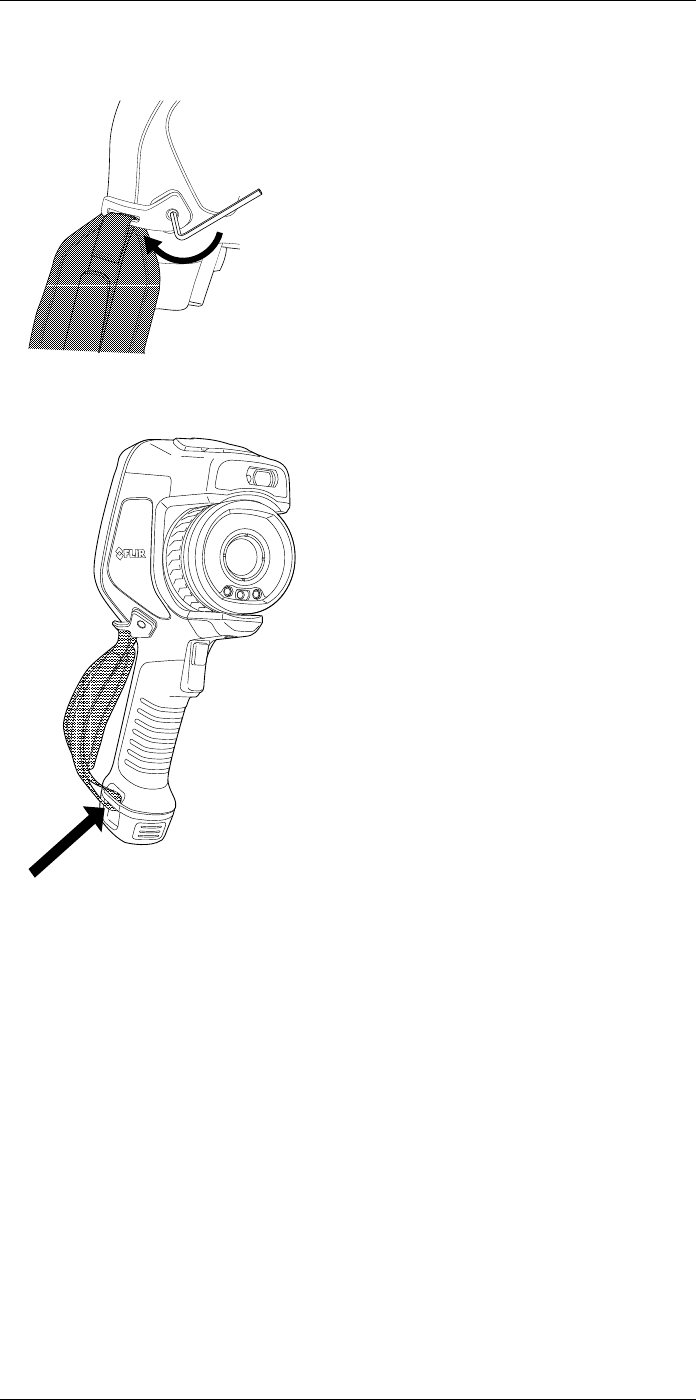

10.14 Hand strap ............................................................................ 36
10.14.1 General...................................................................... 36
10.14.2 Mounting the hand strap ................................................ 37

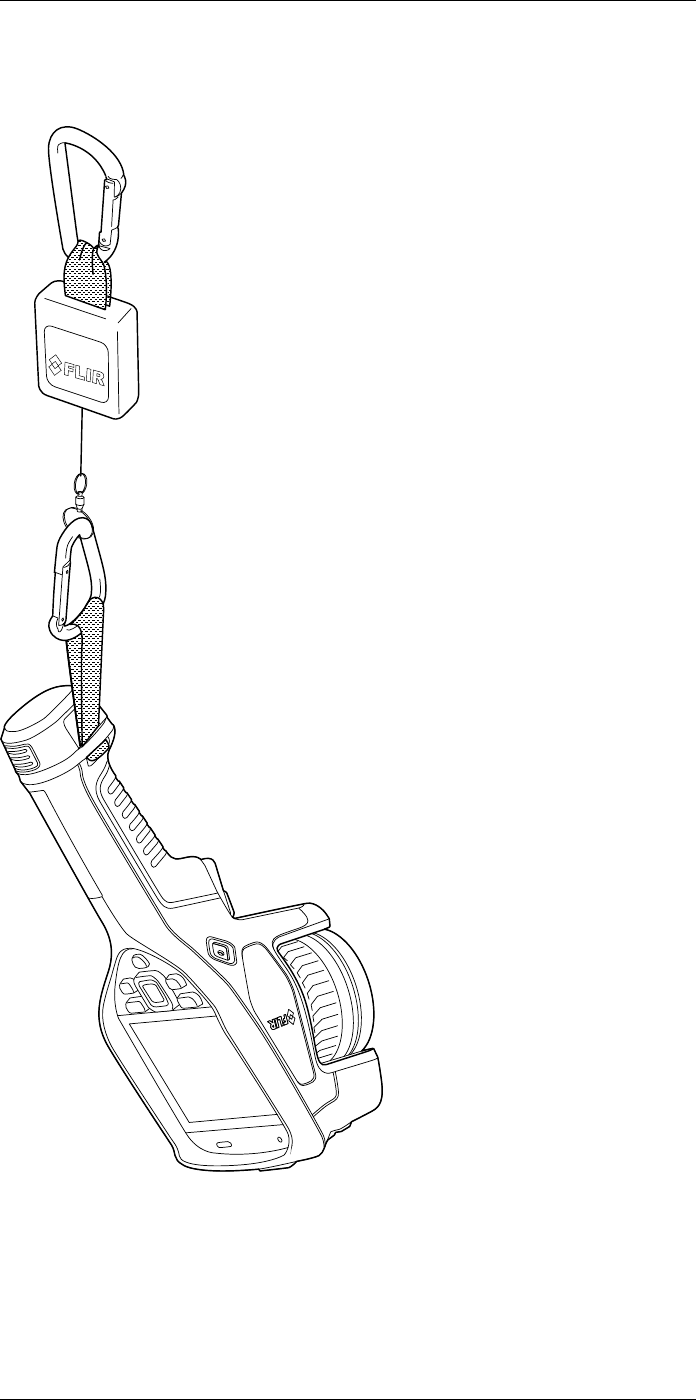

10.15 Lanyard strap......................................................................... 39
10.15.1 General...................................................................... 39
10.15.2 Mounting the lanyard strap ............................................. 39

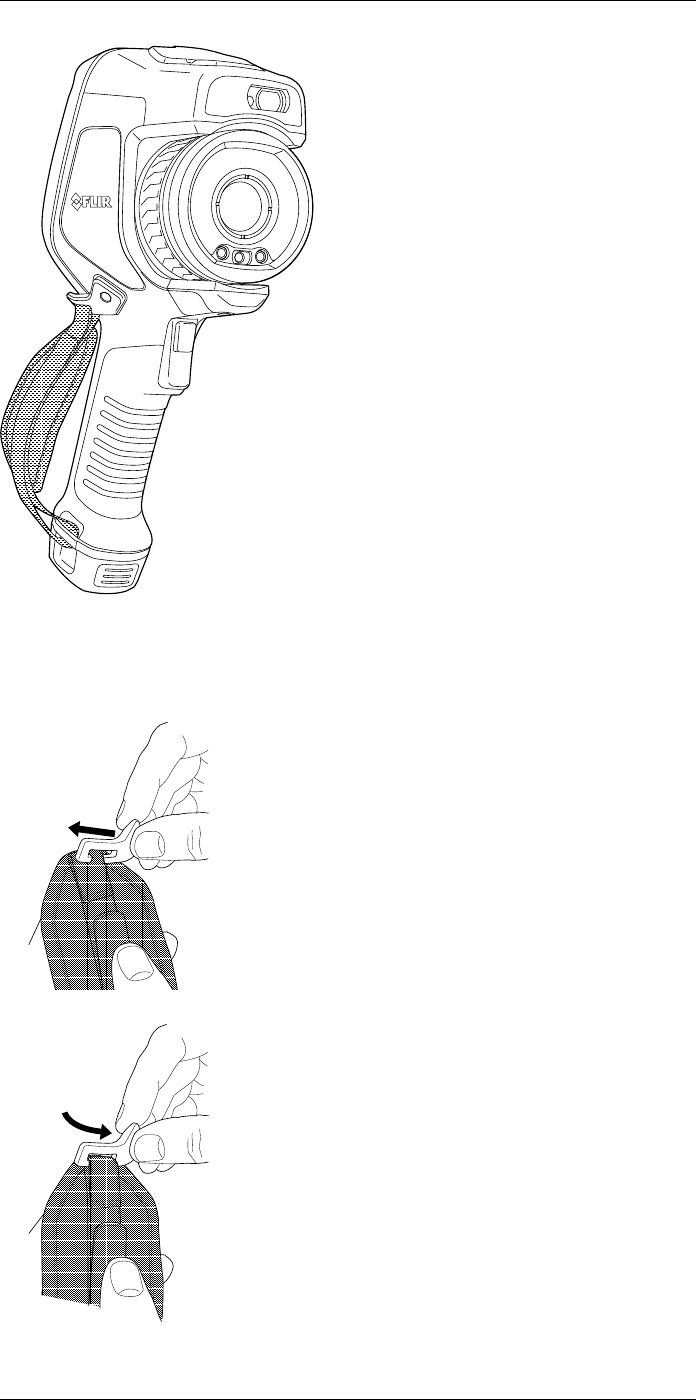

10.16 Wrist strap............................................................................. 40
10.16.1 General...................................................................... 40
10.16.2 Mounting the wrist strap................................................. 41
10.17 Front protection ...................................................................... 41

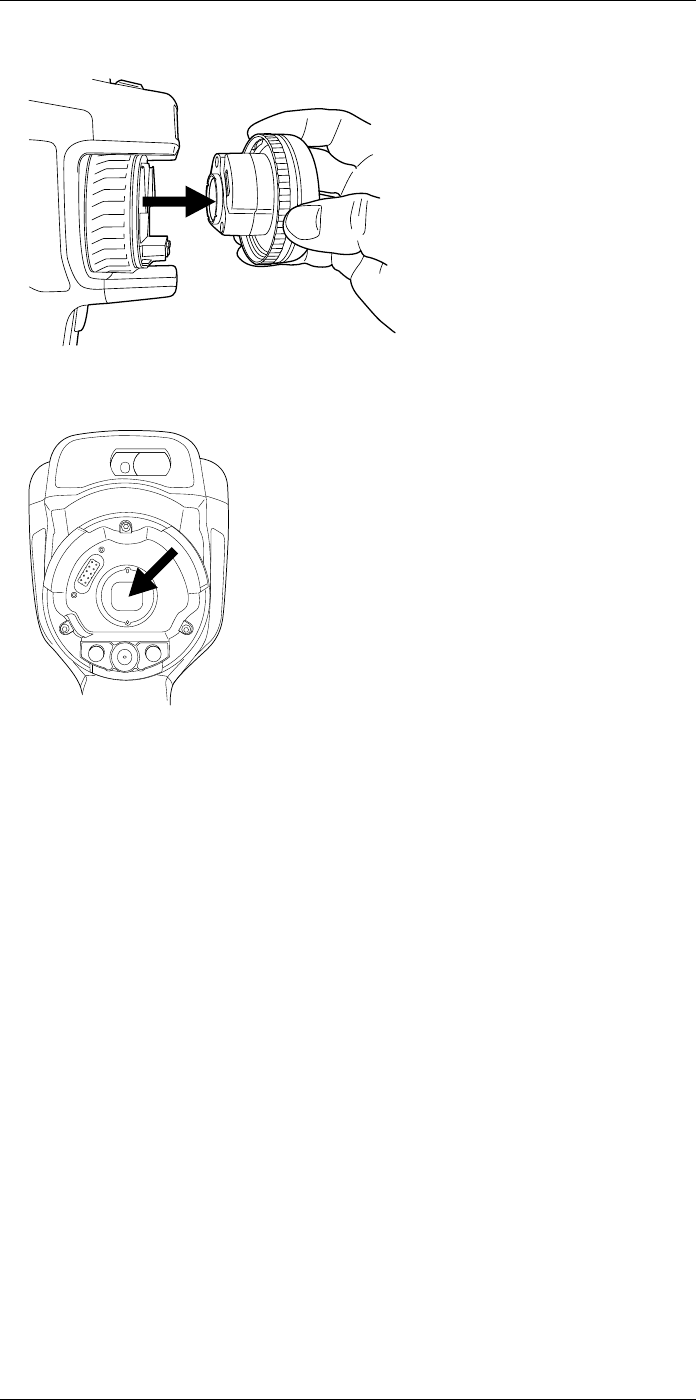

10.18 Changing camera lenses .......................................................... 42
10.19 Calibrating the compass........................................................... 45
10.19.1 Procedure .................................................................. 45
11 Saving and working with images ....................................................... 46
11.1 About image files .................................................................... 46
11.1.1 General...................................................................... 46
#T810190; r. AB/39747/39747; en-US vi
Table of contents
11.1.2 File-naming convention ................................................. 46
11.1.3 Storage capacity .......................................................... 46
11.2 Saving an image..................................................................... 46
11.2.1 General...................................................................... 46
11.2.2 Procedure .................................................................. 47
11.3 Previewing an image ............................................................... 47
11.3.1 General...................................................................... 47
11.3.2 Procedure .................................................................. 47
11.4 Opening a saved image............................................................ 48
11.4.1 General...................................................................... 48
11.4.2 Procedure .................................................................. 48
11.5 Editing a saved image.............................................................. 48
11.5.1 General...................................................................... 48
11.5.2 Procedure .................................................................. 48
11.5.3 Related topics ............................................................. 49
11.6 Zooming an image .................................................................. 49
11.6.1 General...................................................................... 49
11.6.2 Procedure .................................................................. 49
11.7 Deleting images ..................................................................... 50
11.8 Resetting the image counter...................................................... 50
11.8.1 General...................................................................... 50
11.8.2 Procedure .................................................................. 50
12 Working with the image archive......................................................... 51
12.1 General ................................................................................ 51
12.2 Opening image and video files................................................... 51
12.3 Creating a new folder............................................................... 51
12.4 Renaming a folder................................................................... 52
12.5 Changing the active folder ........................................................ 52
12.5.1 General...................................................................... 52
12.5.2 Procedure .................................................................. 52
12.6 Moving files between folders ..................................................... 52
12.7 Deleting a folder ..................................................................... 53
12.8 Deleting an image or video file ................................................... 53
12.8.1 General...................................................................... 53
12.8.2 Procedure .................................................................. 53
12.9 Deleting multiple files............................................................... 53
12.9.1 General...................................................................... 53
12.9.2 Procedure .................................................................. 53
12.10 Deleting all files ...................................................................... 54
12.10.1 General...................................................................... 54
12.10.2 Procedure .................................................................. 54
13 Achieving a good image ................................................................... 55
13.1 General ................................................................................ 55
13.2 Adjusting the infrared camera focus ............................................ 55
13.2.1 Manual focus............................................................... 55
13.2.2 Autofocus................................................................... 55
13.2.3 Continuous autofocus ................................................... 55
13.3 Adjusting the infrared image...................................................... 55
13.3.1 General...................................................................... 55
13.3.2 Example 1 .................................................................. 56
13.3.3 Example 2 .................................................................. 56
13.3.4 Manual adjustment in Level, Span mode ........................... 57
13.3.5 Manual adjustment in Level, Max, Min mode ...................... 57
13.4 Changing the temperature ranges .............................................. 57
13.4.1 General...................................................................... 57
#T810190; r. AB/39747/39747; en-US vii
Table of contents
13.4.2 Procedure .................................................................. 57
13.5 Changing the color palettes....................................................... 58
13.5.1 General...................................................................... 58
13.5.2 Procedure .................................................................. 59
13.6 Changing the measurement parameters ...................................... 59
13.7 Performing a non-uniformity correction (NUC) ............................... 60
13.7.1 Performing an NUC manually.......................................... 60
13.8 Hiding all overlay .................................................................... 60
13.8.1 General...................................................................... 60
13.8.2 Procedure .................................................................. 61
14 Working with image modes............................................................... 62
14.1 General ................................................................................ 62
14.2 Image examples ..................................................................... 62
14.3 Selecting an image mode ......................................................... 63
15 Working with measurement tools ...................................................... 64
15.1 General ................................................................................ 64
15.2 Adding/removing measurement tools .......................................... 64
15.3 Editing user presets................................................................. 64
15.3.1 General...................................................................... 64
15.3.2 Procedure .................................................................. 64
15.4 Moving and resizing a measurement tool ..................................... 65
15.4.1 General...................................................................... 65
15.4.2 Moving a spot.............................................................. 65
15.4.3 Moving and resizing a box or circle tool ............................. 66
15.5 Changing the measurement parameters ...................................... 66
15.5.1 General...................................................................... 66
15.5.2 Types of parameters ..................................................... 66
15.5.3 Recommended values................................................... 67
15.5.4 Procedure .................................................................. 67
15.5.5 Related topics ............................................................. 68
15.6 Displaying values in the result table and displaying a graph .............. 68
15.6.1 General...................................................................... 68
15.6.2 Procedure .................................................................. 69
15.7 Creating and setting up a difference calculation ............................. 69
15.7.1 General...................................................................... 69
15.7.2 Procedure .................................................................. 70
15.8 Setting a measurement alarm .................................................... 70
15.8.1 General...................................................................... 70
15.8.2 Types of alarm ............................................................. 70
15.8.3 Alarm signals .............................................................. 70
15.8.4 Procedure .................................................................. 70
16 Working with color alarms and isotherms........................................... 73
16.1 Color alarms.......................................................................... 73
16.1.1 General...................................................................... 73
16.1.2 Image examples .......................................................... 73
16.1.3 Setting up above, below, and interval alarms ...................... 74
16.1.4 Building isotherms........................................................ 75
17 Annotating images .......................................................................... 76
17.1 General ................................................................................ 76
17.2 Adding a note ........................................................................ 76
17.2.1 General...................................................................... 76
17.2.2 Procedure .................................................................. 76
17.3 Adding a text comment table ..................................................... 76
17.3.1 General...................................................................... 76
17.3.2 Procedure .................................................................. 76
#T810190; r. AB/39747/39747; en-US viii
Table of contents
17.3.3 Creating a text comment table template ............................ 77
17.4 Adding a voice annotation......................................................... 79
17.4.1 General...................................................................... 79
17.4.2 Procedure .................................................................. 79
17.5 Adding a sketch...................................................................... 79
17.5.1 General...................................................................... 79
17.5.2 Procedure .................................................................. 80
18 Programming the camera (time-lapse) ............................................... 81
18.1 General ................................................................................ 81
18.2 Procedure............................................................................. 81
19 Recording video clips ...................................................................... 82
19.1 General ................................................................................ 82
19.2 Procedure............................................................................. 82
19.3 Playing a saved video clip......................................................... 82
20 Screening alarm .............................................................................. 83
20.1 General ................................................................................ 83
20.2 Procedure............................................................................. 83
21 Pairing Bluetooth devices................................................................. 84
21.1 General ................................................................................ 84
21.2 Procedure............................................................................. 84
22 Configuring Wi-Fi ............................................................................ 85
22.1 General ................................................................................ 85
22.2 Setting up a wireless access point (most common use) ................... 85
22.3 Connecting the camera to a WLAN (less common use) ................... 85
22.4 Radio regulations settings......................................................... 86
23 Fetching data from external FLIR meters ............................................ 87
23.1 General ................................................................................ 87
23.2 Technical support for external meters .......................................... 87
23.3 Procedure............................................................................. 87
23.4 Typical moisture measurement and documentation
procedure ............................................................................. 88
23.4.1 General...................................................................... 88
23.4.2 Procedure .................................................................. 88
23.5 More information .................................................................... 88
24 Changing settings ........................................................................... 89
24.1 General ................................................................................ 89
24.1.1 Recording mode .......................................................... 89
24.1.2 Connection ................................................................. 89
24.1.3 Camera temperature range ............................................ 89
24.1.4 Save options & storage.................................................. 89
24.1.5 Device settings ............................................................ 90
25 Cleaning the camera ........................................................................ 93
25.1 Camera housing, cables, and other items..................................... 93
25.1.1 Liquids....................................................................... 93
25.1.2 Equipment.................................................................. 93
25.1.3 Procedure .................................................................. 93
25.2 Infrared lens .......................................................................... 93
25.2.1 Liquids....................................................................... 93
25.2.2 Equipment.................................................................. 93
25.2.3 Procedure .................................................................. 93
25.3 Infrared detector ..................................................................... 94
25.3.1 General...................................................................... 94
25.3.2 Procedure .................................................................. 94
#T810190; r. AB/39747/39747; en-US ix
Table of contents
26 Technical data.................................................................................95
26.1 Online field-of-view calculator .................................................... 95
26.2 Note about technical data ......................................................... 95
26.3 Note about authoritative versions................................................ 95
26.4 FLIR E75 24° ......................................................................... 96
26.5 FLIR E75 42° ....................................................................... 101
26.6 FLIR E75 24° + 14° ............................................................... 106
26.7 FLIR E75 24° + 42° ............................................................... 111
26.8 FLIR E75 24° + 14° & 42° ....................................................... 116
26.9 FLIR E85 24° ....................................................................... 121
26.10 FLIR E85 42° ....................................................................... 126
26.11 FLIR E85 24° + 14° ............................................................... 131
26.12 FLIR E85 24° + 42° ............................................................... 136
26.13 FLIR E85 24° + 14° & 42° ....................................................... 141
26.14 FLIR E95 24° ....................................................................... 146
26.15 FLIR E95 42° ....................................................................... 151
26.16 FLIR E95 24° + 14° ............................................................... 156
26.17 FLIR E95 24° + 42° ............................................................... 161
26.18 FLIR E95 24° + 14° & 42° ....................................................... 166
27 Mechanical drawings ..................................................................... 171
28 Application examples..................................................................... 173
28.1 Moisture & water damage ....................................................... 173
28.1.1 General.................................................................... 173
28.1.2 Figure...................................................................... 173
28.2 Faulty contact in socket .......................................................... 173
28.2.1 General.................................................................... 173
28.2.2 Figure...................................................................... 173
28.3 Oxidized socket.................................................................... 174
28.3.1 General.................................................................... 174
28.3.2 Figure...................................................................... 174
28.4 Insulation deficiencies............................................................ 175
28.4.1 General.................................................................... 175
28.4.2 Figure...................................................................... 175
28.5 Draft .................................................................................. 175
28.5.1 General.................................................................... 175
28.5.2 Figure...................................................................... 175
29 About FLIR Systems ...................................................................... 177
29.1 More than just an infrared camera ............................................ 178
29.2 Sharing our knowledge .......................................................... 178
29.3 Supporting our customers....................................................... 179
30 Definitions and laws ...................................................................... 180
31 Thermographic measurement techniques ........................................ 182
31.1 Introduction ........................................................................ 182
31.2 Emissivity............................................................................ 182
31.2.1 Finding the emissivity of a sample.................................. 182
31.3 Reflected apparent temperature............................................... 186
31.4 Distance ............................................................................. 186
31.5 Relative humidity .................................................................. 186
31.6 Other parameters.................................................................. 186
32 About calibration........................................................................... 187
32.1 Introduction ......................................................................... 187
32.2 Definition—what is calibration? ................................................ 187
32.3 Camera calibration at FLIR Systems ......................................... 187
#T810190; r. AB/39747/39747; en-US x
Table of contents
32.4 The differences between a calibration performed by a user and
that performed directly at FLIR Systems..................................... 188
32.5 Calibration verification and adjustment ...................................... 188
32.6 Non-uniformity correction........................................................ 189
32.7 Thermal image adjustment (thermal tuning) ................................ 189
33 History of infrared technology......................................................... 190
34 Theory of thermography................................................................. 193
34.1 Introduction ......................................................................... 193
34.2 The electromagnetic spectrum................................................. 193
34.3 Blackbody radiation............................................................... 193
34.3.1 Planck’s law .............................................................. 194
34.3.2 Wien’s displacement law.............................................. 195
34.3.3 Stefan-Boltzmann's law ............................................... 196
34.3.4 Non-blackbody emitters............................................... 197
34.4 Infrared semi-transparent materials........................................... 199
35 The measurement formula.............................................................. 200
36 Emissivity tables ........................................................................... 204
36.1 References.......................................................................... 204
36.2 Tables ................................................................................ 204
#T810190; r. AB/39747/39747; en-US xi
Disclaimers
1
1.1 Legal disclaimer
All products manufactured by FLIR Systems are warranted against defective
materials and workmanship for a period of one (1) year from the delivery date
of the original purchase, provided such products have been under normal
storage, use and service, and in accordance with FLIR Systems instruction.
Uncooled handheld infrared cameras manufactured by FLIR Systems are
warranted against defective materials and workmanship for a period of two
(2) years from the delivery date of the original purchase, provided such prod-
ucts have been under normal storage, use and service, and in accordance
with FLIR Systems instruction, and provided that the camera has been regis-
tered within 60 days of original purchase.
Detectors for uncooled handheld infrared cameras manufactured by FLIR
Systems are warranted against defective materials and workmanship for a
period of ten (10) years from the delivery date of the original purchase, pro-
vided such products have been under normal storage, use and service, and
in accordance with FLIR Systems instruction, and provided that the camera
has been registered within 60 days of original purchase.
Products which are not manufactured by FLIR Systems but included in sys-
tems delivered by FLIR Systems to the original purchaser, carry the warranty,
if any, of the particular supplier only. FLIR Systems has no responsibility
whatsoever for such products.
The warranty extends only to the original purchaser and is not transferable. It
is not applicable to any product which has been subjected to misuse, neglect,
accident or abnormal conditions of operation. Expendable parts are excluded
from the warranty.
In the case of a defect in a product covered by this warranty the product must
not be further used in order to prevent additional damage. The purchaser
shall promptly report any defect to FLIR Systems or this warranty will not
apply.
FLIR Systems will, at its option, repair or replace any such defective product
free of charge if, upon inspection, it proves to be defective in material or work-
manship and provided that it is returned to FLIR Systems within the said one-
year period.
FLIR Systems has no other obligation or liability for defects than those set
forth above.
No other warranty is expressed or implied. FLIR Systems specifically dis-
claims the implied warranties of merchantability and fitness for a particular
purpose.
FLIR Systems shall not be liable for any direct, indirect, special, incidental or
consequential loss or damage, whether based on contract, tort or any other
legal theory.
This warranty shall be governed by Swedish law.
Any dispute, controversy or claim arising out of or in connection with this war-
ranty, shall be finally settled by arbitration in accordance with the Rules of the
Arbitration Institute of the Stockholm Chamber of Commerce. The place of ar-
bitration shall be Stockholm. The language to be used in the arbitral proceed-
ings shall be English.
1.2 Usage statistics
FLIR Systems reserves the right to gather anonymous usage statistics to help
maintain and improve the quality of our software and services.
1.3 Changes to registry
The registry entry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet
\Control\Lsa\LmCompatibilityLevel will be automatically changed to level 2 if
the FLIR Camera Monitor service detects a FLIR camera connected to the
computer with a USB cable. The modification will only be executed if the
camera device implements a remote network service that supports network
logons.
1.4 U.S. Government Regulations
This product may be subject to U.S. Export Regulations. Please send any in-
quiries to exportquestions@flir.com.
1.5 Copyright
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No parts of the
software including source code may be reproduced, transmitted, transcribed
or translated into any language or computer language in any form or by any
means, electronic, magnetic, optical, manual or otherwise, without the prior
written permission of FLIR Systems.
The documentation must not, in whole or part, be copied, photocopied, re-
produced, translated or transmitted to any electronic medium or machine
readable form without prior consent, in writing, from FLIR Systems.
Names and marks appearing on the products herein are either registered
trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other
trademarks, trade names or company names referenced herein are used for
identification only and are the property of their respective owners.
1.6 Quality assurance
The Quality Management System under which these products are developed
and manufactured has been certified in accordance with the ISO 9001
standard.
FLIR Systems is committed to a policy of continuous development; therefore
we reserve the right to make changes and improvements on any of the prod-
ucts without prior notice.
1.7 Patents
One or several of the following patents and/or design patents may apply to
the products and/or features. Additional pending patents and/or pending de-
sign patents may also apply.
000279476-0001; 000439161; 000499579-0001; 000653423; 000726344;
000859020; 001106306-0001; 001707738; 001707746; 001707787;
001776519; 001954074; 002021543; 002058180; 002249953; 002531178;
0600574-8; 1144833; 1182246; 1182620; 1285345; 1299699; 1325808;
1336775; 1391114; 1402918; 1404291; 1411581; 1415075; 1421497;
1458284; 1678485; 1732314; 2106017; 2107799; 2381417; 3006596;
3006597; 466540; 483782; 484155; 4889913; 5177595; 60122153.2;
602004011681.5-08; 6707044; 68657; 7034300; 7110035; 7154093;
7157705; 7237946; 7312822; 7332716; 7336823; 7544944; 7667198;
7809258 B2; 7826736; 8,153,971; 8,823,803; 8,853,631; 8018649 B2;
8212210 B2; 8289372; 8354639 B2; 8384783; 8520970; 8565547; 8595689;
8599262; 8654239; 8680468; 8803093; D540838; D549758; D579475;
D584755; D599,392; D615,113; D664,580; D664,581; D665,004; D665,440;
D677298; D710,424 S; D718801; DI6702302-9; DI6903617-9; DI7002221-6;
DI7002891-5; DI7002892-3; DI7005799-0; DM/057692; DM/061609; EP
2115696 B1; EP2315433; SE 0700240-5; US 8340414 B2; ZL
201330267619.5; ZL01823221.3; ZL01823226.4; ZL02331553.9;
ZL02331554.7; ZL200480034894.0; ZL200530120994.2;
ZL200610088759.5; ZL200630130114.4; ZL200730151141.4;
ZL200730339504.7; ZL200820105768.8; ZL200830128581.2;
ZL200880105236.4; ZL200880105769.2; ZL200930190061.9;
ZL201030176127.1; ZL201030176130.3; ZL201030176157.2;
ZL201030595931.3; ZL201130442354.9; ZL201230471744.3;
ZL201230620731.8.
1.8 EULA Terms
• You have acquired a device (“INFRARED CAMERA”) that includes soft-
ware licensed by FLIR Systems AB from Microsoft Licensing, GP or its
affiliates (“MS”). Those installed software products of MS origin, as well
as associated media, printed materials, and “online” or electronic docu-
mentation (“SOFTWARE”) are protected by international intellectual
property laws and treaties. The SOFTWARE is licensed, not sold. All
rights reserved.
• IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT
(“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFTWARE. IN-
STEAD, PROMPTLY CONTACT FLIR Systems AB FOR INSTRUC-
TIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND.
ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO
USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO
THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT).
•GRANT OF SOFTWARE LICENSE. This EULA grants you the following
license:
◦ You may use the SOFTWARE only on the DEVICE.
◦NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOL-
ERANT. FLIR Systems AB HAS INDEPENDENTLY DETERMINED
HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS
RELIED UPON FLIR Systems AB TO CONDUCT SUFFICIENT
TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE
FOR SUCH USE.
◦NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is
provided “AS IS” and with all faults. THE ENTIRE RISK AS TO
SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND
EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU.
ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE
WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST
INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES
REGARDING THE DEVICE OR THE SOFTWARE, THOSE WAR-
RANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING
ON, MS.
◦ No Liability for Certain Damages. EXCEPT AS PROHIBITED BY
LAW, MS SHALL HAVE NO LIABILITY FOR ANY INDIRECT,
SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES
ARISING FROM OR IN CONNECTION WITH THE USE OR PER-
FORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL
APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PUR-
POSE. IN NO EVENT SHALL MS BE LIABLE FOR ANY
AMOUNT IN EXCESS OF U.S. TWO HUNDRED FIFTY DOL-
LARS (U.S.$250.00).
◦Limitations on Reverse Engineering, Decompilation, and Dis-
assembly. You may not reverse engineer, decompile, or disas-
semble the SOFTWARE, except and only to the extent that such
activity is expressly permitted by applicable law notwithstanding
this limitation.
◦SOFTWARE TRANSFER ALLOWED BUT WITH RESTRIC-
TIONS. You may permanently transfer rights under this EULA only
as part of a permanent sale or transfer of the Device, and only if
the recipient agrees to this EULA. If the SOFTWARE is an up-
grade, any transfer must also include all prior versions of the
SOFTWARE.
◦EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is
subject to U.S. export jurisdiction. You agree to comply with all ap-
plicable international and national laws that apply to the SOFT-
WARE, including the U.S. Export Administration Regulations, as
well as end-user, end-use and destination restrictions issued by U.
S. and other governments. For additional information see http://
www.microsoft.com/exporting/.
1.9 EULA Terms
Qt4 Core and Qt4 GUI, Copyright ©2013 Nokia Corporation and FLIR Sys-
tems AB. This Qt library is a free software; you can redistribute it and/or mod-
ify it under the terms of the GNU Lesser General Public License as published
by the Free Software Foundation; either version 2.1 of the License, or (at your
option) any later version. This library is distributed in the hope that it will be
useful, but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU Lesser General Public License, http://www.gnu.org/licenses/lgpl-2.1.
#T810190; r. AB/39747/39747; en-US 1
Safety information
2
WARNING
Applicability: Class B digital devices.
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING
Applicability: Digital devices subject to 15.19/RSS-210.
NOTICE: This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired
operation.
WARNING
Applicability: Digital devices subject to 15.21.
NOTICE: Changes or modifications made to this equipment not expressly approved by FLIR Systems
may void the FCC authorization to operate this equipment.
WARNING
Applicability: Digital devices subject to 2.1091/2.1093/OET Bulletin 65.
Radiofrequency radiation exposure Information: The radiated output power of the device is below
the FCC/IC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner
that the potential for human contact during normal operation is minimized.
WARNING
Do not look directly into the laser beam. The laser beam can cause eye irritation.
WARNING
Do not point the camera at the face of a person when the continuous autofocus function is on. The cam-
era uses laser distance measurements (that are continuous) for the focus adjustments. The laser beam
can cause eye irritation.
WARNING
Do not point the camera at the face of a person when you use the autofocus function. You can set the
camera to use a laser distance measurement for the focus adjustment. The laser beam can cause eye
irritation.
WARNING
Applicability: Cameras with one or more batteries.
Do not disassemble or do a modification to the battery. The battery contains safety and protection devi-
ces which, if damage occurs, can cause the battery to become hot, or cause an explosion or an ignition.
#T810190; r. AB/39747/39747; en-US 3
Safety information
2
WARNING
Applicability: Cameras with one or more batteries.
If there is a leak from the battery and you get the fluid in your eyes, do not rub your eyes. Flush well with
water and immediately get medical care. The battery fluid can cause injury to your eyes if you do not do
this.
WARNING
Applicability: Cameras with one or more batteries.
Do not continue to charge the battery if it does not become charged in the specified charging time. If
you continue to charge the battery, it can become hot and cause an explosion or ignition. Injury to per-
sons can occur.
WARNING
Applicability: Cameras with one or more batteries.
Only use the correct equipment to remove the electrical power from the battery. If you do not use the
correct equipment, you can decrease the performance or the life cycle of the battery. If you do not use
the correct equipment, an incorrect flow of current to the battery can occur. This can cause the battery
to become hot, or cause an explosion. Injury to persons can occur.
WARNING
Make sure that you read all applicable MSDS (Material Safety Data Sheets) and warning labels on con-
tainers before you use a liquid. The liquids can be dangerous. Injury to persons can occur.
CAUTION
Do not point the infrared camera (with or without the lens cover) at strong energy sources, for example,
devices that cause laser radiation, or the sun. This can have an unwanted effect on the accuracy of the
camera. It can also cause damage to the detector in the camera.
CAUTION
Do not use the camera in temperatures more than +50°C (+122°F), unless other information is specified
in the user documentation or technical data. High temperatures can cause damage to the camera.
CAUTION
Applicability: Cameras with one or more batteries.
Do not attach the batteries directly to a car’s cigarette lighter socket, unless FLIR Systems supplies a
specific adapter to connect the batteries to a cigarette lighter socket. Damage to the batteries can
occur.
CAUTION
Applicability: Cameras with one or more batteries.
Do not connect the positive terminal and the negative terminal of the battery to each other with a metal
object (such as wire). Damage to the batteries can occur.
CAUTION
Applicability: Cameras with one or more batteries.
Do not get water or salt water on the battery, or permit the battery to become wet. Damage to the bat-
teries can occur.
CAUTION
Applicability: Cameras with one or more batteries.
Do not make holes in the battery with objects. Damage to the battery can occur.
#T810190; r. AB/39747/39747; en-US 4
Safety information
2
CAUTION
Applicability: Cameras with one or more batteries.
Do not hit the battery with a hammer. Damage to the battery can occur.
CAUTION
Applicability: Cameras with one or more batteries.
Do not put your foot on the battery, hit it or cause shocks to it. Damage to the battery can occur.
CAUTION
Applicability: Cameras with one or more batteries.
Do not put the batteries in or near a fire, or into direct sunlight. When the battery becomes hot, the built-
in safety equipment becomes energized and can stop the battery charging procedure. If the battery be-
comes hot, damage can occur to the safety equipment and this can cause more heat, damage or igni-
tion of the battery.
CAUTION
Applicability: Cameras with one or more batteries.
Do not put the battery on a fire or increase the temperature of the battery with heat. Damage to the bat-
tery and injury to persons can occur.
CAUTION
Applicability: Cameras with one or more batteries.
Do not put the battery on or near fires, stoves, or other high-temperature locations. Damage to the bat-
tery and injury to persons can occur.
CAUTION
Applicability: Cameras with one or more batteries.
Do not solder directly onto the battery. Damage to the battery can occur.
CAUTION
Applicability: Cameras with one or more batteries.
Do not use the battery if, when you use, charge, or put the battery in storage, there is an unusual smell
from the battery, the battery feels hot, changes color, changes shape, or is in an unusual condition.
Speak with your sales office if one or more of these problems occurs. Damage to the battery and injury
to persons can occur.
CAUTION
Applicability: Cameras with one or more batteries.
Only use a specified battery charger when you charge the battery. Damage to the battery can occur if
you do not do this.
CAUTION
Only use the camera with a battery that has the item part number T199424 on it (that FLIR Systems
supplies). If you do not obey this, damage to the equipment can occur and the protection that the equip-
ment gives can become unsatisfactory.
CAUTION
Applicability: Cameras with one or more batteries.
The temperature range through which you can charge the battery is ±0°C to +45°C (+32°F to +113°F),
except for the Korean market where the approved range is +10°C to + 45°C (+50°F to +113°F). If you
charge the battery at temperatures out of this range, it can cause the battery to become hot or to break.
It can also decrease the performance or the life cycle of the battery.
#T810190; r. AB/39747/39747; en-US 5
Safety information
2
CAUTION
Applicability: Cameras with one or more batteries.
When the battery is worn, apply insulation to the terminals with adhesive tape or equivalent materials
before you discard it. Damage to the battery and injury to persons can occur if you do not do this.
CAUTION
Applicability: Cameras with one or more batteries.
Remove any water or moisture on the battery before you install it. Damage to the battery can occur if
you do not do this.
CAUTION
Do not apply solvents or equivalent liquids to the camera, the cables, or other items. Damage to the bat-
tery and injury to persons can occur.
CAUTION
Be careful when you clean the infrared lens. The lens has an anti-reflective coating which is easily dam-
aged. Damage to the infrared lens can occur.
CAUTION
Do not use too much force to clean the infrared lens. This can cause damage to the anti-reflective
coating.
Note The encapsulation rating is only applicable when all the openings on the camera
are sealed with their correct covers, hatches, or caps. This includes the compartments
for data storage, batteries, and connectors.
#T810190; r. AB/39747/39747; en-US 6
Notice to user
3
3.1 User-to-user forums
Exchange ideas, problems, and infrared solutions with fellow thermographers around the
world in our user-to-user forums. To go to the forums, visit:
http://forum.infraredtraining.com/
3.2 Calibration
We recommend that you send in the camera for calibration once a year. Contact your lo-
cal sales office for instructions on where to send the camera.
3.3 Accuracy
For very accurate results, we recommend that you wait 5 minutes after you have started
the camera before measuring a temperature.
3.4 Disposal of electronic waste
As with most electronic products, this equipment must be disposed of in an environmen-
tally friendly way, and in accordance with existing regulations for electronic waste.
Please contact your FLIR Systems representative for more details.
3.5 Training
To read about infrared training, visit:
• http://www.infraredtraining.com
• http://www.irtraining.com
• http://www.irtraining.eu
3.6 Documentation updates
Our manuals are updated several times per year, and we also issue product-critical notifi-
cations of changes on a regular basis.
To access the latest manuals, translations of manuals, and notifications, go to the Down-
load tab at:
http://support.flir.com
It only takes a few minutes to register online. In the download area you will also find the
latest releases of manuals for our other products, as well as manuals for our historical
and obsolete products.
3.7 Important note about this manual
FLIR Systems issues generic manuals that cover several cameras within a model line.
#T810190; r. AB/39747/39747; en-US 7
Notice to user3
This means that this manual may contain descriptions and explanations that do not apply
to your particular camera model.
3.8 Note about authoritative versions
The authoritative version of this publication is English. In the event of divergences due to
translation errors, the English text has precedence.
Any late changes are first implemented in English.
#T810190; r. AB/39747/39747; en-US 8
Customer help
4
4.1 General
For customer help, visit:
http://support.flir.com
4.2 Submitting a question
To submit a question to the customer help team, you must be a registered user. It only
takes a few minutes to register online. If you only want to search the knowledgebase for
existing questions and answers, you do not need to be a registered user.
When you want to submit a question, make sure that you have the following information
to hand:
• The camera model
• The camera serial number
• The communication protocol, or method, between the camera and your device (for ex-
ample, SD card reader, HDMI, Ethernet, USB, or FireWire)
• Device type (PC/Mac/iPhone/iPad/Android device, etc.)
• Version of any programs from FLIR Systems
#T810190; r. AB/39747/39747; en-US 9
Customer help
4
• Full name, publication number, and revision number of the manual
4.3 Downloads
On the customer help site you can also download the following, when applicable for the
product:
• Firmware updates for your infrared camera.
• Program updates for your PC/Mac software.
• Freeware and evaluation versions of PC/Mac software.
• User documentation for current, obsolete, and historical products.
• Mechanical drawings (in *.dxf and *.pdf format).
• Cad data models (in *.stp format).
• Application stories.
• Technical datasheets.
• Product catalogs.
#T810190; r. AB/39747/39747; en-US 10
Quick start guide
5
5.1 Procedure
Follow this procedure:
1. Put a battery into the battery compartment.
2. Connect the USB battery charger to the USB connector at the top of the camera.
3. Charge the battery for 2 hours before starting the camera for the first time.
4. Insert a memory card into the card slot at the top of the camera.
Note Only use a memory card that has not previously been used in another type of
camera. The cameras may organize files differently on the memory card. There is
therefore a risk of losing data if the same memory card is used in different types of
cameras.
5. Push the on/off button to turn on the camera.
6. Aim the camera toward the object of interest.
7. Adjust the infrared camera focus by rotating the focus ring.
Note It is very important to adjust the focus correctly. Incorrect focus adjustment af-
fects how the image modes work. It also affects the temperature measurement.
8. Pull the trigger to save an image.
9. Download and install FLIR Tools/Tools+ or FLIR Report Studio on your computer.
10. Start FLIR Tools/Tools+ or FLIR Report Studio.
11. Connect the camera to the computer using the USB cable.
12. Import the images into FLIR Tools/Tools+ or FLIR Report Studio and create an in-
spection report.
13. Send the inspection report to your client.
5.2 To keep in mind
• Adjust the focus first. When the camera is out of focus, the measurement will be
wrong.
• By default, most cameras adapt the scale automatically. Use this mode first, but do
not hesitate to set the scale manually.
• A thermal camera has a resolution limit. This depends on the size of the detector, the
lens, and the distance to the target. Use the center of the spot tool as a guide to the
minimum possible object size, and get closer if necessary. Make sure to stay away
from dangerous areas and live electrical components.
• Be careful when holding the camera perpendicular to the target. Be observant of re-
flections, especially at low emissivities—you, the camera, or the surroundings may be-
come the main source of reflection.
• Select a zone of high emissivity, e.g., an area with a matte surface, to perform a
measurement.
• Blank objects, i.e., those with low emissivities, may appear warm or cold in the cam-
era, because they mainly reflect the environment.
• Avoid direct sunlight on the details that you are inspecting.
• Various types of faults, e.g., those in a building’s construction, may result in the same
type of thermal pattern.
• Correctly analyzing an infrared image requires professional knowledge about the
application.
#T810190; r. AB/39747/39747; en-US 11
Register the camera
6
6.1 General
Register your camera to receive an extended warranty and other related benefits.
To register the camera, you must log in using a FLIR Customer Support account. If you
already have an existing FLIR Customer Support account, you can use the same login
credentials. To complete the registration, you must enter a four-digit verification code into
the camera.
6.2 Procedure
Follow this procedure:
1. Use a computer or other device with internet access and go to the following website:
http://support.flir.com/camreg
This displays the following dialog:
2. To log in with your existing FLIR Customer Support account, do the following:
2.1. Enter your Username and Password.
2.2. Click Log In.
#T810190; r. AB/39747/39747; en-US 12
Register the camera6
3. To create a new FLIR Customer Support account, do the following:
3.1. Click Create a New Account.
3.2. Enter the required information and click Create Account.
4. On the camera, select (Settings)Device settings >Camera information >Regis-
ter camera. This displays the following dialog box:
Note The first time you start the camera, the registration dialog box is displayed as
a part of the setup of regional settings.
#T810190; r. AB/39747/39747; en-US 13
Register the camera6
5. Select Register and push the navigation pad. This displays a dialog box with the seri-
al number of the camera.
6. On the computer, enter the serial number of the camera and click Validate.
7. When the serial number is validated, click Continue.
#T810190; r. AB/39747/39747; en-US 14
Register the camera6
8. Enter the required information and click Register Product.
9. When the registration is completed, the four-digit code is displayed.
Note
• The code is also sent by e-mail to the address registered with your FLIR Customer
Support account.
• The code is also displayed in your FLIR Customer Support portal under My Stuff >
Products.
#T810190; r. AB/39747/39747; en-US 15
Register the camera6
10. On the camera, do the following to enter the code:
• Push the navigation pad up/down to select a digit.
• Push the navigation pad left/right to navigate to the previous/next digit.
• When all digits have been entered, push the navigation pad right to select Submit.
Push the navigation pad to confirm.
11. The camera is now registered and your extended warranty is activated.
#T810190; r. AB/39747/39747; en-US 16
Camera parts
7
7.1 View from the front
7.1.1 Figure
7.1.2 Explanation
1. Laser distance meter.
2. Infrared lens.
3. Focus ring.
4. Autofocus button.
5. Trigger.
6. Lamp for the digital camera (left and right sides).
7. Digital camera.
8. Attachment point for the hand strap bracket (left and right sides).
9. Tripod mount.
10. Attachment point for the hand strap, wrist strap, or lanyard strap (left and right sides).
#T810190; r. AB/39747/39747; en-US 17
Camera parts
7
7.2 View from the rear
7.2.1 Figure
7.2.2 Explanation
1. Cover for the USB connector and memory card slot.
2. Microphone.
3. Speaker.
4. Touch-screen LCD.
5. Image archive button.
6. Programmable button.
7. Button to operate the laser.
8. Back button.
9. On/off button.
10. Navigation pad with center push.
11. Battery.
#T810190; r. AB/39747/39747; en-US 18
Camera parts
7
7.3 Laser distance meter and laser pointer
7.3.1 General
The laser distance meter consists of a laser transmitter and a laser receiver. The laser
distance meter determines the distance to a target by measuring the time it takes for a la-
ser pulse to reach the target and return to the laser receiver. This time is converted to a
distance, which is displayed on the screen.
The laser receiver also works as a laser pointer. When the laser distance meter is on,
you will see a laser dot approximately at the target.
WARNING
Do not look directly into the laser beam. The laser beam can cause eye irritation.
Note
• The laser is enabled by a setting. Select (Settings) > Device settings >Lamp & la-
ser >Enable lamp & laser.
• The symbol is displayed on the screen when the laser is on.
• The camera can be configured to automatically measure the distance when an image
is saved. Select (Settings) > Save options & storage >Measure distance. With
the Measure distance setting, the measurement parameter Object distance (see sec-
tion 15.5 Changing the measurement parameters, page 66) is automatically updated
with the measured distance when an image is saved.
• If the target reflection is low or if the target is angled from the laser beam, there may
be no return signal, and the distance cannot be measured.
• The laser distance meter may not be enabled in all markets.
7.3.2 Laser transmitter and receiver
1. Laser transmitter.
2. Laser receiver.
#T810190; r. AB/39747/39747; en-US 19
Camera parts
7
7.3.3 Difference in position
This figure shows the difference in position between the laser transmitter and the optical
center of the infrared lens.
7.3.4 Laser warning label
A laser warning label with the following information is attached to the camera:
7.3.5 Laser rules and regulations
Wavelength: 650 nm. Maximum output power: 1 mW.
This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant
to Laser Notice No. 50, dated June 24, 2007.
#T810190; r. AB/39747/39747; en-US 20
Screen elements
8
8.1 Figure
8.2 Explanation
1. Result table.
2. Status icons.
3. Measurement tool (e.g., spotmeter).
4. Temperature scale.
5. Submenu.
6. Main menu.
7. Settings button.
8. Color button.
9. Measurement button.
10. Image mode button.
11. Measurement parameters button.
12. Temperature scale button.
Note To display the menu system, tap the screen or push the navigation pad.
8.3 Status icons
Manual adjustment mode is enabled.
The camera lamp is turned on.
The camera is connected to a device using USB.
Wi-Fi connectivity indicator.
Bluetooth connectivity indicator.
A Bluetooth headset is connected.
The GPS indicator.
• Gray icon: GPS is enabled, but there is no sat-
ellite contact.
• White icon: GPS is enabled, with satellite
contact.
#T810190; r. AB/39747/39747; en-US 21
Screen elements
8
External infrared window compensation is
enabled.
Compass indicator (part of the image overlay
information).
The laser is on.
8.4 Swipe-down menu
To open the swipe-down menu, place your finger at the top of the screen and swipe
down.
1. Battery status indicator.
2. Memory card storage status indicator.
3. Wi-Fi button: Touch to enable/disable Wi-Fi. See also section 22 Configuring Wi-Fi,
page 85.
Bluetooth button: Touch to enable/disable Bluetooth. See also section 21 Pairing
Bluetooth devices, page 84.
Lamp button: Touch to turn on/off the camera lamp.
Note Before you can turn on the camera lamp, you need to enable the lamp. Select
(Settings) > Device settings >Lamp & laser >Enable lamp & laser or Enable
lamp & laser + Use lamp as flash.
Screen rotation button: Touch to enable/disable screen rotation.
4. Screen brightness slider: Used to control the brightness of the screen.
8.5 Image overlay information
The image information consists of items such as the date, emissivity, and atmospheric
temperature. All image information is saved in the image file and can be viewed in the im-
age archive. You can also choose to display selected items as image overlay information.
All image overlay information displayed on the live image will also be displayed on saved
images. For more information, see sections section 24.1.5 Device settings, page 90 and
13.8 Hiding all overlay, page 60.
#T810190; r. AB/39747/39747; en-US 22
Navigating the menu system
9
9.1 General
The figure above shows the two ways to navigate the menu system in the camera:
• Using your index finger or a stylus pen specially designed for capacitive touch usage
to navigate the menu system (left).
• Using the navigation pad to navigate the menu system (right) and the back button
.
You can also use a combination of the two.
In this manual, it is assumed that the navigation pad is used, but most tasks can also be
carried out using your index finger or a stylus pen.
9.2 Navigating using the navigation pad
You navigate the menu system by using the navigation pad and the back button:
• To display the menu system, push the center of the navigation pad.
• To navigate in menus, submenus, and dialog boxes, and to change values in dialog
boxes, push the navigation pad up/down or left/right.
• To confirm changes and settings in menus and dialog boxes, push the center of the
navigation pad.
• To leave dialog boxes and to go back in the menu system, push the back button
.
#T810190; r. AB/39747/39747; en-US 24
Handling the camera
10
10.1 Charging the battery
10.1.1 General
Note
• Charge the battery for 2 hours before starting the camera for the first time.
• Select a mains socket that is near the equipment and easily accessible.
10.1.2 Using the USB battery charger to charge the battery
10.1.2.1 Procedure
Follow this procedure:
1. Fold up the rubber cover at the top of the camera.
2. Connect the USB connector of the USB battery charger to the USB-C connector in
the connector bay.
3. Connect the USB battery charger to a mains socket.
4. To check the status of the battery charging, do one of the following:
• If the camera is turned on: Place your finger at the top of the screen and swipe
down. The battery status is displayed on the swipe-down menu.
• If the camera is turned off: The battery charging indicator is displayed on the
screen.
#T810190; r. AB/39747/39747; en-US 25
Handling the camera10
5. It is good practice to disconnect the USB battery charger from the mains socket when
the battery is fully charged.
10.1.3 Using the stand-alone battery charger to charge the battery
10.1.3.1 Stand-alone battery charger LED indicator
Type of signal Explanation
The white LED flashes. The battery is being charged.
The white LED glows continuously. The battery is fully charged.
10.1.3.2 Procedure
Follow this procedure:
1. Put one or two batteries in the battery charger.
2. Connect the power supply cable plug to the connector on the battery charger.
3. Connect the power supply mains-electricity plug to a mains socket.
4. When the white LED on the battery charger glows continuously, the batteries are fully
charged.
5. It is good practice to disconnect the stand-alone battery charger from the mains
socket when the batteries are fully charged.
10.1.4 Charging the battery using a USB cable connected to a computer
Follow this procedure:
1. Fold up the rubber cover at the top of the camera.
#T810190; r. AB/39747/39747; en-US 26
Handling the camera10
2. Connect a USB cable to the USB-C connector in the connector bay. Connect the oth-
er end of the USB cable to the computer.
Note
• To charge the camera, the computer must be turned on.
• Charging the camera using a USB cable connected to a computer takes considerably
longer than using the USB battery charger or the stand-alone battery charger.
10.2 Removing the battery
Follow this procedure:
1. Turn off the camera.
2. Remove the battery from the camera.
10.3 Turning on and turning off the camera
• To turn on the camera, push the on/off button .
• To turn off the camera, push and hold the on/off button for more than 0.5
second.
#T810190; r. AB/39747/39747; en-US 27
Handling the camera10
Note Do not remove the battery to turn off the camera.
10.4 Adjusting the infrared camera focus
manually
10.4.1 Figure
10.4.2 Procedure
Follow this procedure:
1. Do one of the following:
• For far focus, rotate the focus ring clockwise (with the touch-screen LCD facing to-
ward you).
• For near focus, rotate the focus ring counter-clockwise (with the touch-screen
LCD facing toward you).
Note Do not touch the lens surface when you adjust the infrared camera focus man-
ually. If this happens, clean the lens according to the instructions in 25.2 Infrared lens,
page 93.
Note It is very important to adjust the focus correctly. Incorrect focus adjustment affects
how the image modes Thermal MSX,Thermal, and Picture-in-picture work. It also affects
the temperature measurement.
10.5 Autofocusing the infrared camera
10.5.1 General
When autofocusing, the infrared camera can use one of the following focus methods:
•Contrast: The focus is based on maximizing the image contrast.
#T810190; r. AB/39747/39747; en-US 28
Handling the camera10
•Laser: The focus is based on a laser distance measurement. The laser is used when
the camera is autofocusing.
The focus method is configured by a setting. Select (Settings) > Device settings >
Focus >Auto focus.
10.5.2 Figure
10.5.3 Procedure
WARNING
Do not point the camera at the face of a person when you use the autofocus function. You can set the
camera to use a laser distance measurement for the focus adjustment. The laser beam can cause eye
irritation.
Follow this procedure:
1. To autofocus the infrared camera, push the Autofocus button.
Note You can also assign the autofocus function to the programmable button .
For more information, see section 10.12 Assigning functions to the programmable button,
page 34.
10.6 Continuous autofocus
10.6.1 General
The infrared camera can be set up to perform continuous autofocusing.
When the continuous autofocus function is enabled, the camera bases the focus adjust-
ments on continuous laser distance measurements. The laser is continuously on.
WARNING
Do not point the camera at the face of a person when the continuous autofocus function is on. The cam-
era uses laser distance measurements (that are continuous) for the focus adjustments. The laser beam
can cause eye irritation.
#T810190; r. AB/39747/39747; en-US 29
Handling the camera10
Note
• Before you can enable continuous autofocus, you need to enable the laser and select
laser as focus method. See section 10.6.2 Procedure, page 30.
• When continuous autofocus is enabled, it is not possible to manually adjust the focus
by rotating the focus ring.
10.6.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Device settings >Lamp & laser >Enable lamp &
laser.
4. Use the navigation pad to select Device settings >Focus >Autofocus >Laser.
5. Use the navigation pad to select Device settings >Focus >Continuous autofocus >
On.
10.7 Saving an image
Follow this procedure:
1. To save an image, pull the trigger.
Note Depending on the settings in (Settings) > Save options & storage, the follow-
ing may happen:
• A preview image is displayed before the image is saved.
• An annotation tool or the annotation menu is displayed when the image has been
saved.
#T810190; r. AB/39747/39747; en-US 30
Handling the camera10
10.8 Operating the laser distance meter
10.8.1 General
The laser distance meter consists of a laser transmitter and a laser receiver. The laser
distance meter determines the distance to a target by measuring the time it takes for a la-
ser pulse to reach the target and return to the laser receiver. This time is converted to a
distance, which is displayed on the screen.
The laser receiver also works as a laser pointer. When the laser distance meter is on,
you will see a laser dot approximately at the target.
WARNING
Do not look directly into the laser beam. The laser beam can cause eye irritation.
Note
• The laser is enabled by a setting. Select (Settings) > Device settings >Lamp & la-
ser >Enable lamp & laser.
• The symbol is displayed on the screen when the laser is on.
• The camera can be configured to automatically measure the distance when an image
is saved. Select (Settings) > Save options & storage >Measure distance. With
the Measure distance setting, the measurement parameter Object distance (see sec-
tion 15.5 Changing the measurement parameters, page 66) is automatically updated
with the measured distance when an image is saved.
• If the target reflection is low or if the target is angled from the laser beam, there may
be no return signal, and the distance cannot be measured.
• The laser distance meter may not be enabled in all markets.
10.8.2 Figure
#T810190; r. AB/39747/39747; en-US 31
Handling the camera10
10.8.3 Procedure
Follow this procedure:
1. To turn on the laser, push and hold the laser button . The distance to the target
is displayed on the screen.
2. To turn off the laser, release the laser button .
10.9 Measuring areas
10.9.1 General
The distance measured by the laser distance meter can be used as the basis for area
calculations. A typical application is to estimate the size of a damp stain on a wall.
To measure the area of a surface, you need to lay out a box or circle measurement tool
on the screen. The camera calculates the area of the surface enclosed by the box or
circle tool. The calculation is an estimate of the surface area, based on the measured
distance to the target.
When the laser distance meter is on, you will see a laser dot approximately at the target.
The laser distance meter measures the distance to that target. The camera assumes that
this distance is valid for the entire box or circle tool.
For successful area measurements, keep the following in mind:
• Make sure that the box or circle tool is in the center of the image.
• Adjust the size of the box or circle tool to the size of the target.
• Hold the camera perpendicular to the target.
• Avoid targets with many details at different distances from the camera.
10.9.2 Procedure
Note This procedure assumes that you have enabled the laser. Select (Settings) >
Device settings >Lamp & laser >Enable lamp & laser.
Follow this procedure:
1. Add a box or circle measurement tool, see section 15.2 Adding/removing measure-
ment tools, page 64.
2. Set the camera to measure and display the area of the box or circle, see section 15.6
Displaying values in the result table and displaying a graph, page 68.
3. Make sure that the box or circle tool is in the center of the image, see section 15.4
Moving and resizing a measurement tool, page 65.
4. Adjust the size of the box or circle tool to the size of the target, see section 15.4 Mov-
ing and resizing a measurement tool, page 65.
5. Hold the camera perpendicular to the target and push the laser button .
6. The calculated area is displayed in the result table.
10.10 Connecting external devices and storage
media
10.10.1 General
You can connect the following external devices and media to the camera:
• An SD memory card.
• A computer to move image and video files to and from the camera, using a USB-C to
USB-A cable.
• A video monitor or projector, using a USB-C to HDMI cable.
• A USB battery charger.
#T810190; r. AB/39747/39747; en-US 32
Handling the camera10
Note Only use a memory card that has not previously been used in another type of
camera. The cameras may organize files differently on the memory card. There is there-
fore a risk of losing data if the same memory card is used in different types of cameras.
10.10.2 Figure
10.10.3 Explanation
1. LED indicator showing that the memory card is busy.
Note
• Do not eject the memory card when this LED is flashing.
• Do not connect the camera to a computer when this LED is flashing.
2. SD memory card.
3. USB-C cable.
10.11 Moving files to a computer
10.11.1 General
When you save an image or video clip in the image archive of the camera, the file is
stored on the memory card.
You can connect the camera to a computer, using a USB-C to USB-A cable. Once con-
nected, you can move the image and video files from the memory card to the computer.
#T810190; r. AB/39747/39747; en-US 33
Handling the camera10
10.11.2 Procedure
Follow this procedure:
1. Fold up the rubber cover at the top of the camera.
2. Connect a USB cable to the USB-C connector in the connector bay. Connect the oth-
er end of the USB cable to the computer.
3. Turn on the camera.
4. Do one of the following:
• Move the files to the computer using a drag-and-drop operation in Microsoft Win-
dows Explorer.
Note Moving a file using a drag-and-drop operation does not delete the file in
the camera.
• Import the images into FLIR Tools/Tools+ or FLIR Report Studio.
10.12 Assigning functions to the
programmable button
10.12.1 General
You can assign different functions to the programmable button . You can, for exam-
ple, use the programmable button to easily switch between two settings you use often.
You can also choose to define two different setups for saving and previewing: the ordi-
nary setup for the trigger (which is defined by the Save options and storage settings, see
#T810190; r. AB/39747/39747; en-US 34
Handling the camera10
section 24.1.4 Save options & storage, page 89) and another setup for the program-
mable button.
Available options for the programmable button:
•No action: This is the default setting. Nothing will happen when you push the button.
•Switch between auto and manual: Switch between automatic or manual image adjust-
ment mode. For more information, see section 13.3 Adjusting the infrared image,
page 55.
•Autofocus: Autofocus the infrared camera.
•Hide image overlay graphics: Switch between hide/show all overlay graphics and im-
age overlay information. For more information, see section 13.8 Hiding all overlay,
page 60.
•Calibrate: Perform a manual NUC. For more information, see section 13.7 Performing
a non-uniformity correction (NUC), page 60.
•Auto-adjust the manual temperature scale: Perform an automatic adjustment of the
image while remaining in manual image adjustment mode.
•Switch Thermal <> Digital camera: Switch between the image modes Thermal and
Digital camera. For more information, see section 14 Working with image modes,
page 62.
•Switch Thermal <> Thermal MSX: Switch between the image modes Thermal and
Thermal MSX. For more information, see section 14 Working with image modes, page
62.
•Switch 1x zoom <> Max zoom: Switch between the digital zoom factor of 1× and max-
imum zoom.
•Switch camera flash On <> Off: Switch between the enabled/disabled camera flash
functions. For more information, see section 10.13 Using the camera lamp as a flash,
page 36.
Note The flash function will not be activated if the setting Lamp & laser is set to the
option Disable all. For more information, see section 24.1.5 Device settings, page 90.
•Switch single shot <> Video: Switch between the recording modes Single shot and
Video.
•Switch between two latest palettes: Switch between the two last-used color palettes.
For more information, see section 13.5 Changing the color palettes, page 58.
•Switch temperature range: Cycle through the camera temperature ranges. For more
information, see section 24.1.3 Camera temperature range, page 89.
•Switch screen rotation On <> Off: Switch between enabled/disabled screen rotation.
•Save: Save an image.
•Save + Prompt for note: Save an image and display the note annotation tool.
•Save + Prompt for table: Save an image and display the table annotation tool.
•Save + Prompt for voice annotation: Save an image and display the voice annotation
tool.
•Save + Prompt for sketch: Save an image and display the sketch annotation tool.
•Save + Select annotation from menu: Save an image and display the annotation tool
menu.
•Preview: Display a preview image.
•Preview + Prompt for note: Display a preview image and the note annotation tool.
•Preview + Prompt for table: Display a preview image and the table annotation tool.
•Preview + Prompt for voice annotation: Display a preview image and the voice annota-
tion tool.
•Preview + Prompt for sketch: Display a preview image and the sketch annotation tool.
•Preview + Select annotation from menu: Display a preview image and the annotation
tool menu.
10.12.2 Procedure
Follow this procedure:
1. Push and hold the programmable button . This displays the Programmable but-
ton menu.
#T810190; r. AB/39747/39747; en-US 35
Handling the camera10
2. Push the navigation pad up/down to select one of the functions. Push the center of
the navigation pad to confirm.
10.13 Using the camera lamp as a flash
10.13.1 General
The camera lamp can be used as a flash for the digital camera. When the flash function
is enabled, the camera lamp will flash when an image is saved by pulling the trigger.
You can also turn on the camera lamp to use it as a flashlight.
10.13.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Device settings >Lamp & laser.
4. Do one of the following:
• To enable the camera lamp function, select Enable lamp & laser and push the nav-
igation pad. To turn on/off the camera lamp, use the swipe-down menu, see sec-
tion 8.4 Swipe-down menu, page 22.
• To enable the flash function, select Enable lamp & laser + Use lamp as flash and
push the navigation pad.
• To disable the camera lamp and flash functions, select Disable all and push the
navigation pad.
Note You can also assign the function Switch camera flash On <> Off to the program-
mable button . For more information, see section 10.12 Assigning functions to the
programmable button, page 34.
10.14 Hand strap
10.14.1 General
The upper part of the hand strap is attached to the camera by a bracket. There is one
bracket for the left side and one for the right side of the camera.
The lower part of the hand strap is threaded through the attachment point at the base of
the camera.
#T810190; r. AB/39747/39747; en-US 36
Handling the camera10
2. Starting with the FLIR logo part, thread the lanyard strap through the attachment
point at the base of the camera.
3. Pull the entire lanyard strap through the attachment point until it stops.
10.16 Wrist strap
10.16.1 General
The wrist strap can also be used to attach a carabiner to the camera.
#T810190; r. AB/39747/39747; en-US 40
Handling the camera10
10.16.2 Mounting the wrist strap
Follow this procedure:
1. Remove the camera battery.
2. Fold the wrist strap. Make sure that the part with the FLIR logo faces away from the
bend.
3. Thread the bent wrist strap through the attachment point at the base of the camera.
4. Pull the entire wrist strap through the attachment point until it stops.
10.17 Front protection
To protect the camera lens and the laser distance meter, you can attach the front protec-
tion by using the supplied fastening device.
#T810190; r. AB/39747/39747; en-US 41
Handling the camera10
10.18 Changing camera lenses
Note Do not touch the lens surface when you change lenses. If this happens, clean the
lens according to the instructions in 25.2 Infrared lens, page 93.
Follow this procedure:
1. Take a firm grip around the blue ring of the lens. Rotate the blue ring 30° counter-
clockwise until it stops.
#T810190; r. AB/39747/39747; en-US 42
Handling the camera10
4. Make sure that the blue ring of the camera lens is fully in its open position.
• Correct: The blue tooth (1) is in its end position at the black stop pin (2).
• Wrong: You must rotate the blue ring until the blue tooth (1) reaches the black stop
pin (2).
5. Carefully push the lens into position.
#T810190; r. AB/39747/39747; en-US 44
Handling the camera10
6. Rotate the blue ring of the lens 30° clockwise. The lens makes a click when it locks in
place.
7. Make sure that the two index marks are aligned, indicating that the lens is locked in
place.
10.19 Calibrating the compass
It is recommended that the compass is calibrated every time you move the camera to a
new location.
10.19.1 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Device settings >Geolocation >Compass.
4. If the Compass check box is unchecked, push the navigation pad to enable the
compass.
5. Select Calibrate compass and push the navigation pad. Follow the on-screen
instructions.
Note You must rotate the camera slowly.
#T810190; r. AB/39747/39747; en-US 45
Saving and working with images
11
11.1 About image files
11.1.1 General
When you save an image, the camera saves an image file that includes all thermal and
visual information. This means that you can open an image file at a later time and, for ex-
ample, select another image mode, apply color alarms, and add measurement tools.
The image *.jpg file is fully radiometric and saved lossless, which enables full post-proc-
essing in image analysis and reporting software from FLIR Systems. There is also a reg-
ular *.jpg component (lossy) for convenient viewing in non-FLIR Systems software (e.g.,
Microsoft Explorer).
Note
• The camera can also be configured to save an extra low-resolution visual image as a
separate file. Select (Settings) > Save options & storage >Photo as separate
JPEG =On.
• When the Digital camera image mode is selected, a high-resolution digital image is
stored when an image is saved. However, no thermal information is stored. For more
information, see section 14 Working with image modes, page 62.
11.1.2 File-naming convention
The default naming convention for image files is FLIRxxxx.jpg, where xxxx is a unique
counter.
It is also possible to save images with a date prefix added to the filename. However,
these files may not automatically be detected by third-party applications. For more infor-
mation, see the setting File naming format in section 24.1.4 Save options & storage,
page 89.
11.1.3 Storage capacity
When you save an image, the camera stores the image file on the memory card.
The size of an image file (with no annotations) is typically less than 1000 kB. Thus, the
capacity of a 4 GB memory card is approximately 4000 images.
Note Only use a memory card that has not previously been used in another type of
camera. The cameras may organize files differently on the memory card. There is there-
fore a risk of losing data if the same memory card is used in different types of cameras.
11.2 Saving an image
11.2.1 General
You can save images to the memory card.
#T810190; r. AB/39747/39747; en-US 46
Saving and working with images
11
11.2.2 Procedure
Follow this procedure:
1. To save an image, pull the trigger.
Note Depending on the settings in (Settings) > Save options & storage, the follow-
ing may happen:
• A preview image is displayed before the image is saved.
• An annotation tool or the annotation menu is displayed when the image has been
saved.
11.3 Previewing an image
11.3.1 General
You can preview an image before you save it. This enables you to see if the image con-
tains the information you want before you save it. You can also adjust and edit the image.
Note The camera must be configured to display a preview image before saving. Select
(Settings) > Save options & storage >Preview image before saving =On.
11.3.2 Procedure
Follow this procedure:
1. To preview an image, pull the trigger. This displays the preview.
2. Manual image adjustment mode is now active, and the status icon is displayed.
For image adjustment instructions, see section 13.3 Adjusting the infrared image,
page 55.
3. To edit the image, push the navigation pad. This displays a context menu. For editing
instructions, see section 11.5 Editing a saved image, page 48.
#T810190; r. AB/39747/39747; en-US 47
Saving and working with images
11
4. Do one of the following:
• To save the image, pull the trigger.
• To exit preview mode without saving, push the back button .
11.4 Opening a saved image
11.4.1 General
When you save an image, the image file is stored on the memory card. To display the im-
age again, open it from the image archive (Gallery).
11.4.2 Procedure
Follow this procedure:
1. Push the image archive button . This displays the Gallery with one or more
folders.
2. Select a folder and push the navigation pad.
3. Select the image you want to view and push the navigation pad.
4. Do one or more of the following:
• To view the previous/next image, push the navigation pad left/right.
• To display a toolbar at the top of the screen, push the navigation pad. Do one or
more of the following:
◦ To switch between an infrared image and a visual image, select the icon
and push the navigation pad.
◦ To edit the image, delete the image, display information, or add annotations, se-
lect the icon and push the navigation pad. This displays a menu to the right.
• To return to the folder overview, push the back button .
11.5 Editing a saved image
11.5.1 General
You can edit a saved image. You can also edit an image in preview mode.
11.5.2 Procedure
Follow this procedure:
1. Push the image archive button . This displays the Gallery .
2. Select a folder and push the navigation pad.
3. Select the image you want to edit and push the navigation pad.
4. Push the navigation pad to display the top toolbar.
5. On the top toolbar, select the icon and push the navigation pad.
6. On the right toolbar, select the icon and push the navigation pad. This opens the
image in edit mode.
7. Manual image adjustment mode is now active, and the status icon is displayed.
For image adjustment instructions, see section 13.3 Adjusting the infrared image,
page 55.
#T810190; r. AB/39747/39747; en-US 48
Saving and working with images
11
8. Push the navigation pad. This displays a context menu.
• Select (Cancel) to exit edit mode.
• Select (Measurement parameters) to change the global parameters.
• Select (Image mode) to change the image mode.
• Select (Measurement) to add a measurement tool.
• Select (Color) to change the color palette or set a color alarm.
• Select (Save) to save and exit edit mode.
11.5.3 Related topics
• 13.6 Changing the measurement parameters, page 59.
• 14 Working with image modes, page 62.
• 15 Working with measurement tools, page 64.
• 13.5 Changing the color palettes, page 58.
• 16 Working with color alarms and isotherms, page 73.
11.6 Zooming an image
11.6.1 General
You can zoom an image by using the camera’s digital zoom function. You can do this on
both live images and saved images.
The digital zoom factor is displayed at the top of the screen.
11.6.2 Procedure
Follow this procedure:
1. To digitally zoom an image, do the following:
• Zoom in: Touch the screen with two fingers and spread the fingers apart.
• Zoom out: Touch the screen with two fingers and pinch the fingers together.
#T810190; r. AB/39747/39747; en-US 49
Saving and working with images
11
11.7 Deleting images
You can delete image files from the memory card. For more information, see sections
12.8 Deleting an image or video file, page 53, 12.9 Deleting multiple files, page 53, and
12.10 Deleting all files, page 54.
11.8 Resetting the image counter
11.8.1 General
You can reset the numbering of the image filenames.
Note To prevent image files being overwritten, the new counter value will be based on
the highest existing filename number in the image archive.
11.8.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Device settings >Reset options >Reset image
counter....
4. Push the navigation pad. This displays a dialog box.
5. To reset the counter, select Reset and push the navigation pad.
#T810190; r. AB/39747/39747; en-US 50
Working with the image archive
12
12.1 General
When you save an image or video clip, the camera stores the image/video file in the im-
age archive on the memory card. You can open an image in the image archive and, for
example, select another image mode, apply color alarms, and add measurement tools.
You can also open and play saved video clips.
In the camera, the image archive is called Gallery. The Gallery can include one or several
folders. New images and video clips will be saved to the active folder, at the top of the
Gallery. You can create new folders, rename a folder, change the active folder, move files
between the folders, and delete folders.
12.2 Opening image and video files
Follow this procedure:
1. Push the image archive button . This displays the Gallery with one or more
folders.
2. Select a folder and push the navigation pad.
3. Select the image or video clip you want to view and push the navigation pad.
4. To view the previous/next image or video clip, push the navigation pad left/right.
5. To return to the folder overview, push the back button .
6. To return to the Gallery, push the back button again.
12.3 Creating a new folder
Follow this procedure:
1. Push the image archive button . This displays the Gallery .
2. On the top toolbar, select the icon and push the navigation pad.
3. A soft keyboard is displayed, where you can enter the name of the folder by touching
the screen.
4. When completed, touch Done on the soft keyboard.
5. The new folder automatically becomes the active folder and appears at the top of the
Gallery.
#T810190; r. AB/39747/39747; en-US 51
Working with the image archive12
12.4 Renaming a folder
Follow this procedure:
1. Push the image archive button . This displays the Gallery .
2. On the top toolbar, select the icon and push the navigation pad.
3. Select the folder to rename and push the navigation pad.
4. On the right toolbar, select the icon and push the navigation pad.
5. A soft keyboard is displayed, where you can enter the new name of the folder by
touching the screen.
6. When completed, touch Done on the soft keyboard.
12.5 Changing the active folder
12.5.1 General
New images and video clips are saved to the active folder.
12.5.2 Procedure
Follow this procedure:
1. Push the image archive button . This displays the Gallery .
2. On the top toolbar, select the icon and push the navigation pad.
3. Select the folder that new images and video clips should be saved to and push the
navigation pad. This marks the selected folder with a tick.
4. On the right toolbar, select the icon and push the navigation pad.
5. The selected folder is moved to the top of the Gallery.
12.6 Moving files between folders
Follow this procedure:
1. Push the image archive button . This displays the Gallery .
2. Select a folder and push the navigation pad.
3. On the top toolbar, select the icon and push the navigation pad.
4. Use the navigation pad to select the image and video items you want to move. You
can also select the items by touching the screen. Selected items are marked with a
tick.
5. On the right toolbar, select the icon and push the navigation pad.
6. Select the destination folder for the selected items and push the navigation pad.
#T810190; r. AB/39747/39747; en-US 52
Working with the image archive12
12.7 Deleting a folder
Follow this procedure:
1. Push the image archive button . This displays the Gallery .
2. On the top toolbar, select the icon and push the navigation pad.
3. Select the folder to delete and push the navigation pad.
4. On the right toolbar, select the icon and push the navigation pad. This displays a
dialog box.
5. To delete the folder, select Delete and push the navigation pad.
12.8 Deleting an image or video file
12.8.1 General
You can delete an image or video file from the image archive.
Note When deleting an image file, both images in the image file (thermal and visual)
will be deleted.
12.8.2 Procedure
Follow this procedure:
1. Push the image archive button . This displays the Gallery .
2. Select a folder and push the navigation pad.
3. Select the image or video clip you want to delete and push the navigation pad.
4. Push the navigation pad to display the top toolbar.
5. On the top toolbar, select the icon and push the navigation pad.
6. On the right toolbar, select the icon and push the navigation pad. This displays a
dialog box.
7. To delete the image, select Delete and push the navigation pad.
12.9 Deleting multiple files
12.9.1 General
You can delete multiple image and video files from the image archive.
12.9.2 Procedure
Follow this procedure:
1. Push the image archive button . This displays the Gallery .
2. Select a folder and push the navigation pad.
3. On the top toolbar, select the icon and push the navigation pad.
#T810190; r. AB/39747/39747; en-US 53
Working with the image archive12
4. Use the navigation pad to select the image and video items you want to delete. You
can also select the items by touching the screen. Selected items are marked with a
tick.
5. On the right toolbar, select the icon and push the navigation pad. This displays a
dialog box.
6. To delete the selected items, select Delete and push the navigation pad.
12.10 Deleting all files
12.10.1 General
You can delete all image and video files from the memory card.
12.10.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Save options & storage >Delete all saved files... .
4. Push the navigation pad. This displays a dialog box.
5. To permanently delete all saved files, select Delete and push the navigation pad.
#T810190; r. AB/39747/39747; en-US 54
Achieving a good image
13
13.1 General
A good image depends on several different functions and settings, although some func-
tions and settings affect the image more than others.
These are the functions and settings that you need to experiment with:
• Adjusting the infrared camera focus.
• Adjusting the infrared image (automatically or manually).
• Selecting a suitable temperature range.
• Selecting a suitable color palette.
• Changing the measurement parameters.
• Performing a non-uniformity correction (NUC).
The following sections explain how to work with these functions and settings.
In some situations, you may also want to hide the overlay graphics for a better view.
13.2 Adjusting the infrared camera focus
It is very important to adjust the focus correctly. Incorrect focus adjustment affects how
the image modes work. It also affects the temperature measurement.
13.2.1 Manual focus
You can adjust the focus manually by rotating the focus ring. For more information, see
section 10.4 Adjusting the infrared camera focus manually, page 28.
13.2.2 Autofocus
You can autofocus the infrared camera by pushing the Autofocus button. For more infor-
mation, see section 10.5 Autofocusing the infrared camera, page 28.
WARNING
Do not point the camera at the face of a person when you use the autofocus function. You can set the
camera to use a laser distance measurement for the focus adjustment. The laser beam can cause eye
irritation.
Note You can also assign the autofocus function to the programmable button .
For more information, see section 10.12 Assigning functions to the programmable button,
page 34.
13.2.3 Continuous autofocus
The infrared camera can be set up to perform continuous autofocusing. For more infor-
mation, see section 10.6 Continuous autofocus, page 29.
WARNING
Do not point the camera at the face of a person when the continuous autofocus function is on. The cam-
era uses laser distance measurements (that are continuous) for the focus adjustments. The laser beam
can cause eye irritation.
13.3 Adjusting the infrared image
13.3.1 General
An infrared image can be adjusted automatically or manually.
In automatic mode, the camera continuously adjusts the level and span for the best im-
age presentation. The colors are distributed based on the thermal content of the image
#T810190; r. AB/39747/39747; en-US 55
Achieving a good image13
(histogram color distribution). The temperature scale to the right of the screen shows the
upper and lower temperatures of the current span.
In manual mode, you can adjust the temperature scale to values close to the temperature
of a specific object in the image. This will make it possible to detect anomalies and small-
er temperature differences in the part of the image of interest. In manual mode, the col-
ors are distributed evenly from the lowest to the highest temperature (linear color
distribution). This is indicated by lines on the temperature scale.
There are two different settings for the manual adjustment mode:
•Level, Span: With this setting, you can manually adjust the level and span.
•Level, Max, Min: With this setting, you can manually adjust the level. You can also
change the upper and lower temperatures individually.
Select the type of manual image adjustment mode under (Settings) > Device set-
tings >User interface options >Manual adjustment mode.
When manual image adjustment mode is active, the status icon is displayed.
• In live mode, select (Temperature scale) and then (Auto) or (Manual) to
enter automatic or manual image adjustment mode.
• In preview/edit mode, manual image adjustment mode is active.
Note You can also assign image adjustment functions to the programmable button. For
more information, see section 10.12 Assigning functions to the programmable button,
page 34.
•Switch between auto and manual: Allows you to switch between the automatic and
manual image adjustment modes.
•Auto adjust the manual temperature scale: Allows you to perform an automatic adjust-
ment of the image while remaining in manual image adjustment mode.
13.3.2 Example 1
Here are two infrared images of a building. In the left image, which is auto-adjusted, the
large temperature span between the clear sky and the heated building makes a correct
analysis difficult. You can analyze the building in more detail if you change the tempera-
ture scale to values close to the temperature of the building.
Automatic Manual
13.3.3 Example 2
Here are two infrared images of an isolator in a power line. To make it easier to analyze
the temperature variations in the isolator, the temperature scale in the right image has
been changed to values close to the temperature of the isolator.
#T810190; r. AB/39747/39747; en-US 56
Achieving a good image13
Automatic Manual
13.3.4 Manual adjustment in Level, Span mode
Note This procedure assumes that you have configured the camera for manual image
adjustments in Level, Span mode. Select Settings >Device settings >User interface op-
tions >Manual adjustment mode =Level, Span.
Follow this procedure:
1. In live mode, push the navigation pad to display the menu system.
2. Select (Temperature scale) and push the navigation pad. This displays a
submenu.
3. Select (Manual) and push the navigation pad.
4. Push the navigation pad up/down to increase/decrease the level.
5. Push the navigation pad left/right to increase/decrease the span.
13.3.5 Manual adjustment in Level, Max, Min mode
Note This procedure assumes that you have configured the camera for manual image
adjustments in Level, Max, Min mode. Select Settings >Device settings >User interface
options >Manual adjustment mode =Level, Max, Min.
Follow this procedure:
1. In live mode, push the navigation pad to display the menu system.
2. Select (Temperature scale) and push the navigation pad. This displays a
submenu.
3. Select (Manual) and push the navigation pad.
4. To simultaneously change the temperature scale minimum and maximum limits, push
the navigation pad up/down.
5. To change the minimum limit or the maximum limit, do the following:
• Push the navigation pad left/right to select (highlight) the maximum or minimum
temperature.
• Push the navigation pad up/down to change the value of the highlighted
temperature.
13.4 Changing the temperature ranges
13.4.1 General
You should always change the temperature range to suit the expected temperature of the
object you are inspecting.
13.4.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
#T810190; r. AB/39747/39747; en-US 57
Achieving a good image13
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Select Camera temperature range and push the navigation pad. This displays a dia-
log box.
4. Select the appropriate temperature range and push the navigation pad.
Note You can also assign the function Switch temperature range to the programmable
button . For more information, see section 10.12 Assigning functions to the pro-
grammable button, page 34.
13.5 Changing the color palettes
13.5.1 General
You can change the color palette that the camera uses to display different temperatures.
A different palette can make it easier to analyze an image.

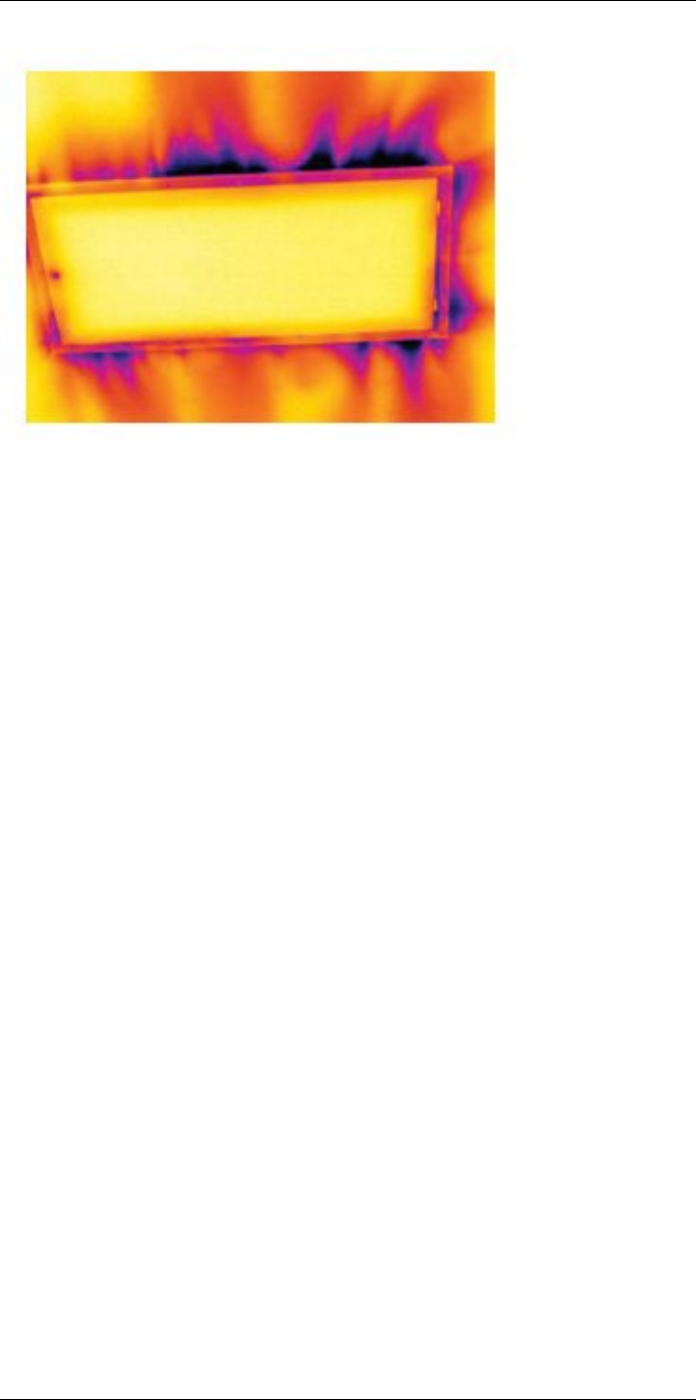

Iron Arctic
Rainbow Rainbow high contrast
#T810190; r. AB/39747/39747; en-US 58
Achieving a good image13
White hot Black hot
Lava
13.5.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Color) and push the navigation pad. This displays a submenu.
3. Use the navigation pad to select a different palette.
4. Push the navigation pad to confirm and exit the menu mode.
13.6 Changing the measurement parameters
For accurate measurements, it is important to set the measurement parameters:
•External IR window compensation.
•Object distance.
•Atmospheric temperature.
•Relative humidity.
•Reflected temperature.
•Emissivity.
You can set the measurement parameters globally. You can also change the Emissivity,
Reflected temperature, and Object distance parameters locally for a measurement tool.
For more information, see section 15.5 Changing the measurement parameters, page 66.
#T810190; r. AB/39747/39747; en-US 59
Achieving a good image13
13.7 Performing a non-uniformity correction
(NUC)
When the thermal camera displays Calibrating... it is performing what in thermography is
called a ”non-uniformity correction” (NUC). An NUC is an image correction carried out by
the camera software to compensate for different sensitivities of detector elements and
other optical and geometrical disturbances1. For more information, see section 32 About
calibration, page 187.
An NUC is performed automatically, for example at start-up, when changing a measure-
ment range, or when the environment temperature changes.
You can also perform an NUC manually. This is useful when you have to perform a critical
measurement with as little image disturbance as possible. You may, for example, want to
perform a manual calibration just before you start recording a video sequence.
13.7.1 Performing an NUC manually
13.7.1.1 Procedure
Follow this procedure:
1. To perform a manual NUC, push and hold down the image archive button
for more than 2 seconds.
Note You can also assign the function Calibrate to the programmable button .
For more information, see section 10.12 Assigning functions to the programmable button,
page 34.
13.8 Hiding all overlay
13.8.1 General
The camera overlay consists of overlay graphics and image overlay information. The
overlay graphics include items such as measurement tool symbols, result tables, and
status icons. The image overlay information, which you activate on the Settings menu,
provides additional information such as the date, emissivity, and atmospheric tempera-
ture. For more information, see section 8.5 Image overlay information, page 22.
You can choose to hide all camera overlay by pressing the programmable button .
Image with camera overlay and image overlay
information.
Image with all overlay hidden.
#T810190; r. AB/39747/39747; en-US 60
1. Definition from the European standard EN 16714-3:2016, Non-destructive Testing—Thermographic Testing—
Part 3: Terms and Definitions.
Achieving a good image13
13.8.2 Procedure
Follow this procedure:
1. Push and hold the programmable button . This displays the Programmable but-
ton menu.
2. Push the navigation pad up/down to select the function Hide image overlay graphics .
3. Push the navigation pad to confirm and exit the menu mode.
#T810190; r. AB/39747/39747; en-US 61
Working with image modes
14
14.1 General
The camera can capture both thermal and visual images at the same time. By your
choice of image mode, you select which type of image to display on the screen.
The camera supports the following image modes:
•Thermal: A fully infrared image is displayed.
•Thermal MSX (Multi Spectral Dynamic Imaging): The camera displays an infrared im-
age where the edges of the objects are enhanced with visual image details.
•Picture in picture: An infrared image frame is displayed on top of the visual image.
•Digital camera: The visual image captured by the digital camera is displayed.
Note
• For the Thermal MSX,Thermal, and Picture in picture image modes, all thermal and
visual information is stored when an image is saved. This means that you can edit the
image later, in the image archive, or in FLIR Tools/Tools+ or FLIR Report Studio, and
select any of the image modes.
• For the Digital camera image mode, a digital image with full resolution (5 MP) is stored
when an image is saved. However, no thermal information is stored.
• The Thermal MSX,Thermal, and Picture in picture image modes only work correctly
for calibrated lenses. The lens that ships with the camera is factory calibrated. To cali-
brate a new lens, you must send the camera and the lens to your local service
department.
14.2 Image examples
This table explains the different types of image modes.
Image mode Image
Thermal
Thermal MSX
#T810190; r. AB/39747/39747; en-US 62
Working with image modes14
Image mode Image
Picture in picture
Digital camera
14.3 Selecting an image mode
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Image mode) and push the navigation pad. This displays a submenu.
3. Use the navigation pad to select one of the following:
•(Thermal MSX).
•(Thermal).
•(Picture in picture).
•(Digital camera).
Note If the *.csq video format is selected (Settings >Save options & storage >Vid-
eo compression ) and the recording mode Video is selected (Settings >Recording
mode), it will only be possible to select the image mode Thermal.
4. Push the navigation pad to confirm and exit the menu mode.
5. If Picture in picture mode is selected, you can at this point move and resize the infra-
red image frame using the touch screen.
#T810190; r. AB/39747/39747; en-US 63
Working with measurement tools
15
15.1 General
To measure a temperature, you can use one or more measurement tools, e.g., a spot-
meter or a box.
15.2 Adding/removing measurement tools
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Measurement) and push the navigation pad. This displays a submenu.
3. Use the navigation pad to select one of the following:
• Select (No measurements) to remove all tools.
• Select (Center spot) to add a center spot.
• Select (Hot spot) to add a hot spot detection within a box area.
• Select (Cold spot) to add a cold spot detection within a box area.
• Select (User preset 1) to add user preset 1. (Not available in all camera
models.)
• Select (User preset 2) to add user preset 2. (Not available in all camera
models.)
4. Push the navigation pad to confirm and exit the menu mode.
15.3 Editing user presets
15.3.1 General
A user preset is a measurement tool, or a group of measurement tools, with predefined
characteristics.
15.3.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
#T810190; r. AB/39747/39747; en-US 64
Working with measurement tools15
2. Select (Measurement) and push the navigation pad. This displays a submenu.
3. Use the navigation pad to select (User preset 1) or (User preset 2).
4. Push and hold the center of the navigation pad. This displays the Edit preset menu.
5. Select (Add measurement) and push the navigation pad. This displays a
submenu.
6. Use the navigation pad to select one of the following:
• Select (Add spot) to add a spot.
• Select (Add box) to add a box.
• Select (Add circle) to add a circle.
• Select (Add delta) to set up a differential calculation.
7. Push the navigation pad. This displays the measurement tool on the screen.
8. Push the navigation pad. This displays a context menu, where you can select one or
more of the following actions (depending on the type of tool):
• Remove the tool.
• Resize, move, center, and rotate the tool.
• Set alarms.
• Display maximum, minimum, average, and area values.
• Set local parameters.
• When completed, select (Done) and push the navigation pad.
9. When all measurement tools have been added, select (Save as preset).
10. Push the navigation pad to confirm and exit the menu mode.
15.4 Moving and resizing a measurement tool
15.4.1 General
You can move and resize a measurement tool.
15.4.2 Moving a spot
Note You can also move the spot by touching the screen.
Follow this procedure:
1. To select the measurement tool, touch the tool on the screen. The tool is now dis-
played with one or more handles.
2. Push the navigation pad—or touch and hold the tool. This displays a context menu.
3. To move the spot, do the following:
3.1. Select (Move spot) and push the navigation pad.
3.2. Push the navigation pad up/down and left/right to move the spot.
4. To center the spot, select Center spot and push the navigation pad.
5. When completed, push the navigation pad and select (Done).
6. Push the navigation pad to confirm and exit the menu mode.
#T810190; r. AB/39747/39747; en-US 65
Working with measurement tools15
15.4.3 Moving and resizing a box or circle tool
Note You can also move and resize the measurement tool by touching the screen.
Follow this procedure:
1. To select the measurement tool, touch the tool on the screen. The tool is now dis-
played with one or more handles.
2. Push the navigation pad—or touch and hold the tool. This displays a context menu.
3. Select (Move/resize) and push the navigation pad. This displays a submenu.
4. Use the navigation pad to select one of the following:
• Select (Resize) to change the size of the tool.
• Select (Move) to move the tool.
• Select (Center box/circle) to center the box or circle tool.
5. Push the navigation pad up/down and left/right to resize or move the tool.
6. When completed, push the navigation pad and select (Done).
7. Push the navigation pad to confirm and exit the menu mode.
15.5 Changing the measurement parameters
15.5.1 General
For accurate measurements, it is important to set the measurement parameters.
Note During normal operation there is typically no need to change the default meas-
urement parameters, see section 15.5.3 Recommended values, page 67.
15.5.2 Types of parameters
The camera can use these measurement parameters:
•External IR window compensation, i.e., the temperature of any protective windows,
external lenses (e.g., the close-up lens), etc., that are set up between the camera and
the object of interest. If no protective window, protective shield, or external lens is
used, this value is irrelevant and should be left inactive.
•Object distance, i.e., the distance between the camera and the object of interest.
Note The camera can be configured to automatically measure the distance when
an image is saved. With this setting, the Object distance parameter is automatically
updated with the measured distance when an image is saved. For more information,
see section 7.3 Laser distance meter and laser pointer, page 19.
•Atmospheric temperature, i.e., the temperature of the air between the camera and the
object of interest.
•Relative humidity, i.e., the relative humidity of the air between the camera and the ob-
ject of interest.
•Reflected temperature, which is used when compensating for the radiation from the
surroundings reflected by the object into the camera. This property of the object is
called “reflectivity.”
•Emissivity, i.e., how much radiation an object emits, compared with the radiation of a
theoretical reference object at the same temperature (called a “blackbody”). The
#T810190; r. AB/39747/39747; en-US 66
Working with measurement tools15
opposite of emissivity is reflectivity. The emissivity determines how much of the radia-
tion originates from the object as opposed to being reflected by it.
Note There is an Emissivity mode setting, which you can use to enter the emissivity
by material instead of by value. Select (Settings) > Device settings >User inter-
face options >Emissivity mode >Select from materials table.
Emissivity is the most important measurement parameter to set correctly. If the Emissivity
is set to a low value, the Reflected temperature also becomes important. The parameters
Object distance,Atmospheric temperature, and Relative humidity are relevant for longer
distances. The External IR window compensation must be activated if a protective win-
dow or external lens is used.
15.5.3 Recommended values
If you are unsure about the values, the following are recommended:
Object distance 1.0 m (3.3 ft.)
Atmospheric temperature 20°C (69°F)
Relative humidity 50%
Reflected temperature 20°C (69°F)
Emissivity 0.95
15.5.4 Procedure
You can set the measurement parameters globally. You can also change the Emissivity,
Reflected temperature, and Object distance parameters locally for a measurement tool.
Local parameters are normally only effective for a fixed setup, where each measurement
tool is set for a specific object of interest. For a general handheld application, the global
parameters are usually sufficient.
Note Emissivity and Reflected temperature are the two most important measurement
parameters to set correctly in the camera.
15.5.4.1 Setting global parameters
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Measurement parameters) and push the navigation pad. This displays a
submenu.
3. Use the navigation pad to select one or more of the global measurement parameters:
•(External IR window compensation).
•(Object distance).
•(Atmospheric temperature).
•(Relative humidity).
•(Reflected temperature).
•(Emissivity).
4. Push the navigation pad to display a dialog box.
5. Use the navigation pad to change the parameter.
6. Push the navigation pad to confirm and exit the menu mode.
#T810190; r. AB/39747/39747; en-US 67
Working with measurement tools15
15.5.4.2 Changing local parameters
You can change the local parameters for a measurement tool.
APnext to the measurement tool on the screen indicates that local parameters have
been activated for the tool.
Follow this procedure:
1. To select the measurement tool, touch the tool on the screen. The tool is now dis-
played with one or more handles.
2. Push the navigation pad—or touch and hold the tool. This displays a context menu.
3. Select (Use local parameters).
4. Push the navigation pad. (icon with unfilled indicator) is displayed.
5. Push the navigation pad to activate the use of local parameters. (icon with filled
indicator) is displayed together with a submenu.
6. Use the navigation pad to select one or more of the local measurement parameters.
7. Push the navigation pad to display a dialog box.
8. Use the navigation pad to change the parameter.
9. Push the navigation pad. This closes the dialog box.
10. When completed, push the navigation pad and select (Done).
11. Push the navigation pad to confirm and exit the menu mode.
15.5.5 Related topics
For in-depth information about parameters, and how to correctly set the emissivity and
reflected apparent temperature, see section 31 Thermographic measurement techni-
ques, page 182.
15.6 Displaying values in the result table and
displaying a graph
15.6.1 General
For the box and circle tools, you can set the camera to display the maximum, minimum,
average, and area values in the result table.
#T810190; r. AB/39747/39747; en-US 68
Working with measurement tools15
15.6.2 Procedure
Follow this procedure:
1. To select the measurement tool, touch the tool on the screen. The tool is now dis-
played with one or more handles.
2. Push the navigation pad—or touch and hold the tool. This displays a context menu.
3. Use the navigation pad to select (depending on the tool) , , or (Max/Min/
Avg) or (Graph/Max/Min/Avg).
4. Push the navigation pad. This displays a submenu.
5. Use the navigation pad to select one or more of the following:
• Select (Max) to display the maximum value.
• Select (Min) to display the minimum value.
• Select (Avg) to display the average value.
• Select (depending on the tool) or (Area) to display the area of an object
within the measurement tool. For more information, see section 10.9 Measuring
areas, page 32.
• Select (Max & min markers) to display the maximum and minimum markers
(the hot/cold spots).
6. Push the navigation pad to toggle the function between inactive and active:
• When the icon with the unfilled indicator is displayed, the function is inactive.
• When the icon with the filled indicator is displayed, the function is active.
7. When completed, push the navigation pad down to close the submenu.
8. Select (Done) and push the navigation pad.
15.7 Creating and setting up a difference
calculation
15.7.1 General
A difference calculation gives the difference between the values of two known measure-
ment results.
#T810190; r. AB/39747/39747; en-US 69
Working with measurement tools15
15.7.2 Procedure
Note
• You can set up a difference calculation when defining user presets, or when editing an
image in the archive.
• This procedure assumes that you have previously laid out at least one measurement
tool on the screen.
15.7.2.1 Procedure
Follow this procedure:
1. To set up a difference calculation, do the following:
• If you are defining user presets, select (Add measurement) and then select
(Add delta).
• If you are editing an image in the archive, select (Measurement) and then se-
lect (Add delta).
2. Push the navigation pad. This displays a dialog box where you can select the meas-
urement tools that you want to use in the difference calculation. You can also select a
fixed-temperature reference.
3. Push the navigation pad. The result of the difference calculation is now displayed on
the screen.
15.8 Setting a measurement alarm
15.8.1 General
You can make the camera trigger an alarm when certain measurement conditions are
met.
15.8.2 Types of alarm
You can choose between the following alarm types:
•Above: Triggers an alarm when the temperature is above the preset alarm
temperature.
•Below: Triggers an alarm when the temperature is below the preset alarm
temperature.
15.8.3 Alarm signals
When an alarm is set, the symbol is displayed in the result table.
When an alarm is triggered, the value in the result table is displayed in red (above alarm)
or blue (below alarm) and the symbol (above alarm) or (below alarm) is blinking.
You can also set an audible alarm (there will be a “beep” when the alarm is triggered).
15.8.4 Procedure
There are different procedures for setting up an alarm for a spot, for a box or circle, and
for a difference calculation.
15.8.4.1 Setting up an alarm for a spot
Follow this procedure:
1. To select the spot, touch the tool on the screen. The tool is now displayed with a
frame.
#T810190; r. AB/39747/39747; en-US 70
Working with measurement tools15
2. Push the navigation pad—or touch and hold the tool. This displays a context menu.
3. Select (Set alarm on spot) and push the navigation pad. This displays a dialog
box.
4. In the dialog box, you can define the settings for the alarm.
•Alarm condition: The condition that triggers the alarm. Applicable values are
Above,Below,orOff.
•Alarm limit: The temperature value that will be the critical condition when an alarm
is triggered or not.
•Alarm sound: Applicable values are Beep or No sound.
5. Push the navigation pad. This closes the dialog box.
15.8.4.2 Setting up an alarm for a box or circle
Note This procedure assumes that you have previously set the camera to display at
least one value (maximum, minimum, or average) in the result table. For more informa-
tion, see section 15.6 Displaying values in the result table and displaying a graph, page
68.
Follow this procedure:
1. To select the measurement tool, touch the tool on the screen. The tool is now dis-
played with one or more handles.
2. Push the navigation pad—or touch and hold the tool. This displays a context menu.
3. Select (Set alarm) and push the navigation pad. This displays a dialog box.
4. In the dialog box, you can define the settings for the alarm.
•Alarm condition: The condition that triggers the alarm. Applicable values are
Above,Below,orOff.
•Select measurement: Applicable settings are the values you have previously de-
fined (Max,Min, and/or Avg).
•Alarm limit: The temperature value that will be the critical condition when an alarm
is triggered or not.
•Alarm sound: Applicable values are Beep or No sound.
5. Push the navigation pad. This closes the dialog box.
15.8.4.3 Setting up an alarm for a difference calculation
Note
• You can set up an alarm for a difference calculation when defining user presets, or
when editing an image in the archive.
• This procedure assumes that you have previously set up a difference calculation.
Follow this procedure:
1. To set up an alarm for a difference calculation, do the following:
• If you are defining user presets, select (Add measurement).
• If you are editing an image in the archive, select (Measurement).
2. Select (Select) and push the navigation pad. This displays a dialog box.
3. Select Delta and push the navigation pad. This displays a context menu.
4. Select (Set alarm on delta) and push the navigation pad. This displays a dialog
box.
#T810190; r. AB/39747/39747; en-US 71
Working with measurement tools15
5. In the dialog box, you can define the settings for the alarm.
•Alarm condition: The condition that triggers the alarm. Applicable values are
Above,Below,orOff.
•Alarm limit: The temperature value that will be the critical condition when an alarm
is triggered or not.
•Alarm sound: Applicable values are Beep or No sound.
6. Push the navigation pad. This closes the dialog box.
#T810190; r. AB/39747/39747; en-US 72
Working with color alarms and
isotherms
16
16.1 Color alarms
16.1.1 General
By using color alarms (isotherms), anomalies can easily be discovered in an infrared im-
age. The isotherm command applies a contrasting color to all pixels with a temperature
above, below, or between the set temperature levels. The camera also features isotherm
types that are specific to the building trade: condensation and insulation alarms.
You can make the camera trigger the following types of color alarms:
•Above alarm: This will apply a contrasting color to all pixels with a temperature above
the specified temperature level.
•Below alarm: This will apply a contrasting color to all pixels with a temperature below
the specified temperature level.
•Interval alarm: This will apply a contrasting color to all pixels with a temperature be-
tween two specified temperature levels.
•Condensation alarm: Triggers when the camera detects a surface where the relative
humidity exceeds a preset value.
•Insulation alarm: Triggers when there is an insulation deficiency in a wall.
16.1.2 Image examples
This table explains the different color alarms (isotherms).
Color alarm Image
Above alarm
Below alarm
#T810190; r. AB/39747/39747; en-US 73
Working with color alarms and isotherms16
Color alarm Image
Interval alarm
Condensation alarm
Insulation alarm
16.1.3 Setting up above, below, and interval alarms
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Color) and push the navigation pad. This displays a submenu.
3. Use the navigation pad to select one of the following:
•(Above alarm).
•(Below alarm).
•(Interval alarm).
4. Push the navigation pad. The threshold temperature is displayed at the top of the
screen.
5. To change the threshold temperature, do the following:
• For the Interval alarm, push the navigation pad left/right to select the low/high-tem-
perature value.
• Push the navigation pad up/down to change the threshold temperature.
#T810190; r. AB/39747/39747; en-US 74
Working with color alarms and isotherms16
16.1.4 Building isotherms
Note The Condensation and Insulation alarms are not supported by all camera models.
16.1.4.1 About the Condensation alarm
To detect areas with potential moisture problems, you can use the Condensation alarm.
You can set the relative humidity above which the isotherm will colorize the image.
16.1.4.2 About the Insulation alarm
The Insulation alarm can detect areas where there may be an insulation deficiency in the
building. It will trigger when the insulation level (which is called the thermal index in the
camera) falls below a preset value of the energy leakage through a wall.
Different building codes recommend different values for the insulation level, but typical
values are 60–80% for new buildings. Refer to your national building code for
recommendations.
16.1.4.3 Setting up condensation and insulation alarms
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Color) and push the navigation pad. This displays a submenu.
3. Use the navigation pad to select one of the following:
•(Condensation alarm).
•(Insulation alarm).
4. Push the navigation pad. This displays a dialog box where you can define the settings
for the alarm.
For the Condensation alarm, the following parameters can be set:
•Atmospheric temperature: The current atmospheric temperature.
•Relative humidity: The current relative humidity.
•Relative humidity limit: The relative humidity level at which you want the alarm to
be triggered. A relative humidity of 100% means that water vapor condenses from
the air as liquid water (= dewpoint). A relative humidity of about 70% or above can
cause mold.
For the Insulation alarm, the following parameters can be set:
•Indoor temperature: The current indoor temperature.
•Outdoor temperature: The current outdoor temperature.
•Thermal index: The insulation level (an integer between 0 and 100).
5. Push the navigation pad. This closes the dialog box.
#T810190; r. AB/39747/39747; en-US 75
Annotating images
17
17.1 General
You can save additional information with an infrared image by using annotations. Annota-
tions make reporting and post-processing more efficient by providing essential informa-
tion about the image, e.g., conditions and information about where an image is taken.
Annotations are added to the image file, and can be viewed and edited in the image ar-
chive, and also when moving files from the camera to reporting software on the computer.
• You can set the camera to display annotation tools before an image is saved. Select
(Settings) > Save options & storage >Add annotation after saving.
• You can also add annotations to a saved image in the image archive.
Note This section describes the procedures for adding annotations to a saved image
in the image archive. Adding annotations when saving an image works in a similar way.
17.2 Adding a note
17.2.1 General
You can add a text note to the image file. Using this feature, you can annotate images by
entering free-form text.
17.2.2 Procedure
Follow this procedure:
1. Open the image in the image archive.
2. Push the navigation pad to display the top toolbar.
3. On the top toolbar, select the icon and push the navigation pad.
4. On the right toolbar, select the icon and push the navigation pad.
5. A soft keyboard is displayed, where you can enter text by touching the screen.
6. When completed, touch Done on the soft keyboard.
17.3 Adding a text comment table
17.3.1 General
You can save a table with textual information to the image file. This feature is a very effi-
cient way of recording information when you are inspecting a large number of similar ob-
jects. The idea behind using a table with textual information is to avoid filling out forms or
inspection protocols manually.
The camera ships with an example text comment table template. You can also create
your own templates. For more information, see section 17.3.3 Creating a text comment
table template, page 77.
17.3.2 Procedure
Follow this procedure:
1. Open the image in the image archive.
2. Push the navigation pad to display the top toolbar.
3. On the top toolbar, select the icon and push the navigation pad.
4. On the right toolbar, select the icon and push the navigation pad. This displays a
table.
#T810190; r. AB/39747/39747; en-US 76
Annotating images17
5. (Optional step.) On the top toolbar, do one of the following:
• To clear the content of the current table, select the icon and push the naviga-
tion pad.
• To select another table template, select the icon and push the navigation pad.
6. For each row in the table, do the following:
• Push the navigation pad. This displays the predefined values.
• Push the navigation pad up/down to select a predefined value. Push the naviga-
tion pad to confirm.
• Instead of selecting a predefined value, you can select the keyboard icon and
enter other text by touching the screen.
Note Text entered by the keyboard will be saved to the text comment table tem-
plate. Next time you add a text comment table annotation, the entered text will be
displayed as a predefined value.
7. When completed, select Save & Exit at the bottom of the table. Push the navigation
pad to confirm.
17.3.3 Creating a text comment table template
17.3.3.1 General
You can create a text comment table template in different ways:
• Using FLIR Tools/Tools+, see section 17.3.3.2 Creating a table template using FLIR
Tools/Tools+, page 77.
• Manually creating a text comment file (*.tcf), see section 17.3.3.3 Manually creating a
table template, page 78.
17.3.3.2 Creating a table template using FLIR Tools/Tools+
17.3.3.2.1 General
In FLIR Tools/Tools+, you can create text annotation templates on the Templates tab.
These templates can either be transferred to the camera or used as a template during
post-analysis in the program.
17.3.3.2.2 Procedure
Follow this procedure:
1. Click the Templates tab.
2. Click the Add new text annotations template toolbar button.
3. Create a name for the template.
4. Enter the desired fields and values. See the image below for examples.
5. Save the template.
#T810190; r. AB/39747/39747; en-US 77
Annotating images17
6. Do one of the following:
• To use the template in the camera, connect a camera to FLIR Tools/Tools+ and
transfer the template to the camera.
• To use the template during post-analysis in FLIR Tools/Tools+, double-click an im-
age, and then click Import from template under Text annotations in the right pane.
17.3.3.3 Manually creating a table template
17.3.3.3.1 General
A text comment file (*.tcf) is an annotation format that is proprietary to FLIR Systems. It
defines a table structure that can be used to add text table annotations to FLIR images.
You can create text comment files (*.tcf files) and use these files as table templates in
the camera.
The camera ships with an example text comment table file: example_text_comment.tcf.
The file is stored on the memory card in the subfolder \TextTableTemplates. You can
make a copy of the example file and modify it using a text editor such as Microsoft
Notepad.
When creating or modifying a text comment file, keep the following rules in mind:
1. Lines starting with “#” are regarded as comments and will be ignored.
2. Lines that start with “<” and end with “>” are labels and will appear on the left-hand
side of the table.
3. Non-empty lines under a label line are regarded as values and will be displayed as
options to the label above.
4. When you save the file, select UTF-8 encoding. With UTF-8 encoding, the file will
support all languages currently supported by the camera.
5. The template will be updated by the camera if you add or remove values in the text ta-
ble annotations dialog in the camera. This enables you to modify its content while
you are working with the camera.
6. The camera will find all text table template files if:
• They are placed on the memory card in the subfolder \TextTableTemplates.
• They have an ASCII filename and the file extension .tcf. (ASCII characters include
a–z, A–Z, 0–9, and basic punctuation, and spaces can be used. The file can con-
tain non-ASCII text, but the filename must be ASCII.)
17.3.3.3.2 Example mark-up structure
The file format for the text comment table template is *.tcf. This code sample is an exam-
ple mark-up structure of such a file, and shows how the mark-up appears in a text editor
such as Notepad.
<Site>
Company A
Company B
<Location>
Substation A
<Object>
Engine
Vent
Vault
Door
<ObjectID>
A1a1
A1b2
A1c3
<Deviation>
Overload
Moisture
Draft
#T810190; r. AB/39747/39747; en-US 78
Annotating images17
<Remedy>
Replace
Fix
No action
<Severity>
Critical
Non-critical
<Severity>
17.4 Adding a voice annotation
17.4.1 General
A voice annotation is an audio recording that is saved to the infrared image file. The re-
cording can be played back in the camera, and in image analysis and reporting software
from FLIR Systems.
The voice annotation is recorded using the built-in microphone. You can also use a Blue-
tooth-enabled headset. For information on how to pair a headset with the camera, see
section 21 Pairing Bluetooth devices, page 84.
17.4.2 Procedure
Follow this procedure:
1. Open the image in the image archive.
2. Push the navigation pad to display the top toolbar.
3. On the top toolbar, select the icon and push the navigation pad.
4. On the right toolbar, select the icon and push the navigation pad.
5. A context menu is displayed.
6. To start a recording, select (Record) and push the navigation pad.
7. To stop the recording, select (Stop) and push the navigation pad.
8. To listen to the recording, select (Play) and push the navigation pad.
9. To delete the recording, select (Delete) and push the navigation pad.
10. When completed, select (Done) and push the navigation pad.
17.5 Adding a sketch
17.5.1 General
You can add a freehand drawing to an image.
#T810190; r. AB/39747/39747; en-US 79
Annotating images17
17.5.2 Procedure
Follow this procedure:
1. Open the image in the image archive.
2. Push the navigation pad to display the top toolbar.
3. On the top toolbar, select the icon and push the navigation pad.
4. On the right toolbar, select the icon and push the navigation pad.
5. You are now in sketch mode. Draw the sketch by touching the screen.
6. (Optional step.) Push the navigation pad. This displays a context menu. Do one or
more of the following:
• To change the color of the sketch tools, select (Draw) and push the navigation
pad. Select the color and push the navigation pad.
• To erase, select (Eraser) and push the navigation pad. Erase parts of the
sketch by touching the screen.
• To add an arrow, circle, or cross, select (Stamp sketch) and push the naviga-
tion pad. Select the type of stamp and push the navigation pad. The stamp is dis-
played in the center of the screen. You can move the stamp by using the
navigation pad or by touching the screen. When completed, push the navigation
pad.
• To clear, select (Clear all) and push the navigation pad.
• When the sketch is completed, select (Save) and push the navigation pad.
#T810190; r. AB/39747/39747; en-US 80
Programming the camera (time-
lapse)
18
18.1 General
You can program the camera to save images periodically (time-lapse).
18.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Recording mode >Time-lapse.
4. Push the navigation pad. This displays a dialog box where you can set the save
conditions:
•Save interval: Use the navigation pad to set the time interval between each saved
image.
•Total number of images: Periodic saving will stop when the set number of images
have been saved.
Note If you select “∞,” the camera will keep on saving images until the memory
card is full or until you manually stop the time-lapse.
5. Push the navigation pad. This closes the dialog box.
6. Push the back button repeatedly to exit the Settings menu.
7. The time interval is displayed at the top of the screen.
8. To start the time-lapse (periodic saving), pull and release the trigger.
9. To manually stop the time-lapse, pull and release the trigger.
10. When the time-lapse is completed, an information screen is displayed. Push any but-
ton or touch the screen to return to the live image.
#T810190; r. AB/39747/39747; en-US 81
Recording video clips
19
19.1 General
You can record and save video clips to the memory card.
Note The camera can be configured to save video in *.mpg or *.csq format. Select
(Settings) > Save options & storage >Video compression.
•Mpeg (*.mpg): Mpeg recordings cannot be edited after the file has been saved.
•Radiometric storage (*csq): A *.csq file supports full radiometry but is only supported
by FLIR Systems software. The file does not include any visual image information.
With this setting, only Thermal image mode is supported when recording video. If any
other image mode is active when Video recording mode is selected, the camera will
auto-switch to Thermal image mode.
19.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Recording mode >Video.
4. Push the back button to exit the Settings menu.
5. To start a recording, pull and release the trigger. A counter at the top of the screen
displays the duration of the recording.
6. To stop a recording, pull and release the trigger. The recording is automatically saved
to the image archive.
19.3 Playing a saved video clip
Follow this procedure:
1. Push the image archive button . This displays the Gallery with one or more
folders.
2. Select a folder and push the navigation pad.
3. Select the video clip you want to play and push the navigation pad.
4. Push the navigation pad to display the top toolbar.
5. On the top toolbar, select the icon and push the navigation pad.
6. To play or pause the video clip, push the navigation pad.
#T810190; r. AB/39747/39747; en-US 82
Screening alarm
20
20.1 General
The screening alarm can be used, for example, at airports to detect passengers with ele-
vated body temperatures, which may indicate the presence of a fever.
The screening alarm can also be used to detect temperature anomalies in a series of in-
spected objects in a similar/fixed setup.
Activating the screening mode will turn on a measurement box and screening data in the
result table.
The sampled average temperature.
The alarm temperature.
The measured temperature.
The alarm will trigger when the measurement box measures a temperature higher than
the alarm temperature. The alarm temperature is, in turn, the sum of a specified allowed
deviation and a sampled average value.
20.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Recording mode >Screening.
4. Push the navigation pad. This displays a dialog box where you can define the settings
for the alarm:
•Allowed deviation: The allowed deviation from the sampled average.
•Alarm sound: Applicable values are Beep or No sound.
5. Push the navigation pad. This closes the dialog box.
6. Push the back button repeatedly to exit the Settings menu.
7. Aim the camera toward a point of interest. The object should be within the frame of
the measurement box.
8. Push and hold the programmable button to reset the sampled average.
9. Push the programmable button to sample.
10. Aim the camera toward more points of interest. Sample 10 times to build up a sample
base by pushing the programmable button .
The alarm is now set up and ready to use. Occasionally record a few samples if the
alarm is used for a long time or if the conditions change.
Note
• The algorithm has a memory of the last 10 samples. It discriminates between the high-
est and lowest values, and calculates an average of the remaining values.
• Do not modify the measurement setup or activate another alarm because this will de-
activate the screening alarm.
#T810190; r. AB/39747/39747; en-US 83
Pairing Bluetooth devices
21
21.1 General
You can use the camera with the following Bluetooth devices:
• METERLiNK devices (FLIR meters).
• Bluetooth-enabled headsets.
Before you can use a Bluetooth device with the camera, you need to pair the devices.
The Bluetooth functionality is managed from the Settings menu. You can also enable/dis-
able Bluetooth on the swipe-down menu. For more information, see section 8.4 Swipe-
down menu, page 22.
21.2 Procedure
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Device settings >Connection >Bluetooth.
4. If the Bluetooth check box is unchecked, push the navigation pad to enable
Bluetooth.
Note You also need to ensure that the external Bluetooth device is in visible mode.
5. Select Available devices and push the navigation pad.
6. Wait until a list of available devices is displayed. This will take about 15 seconds.
7. When a Bluetooth device is found, select the device to add it, and begin the pairing
procedure. The device is then ready to be used.
Note
• Only METERLiNK devices (FLIR meters) and Bluetooth-enabled headsets will appear
in the list of available devices.
• You can add several devices.
• You can remove a device by selecting the device and then selecting Unpair device.
• After adding a METERLiNK device, such as the FLIR MR77 or FLIR DM93, the result
from the meter will be visible in the result table and stored with the images. For more
information, see section 23 Fetching data from external FLIR meters, page 87.
• After adding a Bluetooth-enabled headset, it is ready to be used for adding voice an-
notations. Adding a Bluetooth-enabled headset automatically disables the built-in mi-
crophone and speaker.
#T810190; r. AB/39747/39747; en-US 84
Configuring Wi-Fi
22
22.1 General
Depending on your camera configuration, you can connect the camera to a wireless local
area network (WLAN) using Wi-Fi, or let the camera provide Wi-Fi access to other
devices.
You can connect the camera in two different ways:
•Most common use: Setting up the camera as a wireless access point. This method is
primarily used with other devices, e.g., an iPhone or iPad.
•Less common use: Connecting the camera to a wireless local area network (WLAN).
The Wi-Fi functionality is managed from the Settings menu. You can also enable/disable
Wi-Fi on the swipe-down menu. For more information, see section 8.4 Swipe-down
menu, page 22.
22.2 Setting up a wireless access point (most
common use)
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Device settings >Connection >Wi-Fi.
4. Select Share and push the navigation pad.
5. (Optional step.) To display and change the parameters, select Share settings and
push the navigation pad.
• To change the SSID, select Network name (SSID) and push the navigation pad.
• To change the WPA2 password, select Password and push the navigation pad.
Note These parameters are set for your camera’s network. They will be used by the
external device to connect that device to the network.
22.3 Connecting the camera to a WLAN (less
common use)
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Device settings >Connection >Wi-Fi.
4. Select Connect to network and push the navigation pad.
5. To display a list of the available networks, select Available networks and push the
navigation pad.
6. Select one of the available networks and push the navigation pad.
Note Password-protected networks are indicated with a padlock icon, and for these
you will need to enter a password the first time you connect to the network. After that
the camera will connect automatically to the network. To disable the automatic con-
nection, select Forget network.
Note Some networks do not broadcast their existence. They appear in the list as Unti-
tled. To connect to such a network, you will be prompted to enter additional parameters.
#T810190; r. AB/39747/39747; en-US 85
Configuring Wi-Fi
22
22.4 Radio regulations settings
Select a country to set the Wi-Fi radio settings in accordance with local radio regulations.
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select (Settings) and push the navigation pad. This displays the Settings menu.
3. Use the navigation pad to select Device settings >Connection >Wi-Fi >Country.
4. Select a country and push the navigation pad.
#T810190; r. AB/39747/39747; en-US 86
Fetching data from external FLIR
meters
23
23.1 General
You can fetch data from some external FLIR meters that support Bluetooth and merge
this data into the infrared image. When the camera is connected to a FLIR meter via
Bluetooth, the measurement value from the meter is displayed in the result table of the
camera. The FLIR meter value is also added to the information saved in the image file.
In preview mode and when editing an image in the archive, you can add more than one
value from the same FLIR meter. The last added value is displayed below the previous
values. The live value is displayed with a dotted outline.
If the screen display for values is full, it is still possible to add more values from the FLIR
meter. Added values are then indicated by a box with a number that counts up each time
a new value is added.
To find out whether a FLIR meter is supported by the camera, consult the meter
documentation.
23.2 Technical support for external meters
Technical support
Website http://support.flir.com
E-mail TMsupport@flir.com
Phone 855-499-3662
Repairs repair@flir.com
23.3 Procedure
Note
• Before you can use a FLIR meter with the camera, you need to pair the devices. For
more information, see section 21 Pairing Bluetooth devices, page 84.
• To add more than one FLIR meter value when saving an image, preview mode must
be enabled. Select (Settings) > Save options and storage >Preview image before
saving =On.
Follow this procedure:
1. Turn on the camera.
2. Turn on the FLIR meter.
3. On the FLIR meter, enable Bluetooth mode. Refer to the user documentation for the
meter for information on how to do this.
4. On the FLIR meter, choose the quantity that you want to use (voltage, current, resist-
ance, etc.). Refer to the user documentation for the meter for information on how to
do this.
Results from the meter will now automatically be displayed in the result table in the
top left corner of the infrared camera screen.
#T810190; r. AB/39747/39747; en-US 87
Fetching data from external FLIR meters
23
5. On the camera, in preview mode and when editing an image in the archive, you can
do the following:
• Push the programmable button to add the value currently displayed by the
FLIR meter.
• Push and hold the programmable button to remove all FLIR meter values
from the image.
Note Any function assigned to the programmable button is temporarily disabled
when in preview mode or when editing an image in the archive.
23.4 Typical moisture measurement and
documentation procedure
23.4.1 General
The following procedure can form the basis for other procedures using FLIR meters and
infrared cameras.
23.4.2 Procedure
Follow this procedure:
1. Use the infrared camera to identify any potential damp areas behind walls and
ceilings.
2. Use the moisture meter to measure the moisture levels at various suspect locations
that may have been found.
3. When an area of particular interest is located, store the moisture reading in the mois-
ture meter’s memory and identify the measurement area with a handprint or other
thermal identifying marker.
4. Recall the reading from the meter memory. The moisture meter will now continuously
transmit this reading to the infrared camera.
5. Use the camera to take a thermal image of the area with the identifying marker. The
stored data from the moisture meter will also be saved on the image.
23.5 More information
For more information, see the user manuals that are shipped with FLIR meters.
#T810190; r. AB/39747/39747; en-US 88
Changing settings
24
24.1 General
You can change a variety of settings in the camera. You do this on the Settings menu.
The Settings menu includes the following:
•Recording mode.
•Connection.
•Camera temperature range.
•Save options & storage.
•Device settings.
24.1.1 Recording mode
The Recording mode is used to select:
•Single shot: This setting enables single shot mode. In this mode, you save an image
by pulling the trigger.
•Video: This setting enables video recording mode. For more information, see section
19 Recording video clips, page 82.
•Time-lapse: This setting enables time-lapse mode. For more information, see section
18 Programming the camera (time-lapse), page 81.
•Screening: This setting enables screening mode. For more information, see section
20 Screening alarm, page 83.
24.1.2 Connection
•Wi-Fi: This setting defines Wi-Fi networks. For more information, see section 22 Con-
figuring Wi-Fi, page 85.
•Bluetooth: This setting defines Bluetooth connectivity. For more information, see sec-
tion 21 Pairing Bluetooth devices, page 84.
24.1.3 Camera temperature range
For accurate temperature measurements, you must change the Camera temperature
range setting to suit the expected temperature of the object you are inspecting.
Available temperature range options are dependent on the camera model. The unit (℃
or ℉) depends on the temperature unit setting, see section 24.1.5 Device settings, page
90.
24.1.4 Save options & storage
•Preview image before saving: This setting defines if a preview image will be displayed
before the image is saved.
•Add annotation after saving: This setting defines if an annotation tool will be displayed
when the image has been saved. Available options are:
◦Save: No annotation tool will be displayed.
◦Save & add note: The note annotation tool will be displayed.
◦Save & add table: The table annotation tool will be displayed.
◦Save & add voice annotation: The voice annotation tool will be displayed.
◦Save & add sketch: The sketch annotation tool will be displayed.
◦Save & add any annotation: The annotation tool menu will be displayed.
•Video compression: This setting defines the storage format for video clips. Available
options are:
◦Mpeg (*.mpeg): MPEG recordings cannot be edited after the file has been saved.
◦Radiometric storage (*.csq): A CSQ file supports full radiometry but is only sup-
ported by FLIR Systems software. The file does not include any visual image infor-
mation. With this setting, only Thermal image mode is supported when recording
video.
#T810190; r. AB/39747/39747; en-US 89
Changing settings
24
•Photo as separate JPEG: For the Thermal MSX,Thermal, and Picture in picture im-
age modes, a visual image is always saved in the same JPEG file as the thermal im-
age. Enabling this setting saves an extra low-resolution visual image as a separate
JPEG file.
•Digital camera: This setting is used to turn on/off the digital camera. When the digital
camera is off, the images modes Thermal MSX and Picture in picture are disabled.
•Measure distance: This setting defines if the laser distance meter will be used to
measure the distance when an image is saved. With this setting, the measurement
parameter Object distance (see section 15.5 Changing the measurement parameters,
page 66) is automatically updated with the measured distance when an image is
saved.
•File naming format: This setting defines the naming format for new image/video files.
The setting has no impact on already saved files in the archive. Available options are:
◦DCF: DCF (Design rule for Camera File system) is a standard that specifies the
naming method of image files (and much more). With this setting, the name of a
saved image/video file will be FLIRxxxx, where xxxx is an incremental counter. Ex-
ample: FLIR0001.
◦Date prefix: A prefix will be added to the filename, including the date and the text
“IR_” for images and “MOV_” for videos. Examples: IR_2015-04-22_0002 and
MOV_2015-04-22_0003. The date format will follow the Date & time format setting,
see section 24.1.5 Device settings, page 90.
Note With the Date prefix setting, the files may not automatically be detected by
third-party applications.
•Delete all saved files...: This displays a dialog box where you can choose to perma-
nently delete all the saved files (images and videos) from the memory card or to can-
cel the delete action.
24.1.5 Device settings
•Language, time & units: This submenu includes settings for a number of regional
parameters:
◦Language.
◦Temperature unit.
◦Distance unit.
◦Time zone.
◦Date & time.
◦Date & time format.
•Focus: This submenu includes the following settings:
◦Autofocus: When autofocusing, the infrared camera can use one of the following
focus methods:
–Contrast: The focus is based on maximizing the image contrast.
–Laser: The focus is based on a laser distance measurement. The laser is on
when the camera is autofocusing.
◦Continuous autofocus: This setting is used to enable/disable continuous autofocus.
•Display settings: This submenu includes the following settings:
◦Screen rotation: This setting defines if the orientation of the overlay graphics will
change according to how you hold the camera.
Note You can also enable/disable screen rotation on the swipe-down menu. For
more information, see section 8.4 Swipe-down menu, page 22.
◦Image overlay information: This setting specifies what image information the cam-
era will display as an overlay on the image. For more information, see section 8.5
Image overlay information, page 22. You can select the following information to
display:
–Compass.
#T810190; r. AB/39747/39747; en-US 90
Changing settings
24
–Date & time.
–Emissivity.
–Reflected temperature.
–Distance.
–Relative humidity.
–Atmospheric temperature.
Note This setting only specifies what information to overlay on the image. All im-
age information is always saved to the image file and is available in the image
archive.
◦Screen brightness: The screen brightness slider is used to control the brightness
of the screen.
Note You can also control the screen brightness on the swipe-down menu. For
more information, see section 8.4 Swipe-down menu, page 22.
•Geolocation: This submenu includes the following settings:
◦GPS: This setting is used to enable/disable the GPS.
◦Compass: This setting is used to enable/disable the compass and to calibrate the
compass. For more information, see section 10.19 Calibrating the compass, page
45.
•Lamp & laser: This submenu includes the following settings:
◦Enable lamp & laser: This setting is used to enable the camera lamp, the laser dis-
tance meter, and the laser pointer.
◦Enable lamp & laser + Use lamp as flash: This setting is used to enable the flash
function. When the flash function is enabled, the camera lamp will flash when an
image is saved.
◦Disable all: This setting is used to disable the camera lamp, laser, and flash
function.
•Auto power off: This setting defines how soon the camera is automatically turned off.
Available choices are Off,5 min, and 20 min.
•User interface options: This submenu includes the following settings:
◦Manual adjustment mode: This setting specifies the type of manual image adjust-
ment mode. Available options are Level, Max, Min and Level, Span. For more infor-
mation, see section 13.3 Adjusting the infrared image, page 55.
◦Emissivity mode: This setting specifies how the measurement parameter emissivity
will be entered. Available options are Select values and Select from materials table.
For more information, see section 13.6 Changing the measurement parameters,
page 59.
•Volume: The volume slider is used to control the volume of the built-in speaker.
•Reset options: This submenu includes the following settings:
◦Reset default camera mode...: This setting will affect the image mode, color pa-
lette, measurement tools, and measurement parameters. Saved images will not be
affected.
◦Reset device settings to factory default...: This setting will affect all camera set-
tings, including regional settings. Saved images will not be affected. The camera
will be restarted and you will be prompted to set the regional settings.
◦Reset image counter...: This setting will reset the numbering of the image file-
names. To prevent image files being overwritten, the new counter value will be
based on the highest existing filename number in the image archive.
Note When a reset option is selected, a dialog box is displayed with more informa-
tion. You can choose to execute the reset action or to cancel.
•Camera information: This submenu displays information about the camera. No
changes can be made.
◦Model.
◦Serial number.
#T810190; r. AB/39747/39747; en-US 91
Changing settings
24
◦Part number.
◦Software: The version of the software.
◦Storage: The used and free space on the memory card.
◦Lens: The field of view of the lens.
◦Battery: The remaining battery capacity (in percent).
◦Register camera...: This will start the registration wizard. For more information, see
section 6 Register the camera, page 12.
◦Licenses: Open-source license information.
•Regulatory: Displays regulatory information about the camera. No changes can be
made.
#T810190; r. AB/39747/39747; en-US 92
Cleaning the camera
25
25.1 Camera housing, cables, and other items
25.1.1 Liquids
Use one of these liquids:
• Warm water
• A weak detergent solution
25.1.2 Equipment
A soft cloth
25.1.3 Procedure
Follow this procedure:
1. Soak the cloth in the liquid.
2. Twist the cloth to remove excess liquid.
3. Clean the part with the cloth.
CAUTION
Do not apply solvents or similar liquids to the camera, the cables, or other items. This can cause
damage.
25.2 Infrared lens
25.2.1 Liquids
Use one of these liquids:
• A commercial lens cleaning liquid with more than 30% isopropyl alcohol.
• 96% ethyl alcohol (C2H5OH).
25.2.2 Equipment
Cotton wool
25.2.3 Procedure
Follow this procedure:
1. Soak the cotton wool in the liquid.
2. Twist the cotton wool to remove excess liquid.
3. Clean the lens one time only and discard the cotton wool.
WARNING
Make sure that you read all applicable MSDS (Material Safety Data Sheets) and warning labels on con-
tainers before you use a liquid: the liquids can be dangerous.
CAUTION
• Be careful when you clean the infrared lens. The lens has a delicate anti-reflective coating.
• Do not clean the infrared lens too vigorously. This can damage the anti-reflective coating.
#T810190; r. AB/39747/39747; en-US 93
Cleaning the camera
25
25.3 Infrared detector
25.3.1 General
Even small amounts of dust on the infrared detector can result in major blemishes in the
image. To remove any dust from the detector, follow the procedure below.
Note
• This section only applies to cameras where removing the lens exposes the infrared
detector.
• In some cases the dust cannot be removed by following this procedure: the infrared
detector must be cleaned mechanically. This mechanical cleaning must be carried out
by an authorized service partner.
CAUTION
In Step 2 below, do not use pressurized air from pneumatic air circuits in a workshop, etc., as this air
usually contains oil mist to lubricate pneumatic tools.
25.3.2 Procedure
Follow this procedure:
1. Remove the lens from the camera.
2. Use pressurized air from a compressed air canister to blow off the dust.
#T810190; r. AB/39747/39747; en-US 94
Technical data
26
26.1 Online field-of-view calculator
Please visit http://support.flir.com and click the photo of the camera series for field-of-
view tables for all lens–camera combinations.
26.2 Note about technical data
FLIR Systems reserves the right to change specifications at any time without prior notice.
Please check http://support.flir.com for latest changes.
26.3 Note about authoritative versions
The authoritative version of this publication is English. In the event of divergences due to
translation errors, the English text has precedence.
Any late changes are first implemented in English.
#T810190; r. AB/39747/39747; en-US 95
Technical data26
26.4 FLIR E75 24°
P/N: 78502-0101
Rev.: 39643
Imaging and optical data
Infrared resolution 320 × 240 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 96
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• Optional 300–1000°C (572–1830°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 1 in live mode
Area No
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 97
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information No
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 98
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 99
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 ea)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002654
UPC-12 845188013882
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 100
Technical data26
26.5 FLIR E75 42°
P/N: 78503-0101
Rev.: 39643
Imaging and optical data
Infrared resolution 320 × 240 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <30 mK @ +30°C
Field of view 42° × 32°
Minimum focus distance 0.3 m (1.0 ft.)
Minimum focus distance with MSX 0.65 m (2.1 ft.)
Focal length 10 mm (0.39 in.)
Spatial resolution (IFOV) 1.66 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.1
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 101
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• Optional 300–1000°C (572–1830°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 1 in live mode
Area No
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 102
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information No
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 103
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 104
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 ea)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002661
UPC-12 845188013899
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 105
Technical data26
26.6 FLIR E75 24° + 14°
P/N: 78504-0101
Rev.: 39643
Imaging and optical data
Infrared resolution 320 × 240 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 106
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• Optional 300–1000°C (572–1830°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 1 in live mode
Area No
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 107
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information No
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 108
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 109
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 ea)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 14°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002739
UPC-12 845188013981
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 110
Technical data26
26.7 FLIR E75 24° + 42°
P/N: 78505-0101
Rev.: 39643
Imaging and optical data
Infrared resolution 320 × 240 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.4
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 111
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• Optional 300–1000°C (572–1830°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 1 in live mode
Area No
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 112
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information No
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 113
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 114
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 ea)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 42°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002746
UPC-12 845188013998
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 115
Technical data26
26.8 FLIR E75 24° + 14° & 42°
P/N: 78506-0101
Rev.: 39643
Imaging and optical data
Infrared resolution 320 × 240 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 116
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• Optional 300–1000°C (572–1830°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 1 in live mode
Area No
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 117
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information No
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 118
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 119
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 ea)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 14°
• Extra lens, 42°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002753
UPC-12 845188014001
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 120
Technical data26
26.9 FLIR E85 24°
P/N: 78502-0201
Rev.: 39643
Imaging and optical data
Infrared resolution 384 × 288 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 121
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• +300°C to +1200°C (572–2192°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 122
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 123
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 124
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002678
UPC-12 845188013905
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 125
Technical data26
26.10 FLIR E85 42°
P/N: 78503-0201
Rev.: 39643
Imaging and optical data
Infrared resolution 384 × 288 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <30 mK @ +30°C
Field of view 42° × 32°
Minimum focus distance 0.3 m (1.0 ft.)
Minimum focus distance with MSX 0.65 m (2.1 ft.)
Focal length 10 mm (0.39 in.)
Spatial resolution (IFOV) 1.66 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.1
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 126
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• +300°C to +1200°C (572–2192°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 127
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 128
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 129
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002685
UPC-12 845188013912
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 130
Technical data26
26.11 FLIR E85 24° + 14°
P/N: 78504-0201
Rev.: 39643
Imaging and optical data
Infrared resolution 384 × 288 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 131
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• +300°C to +1200°C (572–2192°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 132
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 133
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 134
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 14°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002777
UPC-12 845188014025
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 135
Technical data26
26.12 FLIR E85 24° + 42°
P/N: 78505-0201
Rev.: 39643
Imaging and optical data
Infrared resolution 384 × 288 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 136
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• +300°C to +1200°C (572–2192°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 137
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 138
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 139
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 42°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002784
UPC-12 845188014032
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 140
Technical data26
26.13 FLIR E85 24° + 14° & 42°
P/N: 78506-0201
Rev.: 39643
Imaging and optical data
Infrared resolution 384 × 288 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 141
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• +300°C to +1200°C (572–2192°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 142
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) No
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 143
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 144
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 14°
• Extra lens, 42°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002791
UPC-12 845188014049
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 145
Technical data26
26.14 FLIR E95 24°
P/N: 78502-0301
Rev.: 39643
Imaging and optical data
Infrared resolution 464 × 348 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 146
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• 300–1500°C (572–2732°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 147
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) 10 seconds to 24 hours (infrared)
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 148
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 149
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002692
UPC-12 845188013929
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 150
Technical data26
26.15 FLIR E95 42°
P/N: 78503-0301
Rev.: 39643
Imaging and optical data
Infrared resolution 464 × 348 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <30 mK @ +30°C
Field of view 42° × 32°
Minimum focus distance 0.3 m (1.0 ft.)
Minimum focus distance with MSX 0.65 m (2.1 ft.)
Focal length 10 mm (0.39 in.)
Spatial resolution (IFOV) 1.66 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.1
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 151
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• 300–1500°C (572–2732°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 152
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) 10 seconds to 24 hours (infrared)
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 153
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 154
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002708
UPC-12 845188013936
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 155
Technical data26
26.16 FLIR E95 24° + 14°
P/N: 78504-0301
Rev.: 39643
Imaging and optical data
Infrared resolution 464 × 348 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 156
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• 300–1500°C (572–2732°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 157
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) 10 seconds to 24 hours (infrared)
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 158
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 159
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 14°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002814
UPC-12 845188014063
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 160
Technical data26
26.17 FLIR E95 24° + 42°
P/N: 78505-0301
Rev.: 39643
Imaging and optical data
Infrared resolution 464 × 348 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 161
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• 300–1500°C (572–2732°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 162
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) 10 seconds to 24 hours (infrared)
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 163
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 164
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 42°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002821
UPC-12 845188014070
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 165
Technical data26
26.18 FLIR E95 24° + 14° & 42°
P/N: 78506-0301
Rev.: 39643
Imaging and optical data
Infrared resolution 464 × 348 pixels
UltraMax (super-resolution) In FLIR Tools
NETD <40 mK @ +30°C
Field of view 24° × 18°
Minimum focus distance 0.5 m (1.6 ft.)
Minimum focus distance with MSX 0.5 m (1.6 ft.)
Focal length 17 mm (0.67 in.)
Spatial resolution (IFOV) 0.90 mrad/pix
External optics • 14°
• 42°
Lens identification Automatic
f number 1.3
Image frequency 30 Hz
Focus Continuous, one-shot LDM (laser distance meter),
one-shot contrast, or manual
Field of view match Yes
Digital zoom 1–4× continuous
Panning No
Low-noise mode No
Digital image enhancement No
Detector data
Focal plane array/spectral range 7.5–14 µm
Detector pitch 17 µm
Image presentation
Resolution 640 × 480 pixels (VGA)
Surface brightness (cd/m2)400
Screen size 4 in.
Viewing angle 80°
Color depth (bits) 24
Aspect ratio 4:3
Auto-rotation Yes
Touchscreen Optically bonded PCAP
Display technology IPS
Cover glass material Dragontrail®
Programmable buttons 1
Viewfinder No
Image adjustment Yes
#T810190; r. AB/39747/39747; en-US 166
Technical data26
Image presentation modes
Infrared image Yes
Visual image Yes
Thermal fusion No
Blending No
MSX Yes
FSX No
Picture in picture Resizable and movable
Panorama No
Gallery Yes
Measurement
Object temperature range • –20 to +120°C (–4 to 248°F)
• 0–650°C (32–1200°F)
• 300–1500°C (572–2732°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient tem-
perature 15–35°C (59–95°F) and object tempera-
ture above 0°C (32°F)
Measurement analysis
Spotmeter 3 in live mode
Area 3 in live mode
Automatic hot/cold detection Auto-maximum/minimum markers within area
Color alarm (isotherm) • Above
• Below
• Interval
• Condensation
• Insulation
Profile No
Measurement presets • No measurements
• Center spot
• Hot spot
• Cold spot
• User preset 1
• User preset 2
Difference temperature Yes
Reference temperature Yes
Emissivity correction Yes: variable from 0.01 to 1.0 or selected from
materials list
Measurement correction Yes
External optics/windows correction Yes
Screening 0,5°C (0.9°F) accuracy @ 37°C (98.6°F) with
reference
Alarm
Moisture alarm Yes
Insulation alarm Yes
Measurement alarm Audible/visual alarms above/below
#T810190; r. AB/39747/39747; en-US 167
Technical data26
Setup
Color palettes • Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC
Setup commands Local adaptation of units, language, date and time
formats
Languages 21
Service functions
Camera software update Use PC software FLIR Tools
Storage of images
Storage media Removable memory; SD card (8 GB)
Time lapse (periodic image storage) 10 seconds to 24 hours (infrared)
Remote control operation • Using FLIR Tools (using USB cable)
• FLIR Tools Mobile (over Wi-Fi)
Image file format Standard JPEG, measurement data included. In-
frared-only mode
Image annotations
Voice 60 seconds built-in microphone and speaker (and
via Bluetooth) on still images and video
Text Text from predefined list or soft keyboard on
touchscreen
Visual image annotation Yes
Site recognition (barcode/QR/NFC) No
Image sketch Yes: on infrared images only
Sketch From touchscreen
METERLiNK Yes: several readings
Instant report No
Compass Yes
Laser distance meter information Yes
Area measurement information Yes
Sensors (built in) No
GPS Yes: location data automatically added to every
still image and the first frame in video from built-in
GPS
Video recording in camera
Radiometric infrared–video recording RTRR (.csq)
Non-radiometric infrared–video recording H.264 to memory card
Dual recording No
Visual video recording H.264 to memory card
Video streaming
Radiometric infrared–video streaming
(compressed)
Yes: over UVC or RTSP (Wi-Fi)
Non-radiometric video streaming (compressed:
IR, MSX, VIS, PIP) • H.264 (AVC) over RTSP (Wi-Fi)
• MPEG4 over RTSP (Wi-Fi)
• MJPEG over UVC and RTSP (Wi-Fi)
#T810190; r. AB/39747/39747; en-US 168
Technical data26
Video streaming
Dual streaming No
Visual video streaming No
Digital camera
Resolution 5 MP with LED light
Focus Fixed
Field of view 53° × 41°
Video lamp Built-in LED light
Laser pointer
Laser alignment Position is automatically displayed on the infrared
Laser distance meter Activated by a dedicated button
Laser Class 2, 0.05–40 m (1.6–131 ft.) ±1% of meas-
ured distance
Data communication interfaces
Interfaces USB 2.0, Bluetooth, Wi-Fi
Bluetooth Communication with headset and external
sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network)
Audio Microphone and speaker for voice annotation of
images
USB USB Type-C: data transfer/video/power
USB standard USB 2.0 High Speed
Video out DisplayPort
Video connector type DisplayPort over USB Type-C
Power system
Battery type Rechargeable Li-ion battery
Battery voltage 3.6 V
Battery operating time > 2.5 hours at 25°C (68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or
two-bay charger
Charging time (using two-bay charger) 2.5 hours to 90% capacity with charging status in-
dicated by LEDs
External power operation AC adapter 90–260 V AC, 50/60 Hz, or 12 V from
a vehicle (cable with standard plug—optional)
Power management Automatic shut-down and sleep mode
Environmental data
Operating temperature range –15 to +50°C (5–122°F)
Storage temperature range –40 to +70°C (-40 to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 hours/95% relative humidity
25–40°C (77–104°F)/two cycles
Electromagnetic compatibility • ETSI EN 301 489-1 (radio)
• ETSI EN 301 489-17
• EN 61000-6-2 (immunity)
• EN 61000-6-3 (emission)
• FCC 47 CFR Part 15 Class B (emission)
#T810190; r. AB/39747/39747; en-US 169
Technical data26
Environmental data
Radio spectrum • ETSI EN 300 328
• FCC Part 15.249
• RSS-247
Encapsulation IP 54 (IEC 60529)
Shock 25g(IEC 60068-2-27)
Vibration 2g(IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1
Physical data
Weight (including battery) 1 kg (2.2 lb.)
Size (L × W × H) 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight 140 g (4.9 oz.)
Battery size (L × W × H) 150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting UNC ¼″-20
Housing material PCABS with TPE, magnesium
Color Black
Warranty and service
Warranty http://www.flir.com/warranty/
Shipping information
Packaging, type Cardboard box
List of contents • Battery (2 of)
• Battery charger
• Cardboard box I
• Cardboard box II
• Cardboard box III
• Extra lens, 14°
• Extra lens, 42°
• Front protection
• Hand strap
• Hard transport case
• Infrared camera with lens
• Lanyard, battery charger
• Lanyard, camera
• Lens cap, front
• Lens cap, rear
• Lens cleaning cloth
• Power supply for battery charger
• Power supply, 15 W/3 A
• Printed documentation
• SD card (8 GB)
• Torx screwdriver
• USB 2.0 A to USB Type-C cable, 1 m
• USB Type-C to HDMI cable, standard specifi-
cation UH311
• USB Type-C to USB Type-C cable, 1.0 m
• Wrist strap
Packaging, weight
Packaging, size
EAN-13 4743254002838
UPC-12 845188014087
Country of origin Estonia
#T810190; r. AB/39747/39747; en-US 170
6,46in
164,2mm
4,57in
116,08mm
10,96in
278,39mm
0,91in
23,23mm
1,92in
48,81mm
4,45in
113,07mm
0,42in
10,55mm
1,95in
49,5mm
0,87in
22mm
0,4in
10,25mm
10,71in
271,96mm
1,9in
48,3mm
0,4in
10,25mm
7,64in
193,99mm
3,27in
82,96mm
2,29in
58,18mm
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
1(1)
T130127
Basic dimension drawing Exx
FRGU
2016-12-20
R&D Instruments
Modified
12345678910
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Rev
B
1:2
Scale
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
Application examples
28
28.1 Moisture & water damage
28.1.1 General
It is often possible to detect moisture and water damage in a house by using an infrared
camera. This is partly because the damaged area has a different heat conduction prop-
erty and partly because it has a different thermal capacity to store heat than the sur-
rounding material.
Many factors can come into play as to how moisture or water damage will appear in an
infrared image.
For example, heating and cooling of these parts takes place at different rates depending
on the material and the time of day. For this reason, it is important that other methods are
used as well to check for moisture or water damage.
28.1.2 Figure
The image below shows extensive water damage on an external wall where the water
has penetrated the outer facing because of an incorrectly installed window ledge.
28.2 Faulty contact in socket
28.2.1 General
Depending on the type of connection a socket has, an improperly connected wire can re-
sult in local temperature increase. This temperature increase is caused by the reduced
contact area between the connection point of the incoming wire and the socket , and can
result in an electrical fire.
A socket’s construction may differ dramatically from one manufacturer to another. For
this reason, different faults in a socket can lead to the same typical appearance in an in-
frared image.
Local temperature increase can also result from improper contact between wire and
socket, or from difference in load.
28.2.2 Figure
The image below shows a connection of a cable to a socket where improper contact in
the connection has resulted in local temperature increase.
#T810190; r. AB/39747/39747; en-US 173
Application examples28
28.3 Oxidized socket
28.3.1 General
Depending on the type of socket and the environment in which the socket is installed, ox-
ides may occur on the socket's contact surfaces. These oxides can lead to locally in-
creased resistance when the socket is loaded, which can be seen in an infrared image
as local temperature increase.
A socket’s construction may differ dramatically from one manufacturer to another. For
this reason, different faults in a socket can lead to the same typical appearance in an in-
frared image.
Local temperature increase can also result from improper contact between a wire and
socket, or from difference in load.
28.3.2 Figure
The image below shows a series of fuses where one fuse has a raised temperature on
the contact surfaces against the fuse holder. Because of the fuse holder’s blank metal,
the temperature increase is not visible there, while it is visible on the fuse’s ceramic
material.
#T810190; r. AB/39747/39747; en-US 174
Application examples28
28.4 Insulation deficiencies
28.4.1 General
Insulation deficiencies may result from insulation losing volume over the course of time
and thereby not entirely filling the cavity in a frame wall.
An infrared camera allows you to see these insulation deficiencies because they either
have a different heat conduction property than sections with correctly installed insulation,
and/or show the area where air is penetrating the frame of the building.
When you are inspecting a building, the temperature difference between the inside and
outside should be at least 10°C (18°F). Studs, water pipes, concrete columns, and simi-
lar components may resemble an insulation deficiency in an infrared image. Minor differ-
ences may also occur naturally.
28.4.2 Figure
In the image below, insulation in the roof framing is lacking. Due to the absence of insula-
tion, air has forced its way into the roof structure, which thus takes on a different charac-
teristic appearance in the infrared image.
28.5 Draft
28.5.1 General
Draft can be found under baseboards, around door and window casings, and above ceil-
ing trim. This type of draft is often possible to see with an infrared camera, as a cooler
airstream cools down the surrounding surface.
When you are investigating draft in a house, there should be sub-atmospheric pressure
in the house. Close all doors, windows, and ventilation ducts, and allow the kitchen fan
to run for a while before you take the infrared images.
An infrared image of draft often shows a typical stream pattern. You can see this stream
pattern clearly in the picture below.
Also keep in mind that drafts can be concealed by heat from floor heating circuits.
28.5.2 Figure
The image below shows a ceiling hatch where faulty installation has resulted in a strong
draft.
#T810190; r. AB/39747/39747; en-US 175
About FLIR Systems
29
FLIR Systems was established in 1978 to pioneer the development of high-performance
infrared imaging systems, and is the world leader in the design, manufacture, and mar-
keting of thermal imaging systems for a wide variety of commercial, industrial, and gov-
ernment applications. Today, FLIR Systems embraces five major companies with
outstanding achievements in infrared technology since 1958—the Swedish AGEMA In-
frared Systems (formerly AGA Infrared Systems), the three United States companies In-
digo Systems, FSI, and Inframetrics, and the French company Cedip.
Since 2007, FLIR Systems has acquired several companies with world-leading expertise
in sensor technologies:
• Extech Instruments (2007)
• Ifara Tecnologías (2008)
• Salvador Imaging (2009)
• OmniTech Partners (2009)
• Directed Perception (2009)
• Raymarine (2010)
• ICx Technologies (2010)
• TackTick Marine Digital Instruments (2011)
• Aerius Photonics (2011)
• Lorex Technology (2012)
• Traficon (2012)
• MARSS (2013)
• DigitalOptics micro-optics business (2013)
• DVTEL (2015)
• Point Grey Research (2016)
• Prox Dynamics (2016)
Figure 29.1 Patent documents from the early 1960s
FLIR Systems has three manufacturing plants in the United States (Portland, OR, Bos-
ton, MA, Santa Barbara, CA) and one in Sweden (Stockholm). Since 2007 there is also a
manufacturing plant in Tallinn, Estonia. Direct sales offices in Belgium, Brazil, China,
France, Germany, Great Britain, Hong Kong, Italy, Japan, Korea, Sweden, and the USA
—together with a worldwide network of agents and distributors—support our internation-
al customer base.
#T810190; r. AB/39747/39747; en-US 177
About FLIR Systems
29
FLIR Systems is at the forefront of innovation in the infrared camera industry. We antici-
pate market demand by constantly improving our existing cameras and developing new
ones. The company has set milestones in product design and development such as the
introduction of the first battery-operated portable camera for industrial inspections, and
the first uncooled infrared camera, to mention just two innovations.
Figure 29.2 1969: Thermovision Model 661. The
camera weighed approximately 25 kg (55 lb.), the
oscilloscope 20 kg (44 lb.), and the tripod 15 kg
(33 lb.). The operator also needed a 220 VAC
generator set, and a 10 L (2.6 US gallon) jar with
liquid nitrogen. To the left of the oscilloscope the
Polaroid attachment (6 kg/13 lb.) can be seen.
Figure 29.3 2015: FLIR One, an accessory to
iPhone and Android mobile phones. Weight: 90 g
(3.2 oz.).
FLIR Systems manufactures all vital mechanical and electronic components of the cam-
era systems itself. From detector design and manufacturing, to lenses and system elec-
tronics, to final testing and calibration, all production steps are carried out and
supervised by our own engineers. The in-depth expertise of these infrared specialists en-
sures the accuracy and reliability of all vital components that are assembled into your in-
frared camera.
29.1 More than just an infrared camera
At FLIR Systems we recognize that our job is to go beyond just producing the best infra-
red camera systems. We are committed to enabling all users of our infrared camera sys-
tems to work more productively by providing them with the most powerful camera–
software combination. Especially tailored software for predictive maintenance, R & D,
and process monitoring is developed in-house. Most software is available in a wide varie-
ty of languages.
We support all our infrared cameras with a wide variety of accessories to adapt your
equipment to the most demanding infrared applications.
29.2 Sharing our knowledge
Although our cameras are designed to be very user-friendly, there is a lot more to ther-
mography than just knowing how to handle a camera. Therefore, FLIR Systems has
founded the Infrared Training Center (ITC), a separate business unit, that provides certi-
fied training courses. Attending one of the ITC courses will give you a truly hands-on
learning experience.
The staff of the ITC are also there to provide you with any application support you may
need in putting infrared theory into practice.
#T810190; r. AB/39747/39747; en-US 178
About FLIR Systems
29
29.3 Supporting our customers
FLIR Systems operates a worldwide service network to keep your camera running at all
times. If you discover a problem with your camera, local service centers have all the
equipment and expertise to solve it within the shortest possible time. Therefore, there is
no need to send your camera to the other side of the world or to talk to someone who
does not speak your language.
#T810190; r. AB/39747/39747; en-US 179
Definitions and laws
30
Term Definition
Absorption and emission2The capacity or ability of an object to absorb incident radi-
ated energy is always the same as the capacity to emit its
own energy as radiation
Apparent temperature uncompensated reading from an infrared instrument, con-
taining all radiation incident on the instrument, regardless of
its sources3
Color palette assigns different colors to indicate specific levels of apparent
temperature. Palettes can provide high or low contrast, de-
pending on the colors used in them
Conduction direct transfer of thermal energy from molecule to molecule,
caused by collisions between the molecules
Convection heat transfer mode where a fluid is brought into motion, ei-
ther by gravity or another force, thereby transferring heat
from one place to another
Diagnostics examination of symptoms and syndromes to determine the
nature of faults or failures4
Direction of heat transfer5Heat will spontaneously flow from hotter to colder, thereby
transferring thermal energy from one place to another6
Emissivity ratio of the power radiated by real bodies to the power that is
radiated by a blackbody at the same temperature and at the
same wavelength7
Energy conservation8The sum of the total energy contents in a closed system is
constant
Exitant radiation radiation that leaves the surface of an object, regardless of
its original sources
Heat thermal energy that is transferred between two objects (sys-
tems) due to their difference in temperature
Heat transfer rate9The heat transfer rate under steady state conditions is di-
rectly proportional to the thermal conductivity of the object,
the cross-sectional area of the object through which the heat
flows, and the temperature difference between the two ends
of the object. It is inversely proportional to the length, or
thickness, of the object10
Incident radiation radiation that strikes an object from its surroundings
IR thermography process of acquisition and analysis of thermal information
from non-contact thermal imaging devices
Isotherm replaces certain colors in the scale with a contrasting color. It
marks an interval of equal apparent temperature11
Qualitative thermography thermography that relies on the analysis of thermal patterns
to reveal the existence of and to locate the position of
anomalies12
Quantitative thermography thermography that uses temperature measurement to deter-
mine the seriousness of an anomaly, in order to establish re-
pair priorities12
#T810190; r. AB/39747/39747; en-US 180
2. Kirchhoff’s law of thermal radiation.
3. Based on ISO 18434-1:2008 (en).
4. Based on ISO 13372:2004 (en).
5. 2nd law of thermodynamics.
6. This is a consequence of the 2nd law of thermodynamics, the law itself is more complicated.
7. Based on ISO 16714-3:2016 (en).
8. 1st law of thermodynamics.
9. Fourier’s law.
10.This is the one-dimensional form of Fourier’s law, valid for steady-state conditions.
11.Based on ISO 18434-1:2008 (en)
12.Based on ISO 10878-2013 (en).
Definitions and laws
30
Term Definition
Radiative heat transfer Heat transfer by the emission and absorption of thermal
radiation
Reflected apparent temperature apparent temperature of the environment that is reflected by
the target into the IR camera13
Spatial resolution ability of an IR camera to resolve small objects or details
Temperature measure of the average kinetic energy of the molecules and
atoms that make up the substance
Thermal energy total kinetic energy of the molecules that make up the
object14
Thermal gradient gradual change in temperature over distance13
Thermal tuning process of putting the colors of the image on the object of
analysis, in order to maximize contrast
#T810190; r. AB/39747/39747; en-US 181
13.Based on ISO 16714-3:2016 (en).
14.Thermal energy is part of the internal energy of an object.
Thermographic measurement
techniques
31
31.1 Introduction
An infrared camera measures and images the emitted infrared radiation from an object.
The fact that radiation is a function of object surface temperature makes it possible for
the camera to calculate and display this temperature.
However, the radiation measured by the camera does not only depend on the tempera-
ture of the object but is also a function of the emissivity. Radiation also originates from
the surroundings and is reflected in the object. The radiation from the object and the re-
flected radiation will also be influenced by the absorption of the atmosphere.
To measure temperature accurately, it is therefore necessary to compensate for the ef-
fects of a number of different radiation sources. This is done on-line automatically by the
camera. The following object parameters must, however, be supplied for the camera:
• The emissivity of the object
• The reflected apparent temperature
• The distance between the object and the camera
• The relative humidity
• Temperature of the atmosphere
31.2 Emissivity
The most important object parameter to set correctly is the emissivity which, in short, is a
measure of how much radiation is emitted from the object, compared to that from a per-
fect blackbody of the same temperature.
Normally, object materials and surface treatments exhibit emissivity ranging from approx-
imately 0.1 to 0.95. A highly polished (mirror) surface falls below 0.1, while an oxidized
or painted surface has a higher emissivity. Oil-based paint, regardless of color in the visi-
ble spectrum, has an emissivity over 0.9 in the infrared. Human skin exhibits an emissiv-
ity 0.97 to 0.98.
Non-oxidized metals represent an extreme case of perfect opacity and high reflexivity,
which does not vary greatly with wavelength. Consequently, the emissivity of metals is
low – only increasing with temperature. For non-metals, emissivity tends to be high, and
decreases with temperature.
31.2.1 Finding the emissivity of a sample
31.2.1.1 Step 1: Determining reflected apparent temperature
Use one of the following two methods to determine reflected apparent temperature:
#T810190; r. AB/39747/39747; en-US 182
Thermographic measurement techniques31
31.2.1.1.1 Method 1: Direct method
Follow this procedure:
1. Look for possible reflection sources, considering that the incident angle = reflection
angle (a = b).
Figure 31.1 1 = Reflection source
2. If the reflection source is a spot source, modify the source by obstructing it using a
piece if cardboard.
Figure 31.2 1 = Reflection source
#T810190; r. AB/39747/39747; en-US 183
Thermographic measurement techniques31
3. Measure the radiation intensity (= apparent temperature) from the reflection source
using the following settings:
• Emissivity: 1.0
• Dobj: 0
You can measure the radiation intensity using one of the following two methods:
Figure 31.3 1 = Reflection source Figure 31.4 1 = Reflection source
You can not use a thermocouple to measure reflected apparent temperature, because a
thermocouple measures temperature, but apparent temperatrure is radiation intensity.
31.2.1.1.2 Method 2: Reflector method
Follow this procedure:
1. Crumble up a large piece of aluminum foil.
2. Uncrumble the aluminum foil and attach it to a piece of cardboard of the same size.
3. Put the piece of cardboard in front of the object you want to measure. Make sure that
the side with aluminum foil points to the camera.
4. Set the emissivity to 1.0.
#T810190; r. AB/39747/39747; en-US 184
Thermographic measurement techniques31
5. Measure the apparent temperature of the aluminum foil and write it down. The foil is
considered a perfect reflector, so its apparent temperature equals the reflected appa-
rent temperature from the surroundings.
Figure 31.5 Measuring the apparent temperature of the aluminum foil.
31.2.1.2 Step 2: Determining the emissivity
Follow this procedure:
1. Select a place to put the sample.
2. Determine and set reflected apparent temperature according to the previous
procedure.
3. Put a piece of electrical tape with known high emissivity on the sample.
4. Heat the sample at least 20 K above room temperature. Heating must be reasonably
even.
5. Focus and auto-adjust the camera, and freeze the image.
6. Adjust Level and Span for best image brightness and contrast.
7. Set emissivity to that of the tape (usually 0.97).
8. Measure the temperature of the tape using one of the following measurement
functions:
•Isotherm (helps you to determine both the temperature and how evenly you have
heated the sample)
•Spot (simpler)
•Box Avg (good for surfaces with varying emissivity).
9. Write down the temperature.
10. Move your measurement function to the sample surface.
11. Change the emissivity setting until you read the same temperature as your previous
measurement.
12. Write down the emissivity.
Note
• Avoid forced convection
• Look for a thermally stable surrounding that will not generate spot reflections
• Use high quality tape that you know is not transparent, and has a high emissivity you
are certain of
• This method assumes that the temperature of your tape and the sample surface are
the same. If they are not, your emissivity measurement will be wrong.
#T810190; r. AB/39747/39747; en-US 185
Thermographic measurement techniques31
31.3 Reflected apparent temperature
This parameter is used to compensate for the radiation reflected in the object. If the
emissivity is low and the object temperature relatively far from that of the reflected it will
be important to set and compensate for the reflected apparent temperature correctly.
31.4 Distance
The distance is the distance between the object and the front lens of the camera. This
parameter is used to compensate for the following two facts:
• That radiation from the target is absorbed by the atmosphere between the object and
the camera.
• That radiation from the atmosphere itself is detected by the camera.
31.5 Relative humidity
The camera can also compensate for the fact that the transmittance is also dependent
on the relative humidity of the atmosphere. To do this set the relative humidity to the cor-
rect value. For short distances and normal humidity the relative humidity can normally be
left at a default value of 50%.
31.6 Other parameters
In addition, some cameras and analysis programs from FLIR Systems allow you to com-
pensate for the following parameters:
• Atmospheric temperature – i.e. the temperature of the atmosphere between the cam-
era and the target
• External optics temperature – i.e. the temperature of any external lenses or windows
used in front of the camera
• External optics transmittance – i.e. the transmission of any external lenses or windows
used in front of the camera
#T810190; r. AB/39747/39747; en-US 186
About calibration
32
32.1 Introduction
Calibration of a thermal camera is a prerequisite for temperature measurement. The cali-
bration provides the relationship between the input signal and the physical quantity that
the user wants to measure. However, despite its widespread and frequent use, the term
“calibration” is often misunderstood and misused. Local and national differences as well
as translation-related issues create additional confusion.
Unclear terminology can lead to difficulties in communication and erroneous translations,
and subsequently to incorrect measurements due to misunderstandings and, in the worst
case, even to lawsuits.
32.2 Definition—what is calibration?
The International Bureau of Weights and Measures15 defines calibration16 as an opera-
tion that, under specified conditions,
• in a first step establishes a relation between the quantity values with measurement un-
certainties provided by measurement standards and corresponding indications with
associated measurement uncertainties (of the calibrated instrument or secondary
standard) and
• in a second step uses this information to establish a relation for obtaining a measure-
ment result from an indication.
The calibration itself may be expressed in different formats: this can be a statement, cali-
bration function, calibration diagram17, calibration curve18, or calibration table.
Often, the first step alone in the above definition is perceived and referred to as being
“calibration.” However, this is not (always) sufficient.
Considering the calibration procedure of a thermal camera, the first step establishes the
relation between emitted radiation (the quantity value) and the electrical output signal
(the indication). This first step of the calibration procedure consists of obtaining a homo-
geneous (or uniform) response when the camera is placed in front of an extended source
of radiation.
As we know the temperature of the reference source emitting the radiation, in the second
step the obtained output signal (the indication) can be related to the reference source’s
temperature (measurement result). The second step includes drift measurement and
compensation.
To be correct, calibration of a thermal camera is, strictly, not expressed through tempera-
ture. Thermal cameras are sensitive to infrared radiation: therefore, at first you obtain a
radiance correspondence, then a relationship between radiance and temperature. For
bolometer cameras used by non-R&D customers, radiance is not expressed: only the
temperature is provided.
32.3 Camera calibration at FLIR Systems
Without calibration, an infrared camera would not be able to measure either radiance or
temperature. At FLIR Systems, the calibration of uncooled microbolometer cameras with
a measurement capability is carried out during both production and service. Cooled cam-
eras with photon detectors are often calibrated by the user with special software. With
this type of software, in theory, common handheld uncooled thermal cameras could be
#T810190; r. AB/39747/39747; en-US 187
15.http://www.bipm.org/en/about-us/ [Retrieved 2016-10-17.]
16.http://jcgm.bipm.org/vim/en/2.39.html [Retrieved 2016-10-17.]
17.http://jcgm.bipm.org/vim/en/4.30.html [Retrieved 2016-10-17.]
18.http://jcgm.bipm.org/vim/en/4.31.html [Retrieved 2016-10-17.]
About calibration32
calibrated by the user too. However, as this software is not suitable for reporting pur-
poses, most users do not have it. Non-measuring devices that are used for imaging only
do not need temperature calibration. Sometimes this is also reflected in camera terminol-
ogy when talking about infrared or thermal imaging cameras compared with thermogra-
phy cameras, where the latter are the measuring devices.
The calibration information, no matter if the calibration is done by FLIR Systems or the
user, is stored in calibration curves, which are expressed by mathematical functions. As
radiation intensity changes with both temperature and the distance between the object
and the camera, different curves are generated for different temperature ranges and ex-
changeable lenses.
32.4 The differences between a calibration
performed by a user and that performed directly
at FLIR Systems
First, the reference sources that FLIR Systems uses are themselves calibrated and
traceable. This means, at each FLIR Systems site performing calibration, that the sour-
ces are controlled by an independent national authority. The camera calibration certifi-
cate is confirmation of this. It is proof that not only has the calibration been performed by
FLIR Systems but that it has also been carried out using calibrated references. Some
users own or have access to accredited reference sources, but they are very few in
number.
Second, there is a technical difference. When performing a user calibration, the result is
often (but not always) not drift compensated. This means that the values do not take into
account a possible change in the camera’s output when the camera’s internal tempera-
ture varies. This yields a larger uncertainty. Drift compensation uses data obtained in cli-
mate-controlled chambers. All FLIR Systems cameras are drift compensated when they
are first delivered to the customer and when they are recalibrated by FLIR Systems Cus-
tomer Support.
32.5 Calibration verification and adjustment
A common misconception is to confuse calibration with verification or adjustment. In-
deed, calibration is a prerequisite for verification, which provides confirmation that speci-
fied requirements are met. Verification provides objective evidence that a given item
fulfills specified requirements. To obtain the verification, defined temperatures (emitted
radiation) of calibrated and traceable reference sources are measured. The measure-
ment results, including the deviation, are noted in a table. The verification certificate
states that these measurement results meet specified requirements. Sometimes, compa-
nies or organizations offer and market this verification certificate as a ”calibration
certificate.”
Proper verification—and by extension calibration and/or recalibration—can only be
achieved when a validated protocol is respected. The process is more than placing the
camera in front of blackbodies and checking if the camera output (as temperature, for in-
stance) corresponds to the original calibration table. It is often forgotten that a camera is
not sensitive to temperature but to radiation. Furthermore, a camera is an imaging sys-
tem, not just a single sensor. Consequently, if the optical configuration allowing the cam-
era to “collect” radiance is poor or misaligned, then the “verification” (or calibration or
recalibration) is worthless!
For instance, one has to ensure that the distance between the blackbody and the camera
as well as the diameter of the blackbody cavity are chosen so as to reduce stray radiation
and the size-of-source effect.
To summarize: a validated protocol must comply with the physical laws for radiance, and
not only those for temperature.
#T810190; r. AB/39747/39747; en-US 188
About calibration32
Calibration is also a prerequisite for adjustment, which is the set of operations carried out
on a measuring system such that the system provides prescribed indications corre-
sponding to given values of quantities to be measured, typically obtained from measure-
ment standards. Simplified, adjustment is a manipulation that results in instruments that
measure correctly within their specifications. In everyday language, the term “calibration”
is widely used instead of “adjustment” for measuring devices.
32.6 Non-uniformity correction
When the thermal camera displays ”Calibrating…” it is adjusting for the deviation in re-
sponse of each individual detector element (pixel). In thermography, this is called a ”non-
uniformity correction” (NUC). It is an offset update, and the gain remains unchanged.
The draft European standard EN 16714-3, Non-destructive Testing—Thermographic
Testing—Part 3: Terms and Definitions, defines an NUC as “Image correction carried out
by the camera software to compensate for different sensitivities of detector elements and
other optical and geometrical disturbances.”
During the NUC (the offset update), a shutter (internal flag) is placed in the optical path,
and all the detector elements are exposed to the same amount of radiation originating
from the shutter. Therefore, in an ideal situation, they should all give the same output sig-
nal. However, each individual element has its own response, so the output is not uniform.
This deviation from the ideal result is calculated and used to mathematically perform an
image correction, which is essentially a correction of the displayed radiation signal.
Some cameras do not have an internal flag. In this case, the offset update must be per-
formed manually using special software and an external uniform source of radiation.
An NUC is performed, for example, at start-up, when changing a measurement range, or
when the environment temperature changes. Some cameras also allow the user to trig-
ger it manually. This is useful when you have to perform a critical measurement with as
little image disturbance as possible.
32.7 Thermal image adjustment (thermal
tuning)
Some people use the term “image calibration” when adjusting the thermal contrast and
brightness in the image to enhance specific details. During this operation, the tempera-
ture interval is set in such a way that all available colors are used to show only (or mainly)
the temperatures in the region of interest. The correct term for this manipulation is “ther-
mal image adjustment” or “thermal tuning”, or, in some languages, “thermal image optimi-
zation.” You must be in manual mode to undertake this, otherwise the camera will set the
lower and upper limits of the displayed temperature interval automatically to the coldest
and hottest temperatures in the scene.
#T810190; r. AB/39747/39747; en-US 189
History of infrared technology
33
Before the year 1800, the existence of the infrared portion of the electromagnetic spec-
trum wasn't even suspected. The original significance of the infrared spectrum, or simply
‘the infrared’ as it is often called, as a form of heat radiation is perhaps less obvious to-
day than it was at the time of its discovery by Herschel in 1800.
Figure 33.1 Sir William Herschel (1738–1822)
The discovery was made accidentally during the search for a new optical material. Sir
William Herschel – Royal Astronomer to King George III of England, and already famous
for his discovery of the planet Uranus – was searching for an optical filter material to re-
duce the brightness of the sun’s image in telescopes during solar observations. While
testing different samples of colored glass which gave similar reductions in brightness he
was intrigued to find that some of the samples passed very little of the sun’s heat, while
others passed so much heat that he risked eye damage after only a few seconds’
observation.
Herschel was soon convinced of the necessity of setting up a systematic experiment,
with the objective of finding a single material that would give the desired reduction in
brightness as well as the maximum reduction in heat. He began the experiment by ac-
tually repeating Newton’s prism experiment, but looking for the heating effect rather than
the visual distribution of intensity in the spectrum. He first blackened the bulb of a sensi-
tive mercury-in-glass thermometer with ink, and with this as his radiation detector he pro-
ceeded to test the heating effect of the various colors of the spectrum formed on the top
of a table by passing sunlight through a glass prism. Other thermometers, placed outside
the sun’s rays, served as controls.
As the blackened thermometer was moved slowly along the colors of the spectrum, the
temperature readings showed a steady increase from the violet end to the red end. This
was not entirely unexpected, since the Italian researcher, Landriani, in a similar experi-
ment in 1777 had observed much the same effect. It was Herschel, however, who was
the first to recognize that there must be a point where the heating effect reaches a maxi-
mum, and that measurements confined to the visible portion of the spectrum failed to lo-
cate this point.
Figure 33.2 Marsilio Landriani (1746–1815)
Moving the thermometer into the dark region beyond the red end of the spectrum, Her-
schel confirmed that the heating continued to increase. The maximum point, when he
found it, lay well beyond the red end – in what is known today as the ‘infrared
wavelengths’.
#T810190; r. AB/39747/39747; en-US 190
History of infrared technology
33
When Herschel revealed his discovery, he referred to this new portion of the electromag-
netic spectrum as the ‘thermometrical spectrum’. The radiation itself he sometimes re-
ferred to as ‘dark heat’, or simply ‘the invisible rays’. Ironically, and contrary to popular
opinion, it wasn't Herschel who originated the term ‘infrared’. The word only began to ap-
pear in print around 75 years later, and it is still unclear who should receive credit as the
originator.
Herschel’s use of glass in the prism of his original experiment led to some early contro-
versies with his contemporaries about the actual existence of the infrared wavelengths.
Different investigators, in attempting to confirm his work, used various types of glass in-
discriminately, having different transparencies in the infrared. Through his later experi-
ments, Herschel was aware of the limited transparency of glass to the newly-discovered
thermal radiation, and he was forced to conclude that optics for the infrared would prob-
ably be doomed to the use of reflective elements exclusively (i.e. plane and curved mir-
rors). Fortunately, this proved to be true only until 1830, when the Italian investigator,
Melloni, made his great discovery that naturally occurring rock salt (NaCl) – which was
available in large enough natural crystals to be made into lenses and prisms – is remark-
ably transparent to the infrared. The result was that rock salt became the principal infra-
red optical material, and remained so for the next hundred years, until the art of synthetic
crystal growing was mastered in the 1930’s.
Figure 33.3 Macedonio Melloni (1798–1854)
Thermometers, as radiation detectors, remained unchallenged until 1829, the year Nobili
invented the thermocouple. (Herschel’s own thermometer could be read to 0.2 °C
(0.036 °F), and later models were able to be read to 0.05 °C (0.09 °F)). Then a break-
through occurred; Melloni connected a number of thermocouples in series to form the
first thermopile. The new device was at least 40 times as sensitive as the best thermome-
ter of the day for detecting heat radiation – capable of detecting the heat from a person
standing three meters away.
The first so-called ‘heat-picture’ became possible in 1840, the result of work by Sir John
Herschel, son of the discoverer of the infrared and a famous astronomer in his own right.
Based upon the differential evaporation of a thin film of oil when exposed to a heat pat-
tern focused upon it, the thermal image could be seen by reflected light where the inter-
ference effects of the oil film made the image visible to the eye. Sir John also managed
to obtain a primitive record of the thermal image on paper, which he called a
‘thermograph’.
#T810190; r. AB/39747/39747; en-US 191
History of infrared technology
33
Figure 33.4 Samuel P. Langley (1834–1906)
The improvement of infrared-detector sensitivity progressed slowly. Another major break-
through, made by Langley in 1880, was the invention of the bolometer. This consisted of
a thin blackened strip of platinum connected in one arm of a Wheatstone bridge circuit
upon which the infrared radiation was focused and to which a sensitive galvanometer re-
sponded. This instrument is said to have been able to detect the heat from a cow at a
distance of 400 meters.
An English scientist, Sir James Dewar, first introduced the use of liquefied gases as cool-
ing agents (such as liquid nitrogen with a temperature of -196 °C (-320.8 °F)) in low tem-
perature research. In 1892 he invented a unique vacuum insulating container in which it
is possible to store liquefied gases for entire days. The common ‘thermos bottle’, used
for storing hot and cold drinks, is based upon his invention.
Between the years 1900 and 1920, the inventors of the world ‘discovered’ the infrared.
Many patents were issued for devices to detect personnel, artillery, aircraft, ships – and
even icebergs. The first operating systems, in the modern sense, began to be developed
during the 1914–18 war, when both sides had research programs devoted to the military
exploitation of the infrared. These programs included experimental systems for enemy
intrusion/detection, remote temperature sensing, secure communications, and ‘flying tor-
pedo’ guidance. An infrared search system tested during this period was able to detect
an approaching airplane at a distance of 1.5 km (0.94 miles), or a person more than 300
meters (984 ft.) away.
The most sensitive systems up to this time were all based upon variations of the bolome-
ter idea, but the period between the two wars saw the development of two revolutionary
new infrared detectors: the image converter and the photon detector. At first, the image
converter received the greatest attention by the military, because it enabled an observer
for the first time in history to literally ‘see in the dark’. However, the sensitivity of the im-
age converter was limited to the near infrared wavelengths, and the most interesting mili-
tary targets (i.e. enemy soldiers) had to be illuminated by infrared search beams. Since
this involved the risk of giving away the observer’s position to a similarly-equipped enemy
observer, it is understandable that military interest in the image converter eventually
faded.
The tactical military disadvantages of so-called 'active’ (i.e. search beam-equipped) ther-
mal imaging systems provided impetus following the 1939–45 war for extensive secret
military infrared-research programs into the possibilities of developing ‘passive’ (no
search beam) systems around the extremely sensitive photon detector. During this peri-
od, military secrecy regulations completely prevented disclosure of the status of infrared-
imaging technology. This secrecy only began to be lifted in the middle of the 1950’s, and
from that time adequate thermal-imaging devices finally began to be available to civilian
science and industry.
#T810190; r. AB/39747/39747; en-US 192
Theory of thermography
34
34.1 Introduction
The subjects of infrared radiation and the related technique of thermography are still new
to many who will use an infrared camera. In this section the theory behind thermography
will be given.
34.2 The electromagnetic spectrum
The electromagnetic spectrum is divided arbitrarily into a number of wavelength regions,
called bands, distinguished by the methods used to produce and detect the radiation.
There is no fundamental difference between radiation in the different bands of the elec-
tromagnetic spectrum. They are all governed by the same laws and the only differences
are those due to differences in wavelength.
Figure 34.1 The electromagnetic spectrum. 1: X-ray; 2: UV; 3: Visible; 4: IR; 5: Microwaves; 6:
Radiowaves.
Thermography makes use of the infrared spectral band. At the short-wavelength end the
boundary lies at the limit of visual perception, in the deep red. At the long-wavelength
end it merges with the microwave radio wavelengths, in the millimeter range.
The infrared band is often further subdivided into four smaller bands, the boundaries of
which are also arbitrarily chosen. They include: the near infrared (0.75–3 μm), the middle
infrared (3–6 μm), the far infrared (6–15 μm) and the extreme infrared (15–100 μm).
Although the wavelengths are given in μm (micrometers), other units are often still used
to measure wavelength in this spectral region, e.g. nanometer (nm) and Ångström (Å).
The relationships between the different wavelength measurements is:
34.3 Blackbody radiation
A blackbody is defined as an object which absorbs all radiation that impinges on it at any
wavelength. The apparent misnomer black relating to an object emitting radiation is ex-
plained by Kirchhoff’s Law (after Gustav Robert Kirchhoff, 1824–1887), which states that
a body capable of absorbing all radiation at any wavelength is equally capable in the
emission of radiation.
#T810190; r. AB/39747/39747; en-US 193
Theory of thermography
34
Figure 34.2 Gustav Robert Kirchhoff (1824–1887)
The construction of a blackbody source is, in principle, very simple. The radiation charac-
teristics of an aperture in an isotherm cavity made of an opaque absorbing material rep-
resents almost exactly the properties of a blackbody. A practical application of the
principle to the construction of a perfect absorber of radiation consists of a box that is
light tight except for an aperture in one of the sides. Any radiation which then enters the
hole is scattered and absorbed by repeated reflections so only an infinitesimal fraction
can possibly escape. The blackness which is obtained at the aperture is nearly equal to
a blackbody and almost perfect for all wavelengths.
By providing such an isothermal cavity with a suitable heater it becomes what is termed
acavity radiator. An isothermal cavity heated to a uniform temperature generates black-
body radiation, the characteristics of which are determined solely by the temperature of
the cavity. Such cavity radiators are commonly used as sources of radiation in tempera-
ture reference standards in the laboratory for calibrating thermographic instruments,
such as a FLIR Systems camera for example.
If the temperature of blackbody radiation increases to more than 525°C (977°F), the
source begins to be visible so that it appears to the eye no longer black. This is the incipi-
ent red heat temperature of the radiator, which then becomes orange or yellow as the
temperature increases further. In fact, the definition of the so-called color temperature of
an object is the temperature to which a blackbody would have to be heated to have the
same appearance.
Now consider three expressions that describe the radiation emitted from a blackbody.
34.3.1 Planck’s law
Figure 34.3 Max Planck (1858–1947)
Max Planck (1858–1947) was able to describe the spectral distribution of the radiation
from a blackbody by means of the following formula:
#T810190; r. AB/39747/39747; en-US 194
Theory of thermography
34
where:
Wλb Blackbody spectral radiant emittance at wavelength λ.
cVelocity of light = 3 × 108m/s
h Planck’s constant = 6.6 × 10-34 Joule sec.
kBoltzmann’s constant = 1.4 × 10-23 Joule/K.
T Absolute temperature (K) of a blackbody.
λ Wavelength (μm).
Note The factor 10-6 is used since spectral emittance in the curves is expressed in
Watt/m2, μm.
Planck’s formula, when plotted graphically for various temperatures, produces a family of
curves. Following any particular Planck curve, the spectral emittance is zero at λ = 0,
then increases rapidly to a maximum at a wavelength λmax and after passing it ap-
proaches zero again at very long wavelengths. The higher the temperature, the shorter
the wavelength at which maximum occurs.
Figure 34.4 Blackbody spectral radiant emittance according to Planck’s law, plotted for various absolute
temperatures. 1: Spectral radiant emittance (W/cm2× 103(μm)); 2: Wavelength (μm)
34.3.2 Wien’s displacement law
By differentiating Planck’s formula with respect to λ, and finding the maximum, we have:
This is Wien’s formula (after Wilhelm Wien, 1864–1928), which expresses mathemati-
cally the common observation that colors vary from red to orange or yellow as the tem-
perature of a thermal radiator increases. The wavelength of the color is the same as the
wavelength calculated for λmax. A good approximation of the value of λmax for a given
blackbody temperature is obtained by applying the rule-of-thumb 3 000/T μm. Thus, a
very hot star such as Sirius (11 000 K), emitting bluish-white light, radiates with the peak
of spectral radiant emittance occurring within the invisible ultraviolet spectrum, at wave-
length 0.27 μm.
#T810190; r. AB/39747/39747; en-US 195
Theory of thermography
34
Figure 34.5 Wilhelm Wien (1864–1928)
The sun (approx. 6 000 K) emits yellow light, peaking at about 0.5 μm in the middle of
the visible light spectrum.
At room temperature (300 K) the peak of radiant emittance lies at 9.7 μm, in the far infra-
red, while at the temperature of liquid nitrogen (77 K) the maximum of the almost insignif-
icant amount of radiant emittance occurs at 38 μm, in the extreme infrared wavelengths.
Figure 34.6 Planckian curves plotted on semi-log scales from 100 K to 1000 K. The dotted line represents
the locus of maximum radiant emittance at each temperature as described by Wien's displacement law. 1:
Spectral radiant emittance (W/cm2(μm)); 2: Wavelength (μm).
34.3.3 Stefan-Boltzmann's law
By integrating Planck’s formula from λ = 0 to λ = ∞, we obtain the total radiant emittance
(Wb) of a blackbody:
This is the Stefan-Boltzmann formula (after Josef Stefan, 1835–1893, and Ludwig Boltz-
mann, 1844–1906), which states that the total emissive power of a blackbody is propor-
tional to the fourth power of its absolute temperature. Graphically, Wbrepresents the
area below the Planck curve for a particular temperature. It can be shown that the radiant
emittance in the interval λ = 0 to λmax is only 25% of the total, which represents about the
amount of the sun’s radiation which lies inside the visible light spectrum.
#T810190; r. AB/39747/39747; en-US 196
Theory of thermography
34
Figure 34.7 Josef Stefan (1835–1893), and Ludwig Boltzmann (1844–1906)
Using the Stefan-Boltzmann formula to calculate the power radiated by the human body,
at a temperature of 300 K and an external surface area of approx. 2 m2, we obtain 1 kW.
This power loss could not be sustained if it were not for the compensating absorption of
radiation from surrounding surfaces, at room temperatures which do not vary too drasti-
cally from the temperature of the body – or, of course, the addition of clothing.
34.3.4 Non-blackbody emitters
So far, only blackbody radiators and blackbody radiation have been discussed. However,
real objects almost never comply with these laws over an extended wavelength region –
although they may approach the blackbody behavior in certain spectral intervals. For ex-
ample, a certain type of white paint may appear perfectly white in the visible light spec-
trum, but becomes distinctly gray at about 2 μm, and beyond 3 μm it is almost black.
There are three processes which can occur that prevent a real object from acting like a
blackbody: a fraction of the incident radiation α may be absorbed, a fraction ρ may be re-
flected, and a fraction τ may be transmitted. Since all of these factors are more or less
wavelength dependent, the subscript λ is used to imply the spectral dependence of their
definitions. Thus:
• The spectral absorptance αλ= the ratio of the spectral radiant power absorbed by an
object to that incident upon it.
• The spectral reflectance ρλ= the ratio of the spectral radiant power reflected by an ob-
ject to that incident upon it.
• The spectral transmittance τλ= the ratio of the spectral radiant power transmitted
through an object to that incident upon it.
The sum of these three factors must always add up to the whole at any wavelength, so
we have the relation:
For opaque materials τλ= 0 and the relation simplifies to:
Another factor, called the emissivity, is required to describe the fraction ε of the radiant
emittance of a blackbody produced by an object at a specific temperature. Thus, we
have the definition:
The spectral emissivity ελ= the ratio of the spectral radiant power from an object to that
from a blackbody at the same temperature and wavelength.
Expressed mathematically, this can be written as the ratio of the spectral emittance of
the object to that of a blackbody as follows:
Generally speaking, there are three types of radiation source, distinguished by the ways
in which the spectral emittance of each varies with wavelength.
• A blackbody, for which ελ= ε = 1
• A graybody, for which ελ= ε = constant less than 1
#T810190; r. AB/39747/39747; en-US 197
Theory of thermography
34
• A selective radiator, for which ε varies with wavelength
According to Kirchhoff’s law, for any material the spectral emissivity and spectral absorp-
tance of a body are equal at any specified temperature and wavelength. That is:
From this we obtain, for an opaque material (since αλ+ ρλ= 1):
For highly polished materials ελapproaches zero, so that for a perfectly reflecting materi-
al (i.e. a perfect mirror) we have:
For a graybody radiator, the Stefan-Boltzmann formula becomes:
This states that the total emissive power of a graybody is the same as a blackbody at the
same temperature reduced in proportion to the value of ε from the graybody.
Figure 34.8 Spectral radiant emittance of three types of radiators. 1: Spectral radiant emittance; 2: Wave-
length; 3: Blackbody; 4: Selective radiator; 5: Graybody.
Figure 34.9 Spectral emissivity of three types of radiators. 1: Spectral emissivity; 2: Wavelength; 3: Black-
body; 4: Graybody; 5: Selective radiator.
#T810190; r. AB/39747/39747; en-US 198
Theory of thermography
34
34.4 Infrared semi-transparent materials
Consider now a non-metallic, semi-transparent body – let us say, in the form of a thick flat
plate of plastic material. When the plate is heated, radiation generated within its volume
must work its way toward the surfaces through the material in which it is partially ab-
sorbed. Moreover, when it arrives at the surface, some of it is reflected back into the inte-
rior. The back-reflected radiation is again partially absorbed, but some of it arrives at the
other surface, through which most of it escapes; part of it is reflected back again.
Although the progressive reflections become weaker and weaker they must all be added
up when the total emittance of the plate is sought. When the resulting geometrical series
is summed, the effective emissivity of a semi-transparent plate is obtained as:
When the plate becomes opaque this formula is reduced to the single formula:
This last relation is a particularly convenient one, because it is often easier to measure
reflectance than to measure emissivity directly.
#T810190; r. AB/39747/39747; en-US 199
The measurement formula
35
As already mentioned, when viewing an object, the camera receives radiation not only
from the object itself. It also collects radiation from the surroundings reflected via the ob-
ject surface. Both these radiation contributions become attenuated to some extent by the
atmosphere in the measurement path. To this comes a third radiation contribution from
the atmosphere itself.
This description of the measurement situation, as illustrated in the figure below, is so far
a fairly true description of the real conditions. What has been neglected could for in-
stance be sun light scattering in the atmosphere or stray radiation from intense radiation
sources outside the field of view. Such disturbances are difficult to quantify, however, in
most cases they are fortunately small enough to be neglected. In case they are not negli-
gible, the measurement configuration is likely to be such that the risk for disturbance is
obvious, at least to a trained operator. It is then his responsibility to modify the measure-
ment situation to avoid the disturbance e.g. by changing the viewing direction, shielding
off intense radiation sources etc.
Accepting the description above, we can use the figure below to derive a formula for the
calculation of the object temperature from the calibrated camera output.
Figure 35.1 A schematic representation of the general thermographic measurement situation.1: Sur-
roundings; 2: Object; 3: Atmosphere; 4: Camera
Assume that the received radiation power W from a blackbody source of temperature
Tsource on short distance generates a camera output signal Usource that is proportional to
the power input (power linear camera). We can then write (Equation 1):
or, with simplified notation:
where C is a constant.
Should the source be a graybody with emittance ε, the received radiation would conse-
quently be εWsource.
We are now ready to write the three collected radiation power terms:
1. Emission from the object = ετWobj, where ε is the emittance of the object and τ is the
transmittance of the atmosphere. The object temperature is Tobj.
#T810190; r. AB/39747/39747; en-US 200
The measurement formula
35
2. Reflected emission from ambient sources = (1 – ε)τWrefl, where (1 – ε) is the reflec-
tance of the object. The ambient sources have the temperature Trefl.
It has here been assumed that the temperature Trefl is the same for all emitting surfa-
ces within the halfsphere seen from a point on the object surface. This is of course
sometimes a simplification of the true situation. It is, however, a necessary simplifica-
tion in order to derive a workable formula, and Trefl can – at least theoretically – be giv-
en a value that represents an efficient temperature of a complex surrounding.
Note also that we have assumed that the emittance for the surroundings = 1. This is
correct in accordance with Kirchhoff’s law: All radiation impinging on the surrounding
surfaces will eventually be absorbed by the same surfaces. Thus the emittance = 1.
(Note though that the latest discussion requires the complete sphere around the ob-
ject to be considered.)
3. Emission from the atmosphere = (1 – τ)τWatm, where (1 – τ) is the emittance of the at-
mosphere. The temperature of the atmosphere is Tatm.
The total received radiation power can now be written (Equation 2):
We multiply each term by the constant C of Equation 1 and replace the CW products by
the corresponding U according to the same equation, and get (Equation 3):
Solve Equation 3 for Uobj (Equation 4):
This is the general measurement formula used in all the FLIR Systems thermographic
equipment. The voltages of the formula are:
Table 35.1 Voltages
Uobj Calculated camera output voltage for a blackbody of temperature
Tobj i.e. a voltage that can be directly converted into true requested
object temperature.
Utot Measured camera output voltage for the actual case.
Urefl Theoretical camera output voltage for a blackbody of temperature
Trefl according to the calibration.
Uatm Theoretical camera output voltage for a blackbody of temperature
Tatm according to the calibration.
The operator has to supply a number of parameter values for the calculation:
• the object emittance ε,
• the relative humidity,
• Tatm
• object distance (Dobj)
• the (effective) temperature of the object surroundings, or the reflected ambient tem-
perature Trefl, and
• the temperature of the atmosphere Tatm
This task could sometimes be a heavy burden for the operator since there are normally
no easy ways to find accurate values of emittance and atmospheric transmittance for the
actual case. The two temperatures are normally less of a problem provided the surround-
ings do not contain large and intense radiation sources.
A natural question in this connection is: How important is it to know the right values of
these parameters? It could though be of interest to get a feeling for this problem already
here by looking into some different measurement cases and compare the relative
#T810190; r. AB/39747/39747; en-US 201
The measurement formula
35
magnitudes of the three radiation terms. This will give indications about when it is impor-
tant to use correct values of which parameters.
The figures below illustrates the relative magnitudes of the three radiation contributions
for three different object temperatures, two emittances, and two spectral ranges: SW and
LW. Remaining parameters have the following fixed values:
• τ = 0.88
• Trefl = +20°C (+68°F)
• Tatm = +20°C (+68°F)
It is obvious that measurement of low object temperatures are more critical than measur-
ing high temperatures since the ‘disturbing’ radiation sources are relatively much stron-
ger in the first case. Should also the object emittance be low, the situation would be still
more difficult.
We have finally to answer a question about the importance of being allowed to use the
calibration curve above the highest calibration point, what we call extrapolation. Imagine
that we in a certain case measure Utot = 4.5 volts. The highest calibration point for the
camera was in the order of 4.1 volts, a value unknown to the operator. Thus, even if the
object happened to be a blackbody, i.e. Uobj = Utot, we are actually performing extrapola-
tion of the calibration curve when converting 4.5 volts into temperature.
Let us now assume that the object is not black, it has an emittance of 0.75, and the trans-
mittance is 0.92. We also assume that the two second terms of Equation 4 amount to 0.5
volts together. Computation of Uobj by means of Equation 4 then results in Uobj = 4.5 /
0.75 / 0.92 – 0.5 = 6.0. This is a rather extreme extrapolation, particularly when consider-
ing that the video amplifier might limit the output to 5 volts! Note, though, that the applica-
tion of the calibration curve is a theoretical procedure where no electronic or other
limitations exist. We trust that if there had been no signal limitations in the camera, and if
it had been calibrated far beyond 5 volts, the resulting curve would have been very much
the same as our real curve extrapolated beyond 4.1 volts, provided the calibration algo-
rithm is based on radiation physics, like the FLIR Systems algorithm. Of course there
must be a limit to such extrapolations.
Figure 35.2 Relative magnitudes of radiation sources under varying measurement conditions (SW cam-
era). 1: Object temperature; 2: Emittance; Obj: Object radiation; Refl: Reflected radiation; Atm: atmos-
phere radiation. Fixed parameters: τ = 0.88; Trefl = 20°C (+68°F); Tatm = 20°C (+68°F).
#T810190; r. AB/39747/39747; en-US 202
The measurement formula
35
Figure 35.3 Relative magnitudes of radiation sources under varying measurement conditions (LW cam-
era). 1: Object temperature; 2: Emittance; Obj: Object radiation; Refl: Reflected radiation; Atm: atmos-
phere radiation. Fixed parameters: τ = 0.88; Trefl = 20°C (+68°F); Tatm = 20°C (+68°F).
#T810190; r. AB/39747/39747; en-US 203
Emissivity tables
36
This section presents a compilation of emissivity data from the infrared literature and
measurements made by FLIR Systems.
36.1 References
1. Mikaél A. Bramson: Infrared Radiation, A Handbook for Applications, Plenum press,
N.Y.
2. William L. Wolfe, George J. Zissis: The Infrared Handbook, Office of Naval Research,
Department of Navy, Washington, D.C.
3. Madding, R. P.: Thermographic Instruments and systems. Madison, Wisconsin: Uni-
versity of Wisconsin – Extension, Department of Engineering and Applied Science.
4. William L. Wolfe: Handbook of Military Infrared Technology, Office of Naval Research,
Department of Navy, Washington, D.C.
5. Jones, Smith, Probert: External thermography of buildings..., Proc. of the Society of
Photo-Optical Instrumentation Engineers, vol.110, Industrial and Civil Applications of
Infrared Technology, June 1977 London.
6. Paljak, Pettersson: Thermography of Buildings, Swedish Building Research Institute,
Stockholm 1972.
7. Vlcek, J: Determination of emissivity with imaging radiometers and some emissivities
at λ = 5 µm. Photogrammetric Engineering and Remote Sensing.
8. Kern: Evaluation of infrared emission of clouds and ground as measured by weather
satellites, Defence Documentation Center, AD 617 417.
9. Öhman, Claes: Emittansmätningar med AGEMA E-Box. Teknisk rapport, AGEMA
1999. (Emittance measurements using AGEMA E-Box. Technical report, AGEMA
1999.)
10. Matteï, S., Tang-Kwor, E: Emissivity measurements for Nextel Velvet coating 811-21
between –36°C AND 82°C.
11. Lohrengel & Todtenhaupt (1996)
12. ITC Technical publication 32.
13. ITC Technical publication 29.
14. Schuster, Norbert and Kolobrodov, Valentin G. Infrarotthermographie. Berlin: Wiley-
VCH, 2000.
Note The emissivity values in the table below are recorded using a shortwave (SW)
camera. The values should be regarded as recommendations only and used with
caution.
36.2 Tables
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference
1 2 3 4 5 6
3M type 35 Vinyl electrical
tape (several
colors)
< 80 LW ≈ 0.96 13
3M type 88 Black vinyl electri-
cal tape
< 105 LW ≈ 0.96 13
3M type 88 Black vinyl electri-
cal tape
< 105 MW < 0.96 13
3M type Super 33
+
Black vinyl electri-
cal tape
< 80 LW ≈ 0.96 13
Aluminum anodized sheet 100 T 0.55 2
Aluminum anodized, black,
dull
70 SW 0.67 9
Aluminum anodized, black,
dull
70 LW 0.95 9
#T810190; r. AB/39747/39747; en-US 204
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Aluminum anodized, light
gray, dull
70 SW 0.61 9
Aluminum anodized, light
gray, dull
70 LW 0.97 9
Aluminum as received, plate 100 T 0.09 4
Aluminum as received,
sheet
100 T 0.09 2
Aluminum cast, blast
cleaned
70 SW 0.47 9
Aluminum cast, blast
cleaned
70 LW 0.46 9
Aluminum dipped in HNO3,
plate
100 T 0.05 4
Aluminum foil 27 10 µm 0.04 3
Aluminum foil 27 3 µm 0.09 3
Aluminum oxidized, strongly 50–500 T 0.2–0.3 1
Aluminum polished 50–100 T 0.04–0.06 1
Aluminum polished plate 100 T 0.05 4
Aluminum polished, sheet 100 T 0.05 2
Aluminum rough surface 20–50 T 0.06–0.07 1
Aluminum roughened 27 10 µm 0.18 3
Aluminum roughened 27 3 µm 0.28 3
Aluminum sheet, 4 samples
differently
scratched
70 SW 0.05–0.08 9
Aluminum sheet, 4 samples
differently
scratched
70 LW 0.03–0.06 9
Aluminum vacuum
deposited
20 T 0.04 2
Aluminum weathered,
heavily
17 SW 0.83–0.94 5
Aluminum bronze 20 T 0.60 1
Aluminum
hydroxide
powder T 0.28 1
Aluminum oxide activated, powder T 0.46 1
Aluminum oxide pure, powder
(alumina)
T 0.16 1
Asbestos board 20 T 0.96 1
Asbestos fabric T 0.78 1
Asbestos floor tile 35 SW 0.94 7
Asbestos paper 40–400 T 0.93–0.95 1
Asbestos powder T 0.40–0.60 1
Asbestos slate 20 T 0.96 1
Asphalt paving 4 LLW 0.967 8
Brass dull, tarnished 20–350 T 0.22 1
Brass oxidized 100 T 0.61 2
Brass oxidized 70 SW 0.04–0.09 9
#T810190; r. AB/39747/39747; en-US 205
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Brass oxidized 70 LW 0.03–0.07 9
Brass oxidized at 600°C 200–600 T 0.59–0.61 1
Brass polished 200 T 0.03 1
Brass polished, highly 100 T 0.03 2
Brass rubbed with 80-
grit emery
20 T 0.20 2
Brass sheet, rolled 20 T 0.06 1
Brass sheet, worked
with emery
20 T 0.2 1
Brick alumina 17 SW 0.68 5
Brick common 17 SW 0.86–0.81 5
Brick Dinas silica,
glazed, rough
1100 T 0.85 1
Brick Dinas silica,
refractory
1000 T 0.66 1
Brick Dinas silica, un-
glazed, rough
1000 T 0.80 1
Brick firebrick 17 SW 0.68 5
Brick fireclay 1000 T 0.75 1
Brick fireclay 1200 T 0.59 1
Brick fireclay 20 T 0.85 1
Brick masonry 35 SW 0.94 7
Brick masonry,
plastered
20 T 0.94 1
Brick red, common 20 T 0.93 2
Brick red, rough 20 T 0.88–0.93 1
Brick refractory,
corundum
1000 T 0.46 1
Brick refractory,
magnesite
1000–1300 T 0.38 1
Brick refractory,
strongly radiating
500–1000 T 0.8–0.9 1
Brick refractory, weakly
radiating
500–1000 T 0.65–0.75 1
Brick silica, 95% SiO21230 T 0.66 1
Brick sillimanite, 33%
SiO2, 64% Al2O3
1500 T 0.29 1
Brick waterproof 17 SW 0.87 5
Bronze phosphor bronze 70 SW 0.08 9
Bronze phosphor bronze 70 LW 0.06 9
Bronze polished 50 T 0.1 1
Bronze porous, rough 50–150 T 0.55 1
Bronze powder T 0.76–0.80 1
Carbon candle soot 20 T 0.95 2
Carbon charcoal powder T 0.96 1
Carbon graphite powder T 0.97 1
#T810190; r. AB/39747/39747; en-US 206
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Carbon graphite, filed
surface
20 T 0.98 2
Carbon lampblack 20–400 T 0.95–0.97 1
Chipboard untreated 20 SW 0.90 6
Chromium polished 50 T 0.10 1
Chromium polished 500–1000 T 0.28–0.38 1
Clay fired 70 T 0.91 1
Cloth black 20 T 0.98 1
Concrete 20 T 0.92 2
Concrete dry 36 SW 0.95 7
Concrete rough 17 SW 0.97 5
Concrete walkway 5LLW 0.974 8
Copper commercial,
burnished
20 T 0.07 1
Copper electrolytic, care-
fully polished
80 T 0.018 1
Copper electrolytic,
polished
–34 T 0.006 4
Copper molten 1100–1300 T 0.13–0.15 1
Copper oxidized 50 T 0.6–0.7 1
Copper oxidized to
blackness
T 0.88 1
Copper oxidized, black 27 T 0.78 4
Copper oxidized, heavily 20 T 0.78 2
Copper polished 50–100 T 0.02 1
Copper polished 100 T 0.03 2
Copper polished,
commercial
27 T 0.03 4
Copper polished,
mechanical
22 T 0.015 4
Copper pure, carefully
prepared surface
22 T 0.008 4
Copper scraped 27 T 0.07 4
Copper dioxide powder T 0.84 1
Copper oxide red, powder T 0.70 1
Ebonite T 0.89 1
Emery coarse 80 T 0.85 1
Enamel 20 T 0.9 1
Enamel lacquer 20 T 0.85–0.95 1
Fiber board hard, untreated 20 SW 0.85 6
Fiber board masonite 70 SW 0.75 9
Fiber board masonite 70 LW 0.88 9
Fiber board particle board 70 SW 0.77 9
Fiber board particle board 70 LW 0.89 9
Fiber board porous, untreated 20 SW 0.85 6
#T810190; r. AB/39747/39747; en-US 207
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Glass pane (float
glass)
non-coated 20 LW 0.97 14
Gold polished 130 T 0.018 1
Gold polished, carefully 200–600 T 0.02–0.03 1
Gold polished, highly 100 T 0.02 2
Granite polished 20 LLW 0.849 8
Granite rough 21 LLW 0.879 8
Granite rough, 4 different
samples
70 SW 0.95–0.97 9
Granite rough, 4 different
samples
70 LW 0.77–0.87 9
Gypsum 20 T 0.8–0.9 1
Ice: See Water
Iron and steel cold rolled 70 SW 0.20 9
Iron and steel cold rolled 70 LW 0.09 9
Iron and steel covered with red
rust
20 T 0.61–0.85 1
Iron and steel electrolytic 100 T 0.05 4
Iron and steel electrolytic 22 T 0.05 4
Iron and steel electrolytic 260 T 0.07 4
Iron and steel electrolytic, care-
fully polished
175–225 T 0.05–0.06 1
Iron and steel freshly worked
with emery
20 T 0.24 1
Iron and steel ground sheet 950–1100 T 0.55–0.61 1
Iron and steel heavily rusted
sheet
20 T 0.69 2
Iron and steel hot rolled 130 T 0.60 1
Iron and steel hot rolled 20 T 0.77 1
Iron and steel oxidized 100 T 0.74 4
Iron and steel oxidized 100 T 0.74 1
Iron and steel oxidized 1227 T 0.89 4
Iron and steel oxidized 125–525 T 0.78–0.82 1
Iron and steel oxidized 200 T 0.79 2
Iron and steel oxidized 200–600 T 0.80 1
Iron and steel oxidized strongly 50 T 0.88 1
Iron and steel oxidized strongly 500 T 0.98 1
Iron and steel polished 100 T 0.07 2
Iron and steel polished 400–1000 T 0.14–0.38 1
Iron and steel polished sheet 750–1050 T 0.52–0.56 1
Iron and steel rolled sheet 50 T 0.56 1
Iron and steel rolled, freshly 20 T 0.24 1
Iron and steel rough, plane
surface
50 T 0.95–0.98 1
Iron and steel rusted red, sheet 22 T 0.69 4
Iron and steel rusted, heavily 17 SW 0.96 5
#T810190; r. AB/39747/39747; en-US 208
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Iron and steel rusty, red 20 T 0.69 1
Iron and steel shiny oxide layer,
sheet,
20 T 0.82 1
Iron and steel shiny, etched 150 T 0.16 1
Iron and steel wrought, carefully
polished
40–250 T 0.28 1
Iron galvanized heavily oxidized 70 SW 0.64 9
Iron galvanized heavily oxidized 70 LW 0.85 9
Iron galvanized sheet 92 T 0.07 4
Iron galvanized sheet, burnished 30 T 0.23 1
Iron galvanized sheet, oxidized 20 T 0.28 1
Iron tinned sheet 24 T 0.064 4
Iron, cast casting 50 T 0.81 1
Iron, cast ingots 1000 T 0.95 1
Iron, cast liquid 1300 T 0.28 1
Iron, cast machined 800–1000 T 0.60–0.70 1
Iron, cast oxidized 100 T 0.64 2
Iron, cast oxidized 260 T 0.66 4
Iron, cast oxidized 38 T 0.63 4
Iron, cast oxidized 538 T 0.76 4
Iron, cast oxidized at 600°C 200–600 T 0.64–0.78 1
Iron, cast polished 200 T 0.21 1
Iron, cast polished 38 T 0.21 4
Iron, cast polished 40 T 0.21 2
Iron, cast unworked 900–1100 T 0.87–0.95 1
Krylon Ultra-flat
black 1602
Flat black Room tempera-
ture up to 175
LW ≈ 0.96 12
Krylon Ultra-flat
black 1602
Flat black Room tempera-
ture up to 175
MW ≈ 0.97 12
Lacquer 3 colors sprayed
on Aluminum
70 SW 0.50–0.53 9
Lacquer 3 colors sprayed
on Aluminum
70 LW 0.92–0.94 9
Lacquer Aluminum on
rough surface
20 T 0.4 1
Lacquer bakelite 80 T 0.83 1
Lacquer black, dull 40–100 T 0.96–0.98 1
Lacquer black, matte 100 T 0.97 2
Lacquer black, shiny,
sprayed on iron
20 T 0.87 1
Lacquer heat–resistant 100 T 0.92 1
Lacquer white 100 T 0.92 2
Lacquer white 40–100 T 0.8–0.95 1
Lead oxidized at 200°C 200 T 0.63 1
Lead oxidized, gray 20 T 0.28 1
#T810190; r. AB/39747/39747; en-US 209
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Lead oxidized, gray 22 T 0.28 4
Lead shiny 250 T 0.08 1
Lead unoxidized,
polished
100 T 0.05 4
Lead red 100 T 0.93 4
Lead red, powder 100 T 0.93 1
Leather tanned T 0.75–0.80 1
Lime T 0.3–0.4 1
Magnesium 22 T 0.07 4
Magnesium 260 T 0.13 4
Magnesium 538 T 0.18 4
Magnesium polished 20 T 0.07 2
Magnesium
powder
T 0.86 1
Molybdenum 1500–2200 T 0.19–0.26 1
Molybdenum 600–1000 T 0.08–0.13 1
Molybdenum filament 700–2500 T 0.1–0.3 1
Mortar 17 SW 0.87 5
Mortar dry 36 SW 0.94 7
Nextel Velvet
811-21 Black
Flat black –60–150 LW > 0.97 10 and
11
Nichrome rolled 700 T 0.25 1
Nichrome sandblasted 700 T 0.70 1
Nichrome wire, clean 50 T 0.65 1
Nichrome wire, clean 500–1000 T 0.71–0.79 1
Nichrome wire, oxidized 50–500 T 0.95–0.98 1
Nickel bright matte 122 T 0.041 4
Nickel commercially
pure, polished
100 T 0.045 1
Nickel commercially
pure, polished
200–400 T 0.07–0.09 1
Nickel electrolytic 22 T 0.04 4
Nickel electrolytic 260 T 0.07 4
Nickel electrolytic 38 T 0.06 4
Nickel electrolytic 538 T 0.10 4
Nickel electroplated on
iron, polished
22 T 0.045 4
Nickel electroplated on
iron, unpolished
20 T 0.11–0.40 1
Nickel electroplated on
iron, unpolished
22 T 0.11 4
Nickel electroplated,
polished
20 T 0.05 2
Nickel oxidized 1227 T 0.85 4
Nickel oxidized 200 T 0.37 2
Nickel oxidized 227 T 0.37 4
#T810190; r. AB/39747/39747; en-US 210
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Nickel oxidized at 600°C 200–600 T 0.37–0.48 1
Nickel polished 122 T 0.045 4
Nickel wire 200–1000 T 0.1–0.2 1
Nickel oxide 1000–1250 T 0.75–0.86 1
Nickel oxide 500–650 T 0.52–0.59 1
Oil, lubricating 0.025 mm film 20 T 0.27 2
Oil, lubricating 0.050 mm film 20 T 0.46 2
Oil, lubricating 0.125 mm film 20 T 0.72 2
Oil, lubricating film on Ni base:
Ni base only
20 T 0.05 2
Oil, lubricating thick coating 20 T 0.82 2
Paint 8 different colors
and qualities
70 SW 0.88–0.96 9
Paint 8 different colors
and qualities
70 LW 0.92–0.94 9
Paint Aluminum, vari-
ous ages
50–100 T 0.27–0.67 1
Paint cadmium yellow T 0.28–0.33 1
Paint chrome green T 0.65–0.70 1
Paint cobalt blue T 0.7–0.8 1
Paint oil 17 SW 0.87 5
Paint oil based, aver-
age of 16 colors
100 T 0.94 2
Paint oil, black flat 20 SW 0.94 6
Paint oil, black gloss 20 SW 0.92 6
Paint oil, gray flat 20 SW 0.97 6
Paint oil, gray gloss 20 SW 0.96 6
Paint oil, various colors 100 T 0.92–0.96 1
Paint plastic, black 20 SW 0.95 6
Paint plastic, white 20 SW 0.84 6
Paper 4 different colors 70 SW 0.68–0.74 9
Paper 4 different colors 70 LW 0.92–0.94 9
Paper black T 0.90 1
Paper black, dull T 0.94 1
Paper black, dull 70 SW 0.86 9
Paper black, dull 70 LW 0.89 9
Paper blue, dark T 0.84 1
Paper coated with black
lacquer
T 0.93 1
Paper green T 0.85 1
Paper red T 0.76 1
Paper white 20 T 0.7–0.9 1
Paper white bond 20 T 0.93 2
Paper white, 3 different
glosses
70 SW 0.76–0.78 9
#T810190; r. AB/39747/39747; en-US 211
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Paper white, 3 different
glosses
70 LW 0.88–0.90 9
Paper yellow T 0.72 1
Plaster 17 SW 0.86 5
Plaster plasterboard,
untreated
20 SW 0.90 6
Plaster rough coat 20 T 0.91 2
Plastic glass fibre lami-
nate (printed circ.
board)
70 SW 0.94 9
Plastic glass fibre lami-
nate (printed circ.
board)
70 LW 0.91 9
Plastic polyurethane iso-
lation board
70 LW 0.55 9
Plastic polyurethane iso-
lation board
70 SW 0.29 9
Plastic PVC, plastic floor,
dull, structured
70 SW 0.94 9
Plastic PVC, plastic floor,
dull, structured
70 LW 0.93 9
Platinum 100 T 0.05 4
Platinum 1000–1500 T 0.14–0.18 1
Platinum 1094 T 0.18 4
Platinum 17 T 0.016 4
Platinum 22 T 0.03 4
Platinum 260 T 0.06 4
Platinum 538 T 0.10 4
Platinum pure, polished 200–600 T 0.05–0.10 1
Platinum ribbon 900–1100 T 0.12–0.17 1
Platinum wire 1400 T 0.18 1
Platinum wire 500–1000 T 0.10–0.16 1
Platinum wire 50–200 T 0.06–0.07 1
Porcelain glazed 20 T 0.92 1
Porcelain white, shiny T 0.70–0.75 1
Rubber hard 20 T 0.95 1
Rubber soft, gray, rough 20 T 0.95 1
Sand T 0.60 1
Sand 20 T 0.90 2
Sandstone polished 19 LLW 0.909 8
Sandstone rough 19 LLW 0.935 8
Silver polished 100 T 0.03 2
Silver pure, polished 200–600 T 0.02–0.03 1
Skin human 32 T 0.98 2
Slag boiler 0–100 T 0.97–0.93 1
Slag boiler 1400–1800 T 0.69–0.67 1
Slag boiler 200–500 T 0.89–0.78 1
#T810190; r. AB/39747/39747; en-US 212
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Slag boiler 600–1200 T 0.76–0.70 1
Snow: See Water
Soil dry 20 T 0.92 2
Soil saturated with
water
20 T 0.95 2
Stainless steel alloy, 8% Ni, 18%
Cr
500 T 0.35 1
Stainless steel rolled 700 T 0.45 1
Stainless steel sandblasted 700 T 0.70 1
Stainless steel sheet, polished 70 SW 0.18 9
Stainless steel sheet, polished 70 LW 0.14 9
Stainless steel sheet, untreated,
somewhat
scratched
70 SW 0.30 9
Stainless steel sheet, untreated,
somewhat
scratched
70 LW 0.28 9
Stainless steel type 18-8, buffed 20 T 0.16 2
Stainless steel type 18-8, oxi-
dized at 800°C
60 T 0.85 2
Stucco rough, lime 10–90 T 0.91 1
Styrofoam insulation 37 SW 0.60 7
Tar T 0.79–0.84 1
Tar paper 20 T 0.91–0.93 1
Tile glazed 17 SW 0.94 5
Tin burnished 20–50 T 0.04–0.06 1
Tin tin–plated sheet
iron
100 T 0.07 2
Titanium oxidized at 540°C 1000 T 0.60 1
Titanium oxidized at 540°C 200 T 0.40 1
Titanium oxidized at 540°C 500 T 0.50 1
Titanium polished 1000 T 0.36 1
Titanium polished 200 T 0.15 1
Titanium polished 500 T 0.20 1
Tungsten 1500–2200 T 0.24–0.31 1
Tungsten 200 T 0.05 1
Tungsten 600–1000 T 0.1–0.16 1
Tungsten filament 3300 T 0.39 1
Varnish flat 20 SW 0.93 6
Varnish on oak parquet
floor
70 SW 0.90 9
Varnish on oak parquet
floor
70 LW 0.90–0.93 9
Wallpaper slight pattern,
light gray
20 SW 0.85 6
Wallpaper slight pattern, red 20 SW 0.90 6
Water distilled 20 T 0.96 2
#T810190; r. AB/39747/39747; en-US 213
Emissivity tables36
Table 36.1 T: Total spectrum; SW: 2–5 µm; LW: 8–14 µm, LLW: 6.5–20 µm; 1: Material; 2: Specification;
3:Temperature in °C; 4: Spectrum; 5: Emissivity: 6:Reference (continued)
1 2 3 4 5 6
Water frost crystals –10 T 0.98 2
Water ice, covered with
heavy frost
0 T 0.98 1
Water ice, smooth 0 T 0.97 1
Water ice, smooth –10 T 0.96 2
Water layer >0.1 mm
thick
0–100 T 0.95–0.98 1
Water snow T 0.8 1
Water snow –10 T 0.85 2
Wood 17 SW 0.98 5
Wood 19 LLW 0.962 8
Wood ground T 0.5–0.7 1
Wood pine, 4 different
samples
70 SW 0.67–0.75 9
Wood pine, 4 different
samples
70 LW 0.81–0.89 9
Wood planed 20 T 0.8–0.9 1
Wood planed oak 20 T 0.90 2
Wood planed oak 70 SW 0.77 9
Wood planed oak 70 LW 0.88 9
Wood plywood, smooth,
dry
36 SW 0.82 7
Wood plywood,
untreated
20 SW 0.83 6
Wood white, damp 20 T 0.7–0.8 1
Zinc oxidized at 400°C 400 T 0.11 1
Zinc oxidized surface 1000–1200 T 0.50–0.60 1
Zinc polished 200–300 T 0.04–0.05 1
Zinc sheet 50 T 0.20 1
#T810190; r. AB/39747/39747; en-US 214
A note on the technical production of this publication
This publication was produced using XML — the eXtensible Markup Language. For more information
about XML, please visit http://www.w3.org/XML/
A note on the typeface used in this publication
This publication was typeset using Linotype Helvetica™ World. Helvetica™ was designed by Max
Miedinger (1910–1980)
LOEF (List Of Effective Files)
T501235.xml; en-US; AB; 39747; 2017-01-27
T505552.xml; en-US; 9599; 2013-11-05
T505469.xml; en-US; 39689; 2017-01-25
T505013.xml; en-US; 39689; 2017-01-25
T505476.xml; en-US; 39581; 2017-01-20
T506056.xml; en-US; 39727; 2017-01-26
T505012.xml; en-US; 39581; 2017-01-20
T505007.xml; en-US; 39512; 2017-01-18
T505004.xml; en-US; 39512; 2017-01-18
T505000.xml; en-US; 39687; 2017-01-25
T506051.xml; en-US; 39513; 2017-01-18
T505005.xml; en-US; 39512; 2017-01-18
T505001.xml; en-US; 39512; 2017-01-18
T505006.xml; en-US; 39581; 2017-01-20
T505002.xml; en-US; 39512; 2017-01-18
#T810190; r. AB/39747/39747; en-US 216
last page
Publ. No.: T810190
Release: AB
Commit: 39747
Head: 39747
Language: en-US
Modified: 2017-01-27
Formatted: 2017-01-27
Website
http://www.flir.com
Customer support
http://support.flir.com
Copyright
© 2017, FLIR Systems, Inc. All rights reserved worldwide.
Disclaimer
Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply.
Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
