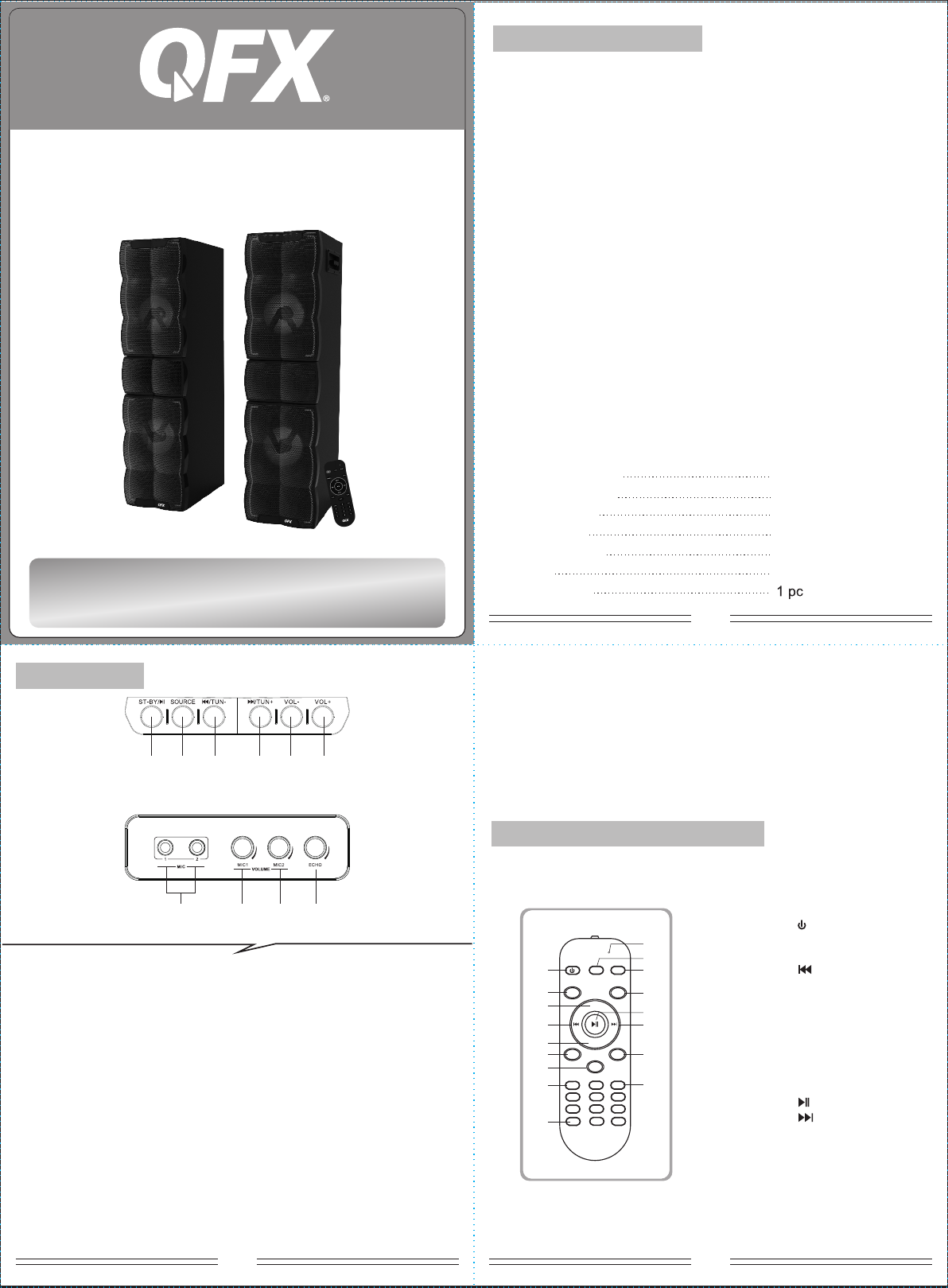

FLYBALL ELECTRONIC HE620700 MULTIMEDIA SPEAKER SYSTEM with Bluetooth User Manual
FLYBALL ELECTRONIC (SHENZHEN) CO. LTD MULTIMEDIA SPEAKER SYSTEM with Bluetooth
User Manual
注：A4大小，105g铜版纸黑色双面印刷，根据虚线对折，封面在前.H6311KBU(HE-620700)-F38-06310-018 绘图:管凤丽
NO.2 NO.3
NO.1
HE-620700
MULTIMEDIA SPEAKER SYSTEM
How to use the remote control
LED M UTE
DVD F M
0
123
456
789
TREBLE BAS S
AUX USB
VOL+
VOL-
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(11)
(10)
(12)
(13)
(14)
(15)
(8)
(9)
(16)
(17)
BT
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
TREBLE
VOL+
VOL-
AUX
LED
MUTE
BASS
USB
DVD
0~9
FM
Indicator light
BT
Operation explanation:
Front panel
DEAR CUSTOMER:
Thank you to buy the product !
Prior to first use, please read the manual carefully.
MAIN UNIT (TONE CONTROLS)
(7) (8) (9) (10)
MAIN UNIT (FRONT CONTROLS)
(1) (2) (3) (4) (5) (6)
1. ST-BY/PLAY/PAUSE: Long press to St-By ON and short press to St-By
OFF in all modes. In USB/BE mode – Short press to Play/Pause the songs.
In FM/AUX/DVD mode – Short press to mute the set.
2. SOURCE: Short press to select the all modes (USB/FM/BE/AUX/DVD).
USB drive should be inserted to select the mode.
3. PREVIOUS/TUN-: In USB/BE mode - Short press to select the previous
song. In FM mode - Short press to adjust the FM down frequencies by
manual tuning-. Long press to auto tune the down frequency channels
one by one.
4. NEXT/TUN+: In USB/BE mode - Short press to select the next song.
In FM mode- Short press to adjust the FM Up frequencies by manual tuning+.
Long press to anto tune the up frequency channels one by one.
5. VOL-: Press to decrease the volume level in all modes.
6. VOL+: Press to increase the volume level in all modes.
7. MIC1 & MIC2 : Both MIC Sockets are to be used for wired MIC and MIC will
be worked in all modes.
8. MIC1 VOLUME KNOB: If Wired MIC or Cordless MIC is ON then rotate the
knob to adjust the MIC Volume level in all modes, This knob will be work
with both MIC (wired and cordless).
9. MIC2 VOLUME KNOB: If MIC is ON then rotate the knob to adjust the
MIC Volume level in all modes.
10. ECHO KNOB: If MIC is ON then rotate the knob to adjust the MIC
Echo effect in all modes.
Features:
Quality 2.0 speaker system with built-in amplifier
Full audio spectrum performances, ideal for your favourite entertainment
from Mp3, Mp4, CD/DVD movies and digital playbacks
Specially designed woofer cabinet for bass and resolution
Comes with remote control and 3.5mm stereo connection
Satellite: W215xH820xD341.5(mm)
Dimensions: Subwoofer: W215xH820xD341.5(mm)
Separation: ≥40dB
S/N: 70dB≥
Distortion: ≤0.5% (1K,1W)
Power Supply: ~200V-240V 50Hz-60Hz
Output Power: 12000W(RMS)
Drive Units: 4 x 6.5" +8 x 2.5"
SPECIFICATIONS:
Frequency Response: Satellites: 120Hz - 20KHz
Subwoofer: 20Hz - 170Hz
FM : 87.5-108 MHZ
Package contents:
Subwoofer cabinet 1 pc
Satellite speakers 2 pcs
User manual 1 pc
Audio input cord 1 pc
FM ANT 1 pc
Remote control 1 pc
Warranty card
NO.5
NO.7
System connection diagram
NO.6
NO.4
8.DVD:
9.
10. Press“LED”each time to change LED effects, LED1, LED2, LED3, LED4,
LED5, LED6, LEDF.
Turn volume off. Depress again to activate the sound.
12.BASS: To decrease/Increase the BASS by pressing.
13. : Play/pause in USB/BT mode, In FM mode long press for the full automatic
search.
14. : Play the next song by pressing “ ” at USB/BT input mode.
Choose next channel by pressing “ ” at FM input mode.
USB: USB reader mode selection.
16.FM: FM tuner mode selection.
17.Indicator light: If there is a button operation, the red light will flash one time.
To reset the system. All settings changes to default levels after reast.
0-9 NUMERIC KEYS: Can select songs directly in USB by pressing 0-9 keys.
i.e.: Can select song number 9 when you press number 9 in USB mode, number
0-9, can be used together. can select channels directly in FM mode by pressing
0-9 keys. i.e.: If you want to listen channel having frequency 94.2MHz. press
number 9 4 2 and soon will play 94.2MHz channel.
LED:
11.MUTE:
15.
7.BT: Bluetooth reader mode selection. When you enter Bluetooth input mode, LED
display right bottom start to flashing (2 seconds) to search the Bluetooth device.
Turn on your mobile Bluetooth device and search the device name “ BT SPEAKER ” ,
paired them well. When you have successfully paired your mobile to the speaker
system, the LED right bottom stop flashing. When start to play your mobile music,
the LED flashed every one second.The functions as "PREVIOUS/NEXT" , "PLAY/
PAUSE" , can operate via the front panel. On BT mode, when connecting with
mobile, press “ ” for 3 seconds, bluetooth function can be force-disconnected.
1. : Power or standby modes.
2.TREBLE: Adjust the treble volume by TREBLE+/-at the rage of -6dB+6dB.
3.VOL- : means you can increase volume.
Play the previous song by pressing “ ” at USB/BT input mode.
Choose previous channel by pressing “ ” at FM input mode.
VOL- : To decrease the volume.
AUX: AUX input mode selection.
4. :
5.
6.
the 2 speakers
(1)
(2)
(2)
(3)
(4)
1.
2.Input
Connect to sound sources
such as computer, CD
player, Mp3, etc.
ANTENNA 3.Output
Connect the satellite speakers.
4.LIGHT
Control shiny light
effect of speaker.
*if the remote control cannot function, it is because the battery of
remote control has been used up. thank you.
