FLYBALL ELECTRONIC IQ-1565BT HOME STEREO SYSTEM User Manual
FLYBALL ELECTRONIC (SHENZHEN) CO. LTD HOME STEREO SYSTEM
User Manual
NO.2
Front panel
1.ST-BY/SOURCE button, Standby and channel switch button,
Standby mode, Short press the boot, Boot mode, Short press switch
channels, Long press to enter standby mode;
2.PLAY/PAUSE/SCAN button, Short press the mute in AUX mode,
Short press the mute in FM mode, Long press automatic search station
and automatic storage station, USB/BT mode to play pause functions.
Bluetooth mode, Long press can disconnect bluetooth connection,
After disconnect if both sides are not connected with a third party,
short press the play/pause key can even back;
3.TREBLE button, Breathe out key for treble regulating function, Short
press this button to enter the treble weight adjustment mode, Digital
tube display “T 00”, “T” indicating the treble adjustment mode, “00”
indicating the current treble status, The gyration VOL knob and
adjustable treble component(-6dB~+6dB), No action to return to 2 to 3
seconds.
4.BASS button, Breathe out key for bass weight adjustment function,
Short press this button to enter the bass weight adjustment mode,
Digital tube display” b 00”, ” b” Indicating the bass weight adjustment
mode,” 00” Said that the current bass component state, The gyration
VOL knob and adjustable bass component(-6dB~+6dB), No action to
return to 2 to 3 seconds.
5.PREV/TUNING- button, previous song and FM frequency fine tuning
key, FM mode, short press this button, From high to low with each step
0.1 MHz radio frequency step fine-tuning, Long press this button can
be from high to low semi-automatic search station, Can automatically
search to the station before the current radio frequency and
automatically listening but not stored;
NO.3
6.NEXT/TUNING+ button, next song and FM frequency fine tuning
key, FM mode, short press this button, From low to high with each step
0.1 MHz radio frequency step fine-tuning, Long press this button can
be from low to high semi-automatic search station, Can automatically
search to the station before the current radio frequency and
automatically listening but not stored;
7.VOL+/- /MIC MENU button, The volume knob, Turn clockwise to
increase the volume of the unit, Anticlockwise turn can decay the unit
volume,( The adjustable range 0 to 30 level) In wired microphone
insertion and open or wireless receiver is opened, Press the MIC in the
middle of the MENU button can choose adjust MIC volume and
reverberation series, press the button, Digital tube display”n” 00, “n”
indicating entered the microphone volume control mode, “00”
indicating the current microphone volume status, Turn the volume
knob and adjustable microphone volume at this time(0-15 level) No
action to return to 2 to 3 seconds, press two times continuously into
reverberation adjustment mode, Digital tube display” E 00”, ” E”
indicating entered the microphone reverberation adjustment mode,
“00” indicating Current state microphone reverberation, Turn the
volume knob and adjustable reverberation phone at this time(0-6
level), No action to return to 2 to 3 seconds.
789
(9)
M.VOL+
ECHO+
Indicator light
MUT E
ECHO- ECHO+
0
123
456
SOURCE TON E
M.VOL- M.VOL+
VOL+
VOL-
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(11)
(10)
(12)
(13)
(14)
(15)
(8) (16)
(17)
VOICE
CANCELLER
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
SOURCE
VOL+
VOL-
M.VOL-
LED
MUTE
TONE
ECHO-
0~9
VOICE CANCELLER
NO.1

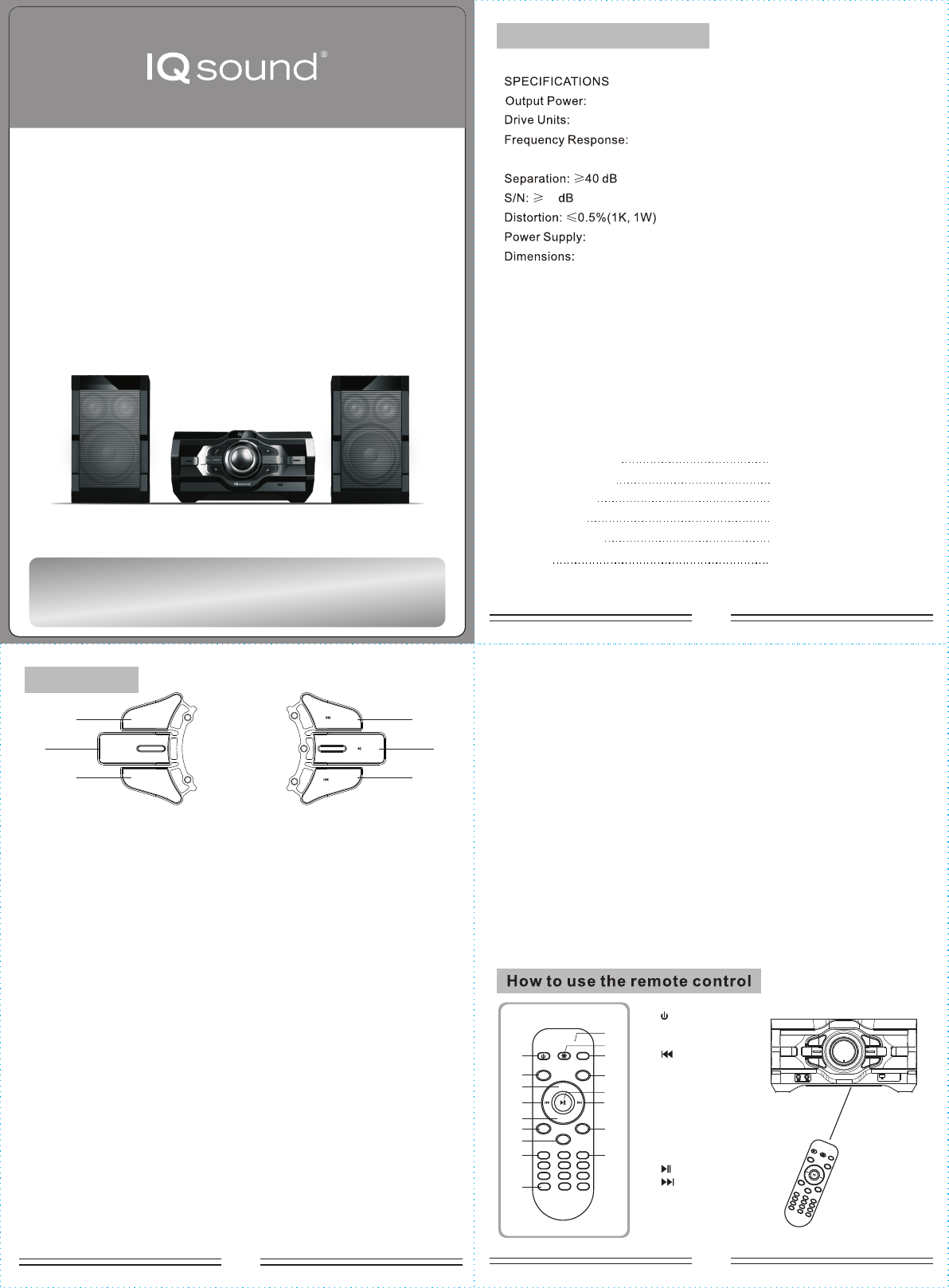

2.1CH MULTIMEDIA SPEAKER SYSTEM
Operation explanation:
~110 / 60HzV
2.5" x4 + 6.5" subwoofer
100W(RMS)
Subwoofer: W360xH180xD289(mm)
Satellite: W210xH348xD284(mm)
Features:
Quality 2.1 speaker system with built-in amplifier
Full audio spectrum performances, ideal for your favourite entertainment
from Mp3, Mp4, CD/DVD movies and digital playbacks
Specially designed woofer cabinet for bass and resolution
Comes with remote control and 3.5mm stereo connection
Package contents:
Subwoofer cabinet 1 pc
Satellite speakers 2 pcs
User manual 1 pc
Audio input cord 1 pc
Remote control 1 pc
FM ANT 1 pc
DEAR CUSTOMER:
Thank you to buy the product !
Prior to first use, please read the manual carefully.
IQ-1565BT
60Hz~20KHz
55
ST-BY/SOURCE
/TUN -
/TUN +
/SCA N
TREB LE
BASS
1
3
4
6
5
2
789
MUTE
ECHO- ECHO+
0
123
456
SOURCE TONE
M.VOL- M.VOL+
VOL+
VOL-
VOICE
CANCELLER
CAUTION
Smoke/fog Drop Plug in correctly
Fire Rain Don’t spray directly
use Fiber cloth Direct Sunligh
Water Sprays
Don’t place on
high surfaces Correct Disposal
Disconnect the power
supply before sleep Keep room ventilation
1.ST-BY button, Turning standby button, Standby mode, Short press the boot,
Boot mode, Short press the standby;
2.LED button, LED flash mode switch button and on/off key, Boot mode, Short
press this button can switch flash mode, To switch the order is LED1-LED6-LEDF,
Flash mode has six, LEDF means Close the flash, Long press this button can be
directly closed flash.
3.MUTE button, Mute function keys, press this button to open and close the mute
function:
4.SOURCE button, channel switch button, short press this button can switch cycle
native channel model (AUX/FM/BT/USB), meanwhile, not insert the usb flash
drive, USB model automatically skip;
5.TONE button, treble and bass adjusting mode switch button, press it, digital tube
display“b 00”, “ b” indicating Bass weight adjustment mode, “00” indicating the
bass component state, The gyration VOL knob and adjustable bass component
（-6dB~+6dB）No action to return to 2 to 3 seconds; press 2 times continuously
digital tube display “T 00”, “T” indicating treble regulating mode, “00” indicating
current state of treble, The gyration VOL knob and adjustable treble component
(-6dB~+6dB) No action to return to 2 to 3 seconds;
6.VOL+ button, The volume increase key, short press this button can gradually step
increase the volume of the unit, Long press can increase continuously the unit
volume, the adjustable range 0-30 level;
7.VOL- button, The volume attenuation key, short press this button can gradually
step attenuation native volume, long press can be continuous attenuation the unit
volume, the adjustable range 30-0 level;
8.M．VOL+ button, The volume increase key of MIC, short press this button can
gradually increase the native microphone volume one step or step by step, long
press can increase continuously the native microphone volume, the adjustable
range 0-15 level;
9.M．VOL- button, The volume attenuation key of MIC, short press this button can
gradually attenuation native microphone volume by one step or step by step, long
press can be continuous attenuation native microphone volume, the adjustable
range 15-0 level;
10.NEXT button, next song function button, short press the function under USB mode,
long press fast forward function, Bluetooth mode, short press a function of next song,
FM mode, long press semi-automatic search capabilities(From low to high search),
short press into the next station,(under the condition of the machine have multiple
radio is effective)
11.PREV button, A function key of previous song, USB mode, short press is previous
song function, long press is fast rewind function. Bluetooth mode, short press on
a previous song function. FM mode, long press semi-automatic search capabilities
(from high to low search), short press enter a station of previous(under the condition
of the machine have multiple radio is effective)
12.ECHO+ button, Reverberation level increase key, short press this button can gradually
increase the reverb series(adjustable range 0 to 6 level)
13.ECHO- button, Reverberation level attenuation key, short pressthis button can
deteriorate reverb series gradually (adjustable range 6-0 level)
14.VOICE CANCELLER button, Microphone mode, short press this button can
eliminate or turn on the music of voices
15.PLAY/PAUSE button, Short press the button is mute in AUX mode.FM mode,
short press the button stored radio in manual. Through digital key input to storage
and listen to radio frequency, then short press this button, digital tube display
channel number and flashing, through previous and next song button choose to
store the channel number, Press the play/pause button again confirm storage,
long press automatic search station and automatically storage station. USB/BT
mode is play/pause functions. Bluetooth mode, long press can disconnect bluetooth
connection. After disconnecting when both sides are not connected with a third
party, short press the play/pause key can directly back;
16.0-9 The number keys, FM mode can input known radio frequency to listen to the
radio directly. USB mode, can choose music of known stored channel to jump
straightly to the channel number you want selectively.
NO.5NO.4
Rear panel
2. AUX
Connect to sound sources
such as computer,CD
player,MP3,etc.
3. Output
Connect the satellite speakers.
5. AC IN : AC Power cord
4. Power ON/OFF
Switch for turning on/off
the power.
(1) (2) (3)
(4)
(5)
1. ANTENNA
ANT EN NA A UX
R-O UT L -O UT
POWER
ON
OFF
AC IN

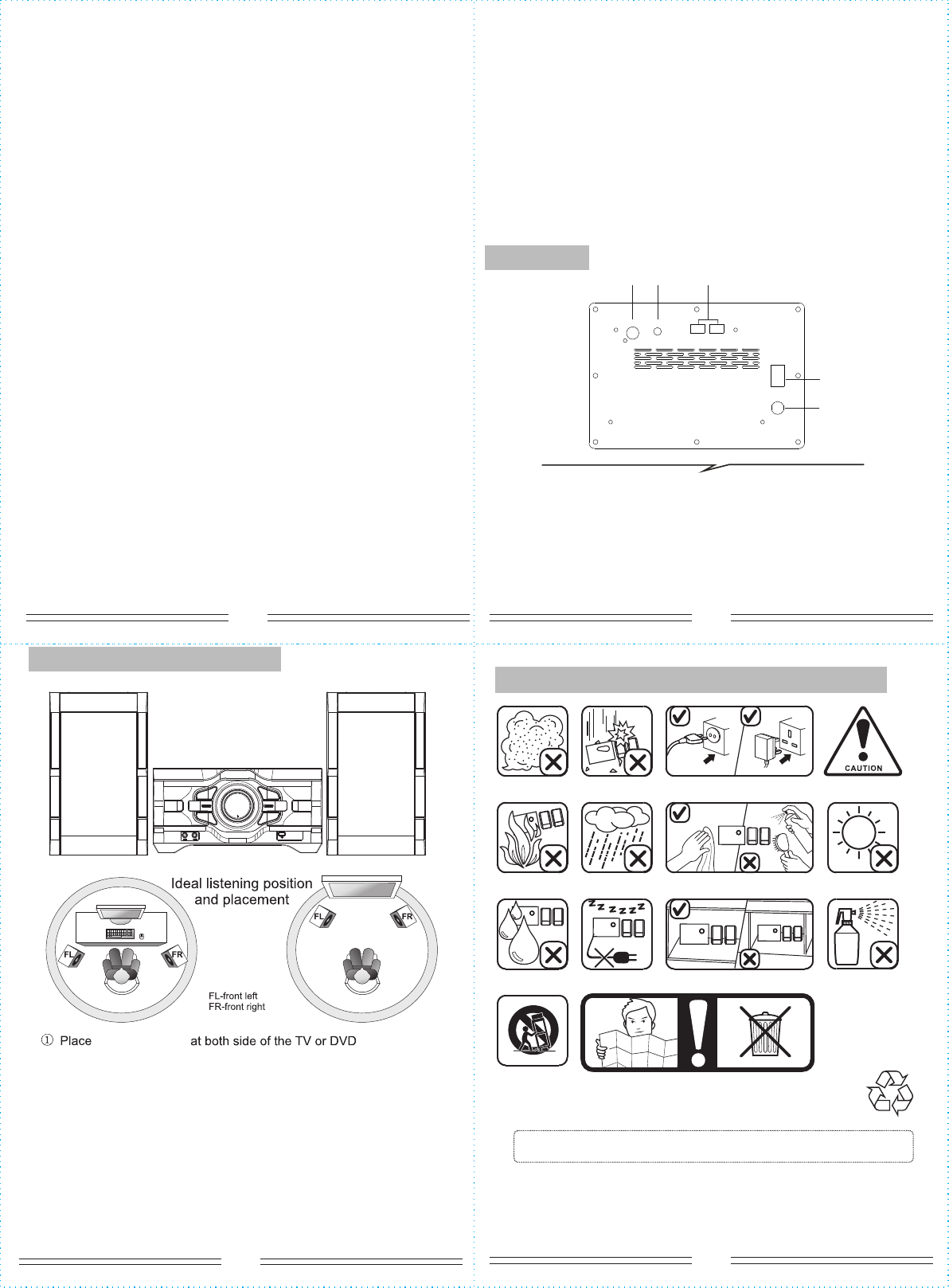

System connection diagram
the 2 speakers
NO.6 NO.7
In use please pay attention to the following items:
*if the remote control cannot function, it is because the battery of
remote control has been used up. thank you.
Warranty
Basic Warranty Statement
Supersonic Inc.("Supersonic") warrants this product to the original purchaser ONLY, to be free
from defects in materials and workmanship under normal use, for ninety (90) DAYS from the
date of original purchase. Proof of purchase (receipt) required.
Please visit http://www.supersonicinc.com/warranty for additional information.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modifications not expressly approved by the
party responsible for compliance. such modifications could void the user's authority to operate the
equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated
with a minimum distance of 20cm between the radiator and your body.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for
compliance. such modifications could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum
distance of 20cm between the radiator and your body.
