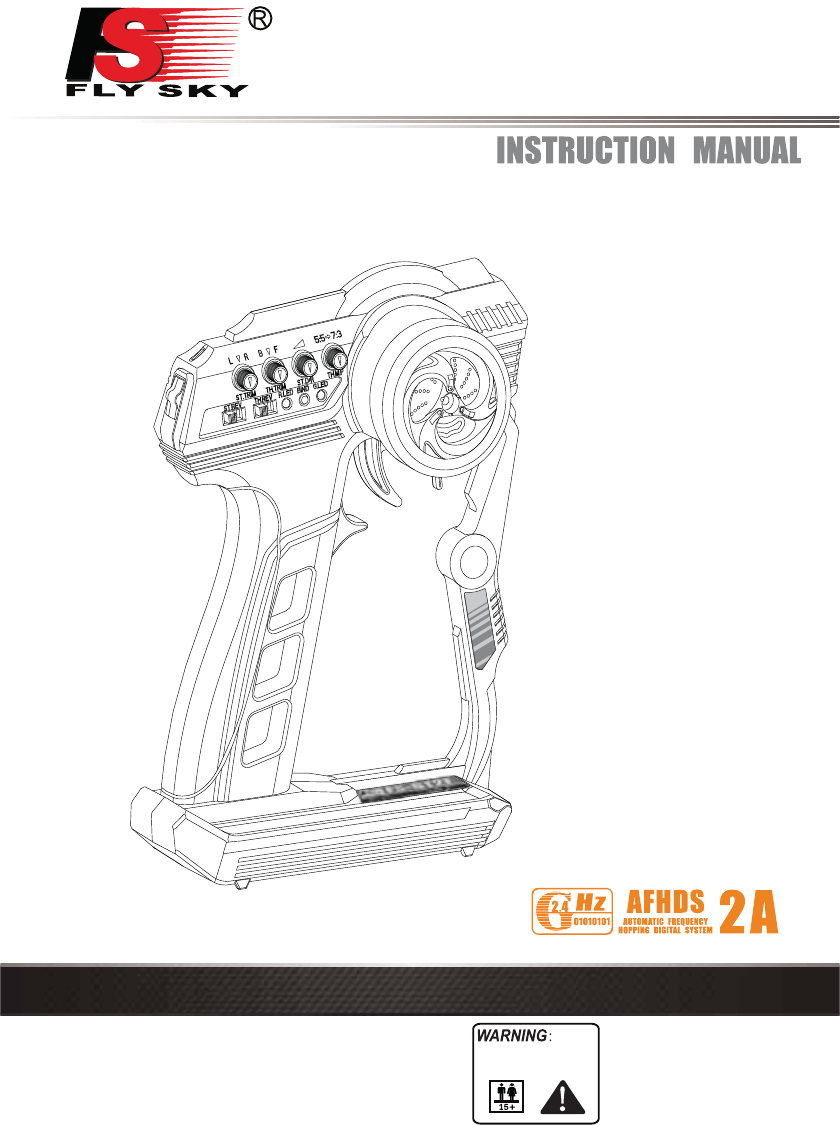

FLYSKY RC MODEL TECHNOLOGY FLYSKYGT2F Digital propotional radio control system User Manual FS GT2F 20140210 X5
FLYSKY RC MODEL TECHNOLOGY CO., LTD Digital propotional radio control system FS GT2F 20140210 X5
User Manual
FS-GT2F
Copyright ©2013-2017
FlyskyRC model technology co., ltd
用户手册
This product is suitable for
15 years old and above
本产品不适合15岁以下儿童使用
http://www.flysky-cn.com
Digital propotional radio control system
1
Table of contents
1. Introduction .........................................................................................................................................................2
2. Services ..................................................................................................................................................................2
3.special symbols ............................................................................................................................................3
4. Safety guide .................................................................................................................................................3
5. 2.4GHz System ............................................................................................. 5
6. .....................................................................................................................................7
.....
.....
..... ......... 9
.....
.....
.....
.....
.
..... 9
简介
服务
特殊标志
安全指导
/characteristic2.4G系统/系统特征
AFHDS和AFHDS2A系统互换
7. Transmitter specifications 发射机参数............................................................................................. ................ 8
8.Receiver specifications接收机参数.................................................................................................. ................... 8
9.Receiver and servo connections 接收机与伺服器连接...................................................... ..................
10. 2.4GHz Operation notes2.4G操作注意事项............................................................................. ...................11
11. Each part of the transmitter.发射机部件................................................................................... ...................13

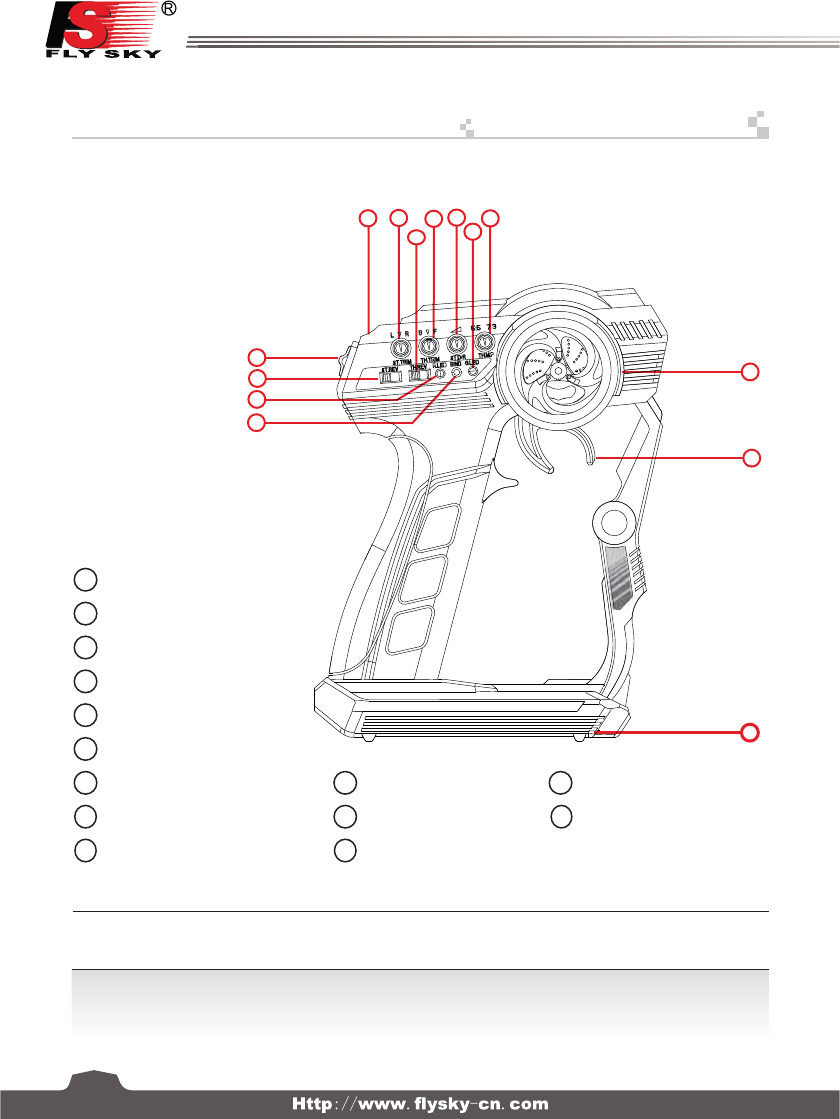

12. Transmitter function notes发射机功能说明.................................................................................................... 14
13. Failsafe function接收机操作说明.................................................................................................... .................16
14. Simulate模拟................................................................................................................................................. ........17

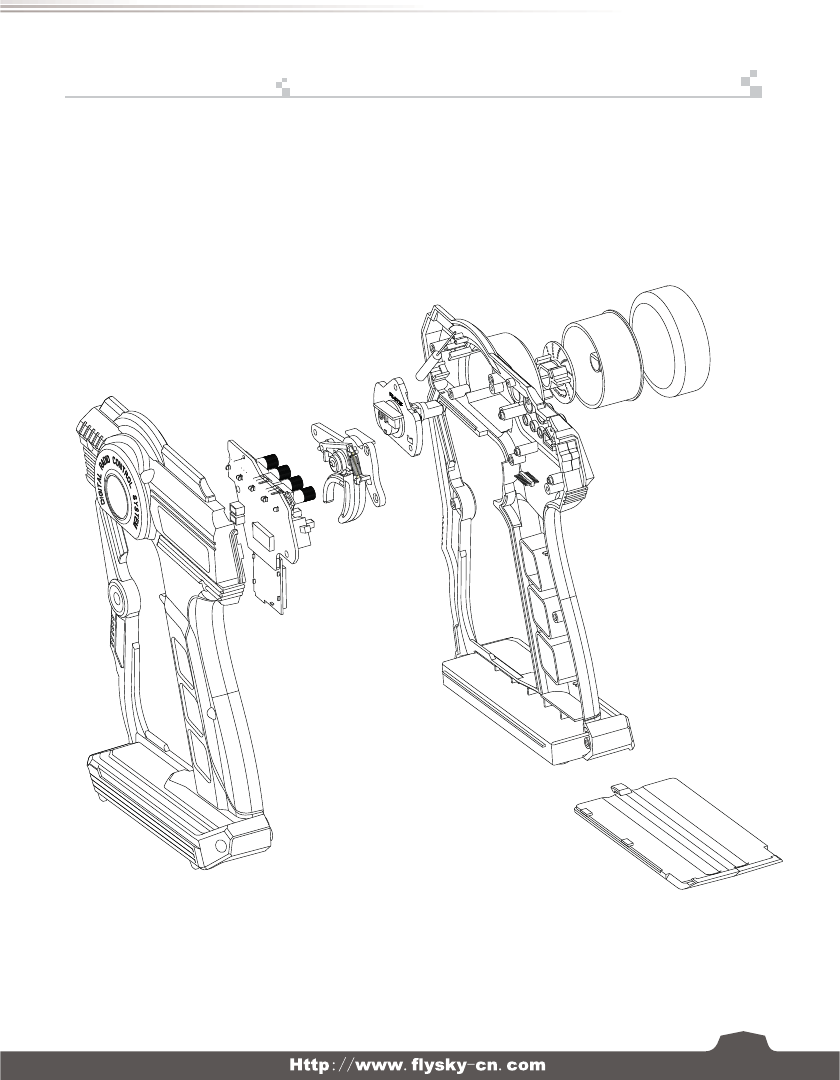

15. Exploded Drwing爆炸图....................................................................................................................................... 18

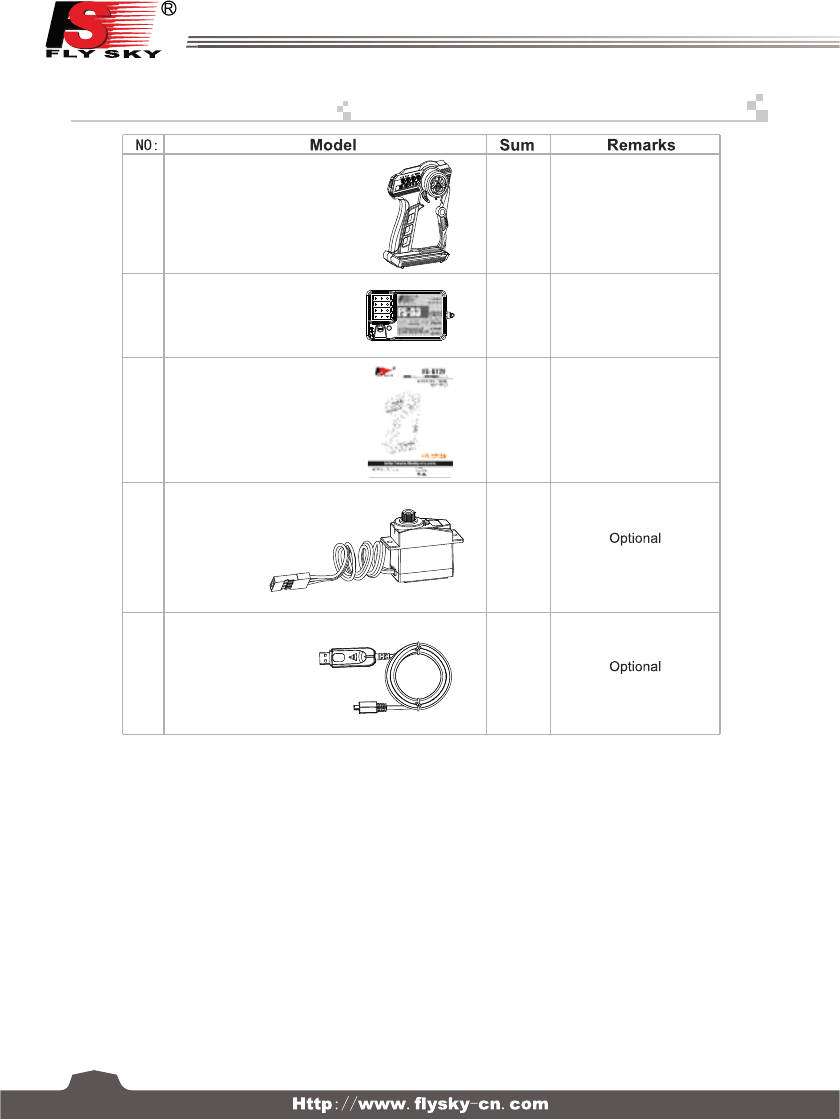

16. Packaging content包装内容 ............................................................................................................... ........... 1
5.01. AFHDS自 动跳频数字系统..................................................................................................................... ....... 5
5.02. System Characteristic系统特征..................................................................................................................... 5
5.03. AFHDS2 A第二代增强版自动跳频数字系统....................................................................................................6
5.04 . S ystem Characteristic系统特征.......................................................................................................................6

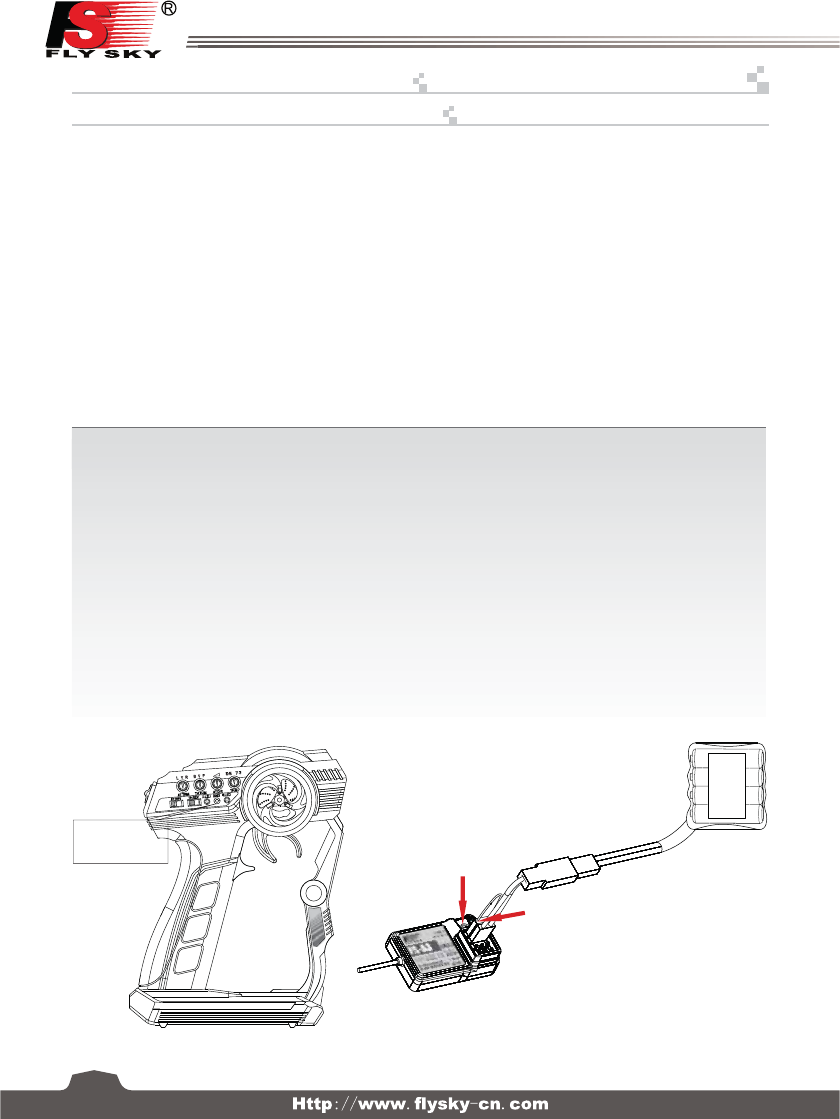

9.01. Installation when a motor controller is used ................................................ 9
9.02. Installation for gas powered models ..................................................................... 10
10.01 . Mt ching(code)/binding 对码.................................................................................................................... 11
10.02. Power on开机................................................................................................................................................ 12
10.03 Shut down关机 .. ...........................................................................................................................................12

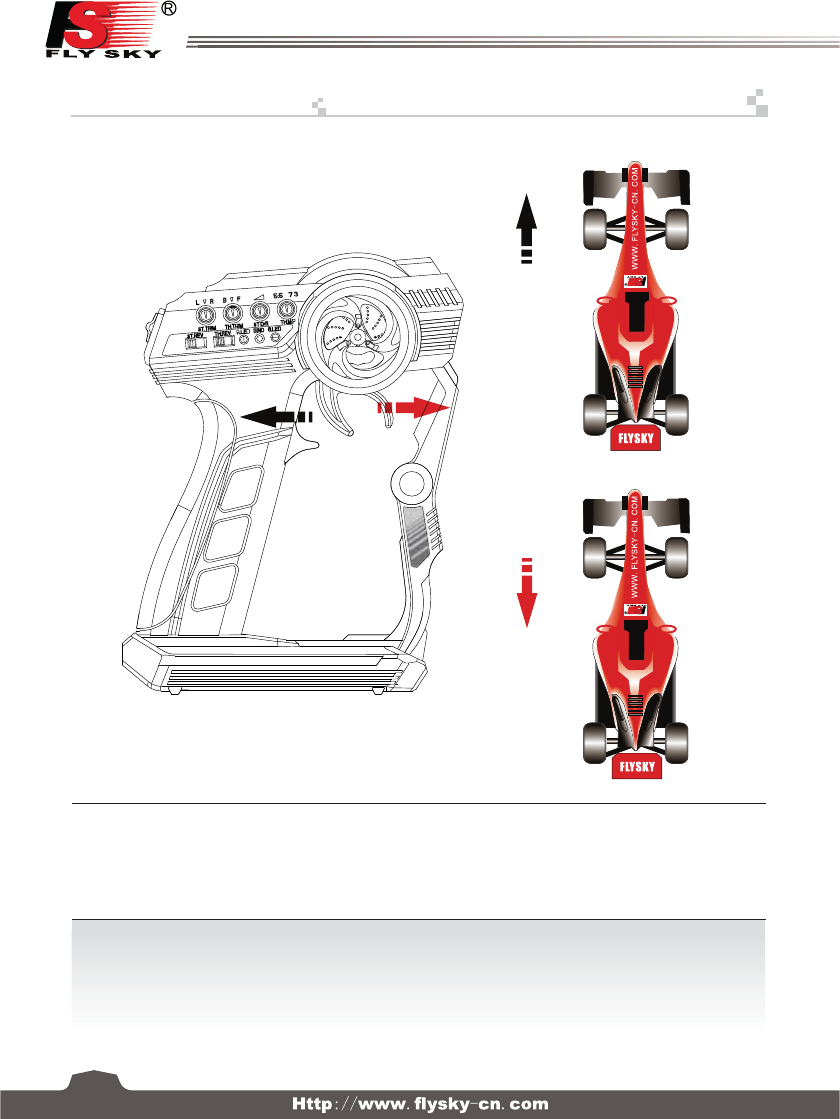

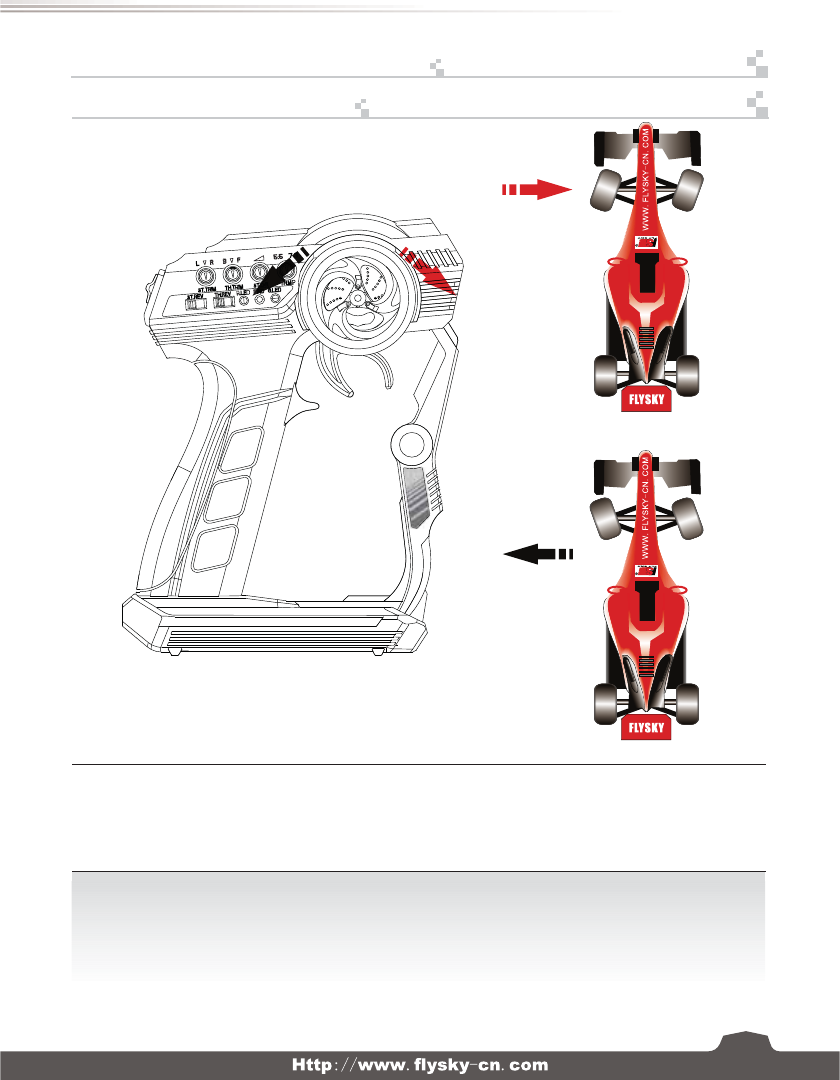

12.01 .Steering control 方向控制........................................................................................................................... 14
12.02. Throttle control油门控制............................................................................................................................ 15
13.01 .Failsafe instruction 失控保护功能说明..................................................................................................... 16
.....
带马达模型的安装连接
发动机模型的安装
2
1. Introduction
2. Services
Thank you for choosing 2.4G ratio remote control digital products,if you are the first time to
use this type of products,please read this statement carefully and strictly in accordance with
the requirements of operation.You could refer to the manual if you meet any problems during
the operation.Please well keep the manual after use because you might have to use it again
next time.Once again,thanks for buying our products.
如果您使用过程中发现有问题，请您第一时间先查看说明书。如果问题还不能解决，您可以跟 我们
的经销商联系解决。您也可以登录我们的服务中心网站：
If you find any problems during the operation process,please refer to the manual.If the problem
still exist,you could contact our dealers to find out the way to solve.And you could also log on
to our website service center:
感谢您选择使用 2.4G数码比率遥控产品，如果你是第一次使用该类型产品，请您在使用之前先
仔细阅读此说明书，并严格按说明要求进行操作。在操作过程中您如果遇到问题同样可以查看说明书。
说明书在使用完后请您妥善保管好，以备后用。再次感谢您使用 的产品，并希望给您带来快乐。
http://www.flysky-cn.com
http://www.flysky-cn.com
简介
服务
Digital propotional radio control system
FS-GT2F
Do not use it in the night or a lighting storm as the bad weather will make the remote
control out of control.

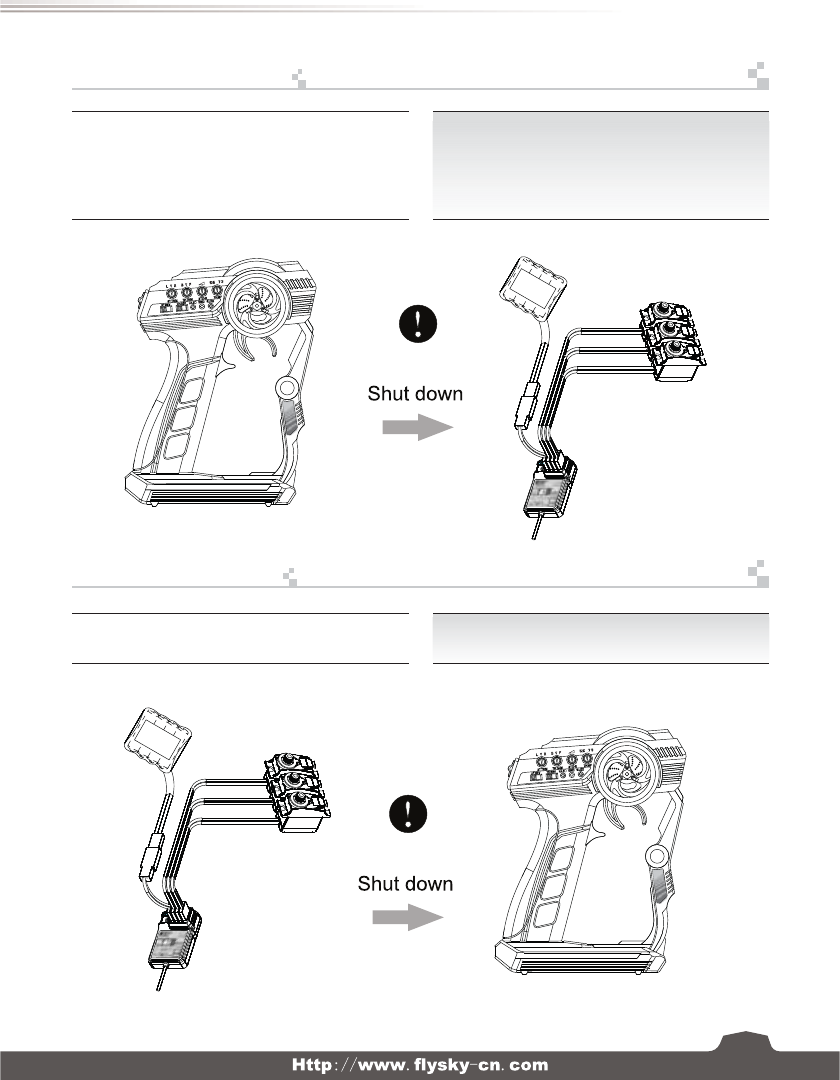

The shutdown sequence must be to first disconnect the receiver battery then to switch
off the transmitter. If the transmitter is switched off while the receiver is still powered, it
may lead to uncontrolled movement or engine start and may cause an accident.
请不要在夜晚或者雷雨天使用此产品，因为恶劣的天气环境有可能导致遥控设备失控。
操控时, 请先确认模型所有舵机的动作方向与操控方向一致。如果不一致，请调整好正确的
方向。
关闭时，请务必先关闭接收机电源,然后关闭发射机，如果关闭发射机电源时接收机仍然在工
作，将有可能导致遥控设备失控或者引擎继续工作而引发事故。
Make sure moving direction of all motors be same with the operating direction. If not,
please adjust direction first.
In particular, the 2.4G R/C system will affect the plane or the car nearby after you turn on the transmitter.
特别要注意,如果附近有汽车正在运行或飞机正在飞行, 开机后2.4 GHz RC系统可能会影响到他们。
强制 禁止
Prohibited
如果操作者不按正常操作方法操作，可能会导致操作者轻伤，但一般不会对操作者
造成重伤！
如果操作者不按正常操作方法操作，有可能导致操作者严重受伤，甚至致命危险。
3
3. Special symbols
4. Safety guide
此说明书中有如下符号的地方请您特别注意，并仔细阅读。
如果操作者不按正常操作方法操作，可能导致操作者严重外伤，重伤或者致命情况！
If the operator does not operate by following the instructions,the
operator may lead to serious injuries,even mortal danger.
If the operator does not operate by following the instructions,
the operator may lead to serious injuries,even mortal danger.
If the operator does not operate by following the instructions,the
operator may lead to minor injuries,but generally it will not cause
serious injuries to the operator.
Please pay attention to the following symbols when it appears on the manual
and read carefully.
特殊标志
安全指导
4
Digital propotional radio control system
FS-GT2F
Be sure to set the Fail Safe function.
一定要启用防失控功能.
Always perform a operating range check prior to using.
Problems with the radio control system as well as improper installation in a model could cause loss of
control.(Simple range test method) Have a friend hold the model, or clamp it down or place it where the
wheels or prop cannot come in contact with any object. Walk away and check to see if the servos follow
the movement of the controls on the transmitter. Should you notice any abnormal operation, and do not
operate the model. Also check to be sure the model memory matches the model in use.
不要在户外雨天,有水的地方或当能见度有限的时候使用。可能水分(水或雪)会进入到系统内部,不稳定的运行
和失控可能发生。
Do not operate in the following places.
-Near other sites where other radio control activity may occur.
-Near people or roads.
-On any pond when passenger boats are present.
-Near high tension power lines or communication broadcasting antennas.
Interference could cause loss of control. Improper installation of your Radio Control System in your
model could result in serious injury.
Do not operate this R/C system when you are tired, not feeling well or under the influence of alcohol
or drugs.
Your judgment is impaired and could result in a dangerous situation that may cause serious injury to
yourself as well as others.
Do not touch the engine, motor, speed control or any part of the model that will generate heat while the
model is operating or immediately after its use.These parts may be very hot and can cause serious burns.
Turn on the power:
Turning on the power switches,Always check the throttle trigger on the transmitter to be sure it is at the
neutral position.
When making adjustments to the model, do so with the engine not running or the motor disconnected.
You may unexpectedly lose control and create a dangerous situation.
Do not operate outdoors on rainy days, run through puddles of water or use when visibility is limited.
Should any type of moisture (water or snow) enter any component of the system, erratic operation and
loss of control may occur.
不要操作在以下的地方。
基站附近或其他无线电活跃的地方；
人多的地方或道路附近。
有客船的水域。
高压电线或通信广播天线附近。
干扰可能导致失控。安装不正确,无线电控制系统可能导致模型发生严重的伤害。
当你感到疲倦, 饮酒或吸毒后，不舒服的影响下，不要操作这个R / C系统。
判断力下降,而且可能发生危险的情况下, 对自己或他人可能造成严重的伤害。
当模型操作或使用后,请勿触摸发动机、电机、调速器或任何可能发热的部分,这些部分可能非常热,会造成严
重的烧伤。
总是在操作模型之前进行全面的检查。
无线电控制系统出现问题以及不正确安装, 都有可能导致模型失控,简单的距离测试方法:
一个人把持模型,或者提起来让轮子与地面无法接触,另一个人持发射机走开,检查该伺服系统运转情况,。测试
时要注意到若有异常出现,请不要操作模型。也检查模型的记忆, 以确保模型的匹配是适当的。
开机时，每次都要检查发射器的油门中位是不是处于中间位置。
当发射机作出调整时,可能模型的引擎没有运行或电机没有连接。可能会发生失控或意外事故的情况。
系统特征
自动跳频数字系统
5.02. System Characteristic
此系统采用高质量的增益天线，覆盖整个波段带宽。配合高灵敏度接收机，系统能有效的避免 离传
播信号的干扰。
远距
此系统使用低功率电子元件和高灵敏度接收机芯片。无线电频率模块采用间歇性信号传播，因 大降
低了发射功率。比较而言，此系统功耗仅为FM版本的十分之一。
此大
This radio system works in the frequency range of 2.405 to 2.475GHz. This band has been divided into
142 independent channels. Each radio system uses 16 different channels and 142 different types of hopping
algorithm. By using various switch-on times, hopping scheme and channel frequencies, the system can
guarantee a jamming free radio transmission.
此系统工作频率范围是2.405到2.475GHz。整个波段被分为142个独立频点。每套遥控系统 16个
不同频点和142种不同的跳频算法。通过开机时间不同，跳频规律不同和使用不同的频点，遥控系统能避免
干扰传播信号。
使用
This radio system uses a high gain and high quality multi directional antenna. It covers the whole frequency
band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio
transmission.
Each transmitter has a unique ID. When binding with a receiver, the receiver saves that unique ID and can
accepts only data from that unique transmitter. This avoids picking another transmitter signal and dramatically
increases interference immunity and safety.
每台发射机有一个唯一的ID码， 当和接收机对码之后， 接收机保存这个唯一的 码并且只接受从 码
发射机发出的信号。 这样可以避免接收到别的发射机信号，大大增强抗干扰能力和安全性。
ID 这个ID
This radio system uses low power electronic components and a very sensitive receiver chip. The RF
modulation uses intermittent signal transmission thus reducing even more power consumption. Comparatively,
this radio system uses only a tenth of the power of a standard FM system.
5.01. AFHDS
AFHDS(自动跳频数字系统),这个系统是富斯公司专为模型爱好者自主研发，并具有自主知识产权的一套数字无线
系统。它是专门针对模型产品而研发的，它具有超强的主动和被动抗干扰能力及极低的使用功耗和极高的接收灵敏度，
是目前市面上最好的系统之一。此系统经过研发人员极端严格的测试及多年市场验证，模型爱好者完全可放心使用！
参数说明：
频率范围： 2.405-2.475GHz
波段宽度： 500KHz
波段个数： 142个
发射功率： 不高于20dBm
2.4G模式：自动跳频数字系统
编码方式： GFSK
天线长度： 26毫米
接收机灵敏度： -105dBm
AFHDS（automatic frequency hopping digital system),is developed by FLYSKY for all the Radio Control model lovers
and is patented by FLYSKY at home.The system is specially developed for all the Radio control models,thar offers
super active and passive antijamming capabilities,very low power consumption and high receiver sensitivity.With
extreme rigorous testiong by engineers and studying the markets for years,FLYSKY AFHDS is now considered to be
the one of the best systems available in the market.
RF specifications:
Bandwidth: 500KHz
Band sum: 142
RF power: less than 20dBm
2.4G system: AFHDS
Code type: GFSK
Antenna length: 26mm
RX sensitivity: -105dBm
RF range: 2.405-2.475GHz
5. 2.4GHz System/Characteristic 2.4G系统/系统特征
5
系统特征
5.04. System Characteristic
此系统采用高质量的增益天线，覆盖整个波段带宽。配合高灵敏度接收机，系统能有效的避免 离传
播信号的干扰。
远距
此系统使用低功率电子元件和高灵敏度接收机芯片。无线电频率模块采用间歇性信号传播，因 大降
低了发射功率。比较而言，此系统功耗仅为FM版本的十分之一。
此大
The frequency range of AFHDS2A is from 2.405GHZ to 2.475GHZ. The whole band is divided into 142 frequency
points. Each system with unique frequency hopping rules uses 16 different frequency points, which can avoid
interruptions effectively.
AFHDS2A系统工作频率范围为：2.405-2.475GHz。整个波段被划分为142个独立频点。每套遥控系
统使用16个不同频点，具备独立的调频规律，能有效的避免信道间的干扰。
This radio system uses a high gain and high quality multi directional antenna. It covers the whole frequency
band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio
transmission.
Each transmitter has a unique ID. When binding with a receiver, the receiver saves that unique ID and can
accepts only data from that unique transmitter. This avoids picking another transmitter signal and dramatically
increases interference immunity and safety.
每台发射机有一个唯一的ID码， 当和接收机对码之后， 接收机保存这个唯一的 码并且只接受从 码
发射机发出的信号。 这样可以避免接收到别的发射机信号，大大增强抗干扰能力和安全性。
ID 这个ID
This radio system uses low power electronic components and a very sensitive receiver chip. The RF
modulation uses intermittent signal transmission thus reducing even more power consumption. Comparatively,
this radio system uses only a tenth of the power of a standard FM system.
第二代增强版自动跳频数字系统
5.03. AFHDS2A
AFHDS2A（第二代增强版自动跳频数字系统）是富斯公司基于AFHDS/AFHDS2基础最新研发成功的一套数字无线系
统,具备自主知识产权。AFHDS2A专门针对高端模型产品而研发，内置多重信道编码和纠错算法，采用主动和被动跳频方
式，具备更强的通信距离和抗干扰能力，是目前市面上最好的无线系统之一。此系统融合了富斯研发人员多年的设计经验，
通过严格的现场测试，航模爱好者可放心使用！
参数说明：
频率范围： 2.405-2.475GHz
波段宽度： 500KHz
波段个数： 142个
发射功率： 不高于18dBm
2.4G模式：第二代增强版自动跳频数字系统
编码方式： GFSK
天线长度： 26毫米
接收机灵敏度： -105dBm
RF specifications:
Bandwidth: 500KHz
Band sum: 142
RF power: less than 18dBm
2.4G system: AFHDS 2A
Code type: GFSK
Antenna length: 26mm
RX sensitivity: -105dBm
RF range: 2.405-2.475GHz
Digital propotional radio control system
FS-GT2F
6
AFHDS2A (automatic frequency hopping digital system 2A) is the digital radio system with independent intellectual property,
which is newly developed by FLYSKY. This system is developed specially for high-end model products. As the one of the best
system in the market, it has built-in multiple channel coding, error-correction, longer communication distance and more
powerful antijamming capability. Model airplane fan can safely use this radio system as it combines years of design
experience and has passed stick field tests.
AFHDS2A系统具备单—双向自动识别功能，根据用户需求自动切换单-双向通信模式。在双向通信模式下，
具备信息回传功能，能更好的掌握模型的当前工作状态，增加操控乐趣及安全性。
AFHDS2A系统内置多重信道编码和纠错算法，有效的提高了通信稳定度，减小通信误码率，增加可靠传
输距离。
6.
AFHDS和AFHDS2A系统切换
1
7
i=
0
8
AFHDS2A system has the automatic identification function, which can switch automatically current mode between
single-way communication mode and two-way communication mode according to customer needs. The two-way
communication mode with data return function can help users understand current working status better and make
the fight more enjoyable.
AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the
communication, reduce the error ratio and extend the reliable transmission distance.
开机后，如果LED灯慢闪（闪烁周期为240ms），为AFHDS系统。
开机后，如果LED先快闪2下，再慢闪一下，快闪周期为240ms，慢闪周期为720ms，总周期为（240ms*2+
720ms＝1.2S）即为AFHDS2A系统。
Turn on the radio. It is AFHDS system if the LED keeps flashing (flashing cycle is 240ms)
Turn on the radio. The LED flashed quickly twice, and then flashed slowly once. In addition, the quick flash cycle is
240ms, and slow flash cycle is 720ms, and the total cycle is 1.2S(240ms*2+720ms＝1.2S).If so, the current system is
AFHDS2 system.
Switching system between system AFHDS and system AFHDS2
The current system will be switched by another one when
turning the steering wheel clockwise or counterclockwise to the
end and then turning on the radio. After that, restart the radio to
enter work status.
手轮顺时针或逆时针拧到底后开机切换为另一个系统，重启开机后
进入正常工作状态。

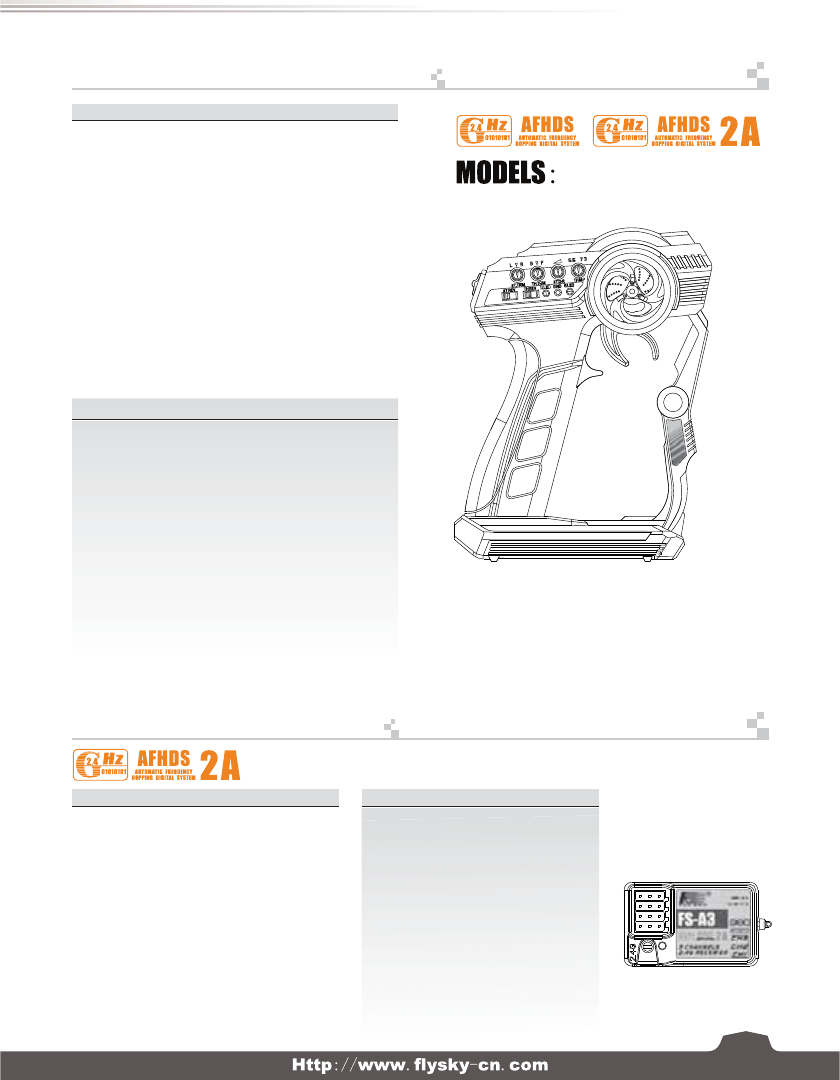

7. Transmitter specifications 发射机参数
SPECIFICATIONS：
MODEL: FS-A3
8.Receiver specifications 接收机参数
机种参数：
FS-GT2F
Transmitter specifications:
机种参数
通道个数：2
适合机种：车/船
频率范围：2.405-2.475GHz
波段宽度：500KHz
波段个数：142个
发射机功率：不高于18dBm
2.4G模式：第二代增强版自动跳频数字系统(含第一代系统）
编码方式：GFSK
通道分辨率：1024级
低电压报警：低于4.2V时
数据输出：Micro-USB PPM
方向盘转动角度：45度（前35度，后15度）
充电接口：无
天线长度：26毫米
机身重量：323克
输入电源：6V DC 1.5AA*4
显示方式：LED指示灯
外形尺寸：150*80*196毫米
外观颜色：黑色
Channels: 3
Model type: car/boat
RF range: 2.405-2.475GHz
Bandwidth: 500KHz
Band sum: 142
RF.receiver sensitivity: -105dBm
2.4G system: AFHDS 2A
Code type: GFSK
Sensitivity: 1024
Power: 4.0-6.5V DC
ANT lenght: 26mm
Weight: 5g
Size: 35*22*12mm
Color: black
Certificate: CE FCC
通道个数：3
适合机种： 车/船
频率范围: 2.405-2.475GHz
波段宽度： 500KHz
波段个数： 142个
接收灵敏度： -105dBm
2.4G模式：第二代增强版自动跳频数字
系统
编码方式： GFSK
通道分辨率： 1024级
输入电源： 4.0-6.5V DC
天线长度： 26毫米
机身重量： 5克
外形尺寸： 35*22*12毫米
外观颜色： 黑色
认证： CE FCC
Digital propotional radio control system
FS-GT2F
8
Channels: 2
Model type: car/boat
RF range:2.405-2.475GHz
Bandwidth:500KHz
Band:142
RF power: less than18 dBm
2.4G system: AFHDS2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
DSC port: Micro-USB PPM
ST range:70 L:35 R:35
TH range:45 F:35 B:15
Charger port: no
ANT length: 26mm
Weight: 323g
Power: 6V DC 1.5AA*4
Display mode:LED indicator
Size: 150*80*196mm
Color: blacK
9.Receiver and servo connections
9.01. Installation when a motor controller is used

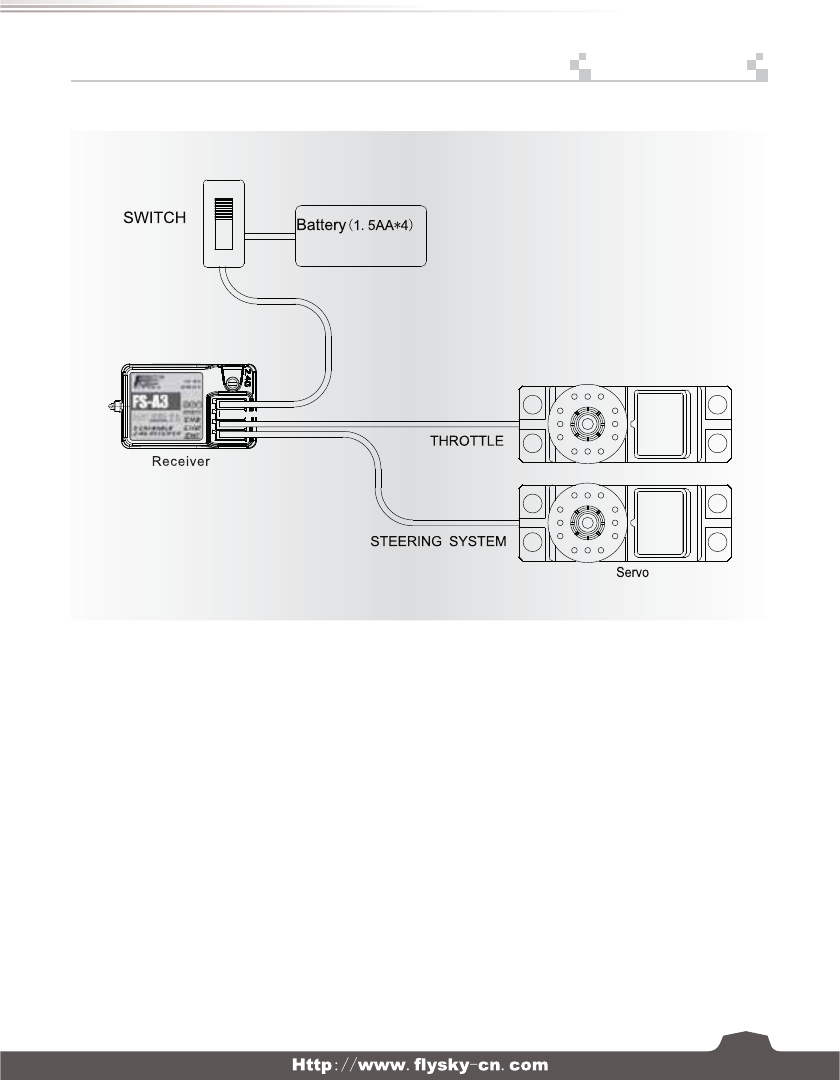

接收机与伺服器连接
带马达模型的安装连接
Remark: Place the receiver antenna upright and perpendicular to the horizontal plane
Keep the receiver antenna away from any metal objects to ensure max sensitivity. (See pic1)
注：在安装接收机时请将接收机天线与水平面垂直放置！且天线尽可能 不要靠近金属物！因为这样接收灵敏
度最高。（如图1）
ANT
Receiver
Figure1(图1）
开关
调速器
伺服器
接收机
电池
马达
9
9.02. Installation for gas powered models 发动机模型的安装
开关 电池
接收机
油门
方向系统
伺服器
Digital propotional radio control system
FS-GT2F
10
10. 2.4GHz Operation notes
10.01. Matching(code)/Binding
2.4G操作注意事项
All receivers are already paired with their respective transmitter during production. If you wish to bind it with another
transmitter, please follow the instructions below.
Remark: FS - brand system are not compatible with other brands
Steps:
1. Ensure you are using AFHDS2A system
2. Correctly install the battery inside 2.4G transmitter w/o powering it on.
3. Insert the binding plug into the BIND channel slot on the receiver. (Figure.1).
4. Using a correct receiver battery pack, plug it in to VCC channel slot on the receiver. At this time, the LED on receiver should
flash, indicating receiver has entered bind status.
5. Press and hold the binding button on transmitter, and then switch on the transmitter.
6. Observe the LED light on the receiver. If LED stops flashing, and stays lit permanently, the binding procedure is completed.
(This process takes approximately 5S.)
7. Release hold the binding button on the transmitter, and unplug the bind cable.
8. Install the servos to test.
9. If the system does not work properly, repeat the procedure.
(The above binding instruction is only suitable for any FLYSKY 2.4G products)
我们的产品在出厂前已经过配对，您无需做配对动作便可使用。但如果您要将接收机跟另外的发射机进行配对使
用，或者您要更换新的接收机或者发射机，请您按如下的步骤进行：
注：我们的接收发射系统。不跟其它品牌兼容！
1.确保发射机为AFHDS2A系统
2.将2.4G发射机装好电池，并关闭发射机。
3.将配对线插入接收机的BIND通道接口（如图1)
4.将接收机电池插入接收机的VCC通道接品，此时可看到接收机的LED在闪烁，此表示接收机进入配对状态。
5.将发射机上的配对键（BIND)按住，然后打开发射机电源开关。（注：不要松开按键）。
6.观察接收机上的LED，如果发现LED不再闪烁表示配对成功。（注：此过程大约时间为5S左右）。
7.松开发射机上的配对按键，拔掉接收机上的配对线。
8.将柌服器装上并通电测试
9.如果测试NG，则重复以上动作
注：以上配对方法，仅适合于FLYSKY的2.4G产品。
LED
Figure1(图1）
Match line
对码线
Receiver
接收机
Battery
电池
对码按钮
Bind key
11
对码
10.02 Power on
A. Connect every part.
B. Switch on the power supply of the transmitter.
C. Connect the power supply of the receiuer.
D. Receive LED light solid.
E. Finish and use.
1. 将各部件链接好；
2. 打开发射机电源开关；
3. 连通接收机电源；
4.接收机LED恒亮；
5.使用。
开机
10.3 Shut down
Tx power ON Rx power ON
A. Connect every part.
B. Cut off the transmitter power supply.
1. 关闭接收机的电源；
2. 关闭发射机的电源。
Rx power off Tx power off
关机
Digital propotional radio control system
FS-GT2F
12
1
2
3
4
56
7
89
10
11
12
13
14
对码键 BIND Key
电源指示灯 POWER LED
S T倒置开关 ST REV
电源开关 POWER ON/OFF
数据输出接口 DSC FOR SIMULATE
S T 中位微调 ST TRIM
T H 倒置开关 TH REV 8T H 中位微调 TH TRIM 9S T通道比例微调 ST D/R
工作指示灯 POWER CHECK
11
油门比例微调 TH,M,P
12
方向调轮 STEERING WHEEL
1
2
3
4
5
6
7
10
13
油门扳机THROTTLE TRIGGER
14
电池盒 BAT BOX
油门比例微调TH,M,P
On some model, the travel of the throttle is not equal to the travel of the brakes.This function sets the position of the
middle point between the throttle and the brakes.Throttle proportion can be set from 5:5 to 7:3 when mechanical angle of
the radio is not modified.

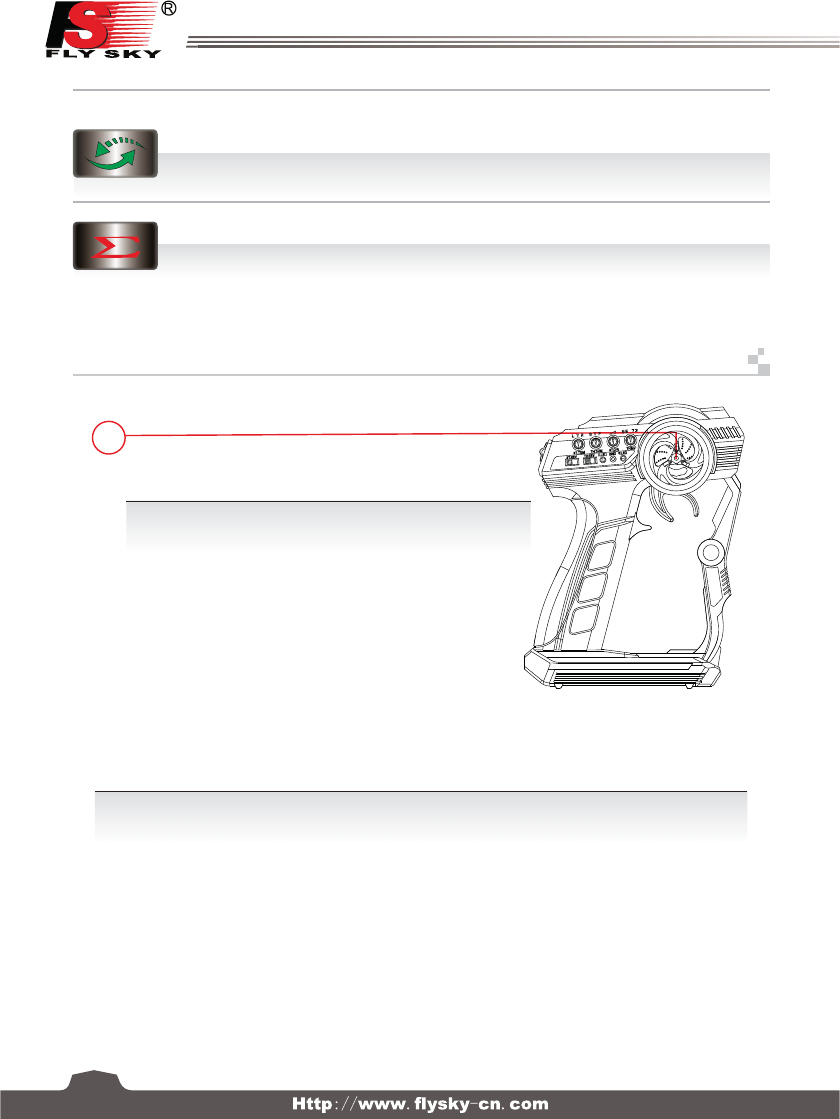

11. each part of the transmitter
Front
一些模型的油门的行程同刹车的行程是不对等的，此功能设置油门和刹车的中位位置。在没修改遥控器机械角度的情况下，修改扣机油门前进
和倒退的比例。设定的范围是5:5至7:3。
13
发射机部件
12. Transmitter function notes
功能说明：
此功能是进行方向控制，当方向舵往右旋转时车子前轮会跟着往右（如图），当方向舵往左旋转时车子前轮会跟着
往左（如图）。
操作方法：
开机后，通过方向舵进行方向控制，方向舵动作大小依据实际情况进行比率调整，方向舵大小动作量可通过D/R进
行大小舵量的调整。
Function Introduction:
This function is to control the direction,when the steering turn to right then the front wheel will turn to right (as
picture),when the steering turn to left then the front wheel will turn to left(as picture).
Operation Method:
Adjust the dual rate of the steering by adjusting the D/R knob.
Digital propotional radio control system
FS-GT2F
14
发射机功能说明
Steering control12.01. 方向控制
12.02 Throttle control
功能说明：
此功能是进行油门（速度）控制，当油门扣机往后打时车子会向前加速（如图），当油门扣机往前推时车子会进行
刹车或加速后退（依据不同的调速器）（如图）。
操作方法：
开机后，通过油门扣机进行前后运行的控制。
Function Introduction:
This function is to control the throttle speed,when pull the rhrotte trigger back,car will accelerate forward(see the
picture),when push the throttle trigger,the car will put on the brakes or double ring asterm(according to the differ-
ent ESC)(see thepicture).
Operation Method:
To control it by pushing and pulling back the throttle trigger after power on.
15
油门控制
13. Fail safefunction
接收机操作说明
13.01 Failsafe Instruction
1.功能说明

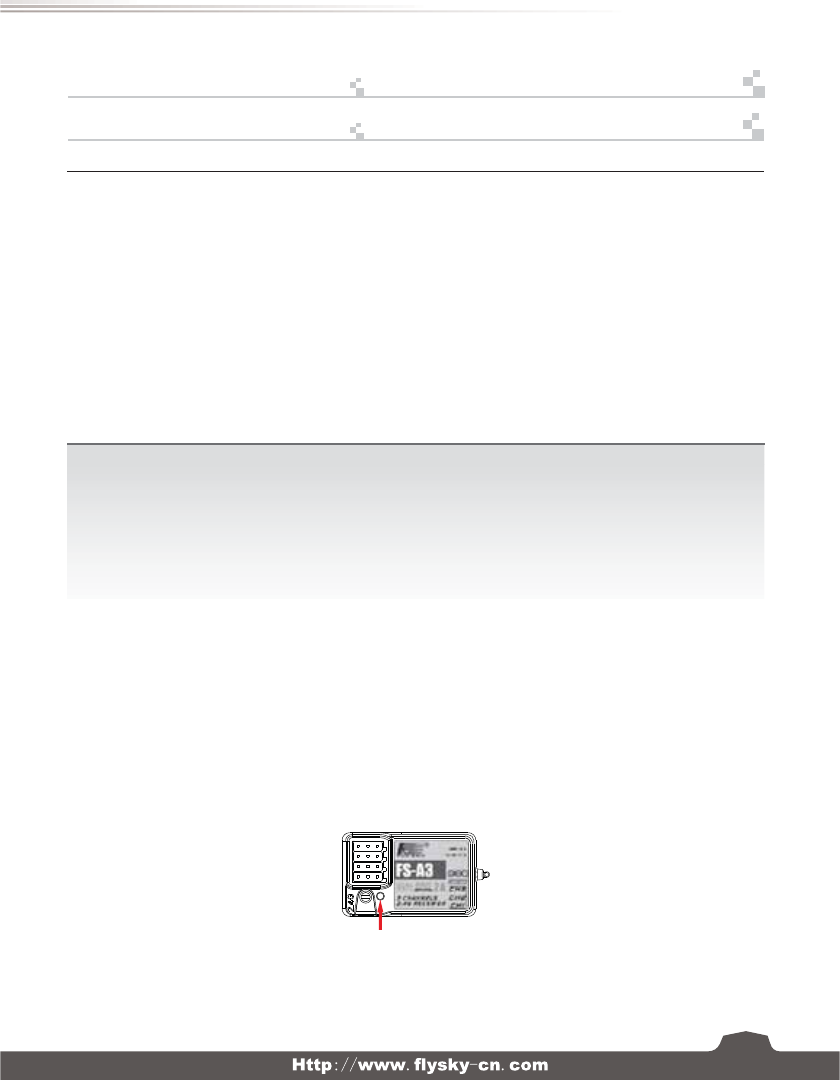

失控保护功能是对模型车或船进行失控保护，避免因失控造成损失。主要是对油门通道进行控制，当接收机接收不到控制
信号时，接收机的油门通道将自运行到当初设定的值，以免误动作。
2.设定方法
a. 将发射机开通电源进入工作状态。
b. 将接收机接通电源进入工作状态，此时信号灯恒亮。
c. 控制发射机的油门通道，使油门控制伺服器或调速器进入刹车或熄火状态，然后保持 不动。
d. 此时将接收机的设定键（如图按下），此时接收机LED信号灯会闪烁，并在3秒左右停止。
e. 设定完成
3.测试
a. 将发射机打开进入工作状态。
b. 将接收机接通电源进入工作状态。
c. 将发身机关闭电源。
d. 此时可看到油门通道的伺服器便会自动进入设定状态的位置
e. 以上动作如果可以完成表示设定OK
1.Function
Failsafe aims to prevent out-of-control driving of RC car orRC boat.If the Receiver is not able to receive
any signal,from the control to throttle,the parameter of throttle on receiver will turn back to its original
setting.
2.Setting
a.Turn on the Transmitter switch;
b.Turn on the Receiver switch.the LEDwill be lighting;
c.Adjust Transmitter's Throttle,make the car/boat to stop or flameout,then keep still.
d.Press the "Setting"button on Receiver(as the pic below).the LEDwill be flashing,then stop after
3seconds around,which means setting finished.
3.Tes t in g
a.Turn on the Transmitter switch;
b.Turn on the Receiver switch;
c.Turn off the transmitter switch;
d.Servo of throttle will turn back to its original setting automaticlly'
e.Setting is successful if above procedures finished completely.
FAIL SAFE FUNCTION
Digital propotional radio control system
FS-GT2F
16
失控保护功能说明
14. Simulation
功能说明：

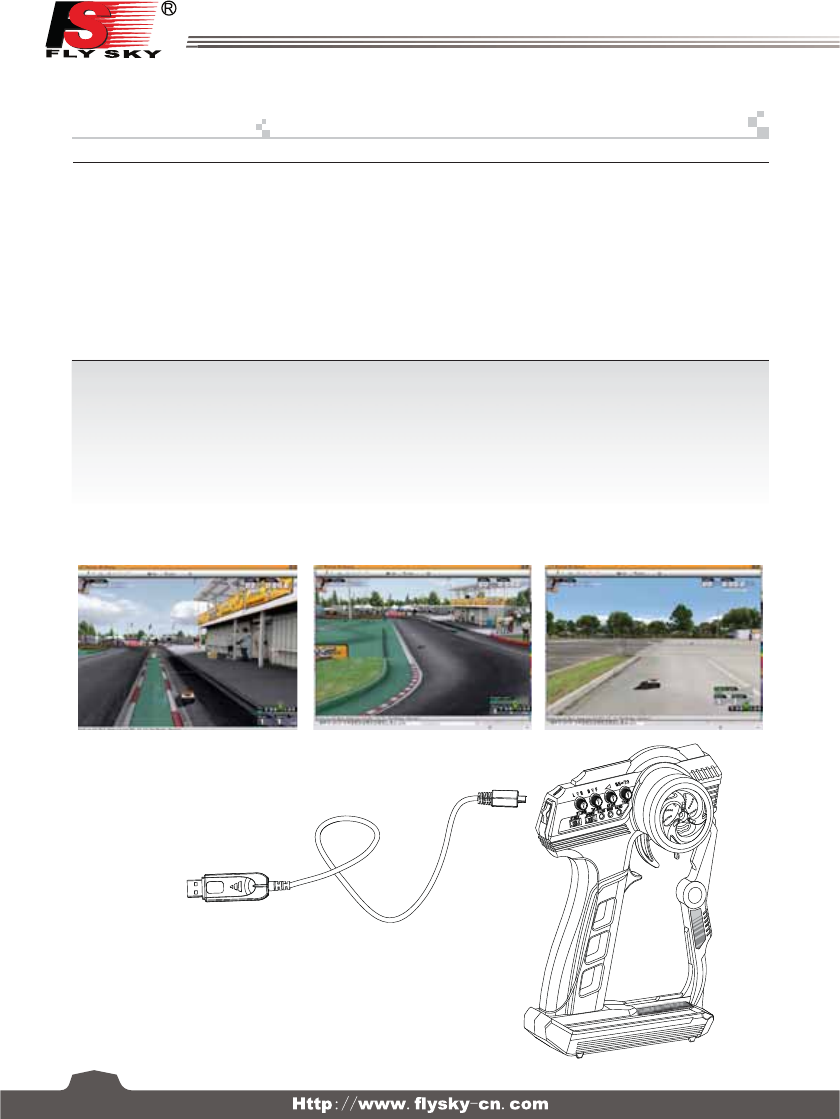

此功能用于电脑模拟，从而可通过电脑进行练习，及进行电脑模拟比赛。
操作方法：
1.将本厂提供的电脑模拟连接线（FS-SM102）一端插入发射机的micro USB接口，另一端插入电脑的USB接口，
2.打开发射机电源。
3.启动VRC车模应用软件。
4.按软件要求进行设定完成后便可进行电脑模拟了。
备注：
本公司提供的是VRC公司的免费软件，此软件只提供一条基本赛道和一个训练场。如需其它赛道请跟VRC公司联系。谢谢！
Introduction:
The following is for the virtual RC racing practice on computer, and you can also play simulated competition on the computer.
Operation Methods:
1.Using FS-SM102 simulator cable, please insert the micro USB plug into Transmitter, and the USB plug into a PC.
2.Switch on the Transmitter.
3. Start VRC software on your PC.
4. Follow the on-screen instructions to customize user setting
Remark:
VRC software provided is free and only offers one track and training ground.
If all works fine, and your pc or notebook is capable of running the VRC software, you can then purchase any additional
game packs from VRC company.
TO COMPUTER USB PORT
MODEL NO:FS-SM102
17
模拟
15. Explooed orwing
Digital propotional radio control system
FS-GT2F
18
爆炸图
16. Packaging content 包装内容
3
2
11
1
1
伺服器
可选的
6
5
1
2
模拟线
FS-SM102
Servo(FS-S009)
可选的
说明书
Manual
3 通2.4G接收
3 channel 2.4G
receiver(FS-A3)
2 通2.4G发射
2 channel 2.4G
transmitter(FS-GT2F)
19
http://www.flysky-cn.com
Copyright ©2013-2017 Flysky co., ltd
Digital propotional radio control system
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
