User Manual II
FS-GT3B
14

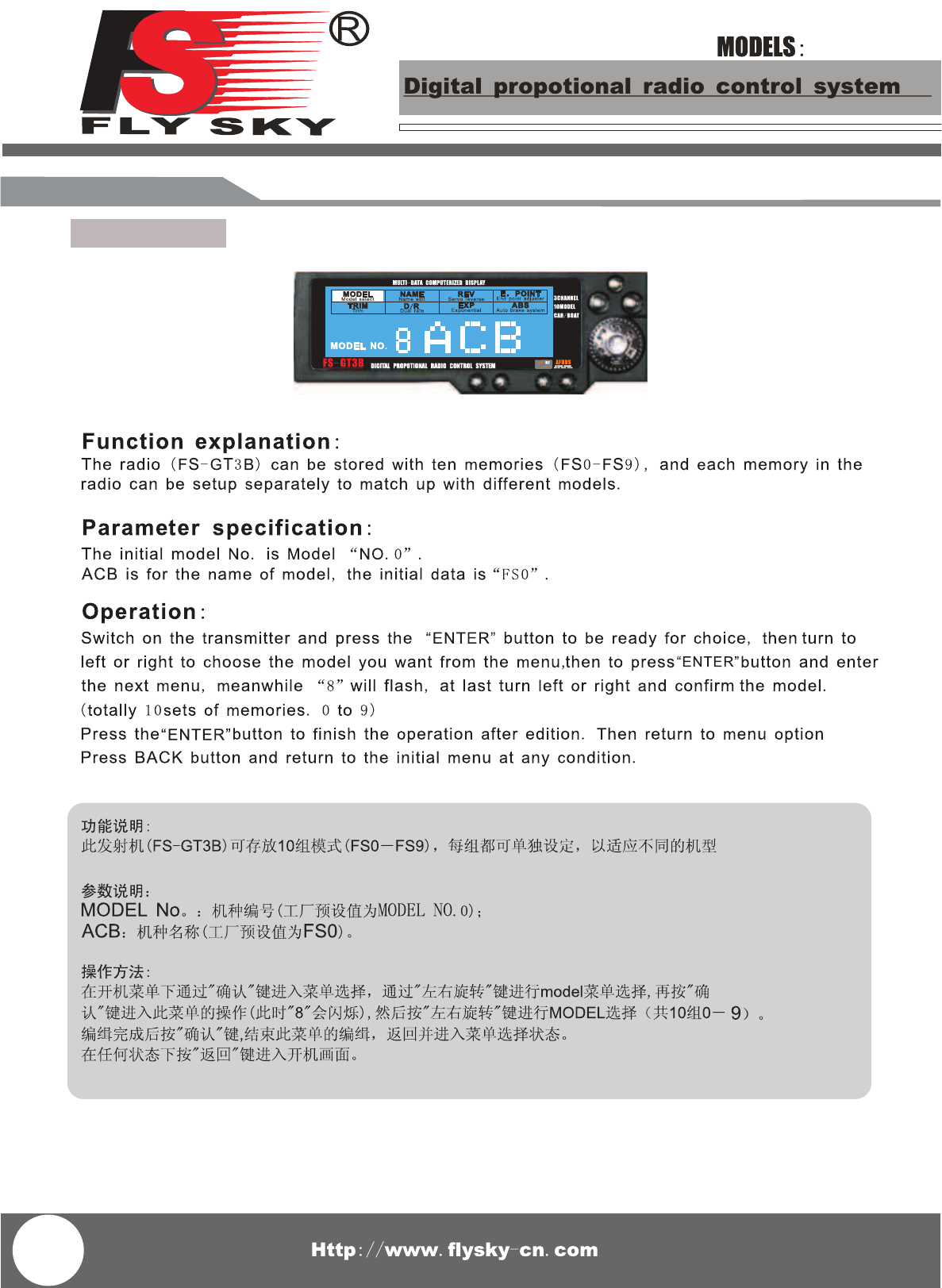

12.03MODEL:
FS-GT3B
15
12.04 NAME:
FS-GT3B
Function explanation:
Operation:
16
12.05 REV:
FS-GT3B
参数说明:
CHANNEL:通道编号,从1到3.
100%:输出量百分比率,值越小输出越小,反之越大(此调整量为0%到120%,工厂预设值为100%)。
:此图标表示当前你所设定调整的是那一部份(分正负两部份,由方向盘及油门扣机来选定)。
操作方法:
在开机菜单下通过“确认”键进入菜单,通过“左右旋转”键进行E.POINT菜单选择,再按“确认”
进入此菜单的操作(此时1字符闪烁),然后通过“左右旋转”键进行通道1到3通道的选择,选好要变更
的通道后按“END”键,此时三个字符会闪烁,在此状态下通过方向盘及油门扣机进行单边选择(被选
中的那边所对应的图标 会闪烁),然后按"左右旋转"键进行0-120%的设定.完成后按"END"键可进入
另一个通道的设定.依类推对三个通道进行设定.
编辑完成后按"确认"键返回并进入菜单选择状态.
在任何状态下按"返回"键进入开机画面.
键
17
12.06 E.POINT:
o
l
n
FS-GT3B

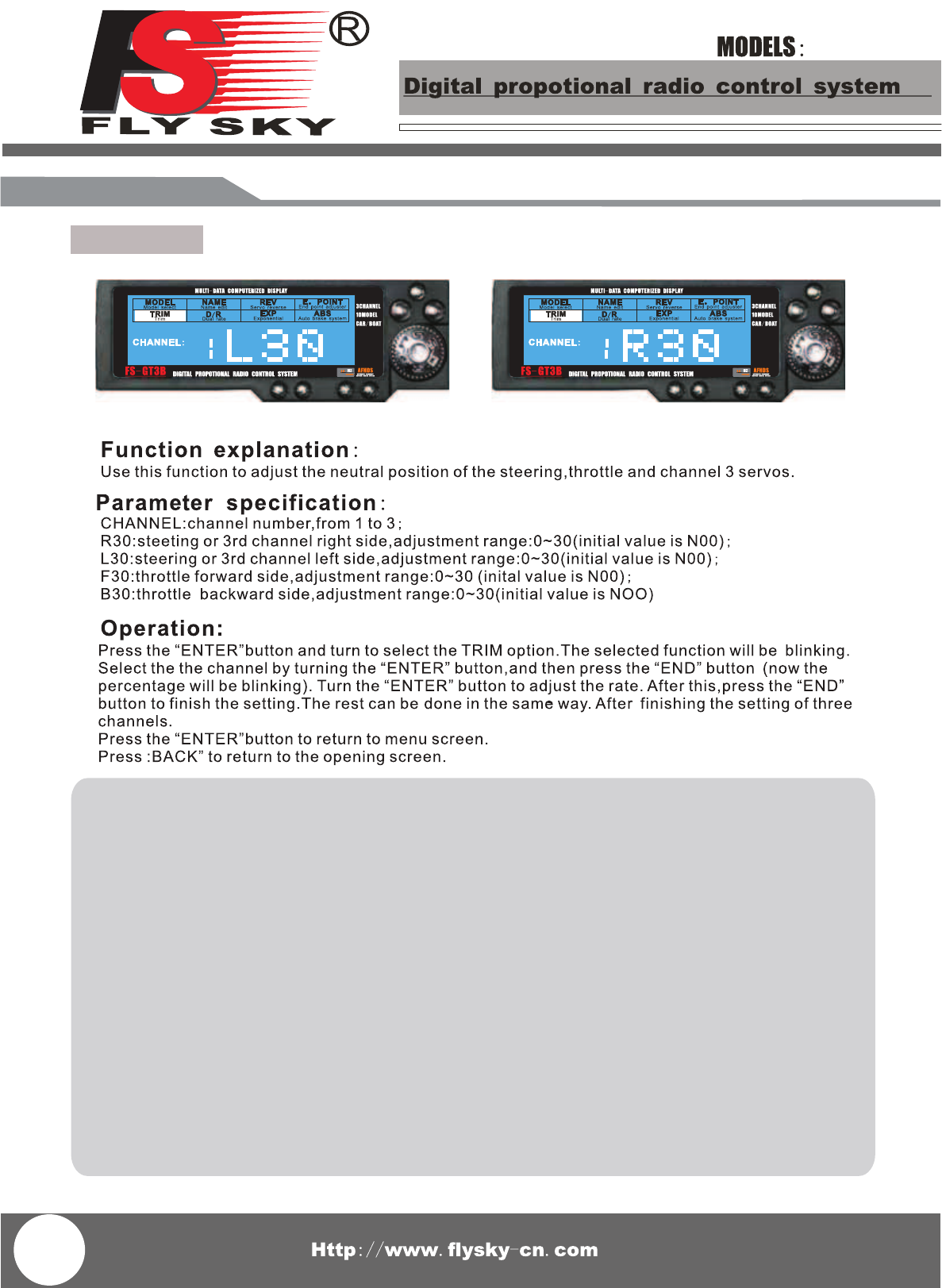

功能说明:
此功能是对三个输出通道中立点微调的设定,调整修正机种在装配及伺服系统中心点不
以使车或船等模型在操控时更加直线。
对产生的偏差。
参数说明:
CHANNEL:通道编号,从1到3.
R30:通道右边微调,调整量量为0-30,工厂预设值为N00.
L30:通道左边微调,调整量为0-30,工厂预设值为N00.
F30:通道前进微调,调整量为0-30,工厂预设值为N00.
B30:通道后退微调,调整量为0-30,工厂预设值为N00.
操作方法:
在开机菜单下通过"确认"键进入菜单,通过"左右旋转"键进行TRIM菜单选择,再按"确认"键进入此菜单的
操作(此时1字符会闪烁),然后通过"左右旋转"键进行通道1到通道3的选择,选好要变更的通道后按"END"
键,此时三个字符会闪烁,在此状态下通过按"左右旋转"键进行L30-N00-R30(油门 通到 是F3 0- N0 0- B3 0)
设定调整.完成后按"END"键通道的设定.依类推对三个通道进行设定.
编辑完成后按"确认"键返回并进入菜单选择状态.
在任何状态下按:返回"键进入开机画面.
18
12.07 TRIM:
FS-GT3B
功能说明:
此功能是对三个输出通道做输出变化量调整设定,此项设定同时对两部份(正半部负半部
率进行设定,适应不通机种及不同伺服器输出的要求,以达到最佳的操控效果.
份)按同一比
参数说明:
CHANNEL:通道编号,通道1到通道3;
100%:输出量百分比率,值越小输出越小,反之越大(此调整量为0%到100%,工厂预设值;为100%),0%表示此
通道没有输出,100%表示全部输出,也就是最大输出.
操作方法:

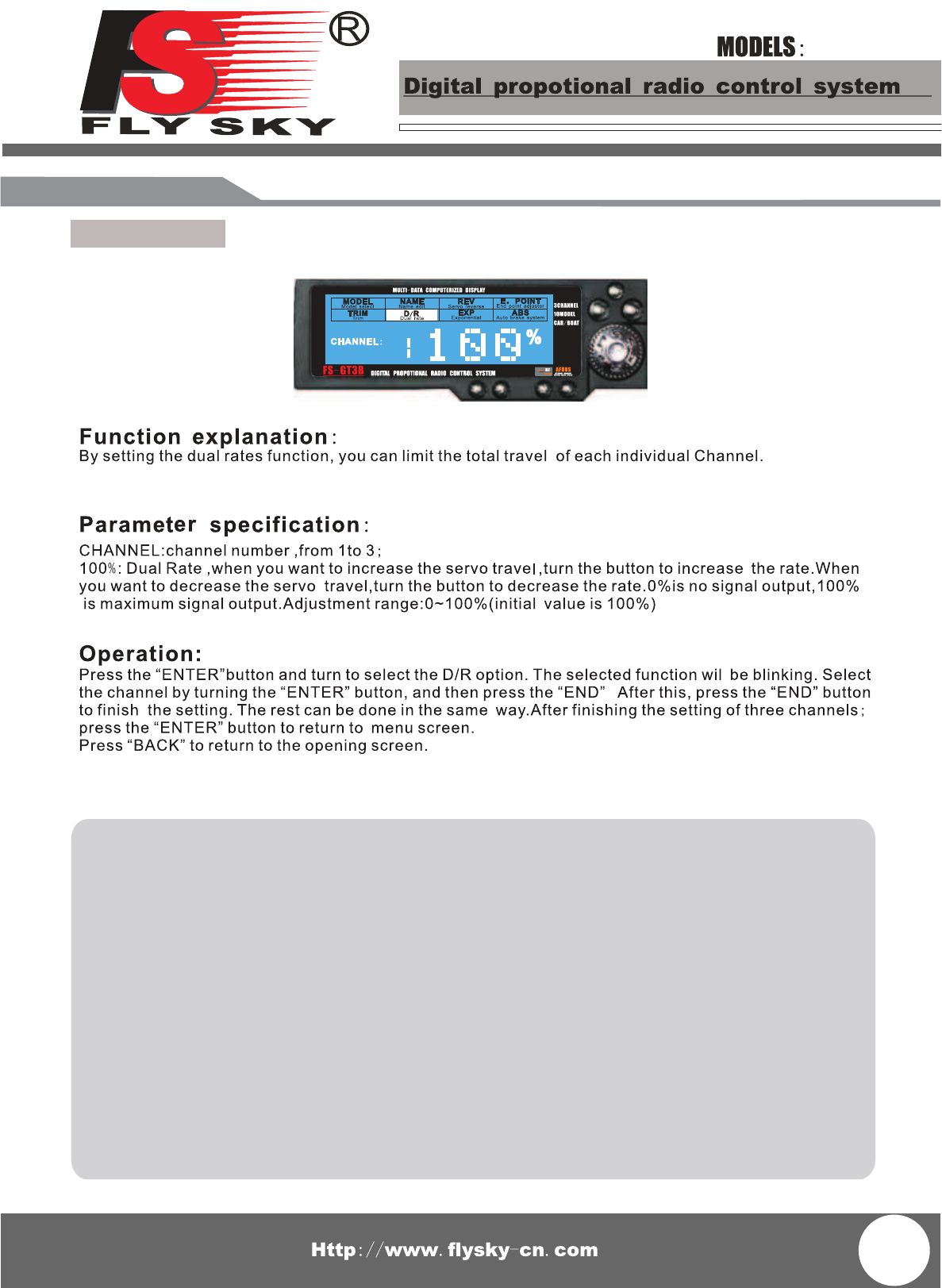

在开机菜单下通过 “确认”键进入菜单,通过 “左右旋转”键进行D/R菜单选择,再按 "确认"键要变更
的通道后按"END"键,此时三个字符会闪烁,在此状态下按"左右旋转"键进行0-100%进入此菜单的操作(此
时1字符会闪烁),然后通过"左右旋转"键进行通道1到通道3的选择,选好的设定.完成后按"END"键可进入
另一个通道的设定。依类推对三个通道进行设定。
编辑完成后按“确认”键返回并进入菜单选择状态。
在任何状态下按“返回”键进入开机画面。
19
12.08 D/R:
I
FS-GT3B

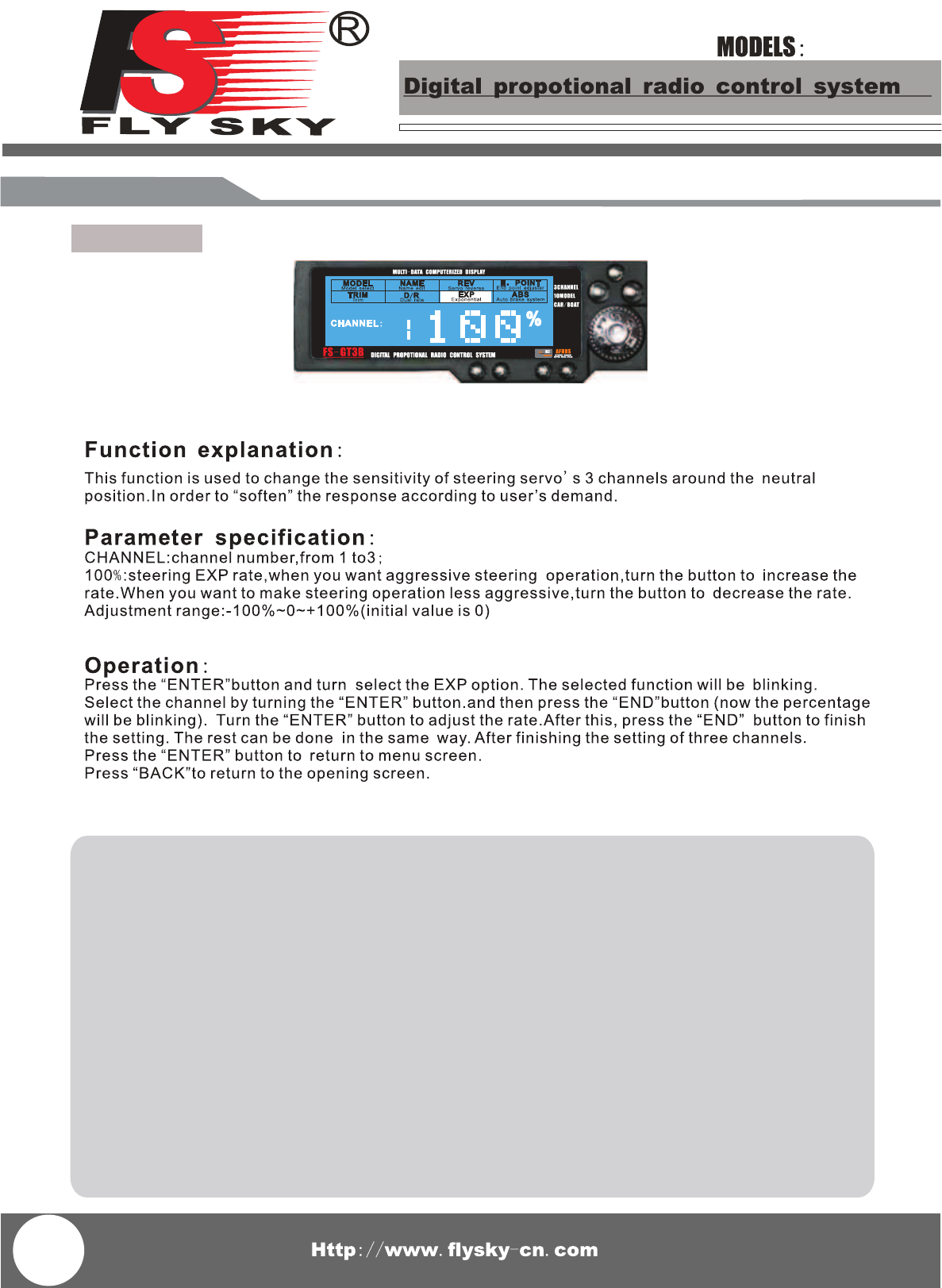

功能说明:
此功能是对三个输出通道作指数变化量调整设定,适应不通机种对不同赛道以及不同人的
达到最佳的操控效果。
操作习惯,以
参数说明:
CHANNEL:通道编号,通道1到通道3.100%:指数输出百分比率,-100%表示中心点位置反应会越小,也就
是反应越迟钝;100%表示中心点位置反应会越大,也就是反应越灵敏,EXP调整量为:-100%到100%(工厂预
设值为0%)。
操作方法:
在开机菜单下通过“确认”键进入菜单,通过“左右旋转”键进行EXP菜单选择,再按“确认”键在进
入此菜单的操作(此时1字符会闪烁)然后通过 "左右旋转"键进行通道1到通道3的选择,选好要变更的通
道后按" END"键,此时三个字符会闪烁,在此时状态下按"左右旋转"键进行-100%到100%的设定.完成后按"
END"键可进入另一个通道的设定.依类推对三个通道进行设定.
编辑完成后按 "确认"键返回并进入菜单选择状态.
在任何状态下按 "返回"键进入开机画面.
20
12.09 EXP:
FS-GT3B
功能说明:
此功能是对油门输出通道作自动刹车(点刹)设定,适应不同机种赛道以及不同人的
达到最佳刹车效果及弯道的操控效果,而不至于有甩尾及转弯不足现象出现。
操作习惯,以
参数说明:
CHANNEL:通道编号,只有第二通道(油门通道)有此功能;
OFF:表示ABS功能关闭(工厂预设值为OFF);
SLW: 表示ABS输出频率是最慢的;
NOR:表示ABS输出频率一般;
FST:表示ABS输出频率最快;
注:此几个参数需依据不同机型及不同种类的伺服器决定.不一定输出频率最快就最好,最慢就最差.
操作方法:

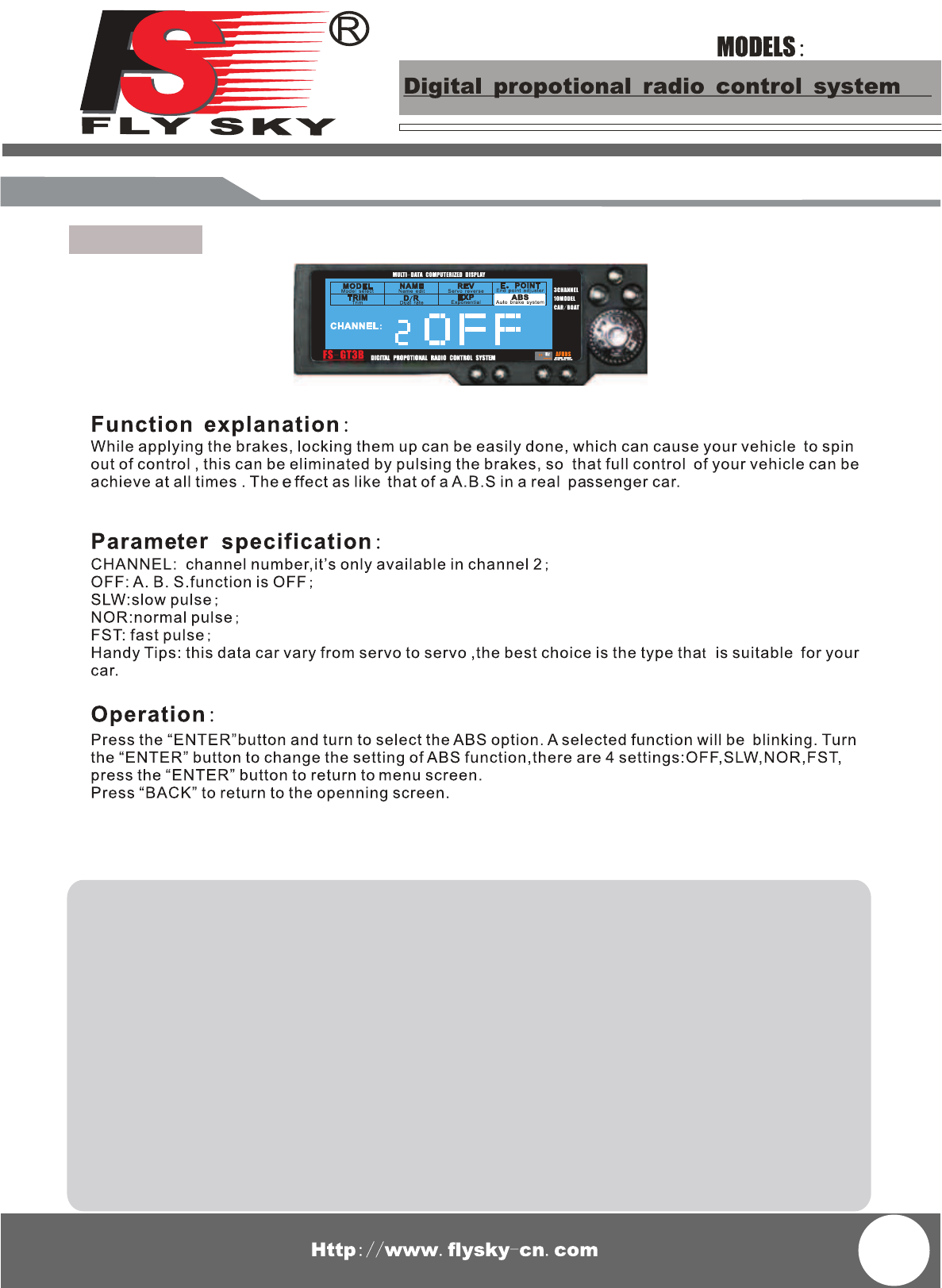

在开机菜单下通过"确认"键进入菜单,通过"左右旋转"键进行ABS菜单选择,再按确认键进入此菜单的
操作(此时三个字符会闪烁),然后通过“左右旋转”键进行OFF-SLW-NOR-FST的设定。
编辑完成后按确认键"返回"并进入菜单选择状态.
在任何状态下按"返回"键进入开机画面.
21
12.10 ABS:
FS-GT3B
Function explanation:
Operation:
功能说明:
操作方法:
This function is to control the direction,When the steering turn to right then the front wheel will
turn to right (see the picture), When the steering turn to left then the front wheel will turn to left
(see the picture).
Adjust the dual rate of the steering by adjusting the D/R knob.

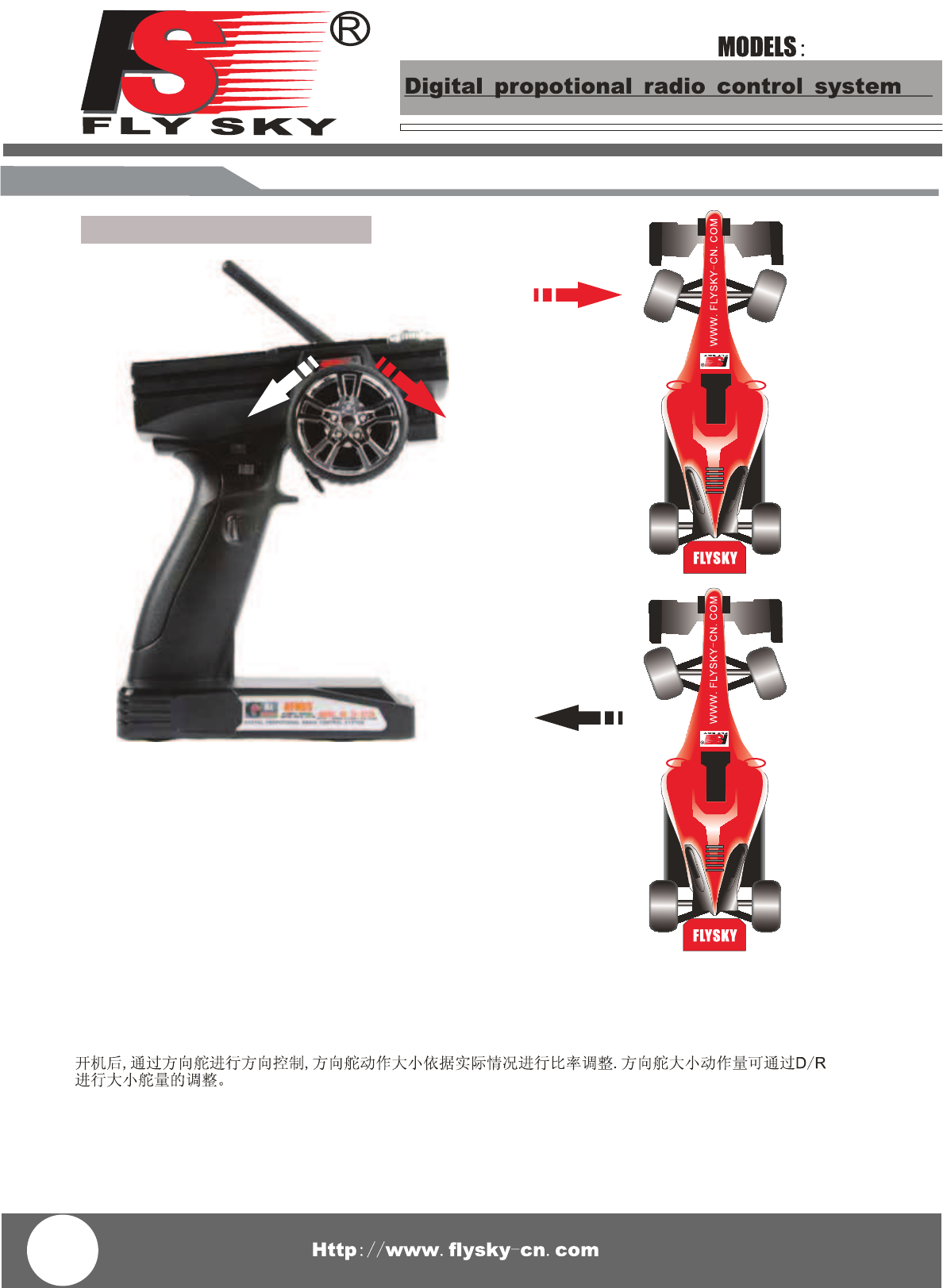

此功能是进行方向控制,当方向舵往右旋转时车子前轮会跟着往右(如图),当方向舵往左旋转时车子前
轮会跟着往左(如图)。
22
1 3 .TRAN S M I T TER FUN C TION N O TE S
13.01STEERING CONTROL:
FS-GT3B
功能说明:
操作方法:

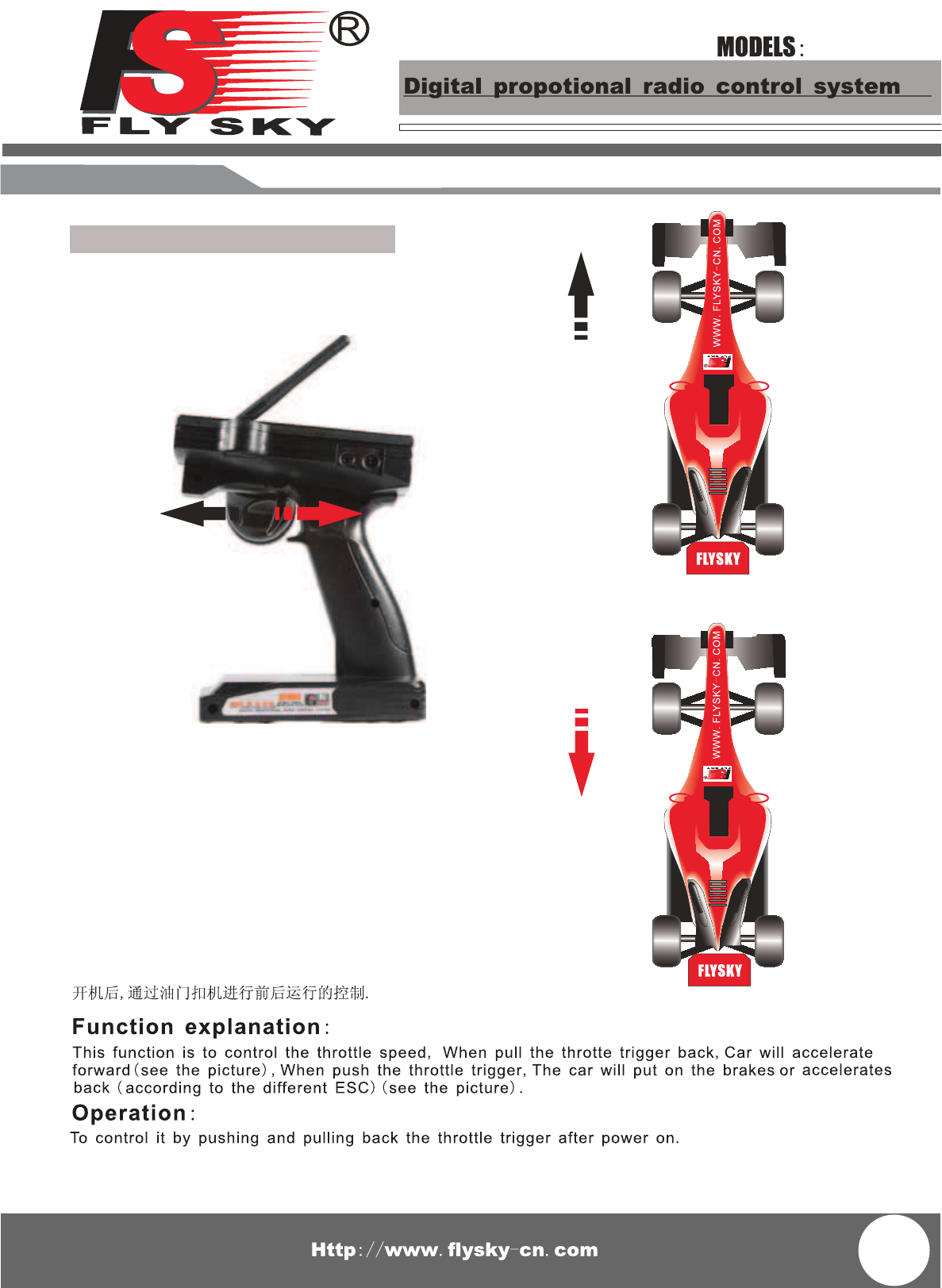

此功能是进行油门(速度)控制,当油门扣机往后打时车子会向
前加速(如图),当油门扣机往前推时车子会时生刹车或加速后退
(依据不同的调速器)如图).
23
13.02 THROTTLE CONTROL:
FS-GT3B
24

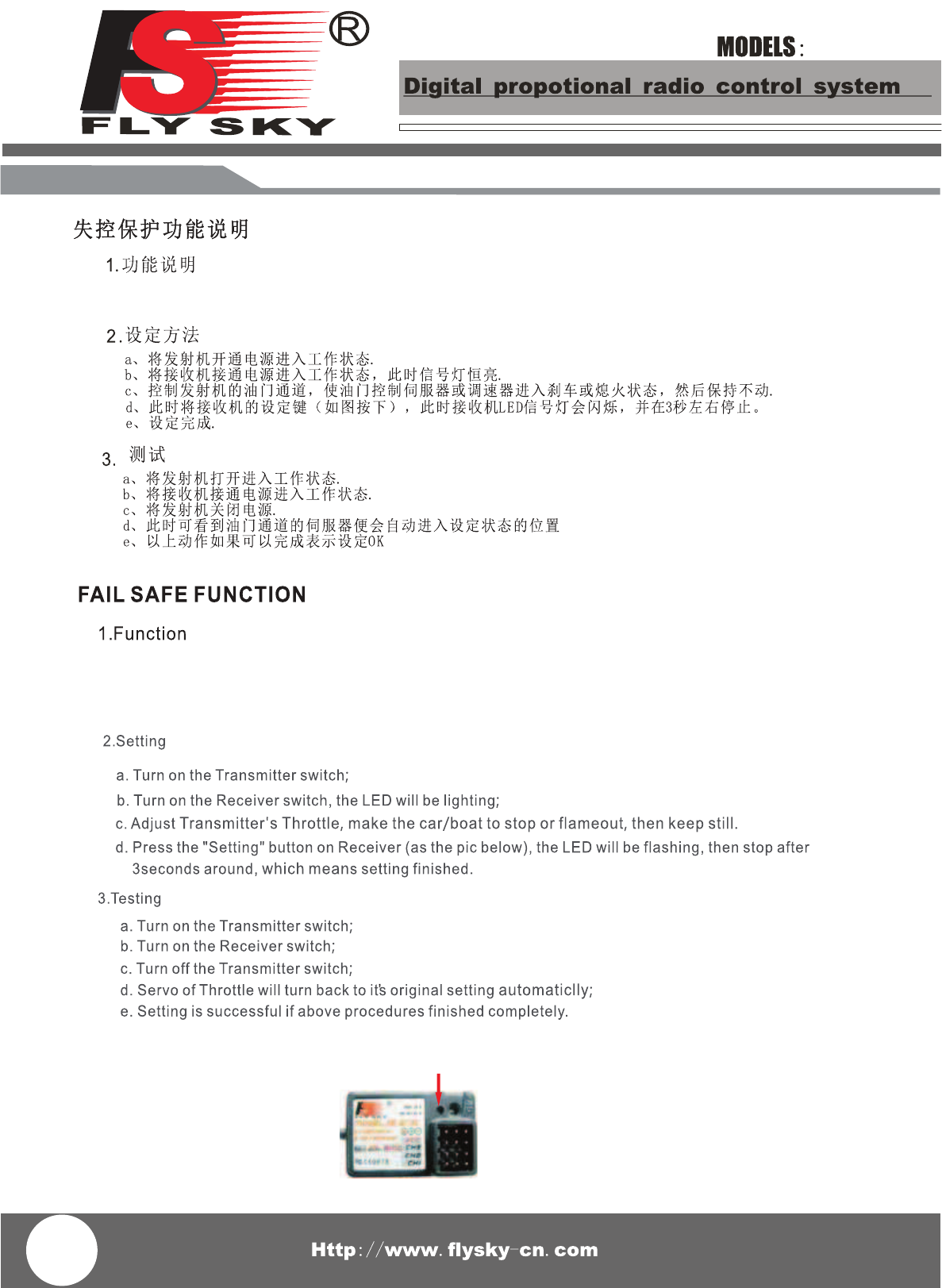

失控保护功能是对模型车或船进行失控保护,避免因失控造成损失。主要是对油门通道进行控制,当接
收机接收不 到控 制信 号时 ,接收机的油门通道 将自 运行 到当 初设定的值,以免误 动作 。
Failsafe aims to prevent out-of-control driving of RC Car or RC Bo at.If the Rec eiver is not able to receive
any signal, from the control to Throttle, the parameter of Throttle on Rec eiver wi ll turn back to its original
setting.
1 4 .FAIL S AFE FUN C TION

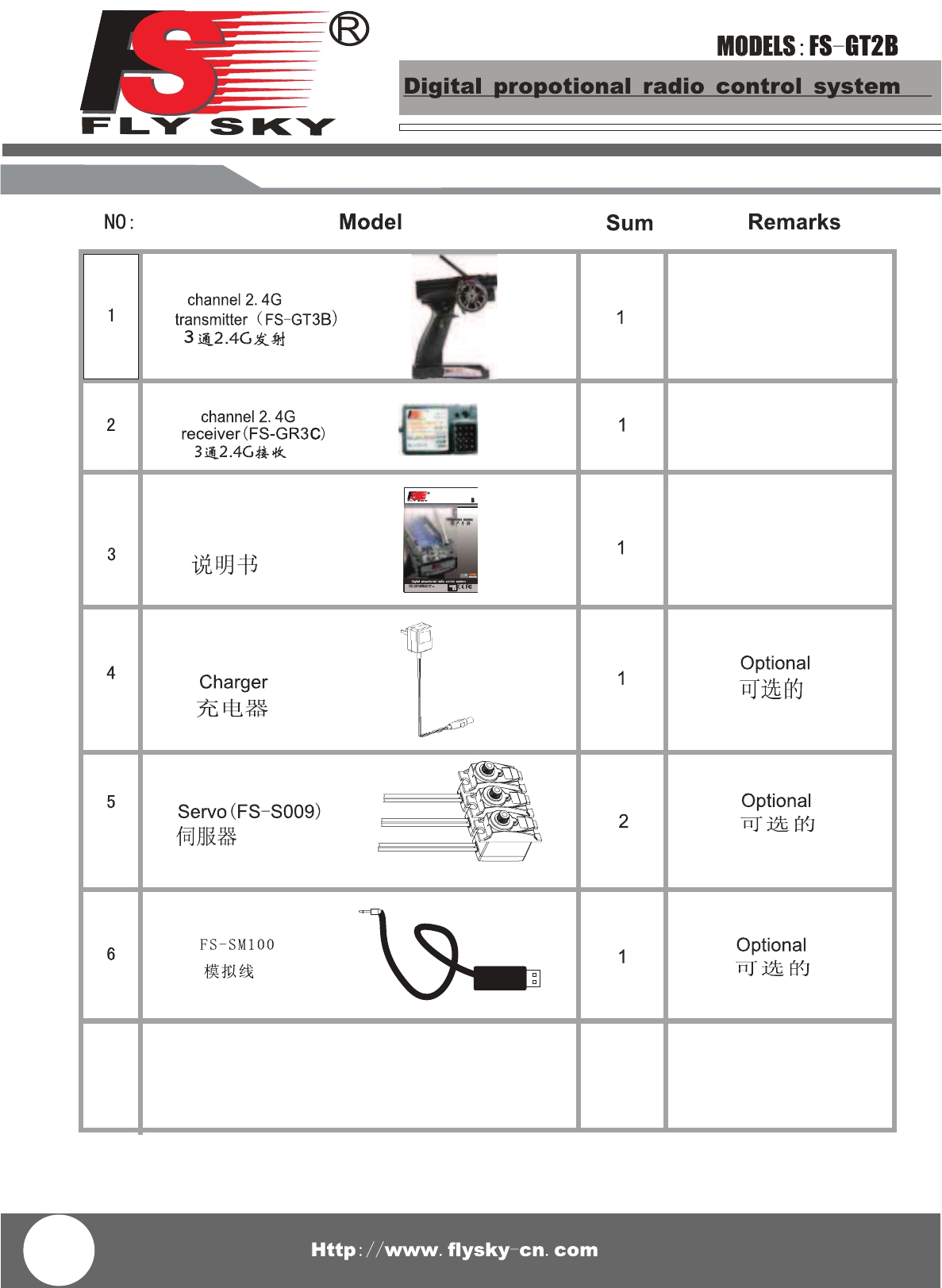

1 6 .P A C k A GIN G W I TH CON TEN T L I S T
FS-GT3B
GT3B
警告
此款产品只适合15岁以上人员使用。
The product is suitab le
for 15 years old and
above.
Manual
CD
25
16
16
