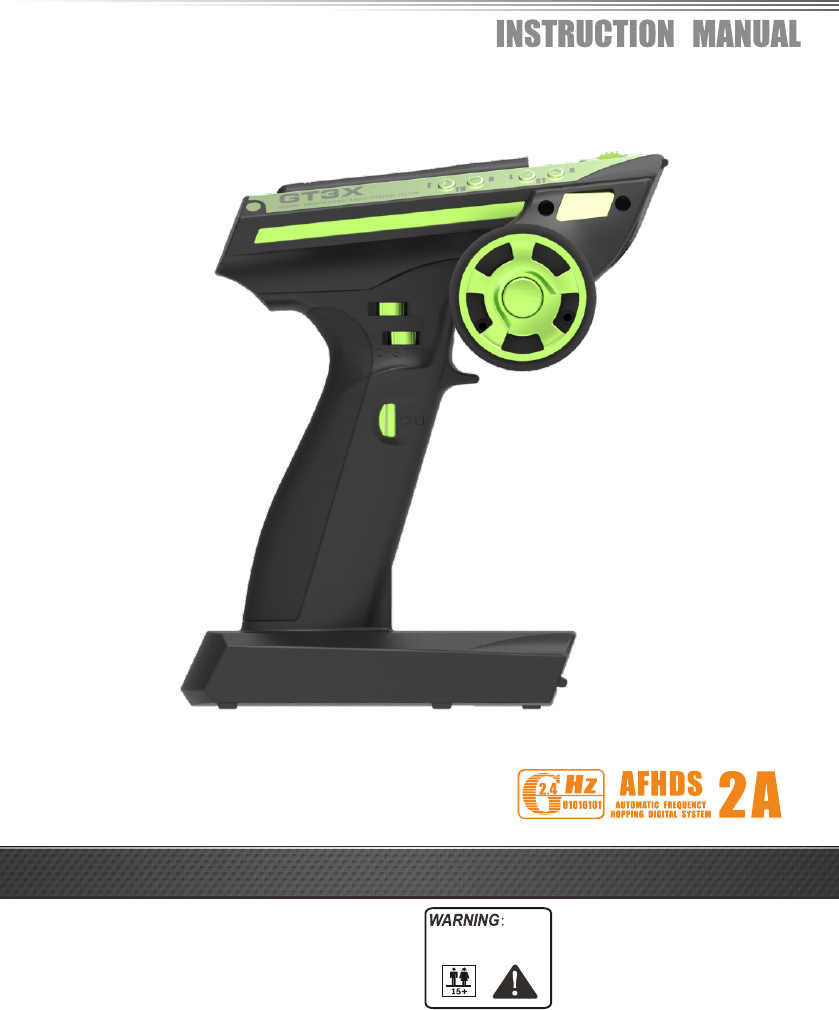

FLYSKY RC MODEL TECHNOLOGY FLYSKYGX3X 3CH Gun Radio User Manual 1
FLYSKY RC MODEL TECHNOLOGY CO., LTD 3CH Gun Radio 1
User Manual
用户手册
This product is suitable for
15 years old and above
本产品不适合15岁以下儿童使用
USM-GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
如果使用者不按照说明方法操作，有可能导致使用者严重受伤，甚至致命的危险。
2
Special symbols
Safety guide
强制 禁止
当以下标志出现在说明书的时候请注意并且仔细阅读。
如果使用者不按照说明方法操作，有可能导致使用者严重受伤。
如果使用者不按照说明方法操作，有可能导致使用者外伤，甚至严重受伤。
Not following these instructions may expose the user to serious
injuries or death.
Not following these instructions may expose the user to serious
injuries.
Not following these instructions may expose the user to minor
injuries and even to serious injuries.
Prohibited
Please pay attention to the following symbols when they appear in the manual
and read carefully.
特殊标志
安全指导
Do not fly at night or in bad weather like rain or thunderstorm as this can cause erratic
operation or loss of control.
Make sure moving direction of all motors be same with the operating direction.
If not, please adjust direction first.
请不要在夜晚或者雷雨天使用此产品，因为恶劣的天气环境有可能导致遥控设备失控。
操控时，请先确认模型所有舵机的动作方向与操控方向一致。
如果不一致，请调整好正确的方向。
The shutdown sequence must be to first disconnect the receiver battery then to switch
off the transmitter, if the transmitter is switched off while the receiver is still powered, it
may lead to uncontrolled movement or engine start and may cause an accident.
关闭时，请务必先关闭接收机电源，然后关闭发射机，如果关闭发射机电源时接收机仍然在
工作，将有可能导致遥控设备失控或者引擎继续工作而引发事故。
The 2.4G R/C system will affect the plane or the car nearby after you turn
on the transmitter.
特别要注意，如果附近有汽车正在运行或飞机正在飞行，开机后2.4 GHz RC系统可能会影
响到他们。
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
3
不要在户外雨天，有水的地方或当能见度有限的时候使用。
可能水分(水或雪)会进入到系统内部，不稳定的运行和失控可能发生。
Do not operate this R/C system when you are tired, not feeling well or under the influence
of alcohol or drugs.Your judgment is impaired and could result in a dangerous situation
that may cause serious injury to yourself as well as others.
当你感到疲倦，饮酒或吸毒后，不舒服的影响下，不要操作这个R / C系统。
判断力下降，而且可能发生危险的情况下，对自己或他人可能造成严重的伤害。
Do not operate in the following places:
Near other sites where other radio control activity may occur,
Near people or roads,
On any pond when passenger boats are present,
Near high tension power lines or communication broadcasting antennas,
Interference could cause loss of control,
Improper installation of your Radio Control System in your model could result in serious injury.
不要操作在以下的地方：
基站附近或其他无线电活跃的地方，人多的地方或道路附近，
有客船的水域，高压电线或通信广播天线附近，干扰可能导致失控，
安装不正确，无线电控制系统可能导致模型发生严重的伤害。
Do not touch the engine, motor, speed control or any part of the model that will generate
heat while the model is operating or immediately after its use.These parts may be very
hot and can cause serious burns.
当模型操作或使用后，请勿触摸发动机、电机、定速设定或任何可能发热的部分，
这些部分可能非常热，会造成严重的烧伤。
Please have an overall check about the model before any operation.
Any problem in radio control system or improper installation may cause out of control.
Simple distance test methods:
One hold the model, and the other one carry the transmitter to a proper place to check the
servo system condition.
Please stop operation if any exceptional case occurs.
Please check the model memory to make sure the matching is right.
总是在操作模型之前进行全面的检查。
无线电控制系统出现问题以及不正确安装，都有可能导致模型失控，
简单的距离测试方法：一个人把持模型另一个人持发射机走开，检查该伺服系统运转情况。
测试时要注意到若有异常出现，请不要操作模型。
也检查模型的记忆，以确保模型的匹配是适当的。
Do not operate outdoors on rainy days, run through puddles of water or use when
visibility is limited. Should any type of moisture (water or snow) enter any component
of the system, erratic operation and loss of control may occur.
Turn on the power, please check if the throttle neutral position is in its lowest position
while turning on the transmitter every time.When making adjustments to the model, do
so with the engine not running or the motor disconnected, you may unexpectedly lose
control and create a dangerous situation.
开机时，每次都要检查发射器的油门中位是否是最低。
当发射机作出调整时，可能模型的引擎没有运行或电机没有连接，可能会发生失控或意外事
故的情况。
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
System Characteristic 系统特征
此系统采用高质量的增益天线，覆盖整个波段带宽。配合高灵敏度接收机，系统能有效的避免远距离传
播信号的干扰。
此系统使用低功率电子元件和高灵敏度接收机芯片。无线电频率模块采用间歇性信号传播，因此大大降
低了发射功率。比较而言，此系统功耗仅为FM版本的十分之一。
此系统采用信息回传功能，此功能更好的掌握当前模型的工作状态。从而增添了操控乐趣以及更加安全
控制模型。
This radio system works in the frequency range of 2.405 to 2.475GHz. This band has been divided into
142 independent channels. Each radio system uses 16 different channels and 160 different types of hopping
algorithm. By using various switch-on times, hopping scheme and channel frequencies, the system can
guarantee a jamming free radio transmission.
此系统工作频率范围是2.405到2.475GHz。整个波段被分为142个独立频点。每套遥控系统使用16个
不同频点和160种不同的跳频算法。通过开机时间不同，跳频规律不同和使用不同的频点，遥控系统能避免
干扰传播信号。
This radio system uses a high gain and high quality multi directional antenna. It covers the whole frequency
band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio
transmission.
Each transmitter has a unique ID. When binding with a receiver, the receiver saves that unique ID and can
accepts only data from that unique transmitter. This avoids picking another transmitter signal and dramatically
increases interference immunity and safety.
每台发射机有一个唯一的ID码， 当和接收机对码之后， 接收机保存这个唯一的ID码并且只接受从这个ID码
发射机发出的信号。 这样可以避免接收到别的发射机信号，大大增强抗干扰能力和安全性。
This radio system uses low power electronic components and a very sensitive receiver chip. The RF
modulation uses intermittent signal transmission thus reducing even more power consumption. Comparatively,
this radio system uses only a tenth of the power of a standard FM system.
This system uses the two-way communication, which could control the working state of current model better
and make the operation more enjoyable and safer than before.
4
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
A
7
14
2
5
3CH3
6Ch3 TRIM
A
1
3
2
7
4
5
6
65

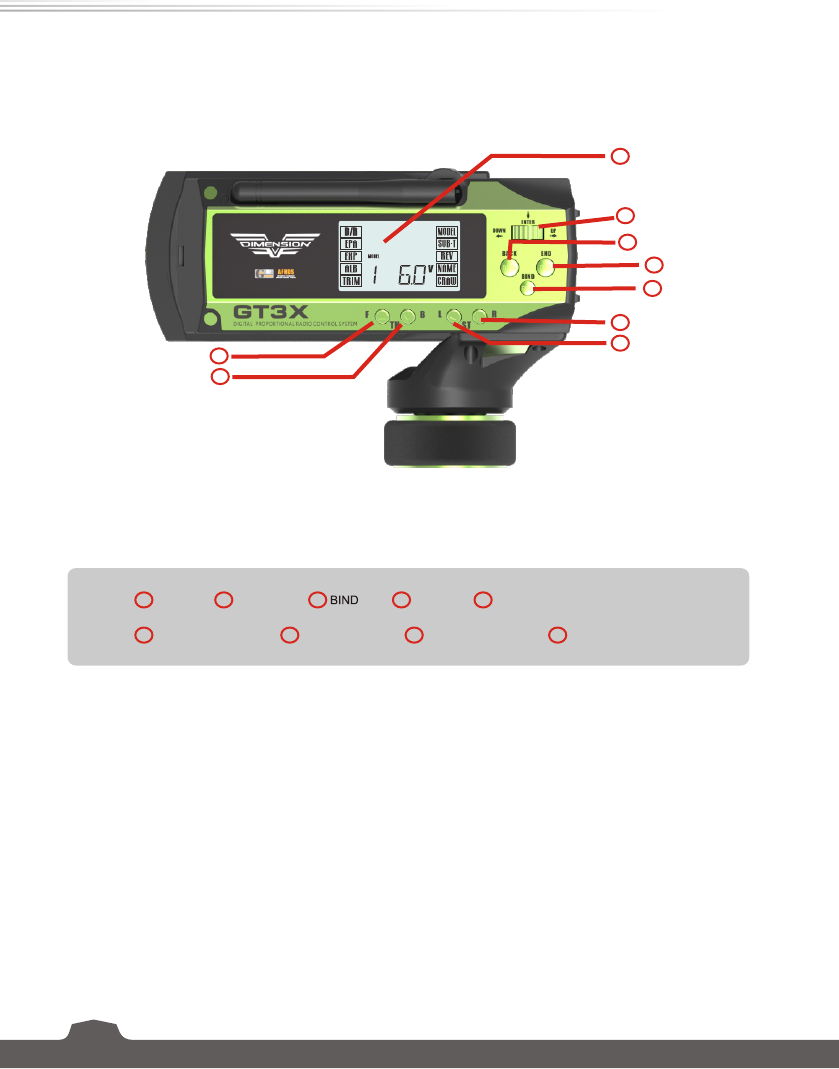

TRANSMITTER
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
H
GI
C D E
B
LCD BACK END ENTER(DOWN/UP)
FTH TRIM(UP)TH TRIM(DOWN)ST TRIM(LEFT)
ST TRIM(RIGHT)
H
I
A
B
C
D
E
F
G
A
6
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
CH1-CH6： 表示接收机的相应通道；
BAT： 表示用于对码和输入电源的通道；
接收机
Operation instruction 接收机操作说明
接口说明

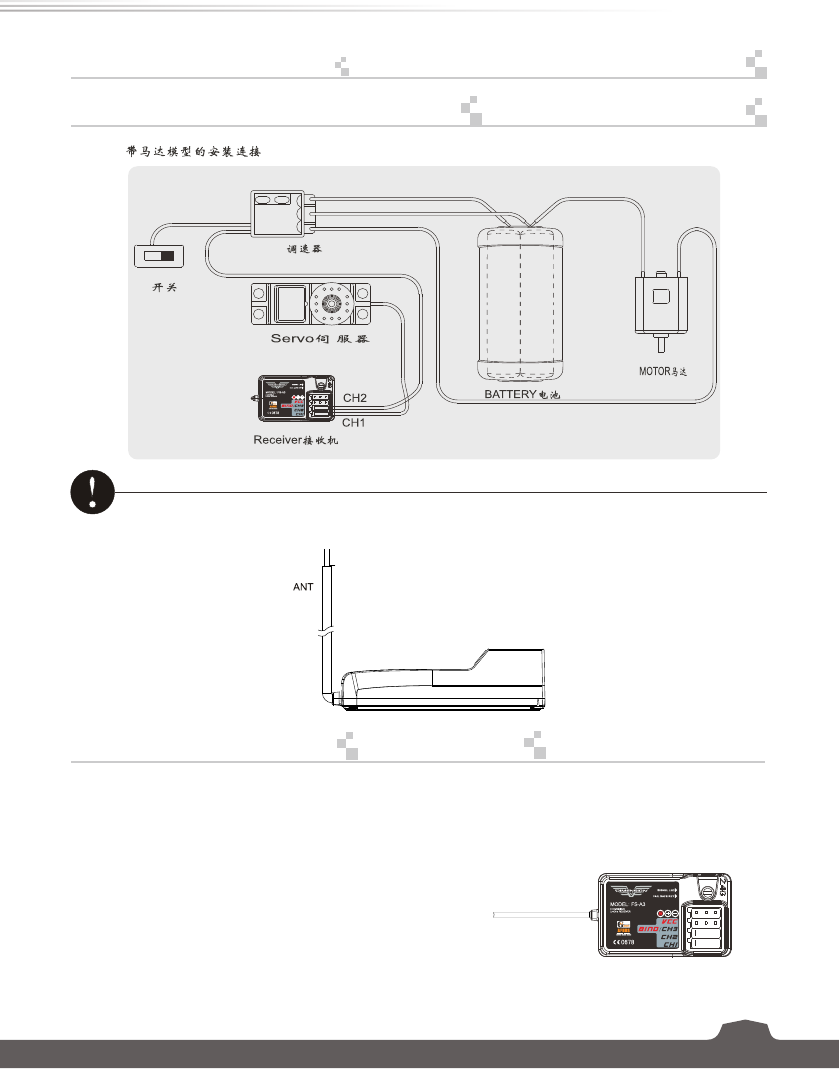

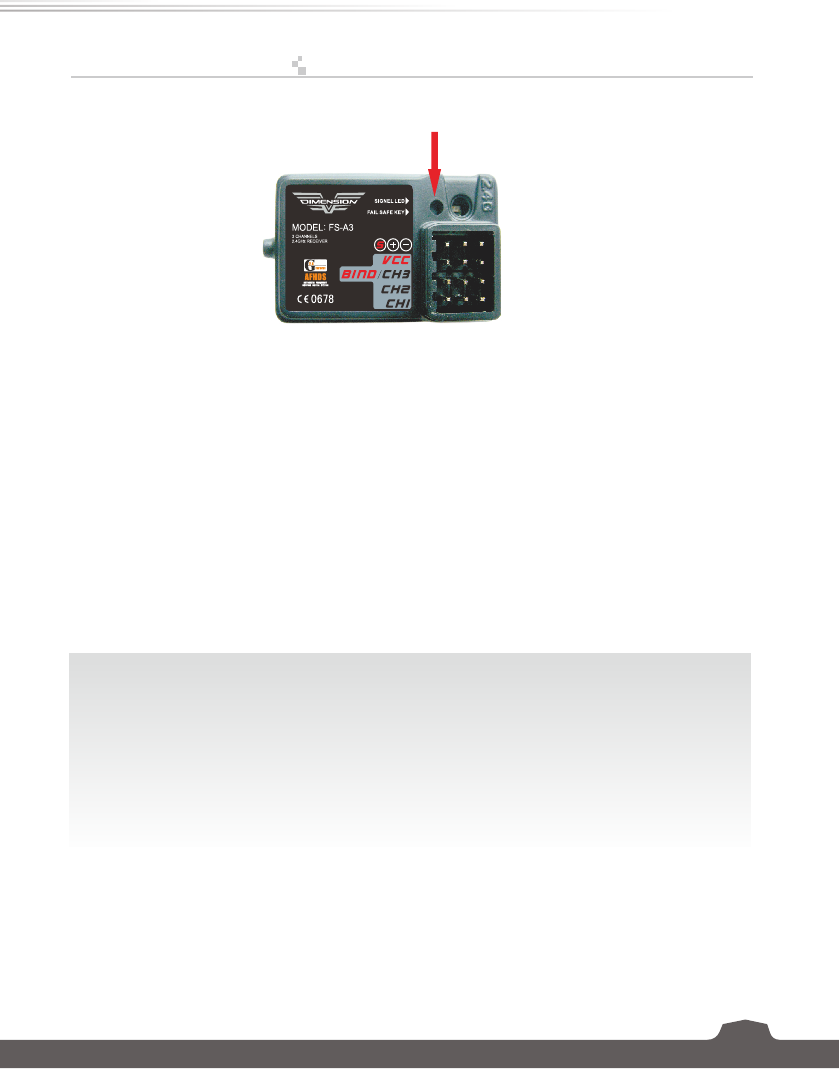

Receiver and servo connections
接收机与伺服器连接
注意: 为保证良好的遥控距离,请将接收机天线与飞机机身垂直放置并远离金属物体。
Receiver
Connector instruction
CH1-CH6: represents corresponding channels.
BAT: represents the binding channel and power supply channel.
Note: To ensure good remote control distance, please set the
receiver’s antenna on the vehicle vertically and away from metal
objects.
67
ON/OFF SWITCH
ESC
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM

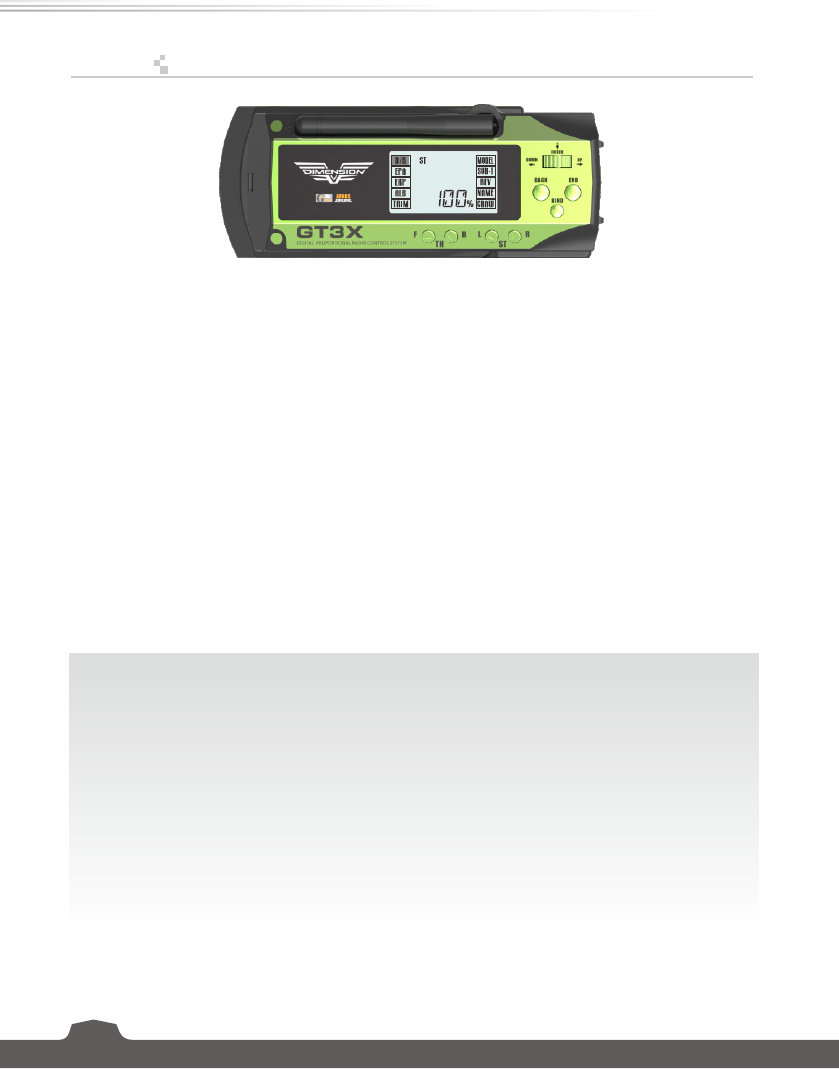

Transmitter specifications 发射机参数
SPECIFICATIONS：
MODEL: FS-A3
Receiver specifications 接收机参数
1. 通道个数： 6个通道
2. 接收灵敏度： -105dBm
3. 调制方式: GFSK
4. 系统模式: 第二代自动调频
数字系统
5. 数据分辩率: 1024级
6. 对码接口: 有
7. 电源接口: 有(VCC)
8. 电源标准: 4.0-6.5V DC
9. 整机重量: 13克
10. 天线长度: 26毫米
11. 外型尺寸: 45*23*9毫米
12. 外观颜色: 透明灰色
13. 安规认证: CE、FCC。
机种参数：
Number of channels: 3
Channel resolution: 1024 steps
Power supply: 6V (1.5 V AA x 4)
Low voltage warning: <4.2. Red LED will flash
4.2-4.5V Red
4.6-5V Orange
5-6V Green
<3.2 V Buzzer goes off to alarm
2.4 GHz type: AFHDS.
Antenna length: 26mm*2（dual antenna )
Color: Black
Size: 174*89*190mm
Weight: 335g
Certification: CE、FCC
Transmitter specifications:
1. 通道个数：3
2. 数据分辨率: 1024级
3. 输入电压: 6V (1.5 V AA x 4)
4. 低电压报警：低于4.2V 红色LED灯闪，
4.2-4.5V 红色，
4.6-5V 橙色，
5-6V 绿色,
低于3.2V 蜂鸣器报警
5.2.4G模式： AF HDS 第一代自动跳频数字系
统
6. 天线长度: 26毫米*2(双天线）
7. 外观颜色: 黑色
8. 外形尺寸: 174*89*190毫米
9 . 整机重量: 335克
10. 安规认证: CE、FCC
机种参数
7
Number of channels: 3
RF receiver sensitivity: -105dBm;
Modulation : GFSK
System type: AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes(VCC)
Power: 4.0-6.5VDC
Weight: 13g
Antenna length: 26mm
Size: 45*23*9 mm
Color: transparent grey
Certification: CE、FCC.
USM-GT3X
8
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
Binding
所有遥控产品在出厂的时候都已经对好码，您无需再次对码。如果您需要和其他发射机或接收机对码， 您必
须在使用前按照以下方法对码：
1. 将电池装入发射机然后关闭发射机。
2. 将对码线插到接收机电池通道插口。
3. 将接收机电池连接至接收机任意通道，接收机红色指示灯闪烁表明处于对码状态。
4. 按住发射机对码按键不松手，同时打开发射机。
5. 接收机红色指示灯停止闪烁表明对码成功。
6. 断开接收机电源。
7. 关闭发射机电源。
8. 将所有舵机连接至接收机,然后就将电池连接到接收机。
9. 检查是否所有的舵机按照要求工作正常。
10. 如果对码失败,请按以上步骤从头再来。
对码
注意：配对好的发射机与接收机，当发射机或接收机因误操作而进入对码状态后, 会出现不能遥控的现象，一般情况
下，关闭电源重开机即可恢复正常，倘若还是不行，则需要重新对码。
Bind Key
对码按键
69
The supplied transmitter and receiver are already bound at production time. If you are using another
transmitter or receiver, you need to bind them before use :
1. Install batteries in the transmitter and turn it off.
2. Connect the binding jumper cable to the battery port on the receiver.
3. Connect the battery of the receiver to any channel on the receiver. The red LED on the receiver will
blink, indicating it is in binding mode.
4. Press and hold the bind key on the transmitter and turn it on.
5. The red LED of the receiver will stop blinking, indicating the binding process is completed
6. Disconnect the receiver battery.
7. Turn off and turn on the transmitter.
8. Connect all the servos to the receiver and connect its battery.
9. Check if all servos are working properly.
10. If anything is not working as expected, restart this procedure from the beginning.
Note: If transmitter or receiver enters into binding state by operation mistake, the
transmitter or receiver will not function properly. Restarting the transmitter can return to
normal, if not, you will need to rebind the transmitter and receiver again.
Binding
jumper cable
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM

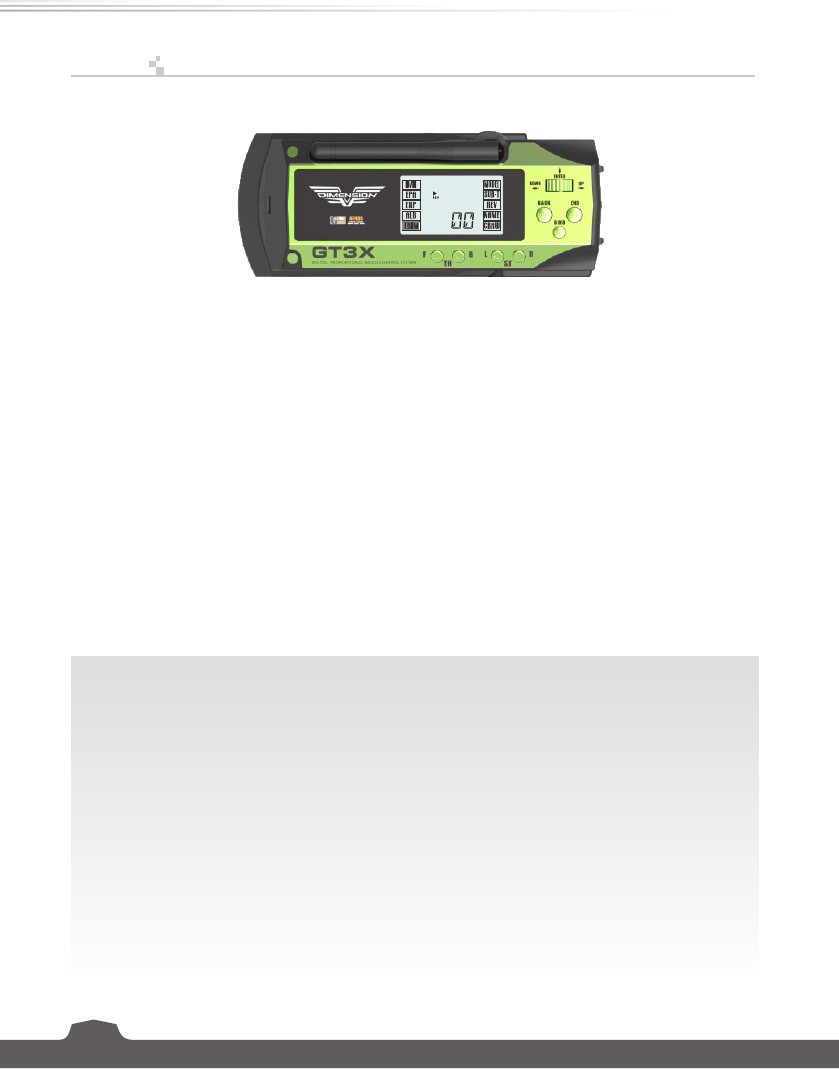

LCD DISPLAY
按键定义:
左旋：逆时针旋转（做菜单选择及数据减）；
右旋：顺时针旋转（做菜单选择及数据加）；
确认：确认按键（做菜单选择确定）；
返回：返回按键（菜单返回）；
END：（结束某一项功能编辑的操作键）。
显示当前编号及机种名；
在此画面下按左右旋转键，可显示如下画面（显示当前电池电压及MODEL编号）；
在此界面下，如果电压低于4.2V，则会出现如下画面：
此时所显示的电压值会闪烁，同时发出报警声。
10
LCD FUNCTION EXPLANATION

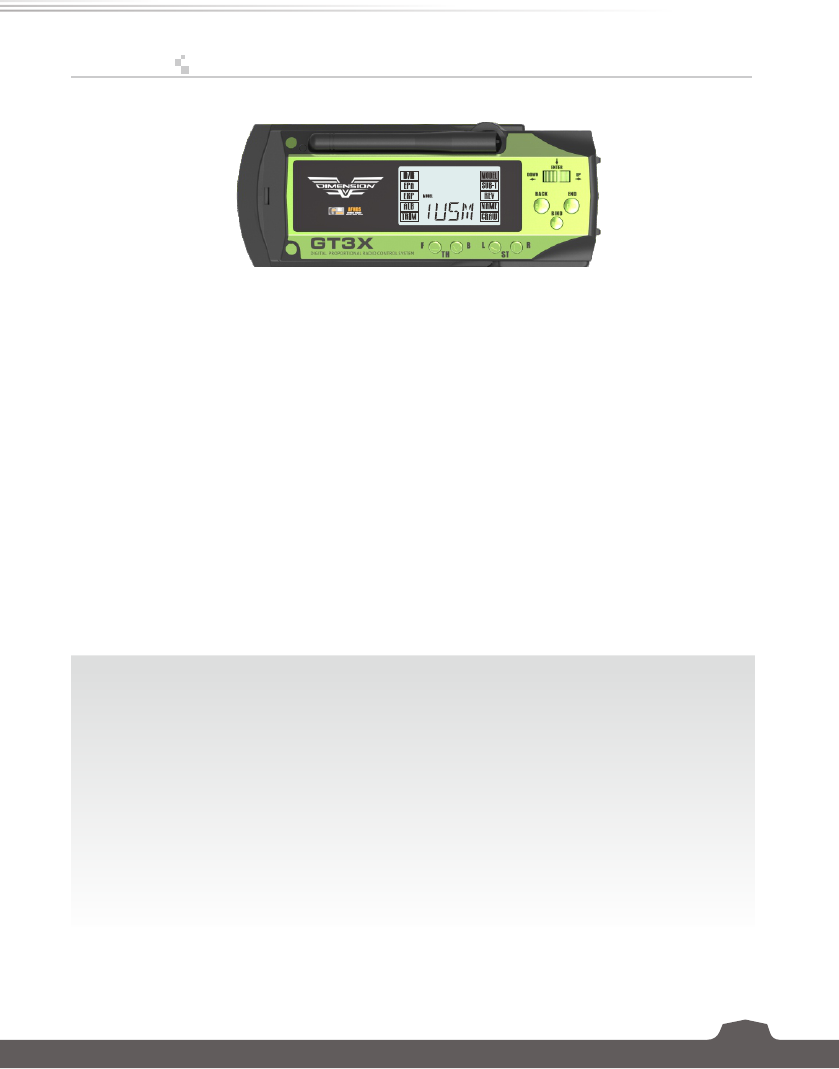

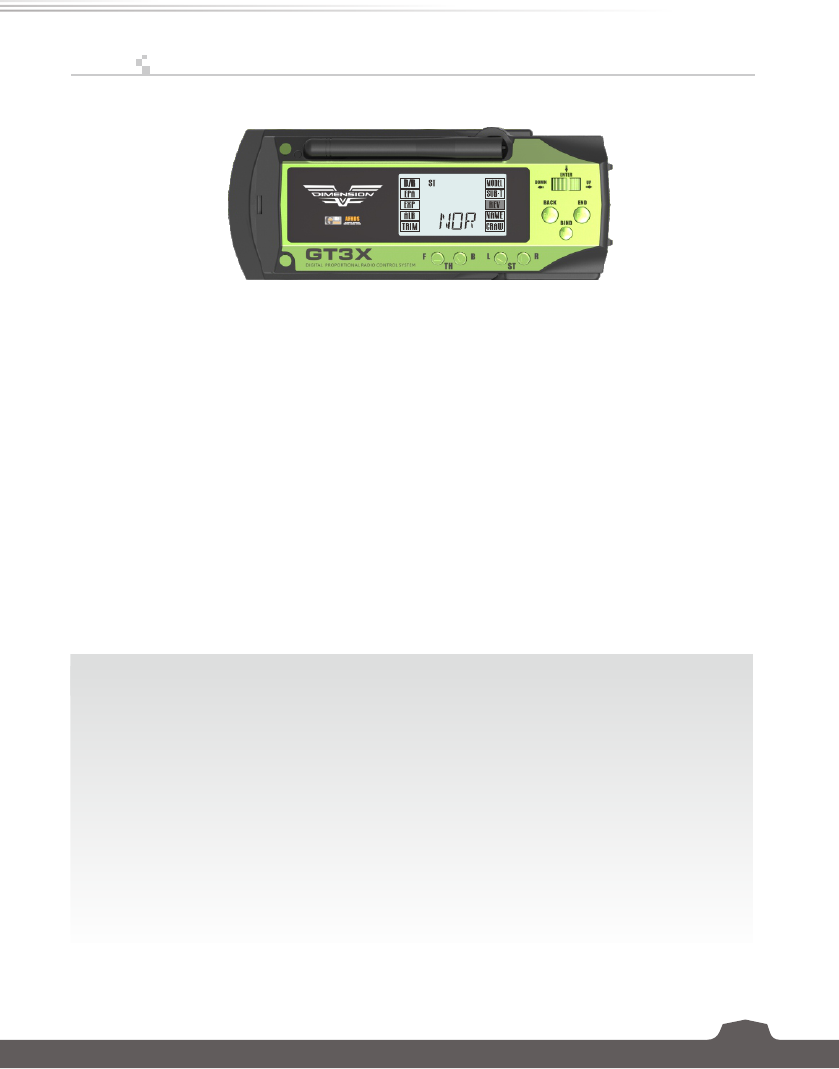

OPENING SCREEN

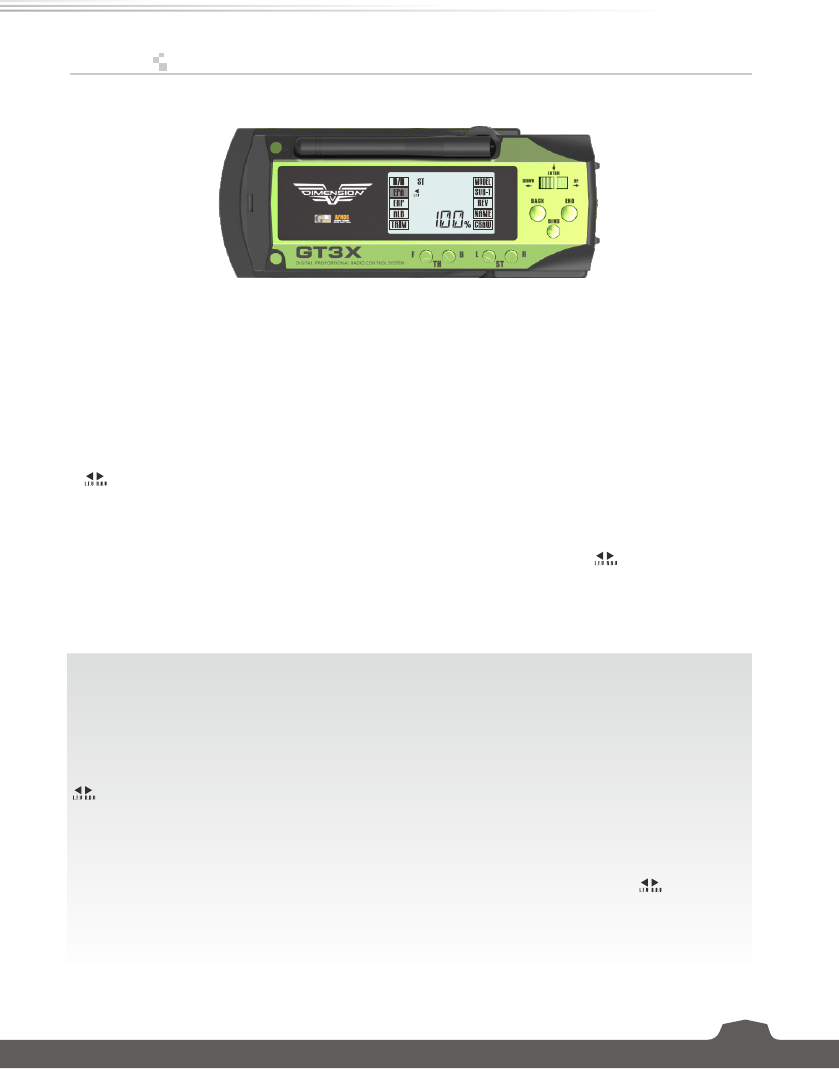

BUTTON FUNCTION:
Turn the “ENTER” button counterclockwise: decrease the rate
Turn the “ENTER” button clockwise: increase the rate
Press “ENTER” button: select the menu
Press “BACK” button: return to the menu
Press “END” button: end programming
Show current model number and user name
Turn the “ENTER” button, the screen will show the current battery voltage and selected model number
When the battery voltage is lower than 4. 2V, the screen will start blinking along with a buzzer sound
warning.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
功能说明：
此发射机（USM-GT3X）可存放10组模式（USM0-USM9）,每组都可以单独设定，以适应不同的机型。
参数说明：
MODEL :机种编号（工厂预设定值为MODEL 1）；
ACB：机种名称（工厂预设定值为USM）
操作方法：
在开机菜单下通过“确认”键进入菜单选择，通过“左右旋转”键进行model菜单选择，再按“确认”键进入此菜单的操作
（“此时”8“会闪烁），然后按”左右旋转“键进行ＭＯＤＥＬ选择（共10组0-9）。编辑完成后按”确认“键，结束此菜
单的编辑，返回并进入菜单选择状态。
在任何状态下按”返回“键进入开机画面。
MODEL
611

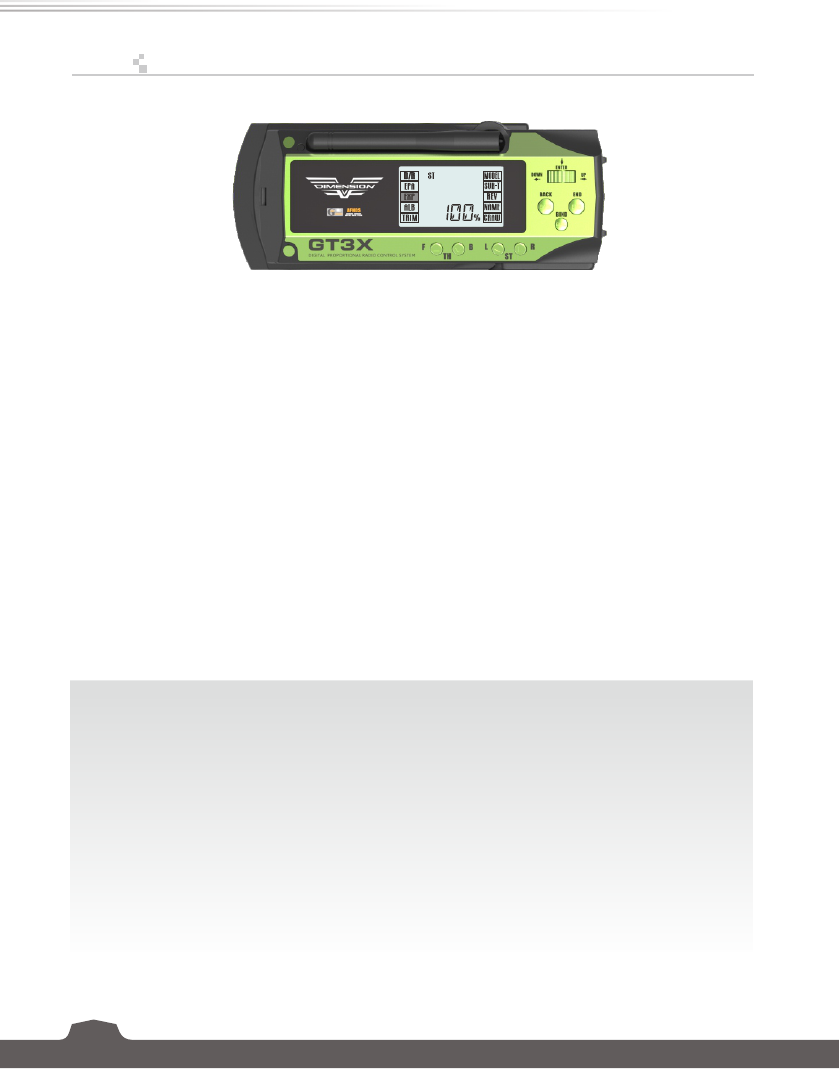

Function :
The radio system has the ability to store ten model memories (USM0-USM9), each
model memory can be setup individually to match up with different models.
Parameter:
The initial model No. is Model “1".
“”USM” is for the name of model.
Operation:
Press the “ENTER” button and turn to the “MODEL” menu. Press the “ENTER” button to enter the
“MODEL” menu. There are a total of 10 model memories from 0-9. Select the model by turning the
“ENTER” button, then press the "ENTER" button to save and return to the menu screen. Press the
“BACK” button and return to the initial menu at any condition.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
12

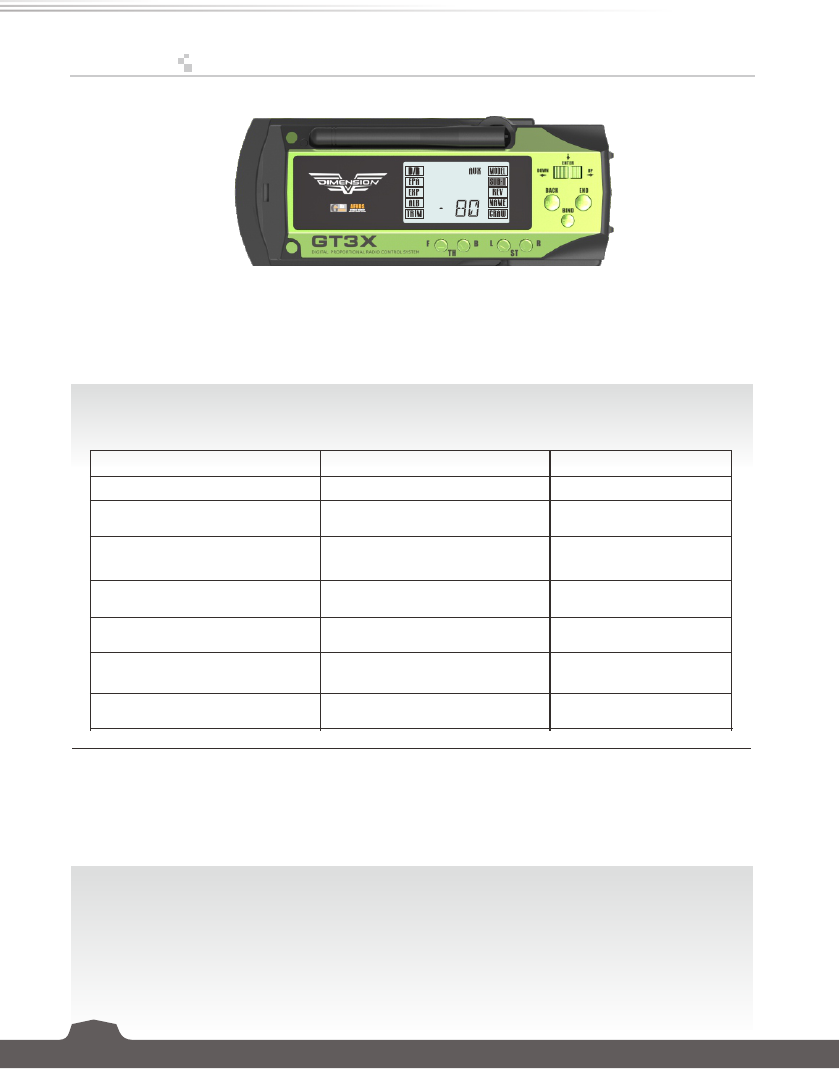

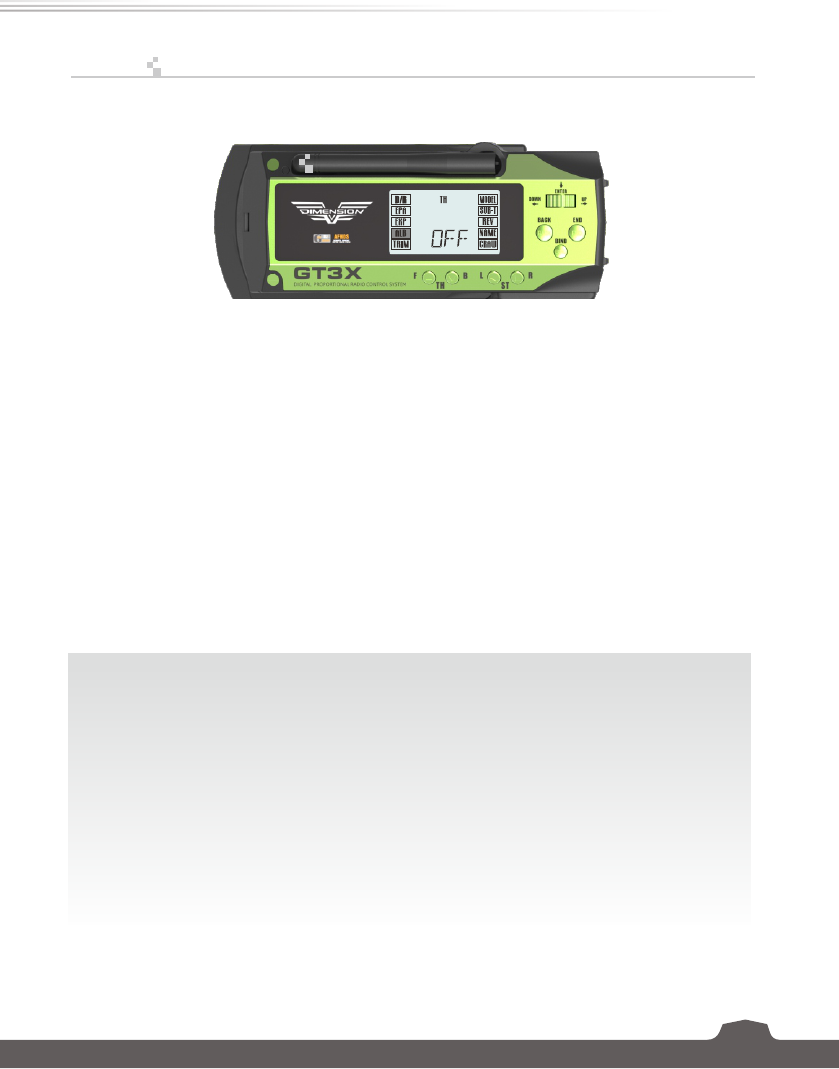

SUB-T
ST positive percentage the range of adjustment factory setting
TH positive percentage
R
L
00%-100%
-100%-00%
00%
00%
the range of adjustment factory setting
F
B
00%-100%
-100%-00%
00%
00%
UX positive and negative
percentage
Ch3 trim
the range of adjustment factory setting
-100-00%-100% 00%
功能说明：
记忆微调功能可分别调节3个通道舵机的中位，当舵机调节不能满足需要时，该功能的调节作用就非常明显。工厂预设值
为00%; AUX 正负百分比（通道CH3微调）, 调整量为-100%--00%--100%,工厂预设值为00%。

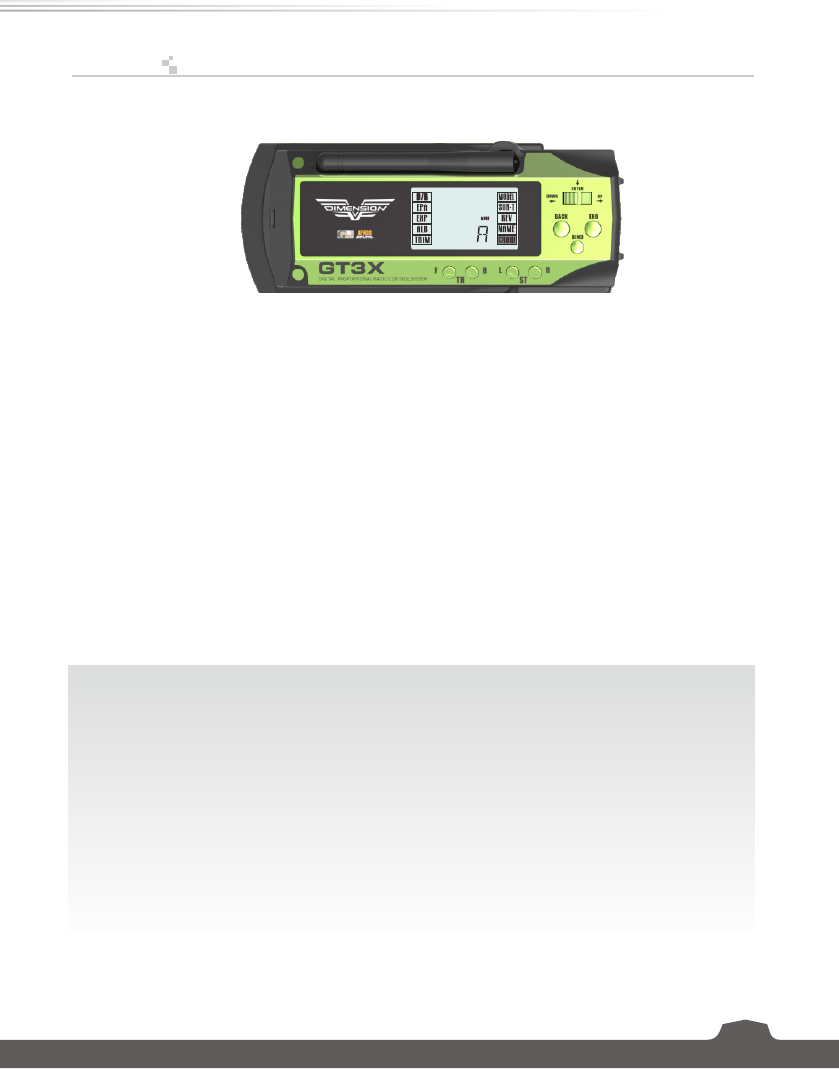

功能说明：
此功能是对发射机存放的机种进行名字的编写（使用三个字符）。以方便记忆及调用，可使用的字符为：0123456789
ＡＢ ＣＤＥＦＧＨＩＪＫＬＭＮＯＰＱＲＳＴＵＶＷＸＹＺ.
操作方法：
在开机菜单下通过“确认”键进入菜单，通过“左右旋转”键进行SUB-T菜单选择，再按确认键进入此菜单的操作（此时
ST字符会闪烁），然后通过“左右旋转”键进行通道ST到通道AUX的选择，选好要变更的通道后，按“END”键，此时
两 个字符会闪烁，在此状态下通过按“左右旋转”键进行-100%--00%--100%设定调整，完成后按“END”键切换通道
的设 定，此时ST会闪烁。以此类推，对三个通道进行设定。
Function:
This function allows the user to sub trim the steering "ST", throttle "TH", or auxillary "AUX" channels.
Parameter:
CHANNEL: channel number, from ST channel to AUX channel
Operation:
Press the "ENTER" button and turn to the “SUB-T” menu. Press the “ENTER” button to enter the
“SUB-T” menu. You now have the option of adjusting "ST", "TH", or "AUX" by turning the “ENTER”
button. Press the "END" button to select desired channel, turn the “ENTER” button to make
adjustments to channel trim, press the "END" button to finish the setting. The rest can be done in the
same way. After finishing the setting of these channels, press the " ENTER" button to save and return
to the menu screen. Press the “BACK” button and return to the initial menu at any condition.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
功能说明：
此功能是对三个输出通道做正反向输出的设定，以适应不同机种、不同伺服器规格的要求。
参数说明：
CHANNEL：通道编号，通道ST到通道AUX。
NOR: 正向输出（工厂预设值为NOR）。
REV：反向输出。
操作方法：
在开机菜单下通过“确认”键进入菜单，通过左右旋转键进行ＲＥＶ菜单选择，再按确认键进入此菜单的操作（此时
“ST”字符会闪烁），然后通过左右旋转键进行通道ST到通道AUX的选择，选好要变更的通道后按“ＥＮＤ"键，此
时三个字符（ＲＥＶ或ＮＯＲ)会闪烁，在此状态下按左右旋转键进行ＲＥＶ与ＮＯＲ的设定。完成后按"ＥＮＤ"键可
进入第二个通道的设定。依类推对三个通道都可进行设定。
编辑完成后按”确认“键返回并进入菜单选择状态。
在任何状态下按”返回“键进入开机画面。
613
REV
Function:
This function reverses the operating direction of the channels: steering, throttle, and channel 3.
Parameter:
CHANNEL: channel number, ST, TH, AUX
REV: reverse
NOR: normal
Operation:
Press the "ENTER" button and turn to the “REV” menu. Press the “ENTER” button to enter the
“REV”menu. The channel function will be blinking. Select the channel by turning the "ENTER" button.
Then press the "END" button (now the "REV" or " NOR" will be blinking). Turn the "ENTER" button to
select "REV" or "NOR". After this, press the "END" button to finish the setting. The rest can be done in
the same way. After finishing the setting of these channels press the "ENTER" button to save and
return to the menu screen. Press the "Back" button to return to the opening screen.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
功能说明：
此功能是对发射机存放的机种进行名字的编写（使用三个字符）。以方便记忆及调用，可使用的字符为：01234567
89 ＡＢＣＤＥＦＧＨＩＪＫＬＭＮＯＰＱＲＳＴＵＶＷＸＹＺ.
参数说明：
MODEL NO: 机种编号。
ACB：机种名称。
操作方法：
在开机菜单下通过按“确认”键进入菜单，通过“左右旋转”键进行ＮＡＭＥ菜单选择，再按确认键进入此菜单的操
作（此时第一字符“U”会闪烁）。然后通过“左右旋转”键进行字符的编写。此时如需对第二个字符进行编写，先
按“ＥＮＤ”键此时第二个字符会闪烁，并进入可编辑状态。依类推对三个字符进行编辑。连续按“ＥＮＤ”则在三
个字符中来回切换。
编辑完成后按“确认”键返回并进入菜单选择状态。
在任何状态下按“返回”键进入开机画面。
14
NAME
Function:
This function allows you to assign a user name (three characters) to each model memory.
Parameter:
MODEL NO: Model number.
”USM”: User name
Operation:
Press the “ENTER” button and turn to the “NAME” menu. Press the “ENTER” button to enter the
“NAME” menu. The first letter will be blinking. Turn the “ENTER” button to select letter.
Press the “END” button to move between the three letters. Press the “ENTER” button to save and
return to the menu screen. Press the "Back" button to return to the opening screen.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
615
CRAW
功能说明：
此功能可选择四种方向模式。
参数说明：
4个不同的模式组成方向控制
MODEL A：1通道控制MODEL A方向。
MODEL B：1通道控制MODEL B方向，且此通道是反向的。
MODEL C：1通道控制MODEL A方向，3通道控制MODEL B方向，3通道复制了1通道的数据
MODEL D：1通道控制MODEL A方向，3通道控制MODEL B方向，3通道反向复制了1通道的数据.
操作方法: 在开机菜单下通过“确认”键进入菜单，通过“左右旋转”键进行CRAW菜单选择，
再按确认键进入此菜单的操作（此时A 字符会闪烁），然后通过“左右旋转”键进行MODEL
A到MODEL D的选择，选好要变更的模式后，改为按确认键保存设置
在任何状态下，按“返回”键，进入为主界面
Function:
This function allows the usage of 4 wheel steering for specifically for crawling or other vehicles that
require mixing.
Parameter:
There are 4 different modes to control the composition of the direction.
Model A: channel 1 control Model A direction.
Model B: channel 1 control Model B direction, reversed control.
Model C: channel 1 control Model A direction, channel 3 control model B direction, channel 3
replicates channel 1 data.
Model D: channel 1 control Model A, channel 3 control model B, channel 3 replicates channel 1 data
in reverse.
Operation:
Press the "ENTER" button and turn to the “CRAW”menu. Press “ENTER” button to enter the “CRAW”
menu. Turn the "ENTER" button to select desired mode A, B, C, or D. Press the “ENTER” button to
save and return to the menu screen. Press the "Back" button to return to the opening screen.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
参数说明：
CHANNEL：通道编号，通道ST到通道AUX。
ST. RBU通道右边微调, 调整量为00%--100%,工厂预设值为00%;
ST. LFU通道左边微调, 调整量为00%--100%,工厂预设值为00%;
TH. LFU通道前进微调, 调整量为00%--100%,工厂预设值为00%;
TH. RBU通道后退微调, 调整量为00%--100%,工厂预设值为00%;
AUX. RBU通道CH3向上微调, 调整量为00%--100%,工厂预设值为00%;
AUX. LFU通道CH3向下微调, 调整量为00%--100%,工厂预设值为00%;
操作方法：
在开机菜单下通过“确认”键进入菜单，通过“左右旋转”键进行TRIM菜单选择，再按确认键进入此菜单的操作（此时ST
字符会闪烁），然后通过“左右旋转”键进行通道ST到通道AUX的选择，选好要变更的通道后，按“END”键，此时两个字
符会闪烁，在此状态下通过按“左右旋转”键进行00%--100%设定调整，完成后按“END”键切换通道的设定，此时ST会
闪烁。以此类推，对三个通道进行设定。
编辑完成后，按“确认”键返回并进入菜单选择状态。
在任何状态下，按“返回”键，进入开机画面。
ST
16
TRIM
Function:
Use this function to adjust the neutral position of the steering, throttle and AUX channel.
Parameter:
CHANNEL: channel number, from ST to AUX
ST. RBU: steering or 3rd channel right side , adjustment range: 00%--100% ( initial value is 00% )
ST. LFU: steering or 3rd channel right side, adjustment range: 00%--100% ( initial value is 00% )
TH. LFU : throttle forward side, adjustment range: 00%--100% ( initial value is 00% )
TH.RBU: throttle backward side , adjustment range : 00%--100% ( initial value is 00% )
Operation:
Press the " ENTER" button and turn to the “TRIM” menu. Press the “ENTER” button to enter the
“TRIM” menu. The selected channel will be blinking. Select the channel by turning the "ENTER"
button, and then press the "END" button (now the percentage will be blinking). Turn the "ENTER"
button to adjust the rate. After this, press the "END" button to finish the setting. The rest can be done
in the same way. Press the "ENTER" button to save and return to menu screen. Press the "BACK"
button to return to the opening screen.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
功能说明：
此功能是对油门输出通道作自动刹车（点刹）设定，适应不同机种赛道以及不同人的操作习惯，以达到最佳刹车效果
及弯道的操控效果，而不至于有甩尾及转弯不足现象出现。
参数说明：
CHANNEL:通道编号，只有第二通道（油门通道）有此功能;
OFF:表示ABS功能关闭（工厂预设值为OFF);
ON: 表示ABS功能开启。
操作方法:
在开机菜单下通过"确认"键进入菜单,通过"左右旋转"键进行ABS菜单选择，再按确认键进入此菜单的操作（此时三个
字符会闪烁），然后通过“左右旋转”键进行OFF-ON-OFF的设定。
编辑完成后按确认键"返回"并进入菜单选择状态.
在任何状态下按"返回"键进入开机画面.
617
ALB
Function:
while applying the brakes, locking them up can be easily done. which can cause your vehicle to spin
out of control, this can be eliminated by pulsing the brakes, so that full control of your vehicle can be
achieve at all times. The effect as like that of a A.B.S in a real passenger car.
Parameter:
CHANNEL: channel number, it’s only available in channel 2:
OFF: A. B. S. function is OFF:
Operation:
Press the “ENTER” button and turn to the “ALB” menu. Press the “ENTER” button to enter the “ALB”
menu. The selected function will be blinking. Turn the “ENTER” button to change the setting.
Press the “ENTER” button to save and return to menu screen. Press the “BACK” button to return to
the opening screen.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
功能说明：
此功能是对两个输出通道作指数变化量调整设定，适应不通机种对不同赛道以及不同人的操作习惯，以达到最佳的操控
效果。
参数说明：
CHANNEL:通道编号，通道ST和TH通道.100%:指数输出百分比率,-100%表示中心点位置反应会越小,也就是反应越
迟钝;
100%表示中心点位置反应会越大,也就是反应越灵敏,EXP调整量为:-100%到100%(工厂预设值为0%）。
操作方法：
在开机菜单下通过“确认”键进入菜单，通过“左右旋转”键进行EXP菜单选择，再按“确认”键在进入此菜单的操作
（此时ST字符会闪烁）然后通过 "左右旋转"键进行通道ST到通道AUX的选择,选好要变更的通道后按" END"键,此时两个
字符会闪烁,在此时状态下按"左右旋转"键进行-100%到100%的设定.完成后按"END"键可进入另一个通道的设定.依类推
对两个通道进行设定.
编辑完成后按 "确认"键返回并进入菜单选择状态.
在任何状态下按 "返回"键进入开机画面.
18
EXP
Function:
This function is used to change the sensitivity of the 2 channels around the neutral position. In order
to “soften” or make aggressive the response, according to user 's demand.
Parameter:
CHANNEL: channel number, from ST and TH;
100%: steering “EXP” rate, when you want aggressive steering operation, turn the button to
increase the rate. When you want to make steering operation less aggressive, turn the button to
decrease the rate. adjustment range: -100%~0~+100% ( initial value is 0 )
Operation:
Press the “ENTER” button and turn the “EXP” menu. Press the “ENTER” button to enter the “EXP”
menu. The selected channel will be blinking. Select the channel by turning the “ENTER” button and
then press the “END” button (now the percentage will be blinking ). Turn the “ENTER” button to
adjust the rate. After this, press the “END” button to finish the setting. The rest can be done in the
same way. Press the “ENTER” button to save and return to the menu screen. Press the “BACK”
button to return to the opening screen.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
功能说明：
此功能是对三个输出通道做输出变化量的调整设定，此项设定分为两部分（正半部负半部份）来分别单独进行设定，
应适应不同机种及不同伺服器输出量的要求，另外对伺服器的两边输出行程不对称做修正。
参数说明：
ＣＨＡＮＮＥＬ:通道编号，从ST到AUX
100%：输出量百分比率，值越小输出越小，反之越大（此调整量为0%到120%，工厂预设值为100%）。
:此图标表示当前你所设定调整的是哪一部分（分正负两部分，由方向盘及油门扣机来选定）。
操作方法:
在开机菜单下通过“确认”键进入菜单，通过“左右旋转”键进行EPA菜单选择，再按“确认”键进入此菜单的操作
（此时ST字符闪烁），然后通过“左右旋转”键进行通道ST到AUX通道的选择，选好要变更的通道后按“ＥＮＤ"键，
此时两个字符会闪烁，在此状态下通过方向盘及油门扣机进行单边选择（被选中的那边对应的图标 会进行切换），
然后按“左右旋转”键进行0-120%的设定，完成后按“ＥＮＤ”键可进入另一个通道的设定，依类推对三个通道进行
设定。
编辑完成后按“确认”键返回并进入菜单选择状态。
在任何状态下按“返回”键进入开机画面。
619
EPA
Function:
Use this function when performing left and right steering angle adjustments, throttle high side/brake
side amount adjustment, and channel 3 servos up side/down side operation amount adjustment
during linkage setup. Used to correct steering angle of adjusting left and right steering angles when
there is a difference in the left and right turning radios.
Parameter:
CHANNEL: channel number, from St to AUX
100%:output value. Adjustment range : 0~120% ( initial value is 100% )
: LEFT, FORWORD, or RIGHT, BACK ( select by steering wheel or throttle trigger )
Operation:
Press the "ENTER" button and turn to the “EPA” menu. Press the “ENTER” button to enter the “EPA”
menu. The selected channel will be blinking. Select the channel by turning the "ENTER" button, and
then press the "END" button (now the percentage will be blinking ). Select the icon by using the
steering wheel, throttle or CH 3 button. Turn the "ENTER" button to adjust the rate. After this, press
the "END" button to finish the setting. The rest can be done in the same way. Press the "ENTER"
button to save and return to the menu screen. Press the "BACK" button to return to the opening
screen.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
功能说明：
此功能是对ST输出通道做输出变化量调整设定，此项设定同时对两部份（正半部负半部份)按同一比率进行设定,适应
不通机种及不同伺服器输出的要求,以达到最佳的操控效果.
参数说明:
CHANNEL 通道编号，通道ST
100%:输出量百分比率,值越小输出越小,反之越大(此调整量为0%到100%,工厂预设值;为100%),0%表示此通道没有输出,
100%表示全部输出,也就是最大输出.
操作方法：
在开机菜单下通过“确认”键进入菜单，通过“左右旋转”键进行D/R菜单选择，再按确认键进入此菜单的操作
（此时三个字符会闪烁），在此状态下通过按“左右旋转”键进行00%--100%设定调整，编辑完成后，按“确认”
键返回并进入菜单选择状态。
在任何状态下，按“返回”键，进入开机画面。
20
D/R
Function:
By setting the dual rates function, you can limit the total travel of each individual Channel.
Parameter:
CHANNEL: channel number, channel ST
100%:Dual Rate, when you want to increase the servo travel, turn the button to increase the rate.
when you want to decrease the servo travel, turn the button to decrease the rate.0% is no signal
output ,100% is maximum signal output. Adjustment range: 0~100% (initial value is 100%)
Operation:
Press the “ENTER” button and turn to the “D/R” menu. Press the “ENTER” button to enter the “D/R”
menu. The selected function will be blinking. Turn the “ENTER” button to adjust the rate. Press the
“ENTER” button to save and return to the menu screen. Press the “BACK” button to return to the
opening screen.
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
FAIL SAFE FUNCTION
E
621
Function:
Failsafe aims to prevent control loss during operation due to radio control signal loss between
transmitter and receiver. If the receiver is not able to receive any signal from the transmitter, the
throttle setting on the receiver will default back to its original setting.
Setting:
1. Turn on the transmitter.
2. Connect power on the r, the LED on the will turn solid.receive receiver
3. Adjust transmitter ’s throttle to the stop or break position, then keep still.
4. Press the “Setting” button on the receiver (shown on the picture above), the LED will start
flashing for 3 seconds and then stop, indicating the fail safe setting is completed.
Testing:
a. Turn on the transmitter.
b. Connect power on the receiver.
c. Turn off the transmitter:
d. The throttle servo will turn back to its original setting automatically.
失控保护功能说明
1.功能说明
失控保护功能是对模型车或船进行失控保护，避免因失控造成损失。主要是对油门通道进行控制，
当接收机收不到控制信号时，接收机的油门通道将会自运行到当初设定的值，以免误动作。
2.设定方法
1.将发射机开通电源进入工作状态。
2.将接收机接通电源进入工作状态，此时信号灯恒亮。
3.控制发射机的油门通道，使油门控制伺服器或调速器进入刹车或熄火状态，然后保持不动。
4.此时可看到油门通道的伺服器便会自动进入设定状态的位置。
3.测试
a.将发射机打开进入工作状态。
b.将接受机接通电源进入工作状态.
c.将发射机关闭电源。
d.此时可以看到油门通道的伺服器便会自动进入设定状态的位置。
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
Packaging content 包装内容
3 channel 2.4G transmitter (USM-GT3X)
3 通2.4G发射机(USM-GT3X)
3 channel 2.4G receiver (FS-A3)
3 通2.4G接收机(FS-A3)
说明书
User manual
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
televison reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment. (Example use only shielded interface cables when
connecting to computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user authority to operate the equipment.
FCC Statement
3
2
1 1
1
1
声明
622
GT3X
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must
not be collocated or operating in conjunction with any other antenna or transmitter
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
