FLYSKY RC MODEL TECHNOLOGY FLYSKYT2B Automatic Frequency Hopping Digital System User Manual FS T2B

FLYSKY RC MODEL TECHNOLOGY CO., LTD Automatic Frequency Hopping Digital System FS T2B

Contents

user manual II

9

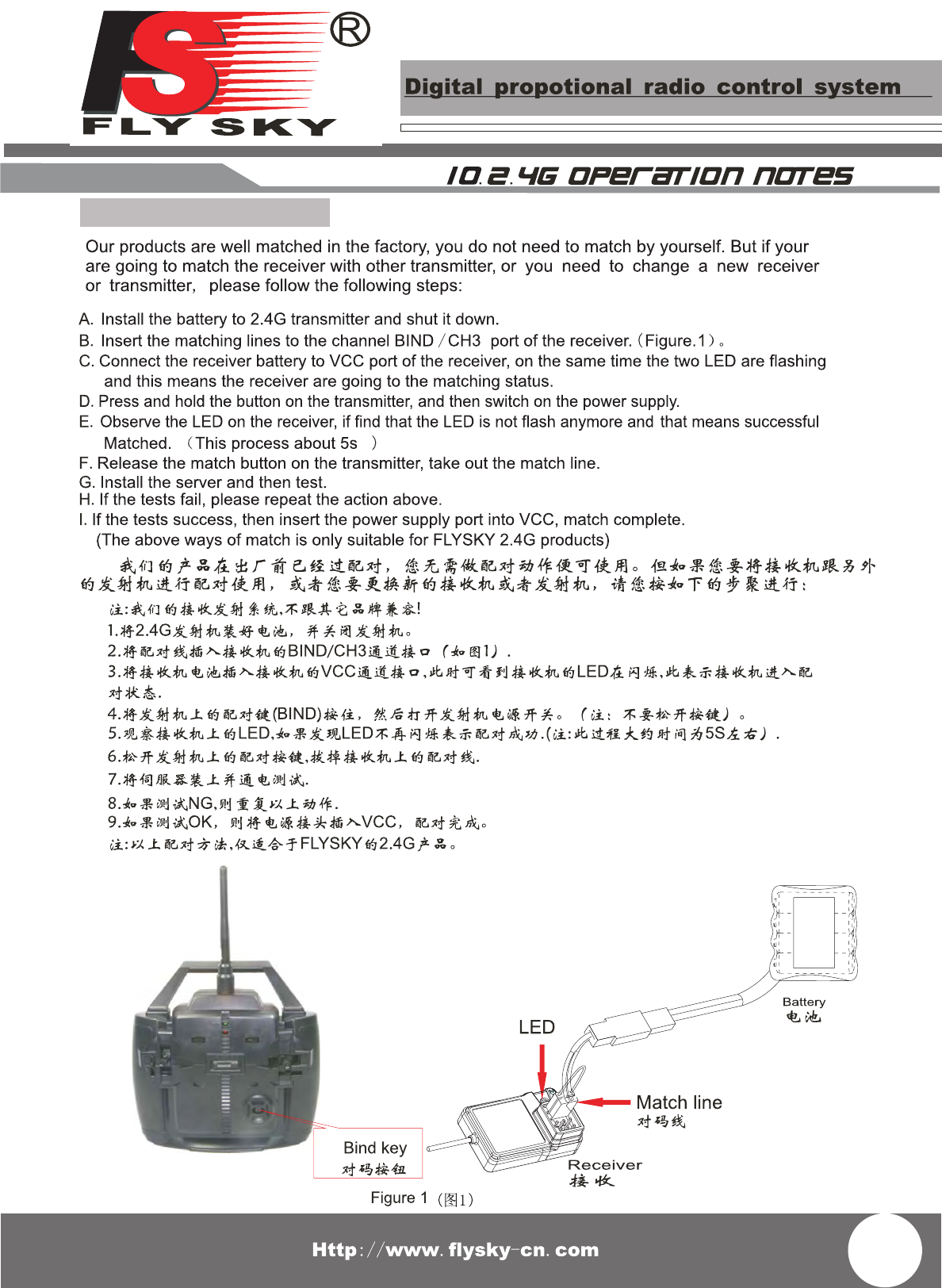

10.01 Matching(code)
MODELS: FS-T2B
10
10.02 Power on:
10.03 Shut down:
MODELS: FS-T2B
11
CH1 TRIM
CH2 TRIM
CH1 STICK
CH2 STICK
CH1 REV
CH2 REV
MODELS: FS-T2B
12

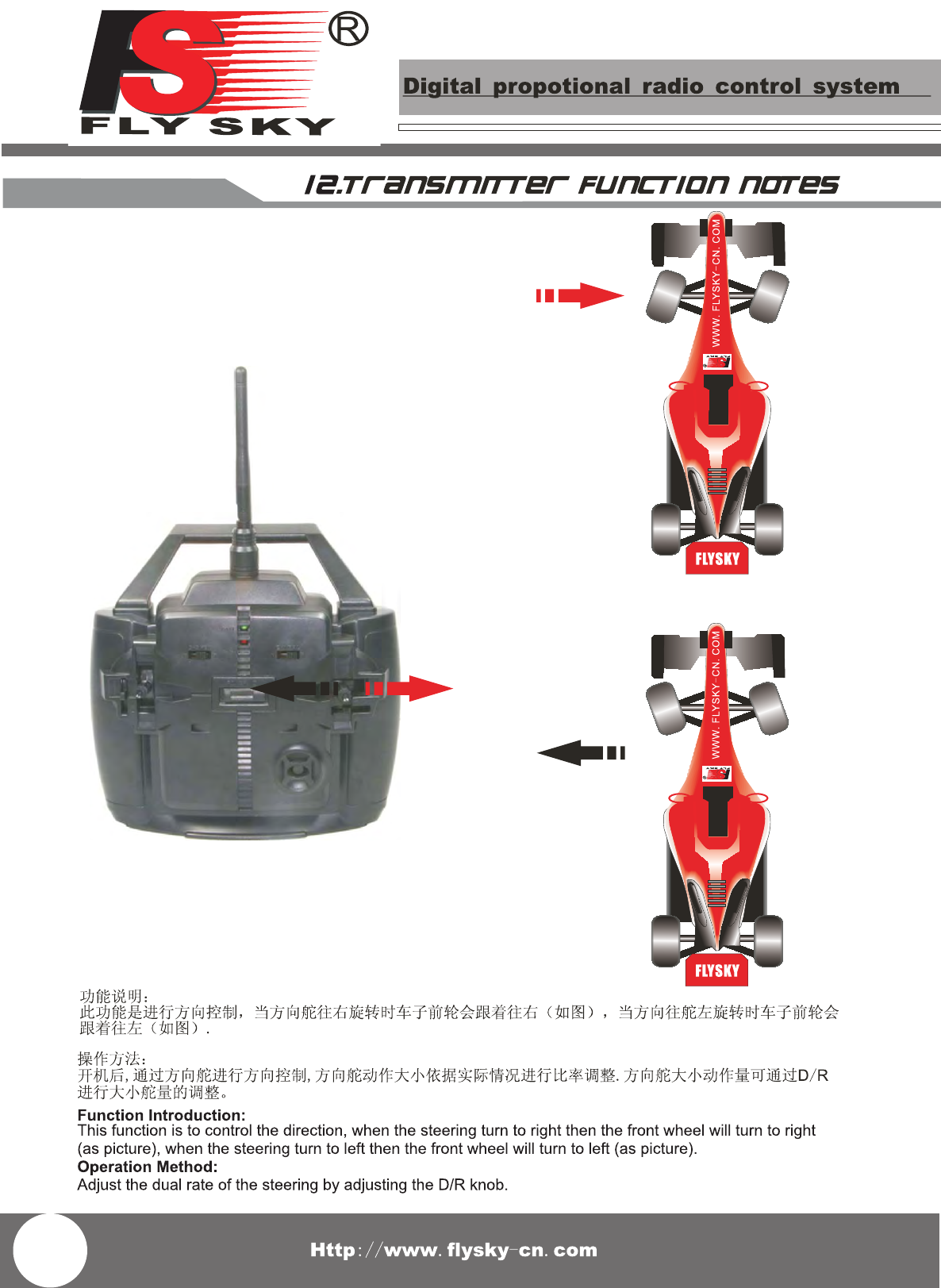

12.01方向舵控制:
MODELS: FS-T2B
13

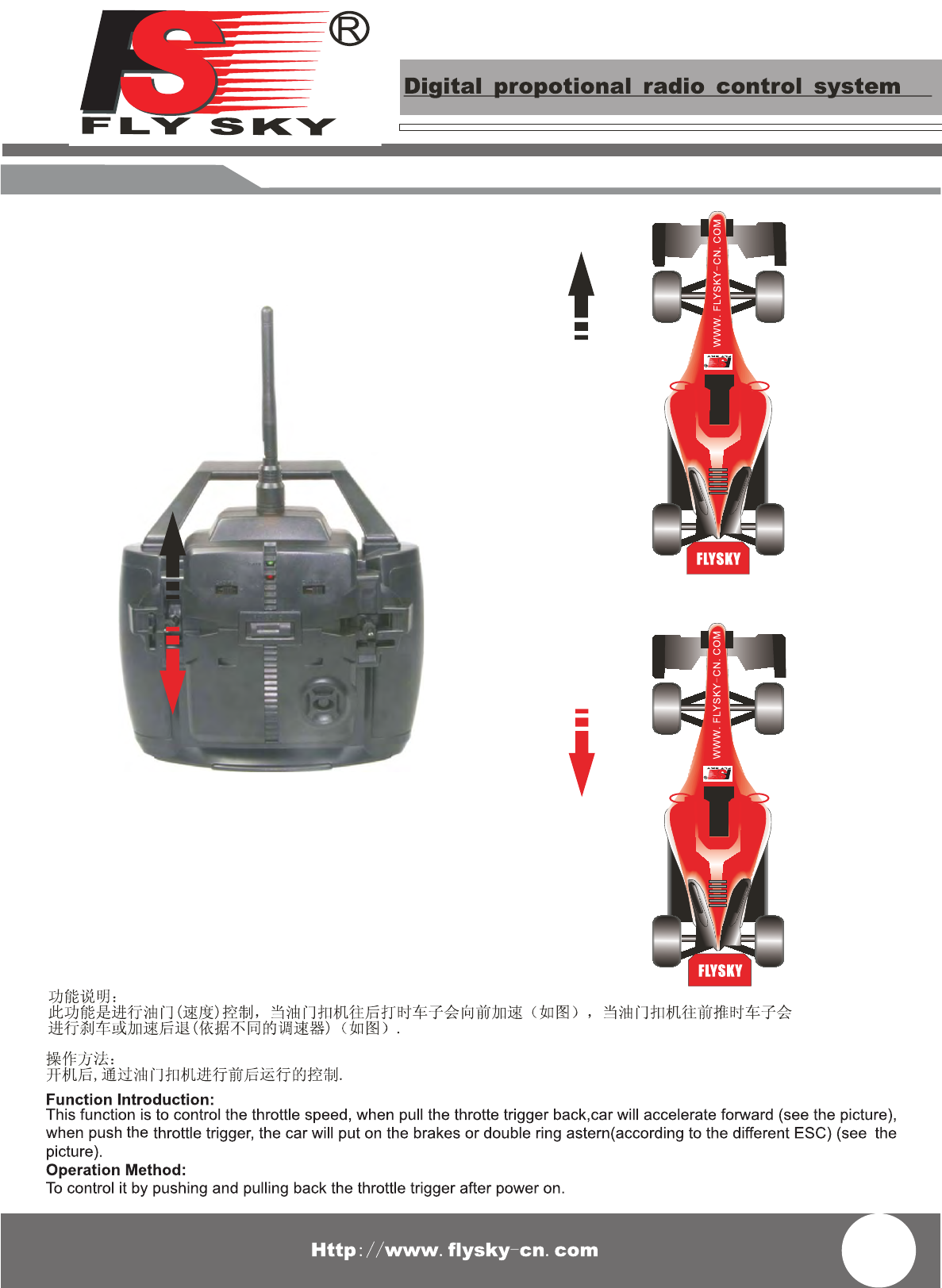

12.02油门控制:
MODELS: FS-T2B
失控保护功能是对模型车或船进行失控保护，避免因失控造成损失。主要是对油门通道进行控制，当接
收机接收不到控制信号时，接收机的油门通道将自运行到当初设定的值，以免误动作。
Failsafe aims to prevent out-of-control driving of RC Car or RC Boat.If the Receiver is not able to receive
any signal, from the control to Throttle, the parameter of Throttle on Receiver will turn back to its original
setting.
14
MODELS: FS-T2B
15

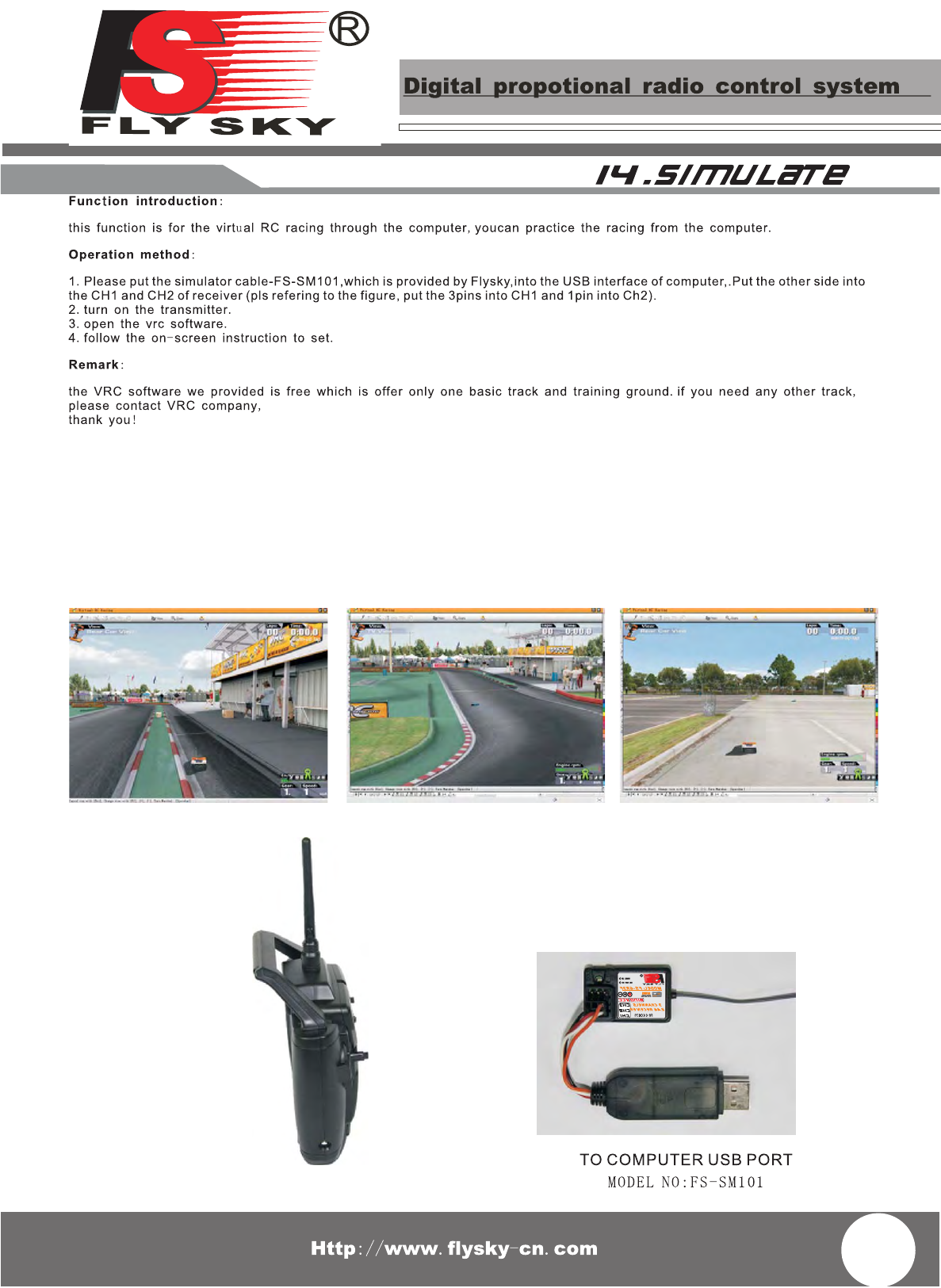

功能说明：
此功能用于电脑模拟，而可通过电脑进行练习，及进行电脑模拟比赛。
操作方法：
1.将本公司提供的电脑模拟连接器（FS－SM101）一端插入电脑的USB接口，另一端插入接收机的CH1和CH2通道(如图三跟线的插
CH1通道，单跟线的插入CH2通道）。
2.打开发射机电源。
3.启动VRC车模应用软件。
4.按软件要求进行设定完成后便可进行电脑模拟了。
备注：
本公司提供的是VRC公司提供的免费软体，此软件只提供一条基本赛道和一个训练场。如需其它赛道请跟VRC公司联系。谢！
MODELS: FS-T2B
16
MODELS: FS-T2B
17
CD
MODELS: FS-T2B
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
or transmitter. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate
the equipment.
