FLYSKY RC MODEL TECHNOLOGY FLYSKYT4B 4CH Radio Control System User Manual FS CT6A
FLYSKY RC MODEL TECHNOLOGY CO., LTD 4CH Radio Control System FS CT6A
Contents
- 1. User manual part I
- 2. User manual part II
User manual part I
4 CHANNEL RADIO CONTROL SYSTEM
INSTRUCTION MANUAL
Http:www.flyskychina.com
FS-T4B
MODEL:
Copy right 2007@flysky co.,ltd
Digital propotional radio control system
Menu
11.Functional Description.......................10
7.Receiver parameters...........................5
6.Transmitter parameters.........................5
13 Packaging with content list...........................1 3
11.04. 4Channel function description..........11
11.03. 2Channel function description..... ......11
11.02. 3Channel function description...........10
11.01. 1Channel function description...........10
10.03 Shutdown............................9
10.02 Boot.................................8
10.01 Matching............................8
10.2.4G Operation Notes........................8
5.Power charging...............................4
12 Professional terminology .......................1 2
9.Receiver and server connectivity.................7
8.Each part of the transmitter....... ...............6
2.4G 4 Channel remote system
1
FS-T4B
Model:
Notes
4.safty guides..................................3
3.The special symbols...........................3
2.Services.....................................2
1.Introduction..................................2
1.Introduction
2.Services
If you found any problems during the operation process, please refer to the manual.
If the problem still exist, you could contact our dealers to found out the way to solve.
And you could also log on to our website service center:
HTTP:WWW.FLYSKYCHINA.COM
2.4G 4 Channel remote system
2
FS-T4B
Model:
Notes
Thank you for choosing 2.4 G ratio remote control digital products, if you are the first
time to use this type of products, please read this statement carefully and strictly in
accordance with the requirements of operation. You could refer to the Manual if you
meet any problems during the operation . Please well keep the manual after use
because you might have to use it again next time. Once again, thanks for buying our
products, and hope that it brings happiness to you.
3.The special symbols
2.4G 4 Channel remote system
3
FS-T4B
Model:
Notes
Please pay attention to the following symbols when it appear on the manual,
and read carefully.
Danger:
If the oper ator does not oper at e by fol low ing the inst ruct ions,
the oper ator may lead to ser ious inj ur ies, even Mor tal dang er.
Warning:
If the operator does not operate by following the instructions,
the operator may lead to serious injuries, eve n Mortal danger.
Attention:
If the operator does no t op er at e by fol low ing the inst ruct ion s,
the operator may lea d to mino r inj ur ies, bu t ge nerally it will
not cau se ser iou s inj ur ies to the operator.
Prohibition Mandatory
4.Safty guides
Do not fly in bad weather such as rainy or thundering to assure the
safety of you and others.
Before you fly, please ma ke sure the mo veme nt of server are correspond
with the direction of joystick. If inconsistent, please adjust before fly.
You need to turn the throttle channel(ch3) and inching switch
to the lowest before you use. Then switch on the transmitter power
(red light or flashing means low battery),finally connect the receiver.
The Sequence to shut down is first turn the receiver power and the
transmitter power.
If the above operations are reverse, it might lead to uncontrolled and
cause accident.
5.Battery charging notes
If you are using a nickel-cadmium, nickel-metal hydride batteries for
recharging, please use our company dedicated charger. If the electrical current
is too large and it may lead to temperature over-heated and cause fire burning
accident. Please cut off the power supply immediately after recharging. Please
take out the battery from the transmitter when you are not using it within a
period, it is because the battery may damage the aircraft batteries, thus being
exposed.。

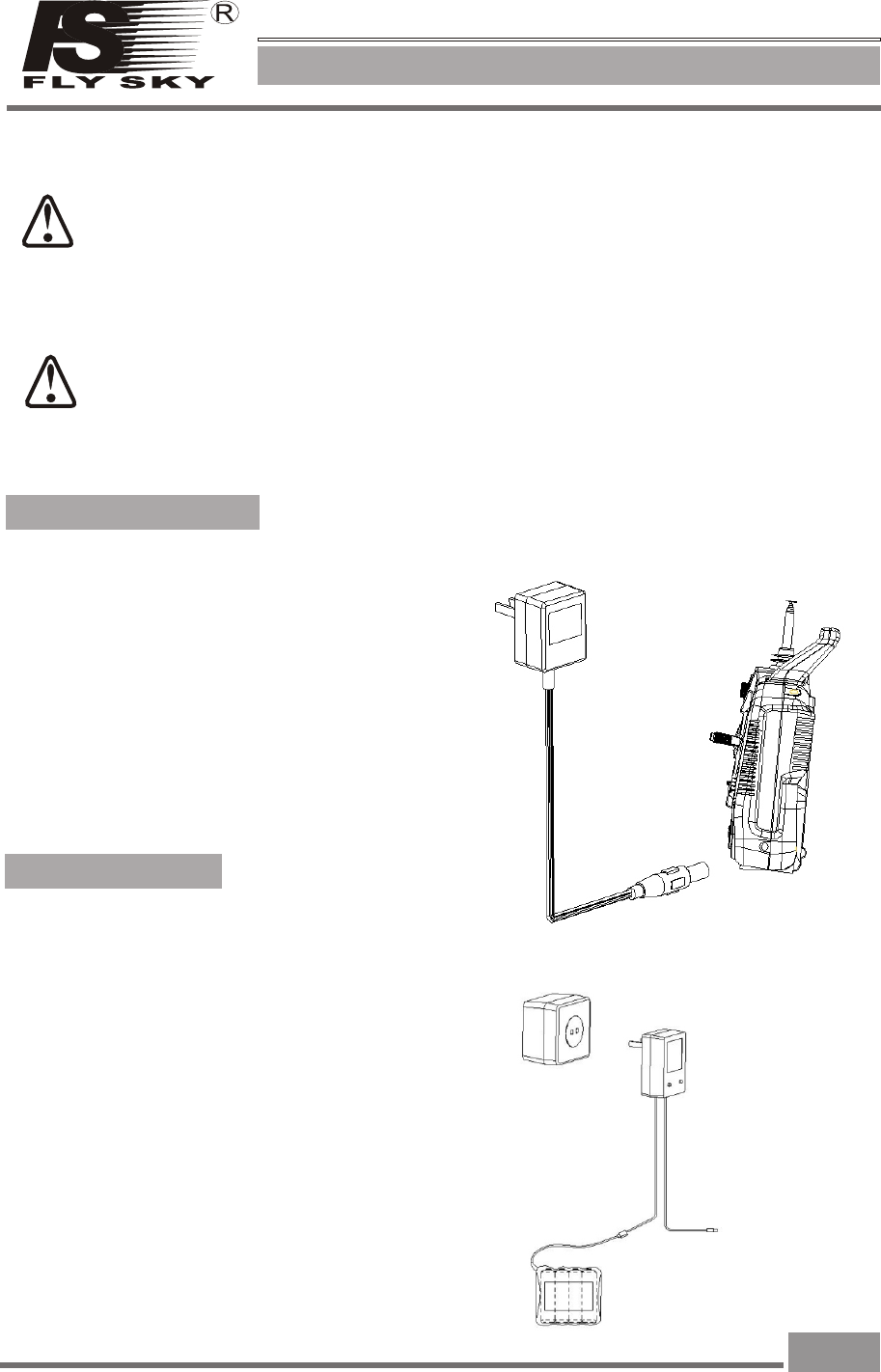

Transmitter charger:
1. Install the battery to transmitter with correct direction, and cover it.
2. Connect the charger to the main connector.
3. Connect the charger to the transmitter
Connector.
4. Cut off the power supply immediately after
Recharge completed.
If your transmitter, receiver using a nickel-cadmium, nickel-metal hydride
rechargeable battery, you have to well-check before you fly. If lack of
electricity, it could happen those phenomenon like inadequate control or out of
control, resulting accident. So please charge immediately when low in battery.
Receiver charger:
1. Connect the charger to the main connector.
2. Connect the Rechargeable receiver with battery charger
3. Recharge completed, cut off the power supply immediately.
2.4G 4 Channel remote system
4
FS-T4B
Model:
Notes
6.Transmitter parameters
7.Receiver parameters
*Channel：16
*Frequency band: 2.4GHz
*Power resource：1.5V*4 "AA"Battery
*Program type: GFSK
*Modulation type: FM
*RF Receiver sensitivity：-76db
*Static current： ≤8 5 mA
*Size：45*23*13.5mm
*Module Size：25*16.8*6.5mm
*Weigth: 12g
*Color: Gary semi-transparent
* Antenna length：26mm
2.4G 4 Channel remote system
5
FS-T4B
Model:
Notes
*Channels：１６
*Charger port: yes
*Frequency band: 2.4GHz
*Simulator port: PS-2
*Power resource：1.5V*8 "AA"Battery
*Program type: GFSK
*Modulation type:FM
*RF power：19db
*Static current： ≤250mA
*Voltage display type：LED
*Size：189*97*218mm
*Weigth: 575g
*Color: black
*Antenna length：26mm

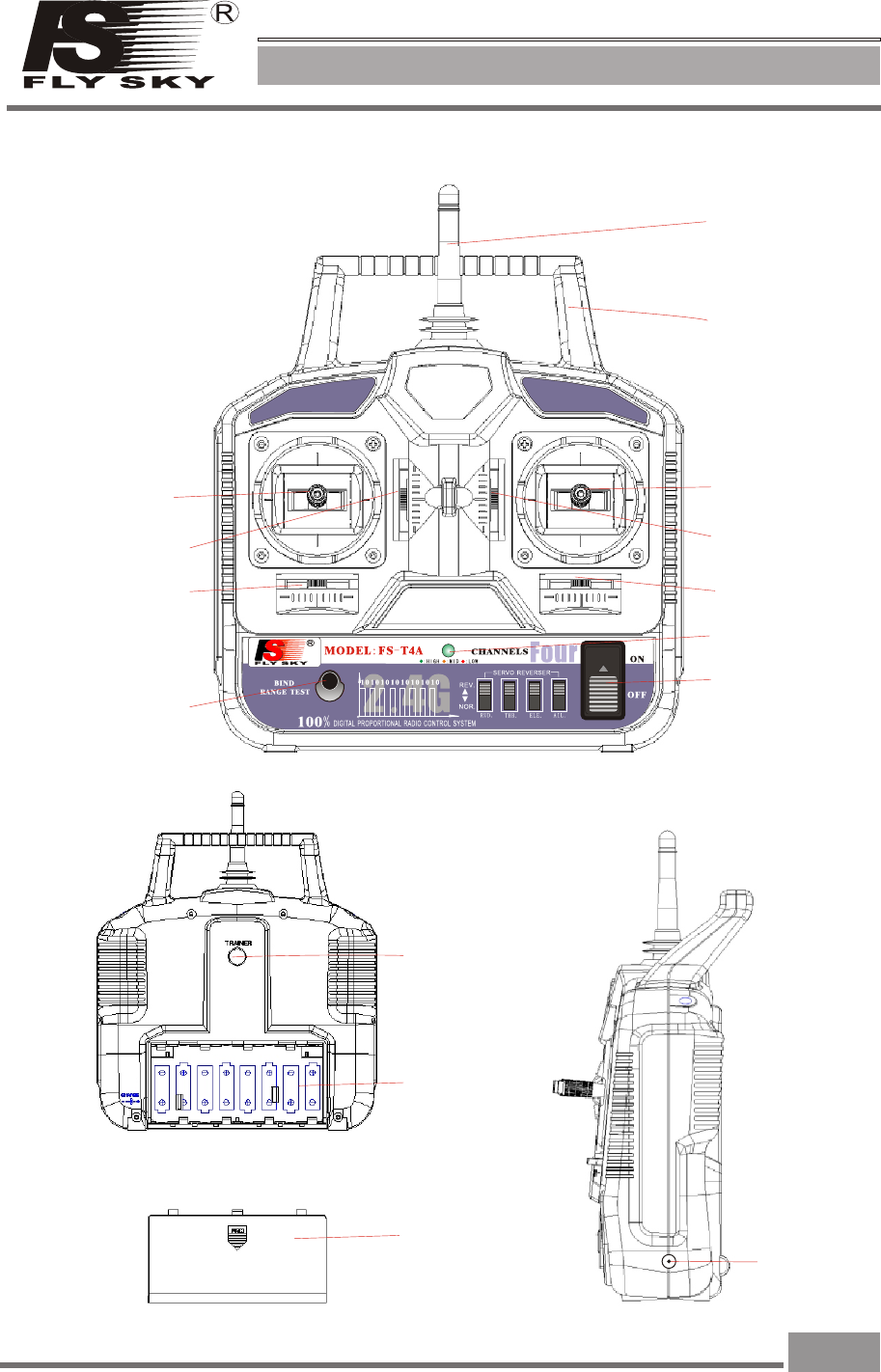

8.Each part of the transmitter
Antenna
Handle
Aileron
throttle stick
Up-down
stick
Aileron trim
Throttle trim
Power switch
Power indicato r
light
Direction
Trim
Up-down
Trim
Matching
(yards) keys
Charger
Port
Simulant
connecter
Battery
cover
Battery
box
Front
Back Side
2.4G 4 Channel remote system
6
FS-T4B
Model:
Notes

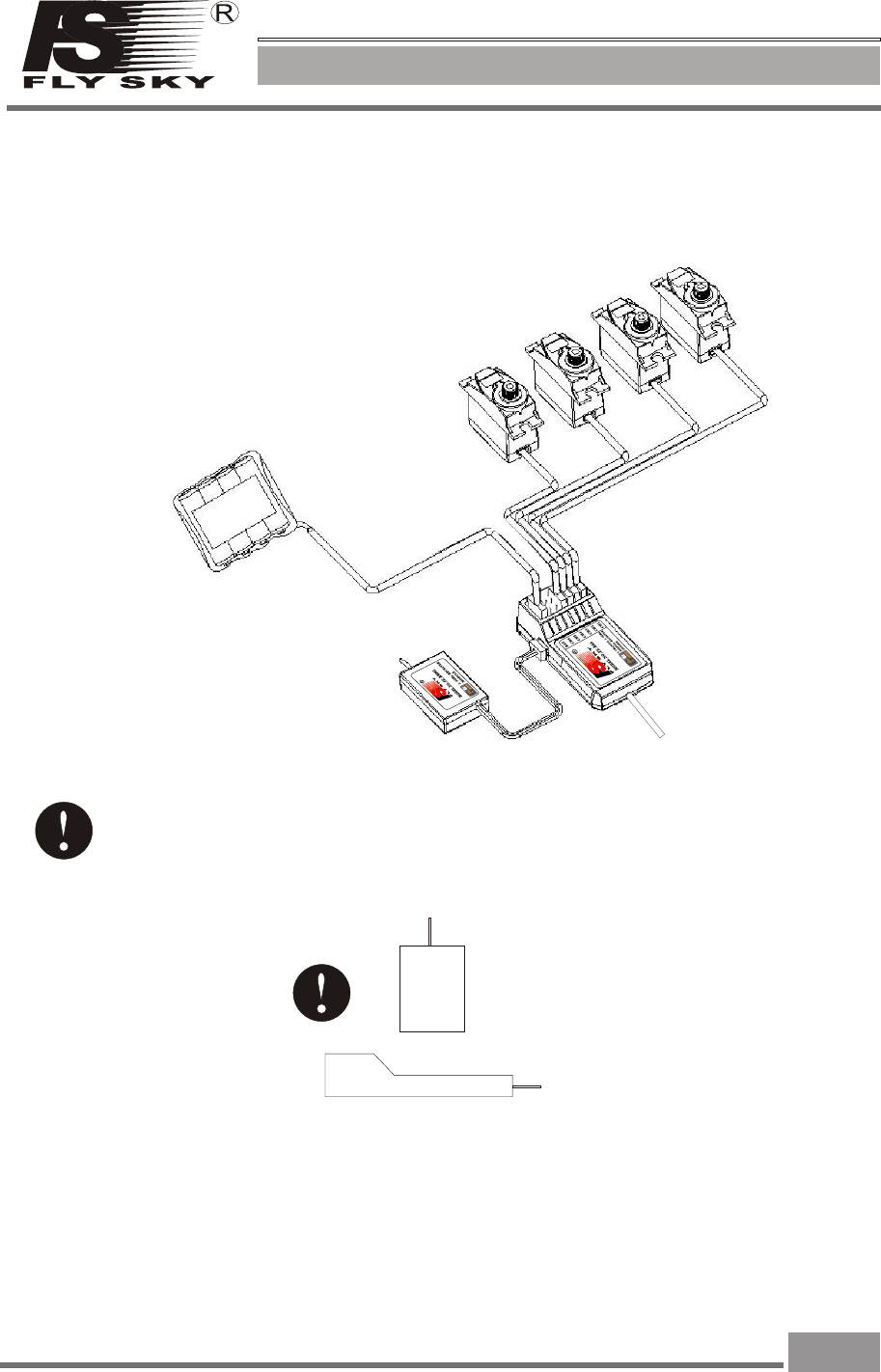

9.Receiver and server connectivity
Receiver Module
CH1
Ch2
Ch3
Ch4
Main receiver
Battery
When installing the receiver please make sure that
two items showed 90 degree angle.
Receiver
Module
Main receiver
2.4G 4 Channel remote system
7
FS-T4B
Model:
Notes
