10.2.4G Operation notes
This is 2.4 G Frequency model products make of automatic address code.It use digital
transmission mode, and this prevent outside interference effective active and passive.

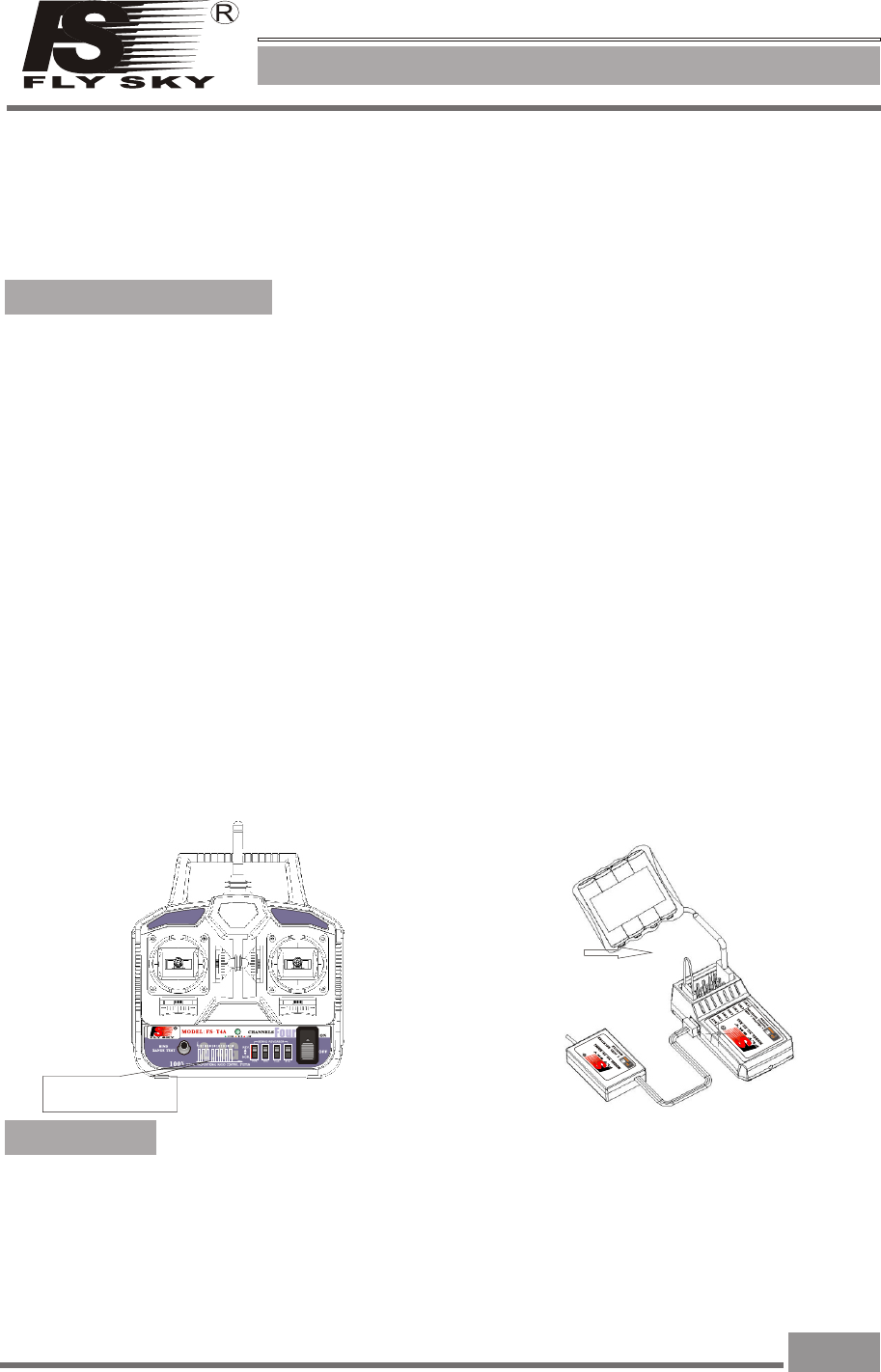

10.01 Matching (code)
1. Install the battery to 2.4G transmitter and shut it down.
2. ( 1）。Insert the matching lines to the channel Bat port of the receiver. Figure.
3.Connect the receiver battery to any one of the channel port, on the same time the
two LED are flashing and this means the receiver are going to the match status.
4.Press and hold the button on the transmitter, and then switch on the power supply.
6.Release the match button on the transmitter, take out the match line.
5.
（ )
Observe the LED on the receiver, if found that the LED is not flash anymore and
that means successful matched. This process about 10s
7.Install the server and then test.
8.If the tests fail, please repeat the action above.
9.If the tests success, then insert the power supply port into BAT, match complete.
(The above ways of match is only suitable on FLYSKY 2.4G products)
Our products are well matched in the factory, you do not need to match by yourself.
But if your are going to match the receiver with other transmitter, please follow the
following steps:
Match line
Match key Figure 1

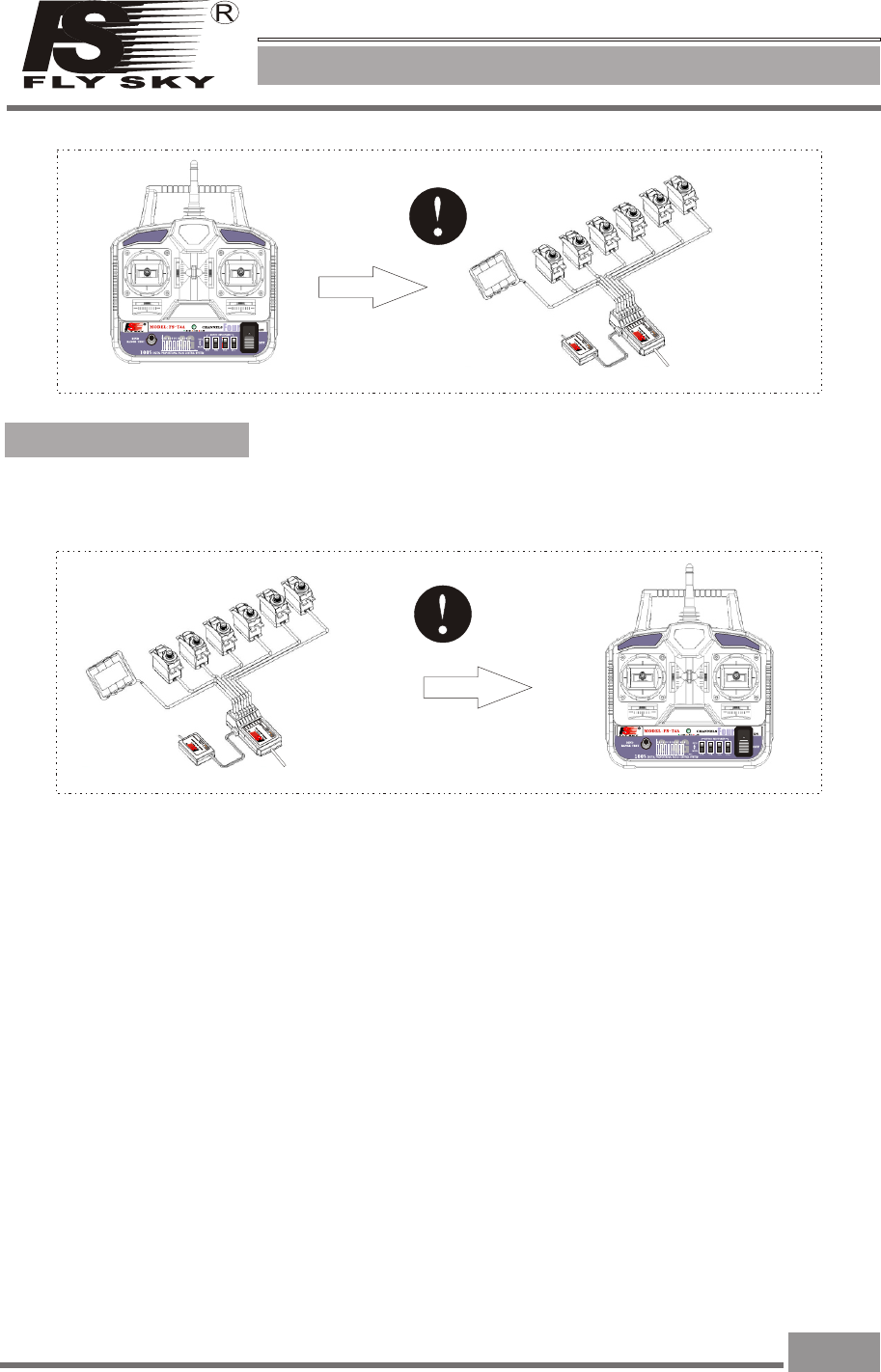

10.02 Boot
1.Connect every part.
2.Switch on the power supply.
3.Connect the power supply.
4.Receive LED light solid.
5.Finish and use.
2.4G 4 Channel remote system
8
FS-T4B
Model:
Notes
Boot
1.Cut off the receiver power supply.
2.Cut off the transmitter power supply.
Tx power ON
Tx power off
Rx power ON
Rx power off
Shut down
10.03 Shut down：
2.4G 4 Channel remote system
9
FS-T4B
Model:
Notes
2.4G 4 Channel remote system
10
FS-T4B
Model:
Notes
11.Functional description

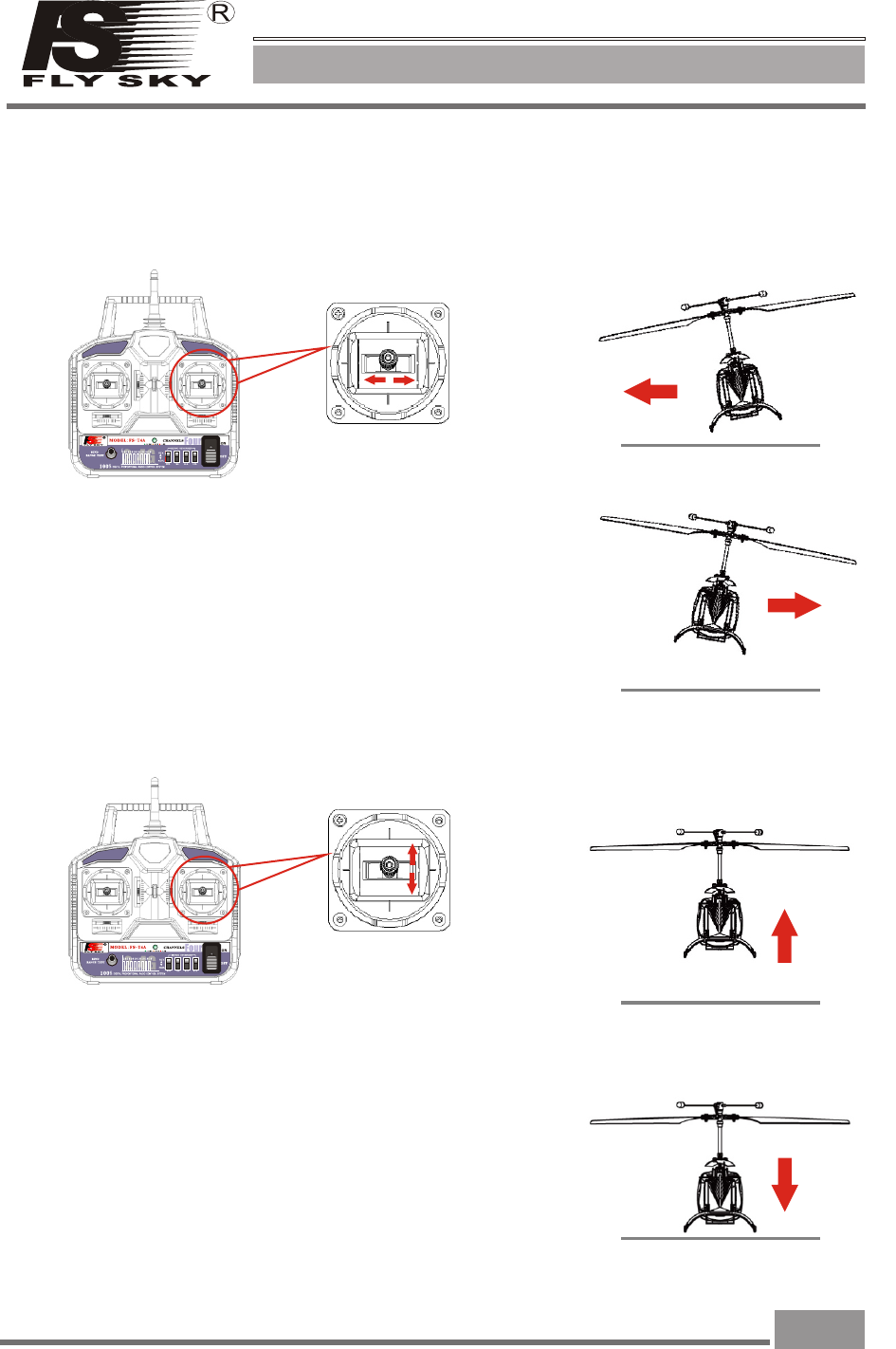

11.01.1 Channel control
.This channel is for aileron control
11.02.3 Channel control
This channel is use for throttlecontrol.
If you move the transmitter stick to the left,
The airplane will inclined to the left and the
airplane move left.（Figure.1）
If you move the transmitter stick to the right,
the airplane will inclined to the right and the
airplane move right.（Figure.2）
If you move the transmitter stick upward
the power of airplane will increase and the
airplane rise.（Figure.3）
If you move the transmitter stick downward
the power of airplane will decrease and the
airplane drop.（Figure.4）
Left Right
Figure1
Figure2
Figure3
Figure4
Move left
Move right
Rise
Drop
上
下
2.4G 4 Channel remote system
11
FS-T4B
Model:
Notes

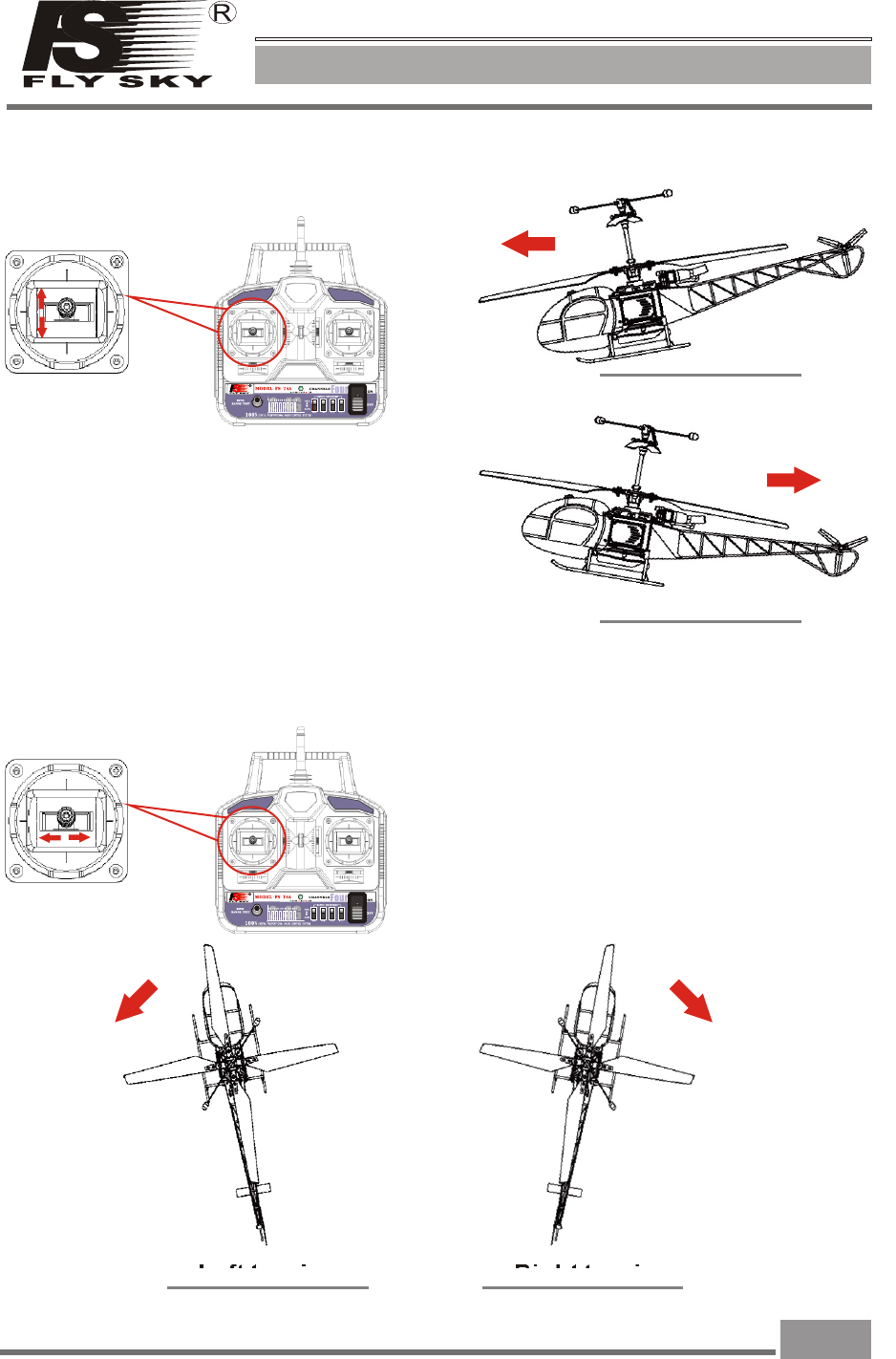

11.03.2 Channel control
This channel is use for forward and backward control.
11.04.4 Channel control
This channel is use for left and right turning control.
Move forward
Move backward
Left turning Right turning
Figure1
Figure2
If you move the transmitter stick upward,
the airplane will move forward.（Figure.1）。
If you move the transmitter stick downward,
the airplane will move backward.（Figure.2）。
If you move the trans mitter stick to the left,
The ai rplane will tur ning to the left.（Figur e.4）
If you move the trans mitter stick to the left,
The ai rplane will tur ning to the left.（Figur e.3）
Figure.3 Figure.4
Left Right
Up
Down
12.Professional terminology
AIL:副翼
ELE:升降舵
THR:油门
RUD:方向舵
GEAR:
PITCH:螺距
FM:调频
PPM:脉冲相位编码
PCM:脉冲数据编码
MODULE:调制
RF:射频
DR:双重比率
TRAINER:教练
STICK:操纵杆
NULL:无功能
REV:反向
NOR:一般
TRIM:微调
SUB.TRIM:辅助微调
HELI:直升机
ACRO:飞机
VR:电位器
SW:开关
UP:上
DOWN:下
DES:目标
SOURCE:起源
IDEL:特技
2.4G 4 Channel remote system
12
FS-T4B
Model:
Notes
13.Packaging with content list
NO: Model Sum Remarks
1
2
3
6
7
8
16 cha nnel 2.4G
tran smitter（FS -T4B)
16 channel 2.4G
receiver(FS-R6A)
Match(code)line
Manual(FS-T4B)
Charger
Server(FS-S036)
1
1
1
1
4
1
Optional
Optional
2.4G 4 Channel remote system
13
FS-T4B
Model:
Notes
Http:www.flyskychina.com
Copy right 2007@flysky co.,ltd
