FLYTECH TECHNOLOGY J262594 POS User Manual J2 625 System Manual Ver 0 1
FLYTECH TECHNOLOGY CO., LTD POS J2 625 System Manual Ver 0 1
Users Manual
J2 625 Integrated Touch Screen Computer
System Manual
June 2012
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
2
Copyright © 2012 J2 Retail Systems Ltd
All rights reserved
Change history
Version 0.0 Release June 7, 2012
Version 0.1 Release June 15, 2012
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
3
Contents
Overview ............................................................................................................................ 6
Specifications J2 625 ......................................................................................................... 8
J2 625 Integrated Touch Screen Computer .................................................................. 10
I/O Ports ........................................................................................................................ 10
Off / On Button ............................................................................................................. 10

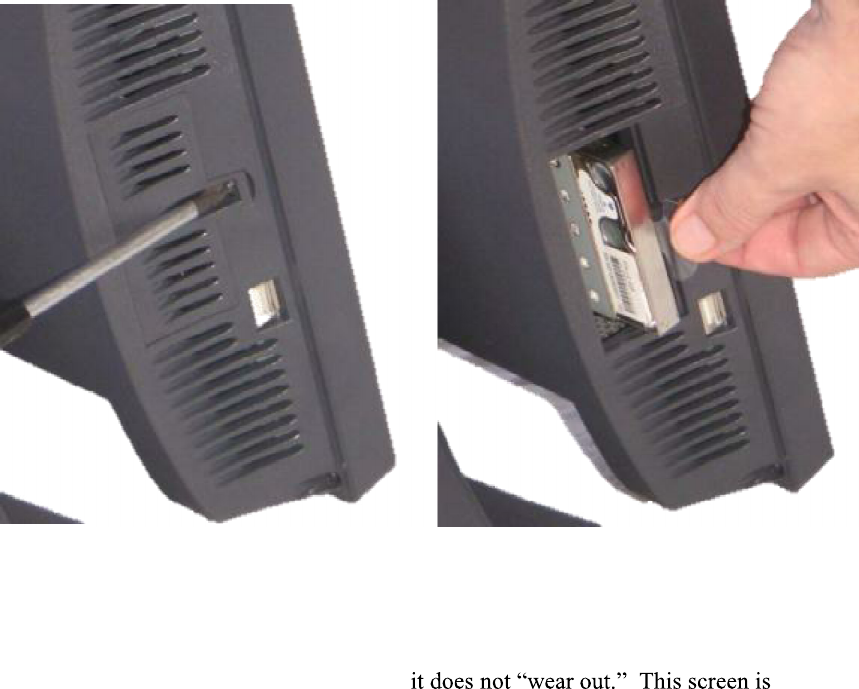

Hard Disks .................................................................................................................... 10
Touch Screen ................................................................................................................ 11

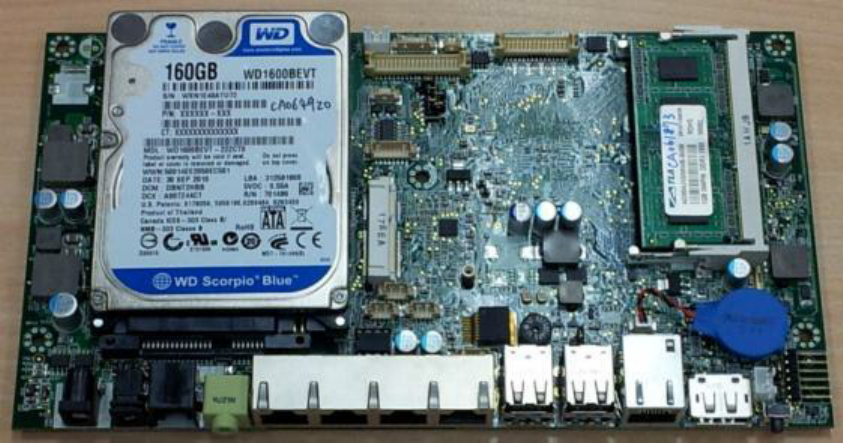

System Board ................................................................................................................ 12
J2 625 Display ............................................................................................................... 12
Secondary Video Port ................................................................................................... 13
Ethernet Connection ...................................................................................................... 13
Serial ports .................................................................................................................... 14
USB Ports ...................................................................................................................... 16
Audio ............................................................................................................................. 16
Power Supply ................................................................................................................ 17
+12VDV Power Out ..................................................................................................... 17

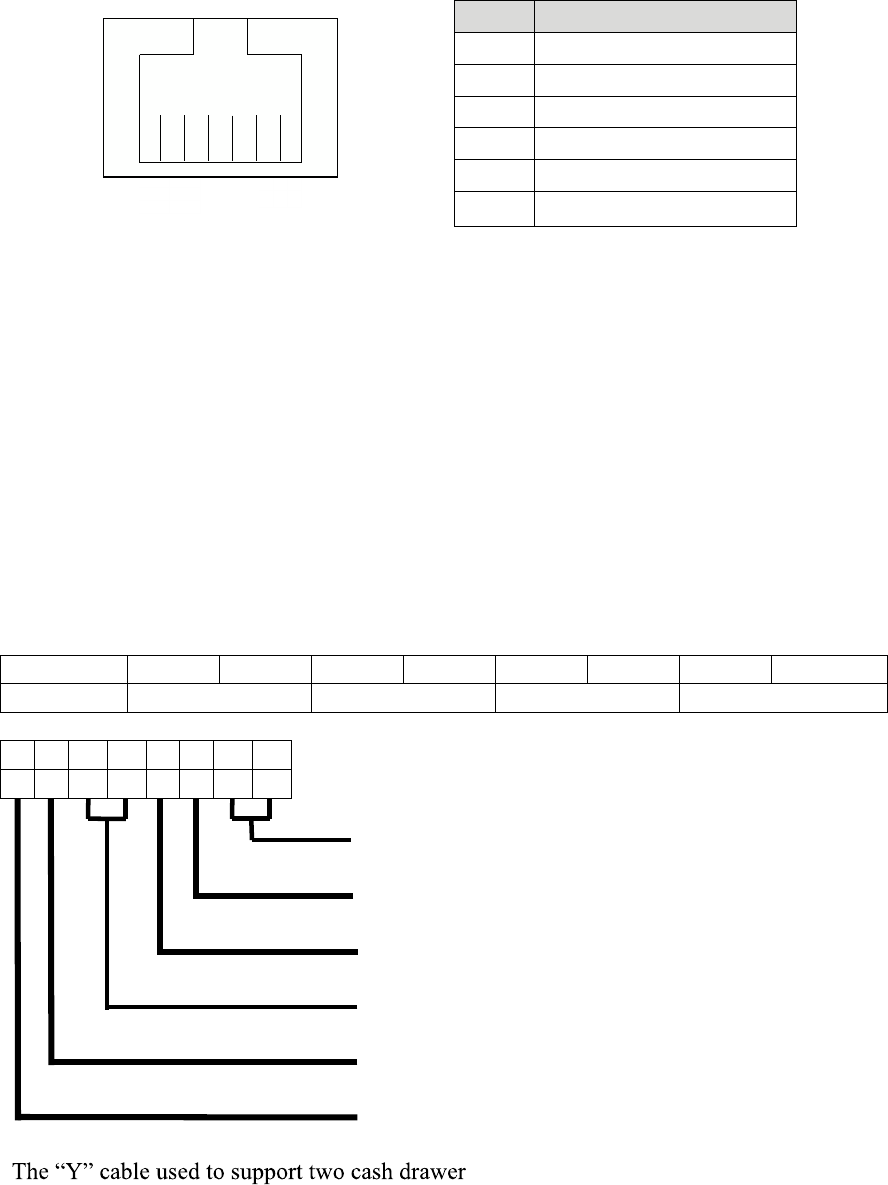

Cash Drawer Ports ........................................................................................................ 17

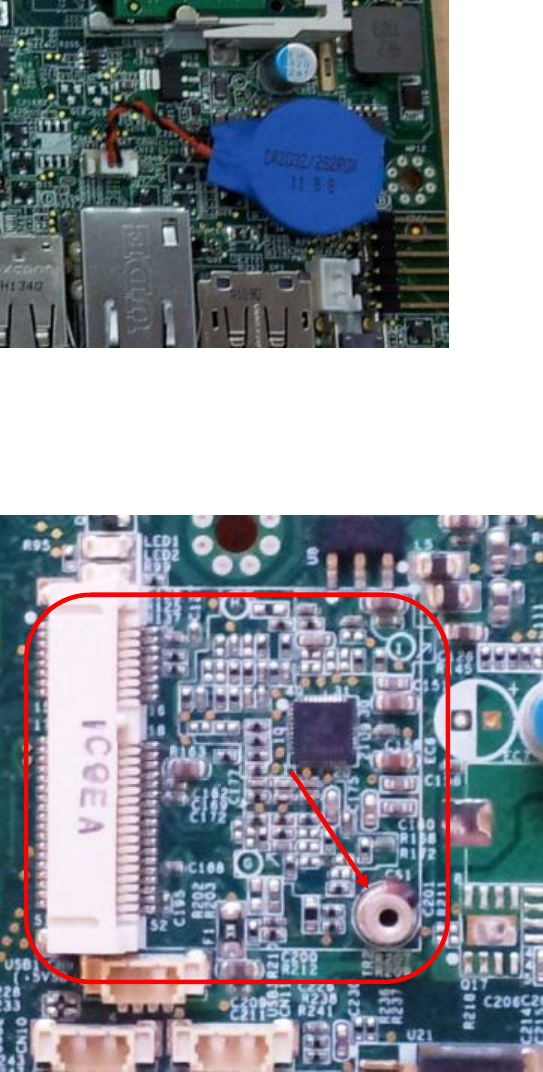

CMOS Clear .................................................................................................................. 19
Mini PCI-E .................................................................................................................... 19
Memory SODIMM(s) ................................................................................................... 20

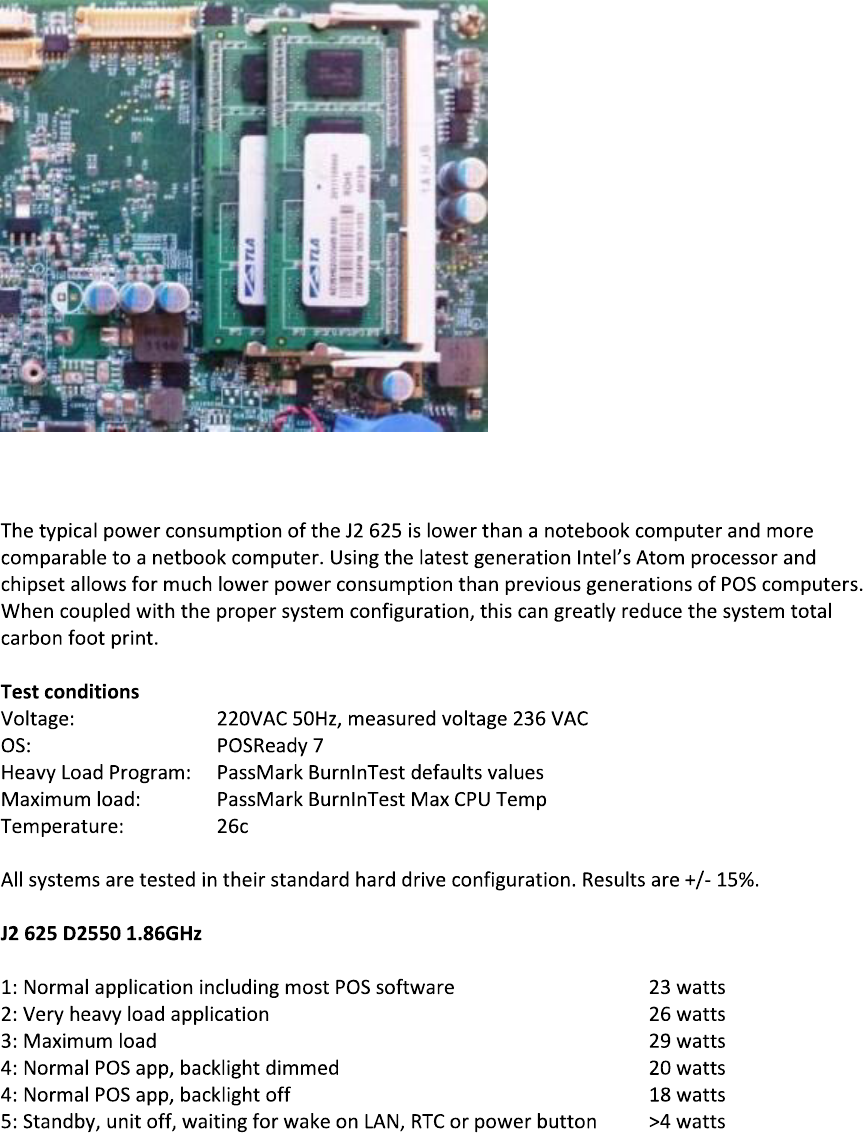

Typical Power Consumption J2 625 ............................................................................. 20
Service .............................................................................................................................. 21

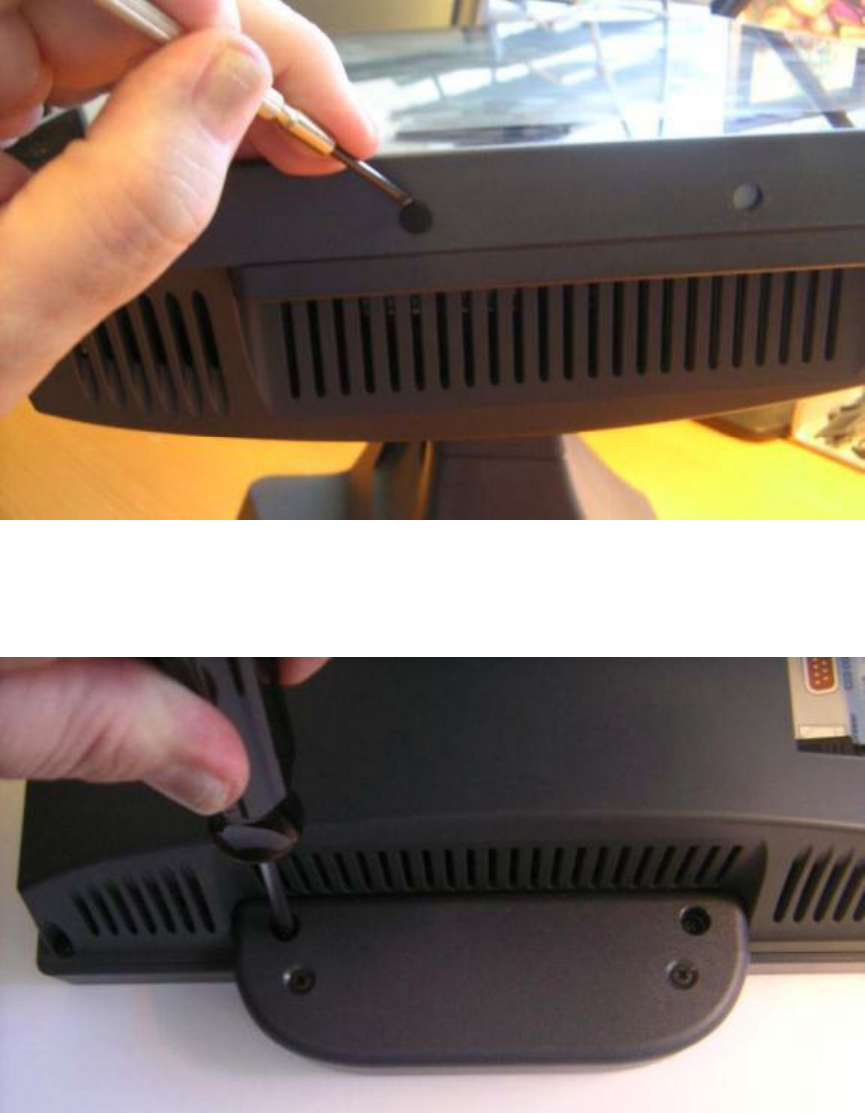

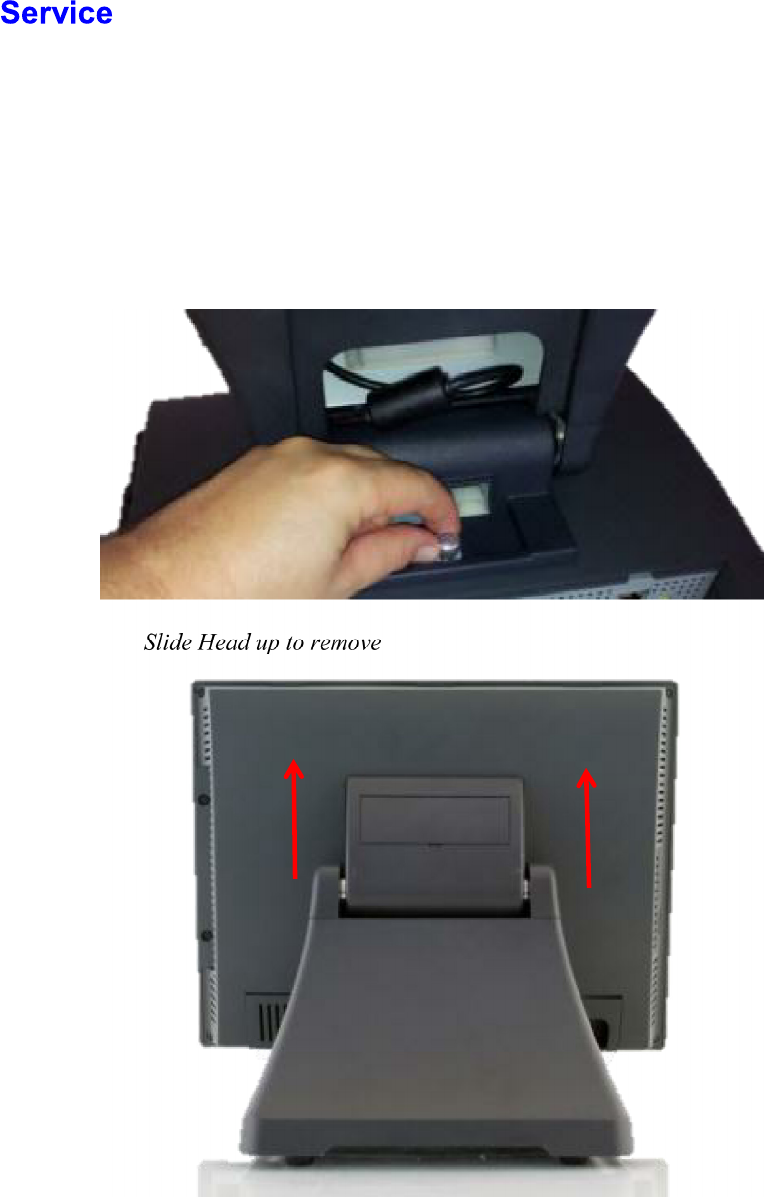

Removing the Head from the Base ............................................................................... 21

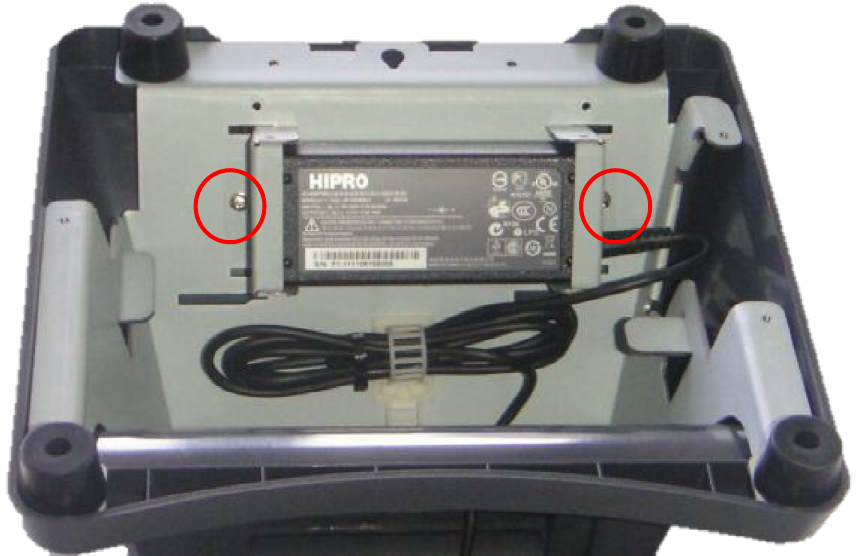

Removing the Power Supply ........................................................................................ 22

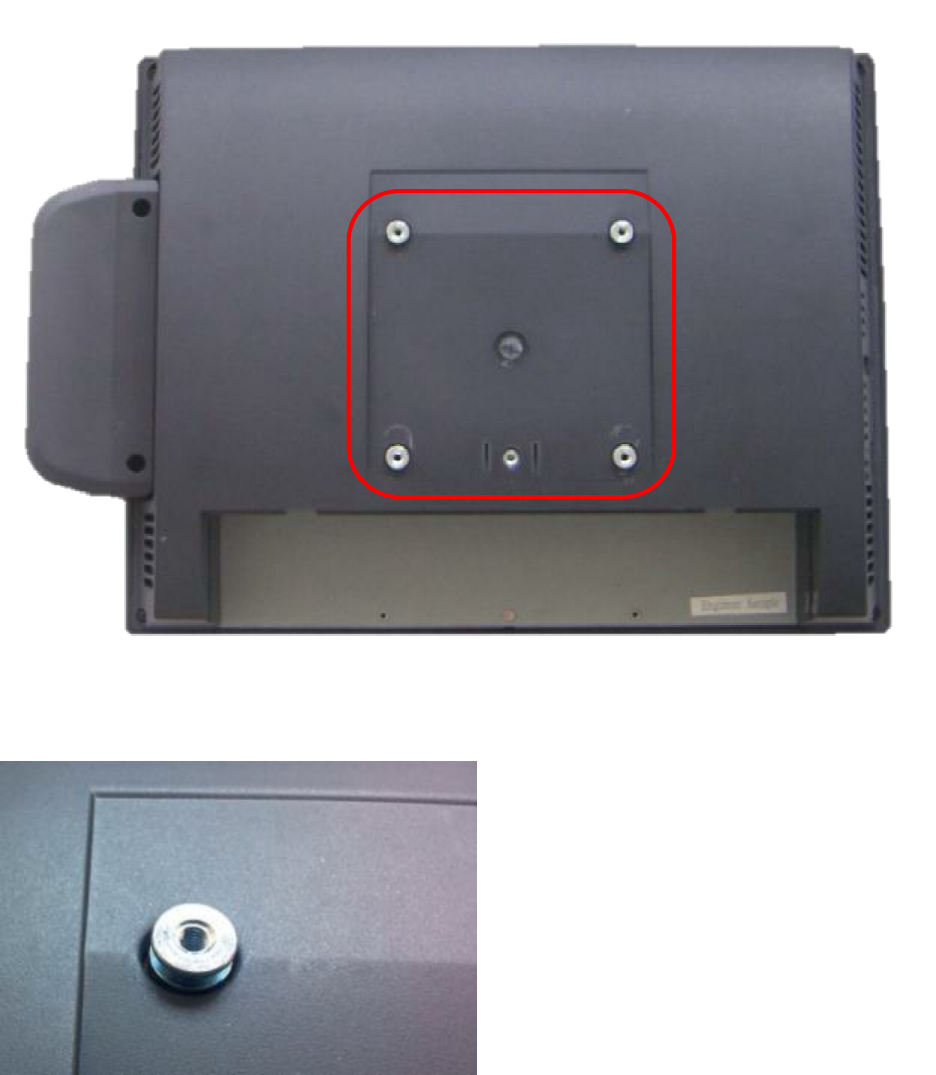

VESA Mounting ........................................................................................................... 23

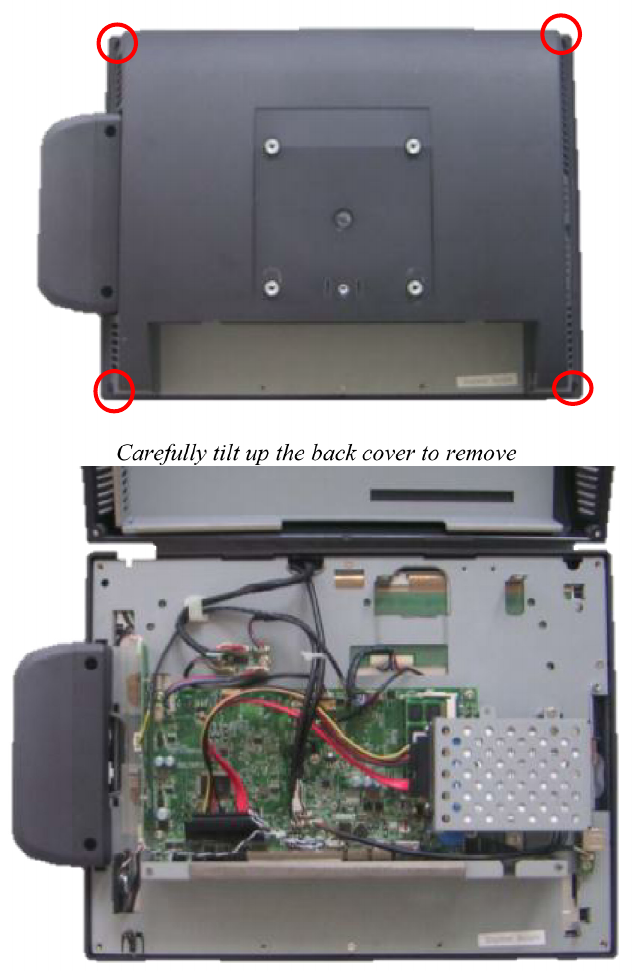

Removing the Back Cover ............................................................................................ 24

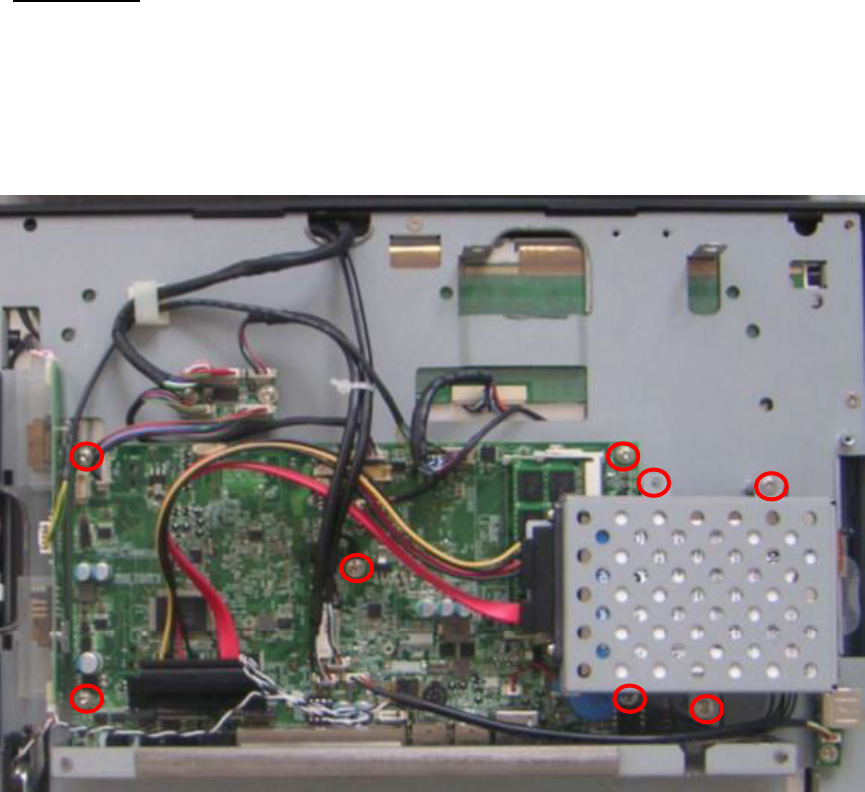

Changing the System Board .......................................................................................... 25

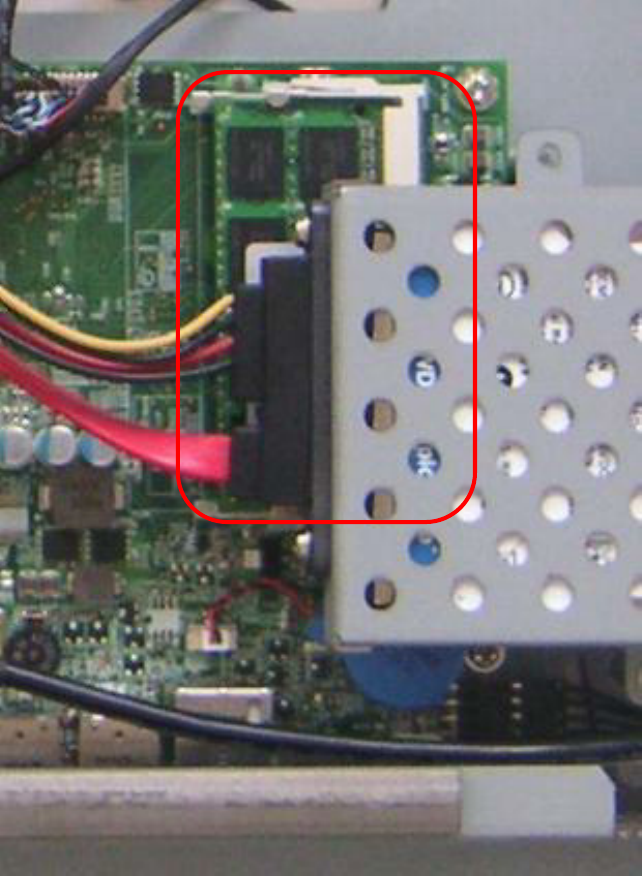

Adding Memory ............................................................................................................ 26

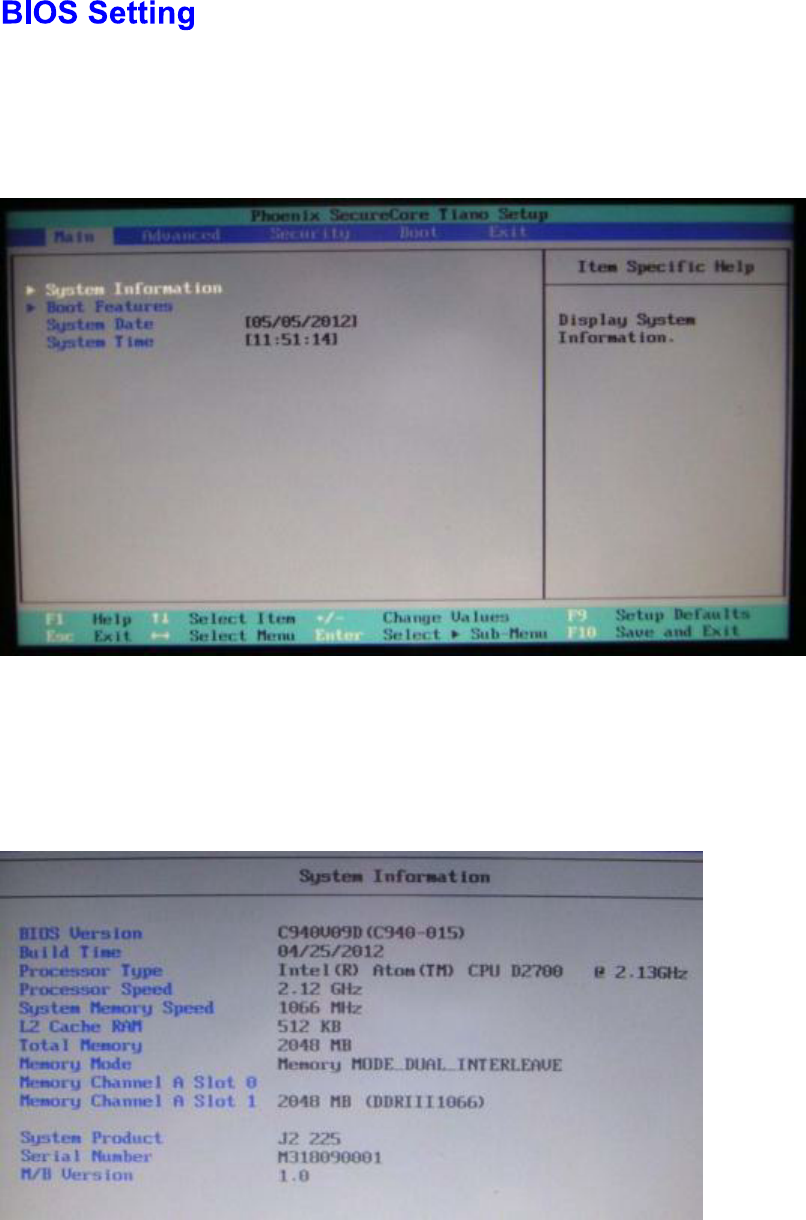

BIOS Setting .................................................................................................................... 27
Main Screen .................................................................................................................. 27
System Information ....................................................................................................... 27
Advanced Screen .......................................................................................................... 28

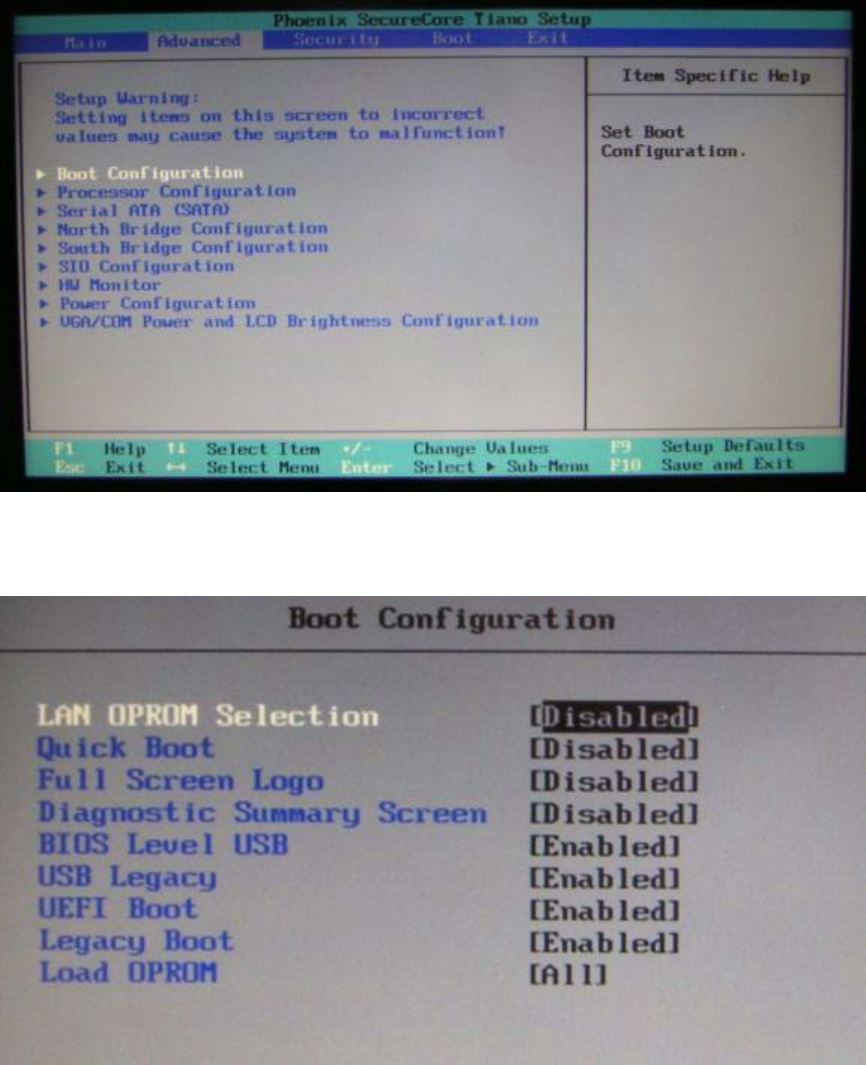

Boot Configuration ....................................................................................................... 28
Power Configuration ..................................................................................................... 29
COM Power and LCD Brightness Configuration ......................................................... 29

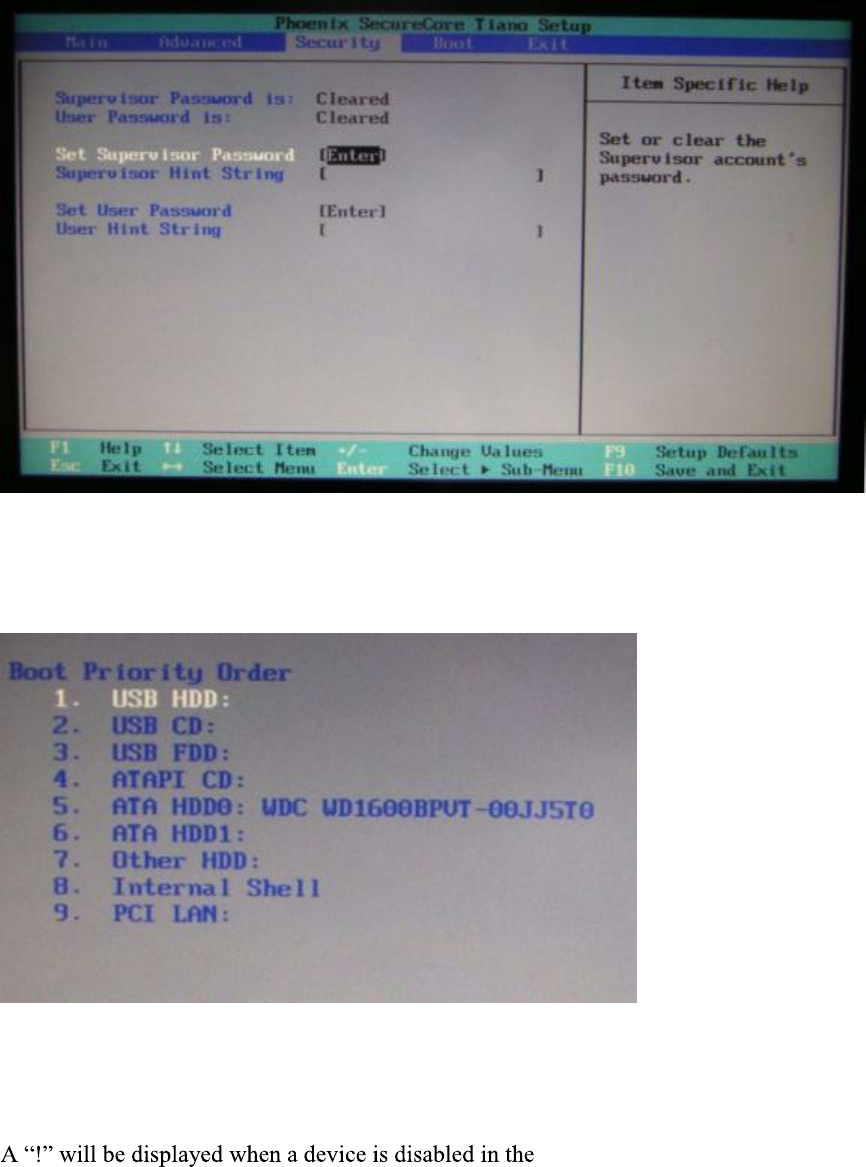

Security Screen ............................................................................................................. 30
Boot Screen ................................................................................................................... 30

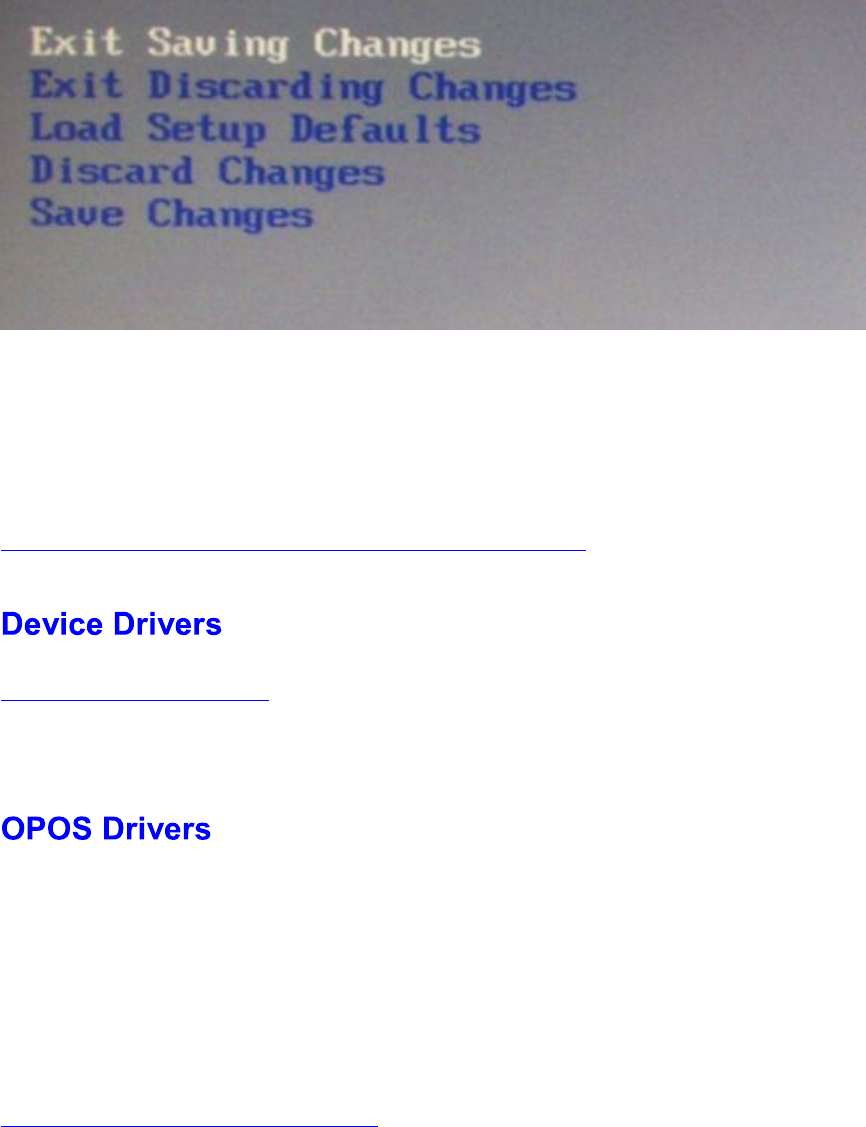

Exit Screen .................................................................................................................... 31
Phoenix Secure Core Tiano BIOS ................................................................................ 31
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
4
Device Drivers ................................................................................................................. 31
OPOS Drivers .................................................................................................................. 31

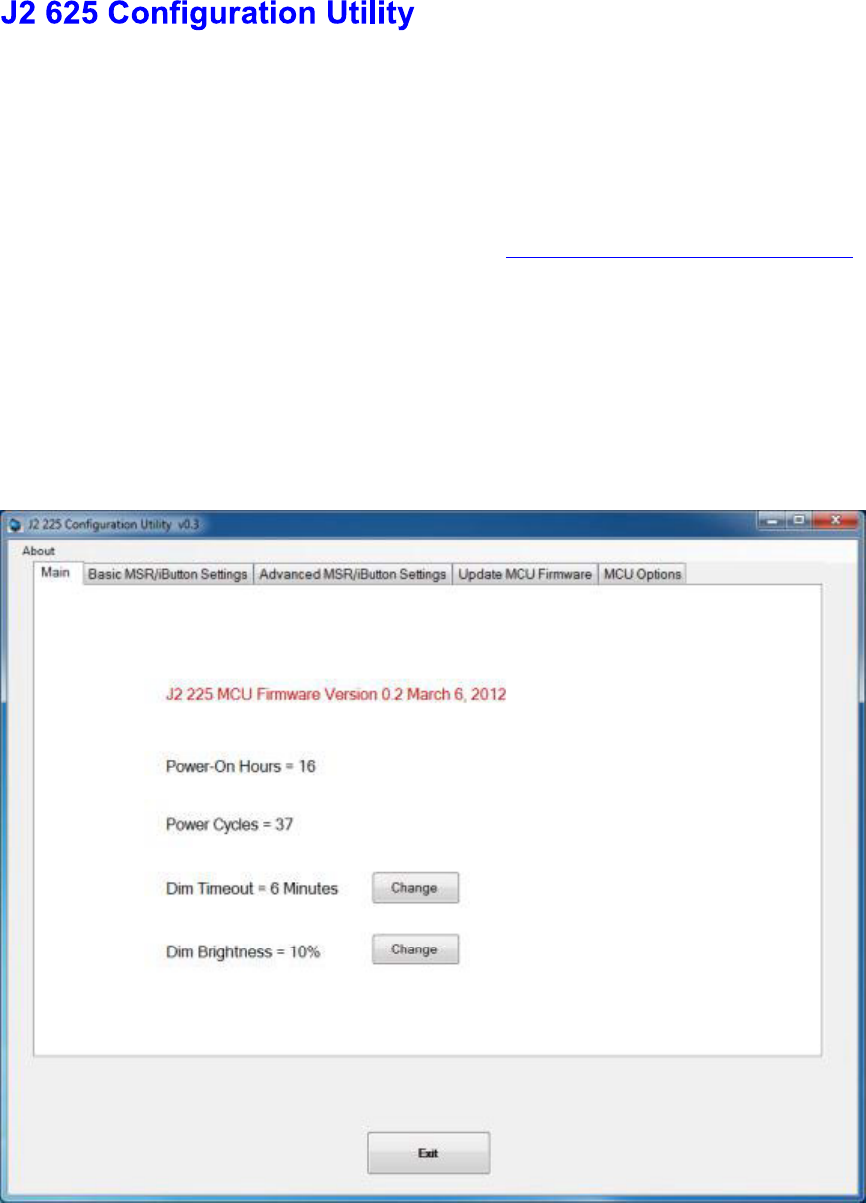

J2 625 Configuration Utility .......................................................................................... 32
Installation ..................................................................................................................... 32
Main .............................................................................................................................. 32
Power-On Hours ........................................................................................................... 33
Power Cycles ................................................................................................................ 33

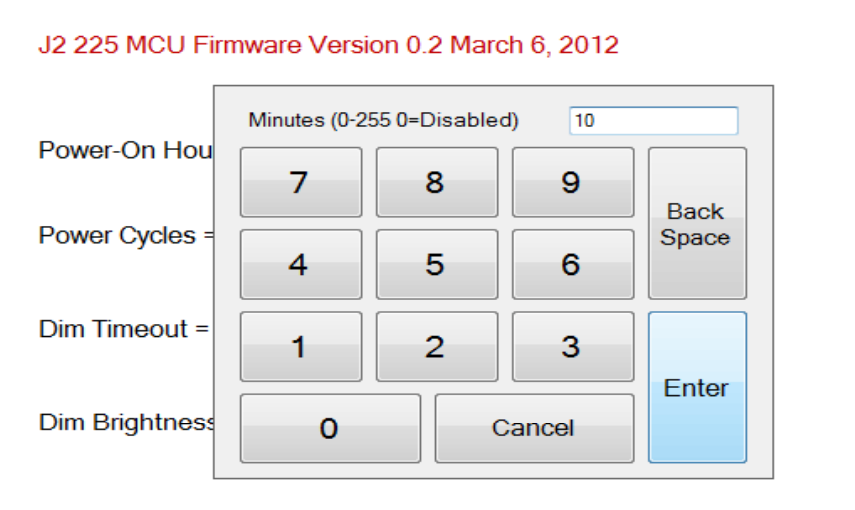

Dim Timeout ................................................................................................................. 33

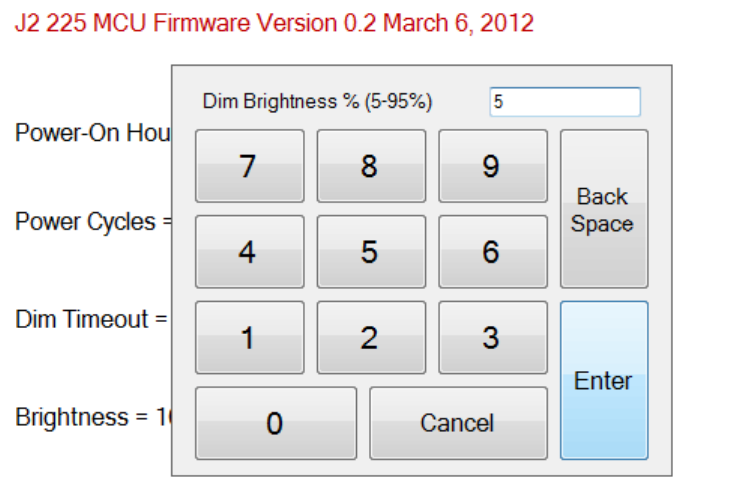

Dim Brightness ............................................................................................................. 34

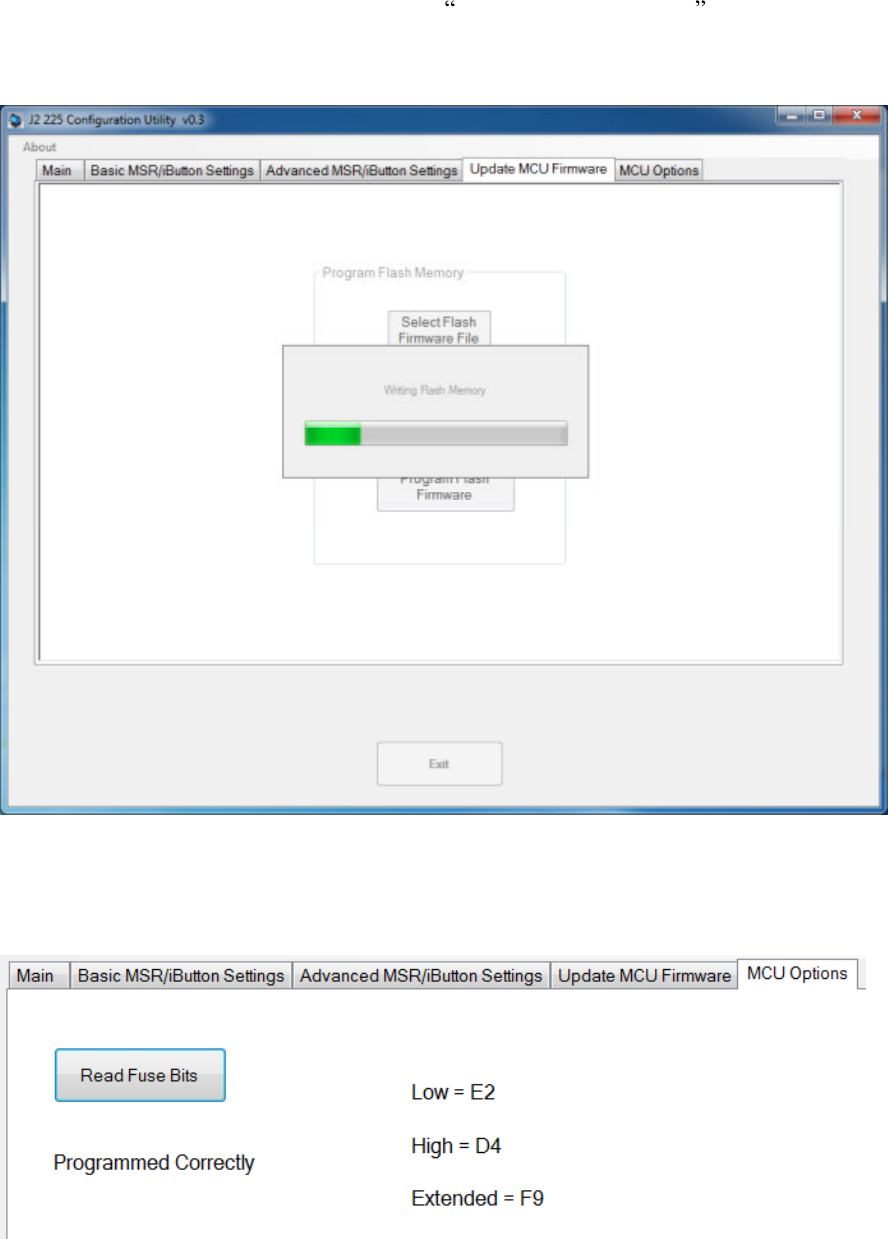

Update MCU Firmware ................................................................................................ 35
MCU Option ................................................................................................................. 36
DimWake ......................................................................................................................... 37
Installation ..................................................................................................................... 37

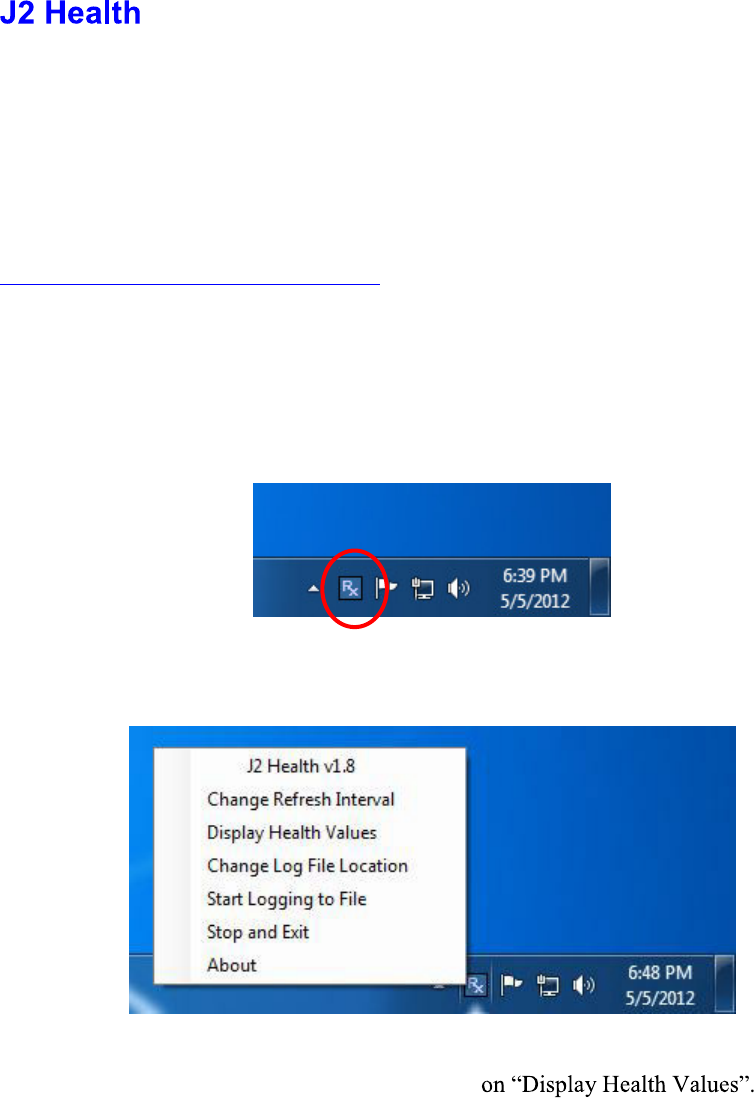

J2 Health .......................................................................................................................... 38
Installation ..................................................................................................................... 38
Tray Icon ....................................................................................................................... 38
Logging to File .............................................................................................................. 39

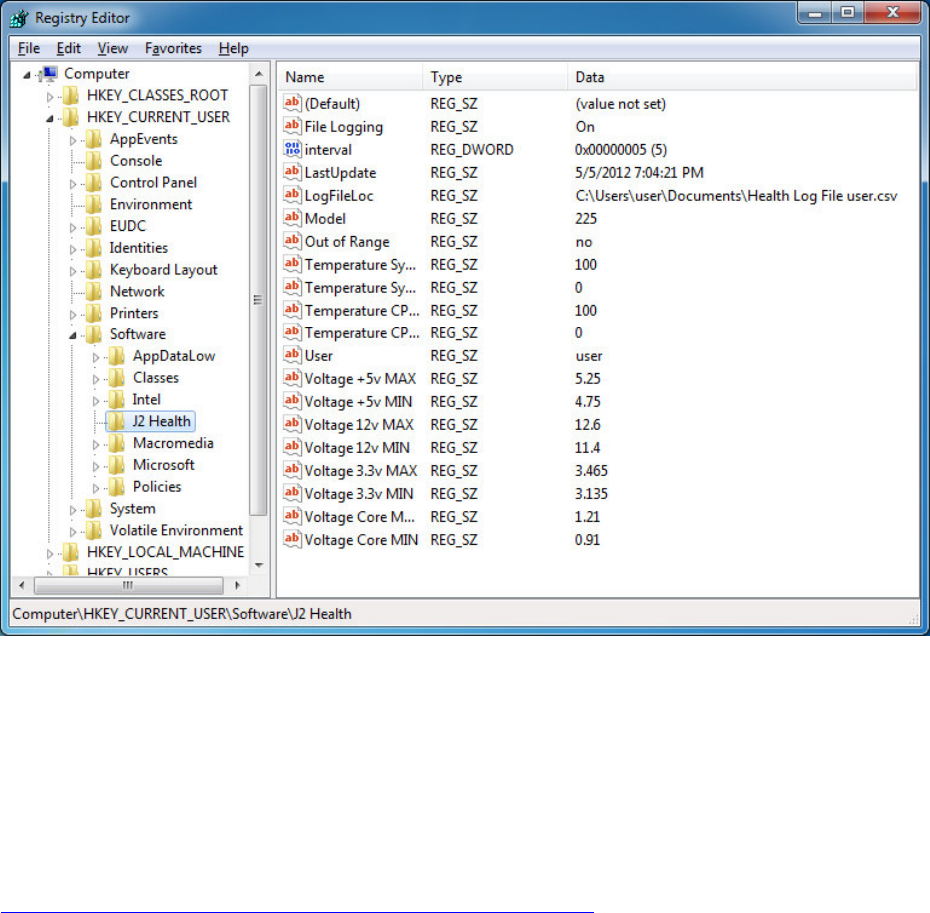

Registry Entries ............................................................................................................. 40
J2 Remote Monitoring Software ................................................................................... 40

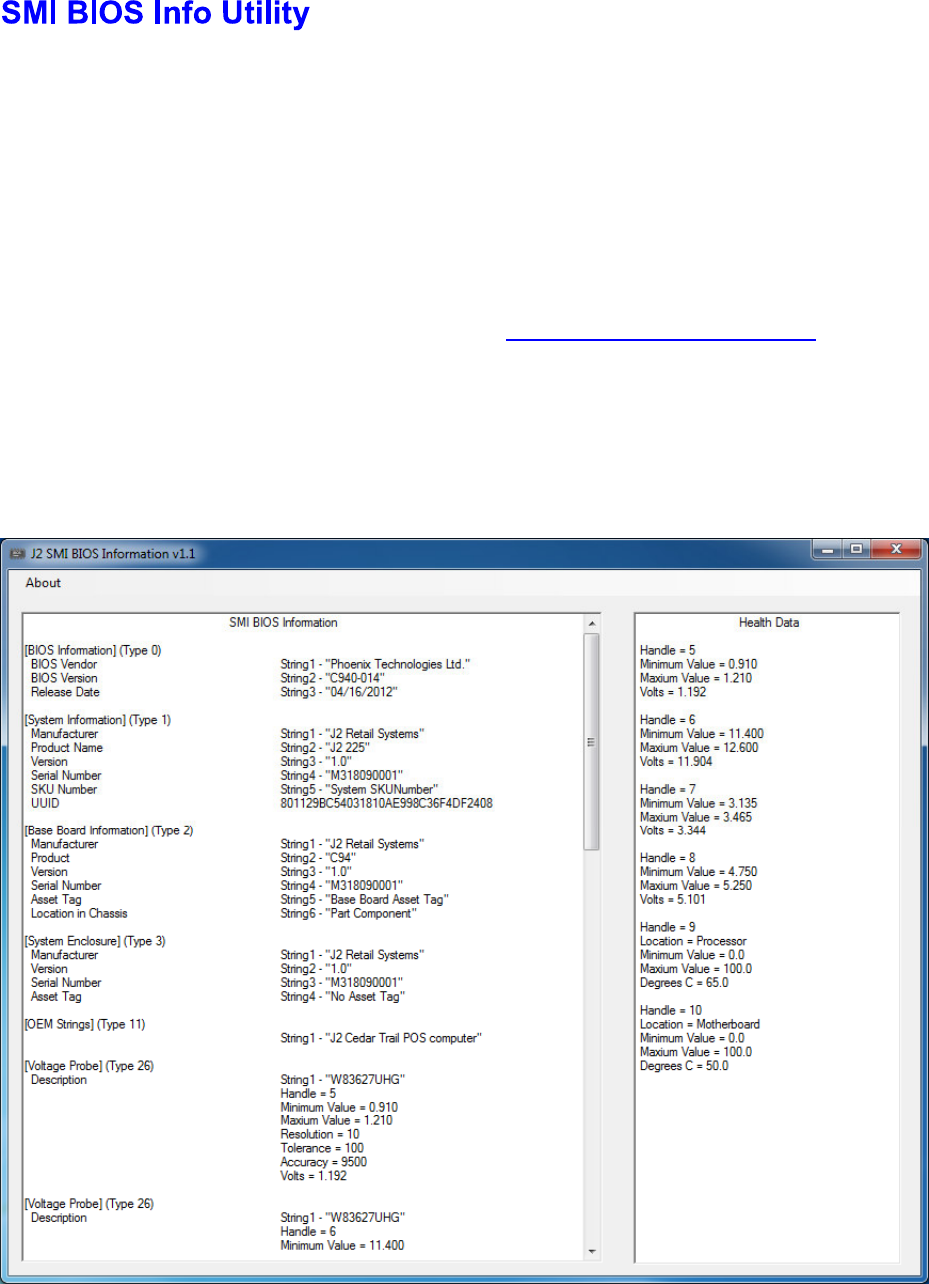

SMI BIOS Info Utility .................................................................................................... 41
Installation ..................................................................................................................... 41
Operations ..................................................................................................................... 41

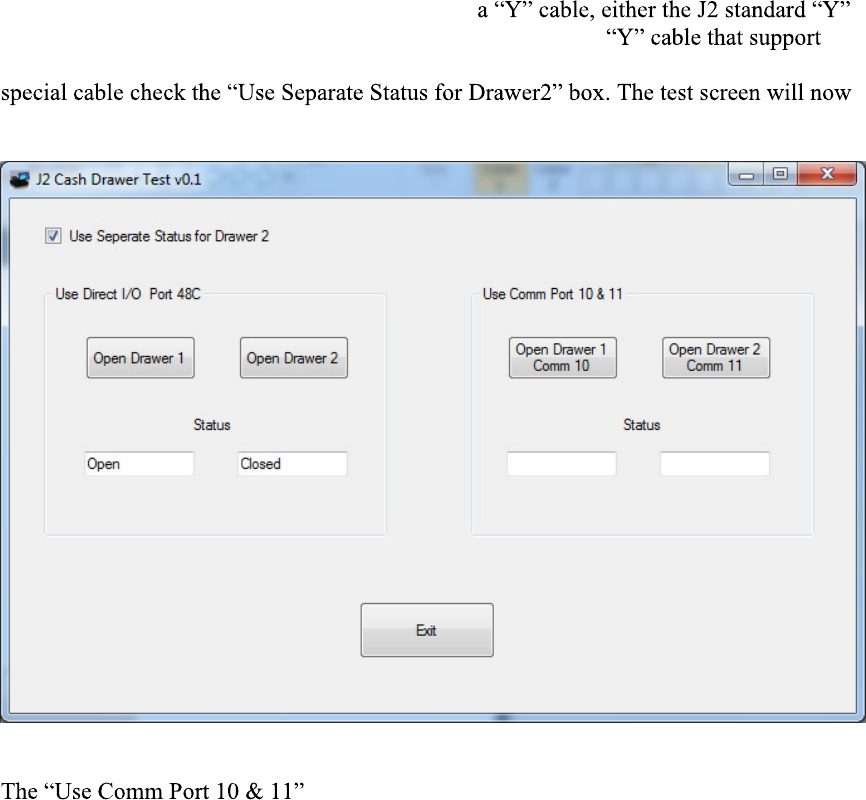

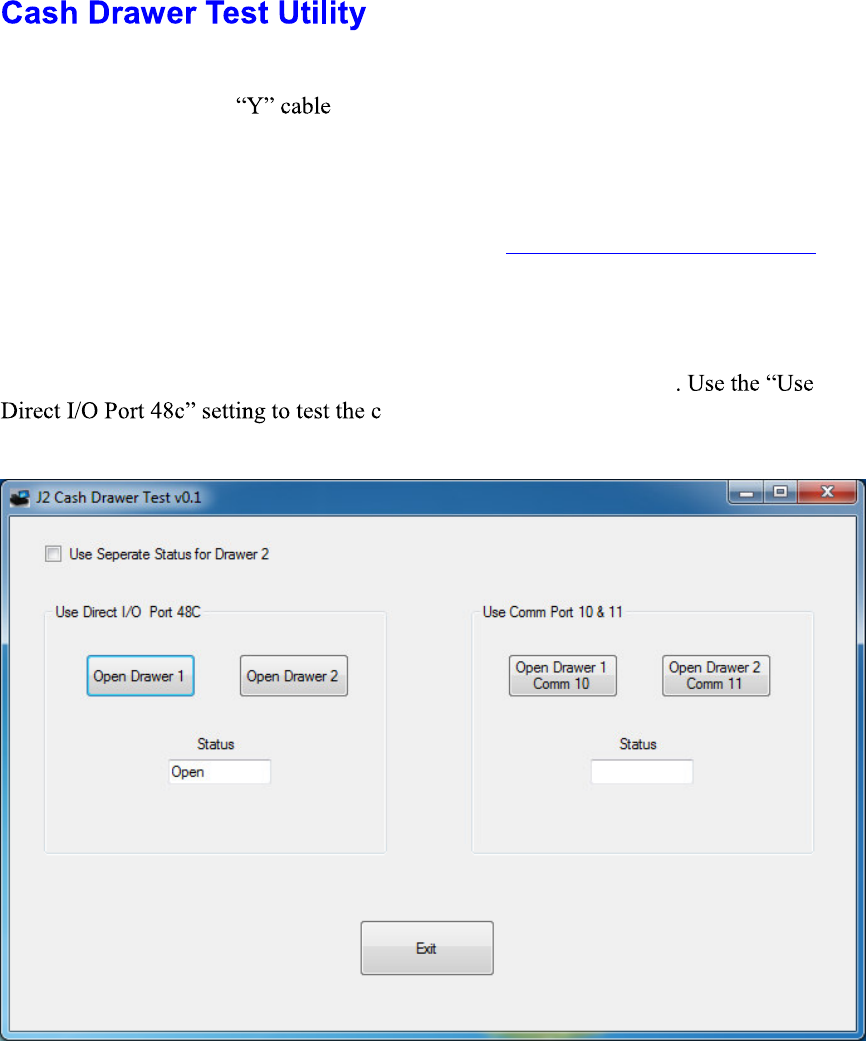

Cash Drawer Test Utility ................................................................................................ 42
Installation ..................................................................................................................... 42
Operation ....................................................................................................................... 42

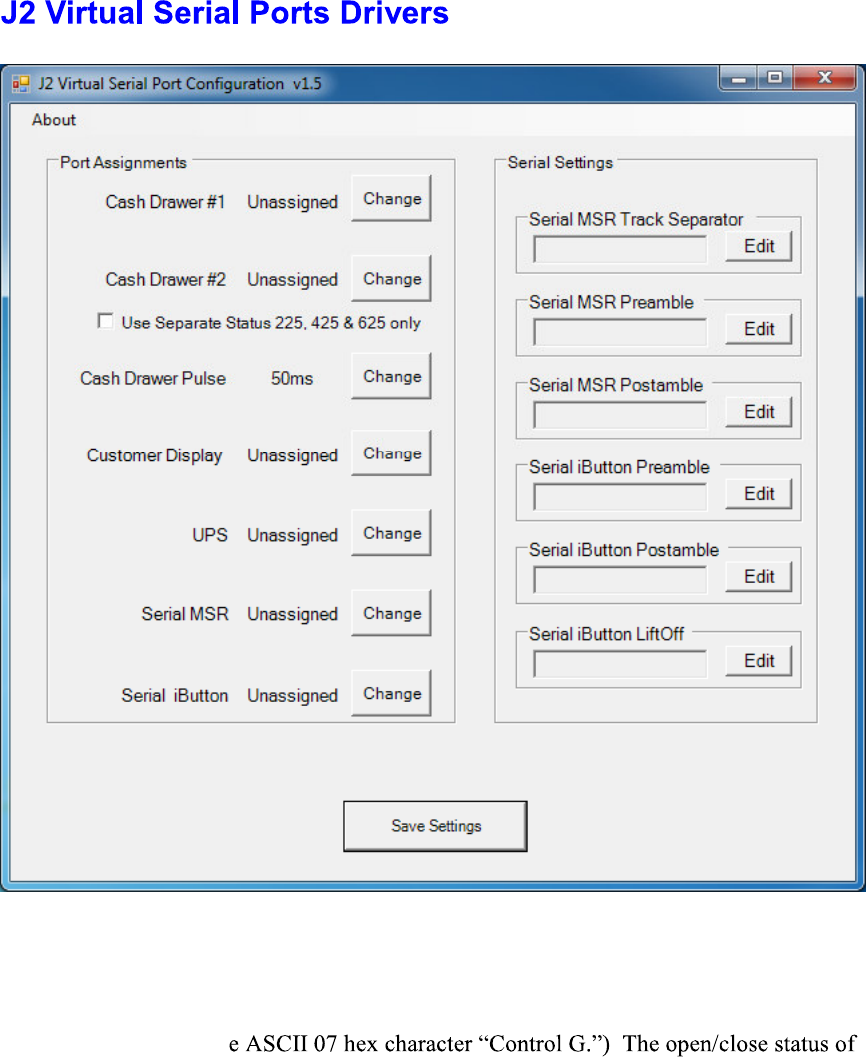

J2 Virtual Serial Ports Drivers ...................................................................................... 44
J2 625 Options ................................................................................................................. 45

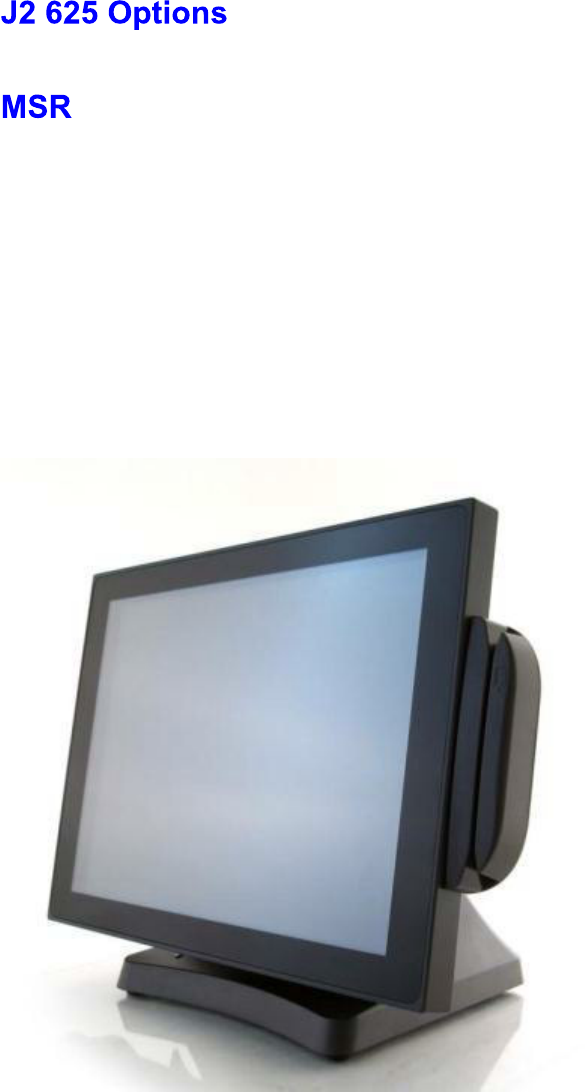

MSR .................................................................................................................................. 45
Overview ....................................................................................................................... 45

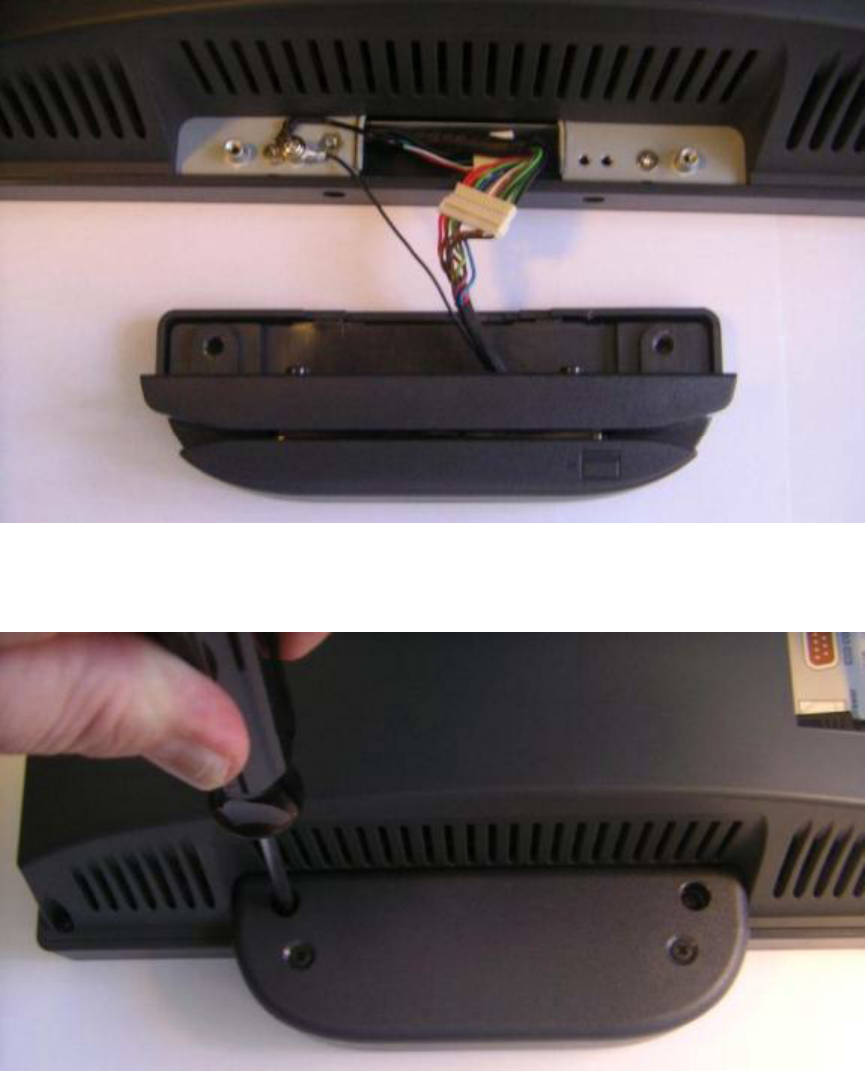

Installing the 625 MSR ................................................................................................. 46

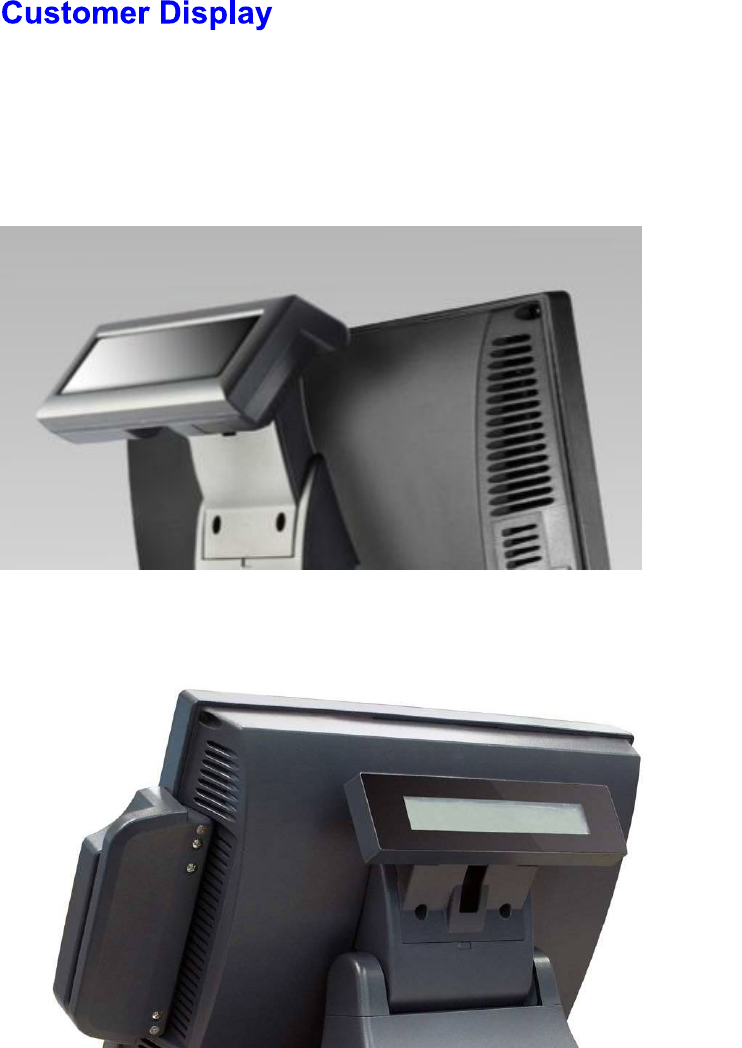

Customer Display ............................................................................................................ 48
Overview ....................................................................................................................... 48

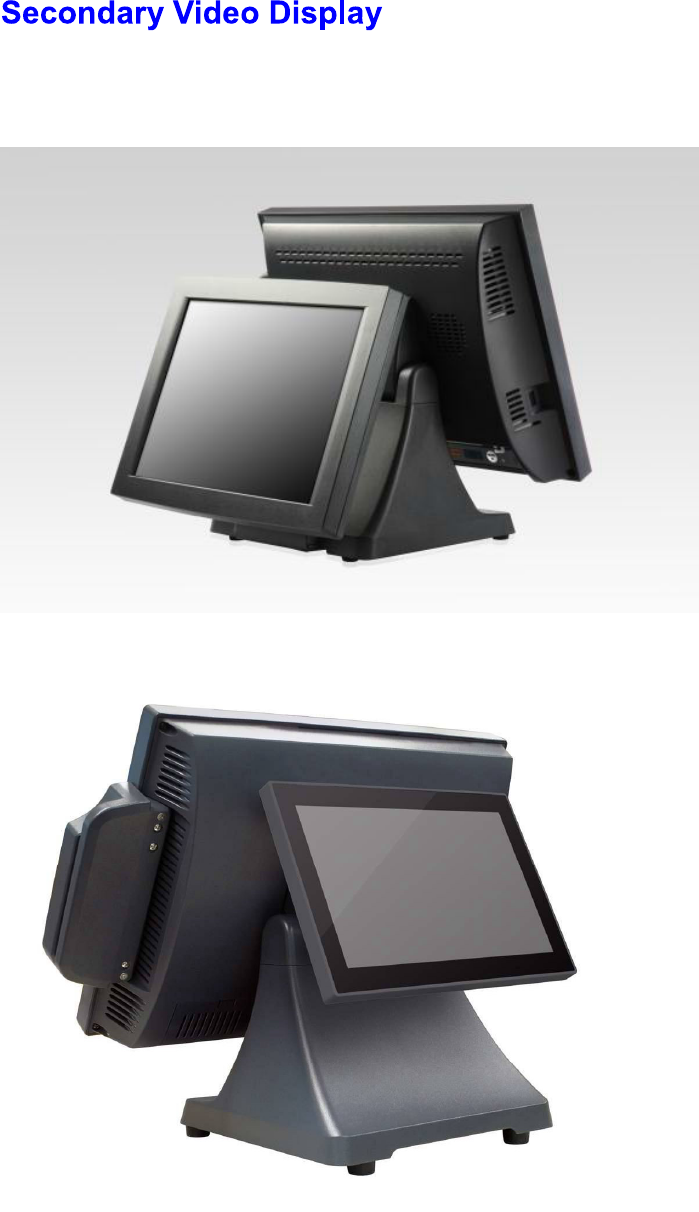

Secondary Video Display ................................................................................................ 49

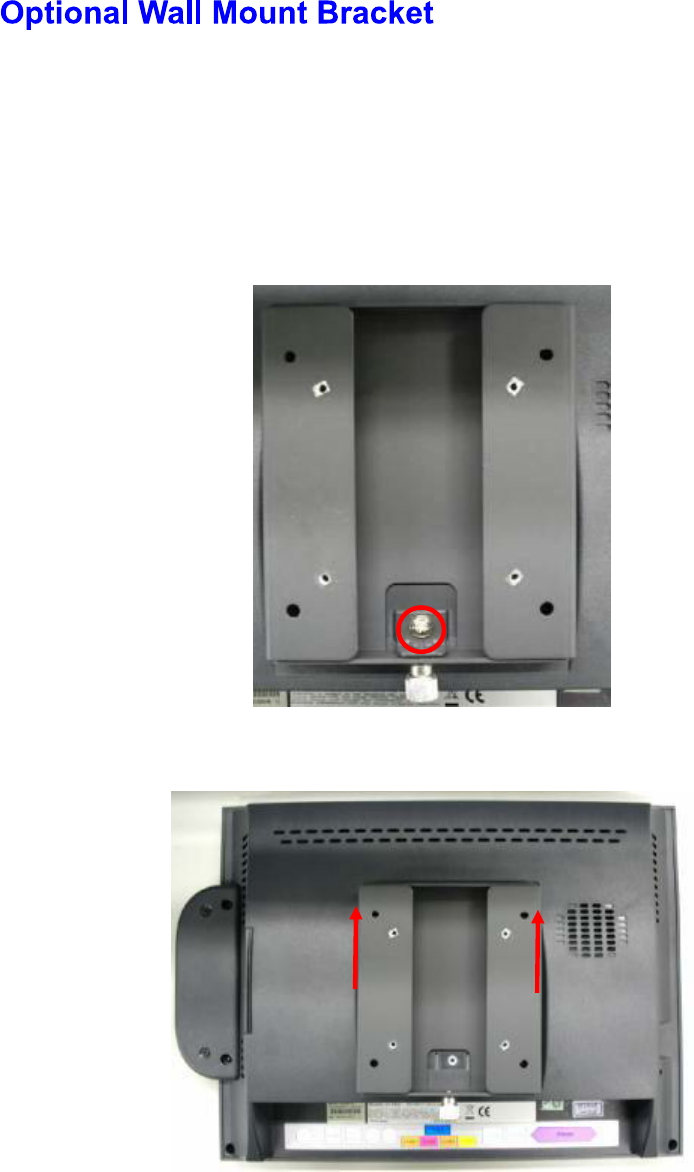

Optional Wall Mount Bracket ....................................................................................... 50
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
5
Fingerprint Reader / MSR ............................................................................................. 51
iButton / MSR .................................................................................................................. 51
625 UPS ............................................................................................................................ 51
RFID ................................................................................................................................. 51
Pole Mount Options ........................................................................................................ 51
Contact Information ....................................................................................................... 52
European Office ............................................................................................................ 52
USA Office ................................................................................................................... 52
Australian Office ........................................................................................................... 52
Website ......................................................................................................................... 52
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
6

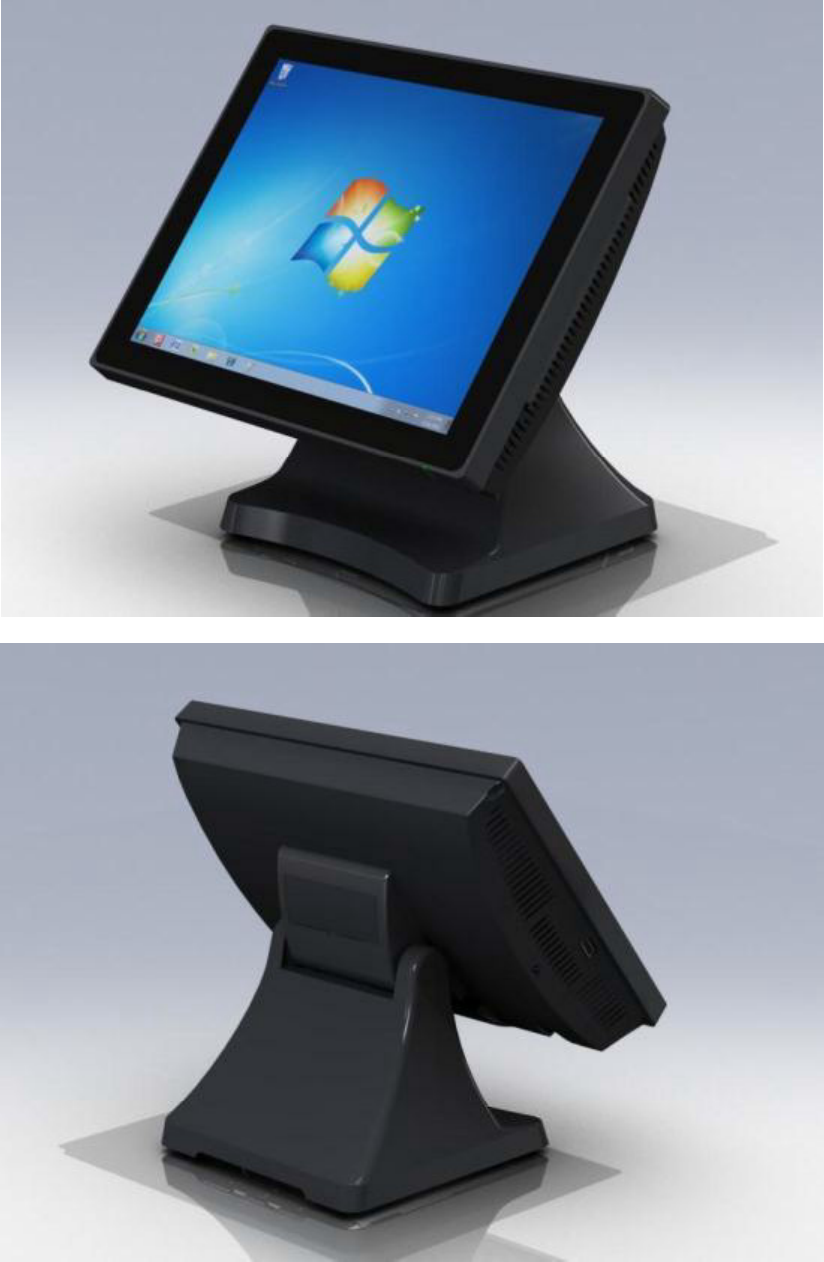

The J2 625 is a new generation of integrated touch screen Point of Sale computer based
on the Intel Atom dual core Cedarview processors. This integrated touch screen
computer, like other J2 designs, features an -in-the- , and it also offers the
versatility to be used as a counter top unit; or as a wall-mount or pole-mounted terminal.
Using the same J2 packaging design as other J2 products the J2 625 offers same features
the very successful J2 615 but with newer faster electronics and easier service and the
same price point.
The J2 625 uses the latest Intel Atom dual core Cedarview processors, the 1.86GHz
D2550. Combining this with the Intel NM10 chipset provides excellent performance
capable of running most POS applications with a very low carbon foot print, all at a
competitive and attractive low price.
Even with its small foot print the J2 625 is incredibly feature rich. It comes standard with
2GB of memory, and offers a choice of either a 160GB hard drive or 16GB solid state
drive (or other capacities HDD/SSD). Built standard with four serial ports, six USB ports,
video output, audio in/out, gigabit Ethernet, +12V output, as well as other built in
peripherals (like MSR, customer display and more) the J2 625 will perfectly satisfy most
POS application requirements.
The J2 625 is available with your choice of either a zero bezel resistive touch screen or a
multi-touch projected capacitive touch screen. The new zero bezel five-wire resistive
touch screen provides the same quick response and feel of a resistive touch screen
traditionally used in the POS market. The new projective capacitive touch screen option
can be used in environments where multi-touch and gesturing are required, for example,
such as when using the new Windows 8 operating system.
The J2 625 is designed to require little or no maintenance. The convection cooled fan-less
design means it can be used in very harsh environments. High dust, grease or sea air will
not affect its operation. High temperatures are also not a problem. With a quick access
HDD/SDD slot, a drive can be changed in just seconds if needed. The unit can be fully
disassembled and assembled in just a few minutes by just removing a few screws.
The J2 625 supports the standard Microsoft operating systems: Windows 7, POSReady 7,
Windows 7 Embedded, XP, POSReady 2009 and XP embedded, as well as the soon-to-
be-released Windows 8. The J2 625 is equally proficient with the many flavors of Linux.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
7
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
8
Specifications J2 625
CPU and Chipset
Processor Dual Core Intel Atom D2550 1.86GHz with 1MB Cache, 4 threads
with Integrated GMA 3650 Graphics controller
Chipset I/O NM10
Memory 2 X DDR3 SO-DIMM, 4GB max, 2GB standard, 1067MHz
External Ports
Serial Ports 4 RS-232 RJ45 with power +12V BIOS controlled
USB Ports 6 USB 2.0, 5 in cable well 1 on side of unit
Ethernet 10/100/1000 MHz Ethernet port with status LEDs on connector
Cash Drawer Ports 1 RJ11 support 2 cash drawers +24V and +12V, Dual status lines
Secondary Video Display Port with DVI, HDMI and VGA support
+12 Power +12 Volt power out for secondary video display or other device
Audio Combo Audio Jack for headset or headset with microphone
Internal I/O
Storage One 3Gb/s SATA Port onboard, slide in/out HDD or SSD
LCD Panel 15 inch 1024 x 768 250cd/m2 panel
Touch Screen Resistive True Flat or Projective Capacitive with Multi-touch and gesturing
USB 3 onboard USB ports for optional devices, MSR, Wi-Fi, PCT
MSR Onboard microcontroller of MSR on PS2
Mini PCI-Express Mini PCI Express slot for 802.11 b/g/n WiFi card and other functions
Optional Peripherals
MSR 3 Track
iButton Dallas Key iButton
Fingerprint Reader USB Digital Persona Fingerprint Reader
RFID 125KHz RFID USB
2-in-1 MSR 3 track / Finger Print
2-in-1 MSR 3 track / iButton
Second Display 4:3 displays, with or without touch
Customer Display 2x20 VFD or 2x20 LCM
UPS J2 Micro UPS 30minute run time
or J2 Universal UPS with 2.5 hour run time
Wireless 802.11 b/g/n Mini PCI Express card with internal antennas
PoweredUSB HUB External PoweredUSB Hub with 1 +24V, 7 +12V PoweredUSB and 6
powered serial ports and optional internal UPS
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
9
Environmental
Operating Temp. 0-45c
EMI CE / FCC Class A
Safety LVD external adaptor UL c/us, CE, TUV, others
Dust & Water IP 64 front of unit, IP 54 whole unit
Power 100-240V 50-60Hz 19VDC 65 watts power supply
Weight 8kg
Dimensions With base attached: 37x28x 13.8
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
10

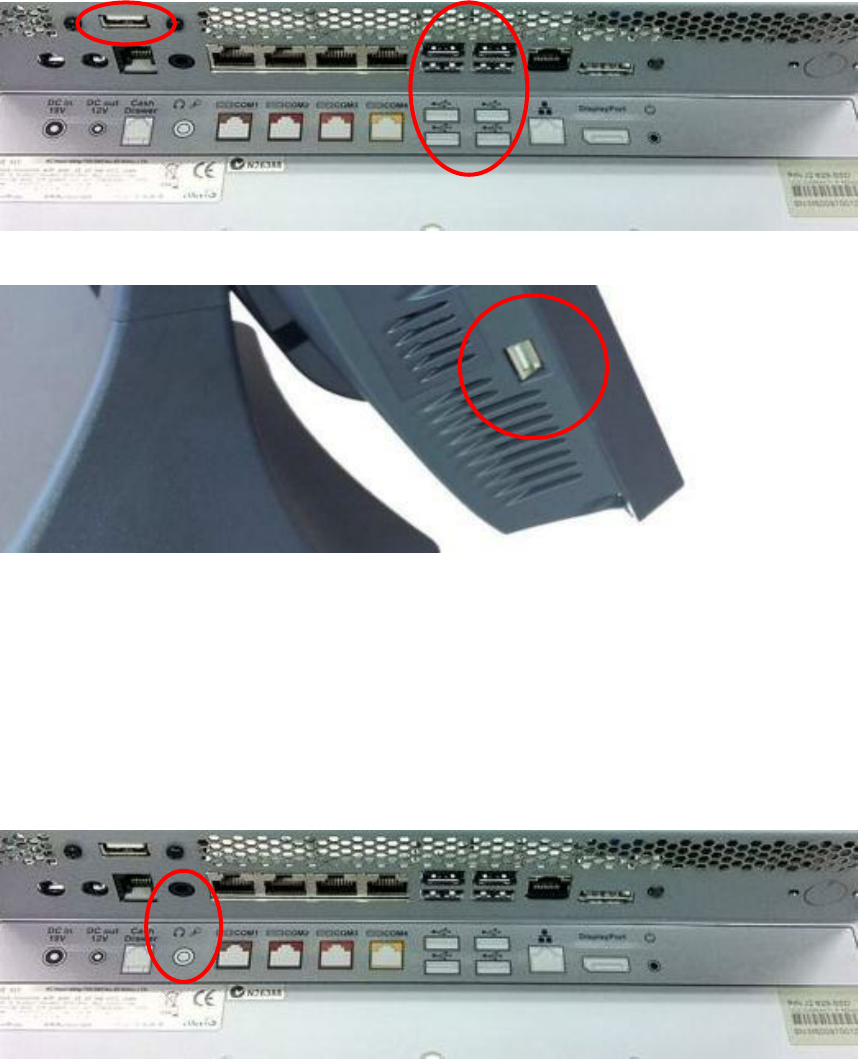

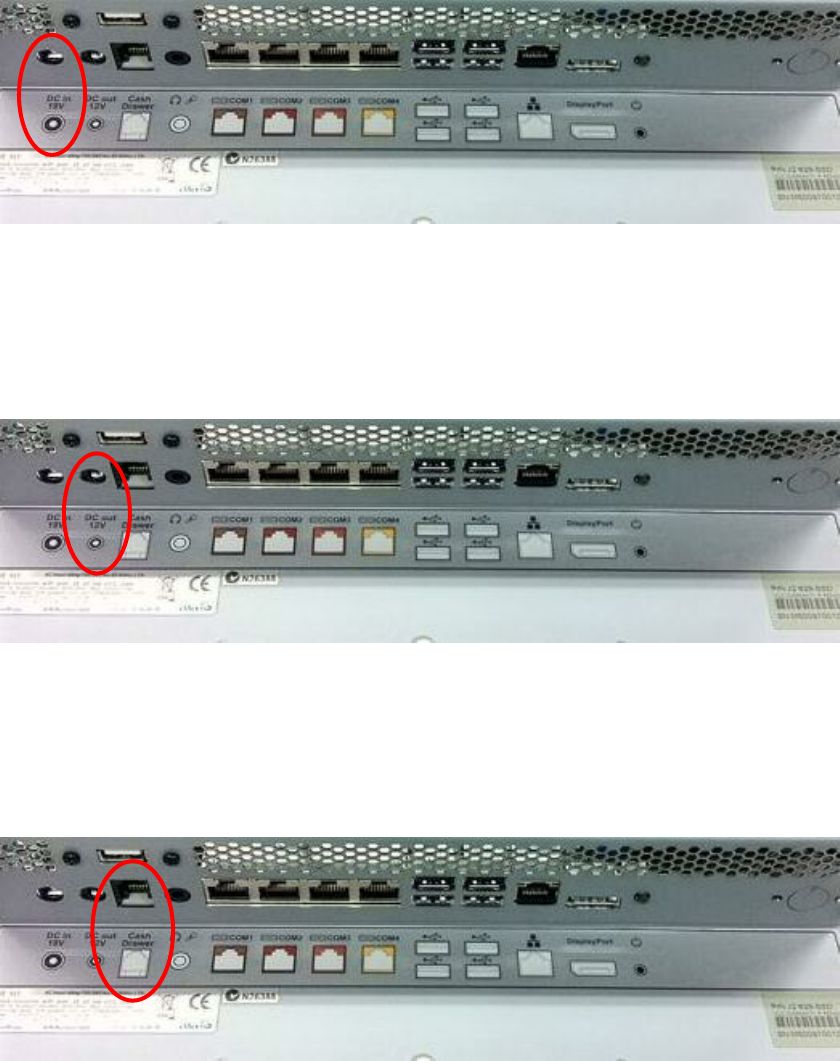

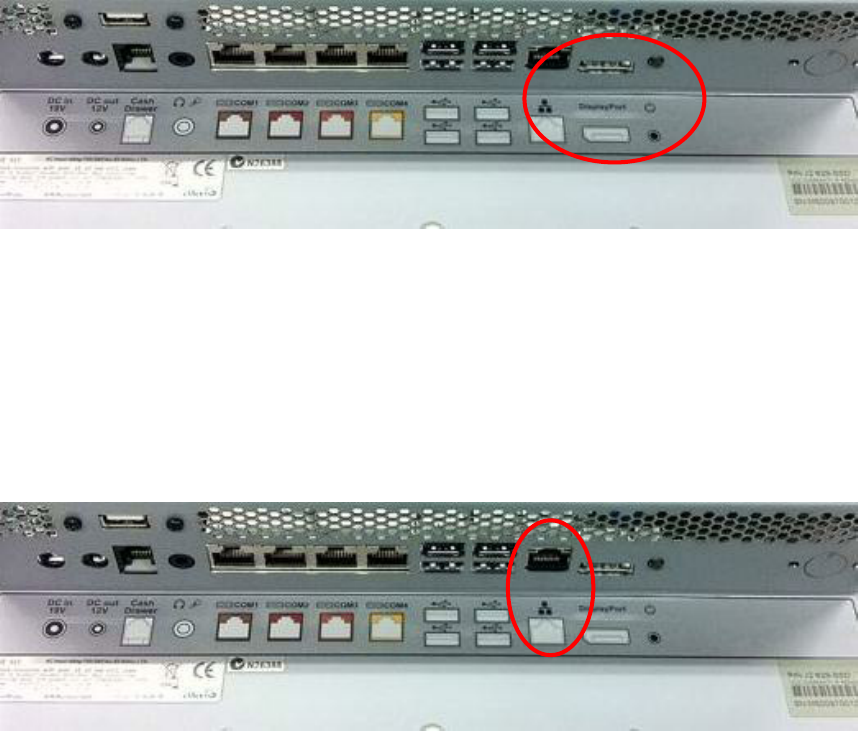

I/O Ports
Most I/O ports are accessible in the cable well at the bottom of the unit. Cables are routed
though the cable channel in the swing arm base. (See Cable Routing)

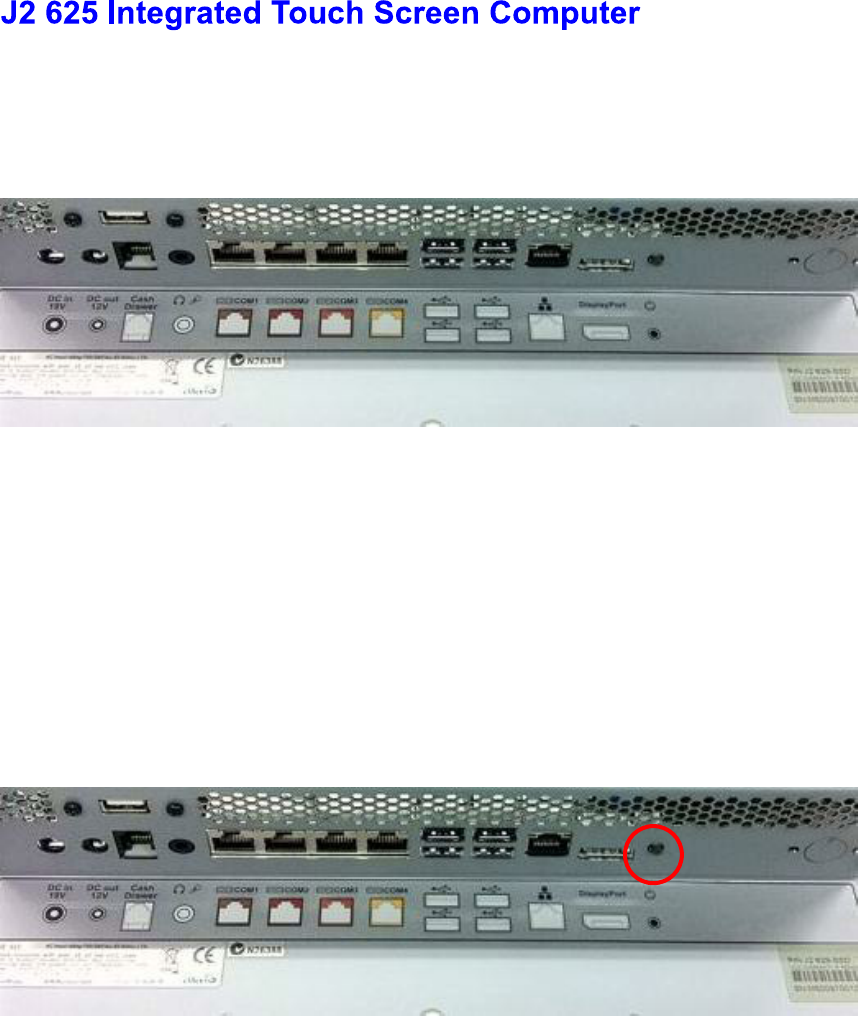

I/O Panel
Off / On Button
The Off /On button is located in the cable well, as shown below. This button is located
near the side to prevent accidental powering down by the user. The function of the button
can be controlled by the OS. If the J2 625 hangs for some reason it can always be
powered off by holding the Off /On button in for six seconds.

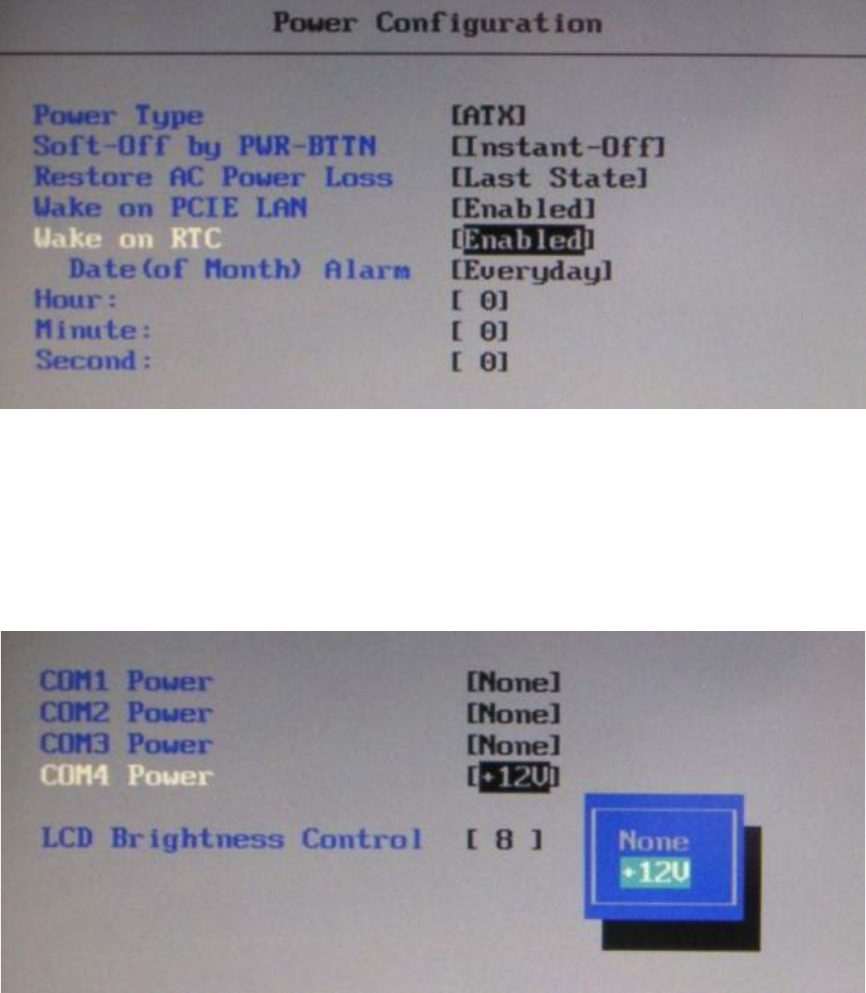

The J2 625 also supports the following: Restore on AC on power loss, Wake On LAN,
and Wake On RTC alarm features to control the system power up. The setting for these
features is controlled from the BIOS.
Off / On Button Location
Hard Disks
One 2.5 inch SATA hard drive (HDD) or a solid state drive (SSD) are standard with the
J2 625. The SATA interface can support data transfer rates up to 3.0 GB/s. The J2 625
offers standard either a 160GB HDD or 16GB SSD, but can be ordered with other size
HDD or SSD as well. See J2 for details.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
11
The HDDs can easily be accessed by removing a panel on the left side of the unit. HDDs
can be installed or removed in seconds by removing one screw. A carrying tray fits onto
a drive without tools. The drive can now easily be slid in or out of the drive bay using the
pull tab on the drive dray.
HDD access panel
HDD slide in
-
slide out drive bay
Touch Screen
The J2 625 can be ordered with two different touch screen technologies, PCT or TFR.
The PCT unit uses a multi-touch Projected Capacitive Technology touch screen. The PCT
touch screen has no known failure mode--
tempered glass and does not reduce the brightness of the J2 625 panel. When operating
in a very high use environment, the PCT is the recommended touch screen technology.
The PCT touch screen will work with most gloves and stylus that are designed to work
with tablet computers, and the screen has a smooth glass surface that is reflective.
The TFR uses a five-wire true flat (zero bezel) resistive touch screen rated at 35 million
touches per point. The resistive technology is very responsive and is the traditional choice
for a hospitality POS system. The screen has an anti-reflective plastic film surface.
Both screens are fully spill proof, dust proof, and can be cleaned with a standard glass
cleaner. The J2 625 touch screen was designed to easily be changed, normally in less than
two minutes. Depending on operating environment and usage, both the Resistive and
PCT touch screens have strengths and weaknesses; therefore J2 offers both touch screen
technologies on the J2 625 unit, providing our customers with a choice for any
application requirement.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
12
System Board
POS computers typically have a lifespan of 10 years or longer, therefore product quality
is of the utmost importance. J2 625 electronics are built with high-end components to
ensure reliability and long lasting product performance.
The system board is designed for quick replacement, with just a few screws and cables to
unplug. The board can be swapped out in less than three minutes.
J2 625 System board
J2 625 Display
The J2 625 offers 15 inch 1024 x 768 resolution display with 16.2 Million colors, CCFL
backlight with 4:3 aspect ratio screen. The brightness is rated at 250cd/m2. The Intel
controller allows for the display to be rotated to 0, 90, 180 or 270 degrees without loss of
performance. The driver can also scale the display resolution so that it can work properly
with applications written for 800x600 resolutions.
The J2 625 electronics also supports dimming, and can be controlled directly by
Windows 7 or 8, or with J2 supplied utilities for Windows XP. Dimming levels between
10-100% are supported. A hardware auto dimming feature is built-in to ensure the longest
backlight life and to also provide the lowest power usage.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
13
Secondary Video Port
The J2 625 supports the newer digital video standard Display Port connector. This
connector supports a Display Port monitor, HDMI display, DVI or VGA monitor. When
used with HMDI or DVI displays, a passive adaptor cable must be used. When using a
VGA display, an active adaptor is to be used. With HDMI display Audio, support is
provided via the same HMDI cable.
The secondary video displays can be configured as Twin, Intel Dual Display Clone, or
Extended Desktop. Most all monitor resolutions from 640 x 480, up to 2560 x 1600 are
supported.
DisplayPort Video Port
Ethernet Connection
The J2 625 uses the Realtek RTL8111 Gigabit Ethernet controller. The Ethernet
connector is located in the cable well, as shown below. The Ethernet controller supports
Wake on LAN, and the BIOS supports a PXE boot ROM as well. There is a LED on the
LAN connector, this Green LED light turns on when there is LAN activity.
Ethernet Connector
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
14
Serial ports
The J2 625 unit has four external RS232 serial ports, all of which can supply +12V
power. The serial ports use a ten pin RJ45 connector. The unit comes standard with four
serial cables, three 25cm (10 RJ45 to DB9 adapter cables, and one 152cm (5 RJ45 to
DB25 serial printer cable that works with EPSON and EPSON compatible printers.
All serial (COM) ports can be BIOS-enabled to provide +12Vpower to external devices.
This power is supplied via pin 10 of the RJ45 which corresponds to pin 9 on the DB9
adaptor. The maximum current per port is 1 amp, with a total maximum external loading
on the +12V of 3 amps.
A set of stick-on color coded labels are supplied with the cable adaptors, so that the
cables can be marked. This makes it easy to plug the cable back into the correct port,
should you need to service the unit.
Serial Ports
BIOS Setting Serial Port(s) Power Enable
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
15

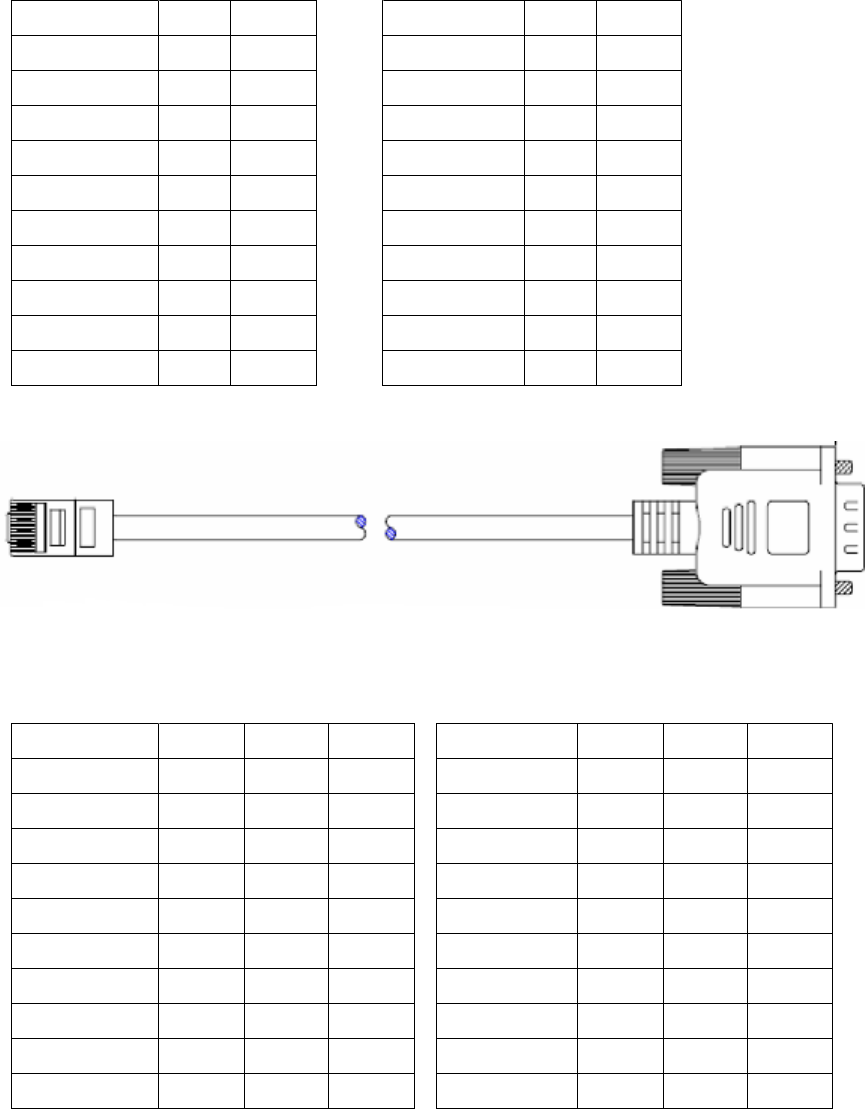

RJ45 to DB9 J2 Adaptor Cable Pin-Out when using CAT5/6 Cable
The J2 Cable Adaptor (supplied)
RJ45 to DB25 J2 Serial Pinter Cable Pin-out when using 8 wire CAT5/6 cable
Epson or Epson compatible serial printer cable
RJ45-10 Pin DB9 Signal RJ45- 8 Pin DB9 Signal
Pin 1 --- --- --- --- ---
Pin 2 Pin 1 DCD Pin 1 Pin 1 DCD
Pin 3 Pin 6 DSR Pin 2 Pin 6 DSR
Pin 4 Pin 2 RD Pin 3 Pin 2 RD
Pin 5 Pin 7 RTS Pin 4 Pin 7 RTS
Pin 6 Pin 3 SD Pin 5 Pin 3 SD
Pin 7 Pin 8 CTS Pin 6 Pin 8 CTS
Pin 8 Pin 4 DTR Pin 7 Pin 4 DTR
Pin 9 Pin 5 GND Pin 8 Pin 5 GND
Pin 10 Pin 9 RI --- --- ---
RJ45-10 Pin Signal DB25 Signal RJ45- 8 Pin Signal DB25 Signal
Pin 1 --- --- --- --- --- --- ---
Pin 2 DCD --- --- Pin 1 DCD --- ---
Pin 3 DSR Pin 20 DTR Pin 2 DSR Pin 20 DTR
Pin 4 RD Pin 2 SD Pin 3 RD Pin 2 SD
Pin 5 RTS Pin 5 CTS Pin 4 RTS Pin 5 CTS
Pin 6 SD Pin 3 RD Pin 5 SD Pin 3 RD
Pin 7 CTS Pin 4 RTS Pin 6 CTS Pin 4 RTS
Pin 8 DTR Pin 6 DSR Pin 7 DTR Pin 6 DSR
Pin 9 GND Pin 7 GND Pin 8 GND Pin 7 GND
Pin 10 --- --- --- --- --- --- ---
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
16
USB Ports
The J2 625 has 6 external and 3 internal USB 2.0 ports. The 6 external ports (see below)
are located in the cable well with one the side of the unit for easy access. The 3 internal
ports are used for different functions, such as using a PCT touch screen, Finger Print
reader and/or other peripherals.
USB Ports
Side USB Port
Audio
The J2 625 uses the VIA1708B HD audio controller. There is one internal speaker.
A combo microphone jack and headset jack are located in the cable well of the J2 625, as
seen below, which allows for the connection of a microphone and headset, or audio out to
other devices.
Audio out is also supported on the DisplayPort when used with a HDMI monitor.
Audio Jack Location
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
17
Power Supply
The J2 625 uses a notebook-type power supply that is mounted in the base of the unit.
The power supply is rated with an output of 65 watts 18.5 VDC 3.5 Amps, and has an
input rating of 100-240VAC at 50~60Hz 1.7Amps maximum. The power supply has an
efficiency rating V. The power supply connector is a standard notebook locking type that
plugs into the system power input connector, located in the cable well.
Power Input connector
+12VDV Power Out
The J2 625 has a fused power out connector that supplies a total of 12VDC, up to 2amp.
The power supply connector is a standard notebook locking type that plugs into the
system power input connector, located in the cable well, seen below
Power Output connector
Cash Drawer Ports
The J2 625 is equipped with one Cash Drawer port that can support one or two drawers.
This port is located in the cable well, and uses the industry standard RJ-11 connector and
pin-out (illustrated below).
Cash Drawer Ports
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
18
6
1
Cash Drawer 1 Pin Assignment
Pin
Signal
1
GND
2
CD1
SOLENOID
3
STATUS / STATUS CD1
4
24
V
5
CD2 SOLENOID
6
GND
/ STATUS CD2
The application may address the Cash Drawer port in two ways:
1) Using the J2-supplied OPOS drivers for Windows.
2) Direct access to the I/O ports
Cash Drawer Controller Register
The Cash Drawer Controller use one I/O address to control the Cash Drawer.
Register Location: 48Ch
Attribute: Read / Write
Size: 8bit
BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0
Attribute Read Reserved Write Reserved
7 6 5 4 3 2 1 0
X X X X
Reserved
Cash Drawer 1 fire
Cash Drawer 2 fire
Reserved
Cash Drawer 1 status
Cash Drawer 2 status
s on the one RJ-11 is the same as is used
on Epson printers.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
19
CMOS Clear
The J2 625 CMOS can be cleared by unplugging the system board CMOS battery for 30
seconds before plugging it back in.
CMOS Battery
Mini PCI-E
The onboard Mini PCI Express connector is normally used for the optional internal
802.11b/g/n wireless LAN card.
Mounting Screw
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
20
Memory SODIMM(s)
The J2 625 supports two SODIMM DDR3 memory sockets. The unit comes standard
with 2GB of main memory and can support up to a maximum of 4GB. The memory type
is DDR3 800/1066.
Typical Power Consumption J2 625
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
21
Removing the Head from the Base
The 625 is shipped with a counter top base which allows for the head to be adjusted from
0-90°.
To remove the integrated head from the base, fully loosen the thumbscrew located on the
back of the unit under the hinge of the counter top base, as shown below. Then lift the
head as illustrated:
Loosen Thumb Screw
Slide Head up to remove
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
22
Removing the Power Supply
The power supply is normally located in the counter top base. When using a wall mount
bracket or the J2 UPS, the power supply would be external from the unit.
To remove the power supply from the base, two screws needs to be removed as shown.
Screw locations
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
23
VESA Mounting
The 625 unit also supports the industry standard 100mm VESA mounting. The same
mounting hard point used for the counter top base is used for VESA mounting. The four
point that thread holes for 4mm screws.
100mm VESA Pattern
Threaded Mounting point(s), 4mm screw
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
24
Removing the Back Cover
The following steps show how to disassemble the 625 for servicing:
On a clean, protected surface, place the unit screen-side down. Remove the four cover
screws as shown. Carefully lift the back cover as shown.
Remove four screws where
shown
Carefully tilt up the back cover to remove
Note: The 625 was designed so that the internals of the unit could be accessed without
having to remove the mounting base or the mounting bracket of the unit.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
25
Changing the System Board
*Special Note: An anti-static workplace with proper grounding is required when
changing the System Board.
First remove the back cover. Then remove the 3 screws hold the drive cage in place and
remove it. Then remove the 5 screw hold the system board in place. Unplug all cables
going to the system board. Remove board. (see photo below)
Three screws to remove System Board
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
26
Adding Memory
Note: An anti-static workplace with proper grounding is required when adding
memory. Remove the back cover. You can now access the two memory sockets. The top
memory socket must be populated. The memory SODIMM can be installed or removed
without removing the HDD cage.
The J2 625 supports up to 4GB of memory in two sockets. The unit comes standard with
2GB of main memory and can support up to a maximum of 4GB. The memory type is
DDR3 800/1066.
Memory sockets
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
27
Main Screen
The main BIOS allows for the display of system information, keyboard boot options, and
the setting of the time and date. The time and date may also be set via the operating
system.
System Information
The J2 625 BIOS has a system information screen that displays useful system
information, including the serial number of the unit. This information may also be
accesed via DMI utilities.
Note: This version of the new Phoenix BIOS does not have a screen shot utility yet. Please excuse the poor quality of the screen
pictures. These will be replaced once the screen shot utility is available.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
28
Advanced Screen
The Advance Screen allows for a number of BIOS options to be accessed. Please use care
in changing these options, as some settings can cause the system to malfunction. These
options are provided to offer maximum flexibility in configuring the J2 625. The Item
Specific Help (seen on the right hand side of the screen) explains each option.
Boot Configuration
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
29
Power Configuration
The power configuration option allows for changing the behavior of the unit when it is
powered up; it also enables changing the auto power-up feature.
COM Power and LCD Brightness Configuration
This BIOS screen allows the enabling of the power for the serial ports, and changing the
default brightness setting for the LCD screen. The LCD screen brightness can also be set
via the Windows OS.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
30
Security Screen
The Security Screen is used to set BIOS accessed passwords.
Boot Screen
The boot priority order can be set with the Boot Screen.
Keys are used to view or configure devices:
Use up and down arrows to select a device.
A plus and minus moves the device up or down in the list.
A shift plus the number 1 enables or disables the device.
boot list.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
31
Exit Screen
The exit screen allows for the saving, discarding or loading of the default BIOS settings.
These functions can also be performed any time using the F9 and F10 key.
Phoenix Secure Core Tiano BIOS
The J2 625 uses the new Phoenix Secure Core Tiano BIOS. More information about this
new UEFI BIOS came be found at the following web link.
http://www.phoenix.com/pages/phoenix-securecore-tiano-tm
All device drivers for the J2 625 can be downloaded from the J2 web site at:
http://support.j2rs.com/625/
Installation instructions are included with each driver.
J2 supports OPOS drivers for the following J2 625 peripherals:
1: Cash Drawer(s)
2: LCM 2X20 character customer display
3: MSR Reader
The driver and documentation can be downloaded from:
http://support.j2rs.com/Utilities/OPOS/
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
32
The J2 625 incorporates a microcontroller (MCU) that supports a number of system
functions. These include auto LCD backlight dimming, power LED control, power-on
timer, and power cycle counter. The J2 625 Configuration Utility allows for the
configuration of options and for reading the current values of these various functions.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/625/utilities/
To install, simply unzip anywhere and run setup. Like other J2 utilities it can be
uninstalled though the Windows control panel.
Main
The main screen displays the following: the current version of firmware, the power on
count (in hours), a list of the number of power cycles, and the dim timeout setting and
dim brightness settings. ( shown below):.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
33
Power-On Hours
The MCU uses an internal timer to keep track of how many total hours the J2 625 has
been up and running in its lifetime. This number shows powered-up hours only, not the
powered but off/standby time. The accuracy of this timer is only about +/- 5% and is to
be used as an approximate number. The value is stored in the MCU internal EEPROM.
Power Cycles
The MCU tracks the total number of times the unit has been powered off and on in the
power cycle counter. The count is stored in the MCU EEPROM and is used for
diagnostic purposes. The power-on and power cycles can only be changed at the factory.
Dim Timeout
This value is the amount of time the MCU waits if there is no touch activity before
dimming the screen. This same function is built into Windows 7 and Windows 8 drivers,
and should be used rather than the J2 625 hardware dimming. But for older operating
systems (such as XP) the J2 625 hardware dimming default should be used.
The default value for the hardware dim timeout is six minutes, but can be changed with
this utility from any value from 0-255 minutes.
Note: a value of zero will disable the hardware auto dimming function.
Once the dim timeout is reached the LCD screen will dim to the value set in Dim
Brightness. Any touch of the screen, such as MSR read, iButton read or keyboard activity
that changes the keyboard LED status will take the J2 625 out of auto dim mode. This is
all done via hardware, and no software drivers need to be loaded. If it is required, the J2
Dim Wake driver should be loaded if other activity is required to take the J2 625 out of
auto dim. This driver is described in the Dim Wake section of this manual.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
34
Dim Brightness
The brightness level that the screen dims to when auto dim is active is controlled by the
Dim Brightness setting. This utility is used to change this value whose default value is
10%. The possible range is from 5-95%, in 5% increments.
Note: Dimming is important for a few reasons: one is to lower the total power
consumption of the unit; another would be to prolong the LCD screen backlight LED life.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
35
Update MCU Firmware
This tab is used to update the MCU firmware when necessary. This may be to add a new
feature or function to the MSR/iButton. J2 will supply a firmware file for this when
required.
Use the Select Flash Firmware File to start the update, as shown below. This
will let you browse for the correct file.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
36
Once the hex file has been selected, touch the Program Flash Firmware button to start
firmware update. The utility will now update the MCU firmware. It will first write the
memory then verify it. Do not turn off the J2 625 power when updating.
MCU Option
This tab is only used for factory programming and verification of the MCU option fuses.
It will display the current value of the MCU option fuse (note that end-users normally
would not use this feature).
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
37
DimWake is a very small and simple utility that loads on any Windows OS, but normally
is only used with variations of the XP operating system (like XP Pro, POSReady 2009,
WEPOS, or XP Embedded). The DimWake program is used to take the J2 625 out of
auto dim mode. The hardware can only take the system out of dimming by either a touch
of the touch screen, MSR read, iButton read, or keyboard activity that changes the
keyboard LED status. Sometimes it is desirable for other events to take the system out of
dim mode, like a mouse movement. The DimWake program provides this function.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/625/utilities/
To install just unzip anywhere and run setup. Like other J2 utilities it can be uninstalled
through the Windows control panel.
Once having installed DimWake, you will need to reboot the system for it to take effect.
DimWake will then be running in the background.
Once installed and running - any mouse, keyboard or high CPU activity (like playing a
video) will bring hardware auto dimming out of dimming mode, or prevent it from going
in to dimming. This combination of hardware auto dimming and DimWake provides that
same function to XP, as comes standard with Windows 7 and Windows 8. When using
Windows 7 or 8 it is best to use the built-in dimming feature.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
38
J2 has a standard program that works with all its POS products, called J2 Health. This
program is used in either a standalone mode or in conjunction with J2 remote
monitor/asset tracking software. The J2 Health program monitors different aspects of the
POS hardware to ensure the hardware is running within specification. For the J2 625 it
monitors critical system voltages, as well as system and CPU temperatures.
Installation
The utility can be downloaded from the J2 web site:
http://support.j2rs.com/Utilities/Health/ To install just unzip anywhere and run setup.
Like other J2 utilities it can be uninstalled through the Windows control panel.
Tray Icon
Once installed and the system has rebooted, J2 Health will be running in the background.
The J2 health icon will appear in the task bar tray:
Right-clicking on this icon displays different Health options, shown below:
The current health values will display by clicking
A sample screen is shown below:
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
39
As can be seen above, when running on the J2 625 the J2 Health program displays critical
system voltages and system and CPU Core temperatures. For other J2 POS systems, J2
Health may display more or less information. An example would be the J2 625 unit,
which in addition to the above information would also display the fan speed of the two J2
625 fans.
Logging to File
The J2 Health program can log the health data to a file in the csv text format for
importing to other programs, like Excel. This can be handy for finding time of day
related problems.
When logging is enabled, the tray icon Rx symbol will change to red to indicate logging
in is taking place.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
40
Registry Entries
The J2 Health program creates registry entries for the different health values. Dynamic
values are updated at the user defined interval, which is by default 5 seconds. Other
software may use these registry entries to access the J2 health information.
J2 625 Health keys are shown below:
J2 Remote Monitoring Software
J2 now offers a full remote monitoring and asset tracking solution that works in
conjunction with J2 Health to ensure the highest uptime possible of your POS hardware.
Please contact J2 sales for more information on this fully customizable, remote
monitoroption.
For more information, please visit us at
http://www.j2retailsystems.com/newsarticle.php?news_id=57
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
41
The J2 SMI BIOS Info program allows for the reading of all populated BIOS DMI/SMI
information. With some J2 products including the J2 625, this information also includes
dynamic system health information. Normally this dynamic DMI health information
BIOS is only supported on very high end servers. Now J2 brings this feature to POS
hardware.
The J2 SMI BIOS Info program will run on any J2 POS hardware or for that fact on any
PC hardware. It can display all DMI/SMI information on a formatted form.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/Utilities/
To install just unzip anywhere and run as you wish to run the utility form.
Operations
Just click on the .exe file to run. The following screen will be displayed (see below).
Note that the health data will only display on newer J2 systems that support the dynamic
DMI health BIOS.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
42
J2 has a generic cash drawer test utility that works on all J2 products, including the new
J2 625 computer. This test program also supports the J2 625 separate status lines, such as
when the special J2 625 is used, supporting two cash drawers.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/Utilities/
To install just unzip anywhere and run as you wish to download the utility form.
Operation
Just run the cash drawer test from whatever folder it was installed into
ash drawer(s). (See example below)
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
43
To use two cash drawers with the J2 625 you use
cable that also works with Epson printers or the special J2 625 s
separate status lines (The standard cable supports shared status lines.). When using the
look like this:
option is to test the cash drawer you set up using the J2
virtual serial ports program. The virtual serial port program must be installed with the
cash drawer virtual serial ports set to Comm 10 & 11.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
44
Virtual serial ports can be used for the cash drawers, virtual 2x20 line display on the
optional 10.1 LCD, Smart UPS, MSR and iButton.
To open virtual serial cash drawer send a bell character to the Com port it is assigned to.
(The bell character is th
the drawer may be obtained by reading the status bits of its COM port. The drawer
open/close status will be reflected on the CTS and RI bits, either bit may be used. This
virtual COM port driver is designed to work the same as a hardware serial cash drawer
and will work with drivers for serial cash drawers.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
45
Overview
The 625 can be ordered with a 3 track MSR. This MSR is the same as used on the J2
580/615/630/680 POS systems. The MSR mounts on the right side of the 625 and uses a
front facing MSR slot. This allows the 625 unit to be placed side by side, or in tight
spaces, and still be able to swipe the card. The MSR appears to the software as a wedge
type MSR with all data from the MSR being sent to the keyboard port. The MSR
configuration utility can be down loaded from J2 web site.
625 with front swipe MSR
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
46
Installing the 625 MSR
The 625 MSR is installed by first removing the two rubber plugs for the option
attachment point as shown below.
Remove Rubber plugs
Then remove the MSR cover plate on the right back side of the unit by removing the two
screws, as shown.
Remove MSR cover plate
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
47
Connect the cable together as shown add secure the static ground wire with screw
provided as shown.
Attach cables
Attach the MSR using the two screws at the locations shown below.
Mounting MSR
You may now power up the 625 and the MSR should be working. For a quick test you
can open Notepad and swipe a card, the information should appear in Notepad. You can
now run the J2 MSR utility if you need any custom settings for the MSR.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
48
Overview
A 2 line by 20 character VFD or LCM customer side display is available optional for the
J2 625. This customer display is the same as used on the J2 580/615/630/680 POS
systems.
VFD 2x20 Customer Display
LCD 2x20 Customer Display
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
49
The J2 625 has the same options as available on the J2 580/615/630/680 POS systems.
Secondary display of 10 inch, 12 inch 4:3 and 10.1 inch 16:9 displays are available.
10 inch 4:3 Display
10.1 inch 16:9 1024x600 Display
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
50
This option is the same as available on the J2 580/615/630/680 POS systems. The wall
mount bracket has threaded mounting holes (screws provided) for the 75mm VESA
standard; and unthreaded holes for the 100mm standard.
Using the 100mm hole pattern the bracket can be used by itself as a wall mount bracket.
After installing the thumbscrew clip mount bracket to the wall, hang the J2 625 on the
bracket.
Install screw to secure thumbscrew clip
The bracket slides on to the J2 625 mount posts, as shown. Normally the bracket would
already be mounted to the wall or a VESA mount and the 625 would be hung on the
bracket. Once in place the thumb screw would be tightened.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
51
This option is the same as available on the J2 580/615/630/680 POS systems. This reader
uses the Digital Personal module.
This option is the same as available on the J2 580/615/630/680 POS systems.
Available Q3 2012
Available Q3 2012
The J2 625 has the same options as available on the J2 580/615/630/680 POS systems.
J2 625 System Manual
Version 0.1 June15, 2012 (Draft)
52
European Office
J2 Retail Systems Ltd.
J2 House
Clayton Road, Birchwood
Warrington WA3 6RP
United Kingdom
44 (0) 1925 817003 Phone
44 (0) 1925 811989 Fax
USA Office
J2 Retail Systems Inc.
9251 Irvine Boulevard
Irvine, CA 92618
USA
Australian Office
J2 Retail Systems Pty Ltd
Unit 6 83/85 Boundary Road
Mortdale NSW 2223
Australia
02 9584 5222 Phone
02 9584 1500 Fax
Website
http://www.j2retailsystems.com
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
