FLYTECH TECHNOLOGY J680L92 POS User Manual J2 680 System Manual 1 0
FLYTECH TECHNOLOGY CO., LTD POS J2 680 System Manual 1 0
Users Manual
J2 680L Integrated Touchscreen Computer
System Manual
May 2012
J2 680 System Manual
Version 1.0 May 11, 2012
2
Copyright © 2011-2012 J2 Retail Systems Ltd
All rights reserved
Change history
Version 1.0 Release May 11, 2012
J2 680 System Manual
Version 1.0 May 11, 2012
3
Overview ............................................................................................................................ 6
Specification ....................................................................................................................... 8
Features ............................................................................................................................ 10
............................................................... 10
Hot Swappable RAID/ Dual Hard Drives ..................................................................... 10
PoweredUSB Ports / Power Port................................................................................... 10
UPS ............................................................................................................................... 11
Printer Power Port ......................................................................................................... 11
Cooling System ............................................................................................................. 11
Fan-Off Mode ............................................................................................................... 11
Versatility ...................................................................................................................... 11

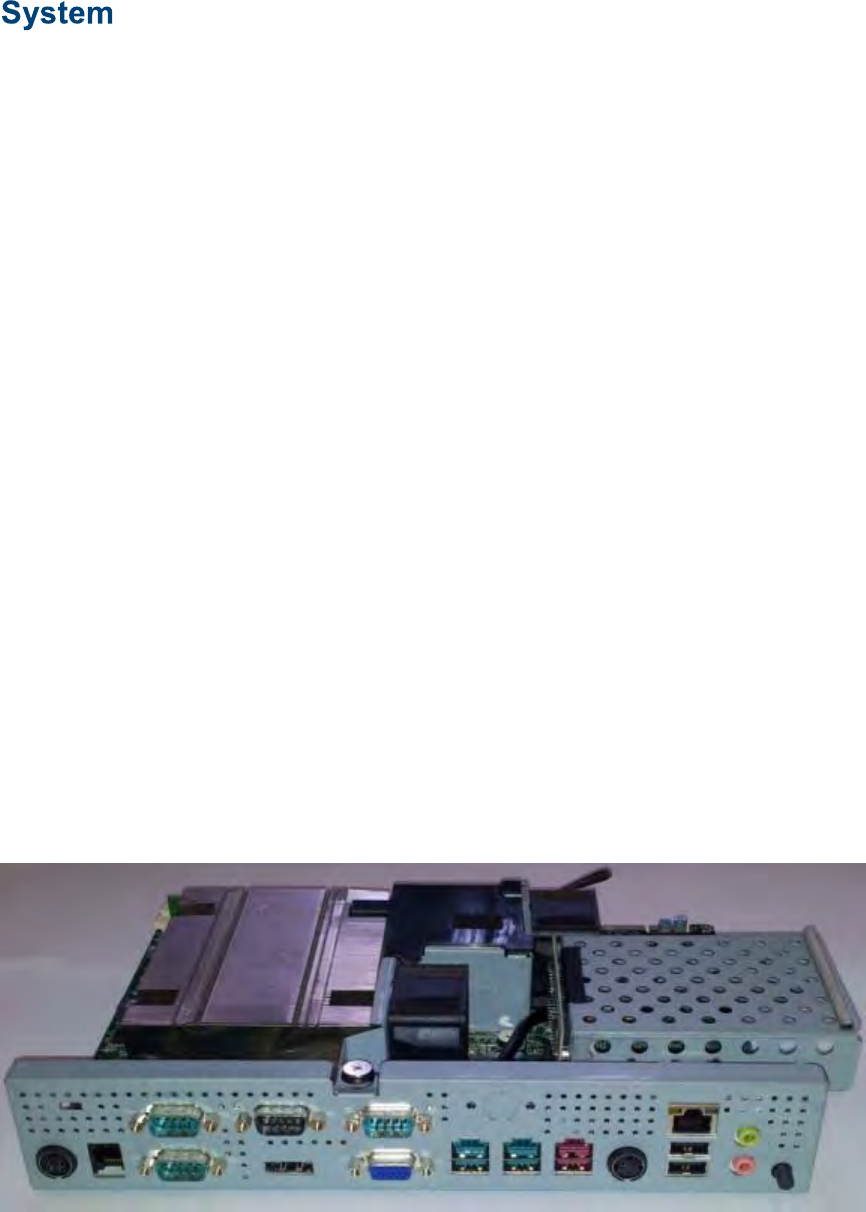

System .............................................................................................................................. 12
Configurations ............................................................................................................... 12
Processor Support ......................................................................................................... 12
Processors currently supported on the 680 ................................................................... 13
I/O Ports ........................................................................................................................ 14
Off / On Button ............................................................................................................. 14
Hard Disks .................................................................................................................... 15
Zero Bezel Touch Screen .............................................................................................. 15
System Board ................................................................................................................ 16
LCD Display ................................................................................................................. 16
Secondary Video Port(s) ............................................................................................... 16
Serial ports .................................................................................................................... 18
PoweredUSB Ports ........................................................................................................ 19
Kensington Security Slot .............................................................................................. 20
Audio ............................................................................................................................. 21
Printer Power Port ......................................................................................................... 21

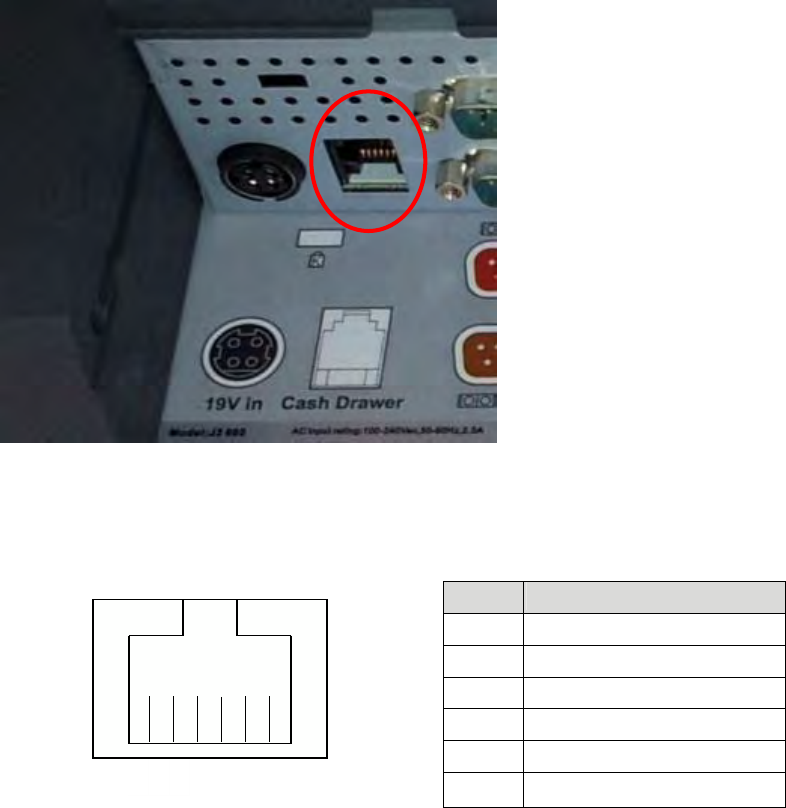

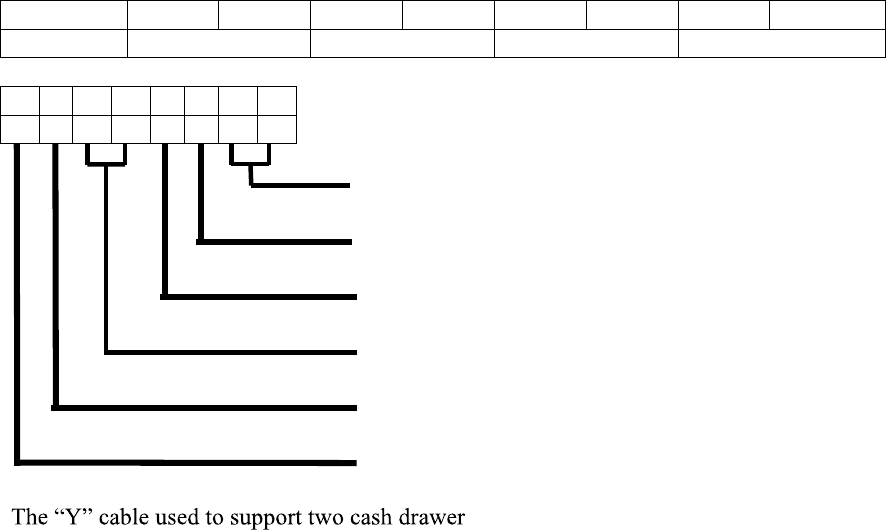

Cash Drawer Port .......................................................................................................... 22
CMOS Clear .................................................................................................................. 24
Power Supply ................................................................................................................ 24
Typical Power Consumption 680 .................................................................................. 25
Service .............................................................................................................................. 26

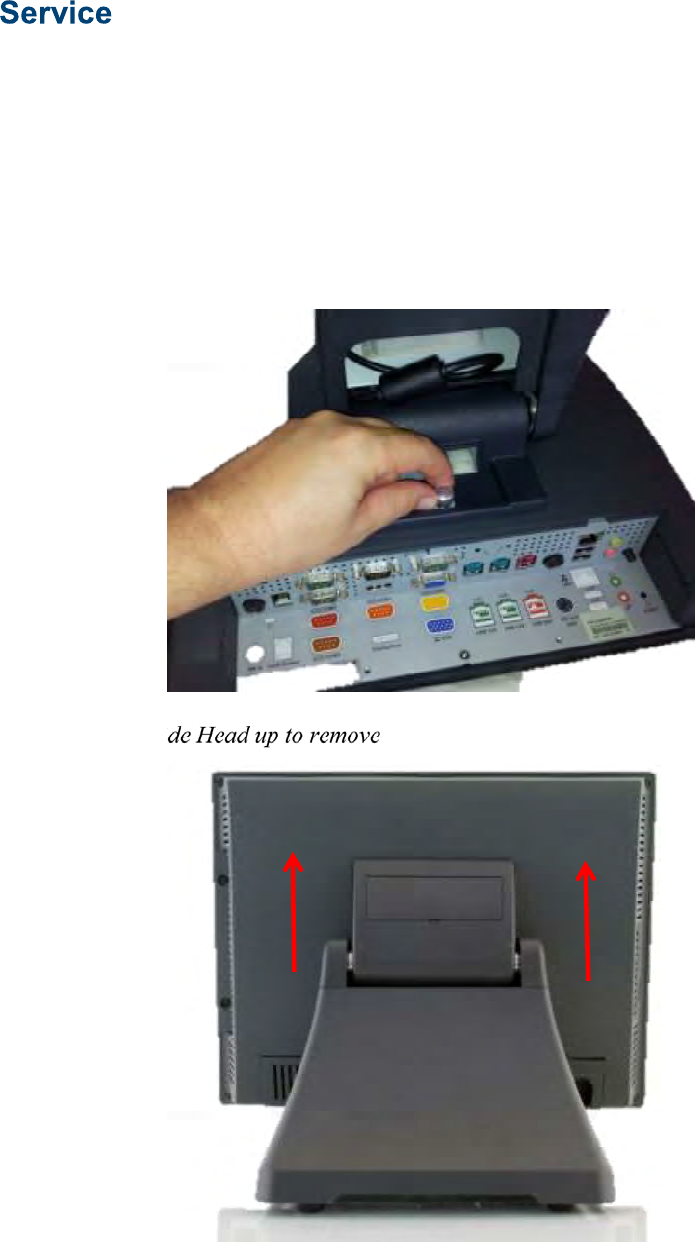

Removing the Head from the Base ............................................................................... 26
Removing the Power Supply ........................................................................................ 27
VESA Mounting ........................................................................................................... 28
Optional Wall Mount Bracket Installation .................................................................... 29
Removing the Back Cover ............................................................................................ 30
Changing the System Board .......................................................................................... 31
Adding Memory ............................................................................................................ 33
Changing the Processor ................................................................................................. 33
Accessing the HDD/SDD Drives .................................................................................. 34
J2 680 System Manual
Version 1.0 May 11, 2012
4
BIOS Setup ...................................................................................................................... 35
Entering the BIOS Setup ............................................................................................... 35
Main, System Overview ................................................................................................ 35
Advanced Settings ........................................................................................................ 36
Launch PXE ROM ........................................................................................................ 36
SATA Configuration ..................................................................................................... 37
Peripheral Power and LCD Brightness Configuration .................................................. 38
Power Configure Screen ............................................................................................... 39
Restore on AC Power Loss ........................................................................................... 39
Wake on LAN ............................................................................................................... 39
RTC Configuration ....................................................................................................... 39
Boot Settings ................................................................................................................. 40
Display OEM Logo ....................................................................................................... 40
Exit Options .................................................................................................................. 41

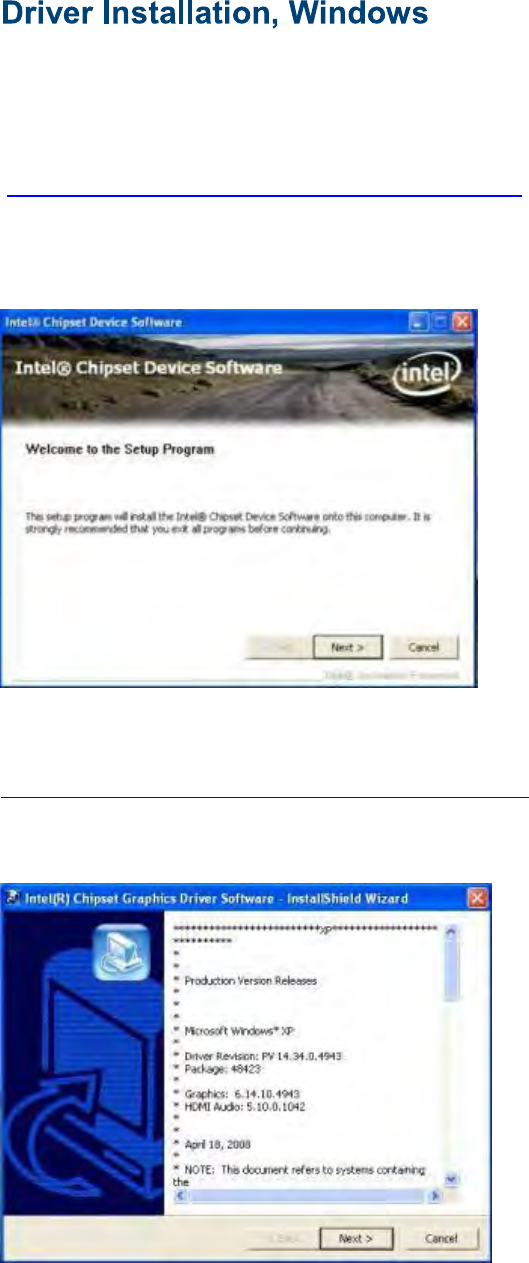

Driver Installation, Windows ......................................................................................... 42
Chipset Driver Installation ............................................................................................ 42
Graphics Driver Installation .......................................................................................... 42
Audio Driver Installation .............................................................................................. 43
LAN Driver Installation ................................................................................................ 44

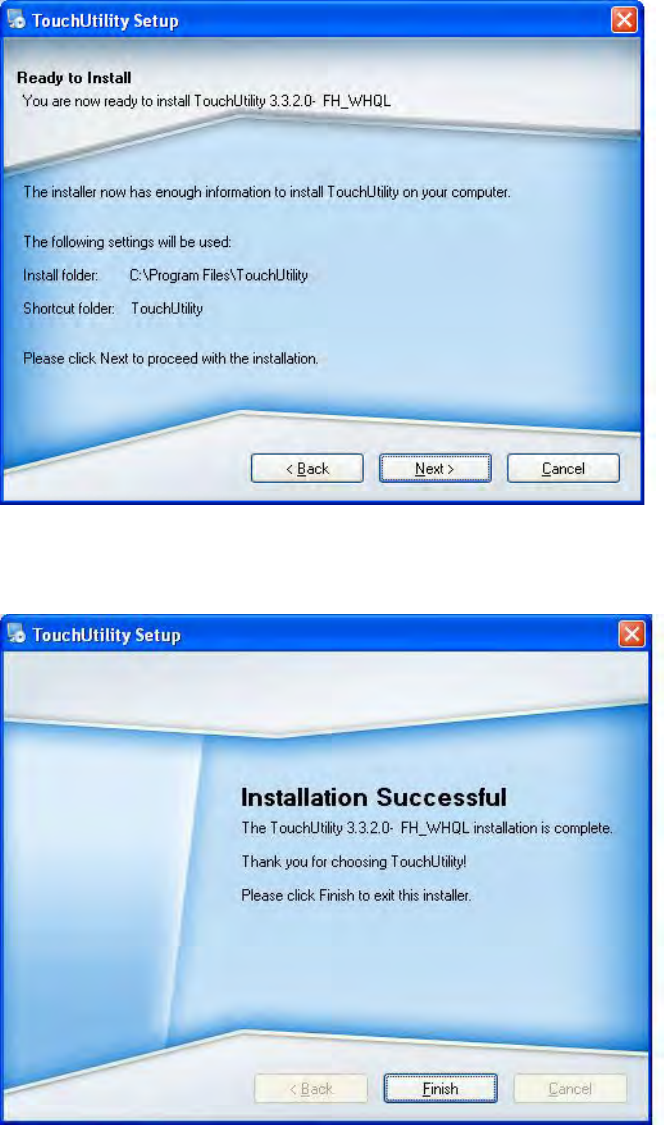

Multi-Touch Projected Capacitive Touch Driver ......................................................... 47
Optional Multi-Touch Projected Capacitive Touch Driver .......................................... 49
OPOS drivers ................................................................................................................ 51
J2 Health .......................................................................................................................... 52
Installation ..................................................................................................................... 52
Tray Icon ....................................................................................................................... 52
Logging to File .............................................................................................................. 53
Registry Entries ............................................................................................................. 54
J2 Remote Monitoring Software ................................................................................... 54

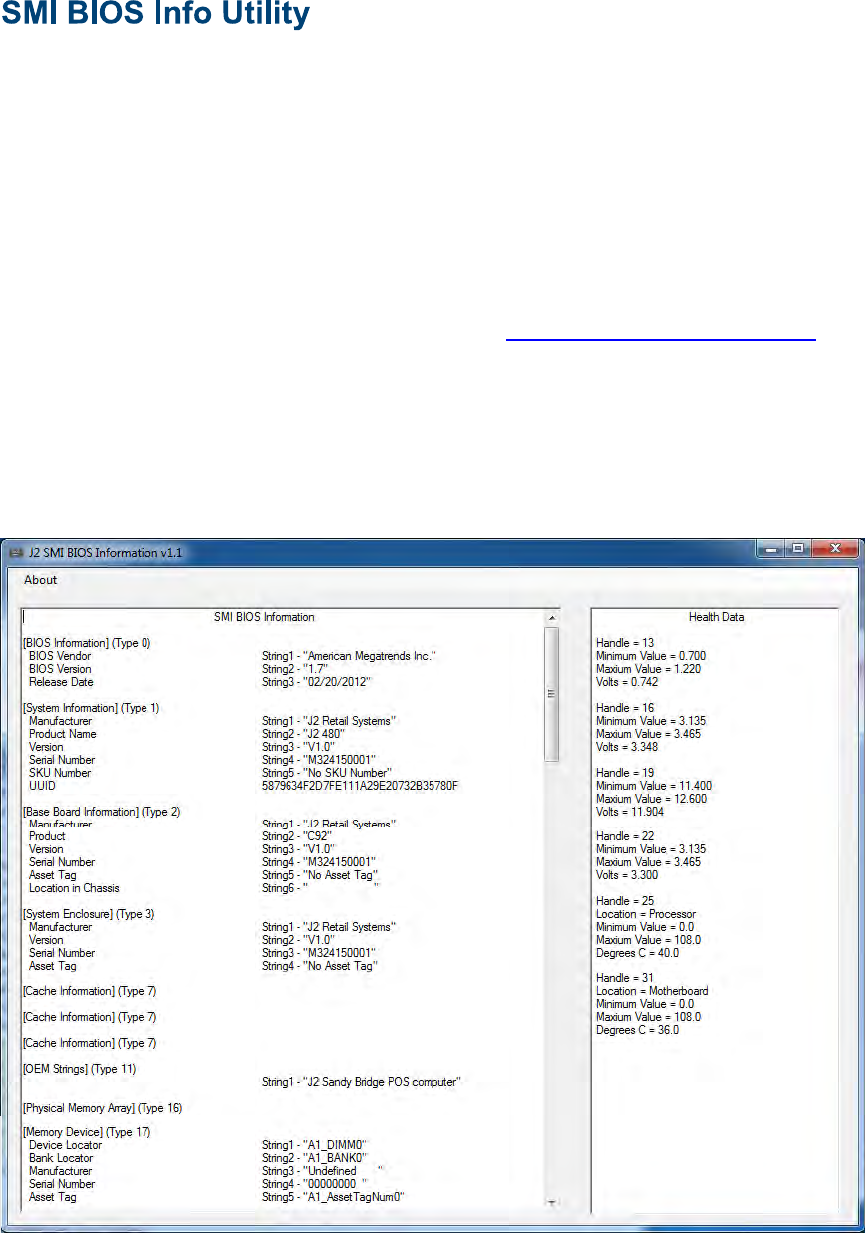

SMI BIOS Info Utility .................................................................................................... 55
Installation ..................................................................................................................... 55
Operations ..................................................................................................................... 55

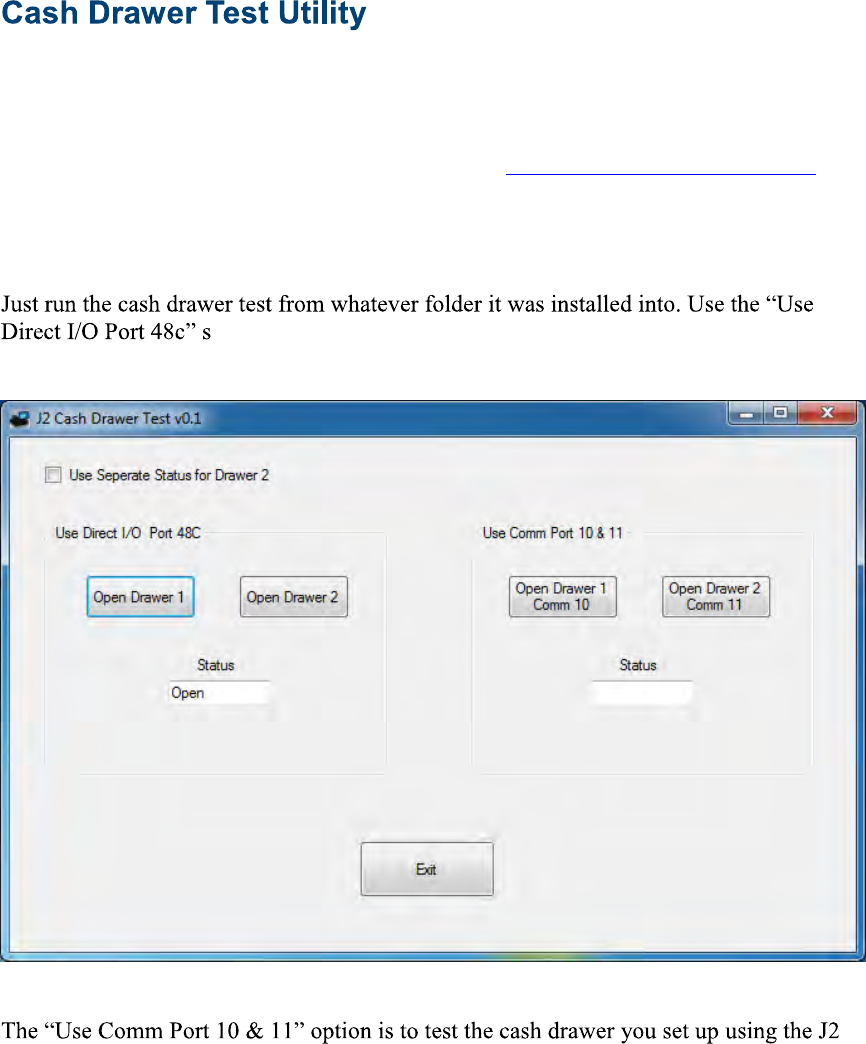

Cash Drawer Test Utility ................................................................................................ 56
Installation ..................................................................................................................... 56
Operation ....................................................................................................................... 56

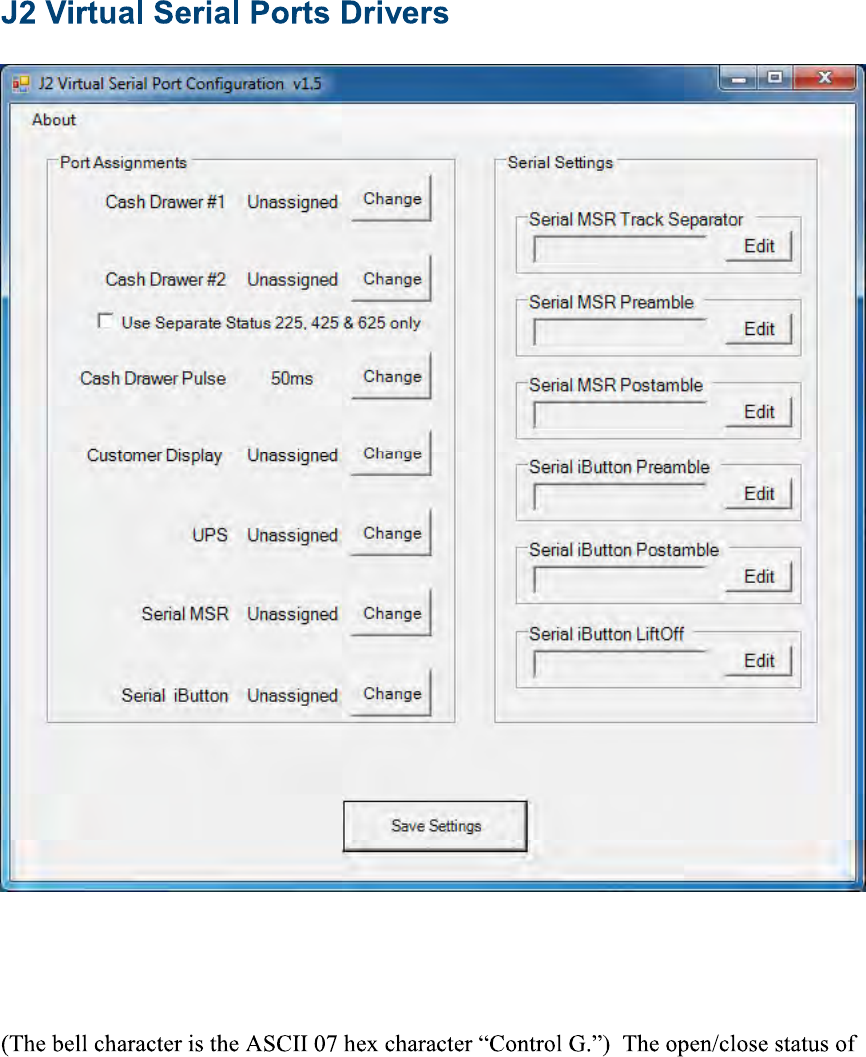

J2 Virtual Serial Ports Drivers ...................................................................................... 57
RAID ................................................................................................................................ 58
RAID Overview ............................................................................................................ 58
AHCI ............................................................................................................................. 58
Enabling RAID in the BIOS ......................................................................................... 59
RAID Volume Creation ................................................................................................ 59
J2 680 System Manual
Version 1.0 May 11, 2012
5
F6 Installation Method .................................................................................................. 59

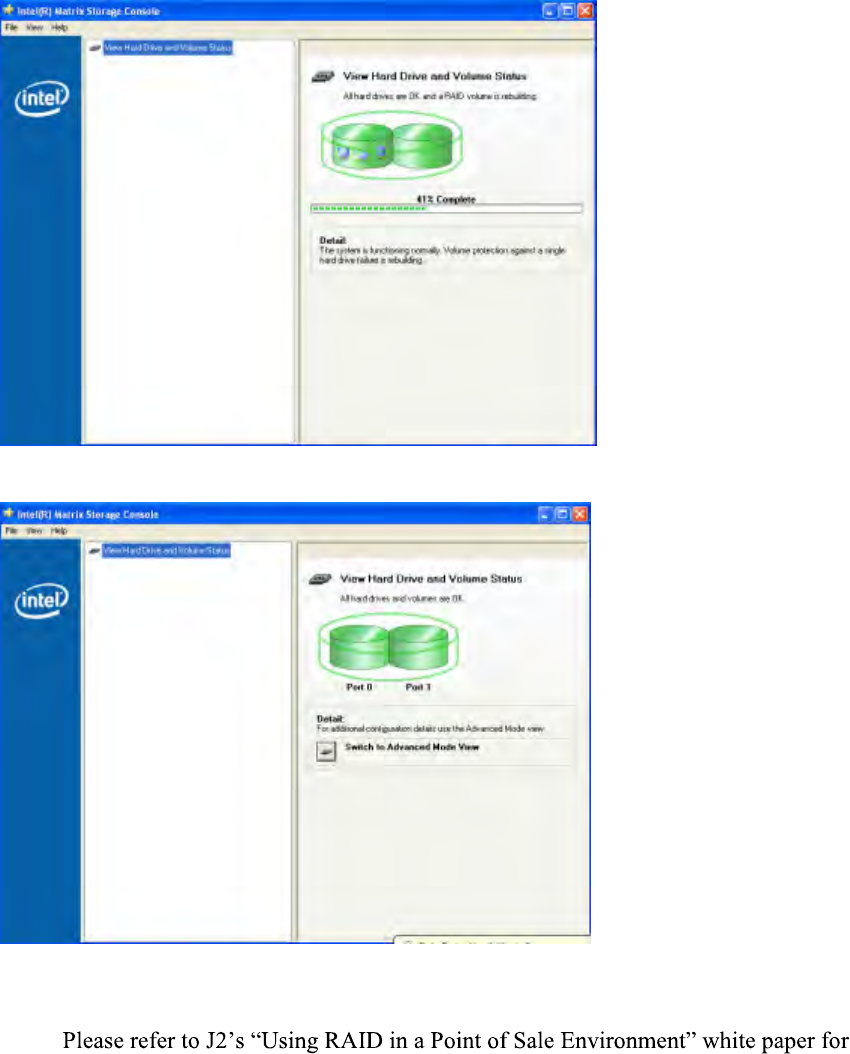

Installing the Intel Matrix Storage Manager Software ................................................. 60
Hot Swapping RAID 1 drives ....................................................................................... 60

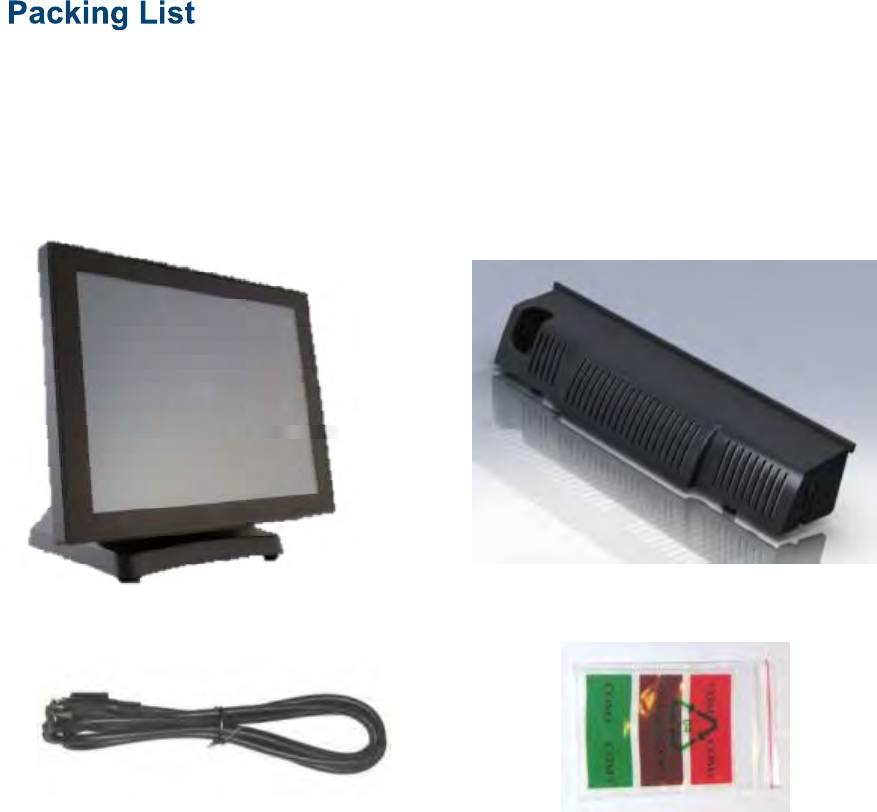

Packing List ..................................................................................................................... 63
Standard Items .............................................................................................................. 63
680 Optional Peripherals ................................................................................................ 64
MSR .................................................................................................................................. 64
Overview ....................................................................................................................... 64
Installing the 680 MSR ................................................................................................. 65

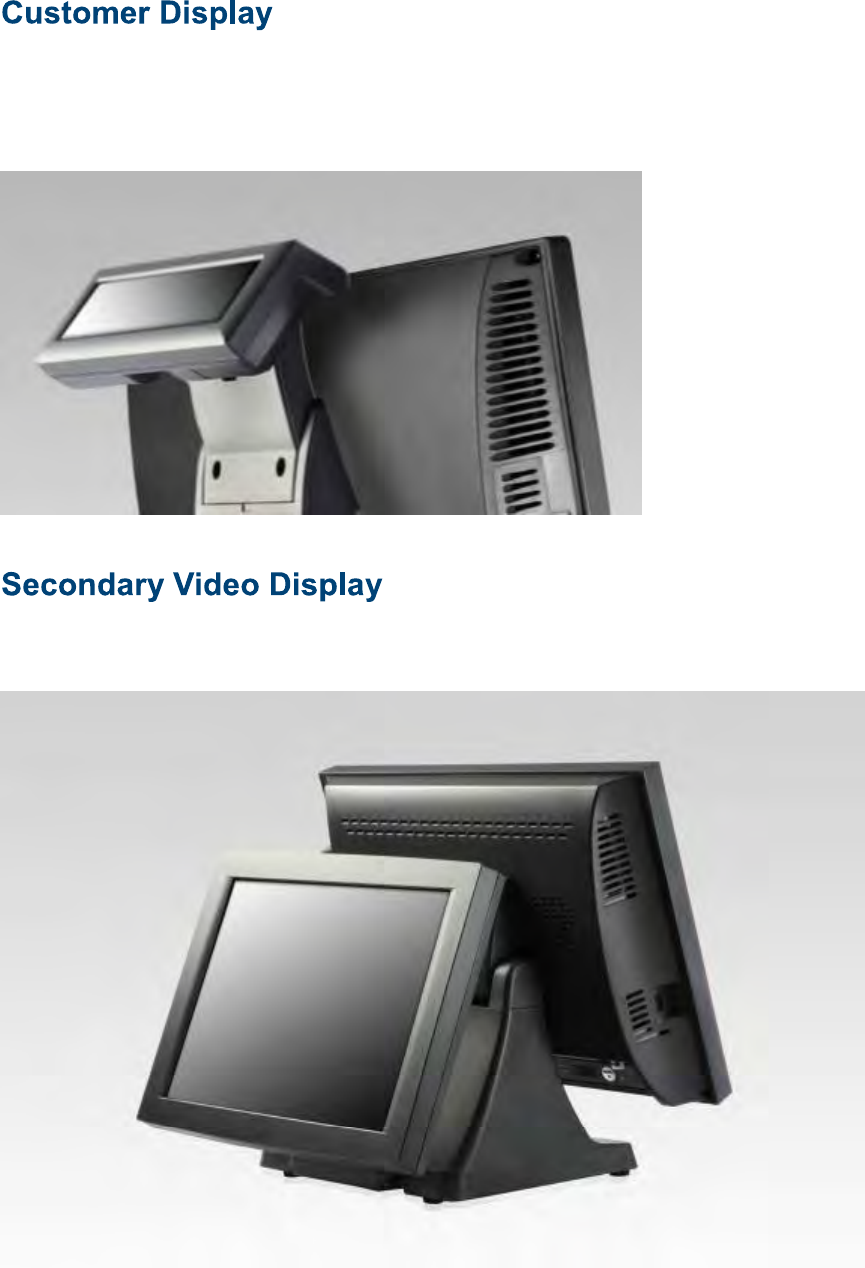

Customer Display ............................................................................................................ 67
Overview ....................................................................................................................... 67
Secondary Video Display ................................................................................................ 67

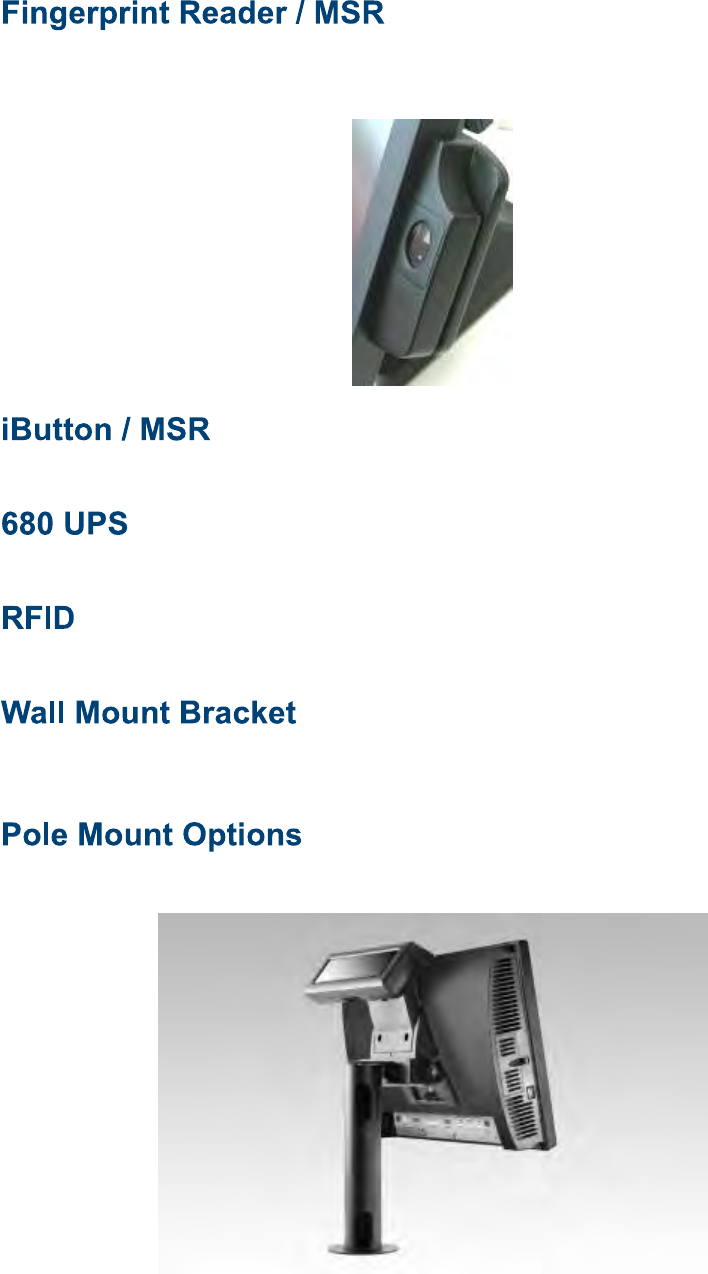

Fingerprint Reader / MSR ............................................................................................. 68
iButton / MSR .................................................................................................................. 68
680 UPS ............................................................................................................................ 68
RFID ................................................................................................................................. 68
Wall Mount Bracket ....................................................................................................... 68
Pole Mount Options ........................................................................................................ 68
J2 680 System Manual
Version 1.0 May 11, 2012
6

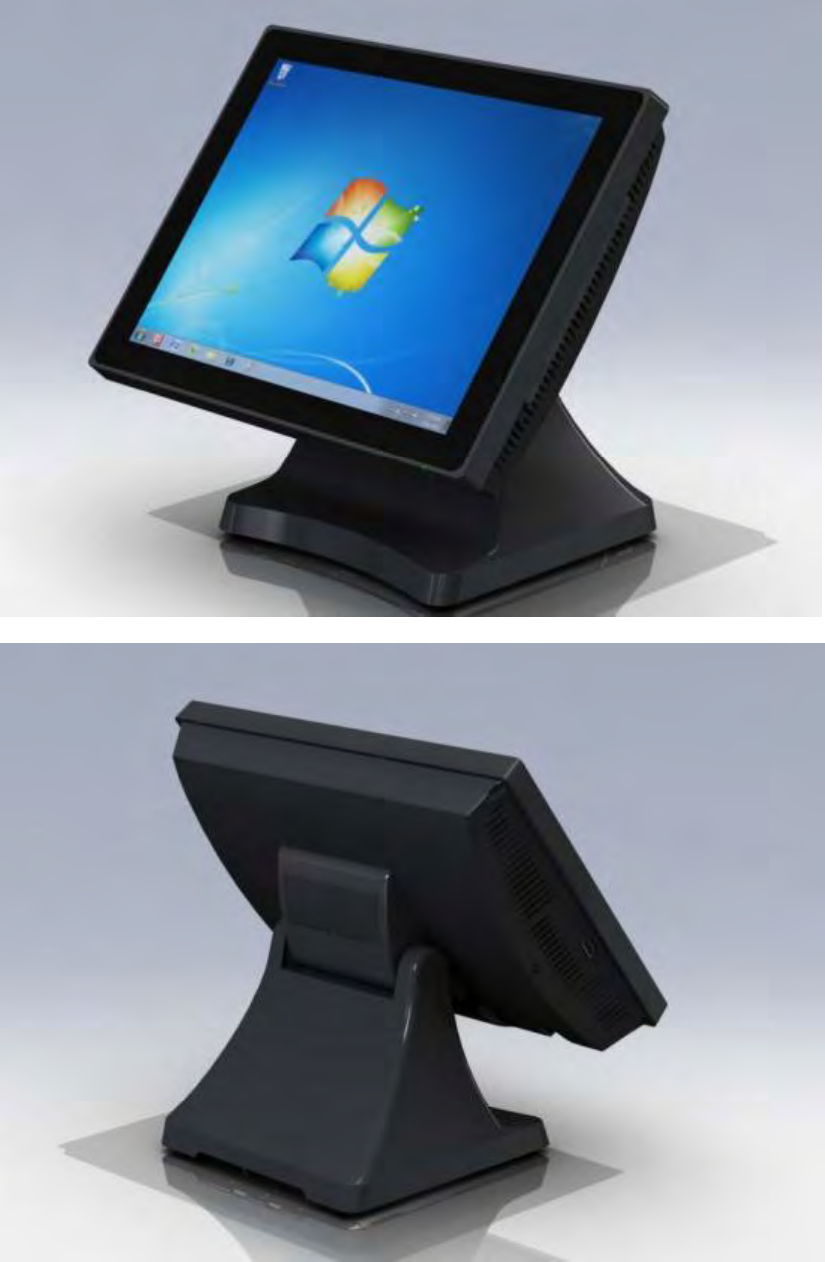

The J2 680 is the second generation of very high performance integrated Point of Sale
computer from J2. Built on the features and capabilities for the J2 650 the J2 680 offers
even higher performance and expanded I/O. The J2 680 retains all the versatility of
previous generation system and adds Quad core processor options, expanded I/O support
with PoweredUSB, Intel remote management, HDMI video, Multi-Touch, Zero Bezel
design and retains RAID and other important feature of the previous generation.
This integrated touch screen computer like most J2 designs features an
design, which means it can be used as a counter top unit, a wall-mount or a pole-mounted
computer. In this one small package you have the highest speed available intergraded or
non-intergraded POS computer currently available.
The J2 680 comes standard with an Intel 2.4GHz Dual Core Sandy Bridge processor but
can also be order with a number of other processors including the very high end Intel i7
3.4GHz Quad Core processor. The J2 680 system board uses the Intel LGA1155 socket
and supports a wide range dual and quad core processors.
Using the Intel Sandy Bridge processor with the Q67 chipset the J2 680 uses the latest
high performance desktop solution in a very small footprint system. This solution
provides for very high performance but with a very low carbon foot print. The Sandy
bridge chipset is design only to draw as much power as need for any given operation
greatly reducing the average power consumption for this level of performance.
Designed for easy machine maintenance and upgradeability, the following is a list of
important 680 features:
1. Upgrades to the memory modules can be easily done by simply removing four
screws on the back cover.
2. A complete motherboard upgrade can be carried out in less than 1 minute.
3. The two quick change SATA hard disk drives are easily accessible, housed on
a slide-in drive bay that allows the drives to be hot swappable.
4. The footprint of the J2 680 is particularly compact making it ideal for the space
conscious retailer.
The 680 supports the standard Microsoft operating systems, Windows 7, POSReady 7,
Windows 7 Embedded, XP, POSReady 2009 and XP embedded. The 680 is equally
proficient with the many flavors of Linux.
J2 680 System Manual
Version 1.0 May 11, 2012
7
J2 680 System Manual
Version 1.0 May 11, 2012
8
Main board
CPU Support
Intel
Sandy Bridge
Desktop Processors
, socket
LGA1155

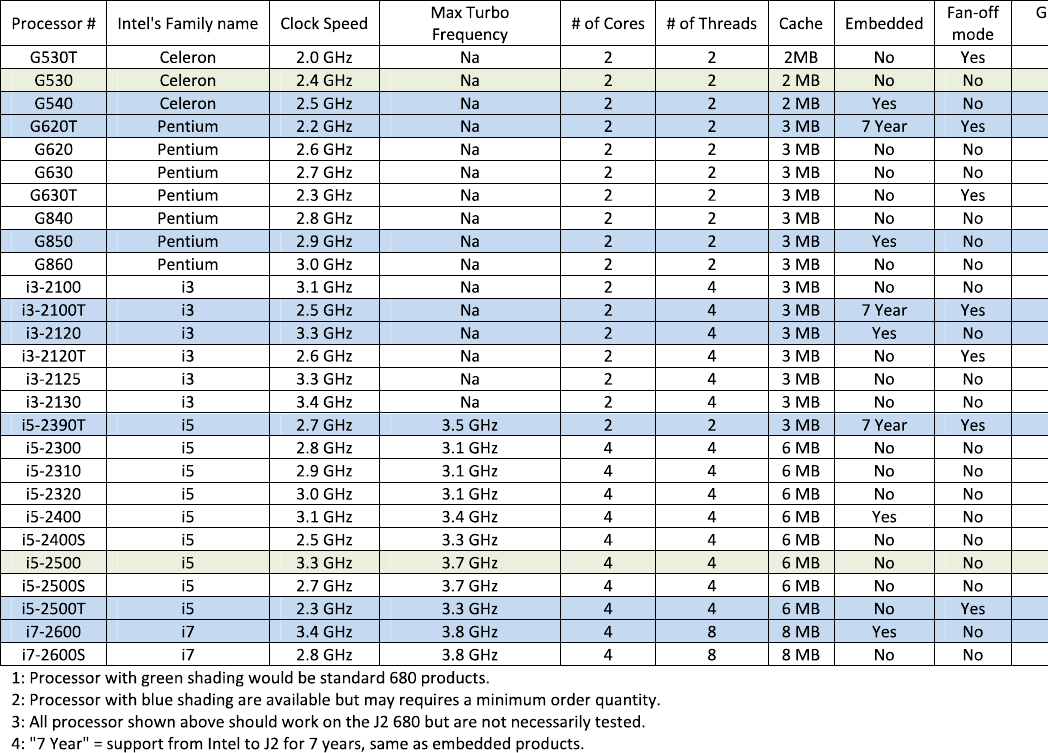

Intel Celeron Dual Core G530 up to Quad Core i7- 2600 3.4GHz
Chipset Q67
System Memory 2 x 240-pin DDR3 DIMM 1333/1667MHz sockets - up to 16GB
Graphic memory Share system memory 8MB~256MB
BIOS AMI
LCD Touch Panel
LCD Size
Brightness 250 nits, adjustable in 8 steps to 25nits
Resolution 1024 x 768
Touch Screen Multi-touch Project Capacitive or True Flat Resistive 5 wire
Tilt Angle 0 ~ 90
Storage
HDD/SSD
Two 2
.5
inch
SATA
3.0 drives sup
port for HDD or SDD
RAID 0 or 1, Quick Change-hot swap
160GB HDD or 16GB SSD standard
External I/O Ports

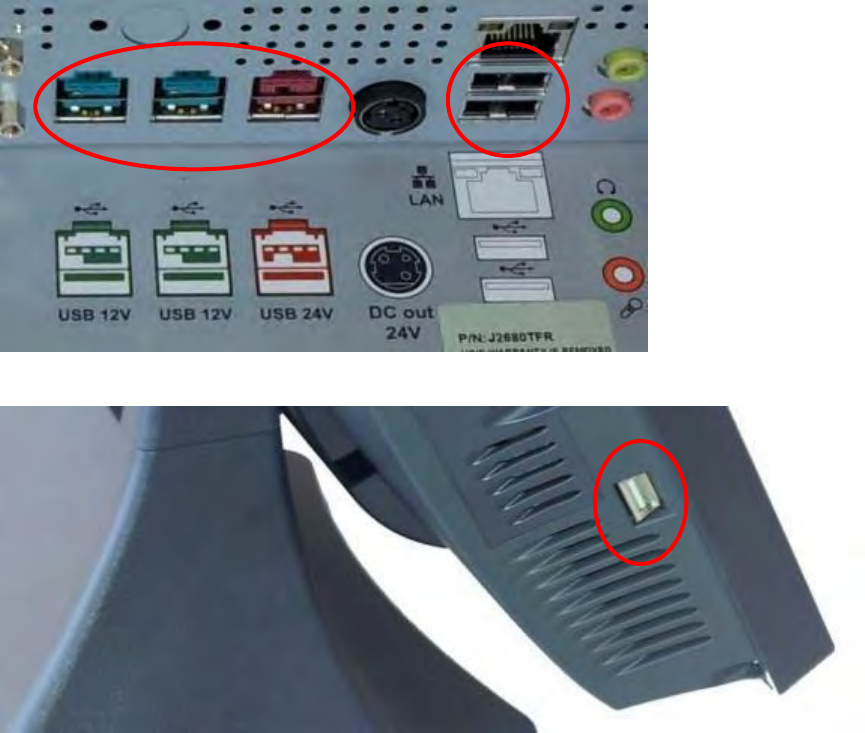

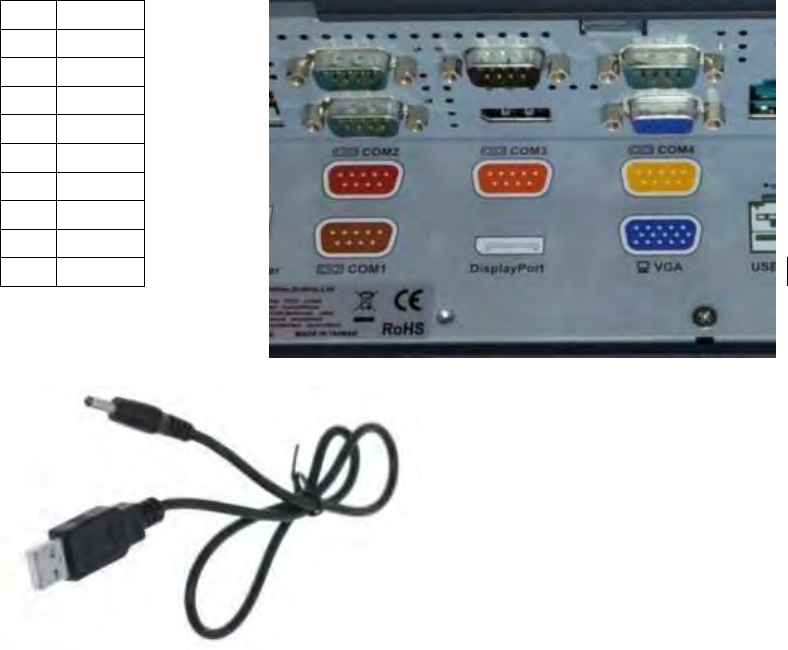

USB 6 total 2.0, 5 in cable well, 1 on side, 3 are PoweredUSB
Serial Four DB9 RS-232 with power option
PoweredUSB 2 +12V PoweredUSB and 1 +24V PoweredUSB
LAN 10 /100/ 1000 Intel 82579LM Controller
2nd Display One VGA port and One DisplayPort
DisplayPort supports HDMI and DVI displays
Cash Drawer 2 x RJ 11 24V with status
Power In 19VDC 9.47 amps
Audio Jack One headset, one microphone-in
Printer Power +24 V 2.5 amps, supports most 24V POS printers
Power LED Front bezel, green for on, amber for standby
J2 680 System Manual
Version 1.0 May 11, 2012
9
Power
Power Adapter
19VDC, 180W, 100
-
240 VAC,50~60Hz, 2.5
A
Optional Peripheral
MSR 3 Track
iButton Dallas Key iButton
Fingerprint Reader USB Digital Persona Fingerprint Reader
RFID 125KHz RFID USB
2-in-1 MSR 3 track / Finger Print
2-in-1 MSR 3 track / iButton
Second Display
4:3
display
s,
with
or with
out touch
Customer Display 2x20 VFD
UPS DC UPS, 0.5-1.5 hours run time
Mounting
Standard
Counter Top Base, Adjustable Viewing Angle 0
-
90°

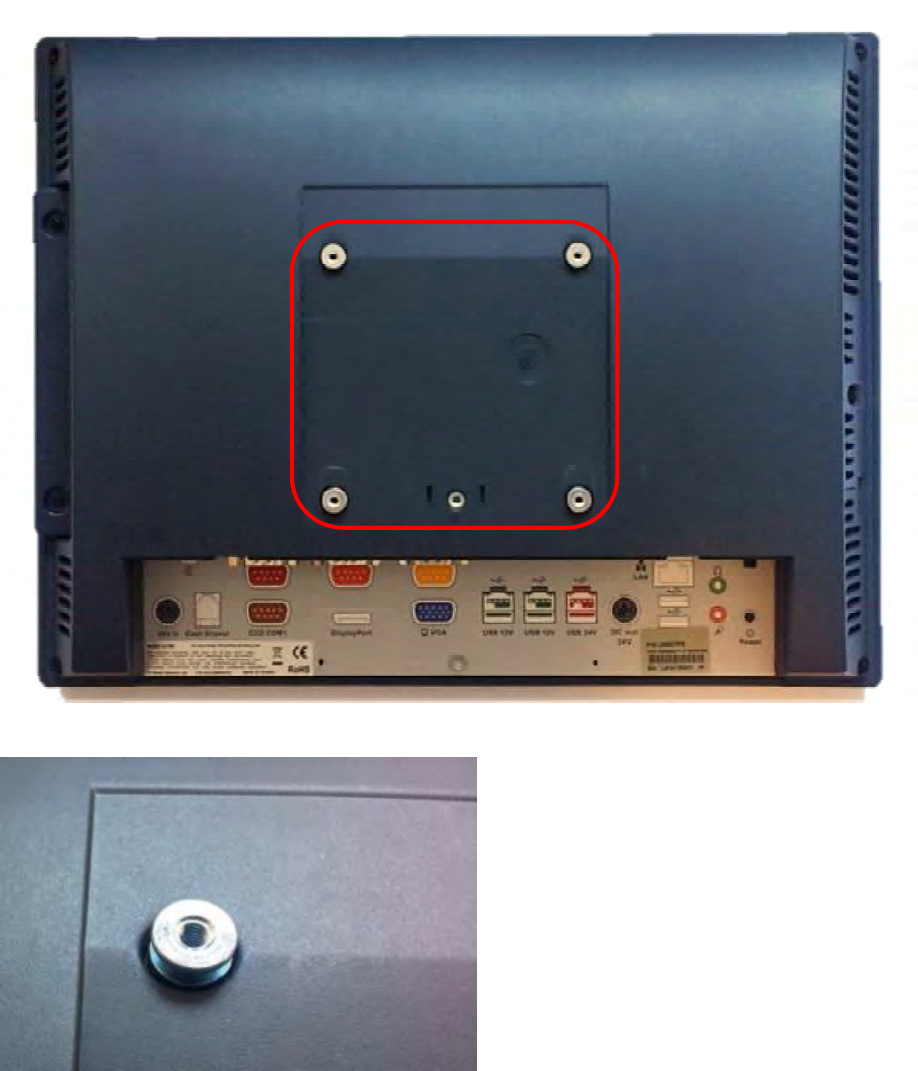

100mm VESA mounting point
Optional Pole Mount, Adjustable angle VESA, Swing-arm Mounts, others
Environment
EMC & Safety FCC, Class A, CE, LVD
Operating
Temperature 0 ~ 40
Storage
Temperature -20 ~ 55
Operating Humidity 20% ~ 80% RH non-condensing
Storage Humidity 20% ~ 85% RH non-condensing
Dimensions
(W x D x H)
370 x 250 x325mm
Weight 8.1kg
OS Support Windows 7, POSReady 7, Windows 7 Embedded, XP,
POSReady 2009, XP Embedded, version of Linux
* This specification is subject to change without prior notice.
J2 680 System Manual
Version 1.0 May 11, 2012
10
LGA 1155
By using the latest desktop processors and chipsets, code named
Sandy Bridge, the J2 680 supports a very wide range of processors. By taking advantage
of J2 , and POS
computer designs, we are able to combine features of all three for an optimal POS system
design. The result is a POS system that can utilize a desktop chipset that draws very little
power and generates a low amount of heat, similar to mobile chipsets and processors.
Notebook quality components are used in the processor, chipset, and power supply
circuit, which allows for reduced heat generation and minimal power usage.
Additionally, the 680 takes full advantage of the low power features built into the Intel
processor and chipset to further reduce heat.
Hot Swappable RAID/ Dual Hard Drives
Like the J2 650, the first integrated POS system on the market to offer a hot swappable
RAID feature the J2 680 also supports this feature. The two internal 2.5 inch SATA hard
drives can be configured as a RAID array which gives true fault tolerance to the hard
drive subsystem.
PoweredUSB Ports / Power Port
Addressing the need for additional power ports the J2 680 supports two +12V and one
+24V PoweredUSB ports. The J2 680 can take advantage of growing availably or
PoweredUSB products on the market.
In addition to the three PoweredUSB port the J2 680 also support four powered serial
ports, and VGA +12V power, a +24V printer power port and 3 standard 2.0 USB ports.
By using a combination of these powered ports most all additional external power
supplies for devices like
display and other can be eliminated. This save space and reduces cost, cables and
powered consumption. Also in most installs this means only one AC power point is
needed. In additional with J2 optional UPS all these devices will be powered during a
power outage.
J2 680 System Manual
Version 1.0 May 11, 2012
11
UPS
Not your ordinary UPS, the J2 680 UPS is a DC, not an AC UPS. The UPS fits
conveniently into the base of the unit. Unlike an AC UPS the J2 UPS makes the 680 work
more like a notebook computer. In addition to running the 680 for up one hour, the UPS
will run all the POS peripherals attached to the 680, including the printer. Because of the
unique design of the J2 UPS and power supply, the need for special AC power
conditioning devices is eliminated.
Printer Power Port
The 24 volt Printer Power Port can power most POS printers on the market, including the
popular Epson line of printers. When used along with the J2 UPS, if a power outage
should occur, the POS terminal can still operate and print receipts for up to one hour.
Also, when the 680 is turned off the printer is turned off also. This is very useful when
the auto power on and off features of the 680 is used. This also applies to the +24V
PoweredUSB port (note, only one +24V port can be used at a time).
Cooling System
Great attention was paid to the thermal solution of the 680, it is truly a unique feature.
The 680 can run as a fan less or fan-cooled system. Because of the very wide range of
processors supported, thermal loads can range from 5 watts to as high as 95 watts. The
680 was designed to handle these thermal loads while still being super quiet. Two smart
fans are used in conjunction with an Embedded Controller (EC) to ensure that the fans
run at the lowest possible speed while still providing proper cooling. Fan speed changes
are controlled to produce the smallest acoustical signature possible. The 680 fans are the
type used in Blade Servers and have a speed range from 3500~10,000 rpms at very high
torque.
Fan-Off Mode
When using the i5 or lower performance processor the 680 can run in a fan-off
configuration. In the mode the 680 is a fan-less convection cooled device. This fan less
operation may be required for high dust or other special environments.
This feature is uniq
-
Versatility
The word versatility is very much over used, but it is the correct word to describe the
most unique feature of the 680. The combination of all the 680 unique features allows for
the 680 to fit many roles. The 680 is not just one product, but a full product range all in
one system. From fan less thin client to Quad Core RAID Server - the 680 does it all.
J2 680 System Manual
Version 1.0 May 11, 2012
12
Configurations
The 680 can be ordered or upgraded to many possible configurations. Selecting the right
combination of memory, processor, hard or solid state drive(s), and software drivers can
dramatically change the performance of the 680 system. For a lot of users the standard
530 2.4GHz dual core processor and 2GB of memory is fine, as this is already more
powerful most all POS systems, but some applications may require more horse power. In
this case the J2 680 could be configured with a quad core i5 or i7 processor.
J2 will be happy to help you determine what you may require from the 680 in the most
cost effective way. More memory may be added to get the performance needed, or
sometimes a quad core processor and dual HDD with RAID are needed. The 680 can do
it all, low end to high end.
Processor Support
The 680 supports a very wide range of Intel processors. Each provides a different price
performance level. From Celeron dual core, Pentium dual core and -3, i5 and i7 dual a
quad core with processor speeds from 2.4GHz to 3.4GHz are all supported by the 680.
The 680 comes standard with the Intel dual core 2.4 GHz G530 processor but can be
ordered with a different processor type. The processor can be easily upgraded by a
qualified technician. The 680 uses the Intel defined LGA1155 socket. Intel is constantly
adding new processors so please check with J2 for any additions since publication of this
manual.

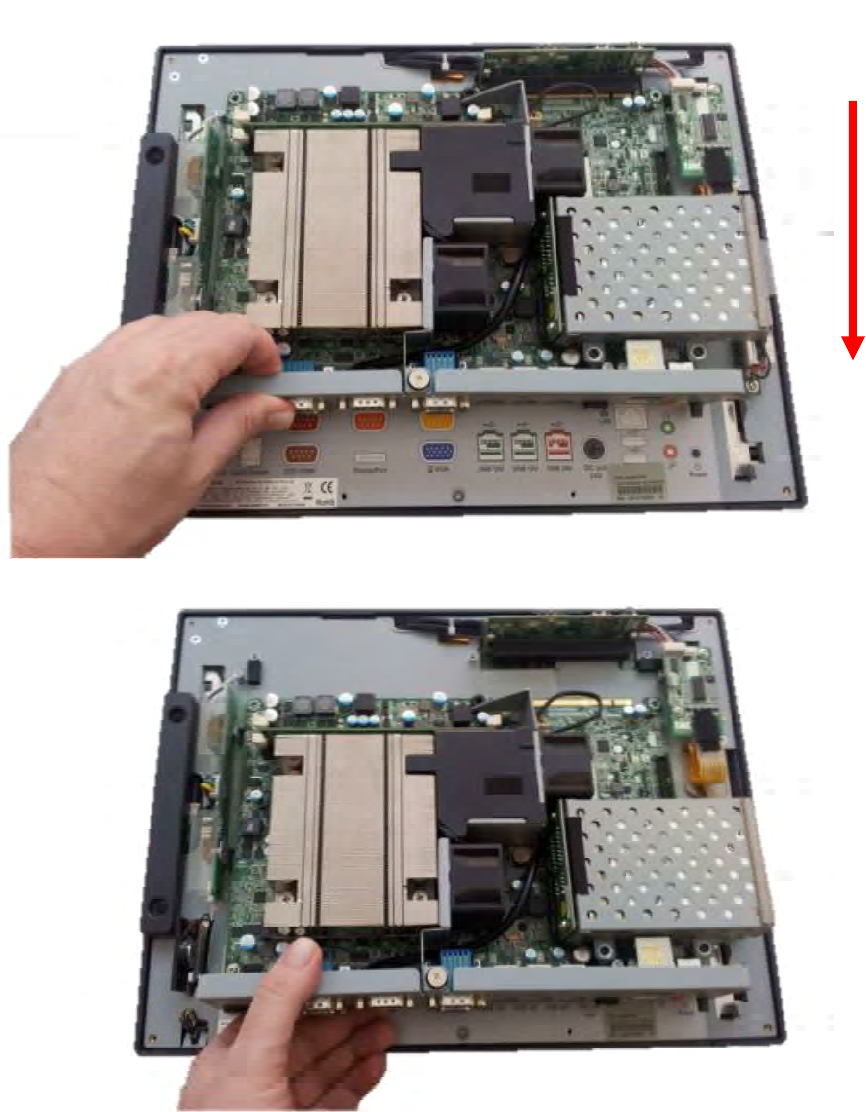

The large heat sink, cooling fans, and fan controller (shown below) are designed to keep
everything running cool, quiet, and reliably with the supported processors.

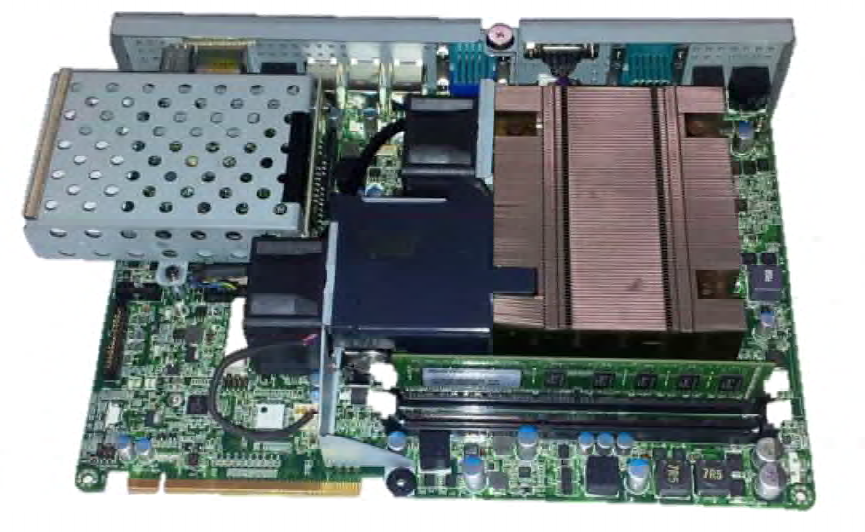

System Board, back view
Processors currently supported on the 680
I/O Ports

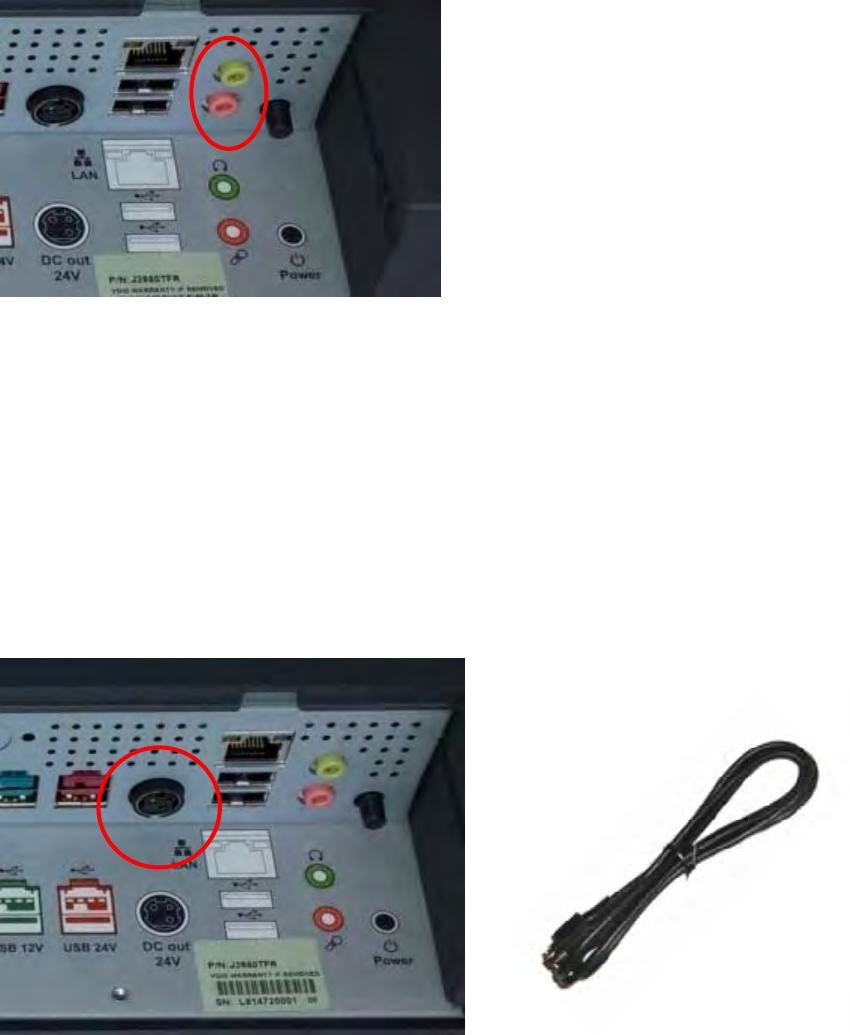

Most I/O ports are accessible in the cable well at the bottom of the unit. A cover plate is
provided to cover the cables.
I/O Panel
Off / On Button

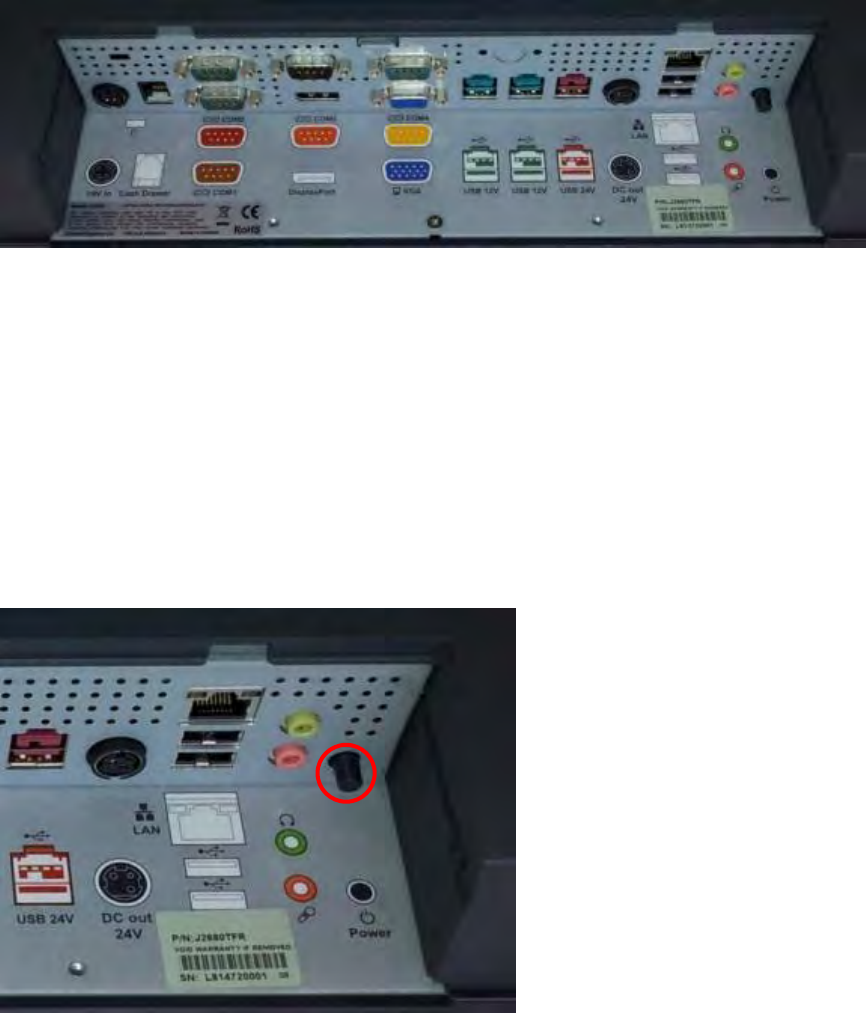

The Off /On button is located in the cable well, as shown. This button is located near the
side to prevent accidental powering down by the user. The function of the button can be
controlled by the OS. If the 680 hangs for some reason it can always be powered off by
holding the Off / On button in for six seconds.

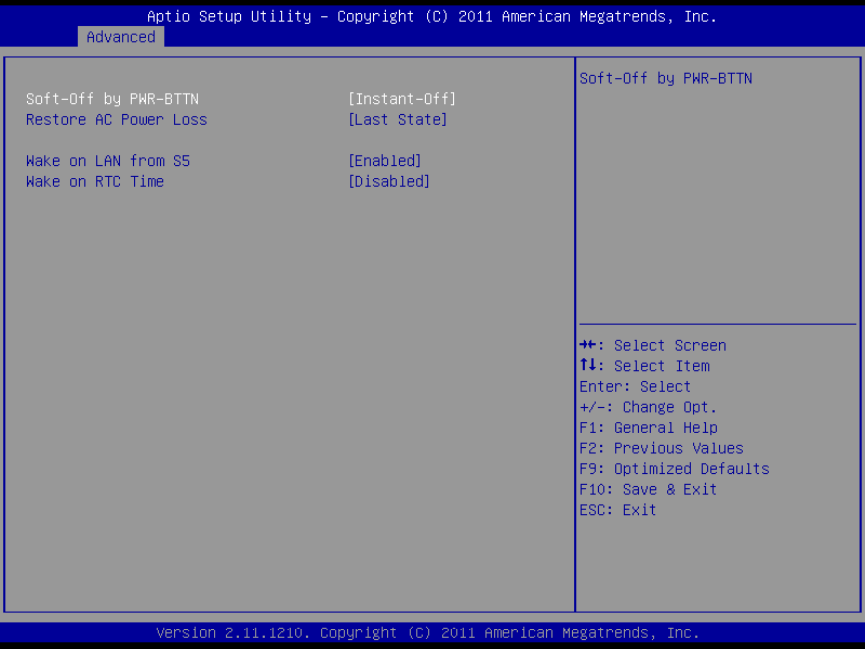

The 680 also supports the following: Restore on AC on power loss, Wake On LAN, and
Wake On RTC alarm features to control the system power up.
Off / On button Location
J2 680 System Manual
Version 1.0 May 11, 2012
15
Hard Disks
Two 2.5 inch SATA hard drives (HDD) or solid state drives (SSD) are supported. These

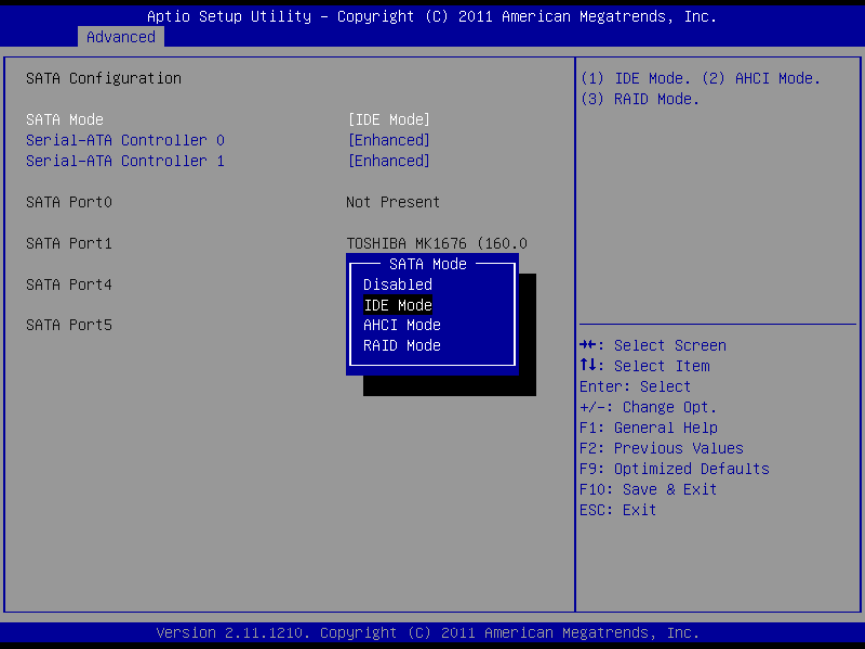

drives can be configured as standard hard drives or as a RAID array. The SATA interface
can support data transfer rates up to 6.0 Gb/s and supports AHCI and Hot Swapping of
hard drives.

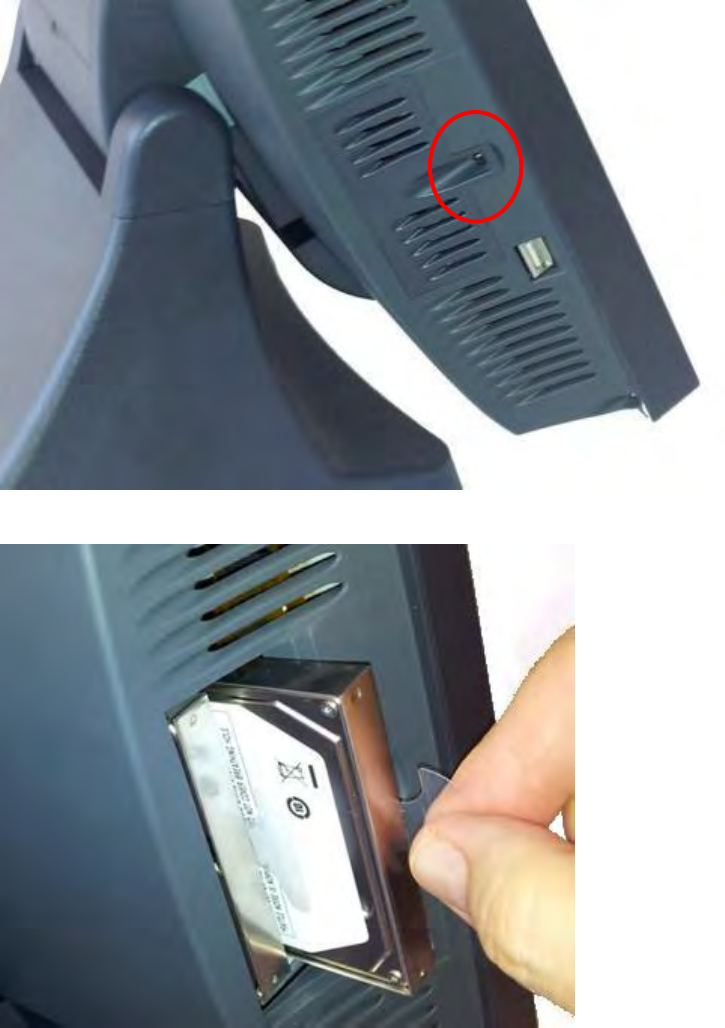

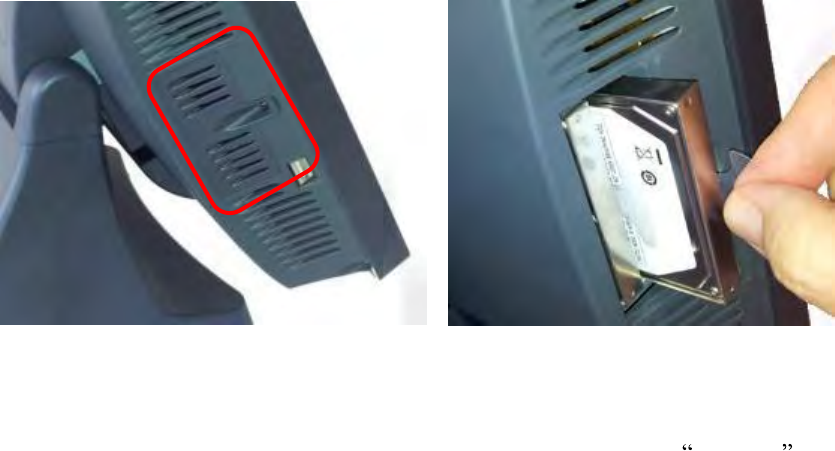

The HDDs can easily be accessed by removing a panel on the left side of the unit. HDDs
can be installed or removed in seconds by removing one screw. A carrying tray (two of
which are supplied with the 680) fits onto a new drive without tools. The drive can now
easily be slid into the drive bay. In a RAID 1 configuration a drive can be hot swapped,
removed, or inserted with the power on (see section on RAID setup).
HDD access panel
HDD slide in
-
slide out drive bay
Zero Bezel Touch Screen
The 680PTC unit uses a Multi-Touch Projected Capacitive technology touch screen
(PCT). The PCT touch screen has no known failure mode-- it does not wear out. This
screen is made with tempered glass and does not reduce the brightness of the LCD panel.
When operating in a very high use environment PCT is the recommended touch screen
technology. The PCT touch screen will work with most gloves and stylus designed to
work with tablet computers. The screen has a smooth glass surface that is reflective.
The 680TFR uses a five-wire touch screen rated at 35 million touches per point. The
resistive technology is very responsive and is the traditional choice for a hospitality POS
system. The screen has an anti-reflective plastic film surface.
Both screens are fully spill proof, dust proof and can be cleared with and standard glass
cleaner. The zero bezel, sometimes called true flat, design allow for this plus easy
cleaning. The 680 touch screen was designed to easily be changed, normally in less than
two minutes. Depending on operating environment and usage, both the Resistive and
PCT touch screens have strengths and weaknesses. J2 offers both touch screen
technologies on the 680.
J2 680 System Manual
Version 1.0 May 11, 2012
16
System Board
POS computers typically have a desired lifespan of 10 years or longer, therefore product
quality is of the utmost importance. The 680 electronics are built with high-end
components to ensure reliability and long lasting product performance.
The system board is designed for quick replacement and only has one connection, an
edge pin connector, to which all motherboard connections are made.
System board
LCD Display
The LCD display for the 680 is a 1024 x 768 resolution display with 16.2 Million colors.
The brightness is rated at 250cd/m2. The Intel controller allows for the display to be
rotated to 0, 90, 180 or 270 degrees without loss of performance.
The LCD brightness can be controlled in 8 steps, from 250 cd/m2 to 25 cd/m2. The
brightness can be set to a fixed level in the BIOS or controlled by a utility supplied by J2.
Secondary Video Port(s)
A standard PC VGA video port is supported on the 680 and can be set as the primary or
secondary display The VGA video port has an industry standard HD DB15 connector.
When used with some J2 monitors the display can be powered by the 680 through this
connector.
J2 680 System Manual
Version 1.0 May 11, 2012
17
The 680 also supports the newer digital video standard DisplayPort connector. This
connector supports a DisplayPort monitor or a HDMI display or DVI monitor. When
used with HMDI or DVI display a passive adapter cable is used. When used with a
HDMI display Audio is support via the same HMDI cable.
The secondary video displays can be configured as a Twin, Intel Dual Display Clone, or
Extended Desktop. Most all monitor resolutions from 640 x 480 to 2560 x 2048 are
supported.
Note that only one external video display is support at a time, either on the VGA video
port or the DisplayPort video port.

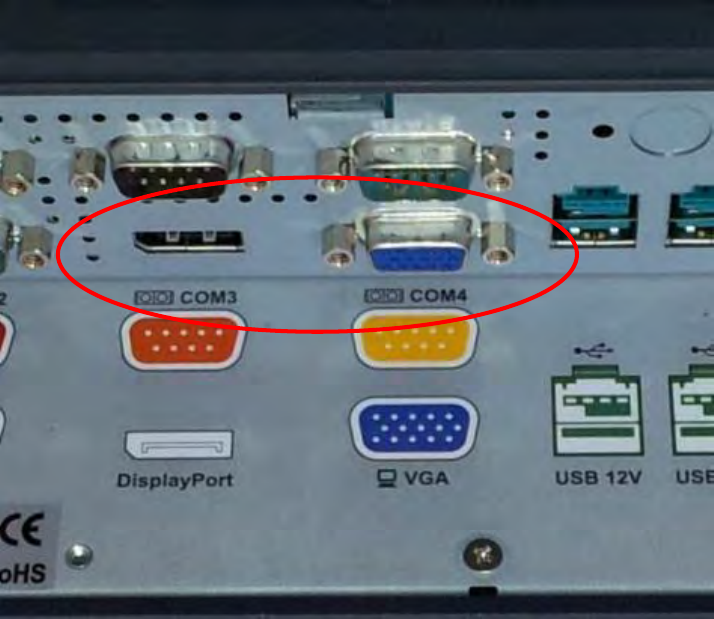

VGA and DisplayPort Video Ports
J2 680 System Manual
Version 1.0 May 11, 2012
18
Serial ports
The 680 has four external RS232 serial ports, all of which can be powered. The serial
ports are standard RS-232 ports with a DB9 male connector. The serial ports, in a normal
configuration, are mapped to COM 1-4.
There also four internal serial ports one of which is used for the resistive touch controller
and the other are reserved for other internal options.
COM ports 1-4 can supply power to an external device when required, like the optional
J2 Customer Display. COM 1 can supply +5 volt and COM 2-4 supply +12 volts. The
voltage is supplied on pin 9 (RI) of the DB9 connector. The maximum current is 1000ma
and is over-current protected. A BIOS setting is used to enable the voltage on each port.
J2 does not normally recommend using the +5 volt option on COM 1 and is only there for
some legacy devices. The problem is it easy for +5 volt device to be plugged into a +12
enable serial port by mistake which will burn out the +5 volt device. A good alternative
to powering a +5 volt serial device, or any +5V device would be to use power from an
unused USB port. Cables for this are readily available (see below).
DB9 pin out serial ports Serial Port
Pin
RS232
1 DCD
2 RD
3 TD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
USB to +5V cable
J2 680 System Manual
Version 1.0 May 11, 2012
19
USB Ports
The 680 has six external and 4 internal USB 2.0 ports. Of the six external ports (see
below) five ports are located in the cable well and one is located on the left side of the
unit for easy access. The four internal USB ports are as follows: one can be used for the
optional Finger Print Reader and is located on the MSR connecting point. The second
internal USB port is used for the PCT touch screen controller and the other internal USB
ports is designed for other optional internal devices. All the J2 680 USB ports can supply
1000ma of power, 500ma more than the normal for the USB specification.
PoweredUSB Ports
Of the 6 external USB 2.0 ports 3 are PoweredUSB ports. Located in the cable well are
two +12V PoweredUSB ports and one +24V PoweredUSB port. These ports conform to
the PoweredUSB standard.
It should be noted that these three ports can also be used as standard USB ports as well.
Normal +5 USB devices will plug into the bottom half of the connector without a
problem.
USB Ports
Side USB Port
J2 680 System Manual
Version 1.0 May 11, 2012
20
Ethernet Connection
The 680 uses the Intel 82579LM Gigabit Ethernet controller. The Ethernet connector is
located in the cable well, as shown below. The Ethernet controller supports Wake on
LAN, the BIOS supports a PXE boot ROM as well. There are two LEDs on the LAN
connector: the Green LED lights up when the LINK signal is present and the Amber
LED lights comes on when there is LAN activity. This Ethernet supports Intel AMT
feature when used with the correct processor.

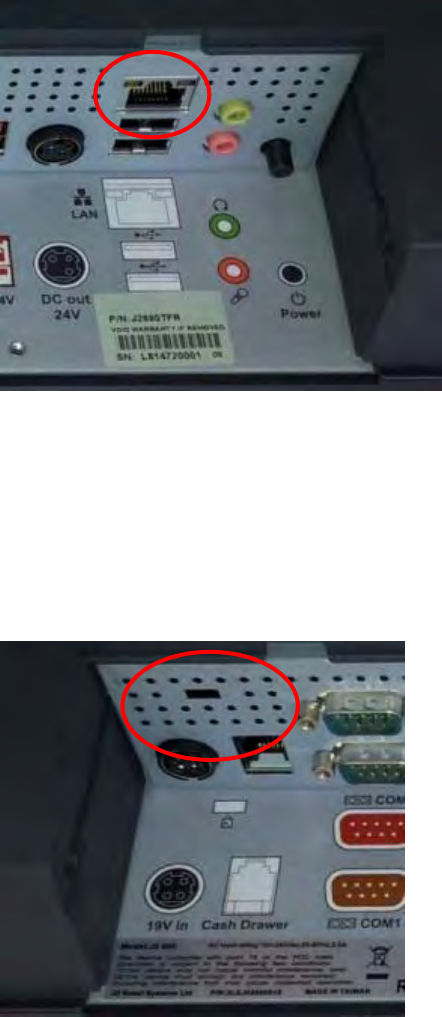

Ethernet Connector
Kensington Security Slot
There is a Kensington Security Slot (lock slot) on the 680. (Please see below).
It is located on the head in the cable well. The Kensington locks are normally used as a
deterrent to prevent opportunistic theft. Most retail locks will work with the 680, however
please check to see if a lock fits, as not all do.
Kensington slot Cable Well
J2 680 System Manual
Version 1.0 May 11, 2012
21
Audio
The 680 uses the VIA1708B HD audio controller. There is one internal speaker.
Both a microphone jack and a headset jack are located in the cable well of the 680, as
seen below, which allows for the connection of a microphone and headset or audio out to
other devices. Audio is also output via the HDMI port when used.
Audio Jack Location
Printer Power Port
The Printer Power Port allows an industry standard POS printer to be powered from the
680 and eliminates the need for a separate external power supply for the printer.
The Printer Power Port supplies 24 VDC 2.5 amps and 6.0 amp surge current which will
run most POS printers on the market. The power cable for this port is supplied standard
with the 680 unit. The Printer Power Port will also supply power to a printer even when
running on the optional UPS. When the 680 is powered down, then power to the printer is
turned off. This same power circuit is used by the +24 PoweredUSB port and normally
only one +24V device is supported at one time.
Printer Power Port Printer Power Port Cable
J2 680 System Manual
Version 1.0 May 11, 2012
22
6
1
Cash Drawer Port
The 680 is equipped with one Cash Drawer port that will support one or two drawers.
This port is located in the cable well and uses the industry standard RJ-11 connector and
pin out (illustrated below). This pin-out is the same as used by EPSON printers and
cables for the EPSON printer normally work with the 680.
Cash Drawer Ports
Cash Drawer 1 Pin Assignment
Pin Signal
1 GND
2 CD1 SOLENOID
3 STATUS / STATUS CD1
4 24V
5 CD2 SOLENOID
6 GND / STATUS CD2
The application may address the Cash Drawer port in two ways:
1) Using the J2-supplied OPOS drivers for Windows.
2) Direct access to the I/O ports
3) J2 supplied Virtual Serial Cash Drawer Emulator
J2 680 System Manual
Version 1.0 May 11, 2012
23
Cash Drawer Controller Register
The Cash Drawer Controller use one I/O address to control the Cash Drawer.
Register Location:
48Ch
Attribute:
Read / Write
Size:
8bit
BIT
BIT7
BIT6
BIT5
BIT4
BIT3
BIT2
BIT1
BIT0
Attri
bute
Read
Reserved
Write
Reserved
7
6
5
4
3
2
1
0
X
X
X
X
X
Reserved
Cash Drawer 1 fire
Cash Drawer 2 fire
Reserved
Cash Drawer 1 status
Reserved
s on the one RJ-11 is the same as is used
on Epson printers.
J2 680 System Manual
Version 1.0 May 11, 2012
24
CMOS Clear

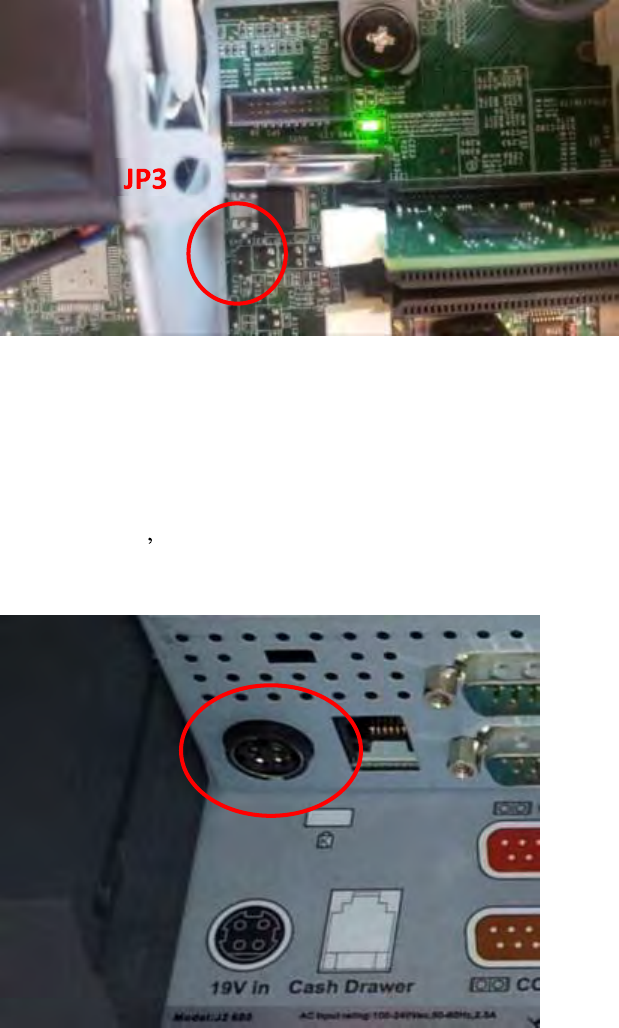

The 680 CMOS can be cleared jumping JP3 pin 1-2 then removing the jumper.
Power Supply
The 680 uses a notebook type power supply that is normally mounted in the base of the
unit. The power supply is rated with an output of 180 watts 19 VDC 9.47 Amps and has
an input rating of 100-240VAC at 50~60Hz 2.5Amps maximum. The power supply has
an efficiency rating IV. The power supply connector is a four pin locking type that plugs
into the system s power input connector located in the cable well.
Power Input connector
J2 680 System Manual
Version 1.0 May 11, 2012
25
Typical Power Consumption 680
The typical power consumption of the 680 is lower that most desktop computers. Using
the latest ssors and chipset allows for much lower
power consumption than previous generations of POS computer. This when coupled with
proper system configuration can greatly reduce the systems total carbon foot print.
Test conditions
Voltage: 220VAC 50Hz, measured voltage 236 VAC
OS: POSReady 7
Heavy Load Program: PassMark BurnInTest defaults values
Maximum load: PassMark BurnInTest Max CPU Temp
Temperature: 26c
All system where tested in there standard hard drive configuration. Results are +/- 15%.
J2 680 G850 2.9GHz Pentium
1: Normal application including most POS software 40 watts
2: Very heavy load application 57 watts
3: Maximum load 64 watts
4: Normal POS app, back light off 20 watts
5: Standby, unit off, waiting for wake on LAN, RTC or power button >4 watts
J2 680 System Manual
Version 1.0 May 11, 2012
26
Removing the Head from the Base
The 680 is shipped with a counter top base which allows for the head to be adjusted from
0-90°.
To remove the integrated head from the base, fully loosen the thumbscrew located on the
back of the unit under the hinge of the counter top base, as shown below. Then lift the
head as illustrated:

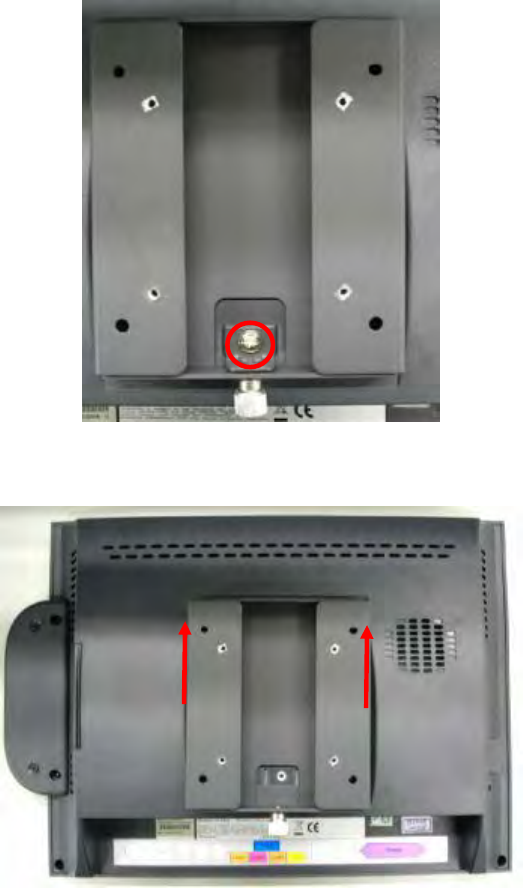

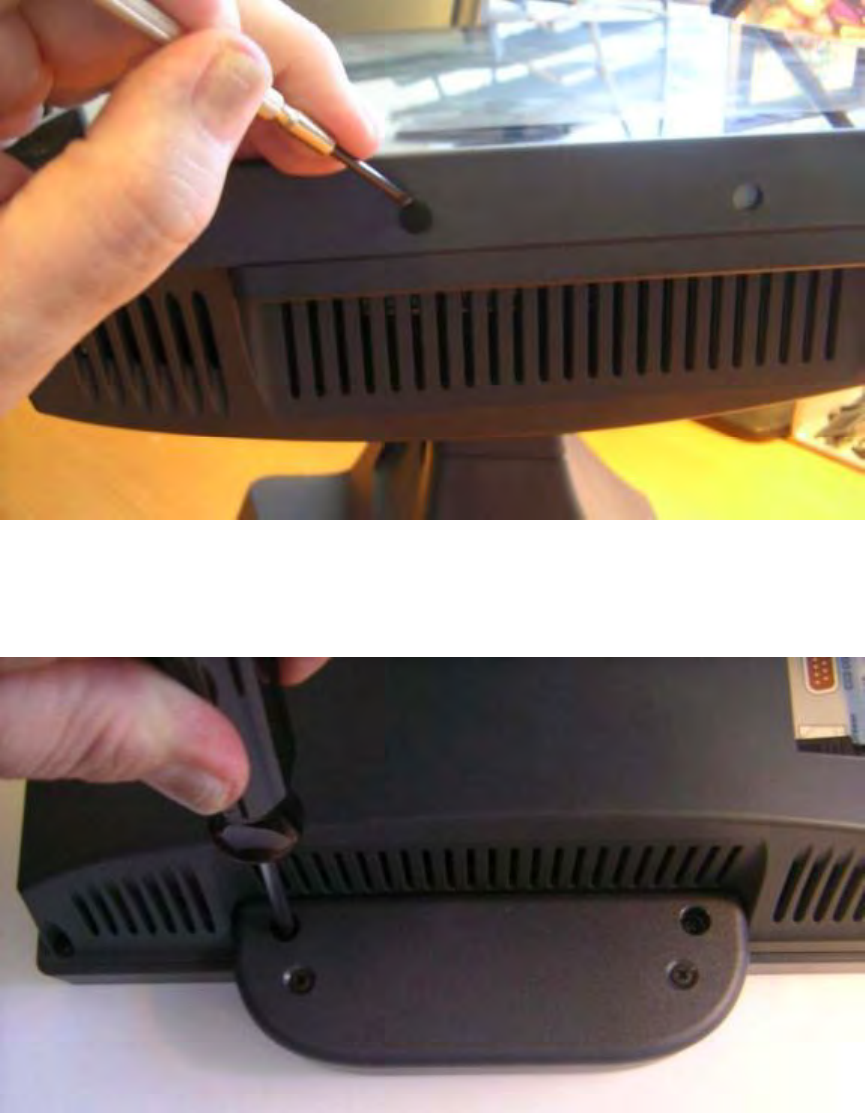

Loosen Thumb Screw
Slide Head up to remove
J2 680 System Manual
Version 1.0 May 11, 2012
27
Removing the Power Supply
The power supply is normally located in the counter top base. When using a wall mount
bracket or the J2 UPS, the power supply would be external from the unit.
To remove the power supply from the base, three screws needs to be removed as shown.
Screw locations
J2 680 System Manual
Version 1.0 May 11, 2012
28
VESA Mounting
The 680 unit also supports the industry standard 100mm VESA mounting. The same
mounting hard point used for the counter top base is used for VESA mounting. The four
point that thread holes for 4mm screws.
100mm VESA Pattern
Threaded Mounting point(s), 4mm screw
J2 680 System Manual
Version 1.0 May 11, 2012
29
Optional Wall Mount Bracket Installation
The wall mount bracket has threaded mounting holes (screws provided) for the 75mm
VESA standard; and unthreaded holes for the 100mm standard.
Using the 100mm hole pattern the bracket can be used by itself as a wall mount bracket.
After installing the thumbscrew clip mount bracket to the wall, hang the J2 680 on the
bracket.
Install screw to secure thumbscrew clip
The bracket slides on to the J2 680 mount posts, as shown. Normally the bracket would
already be mounted to the wall or a VESA mount and the 680 would be hung on the
bracket. Once in place the thumb screw would be tightened.
J2 680 System Manual
Version 1.0 May 11, 2012
30
Removing the Back Cover
The following steps show how to disassemble the 680 for servicing:

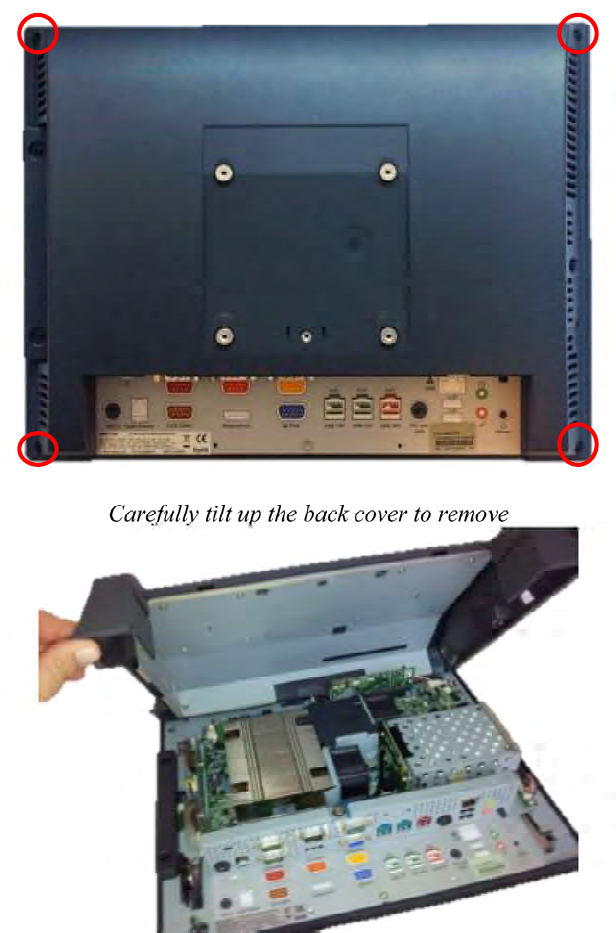

On a clean, protected surface, place the unit screen-side down. Remove the four cover
screws as shown. Carefully lift the back cover as shown.
Remove four screws where
shown
Carefully tilt up the back cover to remove
Note: The 680 was designed so that the internals of the unit could be accessed without
having to remove the mounting base or the mounting bracket of the unit.
J2 680 System Manual
Version 1.0 May 11, 2012
31
Changing the System Board
*Special Note: An anti-static workplace with proper grounding is required when
changing the System Board.

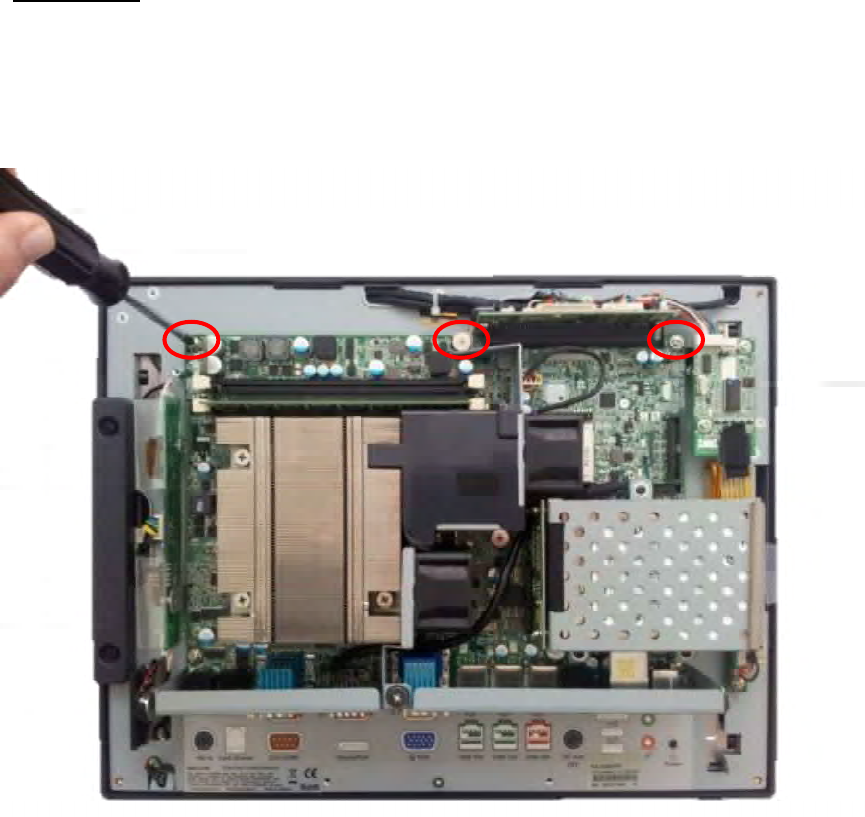

First remove the back cover. There are 3 screws that hold the system board in place that
will need to be removed. (see photo below)
Three screws to remove System Board
J2 680 System Manual
Version 1.0 May 11, 2012
32
After the screws are removed the system board can be unplugged from its connector.
While using the I/O bracket to pull on, slide the board out towards the bottom of the unit
as shown.
When reinstalling the system board make sure the locking tabs on the bottom of the board
lock into their mating slots.
J2 680 System Manual
Version 1.0 May 11, 2012
33
Adding Memory
Note: An anti-static workplace with proper grounding is required when adding
memory. Remove the back cover. You can now access the two memory sockets, the
order in which the memory is populated does not matter.
The J2 680 supports up to 16GB of memory in two sockets. Memory type is 240 DIMM
DDR3 1066/1333.

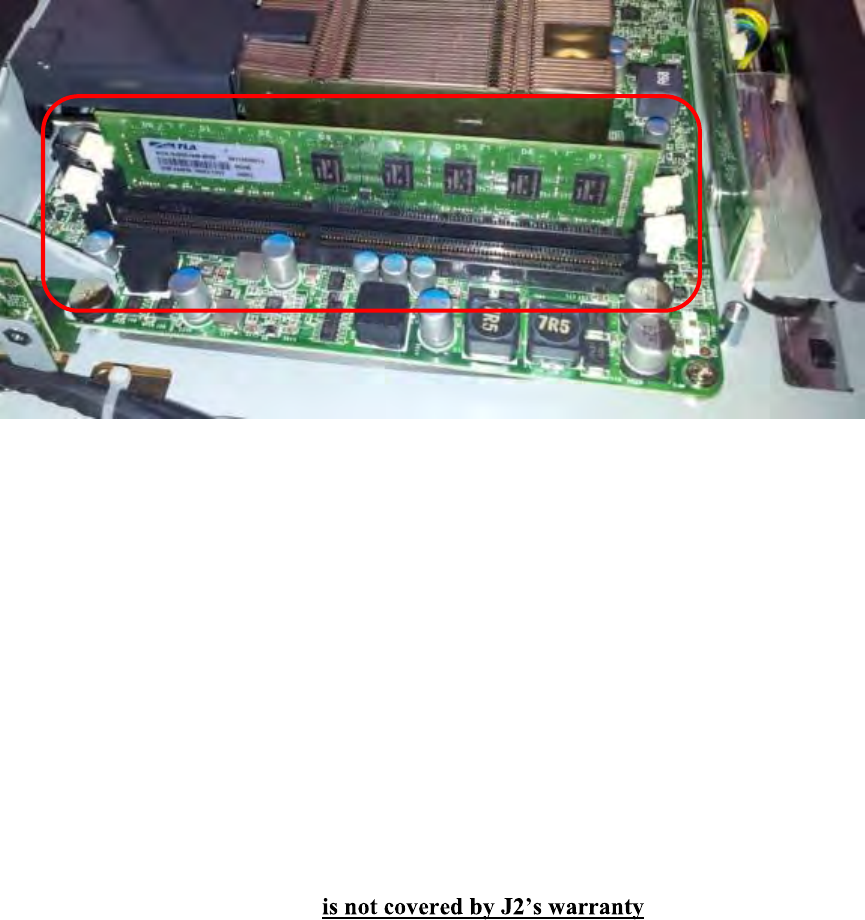

Memory sockets
Changing the Processor
To change the processor, first start by working in an anti-static workplace with
proper grounding. Remove the back cover by removing the four screws; now remove
the black plastic fan duct.
Loosen the four spring-loaded screws that secure the processor heat sink by loosening.
Each screw about two turns at a time so that the pressure is removed from the socket
evenly. Once the screws are free you will now be able to remove the heat sink.
It will stick because of the heat sink compound, so take care to move it gently from side
to side until it comes off. Set the heat sink aside, top side down.
You can now remove the processor from the socket. Push the locking lever down, push
out from the locking tab, and move up as shown. Now carefully lift the cover up and you
can remove the processor. **Be sure only to touch the edges of the processor and do
not touch the processor pads of the socket pins. These socket pins are very easy to
bend and damage to the socket .
J2 680 System Manual
Version 1.0 May 11, 2012
34
Accessing the HDD/SDD Drives
Remove cover screw then remove cover
Remove or insert drive as needed
The HDD/SSD may be hot swapped when in a RAID 1 configuration. In non-RAID 1
configurations the unit should be powered down before changing a drive or data may be
lost. No physical damage will happen to the HDD if inserted or removed with power on.
J2 680 System Manual
Version 1.0 May 11, 2012
35
Entering the BIOS Setup
To enter the BIOS Setup, turn on or reboot the 680 and press the DEL key after the BIOS
sign-on screen appears. The main menu of the BIOS setup will be displayed, this can take
a few seconds. If the supervisor password is set, you must enter it here. The area on the
right side of the screen displays a help window for the current screen or BIOS option.
BIOS setting should only be change by qualified personal as changing some setting can
cause the system not to function properly.

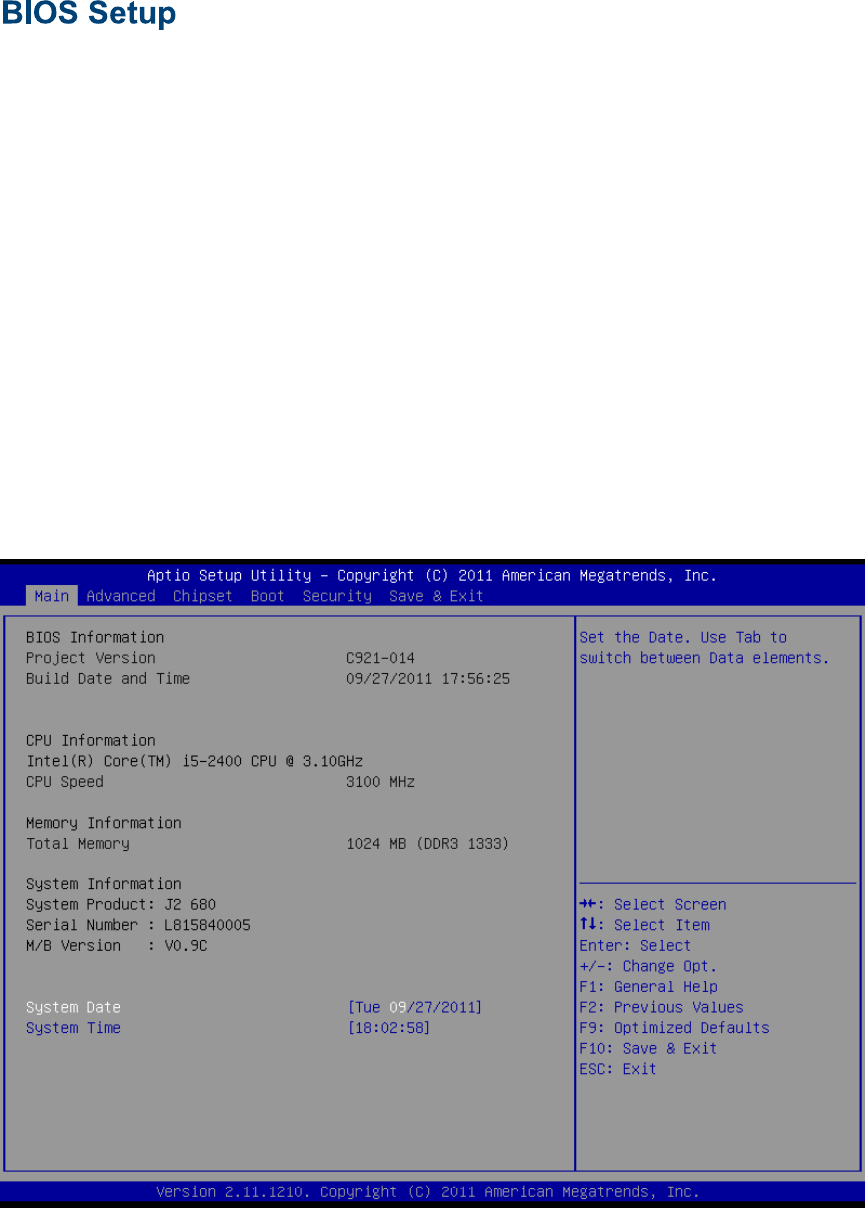

Main, System Overview
In this screen the system time and date are displayed and can be set. The time and date
can also be set through the OS. This screen also displays the BIOS version (project),
BIOS Build Date, CPU type, CPU speed and DRAM memory size, Product type, System
Serial Number and mother board revision. The serial number of the mother board and the
system are the same.
Main screen
J2 680 System Manual
Version 1.0 May 11, 2012
36
Advanced Settings

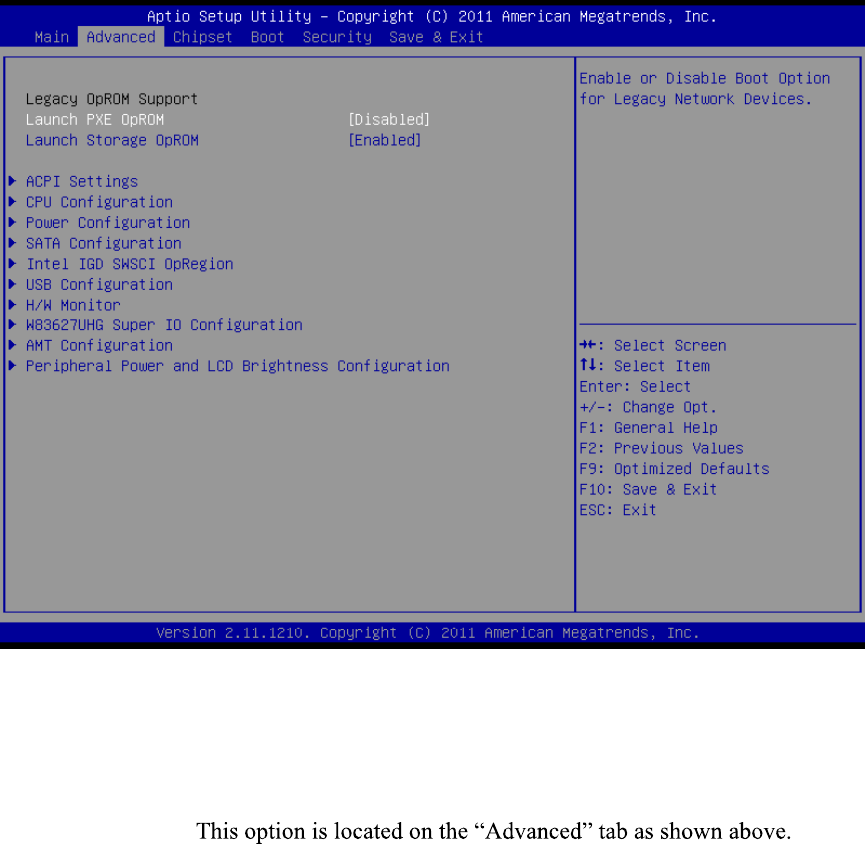

This menu contains settings to control a number of system functions. Most these settings
are self-explanatory.
Advanced Setting Screen
Launch PXE ROM
This setting enables the built- in PXE LAN remote boot rom. This allows the system to
run as a diskless workstation, or to be able to download a drive image to a blank drive.
When enabled, a message screen will appear and Shift-F10 can be typed to access the
PXE ROM options.
J2 680 System Manual
Version 1.0 May 11, 2012
37
SATA Configuration
In this screen the SATA hard drives can be set to work in one of three modes, SATA,
RAID or AHCI.
When set to SATA, the SATA drive works the same as a normal IDE HDD. This is the
IDE compatible mode and default BIOS setting. The other two selections are RAID and
AHCI modes. Please see the separate section in the manual for RAID Setup for further
information on using RAID and AHCI modes.
SATA Configuration Screen
J2 680 System Manual
Version 1.0 May 11, 2012
38

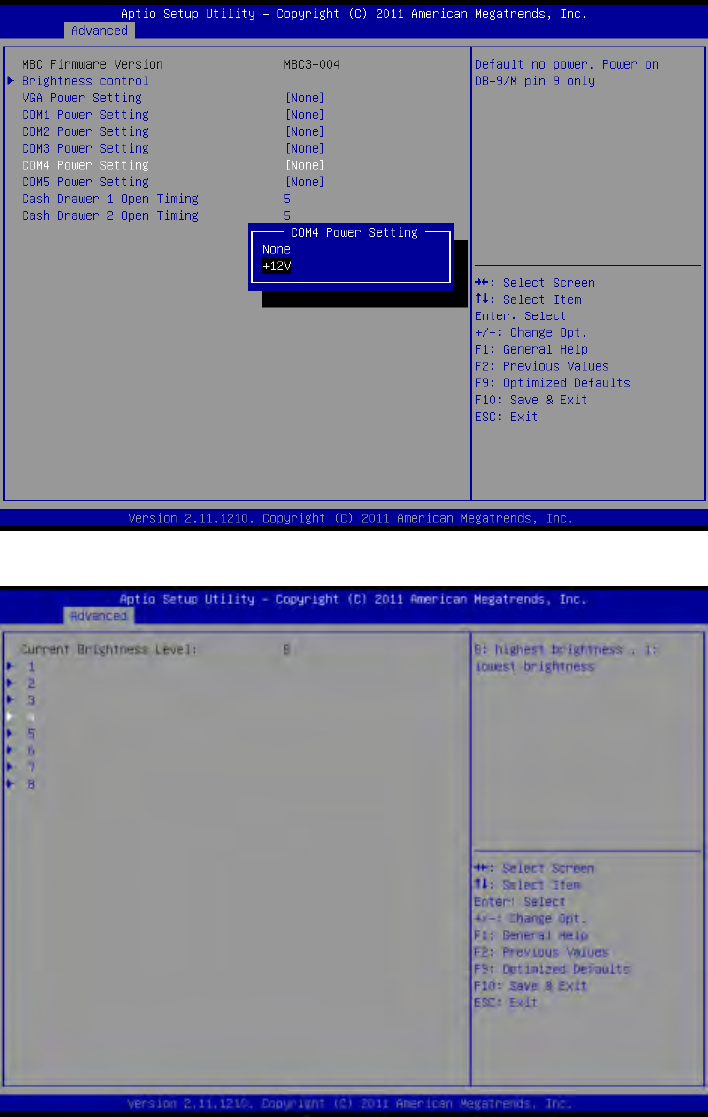

Peripheral Power and LCD Brightness Configuration
This submenu allows for the enabling of power for the serial ports, default cash drawer
pulse timing and default LCD brightness level and power for a J2 supplied VGA port
monitor.
Power enable for serial Ports
LCD Brightness Setting
J2 680 System Manual
Version 1.0 May 11, 2012
39
Power Configure Screen
Power Configure Screen
Restore on AC Power Loss
The 680 has three options should AC power become lost and then restored. There is
Power Off (stay turned off), Power On (turn on when AC restored), or Last State. The
Last State setting will cause the unit to turn on if it was on when AC power was lost or it
will stay off if the unit was off when AC power was lost.
Wake on LAN
Wake on LAN is enabled by default but can be disabled in this screen.
RTC Configuration
The RTC has an alarm function that can be used to turn the 680 on at a preset time of
day. This function is enabled by this setting. The wake up time can also be set here.
J2 also has available a utility to set the wake-up time from Windows. This is more
versatile than the BIOS setting as it allows for more than one time of day to be set as well
as days of the week to turn on.
J2 680 System Manual
Version 1.0 May 11, 2012
40
Boot Settings

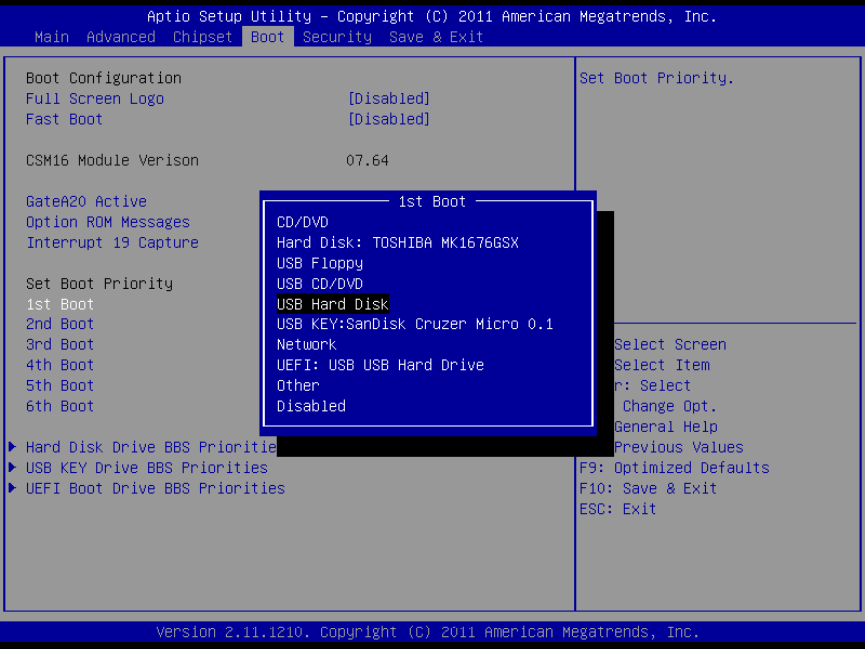

If more than one bootable device is in the system the boot order can be set in this menu.
If a bootable USB storage device is plugged in at boot up the 680 will boot from that
device by default. If this is not desired the boot order can be changed here. A list of
detected drives will be displayed with the current boot order.
Boot Settings Screen
Display OEM Logo
The BIOS can display two types of OEM logos on boot up. The default is a small J2 logo
in the upper left hand corner. With this setting BIOS POST test messages can be seen
during boot up. The second type which is enabled by this entry is a full screen J2 logo.
When this logo is selected the BIOS POST messages cannot be seen. The BIOS setup can
still be entered by typing the DEL key a few seconds after the logo appears.
Customer logos can replace the J2 logos when required. Please contact J2 regarding this,
if required.
J2 680 System Manual
Version 1.0 May 11, 2012
41
Exit Options

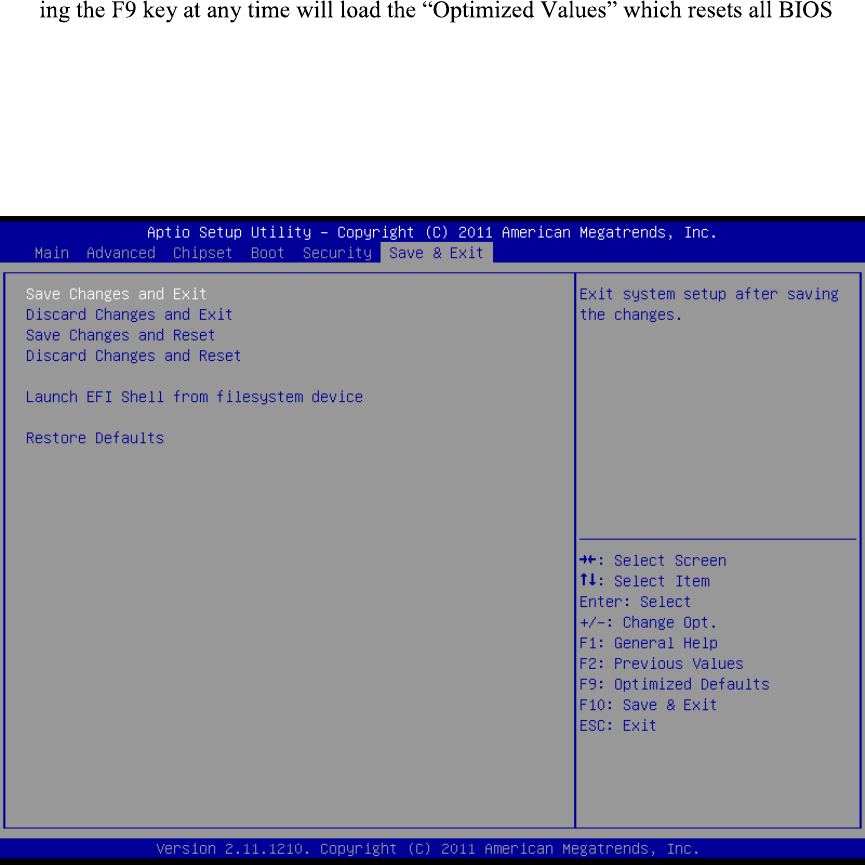

After making any changes to the BIOS settings, the changes can be saved from this
screen. Any changes can be discarded as well or the factory BIOS defaults can be loaded.
Typ
setting to the factory defaults.
It should be noted that to save changes to the BIOS setup the F10 key can be typed from
any screen to save the BIOS changes. It is not necessary to exit setup from this screen.
To discard any BIOS setup changes you can type the ESC key from any screen to exit.
Exit Options Screen
J2 680 System Manual
Version 1.0 May 11, 2012
42
Chipset Driver Installation
The chipset driver is needed to get the full potential from the 680 chipset. It should be
loaded before other drivers and first thing after booting. The drivers can be downloaded
from the J2 web site:
http://www.j2retailsystems.com/support/680/Chipset/.
After extracting the drivers to a temporary folder, run Setup.
Just answer Next or Yes to all the screen prompts and the drivers will install.
Graphics Driver Installation
You can download the 680 graphics driver from the J2 web site at:
http://www.j2retailsystems.com/support/680/Graphics/.
This is an .exe file so just run it and answer Next or Yes to all screen prompts and the
drivers will install. The last screen will ask if you want to reboot, answer Yes.
J2 680 System Manual
Version 1.0 May 11, 2012
43
Audio Driver Installation
The Audio Drivers can be downloaded from the J2 web site at:
http://www.j2retailsystems.com/support/680/Audio/.
After extracting the driver to a temporary folder, run Setup, and then follow the
instructions below:

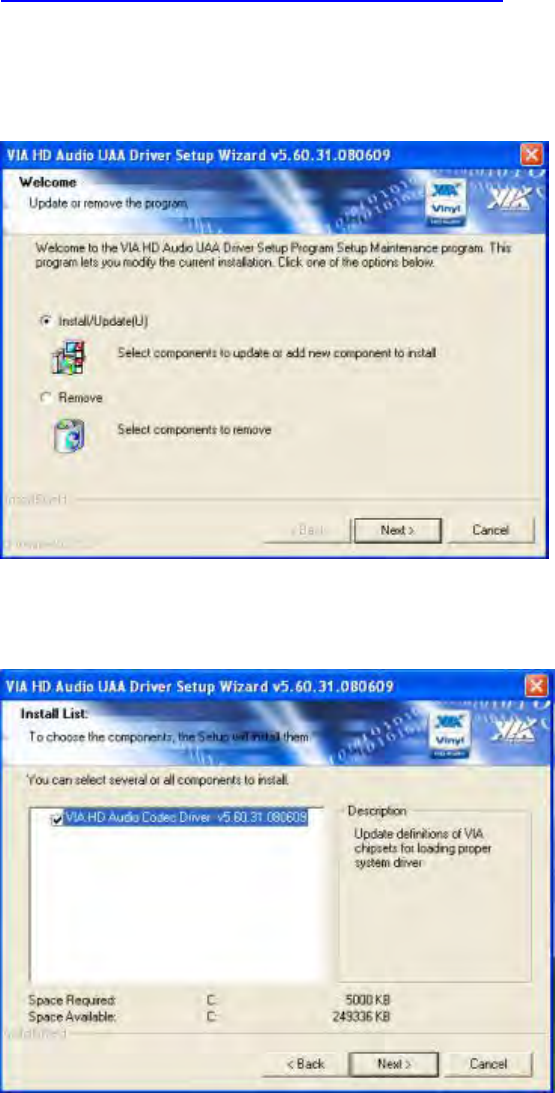

First Audio setup screen
Just click on Next to install the Audio driver.
Second Audio setup screen
Check the Codec Driver box, and then click Next. Answer Next to any more dialog
boxes, then Finish. The system will need to be rebooted before the audio drivers take
effect.
J2 680 System Manual
Version 1.0 May 11, 2012
44
LAN Driver Installation

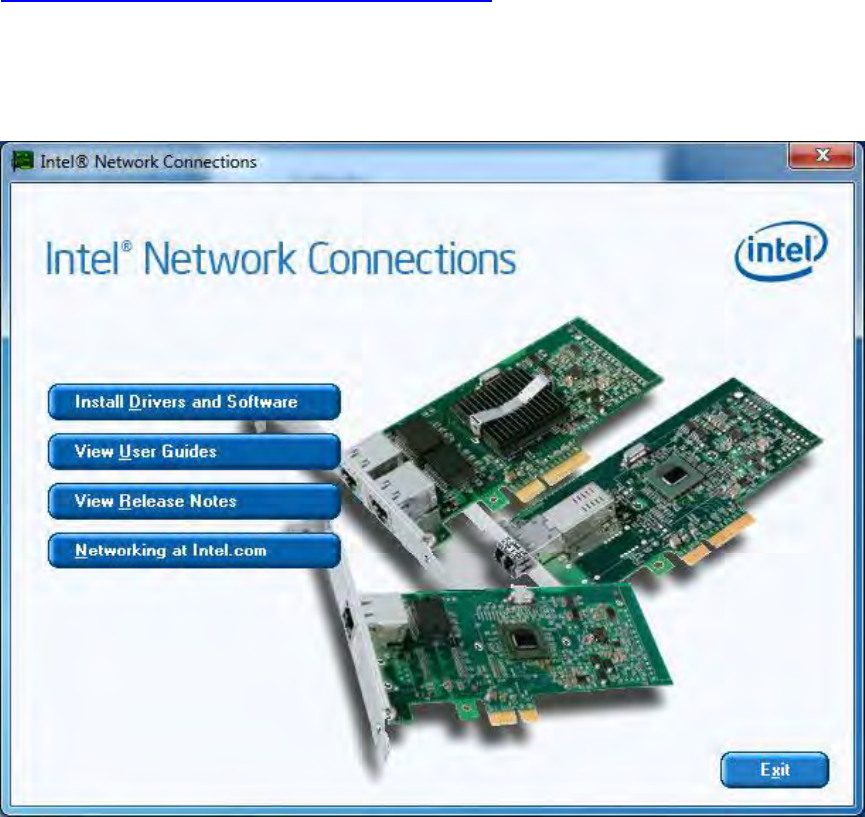

The LAN drivers can be downloaded from the J2 web site:
http://www.j2retailsystems.com/support/680/LAN/.
After extracting the driver to a temporary folder, run Setup. Just answer Next or Yes to
all the screen prompts and the driver will install.
LAN driver install screen
J2 680 System Manual
Version 1.0 May 11, 2012
45
Resistive Touch Screen Driver Installation
The Touch Drivers can be downloaded from the J2 web site at:
http://www.j2retailsystems.com/support/680/Touch/.

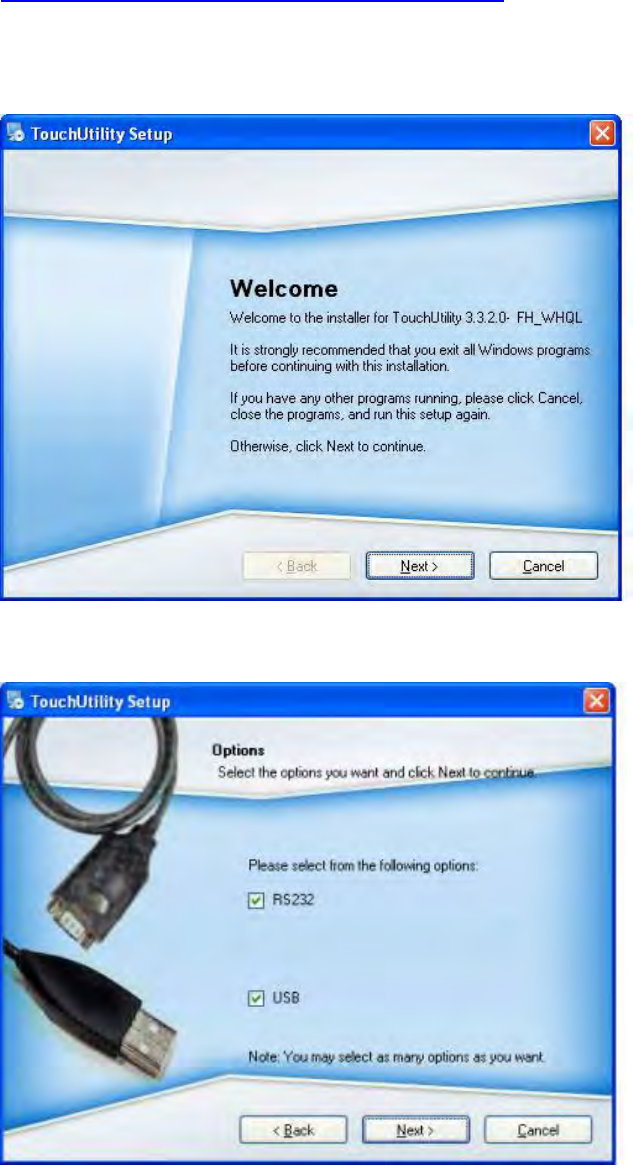

When run, the diver will display a welcome screen, at this point just press next for the
next few screens.
When you get to this screen check both RS232 and USB options and click next.
Just click till this screen and then click next and the driver will finish installing.
J2 680 System Manual
Version 1.0 May 11, 2012
46
Click finish at the screen. The driver will then detect the port the touch screen is on
(normally COM6) then ask you to reboot the system.
After rebooting the touch should be working. Calibration is not needed as this is done at
the factory.
J2 680 System Manual
Version 1.0 May 11, 2012
47
Multi-Touch Projected Capacitive Touch Driver
No touch driver needs to be loaded for the PCT touch screen because it uses the
Microsoft built in pen and touch driver, No calibration is needed for the projected
capacitive touch screen. The driver options can be accessed via the Windows control
panel. The built in Windows pen and touch driver is present in XP, Vista and all versions
Windows 7.

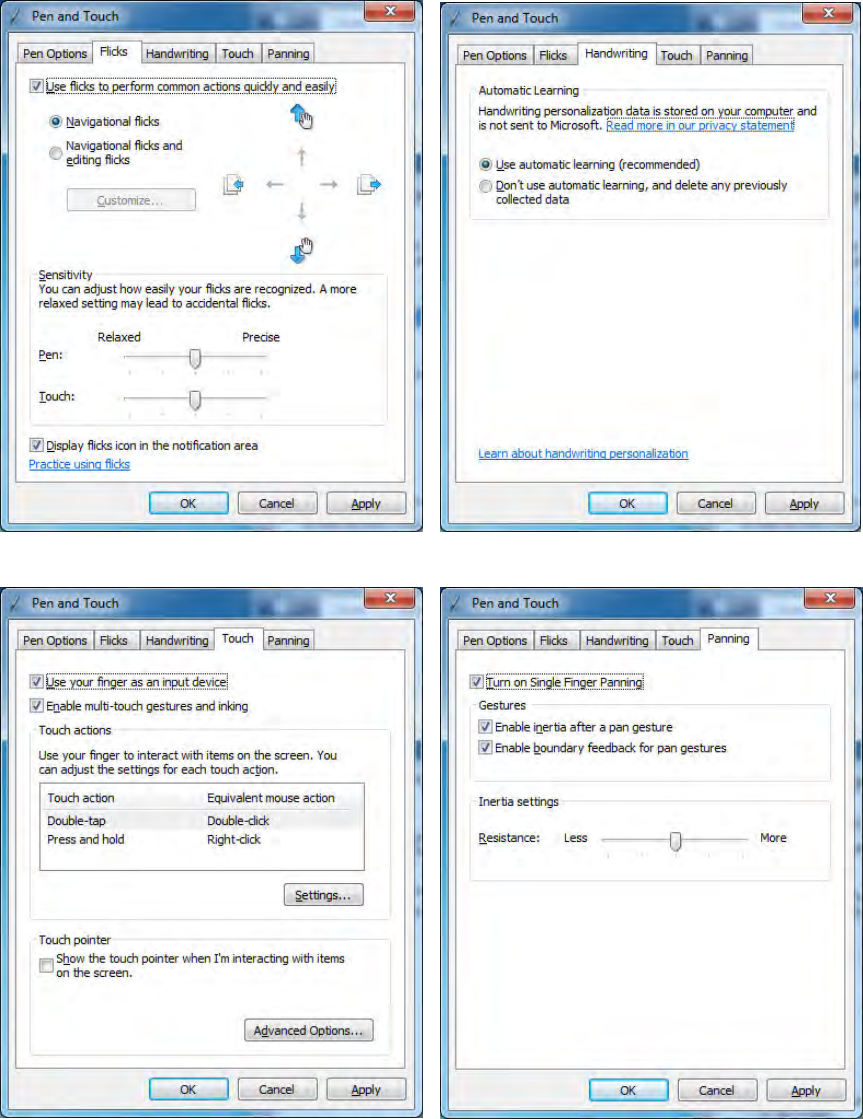

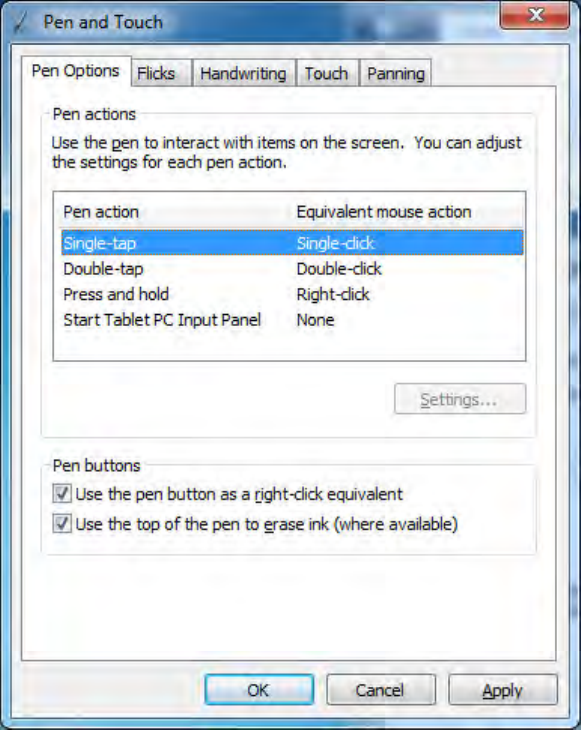

The first page of options allows for the change how your finger or stylus interacts with
the screen. The sensitivity and function of touch to the screen can be changed here.
J2 680 System Manual
Version 1.0 May 11, 2012
48
The other four option tabs are shown below for reference. They are self-explanatory in
most case and additional information can be obtained through the Windows help
function.
J2 680 System Manual
Version 1.0 May 11, 2012
49
Optional Multi-Touch Projected Capacitive Touch Driver
In addition to the Windows built in standard touch driver J2 also supplies and optional
touch driver that is used when multi-monitor touch support is needed. This driver works
with Windows XP and later version of Windows. The driver can be downloading from
J2 web site.
To install just extract the zip file where you wish to run it from and run setup. When
asked to install PS/2 or RS-232 driver answer no, the PCT controller is a USB device.
When the install is complete it will ask if you wish to do a 4 point calibration, answer no
to this as the PCT screen does not need calibration. The touch will now be working.

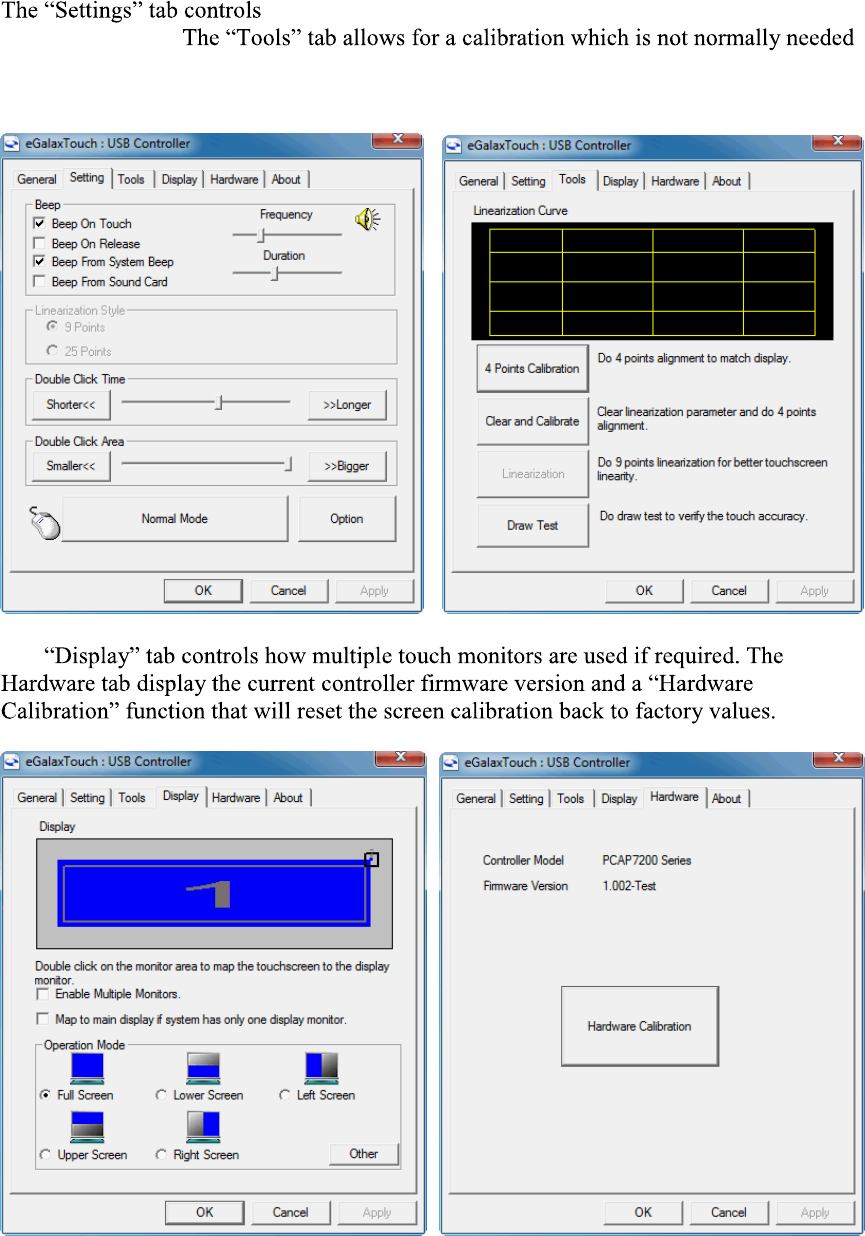

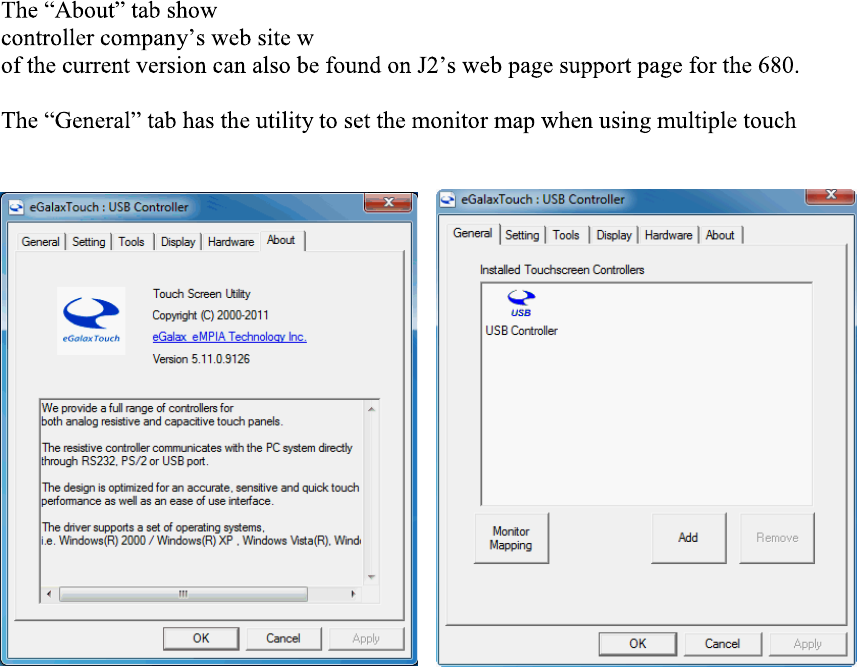

The PCT touch configuration utility can be found in programs under eGalax Touch,
Configuration Utility. This program allows for the configuration of the touch screen
option.
s the current version of the touch screen plus has a link to the touch
here the latest version of the driver can be found. A copy
monitors.
J2 680 System Manual
Version 1.0 May 11, 2012
50
the touch on beep, double click function and right mouse
button emulation.
for a PCT screen. A draw test is provided to verily the operation and calibration of the
touch screen.
The
J2 680 System Manual
Version 1.0 May 11, 2012
51
OPOS drivers
The OPOS driver for the 680 supports the Cash Drawer ports, the optional MSR,
the optional 2x20 character Customer Display, and the optional iButton reader.
The OPOS driver may be downloaded from the J2 web site at:
http://www.j2retailsystems.com/support/680/.
Just run the OPOS setup.exe file to install.
J2 680 System Manual
Version 1.0 May 11, 2012
52
J2 has a standard program that works with all its POS products, called J2 Health. This
program is used in either a standalone mode or in conjunction with J2 remote
monitor/asset tracking software. The J2 Health program monitors different aspects of the
POS hardware to ensure the hardware is running within specification. For the J2 680 it
monitors critical system voltages, as well as system and CPU temperatures.
Installation
The utility can be downloaded from the J2 web site:
http://support.j2rs.com/Utilities/Health/ To install just unzip anywhere and run setup.
Like other J2 utilities it can be uninstalled through the Windows control panel.
Tray Icon

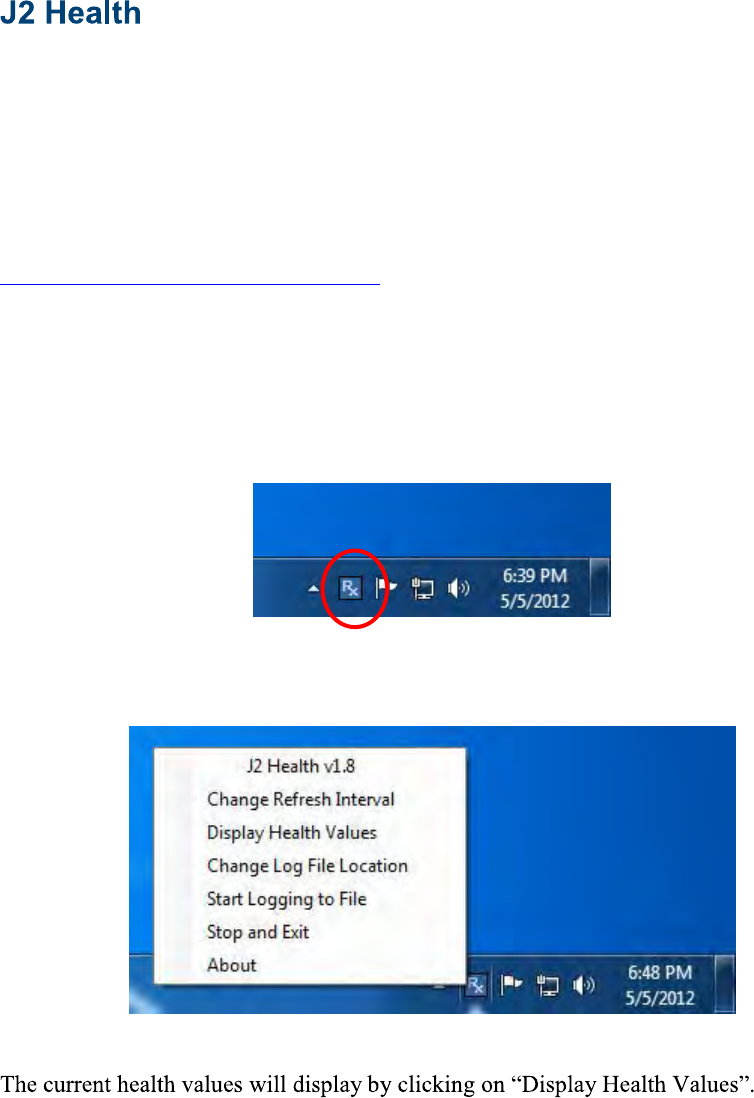

Once installed and the system has rebooted, J2 Health will be running in the background.
The J2 health icon will appear in the task bar tray:
Right-clicking on this icon displays different Health options, shown below:
A sample screen is shown below:
J2 680 System Manual
Version 1.0 May 11, 2012
53

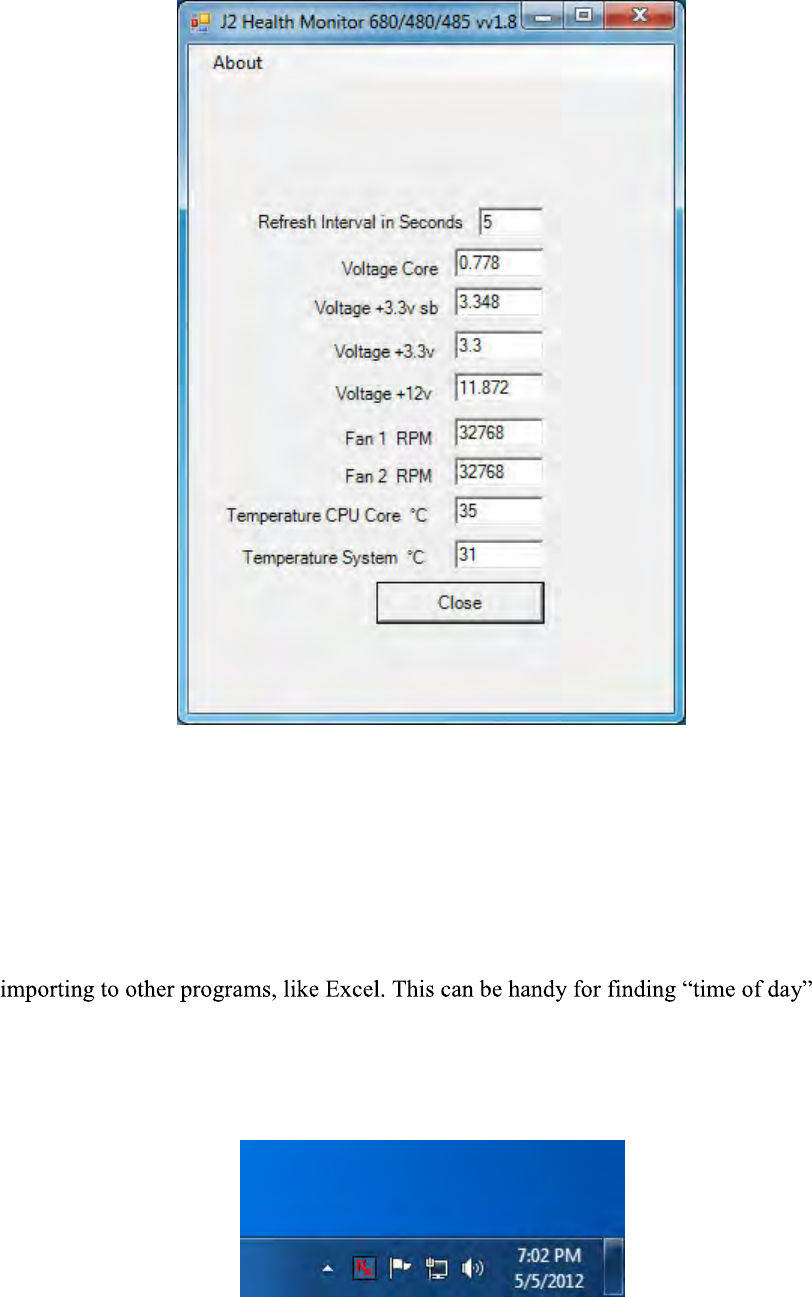

As can be seen above, when running on the J2 680 the J2 Health program displays critical
system voltages and system and CPU Core temperatures. For other J2 POS systems, J2
Health may display more or less information. An example would be the J2 680 unit,
which in addition to the above information would also display the fan speed of the two J2
680 fans.
Logging to File
The J2 Health program can log the health data to a file in the csv text format for
related problems.
When logging is enabled, the tray icon Rx symbol will change to red to indicate logging
in is taking place.
J2 680 System Manual
Version 1.0 May 11, 2012
54
Registry Entries

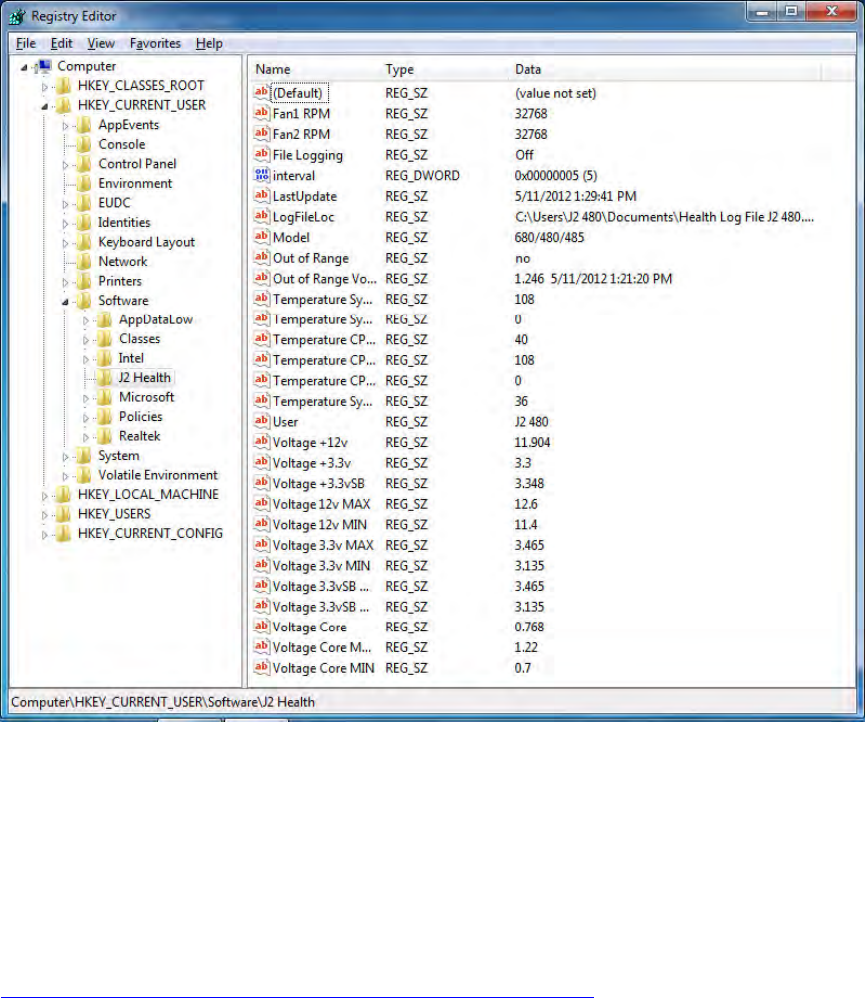

The J2 Health program creates registry entries for the different health values. Dynamic
values are updated at the user defined interval, which is by default 5 seconds. Other
software may use these registry entries to access the J2 health information.
J2 680 Health keys are shown below:
J2 Remote Monitoring Software
J2 now offers a full remote monitoring and asset tracking solution that works in
conjunction with J2 Health to ensure the highest uptime possible of your POS hardware.
Please contact J2 sales for more information on this fully customizable, remote monitor
solution.
For more information, please visit us at
http://www.j2retailsystems.com/newsarticle.php?news_id=57
J2 680 System Manual
Version 1.0 May 11, 2012
55
The J2 SMI BIOS Info program allows for the reading of all populated BIOS DMI/SMI
information. With some J2 products including the J2 680, this information also includes
dynamic system health information. Normally this dynamic DMI health information
BIOS is only supported on very high end servers. Now J2 brings this feature to POS
hardware.
The J2 SMI BIOS Info program will run on any J2 POS hardware or for that fact on any
PC hardware. It can display all DMI/SMI information on a formatted form.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/Utilities/
To install just unzip anywhere and run as you wish to run the utility form.
Operations
Just click on the .exe file to run. The following screen will be displayed (see below).
Note that the health data will only display on newer J2 systems that support the dynamic
DMI health BIOS.
J2 680 System Manual
Version 1.0 May 11, 2012
56
J2 has a generic cash drawer test utility that works on all J2 products, including the new
J2 680 computer.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/Utilities/
To install just unzip anywhere and run as you wish to download the utility form.
Operation
etting to test the cash drawer(s). (see example below)
virtual serial ports program. The virtual serial port program must be installed with the
cash drawer virtual serial ports set to Comm 10 & 11.
J2 680 System Manual
Version 1.0 May 11, 2012
57
Virtual serial ports can be used for the cash drawers, virtual 2x20 line display on the
optional 10.1 LCD, Smart UPS, MSR and iButton.
To open virtual serial cash drawer send a bell character to the Com port it is assigned too.
the drawer may be obtained by reading the status bits of its COM port. The drawer
open/close status will be reflected on the CTS and RI bits, either bit may be used. This
virtual COM port driver is designed to work the same as a hardware serial cash drawer
and will work with drivers for serial cash drawers.
J2 680 System Manual
Version 1.0 May 11, 2012
58

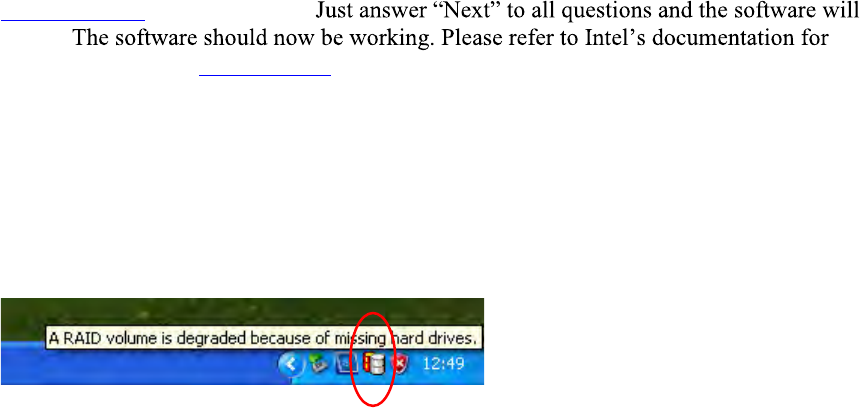

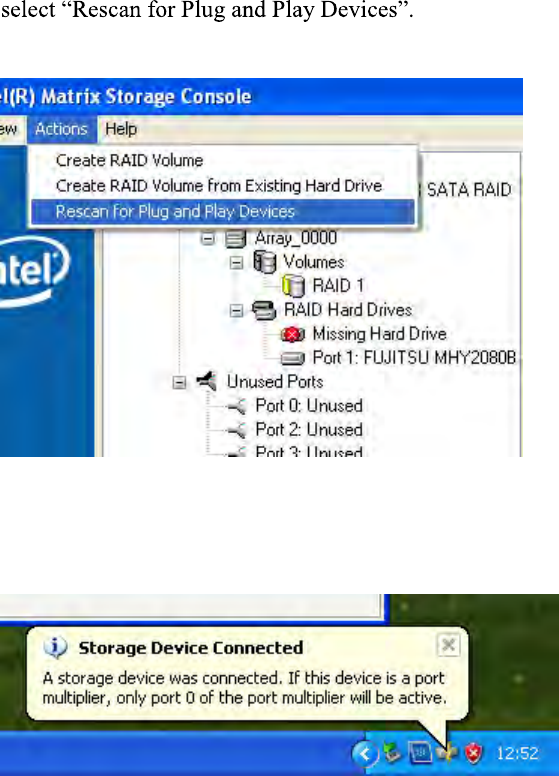

RAID Overview
The 680 uses the Intel Matrix Storage Technology to allow the two internal 2.5 inch hard
drives to be configured as a RAID array. The 680 supports RAID 0, RAID 1 and Intel
Matrix RAID which combines the benefits of two RAID volumes in a single RAID array.
If you are not currently familiar with RAID arrays Intel has a good white paper on the
subject at: http://www.intel.com/design/chipsets/applnots/310855.htm
There are a number of benefits to using the RAID feature.
Protection is one benefit. When using a RAID 1 array, data is protected by mirroring.
The primary RAID volume is duplicated automatically on the second drive, a mirror
image of the first. If one of the two hard drives fails the system will still keep working.
The bad hard drive can be replaced while the system is running. This is called hot
swapping or hot plug. The new drive will automatically be updated to a mirror image of
the working drive.
Performance is another feature RAID can provide. When configured as a RAID 0 array
the two drives in the RAID array are striped. With striping, data is split between two
drives. This allows the 680 to read the data more than twice as fast as with a single drive.
The performance can be more than twice as fast because the Intel RAID driver also uses
the AHCI NCQ function built into the SATA drives.
Protection and Performance can be mixed using an Intel Matrix RAID configuration,
whereby a RAID 1 and RAID 0 can be setup on the same RAID array. Mission critical
data can be stored in the RAID 1 volume and data requiring performance can be stored on
the RAID 0 volume.
AHCI
AHCI stands for Advanced Host Controller Interface and is a feature of the SATA
interface that allows for Hot Swapping and Native Command Queuing (NCQ).
NCQ allows multiple commands to be sent to the hard drive at one time. The drive
decides the best way to order the commands for the best performance from the drive.
AHCI is enabled when RAID mode is selected in the BIOS setup.
To use AHCI drivers from Intel the BIOS must be set to RAID, not AHCI. The AHCI
mode uses the same drivers as used for RAID. Follow the instruction for install the RAID
drivers but set the HDD as a Non-RAID Disk in the RAID BIOS setup.
J2 680 System Manual
Version 1.0 May 11, 2012
59
Enabling RAID in the BIOS
The Intel manual for the Intel Matrix Storage Manager covers this same information
given below in more detail and can be downloaded from the J2 web site. The
documentation below is tailored for the 680 only.
Link: http://www.j2retailsystems.com/support/680/RAID/
Perform the following steps to enable the RAID option in the system BIOS:
1. Enter the BIOS Setup program by pressing the DEL key after the BIOS sign-on
screen appears.
2. Select the Advanced menu, and then the SATA Configuration menu.
3. Switch the Configure SATA Ports option from SATA to RAID.
4. Press the F10 key to save the BIOS settings and exit the BIOS Setup program.
RAID Volume Creation
Perform the following steps to create a RAID volume:
1. When the Intel Matrix Storage Manager option ROM status screen appears during
POST, press the Ctrl and i keys at the same time to enter the Intel Matrix Storage
Manager option ROM user interface.
2. Select Option 1: Create RAID Volume and press the Enter key.
3. Use the up or down arrow keys to select the RAID level and press the Enter key.
4. Unless you have selected RAID 1, use the up or down arrow keys to select the
stripe size and press the Enter key.
5. Press the Enter key to select the physical disks.
6. Select the appropriate number of hard drives by using the up or down arrow keys
to scroll through the list of hard drives and pressing the Space key to select the
drive. When finished, press the Enter key.
7. Select the volume size and press the Enter key.
8. Press the Enter key to create the volume. At the prompt, press the Y key to
confirm volume creation.
9. Select Option 4: Exit and press the Enter key. Press the Y key to confirm exit.
F6 Installation Method
Note: For this step you will need both a USB CD ROM and USB Floppy.
Drivers can be downloaded here: http://www.j2retailsystems.com/support/680/RAID/
(continued on next page)
J2 680 System Manual
Version 1.0 May 11, 2012
60
Perform the following steps to install the Intel Matrix Storage Manager driver during
operating system setup:
1. Press the F6 key when prompted in the status line with the Press F6 if you need to
install a third party SCSI or RAID driver message. This message appears at the
beginning of Windows XP setup (during text-mode phase).
Note: Nothing will happen immediately after pressing F6. Setup will temporarily
continue loading drivers. You will then be prompted with a screen asking you to
load support for mass storage device(s).
2. Press the S key to Specify Additional Device.
3. You will be prompted to Please insert the disk labeled Manufacturer-supplied
hardware support disk into Drive A: When prompted, insert the floppy disk
containing the following files: IAAHCI.INF, IAAHCI.CAT, IASTOR.INF,
IASTOR.CAT, IASTOR.SYS, and TXTSETUP.OEM and press the Enter key.
4. After pressing Enter, you should be presented with a list of available SCSI
Adapters. Select your controller from the list. The 680 uses the ICH8R driver.
5. The next screen should confirm your selected controller. Press the Enter key
again to continue.
6. At this point, you have successfully F6'd in the Intel Matrix Storage Manager
driver and Windows setup should continue. Leave the floppy disk in the floppy
drive until the system reboots. Windows setup will need to copy the files from the
floppy again to the Windows installation folders. Once Windows setup has copied
these files again, you should then remove the floppy diskette so that Windows
setup can reboot as needed.
7. During Windows setup, create a partition and file system on the RAID volume as
you would on any physical disk.
Installing the Intel Matrix Storage Manager Software
Once XP is booted you can install the Intel Matrix Storage Manager by just running the
iata82_enu.exe install program.
install.
more information at manual70.pdf.
Hot Swapping RAID 1 drives
If a RAID 1 drive fails the Matrix Storage Manager will warn the user that a drive has
failed. A small Icon appears as shown to indicate a drive has failed.
Drive Failed Icon in tray
J2 680 System Manual
Version 1.0 May 11, 2012
61
If a hot spare is available, all that needs to be done is to swap the bad drive with the hot
spare. Be sure to change the correct drive. SATA Ports 0 corresponds to the HDD 0, the
top drive in the HDD bay and SATA Ports 1 corresponds to the HDD 1, the bottom drive
in the HDD bay.
Power to the system does not need to be turned off, and the system will still operate.
First remove the bad drive. After removing the bad drive insert the hot spare into the 680.
In the Intel Matrix Storage Manager select Advance Mode, and under the Action tab
Rescan for Plug and Play Devices screen shot
This will cause the drive to be detected by the driver.
Drive detected
J2 680 System Manual
Version 1.0 May 11, 2012
62
The RAID will now rebuild an image of the good drive to the hot spare.
Rebuilding
Rebuilt
The RAID has now mirrored the drive and the system is now protected for a drive failure.
Note:
more information on using the 680 RAID function. (Available September 2008)
J2 680 System Manual
Version 1.0 May 11, 2012
63
In addition to the foam packing inserts, the following contents should be found in the 680
shipping carton.
Standard Items
1: System with Power Supply and AC cord 2: Cable Well Cover
3: Printer Power Port Cable : COM Port Colored Coded Cable Labels
J2 680 System Manual
Version 1.0 May 11, 2012
64

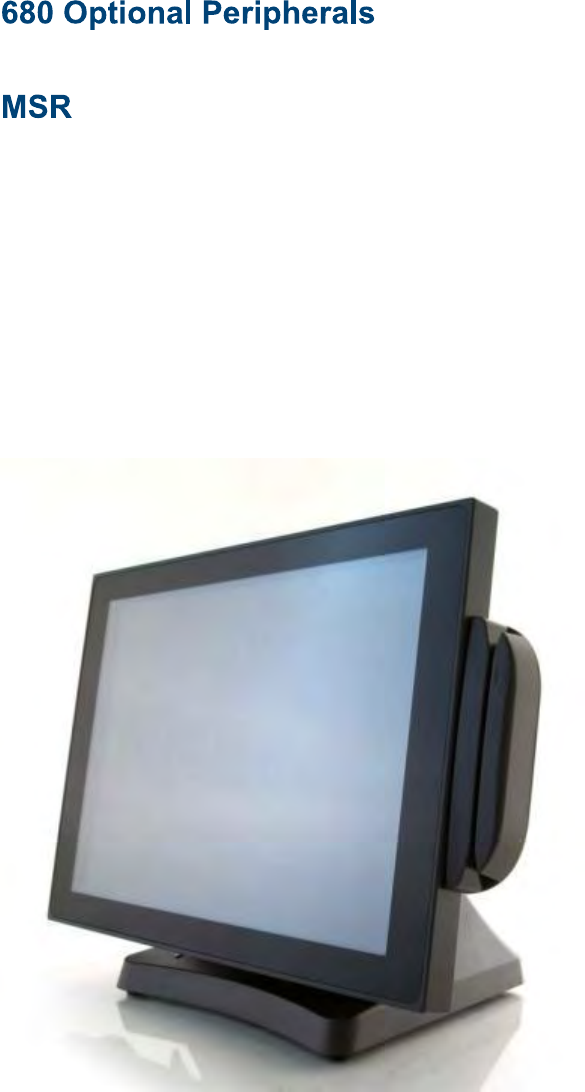

Overview
The 680 can be ordered with a 3 track MSR. This MSR is the same as used on the J2
580/615/625/630 POS systems. The MSR mounts on the right side of the 680 and uses a
front facing MSR slot. This allows the 680 unit to be placed side by side, or in tight
spaces, and still be able to swipe the card. The MSR appears to the software as a wedge
type MSR with all data from the MSR being sent to the keyboard port. The MSR
configuration utility can be down loaded from J2 web site.
680 with front swipe MSR
J2 680 System Manual
Version 1.0 May 11, 2012
65
Installing the 680 MSR
The 680 MSR is installed by first removing the two rubber plugs for the option
attachment point as shown below.
Remove Rubber plugs
Then remove the MSR cover plate on the right back side of the unit by removing the two
screws, as shown.
Remove MSR cover plate
J2 680 System Manual
Version 1.0 May 11, 2012
66

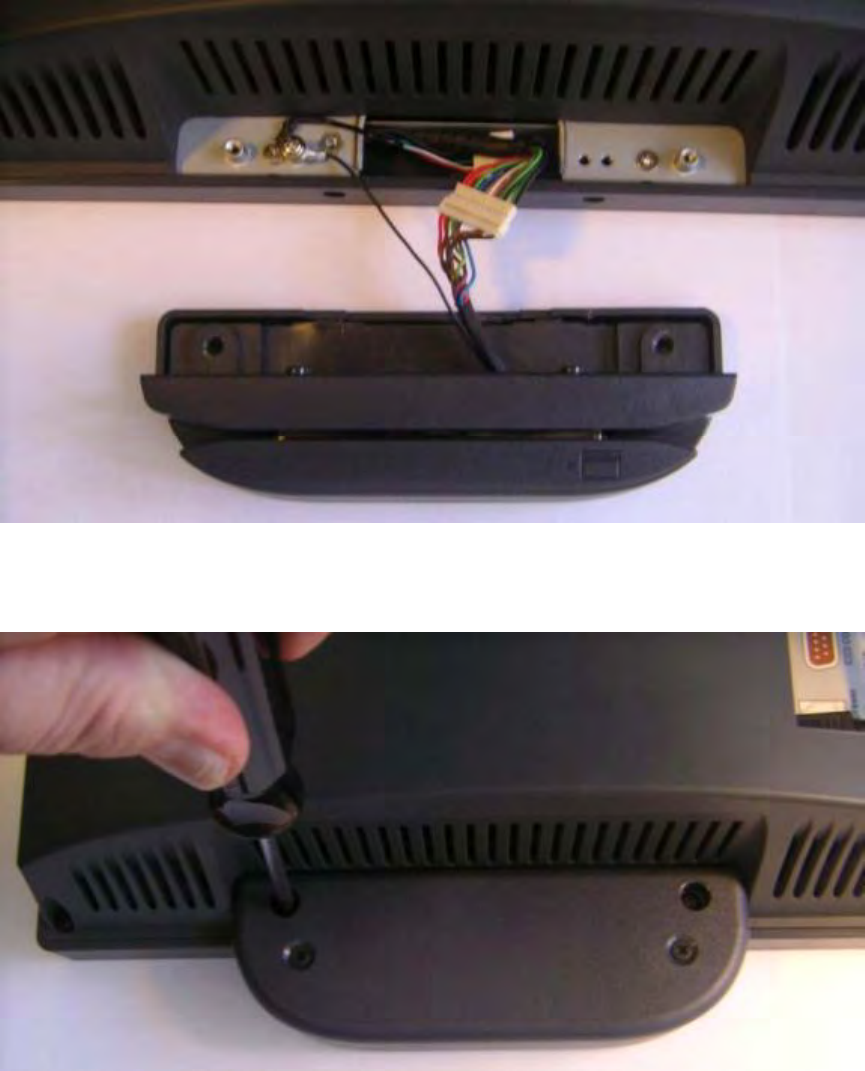

Connect the cable together as shown add secure the static ground wire with screw
provided as shown.
Attach cables
Attach the MSR using the two screws at the locations shown below.
Mounting MSR
You may now power up the 680 and the MSR should be working. For a quick test you
can open Notepad and swipe a card, the information should appear in Notepad. You can
now run the J2 MSR utility if you need any custom settings for the MSR.
J2 680 System Manual
Version 1.0 May 11, 2012
67
Overview
A 2 line by 20 character VFD customer side display is available optional for the J2 680.
This customer display is the same as used on the J2 580/615/625/630 POS systems.
The J2 680 has the same options as available on the J2 580/615/625/630 POS systems.
Secondary display of 10 inch, 12 inch 4:3 and 10.1 inch 16:9 displays are available.
J2 680 System Manual
Version 1.0 May 11, 2012
68
This option is the same as available on the J2 580/615/625/630 POS systems. This reader
uses the Digital Personal module.
This option is the same as available on the J2 580/615/625/630 POS systems.
Available Q2 2012
Available Q2 2012
This option is the same as available on the J2 580/615/625/630 POS systems.
This bracket can be uses when not using a VESA mount.
The J2 680 has the same options as available on the J2 580/615/625/630 POS systems.
J2 680 System Manual
Version 1.0 May 11, 2012
69
Contact Information
European Office
J2 Retail Systems Ltd.
J2 House
Clayton Road, Birchwood
Warrington WA3 6RP
United Kingdom
44 (0) 1925 817003 Phone
44 (0) 1925 811989 Fax
USA Office
J2 Retail Systems Inc.
9251 Irvine Boulevard
Irvine
CA 92618
USA
Australian Office
J2 Retail Systems Pty Ltd
Unit 6 83/85 Boundary Road
Mortdale NSW 2223
Australia
02 9584 5222 Phone
02 9584 1500 Fax
Web site
http://www.j2retailsystems.com
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
