FLYTECH TECHNOLOGY P265D41 Mobile PC User Manual POS263 265 D41 User Manual
FLYTECH TECHNOLOGY CO., LTD Mobile PC POS263 265 D41 User Manual
Users Manual
Version 1.0 August 2015
POS260 Series
Model:P263/P265
Mobile PC
USER MANUAL
ii
Copyright
Copyright 2015
All Rights Reserved
Manual Version 1.0
The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose. We shall not
be liable for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced or translated to
another language without the prior written consent of the manufacturer.
TRADEMARK
The material in this manual is subject to change without notice.
Bluetooth is a registered trademark of Bluetooth SIG.
Microsoft®, Windows® and ActiveSync® are either registered trademarks or trademarks of
Microsoft Corporation.
All other product or service names are the property of their respective owners.
iii
Safety
Regulatory Information
Caution: Only use approved and UL Listed accessories, battery packs and battery chargers.
Do NOT attempt to charge damp/wet mobile computers or batteries. All components must
be dry before connecting to an external power source.
Power Supply
Use only the approved power supply 50-14000-148 output rated 5 Vdc and minimum 2 A.
The power supply is certified to EN60950-1 with SELV outputs. Use of alternative power
supply will invalidate any approval given to this device and may be dangerous.
Warning for Use of Wireless Devices
Please observe all warning notices with regard to the usage of wireless devices.
Potentially Hazardous Atmospheres
You are reminded of the need to observe restrictions on the use of radio devices in fuel
depots, chemical plants etc. and areas where the air contains chemicals or particles (such as
grain, dust, or metal powders)
and any other area where you would normally be advised to turn off your vehicle engine.
Safety in Aircraft
Switch off your wireless device whenever you are instructed to do so by airport or airline
staff.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be
maintained between a handheld wireless device and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are consistent with independent
research and recommendations by Wireless Technology Research.
Persons with Pacemakers
Persons with Pacemakers should ALWAYS keep the device more than 15cm (6 inches) from
their pacemaker when turned ON and hence they should not carry the device in a breast
pocket .
Should use the ear furthest from the pacemaker to minimize the potential for interference.
If you have any reason to suspect that interference is taking place, turn OFF your device.
Hearing Aids
iv
The wireless device may interfere with some hearing aids. In the event of interference you
may want to consult your hearing aid supplier to discuss solutions.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device, to determine if the
operation of your wireless product may interfere with the medical device.
FCC/EU RF Exposure Guidelines
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC SAR exposure limits set forth for an uncontrolled environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for
compliance could void t he user's authority to operate the equipment.
CE Marking and European Economic Area
v
CE RF exposure
For body-worn operation, this device has been tested and meets the ICNIRP guidelines and the
European Standard EN62209-2, for use with dedicated accessories.
SAR is measured with this device at a separation of 0cm to the body, while transmitting at the
highest certified output power level in all frequency bands of this device.
Battery Information
Our rechargeable battery packs are designed and constructed to the highest standards
within the industry.
However, there are limitations to how long a battery can operate or be stored before
needing replacement.
Many factors affect the actual life cycle of a battery pack, such as heat, cold, harsh
environmental conditions and severe drops.
When batteries are stored over six (6) months, some irreversible deterioration in overall
battery quality may occur. Store batteries discharged in a dry, cool place, removed from the
equipment to prevent loss of capacity, rusting of metallic parts and electrolyte leakage.
When storing batteries for one year or longer, they should be charged and discharged at
least once a year. If an electrolyte leakage is observed, avoid any contact with affected area
and properly dispose of the battery. Batteries must be charged within the 32° to 95° F (0° to
+35° C) ambient temperature range.
Replace the battery when a significant loss of run time is detected.
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type.
Dispose of used battery according to the local disposal instructions.
Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be returned to the
reseller for recycling.
vi
Notational Conventions
The following conventions are used in this document:
Italics are used to highlight specific items in the general text, and to identify
chapters and sections in this and related documents.
bullets (•) indicate:
•action items
•lists of alternatives
•lists of required steps that are not necessarily sequential
•Sequential lists (e.g., those that describe step-by-step procedures) appear
as numbered lists.
NOTE This symbol indicates something of special interest or importance to the reader.
Failure to read the note will not result in physical harm to the reader, equipment or data.
CAUTION This symbol indicates that if this information is ignored, the possibility of data or
material damage may occur.
WARNING! This symbol indicates that if this information is ignored the possibility that
serious personal injury may occur.
Revision History
Version Date Description
1.0 August 2015 Initial release
vii
Table of Contents
1 Item Checklist ................................................. 1
1-1 Standard Items............................................................................1
1-2 Optional Items........................................................................... 2
2 System View .................................................... 3
2-1 Front View ..................................................................................3
2-2 RearView .................................................................................. 4
2-3 Specification ............................................................................. 5
3 Getting Started................................................ 7
3-1 Power On/Off the System.............................................................7
3-2 Installing the Hand Strap..............................................................7
3-3 Replacing the Battery ................................................................. 8
3-4 Using the Charging Cradle........................................................... 9
3-5 Connect to Other Device............................................................. 9
3-6 Replacing a Micro SD Card..........................................................10
3-7 Installing the 3G Card ................................................................ 11
4 Application Programming Interface ..........12
4-1 OpenFunKeyLib ........................................................................ 13
4-2 SetFunKey1 ..............................................................................14
4-3 SetFunKey2 ..............................................................................15
4-4 Appendix A: KeyMap.ini.............................................................16
1

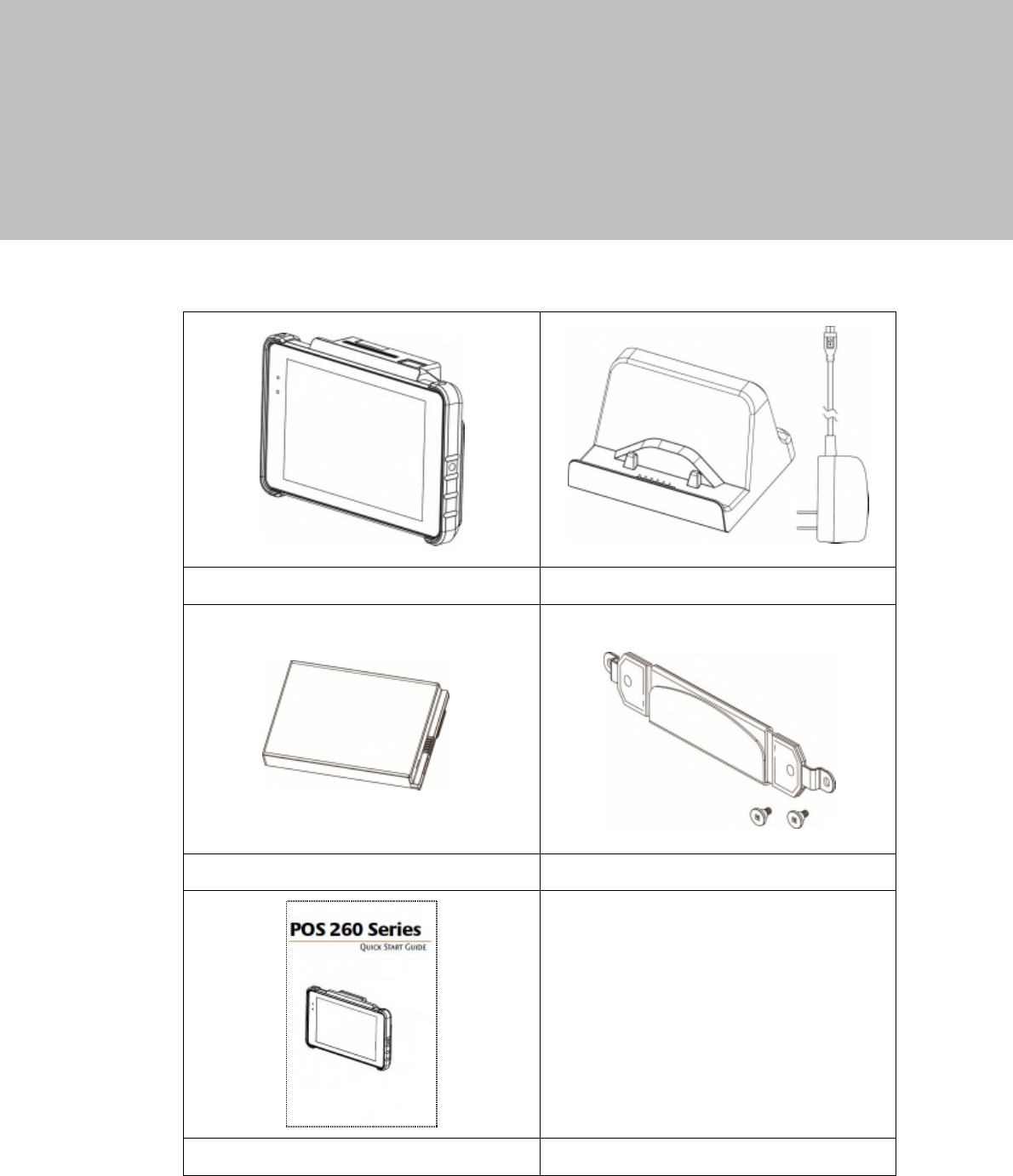

1Item Checklist
1-1 Standard Items
a. System b. Charging cradle
c. Battery d. Hand strap (with two screws)
e. Quick start guide
2

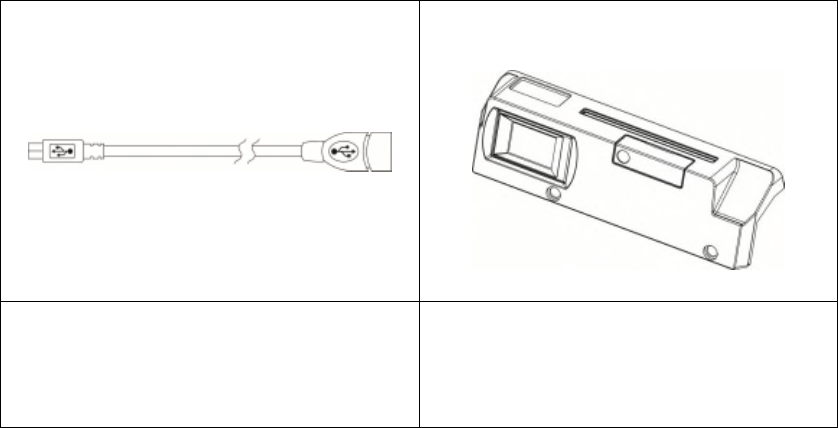

1-2 Optional Items
a. OTG cable
b. Peripheral kit
(1D/2D scanner, Fingerprint, Smart
card reader, 3G Board )
3
2System View

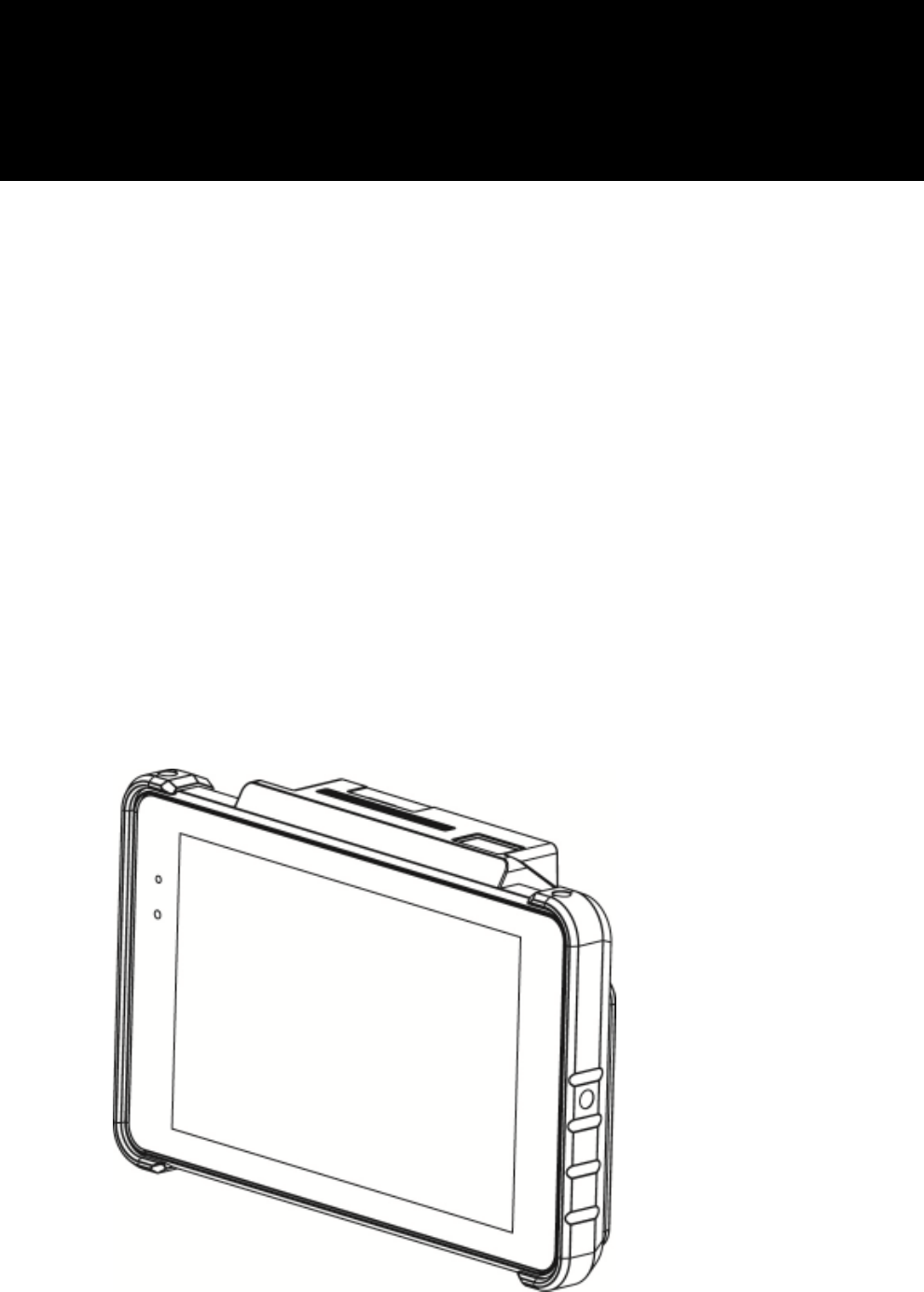

2-1 Front View

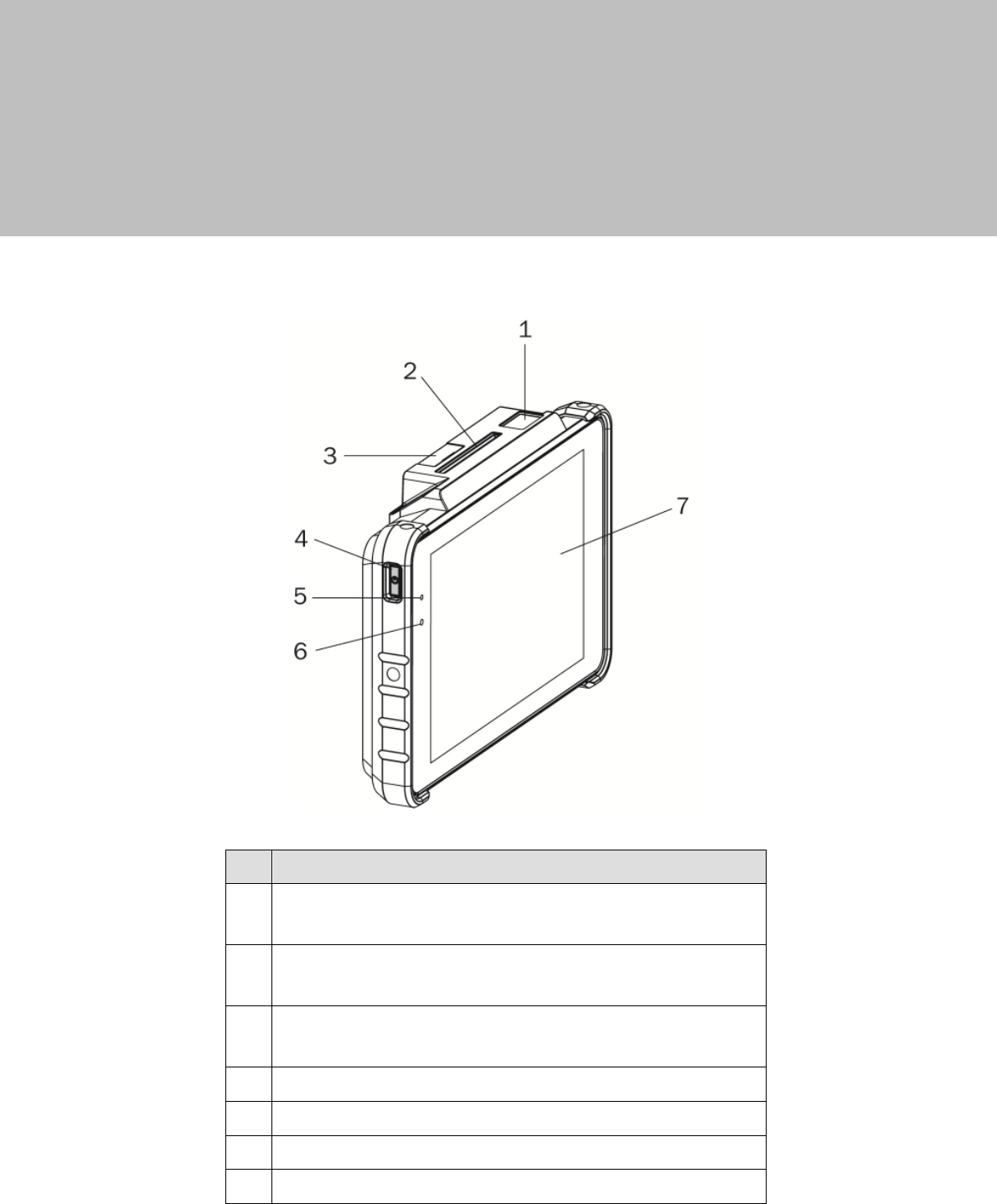

No. Description
11D/2D Scanner
(optional; will be installed to system prior to shipping)
2Smart card reader
(optional; will be installed to system prior to shipping)
33G card slot
(optional; will be installed to system prior to shipping)
4 Power button
5 Power LED light indicator
6 Ambient light sensor
7 TFT LCD
4

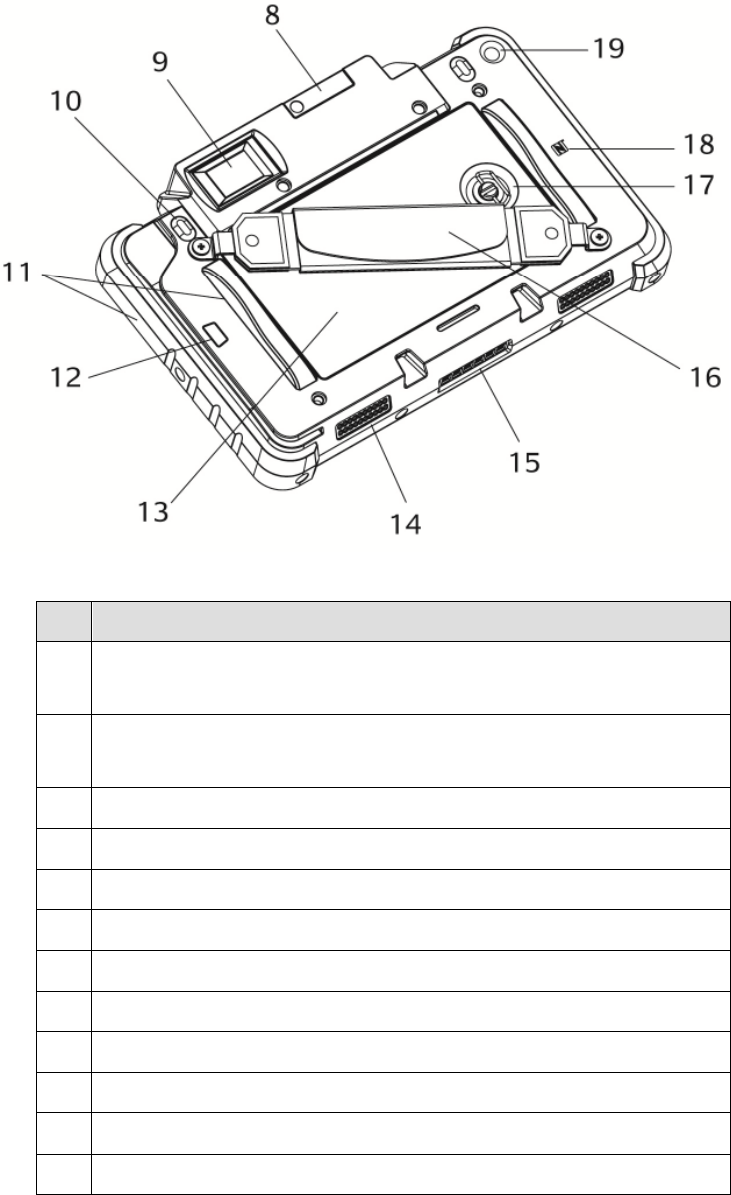

2-2 Rear View
No. Description
83G card slot
(optional; will be installed to system prior to shipping)
9Fingerprint
(optional; will be installed to system prior to shipping)
10 Programmable button(default scan button)
11 Protection bumper
12 MSR
13 Battery cover
14 Speaker
15 Power charging slot
16 Hand strap
17 Pen screw
18 NFC logo
19 Camera
5
2-3 Specification
System P263 P265
Motherboard D41
CPU Baytrail - T CR Z3735F
System Memory 2GB for Windows DDR3L
Flash Memory 32G for Windows eMMC
LCD Touch Panel
LCD Size 7" 10.1”
Interface MIPI
Resolution 1280 x 800 1920 x 1200
Touch Screen P-CAP 5 points Multi-touch
Wireless Networking
Wireless LAN 802.11 a/b/g/n/ac, 2.4G/5GHz
Bluetooth 4.0+LE, Class 2
NFC 1
Cellular Network 3G/ HSDPA/ HSUPA
Expansion I/O Ports
Micro SD Socket 1
DC input 6 pad
Audio
Speaker 1 x 1W Speaker 2 x 1W Speaker
Control / Indicator
Power Button 1
Sensor G-sensor, Ambient Light Sensor
Vibrator Built-in vibrator motor
LED Indicator 1 (Battery status indicator)
Peripherals
Camera 5MP ( Rear side)
MSR 3 Tracks MSR
Hand strap 1
IC card reader Smart IC Card Reader (Optional)
Scanner 1D/2D Barcode Scanner (Optional)
Fingerprint 1
Cradle
USB Port Micro-USB 2.0 x 1
Power Adapter 5V/2A , 10W
Battery & Power
6
System P263 P265
Motherboard D41
Battery 8000 mAh, 3.7V, 29.6 Wh *2
Certificate
EMC & Safety FCC Class B / CE Mark / UL
Environment
Sealing IP54 (display side)
Fall Security 1.2 m drop, 1 drop per side at 25°C *3*4
Operating Temperature
(Not in charging mode) 0°C ~ 40°C (32°F ~104°F)
Operating Temperature
(running charging mode) 0°C ~ 35°C (32 °F ~ +95°F)
Storage Temperature -10°C ~ 45°C (14°F ~ 114°F)
Operating Humidity 20% - 80% RH non-condensing
Storage Humidity 20% - 80% RH non-condensing
Size
Dimension 203.9 x 127.9 x 35.3mm
(8.0'' x 5.0'' x 1.3'')
268 x 176 x 35.5mm
(10.6'' x 6.9'' x 1.4'')
Weight 665g (1.47lbs) 930g (2.08lbs)
Weight (with all peripherals) Max 690g (1.52lbs) Max 990g (2.18lbs)
OS Support Window 8.1 embedded industry Pro & Window 10 embedded IoT Ent.
(Support 32bit only)
*1. Tablet LED indicator: Green light-Full charged / Orange light- Charging / Red flash light- Low battery / Red
light- Critical low battery.
*2. The actual operation hours will be affected by real application environment.
*3. The drop durability height is a measured value resulting from actual testing. It does not necessarily
guarantee the product from damage.
*4. The drop durability height does not include the protruding parts.
7
3Getting Started
3-1 Power On/Off the System
1. Push the power button to turn on the system and hold 4~5 seconds to turn off the
system.
Note: For best touch performance, remove the protective plastic overlay from the
LCD screen by peeling it away from one of the corners. Be sure to use a soft
pointing device or finger tip to avoid scratching the screen during normal use.

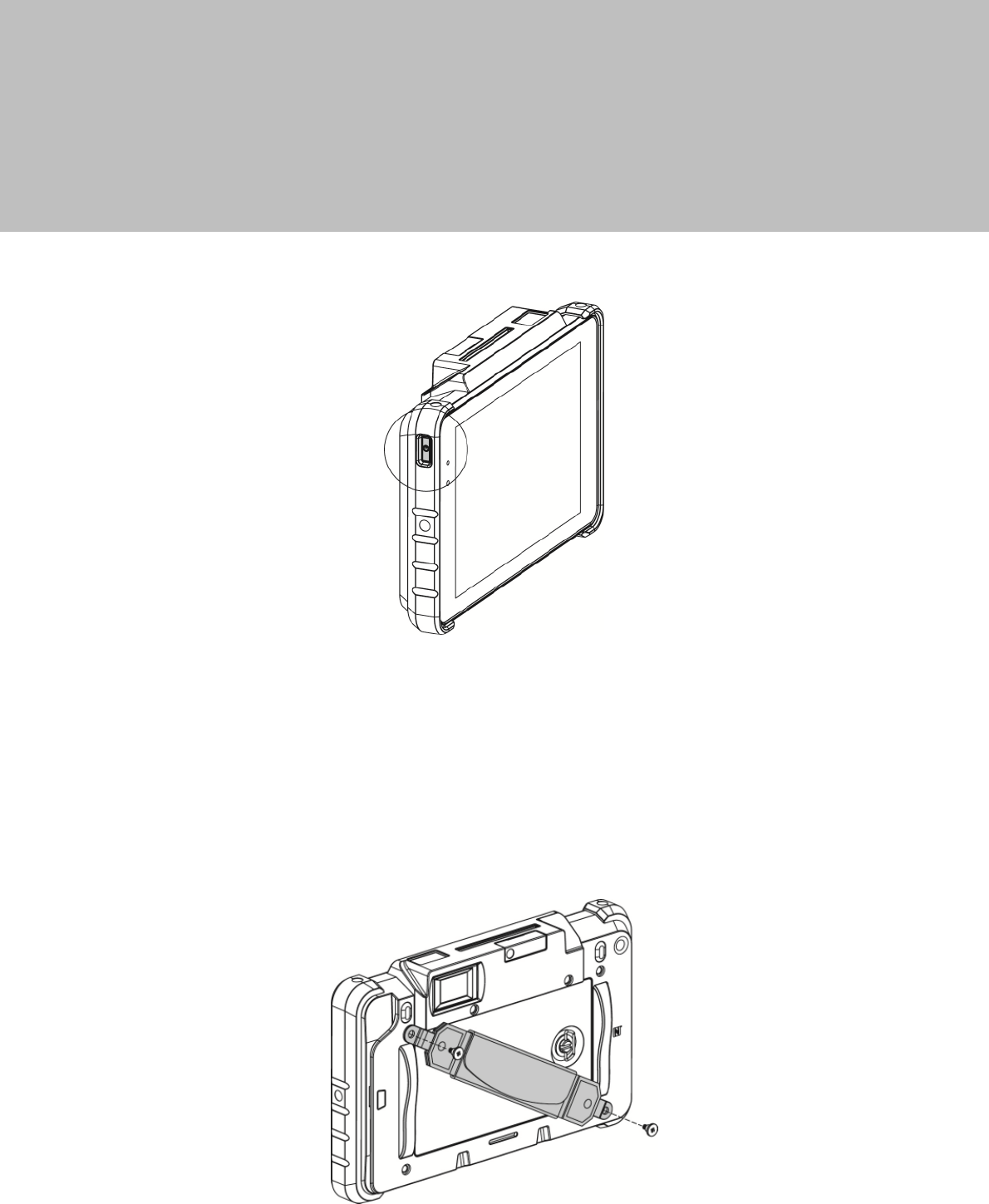

3-2 Installing the Hand Strap
1. Attach the hand strap to the back of the system and fasten the screws (x2) to
secure it.
8

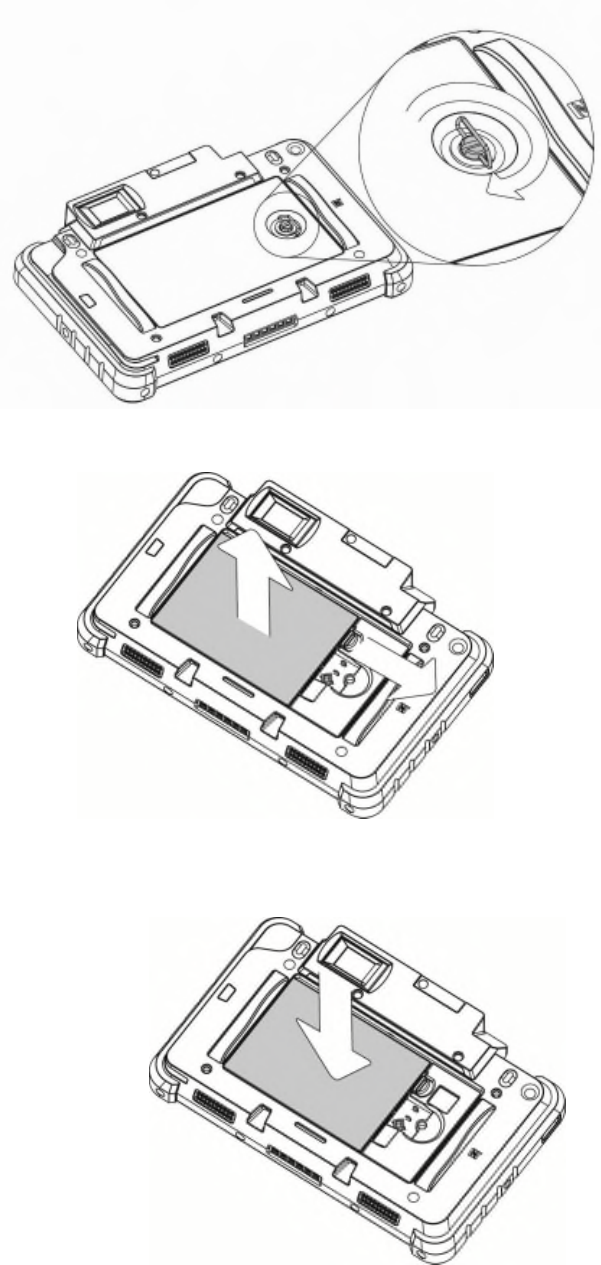

3-3 Replacing the Battery
1. Loosen the pen screw counter-clockwise on the battery cover.
2. To remove the battery pull the plastic tab aside and gently lift the battery out of
the system.
3. To install the battery put the battery in the slot and push until the battery clicks
into place.
9

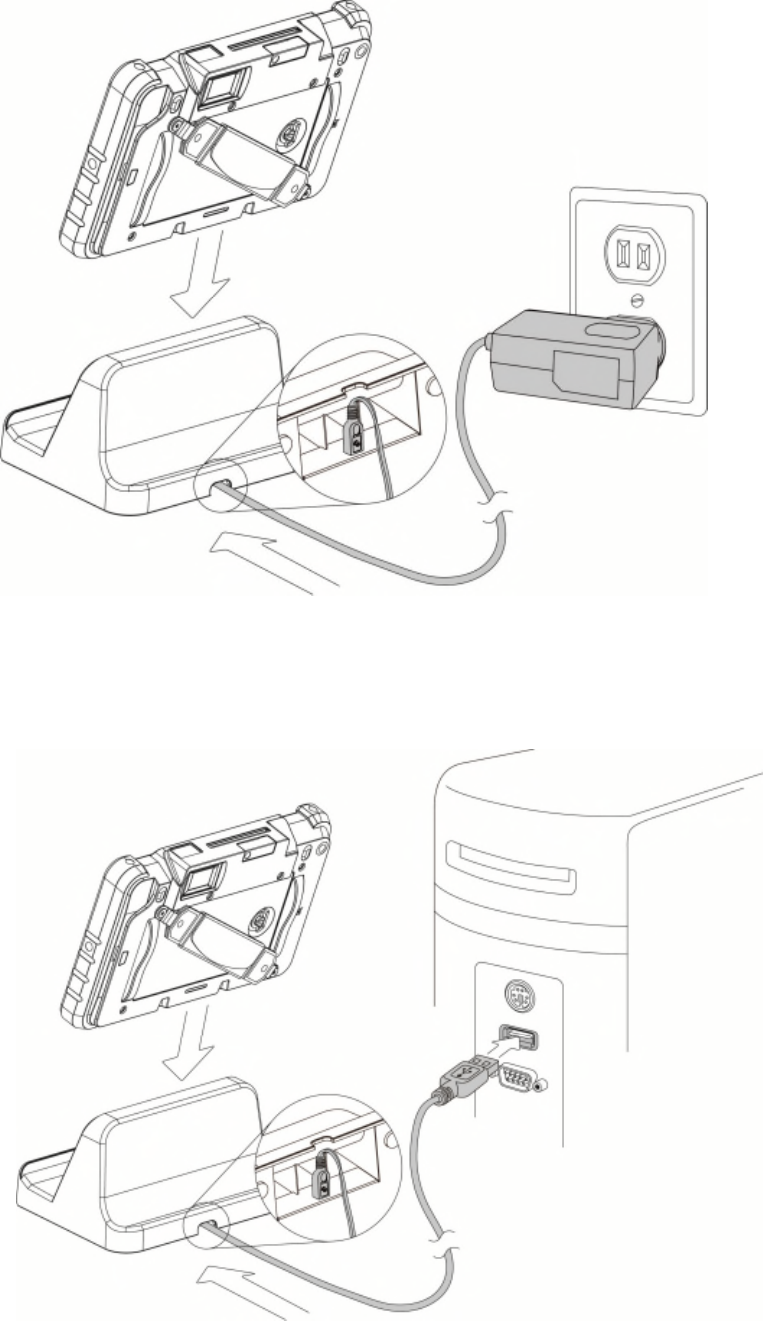

3-4 Using the Charging Cradle
1. Connect the USB-AC adapter to the connector on the bottom of the cradle charger
and the power outlet.
3-5 Connect to Other Device
1. Connect the OTG USB cable to the connector on the bottom of the cradle charger
and connect the other end to a PC to synchronize the two devices.
10

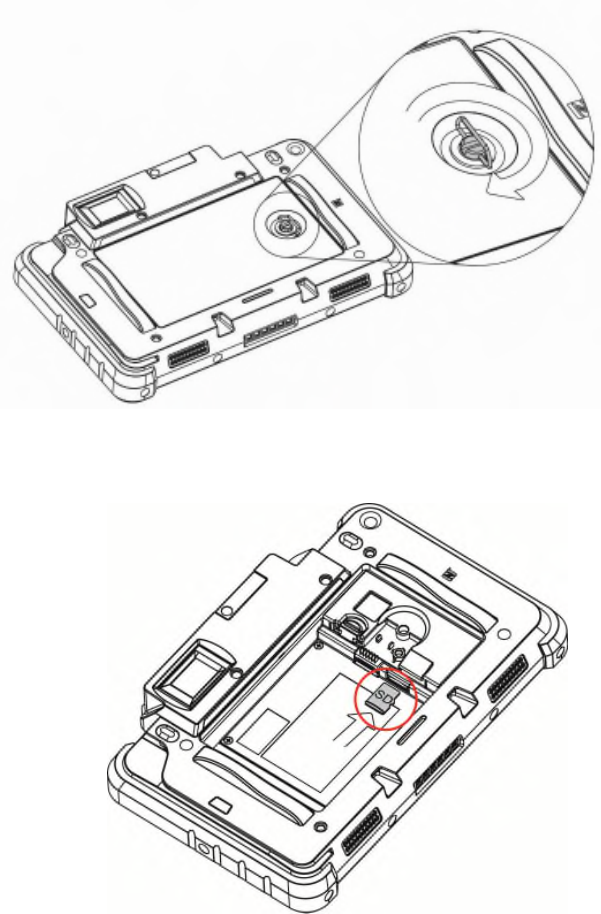

3-6 Replacing a Micro SD Card
1. Loosen the pen screw counter-clockwise on the battery cover.
2. To install a Micro SD card insert the Micro SD card into slot until it snaps in place.
3. To remove the Micro SD card just push the card again and slide it outwards.
11

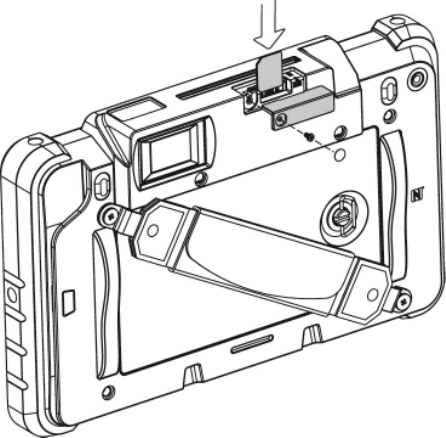

3-7 Installing the 3G Card
1. Loosen the screw(x1) to remove cover of 3G card slot.
2. Inset the 3G card until it snaps in place. Finally screw the cover back.
12
4Application Programming Interface
Operating System
The API operation has been verified with the following operating systems:
Microsoft Windows 8 32 bit
EC Version
11 or later version can support
13
4-1 OpenFunKeyLib
[Function]
This opens the Function Key API service.
[Format]
int OpenFunKeyLib(char *FunKeyControlVersion)
[Argument]
uchar *FunKeyControlVersion →get EC version.
[Return Value]
If opening service was successful, the return SV_ERROR_SUCCESS value, If there is can’t found
EC control, the SV_ERROR_FAILED_NO_FOUND_DEVICE are returned, if return
SV_ERROR_FAIL the service can’t form EC control get return value.
[Explanation]
Before using an API function other than this function, it is necessary that this function be
executed first.
[Example]
char HIDVer[100];
If(OpenFunKeyLib(HIDVer) == SV_ERROR_SUCCESS)
//Normal Processing
Printf(HIDVer);
else
//Error Processing
14
4-2 SetFunKey1
[Function]
Set Button 1 output key.
[Format]
int SetFunKey1(const char* SetKey, bool ButtonEnable)
[Argument]
const char* SetKey →Set button1 output key.
bool ButtonEnable →Enable/Disable key output.
Trur is enable, False is disable.
[Return Value]
If set value successful, the return SV_ERROR_SUCCESS value. If there is an error, the
SV_ERROR_FAIL are returned.
[Explanation]
None
[Example]
DWORD Rtn;
Rtn = SetFunKey1("A", true); //Set button 1 output ‘A’
15
4-3 SetFunKey2
[Function]
Set Button 2 output key.
[Format]
int SetFunKey2(const char* SetKey, bool ButtonEnable)
[Argument]
const char* SetKey →Set button1 output key.
bool ButtonEnable →Enable/Disable key output.
Trur is enable, False is disable.
[Return Value]
If set value successful, the return SV_ERROR_SUCCESS value. If there is an error, the
SV_ERROR_FAIL are returned.
[Explanation]
None
[Example]
DWORD Rtn;
//Set button 2 is barcode reader’s trigger
Rtn = SetFunKey2("<BarCode>", true);
16
4-4 Appendix A: KeyMap.ini
[ASCII]
32=2C 44=36 56=25 68=07 80=13 92=31 104=0B 116=17
33=1E 45=2D 57=26 69=08 81=14 93=30 105=0C 117=18
34=34 46=37 58=33 70=09 82=15 94=35 106=0D 118=19
35=20 47=38 59=33 71=0A 83=16 95=2D 107=0E 119=1A
36=21 48=27 60=36 72=0B 84=17 96=35 108=0F 120=1B
37=22 49=1E 61=2E 73=0C 85=18 97=04 109=10 121=1C
38=24 50=1F 62=37 74=0D 86=19 98=05 110=11 122=1D
39=36 51=20 63=38 75=0E 87=1A 99=06 111=12 123=2F
40=26 52=21 64=1F 76=0F 88=1B 100=07 112=13 124=31
41=27 53=22 65=04 77=10 89=1C 101=08 113=14 125=30
42=25 54=23 66=05 78=11 90=1D 102=09 114=15 126=35
43=2E 55=24 67=06 79=12 91=2F 103=0A 115=16
17
[FunctionKey]
{Return}=28 {F11}=44 {NumLock}=53 {KeypadPointDelete}=63
{Escape}=29 {F12}=45 {KeypadDivision}=54 {KeyboardPower}=66
{Backspace}=2A {PrintScreen}=46 {KeypadMultiplication}=55 {KeyboardVolUp}=80
{Tab}=2B {ScrollLock}=47 {KeypadSubtraction}=56 {KeyboardVolDn}=81
{Space}=2C {Break}=48 {KeypadAdd}=57 {CapsLock}=82
{CapsLock}=39 {Pause}=48 {KeypadEnter}=58 {NumLock}=83
{F1}=3A {Insert}=49 {Keypad1End}=59 {ScrollLock}=84
{F2}=3B {Home}=4A {Keypad2Down}=5A {LeftCtrl}=E0
{F3}=3C {PageUp}=4B {Keypad3PageDn}=5B {LeftShift}=E1
{F4}=3D {Delete}=4C {Keypad4Left}=5C {LeftAlt}=E2
{F5}=3E {End}=4D {Keypad5}=5D {RightCtrl}=E4
{F6}=3F {PageDown}=4E {Keypad6Right}=5E {RightShift}=E5
{F7}=40 {RightArrow}=4F {Keypad7Hoem}=5F {RightAlt}=E6
{F8}=41 {LeftArrow}=50 {Keypad8Up}=60
{F9}=42 {DownArrow}=51 {Keypad9PageUp}=61
{F10}=43 {UpArrow}=52 {Keypad0Insert}=62
18
[MediaKey]
(ScanNextTrack)=00B5 (VolumeDown)=00EA (WWWSearch)=0221
(ScanPreviousTrack)=00B6 (BassUp)=0152 (WWWHome)=0223
(Stop)=00B7 (BassDown)=0153 (WWWBack)=0224
(Play/Pause)=00CD (TrebleDown)=0155 (WWWForward)=0225
(Mute)=00E2 (MediaSelect)=0183 (WWWStop)=0226
(BassBoost)=00E5 (Mail)=018A (WWWRefresh)=0227
(Loudness)=00E7 (Calculator)=0192 (WWWFavorites)=022A
(VolumeUp)=00E9 (MyComputer)=0194
[SpecialKey]
<BarCode>=1111
19
Requirements in
AT/BE/BG/CZ/DK/EE/FR/DE/IS/IE/IT/EL/ES/CY/LV/LI/LT/LU/HU/MT/NL/NO/PL/PT/RO/SI/SK/TR/
FI/SE/CH/UK/HR.5150MHz~5350MHz is for indoor use only
SAR is measured with the device at 0 mm to the body, while transmitting at the highest certified output
power level in all frequency bands of the device. The maximum SAR value is 0.180 W/kg (body)
averaged over 10 gram of tissue.
This equipment should be installed and operated with a minimum distance of 0 cm between the radiator
and your body.
WARNING: This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Radio Type / Description Transmitter
Frequency (MHz) Maximum Output
Power
NFC NFC 13.56 -0.15dBuA/m @3m
Bluetooth BR+EDR 2402 ~ 2480 5.79dBm
Low Energy 2402 ~ 2480 6.59dBm
WLAN 2.4G
802.11b 2412 ~ 2472 17.89dBm
802.11g 2412 ~ 2472 18.69dBm
802.11n 20 2412 ~ 2472 18.89dBm
802.11n 40 2422 ~ 2462 18.89dBm
WLAN 5G
802.11a 5150 ~ 5350 16.69dBm
5470 ~ 5725 17.30dBm
802.11n_20M
802.11ac_20M
5150 ~ 5350 15.87dBm
5470 ~ 5725 16.56dBm
802.11n_40M
802.11ac_40M
5150 ~ 5350 16.52dBm
5470 ~ 5725 15.97dBm
80211ac_80M 5150 ~ 5350 14.92dBm
5470 ~ 5725 15.62dBm
(On manufacturer’s company letter heading) RF_067, Issue 01
EU Declaration of Conformity (DoC)
Hereby we,
Name of manufacturer: FLYTECH TECHNOLOGY CO.,LTD.
Address: No. 168, Sing-ai Rd., Neihu District, Taipei City 11494,
Zip code & City: Taipei City 11494,
Country: Taiwan, R.O.C.
Telephone number: 886-2-8791-4988
declare that this DoC is issued under our sole responsibility and that this product:
Product description: Mobile PC
Type designation(s): P265(D41)
Trademark: FLYTECH
Batch / Serial number:

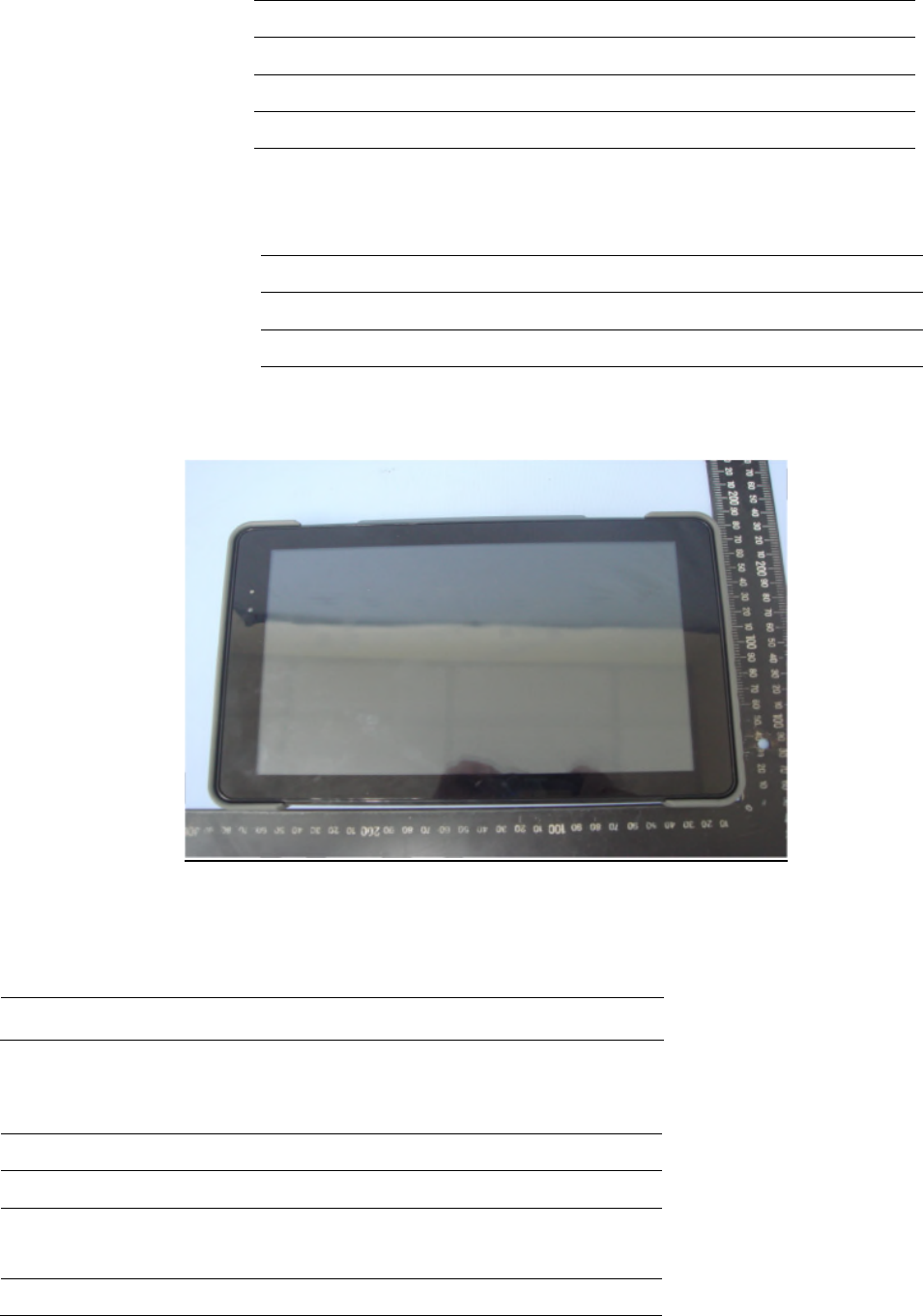

Object of the declaration (further identification of the radio equipment allowing traceability; it may include a color
image for the identification of the radio equipment):
is in conformity with the relevant Union harmonization legislation:
Radio Equipment directive: 2014 / 53 / EU
and other Union harmonization legislation where applicable:
RoHs Directive: 2011/65/EU
WEEE Directive: 2012/19/EU
with reference to the following standards applied:
EN300 328 v2.1.1:2016 ; EN301 893 v2.1.1:2017 ; EN300 330
v2.1.1:2017
EN50566:2013/EN62209-2:2010/EN62479:2010
EN55032:2012/AC:2013 ; EN55024:2010
EN301 489-1 v2.2.0:2017-03(Draft) / EN301 489-3 v2.1.1:2017-03(Final
Draft) / EN301 489-17 v3.2.0:2017-03(Draft) / / EN301 489-52
v1.1.0:2016-11(Draft)
EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
(On manufacturer’s company letter heading) RF_067, Issue 01
The Notified Body Telefication B.V., with Notified Body number 0560 performed:
Modules: B+C
Where applicable:
The issued the EU-type examination certificate: [1721401040/AA/00]
Description of accessories and components, including software, which allow the radio equipment to operate as
intended and covered by the DoC:
.…………………………………………………………………………………………………………
Signed for and on behalf of:
Taipei City / Aug. 25, 2017 Avin
_________________________ ______________________________
Place and date of issue Name, Function, signature
