PRODUCT SPECIFICATION
MODEL
XHM-PB63D31
PRODUCT DESCRIPTION
IEEE 802.11 b/g/a/n/ac 2.4G/5GHz 1T1R WLAN &
BT 2.1+EDR/3.0+HS /4.0 USB Combo Module
TYPE
USB Module 10 PIN
DIMENSION
32.1mm*20.3mm*3mm
MAIN CHIPSET
Realtek RTL8821AU
Revision: V0.1
FLYTECH TECHNOLOGIES CO.,
LTD.
No. 168,Sing-ai Rd, Neihu District, Taipei City11494,Taiwan,(R.O.C.)
TEL: 886(2)-8791-4988
FAX: 886(2)-8791-4966
CONFIDENTIAL
REVISION HISTORY
Revision
Issue Date
Change Note
0.1
Nov.03, 2016
Preliminary release
TABLE OF CONTENTS
1.INTRODUCTION..........................................................................................................................4
1.1ModelDefine.................................................................................................................4
2.FEATURES...................................................................................................................................4
3.SPECIFICATIONS..........................................................................................................................5
3.1GENERALSPECIFICATIONS.............................................................................................5
3.2ELECTRICALCHARACTERISTICS......................................................................................5
3.3MODULEPINASSIGNMENT...........................................................................................6
3.4MECHANICAL..................................................................................................................7
3.5ENVIRONMENTAL...........................................................................................................8
3.6SOFTWARE.....................................................................................................................8
4.PACKAGE....................................................................................................................................8
1. INTRODUCTIO
XHM-PB63D31 is a highly integrated WiFi+BT combo USB module. It used RTL8821AU single chip, supporting
IEEE802.11b/g/a/n/ac 1T1R up to 433Mbps, and Bluetooth specifications BT2.1+EDR, 3.0+HS, and BT4.0 BLE as
well.
XHM-PB63D31 is the module with optional shielding case in case that the EMI/EMC is concerned.
1.1ModelDefine
Model XHM-PB63D31
Main Chip
RTL8821AU
WLAN 802.11 a/b/g/n/ac
YES
BT 2.1+EDR/3.0/3.0+HS/4.0
YES
Shielding case
YES
2.FEATURES
A cost-effective module with highly integrated WiFi, and WiFi+BT combo.
Stamp module size 32.1x20.3mm with 10pins for FFC connector.
Lowest power consumption and high performance.
USB interface for both WLAN and Bluetooth.
Operates at 2.4GHz and 5GHz frequency band.
Fully compliant with IEEE 802.11 b/g/a/n/ac and IEEE 802.11 d/e/h/i.
Data rates supporting up to 433Mbps downstream and 433Mbps upstream PHY rates using 80MHz at 802.11ac.
Data rates supporting up to 150Mbps downstream and 150Mbps upstream PHY rates using 40MHz at 802.11n.
Enterprise level security which can apply WPA/WP2 certification for WiFi.
Fully qualified for Bluetooth v2.1+EDR, 3.0, 3.0+HS, and BT 4.0.
Bluetooth 4.0 Dual Mode support- Simultaneous LE(Low Energy) and BR/EDR.
Enhanced BT/WiFi Coexistence control to improve transmission quality in different profiles.
Full-speed Bluetooth operation with Piconet and Scatternet support.
Support Bluetooth adaptive power management mechanism.
Full-features software utility for easy configuration and management.
USB 2.0 bus interface 480Mbps high speed.
ROHS compliance.
3.SPECIFICATIONS
3.1GENERALSPECIFICATIONS
Model Name
XHM-PB63D31
Main Chipset
Realtek RTL8821AU
Standard
WLAN
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g,
IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h,
IEEE 802.11i
Bluetooth
BT v2.1+EDR, BT v3.0, BT v3.0+HS, BT v4.0
Bus Interface
WLAN
USB 2.0
Bluetooth
USB 2.0
Dimensions(L*W*H)
32.1mm*20.3mm*3mm
Operating voltage
3.3 V ±10%
3.2ELECTRICALCHARACTERISTICS
Frequency Range
2.4GHz / 5GHz
Data Transfer Rate
802.11b
11, 5.5, 2, 1 Mbps
802.11a
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11g
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n
MCS 0 to 7 for HT20MHz
MCS 0 to 7 for HT40MHz
802.11ac
Up to 433.3Mbps
BT
1 Mbps for Basic Rate
2, 3 Mbps for Enhanced Data Rate
6, 9, 12, 18, 24, 36, 48, 54 Mbps for High Speed
Media Access Control
WLAN
CSMA /CA with ACK
BT
AFH, Time Division
Modulation
802.11b
CCK, DQPSK, DBPSK
802.11a
64 QAM, 16 QAM, QPSK, BPSK
802.11g
64 QAM, 16 QAM, QPSK, BPSK
802.11n
64 QAM, 16 QAM, QPSK, BPSK
802.11ac OFDM, 256QAM, 64 QAM, 16 QAM, QPSK, BPSK
BT 8DPSK, π/4 DQPSK, GFSK
Network
Architecture
WLAN
Adhoc mode (Peer-to-Peer)
Infrastructure mode
Software AP
WiFi Direct
BT
Pico Net
Scatter Net
Operating Channel
WLAN
2.4GHz
11: (Ch. 1-11) – United State
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
BT 2.4GHz Ch. 0-78
Security
WLAN
WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit, IEEE
802.11x, IEEE 802.11i
BT Sample Pairing
3.3MODULEPINASSIGNMENT
Top Layer (Top View)
PIN Function PIN Function
1
VDD 7 NC
2
VDD
8
NC
3
NC
9
GND
4
NC 10 GND
5
USB_DN
11
ANT_MAIN
6 USB_DP 12 ANT_AUX
3.4MECHANICAL

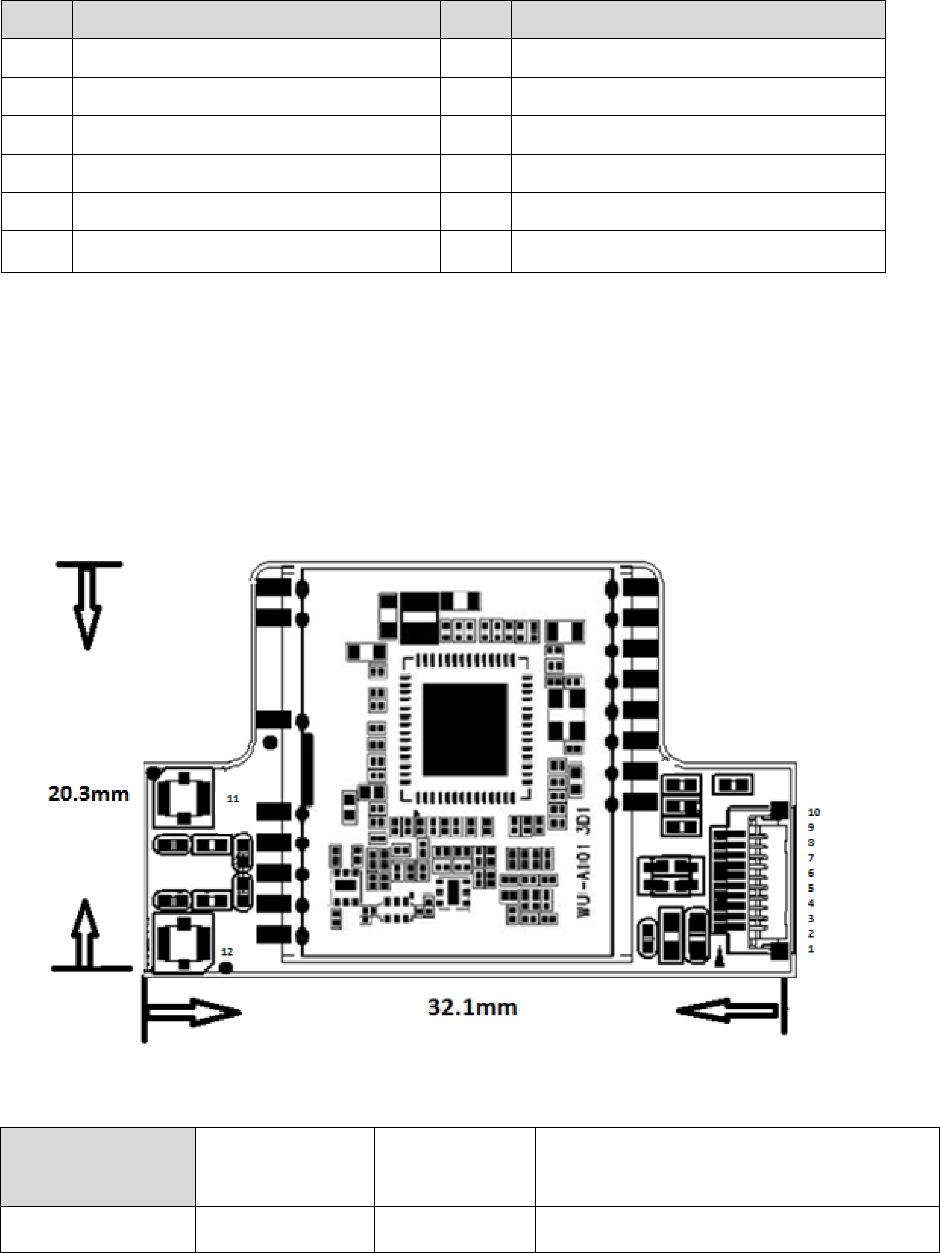

3.5.1 Module Dimension
XHM-PB63D31
Length
Width
Height
Module
32.1mm (±1.5%)
20.3mm (±1.5%)
3mm
(±1%)

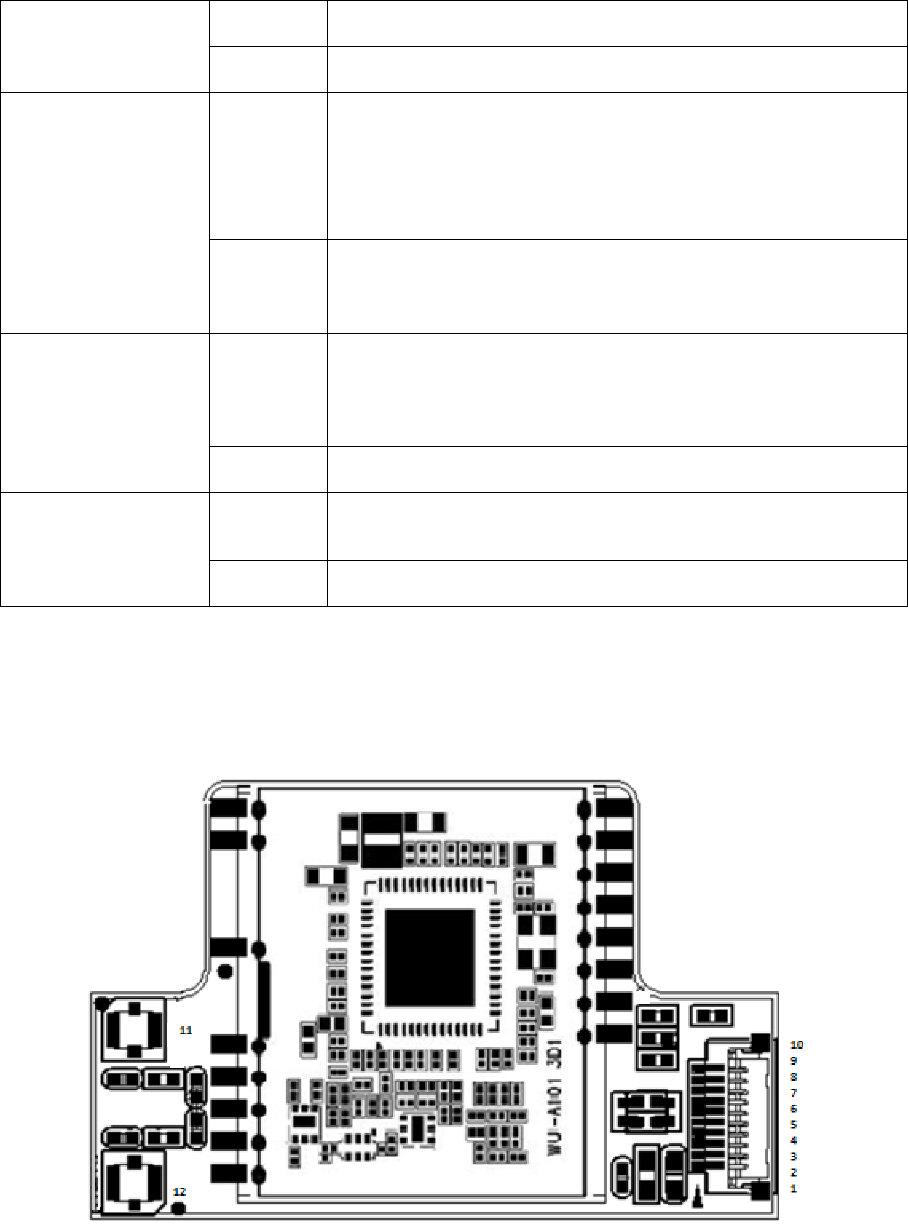

3.5.2 Footprint Dimension
The dimension shown as above is just for reference; please check the details in dxf file which will
be provided for engineering design.
3.5ENVIRONMENTAL
Operating
Operating Temperature: 0°C to +70 °C
Storage
Temperature: -20°C to +80°C (non-operating)
3.6SOFTWARE
OS supported: MS Windows/ Linux / Android.
4.PACKAGE
12pcs/tray, 2,160pcs/box
