Presenter with RF wireless technology
User’s Manual
Presenter with RF wireless technology RC203/RF607
1
INDEX
1. Introduction……………………………………………...……………3
2. Features…………..…………………………………………………...4
3. Package contents………………………………………………...……5
4. System Requirements.....…………………………...…………………5
5. Mode Feature………….………….………………………………..…5
6. Installation and Operation……..…...………………………..…….….6
7. Light Signal………………………………………………….………19
8. Function Description………...……………….……………………...20
9. Function Action in Microsoft® Office...….………….……….……..23
10. Function Action in OpenOffice.............….…………..……….……..25
11. Troubleshooting…………………………………….…..…….…….27
Presenter with RF wireless technology RC203/RF607
2
!!! Attention!!!
• Do not allow minors to use the laser pointer unsupervised. Laser
pointers are not toys.
• Avoid direct eye exposure.
• Never shine the laser pointer at anyone. The laser pointer is designed
to illustrate inanimate objects.
• Do not point the laser pointer at mirror-like surfaces. A reflected
beam can act like a direct beam on the eye.
Presenter with RF wireless technology RC203/RF607
3
Introduction：
Presenter is more than an ordinary presenter. Its stylish shape makes it
more like an art piece to enhance users’ use experiences and enjoyments.
RF wireless technology makes Presenter transmit data up to 60 feet (20
meters). Conveniently placed page up and page down buttons help you
page through slides effortlessly.
With its omni-directional feature, you can confidently conduct the
business meeting, hold the conference, and instruct the teaching lesson.
Presentation hotkey is convenient to open prepared
PPT/PPS/PDF/OPD/ABW file. Laser pointer helps every report to catch
audience attention.
Presenter with RF wireless technology RC203/RF607
4
Features：
1. Innovative design of omni-directional Presenter for performing a
perfect presentation
2. Simple pairing design
3. Presentation hotkey allows you to start the prepared
PPT/PPS/PDF/OPD/ABW file conveniently
4. Laser pointer with secure design helps you to catch audience attention
and uses it safely.
5. Working with a value software
6. User- friendly interface help user to operate easily.
Presenter with RF wireless technology RC203/RF607
5
Package contents： System Requirements：
Presenter
USB type RF Dongle
Value Software CD-ROM
CR2032 battery x 1
User’s Manaul
Microsoft® Windows® Win2000, XP,
Vista.
512MB RAM recommended.
CD-ROM drive or DVD-ROM drive.
USB Port; PC platform
Mode Feature:
11 button Presenter
Use Cypress wireless solution.
RX side Conforms to USB Specification Version 2.0
RX side Conforms to USB HID Specification Version 1.1
TX side Support one LED for Indication
RX side Support one LED for Indication
Support Laser pointer function
Use DC 3V power operation: CR 2032 × 1.
Receiver with USB Port, it’s easy to connect with your computer
RX side supports one Low Speed USB device
Presenter with RF wireless technology RC203/RF607
6
Installation and operation：

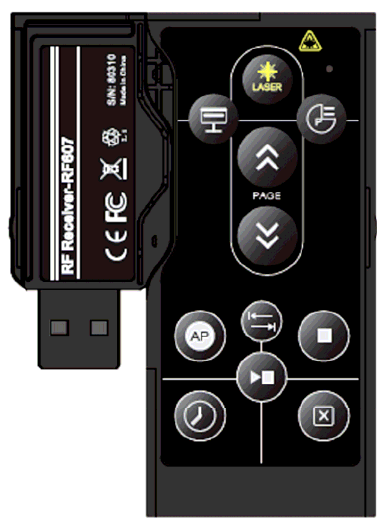

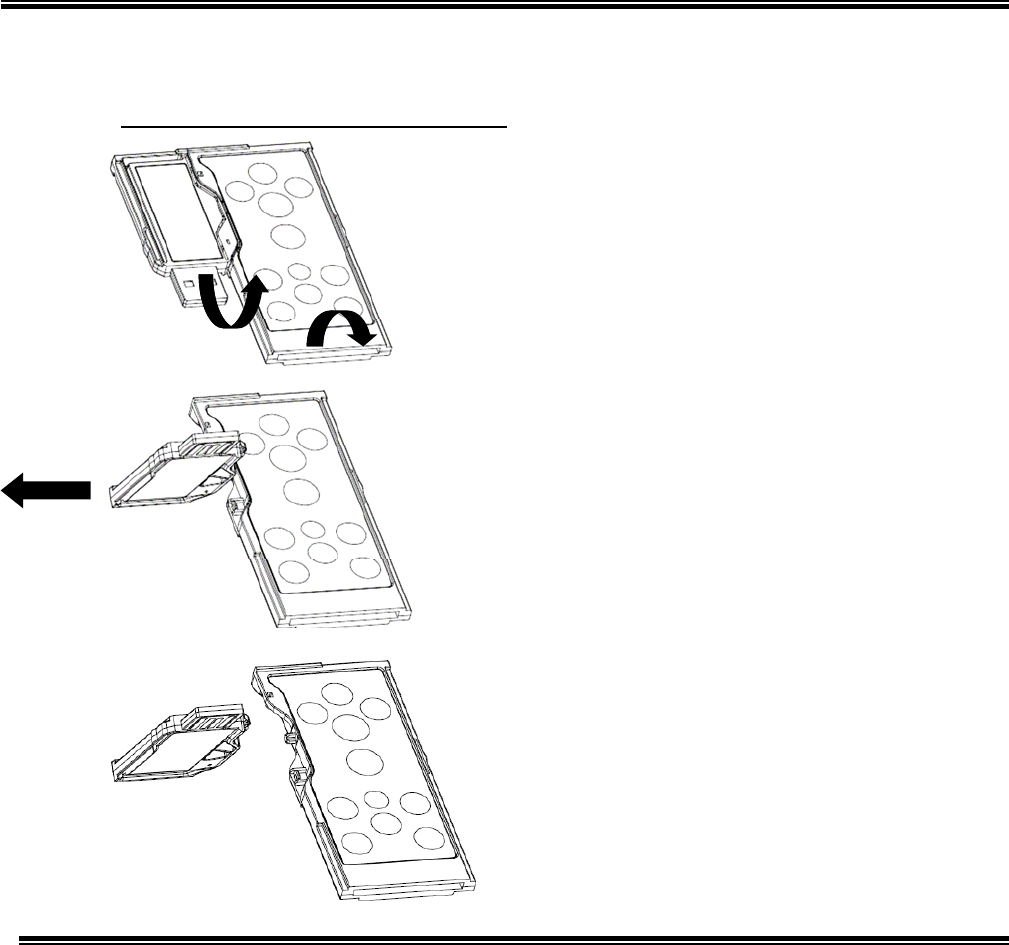

1. Separate presenter and receiver –
Rotate the presenter and receiver to
different direction (as the arrow).
Pull receiver away from presenter.
Separate presenter and receiver.
Presenter with RF wireless technology RC203/RF607
7
2. Installing battery --
Open the battery cover of presenter and put in Coin Type Lithium
battery (CR2032).

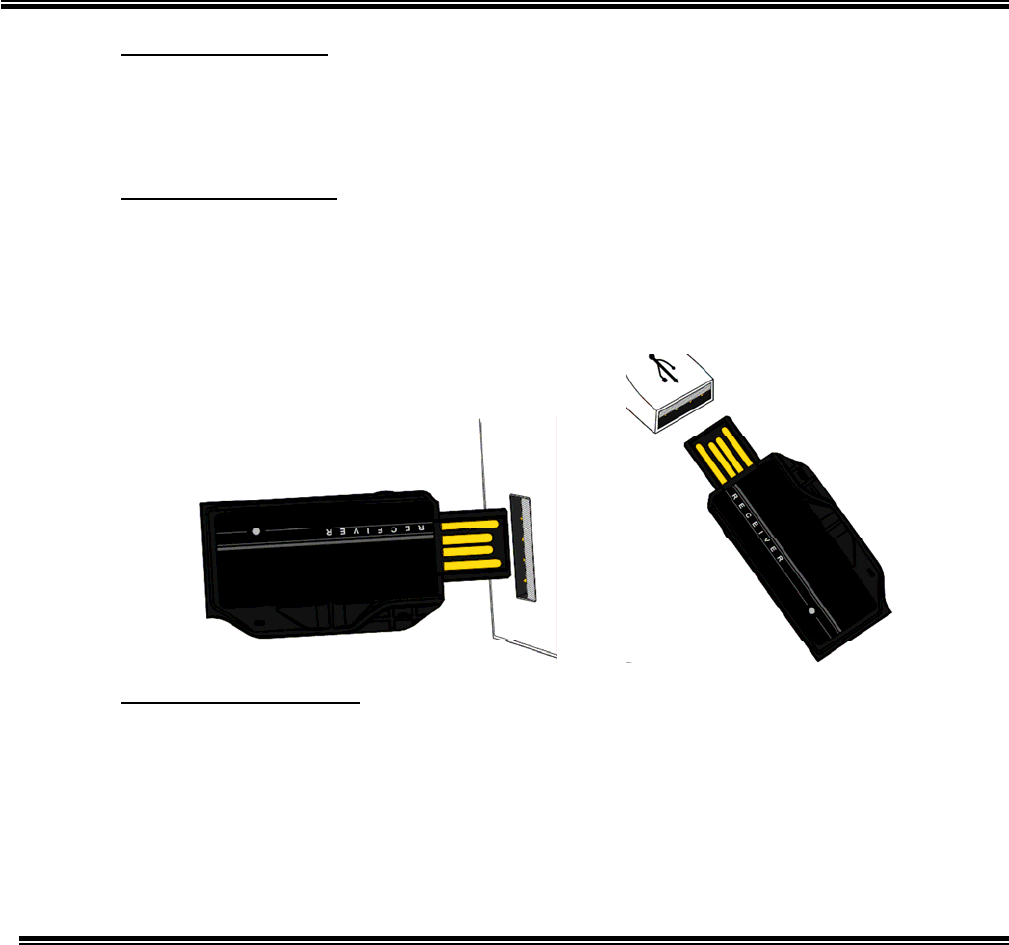

3. Installing receiver --
Plugging receiver into the USB port of your computer (with USB Port
on it). When insert the receiver, most of Golden pin on top. The blue
indicator of Presenter will flash when press key if the receiver is
inserted in correction direction.

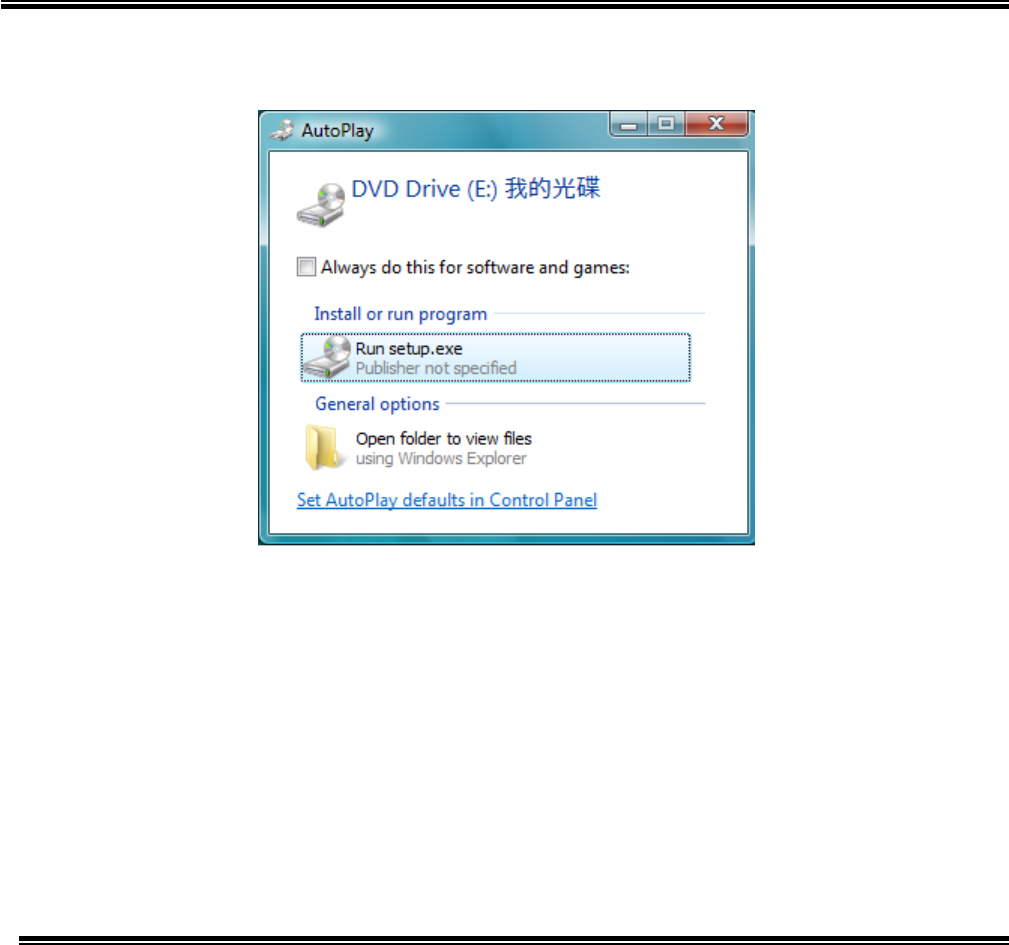

4. Installing CD-ROM --
Insert the autorun CD-ROM then the “Remote Master” installation will
start automatically.
Presenter with RF wireless technology RC203/RF607
8

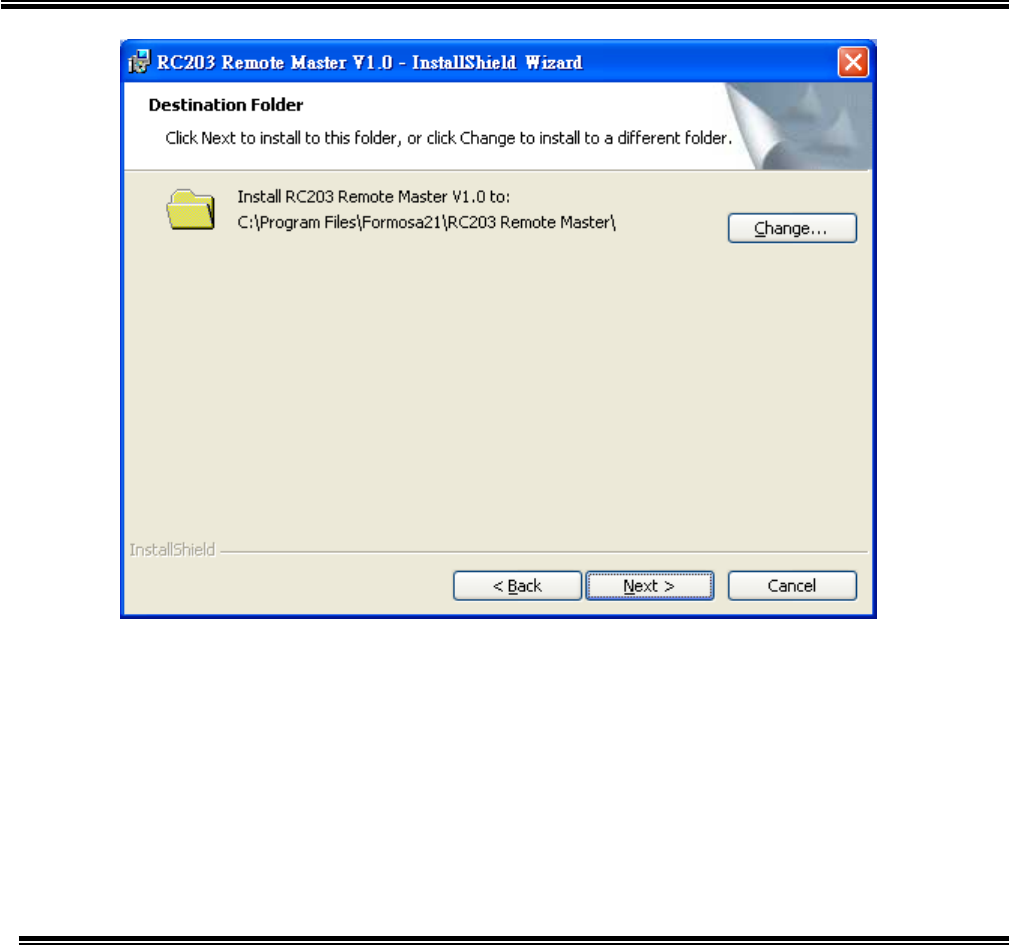

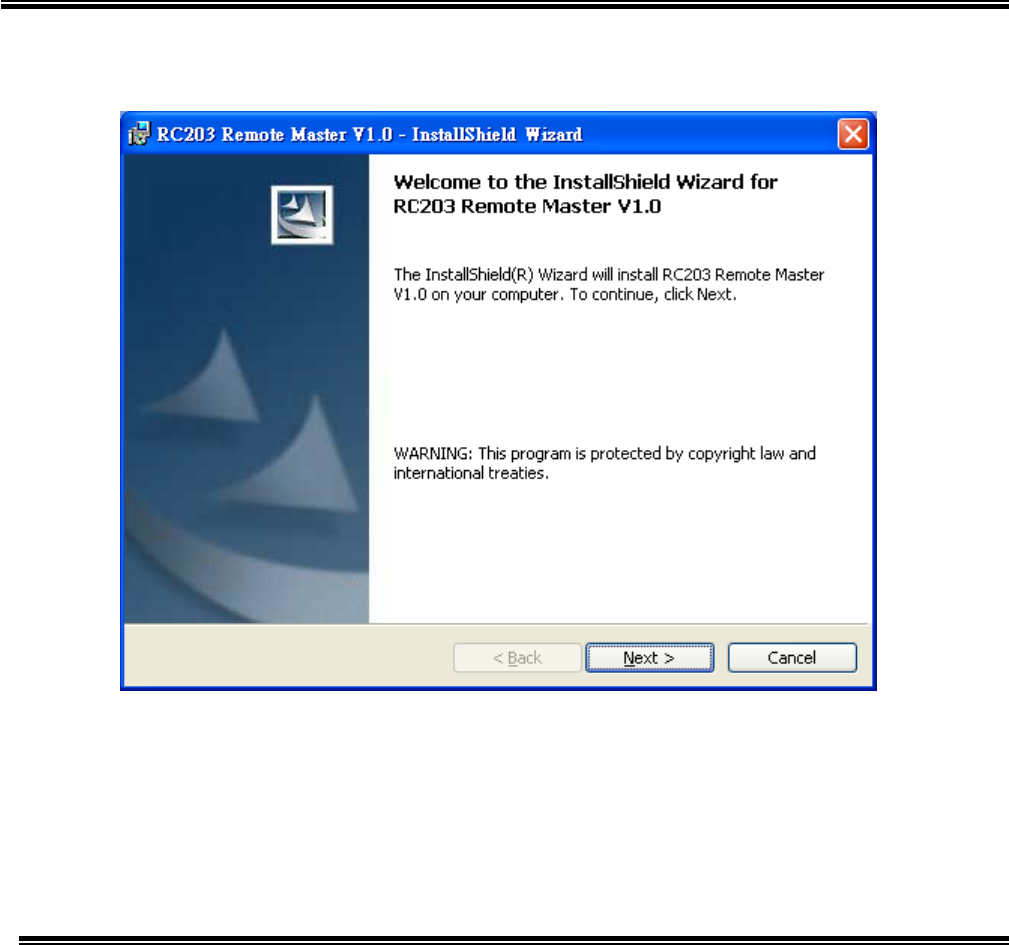

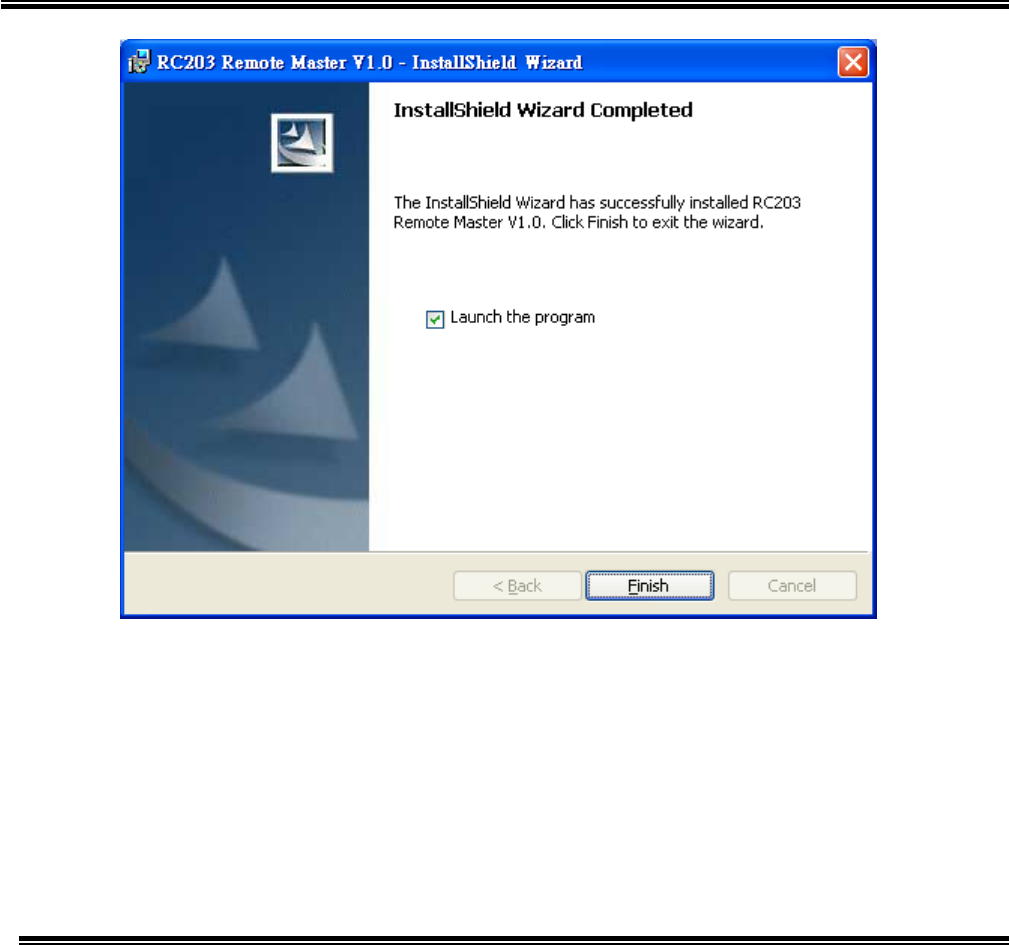

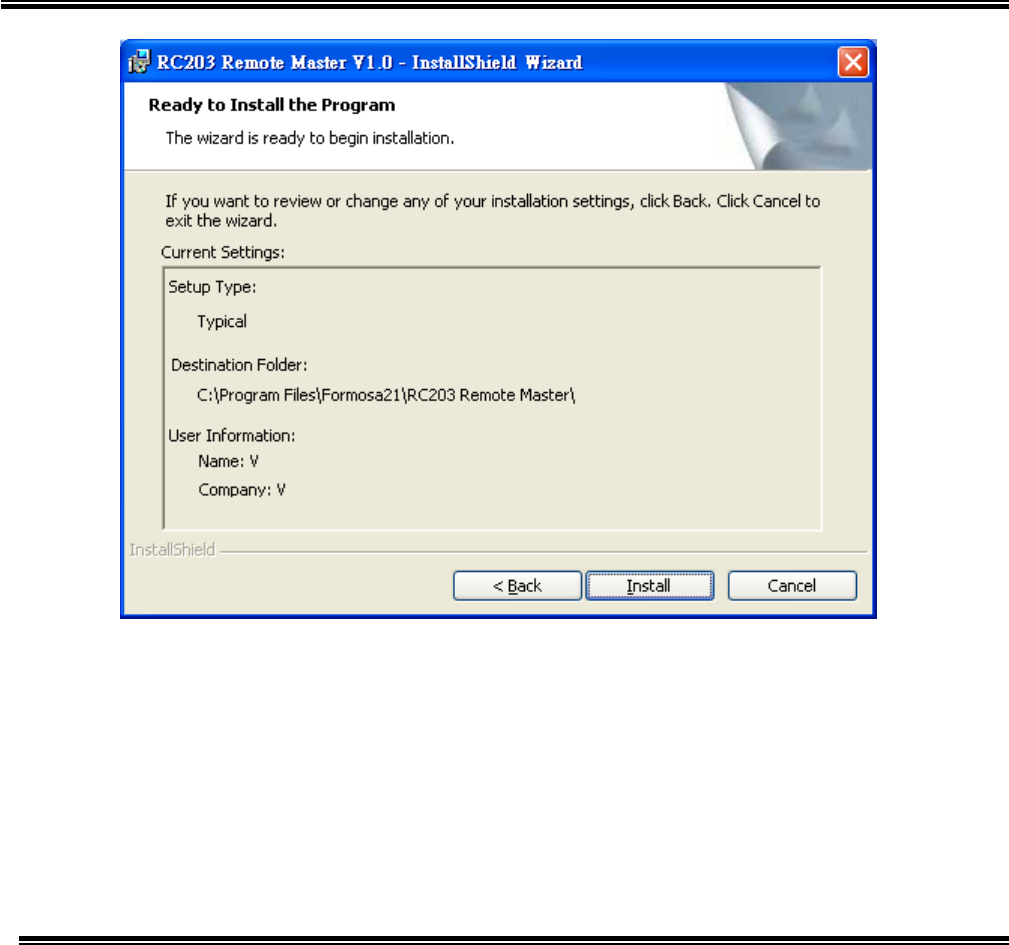

【XP Installation】
Presenter with RF wireless technology RC203/RF607
9
Presenter with RF wireless technology RC203/RF607
10
Presenter with RF wireless technology RC203/RF607
11
Presenter with RF wireless technology RC203/RF607
12

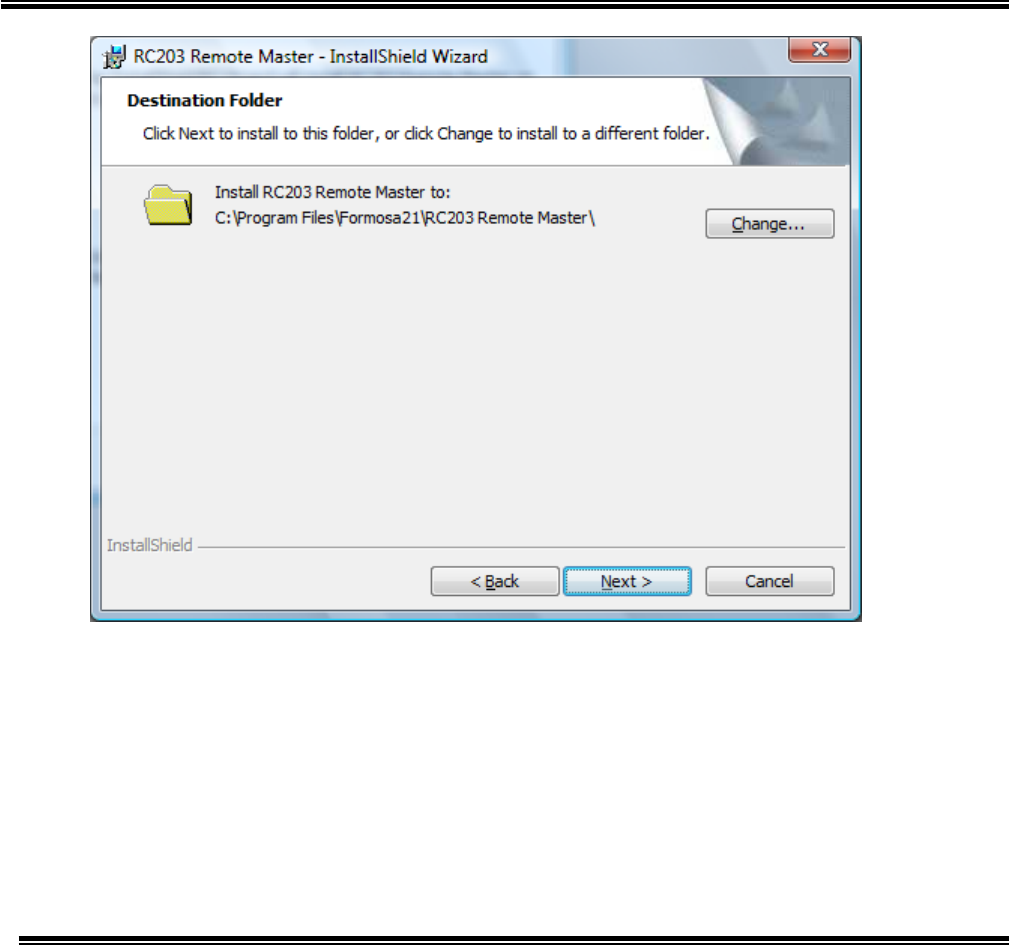

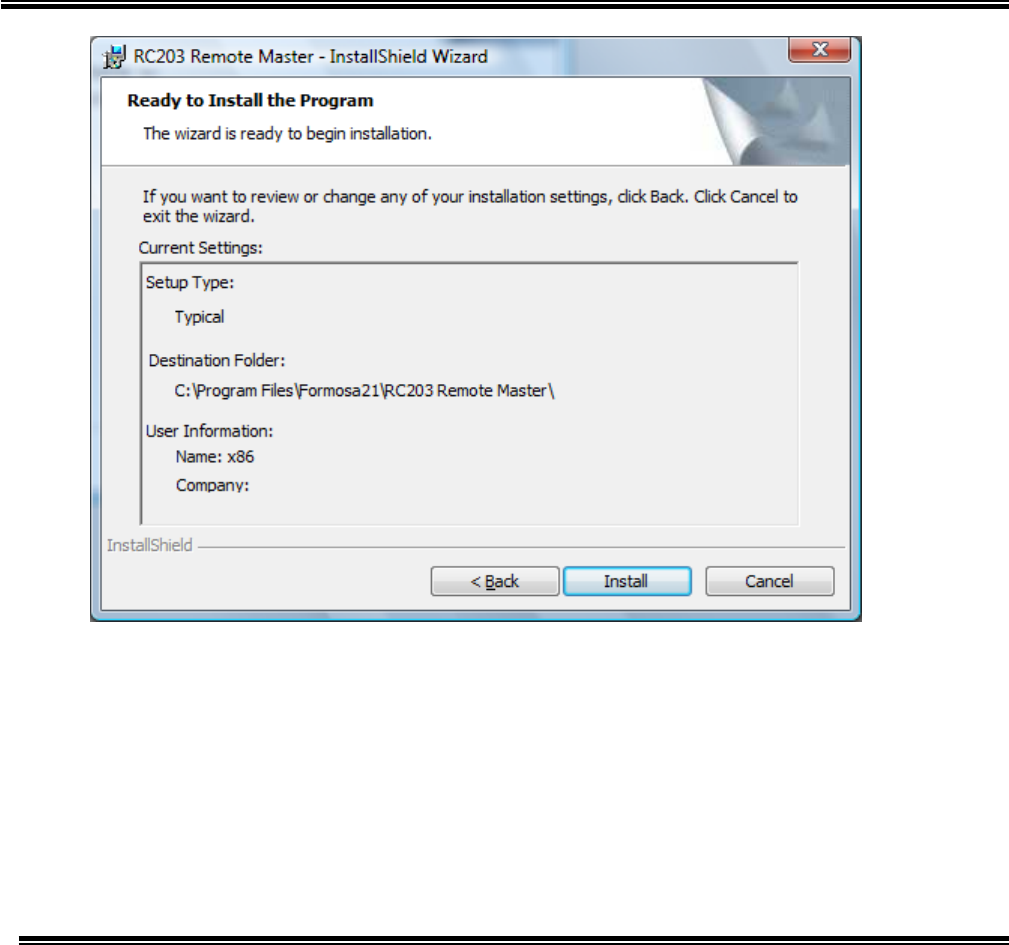

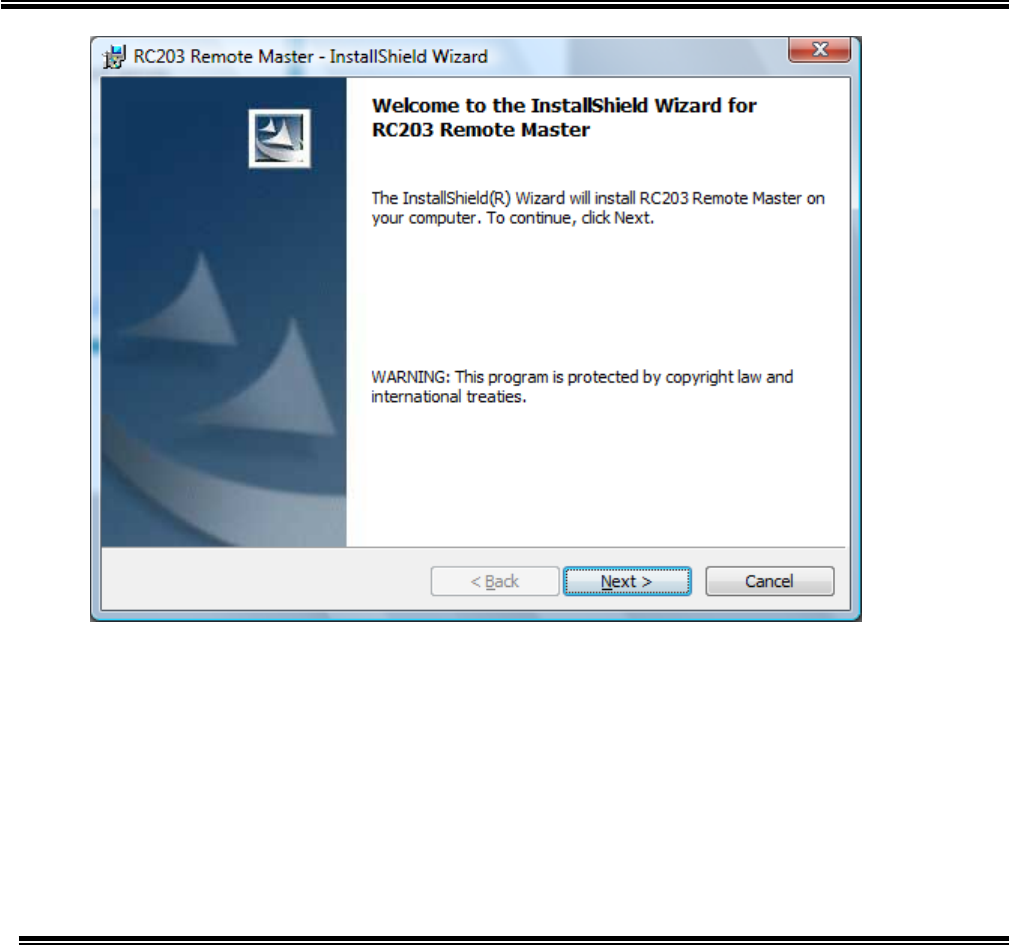

【Vista Installation】
Presenter with RF wireless technology RC203/RF607
13
Presenter with RF wireless technology RC203/RF607
14
Presenter with RF wireless technology RC203/RF607
15
Presenter with RF wireless technology RC203/RF607
16

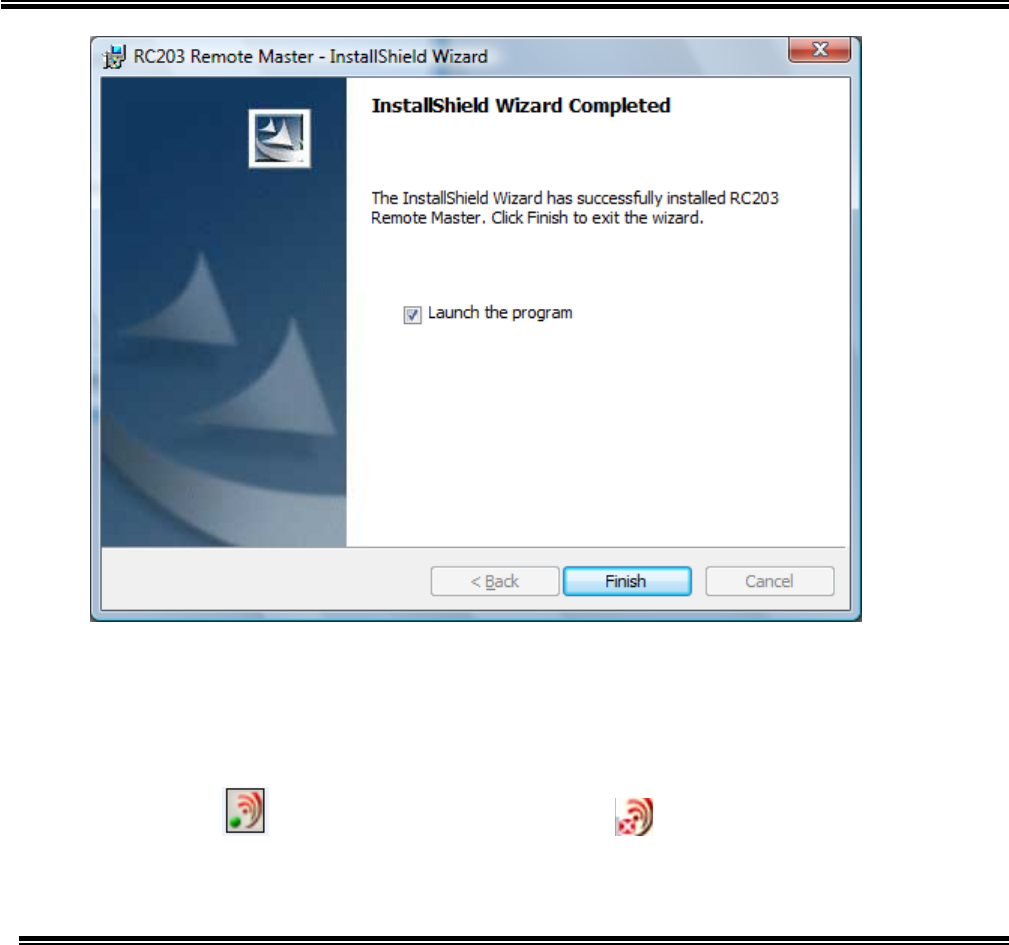

After installation, the icon of “Remote Master” will appear on system tray
of Windows by default setting. When USB dongle is plugged-in, it shows
green icon . Otherwise, it shows red icon . Always execute
Launch Manger first before you use Presenter to do presentation. If you
want to cancel the autorun setting of “Remote Master” when Windows
Presenter with RF wireless technology RC203/RF607
17
startup, please right-click the “Remote Master” icon on system tray and
switch “Enable autorun on startup” to “Disable autorun on startup”.
5. Other settings --

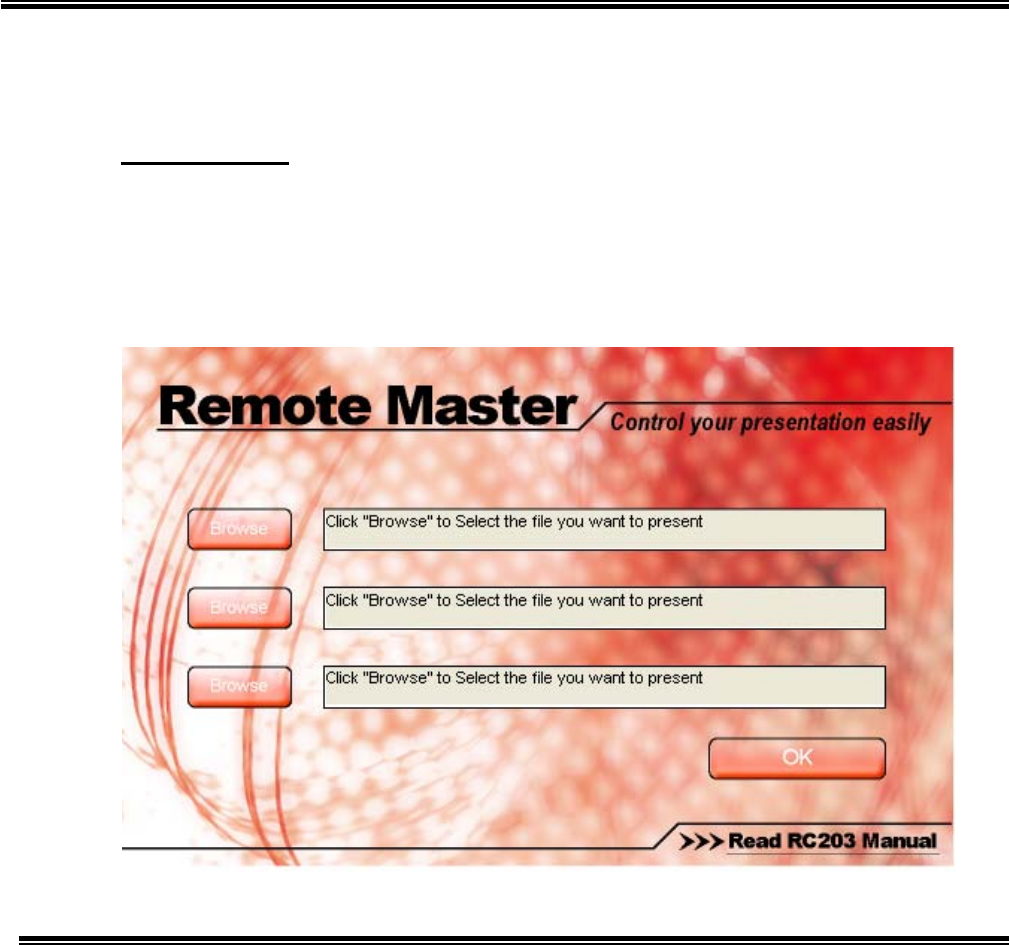

5-1 Open “Remote Master” editor by double-click the icon of “Remote
Master” on system tray, click “Browse” button to choose the file that
you want to present (3 files at most), and then press OK button. Or
click “Clear” button to reset the file link set previously.
Presenter with RF wireless technology RC203/RF607
18

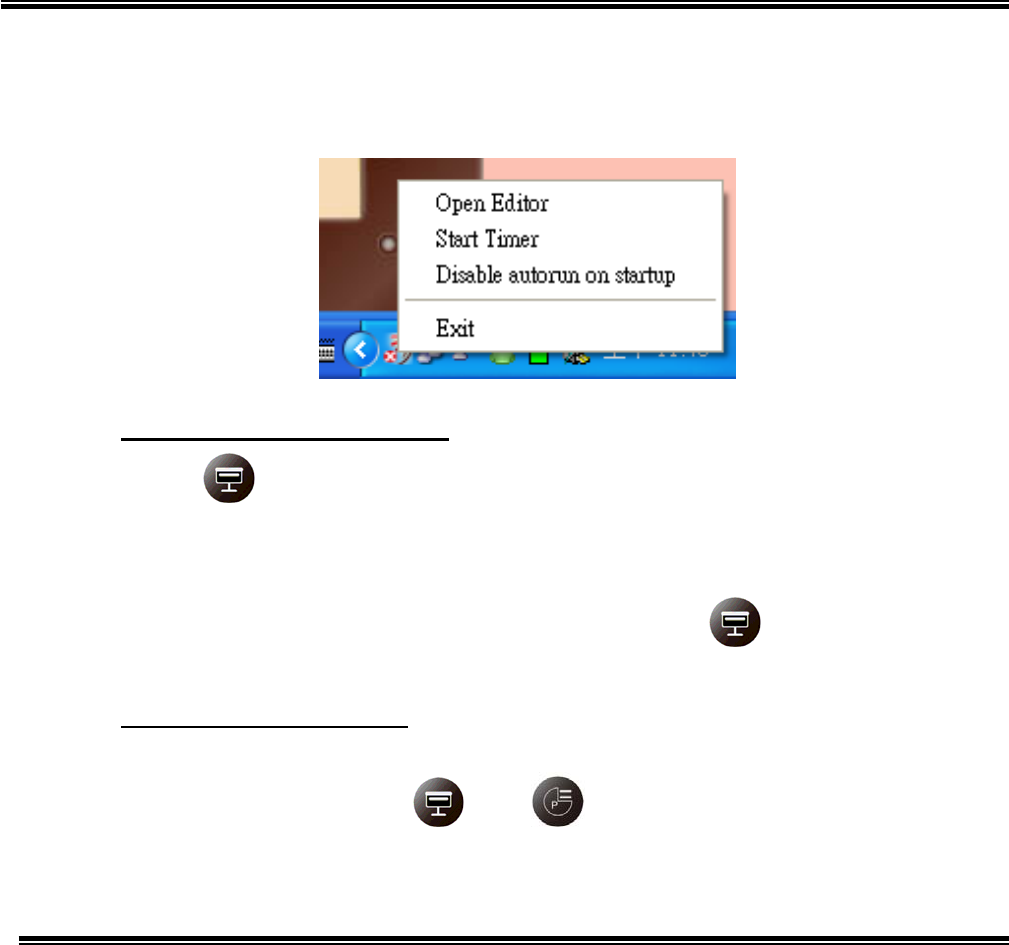

5.2 Right-click the icon of “Remote Master” on system tray, then
you can do “Open Editor”, “Start/Stop Timer”, “Enable/Disable
autorun on startup” and “Exit” operations.
6. Open your presentation file
Pressing to open the file(s) which you selected by “Remote Maser”.
If you can open the file(s) successfully, the receiver and presenter are
paired.
Ps. If you select 3 files by “Remote Master”, pressing will open the
3 files at the same time.
7. How to repair presenter --
If you cannot do the previous step successfully, you need to repair the
presenter. Keep pressing and about 3 seconds and the blue
indicator will flash. Then release the buttons when you see the
indicator flashing.
Presenter with RF wireless technology RC203/RF607
19
Light Signal：
1. Pairing --
-If the pairing is successful, the indicated LED of presenter and
receiver would both be turned on and then off.
-If the pairing is failed, the indicated LED of presenter would be
turned on about 3 seconds and then off but the indicated LED of
receiver is always off.
2. In use –
- The indicated LED of presenter and receiver would both flash
slowly.
- The indicated LED of presenter flashes quickly when repeat
pressing.
3. Repairing --
- The indicated LED of presenter and receiver would be turned on
about 3 seconds then flash quickly.
Presenter with RF wireless technology RC203/RF607
20

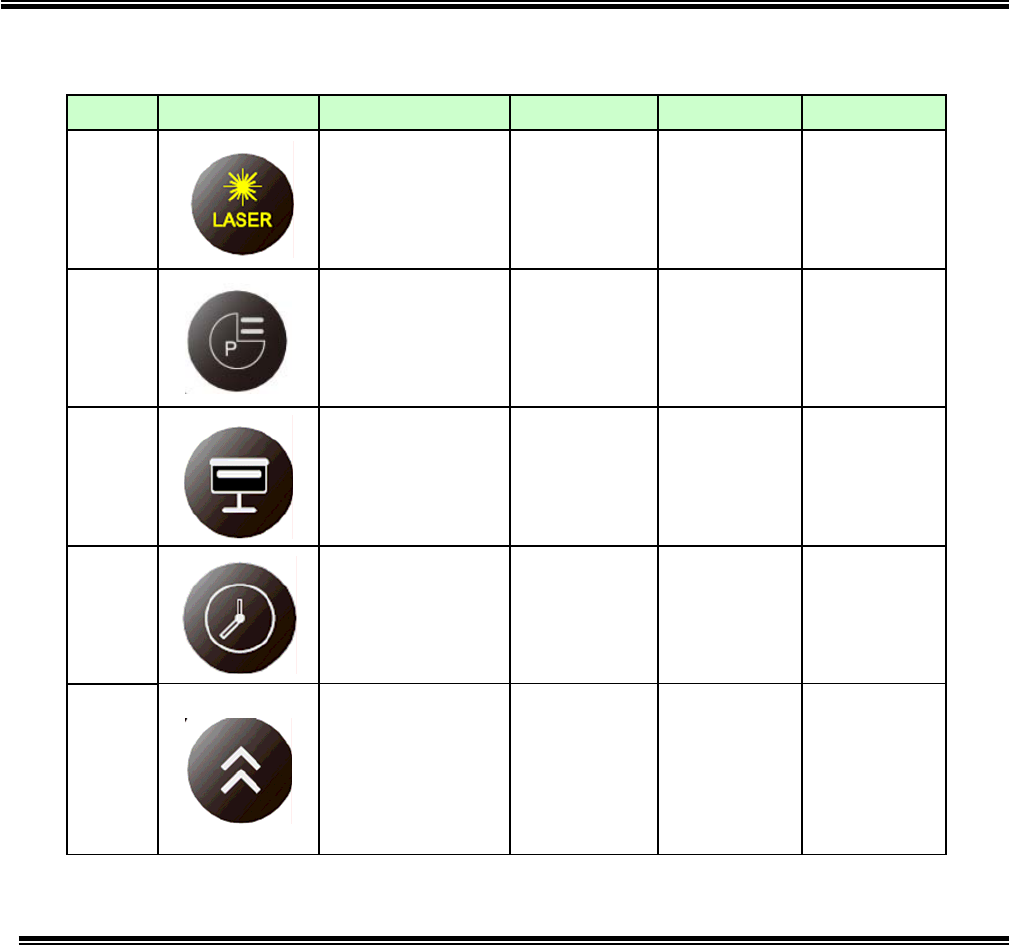

Function Description：

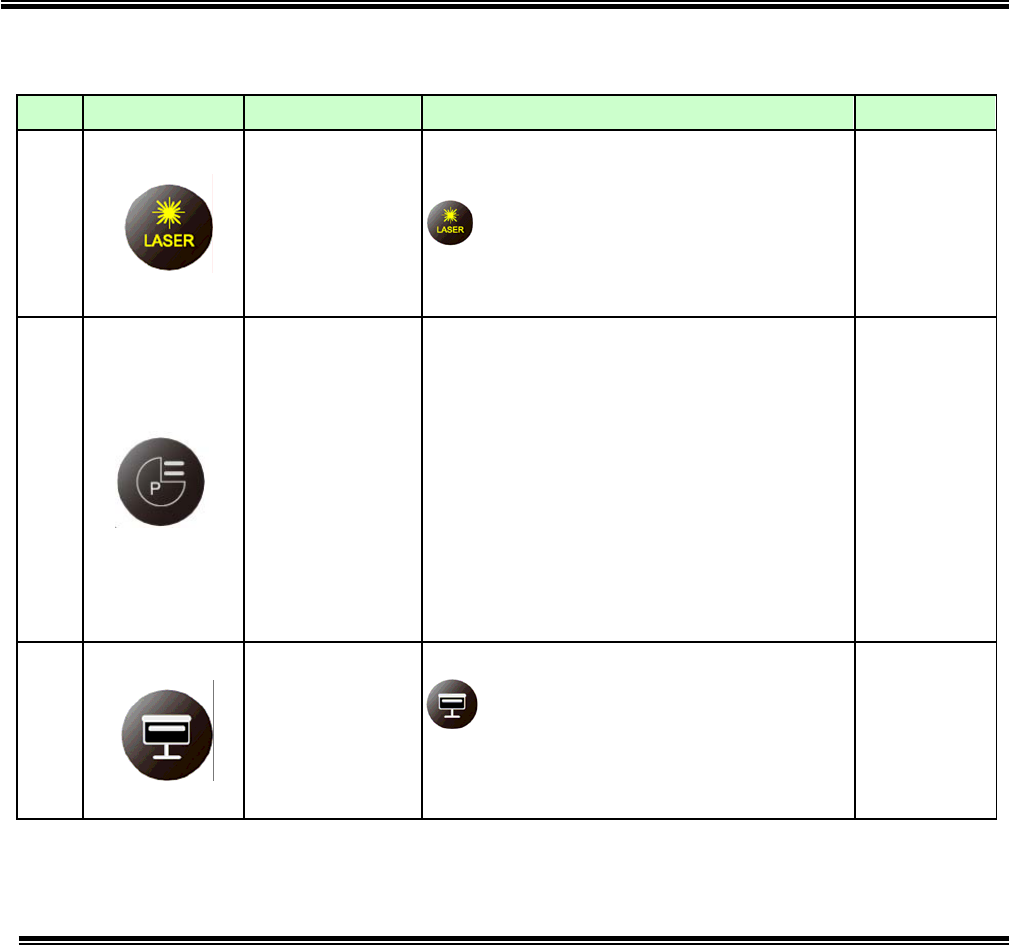

Items Icon Key Remark = Keyboard
1
Laser pointer
Laser is locked as default for secure
consideration. When keep pressing
about 3 seconds, laser would be
unlocked and it would be locked after
the idle longer than 30 minutes.
N
/A
2
Start
PowerPoint
Open or close the selected
(PPT/PDF…) file.
A. When the selected file is not
opened, it will open the selected
file.
B. In full-screen mode, pressing it
will leave full-screen mode
C. When you open the selected file
but not in full-screen mode, press
it will close the file.
N
/A
3
Play
PowerPoint
When open the PPT/PDF file, press
to be in full-screen mode.
P
s. If the PPT version is later than 2003, it
will full-screen the selected page.
Otherwise, it will full-screen the first page.
N
/A
Presenter with RF wireless technology RC203/RF607
21
4
Clock
When pressing , the clock will
start to count and be displayed on
screen. You can click to hide
OSD and clicking it again to display
it.
N
/A
5
Page up Moving forward your slides. Pg UP
6
Page down Moving backward your slides Pg Dn
7
Tab
It works in the PPT file when you
insert audio, video or web site link.
Press to select the inserted file
and then press to play it.
Tab
8
Play/Pause
1. It can Play or Pause media file
when the active window is Media
Player.
2. It’s OK key when the active
window is PowerPoint or when
using to switch to different
application.
Ctrl + P
Presenter with RF wireless technology RC203/RF607
22
9

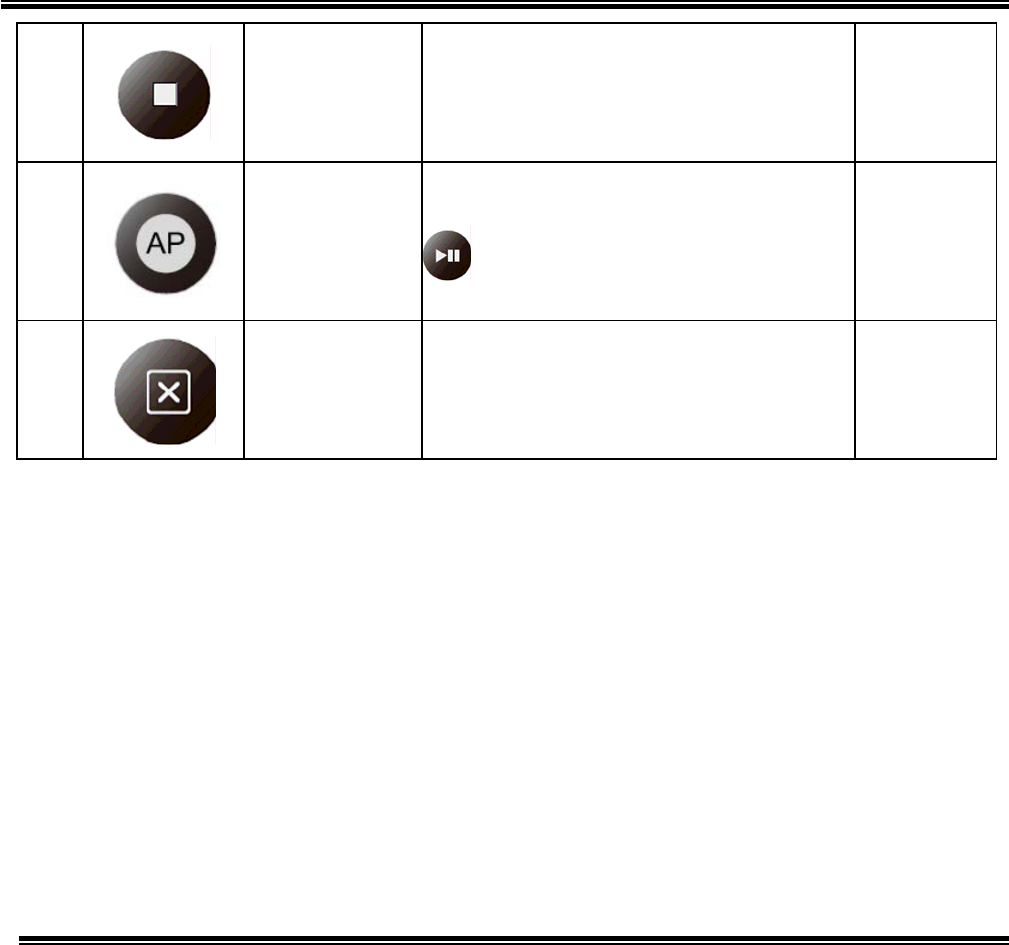

Stop Stop the media file. Ctrl + S
10
Switch AP
It can switch the current application to
others those are opened already. Click
to go to the application you
selected.
Alt + Tab
11
Shut Down 1. Shut down the current application.
2. Shut down the clock Alt + F4
Presenter with RF wireless technology RC203/RF607
23

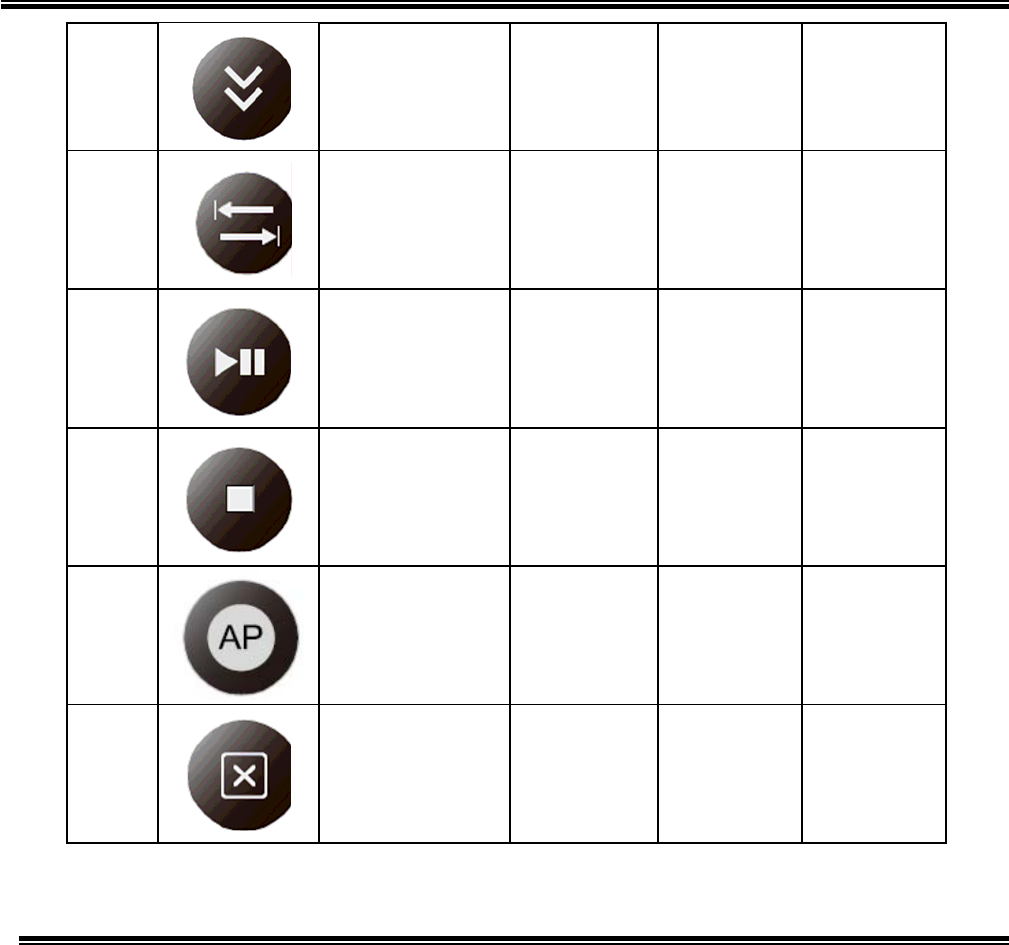

Function Action in Microsoft® Office：
Items Icon Key Word Excel PowerPoint
1
Laser pointer Laser
pointer
Laser
pointer Laser
pointer
2
Start
PowerPoint Start
PowerPoint Start
PowerPoint Start
PowerPoint
3
Play PowerPoint No
full-screen
mode
No
full-screen
mode
Play
PowerPoint
4
Clock Clock Clock Clock
5
Page up Page up Page up Page up
6
Page down Page down Page down Page down
Presenter with RF wireless technology RC203/RF607
24
7
Tab Input Tab Select grid Select item
8
Play/Pause Input Enter Input Enter Input Enter
9
Stop _ _ _
10
Switch AP Switch AP Switch AP Switch AP
11
Shut Down Shut Down Shut Down Shut Down
Presenter with RF wireless technology RC203/RF607
25

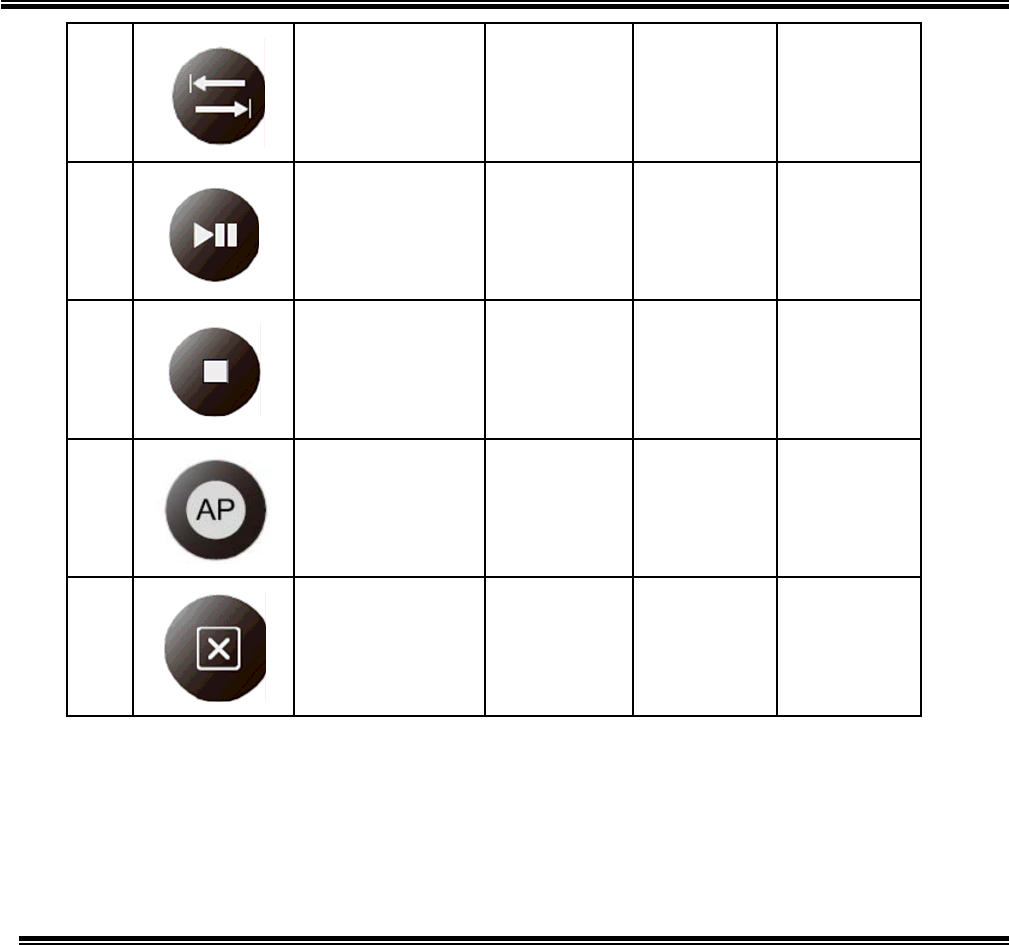

Function Action in OpenOffice：
Items Icon Key Writer Calc Impress
1
Laser pointer Laser
pointer
Laser
pointer Laser
pointer
2
Start
PowerPoint Start
PowerPoint Start
PowerPoint Start
PowerPoint
3
Play PowerPoint No
full-screen
mode
No
full-screen
mode
Play
PowerPoint
4
Clock Clock Clock Clock
5
Page up Page up Page up Page up
Presenter with RF wireless technology RC203/RF607
26
6
Page down Page down Page down Page down
7
Tab Input Tab Select grid Select item
8
Play/Pause Input Enter Input Enter Input Enter
9
Stop _ _ _
10
Switch AP Switch AP Switch AP Switch AP
11
Shut Down Shut Down Shut Down Shut Down
Presenter with RF wireless technology RC203/RF607
27
Troubleshooting：
Question Analysis Solution
The Presenter
doesn’t work.
No battery, battery died, or
un-correct battery
installation.
The pairing failed.
The computer does not
find the device.
Un-correct Presenter
installation.
Check battery and its installation.
(The rechargeable battery is not
acceptable)
Repair by following the fifth
point of “Installation and
operation”(p.8).
Search and pair the device by
following the second point of
“Installation and operation”
(p.7).
Uninstall and re-install by following
the second point of “Installation and
operation” (p.7).
Presenter with RF wireless technology RC203/RF607
28
The Presenter
react
irregularly.
The application isn’t
active.
The computer software is
not working window.
Edit HotKey of installation
without closing the
software you wants to use
in advanced.
The computer can’t
research the Presenter
device
Anti-virus/anti-spy
software interference.
Active Presenter application by
following, the fourth point of
“Installation and operation”
(p.7).
Modify your save route of
software by following, the fourth
point of “Installation and
operation” (p.7).
Set the HotKey after start this
software by Presenter.
Modify the setting of
anti-virus/anti-spy software.
Notice:
1. Please activate the software by Presenter first before you use it.
2. Please do not use rechargeable batteries on this product.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
