FORYOU MULTIMEDIA ELECTRONICS MP-328 WIFI dongle User Manual
FORYOU MULTIMEDIA ELECTRONICS CO., LTD WIFI dongle Users Manual
Users Manual
PEBBLE WIRELESS
HD PROJECTOR
Before operating the unit, please read this manual
thoroughly and retain it for future reference
Note
user manual
Note: Even in the absence of comment, company trademarks and products
trademarks of their respective companies get stern treatment.
Model name:P2
FCC ID:PUZMP-328
- 1 -
Caution about safety in use
Note
Thank you for purchasing this series of digital projectors.
Please read through the “manual" in order to properly use the product.
After reading the manual, please keep it in a safe place for future reference.
To reduce the risk of fire or electric shock, do not open the cabinet. Refer
servicing to qualified personnel only.
The mark warns that the unit is with insulated voltage, the surface
magnetic field may cause an electric shock; therefore, touching any
parts inside the unit is very dangerous.
The mark reminds the user when operating and maintenance must be
very careful, therefore, must read carefully in order to prevent making
fault.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture, do not open the cabinet.
WARNING
WARNING
- 2 -
Pebble wireless HD projector integrated DLNA, miracast,
airplay, MHL, HDMI, strive to build a smart phone, tablet
entertainment and business partner. DLNA enables Android
Smartphone or tablet itself or through third-party software
applications to push music, video, pictures located in the
device displayed by Pebble wireless HD projector.Equipment
can push music, video, pictures easily through airplay to the
projector and share it. Through Miracast, devices with
Android4.22 or above supports seamlessly displaying with
Pebble wireless HD projector.
MHL, HDMI allows devices with MHL or HDMI output for easy
connection via data cable to Pebble wireless HD projector and
share the big screen.
Pebble wireless HD projector will lead you into an
improvisational sharing mode of wireless HD connectivity.
Introduction
- 3 -
Checking
Front end unit
Mini HDMI
connector
Lens

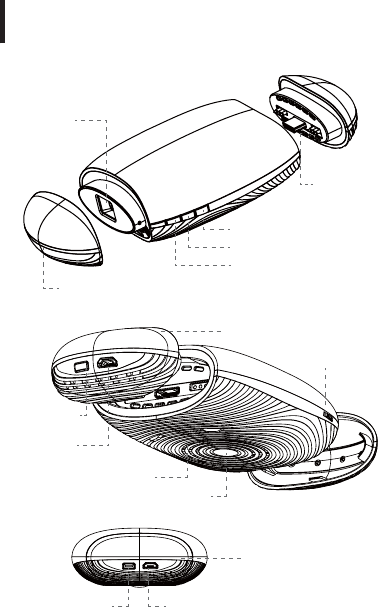

Overview
MicroUSB Port
(DC in)
MicroUSB Port (DC in)MicroHDMI
(MHL in or HDIM in)
DLNA/Miracast
switch
Focus wheel
Power
Vol up
Vol down
Cooling fan
Intemal speaker
MHL dongle
WiFi dongle
- 4 -
Quick setting up and debugging
Setting up and debugging

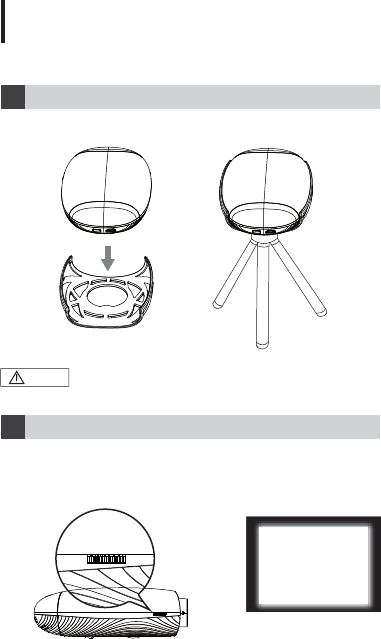

Setting up your projector
Tripod included in standard accessories.
1
Focus adjusting
2
Tripod connecting
Note
Adjust focus by sliding the focus wheel on the right side of the
body. Move the projector forward or backward if it is still not
clear.
ABCD
- 5 -
Quick setting up and debugging
Setting up and debugging

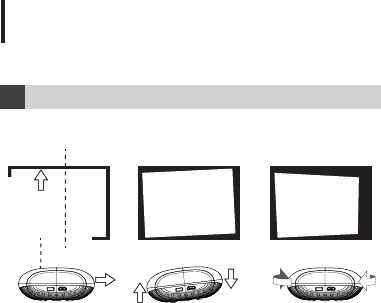

Adjusting projected images
3
Checking horizontal or vertical setting of screen
2
3
344
1
1. Move the projector to the same side when the projected
image is displaced leftward or rightward. (Align the center
of the image with the center of LENS.)
2. Adjusting by the front adjuster when the projected image is
displaced vertically.
3. Place the projector horizontally when the projected image
is offset.
4. As shown above, align the position of projector with screen
when it was not.
- 6 -
Connecting projector
Connecting to devices

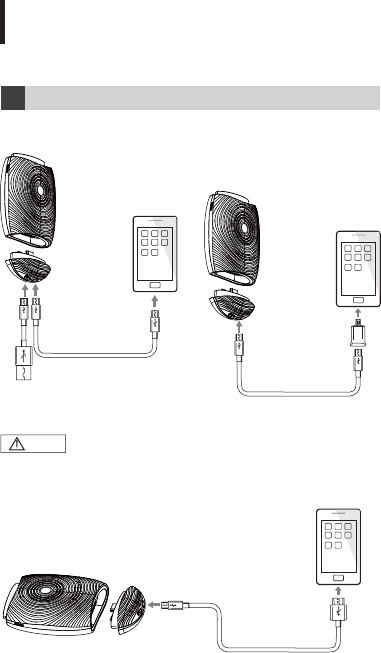

MHL dongle connecting
1
Connect to Smartphone or Samsung Smartphone via MHL cable
Connect to Smartphone via HDMI cable
Smartphone
Smartphone
MHL dongle
HDMI cable is NOT included in accessories. The projector support device
with MHL/HDMI out function only.
Note
MHL cable
MHL cable
HDMI cable
MHL-5Pin
Mirco HDMI
MHL dongle
Micro HDMI
MHL-5Pin
Samsung
Smartphone
MHL-11Pin
adaptor
- 7 -
Connecting projector
Connecting to devices

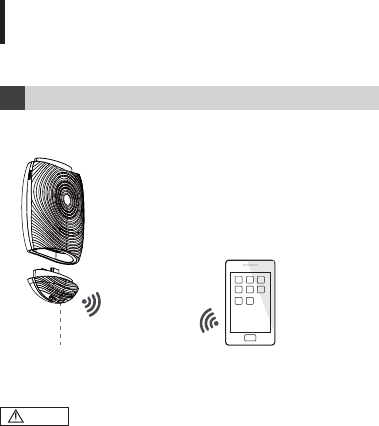

WiFi dongle connecting
2
Connect to Smartphone via WiFi
Smartphone
Note
Connecting to the projector, Smartphone must support DLNA or Miracast.
WiFi dongle
DLNA/Miracast switch key
- 8 -
Setting

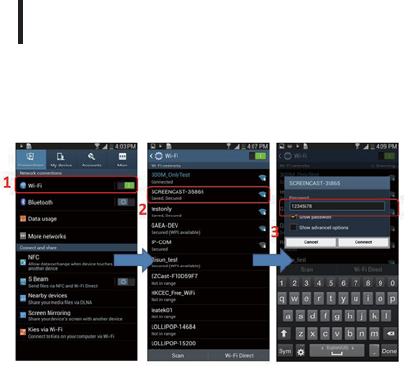

Router Setting
&OLFNLQJ6HWWLQJVĺ:,),ĺ6&5((1&$67[[[[[RQ\RXU
phone or tablet , type in Default Passwords “12345678”.
- 9 -
Setting
Router Setting

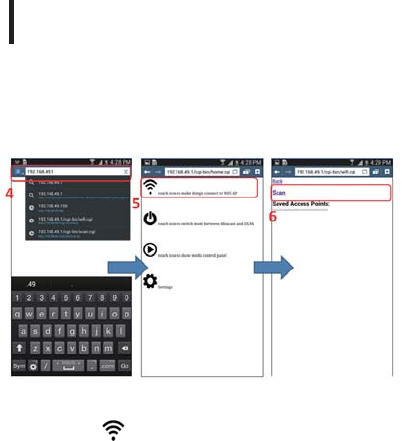

2. After Success connected, Open the browser and type in
“http://192.168.49.1”.
3. Click the icon. .
4. Click “Scan” to scan the Wireless Router, choose the AP Enter
Password.
- 10 -
Setting
DLNA Usage

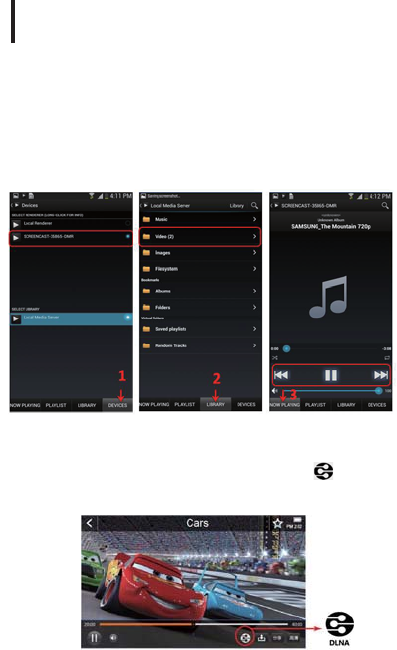

1. DLNA Local Sharing
8[TTOTMZNK'66K^GSVRK Ȕ([HHRK;6T6ȕͫJU]TRUGJLXUS
Google Play store) which used for DLNA sharing:
(1) Select the SCREENCAST-xxxxx in the “DEVICES”.
(2) Select the video, picture, music in the “PLAYLIST” or
“LIBRARY”, the media will play on the TV.
2. DLNA Internet Sharing
Download the Online Video App from Google Play Store,
Which support the DLNA share. The icon of DLNA will
appear when you watch the Online Video, then click it and
choose the devices “SCREENCAST-xxxxx” for sharing on TV.
- 11 -
Setting

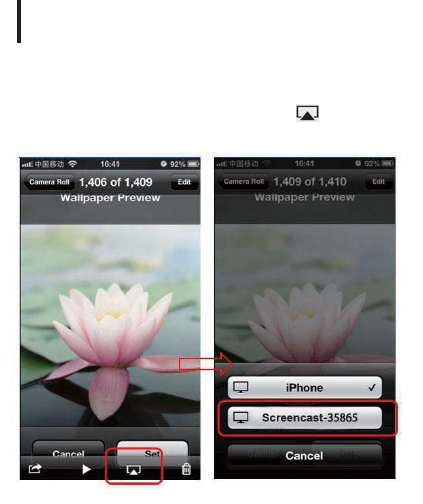

AirPlay Usage
1. Connect IOS to “SCREENCAST-xxxxx”. Browsing the local
video/music/picture, click the icon of airplay then choose
the devices “SCREENCAST-xxxxx” for sharing on TV.
- 12 -
Setting

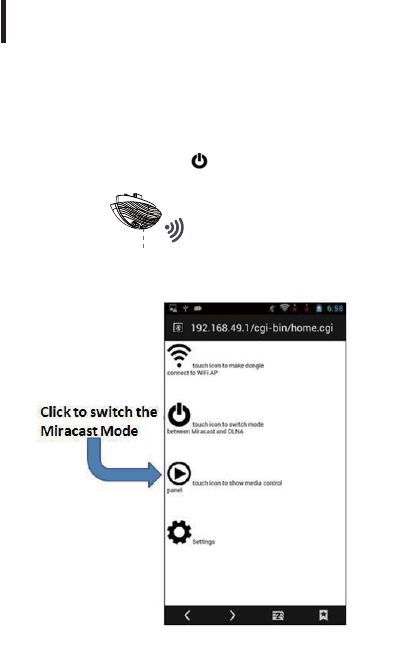

Mode Switch DLNA and Miracast
1. Manually switch
Poke the port In the Front of screencast.
=KHY]OZIN
Open browser and type in “ http://192.168.49.1”
Click the icon of Mode Switch in the Web.
QK_Y]OIN
DLNA/Miracast switch key
- 13 -
Setting

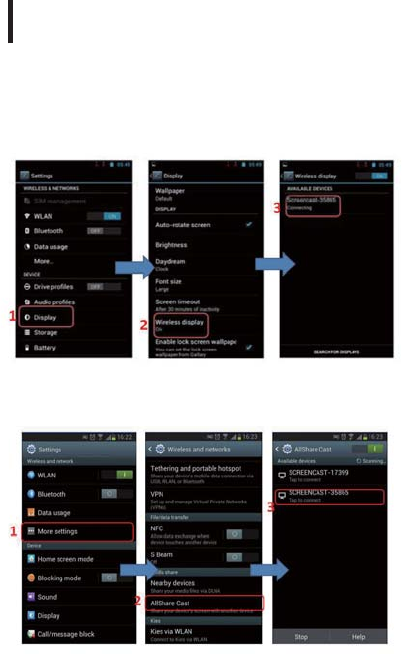

Miracast Usage
)UTTKIZYKZZOTMͧ=O,O*OYVRG_ͨ
)ROIQ9KZZOTMYɒ*OYVRG_ɒ=OXKRKYY*OYVRG_ɒ
SCREENCAST-xxxxx After connect successfully, the screen of
the device can share on TV screen real-timely.
)UTTKIZOTMYKZZOTMͧ9IXKKT3OXXUXOTMͨ
)ROIQ9KZZOTMYɒ3UXK9KZZOTMYɒ'RR9NGXK)GYZɒ
SCREENCAST-xxxxx
- 14 -
Setting

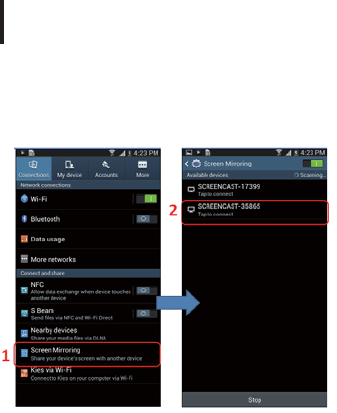

Miracast Usage
9'39;4-*K\OIK)UTTKIZ9KZZOTMͧ9IXKKT3OXXUXOTMͨ
)ROIQ9KZZOTMɒ)UTTKIZ'TJ9NGXKɒ9IXKKT3OXXUXOTM
ɒ9)8++4)'9:^^^^^
NOTE:
Various devices has different name and way to set Miracast, below
for reference:
LG Optimus G: Setting->More Setting-> Miracast.
Sony: Setting->Xperia->Screen sync display.
HTC: Setting->Media Output.
Sharp: Settings -> Wireless Output.
Nexus4: Settings-> Display -> Wireless display.
XiaoMi2: Settings-> Wlan display settings->Menu-> Wlan Display .
- 15 -
Miracast Trouble shooting
7:NKYIXKKTOYHRGIQ
'6RKGYKIUTLOXSLURRU]YZKVY
(1) Please check the LED? If not blue, make sure the Micro
USB cable be fully connected to the power source.
(2) Make sure the HDMI cable is securely connected firmly.
(3) Make sure the correct HDMI port input is selected by the
TV.
7)GTȑZLOTJJK\OIK/TZNK3OXGIGYZ3UJK
'6RKGYKSGQKY[XK9IXKKTIGYZNGYHKKTY]OZINZUZNK3OXGIGYZ
mode.
7*UKYTUZYIGTZNKJK\OIKOTZNK*24'SUJK;
'6RKGYKSGQKY[XKZNK]OXKRKYYIUTTKIZHKZ]KKT_U[XVNUTKUX
tablet and Screencast.
76RG_ZNK<OJKUTUZ\KX_YSUUZNR_OTZNK*24'SUJK
'6RKGYK]GOZLUXGSUSKTZJ[KZUN[MKLORKTKKJZOSKZU
buffer.
(2) Short distance between the device and the router.
76RG_\OJKUY[JJKTR_YZUVOTZNK3OXGIGYZSUJK
'9NUXZJOYZGTIKHKZ]KKTZNKJK\OIKGTJZNKXU[ZKX
- 16 -

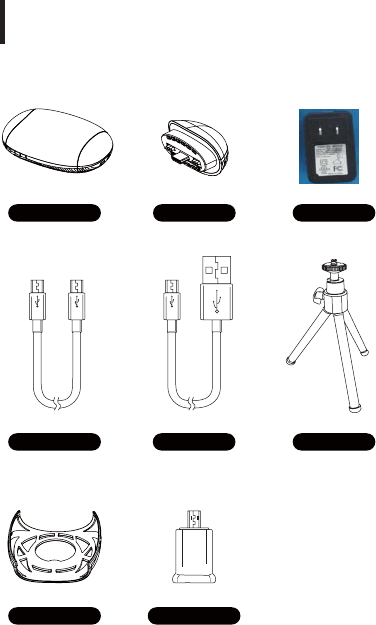

Checking accessories
Packing list
Projector MHL dongle Power adaptor
MHL cable
MHL adaptorStand
AC cable Tripod
(1) this device may not cause harmful interference, and
Our company reserves the right to change product design and specification, if there is any change, without
prior notice.
The printing information is for reference only, specifications, function and performance indicators will be
subject to physical products.
All images for the exterior schematic diagram with advertising, for reference only.
Our company try our best effort to ensure that the printing information is accurate, if there is an error please
understanding.
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Ad Hoc function is supported but not able to operate on non-US frequencies.
*RF warning for Portable device: The device has been evaluated to meet
general RF exposure requirement. The device can be used in portable
exposure condition without restriction.
This device is acting as slave device and operating in the 2.4 GHz
(2412 – 2462 MHz) band.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
