FXT Technology 001 5.8G AV Transmitter User Manual FX795T 25mW FXT Technology Co Ltd
FXT Technology Co., Limited 5.8G AV Transmitter FX795T 25mW FXT Technology Co Ltd
User manual
PRODUCT SPECIFICATION
MODEL: FX795T FXT 5.8GHz 40 Channel
AV Transmitter
Modulate Wideband FM Modulate
Video Format NTSC/PAL
Characteristics Value Units
Min. Typ. Max.
1 Output Impedance --- 50 --- Ohm
2 Output Power 12 13 14 dBm
3 Frequency Range 5645-5945 MHz
4 Operating Voltage 7.0 12 20 V
5 Current Consumption --- 70 --- mA
6 Output Voltage(VOUT) VOUT = 5V V
7 Operating Temperature -10 --- +85 ℃
8 Video Band Width --- 6.0 --- MHz
9 Audio Carrier Frequency --- 6.5 --- MHz
10 Video Input Level 0.8 1.0 1.2 Vp-p
11 Video Input Impedance --- 75 --- Ohm
12 Audio Input Level 0.5 --- 2.0 Vp-p
13 Audio Input Impedance --- 10K --- Ohm
14 Weight ---- 7.5 --- Gram(s)
15 Antenna Connector SMA Female Connector
16 Dimensions (L x W) 31x22 mm
利用 pdfFactory Pro 测试版本创建的PDF文档 www.pdffactory.com

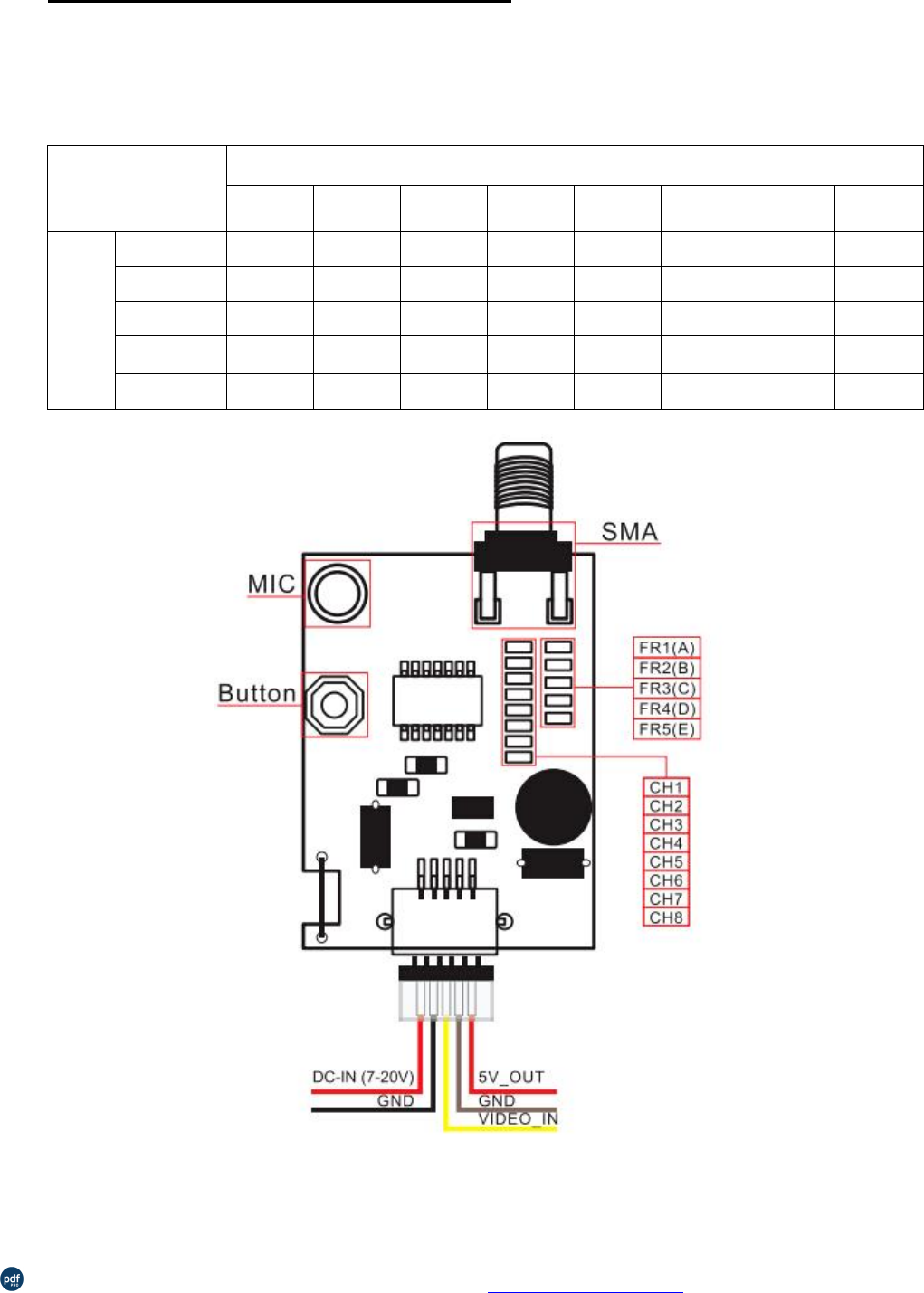

Change frequency band & channel
Single push to change CH, push and hold for 2 seconds to change FR
Below is FX795T Channel table for your reference:
CH
FR
CH
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
FR
FR1(A) 5740
5760
5780
5800 5820
5840
5860
5880
FR2(B) 5705
5685
5665
5645 5885
5905
5925
5945
FR3(C) 5865
5845
5825
5805 5785
5765
5745
5725
FR4(D) 5658
5695
5732
5769 5806
5843
5880
5917
FR5(E) 5733
5752
5771
5790 5809
5828
5847
5866
利用 pdfFactory Pro 测试版本创建的PDF文档 www.pdffactory.com
The output power of this device is less than 20mW.The SAR test is not required.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications or changes to this equipment. Such modifications or changes
could void the user’s authority to operate the equipment.
A certified modular has the option to use a permanently affixed label, or an electronic label.
For a permanently affixed label, the module must be labelled with an FCC ID: 2AGB8-001.
The OEM manual must provide clear instructions explaining to the OEM the labelling
requirements, options and OEM user manual instructions that are required
For a host using a this FCC certified modular with a standard fixed label, if (1) the module’s
FCC ID is notvisible when installed in the host, or (2) if the host is marketed so that end
users do not have straightforward commonly used methods for access to remove the module
so that the FCC ID of the module is visible; then an additional permanent label referring to
the enclosed module:
“Contains Transmitter Module FCC ID: 2AGB8-001 or “Contains FCC ID: 2AGB8-001 ”
must be used. The host OEM user manual must also contain clear instructions on how end
users can find and/or access the module and the FCC ID.
Host product is required to comply with all applicable FCC equipment authorizations
regulations, requirements and equipment functions not associated with the transmitter
module portion. compliance must be demonstrated to regulations for other transmitter
components within the host product; to requirements for unintentional radiators (Part 15B).
To ensure compliance with all non-transmitter functions the host manufacturer is
responsible for ensuring compliance with the module(s) installed and fully operational. If a
host was previously authorized as an unintentional radiator under the Declaration of
Conformity procedure without a transmitter certified module and a module is added, the
host manufacturer is responsible for ensuring that the after the module is installed and
operational the host continues to be compliant with the Part 15B unintentional radiator
requirements. Since this may depend on the details of how the module is integrated with
the host, we suggest the host device to recertify part 15B to ensure complete compliance with
FCC requirement: Part 2 Subpart J Equipment Authorization Procedures , KDB784748 D01
v07, and KDB 997198 about importation of radio frequency devices into the United States.
The user can only use the manufacture provided antenna, cannot use any other antenna not
provided by any others.
