MA-Series
Service manual
Contents
4 Introduction
5 Lock assembly drawing index
8 Lock Assemblies
9 MA101 - Passage or Closet Latch
10 MA161 - Exit or Communicating Lock
11 MA301 - Privacy, Bedroom/Bath
12 MA311 - Privacy, Bedroom/Bath
13 MA321 - Privacy, Bedroom/Bath
14 MA371 - Store Door Lock
15 MA381 - Apartment, Exit
16 MA411 - Asylum or Institutional Lock
17 MA431 - Classroom Security Lock with Deadbolt
18 MA441 - Classroom Security Lock
19 MA451 - Hotel Guest Lock
20 MA521 - Entry/Oce Lock
21 MA531 - Apartment Corridor Door Lock
22 MA541 - Entry/Oce Lock
23 MA551 - Holdback Lock
24 MA561 - Classroom Lock
25 MA571 - Dormitory or Exit Lock
26 MA581 - Storeroom / Closet Lock
27 MA621 - Front Door / Apartment Corridor
28 MA641 - Dormitory Lock
29 MA851 - Electrified Fail Safe (EL) - 12 & 24V, with or
without RX
30 MA881 - Electrified Fail Secure (EU) - 12 & 24V, with or
without RX
31 MA911 - Classroom Dead Lock
32 MA921 - Dead Lock
33 MA931 - Dead Lock
34 MA941 - Dead Lock
35 MA12 - Single Dummy
36 MA18 - Double Dummy
38 Parts and Accessories

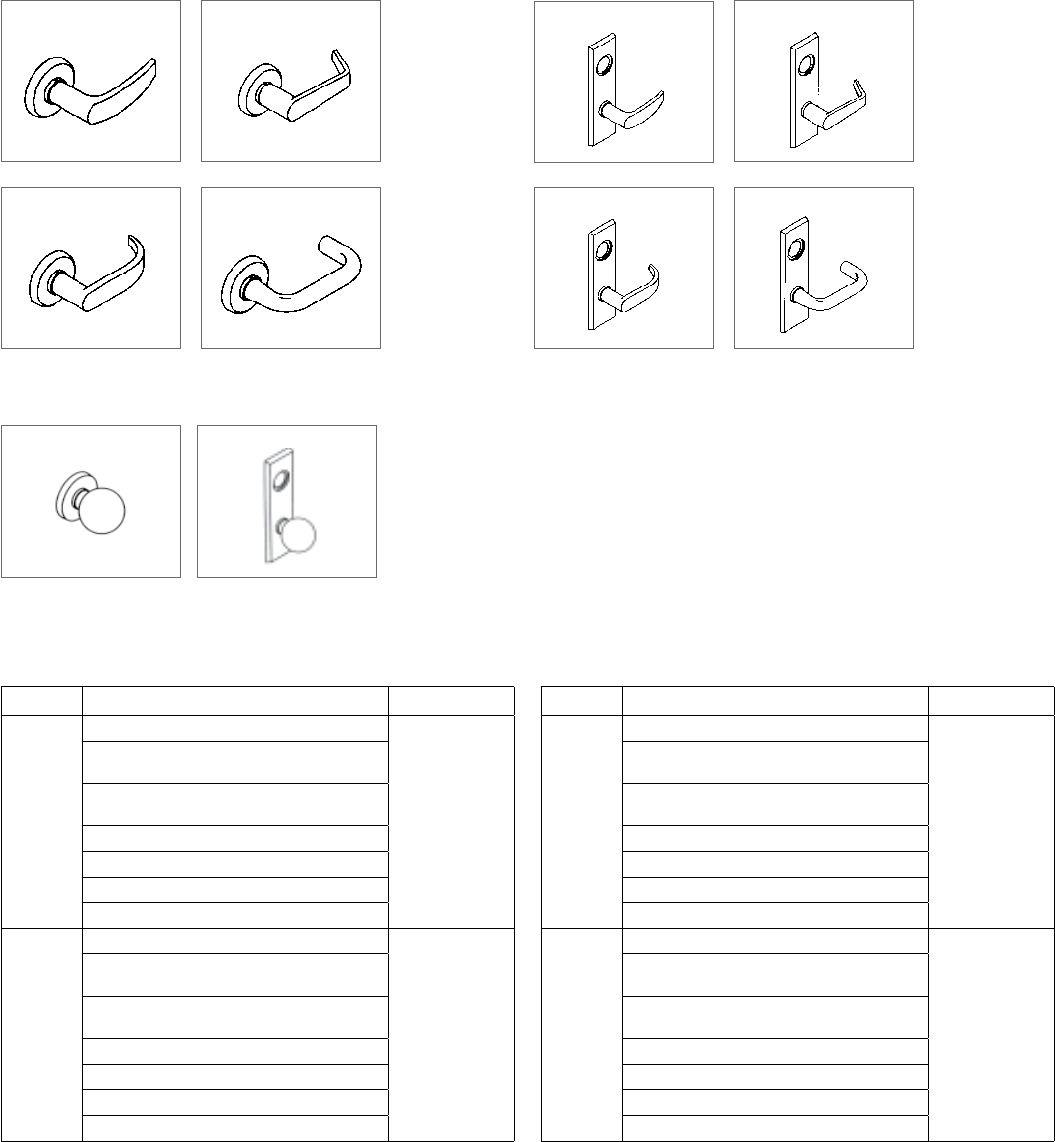

39 Knob and Lever Designs
39 Screw Packs

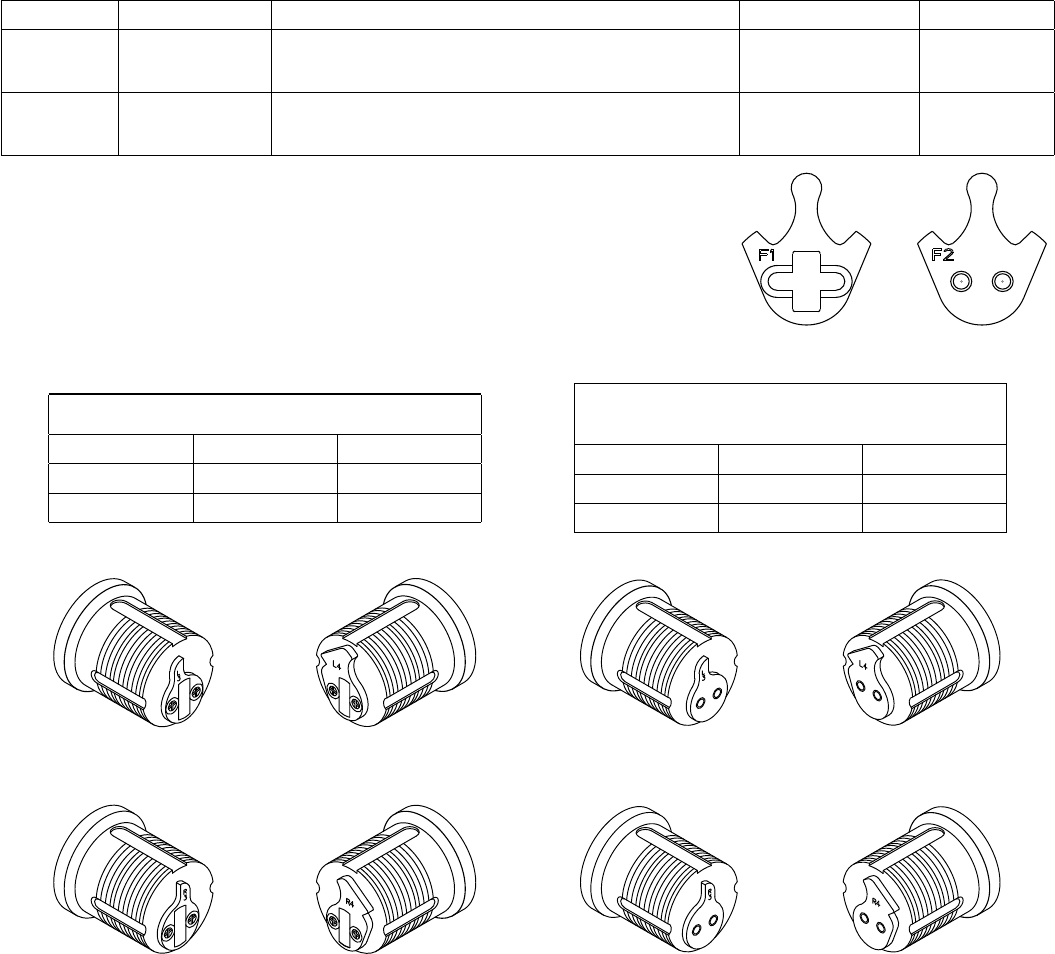

41 Cams

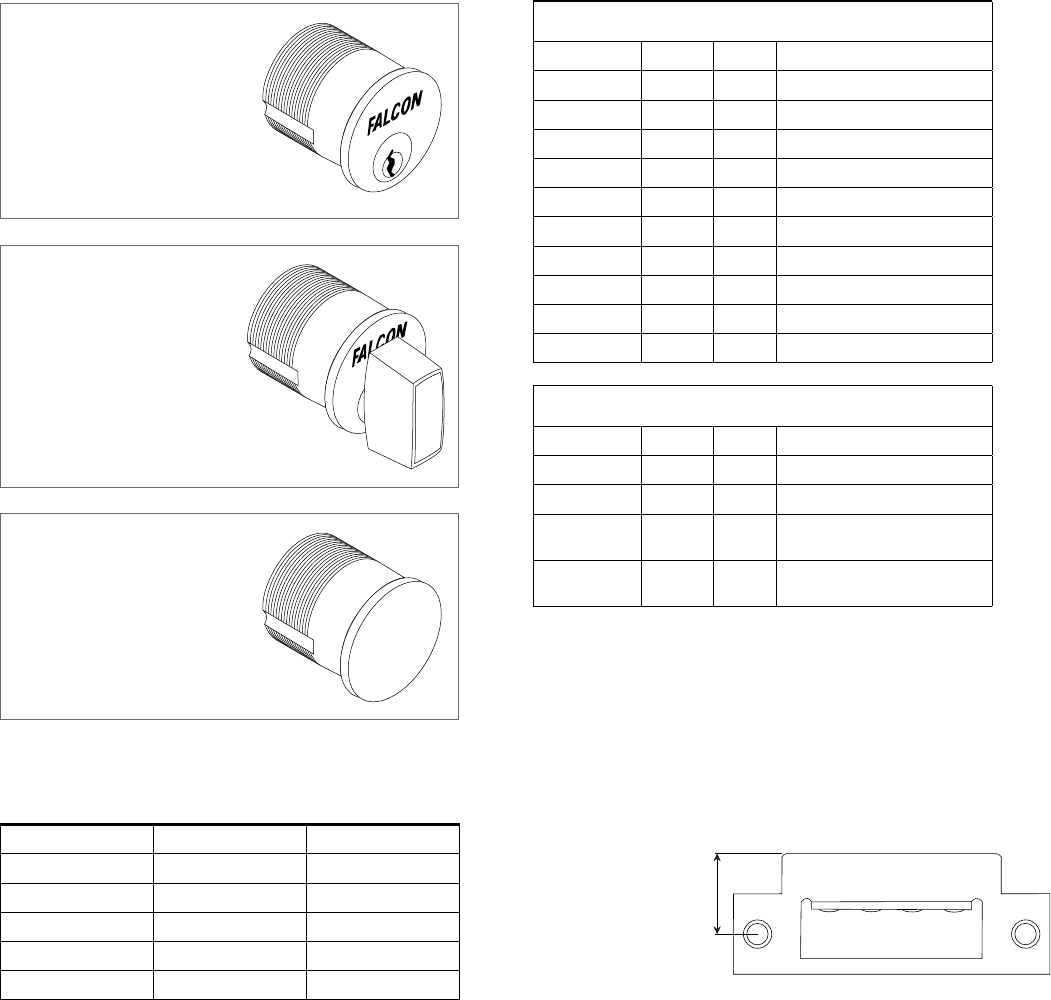

42 Mortise, rim and cam lock for standard cylinders
42 Strikes
43 Cylinder collars

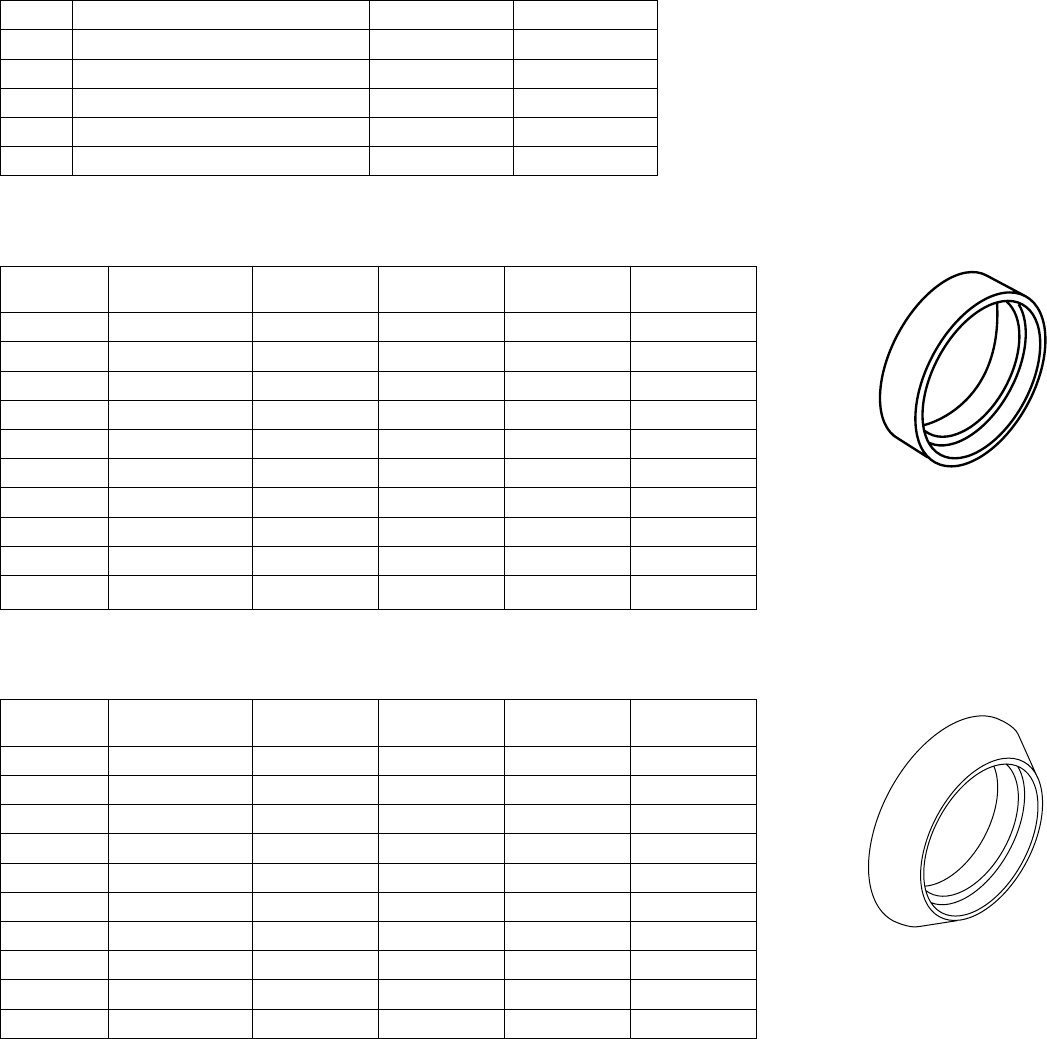

43 Escutcheon Trim Rings

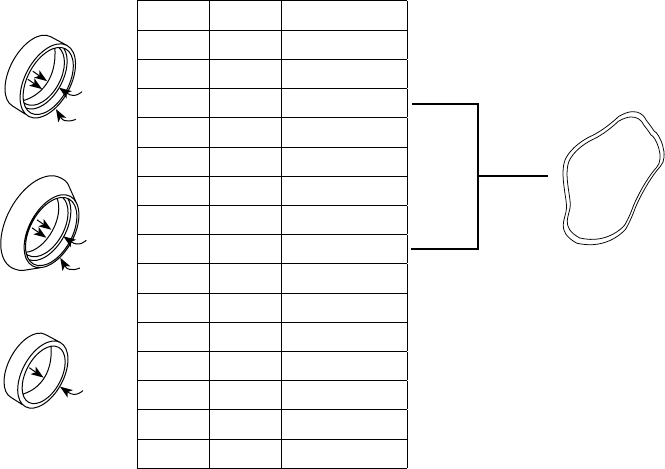

43 Sectional Trim Rings
44 Trim Rings & Collars
46 Ordering Procedures
46 Finishes
46 Door Handing
4 • Falcon • MA-Series service manual
Introduction
Introduction
This manual contains a complete listing of parts and assemblies for MA-Series mortise locks manufactured by Falcon Lock
Company. This edition lists components of MA-Series locks manufactured aer February, 2011. All lock case covers are
labeled with dates to identify year of manufacture. Example: 2311 = the 23rd week of 2011.
Exploded views of each lock function and trim assembly are provided with accompanying charts to identify parts for
replacement purposes. Exploded views of trim are shown with parts for standard size doors. In addition, this manual
provides lock trim ordering procedures, cylinder length charts by door range, and all auxiliary components of the MA-Series
mortise locks.
Standard Features*
Certifications ANSI A156 .13, Series 1000, Grade 1 Operation and Security, UL Listed for 3-hour fire door
Latch 2-piece brass mechanical anti-friction bolt, ³⁄v” projection
Strike 1Z⁄v” x 4M⁄,”, ANSI, Square corner, with dust box
Cylinder 6-Pin solid brass, keyed 5-pin, Falcon G keyway, keyed different (KD)
Door Range 1³⁄v” standard
Keys Two, nickel silver cut keys per lock, Falcon G keyway
Backset 2³⁄v”
* Locks are furnished with standard features unless otherwise specified.

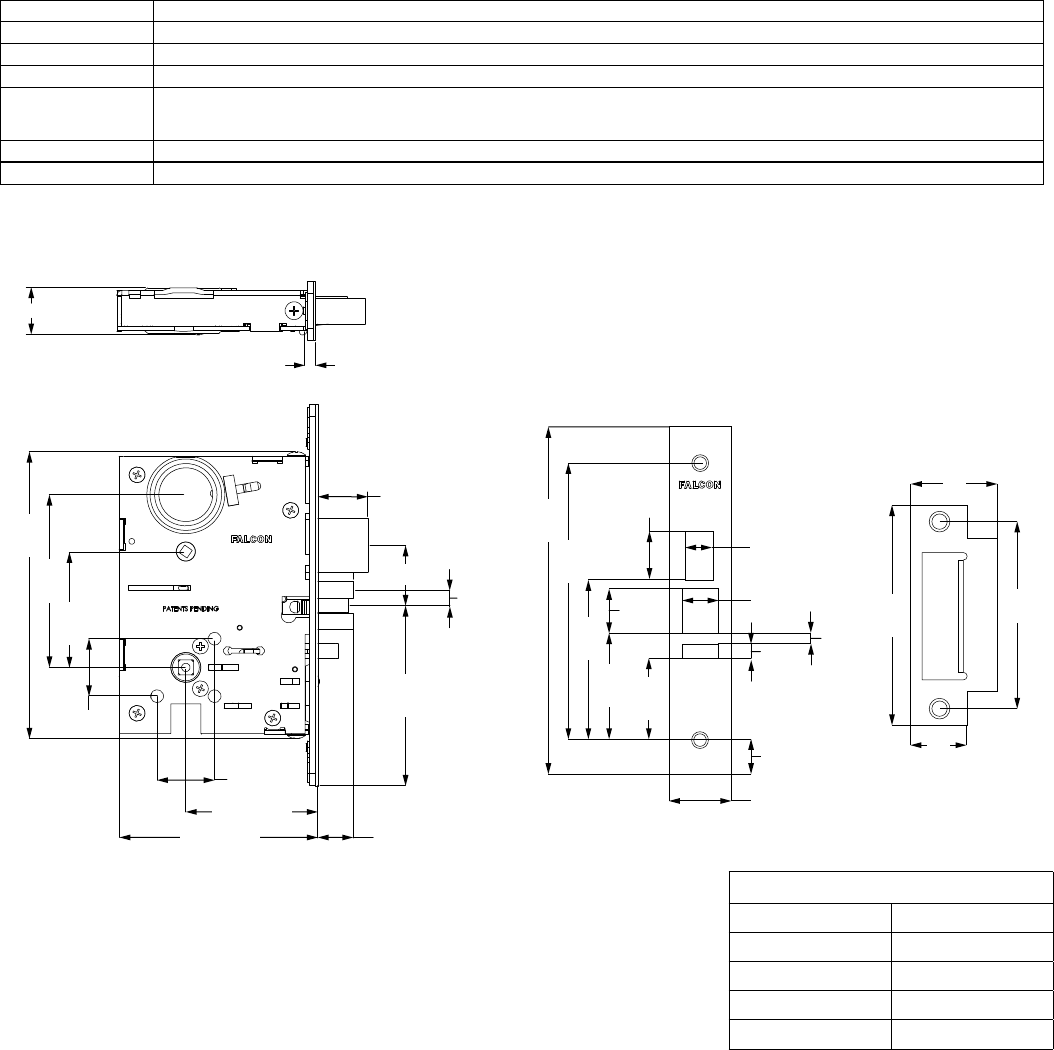

Lock Case Dimensions
¹⁄₄” (6)
1” (25)
²³⁄₁₀₀”
(6)
Lock
2²⁷⁄₆₄”
(62)
6”
(152)
3³⁹⁄₆₄”
(92)
1³⁄₁₆” (30)
1” (25)
3⁴⁹⁄₆₄”
(96)
1¹⁷⁄₆₄” (32)
4⁵⁄₃₂” (106) ³⁄₄” (19)
2³⁄₄” (70)
1³⁄₁₆” (30)
Faceplate
8”
(203)
6³⁄₈”
(162)
⁹⁄₁₆” (14)
⁴⁵⁄₆₄” (18)
1⁹⁄₆₄”
(29)
3²¹⁄₃₂”
(93)
3²¹⁄₃₂”
(93) 1²⁷⁄₃₂”
(47)
²⁵⁄₃₂” (20)
¹¹⁄₃₂”
(9)
¹⁄₄” (6)
1¹⁄₃₂”
(26)
1¹⁄₄” (32)
Strike
4⁷⁄₈”
(124)
1¹⁄₄”
(32)
4¹⁄₈”
(105)
A
Strike
(A) Door Thickness Lip Size
1³⁄v” - 1M⁄,” 1Z⁄v” (32 mm)
2” - 2Z⁄,” 1M⁄zn” (37 mm)
2Z⁄v” - 2³⁄,” 1>⁄zn” (40 mm)
2Z⁄x” - 2B⁄,” 1ZZ⁄zn” (43 mm)
Introduction
Falcon • MA-Series service manual • 5
Lock assembly drawing index

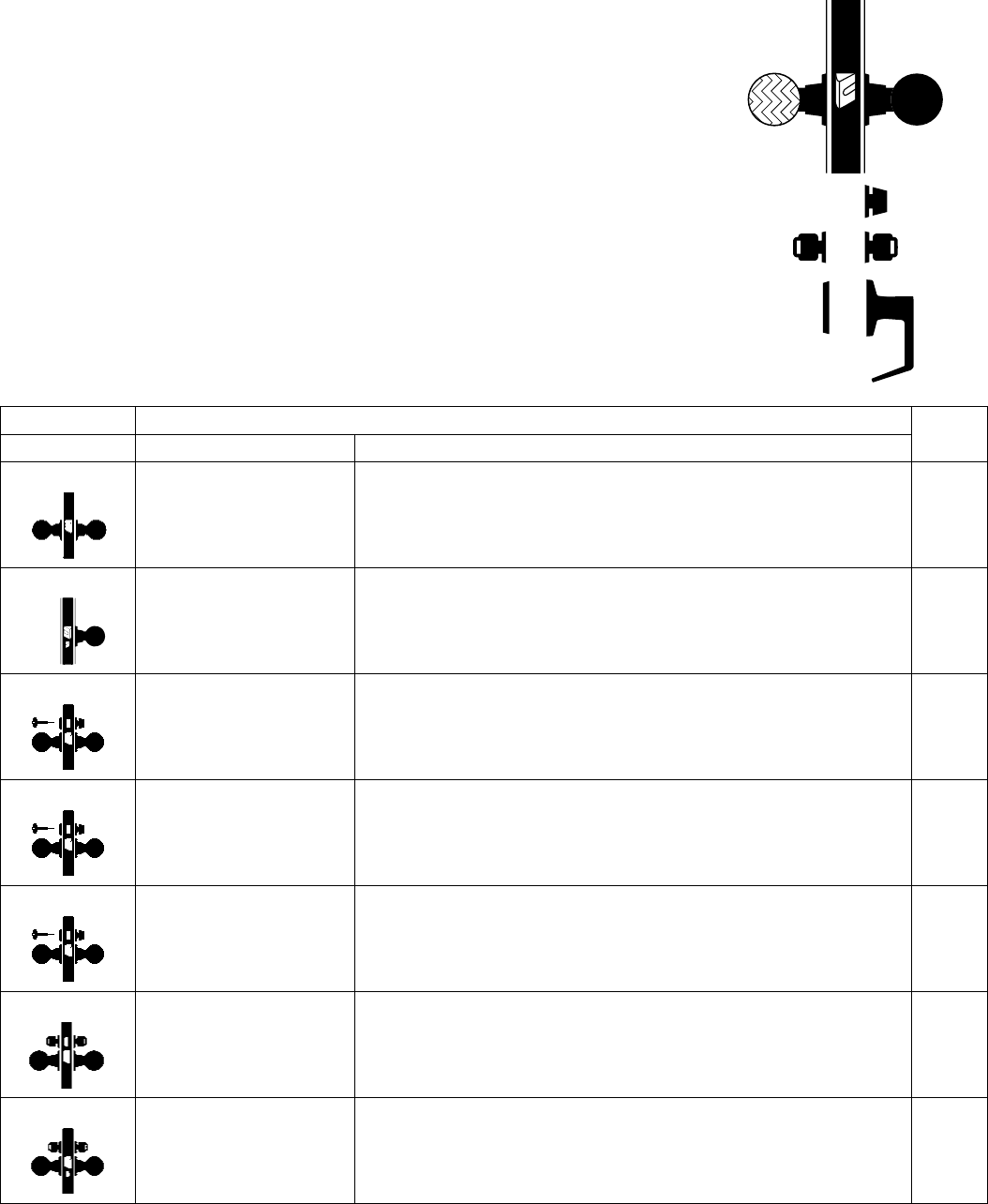

The Lock Assembly Drawing Index provides visual representations and textual
descriptions of available functions. Page numbers for full trim and chassis
drawings are referenced.
To order Falcon MA Series locksets, please consult page 5 for ordering information
and assistance.
Catalog Number Prefixes: Add the following prefix for the appropriate trim style.
ÎNote: If a special function is required and not listed here, please contact the factory
for assistance.

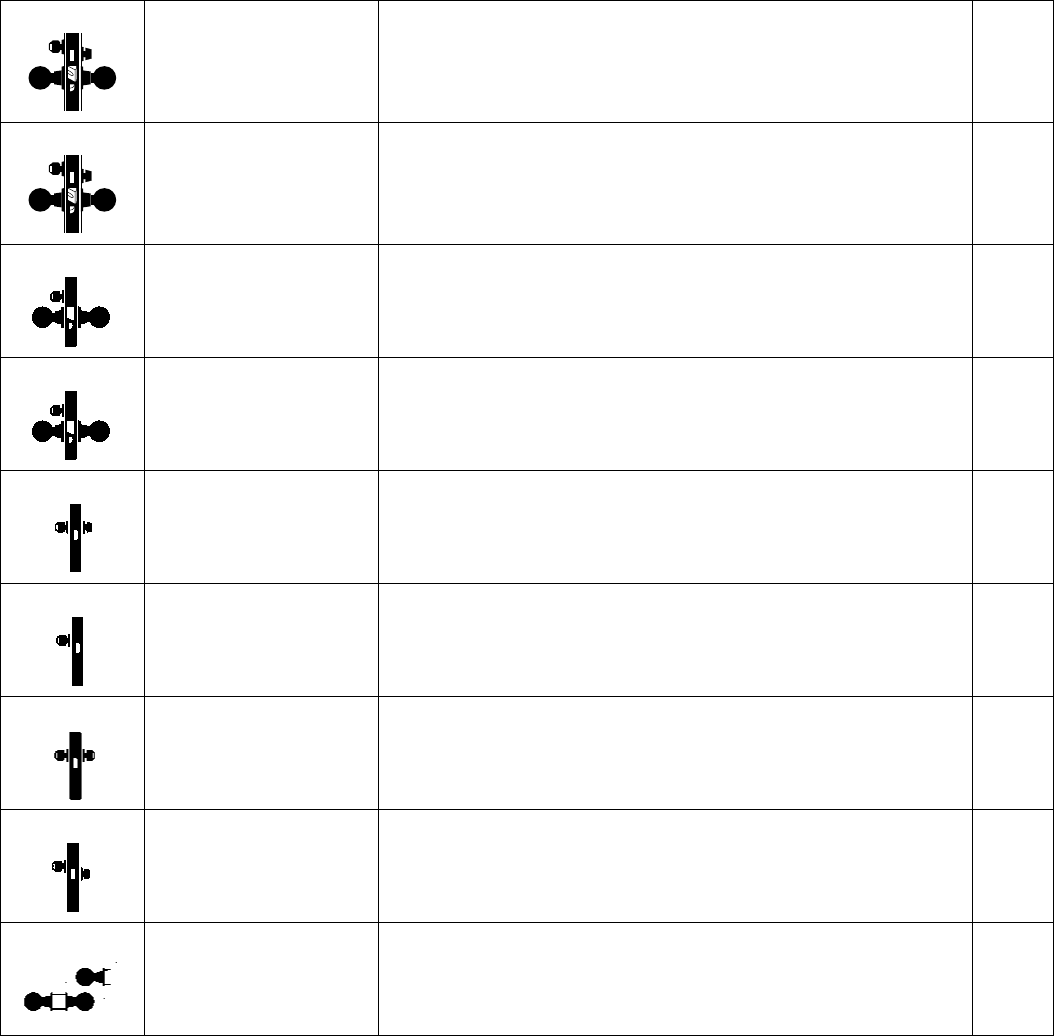

Function ANSI A156.13, 2005 Page
Falcon ANSI Description Function
MA101 F01 Passage/Closet Latchset Latch bolt by knob/levers at all times. 9
MA161 F31 Connecting Room/Exit Latch Latch bolt operated by knob/lever from inside. No trim outside. Auxiliary dead
latch.
10
MA301 F02 Privacy Lock Latch bolt by knobs/levers either side, dead bolt by turn inside or emergency
release outside.
11
MA311 F19 Privacy, Bedroom or Bath Lock Latch bolt by knobs/levers. Deadbolt by turn from inside and emergency release
outside. Rotating inside knob/lever retracts both bolts.
12
MA321 F22 Privacy Lock Latch bolt operated by knob/lever from either side except when outside knob/
lever is locked by inside T-turn. Operating inside knob/lever, closing door or
operating outside emergency release unlocks outside knob/lever.
13
MA371 F14 Store Door Lock Latch bolt by knobs/levers. Deadbolt by key from either side. 14
MA381 F09 Apartment, Exit Lock Latch bolt operated by knob/lever from either side, except when outside knob/
lever is locked by key from inside. When outside knob/lever is locked, latch bolt is
retracted by key from outside or by operating inside lever. Auxiliary dead latch.
15
Key Key
Lever
T-Turn
Knob
Rigid Knob
Blank Plate
6 • Falcon • MA-Series service manual
Introduction
MA411 F30 Asylum Lock Latch bolt operated by key from either side. Both knobs/levers always inoperative.
Auxiliary dead latch.
16
MA431 F34 Classroom Security Lock with
Deadbolt
Latch bolt operated by knob/lever from either side except when outside knob/
lever is locked from inside or outside by key. Dead bolt retracted by key from inside
or outside. Operating inside knob/lever retracts both bolts and unlocks outside.
Latch bolt dead locked when dead bolt is thrown.
17
MA441 F32 Classroom Security Lock Latch bolt operated by knob/lever from either side except when outside knob/
lever is locked from inside or outside by key. When outside knob/lever is locked,
latch bolt is retracted by key from inside or outside or by operating inside knob/
lever. Auxiliary dead latch.
18
MA451 F15 Hotel/Guest Lock Latch bolt operated by key from outside or by operating inside knob/lever. Outside
knob/lever is always inoperative. Dead bolt projected by turn from inside and all
keys except emergency key are shut out. Operating inside knob/lever retracts both
bolts. Auxiliary dead latch.
19
MA521 F04 Entry/Oce Lock Latch bolt operated by knob/lever from either side except when outside knob/
lever is made inoperative by buttons in face. When outside knob/lever is locked,
latch bolt is retracted by key from outside or by operating inside knob/lever.
Auxiliary dead latch.
When dead bolt is retracted, knob/lever is unlocked by buttons
in face.
20
MA531 F20 Apartment Corridor Door Lock Latch bolt operated by knob/lever from either side, except when outside knob/
lever is made inoperative by buttons in face. Dead bolt operated by key outside or
turn inside. Key outside operates both bolts. Operating inside knob/lever retracts
both bolts and outside remains locked. Latch bolt is deadlocked when outside
knob/lever is made inoperative or when the dead bolt is projected. When dead bolt
is retracted, knob/lever is unlocked by buttons in face.
21
MA541 F21 Entry/Oce Lock Latch bolt by knobs/levers either side. Deadbolt by key outside or turn inside. 22
MA551 F06 Holdback Lock Latch bolt operated by lever from either side except when outside lever is locked
from outside by key. Latch bolt can be locked in a retracted position by key. When
outside lever is locked, latch bolt is retracted by key from outside or by operating
inside lever unless latch bolt has been locked in a retracted position. Auxiliary dead
latch.
Note: Chassis is handed.
23
MA561 F05 Classroom Lock Latch bolt operated by knob/lever from either side except when outside knob/
lever is locked by key. WHen outside knob/lever is locked, latchbolt is retracted by
key from outside or by operating inside knob/lever. Auxiliary latch deadlocks latch
bolt when door is closed. Inside knob/lever always free for immediate use.
24
MA571 F13 Dormitory or Exit Lock Latch bolt operated by knob/lever from either side. Dead bolt projected by key
from outside and turn from inside. Operating inside knob/lever retracts both bolts
and unlocks outside.
25
MA581 F07 Storeroom Lock Latch bolt operated by key from outside or by operating inside knob/lever. Otuside
knob/lever is always inoperative. Auxiliary dead latch.
26
Introduction
Falcon • MA-Series service manual • 7
MA621 F08/F10 Front Door/Apartment
Corridor
Latch bolt is operated by knob/lever from either side except when outside knob/
lever is made inoperative by buttons in face. Dead bolt is operated by turn inside.
Key outside operates both bolts.
27
MA641 - Dormitory Lock Latch bolt by knob/lever inside and key outside. Inside knob/lever free. Outside
knob/lever rigid. Dead bolt by key outside or T-turn inside. Rotating inside knob/
lever retracts both bolts. Deadlocking latch.
28
MA851 - Storeroom - Fail Safe (EL),
with or without RX
Latch bolt operated by knob/lever from either side except when outer knob/lever
is electrically locked. When outer knob/lever is locked latch bolt retracted by key in
cylinder outside. Deadlocking latch.
29
MA881 - Storeroom - Fail Secure (EU),
with or without RX
Latch bolt operated by knob/lever from either side except when outer knob/lever
is electrically unlocked, then latch bolt from either side. When locked key in
cylinder outside retracts latch bolt. Deadlocking latch.
30
MA911 F29 Classroom Deadlock Key from outside operates deadbolt. Turn from inside retracts but does not project
dead bolt.
31
MA921 F18 Deadlock Deadbolt by key outside only. 32
MA931 F16 Deadlock Deadbolt by key from either side. 33
MA941 F17 Deadlock Deadbolt by key outside or turn inside. 34
MA12/MA18 - Dummy Trim Single or double available.
SIngle (MA12).
Double (MA18).
35
36
8 • Falcon • MA-Series service manual
9 MA101 - Passage or Closet Latch
10 MA161 - Exit or Communicating Lock
11 MA301 - Privacy, Bedroom/Bath
12 MA311 - Privacy, Bedroom/Bath
13 MA321 - Privacy, Bedroom/Bath
14 MA371 - Store Door Lock
15 MA381 - Apartment, Exit
16 MA411 - Asylum or Institutional Lock
17 MA431 - Classroom Security Lock with Deadbolt
18 MA441 - Classroom Security Lock
19 MA451 - Hotel Guest Lock
20 MA521 - Entry/Oce Lock
21 MA531 - Apartment Corridor Door Lock
22 MA541 - Entry/Oce Lock
23 MA551 - Holdback Lock
24 MA561 - Classroom Lock
25 MA571 - Dormitory or Exit Lock
26 MA581 - Storeroom / Closet Lock
27 MA621 - Front Door / Apartment Corridor
28 MA641 - Dormitory Lock
29 MA851 - Electrified Fail Safe (EL) - 12 & 24V, with or
without RX
30 MA881 - Electrified Fail Secure (EU) - 12 & 24V, with or
without RX
31 MA911 - Classroom Dead Lock
32 MA921 - Dead Lock
33 MA931 - Dead Lock
34 MA941 - Dead Lock
35 MA12 - Single Dummy
36 MA18 - Double Dummy
Lock Assemblies
Lock Assemblies
Falcon • MA-Series service manual • 9

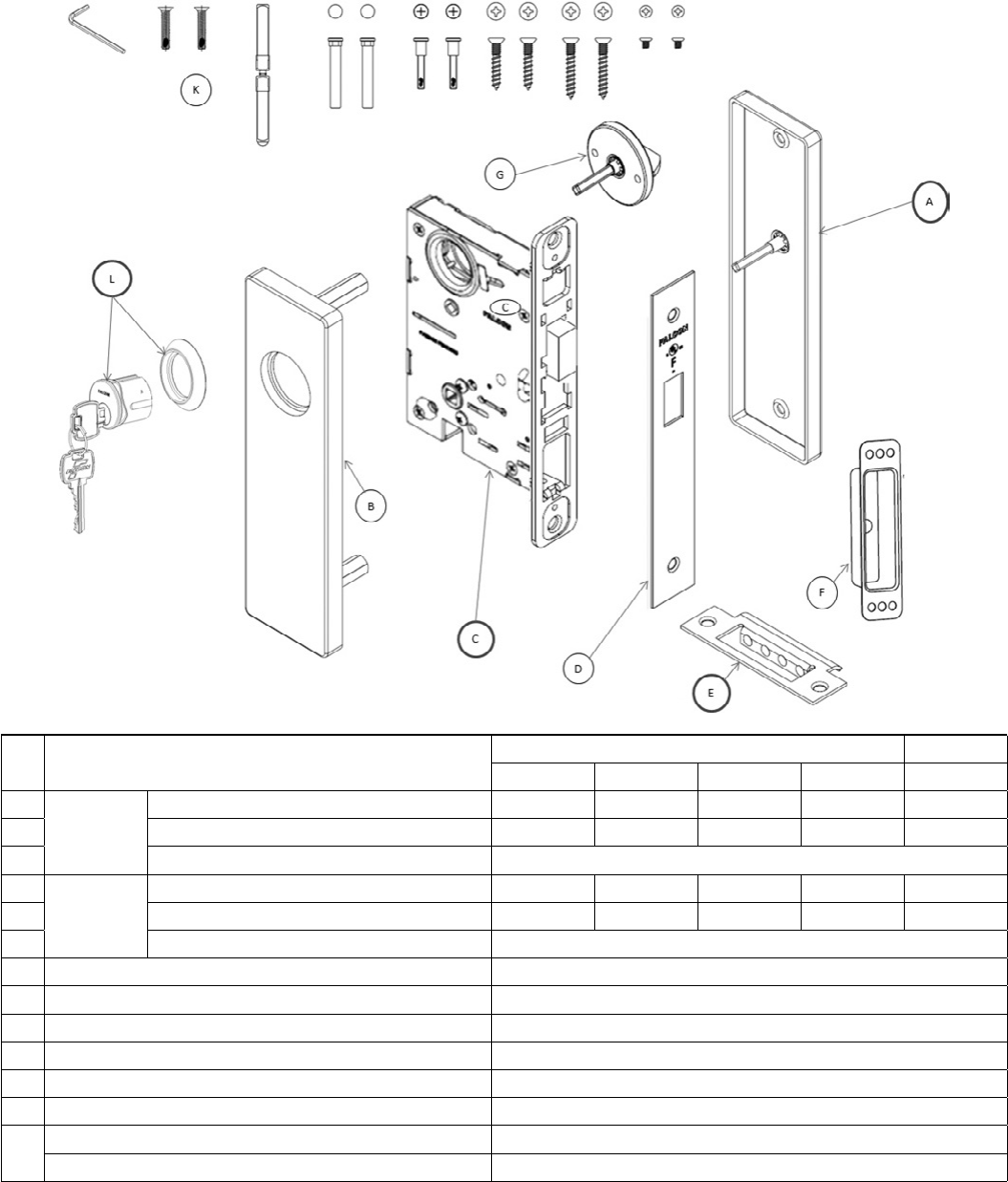

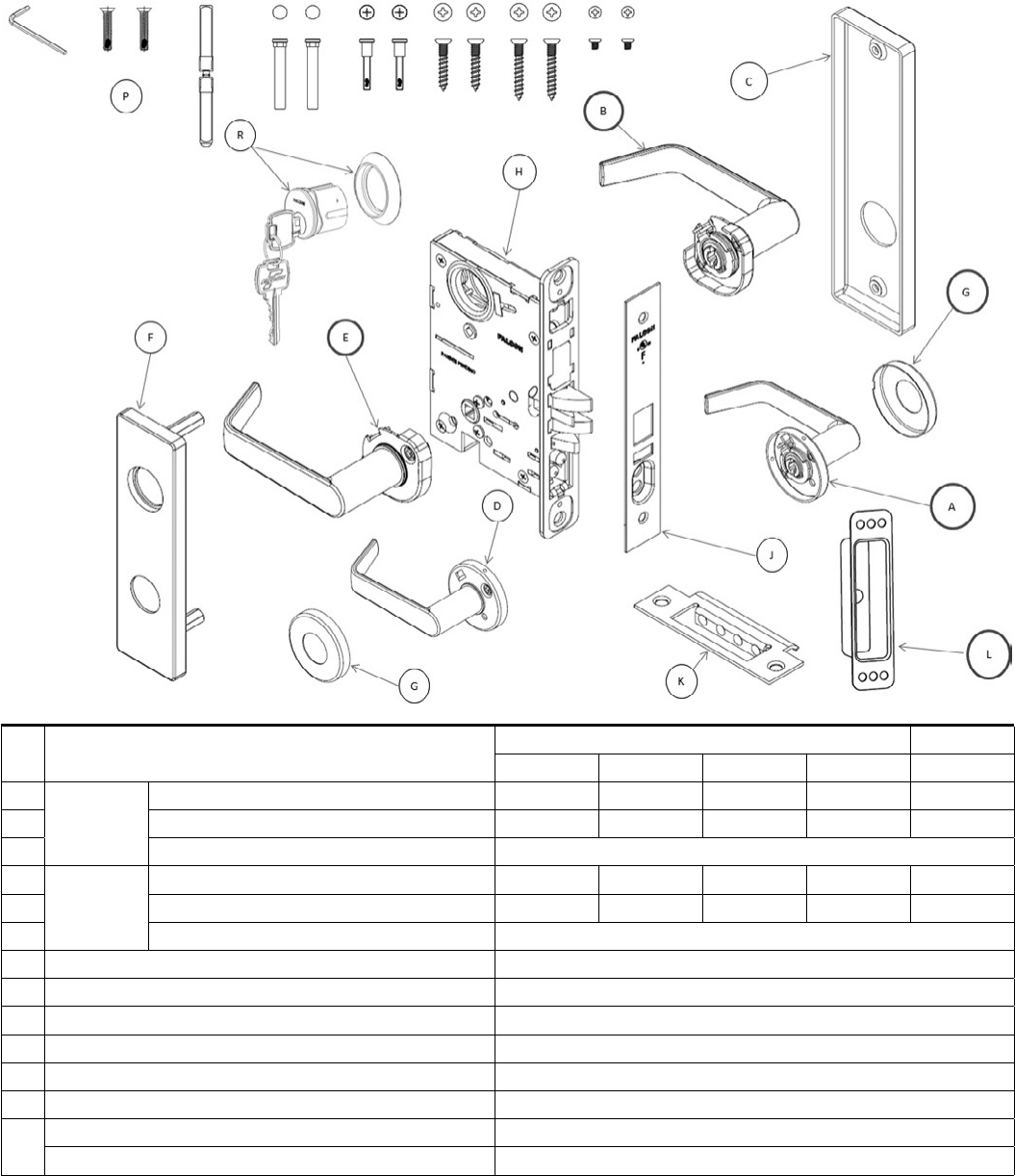

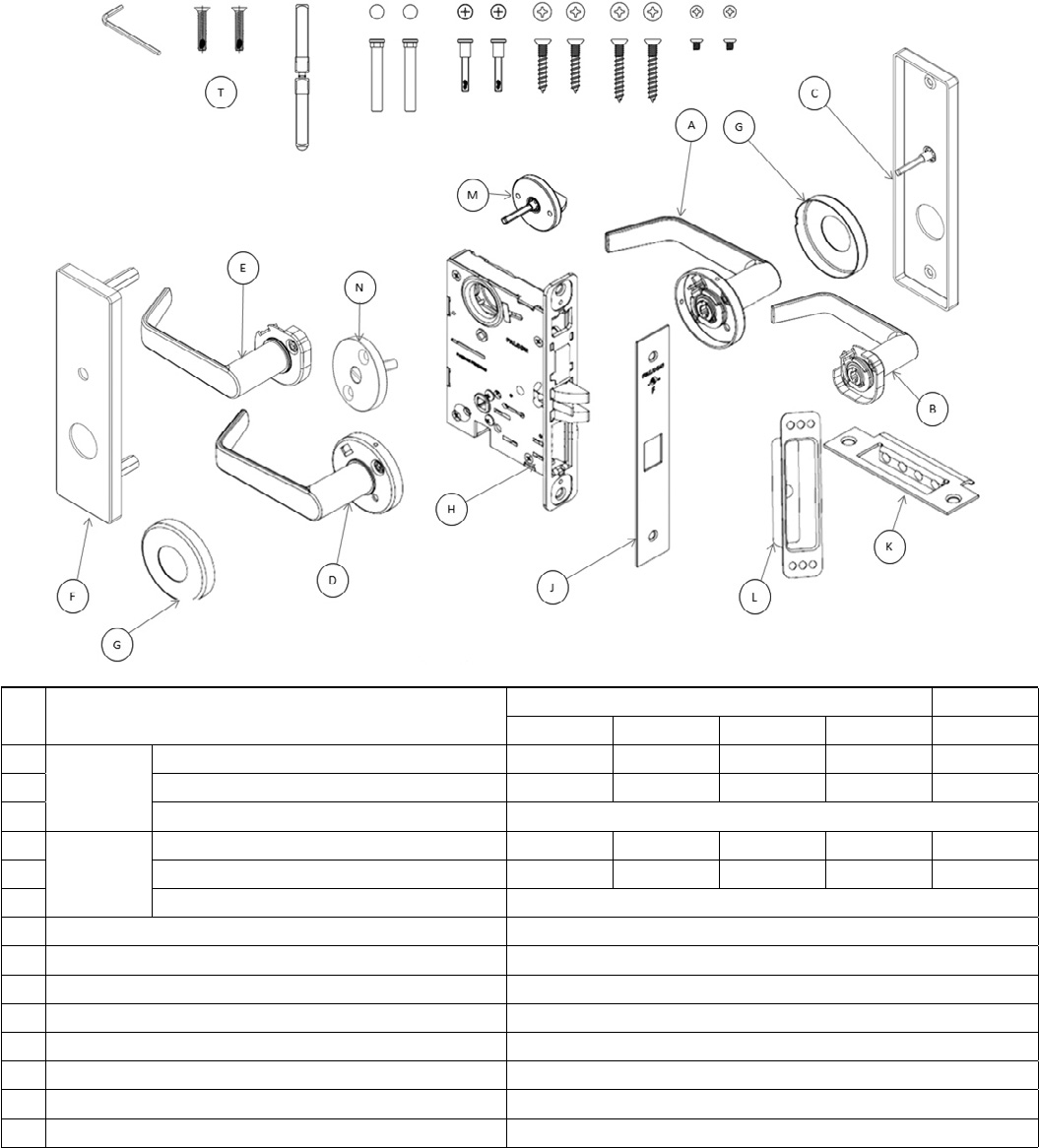

MA101 - Passage or Closet Latch
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IP
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-0P
GRose (2 req'd) S76012
HAssy, lock unit A7801
JFaceplate S77801
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
10 • Falcon • MA-Series service manual
Lock Assemblies

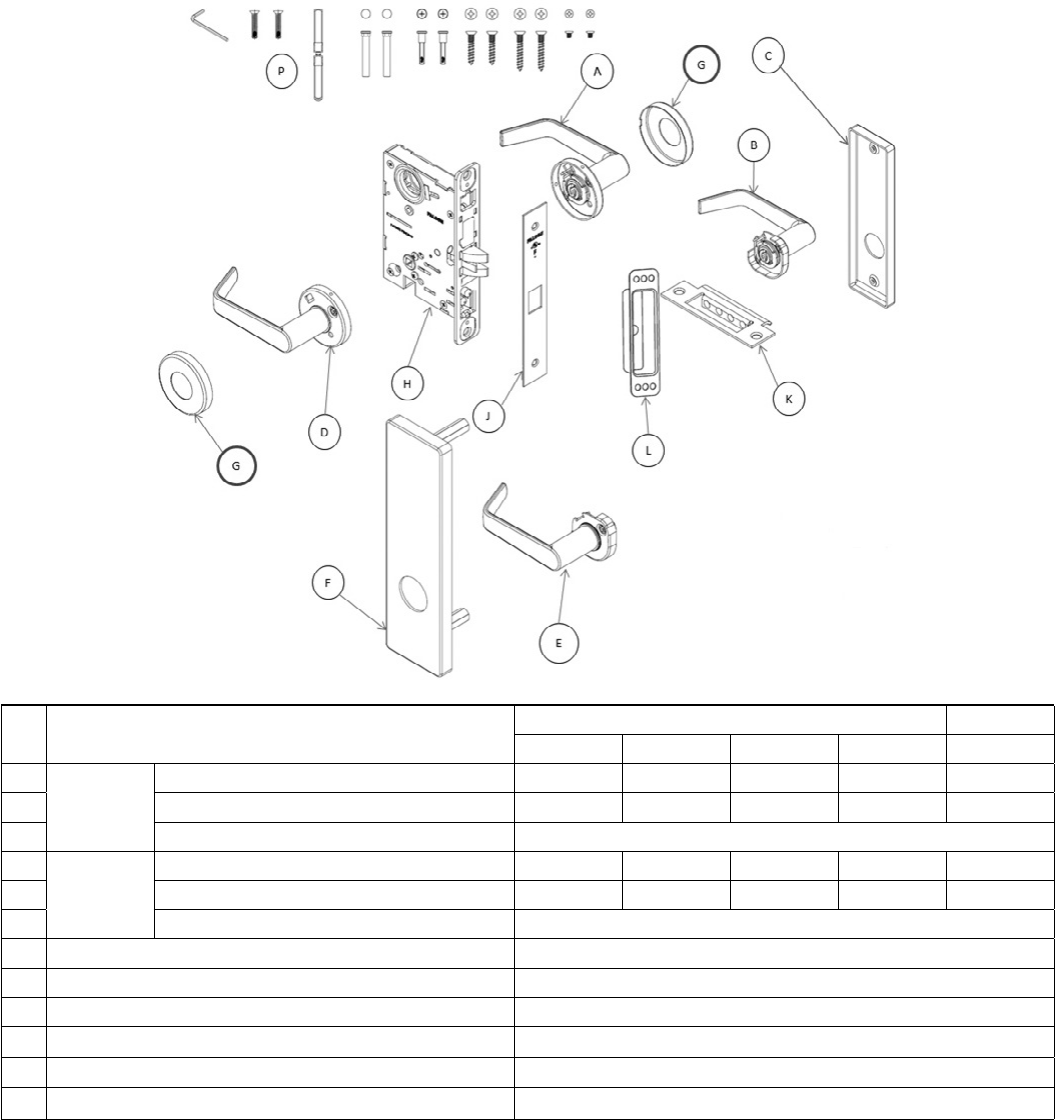

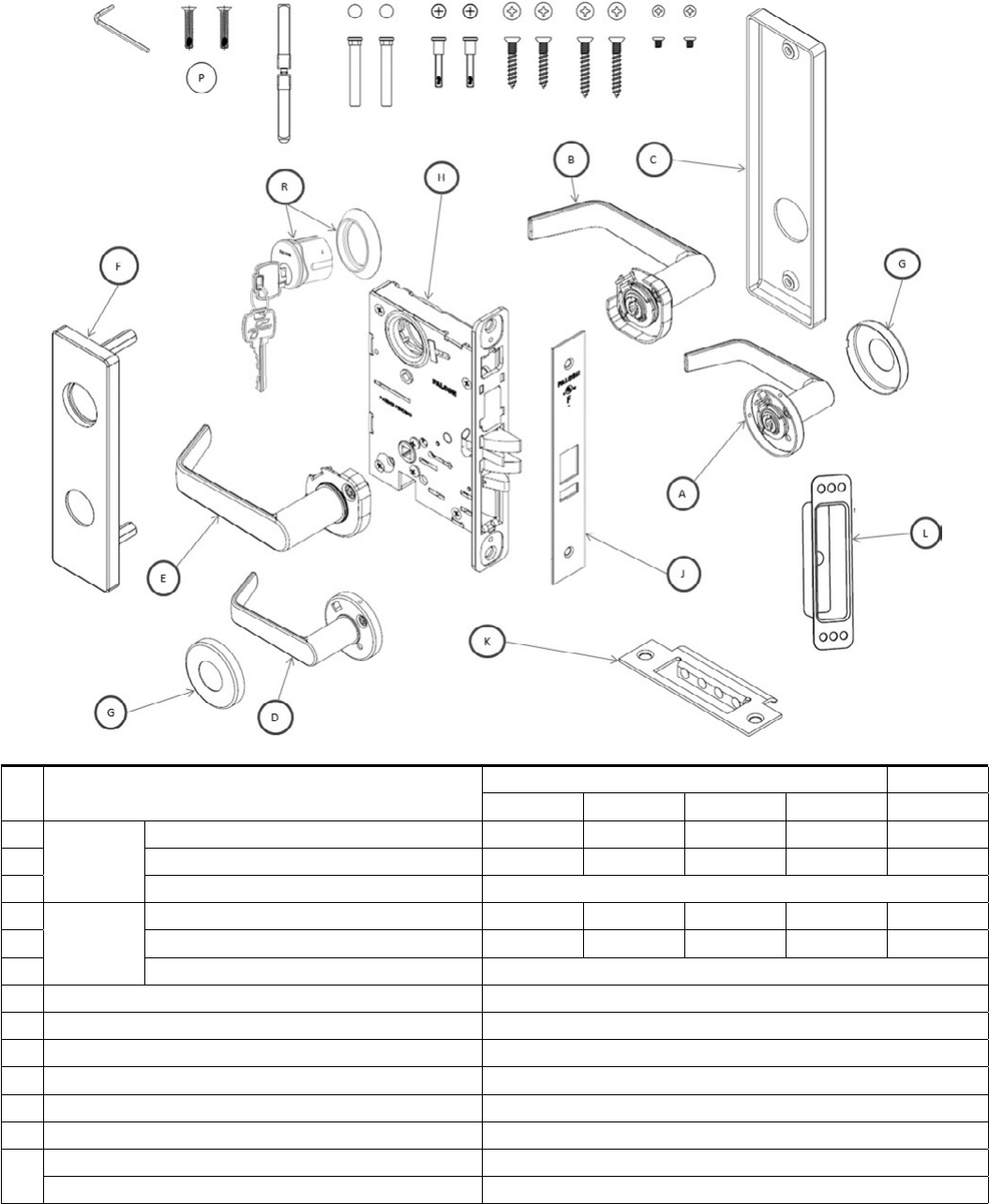

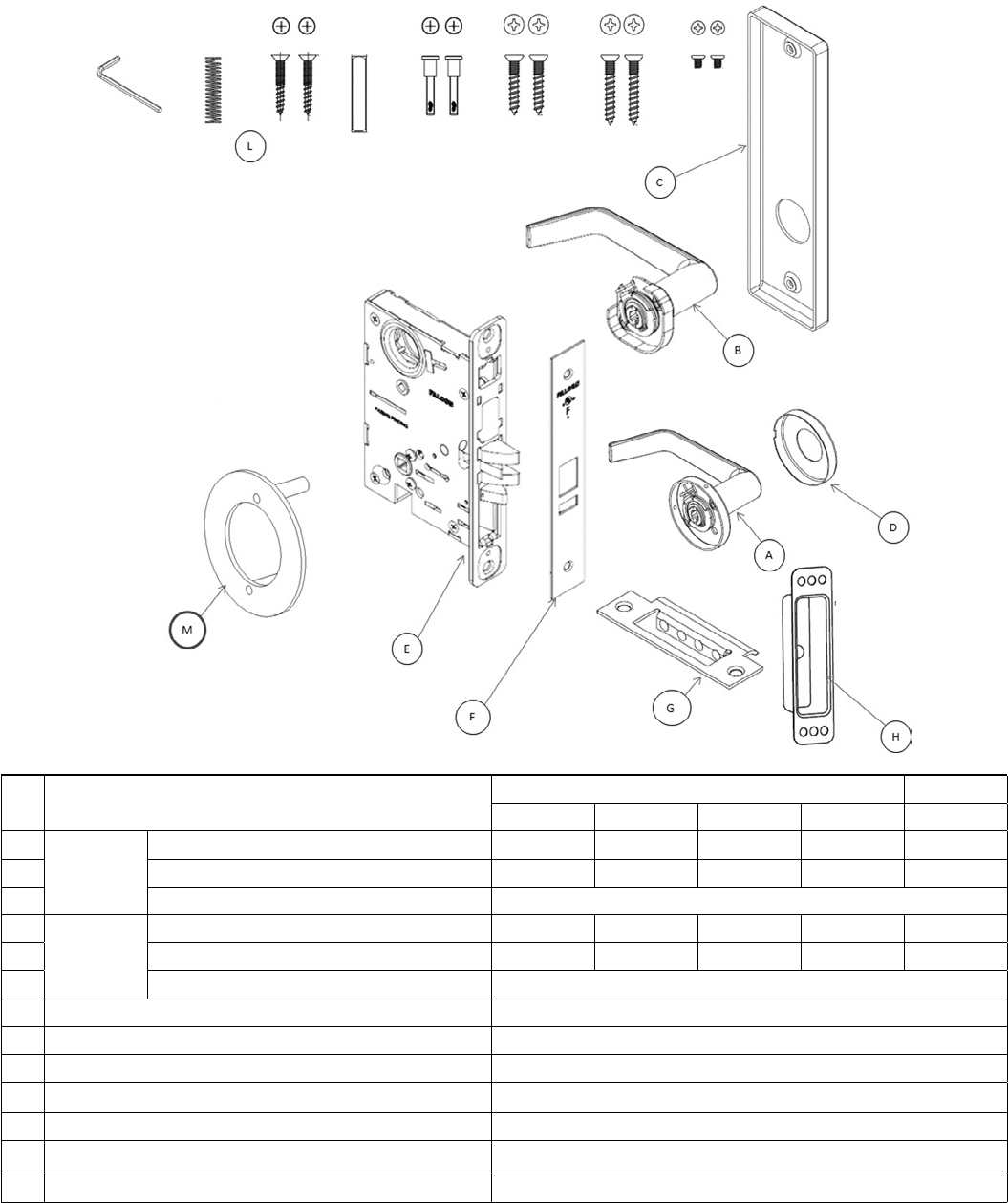

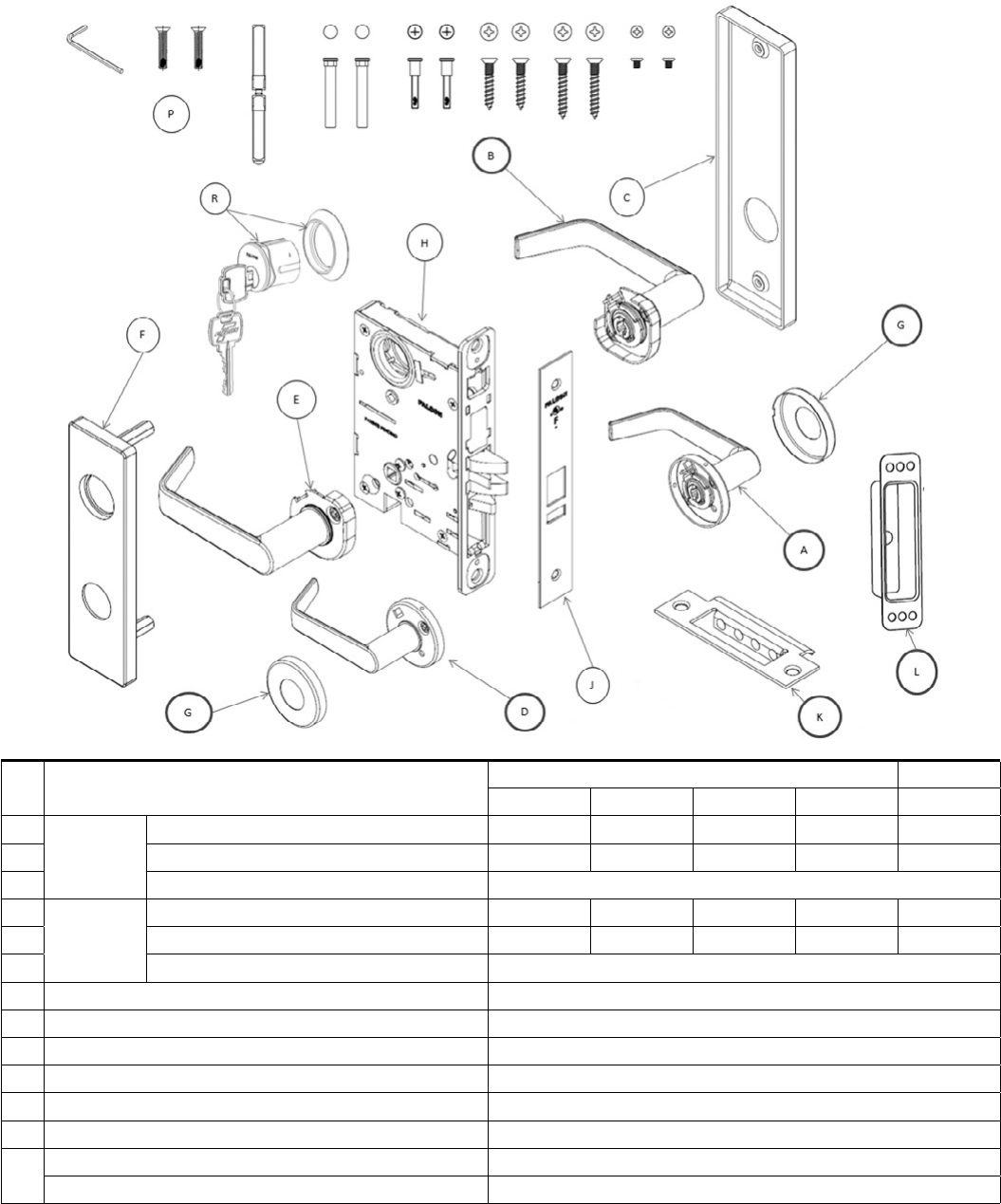

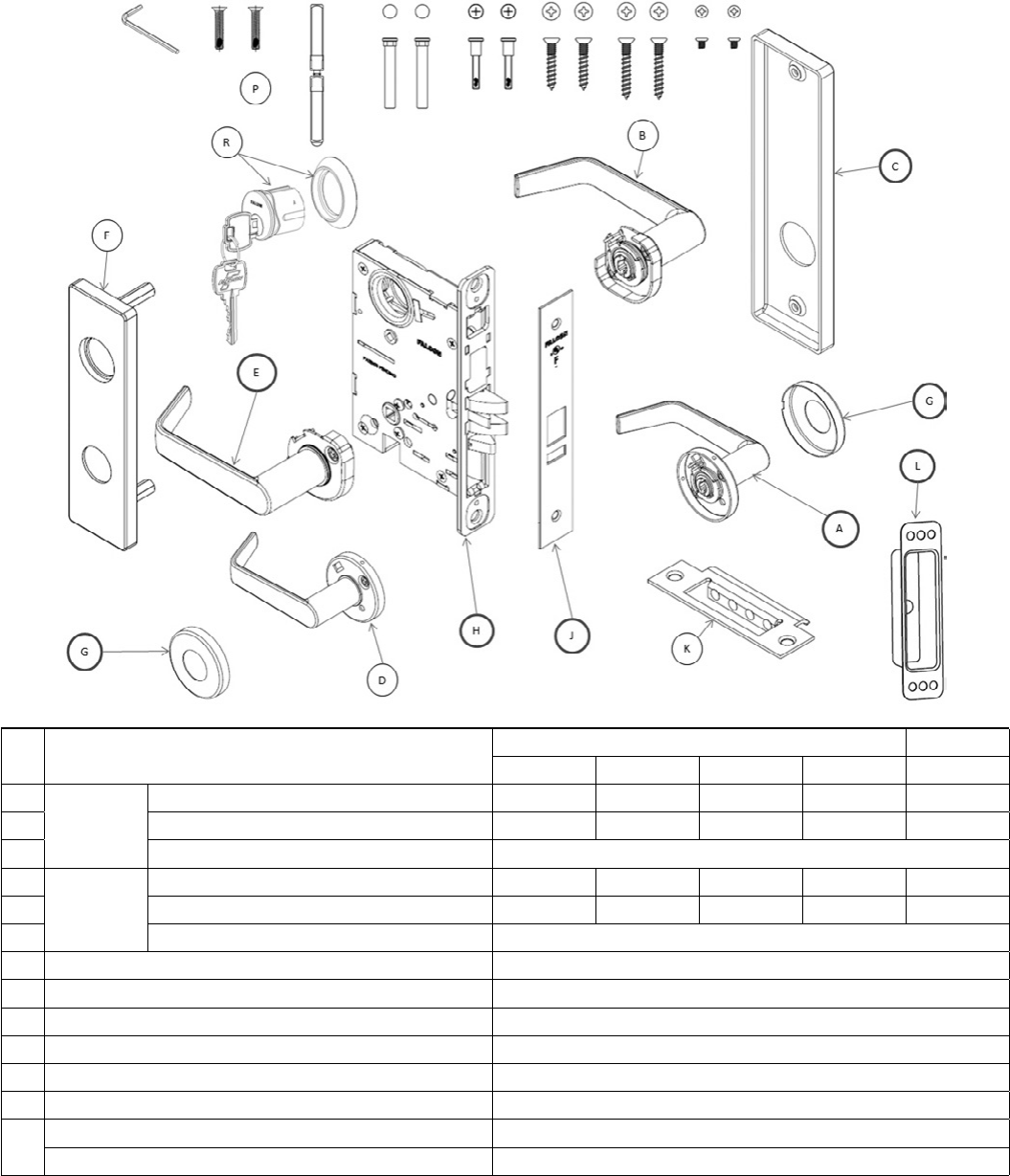

MA161 - Exit or Communicating Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
A
Inside trim
Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IP
-
Outside trim
Knob/lever sectional N/A N/A N/A N/A N/A
-Knob/lever escutcheon N/A N/A N/A N/A N/A
-Escutcheon N/A
DRose S76012
EAssy, lock unit A7831
FFaceplate S77805
GStrike assy A8737-X
HStrike box PE1396
LScrew pack See page 39
MPlate for use with no outside trim AS5813
Lock Assemblies
Falcon • MA-Series service manual • 11

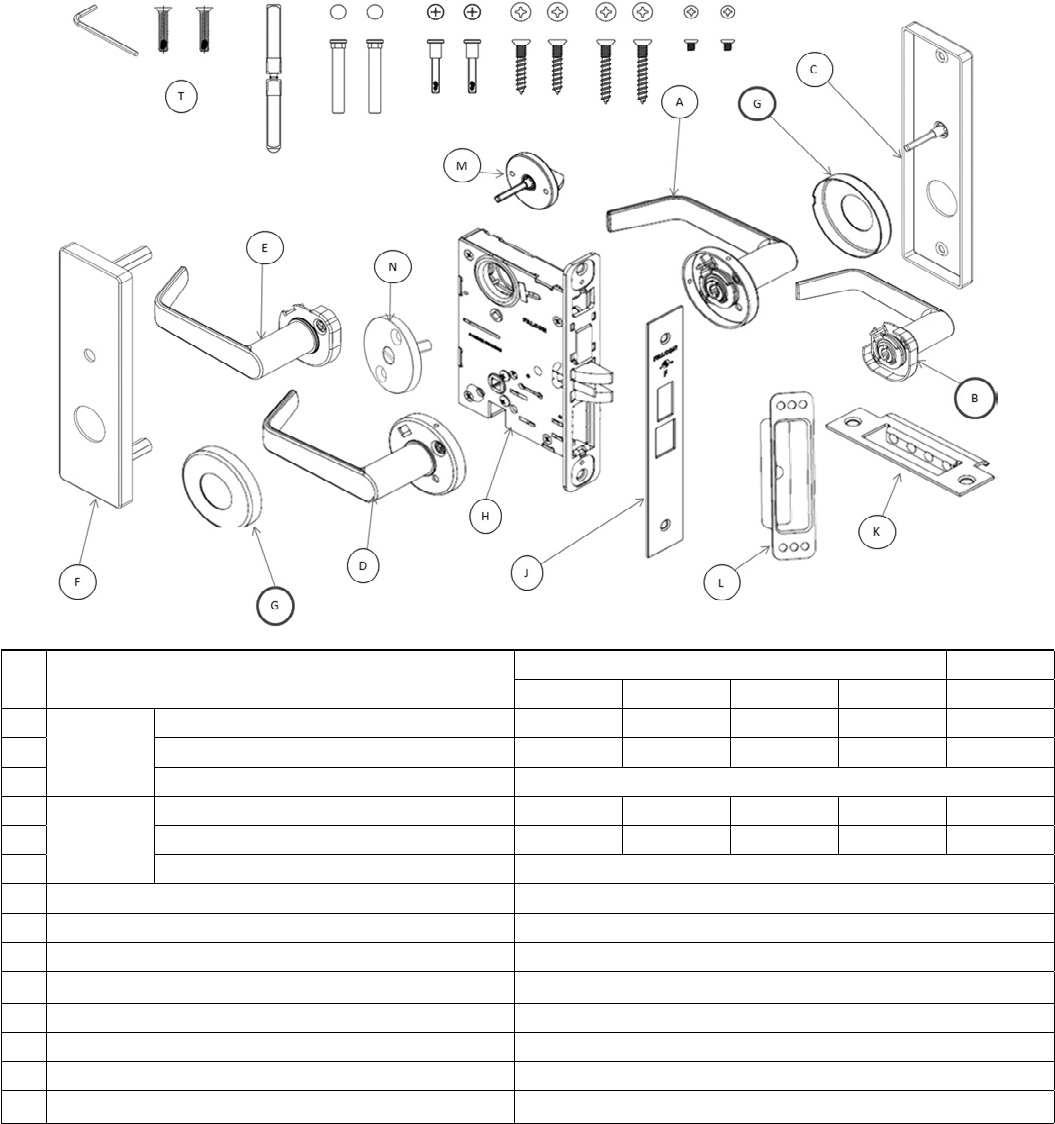

MA301 - Privacy, Bedroom/Bath
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100

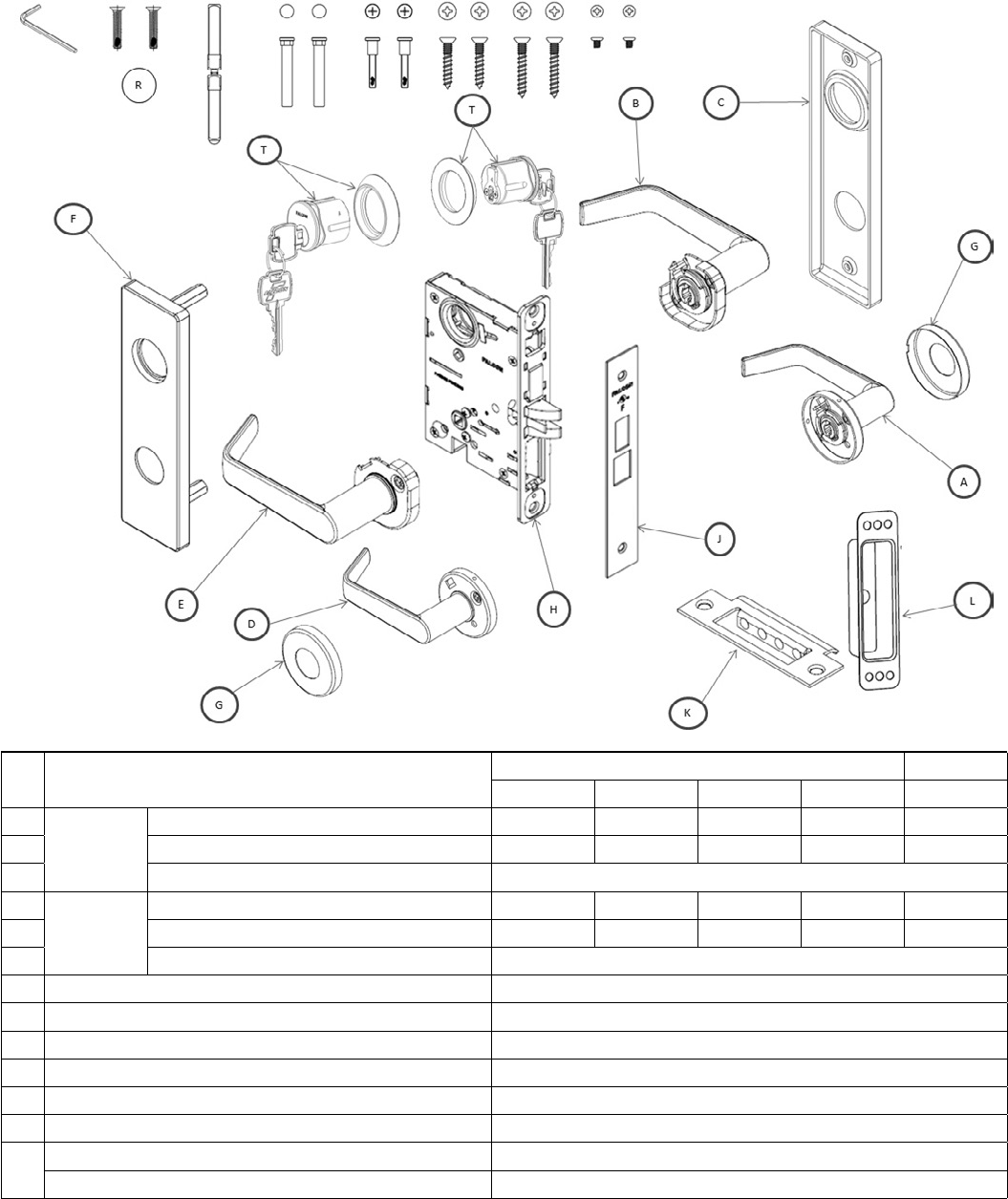

BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OT
GRose (2 req'd) S76012
HAssy, lock unit A7802
JFaceplate S77819
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS75319
NEmergency turn AS76853
TScrew pack See page 39
12 • Falcon • MA-Series service manual
Lock Assemblies

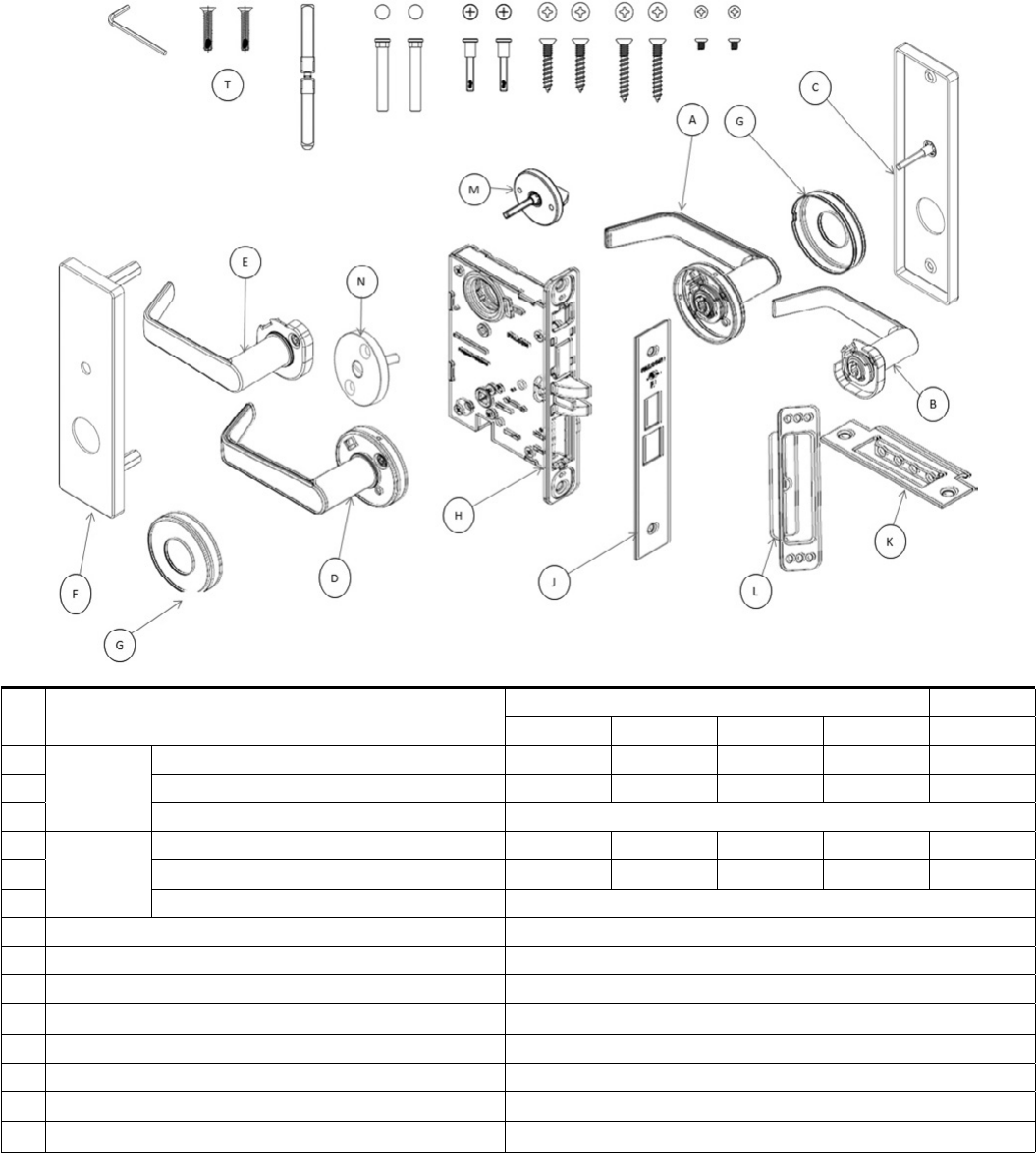

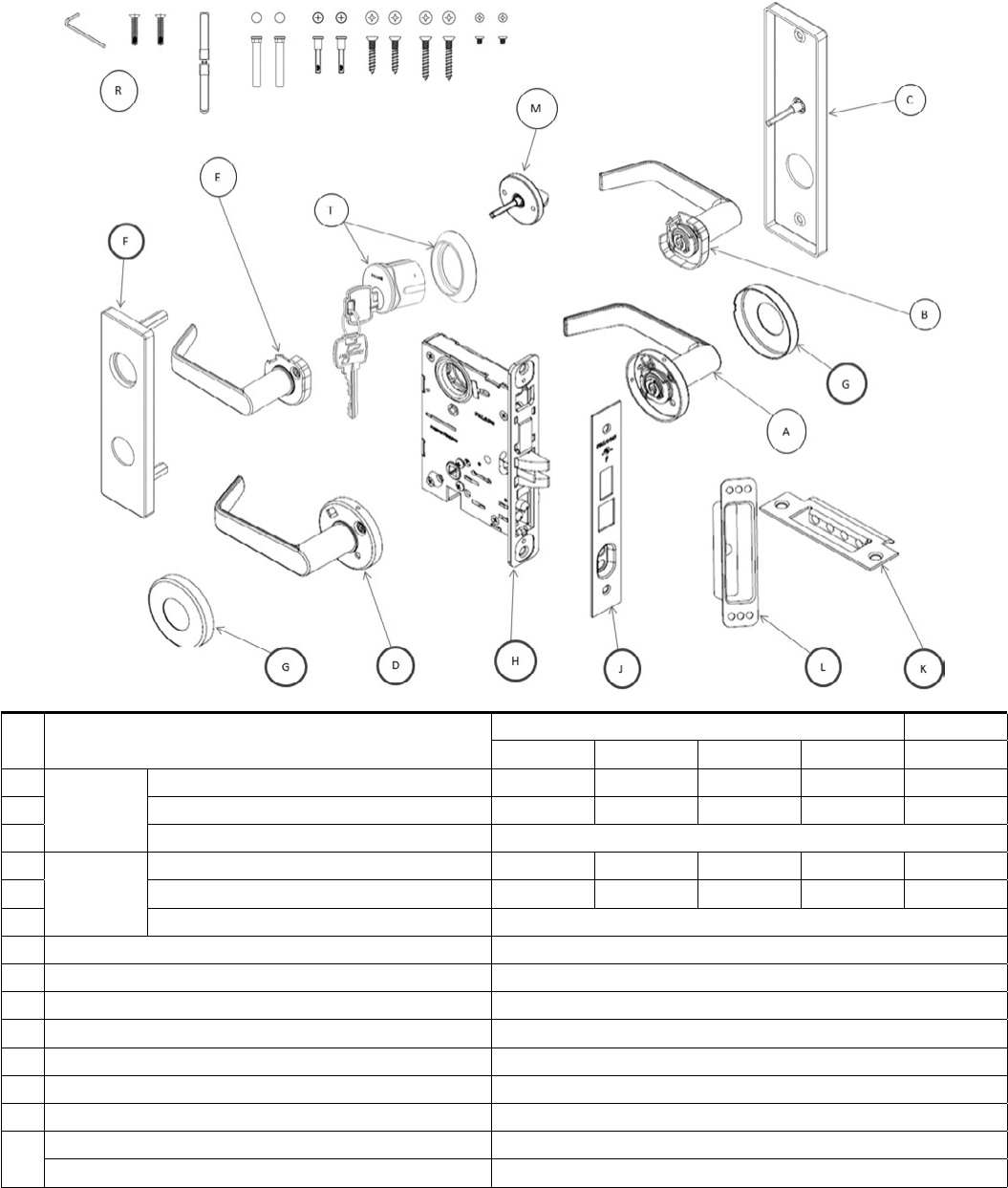

MA311 - Privacy, Bedroom/Bath
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OT
GRose (2 req'd) S76012
HAssy, lock unit A7819
JFaceplate S77819
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS75319
NEmergency turn AS76853
TScrew pack See page 39
Lock Assemblies
Falcon • MA-Series service manual • 13

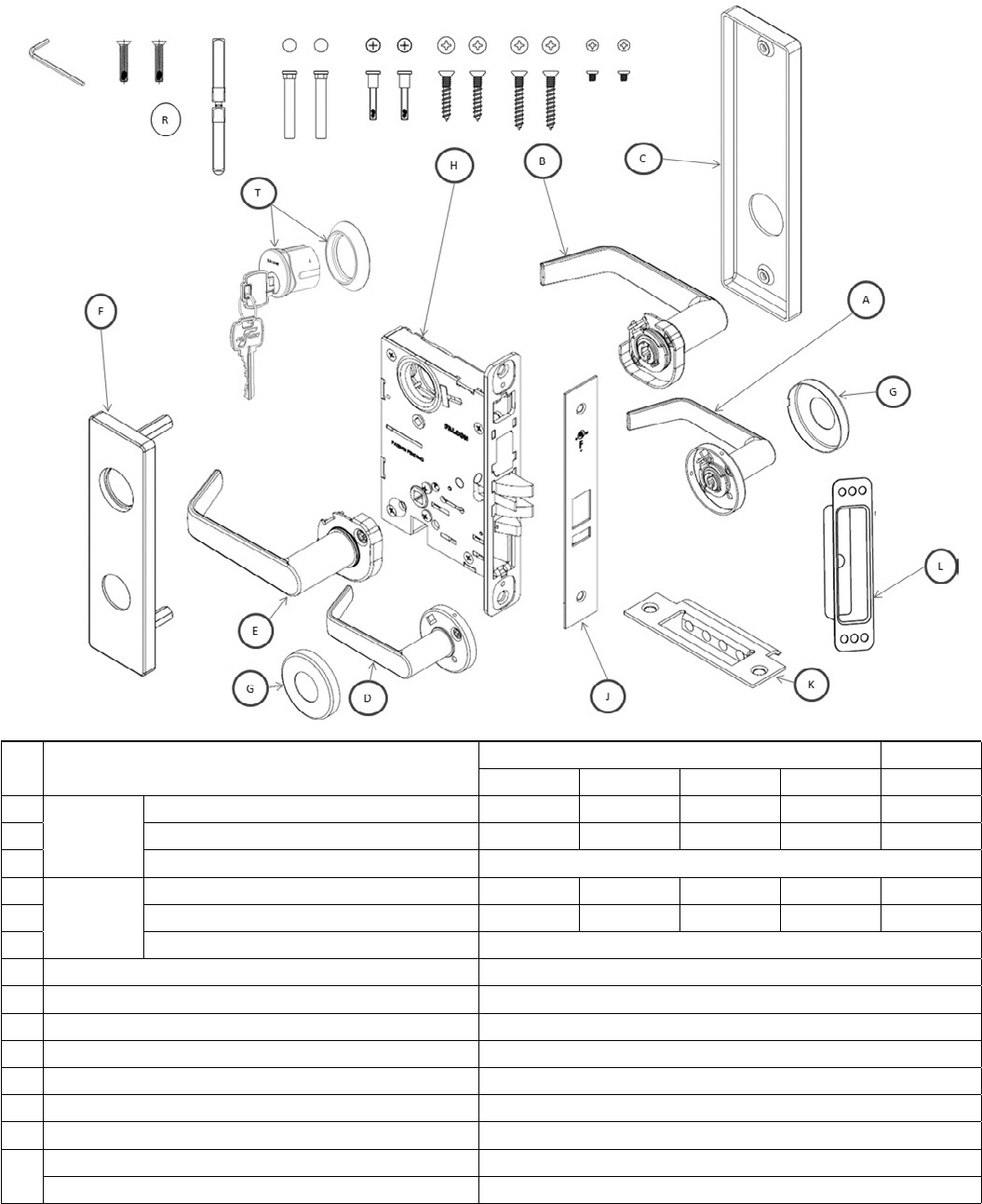

MA321 - Privacy, Bedroom/Bath
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
A
Inside trim
Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
D
Outside trim
Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OT
GRose (2 req'd) S76012
HAssy, lock unit A7822
JFaceplate S77801
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS75319
NEmergency turn AS76853
TScrew pack See page 39
14 • Falcon • MA-Series service manual
Lock Assemblies

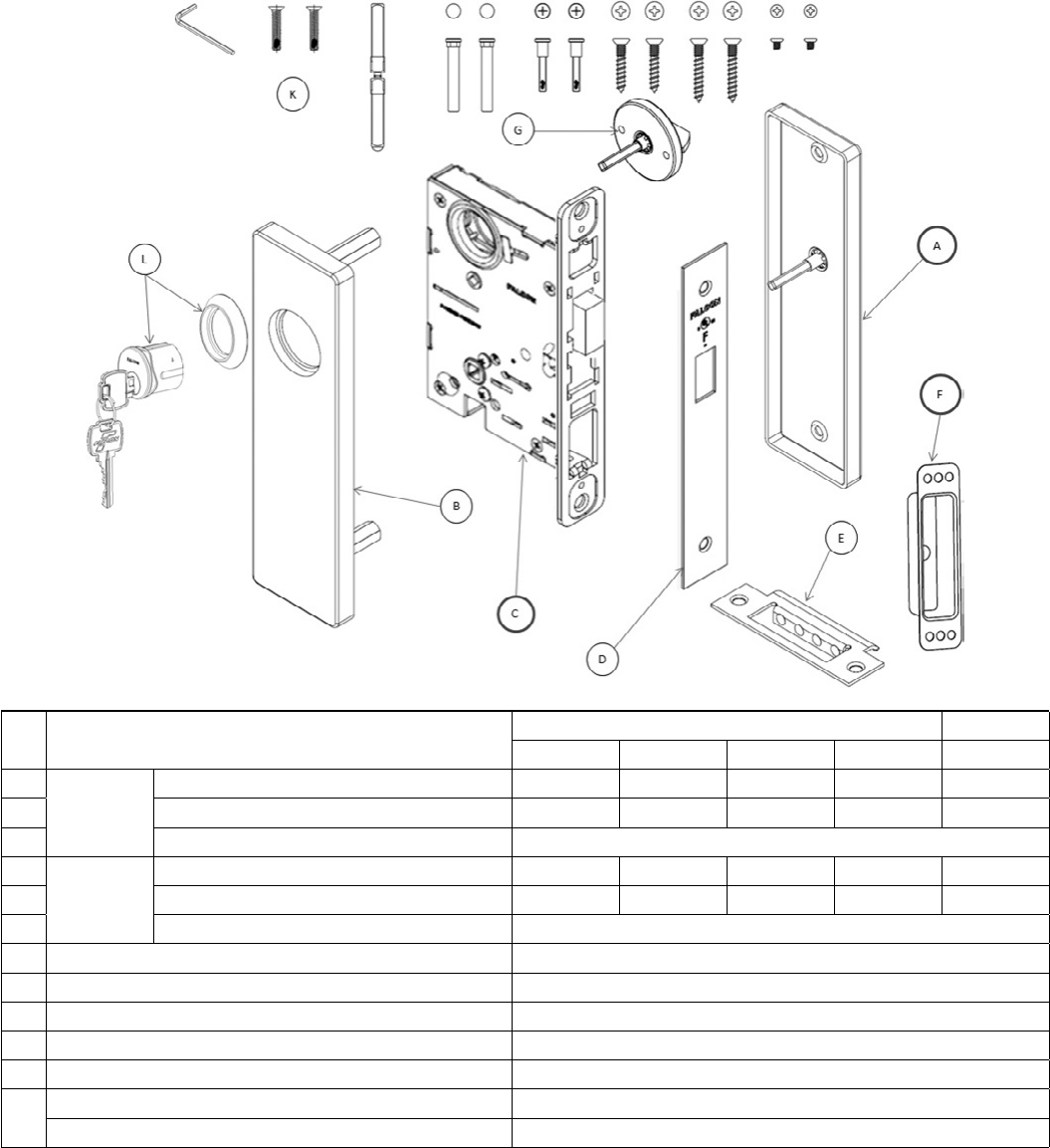

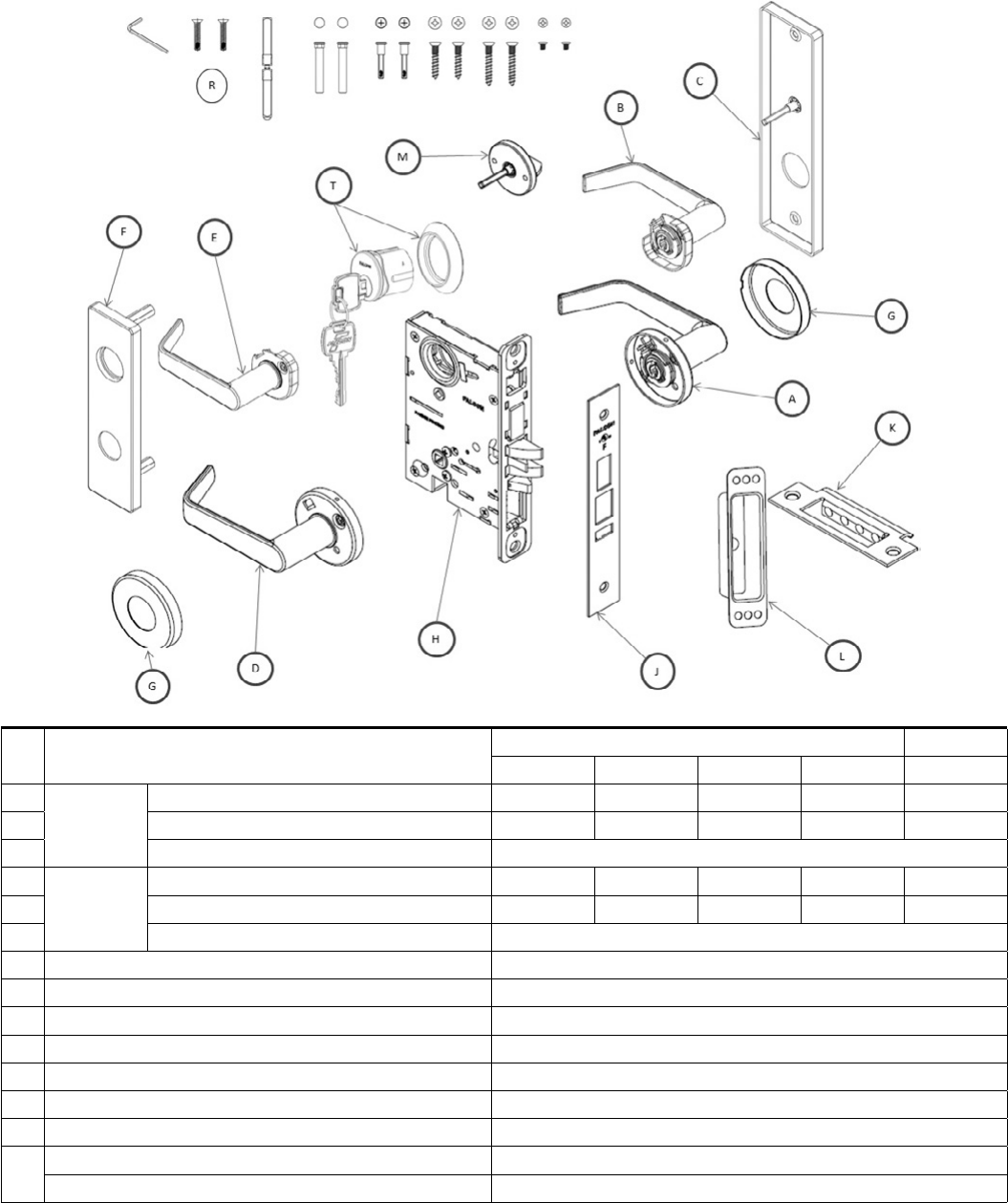

MA371 - Store Door Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IC
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7814
JFaceplate S77819
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
RCylinder, conventional (2 req'd) Q005-064
Cylinder, SFIC (2 req'd) Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 15

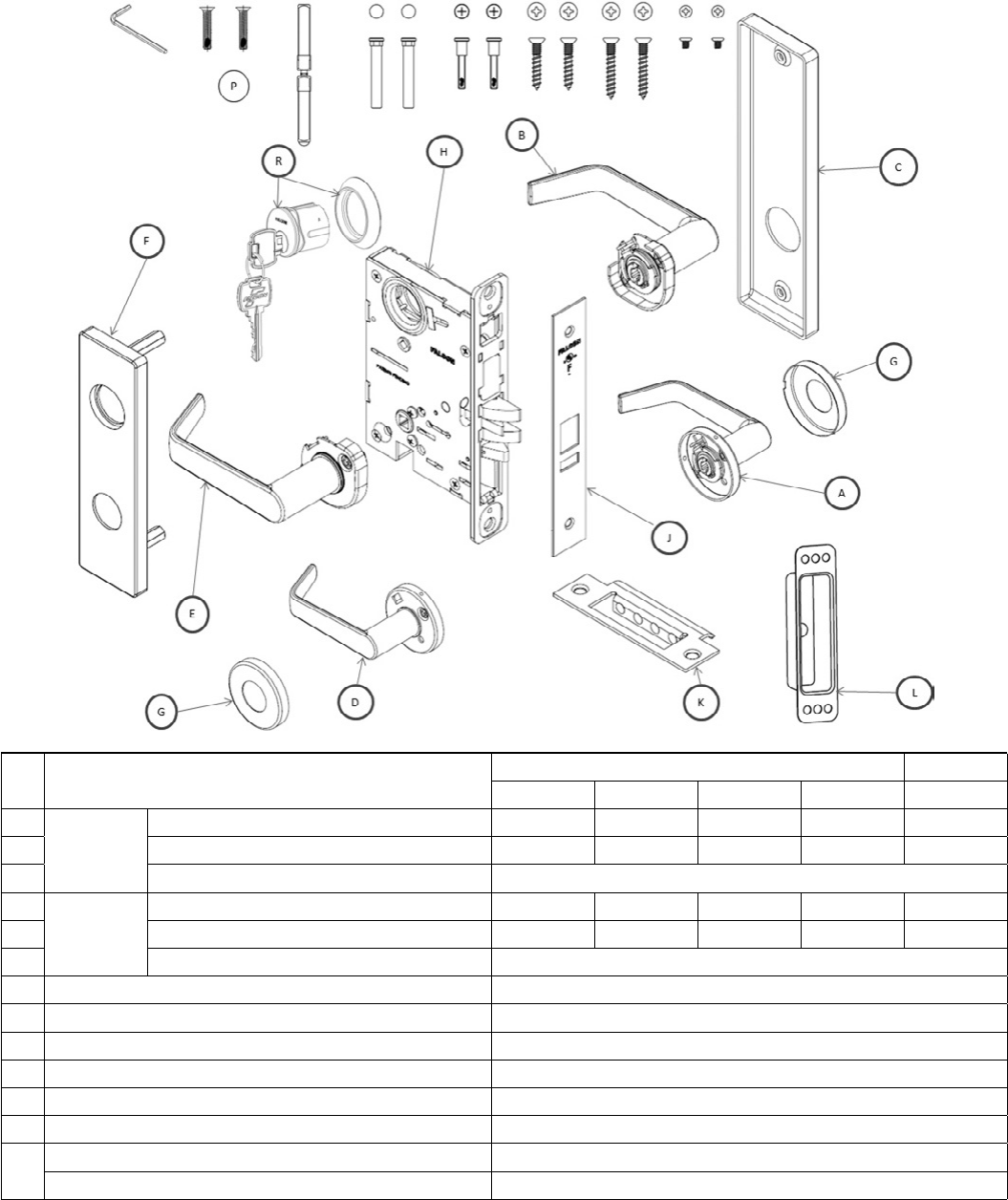

MA381 - Apartment, Exit
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IC
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7809
JFaceplate S77805
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
RCylinder, conventional (2 req'd) Q005-064
Cylinder, SFIC (2 req'd) Q005-065
SFIC Not Shown
16 • Falcon • MA-Series service manual
Lock Assemblies

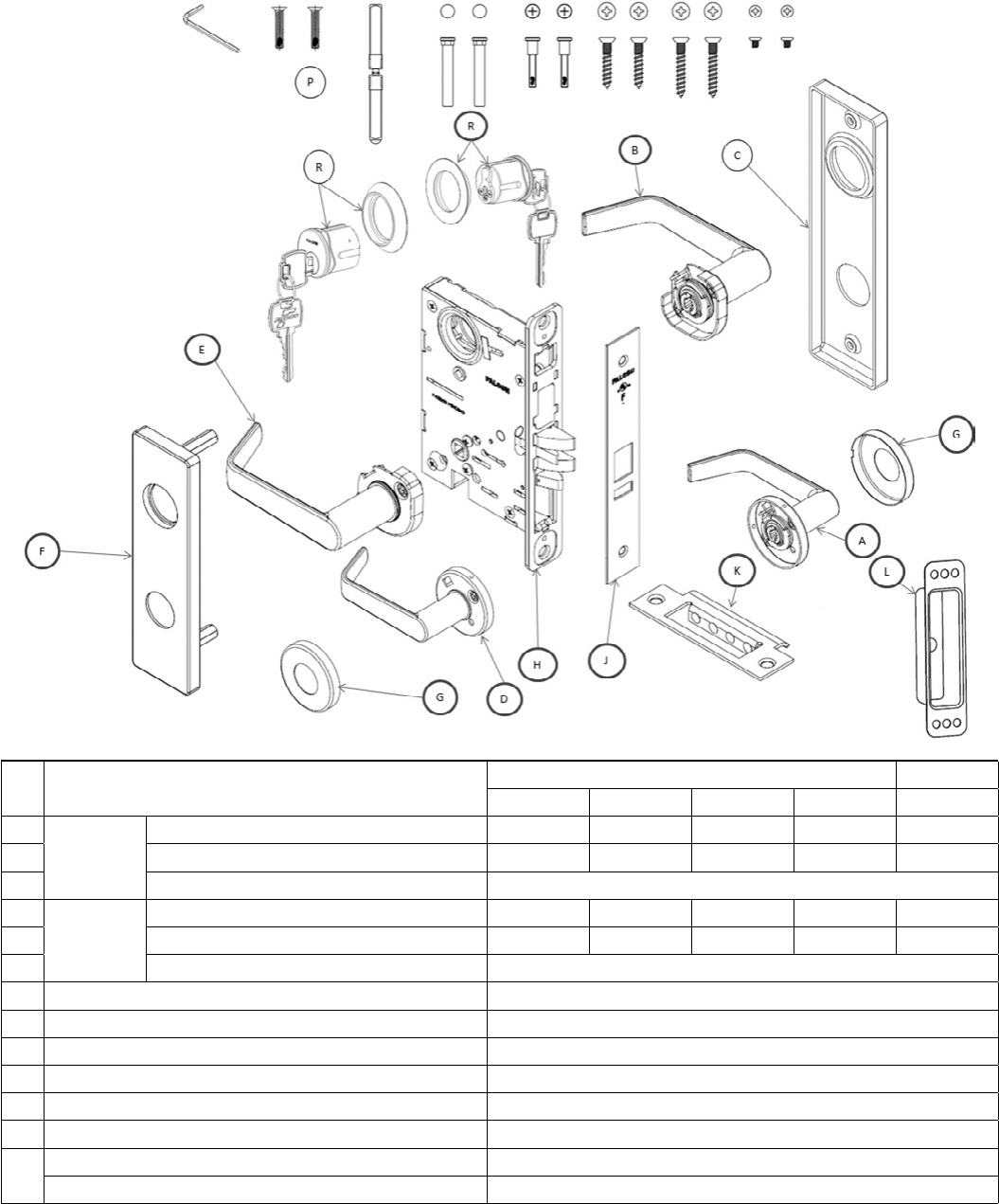

MA411 - Asylum or Institutional Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IC
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7830
JFaceplate S77819
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
R
Cylinder, conventional (2 req'd) Q005-064
Cylinder, SFIC (2 req'd) Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 17
MA431 - Classroom Security Lock with Deadbolt
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IC
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7813
JFaceplate S77819
KStrike assy A8737-X
LStrike box PE1396
RScrew pack See page 39
TCylinder, conventional (2 req'd) Q005-064
Cylinder, SFIC (2 req'd) Q005-065
SFIC Not Shown
18 • Falcon • MA-Series service manual
Lock Assemblies
MA441 - Classroom Security Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IC
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7805
JFaceplate S77805
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
R
Cylinder, conventional (2 req'd) Q005-064
Cylinder, SFIC (2 req'd) Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 19

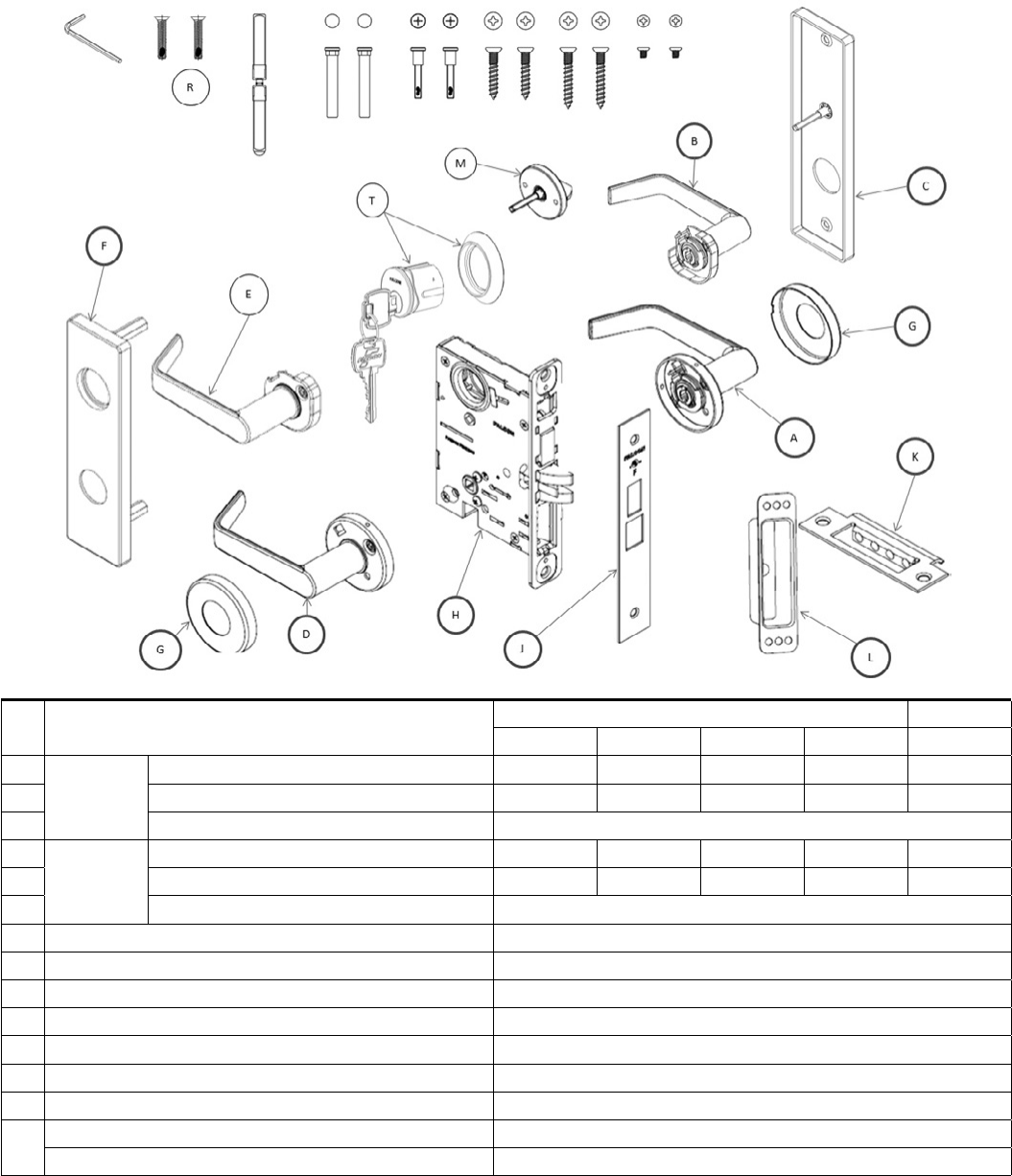

MA451 - Hotel Guest Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7815
JFaceplate S77815
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS76319
RScrew pack See page 39
TCylinder, conventional Q005-064
Cylinder, SFIC Q008-065
20 • Falcon • MA-Series service manual
Lock Assemblies

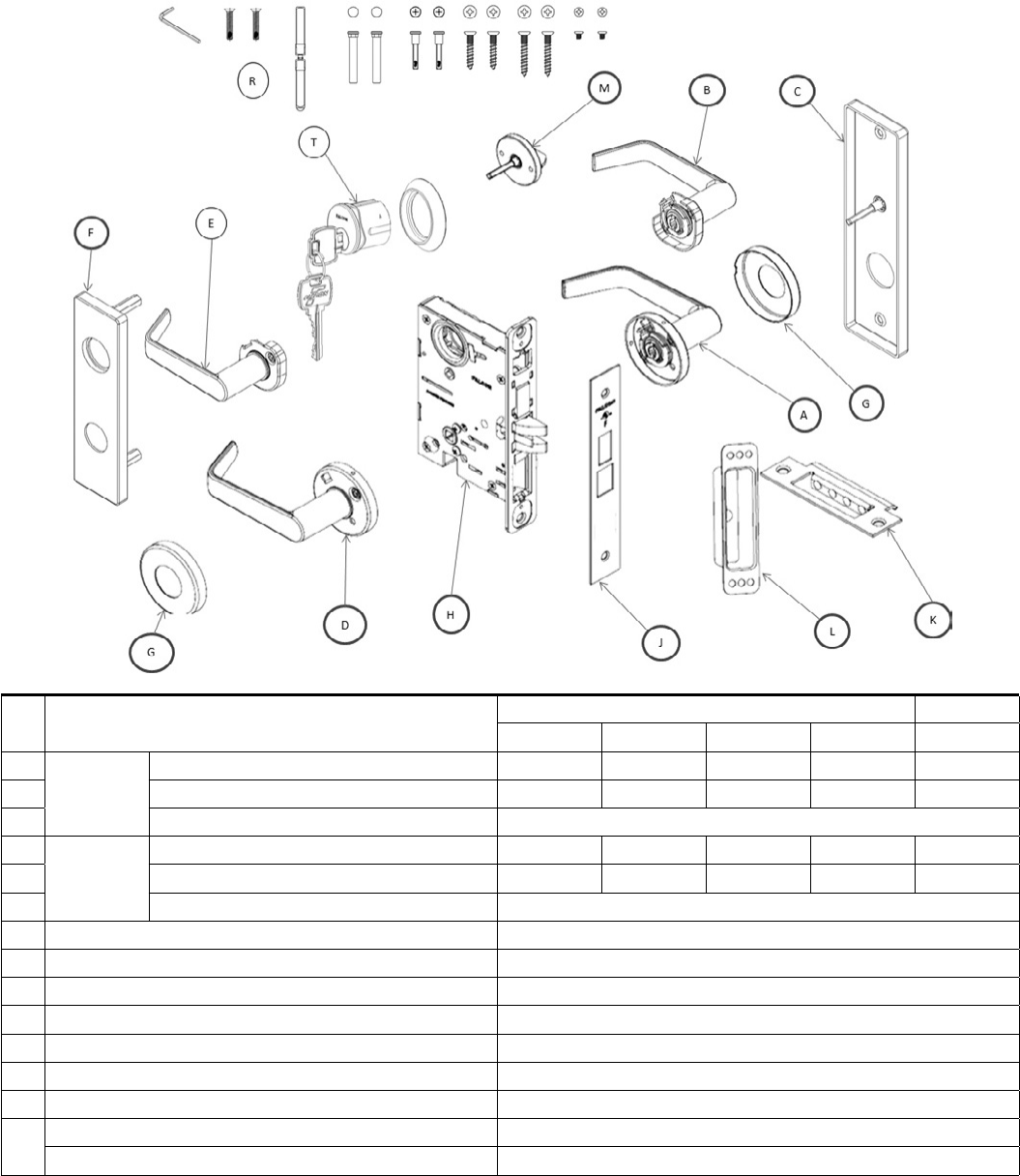

MA521 - Entry/Oce Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IP
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7804
JFaceplate S77804
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
RCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 21

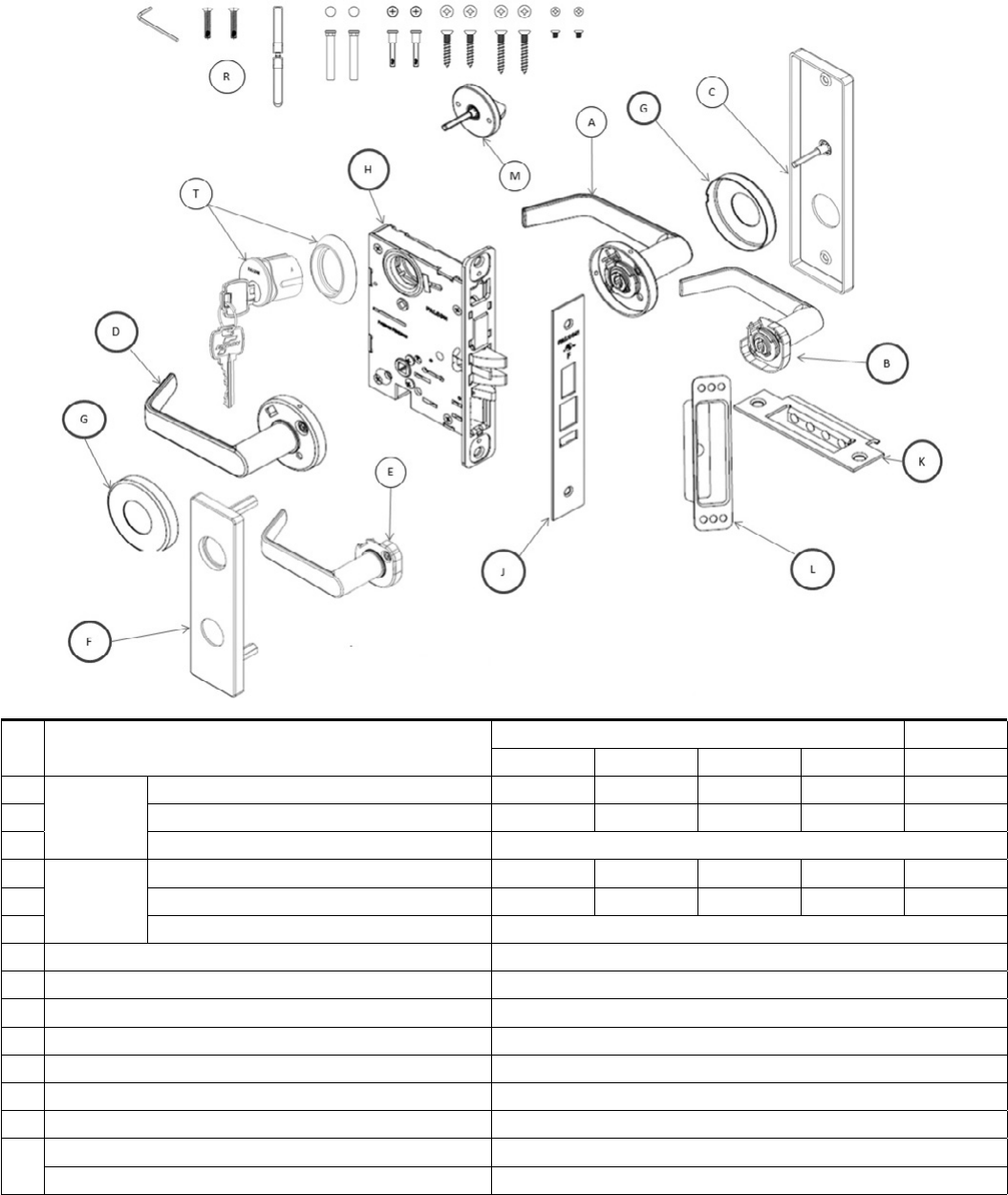

MA531 - Apartment Corridor Door Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7820
JFaceplate S77820
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS76319
RScrew pack See page 39
TCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
22 • Falcon • MA-Series service manual
Lock Assemblies
MA541 - Entry/Oce Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7820
JFaceplate S77820
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS76319
RScrew pack See page 39
TCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 23
MA551 - Holdback Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IP
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7806
JFaceplate S77805
KStrike assy A8737-X
LStrike box PE1396
PHanding instruction sheet Q513-069
RScrew pack See page 39
TCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
24 • Falcon • MA-Series service manual
Lock Assemblies
MA561 - Classroom Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IP
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7805
JFaceplate S77805
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
RCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 25
MA571 - Dormitory or Exit Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7813
JFaceplate S77819
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS76319
RScrew pack See page 39
TCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
26 • Falcon • MA-Series service manual
Lock Assemblies
MA581 - Storeroom / Closet Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IP
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7807
JFaceplate S77805
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
RCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 27
MA621 - Front Door / Apartment Corridor
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7808
JFaceplate S77811
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS76319
RScrew pack See page 39
TCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
28 • Falcon • MA-Series service manual
Lock Assemblies

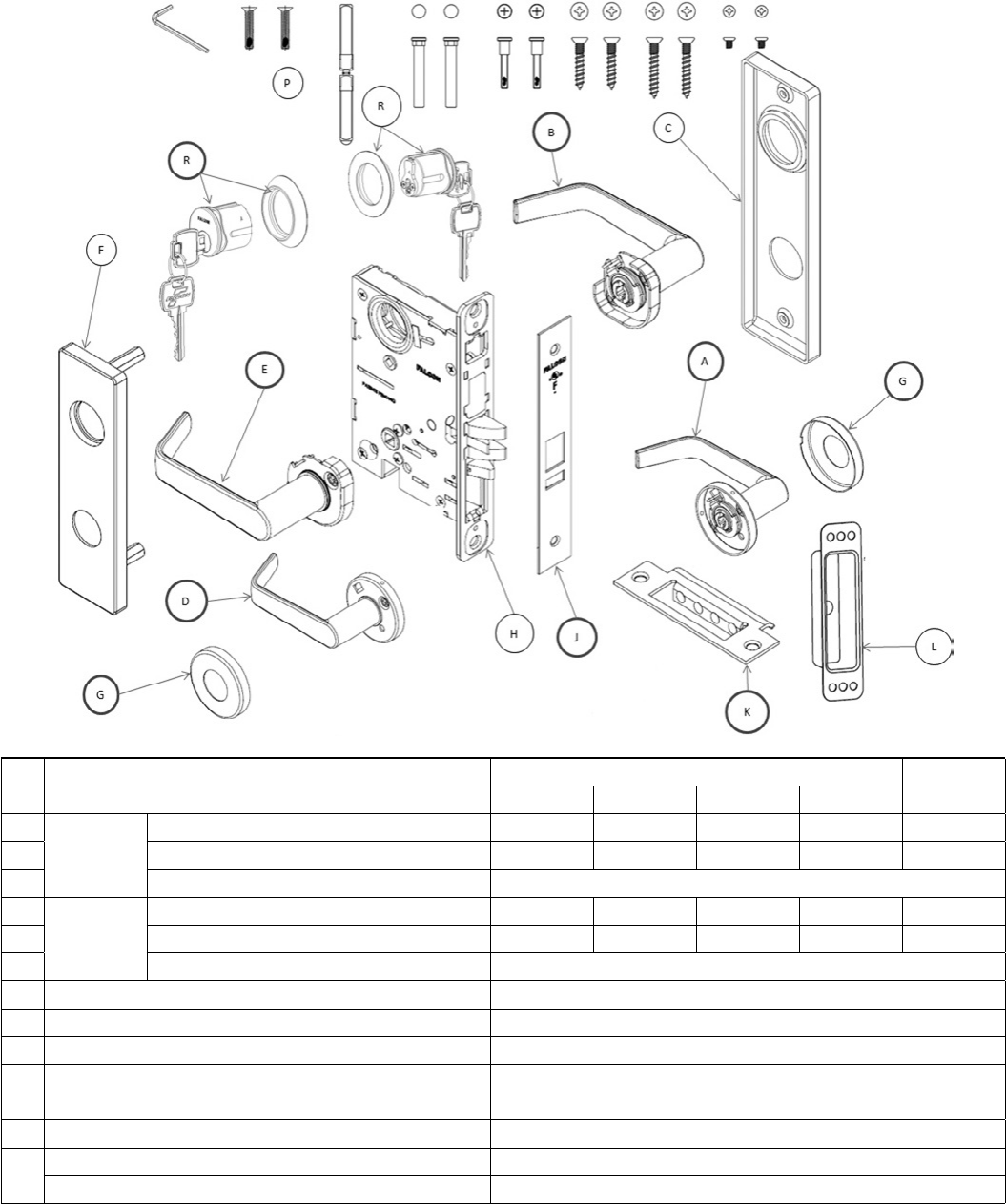

MA641 - Dormitory Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon AE77012-IT
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7815
JFaceplate S77815
KStrike assy A8737-X
LStrike box PE1396
MThumb turn AS76319
RScrew pack See page 39
T
Cylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 29

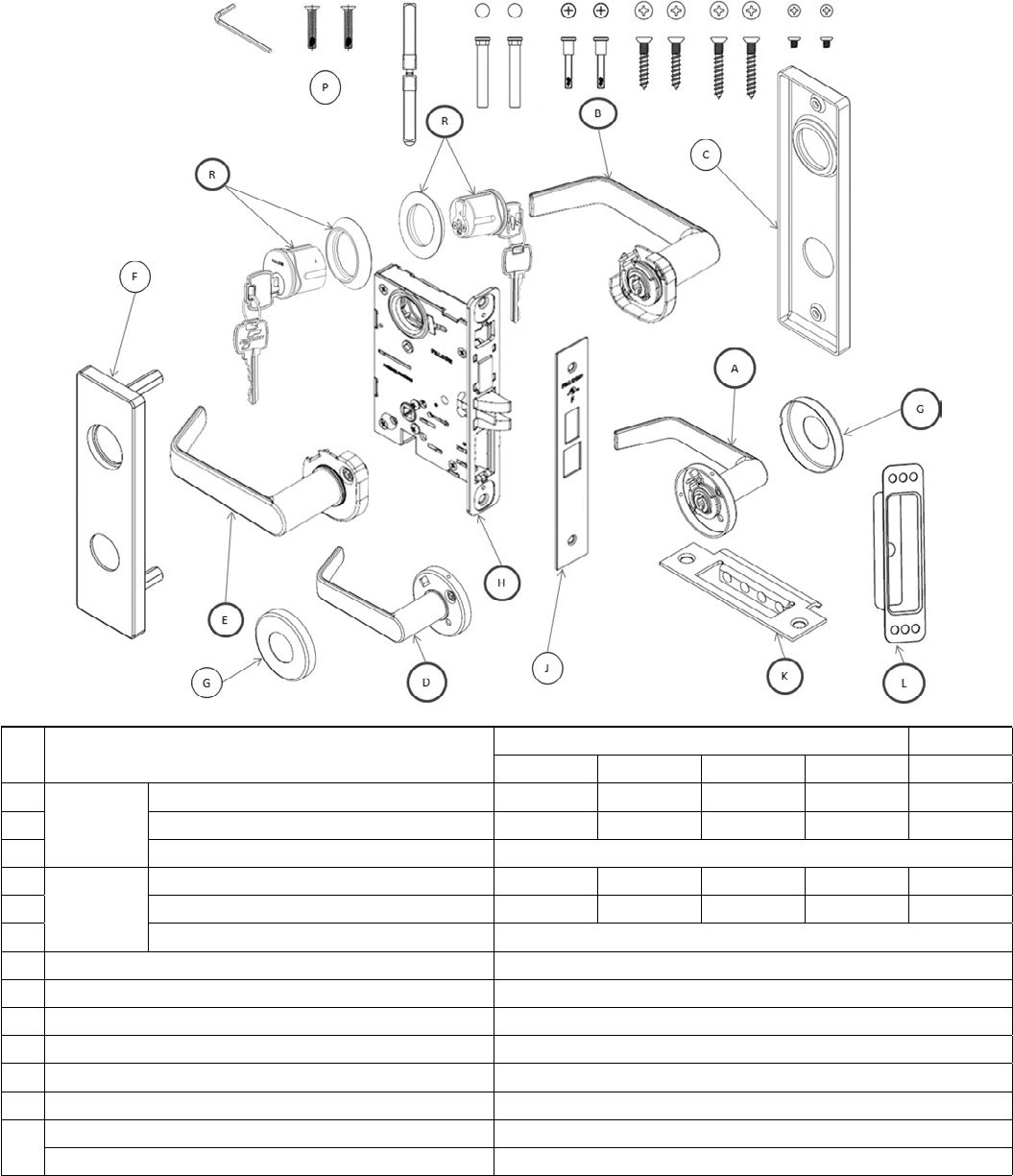

MA851 - Electrified Fail Safe (EL) - 12 & 24V, with or without RX
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IP
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7851-12, A7851-12RX, A7851-24, A7851-24RX
JFaceplate S77805
KStrike assy A8737-X
LStrike box PE1396
PScrew pack See page 39
RCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
30 • Falcon • MA-Series service manual
Lock Assemblies

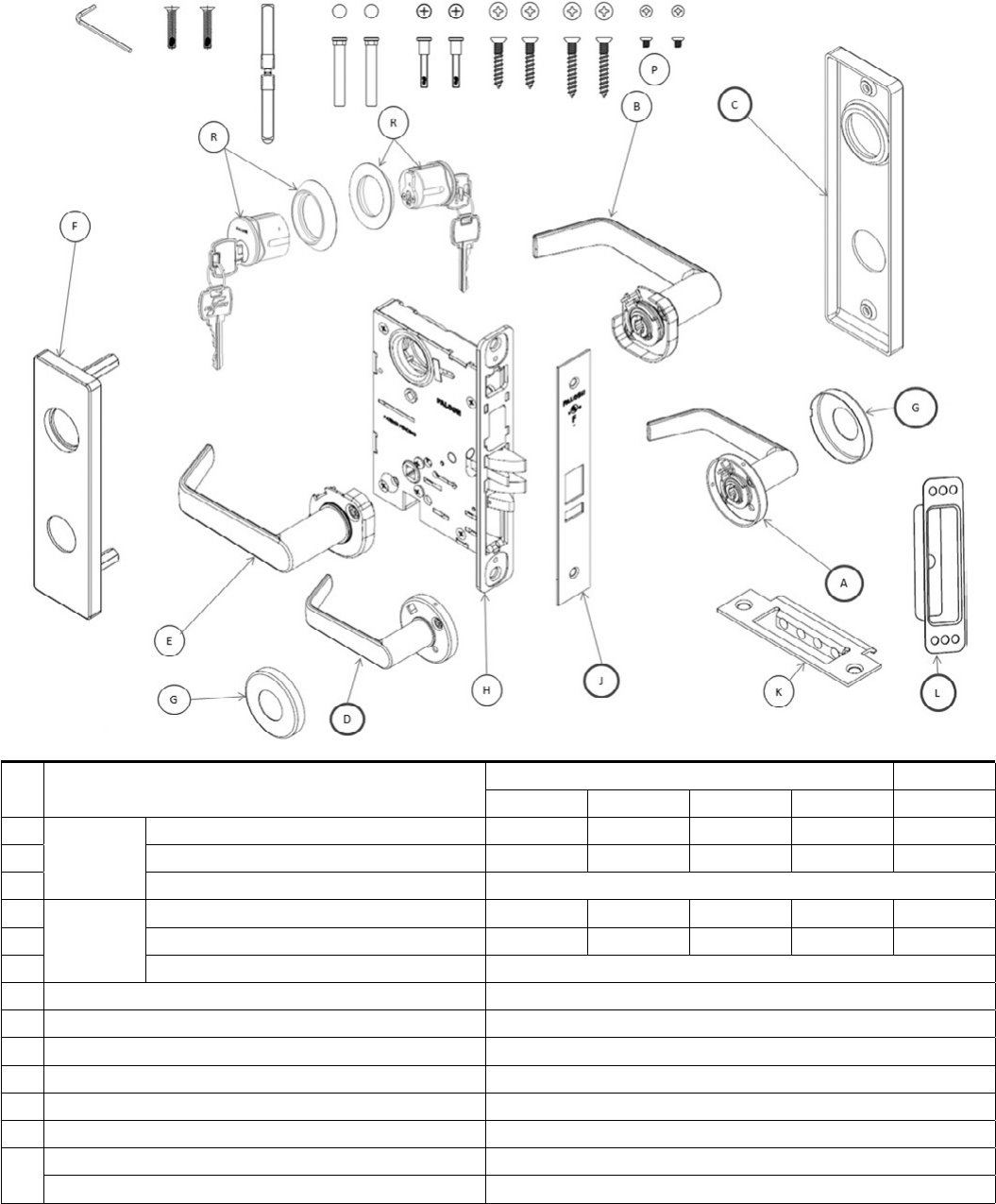

MA881 - Electrified Fail Secure (EU) - 12 & 24V, with or without RX
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
BKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
CEscutcheon E77012-IP
DOutside trim Knob/lever sectional AS76280 AS76526 AS76029 AS76140 AS76100
EKnob/lever escutcheon AE77280 AE77526 AE77029 AE77140 AE77100
FEscutcheon AE77012-OC
GRose (2 req'd) S76012
HAssy, lock unit A7881-12, A7881-12RX, A7881-24, A7881-24RX
JFaceplate S77805
KStrike assy A8737-X
LStrike box PE1396
RScrew pack See page 39
TCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 31

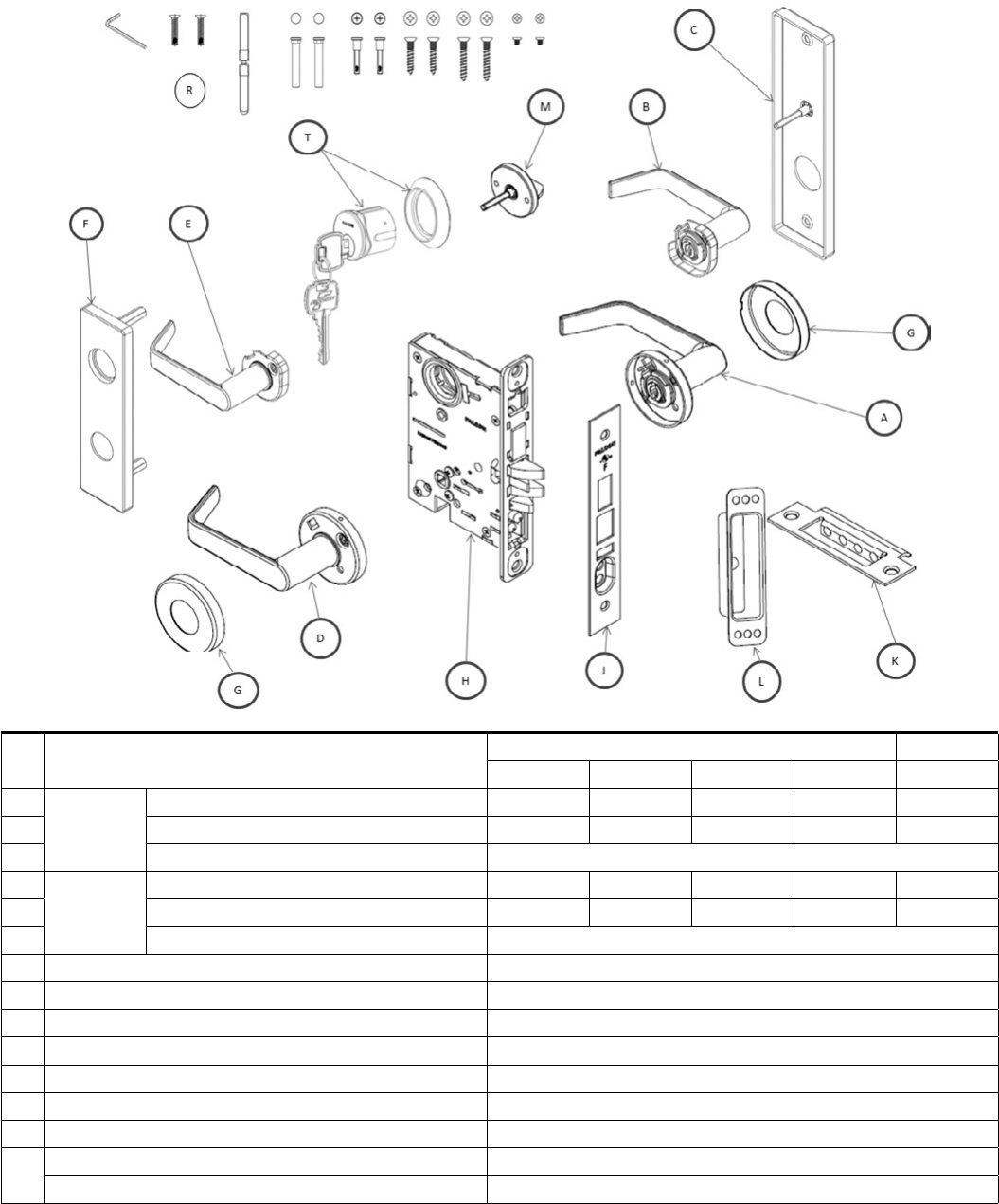

MA911 - Classroom Dead Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
-Inside trim Knob/lever sectional N/R N/R N/R N/R N/R
-Knob/lever escutcheon N/R N/R N/R N/R N/R
AEscutcheon AE77012-IE
-Outside trim Knob/lever sectional N/R N/R N/R N/R N/R
-Knob/lever escutcheon N/R N/R N/R N/R N/R
BEscutcheon AE77012-OK
CAssy, lock unit A7829
DFaceplate S77816
EStrike assy A8737-X
FStrike box PE1396
GThumb turn AS76319
KScrew pack See page 39
LCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
SFIC Not Shown
32 • Falcon • MA-Series service manual
Lock Assemblies

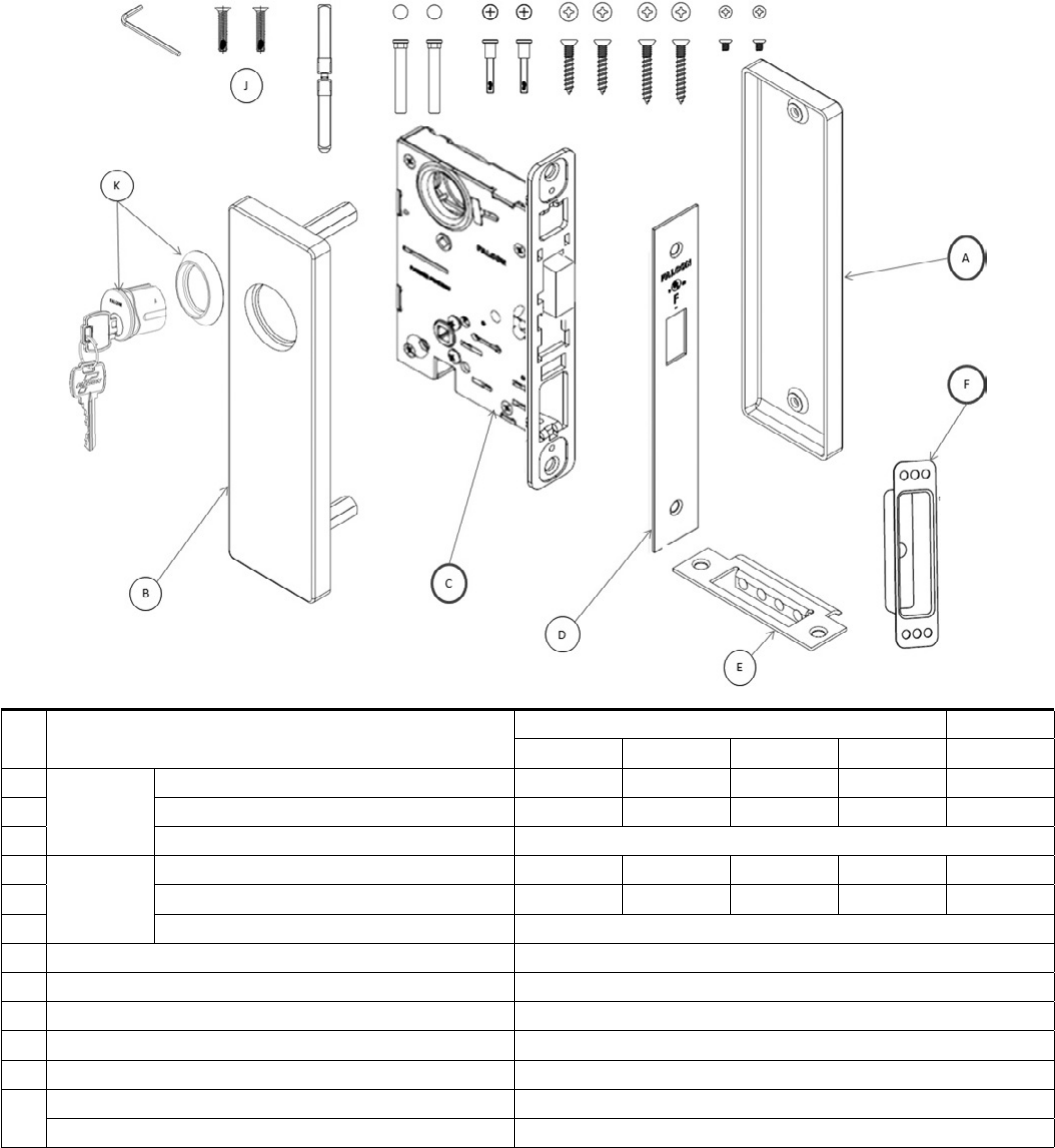

MA921 - Dead Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
-Inside trim Knob/lever sectional N/R N/R N/R N/R N/R
-Knob/lever escutcheon N/R N/R N/R N/R N/R
AEscutcheon E77012-IB
-Outside trim Knob/lever sectional N/R N/R N/R N/R N/R
-Knob/lever escutcheon N/R N/R N/R N/R N/R
BEscutcheon AE77012-OK
CAssy, lock unit A7816
DFaceplate S77816
EStrike assy A8737-X
FStrike box PE1396
JScrew pack See page 39
KCylinder, conventional Q005-064
Cylinder, SFIC Q005-065
Lock Assemblies
Falcon • MA-Series service manual • 33
MA931 - Dead Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
-Inside trim Knob/lever sectional N/R N/R N/R N/R N/R
-Knob/lever escutcheon N/R N/R N/R N/R N/R
AEscutcheon E77012-IK
-Outside trim Knob/lever sectional N/R N/R N/R N/R N/R
-Knob/lever escutcheon N/R N/R N/R N/R N/R
BEscutcheon AE77012-OK
CAssy, lock unit A7816
DFaceplate S77816
EStrike assy A8737-X
FStrike box PE1396
JScrew pack See page 39
KCylinder, conventional (2 req'd) Q005-064
Cylinder, SFIC (2 req'd) Q005-065
SFIC Not Shown
34 • Falcon • MA-Series service manual
Lock Assemblies
MA941 - Dead Lock
Ltr. Description
Levers Knobs
Dane Sutro Avalon Quantum Hana
-Inside trim Knob/lever sectional N/R N/R N/R N/R N/R
-Knob/lever escutcheon N/R N/R N/R N/R N/R
AEscutcheon E77012-IK
-Outside trim Knob/lever sectional N/R N/R N/R N/R N/R
-Knob/lever escutcheon N/R N/R N/R N/R N/R
BEscutcheon AE77012-OK
CAssy, lock unit A7816
DFaceplate S77816
EStrike assy A8737-X
FStrike box PE1396
JScrew pack See page 39
KCylinder, conventional (2 req'd) Q005-064
Cylinder, SFIC (2 req'd) Q005-065
SFIC Not Shown
Lock Assemblies
Falcon • MA-Series service manual • 35

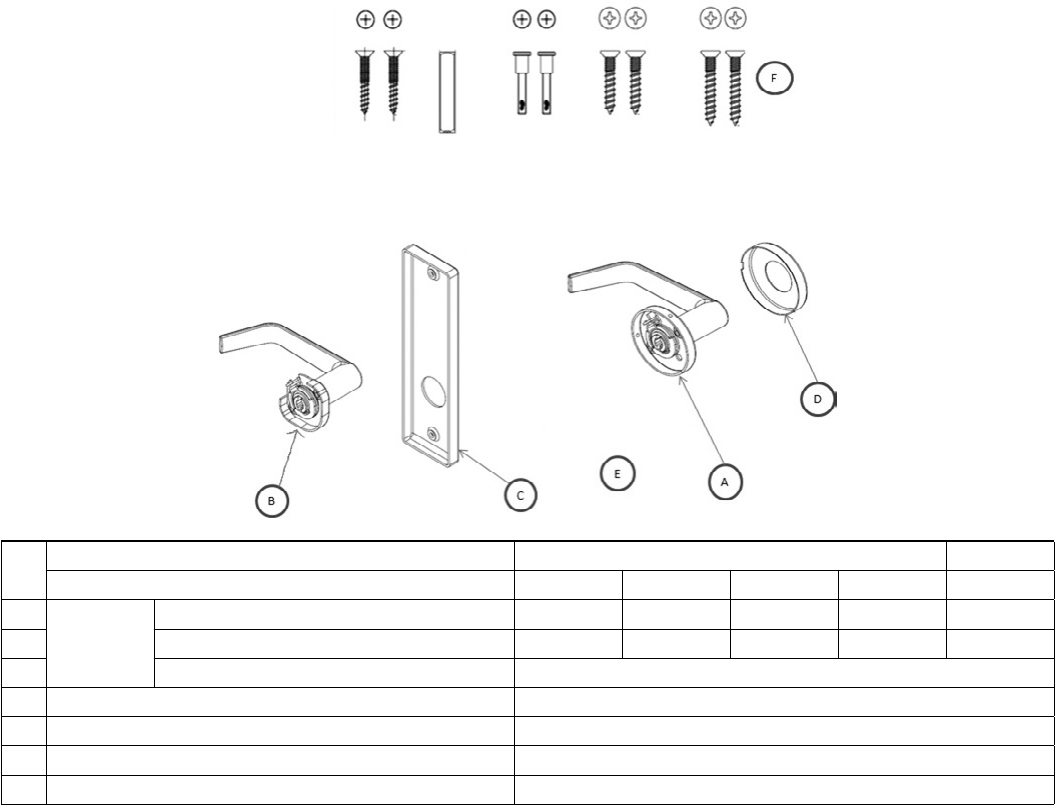

MA12 - Single Dummy
Ltr.
Knobs/Levers on One Side Fixed Levers Knobs
Description Dane Sutro Avalon Quantum Hana
ATrim Knob/lever sectional AS76280-D AS76526-D AS76029-D AS76140-D AS76100-D
BKnob/lever escutcheon AE77280-D AE77526-D AE77029-D AE77140-D AE77100-D
CEscutcheon E77012-IP
DRose S76012
FScrew pack S76331
Torx screw pack (optional) E77308
HBand S66915
36 • Falcon • MA-Series service manual
Lock Assemblies
MA18 - Double Dummy
Ltr.
Knobs/Levers on Both Sides Fixed Levers Knobs
Description Dane Sutro Avalon Quantum Hana
AInside trim Knob/lever sectional AS76280-D AS76526-D AS76029-D AS76140-D AS76100-D
BKnob/lever escutcheon AE77280-D AE77526-D AE77029-D AE77140-D AE77100-D
CEscutcheon E77012-IP
DOutside trim Knob/lever sectional AS76280-D AS76526-D AS76029-D AS76140-D AS76100-D
EKnob/lever escutcheon AE77280-D AE77526-D AE77029-D AE77140-D AE77100-D
FEscutcheon AE77012-0P
GRose (2 req'd) S76012
KScrew pack See page 39
LBand S66915
Lock Assemblies
Falcon • MA-Series service manual • 37
38 • Falcon • MA-Series service manual
39 Knob and Lever Designs
39 Screw Packs
41 Cams
42 Mortise, rim and cam lock for standard cylinders
42 Strikes
43 Cylinder collars
43 Escutcheon Trim Rings
43 Sectional Trim Rings
44 Trim Rings & Collars
Parts and Accessories
Parts and Accessories
Falcon • MA-Series service manual • 39
Knob and Lever Designs
Levers
Gala
AG (Avalon-Gala)
DG (Dane-Gala)
QG (Quantum-Gala)
SG (Sutro-Gala)
Napa
AN (Avalon-Napa)
DN (Dane-Napa)
QN (Quantum-Napa)
SN (Sutro-Napa)
Knobs
HG (Hana-Gala)
HN (Hana-Napa)
Screw Packs
Part No. Description Use
S76300 #8-32 x Z⁄v” L Machine Screw 1³⁄,”-1M⁄,” door
thickness,
sectional trim
with levers
#12-12/ #12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/ #12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄v” L Mounting Screw
ø Z⁄v” x 1ZZ⁄zn” L Post
B⁄zn” x 1>⁄zn” L x 2 pcs STD Sindle Assembly
³⁄cx” Allen Wrench
S76301 #8-32 x Z⁄v” L Machine Screw Over 1M⁄,”-2Z⁄x”
door thickness,
sectional trim
with levers
#12-12/ #12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/ #12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄x” L Mounting Screw
ø Z⁄v” x 2Z⁄v” L Post
B⁄zn” x 1M⁄,” L x 2 pcs EXT Sindle Assembly
³⁄cx” Allen Wrench
Part No. Description Use
S76302 #8-32 x Z⁄v” L Machine Screw 1³⁄,”-1M⁄,” door
thickness,
sectional trim
with knobs
#12-12/ #12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/ #12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄v” L Mounting Screw
ø Z⁄v” x 1ZZ⁄zn” L Post
B⁄zn” x 1Z⁄v” L x 2 pcs STD Sindle Assembly
³⁄cx” Allen Wrench
S76303 #8-32 x Z⁄v” L Machine Screw Over 1M⁄,”-2Z⁄x”
door thickness,
sectional trim
with knobs
#12-12/ #12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/ #12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄x” L Mounting Screw
ø Z⁄v” x 2Z⁄v” L Post
B⁄zn” x 1>⁄zn” L x 2 pcs EXT Sindle Assembly
³⁄cx” Allen Wrench
40 • Falcon • MA-Series service manual
Parts and Accessories
Part No. Description Use
S76306 #8-32 x Z⁄v” L Torx Head Machine Screw Torx screw
pack, sectional
trim, no turn
#12-12/ #12-24 x 1Z⁄x” L Torx Head Wood/
machine Combination Screw
S76307 #8-32 x Z⁄v” L Torx Head Machine Screw Torx screw
pack, sectional
trim, with turn
#12-12/ #12-24 x 1Z⁄x” L Torx Head Wood/
machine Combination Screw
#6 x Z⁄x” Torx Head Sheet Metal Screw
S76331 #8-32 x Z⁄v” L Machine Screw Single Dummy
Screw Pack
#12-12/ #12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/ #12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄v” L Mounting Screw
B⁄zn” x 1>⁄zn” L STD Spindle
ø 0.027” Wire, OD; ø B⁄zn” x 1³⁄,” L Spring
³⁄cx” Allen Wrench
E77300 #8-32 x Z⁄v” L Machine Screw 1³⁄,”-1M⁄,” door
thickness,
escutcheon
trim with levers
#12-12/ #12-24 x 1Z⁄x” Wood/machine
Combination Screw
#12-12/ #12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄v” L Mounting Screw
ø Z⁄v” x 1ZZ⁄zn” L Post
B⁄zn” x 1>⁄zn” L x 2 pcs STD Sindle Assembly
#10-24 x 1Z⁄v” Machine Screw
³⁄cx” Allen Wrench
E77301 #8-32 x Z⁄v” L Machine Screw Over 1M⁄,”-2Z⁄x”
door thickness,
escutcheon
trim with levers
#12-12/ #12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/ #12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄x” L Mounting Screw
ø Z⁄v” x 2Z⁄v” L Post
B⁄zn” x 1M⁄,” L x 2 pcs EXT Sindle Assembly
#10-24 x 2” Machine Screw
³⁄cx” Allen Wrench
E77302 #8-32 x Z⁄v” L Machine Screw 1³⁄,”-1M⁄,” door
thickness,
escutcheon
trim with knobs
#12-12/#12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/#12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄v” L Mounting Screw
ø Z⁄v” x 1ZZ⁄zn” L Post
B⁄zn” x 1Z⁄v” L x 2 pcs STD Knob Spindle
Assembly
#10-24 x 1Z⁄v” L Machine Screw
³⁄cx” Allen Wrench
Part No. Description Use
E77303 #8-32 x Z⁄v” L Machine Screw Over 1M⁄,”-2Z⁄x”
door thickness,
escutcheon
trim with knobs
#12-12/#12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/#12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄x” L Trim Screw
ø Z⁄v” x 1ZZ⁄zn” L Post
B⁄zn” x 1>⁄zn” L x 2 pcs EXT Spindle Assembly
#10-24 x 2” L Machine Screw
³⁄cx” Allen Wrench
E77306 #8-32 x Z⁄v” L Torx Head Machine Screw 1³⁄,”-1M⁄,” Thick
Torx screw
pack,
escutcheon
trim, standard
door thickness
#12-12/#12-24 x 1Z⁄x” L Torx Head Wood/
machine Combination Screw
#10-24 x 1Z⁄v” L Torx Head, Machine Screw
E77307 #8-32 x Z⁄v” L Torx Head Machine Screw Over 1M⁄,”-2Z⁄x”
Thick Torx
screw pack,
escutcheon
trim, extended
door thickness
#12-12/#12-24 x 1Z⁄x” L Torx Head Wood/
machine Combination Screw
#10-24 x 2” L Torx Head Machine Screw
E77308 #8-32 x Z⁄v” L Torx Head Machine Screw Torx screw
pack, rose
escutcheon
connection
door
#12-12/#12-24 x 1Z⁄x” L Torx Head Wood/
machine Screw
#10-24/#10 x 1Z⁄v” L Torx Head Wood/
machine Screw
E77331 #8-32 x Z⁄v” LMachine Screw Screw pack,
escutcheon
connecting
door
#12-12/#12-24 x 1Z⁄x” L Wood/machine
Combination Screw
#12-12/#12-24 x 1Z⁄v” L Wood/machine
Combination Screw
#8-32 x 1Z⁄v” L Mounting Screw
B⁄zn” x 1>⁄zn” L STD Spindle
#10-24/#10 x 1Z⁄v” L Wood/machine
Combination Screw
ø 0.027 Wire, ø B⁄zn” O.D. x 1³⁄,” L Spring
³⁄cx” Allen Wrench
Available in finishes 606, 613, 630
Non torx screw packs contain armor front screws, strike screws, trim
screws, mortise screws, spindle, mounting posts
Torx screw packs contain armor front, strike, and trim screws only
Parts and Accessories
Falcon • MA-Series service manual • 41
Cams
Cams for Falcon cylinders
The Falcon MA Series requires a different cam for keyed functions than its predecessor, the Falcon M Series. For all keyed
functions except the MA381 function, the MA Series uses a single cam for all standard mortise cylinders and a single cam for
all interchangeable core mortise cylinders. The chart below lists the cam required.
Door handing Cam part number Outside Inside For cylinder
All 5644-STD (F1) MA371, MA411, MA431, MA441, MA451, MA521, MA531, MA541,
MA551, MA561, MA571, MA581, MA621, MA641, MA851, MA881,
MA911, MA921, MA931, MA941
MA371, MA411, MA431,
MA441, MA931
Standard
All 5622-IC (F2) MA371, MA411, MA431, MA441, MA451, MA521, MA531, MA541,
MA551, MA561, MA571, MA581, MA621, MA641, MA851, MA881,
MA911, MA921, MA931, MA941
MA371, MA411, MA431,
MA441, MA931
Interchangeable
core
The new Falcon MA Series MA381 function uses unique cams to operate the lock.
Different cams are required, depending on the handing of the lock. The charts on the
next page indicate which cams are to be used for each configuration.
Cams for Schlage cylinders
The Schlage Classic cylinders (C, E, and CE keyways) will also operate the Falcon MA
Series locks using the 5622-STD cam.
Falcon MA381 cylinder cam configuration chart
Door hand inside cyl. cam Outisde cyl. cam
RH/RHR 5620-STD (R3) 5621-STD (R4)
LH/LHR 5620-STD (L3) 5621-STD (L4)
Falcon MA381 cylinder cam configuration chart
(interchangeable core)
Door hand inside cyl. cam Outisde cyl. cam
RH/RHR 5620-IC (R3) 5621-IC (R4)
LH/LHR 5620-IC (L3) 5621-IC (L4)
LH/LHR LH/LHR IC
Inside (L3) Outside (L4) Inside (L3) Outside (L4)
RH/RHR RH/RHR IC
Inside (R3) Outside (R4) Inside (R3) Outside (R4)
Complete cylinders can also be ordered for the MA381 function that will include the correct cam (the door hand must be
specified when ordering cylinders for the MA381).
5622-STD 5622-IC
42 • Falcon • MA-Series service manual
Parts and Accessories
Mortise, rim and cam lock for standard cylinders
Mortise Cylinder
900 Series Cylinders are furnished
with #4 straight cam and 250
Series with #1 cloverleaf cam
unless otherwise specified.
See table for product numbers.
See page page 41 for optional
cams and page 44 for collars.
Note: Specify finish: 605, 606,
612, 613, 626, 629, 630
Thumbturn Cylinder
Furnished with #4 straight cam
except 970 Series furnished
with #1 cloverleaf cam unless
otherwise specified.
See table for product numbers.
See page page 41 for
optional cams and page 44
for collars.
Note: Specify finish: 605, 606,
612, 613, 626, 629, 630
Dummy Cylinder
Used to plug hole in door where
lock remains but cylinder
operation is no longer needed.
984 1”
985 1Z⁄,”
Note: Specify finish: 605, 606,
612, 613, 626, 629, 630
Keyed Mortise Cylinders
Catalog no. Length Pins Application
985 1Z⁄,”5 or 6 Generic
986 1Z⁄v”5 or 6 Generic
987 1³⁄,”6 or 7 Generic
988 1Z⁄x”6 or 7 Generic
990 1³⁄v”6 or 7 Generic
992 2” 6 or 7 Generic
250 1Z⁄,” 6 M451 hotel function
251 1Z⁄v” 6 M451 hotel function
252 1³⁄,” 6 M451 hotel function
253 1³⁄,” 7 M451 hotel function
Thumbturn Mortise Cylinders
Catalog no. Length Pins Application
985T 1Z⁄,” - Generic
986T 1Z⁄v” - Generic
973 1Z⁄,” - M911 Classroom Thumbturn,
RH (CCW)
974 1Z⁄,” - M911 Classroom thumbturn,
LH (CW)
Specify cylinder number, keyway, and finish when ordering.
Strikes
Strike Lip Length (x) Lip
A8737-1 1Z⁄v”Curved Lip
A8737-2 1M⁄zn”Curved Lip
A8737-3 1>⁄zn”Curved Lip
A8737-4 1ZZ⁄zn”Curved Lip
A8737-5 M⁄,”Straight Lip
Lip
Length
(x)
Parts and Accessories
Falcon • MA-Series service manual • 43
Cylinder collars
Standard collars for cylinders ordered separately
Length Cylinder Non-AR Cams AR Cam
1” 984D A08794-000 -
1Z⁄,”250, 965, 966, 973, 974, 985 Series A08794-000 008876-002
1Z⁄v”251, 986 Series A08794-001 008876-003
1³⁄,”252, 253, 987, C987, C997 A08794-002 008876-004
Longer C260 Series, (C)988, (C)990, (C)992 A08794-000 008876-000
Escutcheon Trim Rings
Door
Thickness
Function 985
1Z\,”
986
1Z\v”
(C) 987
1C\,”
(C) 988
1Z\x”
1Z⁄x”Single cylinder -A08790-000 A08790-001 A08790-002
1Z⁄x”Double cylinder A08790-000 ---
1³⁄v”Single cylinder --A08790-000 A08790-001
1³⁄v”Double cylinder -A08790-000 A08790-001 A08790-002
2” Single cylinder --A08790-000 A08790-001
2” Double cylinder --A08790-000 A08790-001
2Z⁄v”Single cylinder ---A08790-000
2Z⁄v”Double cylinder ----
2Z⁄x”Single cylinder ----
2Z⁄x”Double cylinder ----
Sectional Trim Rings
Door
Thickness
Function 985
1Z\,”
986
1Z\v”
(C) 987
1C\,”
(C) 988
1Z\x”
1Z⁄x”Single cylinder A08794-001 A08794-002 - -
1Z⁄x”Double cylinder A08794-002 A08794-003 - -
1³⁄v”Single cylinder A08794-000 A08794-001 - -
1³⁄v”Double cylinder A08794-001 A08794-002 A08794-002 -
2” Single cylinder -A08794-000 A08794-001 A08794-002
2” Double cylinder A08794-000 A08794-001 A08794-002 A08794-003
2Z⁄v”Single cylinder --A08794-000 A08794-001
2Z⁄v”Double cylinder -A08794-000 A08794-001 A08794-002
2Z⁄x”Single cylinder ---A08794-000
2Z⁄x”Double cylinder --A08794-000 A08794-001
Specify part number and finish when ordering. (e.g. A08790-000-626)
44 • Falcon • MA-Series service manual
Parts and Accessories
Trim Rings & Collars
A
A
B
A
B
Dim. A Dim. B Part No.
³⁄cx”>⁄cx”A08790-000
M⁄cx” 1³⁄cx”A08790-001
ZZ⁄cx” 1M⁄cx”A08790-002
ZB⁄cx”XZ⁄cx”A08790-003
V³⁄nv”BB⁄nv”A08790-004
³⁄cx”>⁄cx”A08794-000
M⁄cx” 1³⁄cx”A08794-001
ZZ⁄cx” 1M⁄cx”A08794-002
ZB⁄cx”XZ⁄cx”A08794-003
Z⁄,” - 008876-000
³⁄zn” - 008876-005
Z⁄v” - 008876-001
³⁄,” - 008876-002
Z⁄x” - 008876-003
B⁄,” - 008876-004
Wave washer included.
To order separately,
specify 008789-001-60.
Blocking Rings
Specify part number and finish when ordering. (e.g. A08790-000-626)
Parts and Accessories
Falcon • MA-Series service manual • 45
46 • Falcon • MA-Series service manual
Ordering Procedures
Ordering Procedures
For correct ordering, and to ensure no delays in shipment of your order, the following descriptive data must be listed in the
sequence shown. Necessary information can be found in other parts of this manual. The example below shows an order for
16 each MA locksets in the 521 Entry function, DG (Dane-Gala) trim design in a 626 (satin chrome) finish, 8 RH (right hand)
and 8 LH (le hand) to accommodate doors 1³⁄v” thick with AA1-AA16 keying.
Quantity: Indicate the quantity required.
Catalog Number: Select catalog number.
Trim Design: Indicate letter of knob or lever design followed
by letter of rose or escutcheon design.
Example: DG-D for Dane lever followed by G for Gala rose.
Finish: When the finish is the same for the outside and
inside trim, it is shown once (626). For split finishes, the
outside is designated first, then the inside (626 x 625).
Latch: Two-piece mechanical anti-friction standard. All
catalog numbers shown in this manual indicated 2³⁄v”
backset.
Strike: 4M⁄,” x 1Z⁄v” x 1Z⁄v” lip-to-center with curved lip
standard. Optional strikes with shorter or longer lip lengths
available.
Cylinder Type: For 6-Pin, add 6-Pin. For 7-Pin, add 7-Pin.
Door Hand: See chart.
Keying Detail: We suggest using the standard terms
developed by the A.H.C. (Consult Factory).
Example: AA1 - Grand Master keyed, Master keyed, change
key 1.
Interchangeable Core: To order product capable of
accepting an interchangeable core, add “B” less SFIC (for
interchangeable core). To order product with an
interchangeable core, add “SFIC” (with interchangeable
core). Ex: “G” with Falcon SFIC core.
Keyway: “G” is standard on regular cylinders, “A” is standard
on interchangeable cores. Other keyways available. See
price book.
Additional Keys: Note the total number of keys required.
Large Bow Keys: Add - “with large bow keys”.
Example
Qty. Catalog
Number
Trim
Design
Finish Latch Strike Cylinder Door Hand Detail
RH LH RHR LHR
8MA521P DG 626 STD STD 6-PIN XAA1-AA8 1³⁄v” DR
8MA521P DG 626 STD STD 6-PIN XAA9-AA16 1³⁄v” DR
Finishes
Falcon offers several finish choices to compliment the
design elements of most any project. Falcon applies the
best available protective plating or coating to the surface of
our products to minimize the exposure to weather, pollution,
perspiration, extremes of climate, frequency of us and other
factors. Please consult with us if your building is subjected
to chemical or corrosive conditions, as some finishes would
not be recommended for these areas. Falcon recommends
chrome plated or stainless steel finishes for high corrosive
environments.
Trim Finishes
Description ANSI No. Available on
Bright Brass 605 US 3 All trim
Satin Brass 606 US 4 All trim
Satin Bronze Oil Rubbed 613 US 10B All trim
Bright Chrome 625 US 26 All trim
Satin Chrome 626 US 26D All trim
Satin Stainless Steel 630 US 32D All trim

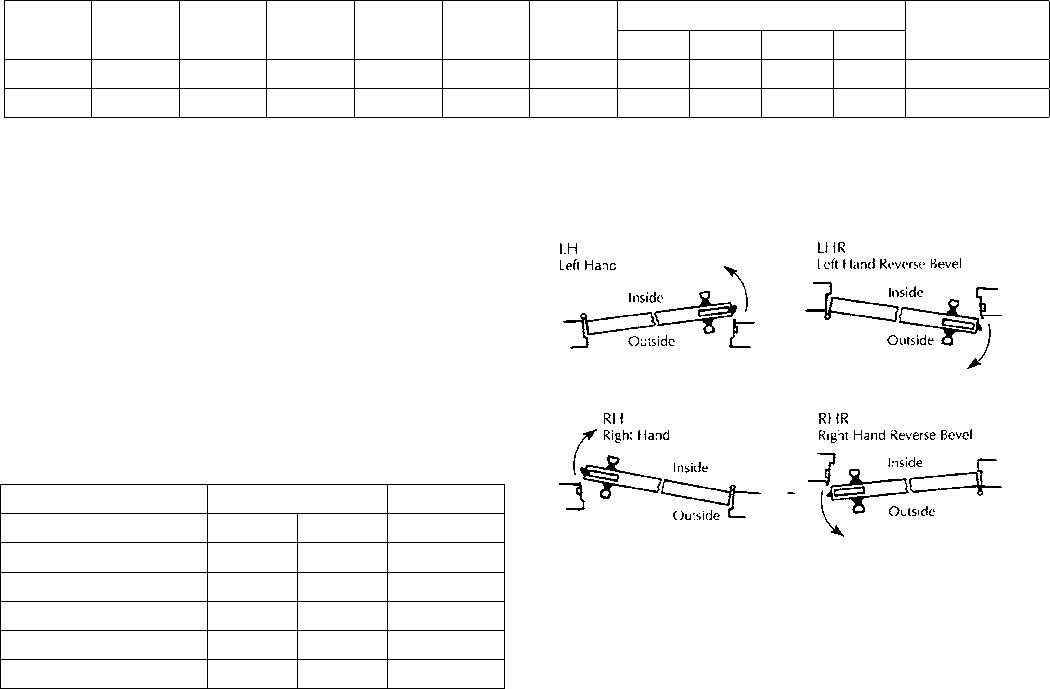

Door Handing
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.
As a $2 billion provider of security solutions for homes and businesses, Allegion
employs more than 7,800 people and sells products in more than 120 countries
across the world. Allegion comprises 23 global brands, including strategic
brands CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®
.
For more, visit www.allegion.com.
About Allegion
© 2016 Allegion
006694, Rev. 01/16
www.allegion.com/us

Navigation menu
