User Manual
RF In Stadium Transmission System
User’s Manual
Networking Transmitter
Model: ST100NT-P
2017-03-30
Insert Batteries

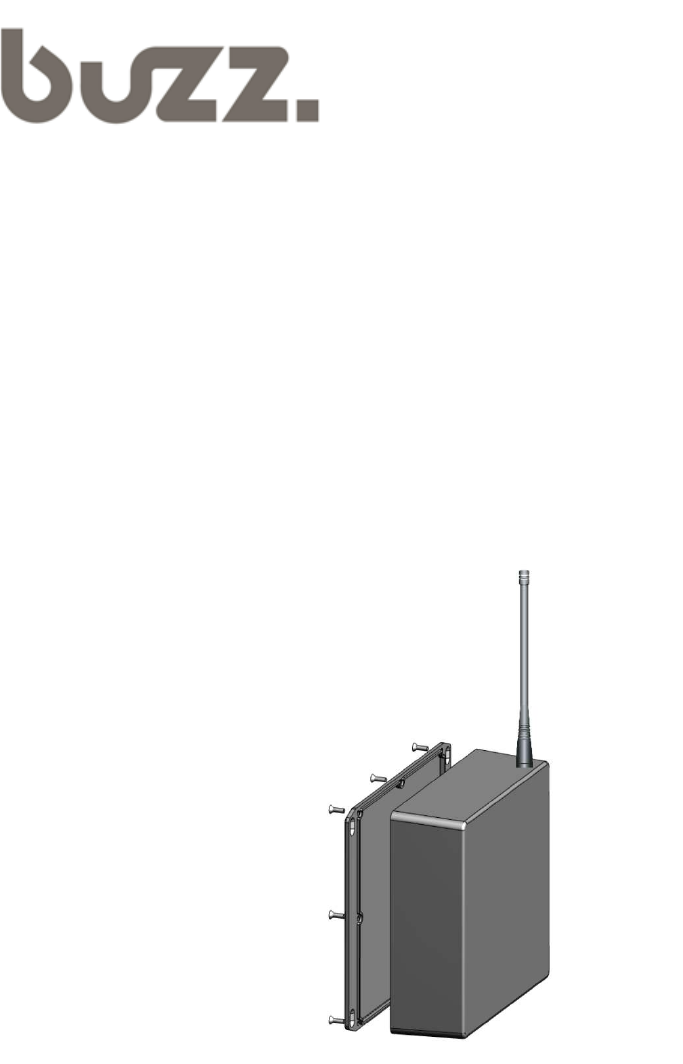

6 Alkaline C-cell batteries are required. Duracell or Energizer brand are recommended. Remove cover
plate and carefully insert batteries into holder, observing polarity, and secure firmly with Velcro straps.
Replace all 8 screws and hand tighten.
Set Frequency
Switches 3 & 4 on the interconnect board between the two radio modules can be used to select
between 4 frequencies, according to the following chart. The unit must be power cycled for the change
to take effect.
DIP Switch 3
DIP Switch 4
Frequency (MHz)
ON
ON
433.62
ON
OFF
434.12
OFF
ON
433.12
OFF
OFF
433.37
Install Antenna
Attach provided 902-928 MHz, RP-SMA antenna (p/n A09-HASM-675) and hand-tighten. 433 MHz
antenna comes pre-installed and is not removable. Attempts to remove the antenna will damage the
product.
Switch On
Toggle power switch to the ON (1) position. Wait 10 seconds for the unit to boot.
Switch On Master Controller
Toggle power switch to the ON (1) position on the mating Master Controller ST100MC-P. Wait 10
seconds for the unit to boot.
Push Activation Button
Press the red button on the Master Controller to generate the activation signal. Signal is generated for
4.8s.
Specifications
Frequency: 902-928 MHz control network, 433.12 – 434.12 MHz activation channel (4 selectable).
Rated Power: 1W (902-928 MHz control network), -15dBm EIRP average (433 MHz)
Battery Life: 100h
Regulatory Statements
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
FCC Interference Statement (Part 15.105 (b))
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
To comply with FCC/IC RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for
this transmitter must be installed to provide a separation distance of at least 34 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following
two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation
of the device.
This radio transmitter (IC: 11838A-INSTADP) has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain indicated. Antenna types not included in
this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use
with this device.
Dipole (2.1 dBi), 90° articulated, RP-SMA, 171mm, 902-928 MHz, p/n: A09-HASM-675
