Faurecia Clarion Electronics 06CMDGL370 Clarion Bluetooth Dongle with iPod Adapter User Manual OM Dongle DGL370 indd
Clarion Co Ltd Clarion Bluetooth Dongle with iPod Adapter OM Dongle DGL370 indd
User Manual
Owner’s manual
BLUETOOTH
® AUDIO TRANSMITTER
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to consult
the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Clarion DGL370
This manual is published by Clarion, without any warranty. Improvements any changes
to this manual necessitated by typographical errors, inaccuracies of current information
or improvements to programs and/or equipment, may be made by Clarion at any time
and without notice. Such changes will, however, be incorporated into new editions of
this manual.
iPod is for legal or right holder-authorized copying only. Don’t steal music.
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
The
Bluetooth
® word mark and logos are owned by the
Bluetooth
® SIG, Inc. and any use
of such marks by Clarion is under license. Other trademarks and trade names are those
of their respective owners.
3
DGL370
CONTENTS
1. WHAT IS INCLUDED IN THIS PACKAGE? ............................................4
2. PRODUCT FEATURES OVERVIEW .......................................................5
Clarion
Bluetooth
® Audio Transmitter (DGL370) with iPod® Cradle
Support ..................................................................................................5
3. SETTING UP ............................................................................................7
Setting Up DGL370 ................................................................................7
4. INTRODUCTION TO
BLUETOOTH
® “PAIRING” .................................10
Pairing Sequence .................................................................................10
Automatic Connection ..........................................................................11
5. OPERATIONS FOR
BLUETOOTH
® AUDIO TRANSMITTER ..............12
Buttons Terminology .............................................................................12
Understanding The Transmitter Unit Indicators ....................................13
Basic Operations ..................................................................................14
Music Streaming and Playback Control ...............................................17
6. COMPATIBLE MODELS ........................................................................18
7. TROUBLESHOOTING ...........................................................................19
8. SPECIFICATION ....................................................................................20
9. ADDITIONAL INFORMATION ...............................................................21
4DGL370

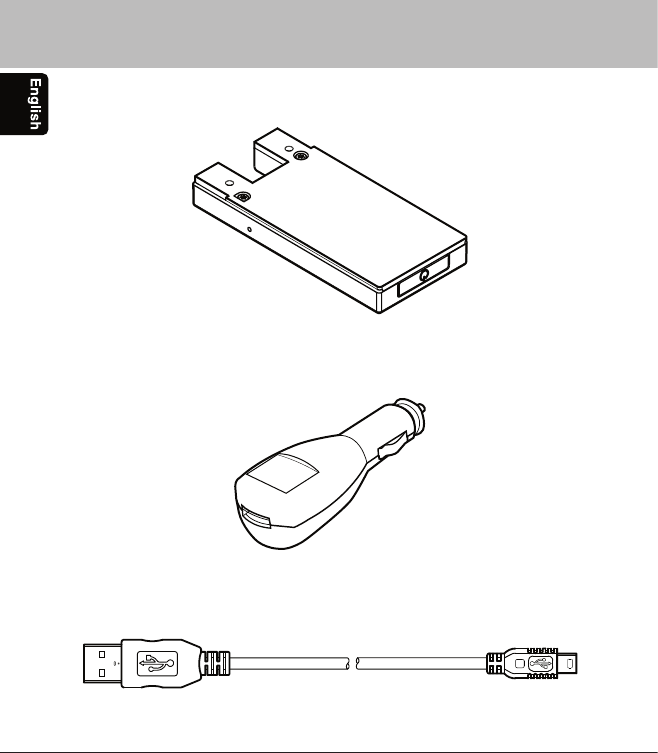

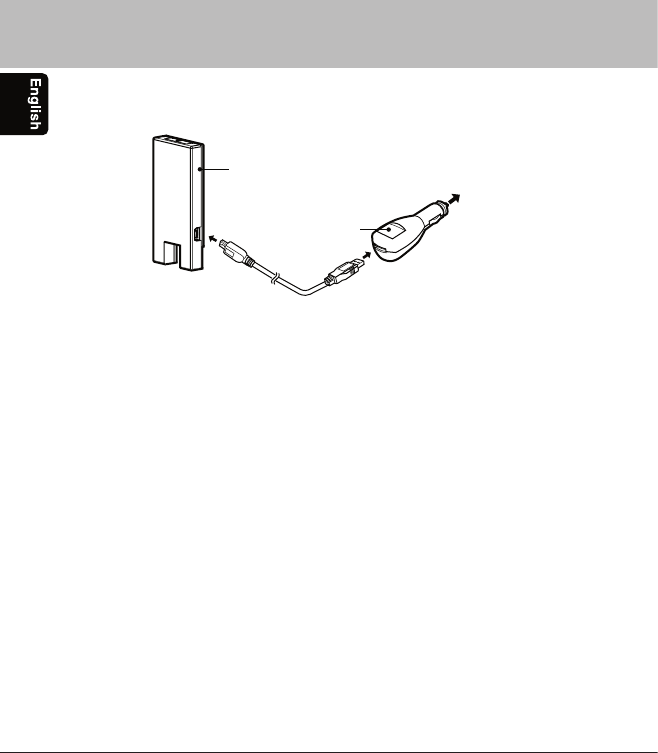

A complete DGL370 package consists of the following items:
Bluetooth
® Audio Transmitter
Cigarette charger
1. WHAT IS INCLUDED IN THIS PACKAGE?
Transmitter and charger connecting cable (500mm)
5
DGL370
2. PRODUCT FEATURES OVERVIEW
The DGL370 is a Audio Transmitter featuring
Bluetooth
® wireless technology
that support
iPod Cradle¹
to allow you to stream your favourite music from
your iPod or alternative music source to your car’s audio system. It can also be
used for streaming audio to your wireless headset with
Bluetooth
® technology
when you are out of your car for a full wireless music experience.
• Auto features:
• Auto-power off after 3 minutes of no activity state.
• iPod will auto-power off when
Bluetooth
® Audio Transmitter (used with iPod
Cradle) is powered off.
• Auto-connect with last paired device.
• Music streaming features:
• Music streaming from any music source (e.g. MP3 player, laptop) using
audio stereo cable.
• Music streaming and remote control with iPod when used with iPod
Cradle.
• Charging features:
• Dual charging (Transmitter and iPod) when used with iPod Cradle.
• Uninterrupt streaming when charging.
The DGL370 can be used as:
• iPod transmitter with
Bluetooth
® wireless technology
You can dock your iPod onto the Transmitter unit (used with iPod Cradle) and
stream music directly from your iPod to your car stereo with
Clarion
Bluetooth
®
Audio/Mobile-phone Transceiver for AUX Input (BLT370)²
or compatible
wireless headset³
.
Clarion
Bluetooth
® Audio Transmitter (DGL370) with iPod®
Cradle Support
A complete DGL370 package consists of the following items:
6DGL370
2. PRODUCT FEATURES OVERVIEW
• General purpose transmitter with
Bluetooth
® wireless
technology
You can connect any external audio player to the Transmitter unit via
an audio stereo cable. Music can be streamed through the car stereo with
Clarion
Bluetooth
® Audio/Mobile-phone Transceiver for AUX Input or
compatible wireless headset.
Notes:
¹
iPod Cradle
is an iPod docking base, which is one of the Clarion products
(sold separately) that works best with DGL370 to provide wireless audio streaming
capability for iPod. Cradle will be vary depends on iPod model. Please make
sure you get the correct Cradle for your iPod.
²
Clarion Bluetooth
®
Audio/Mobile-phone Transceiver for AUX Input (BLT370)
is one of the Clarion products (sold separately) that allows music streaming via
Bluetooth
® wireless technology in the car stereo. Please consult your local
authorized Clarion dealer for more information about the product.
³
Please consult your local authorized Clarion dealer for more information about
compatible wireless headset.
7
DGL370
3. SETTING UP
Setting Up DGL370
Bluetooth
® Audio Transmitter
The DGL370 is designed to work with iPod Cradle for ultimate wireless iPod
playback support. Appropriate Cradle must be selected to hold different model
of iPod. Please consult your local authorized Clarion dealer for the Cradle
provided.

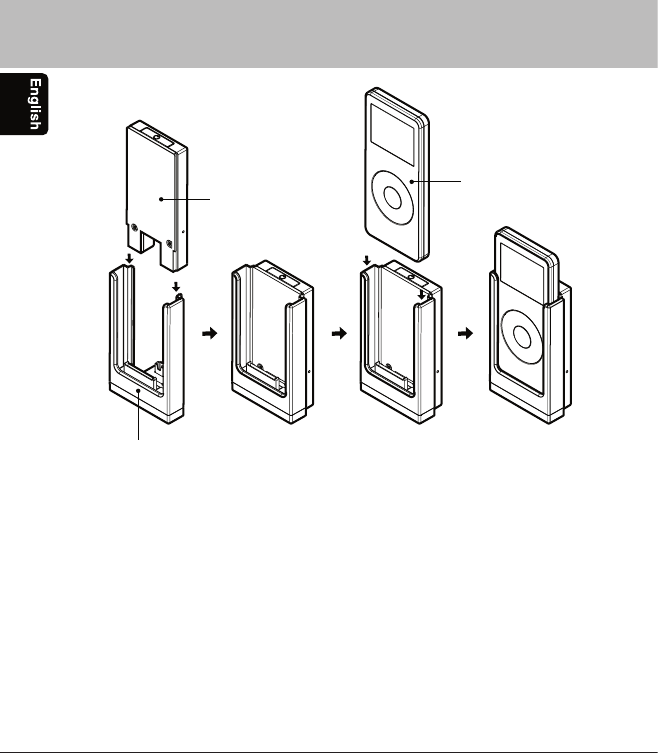

The Transmitter unit can be latched with the iPod Cradle to form an iPod
Bluetooth
® Audio Transmitter unit.
1. Slide in the Transmitter unit to the Cradle unit. Make sure the 14-pin outlet
socket is connected properly.
2. Optional step for iPod Video model: Slide in the gap filler for using 30GB
iPod Video with Cradle (shown in Fig. 1). 60/80GB iPod Video is used
without the adaptor gap filler.
3. Dock the iPod to the Cradle.

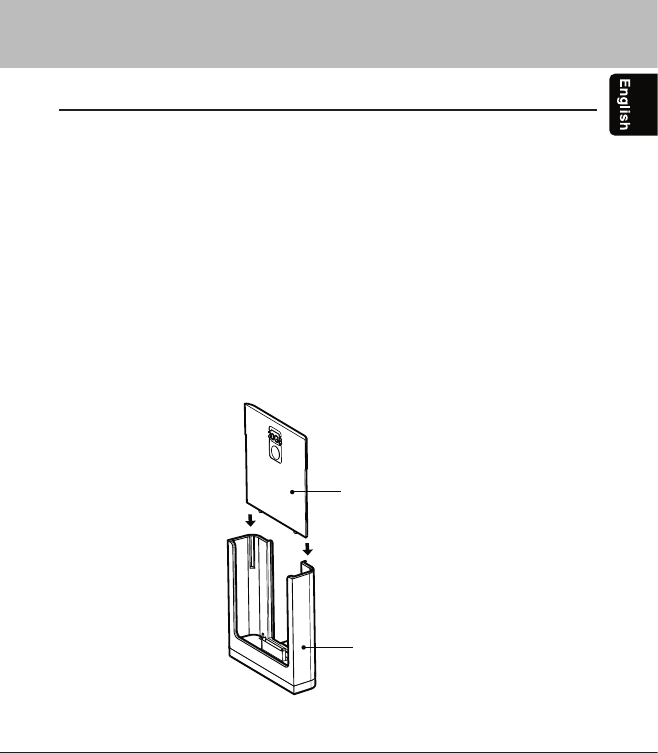

Figure 1: Use the iPod Cradle (BC003V) with Cradle gap filler
(For 30GB iPod Video only)
Cradle (For 30GB, 60GB and
80GB iPod Video)
Gap filler (For 30GB
iPod Video only)
8DGL370
Transmitter
iPod* (not included)
Cradle (sold separately)
* Illustration shown above is using the 1st generation of iPod nano, BC001N is not
compatible with 2nd generation of iPod nano. Different iPod model will require
a different Cradle.
3. SETTING UP
Figure 2: Use the DGL373 with iPod and iPod Cradle (BC001N)
9
DGL370
3. SETTING UP
General purpose
Bluetooth
® wireless transmitter
1. Select an external audio source (e.g. line-out of a laptop, PC or any MP3
player). The audio jack output for external source may vary depends on the
device.
2. Use an audio stereo cable to connect the output of external audio source
to the input (2.5mm stereo jack) of the Transmitter.

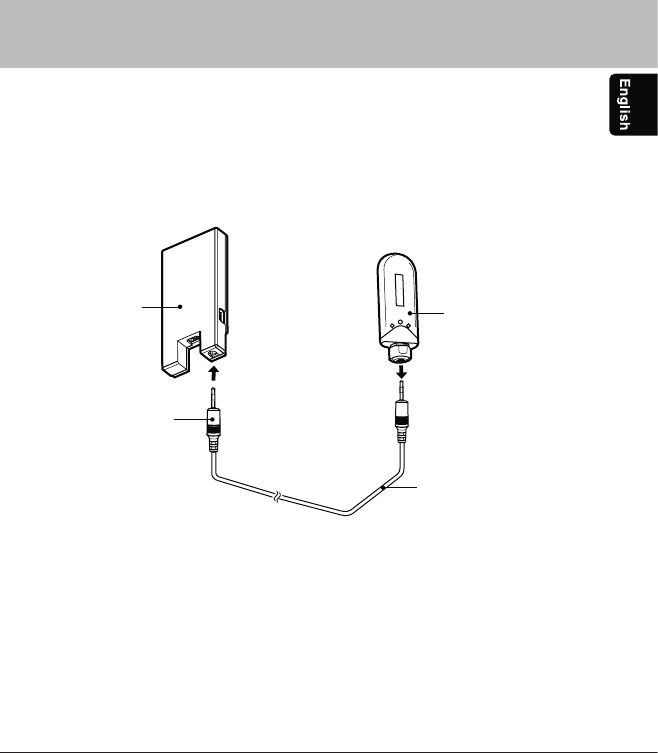

Figure 3: Use the DGL370 with alternative audio source
Transmitter External audio source
(not included)
Audio stereo cable
(not included)
2.5mm
stereo jack
10 DGL370
4. INTRODUCTION TO
BLUETOOTH
®
“PAIRING”
What is
Bluetooth
® wireless technology?
Bluetooth
® wireless technology is a radio technology that connects devices,
such as mobile phones and headsets, without wires or cords over a short
distance of approximately 10 meters (approx. 33 feet). Get more information
at www.bluetooth.com.
What is
Bluetooth
® wireless profiles?
Bluetooth
® wireless profiles are the different ways that
Bluetooth
® devices
communicate with other devices. The Transmitter supports A2DP and AVRCP
in order to allow music streaming and playback control. Please refer chapter
“Music Streaming and Playback Control” on page 17 for more description
on these profiles.
What is pairing?
Pairing creates a unique and encrypted link between two
Bluetooth
® devices
and lets them communicate with each other.
Bluetooth
® devices will not work
if the devices have not been paired.
Pairing Sequence
Between
Bluetooth
® Audio/Mobile-phone Transceiver and
Bluetooth
® Audio Transmitter
1. Make sure the Transmitter is connected to an audio source. Please refer
“Setting Up DGL370” on page 7.
2. Make sure the car stereo source mode is switched to “AUX” mode.
3. Set the Transceiver unit in pairing mode.
4. Set the Transmitter unit in pairing mode. Please refer “Activating
Bluetooth
®
Audio Transmitter pairing mode” on page 14.
5. Music starts automatically upon successful pairing.
Note: Please refer to Clarion
Bluetooth
® Audio/Mobile-phone Transceiver for
AUX Input owner’s manual for the relevant operation below.
11
DGL370
Notes:
• You cannot pair the Transmitter with your mobile phone.
• You do not have to enter a dedicated pin code for pairing these two devices, as
you do with a mobile phone.
• During pairing mode, the Transmitter unit should show a quick alternate red/blue
LED. Make sure that the Transmitter and Transceiver are not paired to any other
Transceiver or Transmitter respectively.
• Please refer “Understanding The Transmitter Unit Indicators” on page 13 for
further details.
4. INTRODUCTION TO
BLUETOOTH
®
“PAIRING”
Automatic Connection
When the Transmitter is switched on, it will automatically try to re-connect with
the last paired device (Transceiver unit). It may take up to several seconds for
the re-connection. If there is no connection detected after 3 minutes, Transmit-
ter will be automatically powered off.
If the device (Transceiver unit) already has connection with another device
using the same
Bluetooth
® profile (A2DP), automatic connection will be
failed.
Notes:
• If the Transceiver is switched off and on, it may require 20-30 seconds for the
Transmitter to detect disconnection before re-connection.
• Music streaming may be discontinued if the Transmitter and Transceiver are
moved out of range of each other.
12 DGL370
5. OPERATIONS FOR
BLUETOOTH
®
AUDIO TRANSMITTER

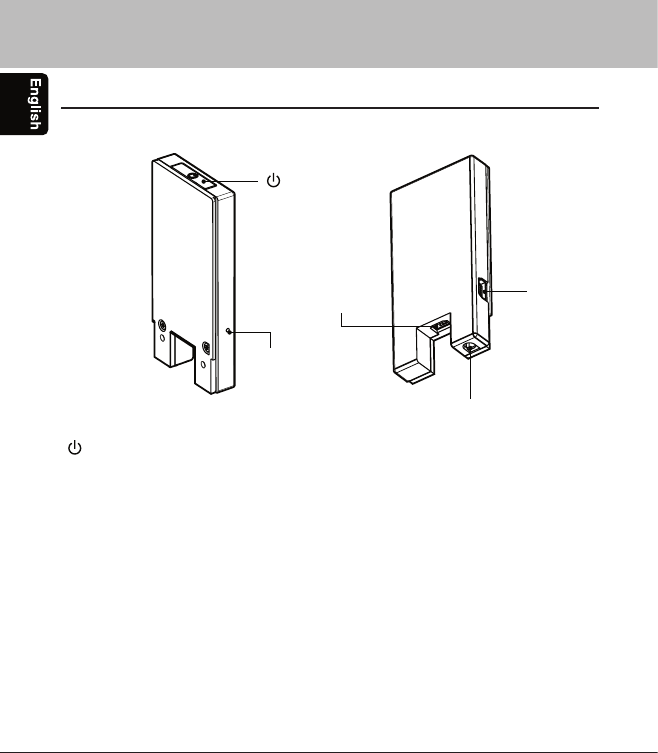

Buttons Terminology
The Transmitter unit with Power/pairing button (with LEDs) and a reset switch.
[ ] button
• Use the button to power on/off.
• During power on, use the button to perform
Bluetooth
® pairing.
[RESET] switch
• Use the switch to reset the unit.
USB mini-B port
• Use USB mini-B cable through this port to charge the Transmitter.
2.5mm audio jack input
• Connect to external audio player.
14-pin outlet socket
• Connect to iPod Cradle.
[RESET]
USB
mini-B
port
2.5mm audio jack input
14-pin outlet
socket
[ ]
13
DGL370
Understanding The Transmitter Unit Indicators
Event LEDs
During power on Blink 3 times
Red Blue
-
Powered (No activity) Blink dimly quicklyBlink once every 5 sec
Bluetooth
® pairing
mode Blink alternately
Receiver connected,
Music streaming -Blink once every 5 sec
Blink dimly quickly
Charging On -
Charging completed - On
During power off Blink 3 times, Blink 1 more
time after iPod is off
Blink dimly until iPod is
switched off (~ 2 sec)
Battery Low Blink twice every 4 sec -
Notes:
• “Blink” refers to the LED is blinking brightly.
• “Blink dimly” refers to the LED is blinking not brightly.
5. OPERATIONS FOR
BLUETOOTH ®
AUDIO TRANSMITTER
14 DGL370
Turning on/off the Transmitter power
1. Press the [ ] button once to power on.
2. Press and hold the [ ] button for 3 seconds or longer to power off.
Note:
• When the Transmitter is powered off, iPod will be turned off as well when used
with iPod Cradle.
Automatic power off
Transmitter will be automatically powered off in the following situations:
1. Three minutes of inactivity or without any connected device to conserve
energy. iPod will be turned off as well if it is connected to the Cradle.
2. Battery is very low or exhausted.
Note:
• If the Transmitter is automatically shut down due to battery exhaustion, all pairing
information will be erased. Thus, it is recommended to recharge the Transmitter
when battery is low.
Activating
Bluetooth
® Audio Transmitter pairing mode
1. Press the [ ] button once to power on.
2. Press the [ ] button to activate
Bluetooth
® pairing mode.
Notes:
• If no device is paired after 3 minutes, pairing mode will be cancelled and
Transmitter unit will shut down.
• For more information on
Bluetooth
® pairing, please see chapter “Pairing
Sequence” on page 10.
Basic Operations
Please make sure you have read through chapter “Setting Up DGL370”
on page 7 before proceed to the following operations. For iPod/external
audio player operations, please refer to your corresponding product owner’s
manual.
5. OPERATIONS FOR
BLUETOOTH ®
AUDIO TRANSMITTER
15
DGL370
Resetting the Transmitter unit
This function is used to restore to factory default setting and clear all pairing
information.
1. Press the [RESET] switch once to perform reset function. Device will be
automatically powered off.
Notes:
• iPod will not be turned off in this case and iPod will not be reset.
• User needs to press the [ ] button again to restart the device.
Charging the Transmitter
The Transmitter can be charged through several ways. The charging time may
require up to 2 hours for 8 hours of continuous music playing.
• Via USB mini-B cable (Included)
1. Connect the USB mini-B plug to the Transmitter (through USB mini-B
port).
2. Connect the normal USB plug (Series A) to the computer USB port.
• Via USB car cigarette charger adaptor (Included)
1. Remove the car cigarette lighter head from the socket.
2. Connect the USB car cigarette charger adaptor to the socket.
USB mini-B plug
USB plug
(Series A)
Transmitter
5. OPERATIONS FOR
BLUETOOTH ®
AUDIO TRANSMITTER
16 DGL370
To the socket
USB car cigarette
changer adaptor
Transmitter
Notes:
• While charging, the following activities will be observed.
i) Both Transmitter (when attached with iPod Cradle) and iPod are charged at
the same time.
ii) Music streaming is not affected.
iii) Red LED remains ON.
• After charging is completed, blue LED remains ON.
• USB mini-B port is used for charging only, it cannot be used to transfer files to
the iPod when used with iPod Cradle.
3. Connect the normal USB plug to the charger adaptor.
4. Connect the USB mini-B plug to the Transmitter.
5. OPERATIONS FOR
BLUETOOTH ®
AUDIO TRANSMITTER
17
DGL370
Music Streaming and Playback Control
Music streaming is a technique for transferring audio data such that it can be
processed as a steady and continuous stream.
Users can stream music from their iPod or other external audio player to their
car stereo and listen to the tracks through the car’s speakers.
WHAT IS A2DP?
A2DP (Advanced Audio Distribution Profile) is a
Bluetooth
® profile that
allows you to send CD quality stereo music from one device to another without
wires. A2DP is able to provide crystal clear music without the hassle of plugging
cables.
Bluetooth
® wireless technology with A2DP makes this Transmitter unit
capable of streaming music.
WHAT IS AVRCP?
AVRCP (Audio Video Remote Control Profile) is another
Bluetooth
® profile
that enables music from external audio player to be controlled remotely. AVRCP
allows some basic playback control functions such as play/pause, volume
up/down and next/previous track to an external audio player.
• The Transceiver works as one way communication to the Transmitter. Thus,
please avoid controlling the iPod (when Transmitter is used with iPod Cradle)
and Transceiver at the same time as this might cause some incorrespondence
operations between the both devices.
CAUTION
!
Notes:
• Please refer the Transceiver unit owner’s manual for more information on AVRCP
control operations. This Transmitter only supports play/pause and next/previous track
for iPod.
• There is no volume control support from the analog output of 30-pin iPod connector
interface. Changing the volume on the iPod through the “wheel” control will have
no effect on the music streaming.
• There is no remote control to external audio player that connected to Transmitter
through 2.5mm audio jack input.
5. OPERATIONS FOR
BLUETOOTH ®
AUDIO TRANSMITTER
18 DGL370
6. COMPATIBLE MODELS
Supported iPod Cradle models
This Transmitter unit is specially designed to work with Clarion iPod Cradle.
Different iPod models will require different type of iPod Cradle. Please consult
your nearest Clarion dealer for more details.
Supported other external audio player
The audio player must be able to output audio to the 2.5mm audio jack input
of this Transmitter unit.
Supported device with
Bluetooth
® wireless technology
DGL370 is specially designed and work best with Clarion
Bluetooth
® Audio/
Mobile-phone Transceiver for AUX Input (BLT370).
Make sure your headset supports the following
Bluetooth
® profiles:
- A2DP (stereo music streaming)
- AVRCP (remote control function)
Please take note that wireless headset from other brands may not be fully
compatible with this Transmitter unit.
Please consult your nearest Clarion dealer for the Transceiver unit and
headset offer.
19
DGL370
7. TROUBLESHOOTING
Problem Description Cause
During power off, the
LED blinks whenever
the on/off button is
pressed.
Power on illusion It can be powered up after
the button is pressed once.
However, this sequence may
fail sometimes. If it happens,
release the button and retry
again.
The device does
not start up properly
upon power up.
Power on failure User may execute following
steps to recover the situation.
a) Press the [RESET] switch if
the red LED is on.
b) Try to switch on the Transmitter
again.
iPod control
(AVRCP) does not
work, but music is
streaming. (used
with iPod Cradle).
This could be due to
a loose connection
between Transmitter,
Cradle and iPod.
Make sure the Transmitter and
the iPod are securely connected
to the Cradle.
The AVRCP profile
might not be
connected.
Power off and power on the
Transmitter to auto re-establish
connection.
20 DGL370
8. SPECIFICATION
Compliance
Bluetooth
® 1.2
Profiles A2DP (stereo music streaming)
AVRCP (remote control function, e.g. play/pause,
next/previous track)
Wireless range Class 2: Up to 10m (line of sight)
Tx/Rx radio sensitivity -80dBm
Data rate Forward: 723kbps Reverse: 57kbps
Antenna 2.45 GHz chip type
Compression SBC (sub-band coding)
Compression ratio 4:1-6:1 typical
Bit rate Programmable (<350kbps typical)
Stereo audio 16kHz-48kHz, 16bit (for music)
iPod support MMI support for iPod e.g. play/pause, next/
previous track etc
Audio bandwidth 30Hz-20kHz
Signal-to-Noise Ratio ~84dB
Analog in Line level (1 Vrms)
Voltage 3.7V
Max current 60mA
Battery life (full running) ~8hr on 3.7v 500mAH polymer lithium ion battery
Charging time ~2hr on 3.7v 500mAH polymer lithium ion battery
Power source 4.5-6.5V DC
Operating temperature
-40°C~85°CStorage temperature
-5°C~60°C
Dimensions Approx. 35mm (Width) x 74mm (Height) x 10mm
(Depth)
Weight Approx. 26g
21
DGL370
9. ADDITIONAL INFORMATION
Safe and efficient use
Note:
Read this information before using this product.
Changes or modifications to this product not expressly approved by Clarion
may void the user’s authority to operate the equipment.
Please check for any exceptions, due to national requirements or limitations,
in usage of equipment with
Bluetooth
® wireless technology before using this
product.
Product care
• Do not expose your product to liquid or moisture or to humidity.
• Do not expose your product to extreme high or low temperatures.
• Do not expose your product to lit candles, cigarettes, or cigars, or to open
flames etc.
• Do not drop, throw or try to bend the product as rough treatment could
damage it.
• Do not use any other accessories than Clarion originals intended for
use with this product. Use of non-original accessories may result in loss of
performance, damage to the product, fire, electric shock or injury. The
warranty does not cover product failures which have been caused by use
of non-original accessories.
• Do not attempt to disassemble your product. The product does not contain
consumer serviceable or replaceable components. Only Clarion service
partners should perform service.
• Do not keep the product in an area prone to dust and dirt. Only use a soft
damp cloth to clean your product.
• If you will not be using the product for a while, store it in a place that is dry,
free from damp, dust and extreme temperatures.
• To reduce risk of electric shock, unplug the unit from any power source
before attempting to clean it.
22 DGL370
If you want to dispose this product, do not mix it with general household
waste. There is a separate collection system for used electronic products
in accordance with legislation that requires proper treatment, recovery
and recycling.
9. ADDITIONAL INFORMATION
This Product uses the lithium polymer ion battery
• Do not use or store the battery near sources of heat such as a fire or heater.
• Do not use or store the battery where is exposed to extremely hot, such as
under window of a car in direct sunlight in a hot day. Otherwise, the battery
may be overheated. This can also reduce battery performance and/or shorten
service life.
• Do not use any chargers other than those recommended by Clarion.
• Do not attempt to disassemble or modify the battery in any way.
• Do not recharge the battery near a fire or in extremely hot conditions.
CAUTION
!
CAUTION
!
All Rights Reserved. Copyright © 2007: Clarion Co., Ltd.
Printed in Malaysia 280-8526-00
Clarion Co., Ltd.
EA-1317B
