User Manual
Clarion Mobile Map
NX700
2
Copyright note
The product and the information contained herein is subject to change without prior notification.
This manual may not, in whole or in part, be reproduced or transmitted in any form either electronically or
mechanically, including photocopying and recording, without the express written consent of Clarion.
© 2009 – Clarion.
Data Source © 2006 Tele Atlas N.V.
All rights reserved.
3
Thank you for choosing the Clarion NX700 as your in-car navigator. This document is the detailed
description of the software.
You can easily discover Clarion Mobile Map while you are using it; however, we still recommend that you
read this manual to understand the screens and the features of Clarion Mobile Map.
4
Table of contents
1 Warnings and Safety information .................................................................................. 7
2 Getting started with Clarion Mobile Map ..................................................................... 8
2.1 Simple and Advanced modes ..................................................................................................10
2.2 Buttons and other controls on the screen ............................................................................... 11
2.2.1 Using keyboards.............................................................................................................................12
2.3 Using the map ......................................................................................................................... 13
2.3.1 Checking the details of a map location ..........................................................................................13
2.3.2 Manipulating the map ....................................................................................................................14
2.3.3 Lane information and Signposts.....................................................................................................16
2.3.4 Status information and hidden controls on the map .......................................................................17
2.3.5 Using the Cursor (the selected map location) ................................................................................20
2.4 Clarion Mobile Map concepts ................................................................................................ 21
2.4.1 Smart Zoom ................................................................................................................................... 21
2.4.2 Position markers.............................................................................................................................22
2.4.2.1 Current GPS position and Lock-on-Road ............................................................................................... 22
2.4.2.2 Returning to normal navigation .............................................................................................................. 22
2.4.2.3 Selected location (Cursor) ...................................................................................................................... 23
2.4.2.4 Original position in the Cursor menu ..................................................................................................... 23
2.4.3 Daytime and night color profiles ...................................................................................................24
2.4.4 Color scheme in tunnels .................................................................................................................24
2.4.5 Route calculation and recalculation ...............................................................................................24
2.4.6 Itinerary ..........................................................................................................................................25
2.4.7 Track Logs ..................................................................................................................................... 26
2.4.8 Route demonstration ......................................................................................................................26
2.4.9 POI (Points of Interest) .................................................................................................................. 27
2.4.10 Road Safety Cameras ...................................................................................................................27
2.4.10.1 Camera types ........................................................................................................................................ 28
2.4.10.2 Camera directions................................................................................................................................. 29
2.4.11 Speed limit warning .....................................................................................................................30
3 Navigating with Clarion Mobile Map .......................................................................... 31
3.1 Selecting the destination of a route ........................................................................................ 31
3.1.1 Selecting the Cursor as the destination ..........................................................................................31
3.1.2 Entering an address or part of an address .......................................................................................32

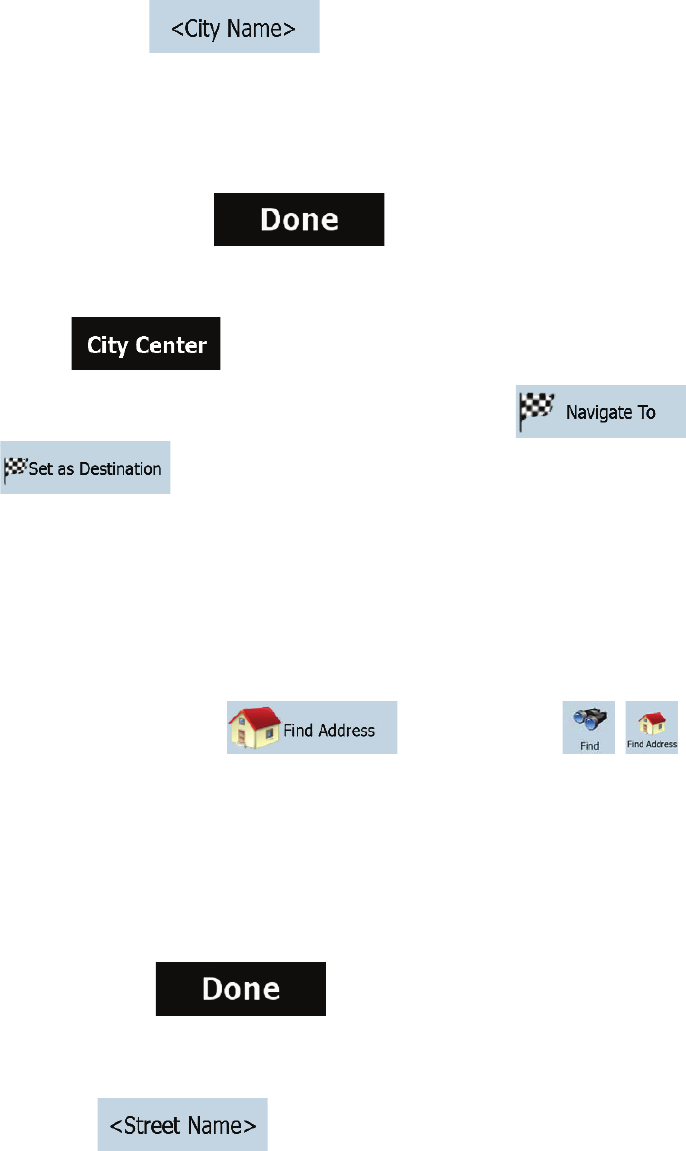

3.1.2.1 Entering an address ................................................................................................................................ 32

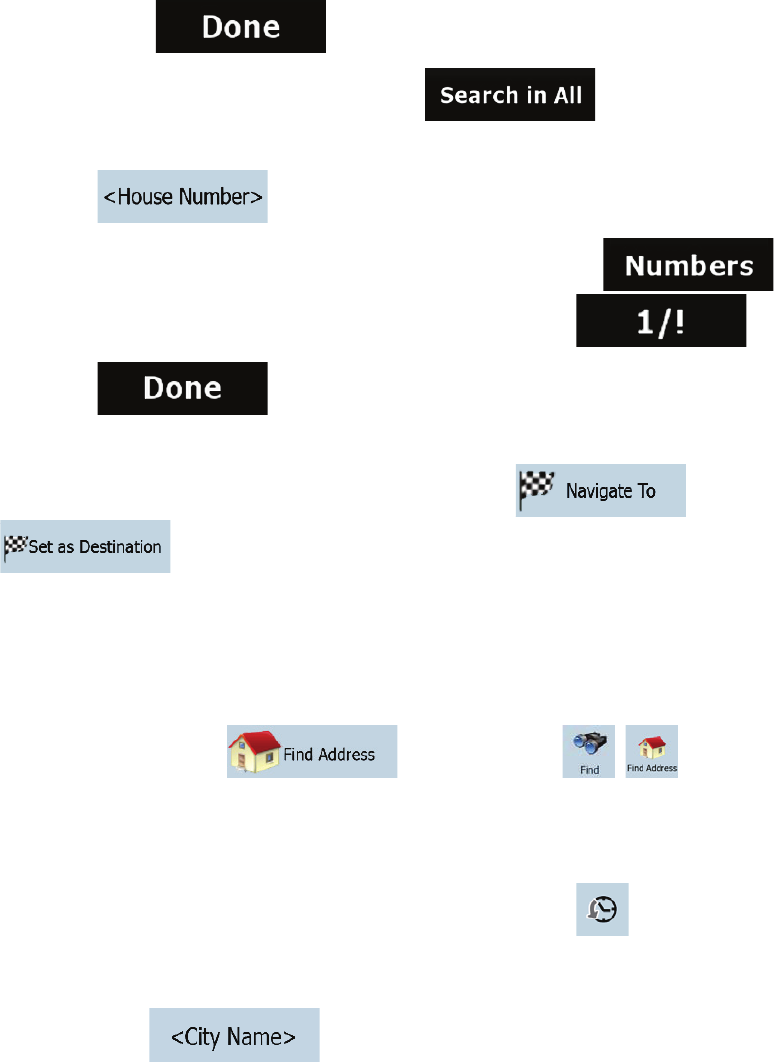

3.1.2.2 Entering an address if house numbering is restarted .............................................................................. 34
3.1.2.3 Entering an address without knowing the district/suburb ....................................................................... 35
5
3.1.2.4 Selecting an intersection as the destination ............................................................................................ 36
3.1.2.5 Selecting a city center as the destination ................................................................................................ 37
3.1.2.6 Entering an address with a ZIP code ...................................................................................................... 38
3.1.2.7 Tips on entering addresses quickly ......................................................................................................... 39
3.1.3 Selecting the destination from your Favorites ................................................................................40
3.1.4 Selecting the destination from the POIs .........................................................................................40
3.1.5 Selecting the destination with saved POI search criteria ............................................................... 41
3.1.6 Selecting the destination from the History .....................................................................................42
3.1.7 Selecting the destination by entering its coordinates .....................................................................42
3.2 Creating a multi-point route (inserting a via point)
............................................................... 43
3.3 Creating a multi-point route (appending a new destination) ................................................. 44
3.4 Editing the route ..................................................................................................................... 44

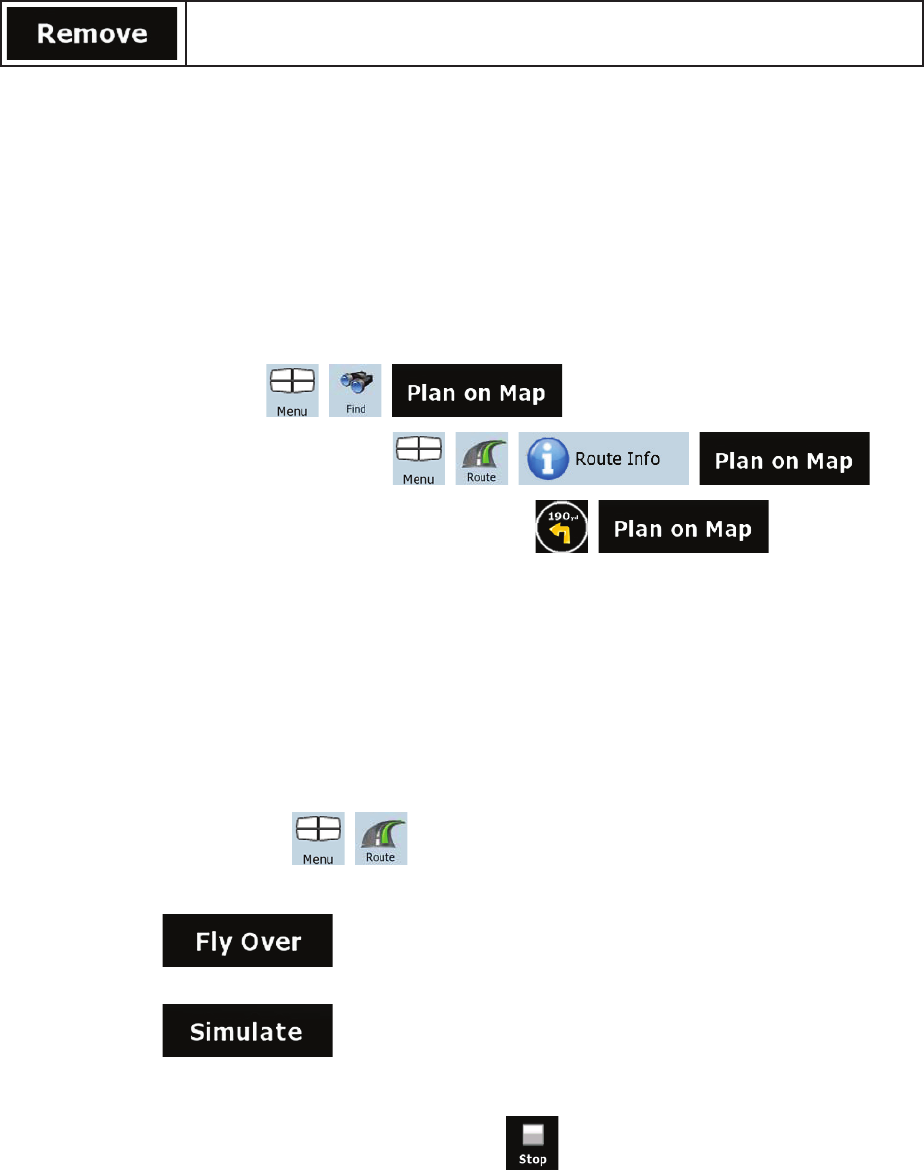

3.5 Viewing the entire route on the map (Fit-to-Screen) .............................................................. 45
3.6 Watching the simulation of the route ...................................................................................... 45
3.7 Enabling Safety Mode ............................................................................................................. 46
3.8 Pausing the active route ......................................................................................................... 46
3.9 Deleting the next via point from the route .............................................................................. 46
3.10 Deleting the active route....................................................................................................... 47
3.11 Using Track Logs ................................................................................................................. 47
3.12 Saving the active route ......................................................................................................... 49
3.13 Loading a saved route .......................................................................................................... 49
4 Reference Guide (Advanced mode) .............................................................................. 50
4.1 Map screen ............................................................................................................................. 51
4.1.1 Icons on the map ............................................................................................................................54

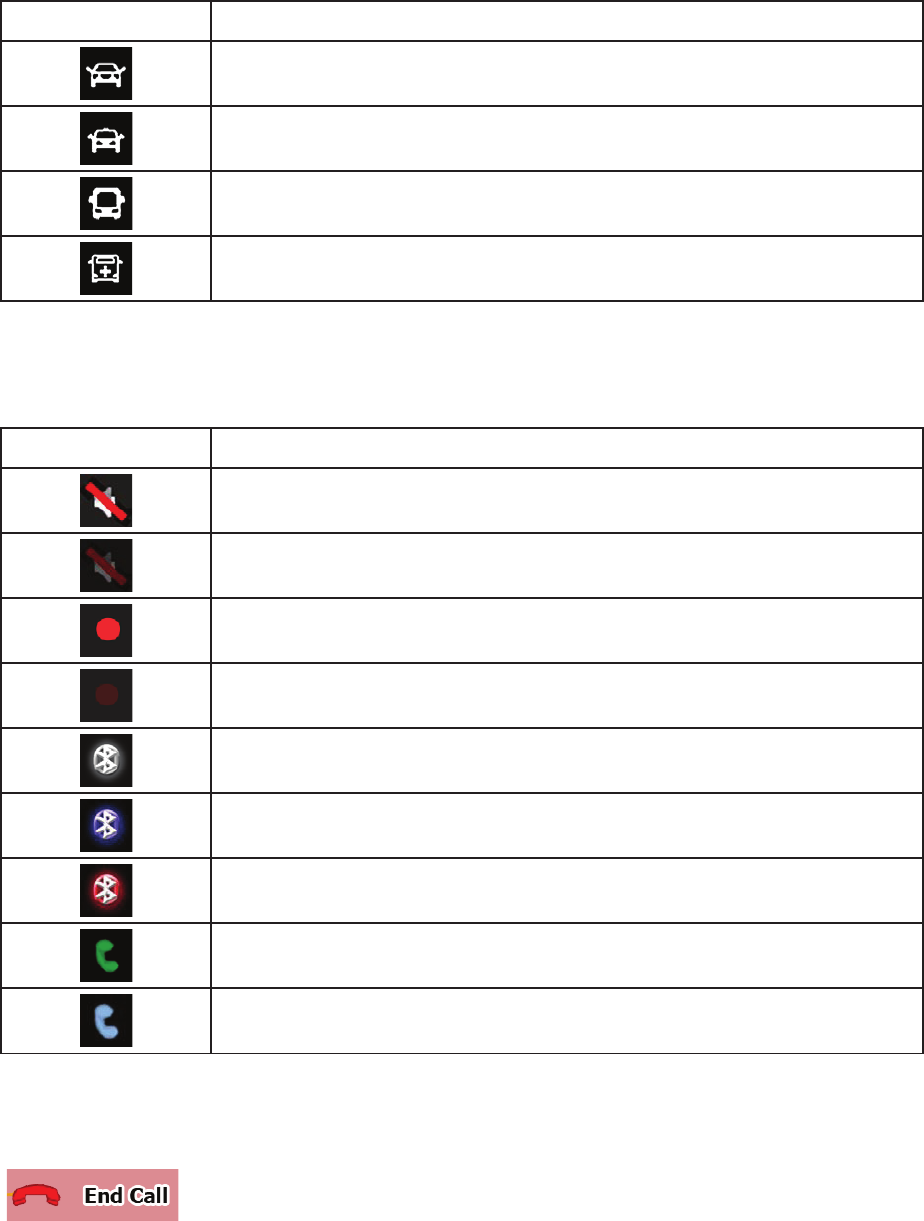

4.1.1.1 GPS position quality and Vehicle type indicator .................................................................................... 54
4.1.1.2 Status indicator strip ............................................................................................................................... 55
4.1.1.3 Phone call in progress ............................................................................................................................ 55
4.1.1.4 Next two route events (Turn Preview fields) ........................................................................................... 56
4.1.2 Objects on the map .........................................................................................................................57
4.1.2.1 Streets and roads .................................................................................................................................... 57
4.1.2.2 3D object types ....................................................................................................................................... 57
4.1.2.3 Elements of the active route .................................................................................................................... 57

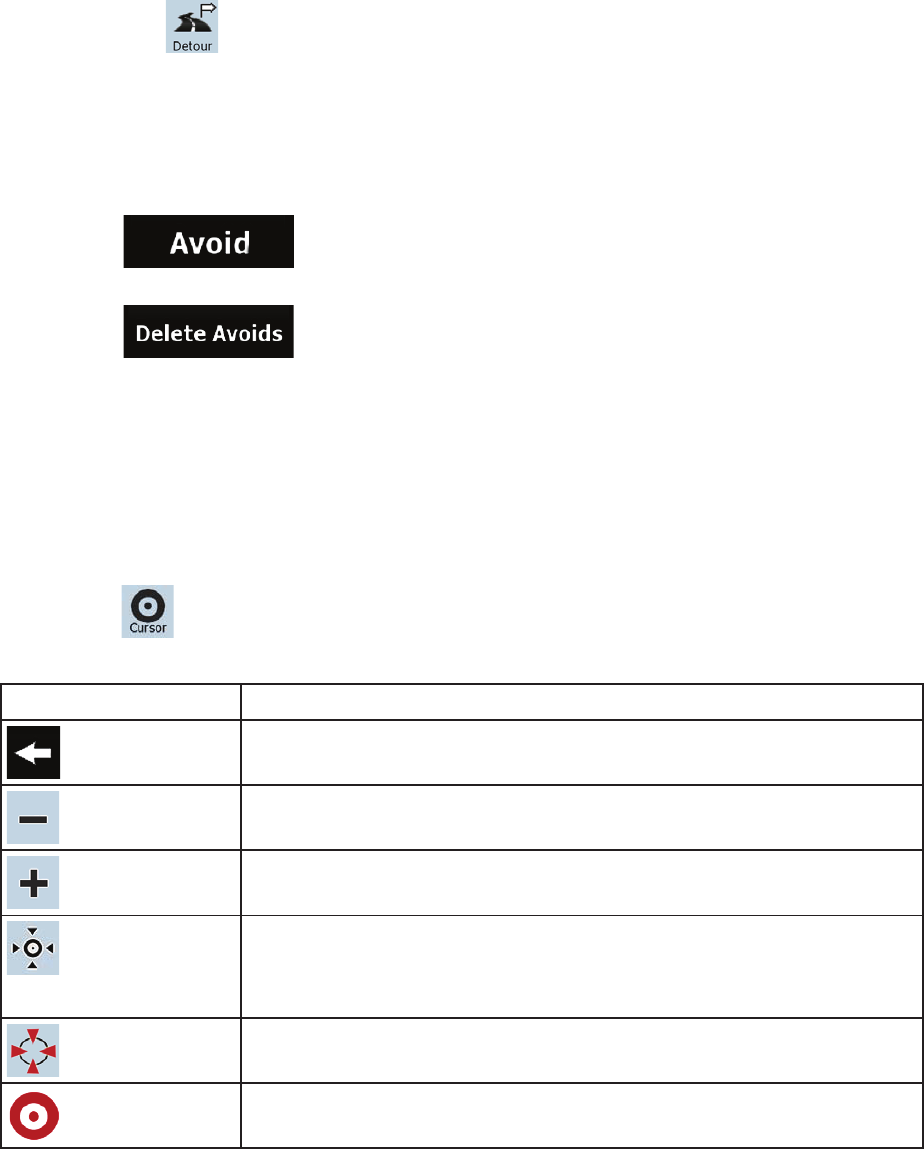

4.1.3 Detour menu ..................................................................................................................................59
4.1.4 Cursor menu ...................................................................................................................................59
4.1.5 Position menu ................................................................................................................................61
4.1.6 Route Information screen ...............................................................................................................62
4.1.7 Trip Information screen ................................................................................................................. 63
4.1.7.1 Trip Computer screen ............................................................................................................................. 65
4.1.8 Quick menu ....................................................................................................................................66
6
4.1.9 GPS Data screen ............................................................................................................................ 67
4.2 Find menu ............................................................................................................................... 68
4.3 Route menu ............................................................................................................................. 69
4.4 Manage menu ......................................................................................................................... 70
4.4.1 Manage Saved Routes .................................................................................................................... 70
4.4.2 Manage History .............................................................................................................................. 71
4.4.3 Manage Track Logs ....................................................................................................................... 71
4.4.4 Manage Favorites ...........................................................................................................................72

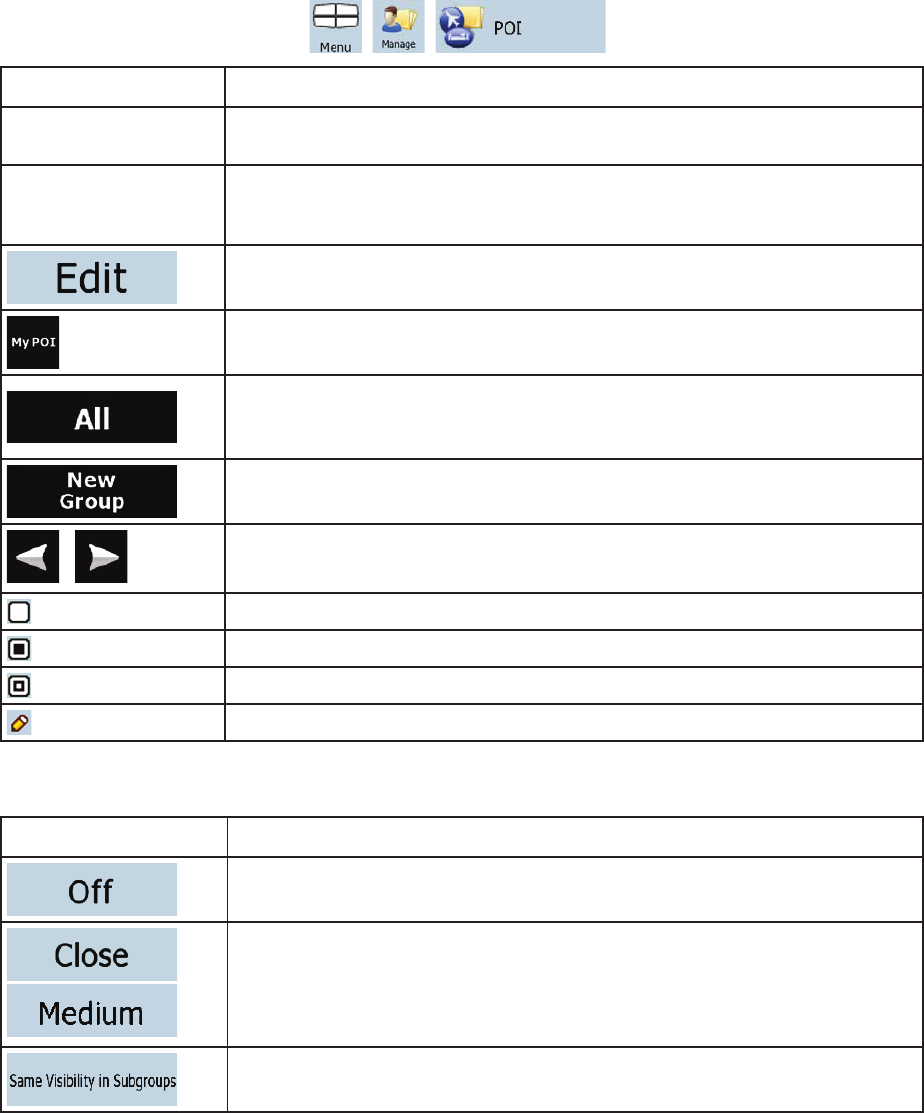

4.4.5 Manage POIs .................................................................................................................................. 73
4.4.6 Manage Saved Search Criteria .......................................................................................................74
4.4.7 User Data Management .................................................................................................................. 75
4.5 Settings menu .......................................................................................................................... 76
4.5.1 Map Screen settings .......................................................................................................................77
4.5.2 Sound settings ................................................................................................................................ 78
4.5.3 Route Planning options ..................................................................................................................79
4.5.4 Regional settings ............................................................................................................................81
4.5.5 Navigation settings .........................................................................................................................82
4.5.6 Warning settings ............................................................................................................................83
4.5.7 Menu settings .................................................................................................................................84
4.5.8 Device settings ...............................................................................................................................84
4.5.9 Track Log settings ..........................................................................................................................85
5 Glossary ........................................................................................................................... 86
6 End User License Agreement ........................................................................................ 88
7
1 Warnings and Safety information
Clarion Mobile Map is a navigation system that helps you find your way to your destination with its GPS
receiver. Clarion Mobile Map does not transmit your GPS position; others cannot track you.
It is important that you look at the display only when it is safe to do so. If you are the driver of the vehicle,
we recommend that you operate Clarion Mobile Map before you start your journey. Plan the route before
your departure and stop if you need to change something in the route.
Clarion Mobile Map has a Safety Mode: if you turn on Safety Mode, you cannot change anything in
Clarion Mobile Map while the vehicle is moving at a speed of 10 km/h (6 mph) or higher. Unless only
passengers operate Clarion Mobile Map, we strongly encourage you to turn on Safety Mode.
You must obey the traffic signs and follow the road geometry. If you deviate from the route that Clarion
Mobile Map recommended, Clarion Mobile Map changes the instructions accordingly.
Never place any part of the navigation system where it obstructs the driver's view, where it is in the
deployment zone of an airbag or where it might cause injuries in an accident.
For more information, consult the End User License Agreement (page 88).
![](/img.php?id=1211548&img=bg8.png)
8
2 Getting started with Clarion Mobile Map
Clarion Mobile Map is optimized for in-car use. You can use it easily by tapping the screen buttons and
the map with your fingertips.
Clarion Mobile Map can plan routes throughout the whole installed map set; you do not need to change
maps or switch to a poorly detailed general map to navigate between map segments or countries.
Tasks Instructions
Double tapping the
screen
You do not need to tap the screen twice for any action. With buttons and
controls, a single tap is enough.
Tapping and holding the
screen You do not need this to access the basic navigation functions. Tap and keep
pressing the following buttons to reach extra functions:
x Tap and hold on the Map screen: you can set the minimum and
maximum zoom level of Smart Zoom.
x Tap and hold any of the buttons on the Map screen:
you can set or reset the zoom value of the button (2D map).
x Tap and hold any of the buttons on the Map screen:
you can set or reset the tilt and zoom values of the button (3D map).
x Tap and hold on list and menu screens: the Navigation menu
appears.
x Tap and hold any of the , , , , , and
buttons on the Map screen: you can rotate, tilt or scale the map
continuously.
x Tap and hold on keyboard screens: you can delete several
characters quickly.
x Tap and hold or in long lists: you can scroll pages
continuously.
x Tap and hold the buttons in the Quick menu to open screens related with
the function of the button from the Manage menu or the Settings menu.
![](/img.php?id=1211548&img=bg9.png)
9
Start using Clarion Mobile Map
When Clarion Mobile Map is started the first time, you need to do the following:
1. Select the written language of the application interface. Later you can change it in Settings (page
81).
2. Select the language and speaker used for voice guidance messages. Later you can change it in
Settings (page 81).
3. Read and accept the End User License Agreement (page 88).
4. Select whether to start the program in Simple mode or in Advanced mode. Later you can switch
between the two operating modes in Settings.
5. Read and accept the road safety warning.
After this, the Navigation menu appears and you can start using Clarion Mobile Map.

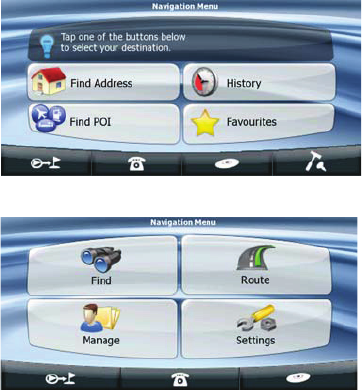

The Navigation menu in Simple mode:

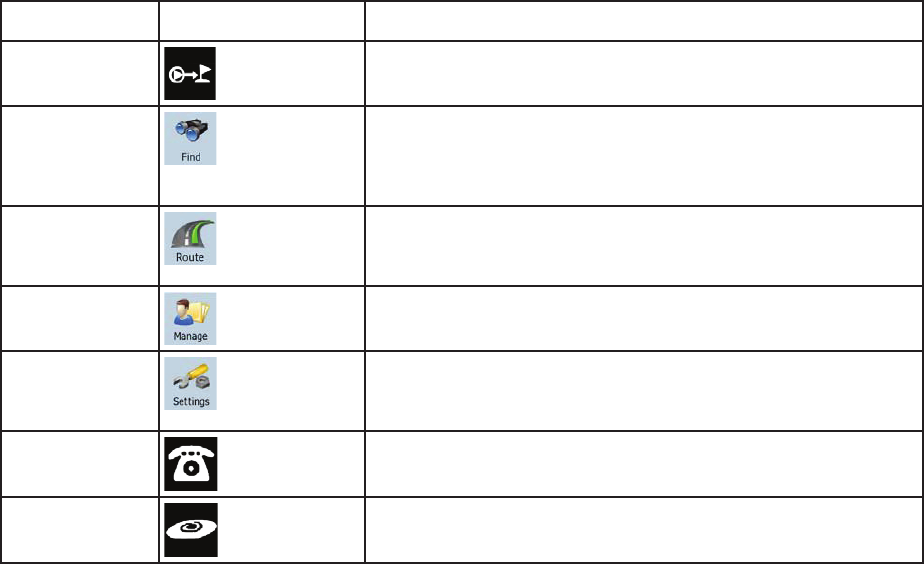

The Navigation menu in Advanced mode:
The typical way of using Clarion Mobile Map is to select a destination, and start navigating. You can
select your destination in the following ways (not all of them are available in Simple mode):
x Use the selected location on the map (the Cursor) (page 31).
x Enter a full address or a part of an address, for example a street name without a house number or
the names of two intersecting streets (page 32).
x Enter an address with ZIP code (page 38). This way you do not need to select the name of the city
and the search for street names might be faster as well.
x Use a coordinate (page 42)
x Use a saved location:
x a Favorite (page 40)
x a POI (page 40)
x the History of previously set destinations and waypoints (page 42)
![](/img.php?id=1211548&img=bga.png)
10
2.1 Simple and Advanced modes
The two operating modes of Clarion Mobile Map mainly differ in the menu structure and the number of
available features. The controls and screen layouts are the same.
x Simple mode: you have easy access to the most important navigation functions and the basic
settings only. The rest of the settings are set to values that are optimal for typical use.
x Advanced mode: you have access to the full functionality of Clarion Mobile Map.
To switch from Simple mode to Advanced mode: on the startup screen (Navigation Menu), tap ,
.
To switch from Advanced mode to Simple mode: on the startup screen (Navigation Menu), tap ,
.
The features and settings available in each mode are as follows:
Type of action Available in
Simple mode
Available in
Advanced mode
Explanation
Navigating to a selected map point Yes Yes See page 31
Navigating to a street address Yes Yes See page 32
Navigating to an incomplete
address
Yes Yes See page 32
Navigating to an intersection Yes Yes See page 36
Navigating to recent destinations
(History)
Yes Yes See page 42
Navigating to Favorites Yes Yes See page 40
Navigating to a POI Yes Yes See page 40
Navigating to coordinates No Yes See page 42
Creating a multi-point route No Yes See page 43
Saving a map point as a Favorite
destination
Yes Yes See page 59
Saving a map point as a POI No Yes See page 59
Saving a map point as a location of
a Road Safety Camera
No Yes See page 59
Mark a map point with a Pin No Yes See page 59
Saving the active route No Yes See page 49
Saving Track Logs No Yes See page 26
Map Screen settings Only color profiles (from
Quick Menu)
Yes See page 77
![](/img.php?id=1211548&img=bgb.png)
11
Menu settings Only background
Yes See page 84
Sound settings Yes (from Quick Menu) Yes See page 78
Route Planning options Yes Yes See page 79
Regional settings Only language selection Yes See page 81
Warnings No Yes See page 83
2.2 Buttons and other controls on the screen
When you are using Clarion Mobile Map, you usually tap buttons on the touch screen.
You only need to confirm selections or changes in Clarion Mobile Map if the application needs to restart, it
needs to perform a major reconfiguration, or you are about to lose some of your data or settings.
Otherwise, Clarion Mobile Map saves your selections and applies the new settings without confirmation
as soon as you use the controls.

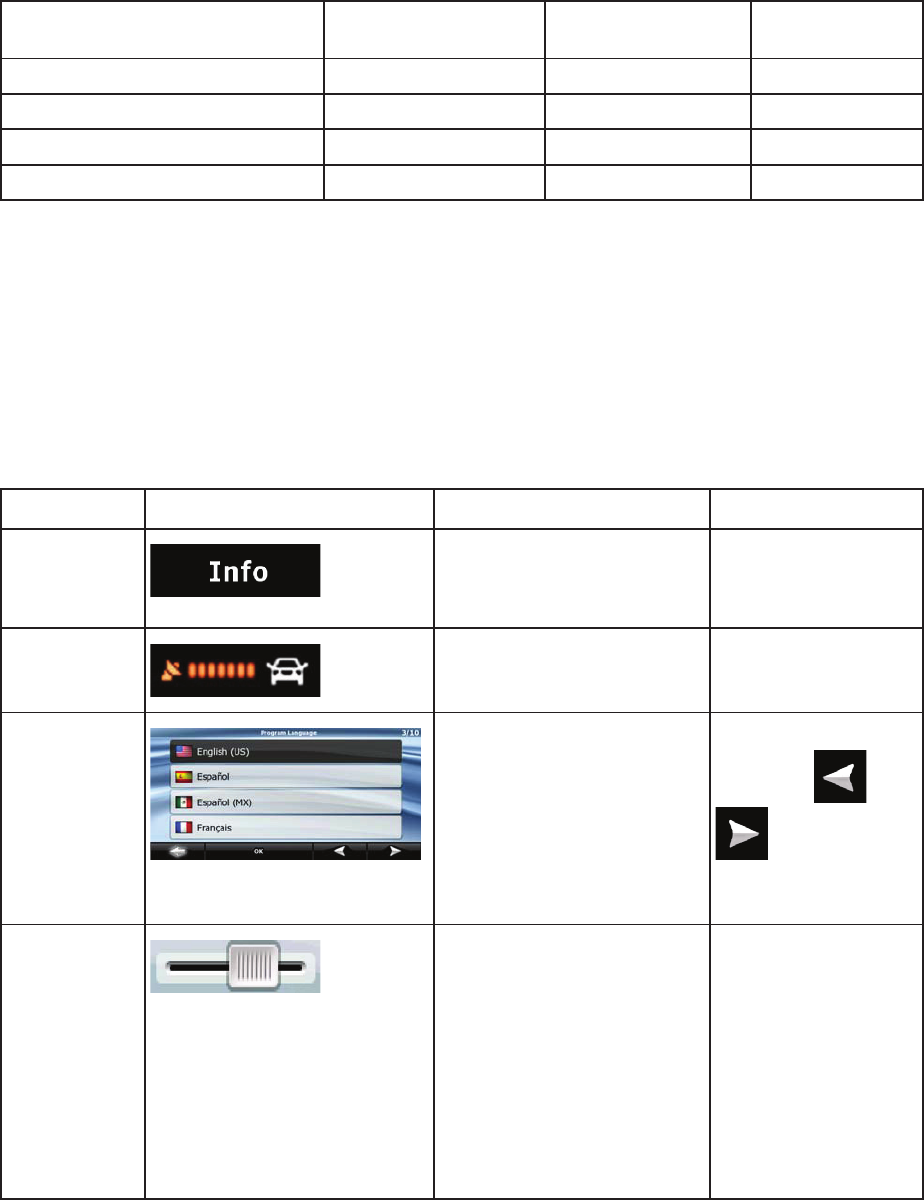

Type Example Description How to use it
Button
Tap it to initiate a function, to
open a new screen, or to set a
parameter.
Tap it once.
Icon
Shows status information. Some icons also
function as a button.
Tap them once.
List
When you need to select from
several options, they appear
in a list.
Move between pages
with the and
buttons and tap
the value that you
want.
Slider
When a feature has several
different unnamed values,
Clarion Mobile Map shows an
indicator on a gauge that
displays and sets a value from
a range.
x Drag the handle
to move the
slider to its new
position.
x Tap the slider
where you want
the handle to
appear; the
thumb jumps
there.
![](/img.php?id=1211548&img=bgc.png)
12

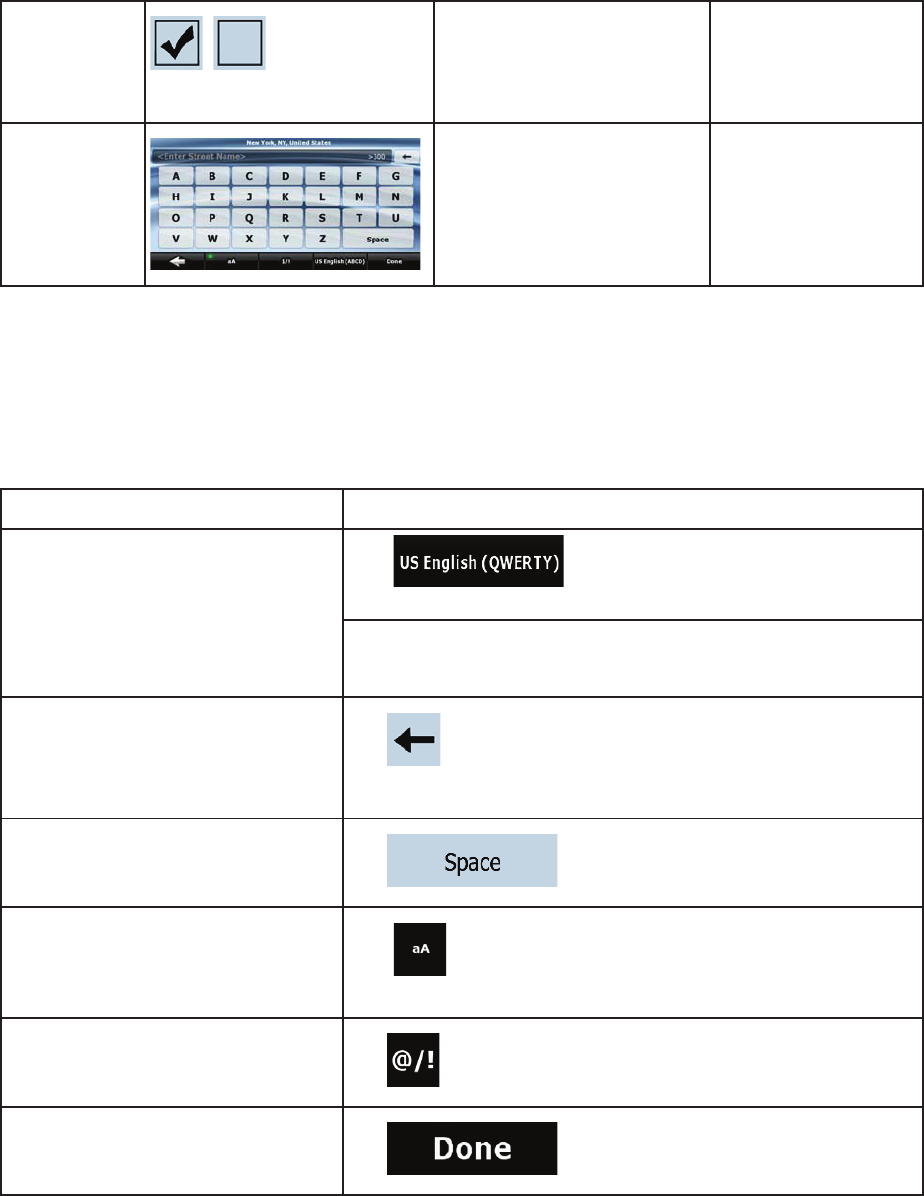

Switch
When there are only two
choices, a checkmark shows
whether the feature is
enabled.
Tap it to turn the switch
on or off.
Virtual
keyboard
Alphabetic and alphanumeric
keyboards to enter text and
numbers.
Each key is a touch
screen button.
2.2.1 Using keyboards
You only need to enter letters or numbers in Clarion Mobile Map when you cannot avoid it. You can type
with your fingertips on the full-screen keyboards and you can switch between various keyboard layouts,
for example ABC, QWERTY, or numerical.
Task Details
Switching to another keyboard layout,
for example from an English
QWERTY keyboard to a Greek
keyboard
Tap , and select from the list of available
keyboard types.
Clarion Mobile Map remembers your last keyboard choice and
offers it the next time you need to enter data.
Correcting your entry on the keyboard
Tap to remove the unneeded character(s).
Tap and hold the button to delete the entire input string.
Entering a space, for example
between a first name and a family
name or in multi-word street names Tap .
Entering lowercase or capital letters
Tap to cycle through entering lowercase letters, initial
capitals or all capitals.
Entering symbols
Tap to switch to a keyboard offering symbol characters.
Finalising the keyboard entry
Tap .
![](/img.php?id=1211548&img=bgd.png)
13
2.3 Using the map
The map screen is the most frequently used screen of Clarion Mobile Map. It can be accessed from the
Navigation menu by tapping .
For further information about the map screen, see page 51.

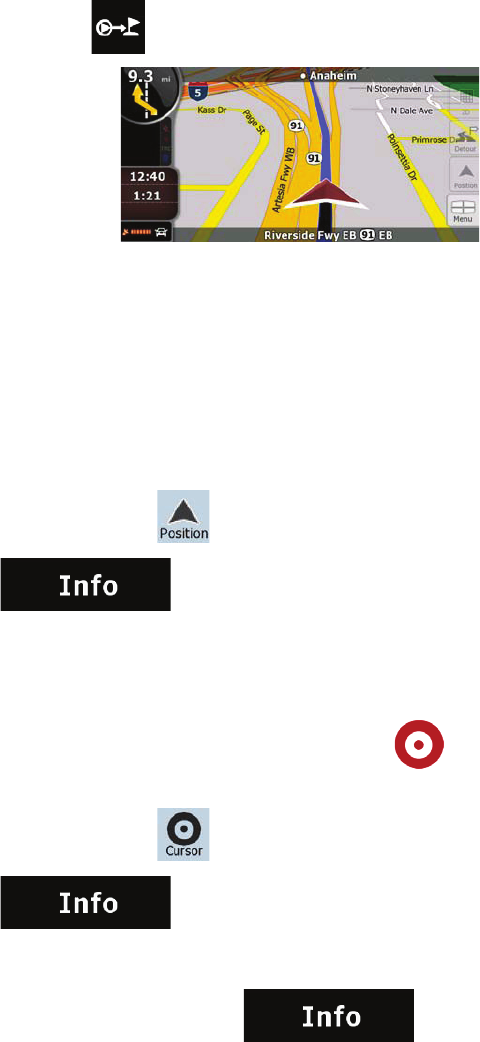

2.3.1 Checking the details of a map location
x If you are interested in the details of your current position during navigation:
1. Check the bottom line of the map. It shows the current street and house number
information.
2. For further details, tap to open the Position menu.
3. Tap . The address, the coordinate and the list of nearby POIs will be
displayed.
x You can check the details of any other location by selecting it on the map:
1. Tap the map anywhere to open the map control buttons.
2. Tap the desired location on the map. The Cursor ( ) appears there. The address of the
location is displayed at the bottom of the map.
3. For further details, tap to open the Cursor menu.
4. Tap . The address, the coordinate and the list of nearby POIs will be
displayed.
x It is even easier if you select the desired point in the Find menu. Then the Cursor menu opens
automatically. You only need to tap the button.
![](/img.php?id=1211548&img=bge.png)
14

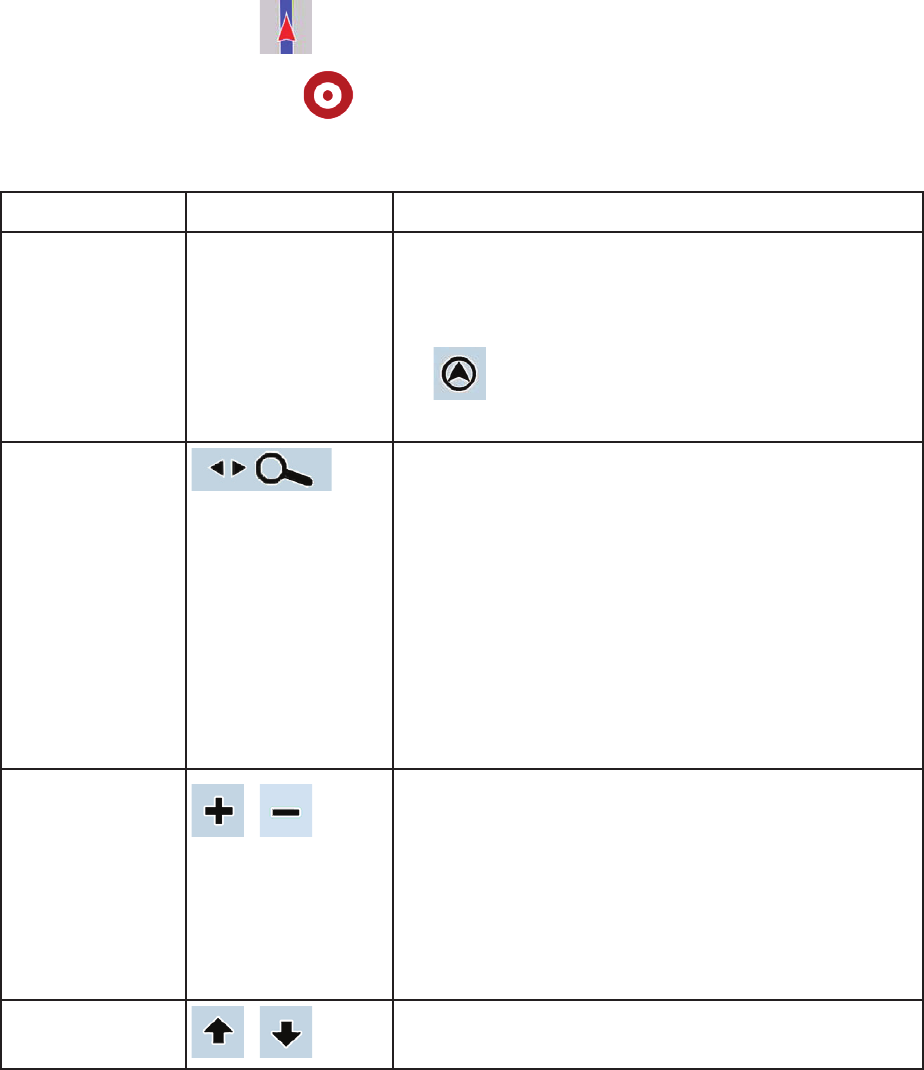

2.3.2 Manipulating the map
Position markers on the map:
x Current GPS position: (page 22)
x Selected location (Cursor): (page 23)
The following controls help you modify the map view to suit your actual needs the best. Most of these
controls appear only if you tap the map once, and disappear after a few seconds of inactivity.

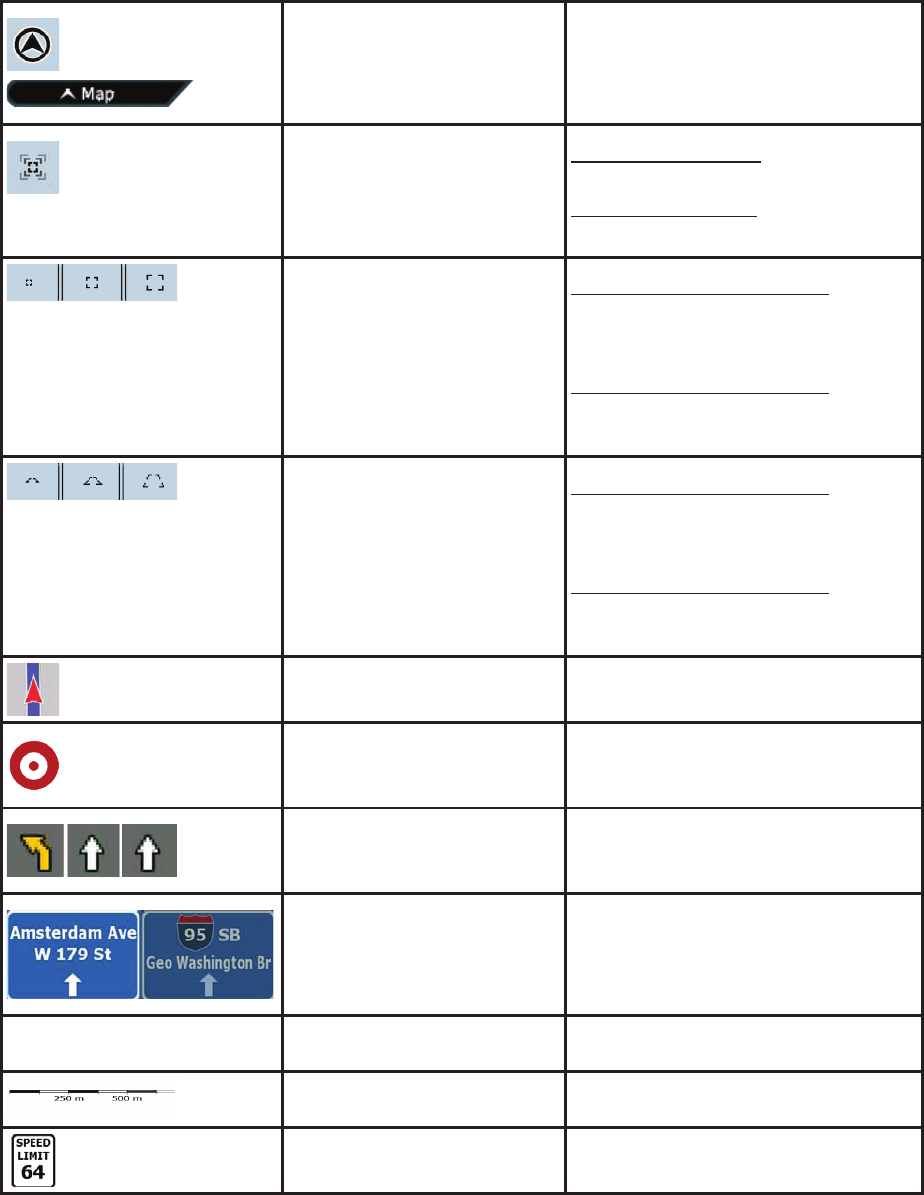

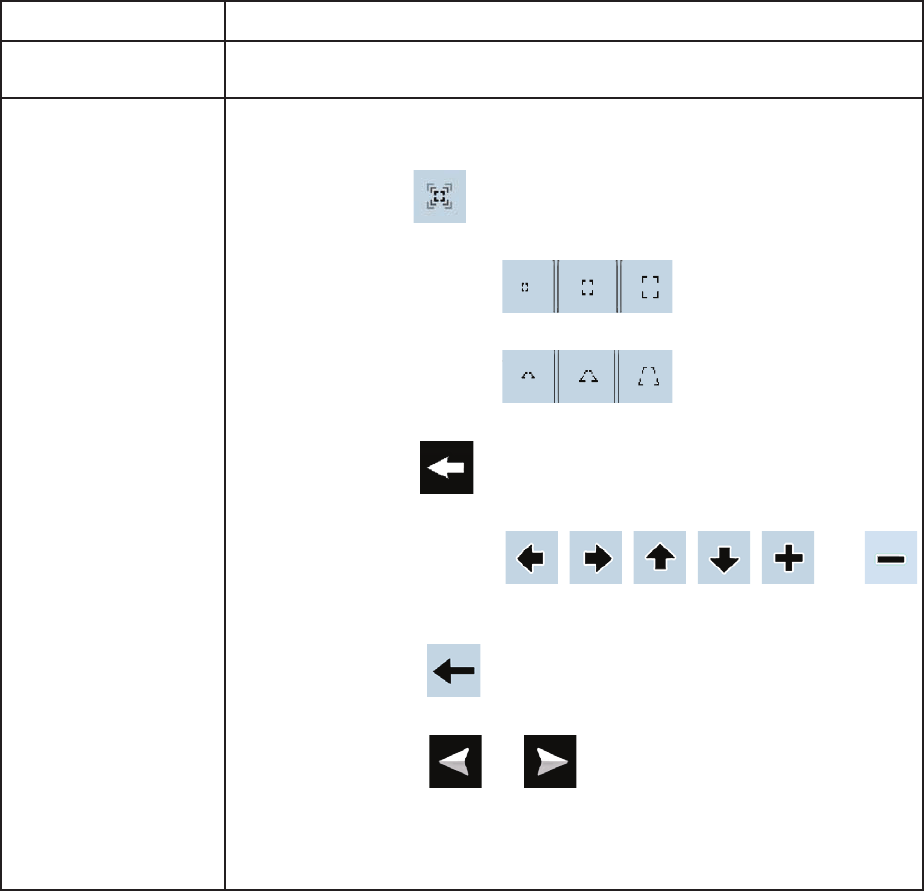

Action Button(s) Description
Moving the map No buttons You can move the map into any direction. Tap the map at
any desired location. The point you hit on the map moves to
the center of the screen.
If GPS position is available and you have moved the map,
the button appears. Tap this button to return to the
GPS position.
Opening/closing
map control buttons Tap this button to show or hide the following map control
buttons:
x Zoom in/out
x Rotate left/right (3D map only)
x Tilt up/down (3D map only)
x Zoom preset buttons (2D map only)
x Tilt and zoom preset buttons (3D map only)
x Return to GPS position button
x Smart Zoom button
Zooming in and out
,
Changes how much of the map is displayed on the screen.
Clarion Mobile Map uses high-quality vector maps that let
you see the map at various zoom levels, always with
optimized content. It always displays street names and
other text with the same font size, never upside-down, and
you only see the streets and objects that you need.
Map scaling has different limits in 2D and in 3D map view
modes.
Tilting up and down
,
Changes the vertical view angle of the map in 3D mode.
![](/img.php?id=1211548&img=bgf.png)
15

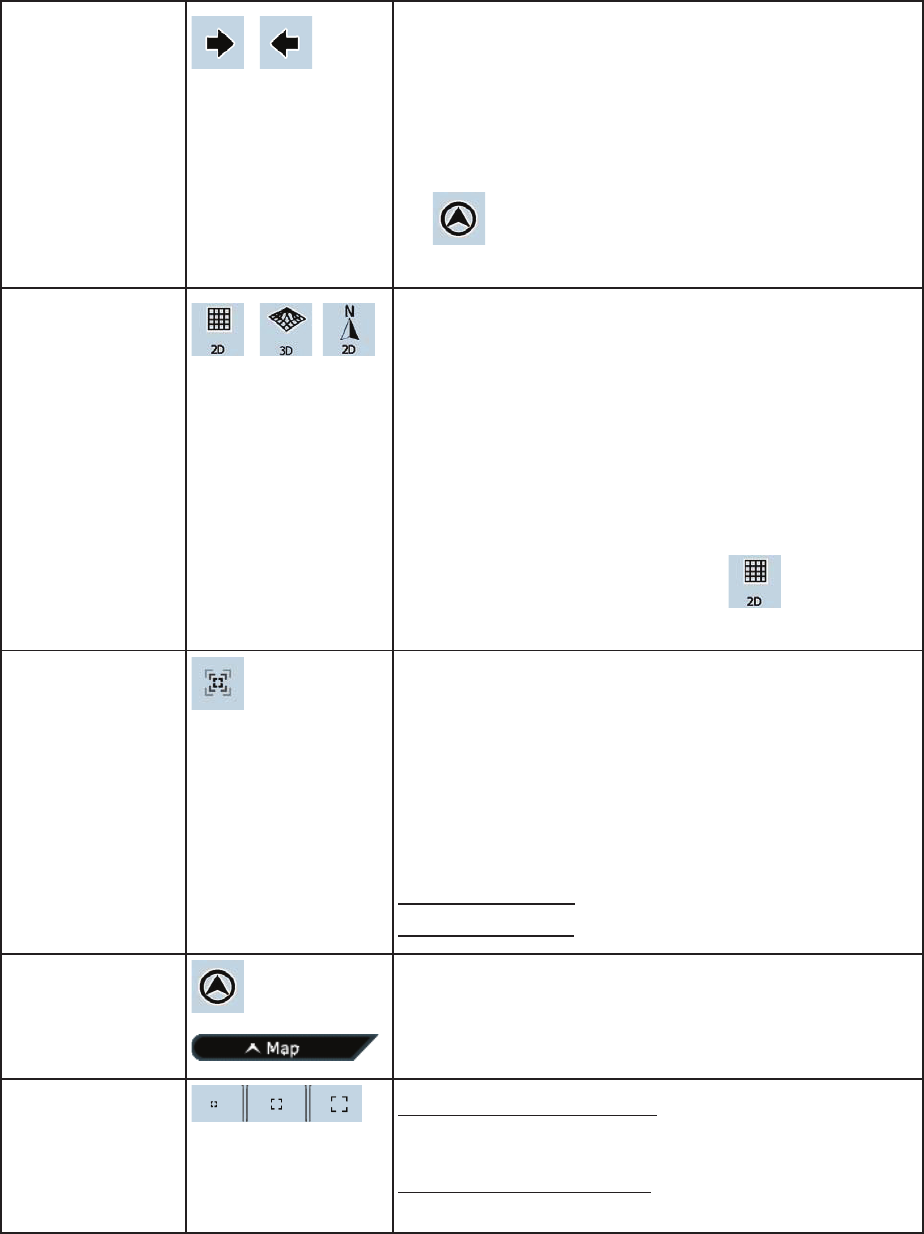

Rotating left and
right
,
Changes the horizontal view angle of the map in 3D mode
or in rotated 2D mode.
When GPS position is available, Clarion Mobile Map always
rotates the map so its top faces your direction of travel
(Track-Up orientation). You can turn away from Track-Up
with these buttons.
If GPS position is available and you have rotated the map,
the button appears. Tap this button to re-enable the
automatic map rotation.
Viewing modes
, ,
Gives you the following map perspectives in Clarion Mobile
Map:
x classic top-down view (2D), the top of the map
always faces North
x top-down view (2D), the top of the map always points
in the current driving direction
x perspective view (3D) the top of the map always
points in the current driving direction
The icon always shows the mode the button switches to: If
you are in 3D mode, you can see the button and you
need to tap it to switch to 2D mode.
Smart Zoom
Clarion Mobile Map can automatically rotate, scale and tilt
the map and give you the optimal view:
x When you are approaching a turn, Clarion Mobile
Map zooms in and raises the view angle to let you
easily recognize your maneuver at the next junction.
x If the next turn is at a distance, Clarion Mobile Map
zooms out and lowers the view angle to show you
the road in front of you.
Tap this button once to enable Smart Zoom.
Tap&hold the button to set the zoom limits of Smart Zoom.
Returning to normal
navigation (back to
the GPS position
with automatic map
rotation)
Tap this button to move the map back to the current GPS
position. If the map has been rotated, automatic map
rotation is also re-enabled.
Zoom preset
buttons (available in
Advanced mode
only)
Tap one of the preset buttons to set the zoom level to a fix,
predefined value. Smart Zoom is disabled. These buttons
are available in 2D mode.
Tap&hold any of the buttons to set its value to the current
zoom level, or to reset it to its original value.
![](/img.php?id=1211548&img=bg10.png)
16

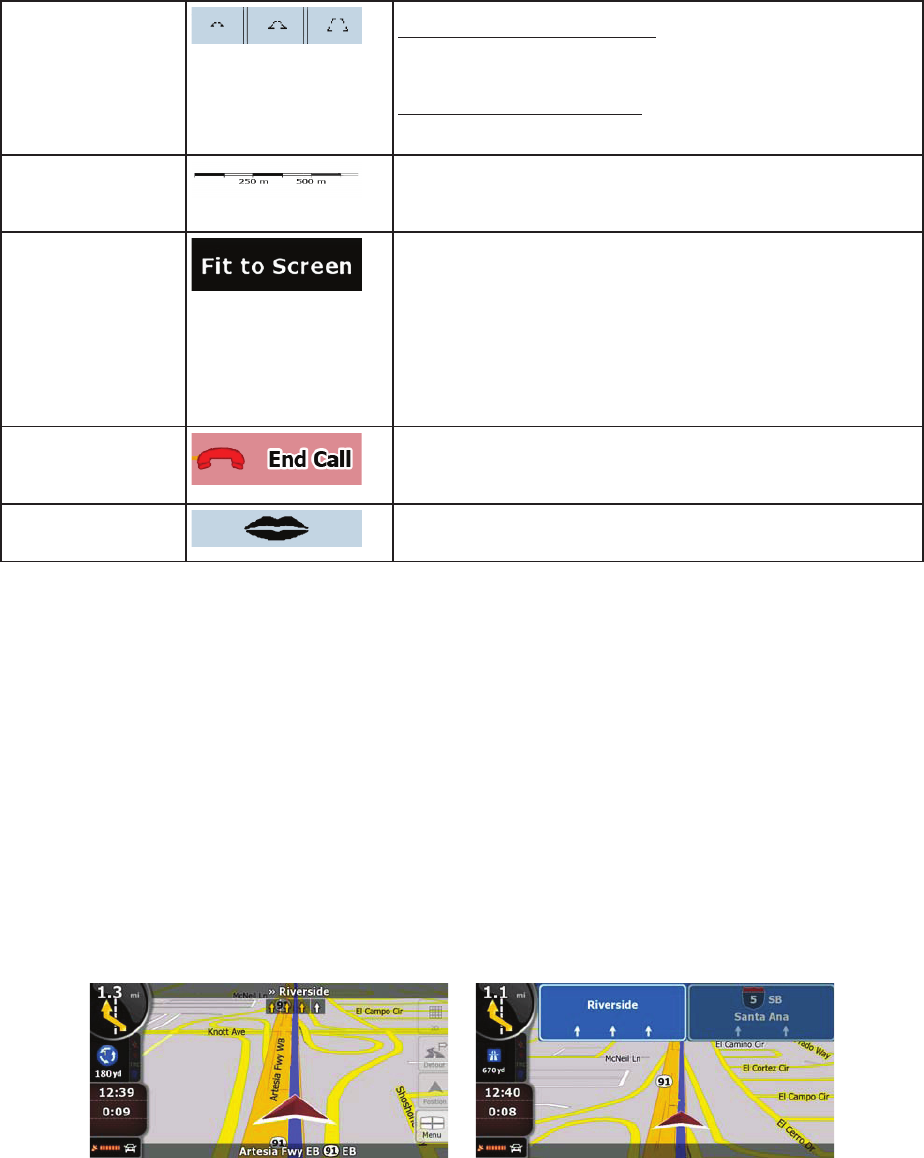

Tilt and zoom
preset buttons
(available in
Advanced mode
only)
Tap one of the preset buttons to set the tilt and zoom levels
to fix, predefined values. Smart Zoom is disabled. These
buttons are available in 3D mode.
Tap&hold any of the buttons to set its value to the current tilt
and zoom levels, or to reset it to its original value.
Map scale Clarion Mobile Map shows the scale of the map in 2D
mode.
Fit-to-screen
This button does not appear on the Map screen. It is
available on the following screens:
x Plan on Map screen: When you have an active route,
you can display it in its full length on the map.
x Track Information screen: A track log can be
displayed in its full length on the map.

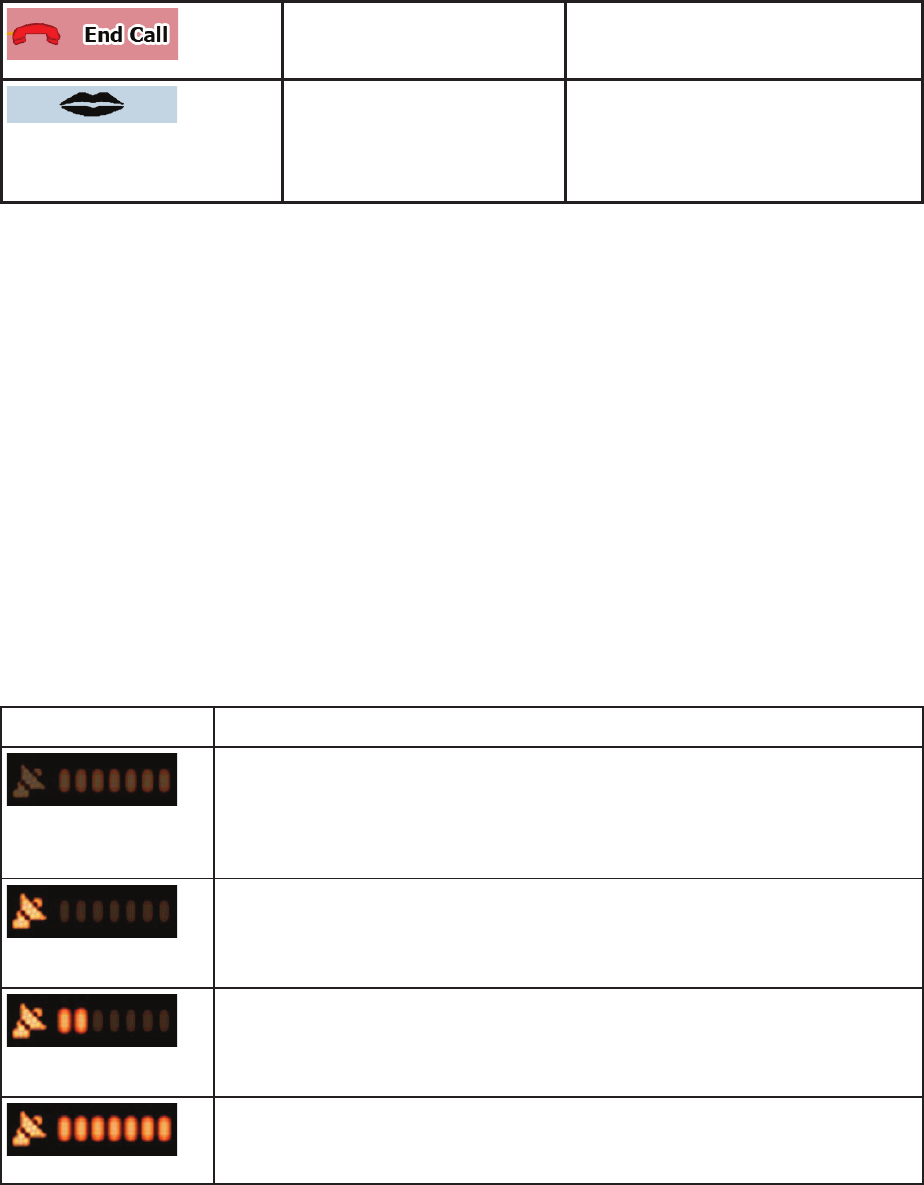

End Call
This button is displayed only during a phone call. Tap the
button to hang up.
Repeat Voice
Instruction Tap this button to repeat the current voice instruction. The
distance is updated to always describe the current situation.
2.3.3 Lane information and Signposts
When navigating on multilane roads, it is important to take the appropriate lane in order to follow the
recommended route. If lane information is available in the map data, Clarion Mobile Map displays the
lanes and their directions using small arrows either at the bottom or at the top of the map (the position of
these arrows can be modified in Map Screen settings). Arrows in yellow represent the lanes you need to
take.
Where there is additional information available, signposts substitute arrows. Signposts are always
displayed at the top of the map. The color and style of the signposts are similar to the real ones you can
see above road or by the roadside. They show the available destinations and the number of the road the
lane leads to.
All signposts look similar when cruising (when there is no recommended route). When navigating a route,
only that signpost is displayed in vivid colors that points to the lane(s) to be taken; all others are darkened
out.
![](/img.php?id=1211548&img=bg11.png)
17

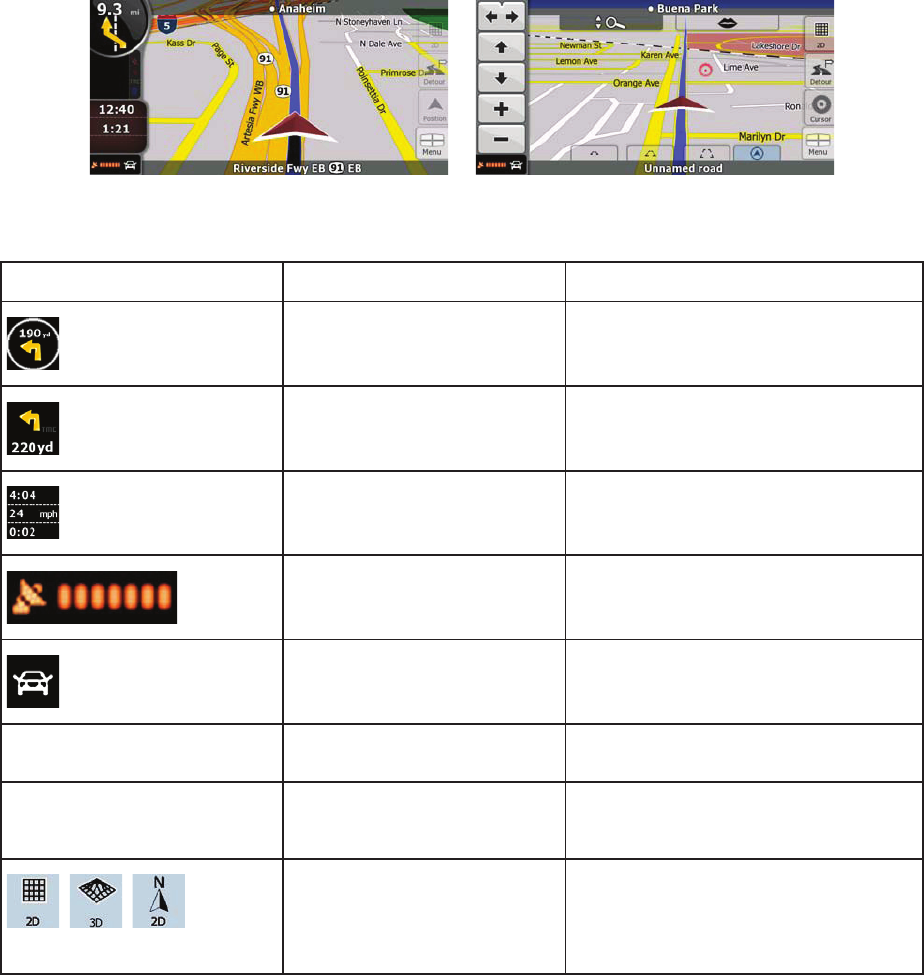

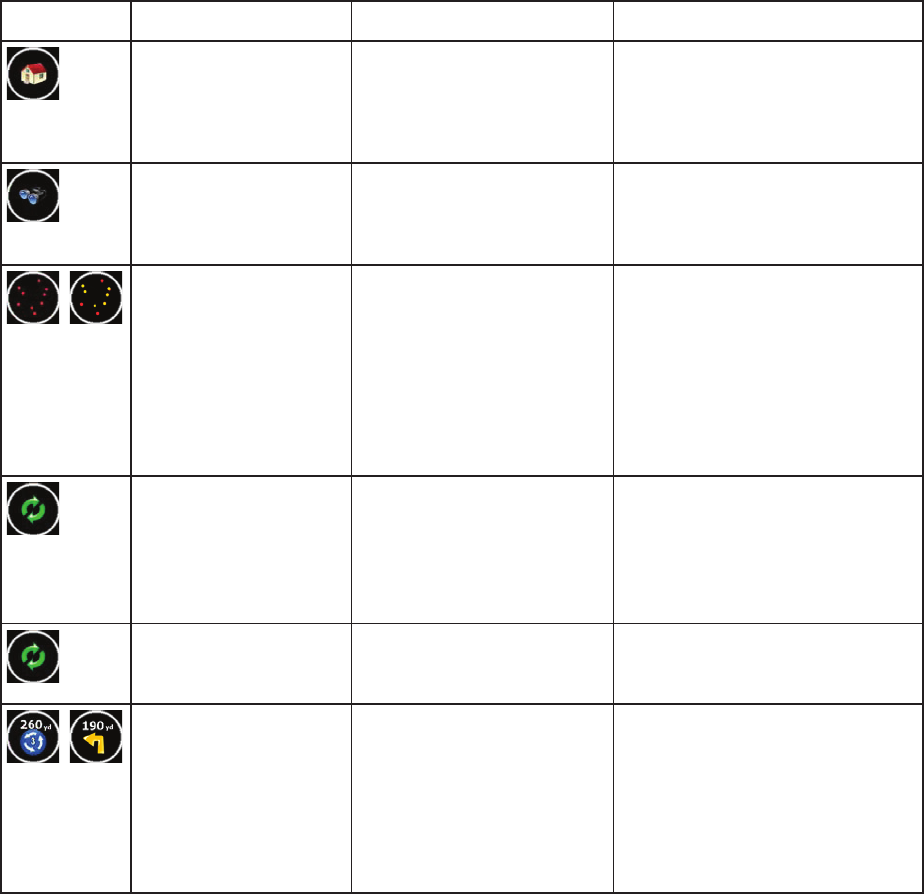

2.3.4 Status information and hidden controls on the map
The following information appears in the rounded field in the top left corner, the Turn Preview field. When
tapping this area, the result depends on the information currently shown.

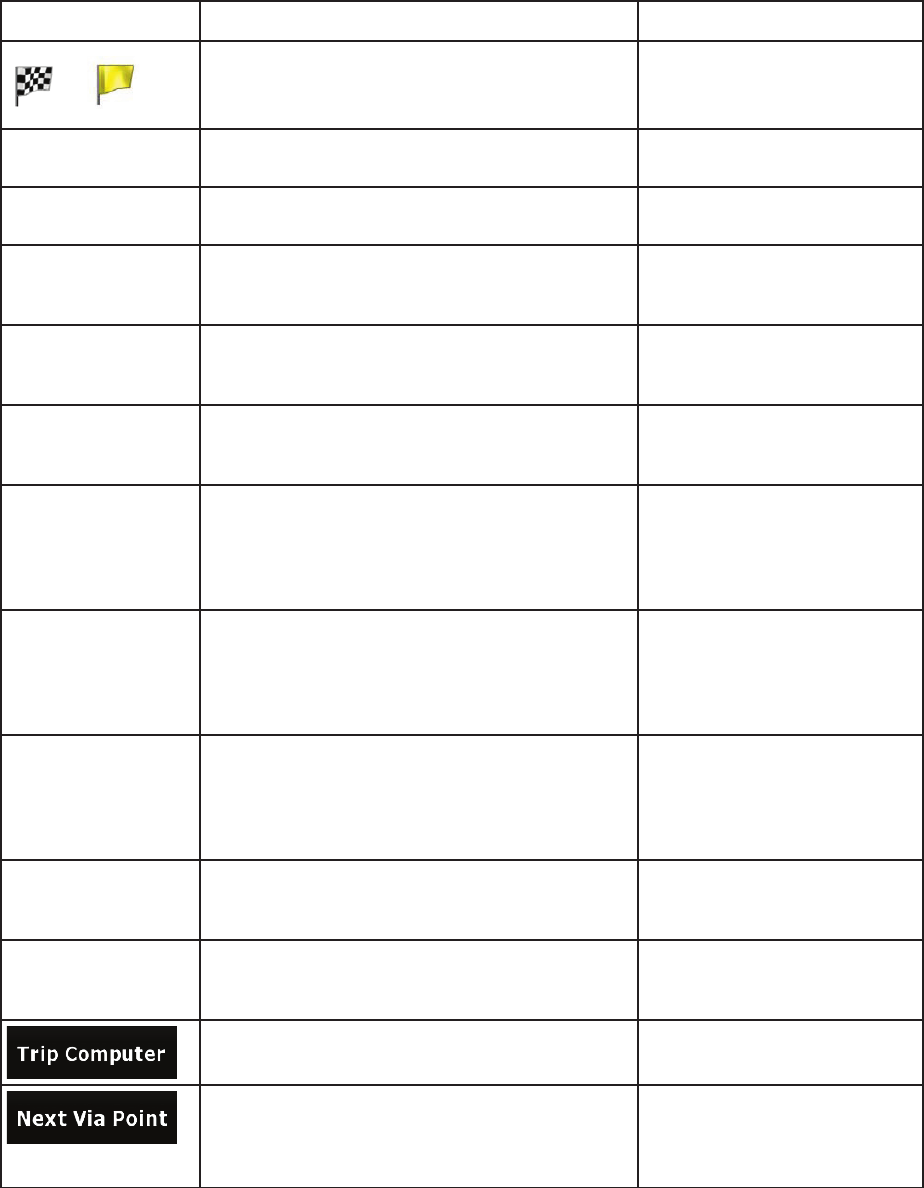

Icon Information Details Action
There is no active route
in Simple mode If there is no route to be
navigated in Simple mode,
this icon appears in the Turn
Preview field.
Tap this area to open Find
Address.
There is no active route
in Advanced mode
If there is no route to be
navigated in
A
dvanced
mode, this icon appears in
the Turn Preview field.
Tap this area to open Find.
,
There is no valid GPS
position.
If an active route exists, and
there is no valid GPS
position, the view of the sky
above you is shown with
colored dots for each
satellite. Some dots need to
turn green to be able to
navigate.
Tap this area to open the Route
Information screen.
If the icon is a static
picture, route
calculation is needed
GPS position and an active
route are available, but
automatic off-route
recalculation is switched off,
and you deviated from the
route.
Tap this area to make Clarion
Mobile Map recalculate the
recommended route.
If the icon is animated,
route calculation is in
progress
Clarion Mobile Map is
calculating or recalculating
the route.
Nothing happens if you tap this
area of the screen.
,

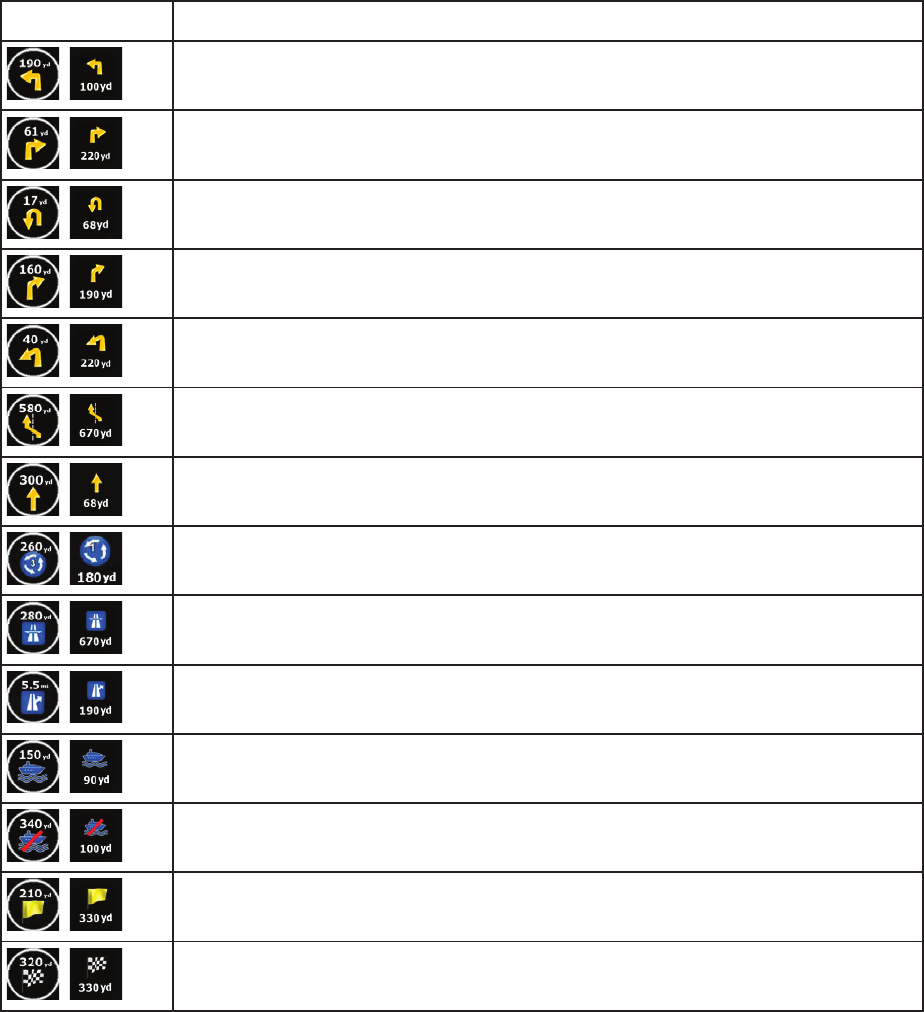

Next route event (next
maneuver) GPS position and an active
route are available, and you
navigate the recommended
route. This area gives you
information about the type
and distance of the next
route event.
Tap this area to open the Route
Information screen.
![](/img.php?id=1211548&img=bg12.png)
18

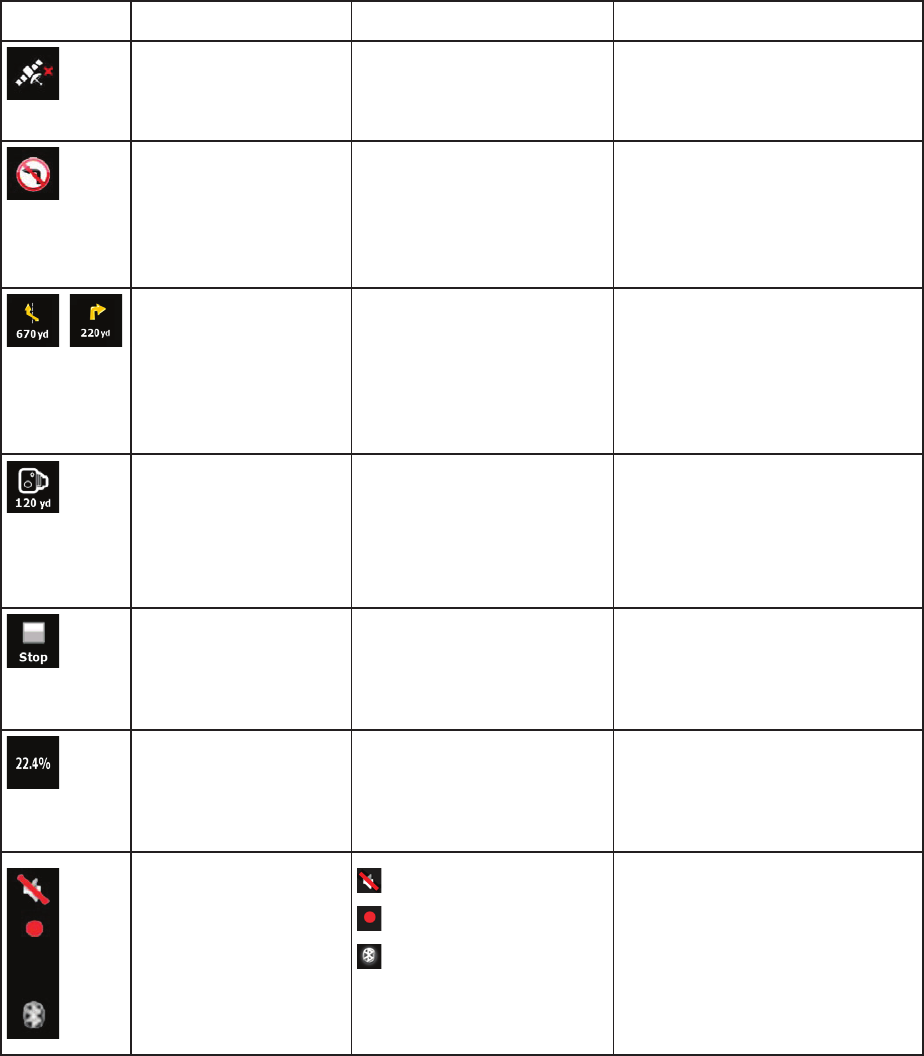

The following area appears next to the above described rounded area. When tapping this area, the result
depends on the information currently shown.
Icon Information Details Action
There is no valid GPS
position If there is no valid GPS
position, this symbol
appears here.
Tap this area to open the GPS
Data screen to check the signal
status or the connection settings.
Traffic restriction When GPS position is
available but there is no
route to be navigated, the
traffic restriction of the
upcoming intersection is
shown here if there is any.
Nothing happens if you tap this
area of the screen.
,
Second route event
(maneuver after the
next maneuver)
When GPS position and an
active route are both
available, this field shows
the route event that follows
the next route event shown
in the above described area.
Tap this area to open the Itinerary
screen with the turn by turn
guidance instructions.
Approaching a Road
Safety Camera This icon appears when you
are approaching a Road
Safety Camera, and the
warning for cameras is
enabled in Settings.
Tap this area to suppress the
audible camera warning.
Tap again to display the second
route event with the possibility to
open the Itinerary.
Stops the running
simulation This icon appears during
Route Fly Over, Route
Simulation, and Track Log
playback.
Tap this area to stop the
simulation.
Route recalculation
progress During route recalculation,
this field shows the
recalculation progress
between 0% and 100%.
Nothing happens if you tap this
area of the screen.
Indicator strip - sounds muted/enabled
- Track Log recording
- Bluetooth status
Tap this area to open the Itinerary
screen with the turn by turn
guidance instructions.
![](/img.php?id=1211548&img=bg13.png)
19

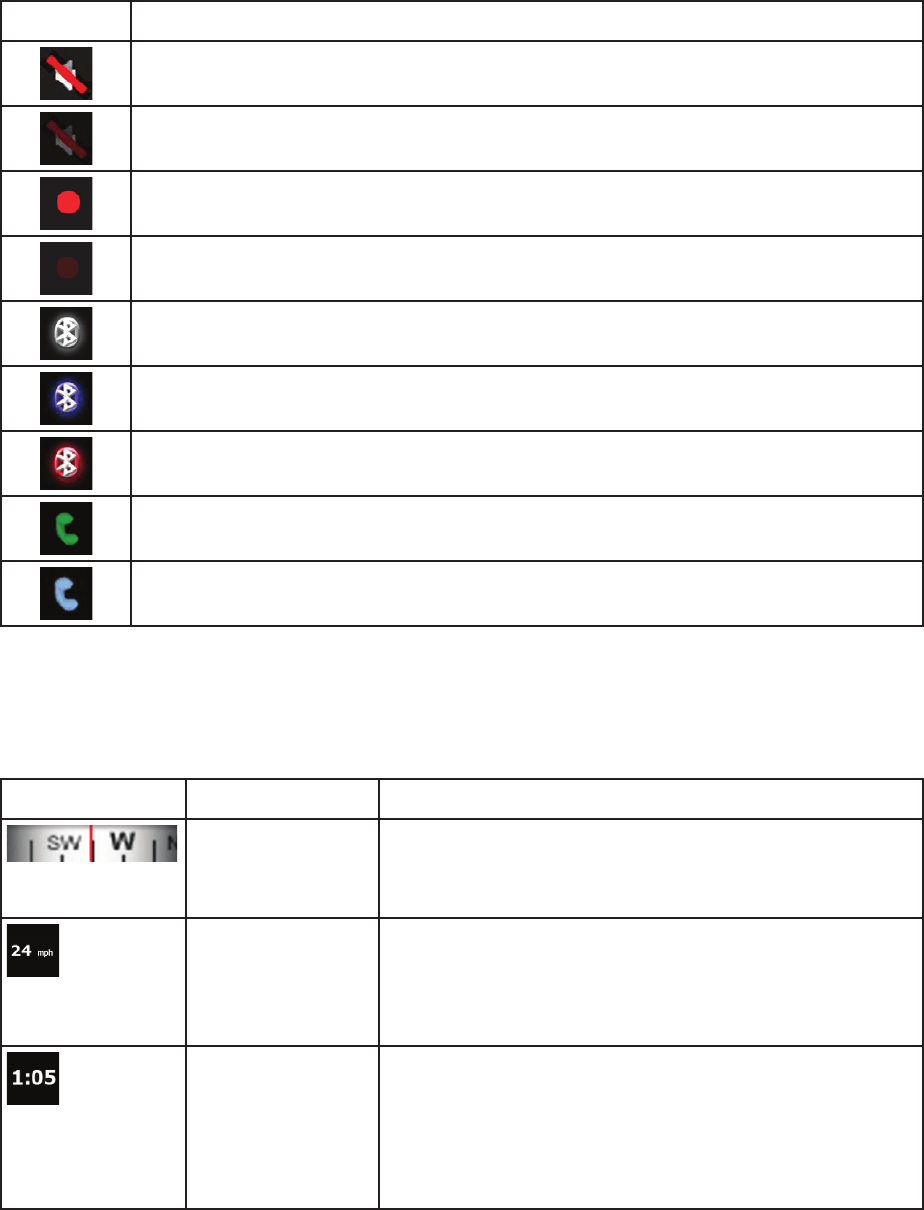

The following symbols appear in the Indicator strip:
Icon Description
The sound output of Clarion Mobile Map is muted.
The sound output of Clarion Mobile Map is enabled.
Clarion Mobile Map records a Track log when GPS position is available.
Track log recording is disabled.
The Bluetooth radio is switched off.
The Bluetooth radio is turned on, but no telephone is connected.
There is an error in the Bluetooth connection.
Clarion Mobile Map is connected to a telephone as a handsfree set via Bluetooth.
A phone call is in progress over the Bluetooth connection.

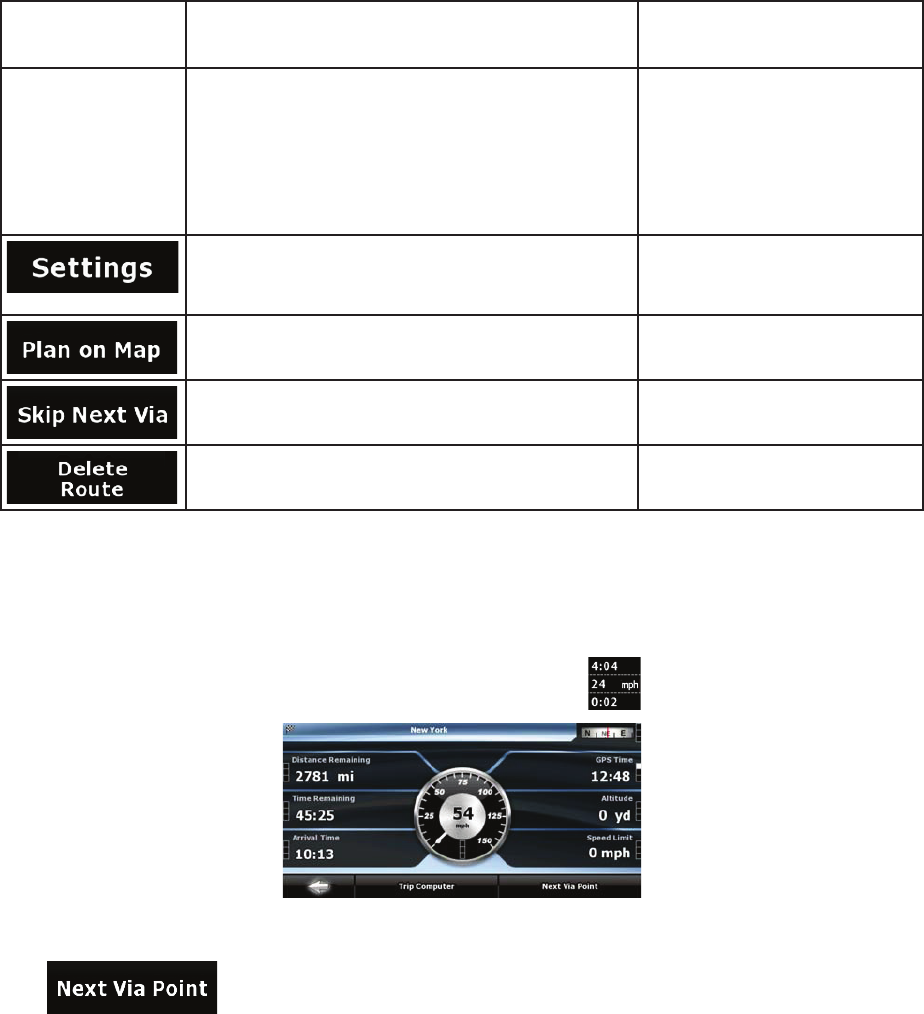

The following information can be seen in the three data fields shown on the map screen. Tap this area to
open the Trip Information screen where you can select which values to be shown in these three fields.
When there is no active route, these fields show the following information: current speed, compass and
the current time of day.
Icon Type More information
Compass Shows the direction of your heading both when the map is
automatically rotated (3D) and when the map is always facing
North (2D).
Speed information There are speed values that can be shown:
x Current speed
x Speed limit on the current road
Time information There are time values that can be shown:
x Current GPS time
x Time remaining to reach the destination
x Time remaining to reach the next via point
![](/img.php?id=1211548&img=bg14.png)
20
x Estimated arrival time at the destination
x Estimated arrival time at the next via point

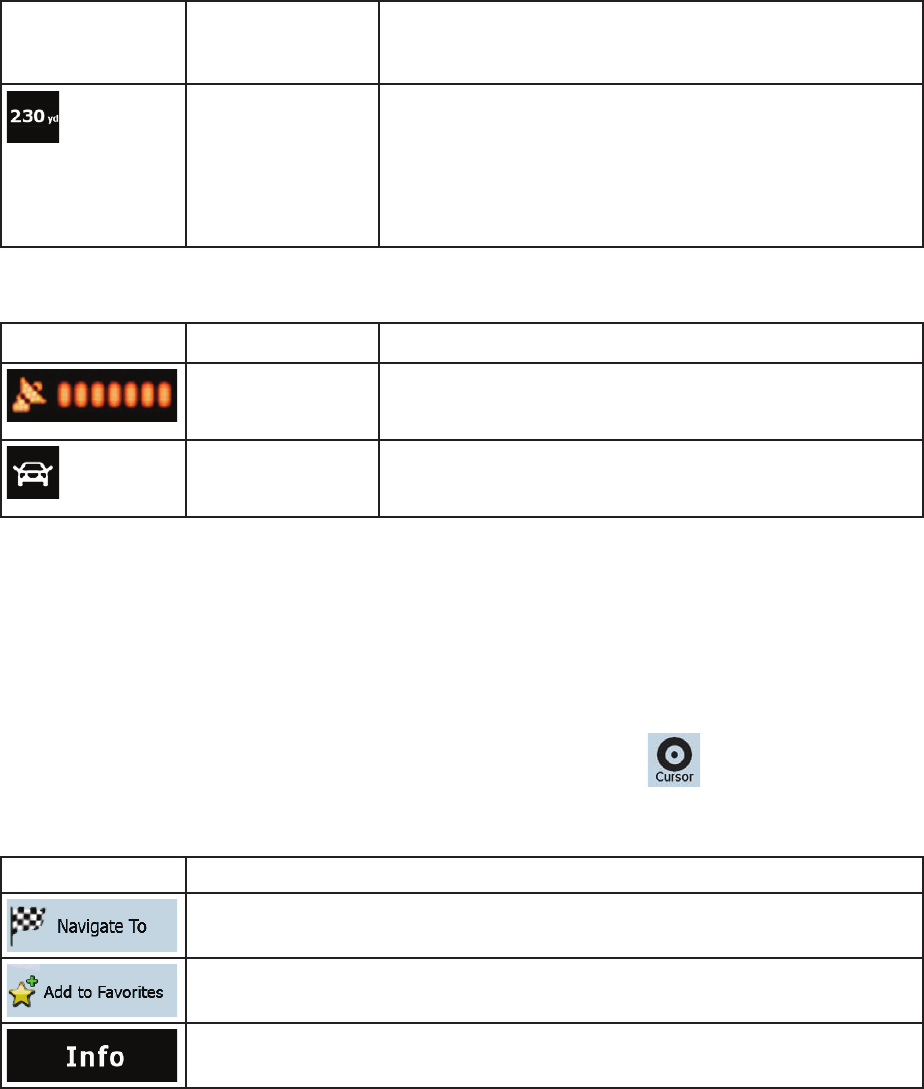

Distance information There are distance type values that can be shown:
x Distance remaining to reach the destination
x Distance remaining to reach the next via point
x Current altitude

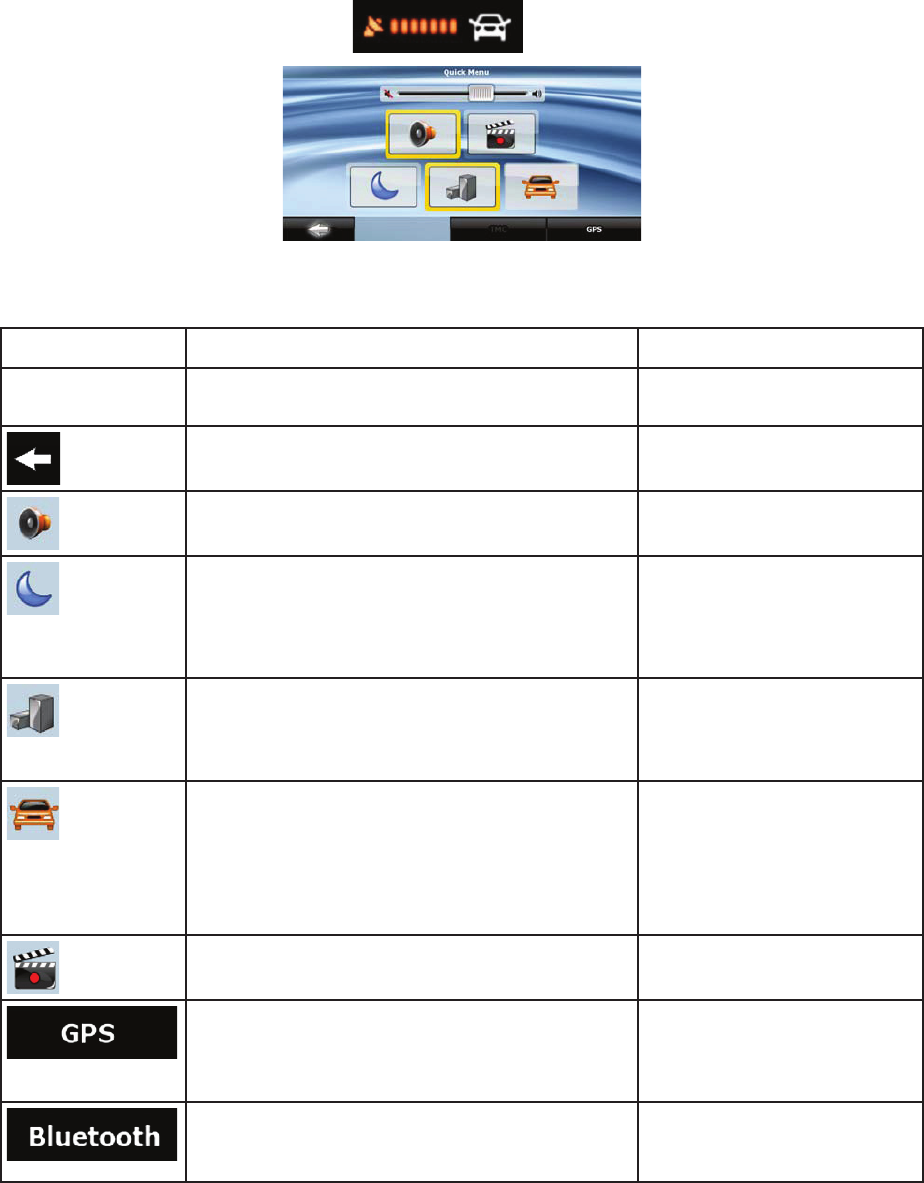

The next area is a combined status indicator field. Tap this area to open the Quick menu (page 66).
Icon Status for More information
GPS position quality A higher number of lit bars indicates better GPS position
accuracy.
Vehicle type The symbol displays the vehicle type used for route
calculation.
2.3.5 Using the Cursor (the selected map location)
First, place the Cursor at the desired map location with one of the following options:
x Use the Find menu to select a location. The map returns with the selected point (the Cursor) in the
middle, and the Cursor menu appears with the available options.
x Tap the screen to place the Cursor at the desired location. Now tap to open the Cursor
menu.
You can perform the following actions in Simple mode:
Button Action
Creates a new route with the Cursor as the destination. The previous route (if exists)
is deleted.
Saves the Cursor as a Favorite destination
Opens a screen with the name, address and coordinate information of the Cursor,
and the list of POIs near it
![](/img.php?id=1211548&img=bg15.png)
21

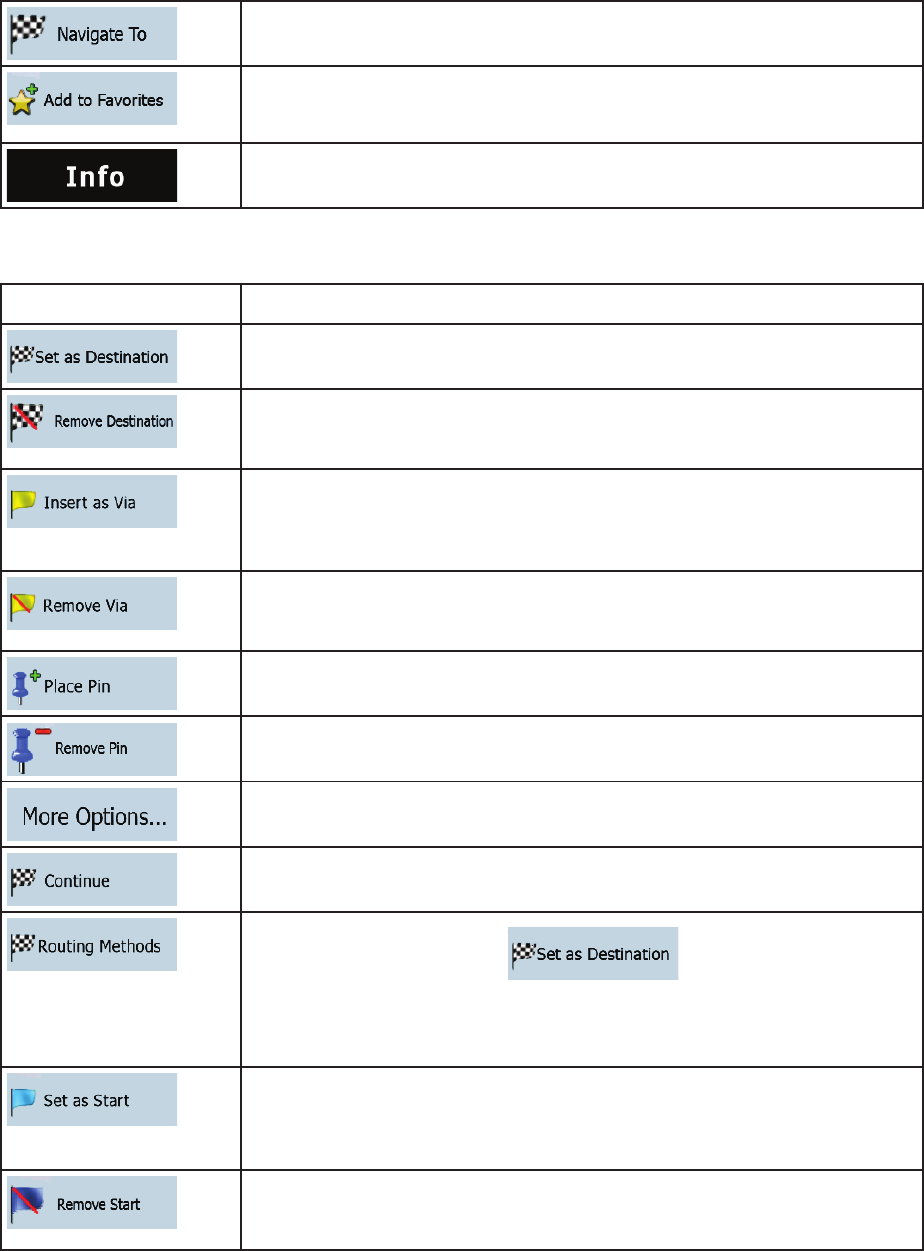

The following options are available in Advanced mode only:
Button Action
In the active route, uses the Cursor as the start point by replacing the current GPS
position (available in Advanced mode only)
Creates a new route with the Cursor as the destination. The previous route (if
exists) is deleted.
In the active route, uses the Cursor as a via point (an intermediate destination)
preceding the destination (available in Advanced mode only)
In the active route, uses the Cursor as the destination while keeping the previous
destination as a via point (available in Advanced mode only)
Shows the different routes calculated by the available routing methods. Choose
the one that suits your needs the best (available in Advanced mode only)
Marks the map with a Pin at the Cursor (available in Advanced mode only)
Saves the Cursor as a POI (available in Advanced mode only)
Saves the Cursor as a Road Safety Camera location (available in Advanced mode
only)
This button is not displayed when GPS position is not available or if you are in
certain countries where Road Safety Camera warning is prohibited. Even if the
button is available, you are responsible for checking whether it is legal to use this
feature at your location.
2.4 Clarion Mobile Map concepts
2.4.1 Smart Zoom
Smart Zoom provides much more than just a usual automatic zoom feature:
x While following a route calculated by Clarion Mobile Map: when approaching a turn, it will
zoom in and raise the view angle to let you easily recognize your maneuver at the next junction. If
the next turn is at a distance, it will zoom out and lower the view angle to be flat so you can see the
road in front of you.
x While driving without an active route in Clarion Mobile Map: Smart Zoom will zoom in if you
drive slowly and zoom out when you drive at high speed.
![](/img.php?id=1211548&img=bg16.png)
22
Enabling Smart Zoom
Tap the map to let the map control buttons appear, and then tap to enable Smart Zoom.
Fine-tuning Smart Zoom
Tap the map to let the map control buttons appear, and then tap and hold to open the Smart Zoom
Settings window. Modify the zoom limits of Smart Zoom if necessary.
2.4.2 Position markers
2.4.2.1 Current GPS position and Lock-on-Road
When your GPS position is available, Clarion Mobile Map marks your current position with the icon
on the map.
The icon may not show your exact GPS position and heading. If roads are near, it is aligned to the
nearest road to suppress GPS position errors, and the direction of the icon is aligned to the direction of
the road.
To use the current GPS position, tap . The Position menu appears and you can save the GPS
position as one of the following:
x a Favorite
x a Road Safety Camera
x a POI
x a map marker Pin
2.4.2.2 Returning to normal navigation
When GPS position is available, and you have moved the map (the icon is moving or is not even
visible), or you have rotated the map in 3D mode, the button appears. Tap it to move the map back
to the GPS position and re-enable Track-up map orientation (automatic map rotation).
Note! Even if you move the map while you are driving, Clarion Mobile Map continues navigating
if there is an active route: it plays the voice instructions and displays the turn preview icons
![](/img.php?id=1211548&img=bg17.png)
23
according to your current GPS position.
2.4.2.3 Selected location (Cursor)
If you select a location in the Find menu, or you tap the map, the Cursor appears at the selected point on
the map. Clarion Mobile Map displays the Cursor with a radiating red dot ( ) to make it visible at all
zoom levels, even when it is in the background of a 3D map view.
When the Cursor is set, tap . The Cursor menu appears and you can use the Cursor as one of the
following:
x the start point of a route
x a via point in a route
x the destination of a route
You can also search for POIs around the Cursor.
Or you can save the location of the Cursor as:
x a Favorite
x a Road Safety Camera
x a POI
x a map marker Pin
2.4.2.4 Original position in the Cursor menu
When the Cursor menu is open, a special icon ( ) shows the Cursor position the menu was opened
with.
You can move and zoom the map, and you can set the Cursor to a different place. The usual Cursor
() appears, and the buttons of the Cursor menu initiate actions for this new location.
To return to the original Cursor position, tap . The map jumps back to the position with which the
Cursor menu was opened, and the icon appears again.
24
2.4.3 Daytime and night color profiles
Clarion Mobile Map uses different color profiles during the day and during the night.
x Daytime colors are similar to paper road maps.
x The night color profiles use dark colors for large objects to keep the average brightness of the
screen low.
Clarion Mobile Map offers different daytime and night color profiles. It can also switch automatically
between the daytime and the night schemes depending on the illumination setting.
2.4.4 Color scheme in tunnels
When entering a tunnel, the colors of the map change. All buildings disappear, large objects (such as
surface waters or forests) and empty areas between roads become black.
However, roads and streets keep their original colors from the daytime or night color scheme currently
used.
After leaving the tunnel, the original colors return.
2.4.5 Route calculation and recalculation
Clarion Mobile Map calculates the route based on your preferences:
x Route calculation method:
x Fast
x Short
x Economical
x Easy
x Vehicle types :
x Car
x Taxi
x Bus
x Emergency vehicles
x Road types
x Unpaved Roads
x Permit Needed
x Freeways
x Toll Roads
x Charge Roads
![](/img.php?id=1211548&img=bg19.png)
25
x Ferries
x Cross-border Planning
x Carpool (appears only when used in the USA)
Clarion Mobile Map automatically recalculates the route if you deviate from the proposed itinerary.
For further information about Route Planning options, see page 79.

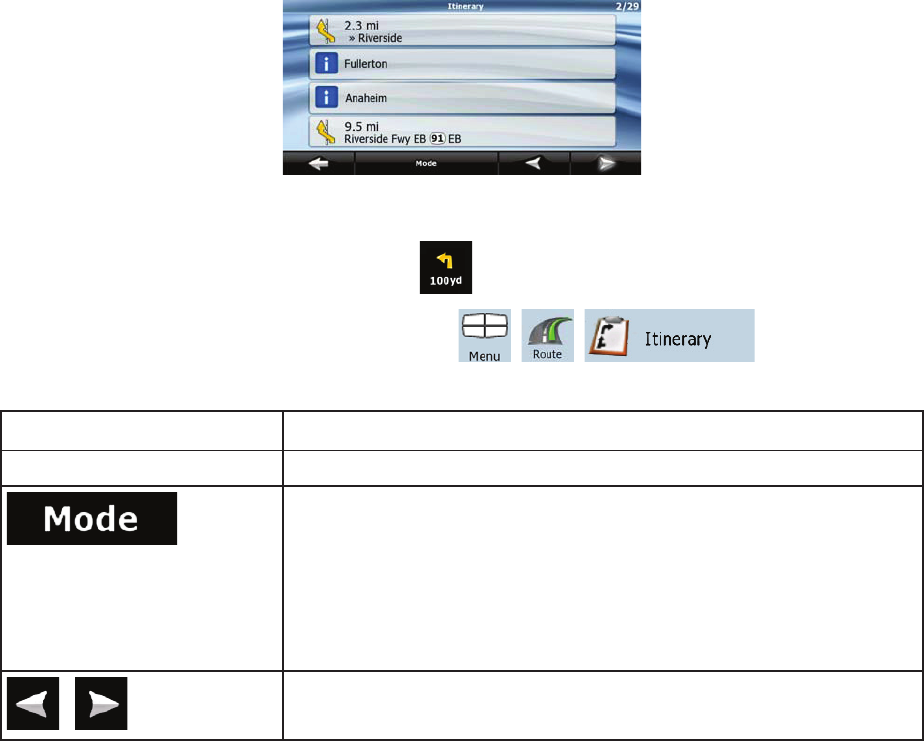

2.4.6 Itinerary
The Itinerary is the list of the route events, that is, the driving instructions.
When you are on the Map screen, you can display the Itinerary in one of the following ways:
x Tap the area between the Turn preview and the Travel data fields where the symbol of the second
next maneuver is displayed (for example ).
x In Advanced mode, tap the following buttons: , , .
You have the following options on the Itinerary screen:
Button Description
Any of the list items Opens the map with the selected maneuver in the middle.
Changes the detail level of the Itinerary. The levels are as follows:
x Detailed Instructions: all intersections are listed
x Itinerary: only significant intersections (the ones announced in
voice guidance) are listed
x Road list: the list of the roads used while navigating the route
,
Moves between pages for additional list items.
![](/img.php?id=1211548&img=bg1a.png)
26

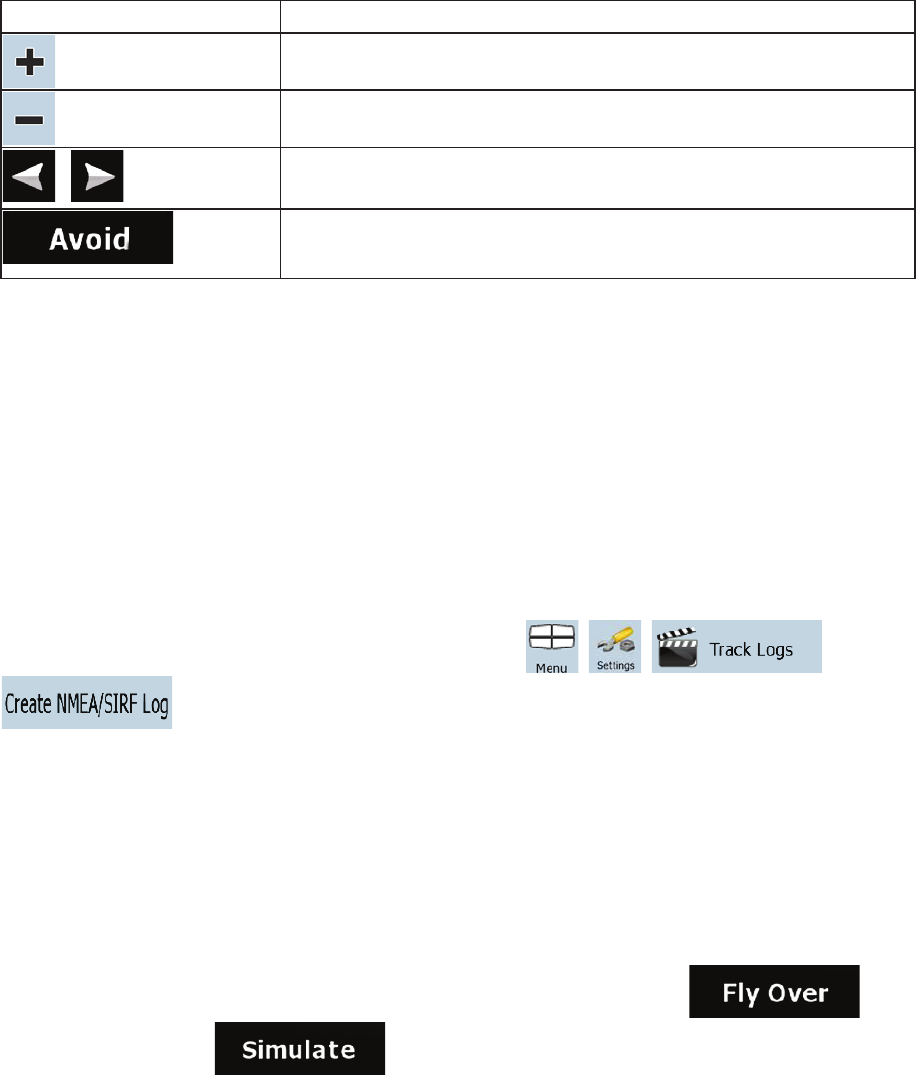

When the map is open with a maneuver in the middle:
Button Description
Zooms in the map.
Zooms out the map.
,
Moves the map to show the previous or next maneuver.
Opens a screen where you can avoid a part of the route starting from the
selected maneuver.

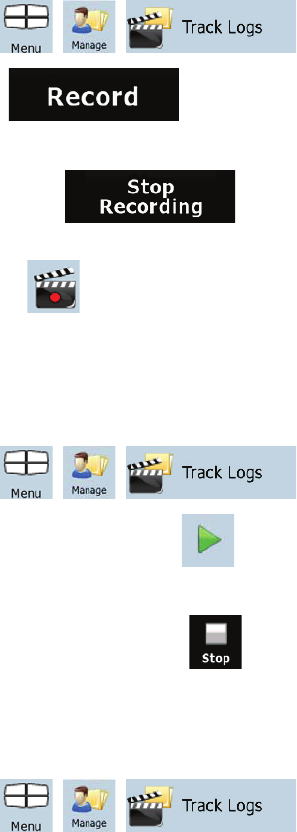

2.4.7 Track Logs
Clarion Mobile Map can log the track that you drive (page 47).
A Track Log is a recording of how your GPS position changed and it is independent of the route Clarion
Mobile Map calculated.
Track Logs can be recorded, renamed, replayed, shown on the map, exported to a memory card in GPX
format, and deleted. See page 71.
Independently of the normal track log, you can instruct Clarion Mobile Map to record the native GPS data
received from the GPS device. These logs are saved as separate text files on the memory card, and they
cannot be shown or replayed in Clarion Mobile Map.
To turn on NMEA/SIRF log saving, tap the following buttons: , , ,
.
2.4.8 Route demonstration
A simulation drives you through the route, following the driving instructions (page 45). You can choose
from a simulation at high speed or at normal driving speed.
You can use it, for example, to see which bridge Clarion Mobile Map planned for the route; if you do not
want to take that bridge, you can avoid it.
Route demonstrations can be started from the Route menu by tapping the (high
speed simulation) or the (simulation at normal speed) button.
![](/img.php?id=1211548&img=bg1b.png)
27
2.4.9 POI (Points of Interest)
A point of interest (POI) is a location that someone might find useful or interesting. Clarion Mobile Map is
delivered with thousands of POIs and you can also create your own POIs in the application.
POI locations are marked on the map with special icons. POI icons are quite large so you can easily
recognize the symbol. The icons are semi-transparent: they do not cover the streets and intersections
behind them.
POIs are grouped into several levels of categories and subcategories. The icon of a POI that comes with
the map shows the symbol of the POI category. If you save your own POI, you can select an icon for it
independently of the POI category you have put it in.
Saving POIs
To save a POI, place the Cursor ( ) at the desired location, then tap the following buttons: ,
, .
Managing POIs
You can select which POI groups to show and which ones to hide on the map, and from which zoom
levels POI icons are visible. At the same place you can manage your saved POIs. A saved POI can be
renamed, moved to a different POI group, its icon can be changed, or a phone number and additional
information can be added to it. Tap the following buttons: , , .
2.4.10 Road Safety Cameras
The location of a Road Safety Camera is a special POI. These cannot be searched like other POIs, and
there is a special proximity warning only for cameras.
Is Clarion NX700 shipped with a built-in database of Road Safety Cameras? No
Can you upload Road Safety Camera locations from naviextras.com? Yes
Can Road Safety Camera locations be uploaded in a text file? Yes
Can you save the Cursor as the location of a Road Safety Camera? Yes
![](/img.php?id=1211548&img=bg1c.png)
28

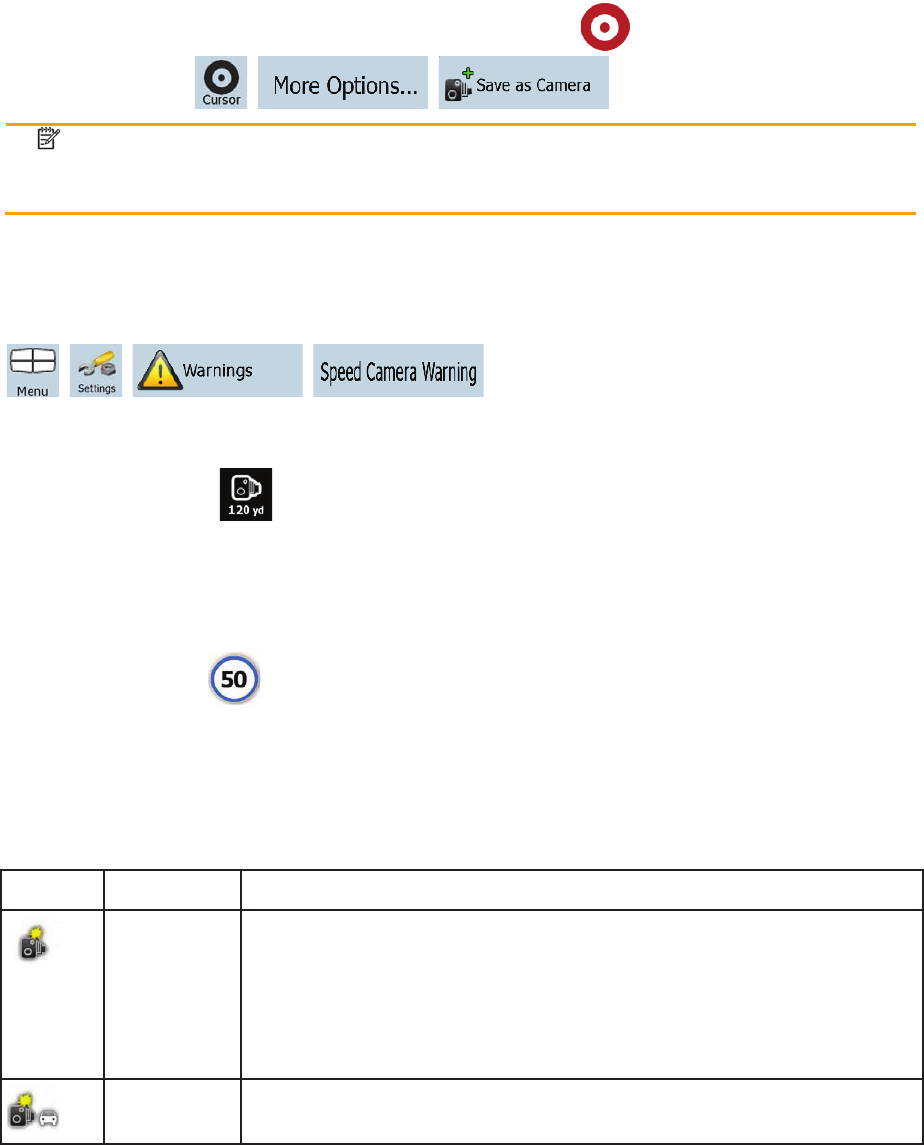

Saving Road Safety Cameras
To save the location of a Road Safety Camera, place the Cursor ( ) at the desired location, then tap
the following buttons: , , .
Note! This button is not displayed when GPS position is not available or if you are in certain
countries where Road Safety Camera warning is prohibited. Even if the button is available,
you are responsible for checking whether it is legal to use this feature at your location.
Camera warning
The warning for Road Safety Cameras can be turned on in Warning Settings. Tap the following buttons:
, , , .
When you approach a Road Safety Camera with the warning enabled, the following happens:
x Visible Warning: The type and distance of the camera is displayed in the secondary Turn Preview
field (for example ).
x Audible Warning: If there is no speed limit specified for the camera, or your speed is under the
specified speed limit, single beeps warn you about the camera.
x If you exceed the speed limit of the camera, the following also happens:
x Visible Warning: A symbol with the speed limit appears in the corner of the map (for
example: ),
x Audible Warning: A special alert sound is played.

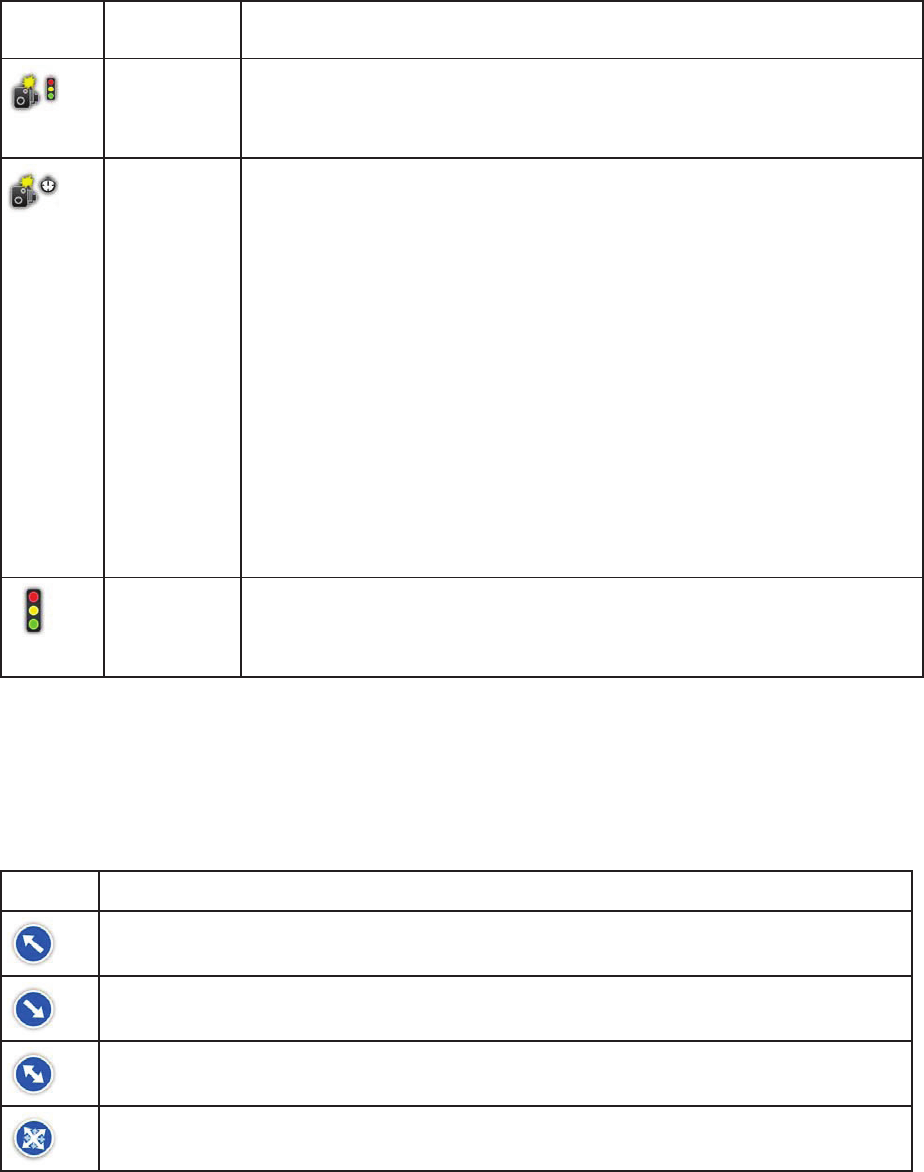

2.4.10.1 Camera types
There are different types of Road Safety Cameras.
Icon Type Description
Fixed Some speed cameras stand by the roadside, looking in one direction,
measuring one or both directions of the traffic. They measure your current
speed. For these speed cameras you can specify the controlled traffic
direction and the speed limit. Clarion Mobile Map warns you when you
approach these speed cameras in the measured direction. If your speed
exceeds the speed limit near the speed camera, Clarion Mobile Map plays a
special warning sound.
Mobile Some speed cameras are operated from vehicles. They do not always work
and they are not set to check a preset speed limit. The warning is similar to
![](/img.php?id=1211548&img=bg1d.png)
29
fixed speed cameras, but as there is no speed limit given, only the proximity
is announced.
Built-in Some speed cameras are built into traffic lights. They work like fixed speed
cameras, but they are difficult to spot. The warning for proximity and speeding
is the same as for the fixed speed cameras.
Section
control These speed cameras work in pairs, and do not measure your current speed
but your average speed between the two speed cameras. Both identify your
car and record the exact time you pass them. They use the difference
between the two points in time to calculate your average speed.
Clarion Mobile Map warns you when you approach one of these speed
cameras, but as you pass by, the warning stays on, and your average speed
is measured until you reach another speed camera of this type. If your
average speed exceeds the speed limit between the two speed cameras, you
receive the same special warning sound as with the other speed camera
types.
In the rare case Clarion Mobile Map cannot register the moment you pass the
second speed camera (for example, it is placed at the exit of a tunnel where
GPS position is not yet available) the warning continues. Just tap the speed
camera symbol displayed on the screen to stop the warning.
Tap again to display the second route event with the possibility to open the
Itinerary.
Red light These cameras check if you obey traffic lights. The warning is similar to
mobile speed cameras: as there is no speed limit given, only the proximity is
announced.
2.4.10.2 Camera directions
A speed camera can measure the speed of one direction of the traffic, both directions, or even several
directions in an intersection, when they are mounted on a rotating base. The same directions apply to red
light cameras. Clarion Mobile Map warns you only if you drive in a measured or possibly measured
direction. The measured direction of the camera appears with the following symbols:
Icon Description
The camera checks speed in the direction into which you are driving.
The camera checks speed in the opposite driving direction.
The camera checks speed in both directions on the road.
The camera can check speed in any direction.
![](/img.php?id=1211548&img=bg1e.png)
30
2.4.11 Speed limit warning
Maps sometimes contain information about the speed limits of the road segments. This information may
not be available for your region (ask your local dealer) or may not be fully correct for all roads on the map.
You can configure Clarion Mobile Map to warn you if you exceed the current limit. Tap the following
buttons: , , , .
When you exceed the speed limit, a voice message is played using the selected voice guidance profile.
![](/img.php?id=1211548&img=bg1f.png)
31
3 Navigating with Clarion Mobile Map
You can set up your route in Clarion Mobile Map in several ways:
x if you need a simple route (a route with only one destination, without any intermediate via points),
you can select the destination and start navigating to it right away
x you can plan a multi-point route (available in Advanced mode only)
x you can also plan a route independently of your current GPS position or even without GPS
reception (available in Advanced mode only)
3.1 Selecting the destination of a route
Clarion Mobile Map offers you several ways of choosing your destination and via points (intermediate
destinations):
x Use the selected location on the map (the Cursor) (page 31).
x Enter a full address or a part of an address, for example a street name without a house number or
the names of two intersecting streets (page 32).
x Enter an address with ZIP code (page 38). This way you do not need to select the name of the city
and the search for street names might be faster as well.
x Use a coordinate (page 42)
x Use a saved location:
x a Favorite (page 40)
x a POI (page 40)
x the History of previously set destinations and waypoints (page 42)

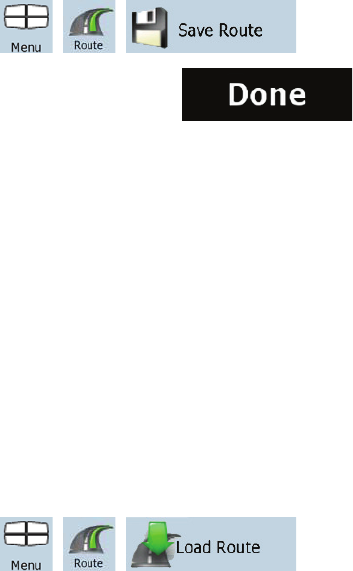

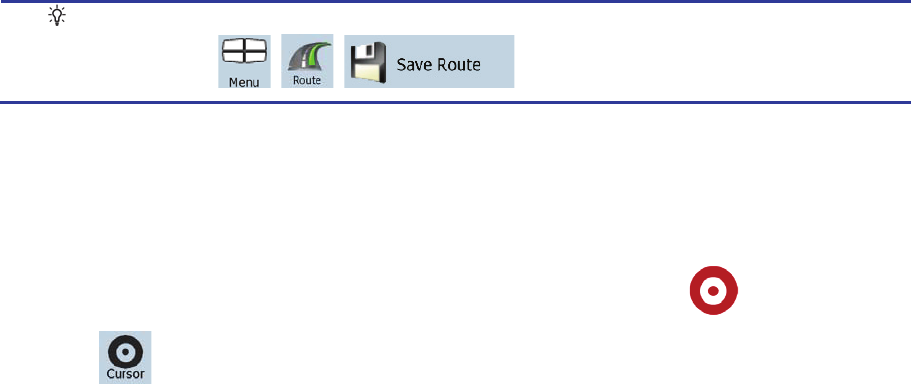

Tip! If you are going to use a route later, save it before you start navigating. Tap the following
buttons: , , .
3.1.1 Selecting the Cursor as the destination
1. Locate your destination on the map: move and scale the map as needed (page 14).
2. Tap the location that you want to select as your destination. The Cursor ( ) appears.
3. Tap to open the Cursor menu.
![](/img.php?id=1211548&img=bg20.png)
32
4. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
Tip! If you know that you will use a destination later, when the Cursor menu appears, save it
as a POI (in Advanced mode only), or put it on the list of your Favorites first. The Curso
r
menu returns automatically with the same point. Now you can use it as a route point.
3.1.2 Entering an address or part of an address
If you know at least a part of the address, it is the quickest way to select the destination of the route.
Using the same screen, you can find an address by entering:
x the exact address, including house number
x the center of a city
x an intersection
x the midpoint of a street
x any of the above, starting the search with the ZIP code (page 38)

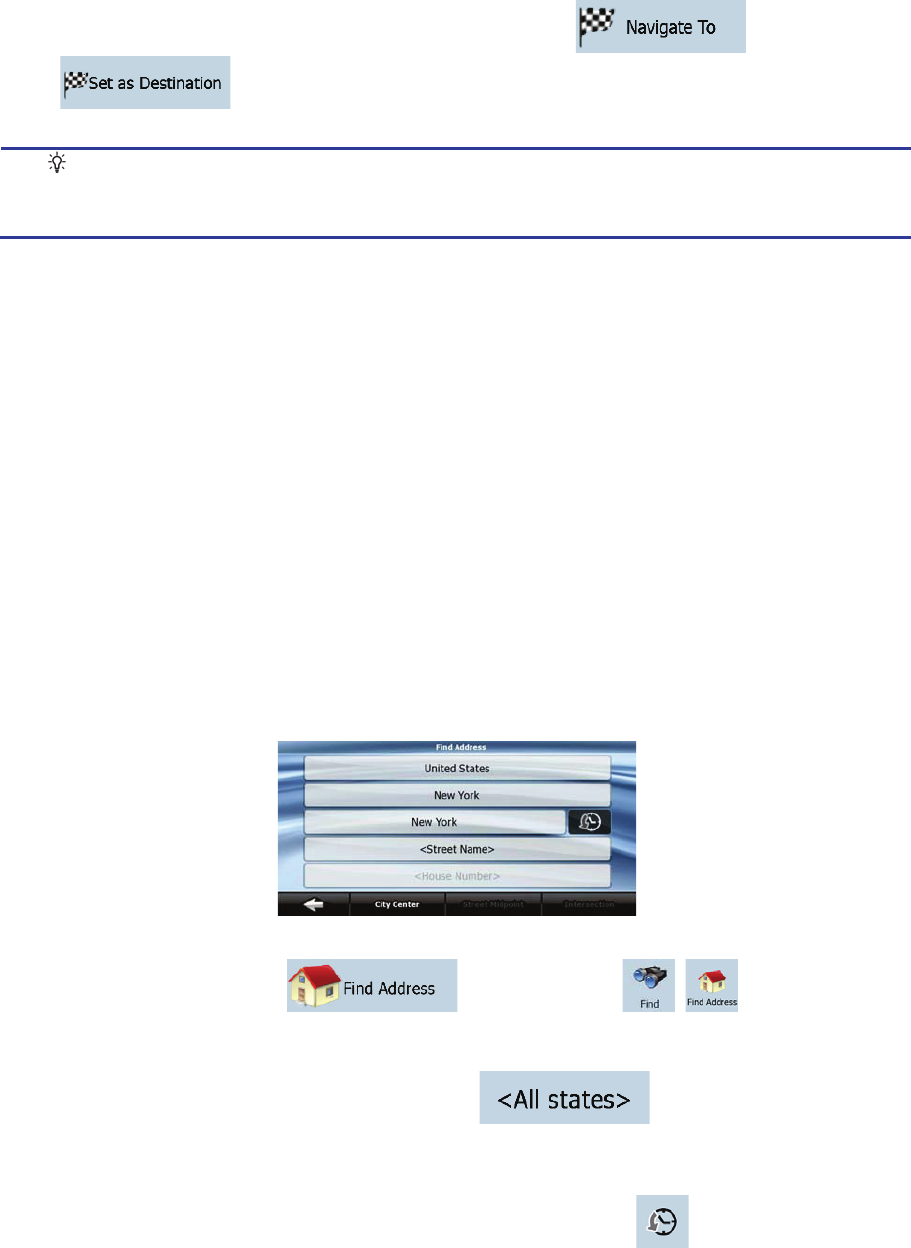

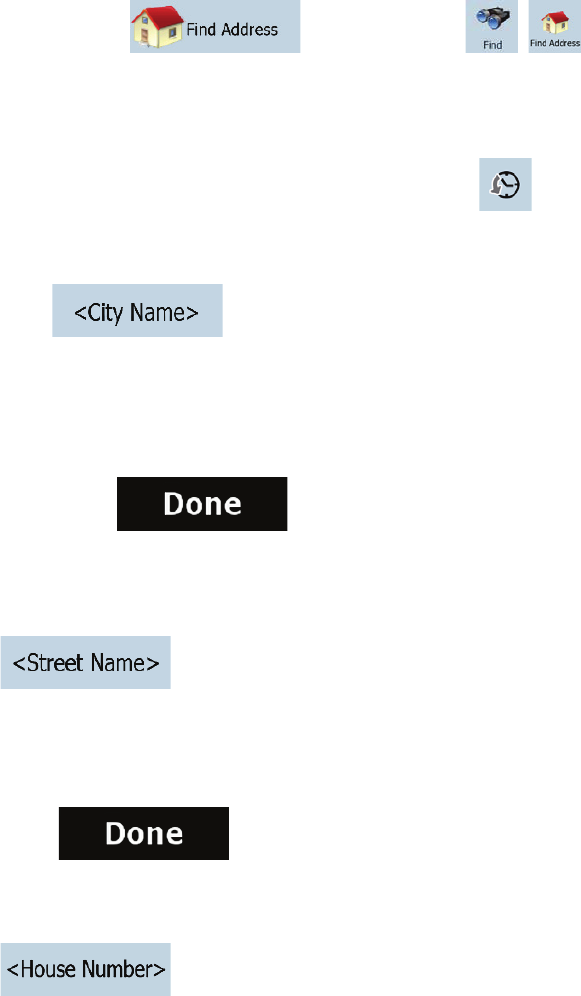

3.1.2.1 Entering an address
The parts of the address are shown on buttons. Start reading from the top, and if you want to change any
of them, tap the button.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or , (Advanced mode).
2. By default, Clarion Mobile Map proposes the country, state and city where you are. If needed, tap
the button with the name of the country, and select a different one from the list. If you select a new
country, you also need to select the state, or tap to search for a city regardless
of the state it is in.
3. If needed, change the city:
x To select the city from the list of recently used ones, tap the button.
![](/img.php?id=1211548&img=bg21.png)
33

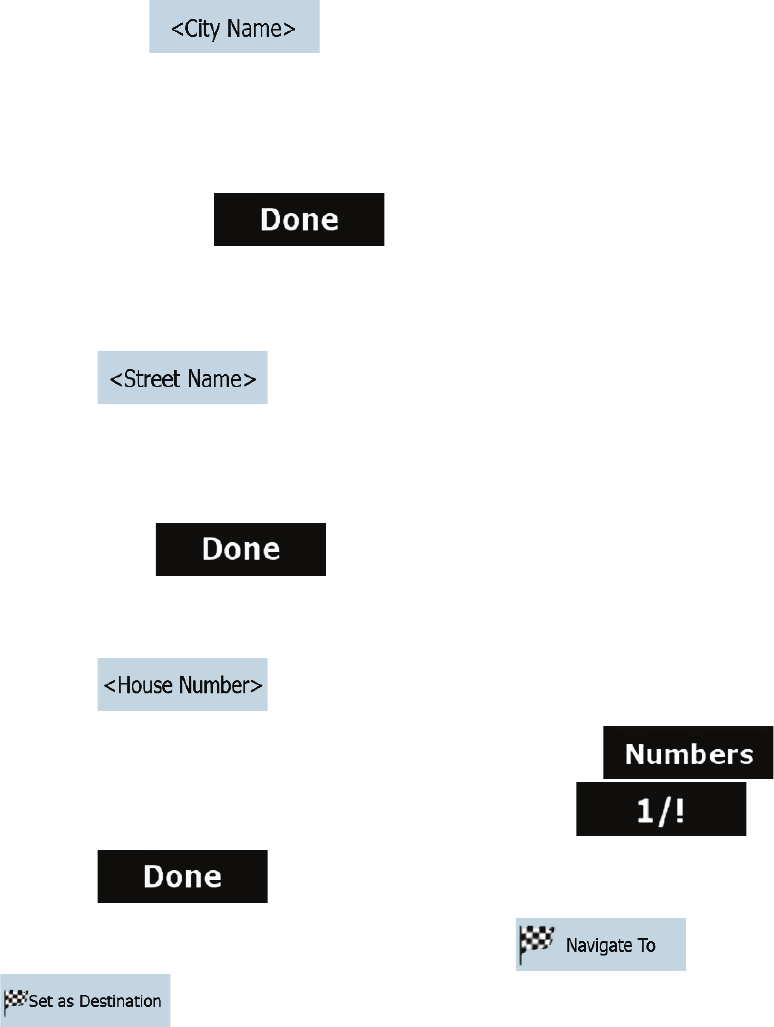

x To enter a new city:
1. Tap the button with the name of the city, or if you have changed the country/state,
tap .
2. Start entering the city name on the keyboard.
3. Get to the list of search results:
x After entering a couple of characters, the names that match the string appear
in a list.
x Tap to open the list of results before it appears
automatically.
4. Select the city from the list.
4. Enter the street name:
1. Tap .
2. Start entering the street name on the keyboard.
3. Get to the list of results:
x After entering a couple of characters, the names that match the string appear in a list.
x Tap to open the list of results before it appears automatically.
4. Select the street from the list.
5. Enter the house number:
1. Tap .
2. Enter the house number on the keyboard. (To enter letters, tap and
select an alphabetic keyboard layout. To enter symbols, tap ).
3. Tap to finish entering the address.
6. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
![](/img.php?id=1211548&img=bg22.png)
34
3.1.2.2 Entering an address if house numbering is restarted
There are long roads where house numbering is restarted at some point. This way the same house
number can appear twice or even more times on the same road. If this is the case, after entering the
house number, you need to select the appropriate address by the district/suburb information.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or , (Advanced mode).
2. By default, Clarion Mobile Map proposes the country/state and city where you are. If needed, tap
the button with the name of the country/state, and select a different one from the list.
3. If needed, change the city:
x To select the city from the list of recently used ones, tap the button.
x To enter a new city:
1. Tap the button with the name of the city, or if you have changed the country/state,
tap .
2. Start entering the city name on the keyboard.
3. Get to the list of search results:
x After entering a couple of characters, the names that match the string appear
in a list.
x Tap to open the list of results before it appears
automatically.
4. Select the city from the list.
4. Enter the street name:
1. Tap .
2. Start entering the street name on the keyboard.
3. Get to the list of results:
x After entering a couple of characters, the names that match the string appear in a list.
x Tap to open the list of results before it appears automatically.
4. Select the street from the list.
5. Enter the house number:
1. Tap .
![](/img.php?id=1211548&img=bg23.png)
35
2. Enter the house number on the keyboard. (To enter letters, tap and
select an alphabetic keyboard layout. To enter symbols, tap ).
3. Tap to finish entering the address.
6. A list appears with the matching addresses. Tap the desired one.
7. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.2.3 Entering an address without knowing the district/suburb
Long roads can run across several districts or suburbs. You may not know what particular house number
is located where. In this case, follow the instructions below:
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or , (Advanced mode).
2. By default, Clarion Mobile Map proposes the country/state and city where you are. If needed, tap
the button with the name of the country/state, and select a different one from the list.
3. If needed, change the city:
x To select the city from the list of recently used ones, tap the button.
x To enter a new city:
1. Tap the button with the name of the city, or if you have changed the country/state,
tap .
2. Start entering the city name on the keyboard.
3. Get to the list of search results:
x After entering a couple of characters, the names that match the string appear
in a list.
x Tap to open the list of results before it appears
automatically.
4. Select the city from the list.
4. Enter the street name:
1. Tap .
![](/img.php?id=1211548&img=bg24.png)
36
2. Start entering the street name on the keyboard.
3. Get to the list of results:
x After entering a couple of characters, the names that match the string appear in a list.
x Tap to open the list of results before it appears automatically.
4. Instead of selecting one of the streets, tap .
5. Enter the house number:
1. Tap .
2. Enter the house number on the keyboard. (To enter letters, tap and
select an alphabetic keyboard layout. To enter symbols, tap ).
3. Tap to finish entering the address.
6. A list appears with the matching addresses. Tap the desired one.
7. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.2.4 Selecting an intersection as the destination
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or , (Advanced mode).
2. By default, Clarion Mobile Map proposes the country/state and city where you are. If needed, tap
the button with the name of the country/state, and select a different one from the list.
3. If needed, change the city:
x To select the city from the list of recently used ones, tap the button.
x To enter a new city:
1. Tap the button with the name of the city, or if you have changed the country/state,
tap .
2. Start entering the city name on the keyboard.
3. Get to the list of search results:
![](/img.php?id=1211548&img=bg25.png)
37
x After entering a couple of characters, the names that match the string appear
in a list.
x Tap to open the list of results before it appears
automatically.
4. Select the city from the list.
4. Enter the street name:
1. Tap .
2. Start entering the street name on the keyboard.
3. Get to the list of results:
x After entering a couple of characters, the names that match the string appear in a list.
x Tap to open the list of results before it appears automatically.
4. Select the street from the list.
5. Tap the button.
x If only a few intersecting streets exist, their list appears immediately.
x In case of a longer street, a keyboard screen appears. Start entering the name of the
intersecting street on the keyboard. As you type, if the matching streets can be shown on
one screen, their list appears automatically.
6. Tap the desired intersecting street in the list.
7. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.2.5 Selecting a city center as the destination
The City Center is not the geometric center of the city but an arbitrary point the map creators have
chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is an
important intersection.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or , (Advanced mode).
2. By default, Clarion Mobile Map proposes the country/state and city where you are. If needed, tap
the button with the name of the country/state, and select a different one from the list.
3. If needed, change the city:
x To select the city from the list of recently used ones, tap the button.
![](/img.php?id=1211548&img=bg26.png)
38
x To enter a new city:
1. Tap the button with the name of the city, or if you have changed the country/state,
tap .
2. Start entering the city name on the keyboard.
3. Get to the list of search results:
x After entering a couple of characters, the names that match the string appear
in a list.
x Tap to open the list of results before it appears
automatically.
4. Select the city from the list.
4. Tap the button.
5. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.2.6 Entering an address with a ZIP code
All of the above address searching possibilities can be performed with entering the ZIP code instead of
the city name. Find below an example with a full address:
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or , (Advanced mode).
2. By default, Clarion Mobile Map proposes the country/state and city where you are. If needed, tap
the button with the name of the country/state, and select a different one from the list.
3. Tap the button with the name of the city, and enter the ZIP code:
1. Start entering the ZIP code on the keyboard.
2. Get to the list of results:
x After entering a couple of numbers, matching results appear in a list.
x Tap to open the list of results before it appears automatically.
3. Pick the city from the list.
4. Enter the street name:
1. Tap .
2. Start entering the street name on the keyboard.
![](/img.php?id=1211548&img=bg27.png)
39
3. Get to the list of results:
x After entering a couple of characters, the names that match the string appear in a list.
x Tap to open the list of results before it appears automatically.
4. Select the street from the list.
5. Enter the house number:
1. Tap .
2. Enter the house number on the keyboard. (To enter letters, tap and
select an alphabetic keyboard layout. To enter symbols, tap ).
3. Tap to finish entering the address.
6. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.2.7 Tips on entering addresses quickly
x When you are entering the name of a city or a street, Clarion Mobile Map only displays those
characters that appear in possible search results. The other characters are grayed out.
x When entering the city name or the street name, tap the button after a couple
of letters; Clarion Mobile Map lists the items that contain the specified letters.
x You can speed up finding an intersection:
x Search first for the street with a less common or less usual name; fewer letters are enough
to find it.
x If one of the streets is shorter, search for that one first. You can then find the second one
faster.
x You can search for both the type and the name of a road. If the same word appears in several
names, for example in the name of streets, roads and avenues, you can obtain the result faster if
you enter the first letter of the street type: For example, enter Pi A to obtain Pine Avenue and skip
all Pine Streets and Pickwick Roads.
x You can also search in ZIP codes. This is useful when a street name is common and it is used in
several districts of a city.
![](/img.php?id=1211548&img=bg28.png)
40
3.1.3 Selecting the destination from your Favorites
You can select a location that you have already saved as a Favorite to be your destination.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode) or ,
(Advanced mode).
2. Tap the Favorite that you want to set as your destination.
3. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.4 Selecting the destination from the POIs
You can select your destination from the POIs included with Clarion Mobile Map or from the ones you
have previously created.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or , (Advanced mode).
2. Select the area around which the POI should be searched for:
x : The POI will be searched for around a given address.
x : The map appears with the Cursor in the middle. Modify the location of the Cursor if
necessary, then tap . The POI will be searched for around the given location.
x : The POI will be searched for around the current GPS position.
x : The POI will be searched for around the destination of the active route.
x : The POI will be searched for not around a given point, but by the size
of the detour it adds to the active route. This can be useful if you search for a later stopover
that causes only a minimal detour, for example upcoming gas stations or restaurants.
3. You can narrow the search with the following:
x Select the POI group (e.g. Accommodation), and after that, if needed, select the POI
subgroup (e.g. Hotel or Motel).
![](/img.php?id=1211548&img=bg29.png)
41
x To find the POI by its name, tap , and use the keyboard to enter a part
of the name.
x To list all POIs in a given POI group, tap .
4. [optional] When finally the list of results appear, you can sort the list:
x : sort the list alphabetically (available when you search around a single
location)
x : sort the list by the distance from your current position in a straight line
(available when you search around a single location)
x : sort the list by the distance to drive on route from your current position
(available when you search along the active route)
x : sort the list by the size of the needed detour (available when you
search along the active route)
5. Tap the desired POI in the list.
6. Review the details of the selected item and tap .
7. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.5 Selecting the destination with saved POI search criteria
POI search criteria can be saved in the POI section of the Manage menu, but Clarion Mobile Map is
already shipped with some saved criteria you can use instantly when searching for a POI.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or , (Advanced mode).
2. Tap .
3. Select one of the saved criteria, and the list of matching POIs appears.
4. Tap the desired POI in the list.
![](/img.php?id=1211548&img=bg2a.png)
42
5. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.6 Selecting the destination from the History
The destinations that you have set earlier appear in the History.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: (Simple mode), or ,
(Advanced mode).
2. If necessary, move between pages with to see earlier destinations.
3. Tap the desired item.
4. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.1.7 Selecting the destination by entering its coordinates
This feature is available in Advanced mode only.
The procedure is explained starting from the Navigation menu.
1. Tap the following buttons: , .
2. [optional] Tap to change the format of the displayed coordinates.
3. Tap the latitude or longitude value to change the coordinates.
4. Enter the coordinate values in WGS84 format on the keyboard: the latitude (N or S) and the
longitude (E or W).
5. Tap .
![](/img.php?id=1211548&img=bg2b.png)
43
6. The map appears with the selected point in the middle. Tap (Simple mode) or
(Advanced mode) from the Cursor menu. The route is then automatically
calculated, and you can start navigating.
3.2 Creating a multi-point route (inserting a via point)
Multi-point routes are created from simple routes, so a route must be active first. One of the ways of
expanding the route is to keep the destination, and to add via points (intermediate destinations).
This feature is available in Advanced mode only.
1. Select a new location as you did in the previous sections. This will be the additional destination in
the route.
2. The map appears with the selected point in the middle, and the Cursor menu opens automatically.
3. Tap to add the point as an intermediate destination preceding the final
destination of the route.
4. [optional] To add more points to the route, repeat the above steps as many times as you like.
If you insert a via point in a route that is already a multi-point route, you will automatically be taken to the
Edit Route screen where you can determine the position of the intermediate route point. When you enter
the screen, the new via point is placed as the first via point to be reached. The new point is the
highlighted point in the list.
You have the following options:
Button Action
The selected point moves up in the list (becomes a via point to be reached earlier).
Tap this button repeatedly, and the point becomes the start point of the route
(when routing from a given location) or the first via point to reach (when routing
from the GPS position).
The selected point moves down in the list (becomes a via point to be reached
later). Tap this button repeatedly, and the point becomes the final destination of
the route.
Tap this button to reverse the route. The start point becomes the destination, the
destination becomes the start point, and all via points are to be reached in the
opposite order than before.
Tap this button to optimize the route. The start point and the destination remain at
their position, but the via points are reordered to make the shortest possible route.
Tap this button to remove the selected point from the route. The route remains as
it was before adding the new point.
Every time a new point is added, the route is recalculated automatically, and you can start navigating right
away.
![](/img.php?id=1211548&img=bg2c.png)
44
3.3 Creating a multi-point route (appending a new destination)
destination Multi-point routes are created from simple routes, so a route must be active first. One of the
ways of expanding the route is to add a new destination. The previous destination becomes the last via
point of the route.
This feature is available in Advanced mode only.
1. Select a new location as you did in the previous sections. This will be the additional destination in
the route.
2. The map appears with the selected point in the middle, and the Cursor menu opens automatically.
3. Tap to open the full Cursor menu with the additional functions.
4. Tap to add the point as a new final destination demoting the previous one to
the last intermediate destination.
5. [optional] To add more points to the route, repeat the above steps as many times as you like.
Every time a new point is added, the route is recalculated automatically and you can start navigating right
away.
3.4 Editing the route
This feature is available in Advanced mode only.
Tap the following buttons: , , .
The list of route points appear with the start point at the top of the list and the final destination at the
bottom. If several via points exist, you might need to scroll between pages.
Tap one of the route points in the list. You have the following options:
Button Action
The selected point moves up in the list (becomes a via point to be reached earlier).
Tap this button repeatedly, and the point becomes the start point of the route (when
routing from a given location) or the first via point to reach (when routing from the
GPS position).
The selected point moves down in the list (becomes a via point to be reached later).
Tap this button repeatedly, and the point becomes the final destination of the route.
Tap this button to reverse the route. The start point becomes the destination, the
destination becomes the start point, and all via points are to be reached in the
opposite order than before.
Tap this button to optimize the route. The start point and the destination remain at
their position, but the via points are reordered to make the shortest possible route.
![](/img.php?id=1211548&img=bg2d.png)
45
Tap this button to remove the selected point from the route.
As soon as you leave this screen, the route is recalculated automatically, and you can start navigating
right away.
3.5 Viewing the entire route on the map (Fit-to-Screen)
The map can be moved and scaled to show the whole line of the route. You do not need to manipulate
the map manually. The Plan on Map feature does it for you.
In Advanced mode you have the following options to enter Plan on Map:
x Via the Find menu: tap , , .
x Via the Route Information screen: tap , , , .
x Via the Route Information screen using a shortcut: tap , .
In Simple mode the last option is available only.
3.6 Watching the simulation of the route
This feature is available in Advanced mode only.
The procedure is explained starting from the Map screen.
1. Tap the following buttons: , .
2. The Route menu appears. There are two ways of running the route simulation:
x Tap to run the simulation at high speed to give you a quick overview of
the route.
x Tap to run the simulation at normal speed and with voice guidance
instructions announced. This option is for demonstration purposes, or for checking difficult
parts of the route in advance.
3. The simulation can be aborted any time by tapping .
![](/img.php?id=1211548&img=bg2e.png)
46
3.7 Enabling Safety Mode
This feature is available in Advanced mode only.
Safety Mode disables the touch screen above 10 km/h (6 mph) to keep your attention on the road. While
driving, you will not be able to set a new destination or to change settings. The only screen control that
remains enabled is the gesture that puts you back on the Map screen.
The procedure is explained starting from the Map screen.
Tap the following buttons: , , , .
3.8 Pausing the active route
You do not need to pause the active route: when you start driving again, Clarion Mobile Map restarts the
voice instructions from your position.
3.9 Deleting the next via point from the route
The easiest way to delete the upcoming route point (the next via point) is to open the Route Information
screen by tapping the Turn Preview field ( ) on the Map screen, and then tapping
.
Alternatively, you can do it through the Navigation menu: , , ,
.
![](/img.php?id=1211548&img=bg2f.png)
47
3.10 Deleting the active route
The easiest way to delete the active route in both Simple mode and Advanced mode is to open the Route
Information screen by tapping the Turn Preview field ( ) on the Map screen, and then tapping
.
In Advanced mode, you have another option. Tap the following buttons: , ,
.
Note! If via points exist in the active route, you cannot delete the route immediately on the
Route Information screen. Tap repeatedly until all via points
disappear and the button appears. Tap it to cancel the whole route.
3.11 Using Track Logs
Clarion Mobile Map can record the track (how your GPS position changed) that you drive.
Tip! You do not need to select a destination and create a route for this; you can also record
your driving path while cruising.
This feature is available in Advanced mode only.
The procedure is explained starting from the Map screen.
![](/img.php?id=1211548&img=bg30.png)
48
Recording the traveled path (creating a Track Log)
1. Start driving.
2. Tap the following buttons: , , .
3. Start the recording: tap the button.
You return to the map and you can continue driving.
4. Repeat the above steps, then tap later to stop the recording. Clarion Mobile
Map labels the Track Log with a time stamp.
(As an alternative, you can tap the button in the Quick menu to start, and later to stop the Track
Log recording.)
Simulating a Track Log on the map
1. Tap the following buttons: , , .
2. Locate the desired Track Log, and then tap the button next to it.
3. The map returns, and the Track Log simulation (a life-like replay) begins.
4. You can stop the replay any time by tapping the button.
Changing the color of a Track Log
1. Tap the following buttons: , , .
2. Tap the desired Track Log and then tap one of the color buttons.
![](/img.php?id=1211548&img=bg31.png)
49
3.12 Saving the active route
This feature is available in Advanced mode only.
The procedure is explained starting from the Map screen.
1. Tap the following buttons: , , .
2. Enter a name for the saved route, and then tap .
When you save a route, Clarion Mobile Map not only saves the route points but the whole itinerary:
x If you updated your map since you first saved the route, Clarion Mobile Map recognizes the
change, and recalculates the driving instructions according to the latest available map information.
x If you want to save the route, you need to save it before you start navigating. During navigation,
Clarion Mobile Map deletes any via points that you already left behind together with the road
segments used to reach it.
3.13 Loading a saved route
This feature is available in Advanced mode only.
The procedure is explained starting from the Map screen.
1. Tap the following buttons: , , .
2. Tap the route you wish to navigate.
3. In the very likely case when the start position of the saved route is different from the current GPS
position, you need to confirm whether you want to stop navigating from the current GPS position to
use the start point of the loaded route.
x If you choose this option, automatic off-route recalculation will be disabled.
x If you choose to keep the current GPS position as the start point, the route will be
recalculated starting from your current position.
4. The map appears, and you can start navigating.
![](/img.php?id=1211548&img=bg32.png)
50
4 Reference Guide (Advanced mode)
On the following pages you will find the description of the different menu screens of Clarion Mobile Map in
Advanced mode. In Simple mode, these functions work the same way, but only a few of them are
available.
The Navigation menu:
Clarion Mobile Map starts with the Navigation menu. From there you can access the following screens:
Screen Button Description
Map
This button opens the Map screen.
Find
Selecting the destination (for example an address or a POI) or
using the search engine of Clarion Mobile Map for any other
reason (for example to look for the phone number of a POI).
Route
Managing the active route (obtaining information about it,
changing or deleting it or parts of it) or planning a route without
GPS reception.
Manage
Managing user data, such as saved locations (POIs, Favorites,
Pins, and History items), Saved Routes, and Track Logs.
Settings
Managing the behavior of Clarion Mobile Map, for example the
map layout during navigation, the used languages or the
warnings.
Bluetooth
This button opens the phone application. You can pair your
Clarion NX700 with your cell phone as a hands-free device.
Audio Visual
This button opens the Audio Visual screen. You can operate
the Audio Visual functions of your Clarion NX700.
![](/img.php?id=1211548&img=bg33.png)
51
4.1 Map screen
Clarion Mobile Map is primarily intended for land navigation. That is why maps in Clarion Mobile Map look
similar to paper road maps. However, Clarion Mobile Map provides much more than regular paper maps:
you can customize the look and the content of the map.
The most important and most often used screen of Clarion Mobile Map is the Map screen.
During navigation, the screen shows route information and trip data (left screenshot), but when you tap
the map, additional buttons and controls appear for a few seconds (right screenshot). Most parts of the
screen behave as buttons.
Symbol Name Action
Turn Preview, that is, the next
route event
Opens the Route Information screen
Second upcoming route event Opens the Itinerary
Trip data Opens the Trip Information screen
GPS position quality Opens the Quick menu
Vehicle used in route
calculation
Opens the Quick menu
Top row Next street or Next city
A
dditional buttons and controls appear
for a few seconds
Bottom row Current street and house
numbers on left and right
A
dditional buttons and controls appear
for a few seconds
, ,
Map view modes Switches between 2D and 3D map
modes:
x 2D North-up
![](/img.php?id=1211548&img=bg34.png)
52
x 2D rotated
x 3D rotated
Menu Opens the Navigation menu
Detour Opens the Detour screen, offering two
ways of modifying the route:
x the list of Saved Search Criteria
x a button to avoid parts of the
route
Position menu (appears when
navigating a route)
Opens the Position menu
Cursor menu (appears when
there is no GPS position or the
Cursor is not at the current
GPS position)
Opens the Cursor menu
Open/Close Map control
buttons Tap this button to show or hide the
following map control buttons:
x Zoom in/out
x Rotate left/right (3D map only)
x Tilt up/down (3D map only)
x Zoom preset buttons (2D map
only)
x Tilt and zoom preset buttons (3D
map only)
x Return to GPS position button
x Smart Zoom button
,
Rotate left, rotate right Rotates the 3D map left or right
,
Tilt up, tilt down Tilts the 3D map
,
Zoom in, zoom out Scales the map
![](/img.php?id=1211548&img=bg35.png)
53
Return to GPS position
(appears when GPS position is
available and you have moved
the map)
Tap this button to move the map back
to the current GPS position. If the map
has been rotated, automatic map
rotation is also re-enabled.
Enable Smart Zoom (replaces
the previous button if there is
no GPS position or the map
has not been moved)
Tap this button once to enable Smart
Zoom.
Tap&hold the button to set the zoom
limits of Smart Zoom.
Zoom preset buttons (available
in Advanced mode only) Tap one of the preset buttons to set the
zoom level to a fix, predefined value.
Smart Zoom is disabled. These buttons
are available in 2D mode.
Tap&hold any of the buttons to set its
value to the current zoom level, or to
reset it to its original value.
Tilt preset buttons (available in
Advanced mode only) Tap one of the preset buttons to set the
tilt and zoom levels to fix, predefined
values. Smart Zoom is disabled. These
buttons are available in 3D mode.
Tap&hold any of the buttons to set its
value to the current tilt and zoom levels,
or to reset it to its original value.
Current GPS position (on
nearest road)
n/a
Cursor (selected map location) n/a
Lane information n/a
Signpost information n/a
Blue line Active route n/a
Map scale (2D map only) n/a
Speed limit n/a
![](/img.php?id=1211548&img=bg36.png)
54
Phone call in progress This button is displayed only during a
phone call. Tap the button to hang up.
Repeat Voice Instruction Tap this button to repeat the current
voice instruction. The distance is
updated to always describe the current
situation.
4.1.1 Icons on the map
There are several status icons on the map. Most of them also function as a button. The information they
provide is as follows:
x GPS position quality
x Vehicle type used for route calculation
x Sound status (muted or enabled)
x Track log recording status
x Bluetooth connection and communication status
4.1.1.1 GPS position quality and Vehicle type indicator
This area is a multiple status indicator, and also acts as a button that opens the Quick menu.
GPS reception quality shows the current accuracy of the position information.
Icon Description
Clarion Mobile Map has no connection to the GPS receiver: GPS navigation is
not possible.
Devices with a built-in GPS receiver are permanently connected. On such
devices, the icon does not appear in normal circumstances.
Clarion Mobile Map is connected to the GPS receiver, but the signal is too weak
and the receiver cannot determine the GPS position.
GPS navigation is not possible.
Only a few satellites are received. Position information is available, but elevation
(altitude) cannot be calculated.
GPS navigation is possible, but the position error may be significant.
Altitude information is available, the position is a 3D position.
GPS navigation is possible.
![](/img.php?id=1211548&img=bg37.png)
55
The remaining part of the field shows the vehicle type used for route calculation.
Icon Vehicle type
Car
Taxi
Bus
Emergency vehicles
4.1.1.2 Status indicator strip
This is a multiple status indicator. It indicates the following status information on a single strip:
Icon Description
The sound output of Clarion Mobile Map is muted.
The sound output of Clarion Mobile Map is enabled.
Clarion Mobile Map records a Track log when GPS position is available.
Track log recording is disabled.
The Bluetooth radio is switched off.
The Bluetooth radio is turned on, but no telephone is connected.
There is an error in the Bluetooth connection.
Clarion Mobile Map is connected to a telephone as a handsfree set via Bluetooth.
A phone call is in progress over the Bluetooth connection.
4.1.1.3 Phone call in progress
When connected to a cell phone as a hands-free device with a phone call in progress, the
button appears on the Map screen. Tap this button to hang up the call.
![](/img.php?id=1211548&img=bg38.png)
56
4.1.1.4 Next two route events (Turn Preview fields)
There are two fields reserved on the Map screen to display the next two maneuvers (route events that are
listed in the Itinerary). Both the type of the event (turn, traffic circle, exiting freeway, etc.) and its distance
from the current GPS position is displayed.
Most of these icons are very intuitive and you also know them as road signs. The following table lists
some of the frequently shown route events. The same symbols are used in both fields:
Icon Description
,
Turn left.
,
Turn right.
,
Turn back.
,
Bear right.
,
Turn sharp left.
,
Keep left.
,
Continue straight in the intersection.
,
Enter traffic circle. The number of the exit is shown in the circle, but only for the next
turn.
,
Enter freeway.
,
Exit freeway.
,
Board ferry.
,
Leave ferry.
,
Approaching the next via point.
,
Approaching the destination.
In certain situations when route events are not important, these fields show other useful pieces of
information. They are described here: page 17.
![](/img.php?id=1211548&img=bg39.png)
57
4.1.2 Objects on the map
4.1.2.1 Streets and roads
Clarion Mobile Map shows the streets in a way that is similar to how the paper road maps show them.
Their width and colors correspond to their importance: you can easily tell a freeway from a small street.
Tip! If you prefer not to see street names during navigation, turn them off (page 77).
4.1.2.2 3D object types
Clarion Mobile Map supports the following 3D object types:
Type Description
3D landmarks Landmarks are 3D artistic or block representations of prominent or well-known
objects. 3D landmarks are only available in selected cities and countries.
Elevation model Hills and mountains are shown in the background of the 3D map view, and illustrated
by color on the 2D map.
Elevated roads Complex intersections and vertically isolated roads (such as overpasses or bridges)
are displayed in 3D.
3D buildings Full 3D city building data that represents actual building size and position on the map.
Building data is limited to the city centers of major cities in the US and Europe.
3D terrain 3D terrain map data shows changes in terrain, elevations or depressions in the land
when you view the map, and use it to plot the route map in 3D when you navigate.
To fine-tune 3D visualization on the map, tap the following buttons: , , ,
.
4.1.2.3 Elements of the active route
Clarion Mobile Map shows the route in the following way:
Symbol Name Description
Current GPS position Your current position displayed on the map. If roads are
near, it is aligned to the nearest road.
Cursor (selected map location) The location selected in the Find menu, or a map point
selected by tapping the map.
Start point The first point of the route.
![](/img.php?id=1211548&img=bg3a.png)
58
Normally if GPS position is available, it is the start point
of the route. If there is no valid GPS position, Clarion
Mobile Map uses the last known GPS position as the
start point.
When you are using a saved route, Clarion Mobile Map
asks you if you want to use your GPS position or the
first point in the saved route as the start point.
You can also modify the start point in the Cursor menu.
If you do so, automatic off-route recalculation needs to
be turned off to keep the selected point as the start
point.
If automatic off-route recalculation is disabled for any of
the above, tapping the icon in the Turn Preview
field not only initiates route recalculation from the
current GPS position, but it will re-enable the automatic
off-route recalculation as well.
Via point A via point is an intermediate destination. You can place
as many via points as you want.
Destination (end point) The last point of the route, the final destination.
Route color The route always stands out with its color on the map,
both in daytime and in night color mode. The active leg
of the route is always displayed in a brighter shade than
the inactive (upcoming) legs.
Active leg of the route The section of the route on which you are driving.
If you have not added any via points (only a
destination), the entire route is the active leg. If you
have added via points, the active leg is the part of the
route from your current location to the next route point
(the next via point, or the destination if there are no
more via points to reach).
Inactive legs of the route The future sections of the route; each of them becomes
active when you reach the via point at its beginning.
Streets and roads that are
excluded from the navigation
You can choose whether you want to use or avoid
certain road types (page 79). However, when Clarion
Mobile Map cannot avoid such roads, the route will
include them and it will show them in a color that is
different from the route color.
![](/img.php?id=1211548&img=bg3b.png)
59
4.1.3 Detour menu
This screen contains quick detour possibilities during navigation. It can be opened directly from the Map
screen by tapping .
You have the following options:
x On the main part of the screen you can see the first page of Saved Search Criteria. Select any of
the criteria to quickly receive the list of nearest matching POIs, and instantly plan a new route to
the desired one, or insert it as a via point in your active route.
x In Advanced mode more buttons appear at the bottom:
x : If you want to bypass a part of the route starting from the next
intersection, tap this button, and select a distance to bypass.
x : If you have used the above function before, tap this button to clear the
restrictions from the map.
4.1.4 Cursor menu
As soon as you select one point in the Find menu, the map appears with the Cursor menu, a menu with
possible actions for the selected point.
Alternatively when you tap the map, control buttons appear. Tap again to place the Cursor, a radiating red
dot. Now tap , and the Cursor menu opens with a list of options.
You can perform the following actions in Simple mode:
Button Description
Closes the Cursor menu, and returns to the previous screen.
Zooms out the map.
Zooms in the map.
With the Cursor menu open, you can still move or scale the map, and tap the
map anywhere to place the Cursor to a new location, but when you use this
button, the Cursor jumps back to the place where it was at the time when you
opened the Cursor menu.
Displayed at the Cursor if it is at the same location with which the Cursor
menu was opened.
Displayed at the Cursor if it has been relocated since the Cursor menu was
opened.
![](/img.php?id=1211548&img=bg3c.png)
60
Creates a new route with the Cursor as the destination. The previous route (if
exists) is deleted.
The location of the Cursor is added to the list of frequently visited
destinations, the so called Favorites. You can give a name for the Favorite.
Opens a new screen with the address and coordinate of the Cursor, and the
list of nearby POIs.
The following options are available in Advanced mode only:
Button Description
Creates a new route with the Cursor as the destination. The previous route (if
exists) is deleted.
If the Cursor is at or near the destination, this button replaces the previous
one, and deletes the current destination from the route. The last via point is
promoted as destination, or if there are no via points, the route is deleted.
The Cursor is added to the active route as an intermediate route point, a point
to be reached before the destination. If there is already a via point in the
route, the Edit Route screen opens to let you decide where the new via point
is to appear in the route.
If the Cursor is at or near one of the via points, this button replaces the
previous one, and deletes the selected via point from the route. The route is
recalculated without the deleted point.
Map locations can be marked with Pins. Unlike POIs, a Pin has no name and
other details, only a color to let you tell one from another on the map.
If the Cursor is at or near a Pin, this button replaces the previous one, and
deletes the Pin the Cursor is near to.
Opens the full-screen Cursor menu with all the possible options.
The Cursor is appended at the end of the route as the new destination. The
previous destination is demoted, and becomes the last via point.
This button is similar to the button, but a new screen
opens, and the route is calculated with all the possible route calculation
methods (Fast, Short, Economical and Easy). Observe the results, and
choose one of the routes to navigate.
The Cursor becomes the start point of the route. This means that the route is
not started from the current GPS position, and Automatic Off-route
Recalculation needs to be turned off to keep the selected point as the start
point.
If the Cursor is at or near the selected start point, this button replaces the
previous one and deletes the start point from the route. The current GPS
position is used again as the start point, and Automatic Off-route
![](/img.php?id=1211548&img=bg3d.png)
61
Recalculation is re-enabled.
The Cursor is saved as a user POI. Select the POI group and give a name for
the POI, then select a suitable icon, enter a phone number, and additional
information if you like.
The Cursor is saved as the location of a Road Safety Camera (speed camera
or red light camera).
A
new screen appears where you can set the type of the
camera, the direction of the measured traffic, and the speed limit checked for
(if applicable).
This button is not displayed when GPS position is not available or if you are in
certain countries where Road Safety Camera warning is prohibited. Even if
the button is available, you are responsible for checking whether it is legal to
use this feature at your location.
If the Cursor is at or near a Road Safety Camera, this button replaces the
previous one, and opens a new screen where you can edit the details of the
camera.
4.1.5 Position menu
When you follow the recommended route on the map (the Cursor is the current GPS position), the
Position menu replaces the Cursor menu. It does not contain buttons that modify the current route, as the
GPS position is not useful as a route point.
To open the Position menu, tap .
![](/img.php?id=1211548&img=bg3e.png)
62

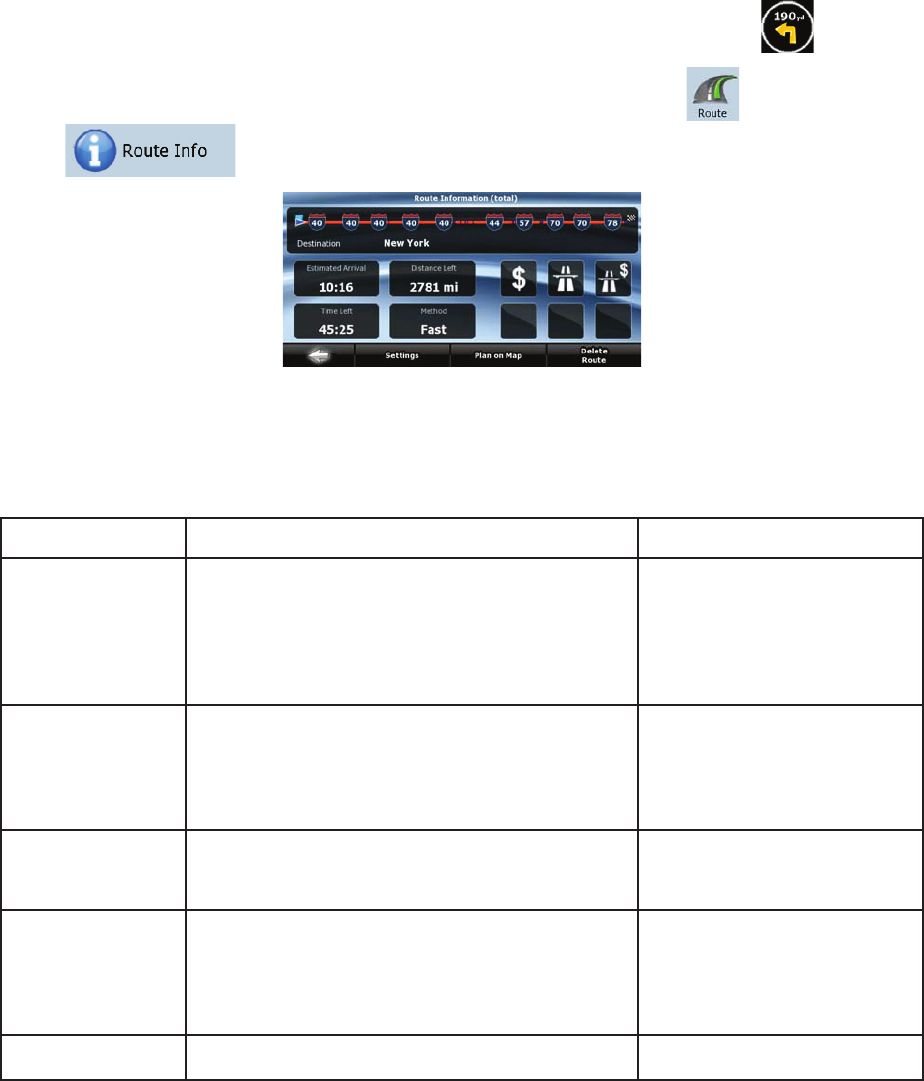

4.1.6 Route Information screen
The Route Information screen has all the data and some of the functions you need while you navigate.
There are two ways to open this screen:
x It can be opened directly from the Map screen by tapping the Turn Preview field ( ).
x In Advanced mode, from the Navigation menu tap the following buttons: ,
.
In the top section of the screen you see information about the current route. The fields on this screen are
continuously updated while you keep the screen open.
When you open the screen, all fields contain information about reaching your final destination. Tap any of
the fields to see data on the via points starting from the first one through the final destination again.
You have the following data and functions on this screen:
Name Description Function
Route line The upper part of this screen shows your planned
route as a horizontal line. Its leftmost point is the
start of the route, the rightmost one is the final
destination, and you can see your via point flags
along the line, spaced in proportion to their
distance.
Tap this field to change the
content of all data fields to via
point information.
Estimated Arrival Shows the estimated arrival time at the final
destination of the route based on information
available for the remaining segments of the route.
The calculation cannot take into account traffic
jams and other possible delays.
Tap this field to change the
content of all data fields to via
point information.
Distance Left Shows the distance you need to travel on the route
before reaching your final destination.
Tap this field to change the
content of all data fields to via
point information.
Time Left Shows the time needed to reach the final
destination of the route based on information
available for the remaining segments of the route.
The calculation cannot take into account traffic
jams and other possible delays.
Tap this field to change the
content of all data fields to via
point information.
Method This field shows how the route was calculated. It Tap this field to change the
![](/img.php?id=1211548&img=bg3f.png)
63
either displays the Route Calculation Method or
the Vehicle field from the Route Planning options.
content of all data fields to via
point information.
Warning icons In these square fields graphical symbols are
displayed in case warnings are attached to the
planned route. These are warnings, so icons
always show information for the whole route, even
if the data fields display values from your current
position to a via point only.
Tap any of the icons for an
explanation.
Opens the Route Planning
options screen from
theSettings menu.
Opens the map screen
designed for route planning.
Appears only if at least one via point exists. Deletes the next via point from
the route.
Appears only if there are no via points in the route. Deletes the active route.
4.1.7 Trip Information screen
The Trip Information screen has both route and travel data you might need during your journey. It can be
opened directly from the Map screen by tapping the Trip Data field ( ).
The fields on this screen are continuously updated while you keep the screen open.
When you open the screen, all route data fields contain information about reaching your final destination.
Tap and the fields concerning your route display data for the next via point. Tap the
button repeatedly to toggle between the two options.
![](/img.php?id=1211548&img=bg40.png)
64
You have the following data and functions on this screen:
Name Description Function
or
Shows whether the route data fields show
information about the final destination (checkered
flag) or about the next via point (yellow flag) .
Field next to the flag Shows the name or number of the current street
or road.
Turn Preview Shows the type and distance of the next route
event.
Compass Shows the current heading. Tap this field to show it on the
map screen in one of the Trip
Data fields.
Speedometer Shows the current speed both graphically and as
a number.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Distance Remaining Shows the distance you need to travel on the
route before reaching your final destination.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Time Remaining Shows the time needed to reach the final
destination of the route based on information
available for the remaining segments of the route.
The calculation cannot take into account traffic
jams and other possible delays.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Arrival Time Shows the estimated arrival time at the final
destination of the route based on information
available for the remaining segments of the route.
The calculation cannot take into account traffic
jams and other possible delays.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
GPS Time Shows the current time corrected with time zone
offset. The accurate time comes from the GPS
satellites, and the time zone information comes
from the map or it can be set manually in
Regional settings.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Altitude Shows the elevation if it is provided by the GPS
receiver.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Speed Limit Shows the speed limit of the current road if the
map contains it.
Tap this field to show it on the
map screen in one of the Trip
Data fields.
Opens a new screen with three
resettable Trip Computers.
Tap this button to change the
content of the Route Data fields
to show information about the
next via point.
![](/img.php?id=1211548&img=bg41.png)
65
If you tap the previous button, this one replaces
it.
Tap this button and the Route
Data fields show information
about the final destination
again.
Most of the fields on this screen have a symbol next to them. This symbol shows whether the field it is
attached to is shown on the map as a Trip Data. It also shows the position of the data as follows:
Symbol Description
This value is not shown on the map screen.
This value appears on the map screen in the Trip Data area. This is the value at the
top.
This value appears on the map screen in the Trip Data area. This is the value in the
middle.
This value appears on the map screen in the Trip Data area. This is the value at the
bottom.
4.1.7.1 Trip Computer screen
The Trip Computer screen provides collected trip data. It can be opened from the Trip Information screen
by tapping .
The fields on this screen are continuously updated while you keep the screen open.
You can switch between the trips, pause then resume them, or reset their data.
You have the following functions on this screen:
Button Description
Pauses the trip currently shown on the screen. Values on the screen stop changing.
This button replaces the previous one if it has been activated. Tap it to resume
collecting trip data.
Resets all counters of the currently shown trip. Collecting trip data is restarted only
when Clarion Mobile Map receives a position from the GPS.
,
Cycles through all trips.
![](/img.php?id=1211548&img=bg42.png)
66
4.1.8 Quick menu
The Quick menu is a selection of controls that are frequently needed during navigation. It can be opened
directly from the Map screen by tapping .
If you tap any of the switches in the Quick menu except for the Vehicle type, the Map screen immediately
returns. A switch is on if its lamp is lit. The Vehicle type button is different. It is a multi-value button. It
opens a list of available choices, and the symbol of the selected vehicle is shown on the button.
Button Main function (single tap) Function (tap and hold)
Master Volume
slider
Adjusts the sound volume of the device.
A
ll sounds
of the application are affected.
n/a
If you only adjust the volume, you need to use this
button to return to the Map screen.
Opens the Navigation menu.
Mutes all sounds of Clarion Mobile Map. Opens Sound settings.
Switches between the daytime and night color
schemes manually. This will not disable the
automatic switching between the two schemes: the
other color scheme returns later.
Opens Color Profiles settings.
3D buildings can be displayed on the map. Use
this switch to suppress them temporarily. Please
note that 3D landmarks are displayed regardless of
this button wherever they are available.
Opens 3D Settings.
Tap this button and select the Vehicle type to be
used for route calculation. Otherwise it is selected
in Route Planning options in Settings (page 79).
Changing the Vehicle type triggers an automatic
route recalculation.
Opens Route Planning options.
Turns track log recording on or off otherwise
controlled on the Manage Track Logs screen.
Opens Manage Track Logs.
Opens the GPS Data screen with satellite
information, data coming from the GPS receiver,
and a shortcut to the GPS Settings screen if
needed (GPS receiver detection is automatic).
n/a
This button opens the phone application. You can
pair your Clarion NX700 with your cell phone as a
hands-free device.
n/a
![](/img.php?id=1211548&img=bg43.png)
67

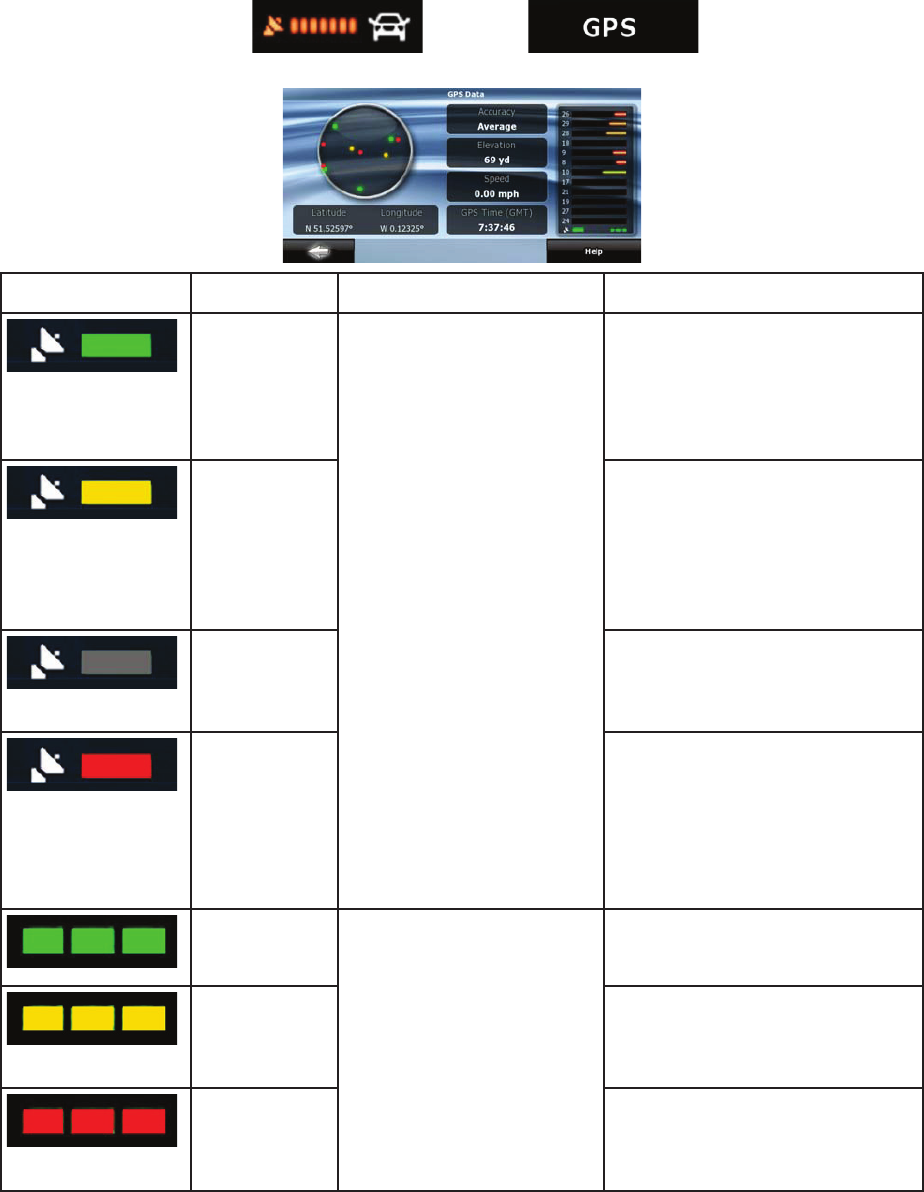

4.1.9 GPS Data screen
Tap the following buttons: , and then to open the GPS Data
screen and to see the status of GPS reception.
Icon Color Name Description
Green GPS position quality indicator Clarion Mobile Map has a
connection to the GPS receiver and
GPS position information is
available in 3D: Clarion Mobile Map
can calculate both your horizontal
and vertical GPS position.
Yellow Clarion Mobile Map has a
connection to the GPS receiver and
GPS position information is
available in 2D: only the horizontal
position is calculated, Clarion
Mobile Map cannot calculate your
vertical GPS position.
Gray Clarion Mobile Map has a
connection to the GPS receiver but
GPS position information is not
available.
Red Clarion Mobile Map has no
connection to the GPS receiver.
Since the device has a built-in GPS
receiver, this status should not
appear under normal
circumstances.
Green, blinking GPS connection quality
indicator Clarion Mobile Map is connected to
the GPS receiver.
Yellow, blinking Clarion Mobile Map has no
connection to the GPS receiver but
it is still trying to establish a
connection.
Red, blinking Clarion Mobile Map has no
connection to the GPS receiver and
is not trying to establish a
connection.
![](/img.php?id=1211548&img=bg44.png)
68
Sky view circle The virtual sky shows the visible
part of the sky above you, with your
position as the center. The
satellites are shown at their current
positions. The GPS receives data
from both the green and yellow
satellites. Signals from the yellow
satellites are only received, while
green ones are used by the GPS
receiver to calculate your current
location.
n/a Coordinates Your current GPS position in
WGS84 format.
n/a Status bar for the satellites Dark bars are for the yellow and lit
bars are for the green satellites.
The more satellites your GPS
tracks (the green ones), the better
is your calculated position.
4.2 Find menu
Select the destination of your route. Tap the following buttons: , .
Button Description Reference
If you know at least a part of the address, this is the quickest
way to find the location.
page 32
You can select your destination from the thousands of POIs
included with Clarion Mobile Map or from the ones you have
previously created.
page 40
The destinations that you have already entered in Clarion
Mobile Map are available in the History list.
page 42
You can select your destination by entering its coordinates. page 42
You can select as your destination a location that you have
already saved as a Favorite.
page 40
Opens a special 2D map screen optimized for route planning.
Only the Zoom in and Zoom out buttons and the route
modification buttons of the Cursor menu appear.
![](/img.php?id=1211548&img=bg45.png)
69
4.3 Route menu
Save, load and edit your routes. Tap the following buttons: , .
Button Description Reference
Opens a screen with useful route data. page 62
You can browse the driving instructions that Clarion Mobile Map
follows during navigation. You can exclude maneuvers or streets
to adjust the route to your preferences.
page 25
You can modify the route: remove route points or change their
order.
page 44
Erase the active route with all its route points (start point, via
points and destination). If you later decide that you need the
same route, you will have to rebuild it from scratch.
page 47
You can save the active route for later use. page 49
You can load a previously saved route for navigation. page 49
Opens the Route settings screen with controls to modify the
vehicle, the road types used for route calculation, or the route
calculation method.
page 79
You can run a demonstration of the route at high speed. page 26
You can run a demonstration of the route at normal speed. page 26
![](/img.php?id=1211548&img=bg46.png)
70
4.4 Manage menu
You can manage the content that Clarion Mobile Map stores. Tap the following buttons: , .
Button Description Reference
Renaming or deleting saved routes page 70
Deleting History items page 71
Recording, simulating, renaming or deleting track logs, assigning
color to them to be shown on the map
page 71
Renaming or deleting Favorites page 72
Creating, updating or deleting POIs
Creating, updating or deleting POI groups
Modifying POI visibility settings
page 73
Creating, renaming or deleting Saved Search Criteria page 74
You can manage the data you have saved (e.g. POIs, Favorites
or History) and the settings you have made in the program.
page 75
4.4.1 Manage Saved Routes
You can manage the previously saved routes. Tap the following buttons: , ,
.
Button Description
Button with the name of
the saved route
Opens the selected route for editing.
Deletes the selected route.
Clears the list of saved routes.
![](/img.php?id=1211548&img=bg47.png)
71
,
Moves between pages for additional list items.
4.4.2 Manage History
You can manage the list of locations you used lately. Tap the following buttons: , ,
.
Button Description
Deletes the selected item in the History.
Deletes the entire History.
,
Moves between pages for additional list items.
4.4.3 Manage Track Logs
You can record Track Logs, then play them back, display them on the map, and view their details. Tap
the following buttons: , , .
Button Description
Starts recording the track that you drive. (You can also start recording a track
log in the Quick menu.)
Stops the ongoing Track Log recording. (You can also stop track log recording
in the Quick menu.)
Button with the name of
the track log
Shows the details of the selected Track Log.
Starts a simulated playback of the selected Track Log on the map.
,
Moves between pages for additional list items.
![](/img.php?id=1211548&img=bg48.png)
72
When track log details are shown:
Button Description
Button with the name of
the Track Log
Opens a keyboard screen to let you rename the Track Log.
Tap this button to hide the Track Log on the map. No color will be assigned to
the Track Log.
Tap one of the colored buttons to assign a color to the Track Log. The Track
Log will be shown on the map with this color.
The map returns with the Track Log. The map is scaled to show the whole
Track Log.
Deletes the selected Track Log.
Saves the Track Log on the inserted memory card in GPX format.
4.4.4 Manage Favorites
You can manage the list of your Favorites. Tap the following buttons: , , .
Button Description
Button with the name of
the Favorite
Opens the selected Favorite for editing.
Deletes the selected item in the list of Favorites.
Clears the list of Favorites.
,
Moves between pages for additional list items.
![](/img.php?id=1211548&img=bg49.png)
73
4.4.5 Manage POIs
You can manage your POIs, and set POI visibility for both your POIs and the ones that came with the
product. Tap the following buttons: , , .
Button / Icon Description
Button with the name of
the POI group
Opens the list of the subgroups of this POI group. The new list behaves the
same as this one.
Button with the name
and address of a POI
item
Opens the selected POI for editing. Only the POIs you have created appear in
this list.
Opens the selected POI group for editing.
Tap to filter the list to contain only the POIs that you saved.
Tap to see all POIs in the list.
Creates a new POI group at the given group level.
,
Moves between pages for additional list items.
This POI group is not shown on the map.
This POI group and all its subgroups are shown on the map.
This POI group and some of its subgroups are shown on the map.
This POI group contains POIs that you saved.
When a POI group is open for editing:
Button Description
Items in the POI group will not be shown on the map.
,
, ...
The distance buttons set the zoom level from which the items in the POI group
will be shown on the map.
Subgroups under the edited POI group will inherit the visibility settings of the
POI group.
![](/img.php?id=1211548&img=bg4a.png)
74
Button with the icon of
the POI group
Tap this button to select a new icon for the POI group.
Deletes the edited POI group. You are only allowed to remove POI groups that
you have created.
When a POI item is open for editing:
Button Description
Button with the name of
the POI
Tap this button to rename the POI.
Button with the icon of
the POI
Tap this button to select a new icon for the POI.
Tap this button to modify the location of the POI. Select a new location on the
map and tap to relocate the POI.
Tap this button to enter a telephone number for the POI.
Tap this button to enter additional information for the POI.
Tap this button to delete the selected POI.
Tap this button to move the POI to another POI group or subgroup.
4.4.6 Manage Saved Search Criteria
You can manage the list of search criteria previously saved to easily find frequently searched POI types.
Tap the following buttons: , , .
Button Description
Button with the name of
the Saved Search
Criteria
Tap to rename the saved query.
Deletes the selected item in the list.
Deletes the entire list.
,
Moves between pages for additional list items.
![](/img.php?id=1211548&img=bg4b.png)
75
Tap to save a new search criteria. Similar to how you search for a POI, select
the search reference first, then select the POI group or subgroup to search in.
4.4.7 User Data Management
You can manage the data you have saved (e.g. POIs, Favorites or History) and the settings you have
made in the program. Tap the following buttons: , , .
Button Description
Map locations can be marked with Pins using the button in
the Cursor menu. Tap this button to remove all your Pins from the map.
All user data and the current settings will be saved on the inserted memory
card. There is always one backup file. If you perform a backup later, the
previous backup will be overwritten with the new information.
A
ll user data and settings will be overwritten with the information stored in the
backup file. Data and settings created after the latest backup will be lost.
All user data will be deleted, and settings will return to their factory defaults.
The application needs to restart.
All settings will return to their factory defaults, but no user data will be deleted.
The application needs to restart.
![](/img.php?id=1211548&img=bg4c.png)
76

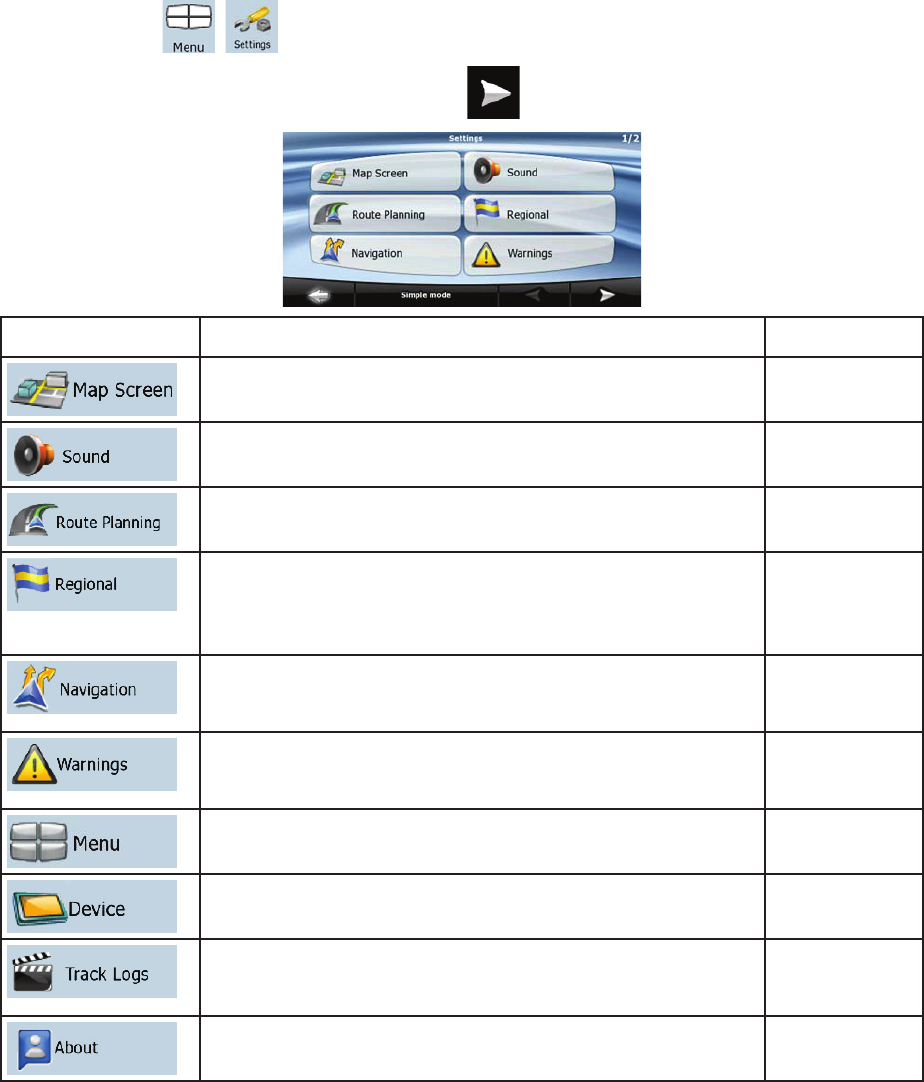

4.5 Settings menu
You can configure the program settings, and modify the behavior of Clarion Mobile Map. Tap the
following buttons: , .
The Settings menu has two pages of submenus. Tap to access the other options.
Button Description Reference
You can fine-tune the appearance and content of the Map
screen.
page 77
You can adjust the sounds of Clarion Mobile Map. page 78
These settings determine how routes will be calculated. page 79
These settings allow you to customize the application for your
local language, measurement units, time and date settings and
formats, as well as to choose the voice guidance profile you
prefer.
page 81
You can control how Clarion Mobile Map behaves during
navigation.
page 82
You can enable some useful warnings, and disable the touch
screen in a moving vehicle with Safety Mode.
page 83
You can modify the look and behavior of the Menu screens. page 84
You can fine-tune device related settings in this menu. page 84
You can set up automatic Track Log saving and fine-tune
related settings.
page 85
This screen has no navigation feature. It merely provides
![](/img.php?id=1211548&img=bg4d.png)
77
information about the maps and licenses included with your
navigation system.
You can switch to Simple mode. In Simple mode only a few of
the above settings are available. The rest of the settings are set
to values that are optimal for typical use.
page 10
4.5.1 Map Screen settings
You can fine-tune the appearance and content of the Map screen. Tap the following buttons: ,
, .
Button Description
3D Settings Use 3D settings to determine which of the present 3D objects are shown
on the map, and adjust the level of 3D visual detail. The options are as
follows:
x Landmarks: Landmarks are 3D artistic or block representations of
prominent or well-known objects. 3D landmarks are only available
in selected cities and countries.
x Elevated Roads: Complex intersections and vertically isolated
roads (such as overpasses or underground tunnels) are displayed
in 3D.
x Building Visibility: Full 3D city building data that represents actual
building size and position on the map. Building data is limited to
the city centers of major cities in the US and Europe.
x Terrain Detail Level: 3D terrain map data shows changes in
terrain, elevations or depressions in the land when you view the
map, and use it to plot the route map in 3D when you navigate.
Color Profiles Clarion Mobile Map is able to show the map and the menus in different
colors during the day and during the night. Select the color profiles to be
used in each mode, and select the automatic or manual switching
between the daytime and night color profiles.
Elevation on 2D Map 2D maps can also display 3D information. These top-down maps can
display elevation by colors and shading.
Street Names During
Navigation Street names and POI icons can be disturbing on the map during
navigation. With this switch you can suppress these map elements when
Clarion Mobile Map is following your position on the map. If you move the
map, both the street names and POI icons reappear immediately.
Lane Information Some maps contain lane information to help you position your car in the
![](/img.php?id=1211548&img=bg4e.png)
78
upcoming intersection. This setting tells Clarion Mobile Map whether to
display this information at the top or at the bottom of the map.
Interrupt AV When Clarion Mobile Map is working in the background, the map can be
displayed on the screen when approaching a maneuver.
4.5.2 Sound settings
You can adjust the sounds of Clarion Mobile Map. Tap the following buttons: , ,
.
Button Description
Master Volume Use the switch to mute all sounds of the device and then to re-enable
them again. The position of the slider determines the volume level.
Voice Guidance Volume The slider adjusts the loudness of voice prompts. In its leftmost position,
the voice guidance is suppressed; in its rightmost position, the master
volume applies.
Key Sounds Key sounds provide audible confirmation of either pressing hardware
buttons or tapping the touch screen.
The switch turns key sounds on or off. Key sounds are played at the
master volume level.
Dynamic Volume When driving at high speed, the noise in the car may be too loud to
clearly hear the voice guidance and other sounds. Using Dynamic
Volume you can instruct Clarion Mobile Map to increase the volume
when your speed exceeds a certain minimum, and reach its highest
volume at the given maximum speed.
Trigger Tone A special sound played before voice instructions.
![](/img.php?id=1211548&img=bg4f.png)
79
4.5.3 Route Planning options
These settings determine how routes will be calculated. Tap the following buttons: , ,
.
Button Description
Vehicle You can set the type of vehicle you will use to navigate the route. Based
upon this setting, some of the road types can be excluded from the route,
or some of the restrictions may not be taken into account in route
calculation.
Road Types Used for Route
Planning To let the route fit your needs, you can also set which road types are to
be considered for or to be excluded from the route if possible.
Excluding a road type is a preference. It does not necessarily mean total
prohibition. If your destination can only be accessed using some of the
excluded road types, they will be used but only as much as necessary. In
this case a warning icon will be shown on the Route Information screen,
and the part of the route not matching your preference will be displayed
in a different color on the map.
Route Calculation Method You can choose from different route types. The routing method can be
changed temporarily while creating the route: when the destination is
selected, tap in the Cursor menu.
Vehicle types:
x Car
x Taxi
x Bus
x Emergency vehicles
x Bicycle
x Pedestrian
![](/img.php?id=1211548&img=bg50.png)
80
Road Types Used for Route Planning:
Type Description
Freeways You might need to avoid freeways when you are driving a slow car or you are
towing another vehicle.
Unpaved roads Clarion Mobile Map excludes unpaved roads by default: unpaved roads can be in a
bad condition and usually you cannot reach the speed limit on them.
Per-use Toll By default Clarion Mobile Map includes toll roads (pay roads where there is a per-
use charge) in the routes. If you disable toll roads, Clarion Mobile Map plans the
best toll-free route.
Period Charge Charge roads are pay roads where you can purchase a pass or vignette to use the
road for a longer period of time. They can be enabled or disabled separately from
toll roads.
Permit needed You might need a permit or permission from the owners to use certain roads or to
enter certain areas.
Clarion Mobile Map excludes these roads from the route calculation by default.
Ferries Clarion Mobile Map includes ferries in a planned route by default. However, a map
does not necessarily contain information about the accessibility of temporary
ferries. You might also need to pay a fare on ferries.
Cross-border
planning In some cases the route calculated according to your other navigation and route
preferences would lead through another country. If you wish to always stay within
the same country, turn this option off.
Carpool/HOV This control appears only when navigating in the USA. You should check whether
you are allowed to use carpool lanes before enabling this road type.
Route Calculation Method types:
Option Description
Fast Gives the quickest possible route if you can travel at or near the speed limit on all
roads. Usually the best selection for fast and normal cars.
Short Gives a route that has the smallest total distance of all possible routes between the
route points. It can be practical for slow vehicles.
Economical Combines the benefits of Fast and Short: Clarion Mobile Map calculates as if it
were calculating the Fast route, but it takes other roads as well to save fuel.
Easy Results in a route with fewer turns. With this option, you can make Clarion Mobile
![](/img.php?id=1211548&img=bg51.png)
81
Map to take, for example, the freeway instead of series of smaller roads or streets.
4.5.4 Regional settings
These settings allow you to customize the application for your local language, measurement units, time
and date settings and formats, as well as to choose the voice guidance profile you prefer. Tap the
following buttons: , , .
Button Description
Program Language This button displays the current written language of the Clarion Mobile
Map user interface. By tapping the button, you can select a new
language from the list of available languages. The application will restart
if you change this setting; you are asked to confirm this.
Voice Profile This button shows the current voice guidance profile. By tapping the
button, you can select a new profile from the list of available languages
and speakers. Tap any of these to hear a sample voice prompt. Just tap
OK when you have selected the new spoken language.
Units You can set the distance units to be used by the program. Clarion Mobile
Map may not support all the listed units in some voice guidance
languages. If you select a measurement unit not supported by the
chosen voice guidance language, a warning message will appear.
Set Date & Time Format You can set the date and time format. Various international formats are
available.
Time and Time Zone Settings You can access time and time zone settings. Clarion Mobile Map helps
you with correcting the device time to the ever accurate GPS time.
Clarion Mobile Map can also help you set the time zone based on your
current GPS position.
Time and Time Zone Settings:
Button Description
Auto Time Correction to GPS Use this feature to synchronize the clock of your device to the highly
accurate time provided by the GPS receiver.
Use Auto Time Zone Use this feature to synchronize the time zone of the clock of your device
to the time zone based on your current GPS position. This is useful if you
travel abroad.
Set Time Zone Set time zone manually if you do not want to synchronize the time zone
automatically. This allows you to use Auto Time Correction and apply a
time zone offset to obtain the desired time.
Compare GPS and device The current time of the GPS receiver and the device clock are displayed.
![](/img.php?id=1211548&img=bg52.png)
82
times Please note that the GPS clock is only available with GPS reception.
This allows you to check whether any correction is needed.
4.5.5 Navigation settings
You can control how Clarion Mobile Map behaves during navigation. Tap the following buttons: ,
, .
Button Description
Keep Position on Road This feature allows car drivers to always correct GPS position errors by
matching the vehicle position to the road network.
By turning off this feature you also turn off the GPS position error
filtering. The position shown on the map will be subject to all position
errors and position fluctuations.
Off-route Recalculation This switch tells Clarion Mobile Map whether to automatically recalculate
the route when you deviate from it. If this feature is turned off, you need
to initiate route recalculation manually otherwise navigation will be
stopped until you return to the originally recommended route.
Setting another point than the current GPS position as the start point of
the active route will automatically disable this feature.
Restore Lock-to-Position If you have moved or rotated the map during navigation, this feature
moves the map back to your current GPS position and re-enables
automatic map rotation after the given period of inactivity.
Automatic Overview This feature switches the map view to Overview mode when the next
route event is at a distance. Overview is a zoomed out 2D view to let you
see the surrounding area. You have the following controls for
A
utomatic
Overview:
x Turn Distance for Overview: The map view will be switched to
Overview mode if the next route event is at least as far as this
value.
x Default Zoom Level: Overview mode will appear with this zoom
level. You can scale the map in Overview mode but next time
Overview appears again, this zoom level will be applied.
![](/img.php?id=1211548&img=bg53.png)
83
4.5.6 Warning settings
You can enable some useful warnings, and disable the touch screen in a moving vehicle with Safety
Mode. Tap the following buttons: , , .
Button Description
Warn When Speeding Maps may contain information about the speed limits of the road
segments. Clarion Mobile Map is able to warn you if you exceed the
current limit. This information may not be available for your region (ask
your local dealer), or may not be fully correct for all roads in the map.
This setting lets you decide whether you wish to receive the warnings.
You can set the relative speeding level at which the application warns
you (100% represents the current speed limit):
x In Built-up Areas: in cities and towns
x Elsewhere: at all other locations
The warning itself is a voice message that is played using the selected
voice guidance profile.
Speed Camera Warning This feature allows you to receive a warning when approaching a Road
Safety Camera. You must ensure on your own liability that using this
feature is legal in the country where you intend to use it. You have the
following options:
x Audible Warning: beeps can be played while you are approaching
the camera, or just alert sounds if you exceed the speed limit while
approaching one of these cameras.
x Visible Warning: the type of the camera and the monitored speed
limit appear on the Map screen while you are approaching one of
these cameras.
This button is not displayed when GPS position is not available or if you
are in certain countries where Road Safety Camera warning is prohibited.
Even if the button is available, you are responsible for checking whether
it is legal to use this feature at your location.
Safety Mode Safety Mode disables the touch screen above 10 km/h (6 mph) to keep
your attention on the road. While driving, you will not be able to set a new
destination or to change settings. The only screen control that remains
enabled is the gesture that puts you back on the Map screen.
![](/img.php?id=1211548&img=bg54.png)
84
4.5.7 Menu settings
You can modify the look and behavior of the Menu screens. Tap the following buttons: , ,
.
Button Description
Animation You can activate and deactivate the Menu animations. When animation
is turned on, buttons on Menu and keyboard screens appear in an
animated way.
Background You can choose the image to be used as the menu background image.
4.5.8 Device settings
You can fine-tune device related settings in this menu. Tap the following buttons: , ,
.
Button Description
Screen Calibration You can fine-tune the position of the screen content on the display. Tap
this button, use the arrows to reposition the application window, and then
tap to save the changes and exit.
GPS Antenna This field indicates whether the external GPS antenna is connected to
your Clarion NX700.
![](/img.php?id=1211548&img=bg55.png)
85
4.5.9 Track Log settings
You can set up automatic Track log saving, and fine-tune related settings. Tap the following buttons:
, , .
Button Description
Update Interval This determines how often track points will be saved. Position
information is normally received once a second from the GPS. If you do
not need such a detailed log, you can increase this number to save track
log space.
Enable Auto-saving When auto-saving is enabled, you do not need to turn track log saving
on and off manually. Clarion Mobile Map will automatically start
recording the track log as soon as GPS position is available.
Track Log Database Size This figure shows how much memory is used by the automatically saved
track logs.
Track Logs Max. Size You can set the maximum database size for the automatically saved
track logs. When the limit is reached, the oldest automatically saved
track logs will be deleted.
Create NMEA/SIRF Log Independently of the normal track log, you can instruct Clarion Mobile
Map to record the native GPS data received from the GPS device. These
logs are saved as separate text files on the memory card, and they
cannot be shown or replayed in Clarion Mobile Map.
86
5 Glossary
2D/3D GPS reception
The GPS receiver uses satellite signals to calculate its (your) position and needs at least four signals to
give a three-dimensional position, including elevation. Because the satellites are moving and because
objects can block the signals, your GPS device might not receive four signals. If three satellites are
available, the receiver can calculate the horizontal GPS position but the accuracy is lower and the GPS
device does not give you elevation data: only 2D reception is possible.
Active route
The currently navigated route. You can save and load routes in Clarion Mobile Map, but only one route
can be active at any given time, and it is always active until you delete it, reach your destination or you
quit Clarion Mobile Map. See also: Route.
City Center
The City Center is not the geometric center of the city but an arbitrary point the map creators have
chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is an
important intersection.
GPS accuracy
Several factors have impact on the deviation between your real position and the one given by the GPS
device. For example, signal delay in the ionosphere or reflecting objects near the GPS device have a
different and varying impact on how accurately the GPS device can calculate your position.
Map
Clarion Mobile Map works with digital maps which are not simply the computerized versions of traditional
paper maps. Similarly to the paper road maps, the 2D mode of digital maps show you streets, roads, and
elevation is also shown by colors.
In 3D mode, you can see the altitude differences, for example valleys and mountains, elevated roads, and
in selected cities 3D landmarks and 3D buildings are also displayed.
You can use digital maps interactively: you can zoom in and out (increase or decrease the scale), you
can tilt them up and down, and rotate them left and right. In GPS-supported navigation, digital maps
facilitate route planning.
North-up map orientation
In North-up mode the map is rotated so its top always faces North. This is the orientation in 2D map view
mode and in Overview mode. See also: Track-up map orientation.
87
Overview mode
You can instruct Clarion Mobile Map to automatically switch to Overview mode if the next route event is in
a distance. In Overview mode the map is shown in 2D but scaled down to a predefined zoom level. When
you approach the next route event, the previous 2D or 3D map view returns automatically.
Route
A series of destinations to be reached one after the other. A simple route contains one start point and
only one destination. Multi-point routes contain one or more via points (intermediate destinations). The
last route point is the final destination and the route is cut into different legs (from one destination to the
next).
Scheme
Clarion Mobile Map comes with different color schemes for the map for daytime or night use. Schemes
are custom graphic settings for the map and they can have different colors for streets, blocks or surface
waters in 2D and 3D modes, and they display shades or shadows in different ways in 3D mode.
One daytime scheme and one night scheme is always selected. Clarion Mobile Map uses them when it
switches from day to night and back.
Track-up map orientation
In Track-up mode the map is rotated so its top always points in the current driving direction. This is the
default orientation in 3D map view mode. See also: North-up map orientation.
Road Safety Camera
A special POI type for speed cameras and red light cameras. Different data sources are available, and
you can also mark the position of a Road Safety Camera on the map.
You can configure Clarion Mobile Map to warn you when you approach one of these cameras.
Detecting the location of Road Safety Cameras is prohibited in certain countries. It is the sole
responsibility of the driver to check whether this feature can be used during the trip.
88
6 End User License Agreement
1 The contracting parties
1.1 This Agreement has been entered into by and between PDAMill Kft. (registered seat: 23 Bérc utca, H-
1016 Budapest, Hungary) as Licensor (hereinafter: Licensor) and You as the User (hereinafter: User; the
User and the Licensor jointly referred to as: Parties) in subject of the use of the software product specified
in this Agreement.
2 Conclusion of the Agreement
2.1 The Parties hereby acknowledge that this Agreement shall be concluded by implicit conduct of the
Parties without signing the Agreement.
2.2 The User hereby acknowledges that following the lawful acquisition of the software product
constituting the object of this Agreement (Section 4), any degree of use, installation into a computer or
other hardware, installation of such hardware into a vehicle, pressing of the “Accept” button displayed by
the software during installation or use (hereinafter referred to as Use) shall mean that the User has
accepted the terms and conditions of this Agreement as legally binding.
2.3 This Agreement shall by no means authorise use of the software product by those persons having
unlawfully acquired the software product or having unlawfully installed it on a computer or in a vehicle.
3 Relevant laws and regulations
3.1 To all issues not regulated by this Agreement, the laws of the Republic of Hungary, with specific
reference to Act IV of 1959 on the Civil Code and to Act LXXVI of 1999 on Copyrights shall apply.
3.2 The original language version of this Agreement is the Hungarian version. This Agreement has
versions in other languages as well. In case of dispute the Hungarian version shall prevail.
4 Object of the Agreement
4.1 The object of this Agreement shall be the navigation guidance software product of Licensor
(hereinafter referred to as the Software Product).
4.2 The Software Product shall include the operating computer program, its complete documentation, the
map database pertaining thereto and any third-party content and services accessible through the
Software Product (hereinafter: Database).
4.3 Any form of display, storage, coding, including printed, electronic or graphic display, storage, source
or object code, or any other as yet undefined form of display, storage, or coding, or any medium thereof
shall be deemed parts of the Software Product.
4.4 Error corrections, additions, updates used by the User following the conclusion of this Agreement
shall also be deemed parts of the Software Product.
5 Rights under copyright
5.1 Unless otherwise provided by law or contractual provisions, the Licensor is the sole and exclusive
owner of all material copyrights vested in the Software Product.
5.2 Copyrights extend to the whole Software Product and to its parts separately as well.
5.3 The owner(s) of the copyrights of the Database forming part of the Software Product is (are) the
natural person(s) or corporate entity(ies) listed in the Appendix to this Agreement or in the “About” menu
item of the operating computer program (hereinafter referred to as Database Owner). The user's manual
of the Software Product includes the name of the menu option where all the owners of the Database
items are listed. The Licensor hereby states that it has obtained sufficient usage and representation rights
from the Database owners in order to utilize the Database, to offer it for utilization and to transfer it for
utilization as set forth in this Agreement.
5.4 Pursuant to this Agreement, all rights vested in the Software Product shall remain in the ownership of
the Licensor, except for those to which the User is entitled under law or by virtue of this Agreement.
6 Rights of the User
89
6.1 The User is entitled to install the Software Product into one hardware device (desktop, handheld,
portable computer, navigation device), and to run and use one copy of the Software Product or a
preinstalled copy of the Software Product thereon.
6.2 The User is entitled to make one backup copy of the Software Product. However, if the Software
Product operates after installation without the use of the original media copy, then the original media copy
shall be deemed to be a backup copy. In all other cases, the User is only entitled to use the backup copy
if the original media copy of the Software Product has been ascertainably and unequivocally rendered
unsuitable for its lawful and intended use.
7 Limitations of use
7.1 The User is not entitled
7.1.1 to duplicate the Software Product (to make a copy thereof);
7.1.2 to lease, rent or lend it or to transfer it to a third person for any reason;
7.1.3 to translate the Software Product (including translation (compilation) to other programming
languages);
7.1.4 to decompile the Software Product;
7.1.5 to evade the protection of the Software Product or to modify, circumvent or obviate such protection
through technological or by any other means;
7.1.6 to modify, extend, transform the Software Product (in whole or in part), to separate it into parts,
combine it with other products, install it in other products, utilize it in other products, not even for the
purpose of achieving interoperability with other devices;
7.1.7 apart from using the computer program, to obtain information from the Database as a part of the
Software Product, to decompile the Database, to use, copy, modify, extend, transform the Database in
whole or in part or the group of data stored therein, or to install it in other products or otherwise, utilize it
in other products or to transfer it, not even with the aim of achieving interoperability with other products.
7.2 The User may only use the contents available through the Software Product and provided by third
parties and the data received through the services provided by third parties (including but not limited to
the traffic data received from the RDS TMC traffic information service) for his/her own personal benefit
and at his/her own risk. It is strictly prohibited to store, to transfer or to distribute these data or contents or
to disclose them in full or in part to the public in any format or to download them from the product.
8 No warranty or limitation of responsibility
8.1 The Licensor hereby informs the User that although the greatest care was taken in producing the
Software Product, given the nature of the Software Product and its technical limitations, the Licensor does
not provide a warranty for the Software Product being completely error-free, and the Licensor is not
bound by any contractual obligation whereby the Software Product obtained by the User should be
completely error-free.
8.2 The Licensor does not warrant that the Software Product is suitable for any purpose defined either by
the Licensor or the User, and does not warrant that the Software Product is capable of interoperating with
any other system, device or product (e.g. software or hardware).
8.3 The Licensor does not assume any responsibility for damages incurred due to an error in the
Software Product (including errors of the computer program, the documentation and the Database).
8.4 The Licensor does not assume any responsibility for damages incurred due to the Software Product
not being applicable for any defined purpose, or due to the error or incompatibility of the Software Product
with any other system, device or product (e.g. software or hardware).
8.5 The Licensor also draws the attention of the User to the fact that, when using the Software Product in
any form of vehicle, observing the traffic regulations and rules (e.g. use of obligatory and/or reasonable
and suitable security measures, proper and generally expected care and attention in the given situation,
and special care and attention required due to the use of the Software Product) is the exclusive
90
responsibility of the User. The Licensor shall not assume any responsibility for any damages occurred in
relation to use of the Software Product in a motor vehicle.
8.6 By concluding the Agreement, the User shall, in particular, acknowledge the information stated in
Section 8 above.
9 Sanctions
9.1 The Licensor hereby informs the User that, if the Licensor finds its rights under the Copyright Act to
be breached, the Licensor may
9.1.1 seek judicial recognition of this breach;
9.1.2 demand that the breach cease and order the person in breach to refrain from continuing such
actions;
9.1.3 demand that the person under breach give proper compensation (even by way of publicity at the
expense of the person in breach);
9.1.4 claim the return of the increase of assets due to the breach;
9.1.5 demand the cease of the wrongful action and, demand restitution to its state before the breach was
committed at the expense of the person in breach, and may demand the destruction of instruments and
materials used to commit the breach as well as of the products created by the breach;
9.1.6 claim for damages.
9.2 The Licensor hereby also informs the User that the breach of copyrights and related rights is a crime
under Act IV of 1978 on the Hungarian Criminal Code, which may be sentenced of two years in prison in
basic cases and up to eight years in prison in aggravated cases.
9.3 Contents and services provided by third parties
The Licensor hereby excludes any liability of its own for the Database in the Software Product and for any
content or service provided by a third party by using the Database. The Licensor does not warrant the
quality, suitability, accuracy, fitness for a specific purpose or territorial coverage of the product or service
or the availability of the service, and it specifically excludes any liability for the suspension of the service,
and any damage arising in relation to the service or for complete cancellation of the service.
The relevant information and data in connection with the contents and services provided by third parties
are available at www.navngo.com. The User hereby acknowledges that the contents and services
provided by third parties may only be used at the risk of the User and for the personal benefit of the User.
9.4 Contents and services provided by the Licensor or an agent of the Licensor
The Licensor or a contractual partner may offer various products and services to the User through
www.naviextras.com. The User may only use these services when the User has read and understood the
relevant end user license agreement(s) at www.naviextras.com and the User is obliged to use the
services in line with the terms and conditions thereof.
9.5 The parties hereby agree that - depending on the nature of the dispute - either the Pest Central
District Court (Pesti Központi Kerületi Bíróság) or the Metropolitan Court of Budapest (FĘvárosi Bíróság)
will have exclusive jurisdiction to rule on any disputes arising in connection with this Agreement.
