Faurecia Clarion Electronics QY5153 Navigation Unit, Display Audio Unit User Manual Short Term Confidential
Clarion Co Ltd Navigation Unit, Display Audio Unit Short Term Confidential
(Short-Term Confidential) User Manual
Registration Information
FCC
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the
FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator
at least 20cm or more away from person’s body.
User Manual
Since this device is always used with vehicle, it is not sold to general end users separately.
Therefore there is no user manual of this device by alone.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
![](/img.php?id=2719914&img=bg2.png)
Operational Buttons
To Information Screen
To Audio Select Screen
HOME Button
Audio Power Off Button
Capacitive Touch Panel Switch
Volume Up
Button
Volume Down
Button
MENU Button
Back Button
Dimmer Button
HOME SCREEN
To Navigation Screen
To Phone Screen
To Setting Screen
To App List Screen
(QY-xxxx model only)
![](/img.php?id=2719914&img=bg3.png)

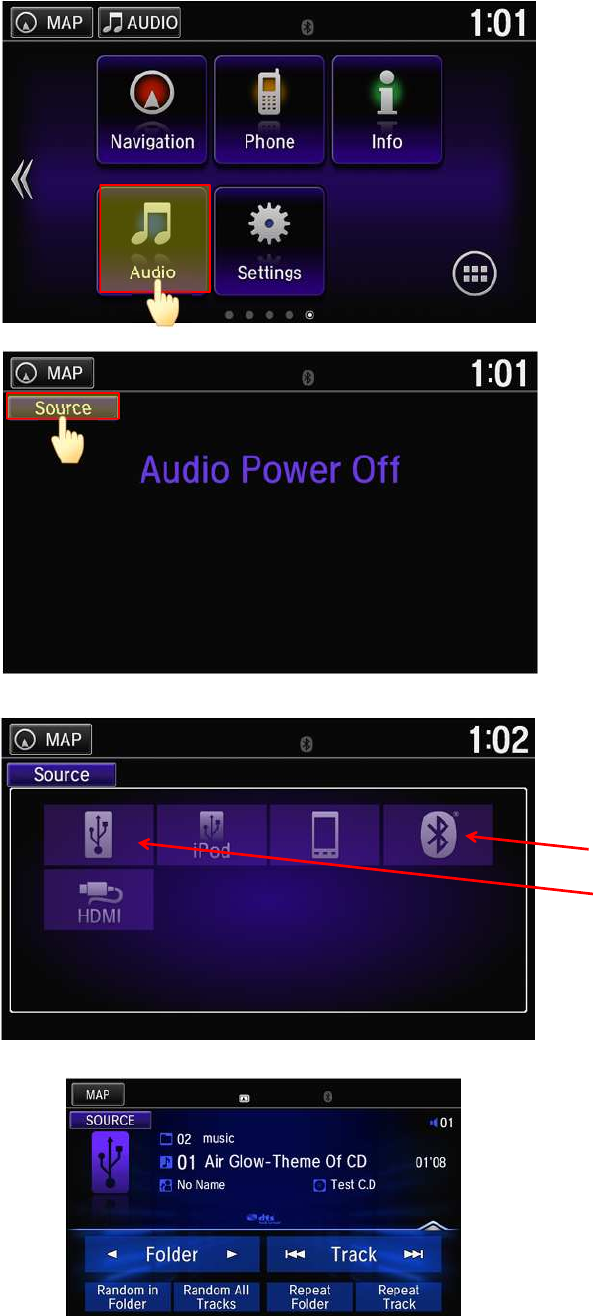

Audio Select
Touch Audio button.
Touch SOURCE button.
Touch the button you want to play.
For example,
USB play
Bluetooth A2DP play
Ex.: USB Audio play screen
![](/img.php?id=2719914&img=bg4.png)
Bluetooth (Wi-Fi) Settings
Touch Setting button.
Touch Bluetooth/Wi-Fi button.
Touch Bluetooth Device List button.
When you want to connect Wi-Fi,
touch Wi-Fi Network List button.
Park your car, you want the following operations. When Status is Off, touch and set to On.
![](/img.php?id=2719914&img=bg5.png)

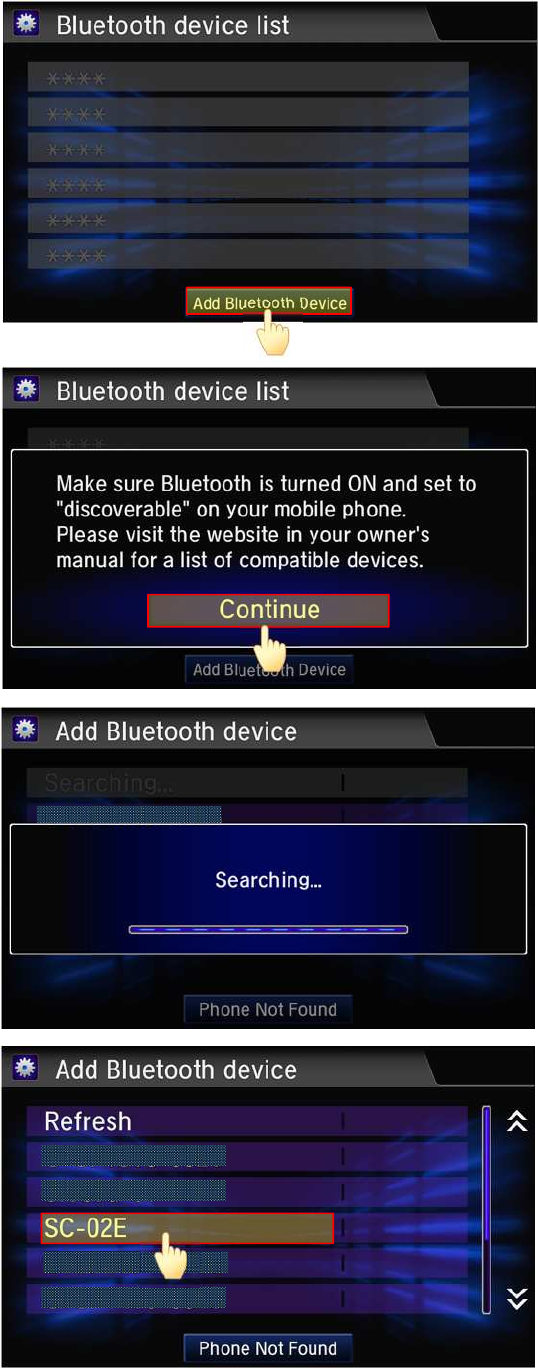

Touch Add Bluetooth Device button.
Touch Continue button.
Touch your device.
![](/img.php?id=2719914&img=bg6.png)

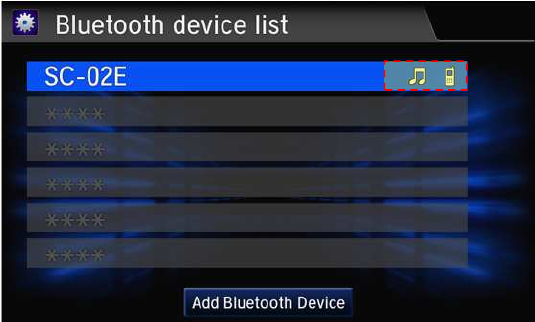

You can find parring is sucsess.
