Faurecia Clarion Electronics QY8500 CAR NAVIGATION User Manual

Clarion Co., Ltd. CAR NAVIGATION

UserManual.wiki >

Faurecia Clarion Electronics >

QY8500 User Manual

User manual.pdf

QY-8500 MODEL

Navigation system manual

English

Table of contents

Features �� 5

Names of Various Parts �� 5

Basic method of use �� 6

Basic Operations �� 7

Basic Settings �� 8

Source Media Mode �� 12

Bluetooth Operation �� 14

Navigation �� 15

Navigation System Settings �� 20

Outline of Destination �� 24

Entering Procedures �� 24

Entering the Destination �� 26

Route Guidance �� 29

About Information �� 32

English

Safety Precautions

Warning

●When driving, the driver shall not operate….

The driver must park the vehicle in a safe place before

operating the system.

●When driving, the driver must not read the navigation

map…

Please refer to the voice prompts and follow the actual

trafﬁc laws in driving.

●When driving, the driver must not watch the display

of this unit….

Or the conditions at front of the vehicle may be neglected

that may result in trafﬁc accidents.

●Please follow the actual trafﬁc laws to drive when

using the navigation system as route guide or voice

prompt…

If you drive only as per the route guided by the navigation

system, you may violate the actual trafﬁc laws that may

result in trafﬁc accidents.

●Do not use the equipment for a long time when the

engine is off…

Or it will cause loss of electricity to the vehicle battery.

●Do not dismantle or modify this unit…

Or it may trigger accident, ﬁre or electric shock.

●Do not use the unit under such failure conditions as

no display or no voice play…

Or it may trigger accident, ﬁre or electric shock. Contact

NISSAN dealers.

●Stop using it immediately when there is any foreign

object, water spill, smoke or bad smell and contact

designated NISSAN dealers…

Continuous use may trigger accident, ﬁre or electric

shock.

Caution

●The volume during driving shall be adjusted so that

the sound outside the vehicle can be heard.

Or it may cause accidents.

●Pay full attention to operating this unit while driving

so that safe driving is not affected…

Or it may affect driving and cause accidents.

●Do not use this unit for any purpose other than in

the vehicle…

Or it may result in injuries or accidents.

●Never continue to use the unit in accidents…

Cut off the unit power supply if smoke, abnormal noise

or smell is found.

●If the temperature inside the vehicle is high, use the

unit after the temperature is lowered …

Or it may result in failure.

●Do not exert force on the screen

Or it may result in failure.

●Please follow the actual road trafﬁc lights to drive

when using the navigation

Map contents may not be completely accurate due to

trafﬁc development. Please keep in touch with the NIS-

SAN Car dealers for timely update of map data.

English

Warning

●Changes or modiﬁcations to this unit not expressly ap-

proved by the party responsible for compliance could

void the user’s authority to operate the equipment.

NOTE:

G This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Op-

eration is subject to the following two conditions :

●This device may not cause harmful interference, and

●This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Radio

●The phenomenon of occasionally not receive radio sta-

tion broadcast, noises or crosstalk during driving may

be caused by road conditions, weather or environmen-

tal reasons.

USB

Not all USB memory devices are compatible with this unit

due to different USB memory device models.

Bluetooth

●Not all mobile phones are compatible with this unit due

to different mobile phone models and functions.

Disc

●In cold or rainy days, water droplets may form inside

the equipment as mist may condense on the window

glass.

●This (condensation) will result in distortion or failure in

playing. Please wait for a moment and use the equip-

ment after ventilation or dehumidiﬁcation.

“To comply with FCC’s and Industry Canada’s RF radiation

exposure limits for general population/uncontrolled exposure,

this device must be installed to provide a separation distance

of at least 20 cm from all persons and must not be collocated or

operating in conjunction with any other antenna or transmitter.”

English

can’t be used.

●No paper slip should be adhered to the playing side or

identiﬁcation side of the disc or it will cause failure.

●Do not use any disc with crack or deformation, or it will

cause failure.

●Do not touch the playing side of the disc (which is the

smooth side with rainbow colours) when holding the

disc, or ﬁngerprints will be left on the disc surface that

may cause skipping.

●Playing a stained disc may result in disc scratch or

skipping. Use disc cleaning agent available on the mar-

ket to remove the stains on the disc by wiping softly

from the inside to the outside.

■Use of New Disc

●When a new disc is used, there might be some burrs

at the inner edge and outer of the disc that shall be

removed with a ball pen or other means. Or the bur will

adhere to the playing side of the disc that may cause

skipping.

■Special- Shaped Disc

●Do not use any leased disc with glass ﬁlm, lease label

or other adhesive. If such disc is played in the player, it

will be hard to get it out and may result in failure.

■Disc of Special Shape

●No disc in the shape of heart or octagon may be played

●In order to protect the internal structure of the player,

the player will stop playing automatically for protection

when something abnormal occurs during the playing.

If the machine can’t operate normally even if you oper-

ate as per the displayed instructions, the machine may

have malfunctions and you should contact NISSAN

dealers.

●Distortion may occur if the vehicle is driven on the road

of harsh conditions or is vibrated violently.

●MP3/WMA music ﬁles stored in CD-ROW/CD-R/CD-

RW may be played.

●Because of the characteristics, scratches, stains on the

CD/SACD/CD-ROM/CD-R/CD-RW disc or long-time

use inside the vehicle, the disc may not be played due

to the worsening disc performance. The disc mentioned

above can’t be played if it has been ﬁnally treated or

written in UDF format.

●Music CD should be ofﬁcially identiﬁed.

●This unit does not support 8-cm disc.

●Do not use any disc with transparent or translucent

data reading side as it can’t be inserted, taken out or

played normally.

●Please do not use any disc that is not from the legiti-

mate manufacturer.

■Disc Storage

●Do not expose the disc to direct sunlight and make

sure to put it inside the box, or the disc will deform and

English

or the machine will be damaged. Do not use such kind

of discs.

■Disc Decoration

●Do not use any decoration to improve tone quality or

protect disc (such as disc case or protective case) as

the change in the thickness or dimension of the disc

may result in failure.

●Do not use any decoration to improve tone quality or

shockproof performance (such as disc ring case or

functional protective case), or the decoration may fall

inside the machine that the disc can’t be played or

taken out and result in failure.

LCD

●There will be brightened or darkened visual phenom-

enon if you watch the LCD from the sides.

●The screen will become illegible under direct sunlight

or external light on the display.

●If the machine is turned on when the temperature is

below zero, LCD will appear to be darker than usual

until the temperature inside the machine rises.

Features

●The front panel is equipped with an SD card slot, It

stores navigation application data and supports map

navigation function.

●Built-in FM/AM radio.

●Support CD disc play functions.

●With standard USB port to support USB audio playing

and iPod playing functions.

●Support Bluetooth mobile and Bluetooth audio playing

functions.

●Support AUX input functions.

Names of Various Parts

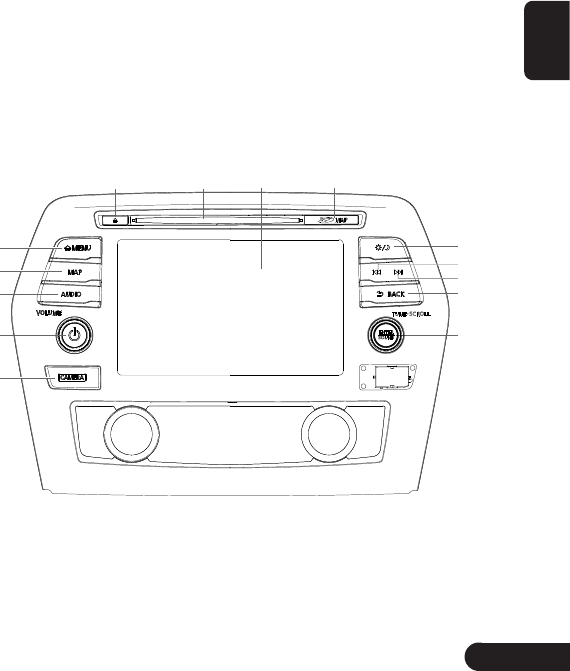

Panel Buttons

[Q]Eject button: Short press it to eject the disc inside

the unit.

English

Disc slot: CD disc can be inserted for playing.

LCD(touch screen): To display the working statuses of

various modes.

SD card slot: Map SD card.

[ ]Day/night button: Press to switch between day or

night mode.

[A]Previous Track button: In CD/USB/iPod/ Bluetooth

Audio Device mode, short press it to select the previous

track to play, and long press it to Fast Reverse; in AM/

FM mode, short press to search radio station frequency

down manually.

[D]Next Track button: In CD/USB/iPod/Bluetooth Audio

Device mode, short press it to select the next track to

play, and long press it to Fast Forward; in AM/FM mode,

short press to search radio station frequency up manu-

ally.

[BACK] button: Back to the previous mode.

[TUNE SCROLL] knob/[ENTER/SOUND] button: Ro-

tate to jump to previous or next touch key in the general

mode; press and rotate the knob to adjust the sound

effect or tone quality. Rotate to zoom in or out the map

in the map mode.

0[CAMERA] button: To enter camera mode.

!button/Volume Knob: Rotate to adjust volume; short

press to turn off/on audio device.

@[AUDIO]button: To enter audio selection screen or Audio

Mode.

#[MAP] button: Press to enter the map screen.

$[MENU] button: Press to enter Menu Screen to select

audio function or navigation function.

Caution

●It is prohibited to pull out the map SD card or the

system will not work.

Basic method of use

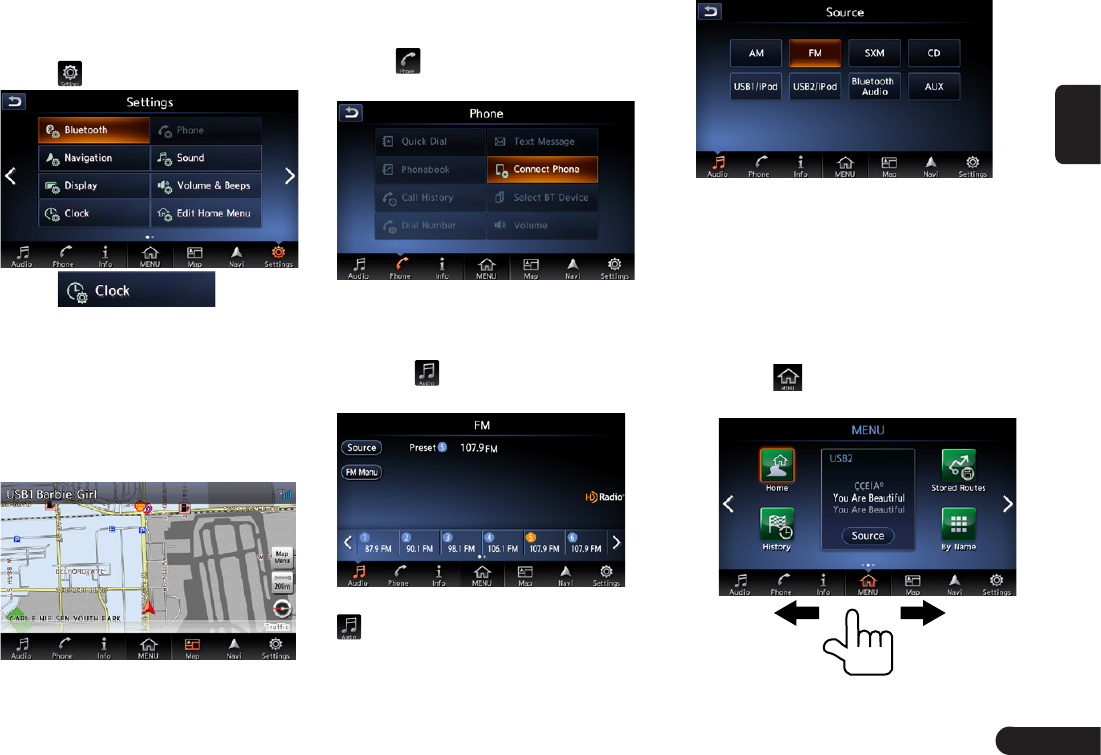

Switching the language

When the unit turns on, the default language is set to

English. Switch to your language to use the unit.

Press [MENU] button on the panel.

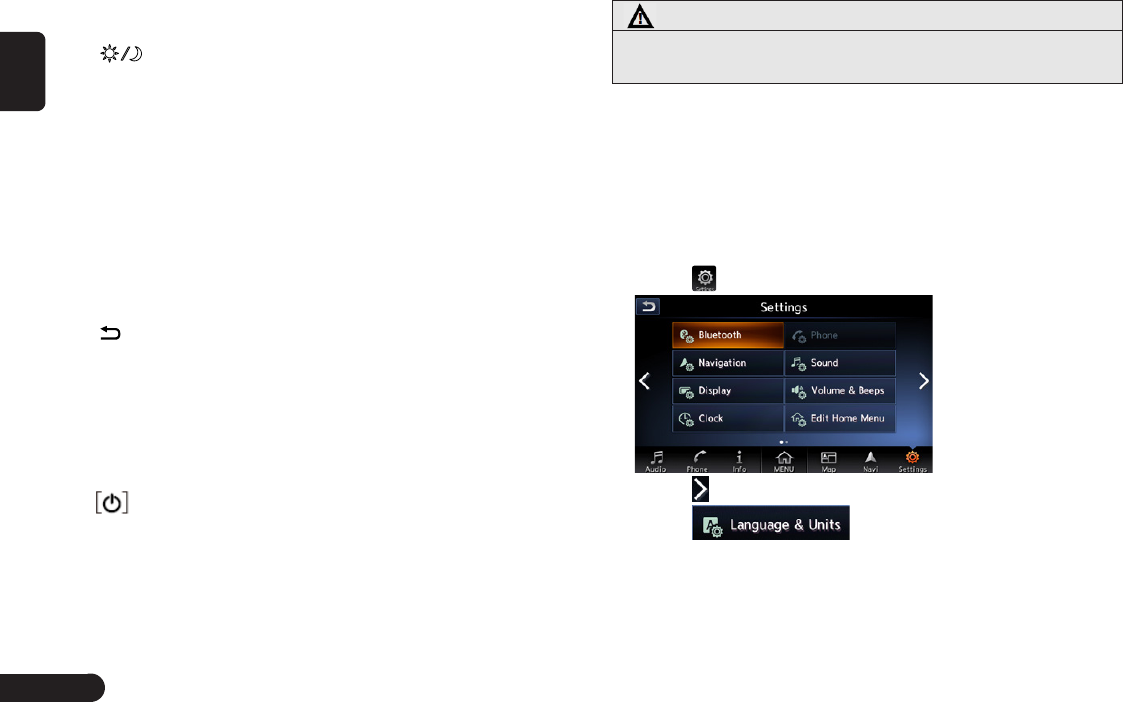

Touch to enter Settings Screen.

Touch or slide the screen.

Touch .

Select the language and unit you use.

English

Setting the time

Press [MENU] button on the panel.

Touch to enter Settings Screen.

Touch .

Set the clock you need.

Mode Switch

■Switch to navigation mode

Press [MAP] button on the panel to

switch to navigation mode for map

display.

■Switch to Bluetooth mobile

phone mode

Touch switch to Bluetooth

mobile phone mode.

■Switch to source mode

Press [AUDIO] button on the panel

or touch to switch to source mode

such as Radio mode.

Press [AUDIO] button or touch

in Source mode to switch

to source selection screen.

Basic Operations

Main menu operations

On main menu screen you can enter

corresponding work mode by touch

the icons on the screen.

Press [MENU] on the panel or

touch to enter main menu

screen.

English

zChange page by dragging left or

right or touch and .

Adjust Volume

Turn the [VOL] knob on the panel

to adjust the volume.

zSource mode: Adjust the volume of source.

zBluetooth Mobile Phone mode: Adjust the

incoming call ringtone volume when receiv-

ing a call, adjust the outgoing call ringtone

volume when making a call, or adjust the

call volume when speaking on the phone.

zMap navigation: Adjust Voice Guidance

volume when voice guidance interrupt.

zParking guidance: Adjust parking guid-

ance volume in parking guidance.

For example, turn the volume knob

in Source USB mode to adjust the

volume as shown below.

zTurn the knob clockwise: volume up.

zTurn the knob counter clock-

wise: volume down.

Audio On/Off

When the radio or media player is

ON, you can turn off the

Audio device.

Short press [ ] button to turn off

Audio.

Short press [ ] button again to

resume playing.

Day/Night Display Mode

Switch

This can switch the screen display

mode.

Press [ ] button on the panel to

to switch between day and night.

Basic Settings

Press [MENU] button on the panel.

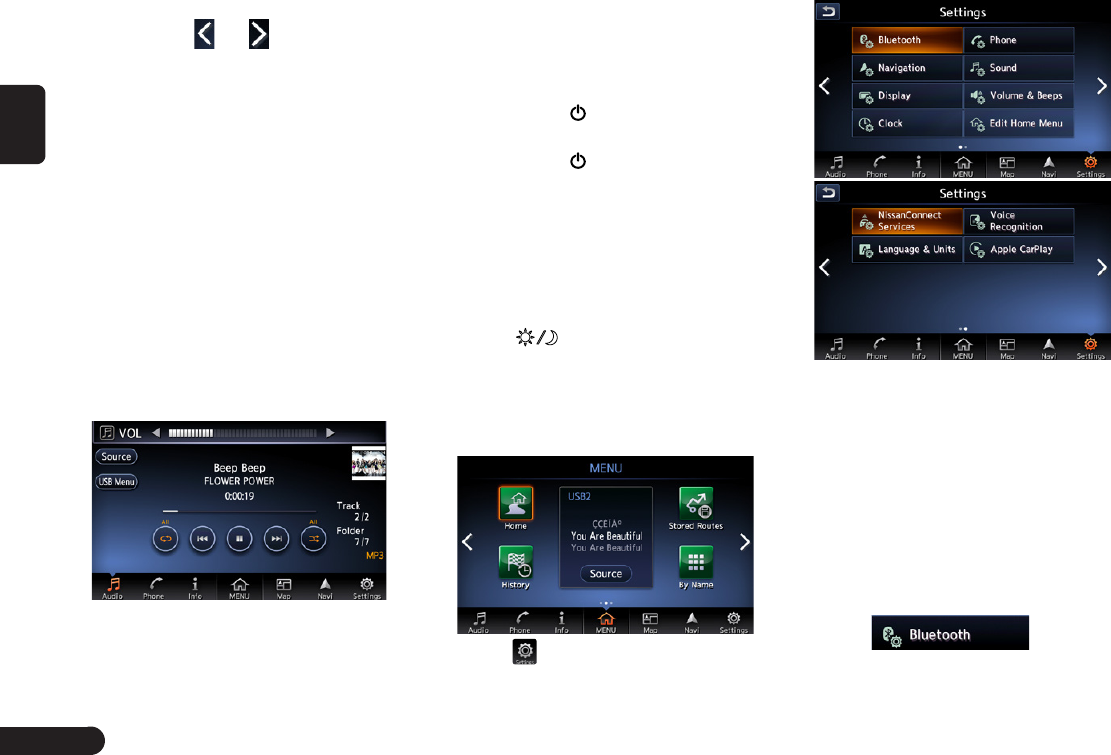

Touch to enter Settings Screen.

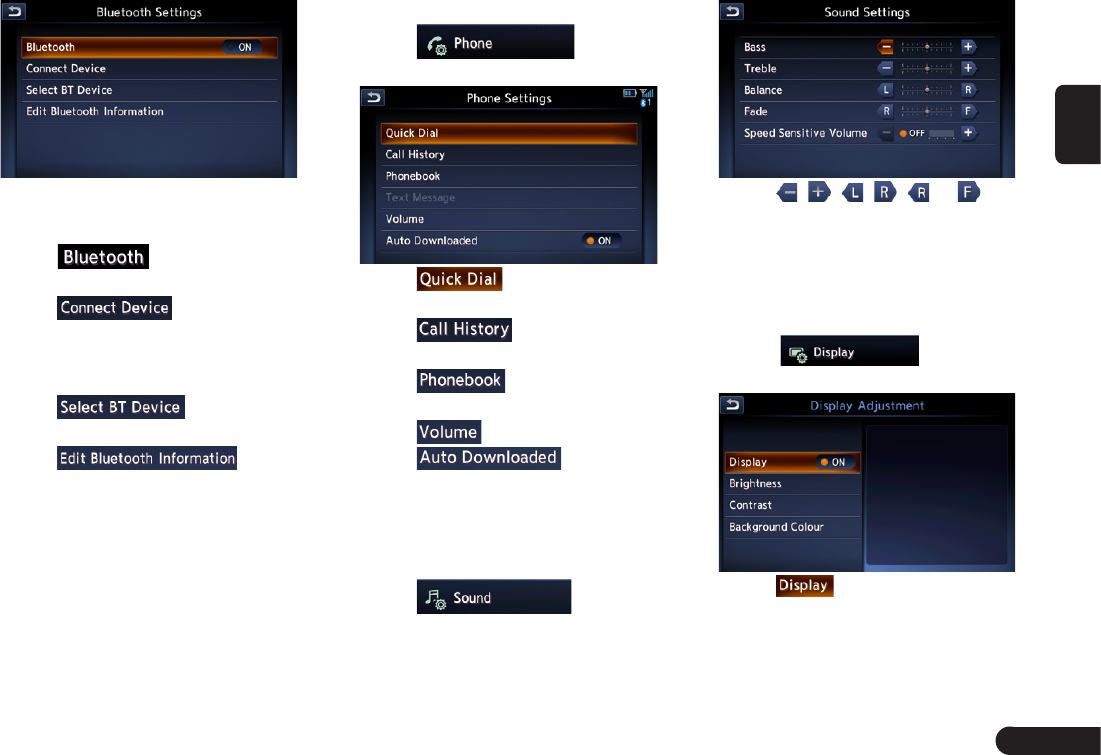

Bluetooth Settings

Pair Bluetooth Mobile Phone or Blue-

tooth Audio Device / check the list of

paired equipment/Set Bluetooth

system of this unit.

NOTE:

*Pairing method of some mobile phones or

audio devices may differ or fail for Bluetooth

pairing due to different types of mobile

phones and audio devices.

Touch to enter

Bluetooth setting screen.

English

zWhen there is no Bluetooth pairing equip-

ment record, the items “Connect with Blue-

tooth” and “Select Device” will be invalid.

Touch to turn Bluetooth

On or Off.

Touch to Select the

mobile phone or audio device to

connect. You can operate as per

the information prompted.

Touch to view and

select BT Device.

Touch to edit

Bluetooth information.

Phone settings

You can conﬁrm and view various

information concerning about the

Bluetooth phone.

Note:

Before setting phone you need to

pair the mobile phone with this unit.

Touch to enter

Phone setting screen.

Touch to edit and delete

Quick Dial number.

Touch to view Call His-

tory records.

Touch to download

Phonebook.

Touch to set Volume.

Touch to turn the

Auto Downloaded on or off.

Audio Settings

To set various sound effects.

Touch to enter

Audio setting screen.

Touch , , , , or to

adjust the tone quality.

Display Adjustment

Adjust the display effect of the

screen.

Touch to enter

Display Adjustment screen.

Touch , the screen display

can be switched off to enter power

save mode.

zAfter the screen display is OFF, the buttons

on the panel are still operational. Press

English

[ ] button on the panel will resume

the previous source play screen or map

navigation screen. Or you can press any

button for the corresponding operation.

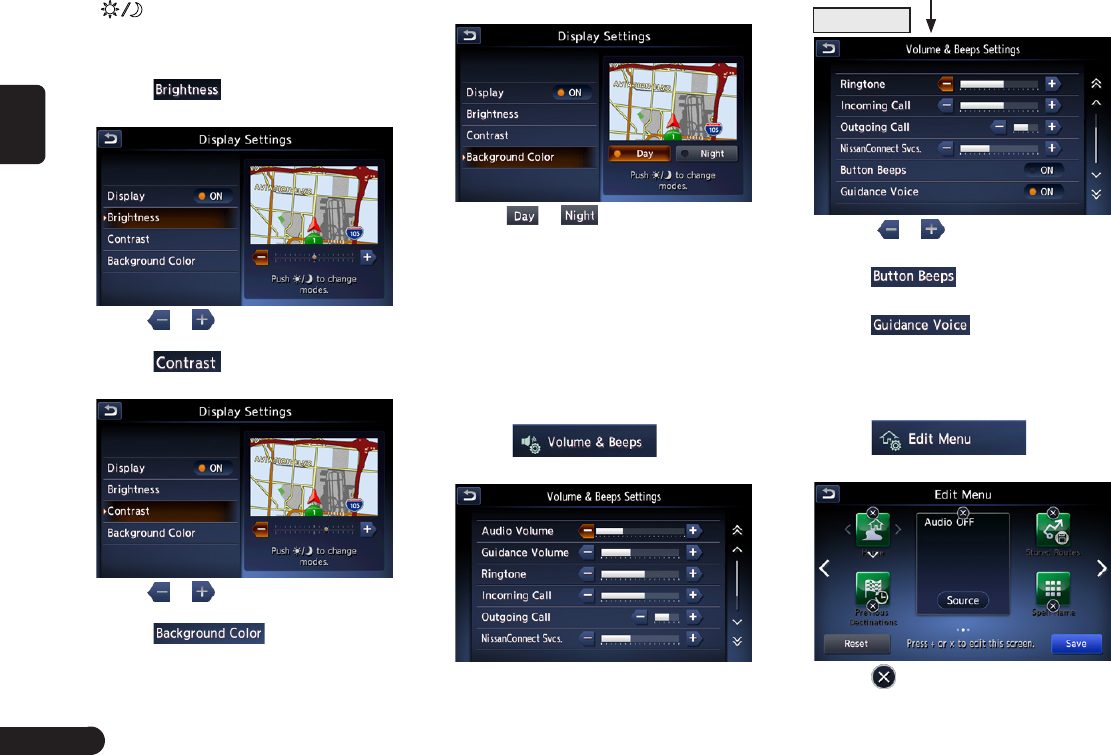

Touch to enter brightness

adjustment screen.

zTouch or to adjust the

brightness of display.

Touch to enter contrast

adjustment screen.

zTouch or to adjust

the contrast of display.

Touch to enter back-

ground colour adjustment screen.

zTouch or to change

the background colour.

Volume and Beeps

Adjust the Audio volume/Guidance

volume/ Ringtone/ Incoming Call/

outgoing Call/NissanConnect Svcs,

turn On or Off the button beeps and

guidance voice.

Touch to enter

Volume & Beeps screen.

Touch or to adjust the vol-

ume.

Touch to turn on or off

button beeps.

Touch to turn on or off

guidance voice .

Edit menu

Touch to enter

Edit menu screen.

Touch to delete the quick menu.

English

Touch to add the quick menu.

Touch the quick menu to rearrange

it.

Touch to save the settings.

NissanConnect Services

settings

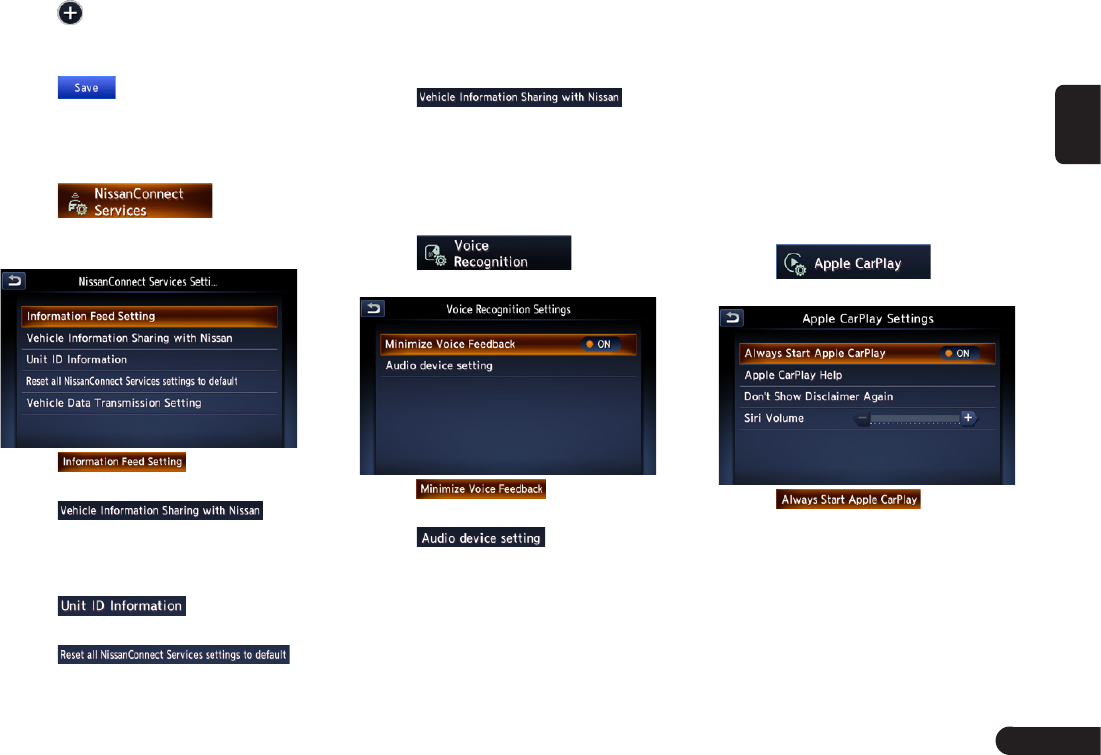

Touch to enter

NissanConnect Services settings

screen.

Touch to edit feed

list and delete message box.

Touch to

turn on or off Share Vehicle Infor-

mation and delete Share Vehicle

Information.

Touch to display the

Unit ID Information.

Touch

,then touch “Yes” on the pop-up

screen to reset all NissanConnect

Services settings.

zTouch “No” to give up reset all Nis-

sanConnect Services settings.

Touch to

turn on or off Share Vehicle Infor-

mation and delete Share Vehicle

Information.

Voice Recognition settings

Touch to enter

Voice Recognition settings screen.

Touch to turn on or

off Minimize Voice Feedback.

Touch to enter

the Audio device setting screen

and you can activate the device

by pressing “Yes” on the pop-up

screen displayed upon connecting

the media device.

Apple CarPlay settings

The connected device supports Ap-

ple CarPlay. Once Apple CarPlay is

started, some NissanConnect fea-

tures will be replaced or disabled by

CarPlay including : NissanConnect

Apps, iPod on USB1, Hands Free

phone, Bluetooth Audio and naviga-

tion guidance on the Vehicle Informa-

tion Display.

Touch to enter

Apple CarPlay settings screen.

Touch to turn on

or off Always Start Apple CarPlay.

Turn on: the connected iPhone

supports Apple CarPlay. When you

connect an iPhone you can start

Apple CarPlay by pressing “Yes”

on the pop-up screen displayed.

Turn off: the connected iPhone

English

only supports iPod.

Touch to displays

Apple CarPlay Help information.

Touch to se-

lect if show Disclaimer again.

Touch or to adjust the Siri

volume.

Source Media Mode

Press [AUDIO] button on the panel

or touch to enter source

screen.

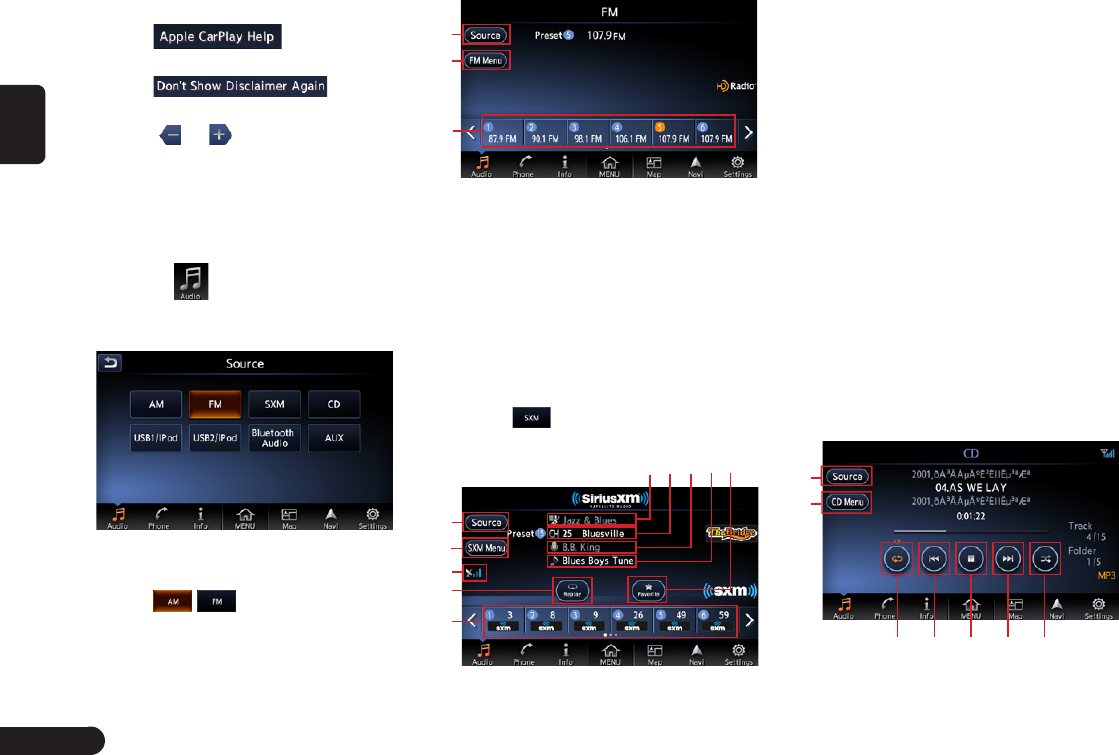

FM/AM mode

Touch / to enter FM/AM

screen.

Back to source screen.

View station list, RDS Info and

turn on or off HD radio mode.

3Preset channel list(Station list). Up

to 12 channels can be saved.

SXM mode

Before to enter this mode you need

to check the antenna.

Touch to enter SiriusXM

screen.

12345

Channel category.

Channel name.

Artist name.

Song title.

Save the favorite channel by artist

or song alert.

Preset channel list(Station list).

Up to 18 channels can be

saved.

Switch the play mode between

replay and live.

SiriusXM signal intensity.

View track list by kinds of

categories etc.

0Back to source screen.

CD mode

After disc is loaded, the play mode is

automatically engaged.

34567

1Back to source screen.

English

2View track list and select to play it.

3Turn on or off repeat play.

4Short touch: switch to Previous

Track; Long touch: Fast Backward.

5Touch to Play/Pause

6Short touch: switch to next Track;

Long touch: Fast Forward.

7Turn on or off shufﬂe play.

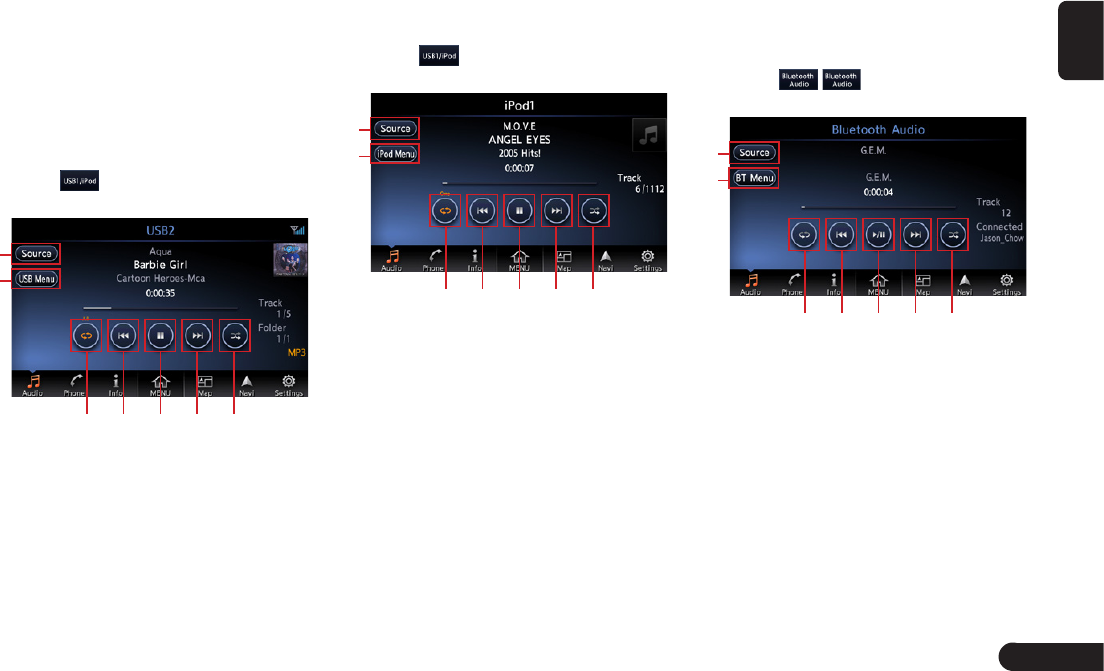

USB mode

Touch to enter USB audio

screen when you connect a USB.

34567

1Back to source screen.

2Select the folder and track, turn on

or off the display of album artwork.

3Turn on or off repeat play.

4Short touch: switch to Previous

Track; Long touch: Fast Backward.

5Touch to Play/Pause

6Short touch: switch to next Track;

Long touch: Fast Forward.

7Turn on or off shufﬂe play.

iPod mode

Touch to enter iPod audio

screen when you connect an iPod.

34567

1Back to source screen.

2Select the track from playlist, art-

ists, albums, songs, podcasts,

genres, composers and audio-

books; Turn on or off the Display

of Album Artwork.

3Turn on or off repeat play.

4Short touch: switch to Previous

Track; Long touch: Fast Backward.

5Touch to Play/Pause

6Short touch: switch to next Track;

Long touch: Fast Forward.

7Turn on or off shufﬂe play.

Bluetooth Audio mode

Before playing Bluetooth Audio you

need to pair the audio device with

this unit.

Touch / to enter Bluetooth

Audio screen.

34567

1Back to source screen.

View track list and select a track

to play it; enter the bluetooth

settings screen.

3Turn on or off repeat play.

4Short touch: switch to Previous

Track; Long touch: Fast Backward.

5Touch to Play/Pause

English

6Short touch: switch to next Track;

Long touch: Fast Forward.

7Turn on or off shufﬂe play.

AUX mode

Insert the external sound device into

AUX slot via the audio cable.

Touch to enter AUX mode.

Choose “Low”, “Middle” or “High”

input sense of auxiliary device.

Bluetooth Operation

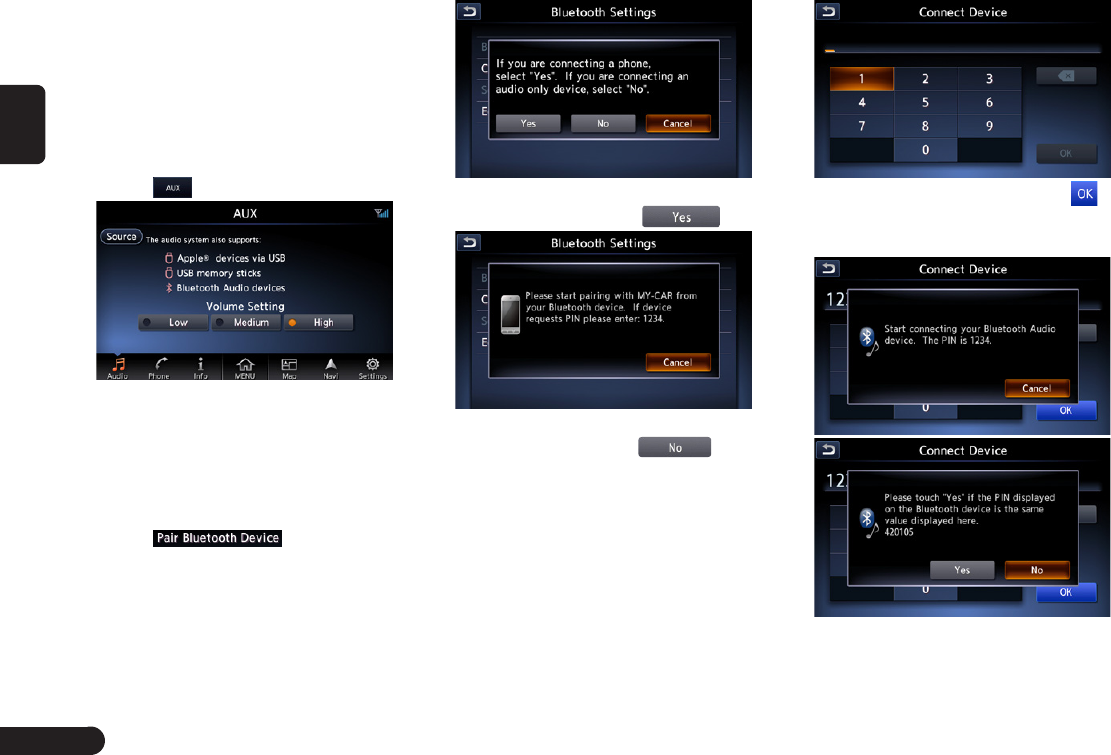

Pair Bluetooth Device

Touch to select the

mobile phone or audio device to

pair.

If you want to select the mobile

phone 秋to pair, touch .

If you want to select the audio

device秋to pair, touch , and

you have to edit the PIN (minimum

4 digits and maximum 16 digits) to

pair the audio device.

After entering the PIN, touch

and operate as per the information

prompted.

After successful pairing, it will

automatically return to Bluetooth

Setting screen.

English

Bluetooth Telephone

Touch to enter Phone screen.

Touch to edit and

delete Quick Dial number.

Touch to view Phone-

book.

Touch to view Call

History records.

Touch to dial phone

number by keypad.

Touch to view text

message.

Touch to connect a

phone with this unit.

Touch to select

paired phone.

Touch to set Volume.

Navigation

Menu Types and Operation

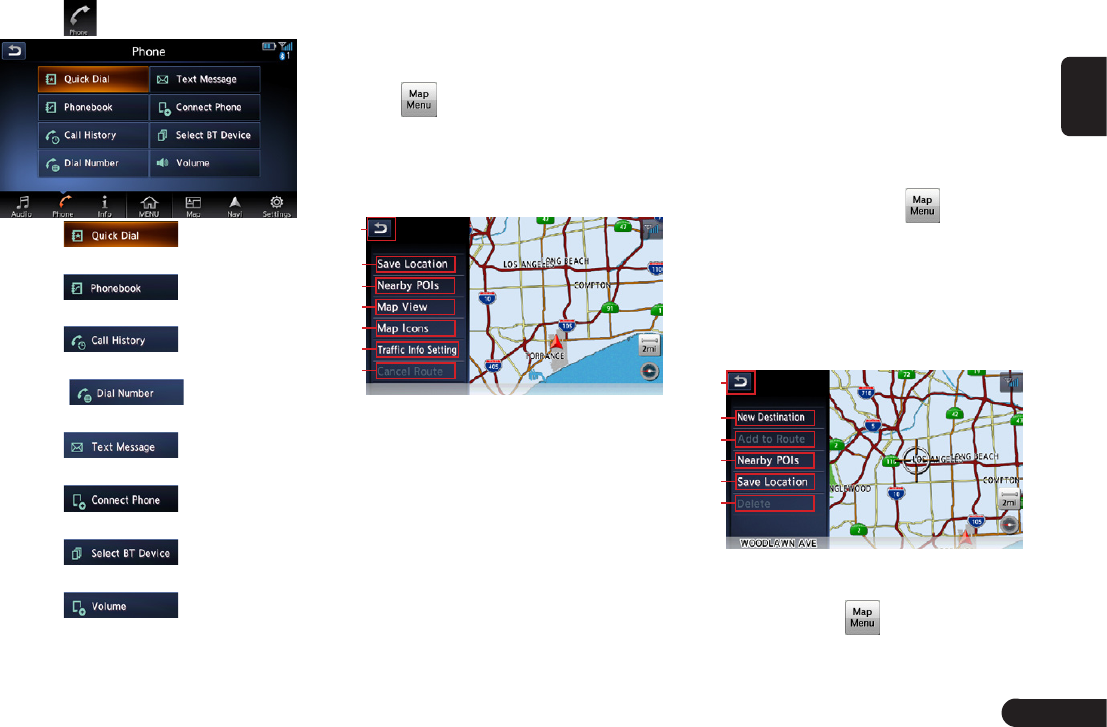

■Map menu (Menu on current

location map)

Touch on the map screen to

display the Map menu at the left side

of the screen. You can store the cur-

rent location to the Address Book or

change the map appearance.

[BACK] key:Return to the map

screen.

[Save Location] key:Save the cur-

rent location in the AddressBook.

[Nearby POIs] key:Displays the

Category screen of the POIs

nearby the current location.

[Map View] key: Change the types

of the screen and map appear-

ance.

[Map Icons] key: Turn on or off the

map icons.

[Trafﬁc Info Setting] key: Turn on

or off the Trafﬁc Info.

[Cancel Route] key: Cancel the

current route.

■Location menu (Menu on

scrolled map)

After scrolling the map by touching

the Map screen, touch on the

screen to display the Location menu

at the left side of the screen. You

can set the location under the cur-

sor at the centre of the screen as the

destination or store it to the Address

Book.

[BACK] key: Returns to the

scrolled Map screen before

touching the key.

[New Destination] key:Sets the

English

location under the cursor as the

destination. When a destination

is already set, the old destination

is cancelled as soon as the new

destination is set.

[Add to Route] key:When another

location is already set as the des-

tination, you can set the location

under the cursor as a waypoint.

Touching this key displays the Edit

Route screen. Specify the desired

order of passing to set the loca-

tion as a waypoint.

[Nearby POIs]] key: Displays the

Category screen of the POIs

nearby the location under the

cursor.

[Save Location] key:Save the

location under the cursor in the

Address Book.

[Delete] key:When the cursor

points at a stored location or

Home location, pressing this key

deletes the location from the Ad-

dress Book. Pressing this key also

deletes the currently set destina-

tion or waypoints when the cursor

points at them.

Map Screen Features

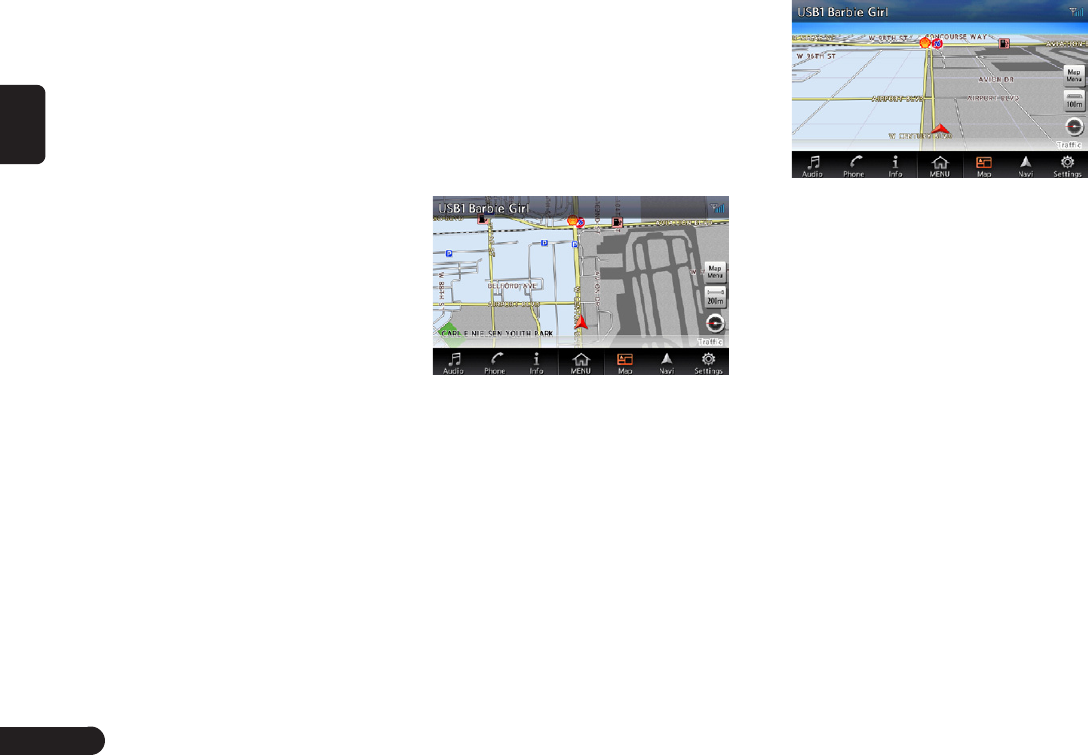

■Types of the map

There are two types of map: the 2D

map and the 3D map. Such as the

method of scrolling the map, some

operation are different depending on

the map types.

●2D Map

The 2D map is a map screen repre-

sented to the plane just like the map

of atlases. It is suitable for searching

a destination and conﬁrming the road

or route.

●3D Map

The 3D map is a map screen using

a viewing position above the vehicle

while looking in the direction of the

car heading. It is suitable for under-

standing the image of the direction,

because the perspective of the trav-

elling direction can be adjusted as

required.

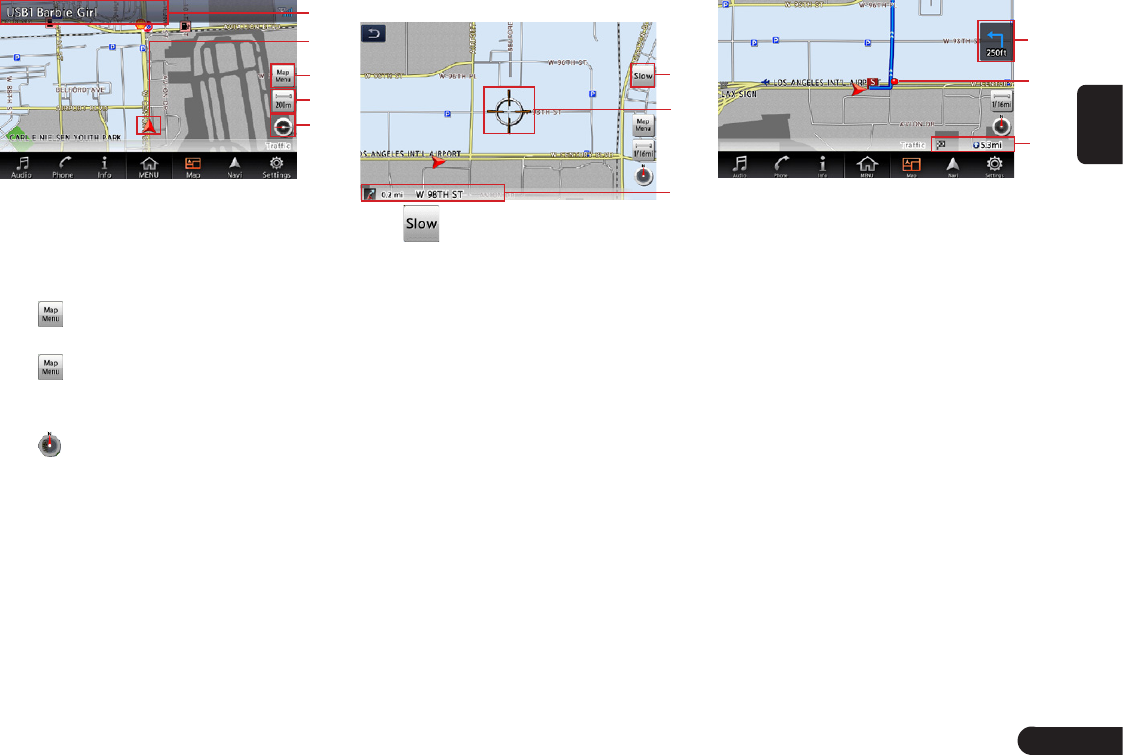

■Indicators on the map

Indicators displayed on the Map

screen are different according to the

conditions at that time.This section

explains the main indicators dis-

played on the Map.

Indicators on the map of the current

location

English

Audio mark: Indicates the current

source mode.

Vehicle mark:Indicates the current

location and direction of your

vehicle.

[ ]Map Menu key:Displays the

Map menu.

[ ]Map scale key: Touch this

key to decreases/increases the

map scale.

[ ]Map bearing mark:Indicates

the map orientation. You can

switch the map orientation

between Heading Up, North Up

and 3D map by touching this icon.

Indicators on the scrolled map

Indicators are displayed after scroll-

ing the map. During scrolling, only

the scroll cursor is

displayed on the map.

[ ] (Slow Scroll)key: Displayed

only on the 2D map. Turn on the

Slow scroll mode. Scroll cursor:

Displayed when scrolling the map.

Displays the name of the street

under the cursor.

Indicators displayed during the route

guidance mode

After a destination is set and travel-

ling is started, the guidance route

and various guidance information are

displayed on the map.

Small Turn Arrow display:Displays

the turning direction and distance

to the next guidance point.

Guidance point:Indicates the

guidance point

Distance to the waypoint/

destination:The distance from the

current location to the next way-

point or destination are displayed.

Manipulating the Map Screen

■Scrolling the map

Touching the Map screen displays

a cursor at the centre of the screen,

and you can scroll the map. For the

2D map, touch the map to move the

map to the touched position, and

keep touching the map to scroll the

map towards the touched direction.

For the 3D map, touch the upper part

of the map to scroll the map toward

English

the touched direction, and touch the

left or right part to rotate the map

while touching.

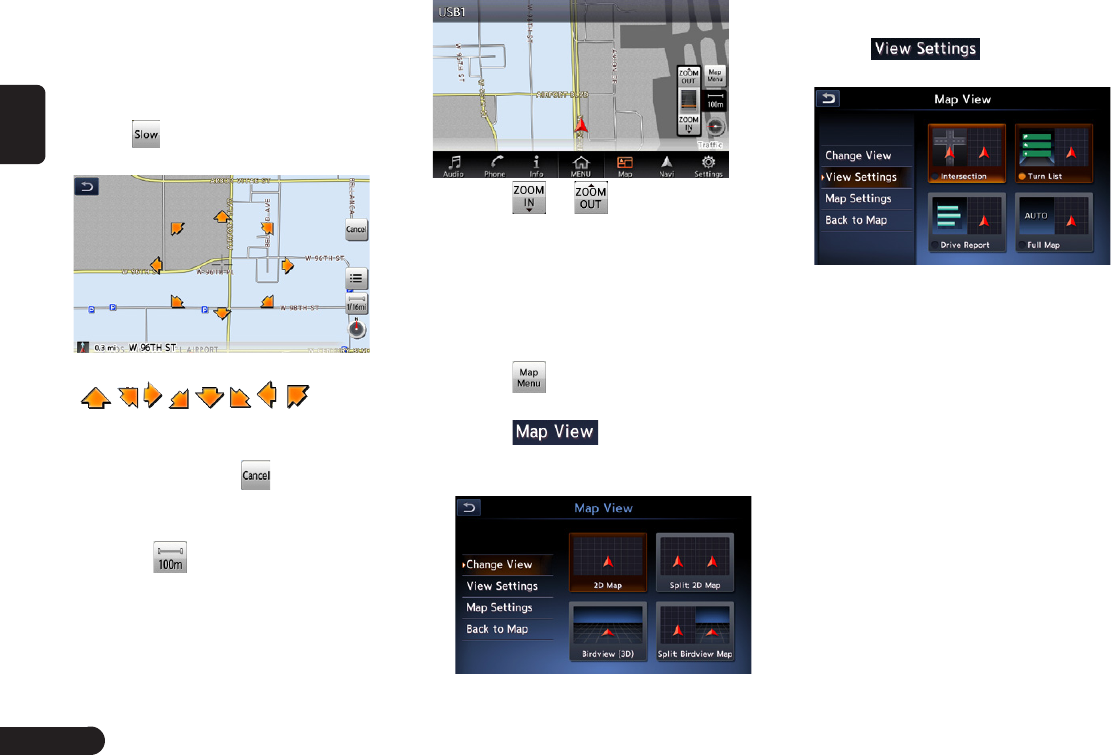

■Slow scroll mode operation

Touch while scrolling the 2D map

to display the following screen:

Keep touching the desired arrow key

( , , , , , , , .) moves

the map slowly towards the corre-

sponding direction. To quit the slow

scroll mode, touch .

■Zooming IN/OUT the map

Touch to display the zoom in/

out key.

Touch or to change the

map scale.

■Changing the map appearance

The Map screen can be adjusted

regarding orientation or appearance

of the map.

Touch on the Map screen of

the current vehicle location.

Touch to enter Map View

screen.

zTouch the corresponding key

to change the map view.

Touch to display the

View Settings screen.

z [Intersection]:During the route guid-

ance mode, displays the Intersection

Close-up display which displays the

turning direction of the next guidance

junction at the left of the screen.

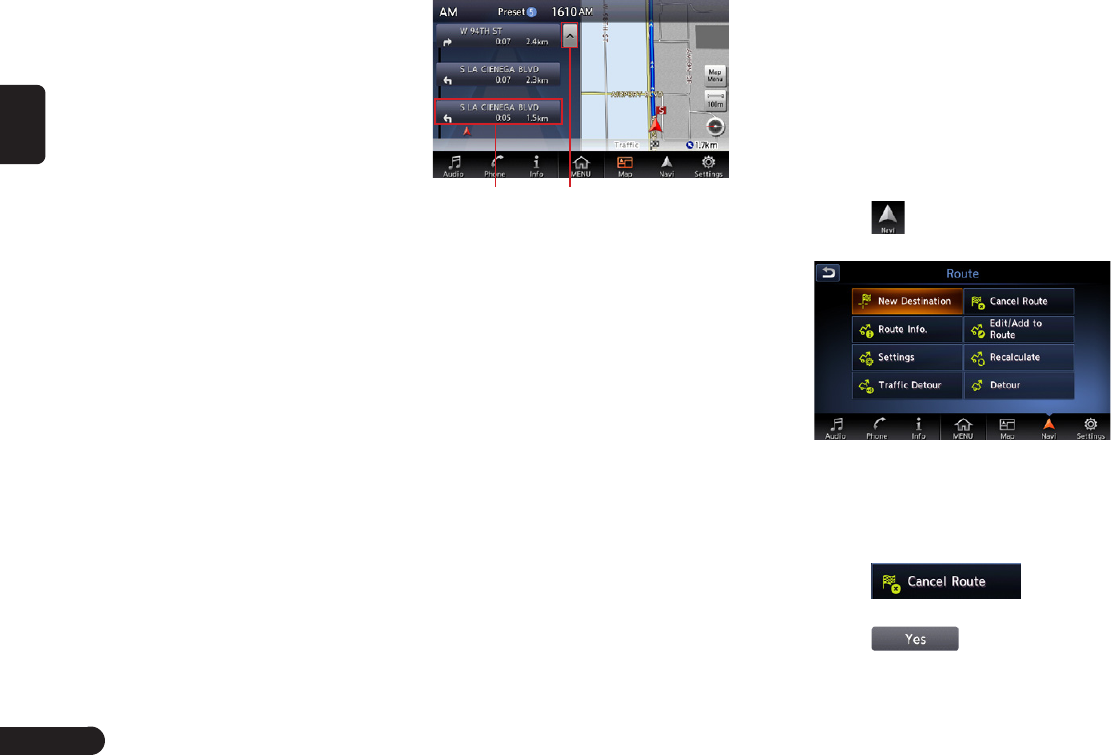

z[Turn List]:During the route guidance

mode, displays the list of the name, dis-

tance, and turning direction of the guid-

ance junctions at the left of the screen.

z[Drive Report]:During the route guid-

ance mode, displays the Drive Report.

z[Full Map]:Changes to display

one map using full screen.

English

Screen examples

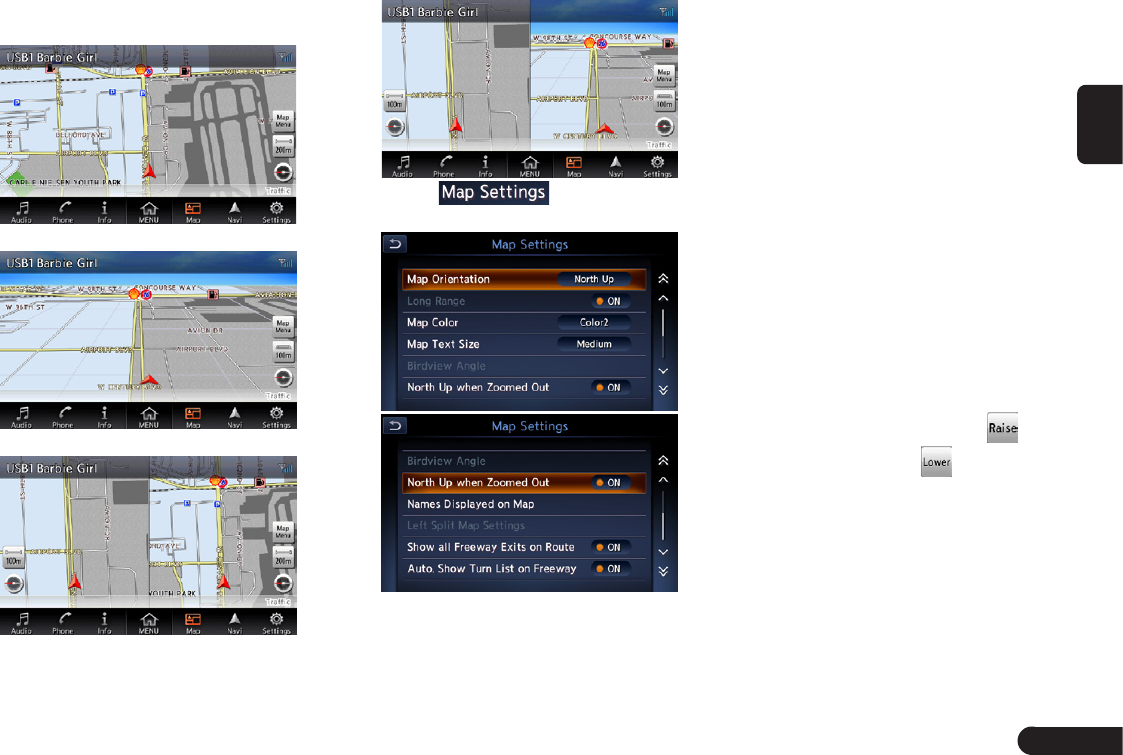

• 2D Map

• 3D Map

2D/2D Map

2D/3D Map

Touch to enter Map

Settings screen.

●[Map Orientation] key: Changes

the orientation of the map between

Heading Up and North Up.

zThis control is available

when [2D] is selected.

●[Long Range] key: Changes the

map view to view a wider area in

the direction that the vehicle is

travelling. When this feature is ac-

tivated, the vehicle mark is located

slightly lower than the centre of the

screen.

zThis control is available when [2D]

is selected and the Map Orienta-

tion is set to Heading-Up.

●[Map Colour] key:Selects the

colours(Map Colour 1/2/3/4) of the

map.

●[Map Text Size] key: Change

the map text size(Large,

Medium,Small).

●[Birdview Angle] key: Changes the

angle of the 3D map. Touch to

raise the angle, and to lower

the angle.

zThis control is available

when [3D] is selected.

●[North Up when Zoomed Out]

key: Turn on or off north up when

zoomed.

●[Names Displayed on Map] key:

Change the names of place, facil-

ity and road displayed on map.

English

●[Left Split Map Settings] key:

Change settings of Map Orienta-

tion, Long Range and Map Scale

of left split map.

●[Show all Freeway Exits on Route]

key: Turn on to show all freeway

exits on route.

●[Auto. Show Turn List on Freeway]

key: Turn on to show turn list on

freeway.

Navigation System

Settings

Press [MENU]/[MAP]/[AUDIO]

button on the panel to display the

function bar.

Touch , to enter

Navigation Settings Screen.

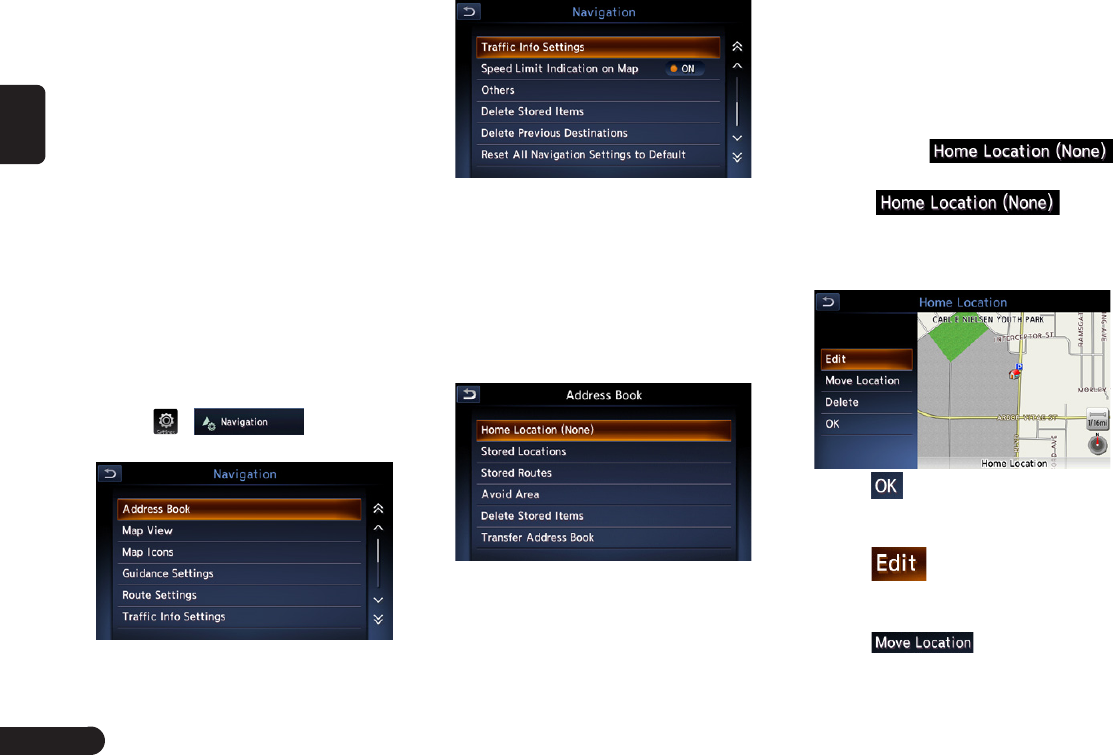

Registering/Editing the

Address Book

From the Address Book, you can

es of facilities and places, routes,

and Avoid Areas. You can also edit

the data registered.

The registered places or routes can

be set as the destination or as the

current route.

■Home Location

edit the registered home address.

To register the Home Location

The Home Location can be regis-

tered when the

key is displayed.

Touch .

Search for the location of

your home by a similar way

as for entering destinations.

Touch to register it.

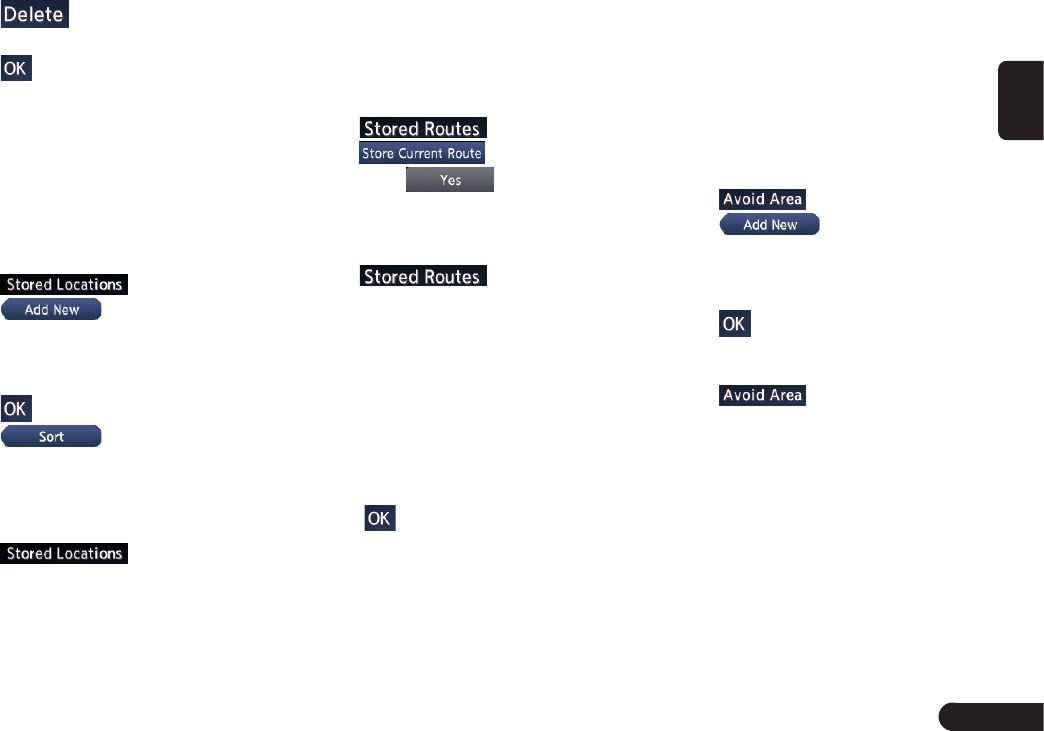

To edit the Home Location

Touch to enter edit Home

Location screen .

Touch the desired Item to edit it.

Touch to adjust the

location by moving the cursor on

English

the Map screen.

Touch to delete the regis-

tered Home location.

Touch to register it.

■Stored Locations

Registers locations in the Address

Book. You can register up to 200 lo-

cations, and can also edit the regis-

tered locations.

To register Location

Touch .

Search for the location you wish

to register by a similar way as for

entering destinations.

Touch to register it.

Touch to sort the loca-

tions by number,name, icon and

group.

To edit a Stored Location

Touch .

Touch the name of the Stored Lo-

cation you wish to edit.

Refer to “To edit the Home Loca-

tion” on Page 秋18秋to edit it.

■Stored Routes

Registers the current route. You can

edit the registered routes.

To register the current route

Touch .

Then touch from the

displayed conﬁrmation screen.

To edit the Stored Route

Touch .

Touch the name of the Stored

Route you wish to edit.

Touch the desired item, then edit it.

●[Rename] key: Changes the name

of the Stored Route.

●[Replace] key: Replaces the Stored

Route with the current route.

●[Delete] key: Deletes the Stored

Route.

Touch to register it.

■Avoid Area

You can register areas you do not

want to pass or areas that often get

congested as an Avoid Area. When

you register the Avoid Areas, you can

set the system to calculate routes

avoiding the registered areas. Up to

10 Avoid Areas can be registered.

You can edit the registered Avoid

Areas.

To register an Avoid Area

Touch .

Search the area to avoid by a simi-

lar way as for entering a destina-

tion.

Touch to register it.

To edit an Avoid Area

Touch .

Touch the name of the Avoid Area

you wish to edit.

Touch the desired item to edit, and

edit it by similar way as for regis-

tering Avoid Areas.

●[Rename] key:You can change the

name of the Avoid Area. Enter the

English

name, then touch .

●[Move Location] key:You can ad-

just the location of the Avoid Area.

●[Resize Area] key:You can change

the size of the Avoid Area([Large],

[*], [Medium], [*], or [Small]), then

touch .

●[FWY] key:You can set whether to

avoid freeway passing the Avoid

Area.

●[Delete] key:Deletes the current

Avoid Area.

Touch to register it.

■Deleting the Stored Items

You can delete various data stored in

the navigation system.

Touch .

Touch the item key to delete.

●[Delete Home Location] key: De-

letes your home location.

●[Delete Address Book] key:

z[Delete All]:Deletes all the stored locations.

z[Delete 1 Entry]:Deletes only the location

that you specify on the Delete One screen.

●[Delete Stored Routes] key:

z[Delete All]:Deletes all the stored routes.

z[Delete 1 Entry]:Deletes only the route that

you specify on the Delete One screen.

●[Delete Avoid Areas] key:

z[Delete All]:Deletes all the

stored avoid areas.

z[Delete 1 Entry]:Deletes only the avoid area

that you specify on the Delete One screen.

●[Delete Previous Destination] key:

z[Delete All Previous Destinations]:Deletes

all the registered previous destinations.

z[Delete Previous Destination]:Deletes only

the previous destination that you specify on

the Delete Previous Destination screen.

z[Delete Previous Starting Point]:

Deletes the starting point.

From the displayed conﬁrmation

screen, touch .

■Transfer Address Book

You can Transfer Address Book from

SD card.

Touch .

●[Export Data] key:Export data to

SD card.

●[Import Data] key:Import data from

SD card.

Navigation Settings

■Map View

Please refer to “Changing the map

appearance” on Page 秋18秋 .

■Map Icons

Switches ON or OFF Landmark icon

display for each type.

Touch .

Touch the desired item key you

wish to change the setting.

The types of icons that can be set

are the following 6 types.

● [Restaurant] key

● [ Station] key

● [Hotel] key

● [ATM] key

● [Rest Area] key

■Guidance Settings

You can change settings concerning

the guidance.

Touch to enter

Guidance Settings screen.

Touch the desired menu item to

set.

●[Guidance Volume] key:Adjusts the

volume of the voice guidance.

●[Guidance Voice] key: Sets wheth-

er to activate the voice guidance.

●[Trafﬁc Announcement] key: Sets

whether to read out the trafﬁc

information.

English

●[Intersection Guidance Settings]

key: The Intersection Guidance

Settings screen is displayed. You

can set the intersection guidance

for Level1, Level2,Level3 and

Level4.

●[Estimated Time] key:Changes the

setting of arrival time indication

displayed on the Map screen.

z[Destination]:Sets to display the ar-

rival time to the destination.

z[Waypoint]:Sets to display the arrival time

to the next waypoint or destination.

■Route Settings

You can change settings concerning

the route guidance.

Touch to enter route

Settings screen.

Touch the desired item key.

●[Basic Route Type] key:You can

change the conditions of route

calculation.

z[Fastest Route]:Calculates the route of

which the required time is shortest.

z[Minimise Motorways]:Calculates

the route of which motorways are

not used as much as possible.

z[Shortest Route]:Calculates the route

of which the distance is shortest.

●[other Routing Choices] key:You

can specify other route calculation

methods.

z[Minimise Toll Roads]: Mini-

mises the use of toll roads.

z[Use Time Restricted Roads]:Uses

roads with restricted usage time.

z[Use Real Time Trafﬁc Information] :Con-

siders the trafﬁc information for routing.

z[Use Avoid Area Settings]:Takes a de-

tour to avoid the registered Avoid Area.

z[Use Ferries]:Uses car ferries for routing.

z[Use Learned Routes]:Considers

the Learned Routes for routing.

z[Use HOV Lanes]:Uses HOV

lanes for routing.

z[Auto Reroute]:When leaving the suggested

route during the route guidance mode, a

new route is automatically recalculated.

■Trafﬁc Information Settings

You can set the various functions

concerning the trafﬁc information.

Touch to enter the

Trafﬁc Information Settings screen.

Touch the desired key on the

screen to set it.

●[Use Trafﬁc Information] key: Con-

siders the information.

●[Show Incidents on Map] key:

Switches on or off the trafﬁc infor-

mation display on the map.

●[Show Trafﬁc Flow on Map] key:

Switches on or off the trafﬁc ﬂow

display on the map.

●[Trafﬁc Announcement] key:

Switches on or off the trafﬁc an-

nouncement standby mode.

■Others

Touch to enter the Others

settings screen.

●[Map Scrolling Information] key:

When you scroll the Map screen

and move the cursor on an icon,

the information on the location can

be displayed. You can set this func-

tion whether to activate or not.

z[Address Book Icons] key

z[TMC Trafﬁc Icons] key

z[Destination/Waypoint Icons] key

z[Latitude/Longitude Info.] key

●[Customize nearby POIs] key:You

can customise the ﬁve categories

of the Customize nearby POI fea-

ture.

●[Keyboard Type] key: To change

the keyboard type(QWERTY type

and ABC type).

●[Tracking Dots Displayed on Map]

key: To change the setting of the

English

tracking dots displayed on map.

●[Adjust Current Location] key:You

can correct the vehicle position on

the Map screen by Scroll the map.

■Resetting All Navigation Settings

to Defaults

You can reset all the Navigation set-

tings to return to the factory settings.

Note:

GThough all the settings are reset, the

stored data such as the Address Book,

Stored Routes, and Avoid Area are not

erased.

Touch

Then touch from the

displayed conﬁrmation screen.

Outline of Destination

Entering Procedures

To start route guidance, operate the

navigation system with the following

procedure:

●Select the method of searching

destination from the Destination

menu screen, then search for

the desired destination.

Select a suitable searching method

according to the place to search.

●Conﬁrm the position of the

place found with the Set Loca-

tion menu screen, then start the

route guidance.

You can store the place found to

the Address Book, or can conﬁrm

the information according to the

place, as well as set it as destina-

tion. You can also display other

suggested routes, or conﬁrm infor-

mation of the route.

Setting destination by

entering the address

This section explains the basic oper-

ation procedure to set the destination

in detail, using the example to specify

the destination by entering the ad-

dress from the Destination menu.

Read this explanation thoroughly

because this procedure is similar to

other destination entering methods.

For other destination entering meth-

ods, please refer to “Entering the

Destination” on page 秋26秋.

Press [MENU]/[MAP]/[AUDIO]

button on the panel to display the

function bar.

Touch to enter Destination

screen when no route exist.

zYou need to touch to enter

Destination screen when a route had exist.

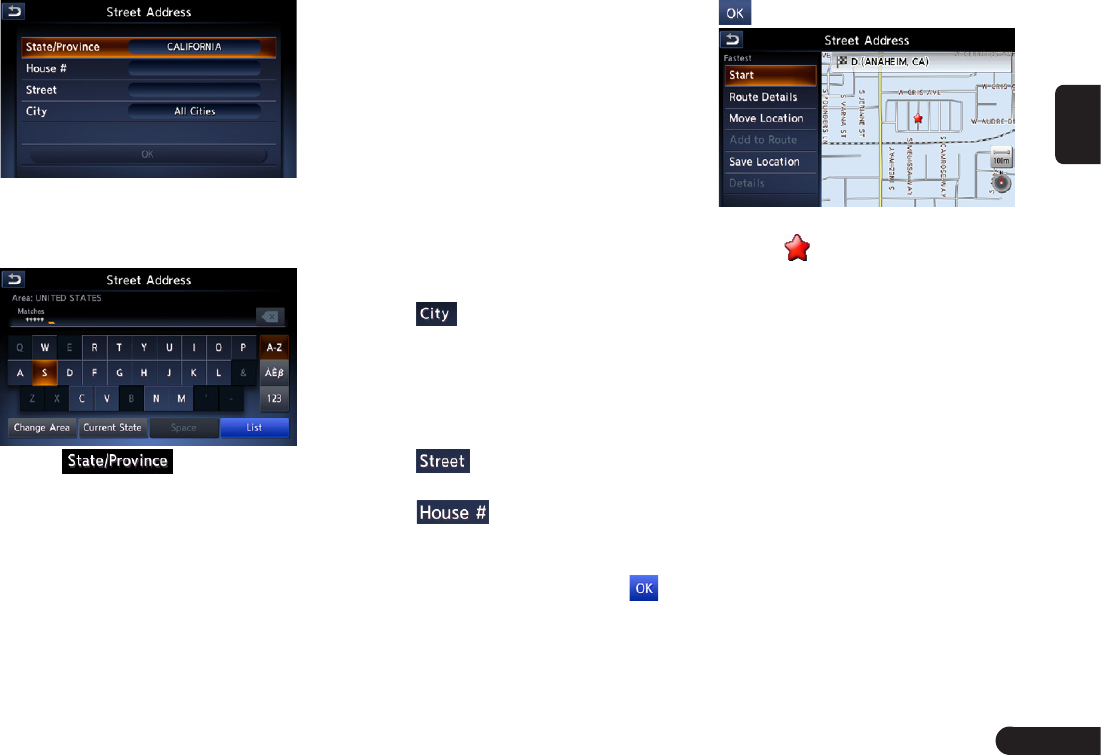

Touch to enter

Street Address screen.

English

Note:

G You can omit the state/province name

entry and directly enter a road name.

Proceed to step 9.

Touch to enter the

state/province name you wish to

go to by touching the characters

on the screen.

●[Change Area] key: To change the

country area.

●[Current state] key: Use current

state.

●[Space] key: Input a space.

●[List] key:Displays the city name

list corresponding to the entered

character(s).

●[ABC] key:Displays the alphabetic

input keyboard.

●[ÀÈß] key:Displays the accent

characters input keyboard.

●[12#] key:Displays the number

input keyboard.

Note:

GDuring the character entry, the system

shows the city name list automatically

when all the matching cities can be

displayed on one page.

Touch to enter the city name

you wish to go to by touching

characters on the screen. Then,

the system returns to the Street

Address screen. Enter the street

name by the same way.

Touch to enter the street

name you wish to go.

Touch to enter the house

number input screen. Then enter

the house number by touching

numbers on the screen, touch .

Note:

GYou can omit the house number entry.

Proceed to step 9.

Conﬁrm the entries, then touch

●[Start] key:Sets the location shown

by the “ ”on the map as the

destination, and starts the route

guidance.

●[Route Details] key: The Calculate

Route menu is displayed. You can

change the route search conditions

or check the route information.

●[Move Location] key:The Map

screen is displayed. You can adjust

the location of the destination.

●[Add to Route] key:When the desti-

nation is already set, the speciﬁed

location is set as the waypoint.

●[Save Location] key:Save the

speciﬁed location into the Address

Book.

●[Details] key:Displays information

about the speciﬁed place if it is

English

included in the map data.

Touch , the route guidance

will be started. The place found is

shown with “ ” on the map.

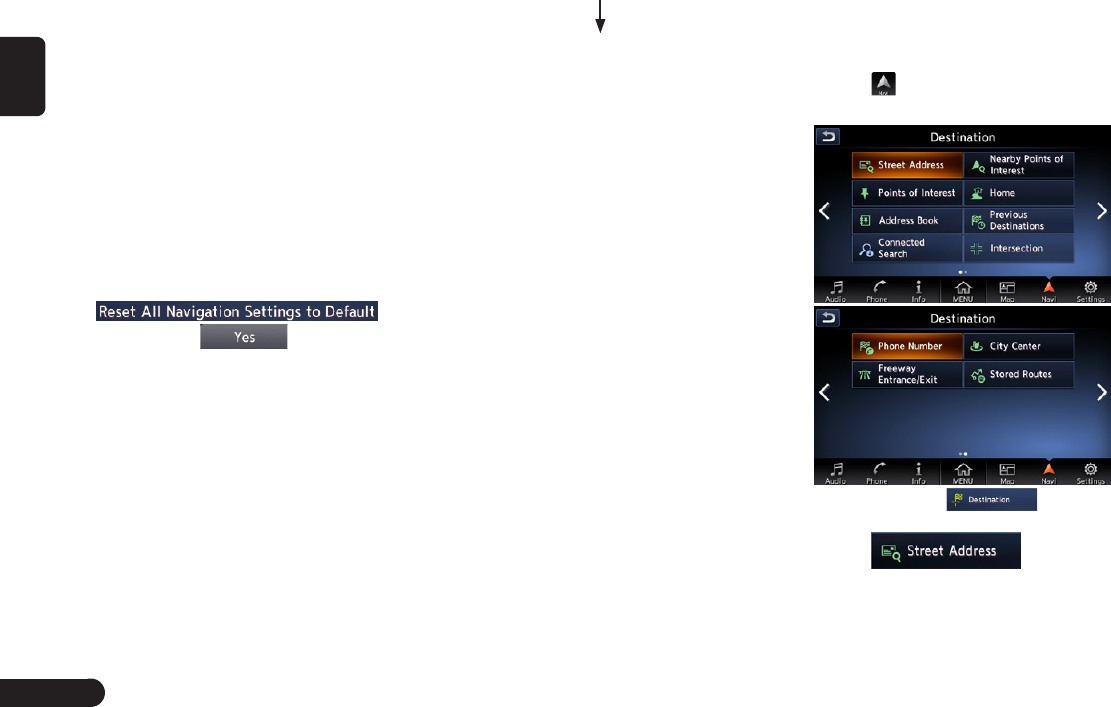

Entering the Destination

Searching Your Destination

from the Destination Menu

You can search for a destination from

the Destination menu by using vari-

ous methods. Use a suitable search-

ing method according to the place

you wish to go to.

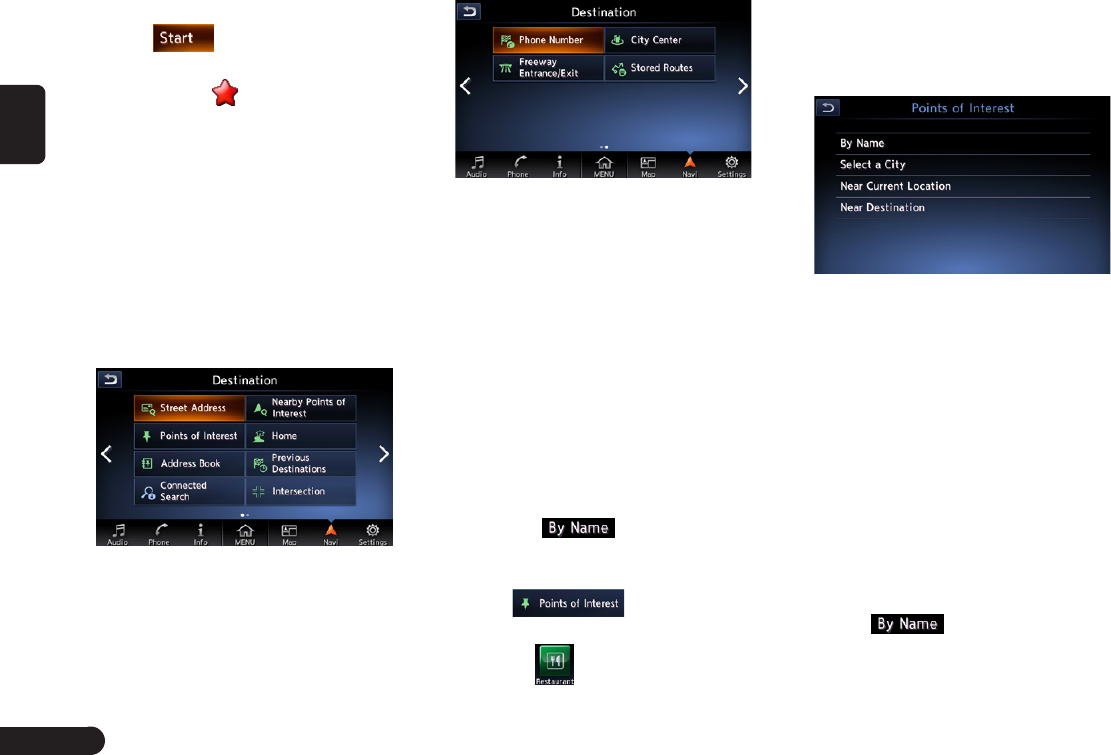

Destination menu screen

For the operation procedure hereaf-

ter, see the explanation of each sec-

tion.

■By Street Address

For the operation procedure, refer to

“Setting destination by entering the

address” on page 秋21秋.

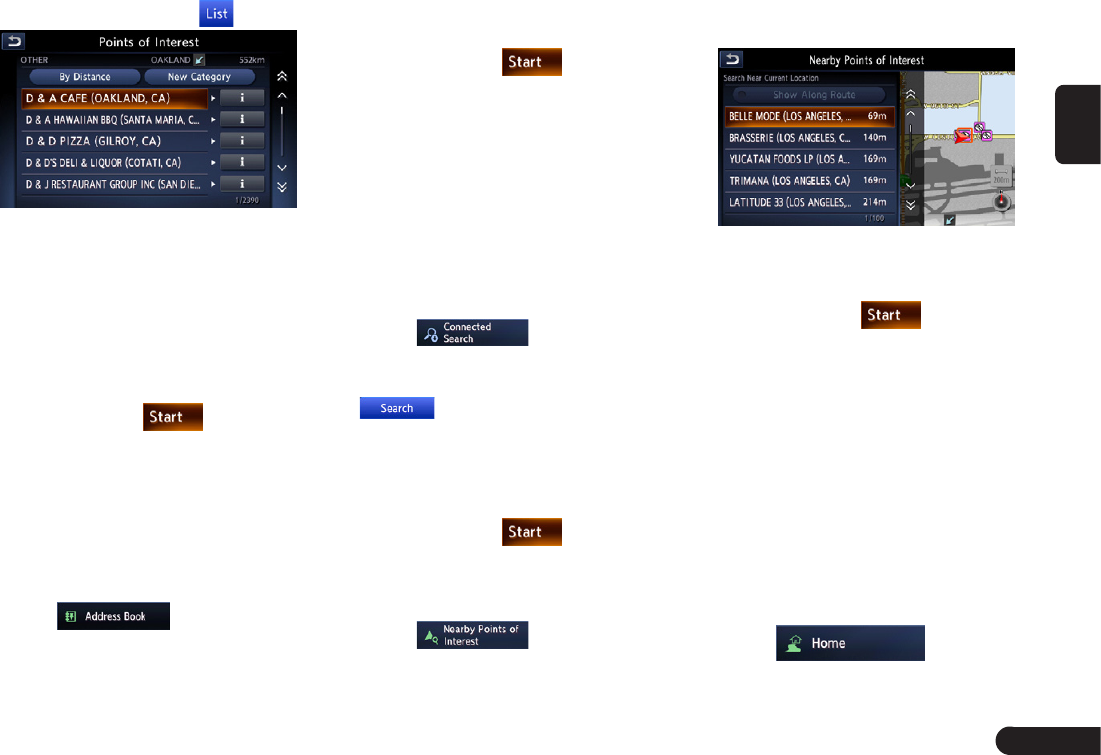

■By Points of Interest (POI)

Select the category of the place, nar-

row down the data by specifying the

area or entering the name, and then

select the place you wish to go to.

By touching , you can also

search a place by simply entering the

name.

Touch .

Touch your desired category. For

example . When a additional

category list is displayed, touch a

category again to select one.

Set the narrow down conditions for

the places.

●[By Name] key: Input the facility

name to narrow down the target

place.

●[Select a City] key: Input the city

name to narrow down the target

place.

●[Near Current Location] key:

Shows a list of facilities around the

current location.

●[Near Destination] key: When the

destination is set, shows the list of

facilities around the destination.

An example of specifying By Name is

explained below.

Touch . Enter the facility

English

name, and then touch .

●[By Distance] key:Sorts the list by

nearby order.

●[New Category] key:Displays the

Category screen so you select a

new category.

Touch the place you wish to go

from the displayed place list.

Conﬁrm the location of the destina-

tion, then touch .

■By Address Book

Speciﬁes a place registered in the

navigation system as the destination.

Note:

• To use this function, register places

beforehand.

Touch .

Touch the stored location you wish

to go from the displayed Address

Book list.

Conﬁrm the location of the destina-

tion, then touch .

■By Connected Search

To ﬁnd a destination, even when you

don’t know exactly what you’re look-

ing for. Just type in a keyword, like

“Pizza”, to see a full list of nearby

results.

Note:

• To use this function, register places

beforehand.

Touch to enter the

Connected Search screen.

Type in a keyword, then touch

to display a full list of

nearby results.

Touch a location you wish to go

from the list.

Conﬁrm the location of the destina-

tion, then touch .

■By Nearby Points of Interest

Touch .

Touch your desired category.

An example of specifying RESTAU-

RANT is explained below.

Touch the place you wish to go

from the displayed place list.

Conﬁrm the location of the destina-

tion, then touch .

■Going Home

When your home address is regis-

tered, you can start route guidance to

your home by a simple operation.

Note:

GWhen your home address is not

registered, a message is displayed

when touching the [Home] key.

When the list of searching methods

appears, register your home address

by the desired method.

Touch .

English

Touch .

The route to your home is automati-

cally calculated and the route guid-

ance is started.

■By Previous Destination

The destinations previously used are

registered in the previous destination

list (up to 100 locations). You can en-

ter a destination by selecting it from

this list. When the previous destina-

tion list exceeds 100 items, the oldest

entries are automatically deleted.

Touch .

Touch the place you wish to go

from the displayed history list.

Touch .

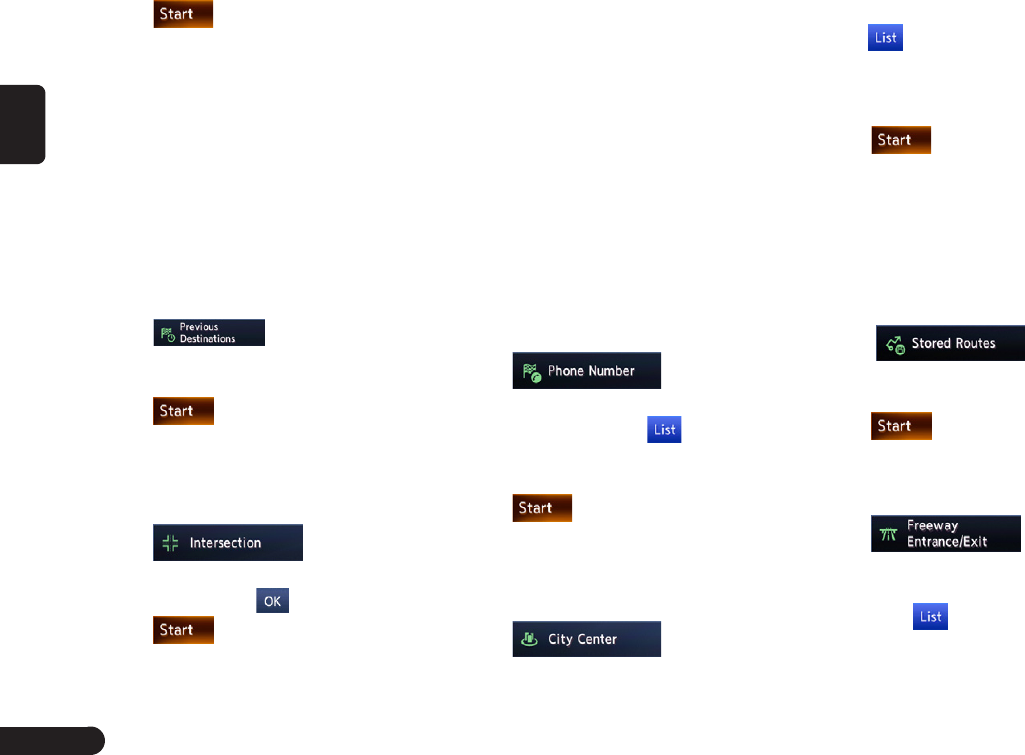

■By Intersection

An intersection of any two streets can

be set as the destination.

Touch .

Enter the 1st street and the 2nd

street, then touch

Touch .

■By Phone number

If the telephone number of the facility

is available, use this to ﬁnd the facility

by entering the number.

Note:

GTelephone numbers that were stored

for stored destinations can also be

used.

GIf the area code of the speciﬁed

telephone number does not exist in the

map data, the system will not search

for the location.

GOnly the locations included in the

database in the map data can be

searched by the phone number.

GResidential phone numbers cannot be

used to search for a location.

Touch . Enter the

phone number including the area

code, and then touch .

Touch the place you wish to go

from the displayed place list.

Touch .

■By City Center

The centre of a city can be set as the

destination.

Touch to enter

the character input screen.

Enter the name of the city, then

touch . The city centre list

displayed.

Touch the place you wish to go

from the displayed place list.

Touch .

■By Stored Routes

Selects a route previously registered,

then set it as the new route.

Note:

• To use this function, one or more

registered routes are required.

Touch .

Touch the route you wish to go

from the displayed stored route list.

Touch .

■By Freeway Entrance/Exit

The entrance or exit of a freeway can

be set as the destination.

Touch to enter

the character input screen. .

Enter the name of the freeway,

then touch . Freeway list dis-

played.

Touch the place you wish to go

English

from the displayed freeway list.

Touch .

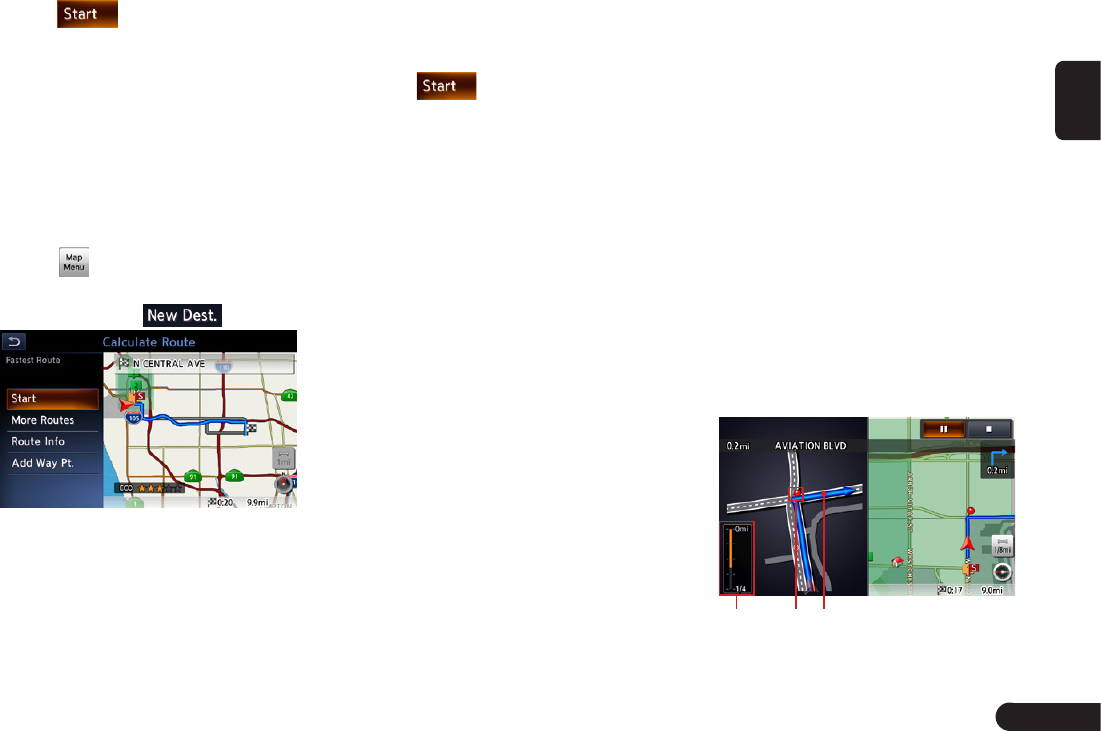

■Searching Your Destination from

the Map Screen

You can search for a place by scroll-

ing the map, and set it as the desti-

nation.

Scroll the map by touching the

Map screen, and move the cursor

to the place you wish to go to.

Touch .

Conﬁrm the location of the destina-

tion, then touch .

●[More Routes] key: You can

change to other suggested routes

with a different priority condition.

●[Route Info] key: Shows the

information of the suggested route

selected on the screen.

●[Add Waypoint] key: Adds

waypoints to the suggested route

displayed on the map. Up to ﬁve

waypoints can be speciﬁed.

Touch .

Note:

GWhen you search a place far from the

current location, change the map scale

to search more quickly.

Route Guidance

After you have entered the destina-

tion and started the route guidance,

you will be guided along the route by

screen display and by voice.

Route Guidance Screen

Features

As well as the Map screen, various

guidance screens are displayed dur-

ing the route guidance mode accord-

ing to the situation.

Pressing the [MAP] button to switch

the screen between the following

guidance screens and the full map

screen.

■Junction Map

When you get near to approx. 300 m

or 300 yd (1 km or 1 mile for a mo-

torway) from the next guidance point,

the screen will be divided into two

displays and the Junction Map will be

displayed on the left display.

You can set to display the Junction

Map screen always in the route guid-

ance mode. The default setting is

OFF.

Note:

GBefore the Junction Map is displayed,

a voice guidance will be heard at

approx. 600 m or 0.4 miles (2 km or

1.3 miles for a motorway) from the

next guidance point. You can change

this setting by setting the Junction

Guidance Settings.

1 23

Remaining distance indication:

English

Indicates the remaining distance

to the next guidance point with the

bar gauge.

Guidance route: Indicates the

direction to travel.

Guidance point:Indicates the next

guidance point.

■Turn list on Route

The screen is always divided into

two displays and the Turn List on

Route is displayed on the left display

if Turn List is activated. The Turn List

contains the guidance points next to

the vehicle position, and will change

while travelling.

When you get near to the next guid-

ance point, the left display is auto-

matically changed to the Junction

Map.

You can set to display the Turn List

screen always in the route guidance

mode.

Turn List:The list of the guidance

points and turning directions are

displayed from the items near to

the vehicle position, and it will

change while travelling.

Scrolling key:Scrolls the Turn List

on Route screen.

About the Voice Guidance

After starting the route guidance,

not only guidance by screen but also

guidance by voice, such as the turn-

ing direction or the distance to the

guidance point, will be given when

you get near to the guidance point.

You can set whether to use the voice

guidance or not, and set the volume

to be changed according to the vehi-

cle speed.

Changing/Editing the Route

Settings

From the Route menu, editing the

current route, conﬁrming the route

information, setting the conditions

of the route calculation, etc. can be

performed.

Press [MENU] button on the panel.

Touch to enter Route menu

screen when a route had exist.

■Delete the route guidance

Delete the route guidance/Terminates

the route guidance during the route

guidance mode.

Touch . A conﬁr-

mation message is displayed.

Touch , the route guid-

ance will be terminated, and the

English

destination and route will be de-

leted.

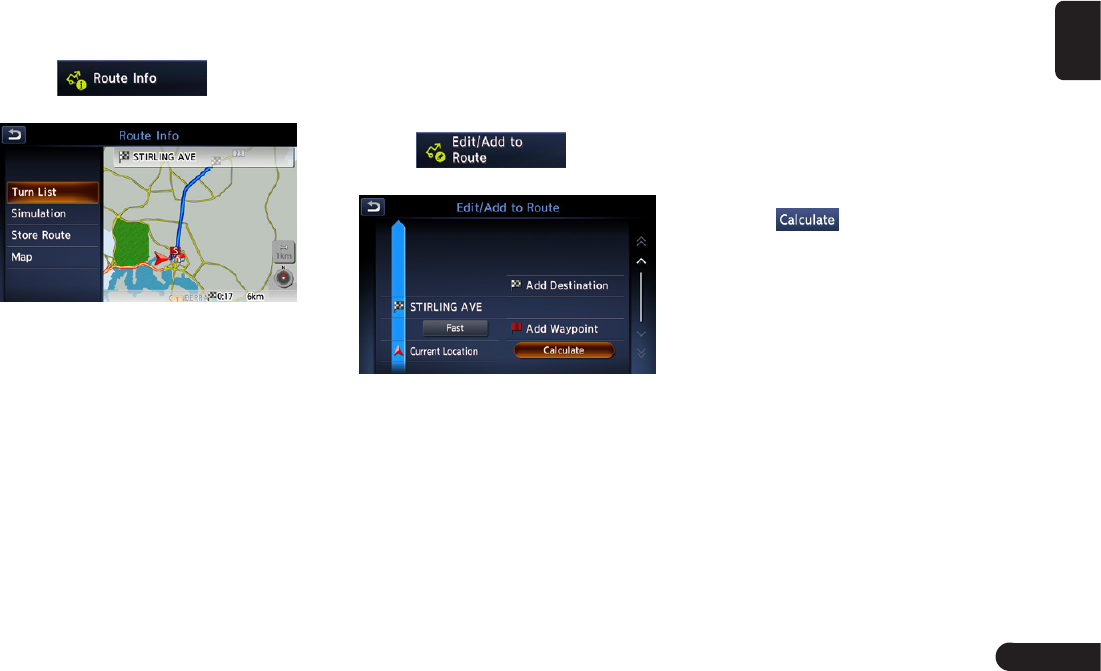

■Conﬁrming the route information

Conﬁrm various information of the

current route.

Touch to enter

Route Info. screen.

●[Turn List] key: Display the list of

route information. The guidance

points from the current location to

the destination are displayed with

the list format.

●[Simulation] key: Simulate the

route guidance with moving the

vehicle mark automatically on the

Map screen.

●[Store Route] key: Store the speci-

ﬁed route. A maximum of 5 routes

can be stored, and they can be

easily retrieved.

●[Map Scroll] key: Displays the Map

screen where the speciﬁed route

can be conﬁrmed.

Touch the desired item to view the

information.

■ Editing the route

You can edit the current route.

Touch to enter

the Edit Route screen.

[Add Destination] key: Touch this

key when you want to set a new

destination. The original destina-

tion will be set as a waypoint in the

route.

●[Add Waypoint] key: Up to 5 way-

points can be set. The speciﬁed

waypoints are displayed by marks

with the ordinal number for visiting.

●[(Current destination/waypoint

name)] key: You can touch the

name of the current destination or

waypoints you wish to edit.

●[(Route calculation criteria)] key:

You can change the conditions of

route calculation.

z[ECO Route]

z[Fastest Route]

z[Minimize Freeway]

z[Shortest Route]

Change settings by touching the

desired setting item.

Touch , The route is recal-

culated with speciﬁed conditions.

■Route settings

You can change settings concerning

the route guidance. About the details,

please refer to “Guidance Settings”

on page 秋21秋and “Route Calculation

Criteria” on page 秋23秋.

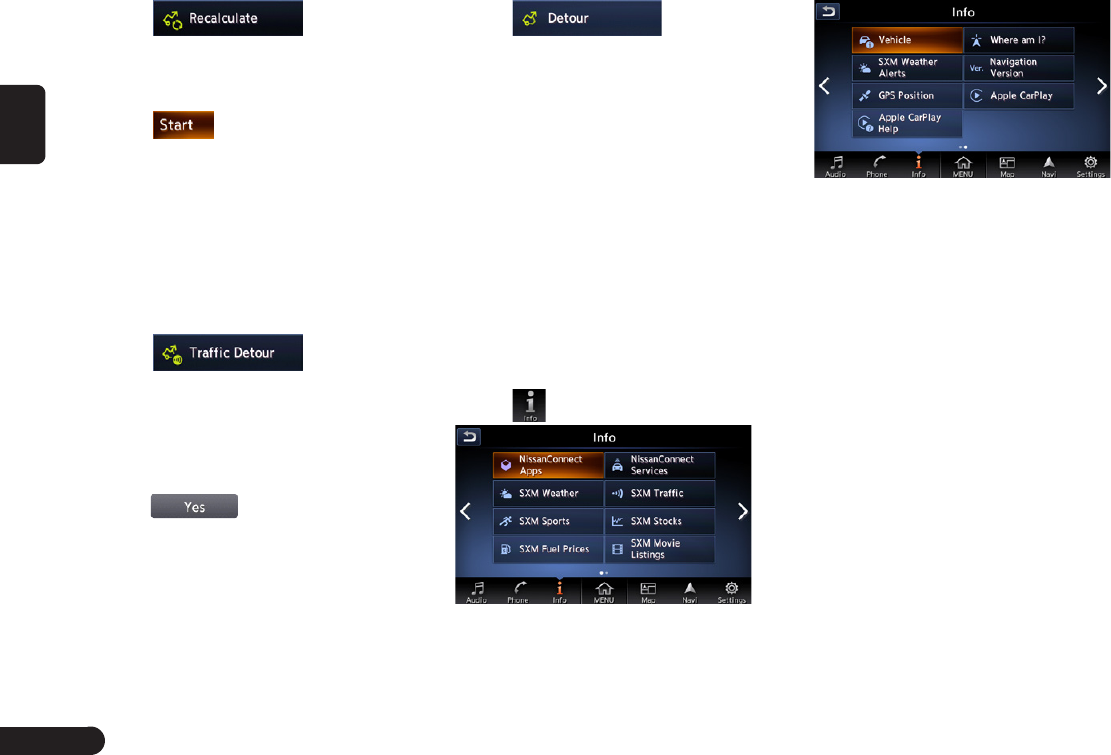

■ Recalculating the route

After changing the conditions of

the route calculation or when the

status of the route is changed, you

can recalculate the route if you

want.

English

Touch , the route

is automatically recalculated, and

the Calculate Route screen is

displayed.

Touch , the route guidance

will be restarted.

■Setting a diverted route using

trafﬁc information

The route with trafﬁc information

considered is automatically calcu-

lated, and the route guidance will be

restarted.

Touch . The

diverted route is displayed with

TMC trafﬁc information taken into

account. When no diverted route is

found, a message is displayed.

Conﬁrm the diverted route, then

touch .

■ Setting the diverting distance

Search for a diverted route where the

section from the current location up

to the speciﬁed distance is avoided.

Touch to enter

the Detour screen.

Touch the distance you want to

avoid.

The route where the section of se-

lected distance is avoided is auto-

matically calculated, and the route

guidance will be restarted.

About Information

This screen sets or displays various

information that is helpful for using

the vehicle safely and

comfortably..

Press [MENU] button on the panel.

Touch to enter Info screen.

●[NissanConnect Apps] key: Dis-

plays NissanConnect Apps.

●[NissanConnect Services] key: En-

ter the NissanConnect Services.

●[SXM Weather] key: Displays

weather information.

●[SXM Trafﬁc] key: Displays trafﬁc

information.

●[SXM Sports] key: Displays sports

information.

●[SXM Stocks] key: You can add or

delete the stocks.

●[SXM Fuel Prices] key: Displays

fuel prices.

●[SXM Movie Listings] key: Display

the nearby theatres and current

movies.

●[Vehicle] key:Displays Eco Drive

Report.

●[Where am I?] key: Displays infor-

mation regarding the current vehi-

English

cle location.

●[SXM Weather Alerts] key: Display

weather alerts lists and set the

alerts.

●[Navigation Version] key: Displays

the current navigation system ver-

sion.

●[GPS Position] key: Displays GPS

information regarding the current

vehicle location.

●[Apple CarPlay] key: Enter the Ap-

ple CarPlay screen.

●[Apple CarPlay Help] key: Displays

Apple CarPlay Help information.

Touch the desired item to view the

information, and about some items

you can operate as per the infor-

mation prompted.

Faurecia Clarion Electronics QY8500 CAR NAVIGATION User Manual

Clarion Co., Ltd. CAR NAVIGATION

User manual.pdf

Navigation menu

Namespaces

Views

Navigation
