Fego Precision Co BAP1200 Remote Control Transmitter User Manual BAP1200 Function

Fego Precision Industrial Co Ltd Remote Control Transmitter BAP1200 Function

User Manual

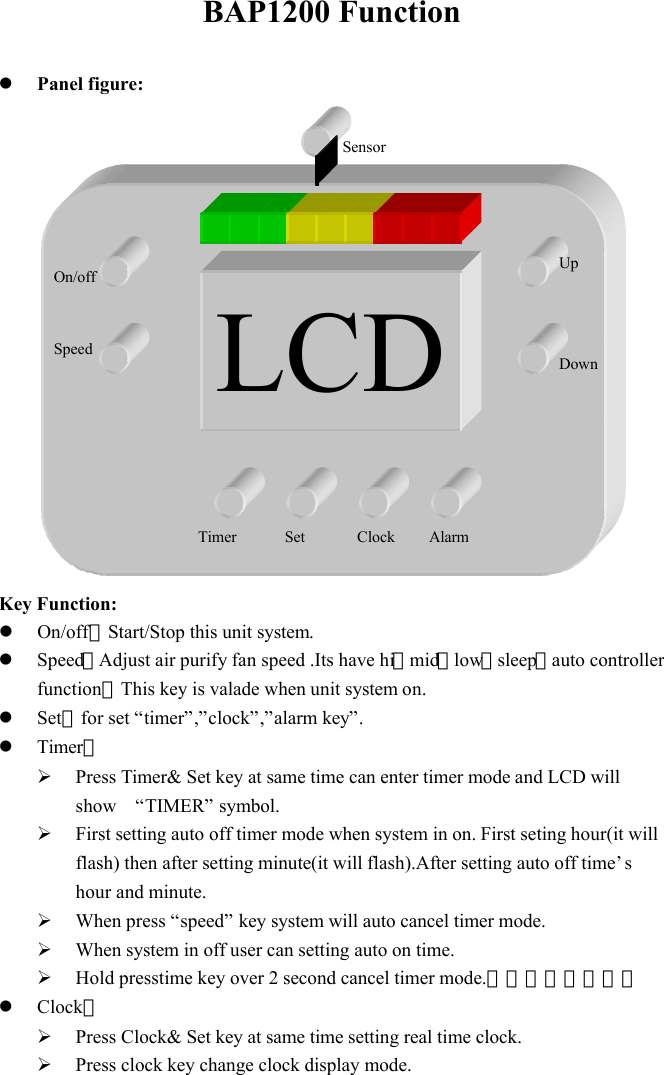

BAP1200 Function l Panel figure: Key Function: l On/off：Start/Stop this unit system. l Speed：Adjust air purify fan speed .Its have hi，mid，low，sleep，auto controller function，This key is valade when unit system on. l Set：for set “timer”,”clock”,”alarm key”. l Timer： Ø Press Timer& Set key at same time can enter timer mode and LCD will show “TIMER” symbol. Ø First setting auto off timer mode when system in on. First seting hour(it will flash) then after setting minute(it will flash).After setting auto off time’s hour and minute. Ø When press “speed” key system will auto cancel timer mode. Ø When system in off user can setting auto on time. Ø Hold presstime key over 2 second cancel timer mode.可取消定時功能。 l Clock： Ø Press Clock& Set key at same time setting real time clock. Ø Press clock key change clock display mode. LCD On/off Speed Timer Set Clock Alarm Down Up Sensor

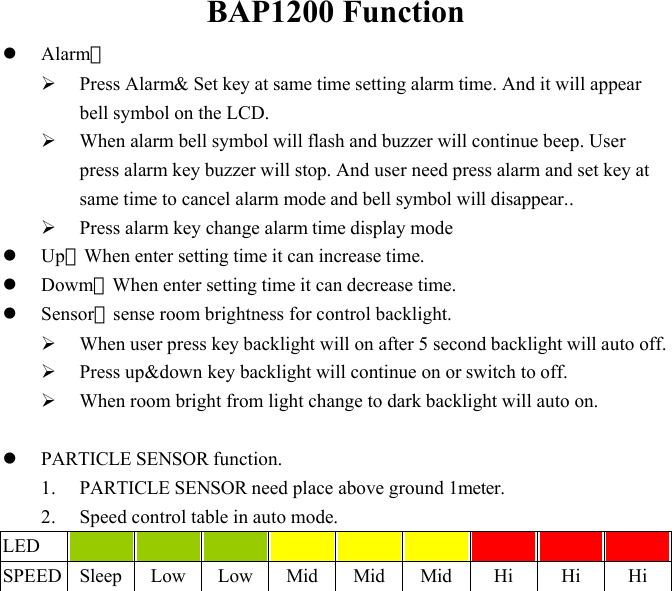

BAP1200 Function l Alarm： Ø Press Alarm& Set key at same time setting alarm time. And it will appear bell symbol on the LCD. Ø When alarm bell symbol will flash and buzzer will continue beep. User press alarm key buzzer will stop. And user need press alarm and set key at same time to cancel alarm mode and bell symbol will disappear.. Ø Press alarm key change alarm time display mode l Up：When enter setting time it can increase time. l Dowm：When enter setting time it can decrease time. l Sensor：sense room brightness for control backlight. Ø When user press key backlight will on after 5 second backlight will auto off. Ø Press up&down key backlight will continue on or switch to off. Ø When room bright from light change to dark backlight will auto on. l PARTICLE SENSOR function. 1. PARTICLE SENSOR need place above ground 1meter. 2. Speed control table in auto mode. LED SPEED Sleep Low Low Mid Mid Mid Hi Hi Hi
