Feig Electronic POWERLINEECCO Bar Code Reader User Manual
Advanced Panmobil Systems GmbH & Co. KG Bar Code Reader
User Manual
powerLine ECCO user manual
powerLine ECCO Bluetooth scanner can choose serial transmission or
USB-HID , you can use bluetooth connect bluetooth Phone or PC
Set HID mode : scan the barcode : AT#MT=0 (code 128)
Set serial mode: scan the barcode: AT#MT=1 (code 128)
1, The buletooth gun key explain:
a) The first key: power on and scan.
Press the first key, you can hear the normal sound . then you can see the light
flash on bluetooth gun , it means: the bluetooth startup ,you can connect the Phone or
PC through setting
b) The second key: sent data
If you had beyond the bluetooth transmission distance, powerLine ECCO can
store data , but when you come back in the valid range ,Bluetooth can be automatic
connect, you can sent data by press the second key
c) The third key: power off key
If you press this key , the bluetooth gun close power
2, Test :
Hold down the first key, keep 5 second, until the laser line appear. Then you
can press the first key can scan barcode , but the data can not be transmission, it mean
the bluetooth gun is good
Delay shutdown function: when the bluetooth is not connected or it did not work,
bluetooth scanner will dormancy after 30 second, 5 minute will be shutdown.
3, Indicator light:
The left side is bluetooth indicator light, when lights flash , bluetooth isnot
connection, when lights is keep, bluetooth is connected, you can scan the barcode , the
data can be sent to the bluetooth Phones or PC or other bluetooth equipment.
The right side is charge power light, the USB port only charge. connect the
computer or power through USB cable, it can charge battery, the battery input 5V
power, current 450 mA, if charge finished, light will become weak

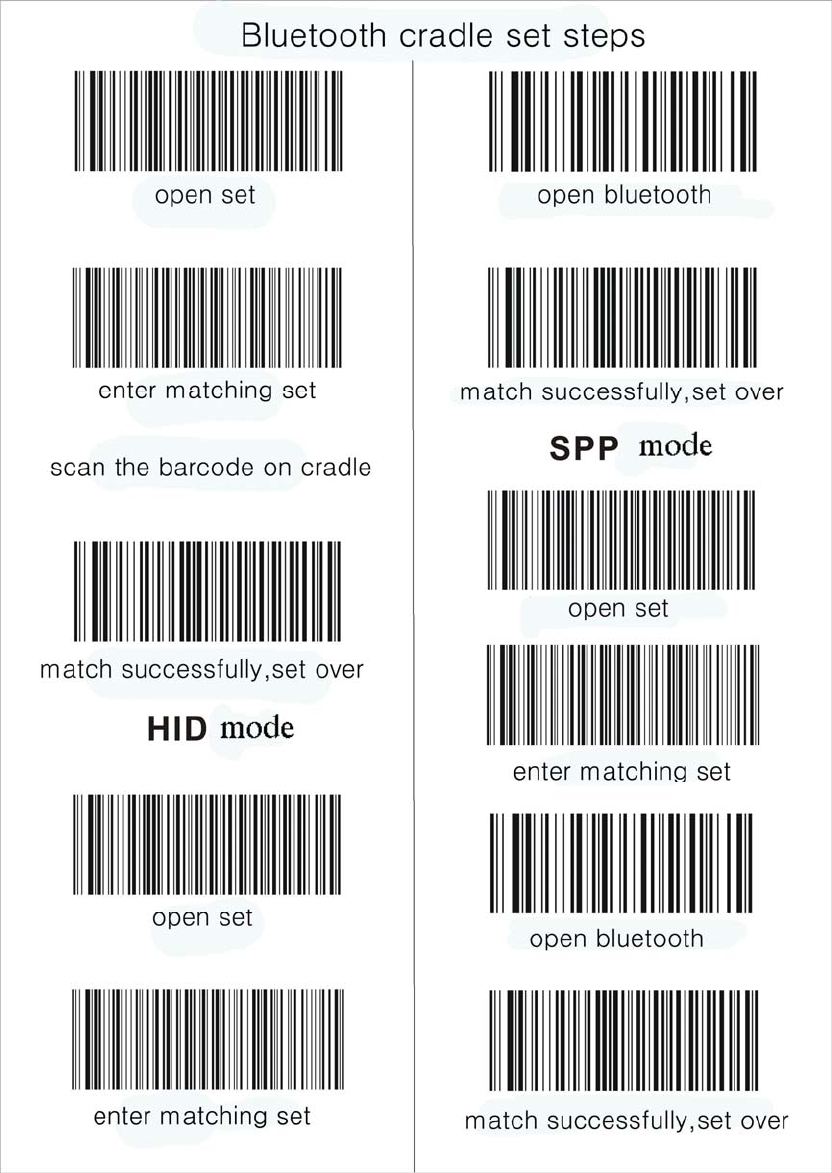

Bluetooth instructions: (connect Mobile phone)
If the bluetooth barcode scanner need connect Mobile phone , you need choose
serial transmission, you can print the barcode :
AT#MT=1 ( Code 128 )
Then scan this barcode, the bluetooth barcode scanner will change serial transmission
the mobile phones need has the bluetooth function, First use, the bluetooth gun
and the mobile phone need to pairing. step is as follows: press first the key, the
bluetooth gun is normal opens, bluetooth light star flash, Then open the bluetooth
mobile phone, search buletooth equipment, it can search SCAN icon, and then begin
connection, password is: "0000". Choice the serial ports , such as chioce COM9, open
the software on Phone ,choice the corresponding serial ports COM9 ,choice: 9600, N,
8, 1. Press "CONNECT" or "OPEN", the buletooth gun light stop flash , the
bluetooth phones and buletooth gun connect success, you can scan barcode, the data
upload to serial software on the Phone
Bluetooth instructions:(connect PC)
Serial :
First use, the bluetooth gun and PC need to pairing. step is as follows: press the
first key, the bluetooth gun normal opens, bluetooth light star flash, Then insert
bluetooth receiver in PC, search bluetooth equipment on PC, can search SCAN icon,
and then connection, password is: "0000". Choice the serial port, such as chioce
COM9, open the serial software on PC, choice the corresponding serial
ports :COM9 ,choice: 9600, N, 8, 1. Press "CONNECT" or "OPEN" ,the buletooth
gun light stop flash, buletooth gun connect to PC success, you can scan barcode, the
data upload to serial software on PC
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment。
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Trademark: PANMOBIL
Name: Bar Code Reader
Model Number: powerLine ECCO
FCC ID: 2AACD-POWERLINEECCO
