Feig Electronic PRH200 RFID Reader User Manual Annex No
Feig Electronic GmbH RFID Reader Annex No
Manual rev
Date: 2012-06-11
Vers. no. 1.12
m. dudde hochfrequenz-technik
Rottland 5a
D-51429 Bergisch Gladbach/ Germany
Tel: +49 2207-96890
Fax +49 2207-968920
Annex no. 5
Functional Description /
User Manual
INSTALLATION
draft – public (B)
2014-04-28 – M31210-2e-ID-B.docx
ID ISC.PRH200
Mobile Reader
(English)
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 2 from 37 M31210-2e-ID-B.docx
Note
Copyright 2014 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: +49 6471 3109-0
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.
OBID® and OBID i-scan® are registered trademarks of FEIG ELECTRONIC GmbH.
my-d® is a registered trademark of Infineon Technologies AG
I-CODE® is a registered trademark of Philips Electronics N.V.
Tag-itTM is a registered trademark of Texas Instruments Incorporated.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 3 from 37 M31210-2e-ID-B.docx
Contents
1 Safety Instructions / Warning - Read before Start-Up 5
1.1 Safety Instructions / Warning - Lithium-ion battery ................................................. 6
1.2 Lithium-ion batteries – Return and Transport .......................................................... 7
1.3 Maintenance ................................................................................................................ 8
1.4 Assembly of the wrist strap ....................................................................................... 8
2 Performance Features of the mobile Reader ID ISC.PRH200 9
2.1 Performance Features ................................................................................................ 9
2.2 Available Reader Types ............................................................................................ 10
2.3 Available Spare Parts ............................................................................................... 10
2.4 Delivery contents ...................................................................................................... 10
3 Start-up 11

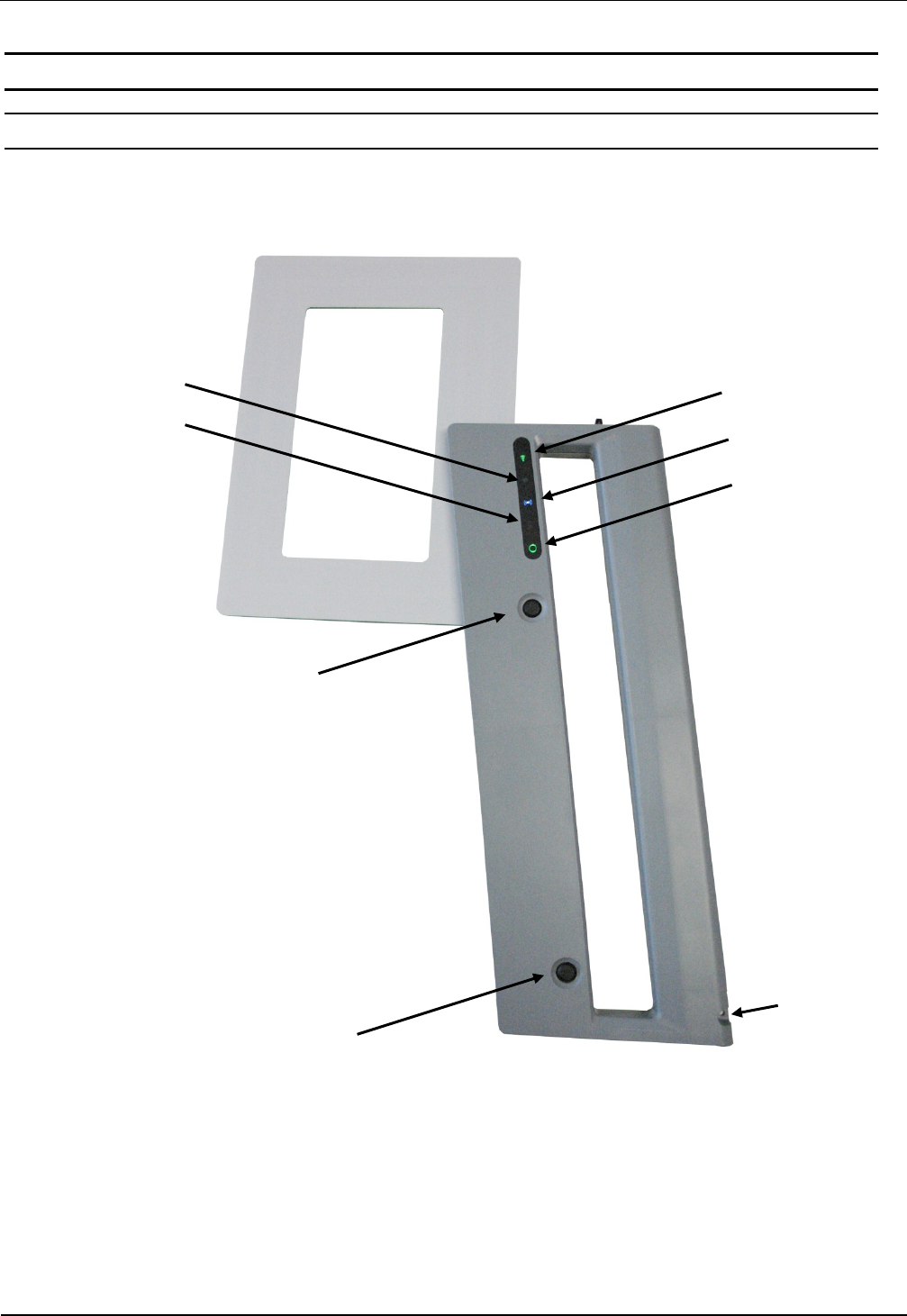

3.1 Side view, Button & LED‘s ....................................................................................... 11

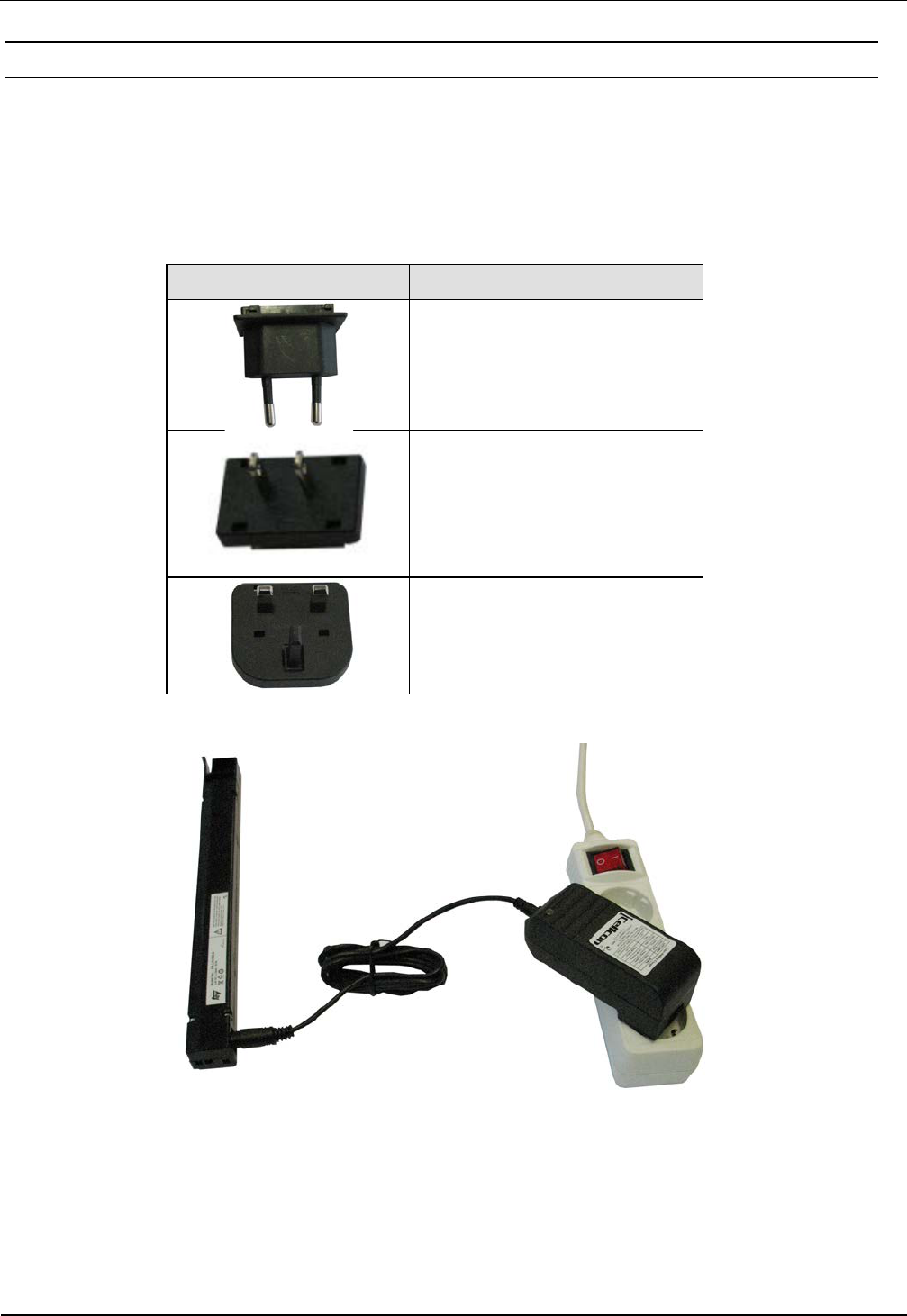

3.2 Charge the battery .................................................................................................... 12
4 First Wi-Fi connection with the Reader and scanning transponder 13

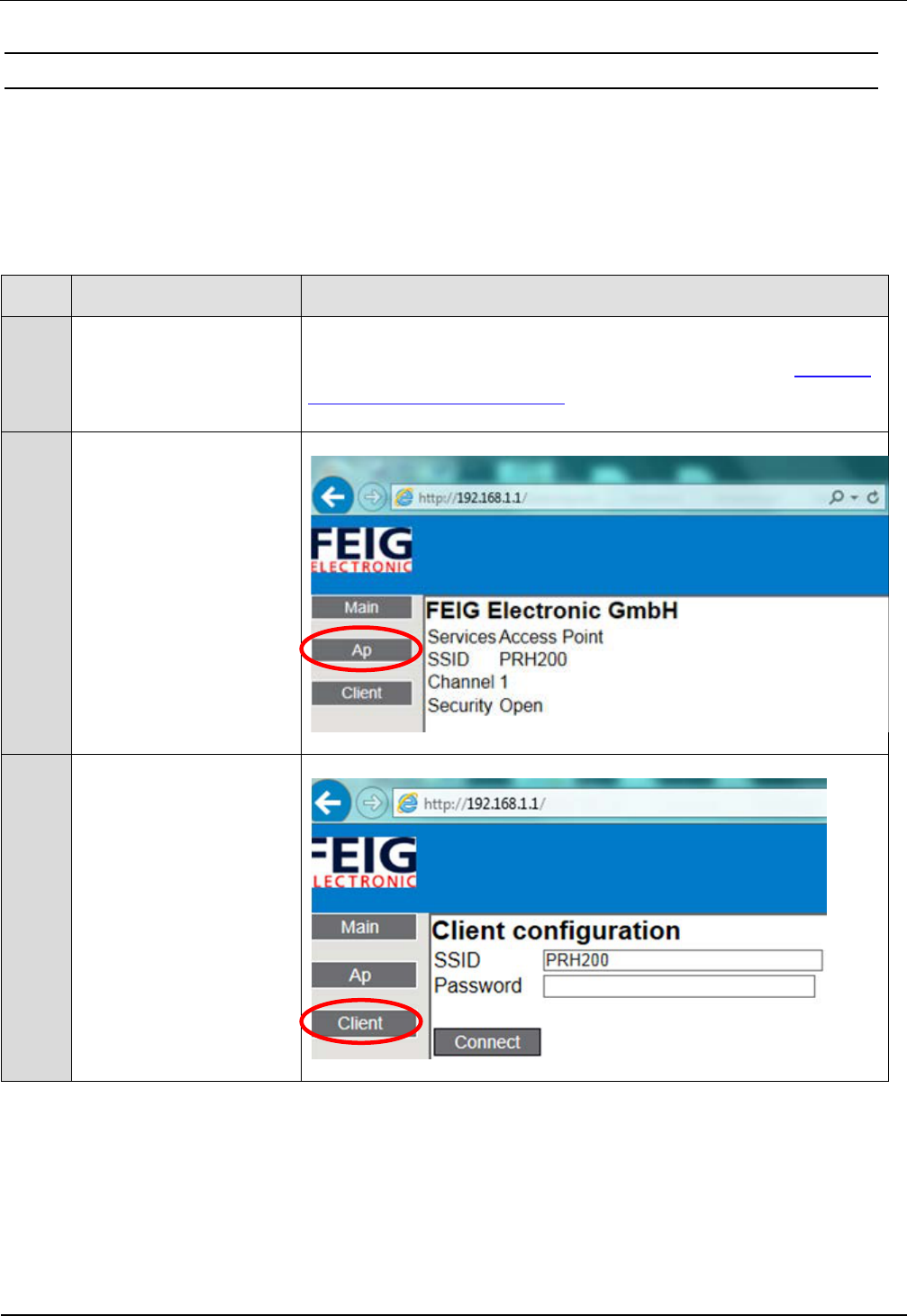

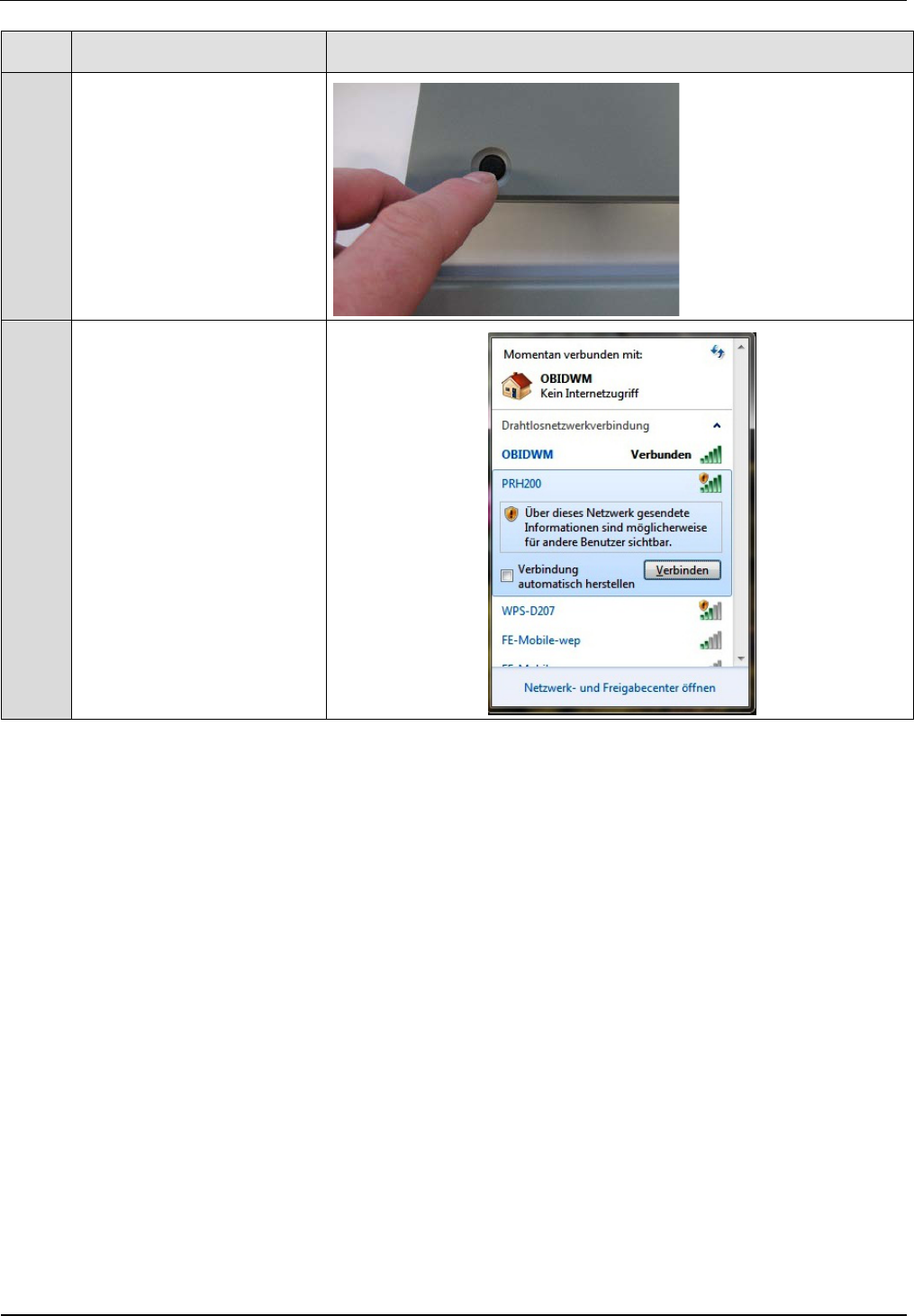

4.1 Connection in Access point Mode ........................................................................... 13

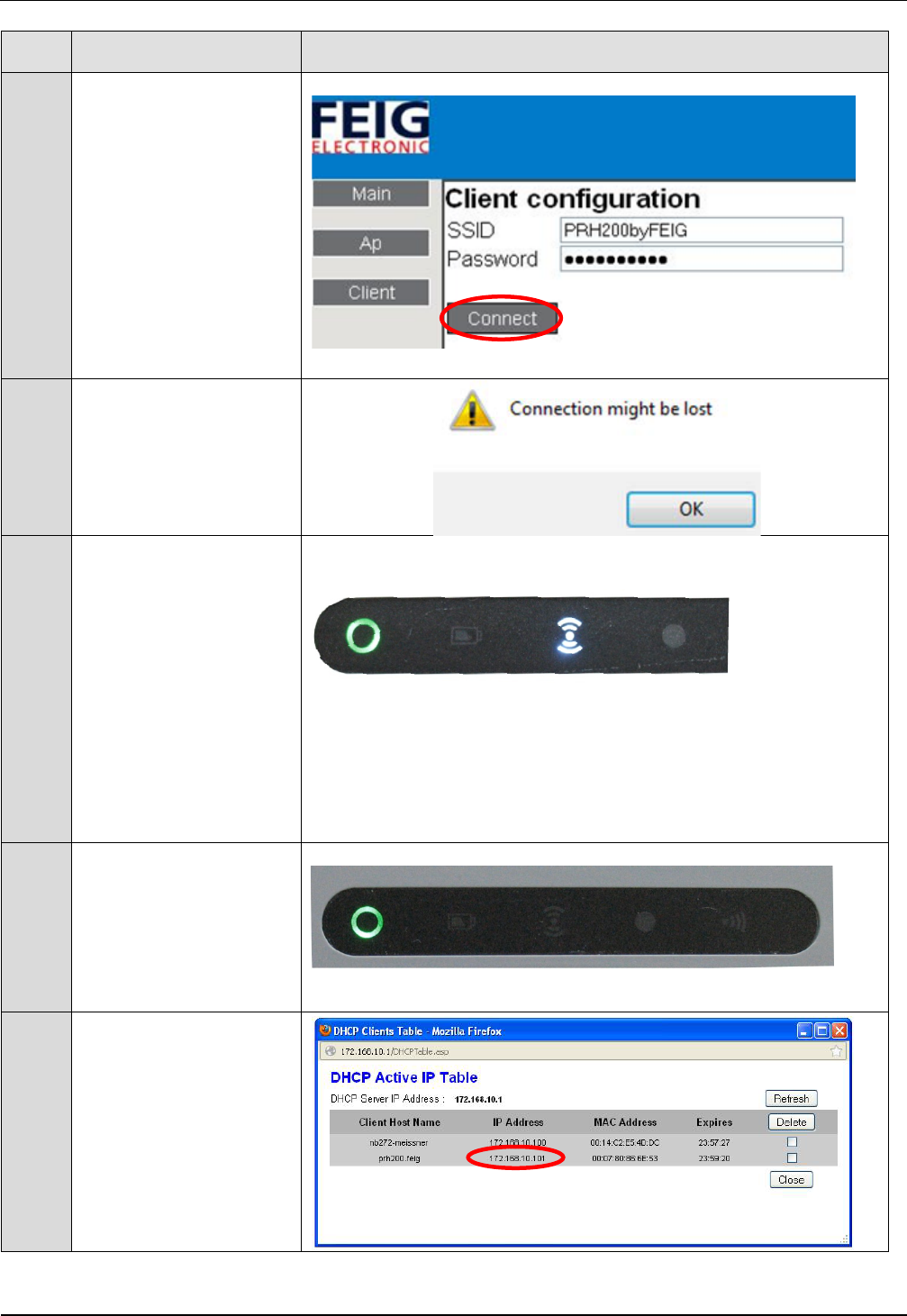

4.2 How to configure the Reader in client mode ........................................................... 16
4.3 Set Wi-Fi parameter to default ................................................................................. 18
4.4 Wi-Fi Interfaces ......................................................................................................... 20
5 Control and Display Elements 21
5.1 Buttons ...................................................................................................................... 21

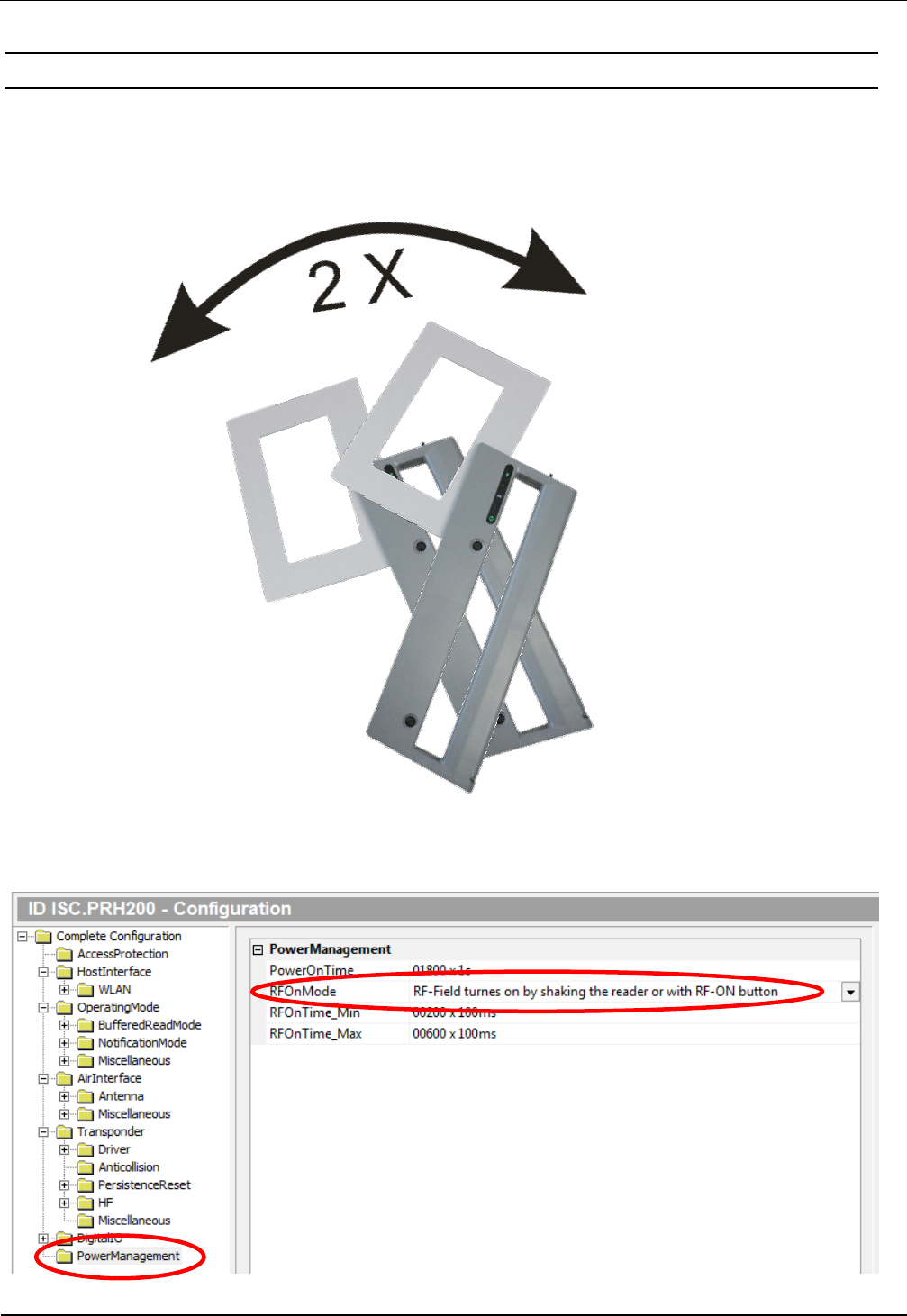

5.1 HF-ON Motion Detector ............................................................................................ 22

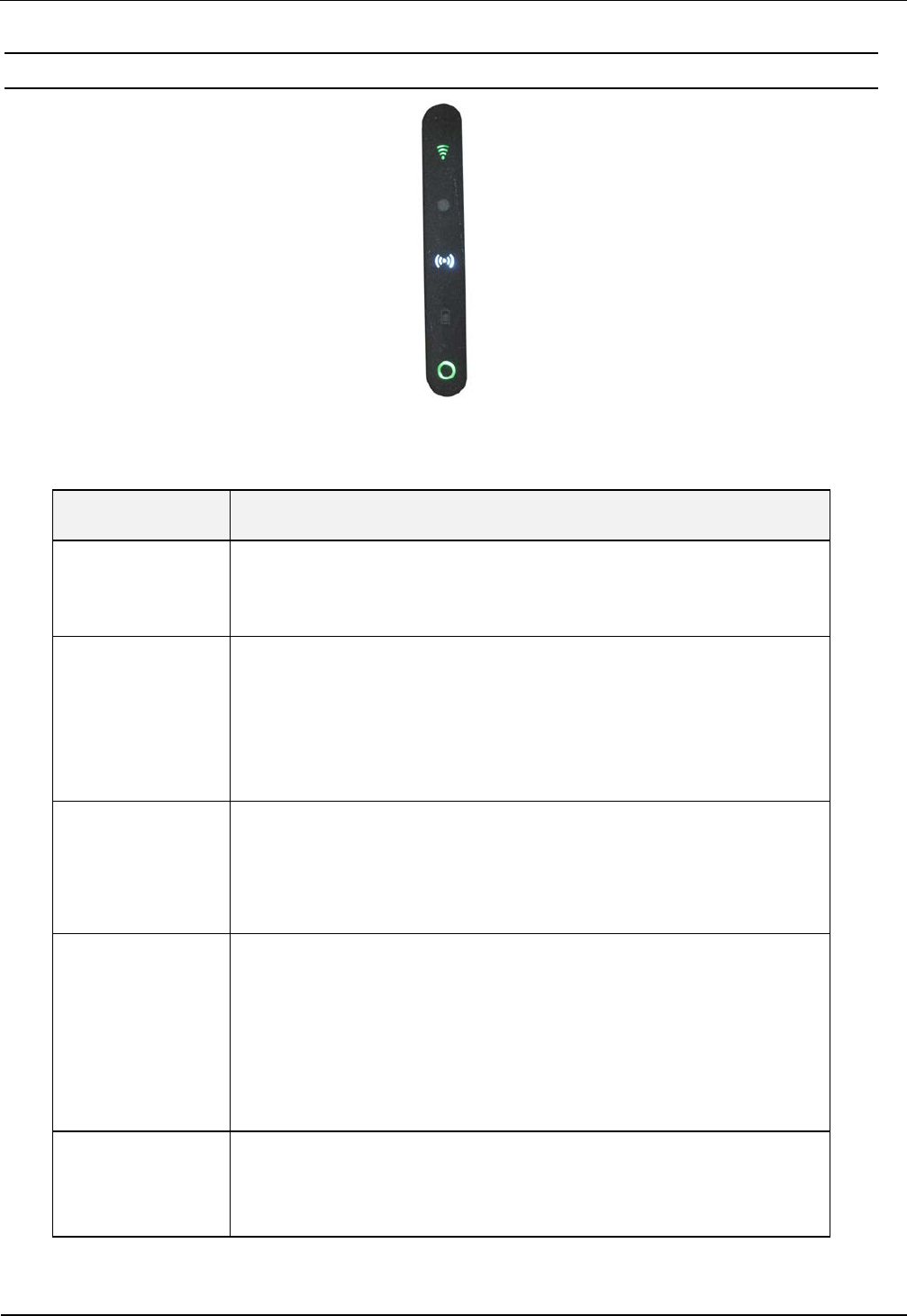

5.2 LEDs .......................................................................................................................... 23
5.3 Buzzer ........................................................................................................................ 24

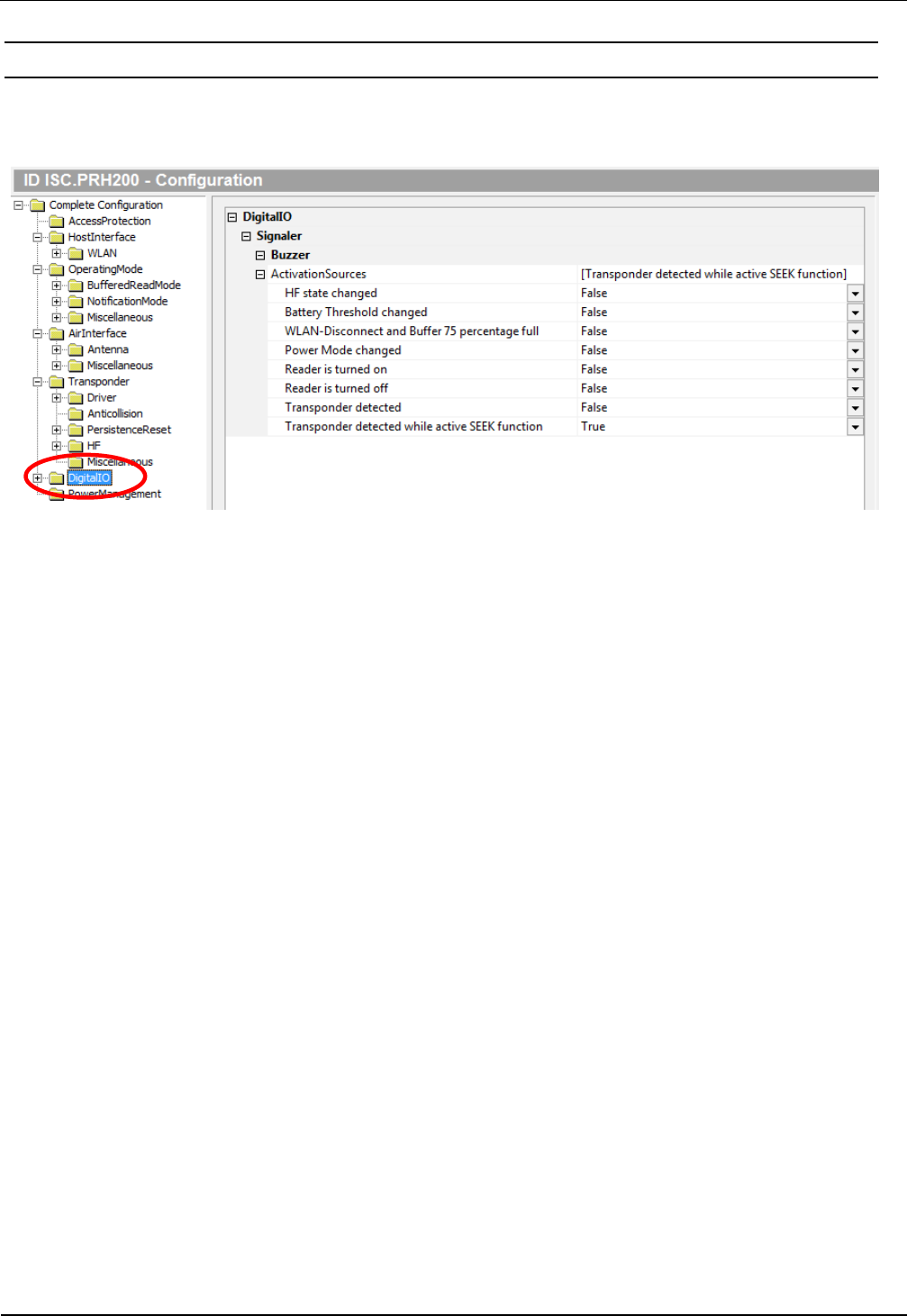

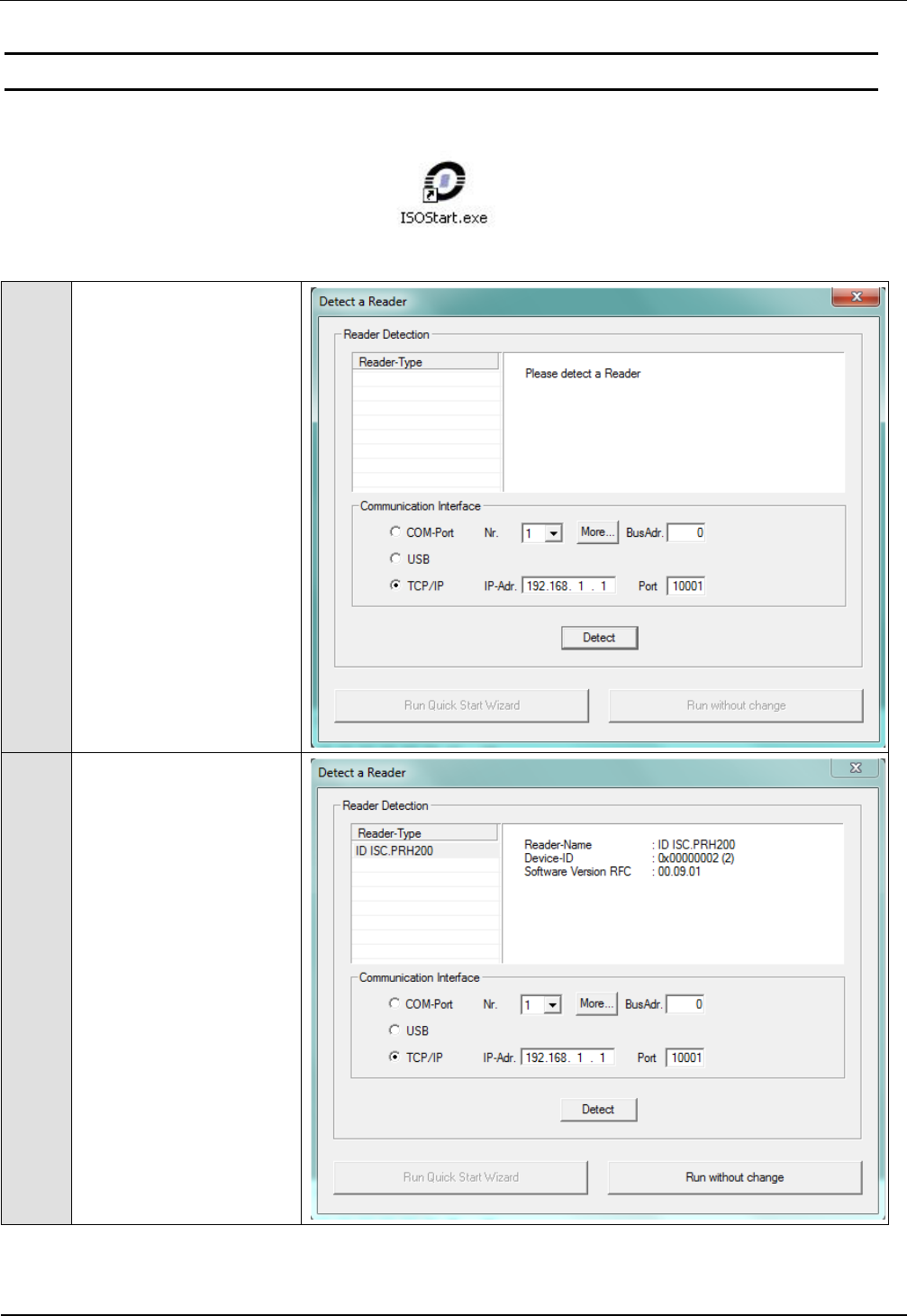

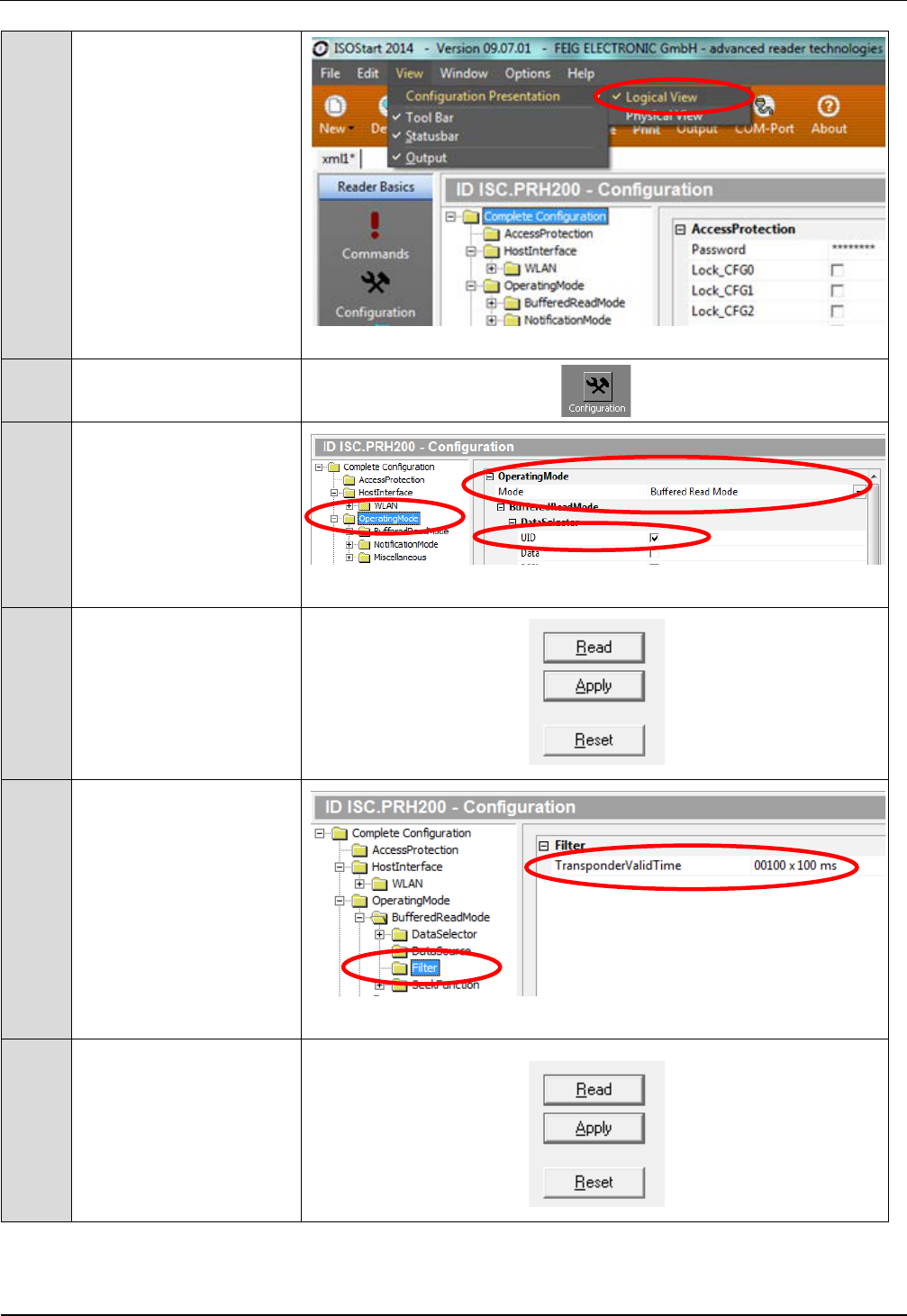

6 Configuration and testing the Reader using ISOStart 25
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 4 from 37 M31210-2e-ID-B.docx
7 Approvals 30
7.1 Europe (CE) ............................................................................................................... 30
7.2 USA (FCC) and Canada (IC) ..................................................................................... 31

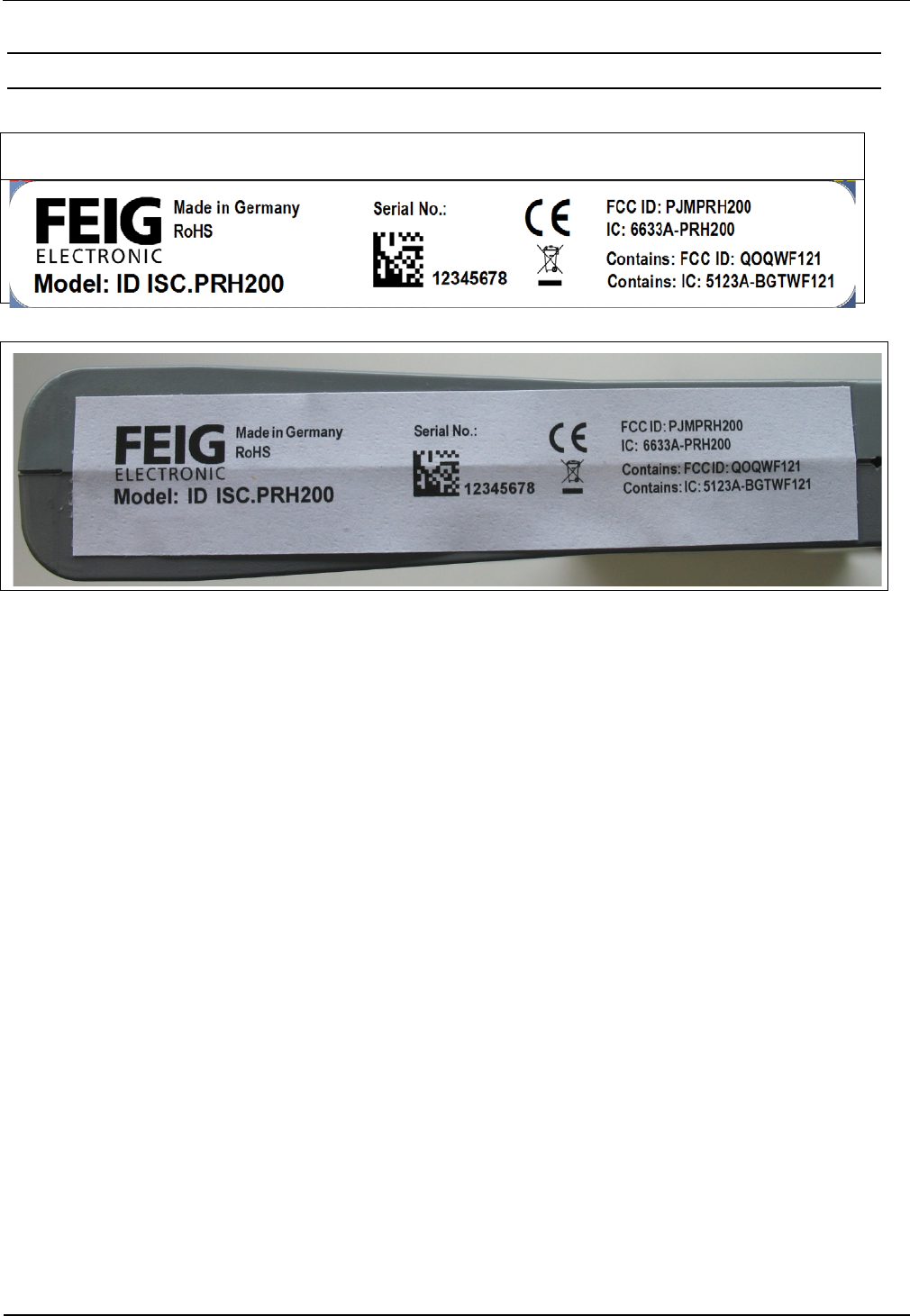

7.3 Label Information Reader ID ISC.PRH200 ............................................................... 33
7.3.1 USA (FCC) and Canada (IC) approved antennas ................................................... 34
8 Technical Data 35
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 5 from 37 M31210-2e-ID-B.docx
1 Safety Instructions / Warning - Read before Start-Up
• The device may only be used for the intended purpose designed by for the manufacturer.
• The operation manual should be conveniently kept available at all times for each user.
• Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
• The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
• Repairs may only be executed by the manufacturer.
• Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
• Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
• When working on devices the valid safety regulations must be observed.
• Please observe that some parts of the device may heat severely.
• For installation and dismantling you should wear suitable safety gloves, because parts of
antenna housing could be sharp-edged.
The device is not water proof and should not be exposed to rain or humidity.
Under extreme circumstances water could seep into the device and damage the electronic
circuits.
Special advice for wearers of cardiac pacemakers:
• Although this device doesn't exceed the valid limits for electromagnetic fields you should
keep a minimum distance of 25 cm between the device and your cardiac pacemaker. Do
not holding the reader antenna for any length of time in an immediate proximity of the car-
diac pacemakers
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 6 from 37 M31210-2e-ID-B.docx
1.1 Safety Instructions / Warning - Lithium-ion battery
• Use the battery only in the intended device from Typ ID ISC.PRH200.
• Improper use, damaged chargers or battery packs of injury and fire hazard
• Expose the battery pack for no deviating from the technical data of environmental influences.
Moisture and water, dust, heat, shocks and pressure can damage or destroy the battery pack.
• To use a damaged, deformed or not original sealed battery pack is prohibited. You must be
disposed of properly and Expertly and may no longer be shipped in Packet
• Lithium-ion batteries must not be in the trash, they must be disposed of separately. Find out.
upon the local authorities to suitable collection
• Charge the battery only with the original by FEIG ELECTRONIC GmbH supplied battery
charger.
• During charging, the ambient temperature should be between 10°C and maximum 45 °C. A
slight warming of the battery during charging and in use is normal.
• Store your battery in a cool, dry place. Permitted temperature range according to technical
data.
• The battery pack must never be shorted out. A short-circuit the battery pack can be very hot,
break and break explosively
• Avoid reverse polarity of positive and negative poles. The battery pack may be damaged or
destroyed.
• Do not heat or throw the battery pack of in fire. Do not charge and leave the battery pack at the
high temperature. The battery pack may ignite explosively and break
• Never disassemble the battery pack. If disassembled battery pack, safety protection circuit may
cause breaking and not operated safety system for charge and discharge. May cause heating,
igniting and breaking of cell.
• Do not solder to terminal of battery pack. Safety protection circuit may cause breaking and may
be not operated safety system for charge and discharge. If heat up battery pack over 90°C,
plastic parts may be melting and cell may be leaking and may cause heating, igniting and
breaking by short-circuit internally.
• Do not subject the battery and replace the battery, no strong shocks or a strong impact.
• Do not leave the battery unattended during charging.
• Make sure that the battery label always remain on the battery pack. The information’s printed
on the label have to be visible during handling the battery pack.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 7 from 37 M31210-2e-ID-B.docx
1.2 Lithium-ion batteries – Return and Transport
Please note the following instructions for disposal or return and transport of Li-Ion batteries:
• Do not load or transport Li-Ion batteries if damaged. If you have any doubts, please contact
our technical support under obid-support@feig.de or phone +49 (0) 6471 3109 421.
• If the packaging is damaged, the packaging must be replaced by an undamaged original
packaging before further transport.
• Li-Ion Batteries may only be returned in their original condition and packaging.
• The shipping regulations must be observed.

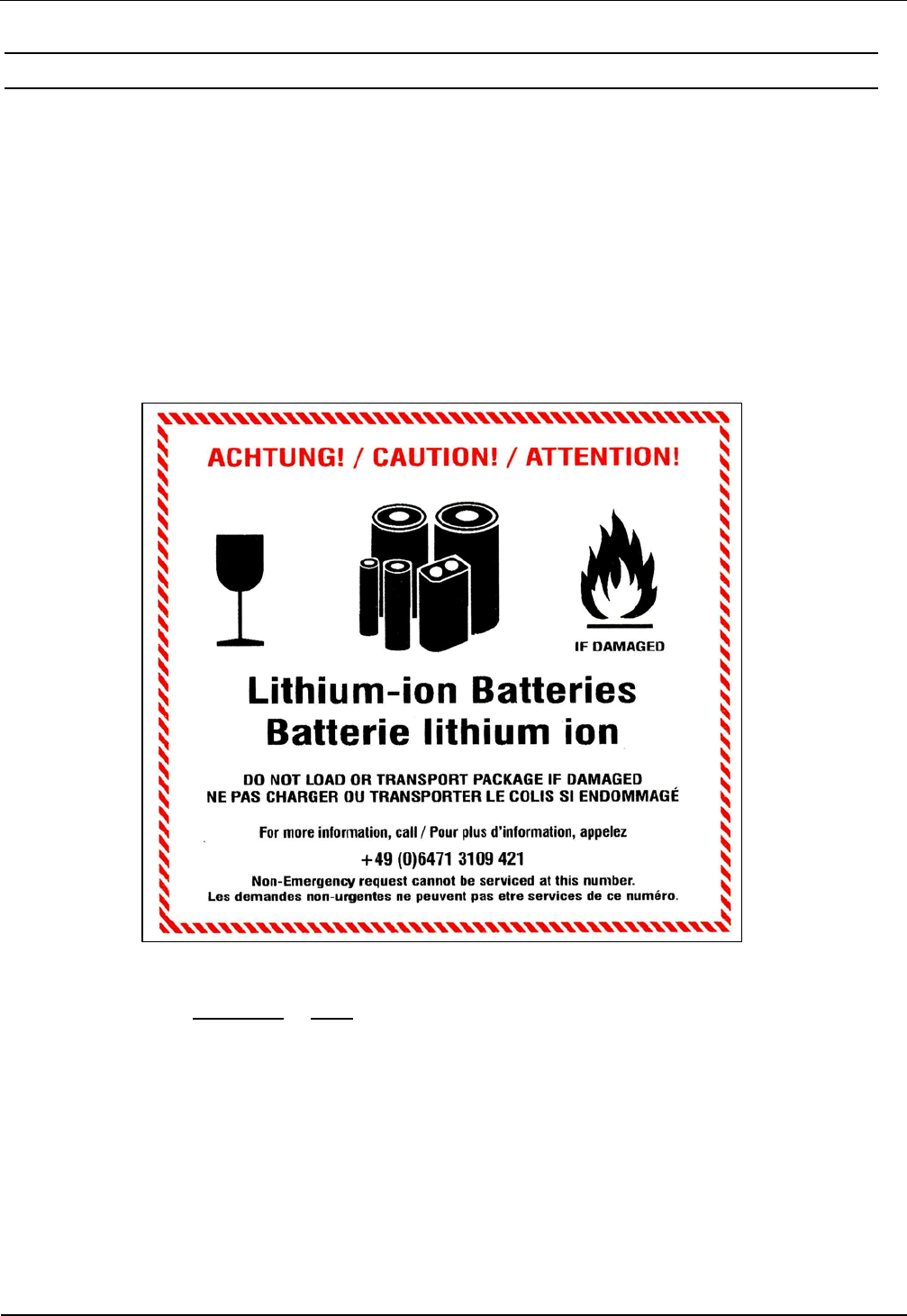

• In the case of a return, the following label is clearly visible attached to the parcel:
Print out this sheet in A4 format in color, cut it out and attach the label clearly visible on the pack-
age.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 8 from 37 M31210-2e-ID-B.docx
1.3 Maintenance
The reader ID ISC.PRH200 is a design product with high quality surfaces, and should always be
handled with caution. The Device was designed to work reliably and flawlessly for years without
special maintenance.
Attention! The surfaces should be cleaned with a clean, soft cloth dampened in a dishwash-
ing liquid – water solution.
To improve the durability and the appearance, please follow the instructions below:
• Keep the reader clean and take care the reader is not scratched. Also regularly apply specific
antistatic products for acrylic surfaces.
• Regularly remove dust and other impurities with a soft cloth and a solution of water with a little
dishwashing liquid.
• Keep the reader dry. All kinds of moisture should be avoided during operation and storage.
Precipitation, humidity and liquids contain minerals that will corrode electronic circuits and
damaging transparent plastic parts.
• Avoid storing or operating the reader at dirty or wet locations. The surfaces or electronic com-
ponents may be-damaging.
If any device not working properly, please contact the appropriate representative.

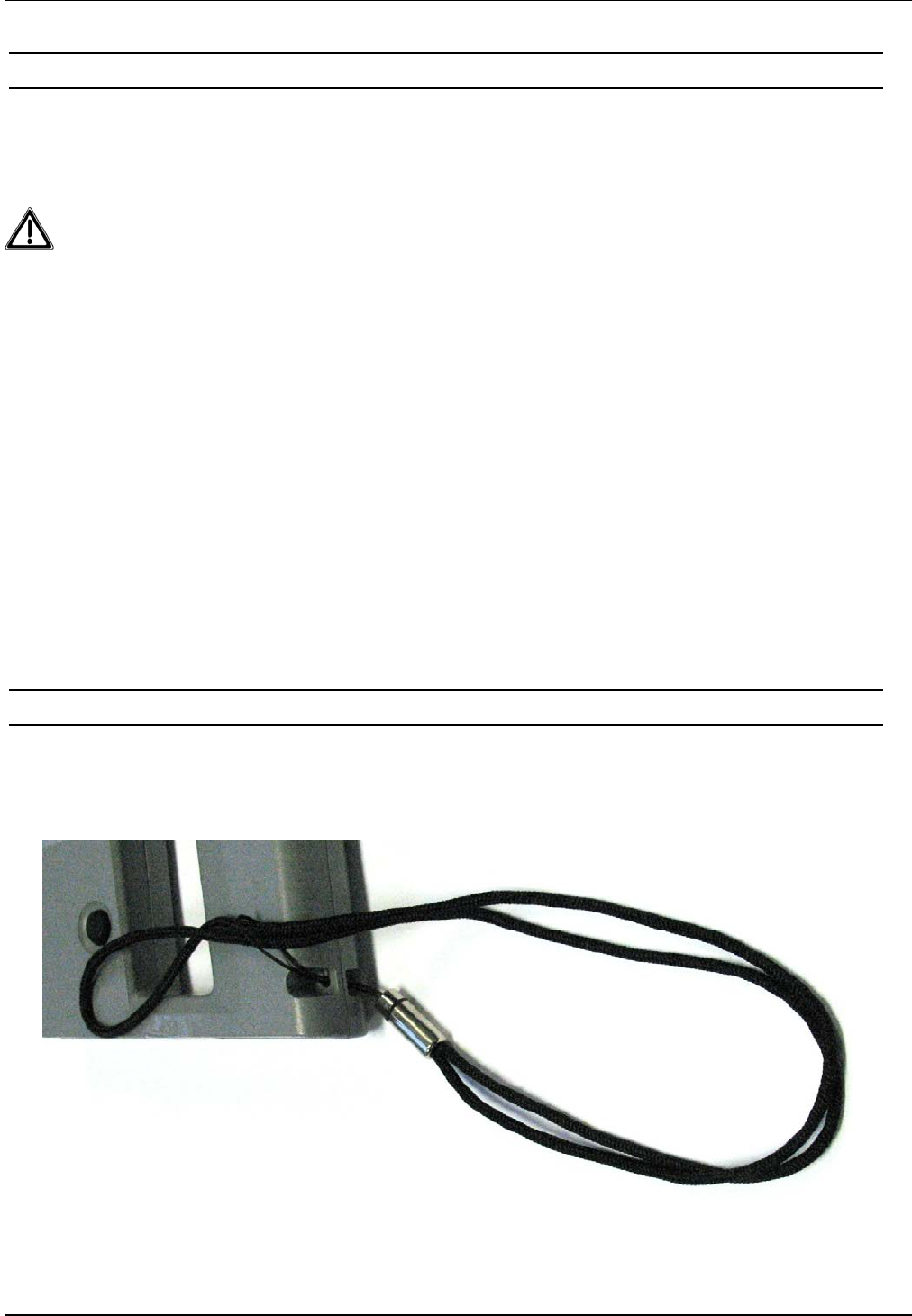

1.4 Assembly of the wrist strap
The included hand strap is mounted on the provided eyelet and tightened.
To avoid damage, the hand strap to secure it against falling should always be used.

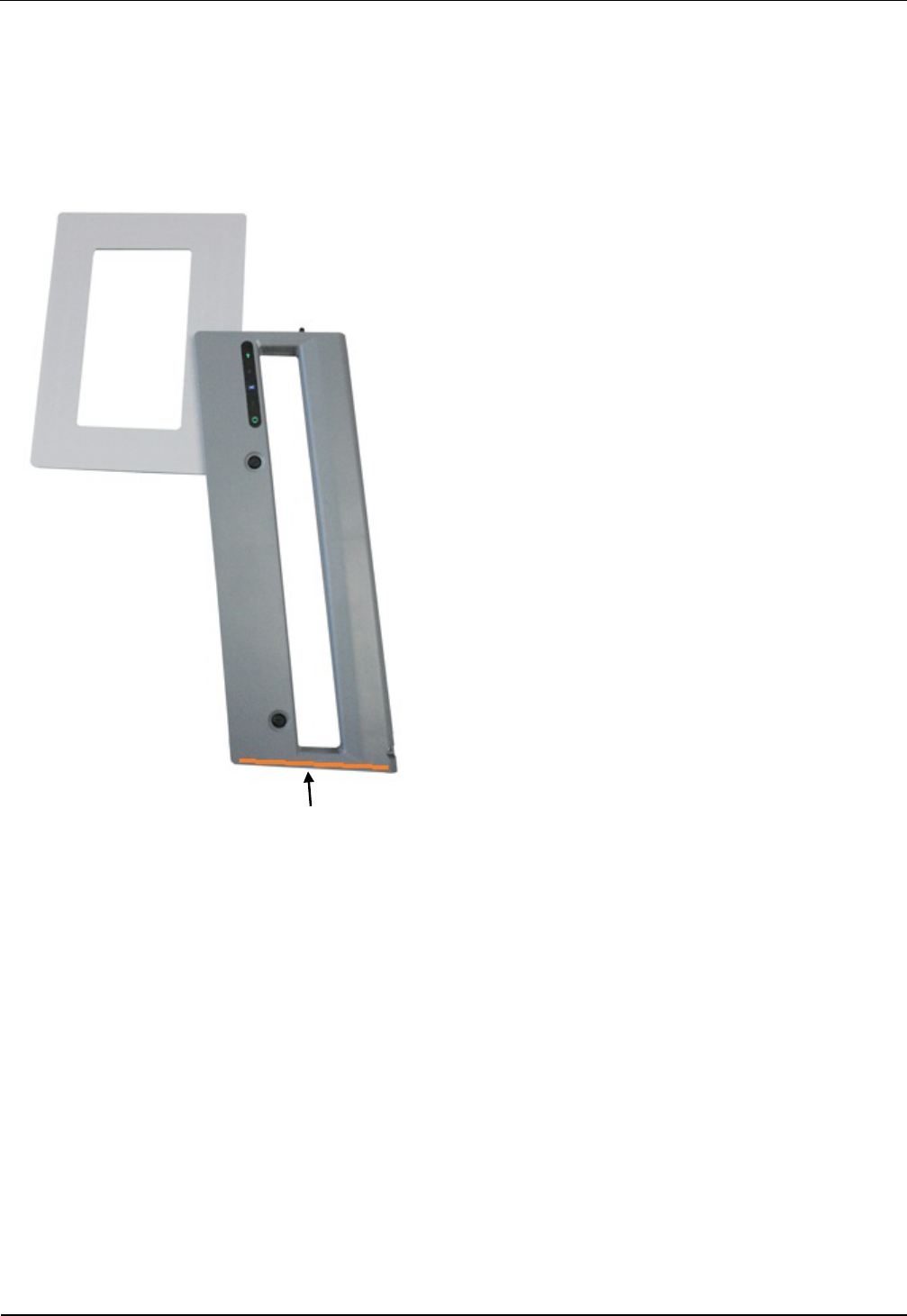

Fig. 1: Assembly of the wrist strap
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 9 from 37 M31210-2e-ID-B.docx
2 Performance Features of the mobile Reader ID ISC.PRH200
2.1 Performance Features
ID ISC.PRH200 is a compact, wireless handheld reader, designed for contactless data exchange
with ISO 15693 transponders, especially in libraries. Typical applications are:
• Inventory (Inventory books or other media in the shelf)
• Sorting of books or media in a shelf
• Locate a book or media in a shelf or box,
• automatic checking / rewriting of the AFI bytes of all media.
Further applications are laundries, logistical processes as well as document and asset manage-
ment. In these areas it is possible to work with ISO 18000-3M3 transponders, optionally.
Depending on the type of media and the reading distance, the output power can be switched be-
tween two levels (Standard Mode: 1.5 W and Boost Mode: 4 W). Power supply is a Lithium Ion
rechargeable battery that allows for operating times up to 16 hours*.
If necessary, the battery can be replaced easily and quickly.
5 multi-colored LED lights and an integrated sounder act as display elements. Thereby all relevant
states are visible on both sides of the device.
Communication with a data base or computer take place through a Wi-Fi interface on the reader,
that supports the most common encryption protocols.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 10 from 37 M31210-2e-ID-B.docx
2.2 Available Reader Types
Article No. Reader Description
4213.000.00 ID ISC.PRH200 Mobile Reader with rechargeable battery
and Wi-Fi-Interface
Table 1: Available Reader Types
2.3 Available Spare Parts
Article No. Spare part Description
4214.000.00 ID ISC.SRB Spare Rechargeable Battery Spare or additional battery-pack
4215.000.00 ID CHA.Li-Ion Recharger Spare charger for battery-pack
Table 2: Available Spare parts
2.4 Delivery contents
• Mobile Reader with battery and Wi-Fi-Interface
• Lithium-ion battery pack
• Wall power charger & Adapter Set for international socket-outlet
• Wrist strap
• Installation instructions
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 11 from 37 M31210-2e-ID-B.docx
3 Start-up
3.1 Side view, Button & LED‘s
Fig. 2: Housing ID ISC.PRH200
RF-ON
LED RF-ON
LED MODE
Eyelet for
wrist strap
Power-ON
LED Wi-Fi
LED BATT
LED APPL
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 12 from 37 M31210-2e-ID-B.docx
3.2 Charge the battery
The battery pack is charged using the supplied charger. For this, the Mini-DIN connector from the
charger is plugged into the side the battery pack. After installation of the adapter socket for the
charger, the charger must be connected to the mains. The charging will take 2-4 hours. The battery
is fully charged when the green LED remains lit on the power supply.
The device is supplied with three different removable adapter / plug:
Adapter Country of use
EU
US / Canada / Japan
Great Britain
Table 3: Removable adapter for the charger
Fig. 3: Charger with battery pack
Note:
A new battery is delivered almost uncharged. Therefore, it must be fully charged before use.
A new battery has not until after the second or third charging / discharging the full capacity. This
also applies after a break of operation of a few months.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 13 from 37 M31210-2e-ID-B.docx

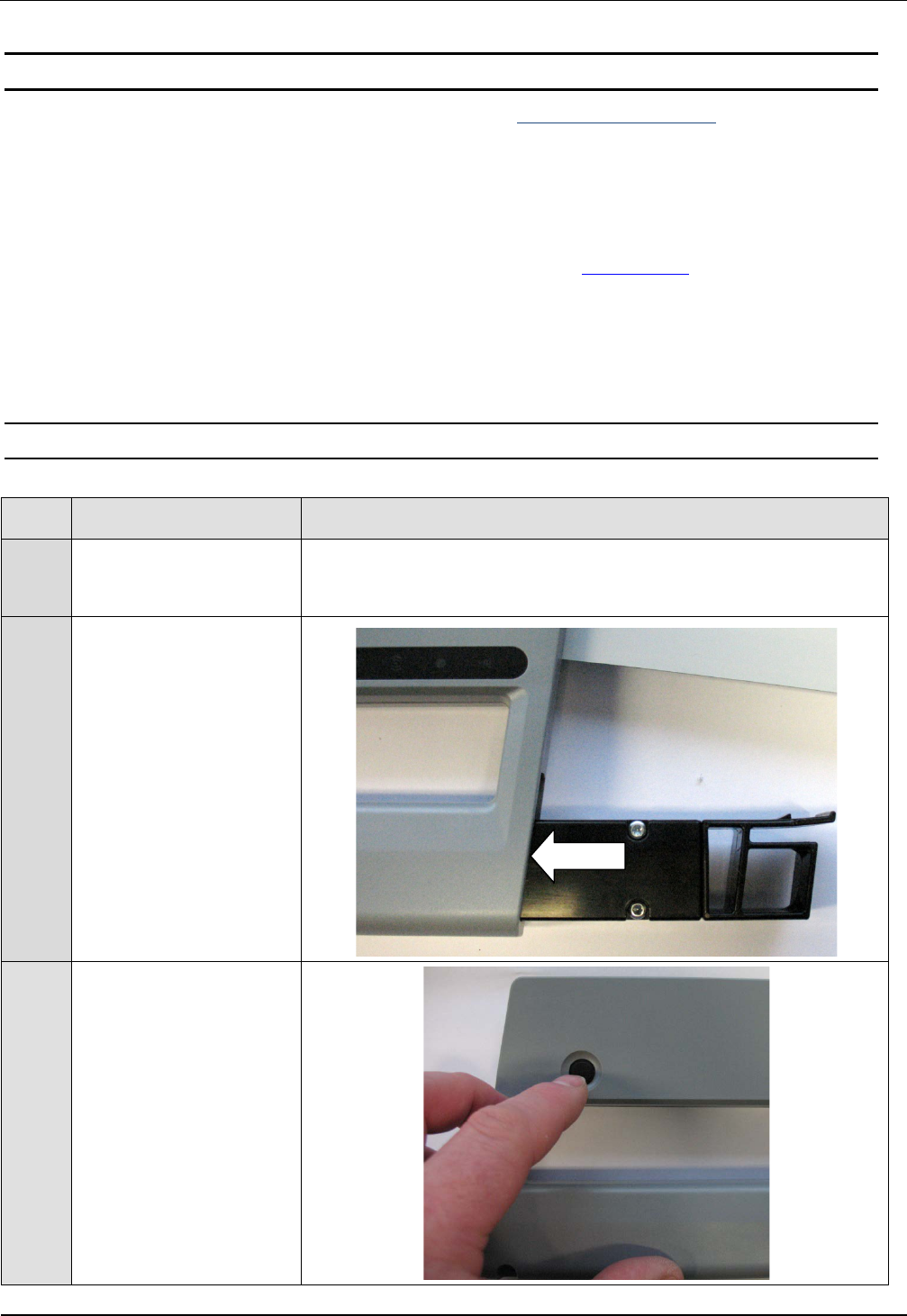

4 First Wi-Fi connection with the Reader and scanning transponder
Before first use, the battery pack should be charged. See 3.2 Charge the battery. The battery pack
must be connected to the charger. The charging will take 2-4 hours. The battery is fully charged
when the green LED remains lit on the power supply.
To configure the Reader you will need the software tool ISOStart Version 9.07 or higher on a
personal computer running under Microsoft® Windows® with Wi-Fi interface The service tool can
be downloaded from the Download Area of the FEIG Homepage www.feig.de.
The delivered reader is set on to the factory default settings and works as a "Access Point" and
generates its own wireless network with the name (SSID) "PRH200" without encryption. The wire-
less interface of the corresponding PC or laptop must be configured to "Client Mode" and DHCP
"ON".
4.1 Connection in Access point Mode
No. Step Note
1. Boot the Computer boot
with Wi-Fi on.
2.
Adopt the battery pack
plug into the slot on the
reader. The battery pack
clicks into place.
3.
Reader ON: Short press
on Power-ON Button.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 14 from 37 M31210-2e-ID-B.docx
No. Step Note
4.
LED MODE (green) will
light and LED Wi-Fi
flashes slowly. After
about 5 seconds, the
Wi-Fi LED flashes with
about 8 Hz
5.
Open window "Wireless
Connections" on your
PC and search for the
network name (SSID)
PRH200.
6. Connect to the network
PRH200.
7.
Confirm the network
"PRH200" as a home or
workplace network.
8.
Your Computer
connects to the Reader
PRH200, now
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 15 from 37 M31210-2e-ID-B.docx

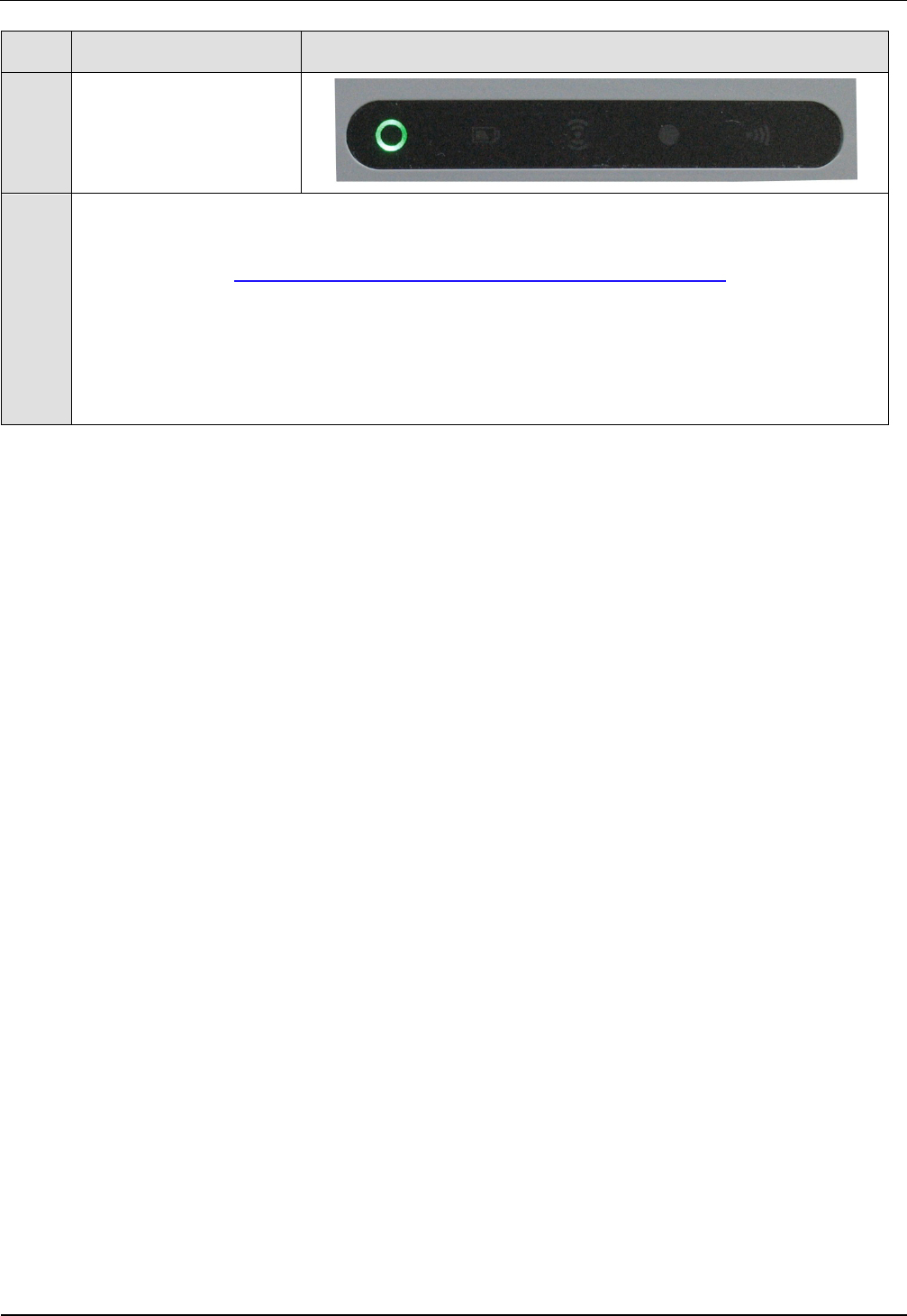

No. Step Note
9.
The white LED Wi-Fi is
off, the green LED
MODE remains on.
10.
For the configuration and testing the Reader the demo program “ISOStart” can be
used (Version 9.7.1 or higher). The next steps are described in the chapter:
Configuration and testing the Reader using ISOStart
Or
As an alternative the demo tool „PRH200-Demo“ can be used. The description for
this tool you will find in the document H40310-0e-ID-B.pdf
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 16 from 37 M31210-2e-ID-B.docx
4.2 How to configure the Reader in client mode
For using the Reader in an existing WLAN infrastructure it will be necessary to configure the reader
into the Client Mode. For configuring the reader into the Client Mode the WEB-interface of the
reader can be used. With the help of a standard Browser on a Laptop, Smartphone or Tablet PC
you can get access to the reader Web-interface by using the reader default IP address
192.168.1.1.
No. Step Note
1.
Connect the Reader ID
ISC.PRH200
Connect the Reader in the Access Mode via WLAN to a Laptop,
Smart Phone or Tablet PC as described in the chapter 4.1 Con-
nection in Access point Mode
2.
Open a Browser and
write the TCP/IP
Adresse 192.168.1.1.
3.
Choose the „Client“
button
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 17 from 37 M31210-2e-ID-B.docx
No. Step Note
4.
Set the SSID and the
Password (Key) of the
WLAN network (Router)
and confirm with
“Connect” button.
The IP address and the
deciphering keys will be
programmed
automatically into the
reader.
5.
Confirm the warning
message with a click on
the „OK“ button.
6.
The Reader performs a
reset.
Afterward the Mode LED
(green) lights and the
WLAN LED flashes
slowly. After approx. 5
seconds the WLAN LED
flashes with approx. 4
Hz.
7.
As soon as the WLAN
LED goes off the WLAN
connection is ready to
use.
8.
Check the WLAN Client-
List in the router WEB-
interface. There the new
IP address assigned by
DHCP will be shown.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 18 from 37 M31210-2e-ID-B.docx

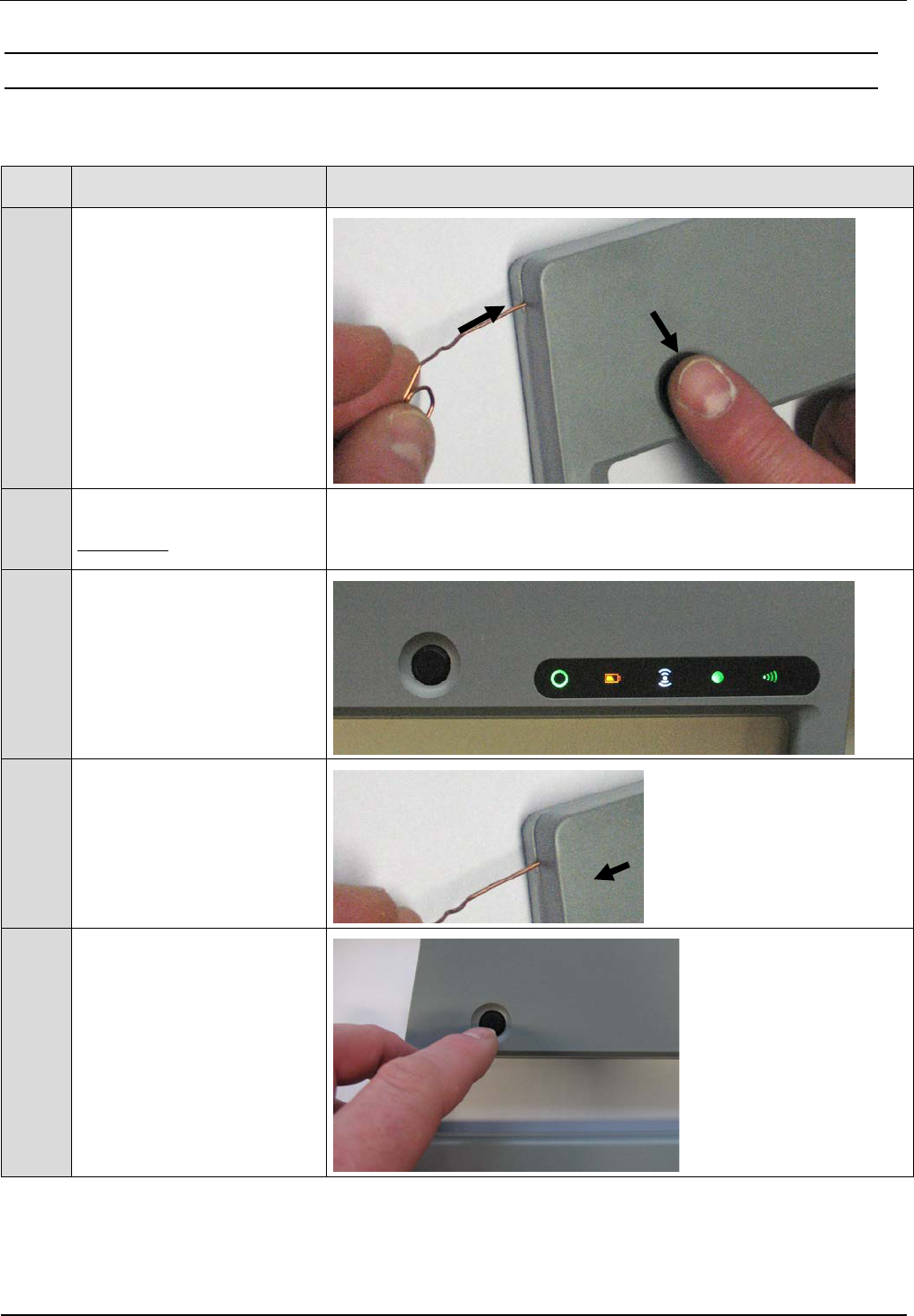

4.3 Set Wi-Fi parameter to default
Are the Wi-Fi parameter unknown or should the device be integrated into other network, all
parameters to the factory settings can be set to default by a hardware reset..
No. Step Note
1.
Insert a thin wire (e.g. pa-
per clip) in the hole for the
reset button and hold it
down.
At the same time press
button Power ON shortly
2. Hold the Reset Button for
5 seconds.
The Reader starts and the 5 LEDs flash alternately
3.
Now, all LEDs flash at 2 Hz
at the same time
4.
Now: Release the Reset
Button
5.
Immediately afterwards,
press the Button Power-ON
for 5 Seconds.
-> The Reader switched off
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 19 from 37 M31210-2e-ID-B.docx
No. Step Note
6.
Short press on Power-ON
Button to reboot the reader
7.
The Wi-Fi Modul is on de-
fault values, now.
SSID: PRH200
Unsecured Wireless Net-
work
Mode: Access Point
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 20 from 37 M31210-2e-ID-B.docx
4.4 Wi-Fi Interfaces
The Reader has a built-in wireless interface according to the IEEE 802.11 b/g /n standard and can
be configured in "Access Point" or the "Client Mode". The encryption protocols WEP / WPA /
WPA2 are supported.
The Reader on delivery or factory setting is configured as "Access Point" and generates its own
wireless network with the name (SSID) "PRH200" without encryption. The wireless interface of the
corresponding PC or laptop must be configured to "Client Mode" and DHCP "ON".
The reader default settings of the Wi-Fi interface are:
Parameter Default setting
SIDD PRH200
Password -
DHCP ON
Encryption OFF
Mode Access Point
Table 4: Default configuration of the reader Wi-Fi interface
Network Address
IP-Address 192.168.1.1
Subnet-Mask 255.255.0.0
Port 10001
DHCP ON
Table 5: Default configuration of the reader (Wi-Fi) Ethernet Interface
Note:
• The Reader has a TCP/IP interface with DHCP that is turned on at the factory.
• It is recommended to configure a new network name (SSID) and the encryption ac-
cording WPA/WAP2 after commissioning.
• The minimum WPA2 encryption key length is 8 characters.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 21 from 37 M31210-2e-ID-B.docx
5 Control and Display Elements
5.1 Buttons
Button Function / Description
RF-ON
(upper) “RF / Antenna power switch ON / OFF"
- State antenna OFF
Short press -> The RF-Power of the antenna will be switched ON
- State Antenna ON
Short press -> The RF-Power of the antenna will be switched OFF
Power-ON
(Lower)
Power ON / OFF / Reader Mode
- State Reader OFF:
Short press -> Reader ON, Standard Mode
- State Reader ON
Short press -> Change Mode between Standard and Boost Mode)
Long press -> Reader OFF
Table 6: Function of the Buttons
Note:
• The RF power of antenna is automatically switched OFF after a certain time if no
transponder has been detected. The power Management is configurable in CFG21.
Use parameter “RF-Field: minimum on-time”
• After the “RF-Field: maximum on-time” has expired the reader antenna power will
switch off in any case.
• After switching off the antenna power and end of the “Power on-time” in CFG21, the
complete Reader will turn off automatically.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 22 from 37 M31210-2e-ID-B.docx

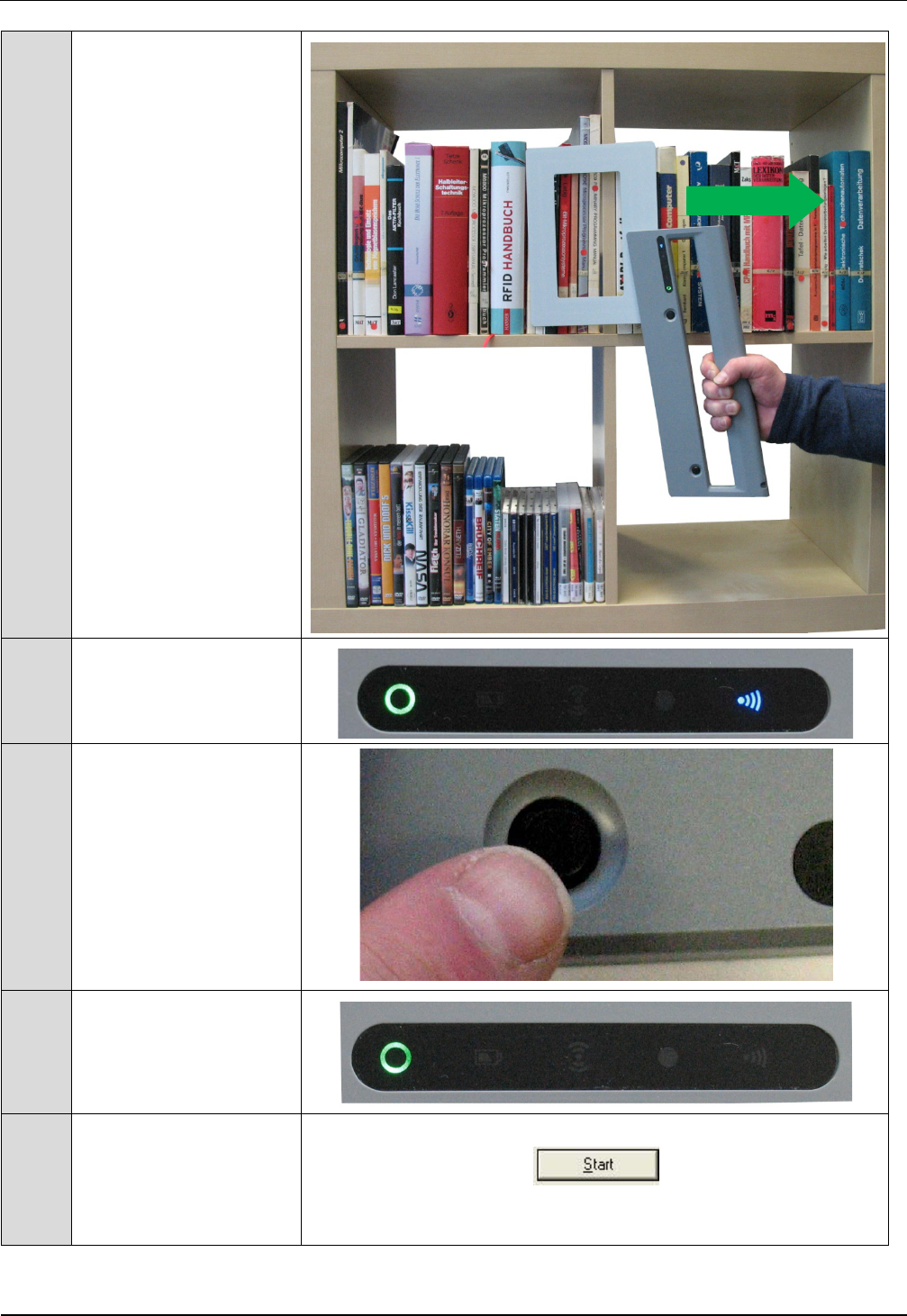

5.1 HF-ON Motion Detector
Due to shaking the Reader in the forward direction effectual and a fast movement the HF-filed can
switched on alternatively to the use of the HF-ON button.
For this the reader should be hold in the center or the upper part of the handle.
The function of the movement detector can be enabled and disabled in “PowerManagement” of the
Reader configuration using ISOStart.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 23 from 37 M31210-2e-ID-B.docx
5.2 LEDs
Fig. 4: LED (Double sided)
Table 6 show the function of the LEDs (Order from top to down).
LED Function / Description
LED RF-ON
(green/blue) "RF-ON / Transponder"
- Green: The antenna is powered
- Blue: One or more transponder are detected
LED APPL
(green, red)
„Application / Special function“
- Controlled by command „Set Output“
- Green: Special functions enabled (Locate Transponder by UID,
data, AFI functions)
- Red: Special functions: Transponder detected
LED Wi-Fi
(white)
„Wi-Fi“
- OFF: Reader is connected via Wi-Fi to the Host
- Flash: Wi-Fi connection runs
Wi-Fi device lost connection
LED BATT
(orange, red)
“Battery Status”
- OFF: Battery charged
- Orange: Battery reaches 15% of charge capacity,
Boost Mode isn‘t possible.
- Red: Battery empty the antenna can’t switched on.
- Red (flashing): Automatic shut-off after 5 seconds
LED MODE
(green, white)
Power-On / Reader Mode
- Normal Mode : green
- Boost Mode: white
Table 7: Configuration of the LEDs
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 24 from 37 M31210-2e-ID-B.docx
5.3 Buzzer
The reader has a integrated buzzer.
The buzzer will be activated, if at least one of the configuration bits in the “Digital IO” is enabled.
Fig. 5: Configuration of the Digital IO
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 25 from 37 M31210-2e-ID-B.docx

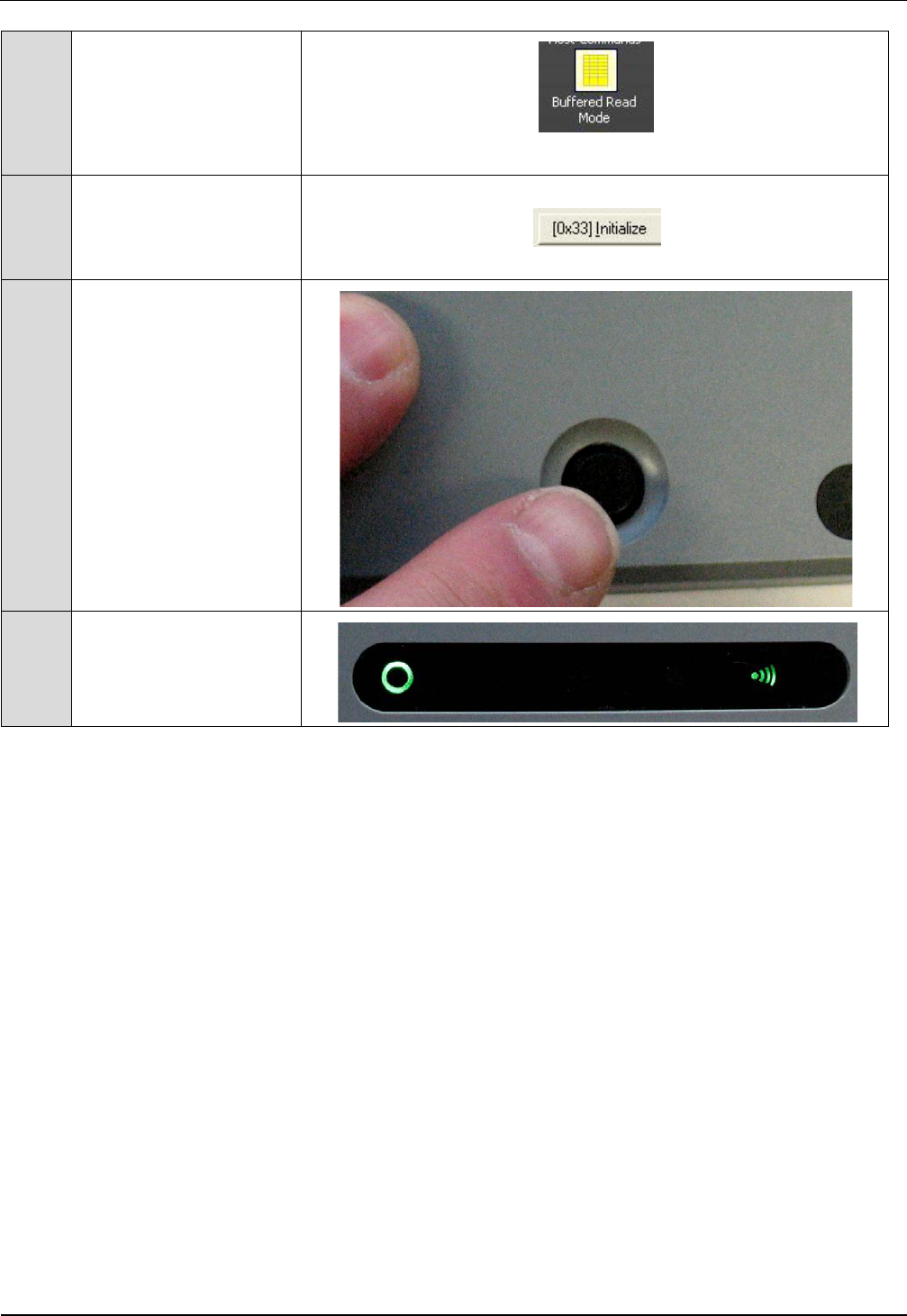

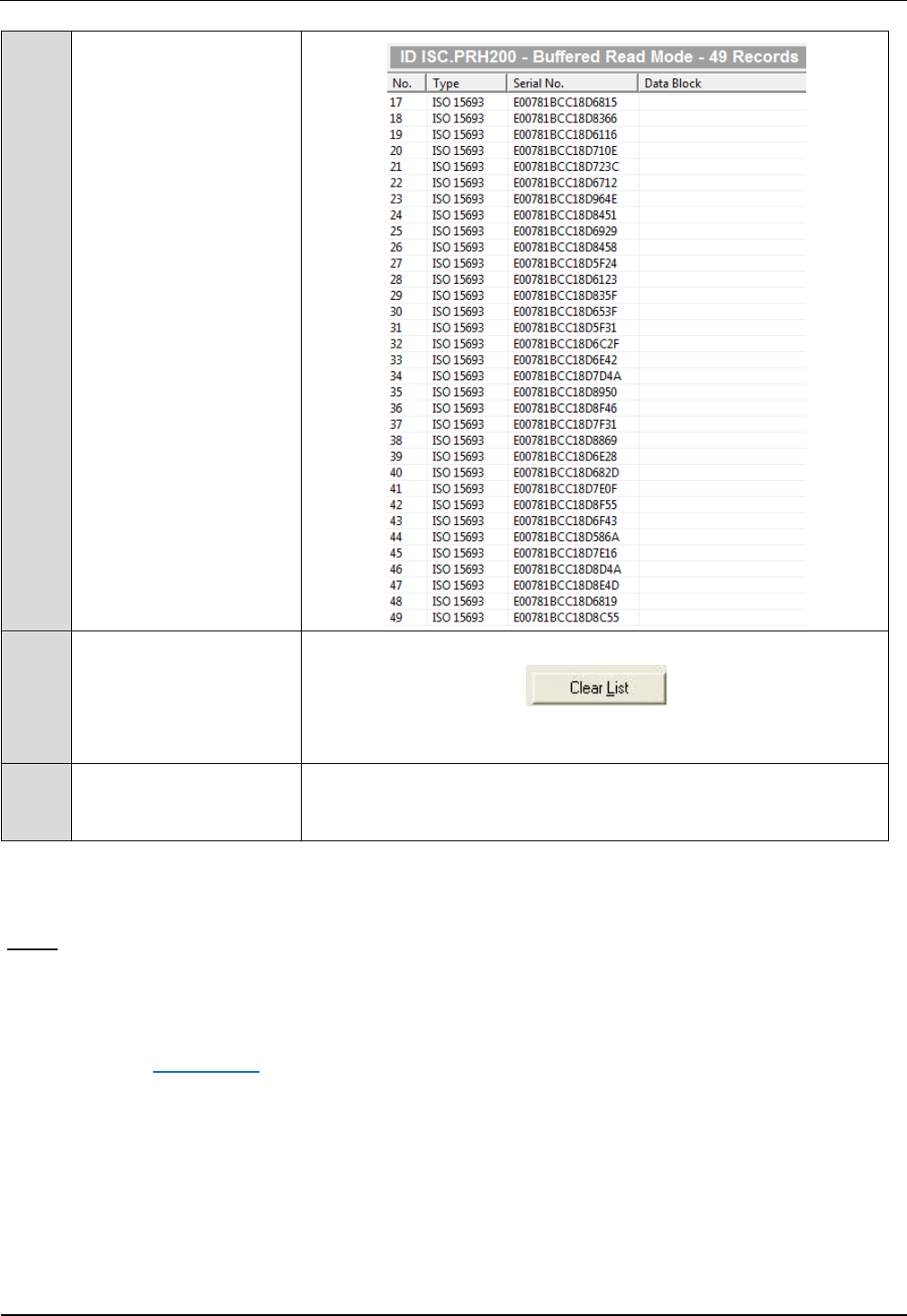

6 Configuration and testing the Reader using ISOStart
1.
Select „Detect“ with
TCP/IP Address
192.168.1.1. and Port
10001
2.
Select „Run without
change“
This has to be done at
each start of ISO-Start
program otherwise the
configuration of the
reader will be changed
by the wizard.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 26 from 37 M31210-2e-ID-B.docx
3.
Select the “Logical
View” for the reader
configuration settings
4. Select “Configuration”
5.
Select “Operating Mode”
and then choose "Buff-
ered Read Mode" for the
reader Mode and mark
“UID” as data.
6. Set by a click on
„Apply“.
7.
Select “Filter” and set
the „TransponderValid
Time“. E.g. 10s
8.
Set by a click on „Apply“
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 27 from 37 M31210-2e-ID-B.docx
9.
Select „Buffered Read
Mode“
10.
Select Button „Initialize“
to clear the data buffer
of the reader
11.
Press button RF-ON to
enable the antenna
power
12.
The LED RF ON is lit
green
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 28 from 37 M31210-2e-ID-B.docx
13.
Move the reader
antenna along the
media or Tranponder
14.
If valid data is detected
LED HF -ON lit blue
15.
After the end of the
reading antenna pro-
cess, switch OFF the RF
antenna power
16.
LED HF_ON goes off
17.
Select „Start“ Button to
transfer the data from
the reader to your
Computer
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 29 from 37 M31210-2e-ID-B.docx
18.
All stored transponder
data sets are listed in
the ISO Start window.
The number of data sets
and the total processing
time is displayed in the
header
19.
Before the next read
operation, the display
window can be deleted
by the “Clear List” button
20.
To read more data, re-
peat step 22-31
Note:
• To avoid unwanted readings and to save energy the reader antenna turns off the RF antenna
power according to a configured time automatically.
• If not all transponder data are read, the "Boost Mode" with greater transmit power can be
used. See: 4.1 Buttons
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 30 from 37 M31210-2e-ID-B.docx
7 Approvals
7.1 Europe (CE)
When used according to regulation, this radio equipment conforms with the basic requirements of
Article 3 and the other relevant provisions of the R&TTE Guideline 1999/E6 dated March 99.
Equipment Classification according to ETSI EN 300 330 and ETSI EN 301 489: Class 2
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 31 from 37 M31210-2e-ID-B.docx
7.2 USA (FCC) and Canada (IC)
Product names: ID ISC.PRH200
Reader name:
ID ISC.MR102
FCC ID:
IC:
PJMPRH200
6633A-PRH200
Notice for USA and
Canada
This device complies with Part 15 of the FCC Rules and with
RSS-210 of Industry Canada.
Operation is subject to the following two conditions.
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Unauthorized modifications may void the authority granted under
Federal communications Commission Rules permitting the operation
of this device.
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Le présent appareil est conforme aux CNR d'Industrie Canada appli-
cables aux appareils radio exempts de licence. L'exploitation est auto-
risée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonc-
tionnement.
Warning: Changes or modification made to this equipment not expressly approved by
FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment.
Installation with FCC / IC Approval:
FCC-/IC-NOTICE: To comply with FCC Part 15 Rules in the United States / with IC Radio Stand-
ards in Canada, the system must be professionally installed to ensure compliance with the Part 15
certification / IC certification. It is the responsibility of the operator and professional installer to en-
sure that only certified systems are deployed in the United States / Canada.
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 32 from 37 M31210-2e-ID-B.docx
A minimum separation distance of 20cm must be maintained between the Wi-Fi antenna (See pic-
ture below) and all persons at all times.
Une distance minimale de séparation de 20 cm doit être maintenue entre l'antenne Wi-Fi (voir pic-
ture ci-dessous) et toutes les personnes à tout moment.
Wi-Fi Antenna
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 33 from 37 M31210-2e-ID-B.docx
7.3 Label Information Reader ID ISC.PRH200
The following labels are placed on the bottom side of the reader:
ID ISC.PRH200
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 34 from 37 M31210-2e-ID-B.docx
7.3.1 USA (FCC) and Canada (IC) approved antennas
This radio transmitter (identify the device by certification number, or model number if Category II)
has been approved by Industry Canada to operate with the antenna types listed below with maxi-
mum permission gain and required antenna impedance for each antenna type indicated. Antenna
types, not included in this list, having a gain greater than the maximum gain indicated for that type,
are strictly prohibited for use with this device
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de
modèle s’il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonc-
tionner avec les types d’antenne ’énoncé ci-dessus et ayant un gain admissible maximal et
l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste,
ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation
de l’émetteur
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 35 from 37 M31210-2e-ID-B.docx
8 Technical Data
Mechanical Data
Reader & Antenna
Dimensions ( W x H x D )
– Reader with antenna
– Packing
460 mm x 260 mm x 27 mm,
antenna ca: 1,5 mm thick
570 mm x 390 mm x 76 mm
Weight
– Reader , antenna and battery
– Packing
0.6 kg
1.55 kg
Housing ABS/PC
Color reader & antenna RAL 7046 / RAL 7047
Color battery pack black
Enclosure rating IP 30
Electrical data Reader
Supply Voltage
-Operation Time
- Standard Mode
- Boost Mode
Battery Pack
ca. 8 h
ca. 4 h
Operating Frequency 13,56 MHz
RF-Power
- Standard Mode
- Boost Mode
1,5 W
4,0 W
Button RF-ON: ON / OFF
Power-ON: HF ON / OFF
Reset-Button Reset to factory settings
LED’s 1. RF-ON
2. Application
3. Wi-Fi
4. Battery
5. Power-On / Mode
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 36 from 37 M31210-2e-ID-B.docx
Signal buzzer 1 Ton
Interfaces Wi-Fi
Wi-Fi Security Protocols WEP / WPA / WPA2
Wi-Fi Modes - Access Point Mode
- Client Mode
Interface protocol modes - FEIG ISO HOST
- BRM (Datenfilterung und Datenpufferung)
- Notifikation Mode
Supported Transponder ISO15693
Ambient Conditions
Temperature range
– Operating
– Storage
-0°C bis +40°C
-25°C bis +85°C
Protection class IP 30
Humidity 5% - 80%, non-condensing
Freefall 1,0 m
Approvals
Radio approvals
– Europe
EN 300 330
EMC EN 301 489
Electrical Data Battery Pack
Nominal Voltage 10,8 V
Nominal capacitance 3,35Ah (typical)
Maximal charging voltage 12,6 V
Maximal charge current 1,5 A
Temperature range
– Operating
– Storage
+10°C bis 45°C
- 20°C bis 60°C
Battery connector Mini-DIN
Dimensions ( W x H x D )
– Packing (Spare part)
360 mm x 110 mm x 100 mm
OBID
i-scan
®
HF
Installation
ID ISC.PRH200
FEIG ELECTRONIC GmbH Page 37 from 37 M31210-2e-ID-B.docx
Weight
- battery
– Packing
240g
470g
Electrical data battery charger
Supply Voltage 100V – 240 V
47 Hz – 64 Hz
Output Voltage Maximal 12,44V / 1,2 A
Efficiency 73% - 83%
Type Wall power battery charger & Adapter Set for inter-
national socket-outlet
Dimensions ( W x H x D )
– Packing
210 mm x 75 mm x 50 mm
Weight
– Packing (Spare part)
270g
Approval marks CE
UL listed
SELV
EN 55011 group I Class B
Charging time 3,5-4 h
Temperature range
– Operating
– Storage
– 5 °C bis +40 °C
–25 °C bis +80 °C
Humidity Up to 95%, non-condensing
