SCANNDY USER GUIDE
Page 1
smartSCANNDY II
Quick Reference Guide
SCANNDY USER GUIDE
Page 2
Copyright Information
This Handbook contains copyrighted information from advanced PANMOBIL systems GmbH & Co.
KG. You are only allowed access to the information and utilization as stated by the those that are
responsible for the described devices.
This copyrighted information may not be changed for any purposes, duplicated, or shared with
others without written authorization from advanced PANMOBIL systems GmbH & Co. KG.
Bettering Our Products
The continuing efforts to better our products is an underlining corporate principle at advanced
PANMOBIL systems GmbH & Co. KG. Advanced PANMOBIL systems GmbH & Co. KG reserves the
right to change any or all of the technical data and labels without any advanced notice.
Notice :
The changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to the antenna
or the device is permitted. Any change to the antenna or the device could result in the
device exceeding the RF exposure requirements and void user’s authority to operate the
device.
FCC INFORMATION
The Federal Communication Commission Radio Frequency Interference Statement includes
the following paragraph:
The equipment has been tested and found to comply with the limits for a Class B Digital
Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communication. However, there is no grantee
that interference will not occur in a particular installation. If this equipment dose cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on , the user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
The user should not modify or change this equipment without written approval
form advanced PANMOBIL systems GmbH & Co. KG. Modification could void authority to use this
equipment.
For more information, please contact us at:
advanced PANMOBIL systems GmbH & Co. KG
Hansestrasse 91
51149 Cologne
Germany
E-mail: info@panmobil.com
SCANNDY USER GUIDE
Page 3

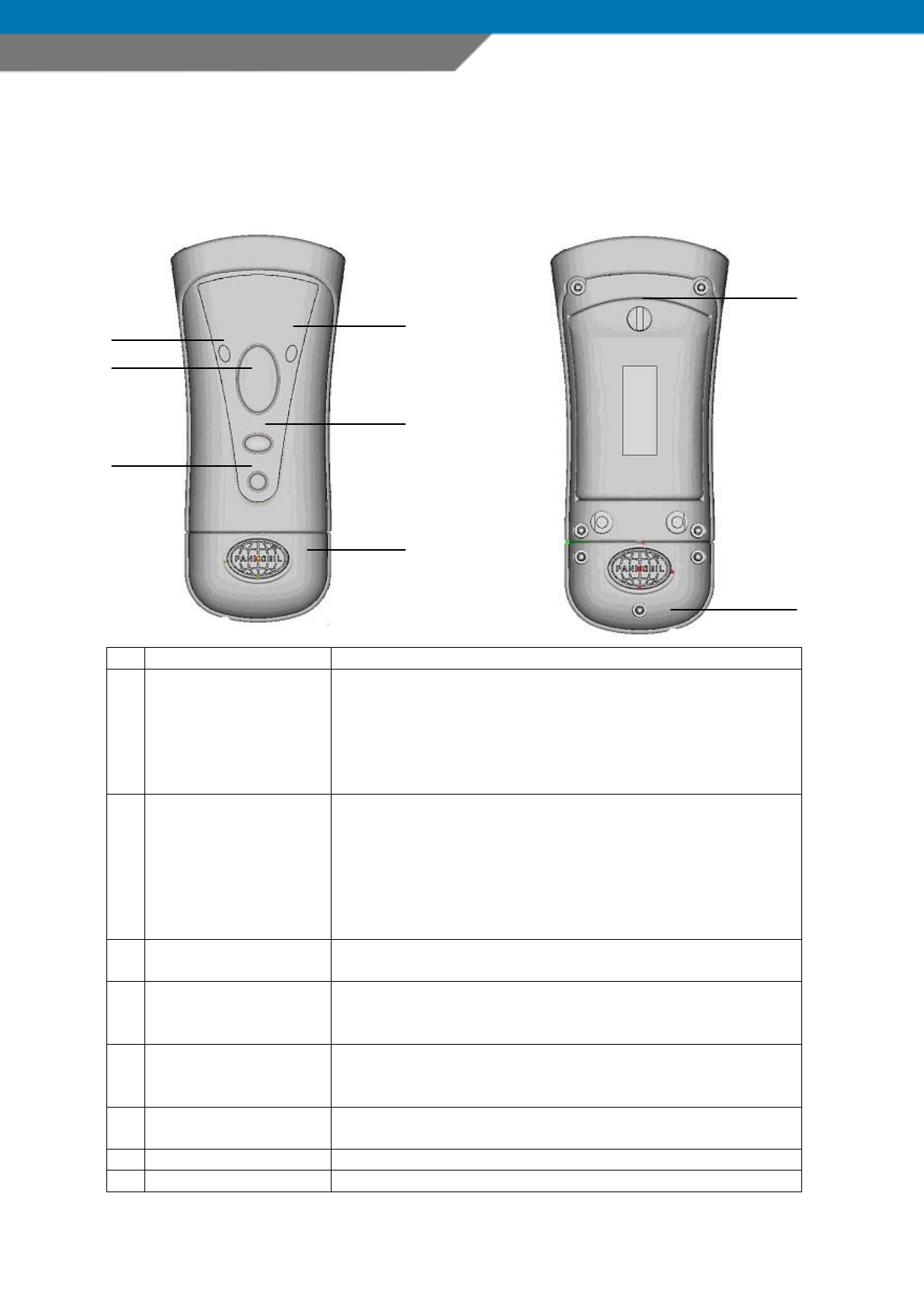

PRODUCT REFERENCE
smartSCANNDY II
No. Description Function
1 Left LED (green)
Left LED (red)
Green LED:
Lights up green when smartSCANNDY is powered ON.
Is flashing green (2 sec.) If battery is low
(Other function can be defined by API)
Red LED:
Lights up red if connect to ext. power (USB or power adapter)
2 Right LED (yellow)
Right LED (blue)
Yellow LED:
Lights up yellow if a barcode or RFID Tags was read successfully.
Is flashing yellow (500ms) when connected to USB
(Other function can be defined by API)
Blue LED:
Lights up blue if Bluetooth connection is established
(Other function can be defined by API)
3 Key 1 (Trigger Barcode or
RFID reader)
Triggers the barcode and/or the RFID reader
(Other function can be defined by API)
4 Key2 (Delete function) Triggers the barcode and/or RFID reader. The captured Data will be
deleted from the memory.
(Other function can be defined by API)
5 Power ON/OFF Power key to power the unit ON. Pressing this key for 3 sec.
Shwitches the unit to standby mode.
Pressing this key for 5 sec. powers the unit OFF
6 USB interface protect cap
and stylus cap.
Protects the USB interface for damage.
The USB cap contains a stylus for touch panels.
7 Battery cover Turn the button 90° to open and access the battery
8 Build in stylus Stylus for touch panel
1 2
3
4
7
5
6
8
SCANNDY USER GUIDE
Page 4

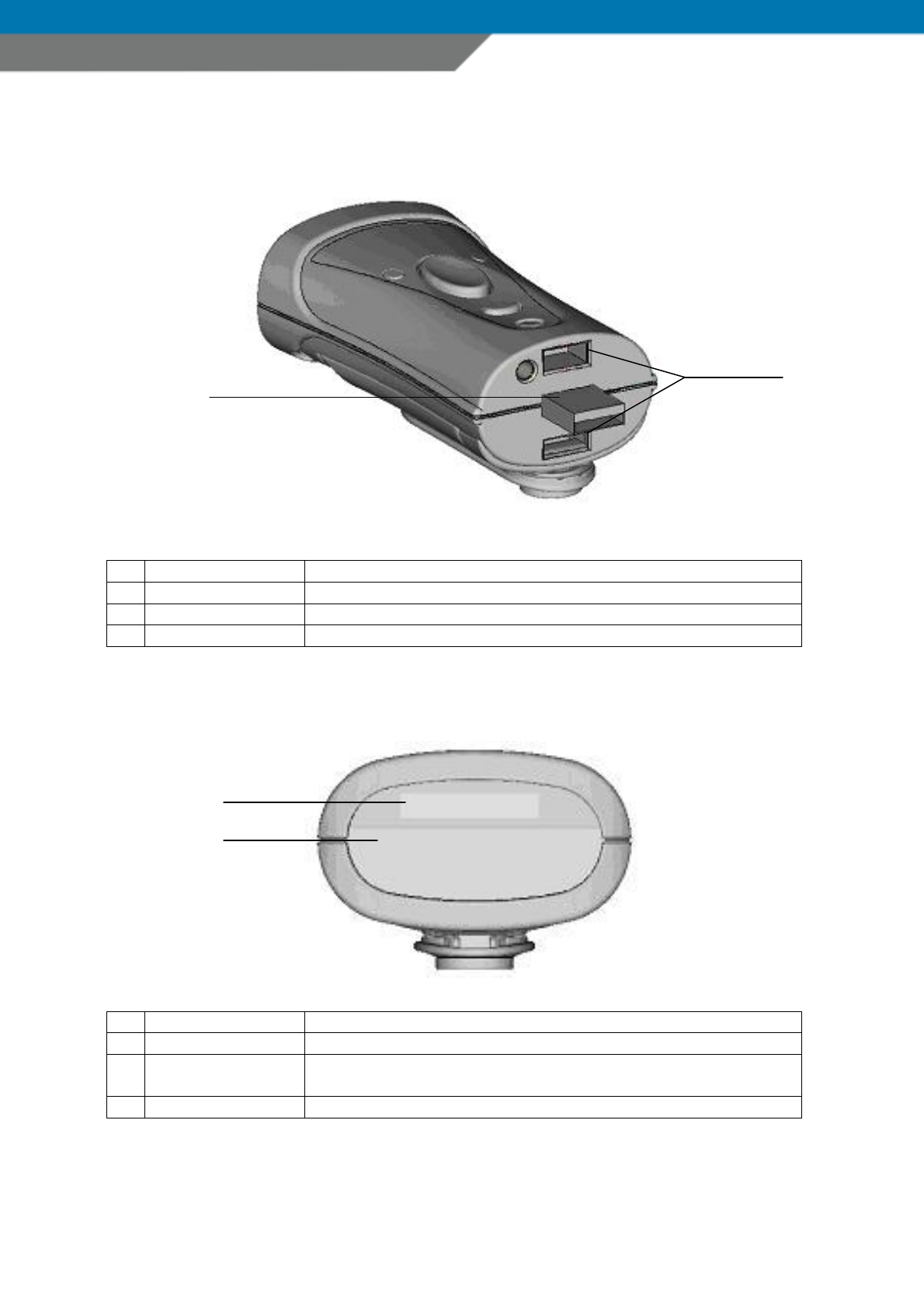

No. Description Function
1 USB (device) interface USB interface for communication and battery chargeing
2 USB Cap lock Locks the USB cap when mounted
No. Description Function
1 Serial number label Device serial number
2 Protection glass for
barcode reader
Keep this glass free of dirt and scratch to have the best reader
performance.
1
2
2
1
SCANNDY USER GUIDE
Page 5

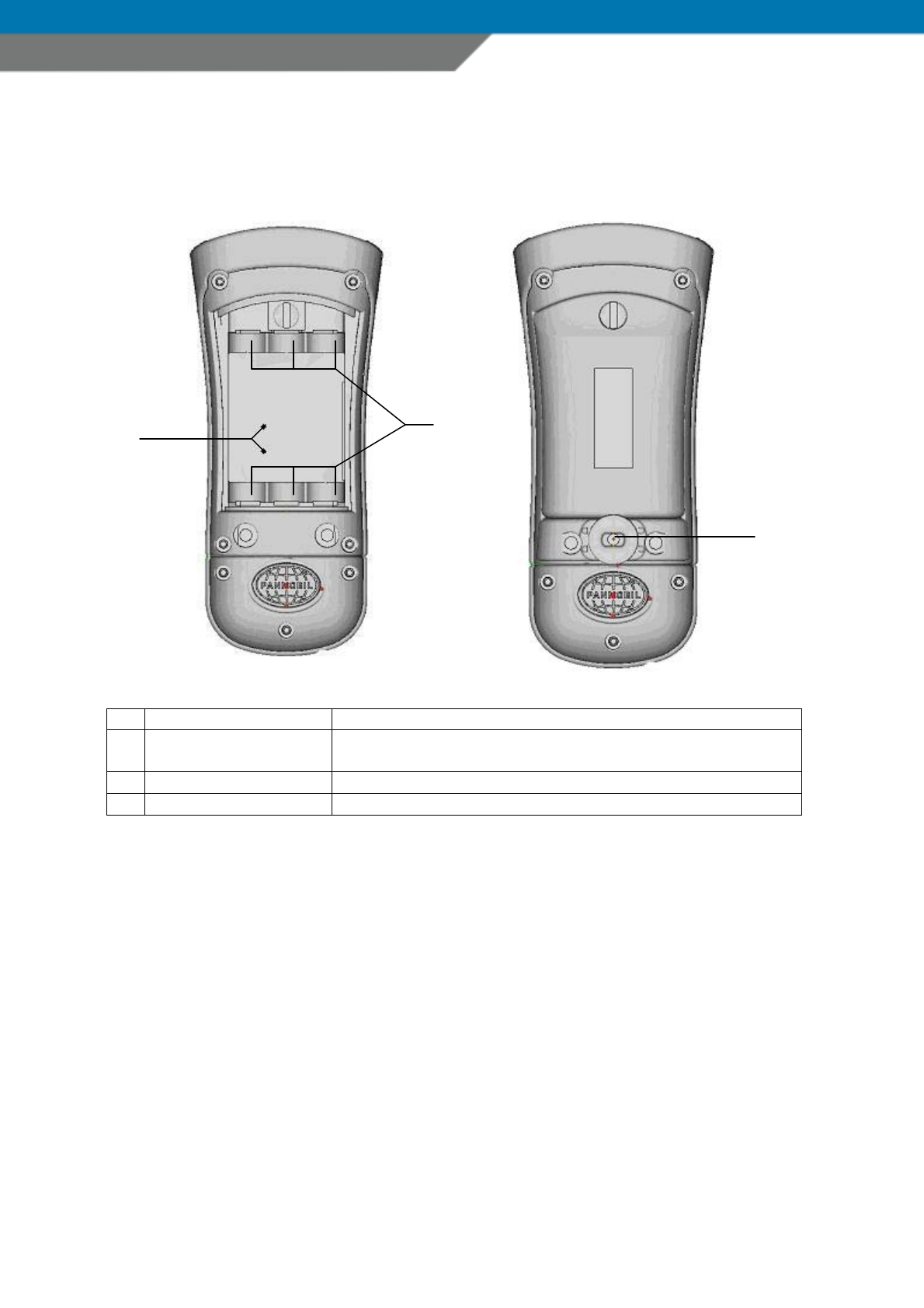

smartSCANNDY can be operated by eigther 3xAAA batterys (1.5Volts each) or by a rechargable Li-
Ion battery (Panmobil)
No. Description Function
1 Contacts for chargeing
the Li-Ion battery
Battery contacts for chargeing the Li-Ion battery
2 Contacts AAA batteries Battery contacts for standard AAA batteries
3 Clip holder (accessory) Holder for fixing the shirt clip, belt clip or nac belt (accessory)
1 2
3
SCANNDY USER GUIDE
Page 6

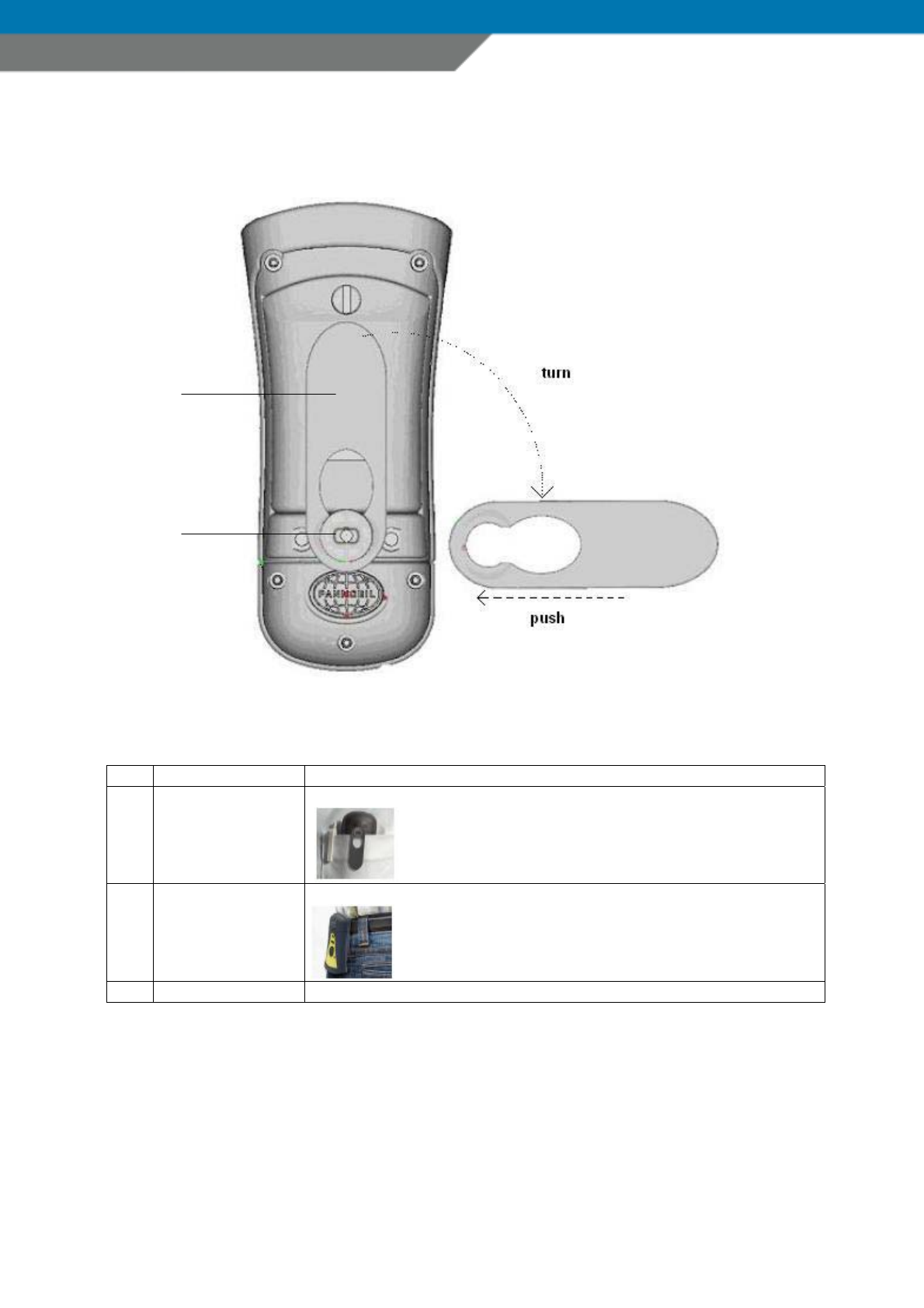

smartSCANNDY ACCESSORIES
No. Description Function
1 Shirt clip Used to easylly carry the smartScanndy fastened at a shirt pocket
2 Belt clip Used to fix the smartScanndy at a belt clip
2
1
