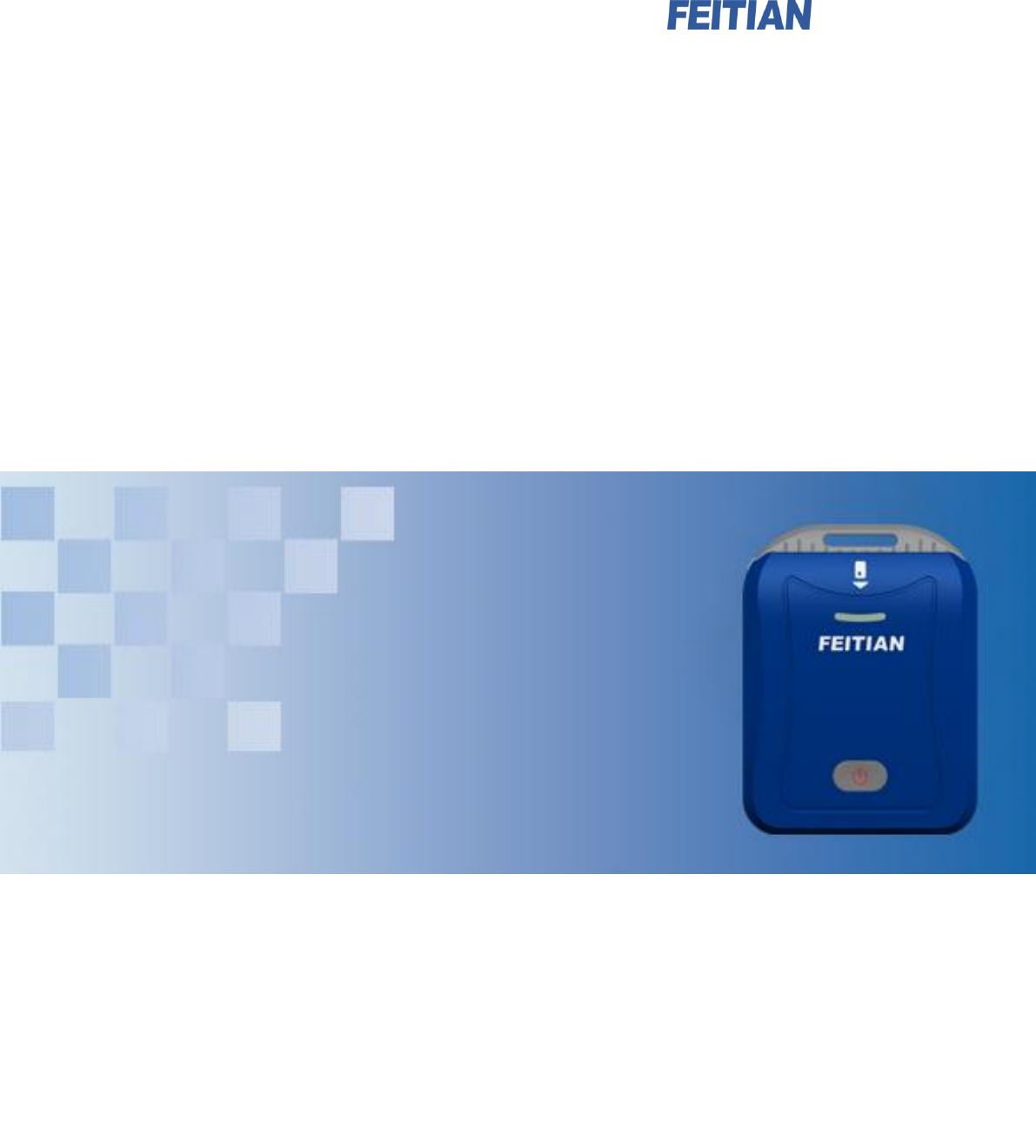

Feitian Technologies FTBR301 Bluetooth Smart Card Reader User Manual Cryptography And PKI

Feitian Technologies Co., Ltd. Bluetooth Smart Card Reader Cryptography And PKI

bR301 User Maual--Rev1

bR301 User Manual
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
i
Revision History:
Date
Revision
Description
Aug. 2013
V1.0
Release of the first version
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
ii
Software Developer’s Agreement
All Products of Feitian Technologies Co., Ltd. (Feitian) including, but not limited to, evaluation copies, diskettes,
CD-ROMs, hardware and documentation, and all future orders, are subject to the terms of this Agreement. If you do
not agree with the terms herein, please return the evaluation package to us, postage and insurance prepaid, within
seven days of their receipt, and we will reimburse you the cost of the Product, less freight and reasonable handling
charges.
1. Allowable Use – You may merge and link the Software with other programs for the sole purpose of protecting
those programs in accordance with the usage described in the Developer’s Guide. You may make archival copies
of the Software.
2. Prohibited Use – The Software or hardware or any other part of the Product may not be copied, reengineered,
disassembled, decompiled, revised, enhanced or otherwise modified, except as specifically allowed in item 1.
You may not reverse engineer the Software or any part of the product or attempt to discover the Software’s
source code. You may not use the magnetic or optical media included with the Product for the purposes of
transferring or storing data that was not either an original part of the Product, or a Feitian provided enhancement
or upgrade to the Product.
3. Warranty – Feitian warrants that the hardware and Software storage media are substantially free from significant
defects of workmanship or materials for a time period of twelve (12) months from the date of delivery of the
Product to you.
4. Breach of Warranty – In the event of breach of this warranty, Feitian’s sole obligation is to replace or repair, at the
discretion of Feitian, any Product free of charge. Any replaced Product becomes the property of Feitian.
Warranty claims must be made in writing to Feitian during the warranty period and within fourteen (14) days after the
observation of the defect. All warranty claims must be accompanied by evidence of the defect that is deemed
satisfactory by Feitian. Any Products that you return to Feitian, or a Feitian authorized distributor, must be sent with
freight and insurance prepaid.
EXCEPT AS STATED ABOVE, THERE IS NO OTHER WARRANTY OR REPRESENTATION OF THE PRODUCT, EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
5. Limitation of Feitian’s Liability – Feitian’s entire liability to you or any other party for any cause whatsoever,
whether in contract or in tort, including negligence, shall not exceed the price you paid for the unit of the Product
that caused the damages or are the subject of, or indirectly related to the cause of action. In no event shall
Feitian be liable for any damages caused by your failure to meet your obligations, nor for any loss of data, profit or
savings, or any other consequential and incidental damages, even if Feitian has been advised of the possibility of
damages, or for any claim by you based on any third-party claim.
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
iii
6. Termination – This Agreement shall terminate if you fail to comply with the terms herein. Items 2, 3, 4 and 5
shall survive any termination of this Agreement.
Important Statements
Please take attention that changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communication. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio and television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help.
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
iv
Contents
Chapter 1. Overview ................................................................................................................................. 1
Chapter 2. Specification............................................................................................................................. 2
Chapter 3. Features ................................................................................................................................... 4
Chapter 4. System requirements ................................................................................................................ 5
Chapter 5. Installation ............................................................................................................................... 6
Chapter 6. Hardware configuration ............................................................................................................ 8
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
1
Chapter 1. Overview
This chapter describes how to develop bR301 reader applications, including the development interfaces
supported by the product (bR301) and how to develop applications based on these interfaces.
FEITIAN bR301 is specially engineered to accommodate a range of smart card applications. Developers use it
as a platform to generate and deploy related products and services. Moreover, FEITIAN bR301 is a terminal unit
which is seamlessly integrated to all major systems of operation. Additional features such as the built-in inclusive
support for different smart card interfaces has facilitated the wide scale and cross industry adoption of bR301.
bR301 suits customers where security concerns are the most salient and satisfies the demand for a flexible
solution for ID authentication, e-commerce, e-payment, information security and access control.
bR301 and the rest of FEITIAN’s line of smart card readers offer each customer a complete solution for all
manner of utilizations.
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
2
Chapter 2. Specification
3.7V
< 60mA (without card)
10753~344086bps
T0,T1,CLASSB,CLASSC,CLASSBC
115200bps
0°C to 50°C (32 to 122°F)
- 20°C to 70°C (-4 to 158°F)
60 to 90%RH non-condensing
60 to 90%RH non-condensing
Bluetooth/Micro USB
Contact (smart card)
External
15
1 x Smart Card
890mAh
Micro USB
64mm(2.51in)wide*85
mm(3.35in)high*13.5mm(0.53in)thick
PC+ABS
8 contact points (ISO7816 standard) 100000 plugging
and unplugging times
iOS/Android/Blackberry/Windows/Linux/Mac OS X
MFI/RoHS
Wireless Communications
2.4GHz frequency ISM band. IEEE 802.15.1(Bluetooth)
with full security enabled
Less than half a meter
750kb/s to 1MB/s
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
3
AES-128
Logo/case color/ Shell surface treatment process
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
4
Chapter 3. Features
Support USB 1.1/2.0/3.0
Compliant with PC/SC, CCID Standards
Support ISO-7816-1/2/3 T=0 and T=1 Protocol
Support ISO-7816 Class A,B and C Cards
Compliant with EMV Level 1
Provide third party development library
MFI specification
Support auto-PPS
Support iOS/Android/Linux/Mac OS X/Windows
DUKPT(encryption functions) in firmware, support iOS
Support firmware upgrade through USB port on PC
Support UID(User ID) management
The reader support wireless port with Bluetooth 2.1+ (included 2.1/3.0/4.0)
Anti-static, seismic
Lights to inform reader's status
Add low power, fully speed can work at least 18 hours. Standby time at least 100
hours.
Can save battery less than 90 days in -10℃- 35℃.
The firmware can't be read, Support Anti-reverse engineering, Self-protection.
Support short-circuit protection and over-current protection card
Can work with iOS(Bluetooth) and Mac OS x(usb port, bluetooth port is developing,
will release end of September in 2013)
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
5
Chapter 4. System requirements
Computer with USB2.0/1.1 port *1
PC platforms: Windows 7+/MAC OS X 10.5+/ LINUX kernel 2.4+
Mobile platforms: iOS 4.3+/Android 4.0+
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
6
Chapter 5. Installation
BR301 usage:
For Windows PC platform:

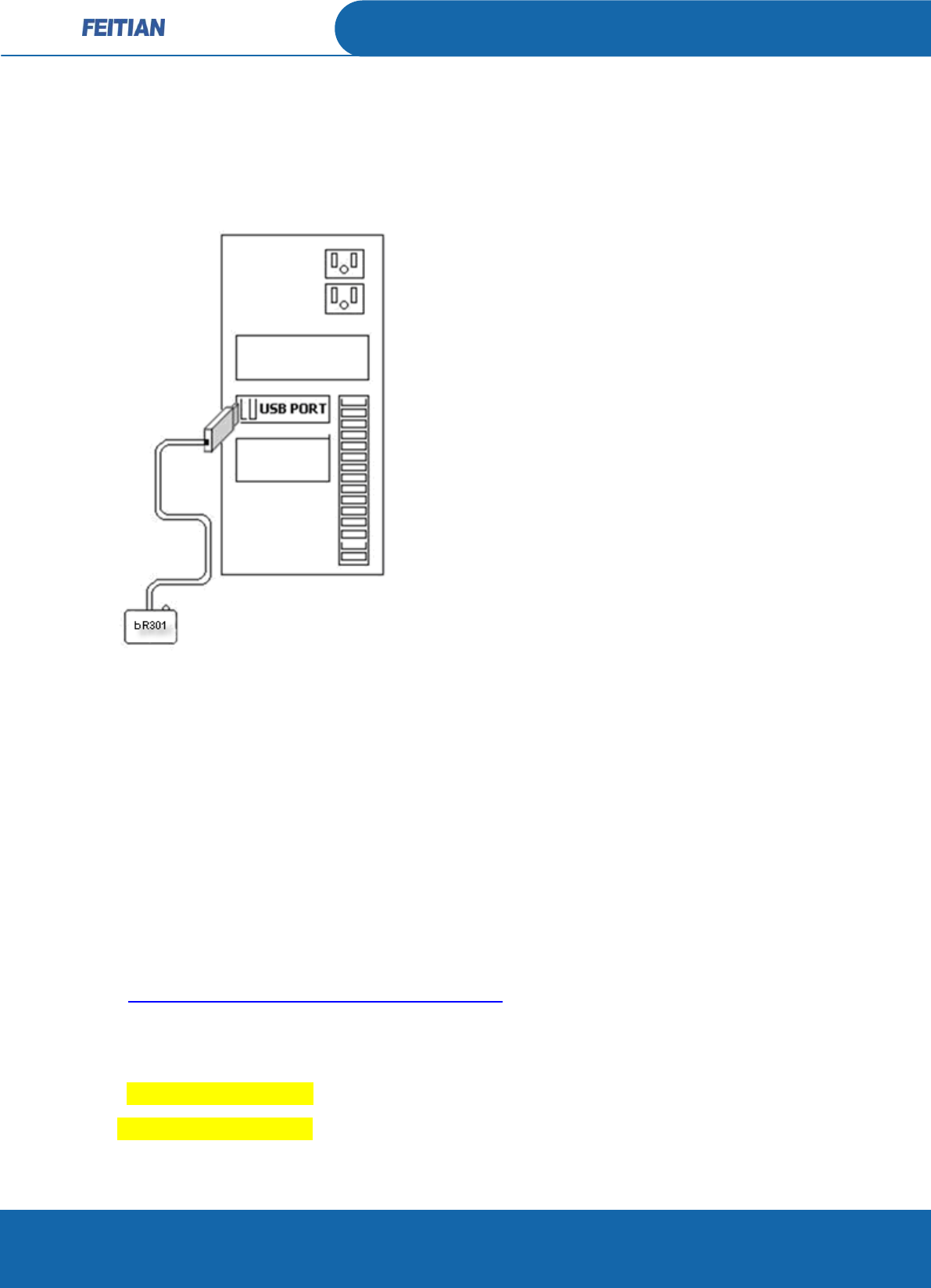

Plug in the reader to PC and insert the SMART card to the card reader(the driver
will automatic download from Microsoft website).
The test steps is below:
Customer can through WINSCARD API to commutate with bR301.
For LINUX and MAC OS X platform:
1. Please install CCID driver at first, the install steps please follow below website:
http://pcsclite.alioth.debian.org/ccid.html
2. Use lsusb command in terminal to list usb reader PID and VID, edit Info.plist
file to add VID and PID in it.
<key>ifdVendorID</key>
<string>0x096e</string>
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
7
<key>ifdProductID</key>
<string>0x061A</string>
<key>ifdFriendlyName</key>
<string>FEITIAN bR301 smart card reader</string>
The test steps is below:
1. run pcscd in terminal
2. Plug in reader and card then run pcsctest
For mobile platform:
1. Power on bR301 and open mobile device Bluetooth port for pair.
2. Download bR301 test app from Appstore and test it:
https://itunes.apple.com/us/app/br301/id564122073?mt=8
The test steps is below:
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
8
Chapter 6. Hardware configuration
To help customer to know how use bR301, we have use lights to inform different
status of card and reader.
We apply four lights to inform reader and card status, included Bluetooth
connection/card status/charge battery/low life battery/transaction status.
We provide four lights which is red/blue/yellow/white, each means charge
battery/Bluetooth connection/low battery/card status.
Bluetooth connection status light – blue color light
Number
Progress
Status
1
The Bluetooth back to the stage
Three flashing
2
Bluetooth standby stage
One flashing
3
Bluetooth connection
Two flashing
Card status light – white color light
Number
Progress
Status
1
No card
Light OFF
2
Card detected
Light ON
3
Data transfer
Light flashing
bR301 User Manual
Copyright © Feitian Technologies Co., Ltd.
Website: www.FTsafe.com
9
Low battery light – yellow color light
Number
Progress
Status
1
Full battery
Light OFF
2
Low battery
Light ON
Charge battery light – red color light
Number
Progress
Status
1
Charging completed
Light OFF
2
Charging
Light ON
