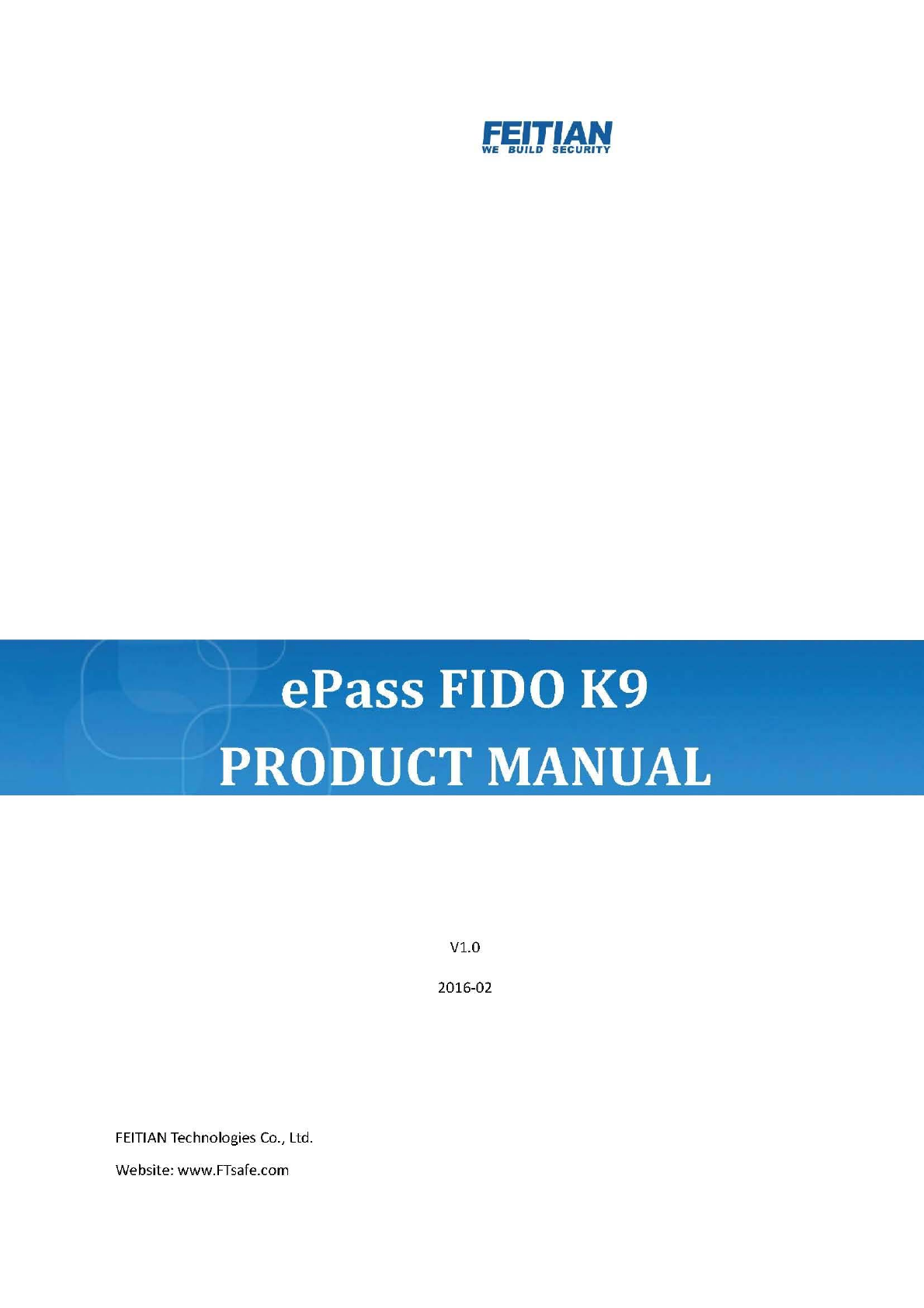

Feitian Technologies FTEPASSFIDOK9 ePass FIDO User Manual ePass FIDO K9 PRODUCT MANUAL
Feitian Technologies Co., Ltd. ePass FIDO ePass FIDO K9 PRODUCT MANUAL
Users Manual
ePass FIDO K9-PRODUCT MANUAL
© 1998-2015, FEITIAN Technologies Co., Ltd. All Rights Reserved.
Website: www.FTsafe.com
ii
Content
1. Overview............................................................................................................................................................. 1
2. Product Views..................................................................................................................................................... 2
a) Casing Views...................................................................................................................................................2
b) Casing Introduction........................................................................................................................................2
3. Specification........................................................................................................................................................3
ePass FIDO K9-PRODUCT MANUAL
© 1998-2015, FEITIAN Technologies Co., Ltd. All Rights Reserved.
Website: www.FTsafe.com
1
1. Overview
Feitian FIDO K9-NFC is a FIDO alliance certified U2F authentication key. Unlike the traditional second factor
authentication devices, FIDO U2F provides a much convenient solution to replace or be a plus of traditional
password. Each FIDO device is able to store more than one keys. Users have no longer need to carry many
traditional and virtual keys in a key ring with them all the time.
According to the different platforms and multiple usages nowadays, only the USB plug is sometimes not
enough for accomplishing all of the authentication tasks. Therefore, Feitian FIDO K9-NFC embedded NFC module
into its key-liked compact body. Users can easily use the FIDO K9 for registration and authentication with their
Mobile phones or other devices with NFC sensor.
We believe that the FIDO K9 will be a considerate partner for those who have both security and convenience
requirements.
ePass FIDO K9-PRODUCT MANUAL
© 1998-2015, FEITIAN Technologies Co., Ltd. All Rights Reserved.
Website: www.FTsafe.com
2
2. Product Views
a) Casing Views
b) Casing Introduction
1NFC sensor
2LED and confirm button (only needed when use contact authentication)
3Standard USB plug
ePass FIDO K9-PRODUCT MANUAL
© 1998-2015, FEITIAN Technologies Co., Ltd. All Rights Reserved.
Website: www.FTsafe.com
3
3. Specification
ePass FIDO K9
Specification
Value
OS
Windows, Linux, iOS
Certifications
FIDO U2F
Embedded security algorithm
ECDSA, SHA256
Size
43.88mm*20.82mm*3.15mm
Max number of keys
No limit
Interface type
USB, NFC
Data storage life
At least 10 years
Erasing times
100,000 times
Communication protocol
HID
Working voltage
5.0V
Working current
22mA
Power
0.11W
Working temperature
-10℃－+50℃
Storage temperature
-20℃－+70℃
Button Touching type; Green LED light
Case Material ABS, Calcium carbonate
ePass FIDO K9-PRODUCT MANUAL
© 1998-2015, FEITIAN Technologies Co., Ltd. All Rights Reserved.
Website: www.FTsafe.com
4
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
The user manual or instruction manual for an intentional or unintentional radiator shall caution the
user that changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment. In cases where the manual is provided only in a form
other than paper, such as on a computer disk or over the Internet, the information required by this section
may be included in the manual in that alternative form, provided the user can reasonably be expected to have
the capability to access information in that form.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
