Fender E 011 0700A SISD
User Manual: Fender Miscellaneous Guitar Service Diagrams (Non-Stratocaster®/Non-Telecaster®) – Fender
Open the PDF directly: View PDF
.
Page Count: 4
21
Pg. 1 of 4
04-07-2003 Rev. A
1817
13
19
11
14
10
8
9
20
6
7
U.S.A.
R
22
1
3
4
5
2
TORONADO HH 0110700
MADE IN MEXICO
MADE IN MEXICO
TORONADO
R
TM

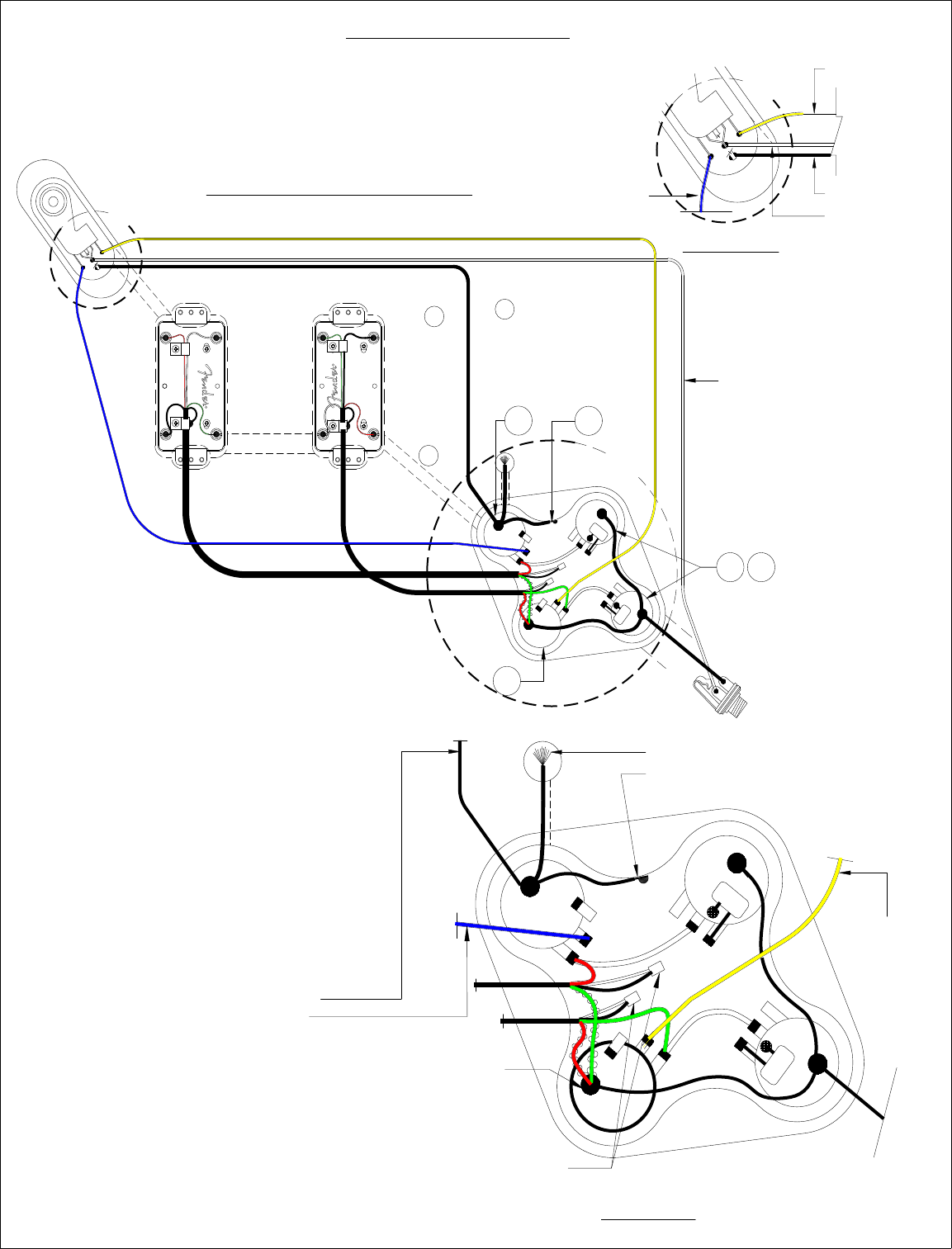

BLACK & WHITE WIRES FROM EACH PICKUP.
TWIST TOGETHER, SOLDER & COVER WITH SHRINK TUBING
PICKUP VOLUME POT.
FROM NECK PICKUP. SOLDER ALL TO BACK OF BRIDGE
PICKUP & TWIST TOGETHER GREEN & BARE WIRE
TWIST TOGETHER RED & BARE WIRE FROM BRIDGE
A
BLACK WIRE FROM SWITCH
BLUE WIRE FROM SWITCH
Pg. 2 of 4
DETAIL - B
04-07-2003 Rev. A
.022
YELLOW WIRE
FROM SWITCH
.022
12
OF CONTROL CAVITY
GROUND LUG IN SIDE
DETAIL - A
12 15
1612
.022
.022
B
R
R
TO OUTPUT JACK
WHITE WIRE FROM SWITCH
SWITCH
TORONADO HH 0110700
WIRING DIAGRAM
PICKGUARD ASSEMBLY
BLACK WIRE
WHITE WIRE
AYELLOW WIRE
BRIDGE POST GROUND
BLUE WIRE
04-07-2003 Rev. A
Pg. 3 of 4

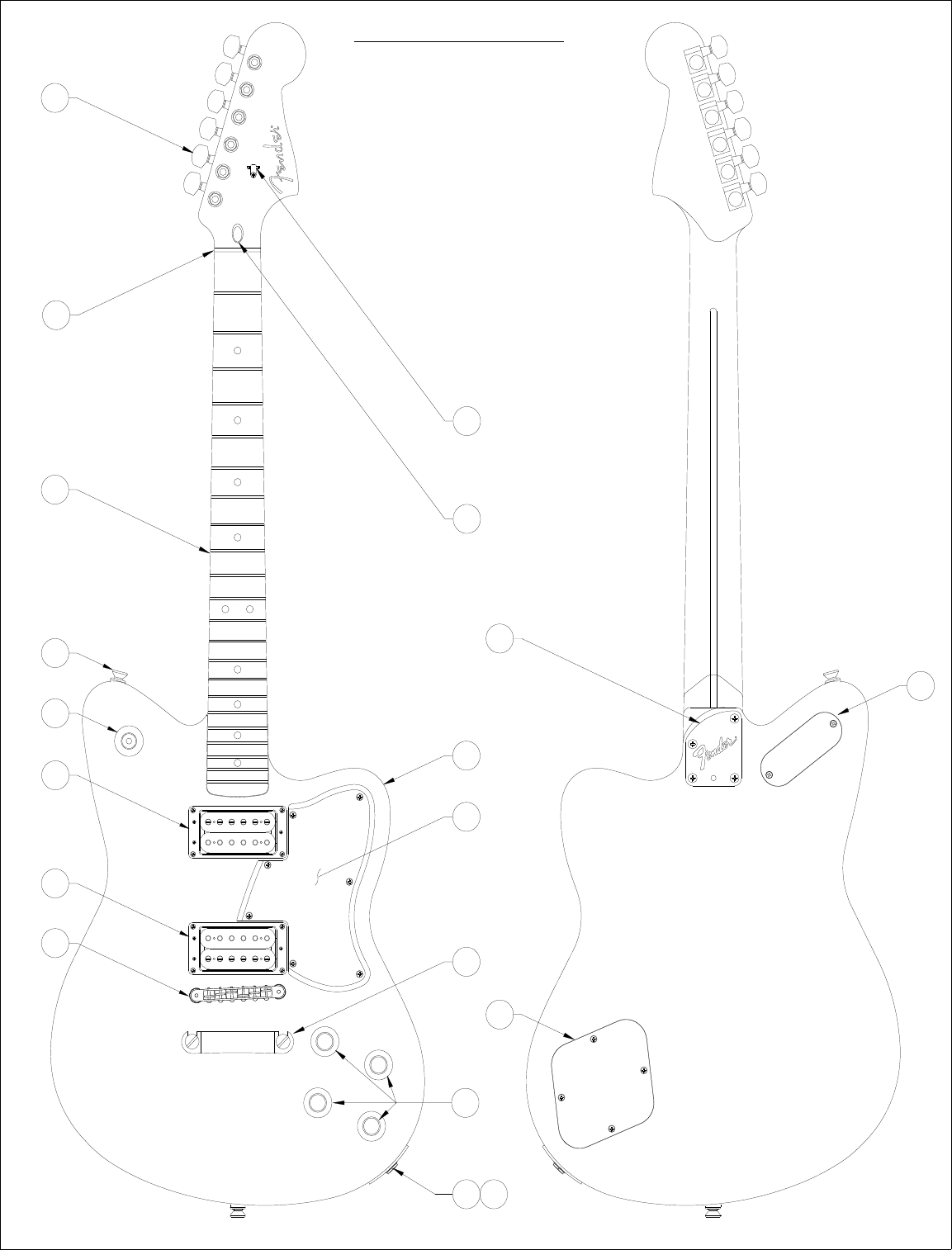

Body Part Number
TORONADO HH 0110700
DESCRIPTIONP/NREF.#
1 0059175000 Neck, Toronado Special , R/W
2 0021374000 Tuning Key, (1) Set
0058815000 Washer
4 0021537000 String Retainer
0021405000 Mounting Screw
5 0020810000 Truss Rod Adjustment Nut
0023811000 Truss Adjusting Wrench
6 0058923xxx Body, Toronado Special, (HB)
7 0037286000 Neck Mounting Plate
0021424000 Mounting Screw
0031571000 Screw, Set
8 0021453000 Strap Button
0021422000 Mounting Screw
0001905600 Felt Washer, Black
9 0059177000 Pickguard, Toronado, (HB)
0021407000 Mounting Screw
10 0059318000 Pickup, Neck, Humbucker
0058404000 Mounting Screw
0050167000 Mounting Spring
0053002000 Mounting Ring
0053161000 Mounting Screw, Ring
11 0059190000 Pickup, Bridge, Humbucker
0058404000 Mounting Screw
0050167000 Mounting Spring
0053001000 Mounting Ring
0053161000 Mounting Screw, Ring
12 0038950000 Control, 500 K, Audio, Split Shaft (4)
0016352000 Mounting Hex Nut
0022384000 Lock Washer, Intl.
0031153000 Flat Washer
13 0059889000 Knob (4)
14 0054063000 Switch, 3 Way Toggle
0059186000 Trim Disc
15 0012869000 Solder Lug
16 0024832000 Capacitor, .022 uF (2)
17 0021956000 Output Jack
0016352000 Mounting Hex Nut
0016436000 Lock Washer, Intl.
0031153000 Flat Washer
18 0050100000 Jack Ferrule
0021407000 Mounting Screw
19 3511055017 Bridge
20 3511055170 Tailpiece
21 0053382000 Control Cover
0021407000 Mounting Screw
22 0053802000 Switch Cover
0021407000 Mounting Screw
0058923538 Crimson Transparent
0058923550 Butterscotch Blonde
0058820000 Bushing
Pg. 4 of 4
04-07-2003 Rev. A

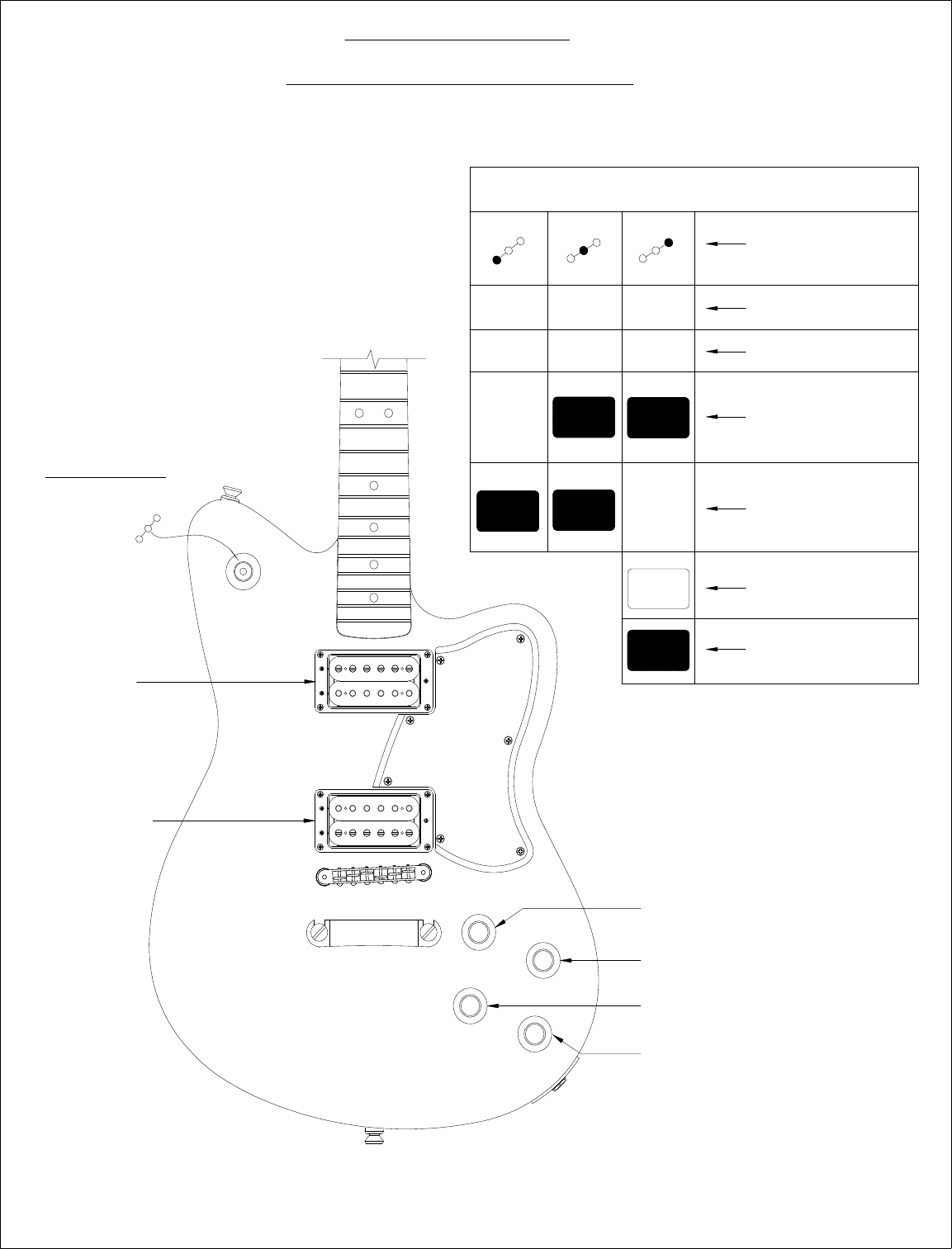

PICKUP IS ON
BRIDGE PICKUP
HUMBUCKER
HUMBUCKER
NECK PICKUP
3
21
TONE CONTROL
PICKUP IS OFF
BRIDGE PICKUP
NECK PICKUP
3 WAY SWITCH
3
2
1
T1&T2
T2 T1
V1&V2
V2 V1
3 WAY SWITCH POSITION
TORONADO HH 0110700
SWITCH & CONTROL FUNCTION
VOLUME CONTROL V2
VOLUME CONTROL V1
TONE CONTROL T1
TONE CONTROL T2
VOLUME CONTROL
3 WAY SWITCH
POSITION
