Fender _SD 013 9700 Acoustasonic Strat Rev A 9700A SISD

User Manual: Fender Stratocaster® Service Diagrams – Fender

Open the PDF directly: View PDF PDF.
Page Count: 4

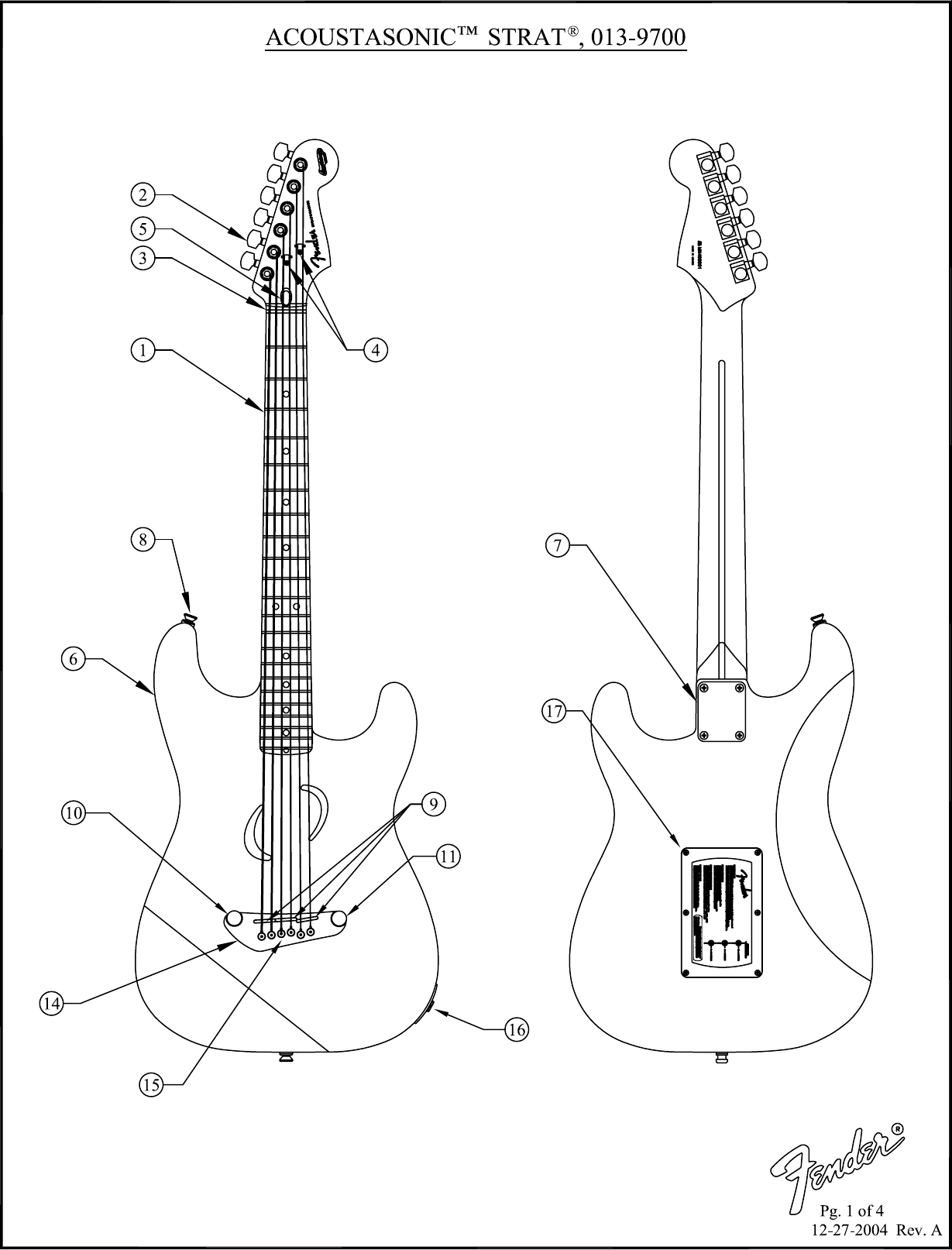

Page 1 of 4 - Fender _SD 013-9700 Acoustasonic Strat - Rev A 013-9700A SISD

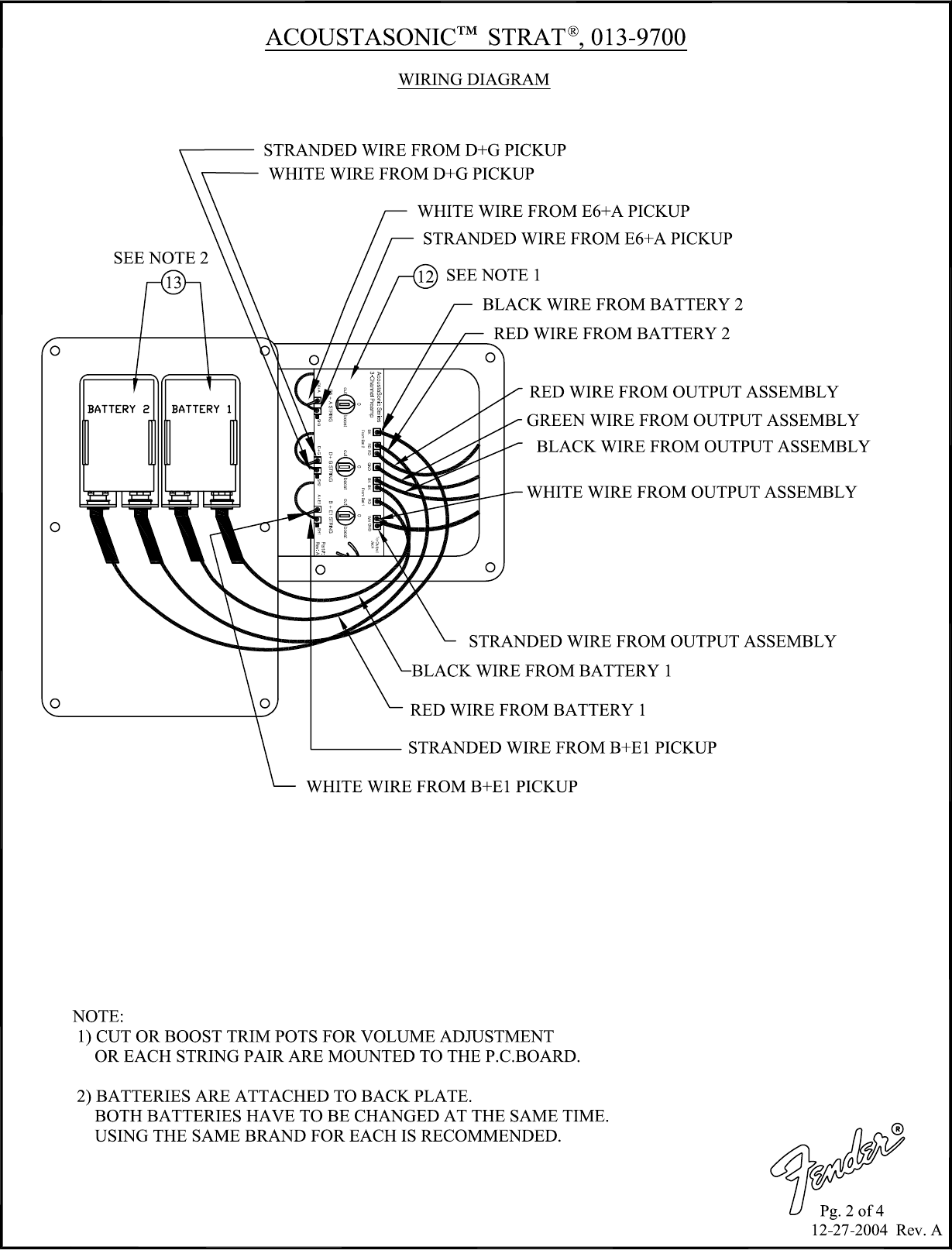

Page 2 of 4 - Fender _SD 013-9700 Acoustasonic Strat - Rev A 013-9700A SISD

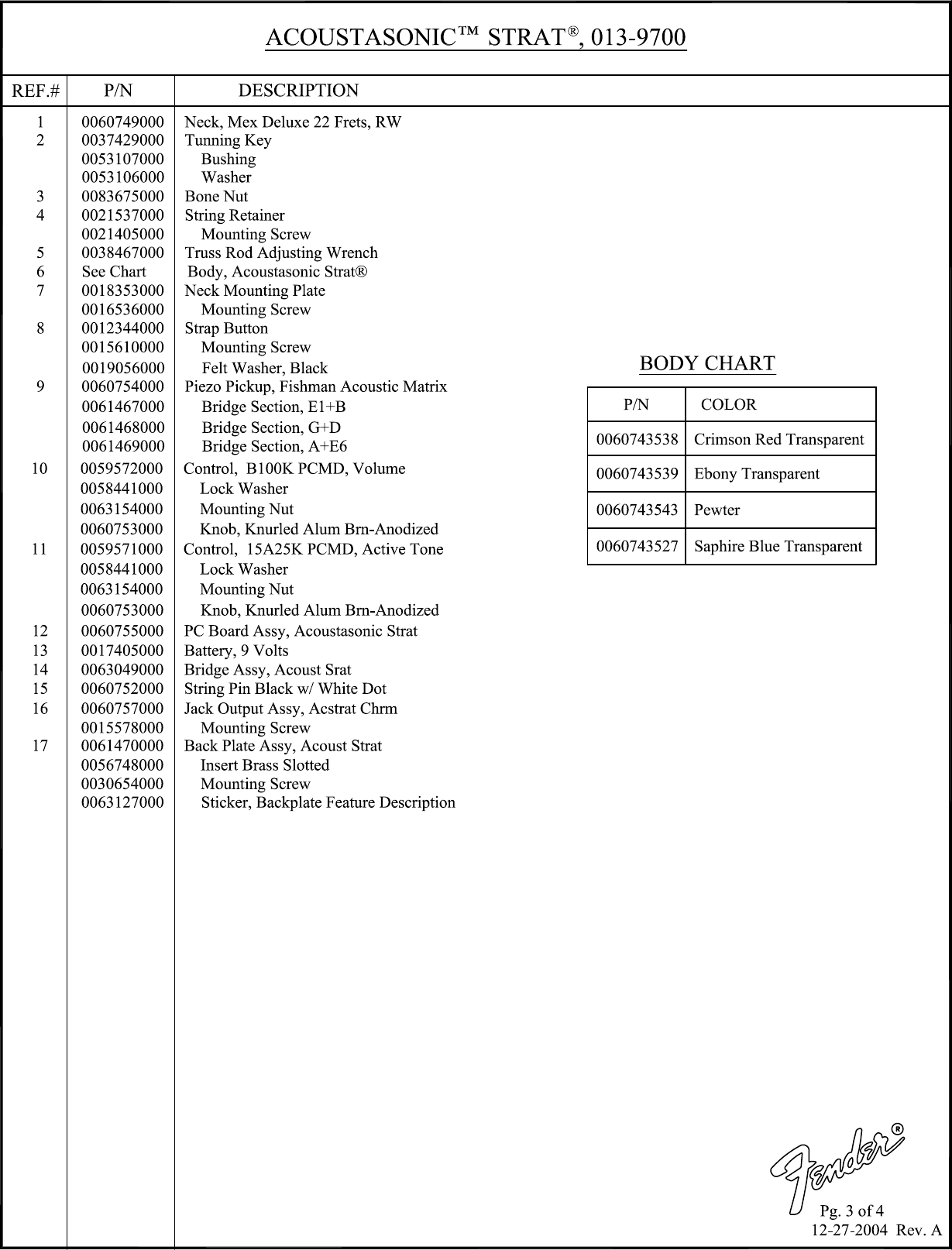

Page 3 of 4 - Fender _SD 013-9700 Acoustasonic Strat - Rev A 013-9700A SISD

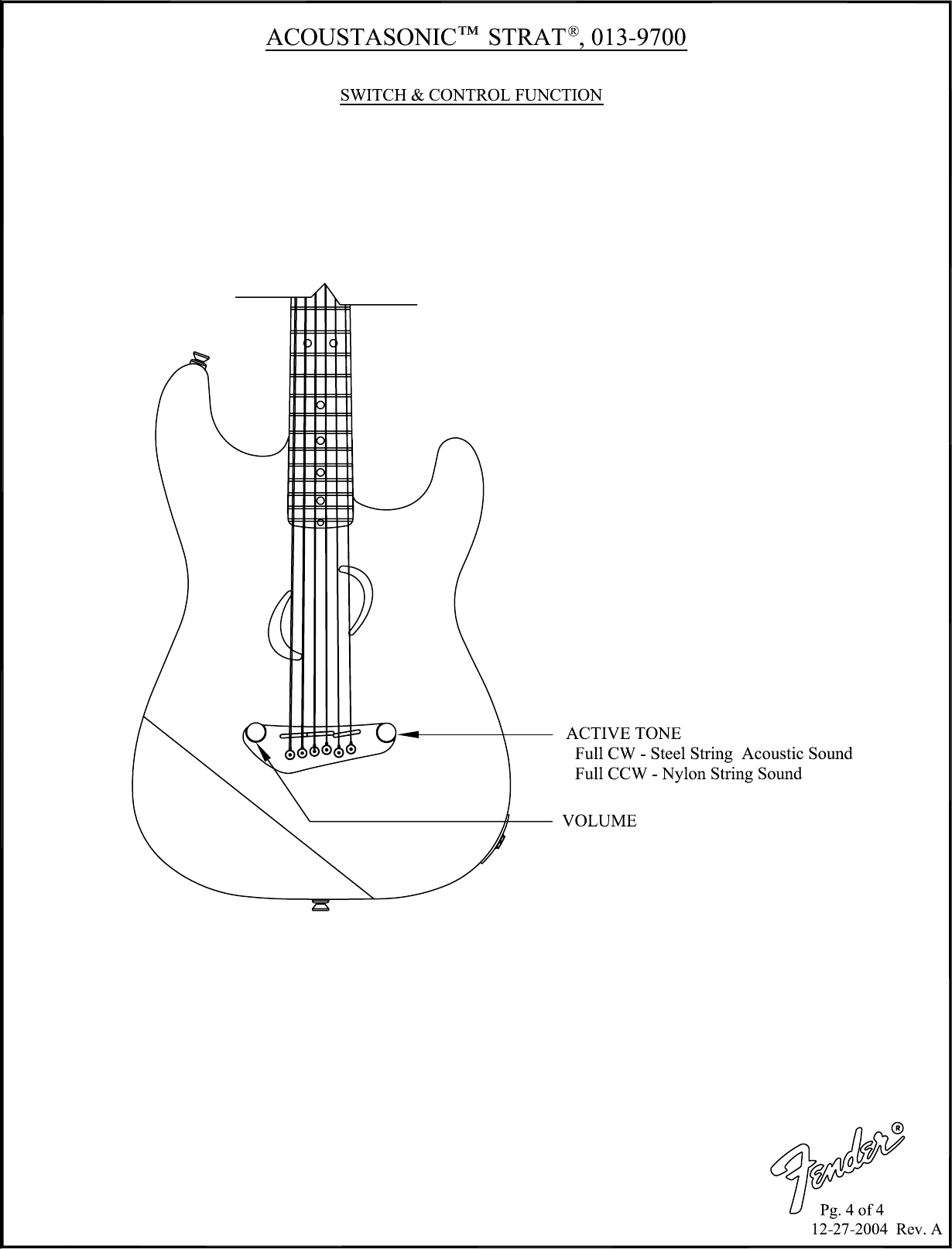

Page 4 of 4 - Fender _SD 013-9700 Acoustasonic Strat - Rev A 013-9700A SISD
