Fender E 019 5960 62A SISD
User Manual: Fender Bass Guitar Service Diagrams – Fender
Open the PDF directly: View PDF
.
Page Count: 4
8
3
6
SE R I AL
NUMB E R
MADE I N U .S .A.
DZ
100001
R
C OR O N A,
C AL IF O R N IA
32
33
5
9
7
19
20
21
22
18
23
24
2
4
1
10
11
12
26
13

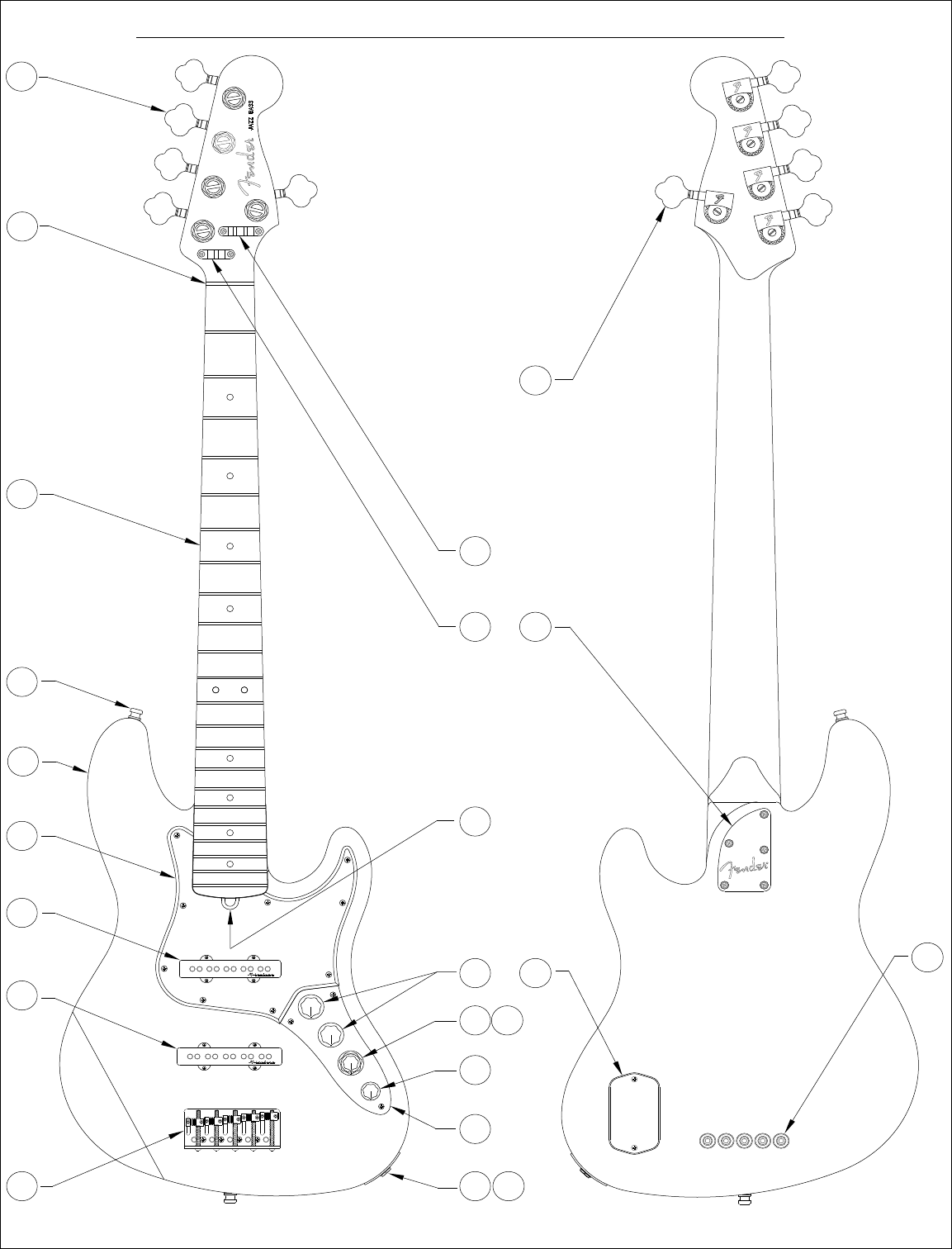

AME R IC AN DE LUXE J AZZ B AS S V UP G R ADE 0195960/5962
03-31-2003 R ev.A
P g. 1 of 4
27 29 2830 31
03-31-2003 Rev. A
Pg. 2 of 4

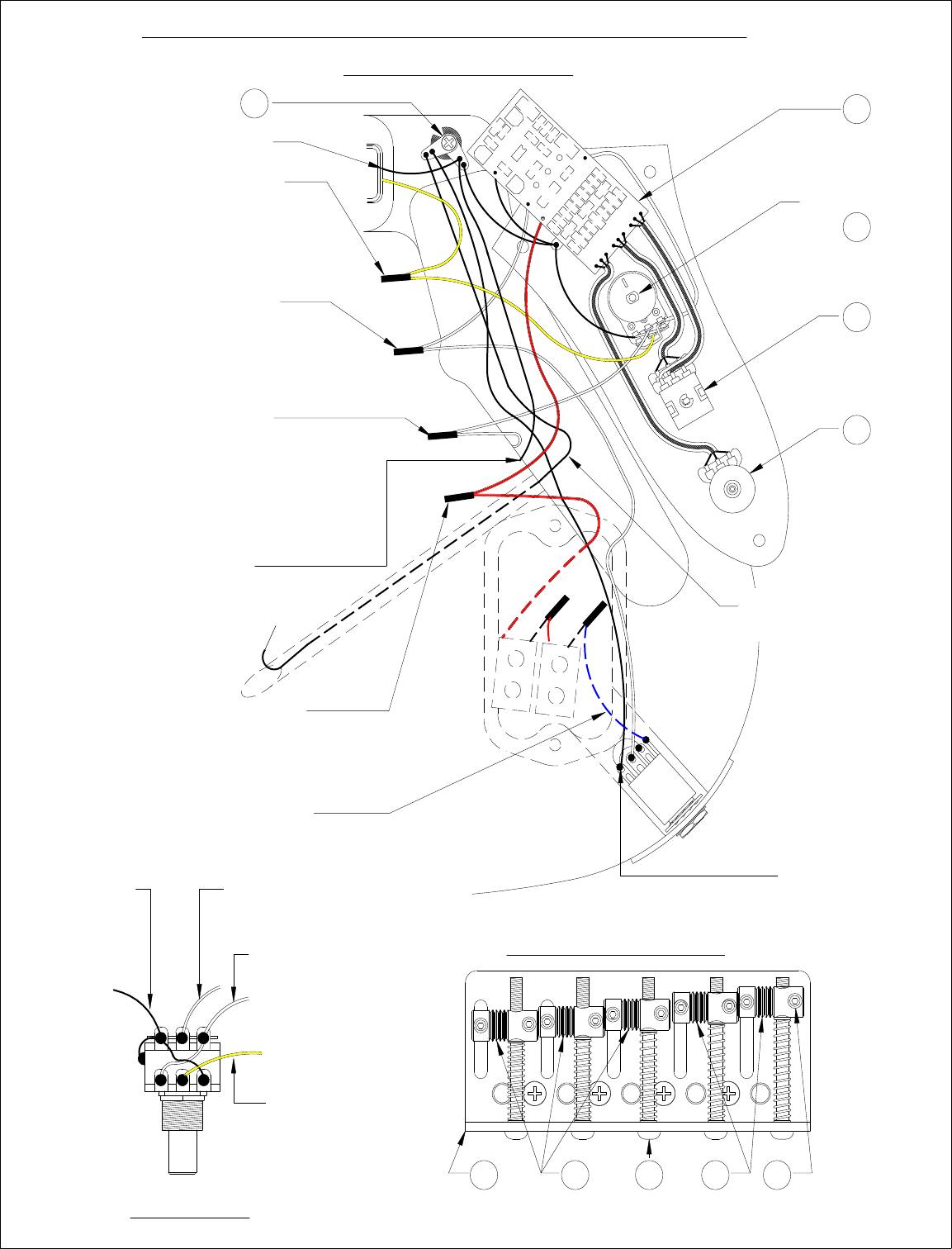

TO GROUND LUG
BLACK WIRE
OUTPUT JACK
BRIDGE ASSEMBLY
TO AVOID SHORT CONTACT.
BLUE WIRE FROM OUTPUT JACK
TO BATTERY SNAP
& PC BOARD SOLDERED TOGETHER
RED WIRES FROM BATTERY SNAP
SHRINK TUBE USED
SHRINK TUBE USED
FROM UNDER BRIDGE
BLACK WIRE (GROUND)
WHITE WIRE FROM BRIDGE P.U.
BLACK WIRE FROM BRIDGE
PICKUP TO GROUND LUG
TO AVOID SHORT CONTACT.
SOLDERED TOGETHER
SHRINK TUBE USED
SOLDERED TOGETHER
TO AVOID SHORT CONTACT.
SHRINK TUBE USED
TO AVOID SHORT CONTACT.
WHITE WIRE FROM P.C. BOARD
AND OUTPUT JACK
17
16
CONTROL ASSEMBLY
BLACK WIRE FROM NECK P.U.
YELLOW WIRE FROM NECK P.U.
25
AMERICAN DELUXE JAZZ BASS V UPGRADE 0195960/5962
15
14
& DYNAMIC CONTROL (PAN
POT) SOLDERED TOGETHER
WHITE WIRE FROM DYNAMIC
CONTROL (PAN POT) AND
BLACK WIRE
TO VOL. POT
GROUND LUG
YELLOW WIRE
FROM NECK PICKUP
DETAIL A
WHITE WIRE
FROM BRIDGE PICKUP
WHITE WIRE
FROM P.C. BOARD
SEE DETAIL A
AME R IC AN DE LUXE J AZZ B AS S V UP G R ADE 0195960/5962
P/NREF.# P/N DESCRIPTION REF.#
03-31-2003 R ev. A
P g. 3 of 4
Body Part Number
DESCRIPTION
0058755500 3 Color Sunburst
0058756531 Aged Cherry Sunburst
0058756548 Teal Green Transparent
0058841506 Black
0058841582 Candy Tangerine
27 0058395000 Bridge Plate
28 0058374000 Bridge Section, (1&2)
29 0058376000 Bridge Section, (3-5)
30 0017571000 Intonation Screw, (5)
0018872000 Intonation Spring, (5)
31 0021093000 Height Adjustment Screw, (10)
0021109000 Adjusting Wrench, Saddle Height
32 0048604000 Ferrule, String Retainer
33 0049705000 Battery Cover
0017405000 Battery, 9 Volt, (2)
0030654000 Mounting Screw
0030688000 Insert
0018556000 Foam Block Wearthestrip
1 0058753000 Neck, Jazz Bass Deluxe V Upgrade, P/F
0058754000 Neck, Jazz Bass Deluxe V Upgrade, M/N
2 0056087000 Tuning Key, (1) Set, W/Bushing
3 0056025000 Tuning Key, (1) Left Hand, W/Bushing
4 0038487000 Bone Nut
5 0058332000 Retainer, (3) Strings
6 0058334000 Retainer, (2) Strings
0021407000 Mounting Screw
7 0048688000 Truss Rod Adjustment Nut
0048693000 Truss Rod Adjusting Wrench
8 0058841xxx Body, Am. Deluxe Jazz Bass V, Alder Solid Paint
0058755xxx Body, Am. Deluxe Jazz Bass V, Alder
0058756xxx Body, Am. Deluxe Jazz Bass V, Ash
9 0058329000 Neck Mounting Plate
0021424000 Mounting Screw
10 0021453000 Strap Buttom
0021422000 Mounting Screw
0001905600 Felt Washer, Black
0020491000 Felt Washer, White
11 0049687000 Pickguard, Am. Deluxe Jazz V Bass, Shell
0054109000 Pickguard, Am. Deluxe Jazz V Bass, Mint Green
0021407000 Mounting Screw
12 0058670000 Pickup Assembly, Neck
0021408000 Mounting Screw
0017333000 Rubber Weatherstrip
13 0058669000 Pickup Assembly, Bridge
0021408000 Mounting Screw
0017333000 Rubber Weatherstrip
14 0058492008 Printed Circuit Board Asembly
0049440003 Control, 25K, Audio
0016352000 Mounting Hex Nut
0050161000 Lock Washer
15 0049441000 Control, 250k, Pan Alpha
0016352000 Mounting Hex Nut
0016436000 Lock Waher, Intl
16 0053736000 Control, 100KB, Tocos
0016352000 Mounting Hex Nut
0016436000 Lock Washer, Intl
17 0049443000 Control, 100KB, CTS
0016352000 Mounting Hex Nut
0016436000 Lock Washer, Intl
18 0010652000 Control Plate
0021407000 Mounting Screw
19 0019455000 Knob, Skirted, Black (2)
20 0049412000 Knob, Lower, Skirted, Black
21 0049411000 Knob, Upper, Skirted, Black
22 0019513000 Knob, Small, Black
23 0058251000 Output Jack
0016352000 Mounting Hex Nut
0016436000 Washer, Lock Intl
0031153000 Washer, Flat
24 0050100000 Jack Ferrule
0021407000 Mounting Screw
25 0012869000 Ground Lug(s) (2)
0015116000 Mounting Screw
26 0058397000 Bridge Assembly
0021422000 Mounting Screw
03-31-2003 R ev. A
P g. 4 of 4
AME R IC AN DE LUXE J AZZ B AS S V UP G R ADE 0195960/5962

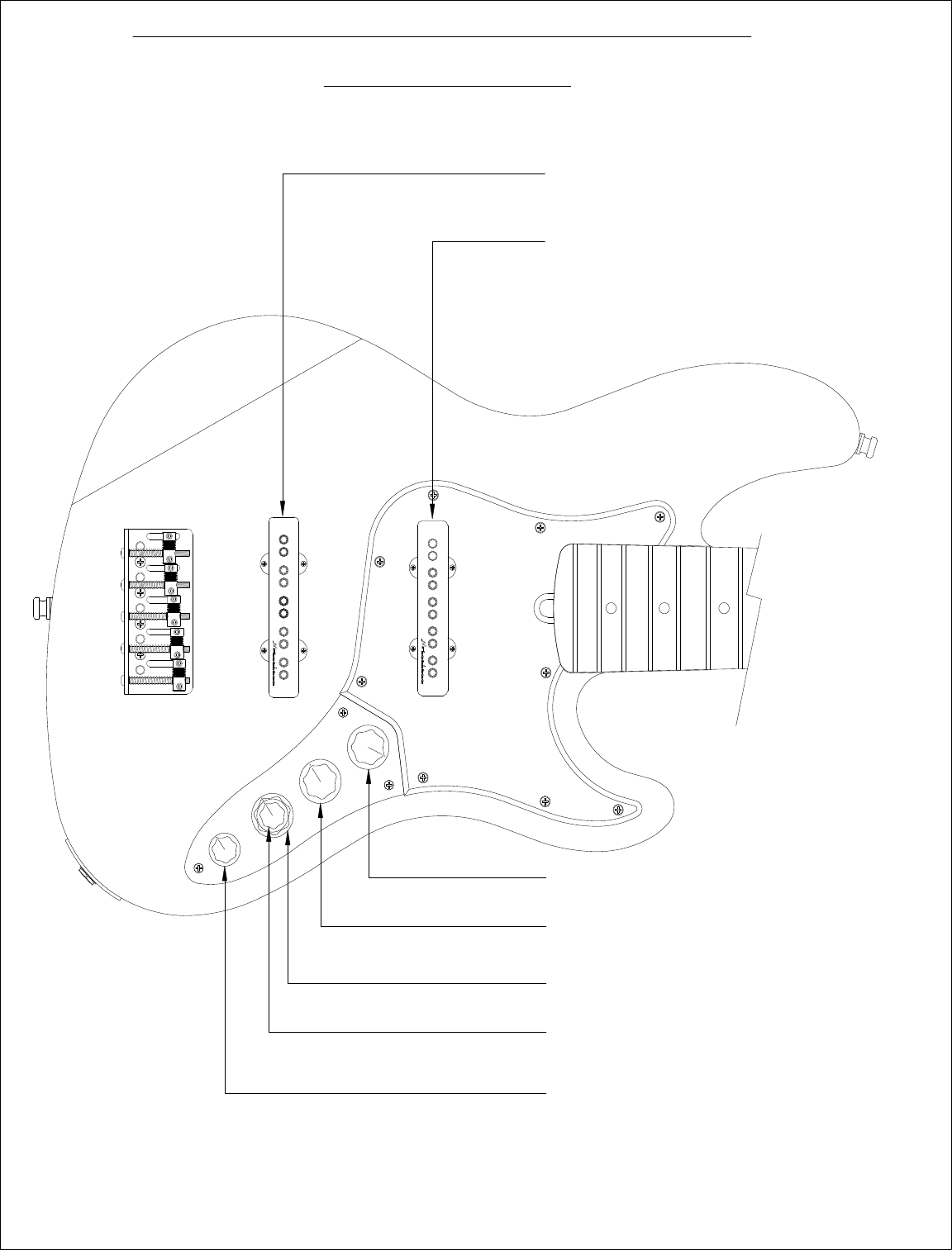

CONTROL FUNCTIONS
DYNAMIC CONTROL (PAN POT)
CW - NECK PICKUP / CCW - BRIDGE PICKUP
BASS CONTROL (LOWER)
CW - BOOST / CCW - CUT
MID CONTROL
CW - BOOST / CCW - CUT
TREBLE CONTROL (UPPER)
CW - BOOST / CCW - CUT
MASTER VOLUME
NECK PICKUP
BRIDGE PICKUP
