General Operation
To download the complete Owner’s Manual for your radio,
please visit www.dualav.com/support/manuals.php.
To download the complete Owner’s Manual for your radio,
please visit www.dualav.com/support/manuals.php.
To download the complete Owner’s Manual for your radio,
please visit www.dualav.com/support/manuals.php.
Power On/Off
Changing Modes
Volume
Mute
Auxiliary Inputs
Display
Audio/Menu
Reset
Press the button to turn the unit on. Press and hold
to turn unit off.
Press MODE to select between Radio, AUX, Bluetooth,
USB, iPod. Modes of operation are shown in the display.
Adjust volume using Encoder Volume.
Press to silence the audio. Press again to resume
listening at the previously selected volume.
Insert RCA cables into the rear AUX-IN connectors.
Press DISP to toggle display between various displayed
information.
Press
options.
Audio/Menu to access the audio and setup menu
If abnormal operation occurs, press and hold Audio/Menu
and TUNE
nn
for 3 seconds to reset the unit to the
default factory settings.
Operation of iPod/iPhone
Connect an iPod/
iPhone Device (sold
separately)
Song Select
Forward/Reverse
Pause
To play music from an iPod/iPhone device, connect the USB
cable (included with your iPod/iPhone device) to the unit’s USB
port. Playback will begin automatically.
Press
ll
to skip to the next song. Press
nn
to return to
the beginning of the current song. Pressing
nn
again skips
to the beginning of the previous song.
Press and hold
ll
or
nn
to fast forward or reverse.
Press
l
/
II
to temporarily stop playback.
Press
l
/
II
again to resume playback.
Bluetooth® Operation
Preparation
Pairing a New
Device
Pairing
Additional
Devices
Disconnecting a
Device
Bluetooth Reset
Streaming Audio
Troubleshooting
Before using a Bluetooth device, it must be paired and
connected. Ensure that Bluetooth is activated on your
device before beginning the pairing process.
The head unit broadcasts the pairing signal constantly
when no devices are connected. Complete the pairing
sequence from your Bluetooth device. Refer to the
owner’s manual for your device for more details.
The device name is “MMC36BT”.
Note: The head unit can be in any mode of operation
when pairing is performed.
If a device is currently connected, press and hold
BAND to disconnect the current device before a new
device can be paired. Then begin the pairing sequence
from the new Bluetooth device.
Press and hold BAND for 3 seconds to disconnect a
connected device. The device will remain paired and
appear in the SEARCH menu, but not be connected.
Resetting the Bluetooth module will remove the list of
paired phones. Reset Bluetooth as follows:
1) Press MODE until the head unit is in Bluetooth mode.
2) Press and hold MENU for 3 seconds to reset the
Bluetooth settings back to the factory default.
The head unit supports A2DP wireless streaming audio
from a Bluetooth mobile device directly to your head unit.
The following functions can be used to control the music:
• Press
ll
to skip to the next available audio track.
• Press
nn
to skip to the previous audio track.
• Press
l
/
II
to toggle between play and pause during
playback.
To download the complete Owner’s Manual for your radio,
please visit www.dualav.com/support/manuals.php.
MP3 Operation
Playing MP3 Files
Track Select
Fast Forward and
Reverse
Pause
Folder Access
To play MP3 files, insert a USB device containing MP3 files.
Press TUNE
ll
to skip to the beginning of the next song.
Press TUNE
nn
to return to the beginning of the current
song. Pressing TUNE
nn
again skips to the beginning of
the previous song.
Press and hold TUNE
ll
or TUNE
nn
to fast forward
or reverse a track.
Press
l
/
II
to temporarily stop playback.
Press
l
/
II
again to resume playback.
Press to select the next folder. Press to select the
previous folder. Folder access is only available on devices
with more than one folder.
To download the complete,
model-specific manual, please visit
www.dualav.com/support/manuals.php
or call 1-866-382-5476,
9AM-5PM EST (Monday-Friday).
MMC36BT

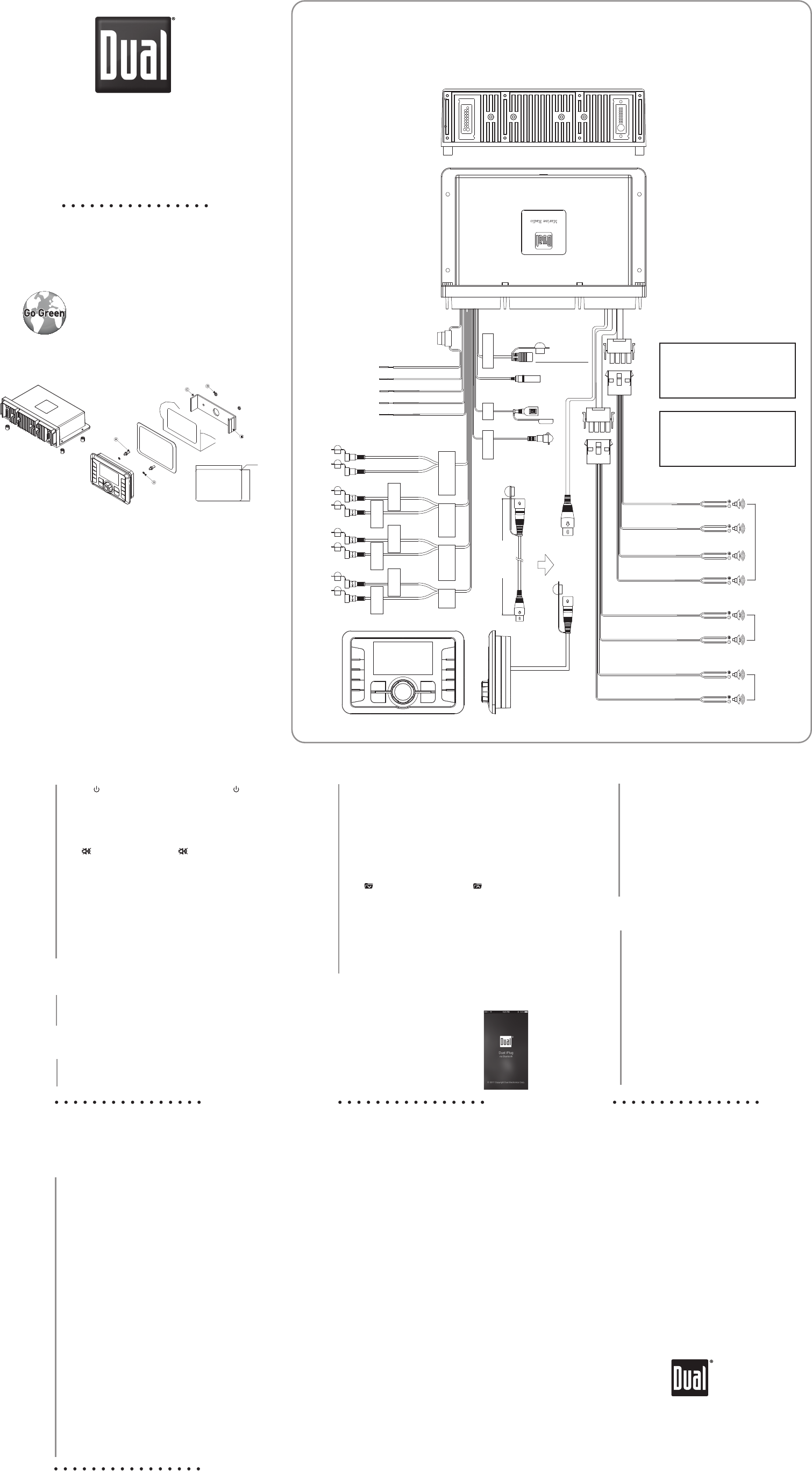

Installation
Mounting the Radio
1. Choose a mounting location on the dash board or instrument panel that will
allow room behind to run radio cables to the power source. Consider how you
will use the AUX IN, LINE OUT and USB connectors and route the appropriate
extension cables to an accessible area.
2. Make a hole referring to cut out dimension.
IMPORTANT! Do not mount this unit where it can be submerged in water.
3. Slide the included spring washers (B) over the screw posts (A) and attach the
screw posts to the back of the radio.
4. Place the radio in front of the dashboard opening so the wiring can be brought
through the opening.
5. After completing the wiring connections, turn the radio on to confirm operation
(vehicle accessory switch must be on). If the radio does not operate, recheck
all wiring until the problem is corrected. Once proper operation is achieved,
turn the accessory switch off and proceed with final mounting of the radio.
Refer to the “Wiring Diagram” on page 5.
NOTE: Before final installation, test the wiring connections to make sure the unit
is connected properly and the system works.
6. Insert the radio into the mounting hole.
7. Place the “U” bracket (C) over the screw posts and secure the radio to the
dash using the included hex nuts (D). If necessary, cut the score marks (E) on
either side of the mounting bracket to custom fit the bracket length for your
application. See Figure A.
C
D
E
A
B
Speaker Zone Control Operation
Dual iPlug APP Control
Press the Zone 1 button to turn on/off the sound from this Zone.
Speaker Zone 1
Speaker Zone 2
Speaker Zone 3
File Search When music is playing in USB mode, press SELECT button
then the file list will appear. Turn volume rotary to select
the song. Press SELECT to playback the song.
Function Press and hold DISP button then the menu for repeat, random,
intro will appear. Select the option by turning the rotary and
pressing SELECT button.
Function Press and hold DISP button then the menu for repeat, random,
intro will appear. Select the option by turning the rotary and
pressing SELECT button.
AM/FM Tuner Operation
Seek Tuning
Manual Tuning
Band
Storing Presets
Recalling Presets
Press TUNE
nn
or TUNE
ll
for more than one
second to seek to the next strong station.
Press TUNE
nn
or TUNE
ll
momentarily to move
radio frequency up or down one step at a time. Press
and hold to advance quickly.
Press BAND to select between FM1, FM2, FM3, AM1, AM2
and Weather Band. Up to six presets can be programmed
for each band, enabling up to 18 FM stations and 12 AM
stations to be stored in memory.
Press the P buttons to cycle through the 1-6 presets in
the current band.
Weather Band Operation
Manual Tuning
Band
Press TUNE
nn
or TUNE
ll
momentarily to seek
the next weather band station.
Press BAND to select weather band(WB).
Press SELECT button then preset channel list will appear.
Select the desired preset channel by turning the rotary.
Press SELECT button to store the radio station.
Pls download Dual iPlug app from Apple app store or Google
Play store and install the app on your smartphone. After the app
download is complete, please pair the MMC36BT with your
phone via Bluetooth. An then open the app. You are ready to
control the MMC36BT using the app. For more information,
please download the owner's manual from the following link.
www.dualav.com/support/manuals.php
Mounting & Wiring
Fuse:
When replacing the fuse, make
sure new fuse is the correct type
and amperage. Using an incorrect
fuse could damage the radio.
Tip:
When a suitable ground wire is
not present in the vehicle wiring
harness, connect the black ground
wire to the vehicle chassis.
Once a suitable location has been determined, drill the hole and secure the
stereo using the metal mounting bracket. If the bracket needs to be shortened,
remove the appropriate number of breakaway segments using a pair of pliers.
Press the Zone 2 button to turn on/off the sound from this Zone.
Press the Zone 3 button to turn on/off the sound from this Zone.
ACC+
GROUND
CAMERA 12V
REMOTE
REVERSE
BLACK BOX
RUBBER STOPPER(4EA)
COMMENDER Cut out dimension
123mm X 84mm
(Brown)
(Gray)
(Black)
(Yellow)
(Blue)
(Blue)
(White)
(Red)
(White)
(Red)
(White)
(Red)
FRONT
CHANNEL AUX
SUBWOOFER REAR
CHANNEL
FUSE
REAR VIEW CAMERA INPUT
(Red)
(Black)
(Brown)
(Blue)
(Orange)
(Yellow)
LINE OUT
LEFT
LINE OUT
RIGHT
LINE OUT
LEFT
LINE OUT
RIGHT
AUX IN
LEFT
AUX IN
RIGHT
Zone 1
SPEAKERS
Zone 2
SPEAKERS
Zone 3
SPEAKERS
(White)
(White/Black)
FRONT LEFT
FRONT RIGHT
REAR LEFT
REAR RIGHT
(Gray)
(Gray/Black)
(Green)
(Green/Black)
(Violet)
(Violet/Black)
(White)
(White/Black)
(Gray)
(Gray/Black)
(Green)
(Green/Black)
(Violet)
(Violet/Black)
DISPLAY
CONTROLLER
Male
Female
13pin Din Cable
3m (10 feet)
SWI INPUT USB CAMERA
ANTENNA
(Black)
(Black)
123.0
84.0
R5.0
LEFT
RIGHT
LEFT
RIGHT
(Black)
Connected MWR17
DISPLAY
CONTROLLER
20A
