Fengfan F002 Fiil Wireless User Manual

Fengfan (Suzhou) Audio Technology Co. Ltd Fiil Wireless Users Manual

Users Manual

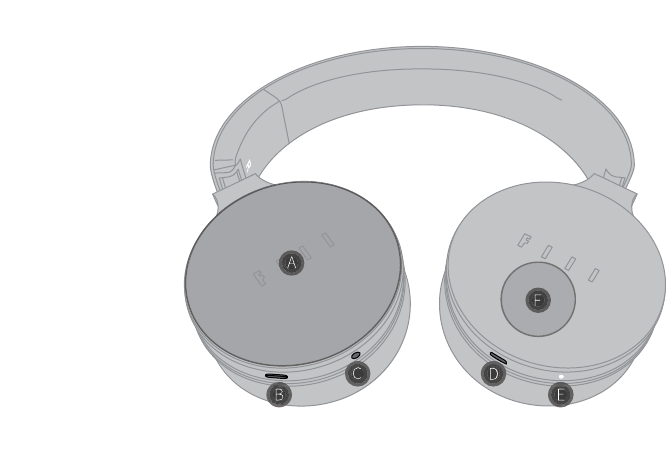

Headset MMI
(Make sure inserting audio cable with correct direction
otherwise Microphone will not work)
A: Touch Control Area
B: Multifunction Button (MFB)
C: Audio Jack
D: USB Connector
E: Status/Battery LED Indicator
F: NFC Pad
（可同时连接2个音源设备）
Step1进入配对
新购买的Fiil Wireless耳机开机（按住多功能键，直至看见电量灯点亮后松开）即自动
进入蓝牙配对模式，Fiil灯持续闪烁。曾配对过的耳机需要在关机状态下长按多功能
键直至Fiil灯闪烁；
Step2 连接
APP向导连接：请扫描第5页的二维码下载fiil+ APP，按照向导进行连接；
NFC辅助连接：确认耳机开机，打开手机或其它音源的NFC，用其NFC模块轻触左耳
杯面盖NFC区域（如第3页所示），在音源设备上确认连接；
手动连接：进入音源的设置页面，在“蓝牙”选项中点击“搜索设备”，点击连接被搜索
到的Fiil Wireless.
有线模式
亦可使用随机附送的音频线将Fiil Wireless连接至音乐设备，使用有线模式。
Connect to Bluetooth Devices
Fill Wireless is able to simultaneously connect with two bluetooth devices
Step 1: Pairing
New Fiil Wireless Headset: Press and Hold MFB until power on,
headset will automatically enter pairing mode
Used Fiil Wireless Headset: Press and Hold MFB untill "Fiil" LED blinks.
Step 2: Connecting
Wired Mode
Use Audio cable to connect with devices.
一键听音：开机并连接蓝牙音源，短按
MFB实现播放/暂停，即享好音乐。
开关机： 长按多功能键直至绿灯/红灯
亮起
主动连接：蓝牙配对未连接状态下，短
按MFB主动发起连接请求。
打开/关闭降噪： 双击MFB
点亮/熄灭Fiil灯：三击MFB
唤起siri/语音助手：蓝牙连接状态下中
按（按住多功能键2秒后放开）
接通/挂断电话：来电/通话时短按MFB
拒接电话：来电时中按MFB
便捷的多功能键（MFB）
Multifunction Button (MFB)
Play/Pause: Power on and
connect, short press MFB to
play/Pause
Power On/Off: Long press MFB untill
green/red LED on
Connect: initial connection by
short press when no connection
Active Siri: Bluetooth connected,
press 2s MFB then release MFB
ANC On/Off: Dual press MFB
Fiil Logo On/Off: Triple press MFB
Answer/End Call: When Incoming Call,
short press MFB
Reject Call: When Incoming Call, press 2s MFB
滑动控制
音量加/减：向上滑动/向下滑动触控板
下一首/上一首：向前滑动/向后滑动触
控板（仅适用于蓝牙模式的兼容机型）
无级调节
音量加/减：长按上/下触控板
快进/快退: 长按前/后触控板（仅适用于
蓝牙模式的兼容机型）
手势触控
Touch Control
Touch Control
Vol +/: Sliding Up/Down
Next/Prev: Sliding forward/backword
(Only workable with bluetooth
compatiable devices)
Stepless Adjustment
Vol +/: Press and Hold Up/Down
FastForward/backword: Press and Hold
Next/Prev. position (Only workable with
bluetooth compatiable devices)
Battery Level Indication
A: Insert USB Cable will indicate battery
level (Light off if battery is full)
B: Short press MFB (when idle)
Green: >80%
Yellow: 20%~80%
Red: 10%~20%
Blinking Red: <10%
Use Fiil+ APP to check battery level
Even Battery is used out, Fiil Wireless is still
able to play music with audio cable.
2x
下一首
3x
上一首
2x
+HOLD
快进
3x
+HOLD
快退
1x
暂停/播放
接听电话
挂断电话
通话保留
1x
+2s
拒接电话
接听新电话
挂断当前通话
语音助手
调高音量
调低音量
Audio Cable Control
(iOS Cable)
Vol +
Vol 
Play/Pause
Next
Prev.
Reject
Answer/End
Call
Siri, or
voice recognition
Fast
Forward
Fast
Backword
Answer
End
Hold
线控 安卓系统
（可能因不同Android设备而异）
1x
+HOLD
挂断/拒接电话
调高音量
调低音量
2x
下一首
3x
上一首
1x
通话中静音
暂停/播放
接听电话
Audio Cable Control
(Android Cable)
Note: feature may varient with different Android devices
Vol +
Vol 
Play/Pause
Next
Prev.
End/Reject
Answer
Mute in call
登山扣 x1
耳机 x1 IOS 音频线 x1
安卓音频线 x1
USB 充电线 x1
便携盒 x1

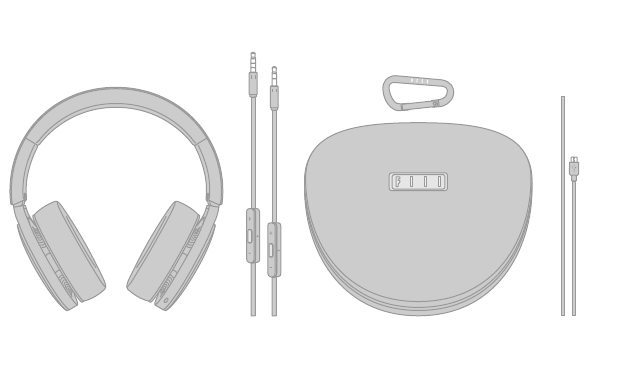

Product List in Pack
Headset X1
Android Cable X1
iOS Cable X1
Clip X1
Pack X1
USB Cable X1

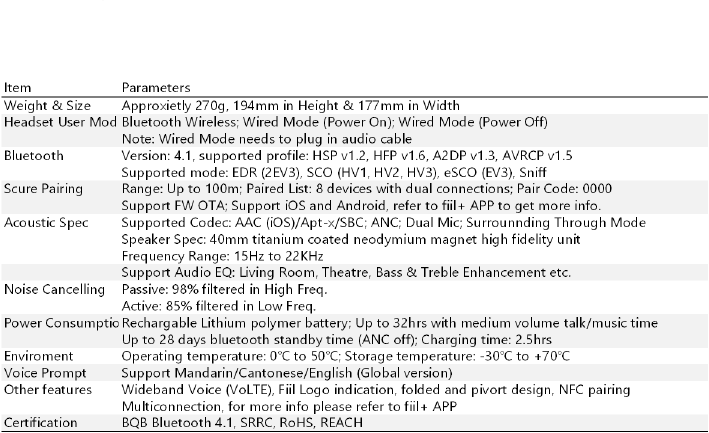

Product Parameters
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
Environment.
The USB port is for charge use only.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help
- This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
IC NOTICE TO CANADIAN USERS
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) This device may not cause interference, and (2) This device
must accept any interference, including interference that may cause undesired operation of the
device. This device complies with RSS-247 of Industry Canada. Operation is subject to the
condition that this device does not cause harmful interference. This Class B digital apparatus
complies with Canadian ICES-003 (Cet appareil numérique de la Classe B conforme à la norme
NMB-003 du Canada).
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
