1. Introduction
Thank you for your purchase of the Wireless Internet Remote Monitoring Weather Station. The
following user guide provides step by step instructions for installation, operation and troubleshooting.
2. Quick Start Guide
Although the manual is comprehensive, much of the information contained may be intuitive. In
addition, the manual does not flow properly because the sections are organized by components.
The following Quick Start Guide provides only the necessary steps to install, operate the weather
station, and upload to the internet, along with references to the pertinent sections.
Required
Step Description Section
1 Power up the outdoor thermo-hygrometer sensor 3.3
2 Power up the indoor thermometer-hygrometer-barometer sensor 3.4
3 Power up the ObserverIP, connect to your router and synchronize with the
indoor and outdoor sensors
3.6

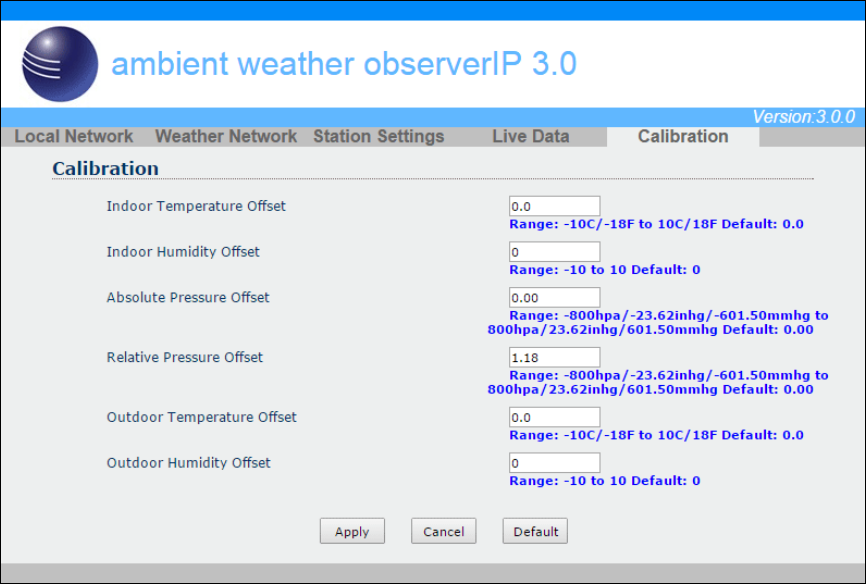

4 Calibrate the relative pressure to sea-level conditions (local airport) on the
ObserverIP module
3.9.6
5 Register and upload to Weather Server 3.8
3. Getting Started
The WS-1000-WiFi weather station consists of a ObserverIP receiver, an outdoor thermos-hygrometer
sensor, and wireless thermo-hygrometer-barometer.
3.1 Parts List

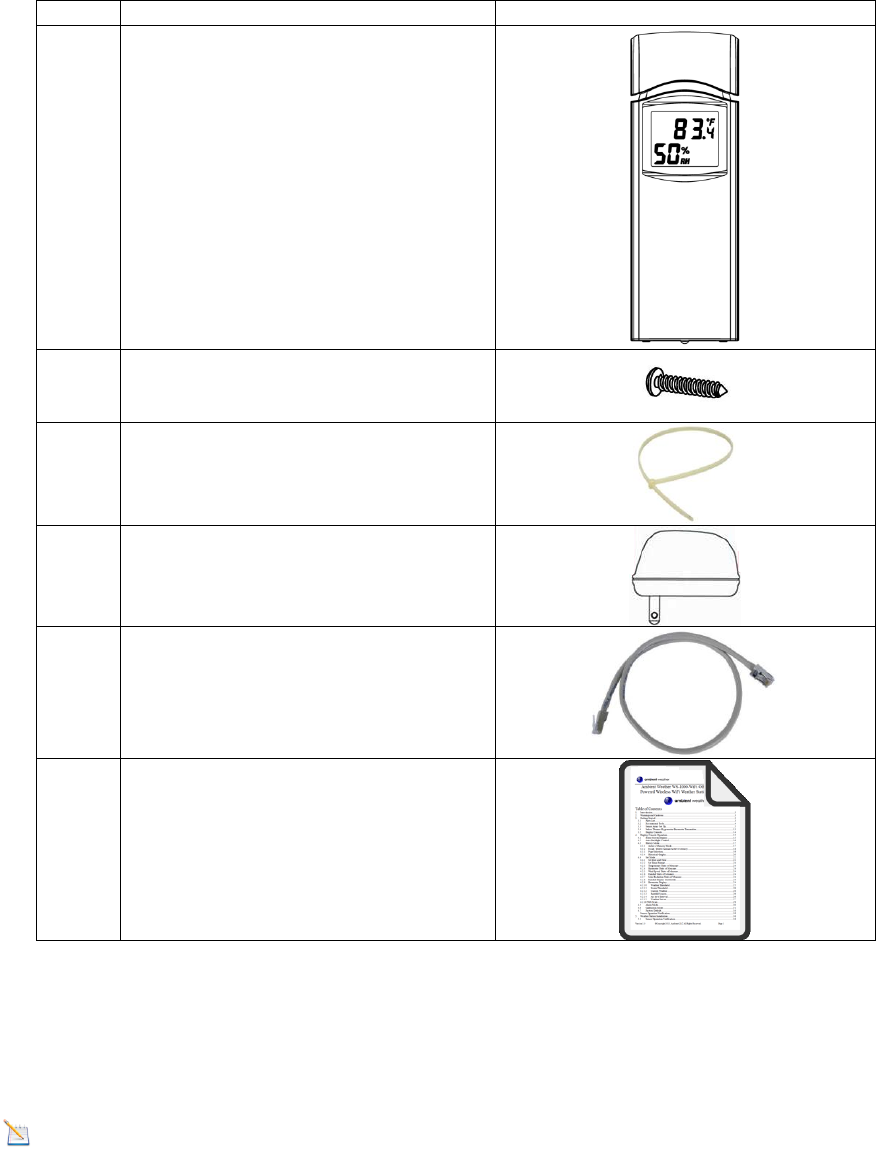

QTY Item Image
1 ObserverIP Receiver
Dimensions (LxWxH): 3x2x1”
1 Indoor thermo-hygrometer-barometer
transmitter (WH32B)
Dimensions (LxWxH): 4.8” x 1.6” x 0.7”
(122 x 42 x 18 mm)
Version 1.0 Page 3
QTY Item Image
1 Outdoor thermo-hygrometer transmitter
(WH32E)
Dimensions (LxWxH): 4.8” x 1.6” x 0.7”
(122 x 42 x 18 mm)
1 Sensor screw (for hanging sensor)
1 Zip Tie (for hanging sensor)
1 5V DC Adaptor
1 Ethernet Cable
1 User manual
3.2 Recommend Tools
Precision screwdriver (for small Phillips screw on battery cover door and mounting bracket)
Drill for mounting bracket
3.3 Outdoor Thermo-Hygrometer Sensor Set Up
Note: To avoid permanent damage, please take note of the battery polarity before inserting the
batteries.
The outdoor thermometer-hygrometer measures and displays the outdoor temperature and humidity to
the ObserverIP receiver.
Version 1.0 Page 4

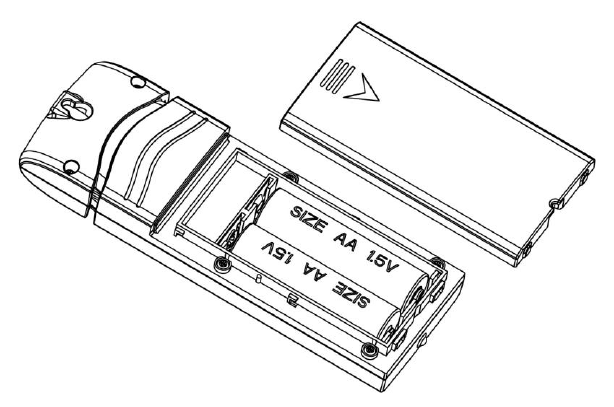

Remove the battery door on the back of the sensor by sliding off the battery door. Insert two AA
batteries as shown in Figure 1, and close the battery door. Note that the temperature and humidity
will be displayed on the LCD display.
We recommend lithium batteries for cold weather climates, but alkaline batteries are sufficient for
most climates. We do not recommend rechargeable batteries. They have lower voltages, do not operate
well at wide temperature ranges, and do not last as long, resulting in poorer reception.
Figure 1
3.4 Mounting the Outdoor Thermo-Hygrometer Sensor
It is recommended you mount the remote sensor on a north facing wall, in a shaded area, at a height at
or above the receiver. Direct sunlight and radiant heat sources will result in inaccurate temperature
readings. Although the sensor is weatherproof, it is best to mount in a well protected area, such as an
eve.
Use a small nail or screw (included) to mount to a vertical surface, as shown in Figure 2.
Version 1.0 Page 5

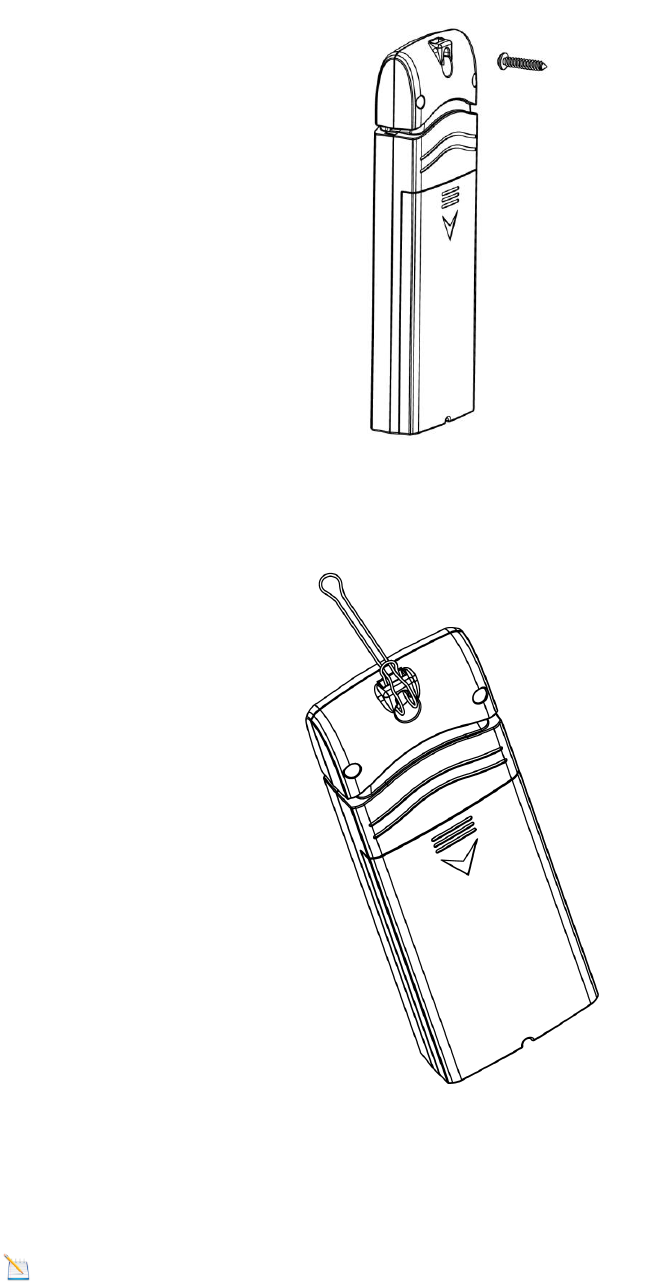

Figure 2
The sensor can also be hung from a nylon zip tie (included) or string (not included).
Figure 3
3.5 Indoor Thermo-Hygrometer-Barometer Transmitter
The indoor thermometer, hygrometer and barometer measures and displays the indoor temperature,
humidity and pressure and transmits this data to the ObserverIP receiver.
Note: Do not install the thermo-hygrometer-barometer transmitter outside. This will cause errors
Version 1.0 Page 6
in the barometric pressure due to large variations in temperature (barometric pressure is temperature
compensated for accuracy). Note that pressure readings made inside your home, business, or facility
will correspond closely to the actual barometric pressure outside.
Note: The thermo-hygrometer-transmitter transmits directly to the ObserverIP receiver. For best
results, place between 5 to 20 feet from the ObserverIP receiver.
Note: To avoid permanent damage, please take note of the battery polarity before inserting the
batteries.
Remove the battery door on the back of the sensor by sliding off the battery door. Insert two AA
batteries as shown in Figure 1, and close the battery door. Note that the temperature, humidity and
barometer will be displayed on the LCD display.
3.5 Best Practices for Wireless Communication
Note: To insure proper communication, mount the remote sensor(s) upright on a vertical surface,
such as a wall. Do not lay the sensor flat.
Wireless communication is susceptible to interference, distance, walls and metal barriers. We
recommend the following best practices for trouble free wireless communication.
1. Electro-Magnetic Interference (EMI). Keep the ObserverIP receiver several feet away from
computer monitors and TVs.
2. Radio Frequency Interference (RFI). If you have other 433 MHz devices and
communication is intermittent, try turning off these other devices for troubleshooting
purposes. You may need to relocate the transmitters or receivers to avoid intermittent
communication.
3. Line of Sight Rating. This device is rated at 300 feet line of sight (no interference, barriers or
walls) but typically you will get 100 feet maximum under most real-world installations,
which include passing through barriers or walls.
4. Metal Barriers. Radio frequency will not pass through metal barriers such as aluminum
siding. If you have metal siding, align the remote and ObserverIP receiver through a window
to get a clear line of sight.
The following is a table of reception loss vs. the transmission medium. Each “wall” or obstruction
decreases the transmission range by the factor shown below.
Medium RF Signal Strength Reduction
Glass (untreated) 5-15%
Plastics 10-15%
Wood 10-40%
Brick 10-40%
Concrete 40-80%
Metal 90-100%
3.6 ObserverIP Receiver
3.6.1 Hardware Requirements
1. Broadband router
2. An “always-on” connection to the Internet. A high speed DSL or cable internet connection
that maintains constant connection to the internet.
Version 1.0 Page 7
3.6.2 Software Requirements
An IP scan tool is required to locate the ObserverIP on the network.
3.6.3 ObserverIP Connections
Connect the ObserverIP receiver power jack to AC power with the power adapter (included), as shown
in Figure 5, reference 10.
Connect the OberverIP receiver to your router using the Ethernet cable (included), as shown in Figure
5, reference 8.
Place the indoor and outdoor transmitters about 5 to 10 feet from the ObserverIP receiver and wait
several minutes for the remote sensors to synchronize with the receiver. Once synchronized, the
Indoor blue LED (Figure 4, reference 2) and Outdoor blue LED (Figure 4, reference 3) will be
illuminated.

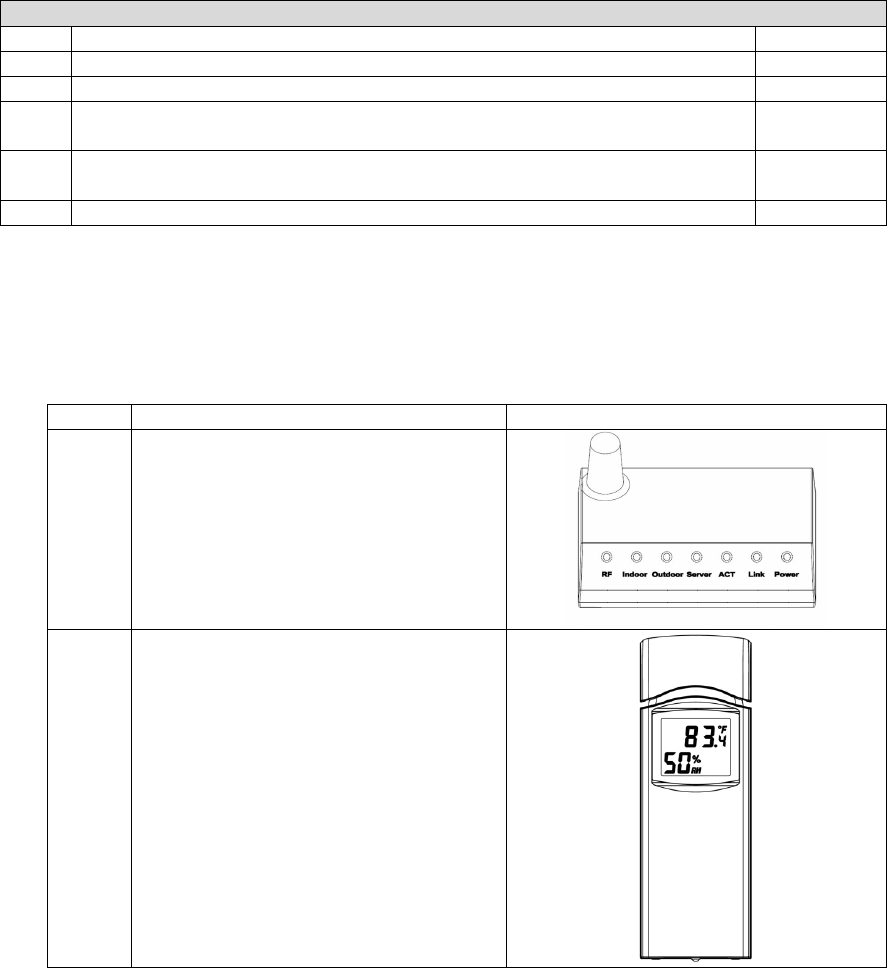

Ref. LED Description
1 RF On when radio frequency receiver is operating properly
2 Indoor On when indoor sensor received
3 Outdoor On when outdoor sensor received
4 Server On when connected to Wunderground.com® internet hosting
service
5 ACT Flashes when there is internet activity
6 Link Connected to the Internet (or router)
7 Power AC Power connected

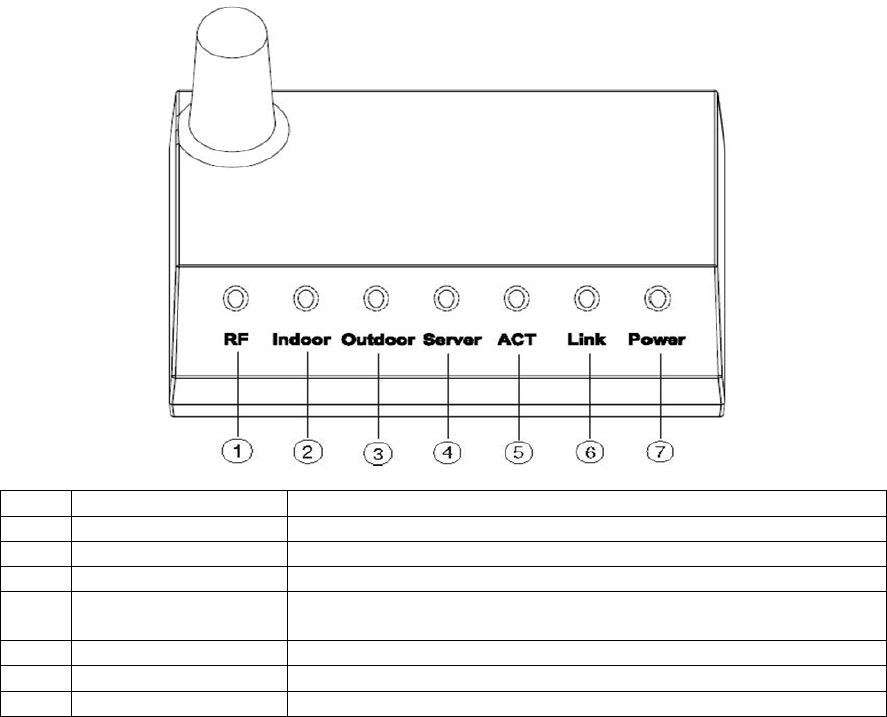

Figure 4
Version 1.0 Page 8

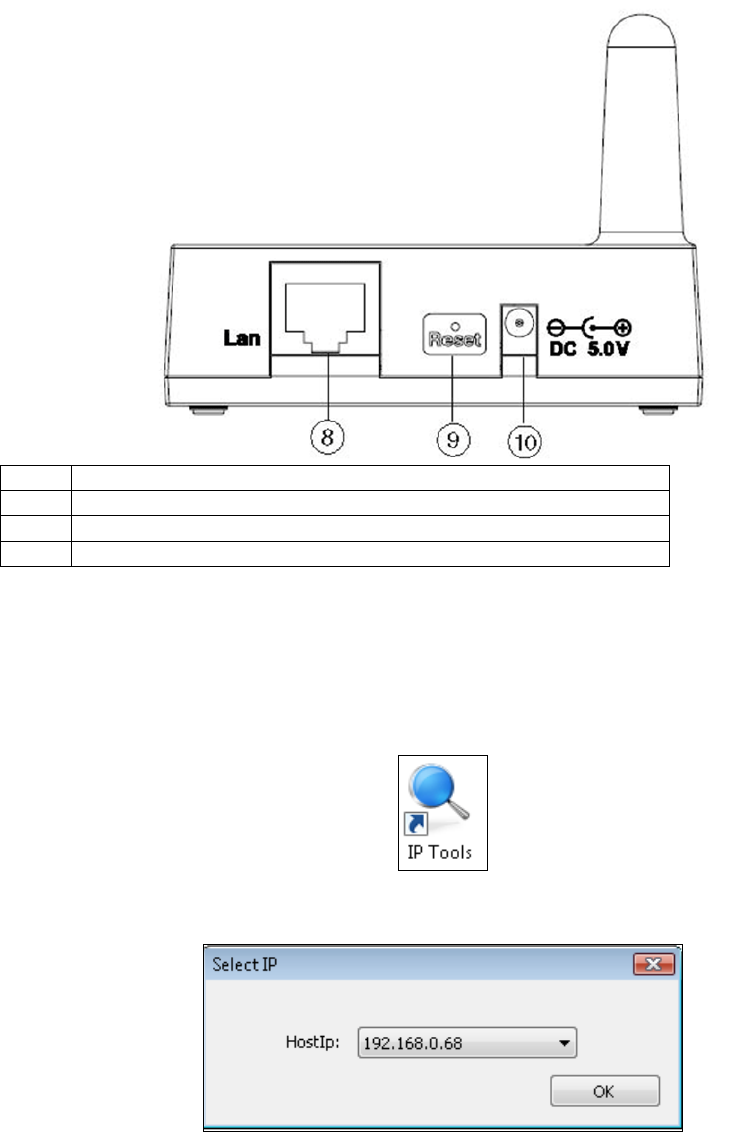

Ref. Description
8 LAN connection (connect to router)
9 Reset button
10 AC Power connection
Figure 5
3.7 Finding the ObserverIP from your computer
3.7.1 PC Users

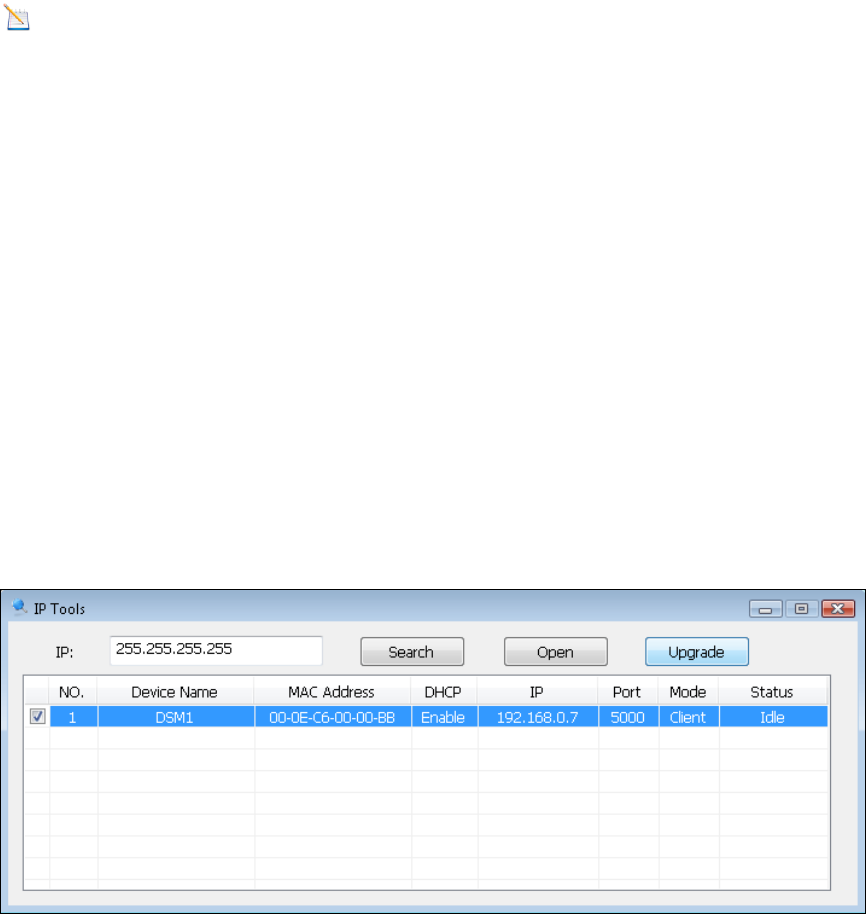

To find the ObserverIP receiver, launch the IP Tools application
The HostIP (your computers IP address) will be displayed. Press the OK button to continue.
Figure 6

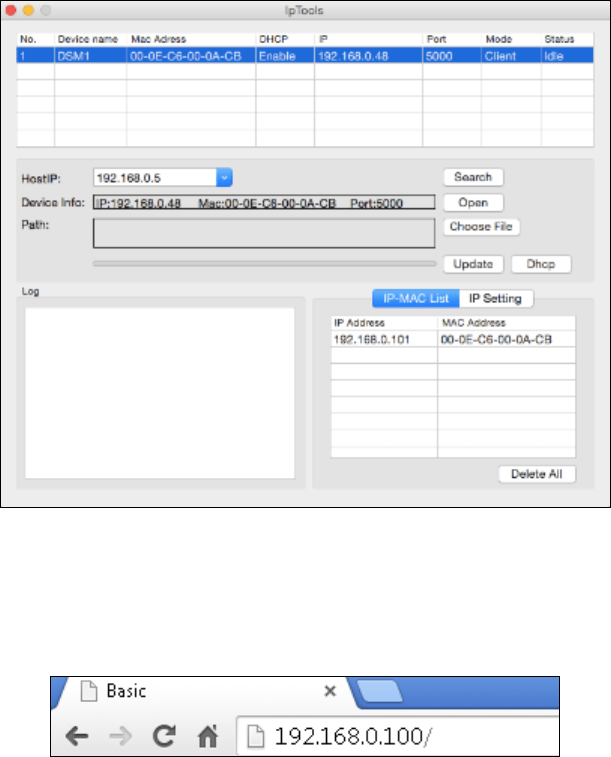

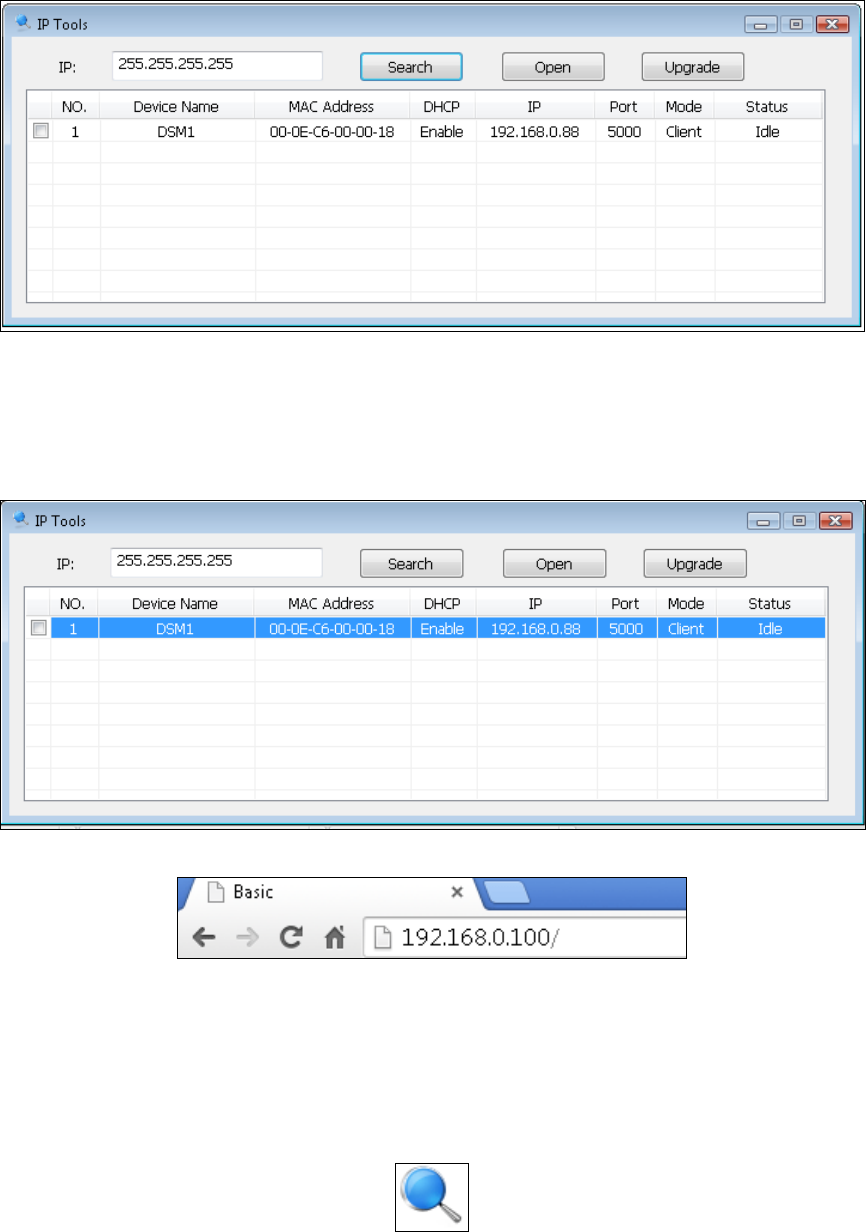

Select the Search button to find the ObserverIP on your local area network.
Version 1.0 Page 9
Figure 7
Select the ObseverIP module on your network as shown in Figure 8 (the field will be highlighted)
and select the Open button (or double click this field) to view the ObserverIP module’s webpage
within your browser. Alternately, you can type the IP address in your web browser address bar
(example, Figure 9):
Figure 8
Figure 9
You are now communicating directly to the ObserverIP and can proceed to Section 3.7.
3.7.2 Mac Users
The file is compressed as a zip file and must be extracted to run.
Select the Search button to find the ObserverIP on your local area network.
Version 1.0 Page 10
Figure 10
Select the ObseverIP module on your network as shown in Figure 10 (the field will be highlighted)
and select the Open button (or double click this field) to view the ObserverIP module’s webpage
within your browser. Alternately, you can type the IP address in your web browser address bar
(example, Figure 9):
Figure 11
You are now communicating directly to the ObserverIP and can proceed to Section 3.7.
5.7.3 Linux Users
If you use an Apple or Linux operating system, download any commercially available IP scan tool,
such as AngryIP Scanner and find the MAC address of the ObserverIP. The MAC address is a unique
identifier for internet enabled devices.
The MAC address will be printed on the bottom of the ObseverIP receiver. An example MAC address
is 00:0E:C6:00:00:19.

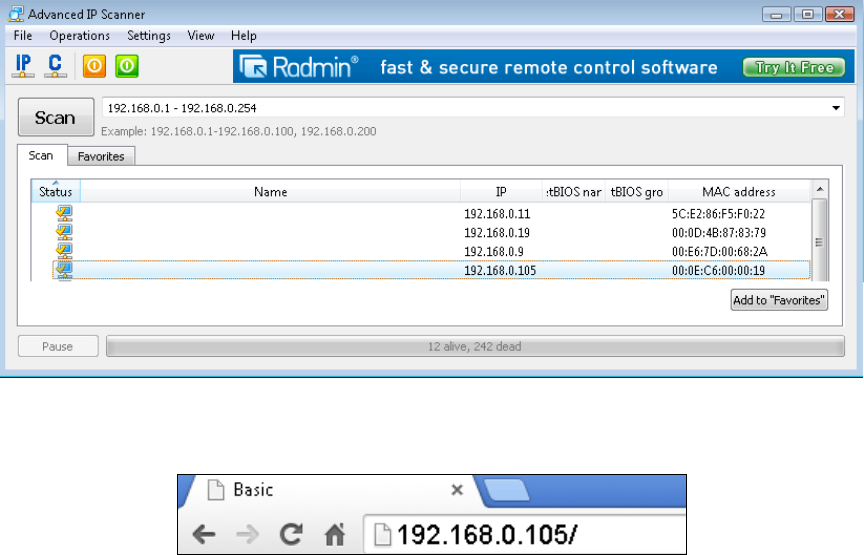

Figure 12 shows typical scan results. Locate the IP address of the ObserverIP by cross referencing the
Mac address. In the example below, the IP address is 192.168.0.105.
Version 1.0 Page 11
Figure 12
Type the IP address you located from the IP Scan Tool into your web browser (example, Figure 13):
Figure 13
You are now communicating directly to the ObserverIP and can proceed to Section 3.7.
3.7.3 Local Device Network Settings

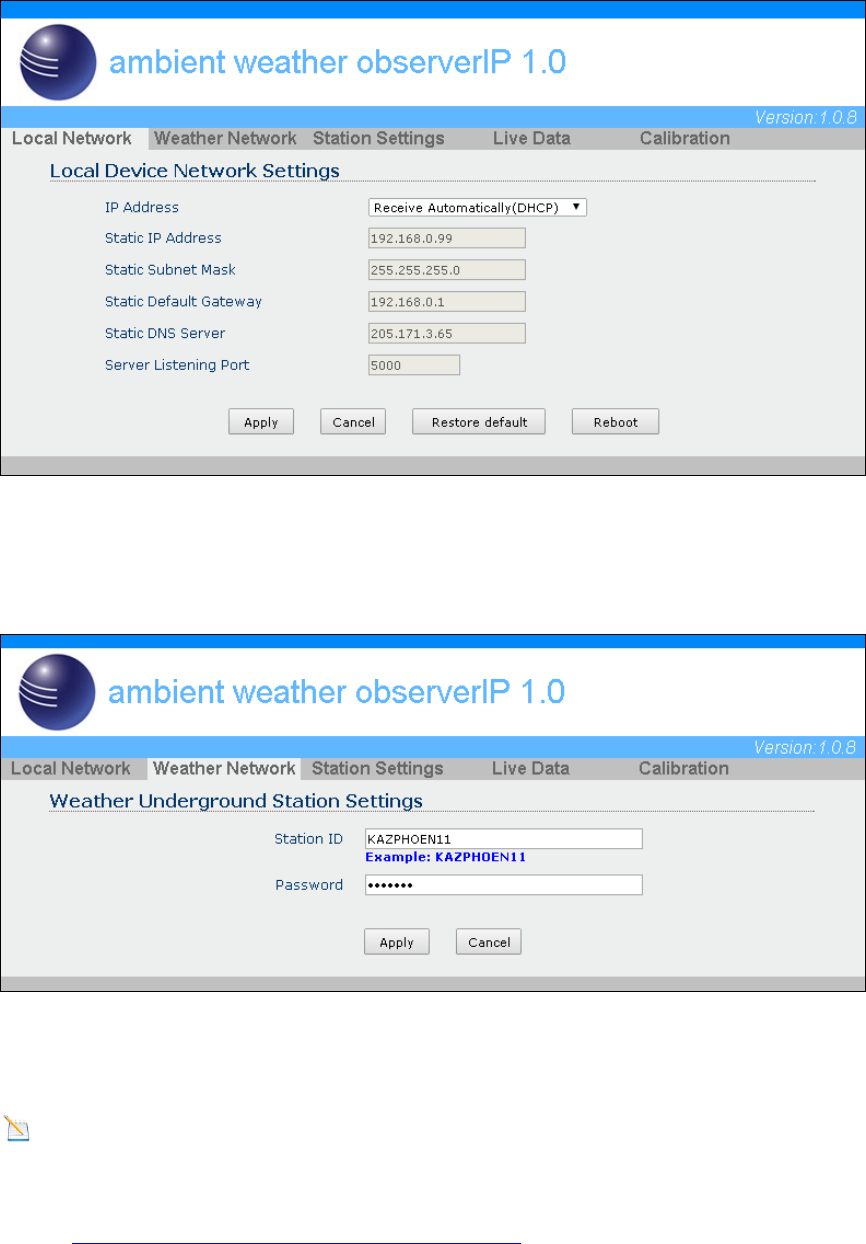

From your web browser, access the ObserverIP from the IP address obtained in the previous section.
Select the Local Network tab to program the local network settings. Reference Figure 14:
1. IP Address. The default setting is receive automatically (DCHP), which is recommended.
The network will assign an IP address. To statically assign an IP address, select Static from
the pull down menu. This will prevent the IP address from changing each time you power up
the ObserverIP receiver.
2. Static IP Address. If Static is selected as the IP address, enter the IP address you wish to
access the ObserverIP device.
3. Static Subnet Mask. Default is 255.255.255.0. This should not be changed unless you are
familiar with networking and subnet masking.
4. Static Default Gateway. This is typically the IP address of your router.
5. Static DNS Server. This is your DNS Server setting based on your router connection.
6. Server Listening Port. Default is 5000. Enter an integer between 1024 – 65535.
If you made any Static IP Address changes (not recommended), to confirm these changes, select
Apply and Reboot.
Note: If you incorrectly set the static IP settings and can no longer access the ObserverIP, press the
reset button on the back of the module.
Version 1.0 Page 12
Figure 14
3.8 Weather Network Settings
Select the Weather Network tab to program the Weather Underground station settings. Reference
Figure 15:
Figure 15
Enter the Station ID and password obtained from Wunderground.com®. Select the Apply button to
confirm changes.
Note: How to create a Wunderground.com® account and station ID.

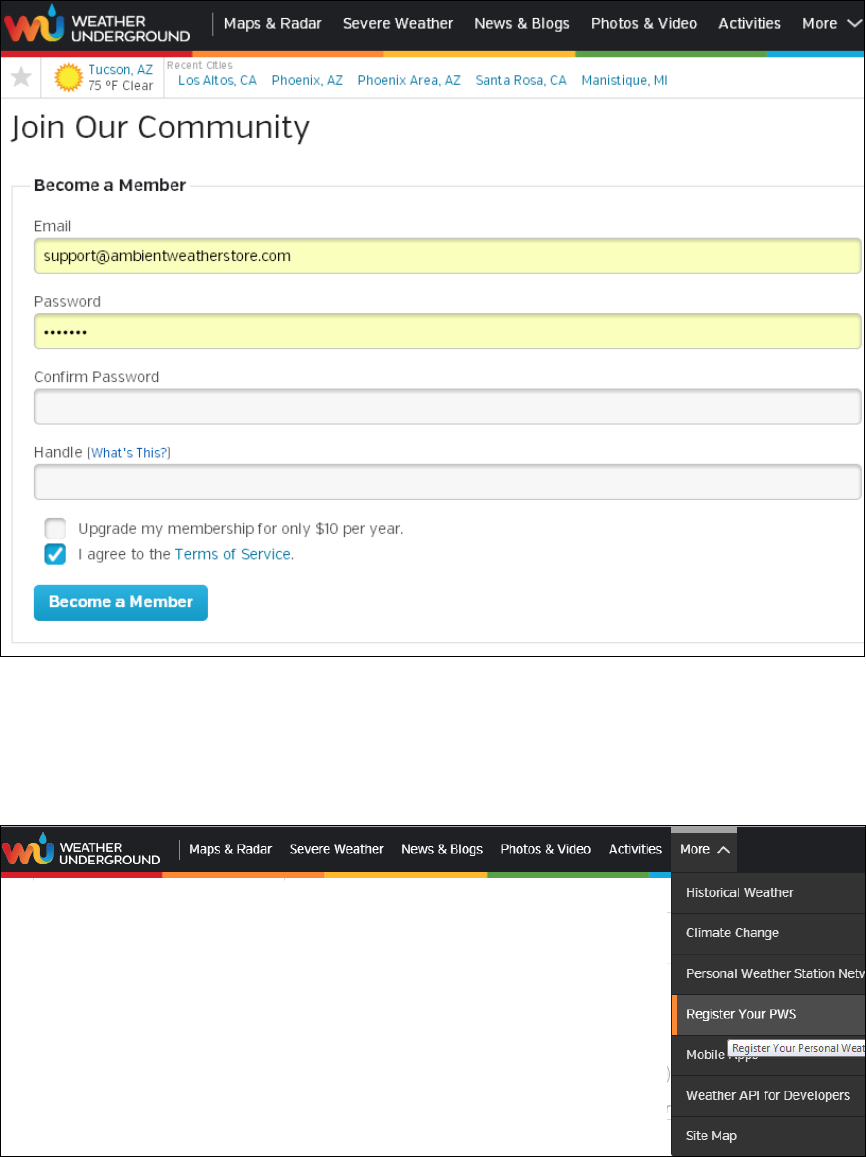

1. Join the Wunderground.com® Community. Visit:
https://www.wunderground.com/members/signup.asp
and sign up with Wunderground.com.
Version 1.0 Page 13

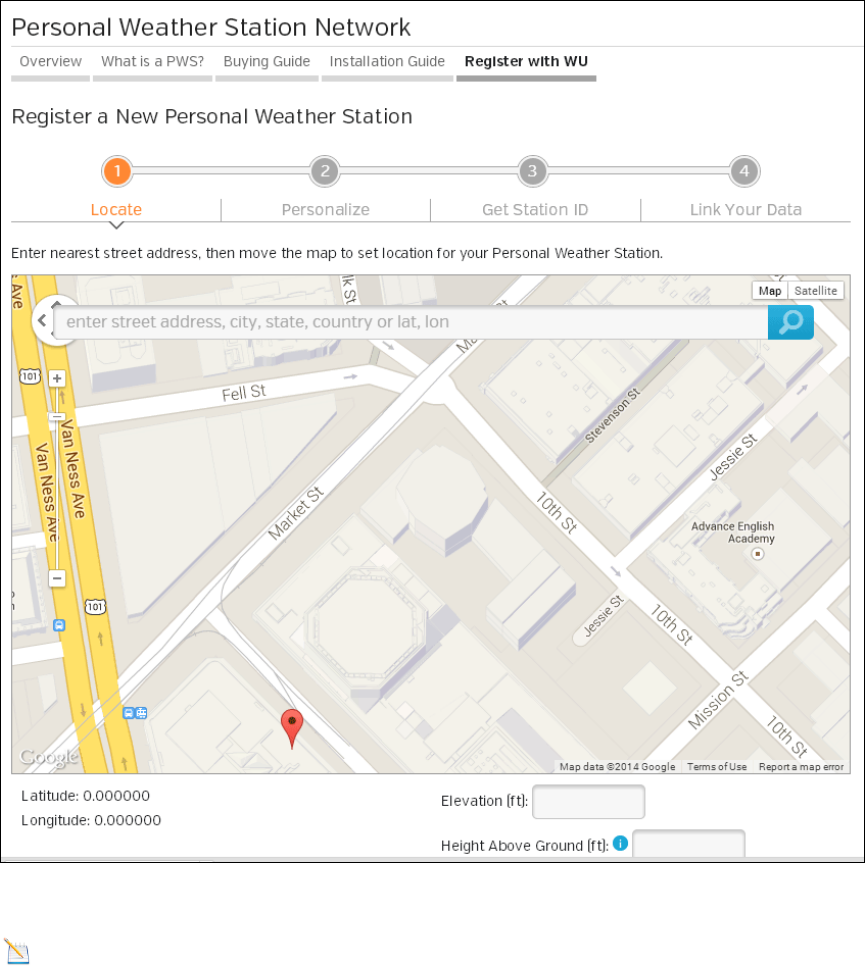

2. Join the Personal Weather Station (PWS) network. Visit:
http://www.wunderground.com/personal-weather-station/signup
or select More | Register Your PWS from the menu at the top of the
WeatherUndeground.com website:
Version 1.0 Page 14
Enter the Station ID obtained and password you entered into the ObserverIP Weather Server panel.
Note: If Wunderground.com is not updating, make sure the Station ID and Password are
correct. The Station ID is all capital letters, and the password is case sensitive. The most common
issue is substituting an O for 0 in the Station ID. Example, You live in Phoenix, AZ and you are station
number 11:
KAZPHOEN11, not KAZPH0EN11
K = USA station designation
AZ = Arizona
PHOEN = Phoenix
11= station 11 in Phoenix, AZ
Version 1.0 Page 15
3.9 Viewing your Data on Wunderground.com
There are several ways to view your data on Wunderground:
3.9.1 Web Browser
Visit:
http://www.wunderground.com/personal-weather-station/dashboard?ID=STATIONID
where STATIONID is your personal station ID (example, KAZSEDON12).

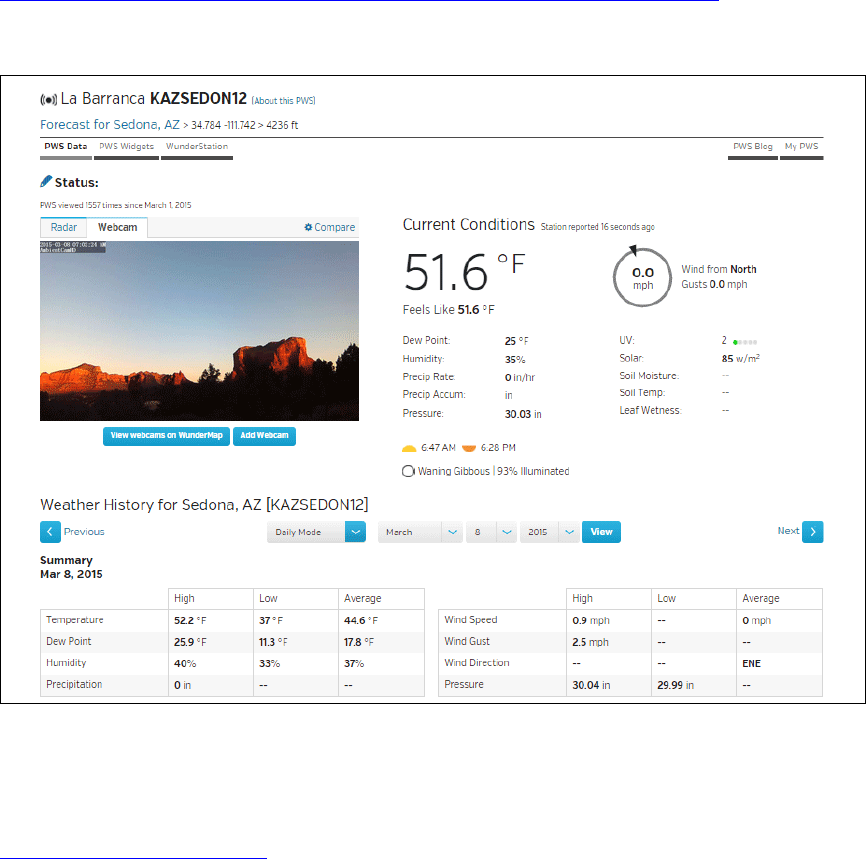

Figure 16

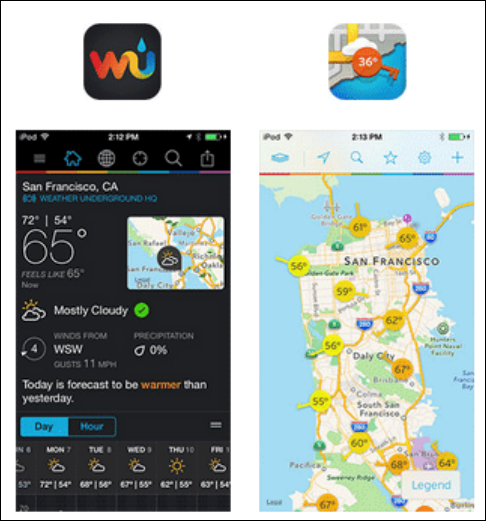

3.9.2 WunderStation iPad App
Visit:
http://www.WunderStation.com
to download the WunderStation iPad app.
Version 1.0 Page 17
Figure 18
3.9.4 Station Settings
Select Apply to confirm any of the changes in this section.
3.9.4.1 Wireless Transmitter Settings
Weather Station Model Number: Enter our weather station model number.
3.9.4.2 Time Zone Setting
Enter your local time zone and daylight Savings Time.
3.9.4.3 Daylight Savings Time
Enter off if you live in Hawaii or Arizona, where DST is not observed. Enter on if you live anywhere
else, even if you are currently observing standard time.
3.9.4.4 Units of Measure
Enter your preferred units of measure for each parameter.
Version 1.0 Page 18

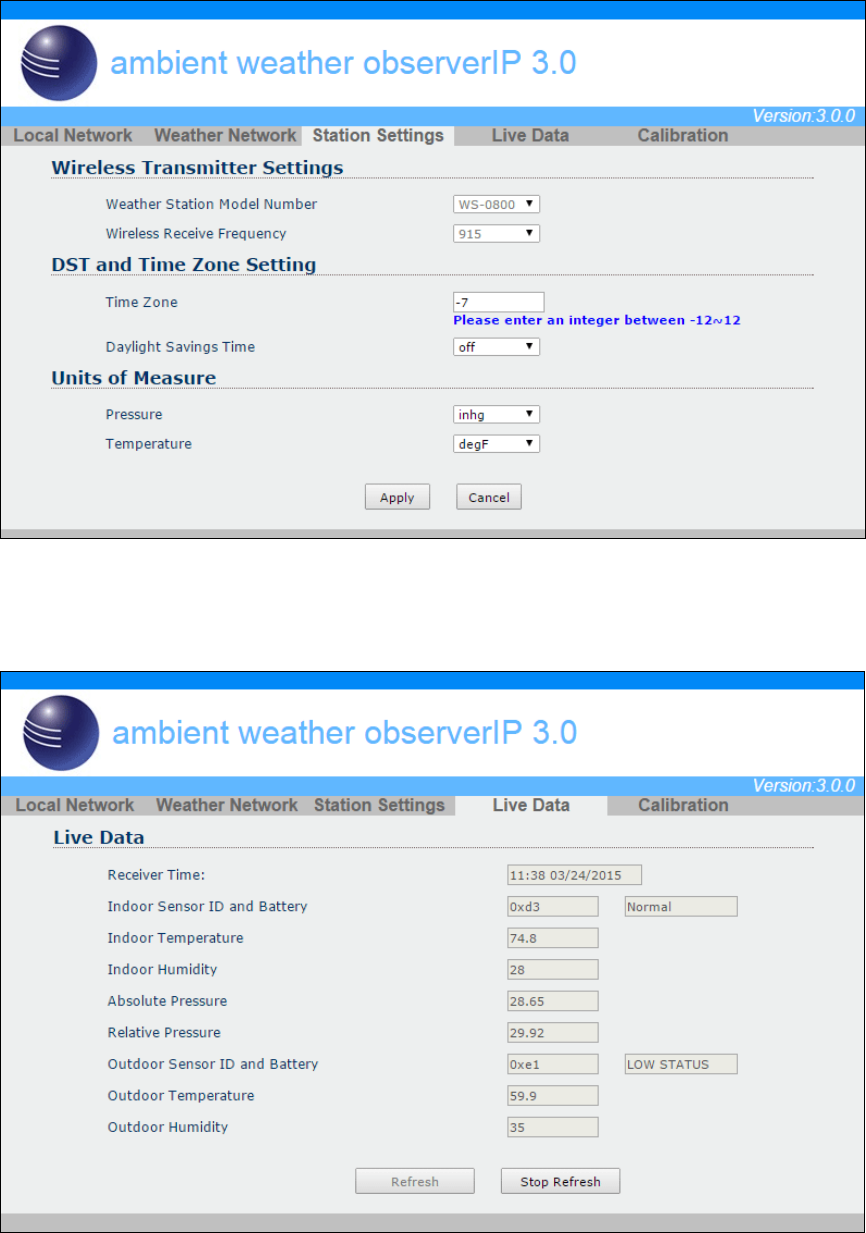

Figure 19
3.9.5 Live Data
Select the Live Data tab to view your live data from the weather station. To freeze the live data
updates, select the Stop Refresh button.
Figure 20
Version 1.0 Page 19
3.9.6 Calibration
Select the Calibration tab to view your calibration data from the weather station. Select the Apply
button to confirm changes.
Calibration of most parameters is not required, with the exception of Relative Pressure, which must be
calibrated to sea-level to account for altitude effects. For more information on sea-level pressure
calibration, please reference note (3) below.
3.9.6.1 Relative Barometric Pressure Calibration Example
The following is an example of calibrating the relative pressure. Your results will vary.
1. The local relative pressure from TV, the newspaper or the internet for the official station in
your area is 30.12 inHg.
2. From the Live Data panel, your absolute pressure (measured, and not corrected to sea-level)
reads 28.90 inHg.
3. Reference Figure 21. Enter the following offset in the Calibration panel for Relative
Pressure Offset:
Relative Pressure Offset = 30.12 – 28.90 = 1.22
Figure 21
Version 1.0 Page 20
Parameter Type of
Calibration Default Typical Calibration Source
Temperature Offset Current Value Red Spirit or Mercury
Thermometer (1)
Humidity Offset Current Value Sling Psychrometer (2)
ABS
Barometer
Offset Current Value Calibrated laboratory grade
barometer
REL Barometer Offset Current Value Local airport (3)
(1) Temperature errors can occur when a sensor is placed too close to a heat source (such as a
building structure, the ground or trees).
To calibrate temperature, we recommend a mercury or red spirit (fluid) thermometer. Bi-metal
(dial) and digital thermometers (from other weather stations) are not a good source and have
their own margin of error. Using a local weather station in your area is also a poor source due
to changes in location, timing (airport weather stations are only updated once per hour) and
possible calibration errors (many official weather stations are not properly installed and
calibrated).
Place the sensor in a shaded, controlled environment next to the fluid thermometer, and allow
the sensor to stabilize for 48 hours. Compare this temperature to the fluid thermometer and
adjust the ObserverIP receiver to match the fluid thermometer.
(2) Humidity is a difficult parameter to measure electronically and drifts over time due to
contamination. In addition, location has an adverse affect on humidity readings (installation
over dirt vs. lawn for example).
Official stations recalibrate or replace humidity sensors on a yearly basis. Due to
manufacturing tolerances, the humidity is accurate to ± 5%. To improve this accuracy, the
indoor and outdoor humidity can be calibrated using an accurate source, such as a sling
psychrometer.
(3) The ObserverIP receiver displays two different pressures: absolute (measured) and relative
(corrected to sea-level).
To compare pressure conditions from one location to another, meteorologists correct pressure
to sea-level conditions. Because the air pressure decreases as you rise in altitude, the sea-level
corrected pressure (the pressure your location would be at if located at sea-level) is generally
higher than your measured pressure.
Thus, your absolute pressure may read 28.62 inHg (969 mb) at an altitude of 1000 feet (305
m), but the relative pressure is 30.00 inHg (1016 mb).
The standard sea-level pressure is 29.92 in Hg (1013 mb). This is the average sea-level
pressure around the world. Relative pressure measurements greater than 29.92 inHg (1013
mb) are considered high pressure and relative pressure measurements less than 29.92 inHg are
considered low pressure.
To determine the relative pressure for your location, locate an official reporting station near
you (the internet is the best source for real time barometer conditions, such as Weather.com or
Wunderground.com®), and set your weather station to match the official reporting station.
Version 1.0 Page 21
Note: The purpose of calibration is to fine tune or correct for any sensor error associated with the
devices margin of error. Errors can occur due to electronic variation (example, the temperature sensor
is a resistive thermal device or RTD, the humidity sensor is a capacitance device), mechanical
variation, or degradation (contamination of sensors).
Calibration is only useful if you have a known calibrated source you can compare it against, and is
optional. This section discusses practices, procedures and sources for sensor calibration to reduce
manufacturing and degradation errors. Do not compare your readings obtained from sources such as
the internet, radio, television or newspapers. The purpose of your weather station is to measure
conditions of your surroundings, which vary significantly from location to location.
4. Updating Firmware
You must own a PC to update the firmware. Sorry, Linux and Apple products are currently not
supported.
1. Download the latest version of firmware
2. Important Note: Close all of other applications while running the firmware update. This
will insure the upgrade process will not be interrupted.
3. Launch the IP Tools application as referenced in Section 3.7, and locate the ObserverIP on
your network. Reference Figure 22. Select the Upgrade button to begin the firmware upgrade.
As shown in this figure, the IP address of the ObserverIP is 192.168.0.7. Make a note of your
IP address (your results will vary).
Figure 22
4. Reference Figure 23. Select the Select File button, and browse to the location of the file you
downloaded in Step 1.
Version 1.0 Page 22
Figure 23

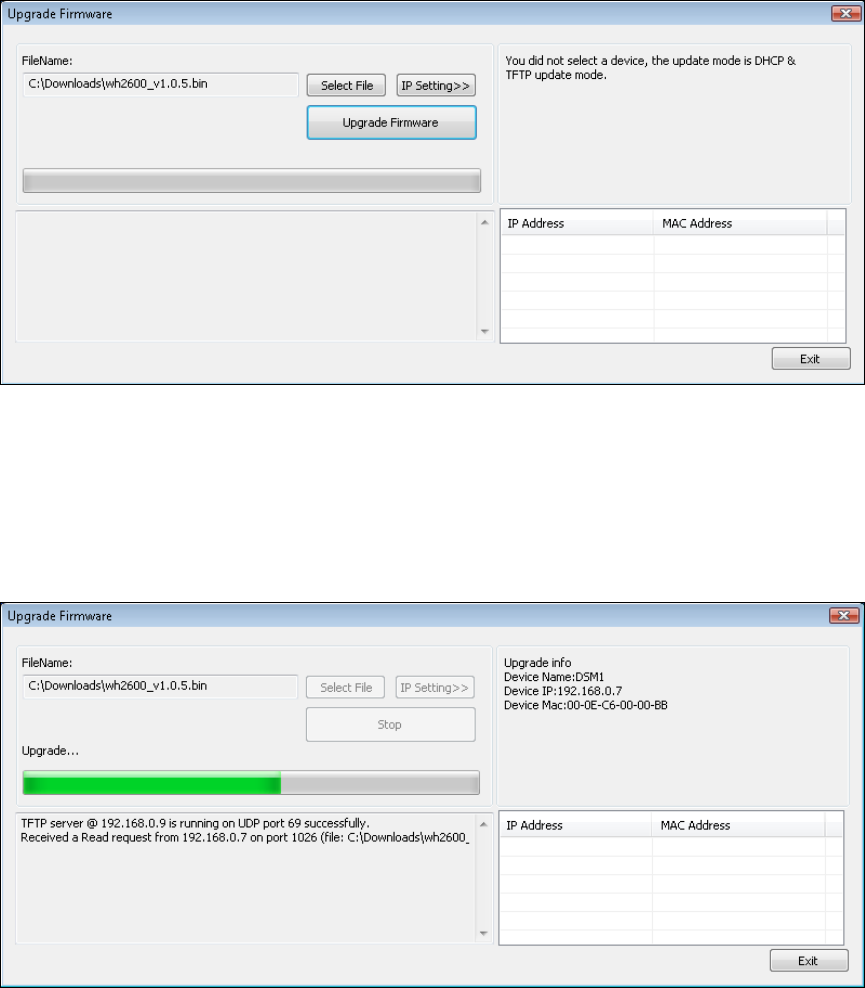

5. Select the Upgrade Firmware button. Reference Figure 24. The dialog box will display
Received a Read Request from the ObserverIP module. A green progress bar will provide
you with the upgrade status.
DO NOT OPERATE THE MOUSE OR KEYBOARD WHEN UPGRADING to prevent
interruption of the upgrade.
Figure 24

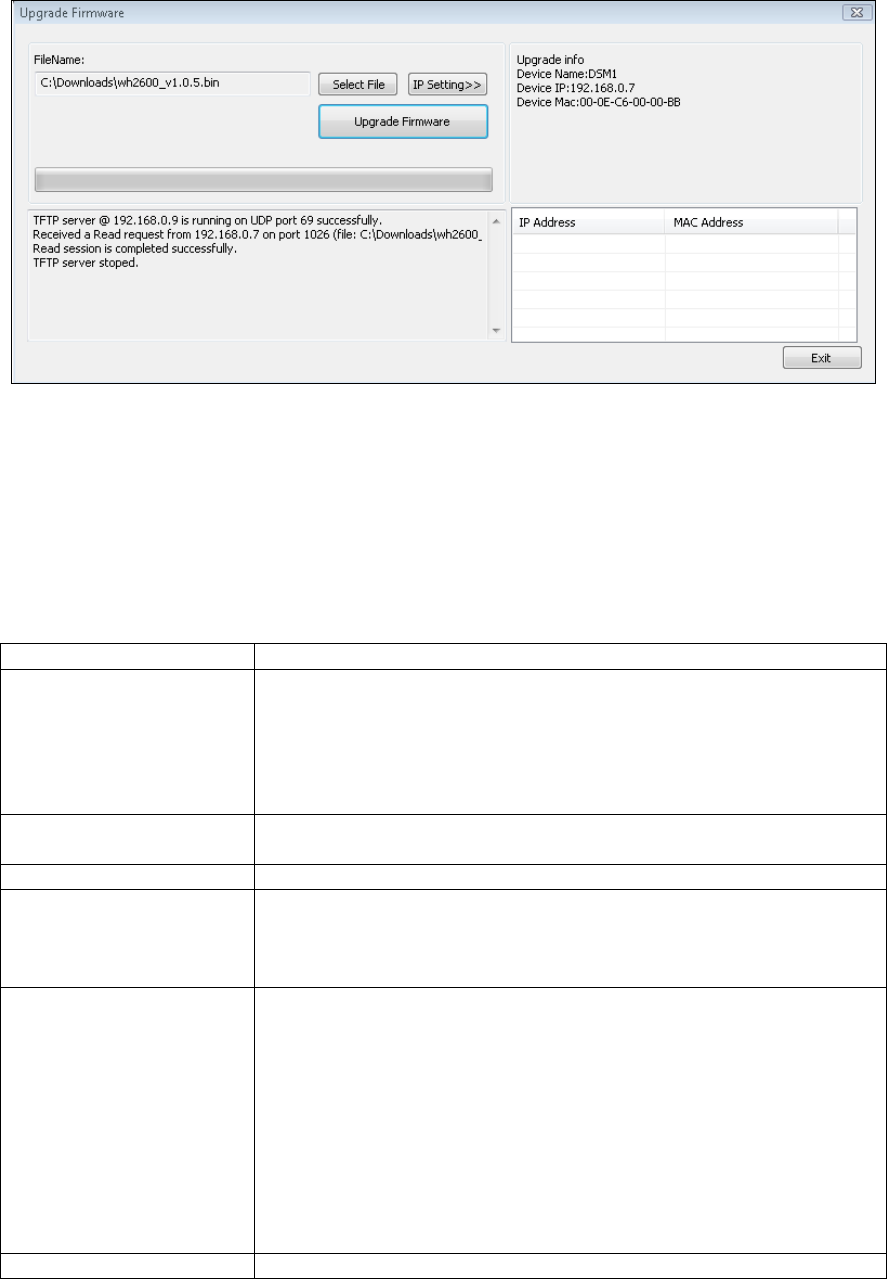

6. Once the firmware upgrade is complete, the dialog box will display Read session is
completed successfully, as shown in Figure 25.
Version 1.0 Page 23
Figure 25
7. Wait about one minute for the ObserverIP module to reboot. You can now Exit the upgrade
window, and access the module again, as referenced in Section 3.7.
You may be required to enter some settings, so check all of the panels for completeness.
5. Glossary of Terms
Term Definition
Absolute Barometric
Pressure
Absolute pressure is the measured atmospheric pressure and is a
function of altitude, and to a lesser extent, changes in weather
conditions.
Absolute pressure is not corrected to sea-level conditions. Refer to
Relative Barometric Pressure.
Accuracy Accuracy is defined as the ability of a measurement to match the actual
value of the quantity being measured.
Barometer A barometer is an instrument used to measure atmospheric pressure.
Calibration Calibration is a comparison between measurements – one of known
magnitude or correctness of one device (standard) and another
measurement made in as similar a way as possible with a second device
(instrument).
Dew Point The dew point is the temperature at which a given parcel of humid air
must be cooled, at constant barometric pressure, for water vapor to
condense into water. The condensed water is called dew. The dew point
is a saturation temperature.
The dew point is associated with relative humidity. A high relative
humidity indicates that the dew point is closer to the current air
temperature. Relative humidity of 100% indicates the dew point is equal
to the current temperature and the air is maximally saturated with water.
When the dew point remains constant and temperature increases,
relative humidity will decrease.
HectoPascals (hPa) Pressure units in SI (international system) units of measurement. Same
Version 1.0 Page 24
Term Definition
as millibars (1 hPa = 1 mbar)
Hygrometer A hygrometer is a device that measures relative humidity. Relative
humidity is a term used to describe the amount or percentage of water
vapor that exists in air.
Inches of Mercury (inHg) Pressure in Imperial units of measure.
1 inch of mercury = 33.86 millibars
Range Range is defined as the amount or extent a value can be measured.
Relative Barometric
Pressure
Measured barometric pressure relative to your location or ambient
conditions.
Resolution Resolution is defined as the number of significant digits (decimal
places) to which a value is being reliably measured.
Thermometer A thermometer is a device that measures temperature. Most digital
thermometers are resistive thermal devices (RTD). RTDs predict change
in temperature as a function of electrical resistance.
6. Specifications
6.1 Wireless Specifications
Line of sight wireless transmission (in open air): 300 feet, 100 feet under most conditions
Update Rate: about one minute
Frequency: 915 MHz
6.2 Measurement Specifications
The following table provides the specifications for the measured parameters.
Measurement Range Accuracy Resolution
Indoor Temperature 32 to 140 °F ± 2 °F 0.1 °F
Outdoor Temperature -40 to 149 °F Lithium
batteries
-23 to 140 °F Alkaline
batteries
± 2 °F 0.1 °F
Indoor Humidity 1 to 99% ± 5% 1 %
Outdoor Humidity 1 to 99% ± 5% 1 %
Barometric Pressure 8.85 to 32.50 inHg ± 0.08 inHg (within range of
27.13 to 32.50 inHg)
0.01 inHg
6.3 Power Consumption
ObserverIP Receiver : 5V DC Adaptor (included)
Indoor Thermo-hygrometer-barometer sensor : 2xAAA batteries (not included)
Outdoor Thermo-hygrometer sensor: 2xAAA batteries (not included)
Version 1.0 Page 25
7. Troubleshooting Guide
Problem Solution
Wireless remote(s) not
reporting in to
ObserverIP Receiver.
The maximum line of sight communication range is about 300’. Move the
sensor assembly closer to the ObserverIP receiver.
Install a fresh set of batteries in the remote sensor(s).
Do not lay the sensor(s) flat.
Make sure the remote sensors are not transmitting through solid metal (acts
as an RF shield), or earth barrier (down a hill).
Radio Frequency (RF) Sensors cannot transmit through metal barriers
(example, aluminum siding) or multiple, thick walls.
Move the ObserverIP receiver around electrical noise generating devices,
such as computers, TVs and other wireless transmitters or receivers.
Temperature sensor
reads too high in the
day time.
Make certain that the sensor is not too close to heat generating sources or
strictures, such as buildings, pavement, walls or air conditioning units.
Make sure the thermo-hygrometer is mounted in a shaded area on the north
facing wall.
Use the calibration feature to offset installation issues related to radiant heat
sources. Reference Section 3.9.6.
Relative pressure does
not agree with official
reporting station
Make sure you properly calibrate the relative pressure to an official local
weather station. Reference Section 3.9.6 for details.
Data not reporting to
Wunderground.com®
1. Confirm your password is correct. It is the password you
registered on Wunderground.com®. Your Wunderground.com®
password cannot begin with a non-alphanumeric character (a
limitation of Wundeground.com, not the station). Example,
$oewkrf is not a valid password, but oewkrf$ is valid.
2. Confirm your station ID is correct. The station ID is all caps, and
the most common issue is substituting an O for a 0 (or visa
versa). Example, KAZPHOEN11, not KAZPH0EN11.
3. Make sure your time zone is set properly. If incorrect, you may be
reporting old data, not real time data.
4. Check your router firewall settings. The ObserverIP sends data
via Port 80.
8. Liability Disclaimer
Please help in the preservation of the environment and return used batteries to an authorized depot.
The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in
wild country and/or in unauthorized grounds strongly damages the environment.
Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any
Version 1.0 Page 26
responsibility for any incorrect readings and any consequences that occur should an inaccurate reading
take place.
This product is designed for use in the home only as indication of weather conditions. This product is
not to be used for medical purposes or for public safety information.
The specifications of this product may change without prior notice.
This product is not a toy. Keep out of the reach of children.
No part of this manual may be reproduced without written authorization of the manufacturer.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/ TV technician for help.
