Firefly Integrations ECLIPSERVC CAN bus to Bluetooth BLE and Ethernet Bridge User Manual

Firefly Integrations CAN bus to Bluetooth BLE and Ethernet Bridge

User Manual

1
Notice: Make sure that Bluetooth is turned ON in your smart device settings
before proceeding.
Locate the Login Information:

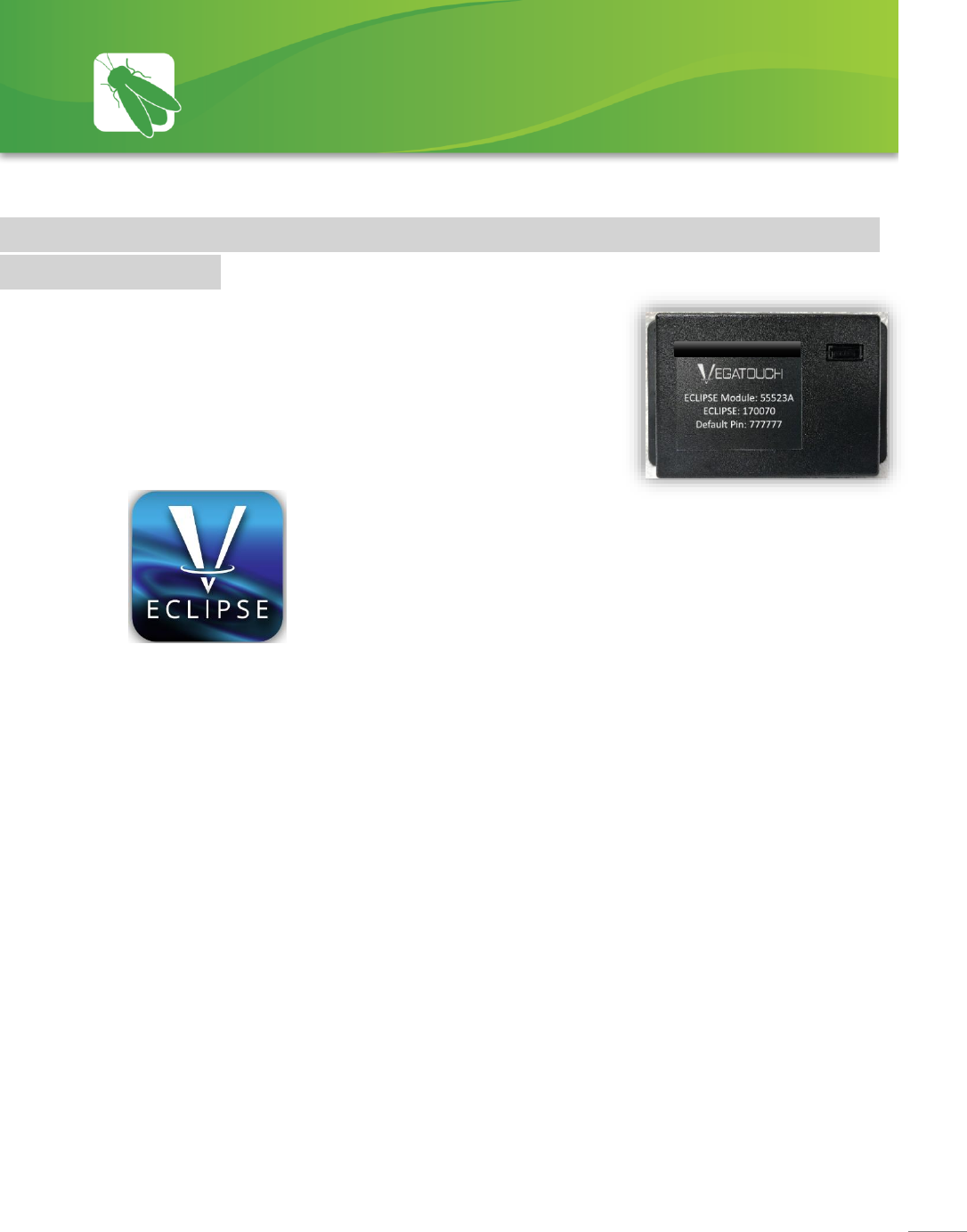

The login information can be found by on the Eclipse module’s label.
Download:
Download Vegatouch Eclipse from the Google Play store or the App Store. Once the download has
finished, install the app and open it.
Vegatouch Eclipse Setup
2
Setup:

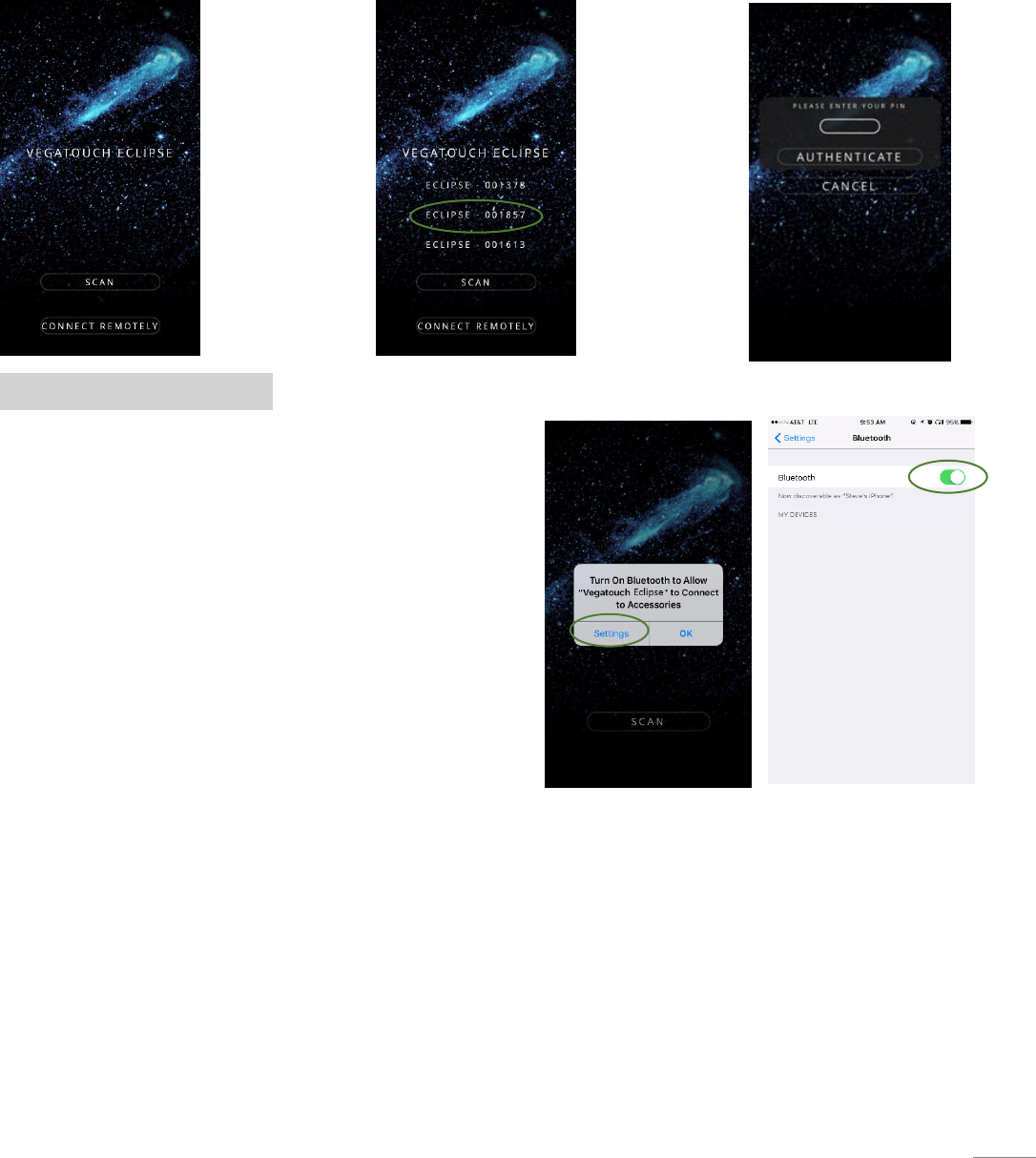

Tap SCAN to find the Eclipse Module’s signal. After scanning, any Eclipse Module in your area will
appear on the screen. Tap the ID # that matches the one on your Eclipse label. Enter the PIN
number from the Eclipse label and press AUTHENTICATE to connect to the system.
Notice: iOS Setup Tips
Turn on Bluetooth to allow Vegatouch
Eclipse to connect to Accessories.
If you do not have Bluetooth turned ON in your iOS settings
you will see this screen. Do not click OK, you must click
SETTINGS. Your Bluetooth Settings page will now appear and
you should turn Bluetooth ON.
3
Notice: Android Setup Tips

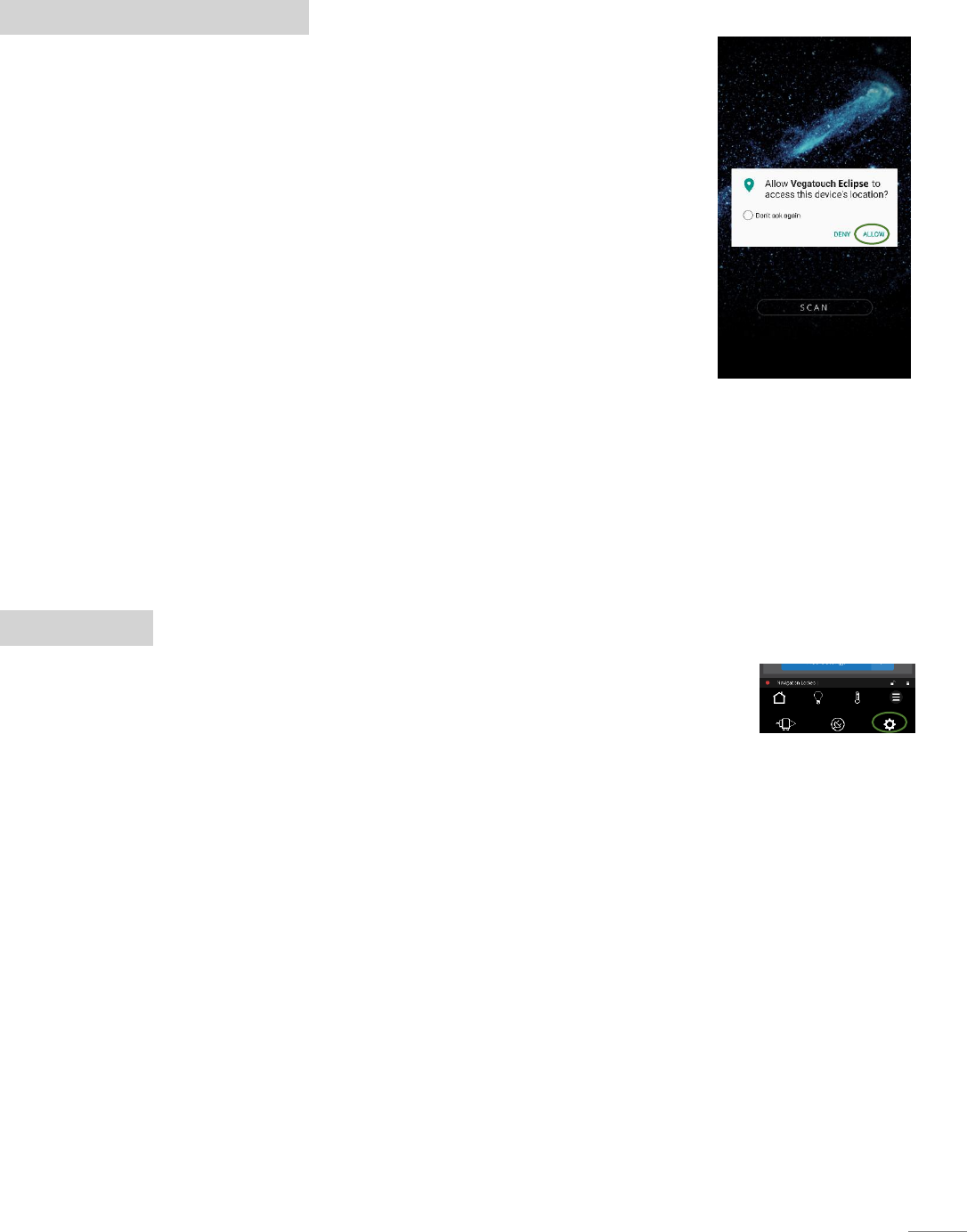

Allow Vegatouch Eclipse to access this device’s location.
Eclipse will need to be allowed access to your location. Click ALLOW when you see this
screen.
App Settings:
Access the App Settings page by pressing the Gear icon on the App Navigation Bar.
4

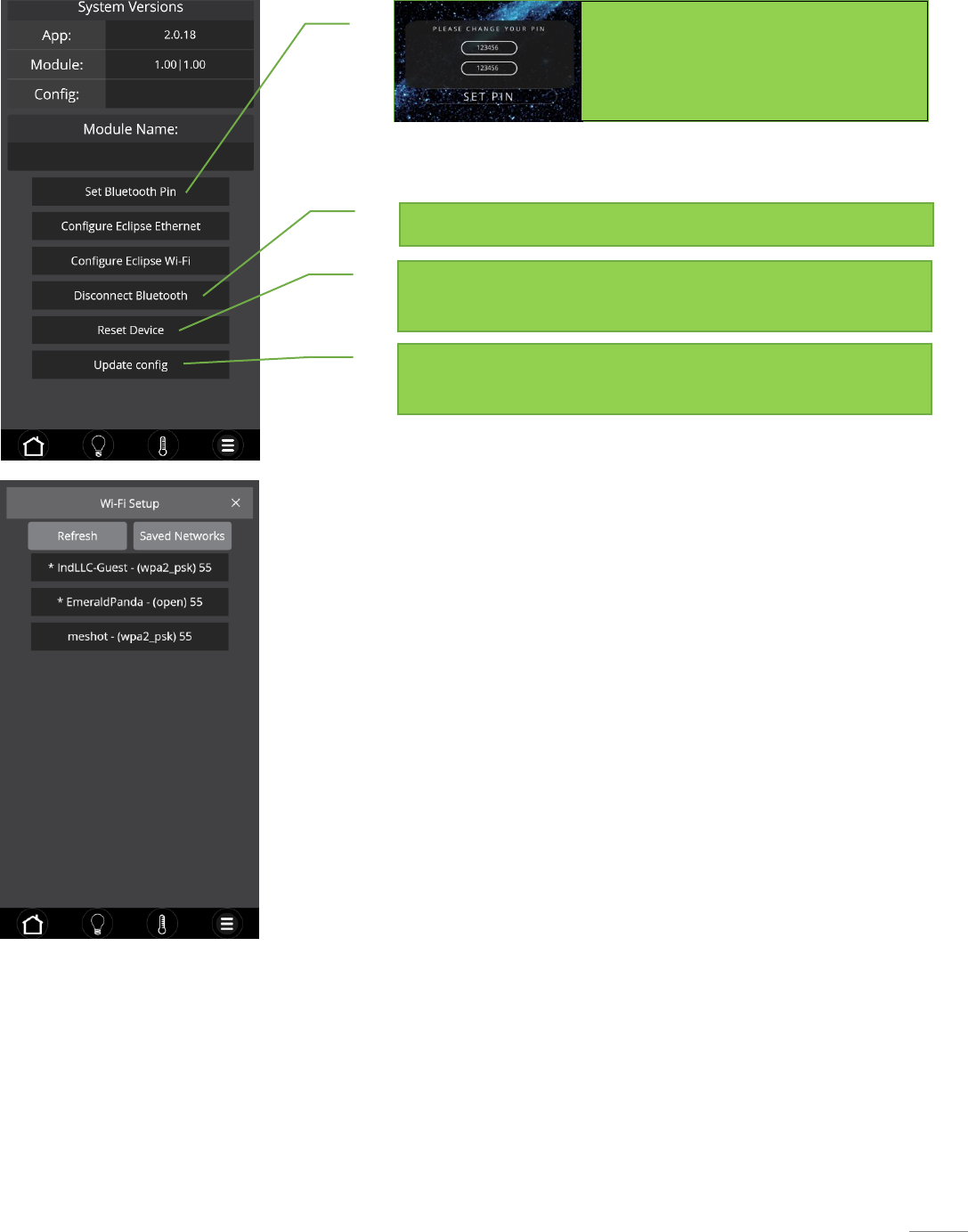

WiFi Scan screen
Tap to set your own personalized
Bluetooth pin to eliminate the chance
of another Eclipse owner accidentally
controlling your module.
Tap to disconnect your device from Eclipse.
Tapping Reset Device will completely restart the Module and
reconnect once it has powered back up.
Tapping Update Config will force a download of the config from
the cloud.
5

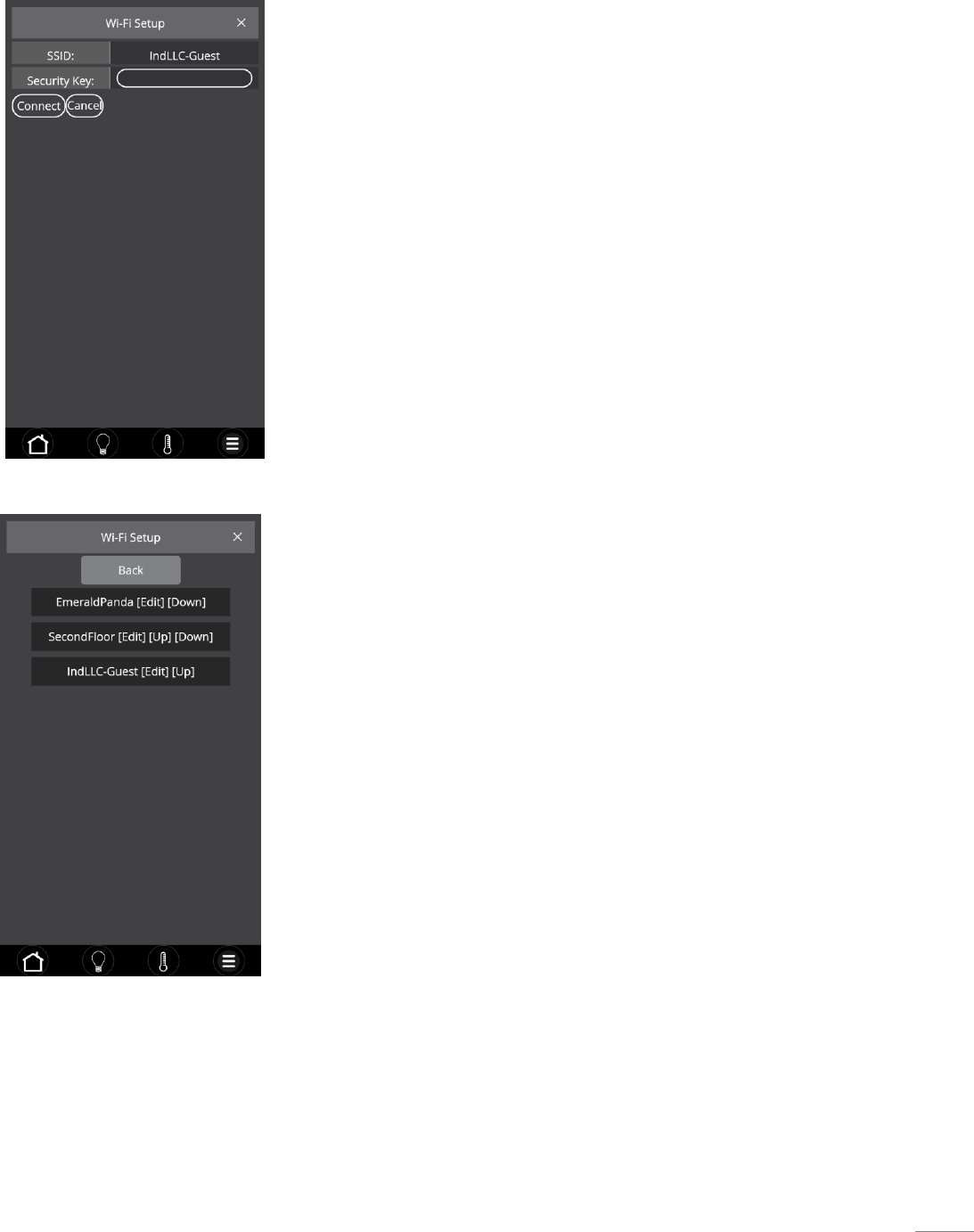

Enter security passphrase for Wi-Fi network
Configure priority of Wi-Fi networks
6
Model Number and Product Marketing Name (PMN)
Model Number: ECLIPSERVC
Product Marketing Name (PMN): ECLIPSERVC
Federal Communications Commission (FCC)
Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by Firefly Integrations, LLC might
cause harmful interference and void the FCC authorization to operate this product.
This product complies with FCC OET Bulletin 65 & Industry Canada’s RSS-102 radiation exposure limits set
forth for an uncontrolled environment
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an output on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The antennas used for this transmitter must be installed to provide a separation distance greater than
20cm from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
This product requires installation by a trained professional.
Compliance Information
7
Innovation, Science and Economic Development Canada (ISEDC)
This device complies with Part 15 of the FCC Rules and Innovation, Science and Economic
Development Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) This device may not cause harmful interference. and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Cet appareil est conforme à des règlements Innovation, Sciences et Développement économique
Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions
suivantes: (1) Ce dispositif ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter
toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement
indésirable.
Technical Support is available Monday Friday, 7:30am 5:00pm EST.
Firefly Integrations
1013 Elroy Drive
Middlebury, Indiana 46540
Phone: (574) 825-4600
Support@fireflyint.com
www.fireflyintegrations.com
Follow us on Facebook @Fireflyintegrations
