1 What is Bluetooth?
Page 5 / 27
1 What is Bluetooth?
1.1 Features of Bluetooth
Objectives of Bluetooth : To Realize Wireless Communication for Short Distance with Low Power
Consumption, High Reliability, and Low Cost.
Frequency in Use: To Use ISM(Industrial, Scientific, Medical) Band which does not require any
permission to use.
- 2.400 – 2.4835 GHz, 79 channels
- 2.465 – 2.4835 GHz, 23 channels (in France)
Transmission Rate : 1Mbps ~ 3Mbps
Transmission Output : 1mW (10m, Class2), 100mW (100m Class1)
Network Configuration : Configured with Master and Slave relation. A Bluetooth unit shall allow
simultaneous connections up to 7 devices (in case of ACL).
Reliability : To Guarantee stable wireless communication even under severe noisy environment
through adopting the technique of FHSS (Frequency Hopping Spread Spectrum).
1.2 Operation of Bluetooth

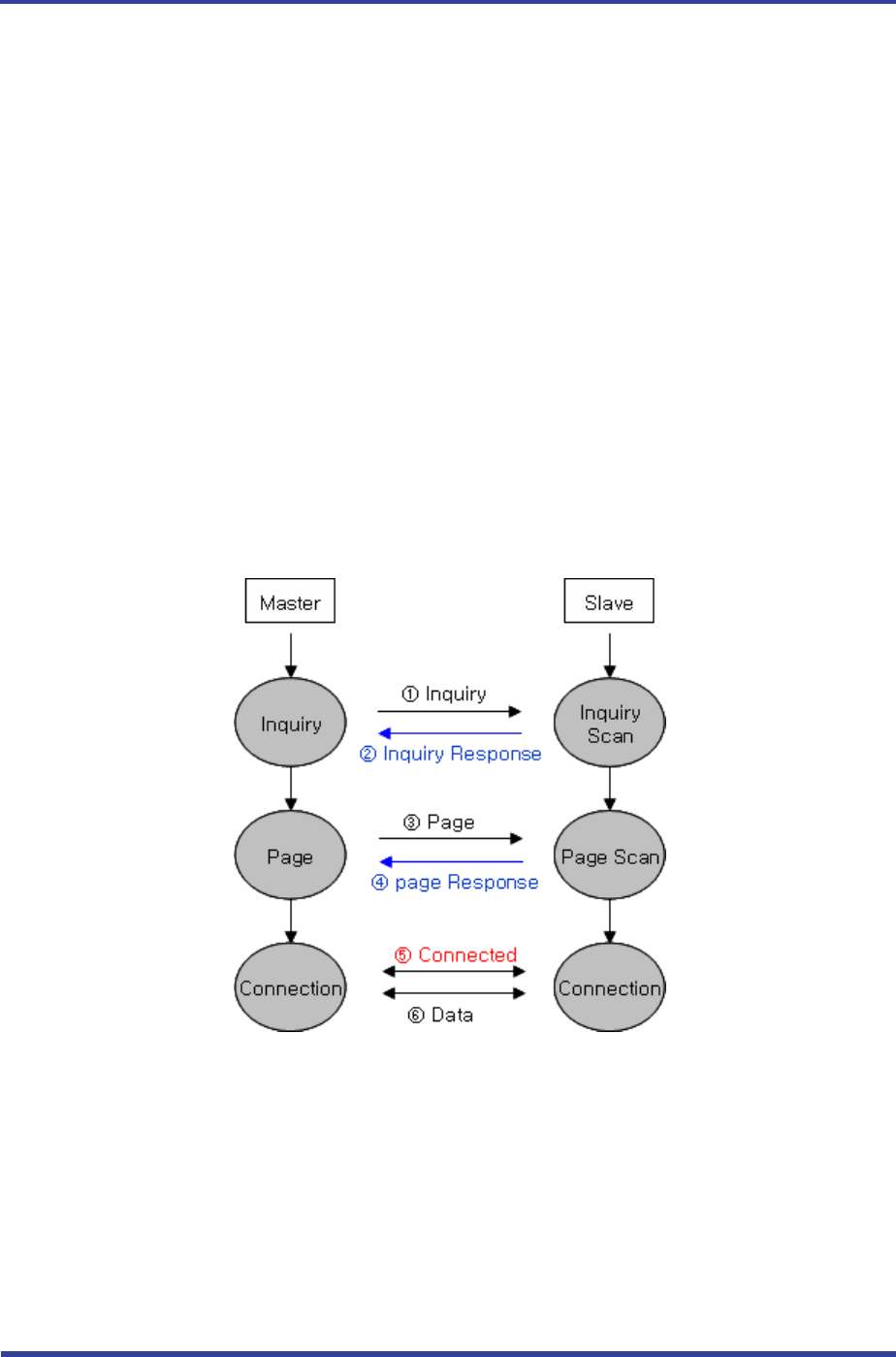

<Feature 1-1 Bluetooth Operation>
Bluetooth operates based on the connection between “Master” and “Slave”.
Masters are simply supposed to do “Inquiry” and “Page”. Slaves are supposed to do “Inquiry Scan”
and “Page Scan”.
If a Master finds a Slave and so “inquiry” is successful, a Slave responds to the Master with its
information.
Interconnection between the Master and the Slave is achieved only if the information from the
Slave is corresponded with the Master, and the Slave sends data to the Master.
FB200AS-F User Guide Version 1.0
2 Products Overview
Page 6 / 27
2 Products Overview
FB200AS-F has been developed to replace the previous RS232 Cable system with wireless communication
system to use.
Major Features of FB200AS-F
1. Bluetooth Specification 2.0 Support
2. Bluetooth Piconets(Point to Multipoint) are configurable up to (max. 1:7).
3. Easy to control communication speed by using DIP Switch. (2400 bps – 230400bps)
4. Support AT Command, and capable to control FB200AS-F by using AT Command.
5. Easy to connect to use with Bluetooth PDA, Bluetooth USB Dongle, etc.
6. Stable Data Transmission / Receipt
7. Simply support the function of Bluetooth Firmware Update
※ We request the new users of FB200AS-F to read the information on this description carefully before
they start to use the products.
FB200AS-F User Guide Version 1.0
3 PRODUCT COMPONENTS
Page 7 / 27
3 PRODUCT COMPONENTS
3.1 Basic Components of FB200AS-F

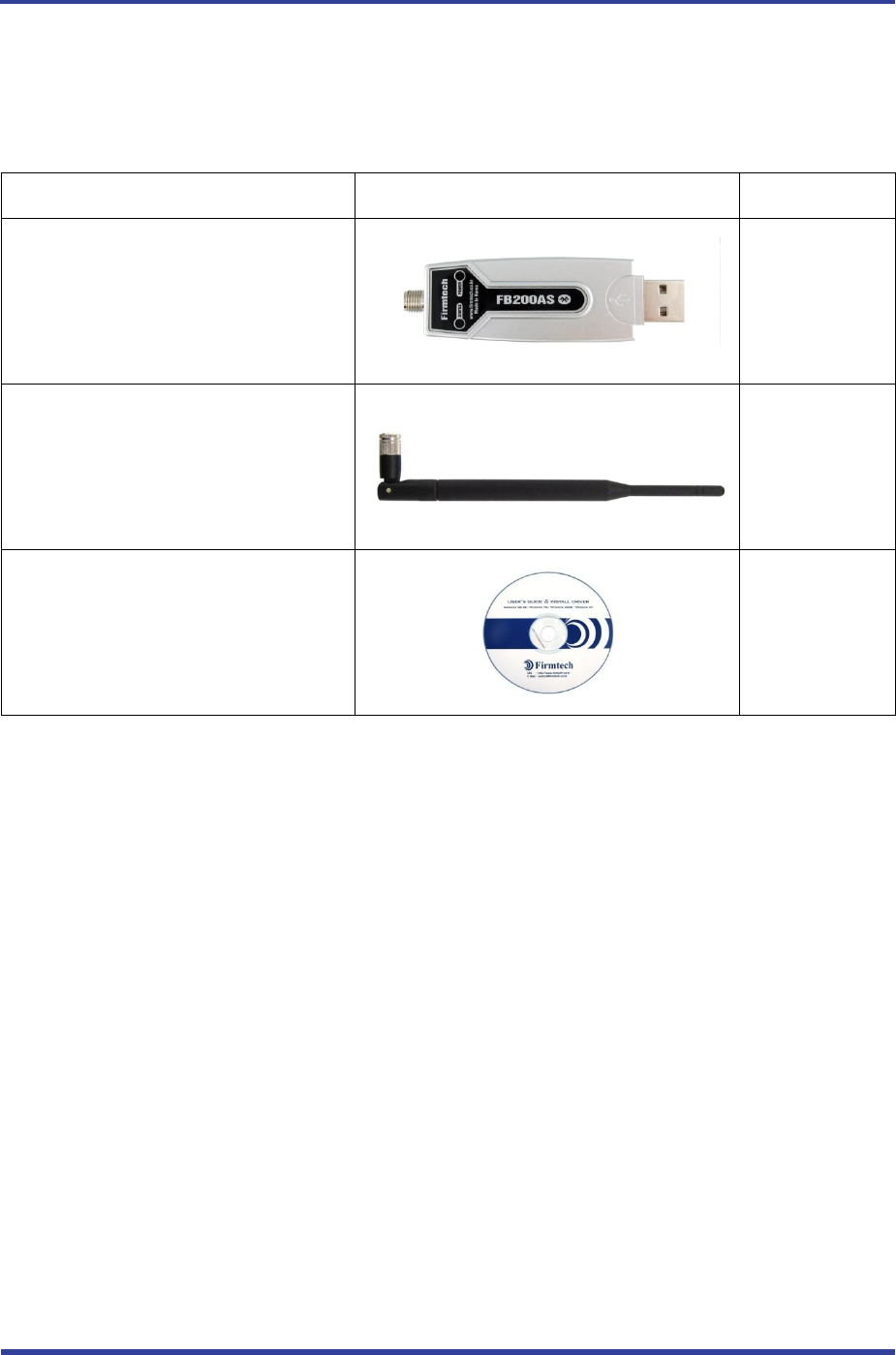

MODEL
Q’TY (EA)
FB200AS-F
(USB Serial Adapter)
1
FCA004DA
(4.966dBi Dipole Antenna)
1
CD
(Operation Manual and Test Program)
1
<Table 3-1 Basic Components of FB200AS-F>
※ If you find any of above components is defective, or not included in the package, please contact the
seller you purchased.
FB200AS-F User Guide Version 1.0
4 Product Appearance
Page 8 / 27
4 Product Appearance

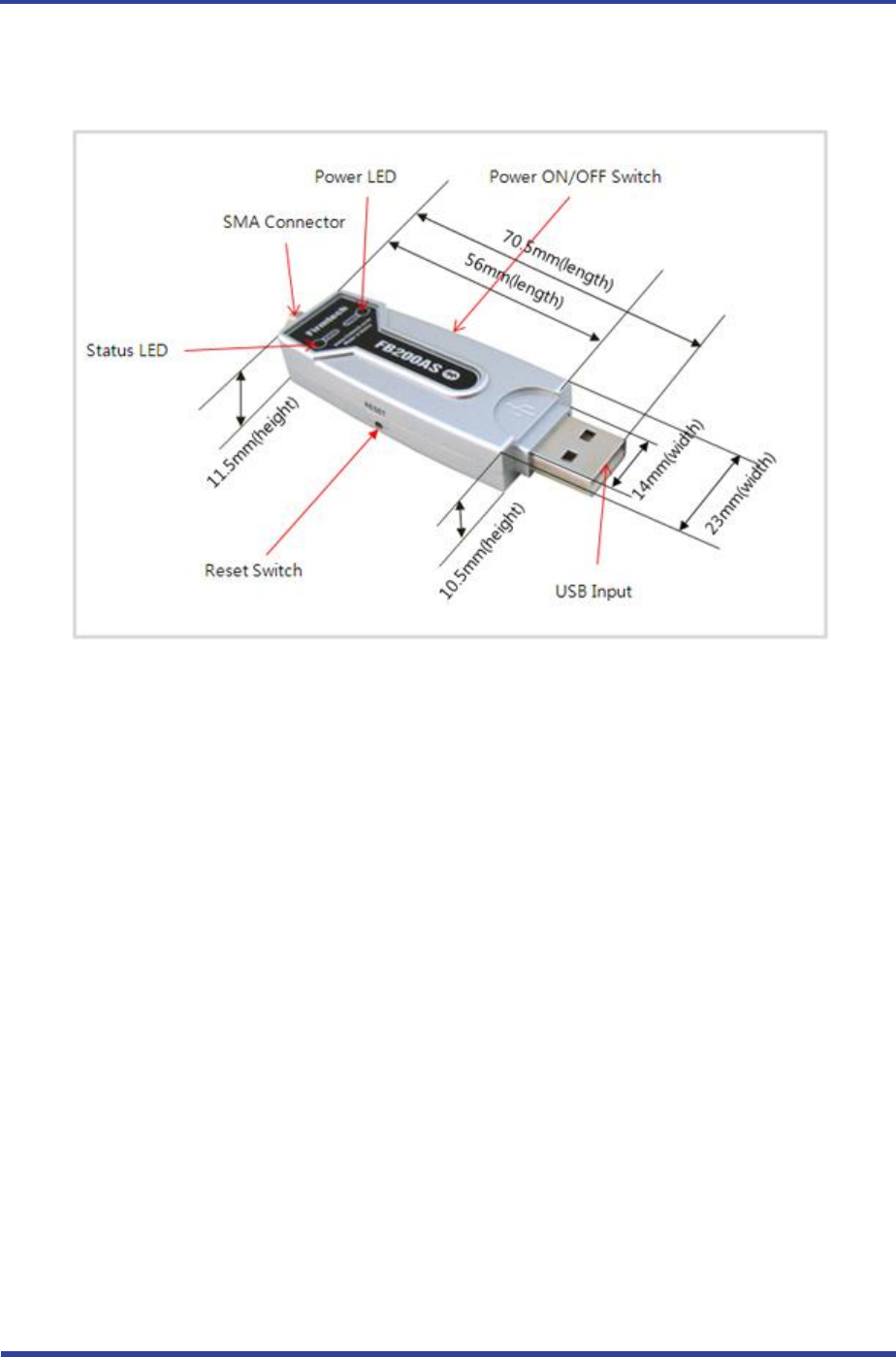

<Figure 4-1 Details and Dimension of FB200AS-F>
FB200AS-F User Guide Version 1.0
5 Features of Dip Switch
Page 9 / 27
5 Features of Dip Switch

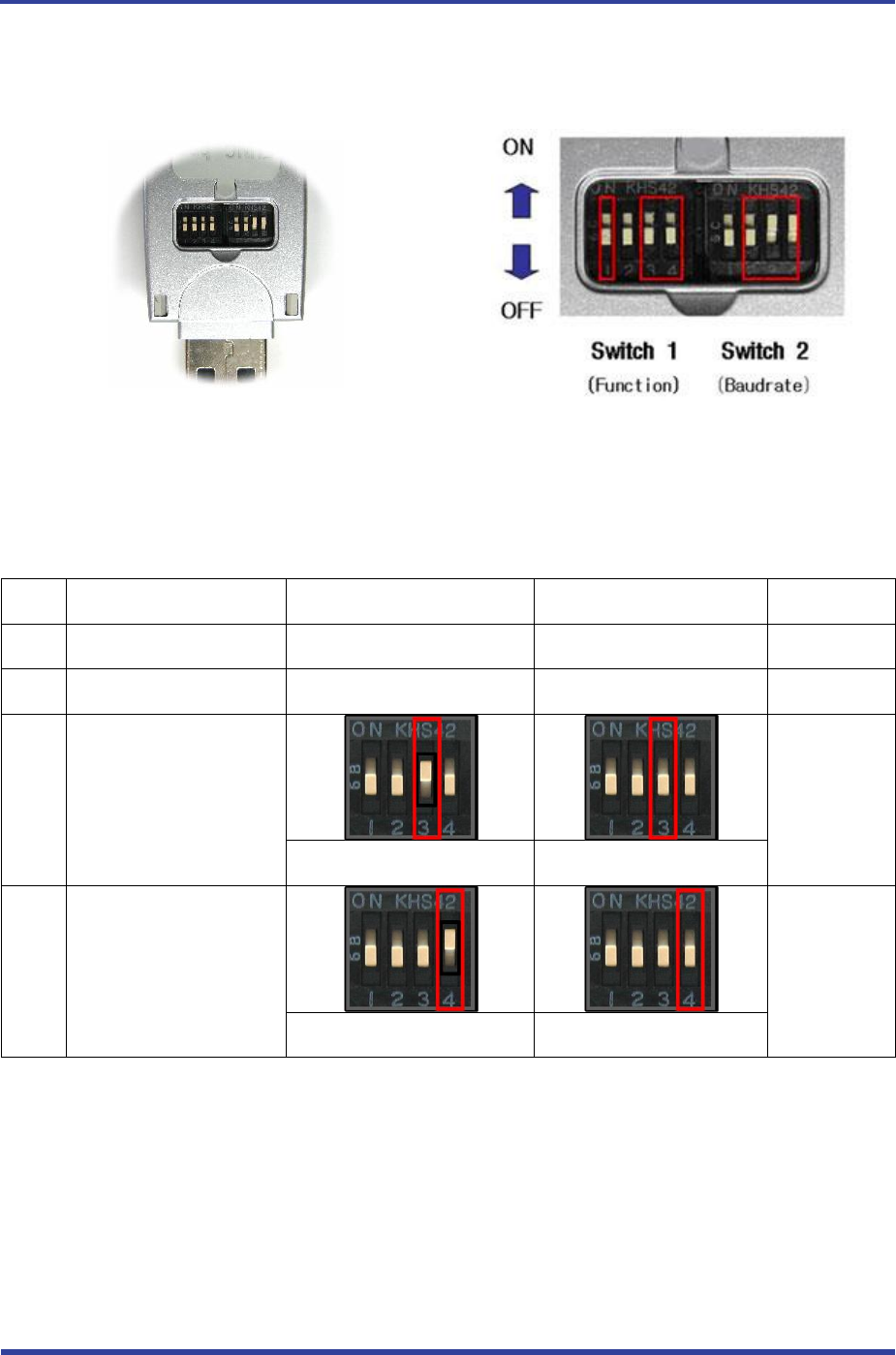

<Figure 5-1 FB200AS-F Dip Switch View>

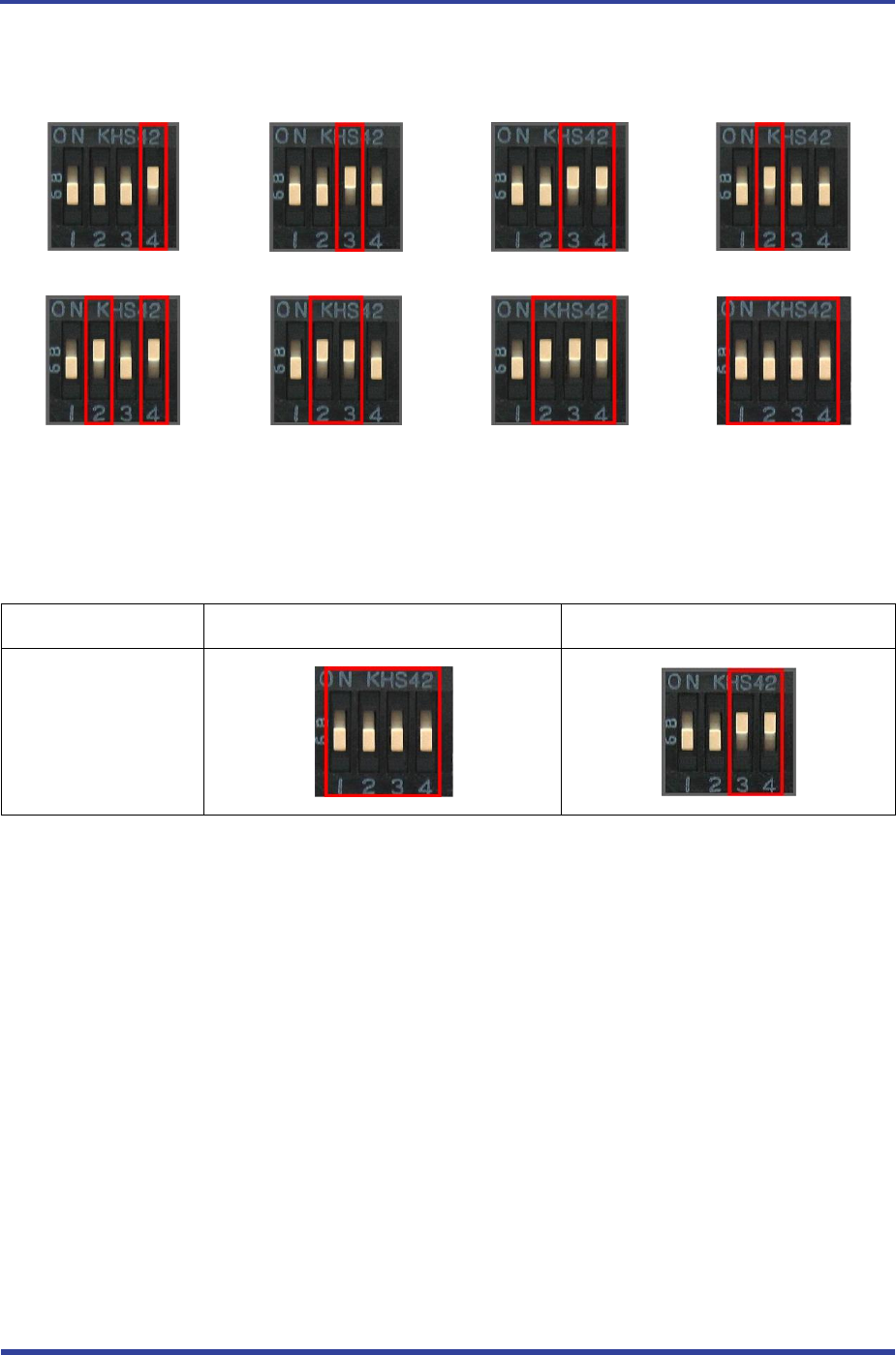

<Figure 5-2 Features of Dip Switch>
5.1 Dip Switch 1 (FUNCTION Switch)
SW
FEATURES
ON
OFF
BASIC SET
1
None
-
-
OFF
2
None
-
-
OFF
3
ROLE
OFF
MASTER
SLAVE
4
Environment Setting
(PC Configuration Select)
OFF
PC Configuration Mode
Operation Mode
<Table 5-1 Features of FUNCTION Switch>
Note :
If you push a Reset Switch when a Dip Switch is turned ON in a PC Configuration Mode, the
products return to the status of FATORY RESET.
FB200AS-F User Guide Version 1.0
5 Features of Dip Switch
Page 10 / 27
5.2 Dip Switch 2 (Baud Rate Switch)
2400bps
4800bps
9600bps
19200bps
38400bps
57600bps
115200bps
230400bps
<Figure 5-3 Transmission Rate>
5.3 Initial Set Value of Dip Switch
TYPE
Function Switch
Baud Rate Switch
FB200AS-F
<Table 5-2 Initial Set Value of Dip Switch>
If the initial value is not consistent with <Figure 5-3>, please contact the seller you purchased the product.
Note :
If the CONNECTION MODE of PC Configuration is MODE4 (AT command MODE), it shall operate
based on the Baud rate and at the value of Role established in PC configuration, regardless of
setting of Baud rate and Role of Dip Switch.
FB200AS-F User Guide Version 1.0
6 Power Indicator LED / Status LED
Page 11 / 27
6 Power Indicator LED / Status LED

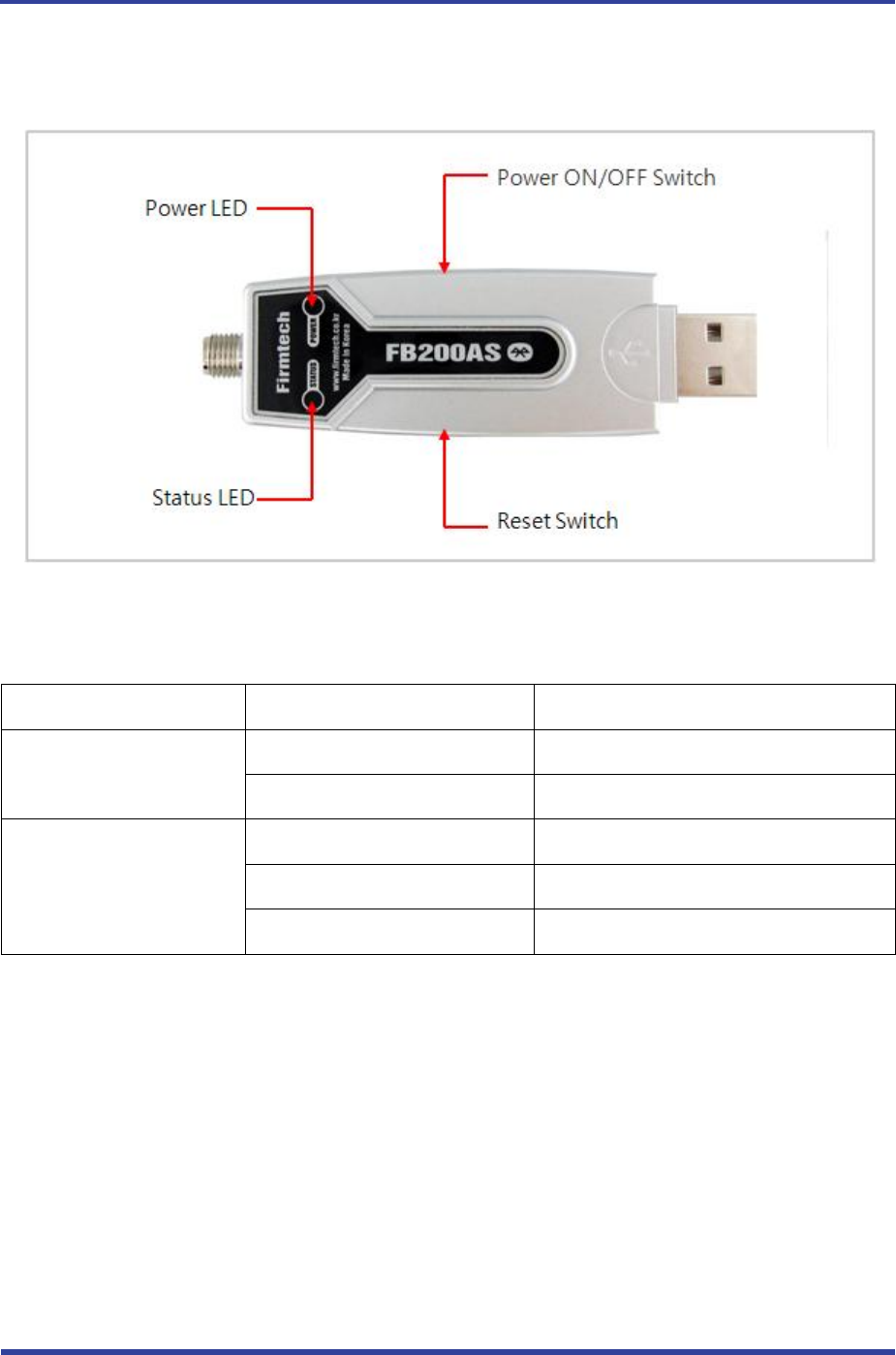

<Figure 6-1 Appearance of FB200AS-F>
FB200AS-F has a red Power LED and green and red Status LED. Please, refer to the following description.
LED TYPE
STATUS
DESCRIPTION
Power Indicator LED
(Power LED)
Power Input
Red LED Turns on
PC connected
Green LED Turns on
Status Indicator LED
(Status LED)
Connecting to Bluetooth
Green LED is Flickering
Connected to Bluetooth
Green LED turned on
PC Configuration
Red LED is Flickering
<Table 6-1 Operation Check by LED Status>
Note :
If you a Reset Switch when a red Status LED flickers in a PC configuration Mode, the products
return to the status of FACTORY RESET.
FB200AS-F User Guide Version 1.0
7 Performance of Product
Page 12 / 27
7 Performance of Product
No.
Part
Specification
1
Bluetooth Spec.
Bluetooth Specification 2.0 Support
2
Communication distance
100 M
3
Frequency Range
2402 ~ 2480MHz ISM Band
4
Sensitivity
-83dBm (Typical)
5
Transmit Power
8dBm (Typical - Conducted)
6
Size
73 x 22 mm
7
Support Bluetooth Profile
SPP (Serial Port Profile)
8
Input Power
DC 5V
9
Current Consumption
100mA (Max)
10
Temperature
Operating
-20℃ ~ 50℃
Limit Operating
-30℃ ~ 80℃
11
Communication Speed
1,200bps – 230,400bps
12
Antenna
4.966dBi Dipole Antenna
13
Interface
USB
14
Flow Control
RTS, CTS, DTR, DSR support
<Table 7-1 Performance of FB200AS-F>
FB200AS-F User Guide Version 1.0
8 Current Consumption
Page 13 / 27
8 Current Consumption
STATUS
Current Consumption (mA)
MIN
MAX
AVG
Standby
18
24
22
Inquiry scan & page scan (Slave)
21
63
42
Page scan (Slave)
18
30
23
Inquiry (Master)
77
83
80
Connected
Slave
36
45
41
Master
21
33
27
Data transmission
Slave
48
54
51
Master
48
57
52
Data reception
Slave
45
51
48
Master
45
54
49
Data transmission / reception
Slave
48
57
52
Master
51
60
56
Power save
Slave
21
30
24
Master
21
33
24
<Table 8-1 Current Consumption of FB200AS-F>
TEST CONDITIONS
Baud rate : 9600 bps, Input Voltage : DC 5V
The power consumption is subject to change depending on the transmission rate and volume of data.
FB200AS-F User Guide Version 1.0
9 Initial Set Value of Products
Page 14 / 27
9 Initial Set Value of Products
The product has the initial Set Value as shown on the <Table 9-1>.
Please be sure to identify the initial Set Value, before you begin to use.
TYPE
Set Values
Device Name
FB200v1.0
Pin Code (Pass key)
BTWIN
Uart (baud rate-data bit-parity bit-stop bit)
9600-8-N-1
ROLE
SLAVE
Connection Mode
MODE3
Operation Mode
MODE0 (1:1)
Debug Char
0x02
<Table 9-1 Initial Set Values of FB200AS-F>
The Operating Set Values of Products is changeable by using Dip Switch or PC software (Window Hyper
Terminal, or FIRMTECH PC Configuration Program.)
Note :
Please refer to 11 PC Configuration for details on changing the setting.
FB200AS-F User Guide Version 1.0
10 Connecting the wireless section of Bluetooth
Page 15 / 27
10 Connecting the wireless section of Bluetooth
In order for Bluetooth devices to transmit data to each other, the wireless section of Bluetooth should be
connected to each other. To connect the wireless section, you should set each role for each device, one for a
MASTER, another for a SLAVE. It takes about 1~10 sec that a Master is connected to a Slave.
How to connect the wireless section of FB200AS-F can be performed with 2 significant ways.
Note :
The FB200 uses virtual COM port which shall be operated first before the Hyper Terminal is being
used so that the config tool shall be operable normally.
Please refer to the driver installation of Appendix D FB200 for the instructions of driver installation
of FB200.
※ We will use 2 FB200AS-F and MS Windows in describing procedures.
10.1 Connecting with Connection WIZARD
(1) Connect FB200AS-F(1) to the USB port of PC, and turn the power on.
(2) Execute C-Wizard Program.

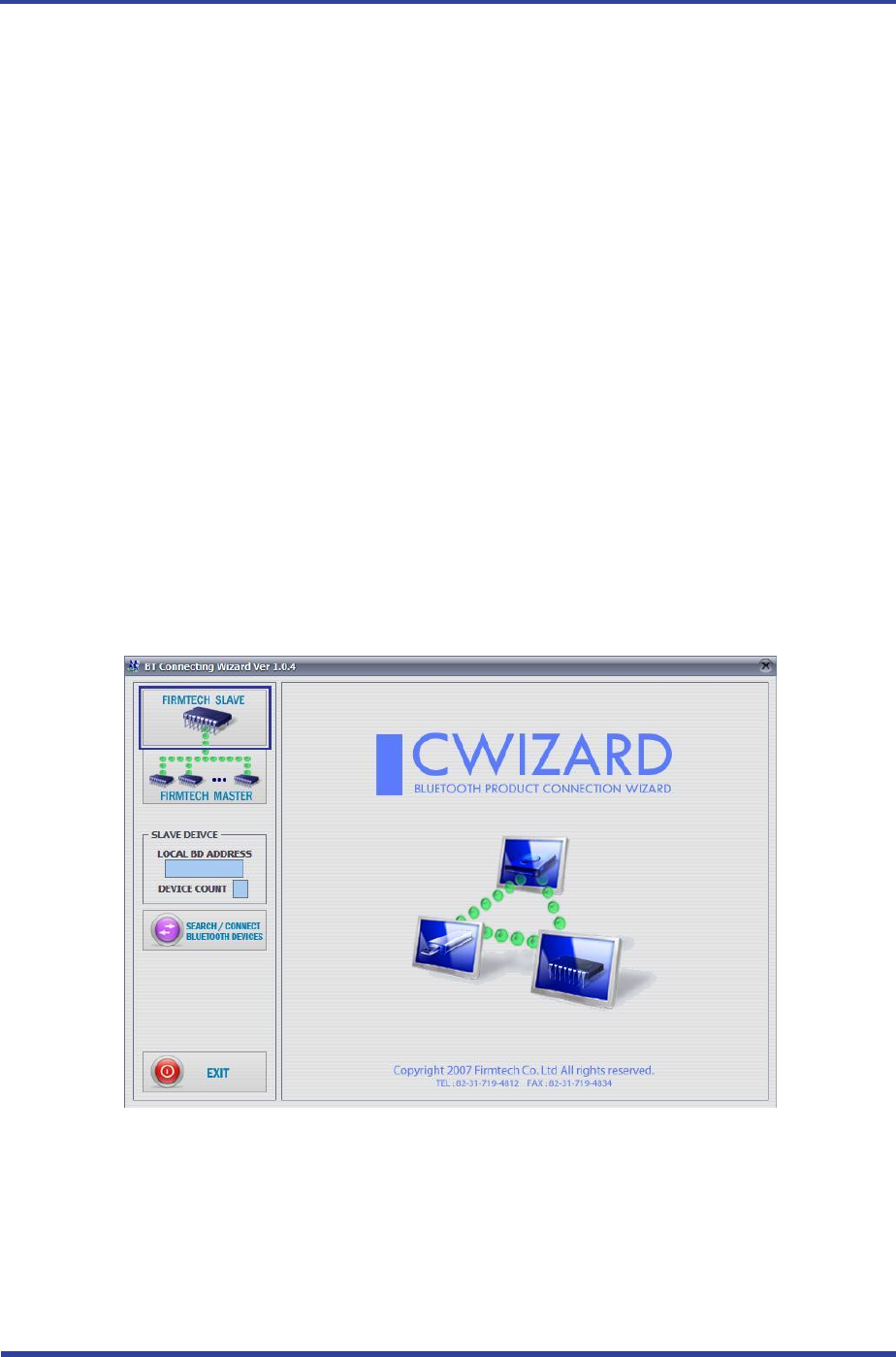

<Figure 10-1 Connection Wizard Step 1>
(3) Click FIRMTECH SLAVE Set-up button (<Figure 10-1> Blue borders)
FB200AS-F User Guide Version 1.0
10 Connecting the wireless section of Bluetooth
Page 16 / 27
1 COM PORT : Select Serial port of PC connected a product.
2 DEBUG CHAR : Default is 0x02. (Refer to the appendix A about PC Configuration)
3 DEVICE COUNT : Select number of devices to be connected. (Default 1)

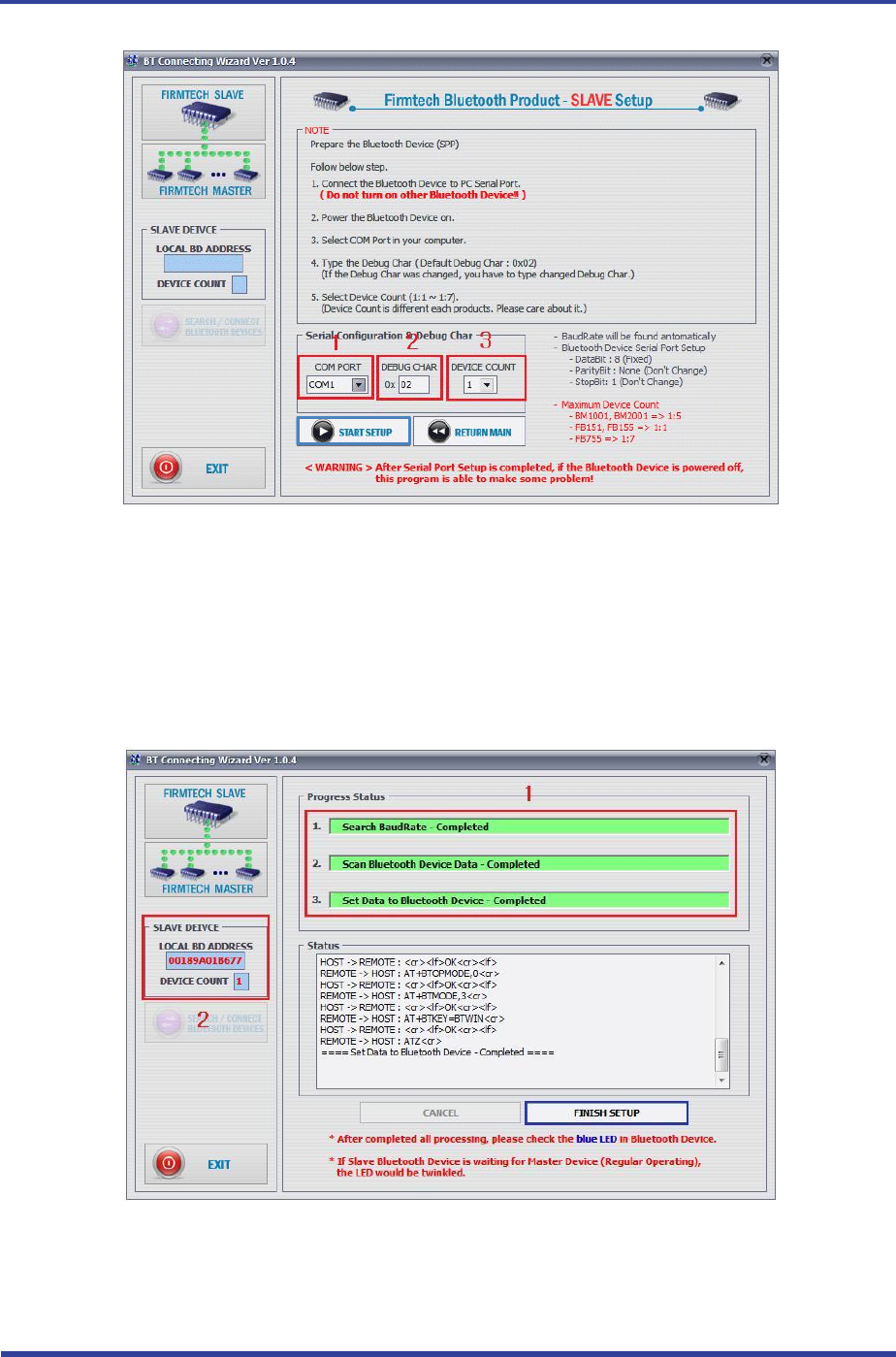

<Figure 10-2 Connection Wizard Step 2>
(4) Click the Set-up Start Button(<Figure 10-2> Blue borders) after setting each values in blanks
(<Figure 10-2> Red borders N.1 - Com Port connected to FB200AS-F, N.2 - 0x02, N.3 - 1)
1 Procedures: procedures of Device Set-up.
2 SLAVE Device value: It shows values if the SLAVE Set-up is completed (optional)
<Figure 10-3 Connection Wizard Step 3>
FB200AS-F User Guide Version 1.0
10 Connecting the wireless section of Bluetooth
Page 17 / 27
(5) Status Display of Procedures(<Figure 10-3>N. 1 red borders) turns red into green after Set-up is
completed. Click the OK button if the blank of SLAVE Device Value is filled. (<Figure 10-3>N. 2 red
borders)
(6) Connect FB200AS-F(2) to the USB port, and turn the power on.

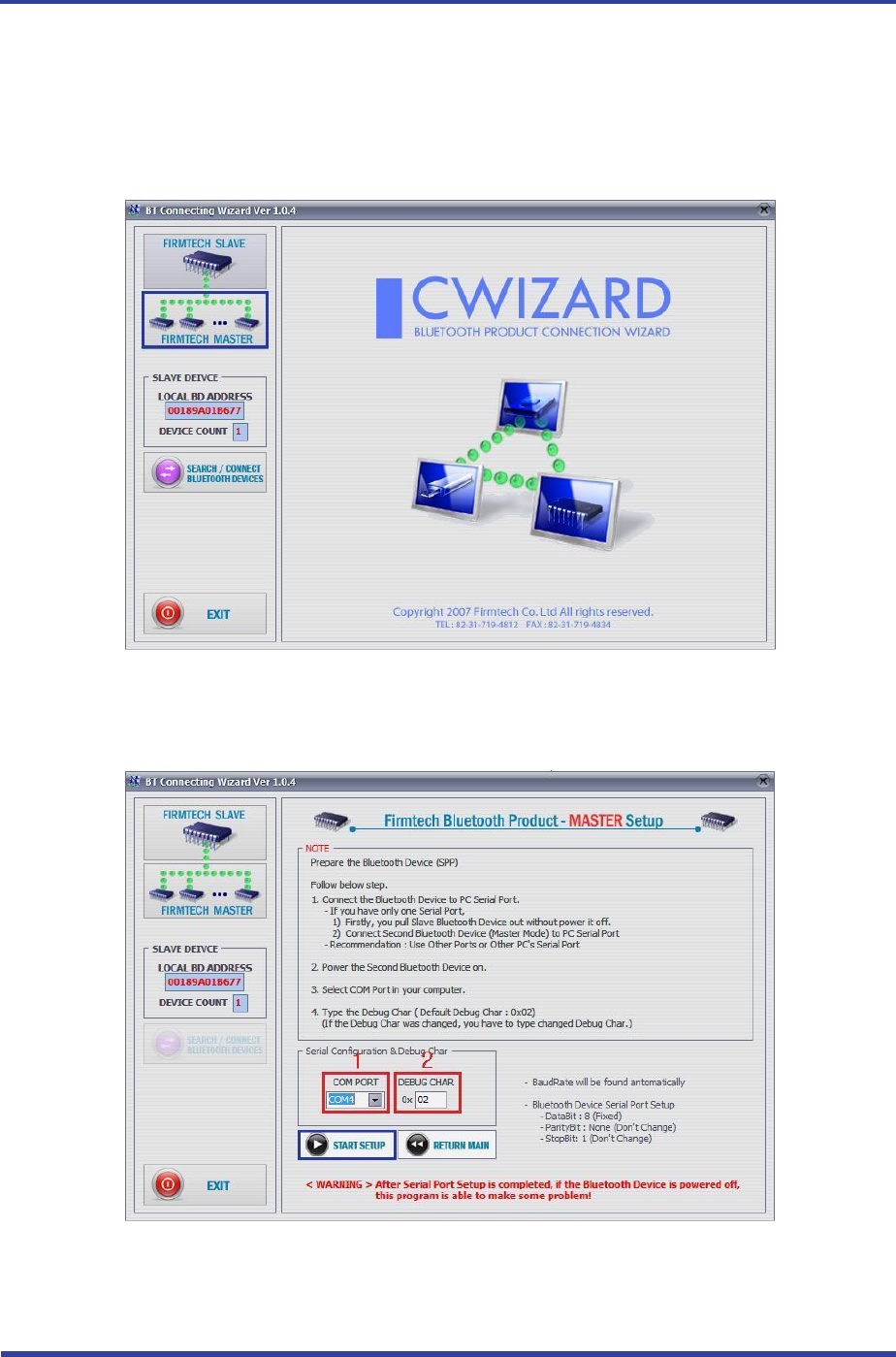

<Figure 10-4 Connection Wizard Step 4>
(7) Click the FIRMTECH MASTER Set-up (<Figure 10-4> Blue borders) Button
1 COM PORT : Select the Serial port of PC which is connected to a product
2 DEBUG CHAR : Default is 0x02. (Refer to the appendix A about PC Configuration)
<Figure 10-5 Connection Wizard Step 5>
FB200AS-F User Guide Version 1.0
10 Connecting the wireless section of Bluetooth
Page 18 / 27
(8) Click Set-up Start (<Figure 10-5> blue borders) button after setting each value (<Figure 10-5> red
borders N.1 - Com Port connected to FB200AS-F , N.2 - 0x02) in blanks.

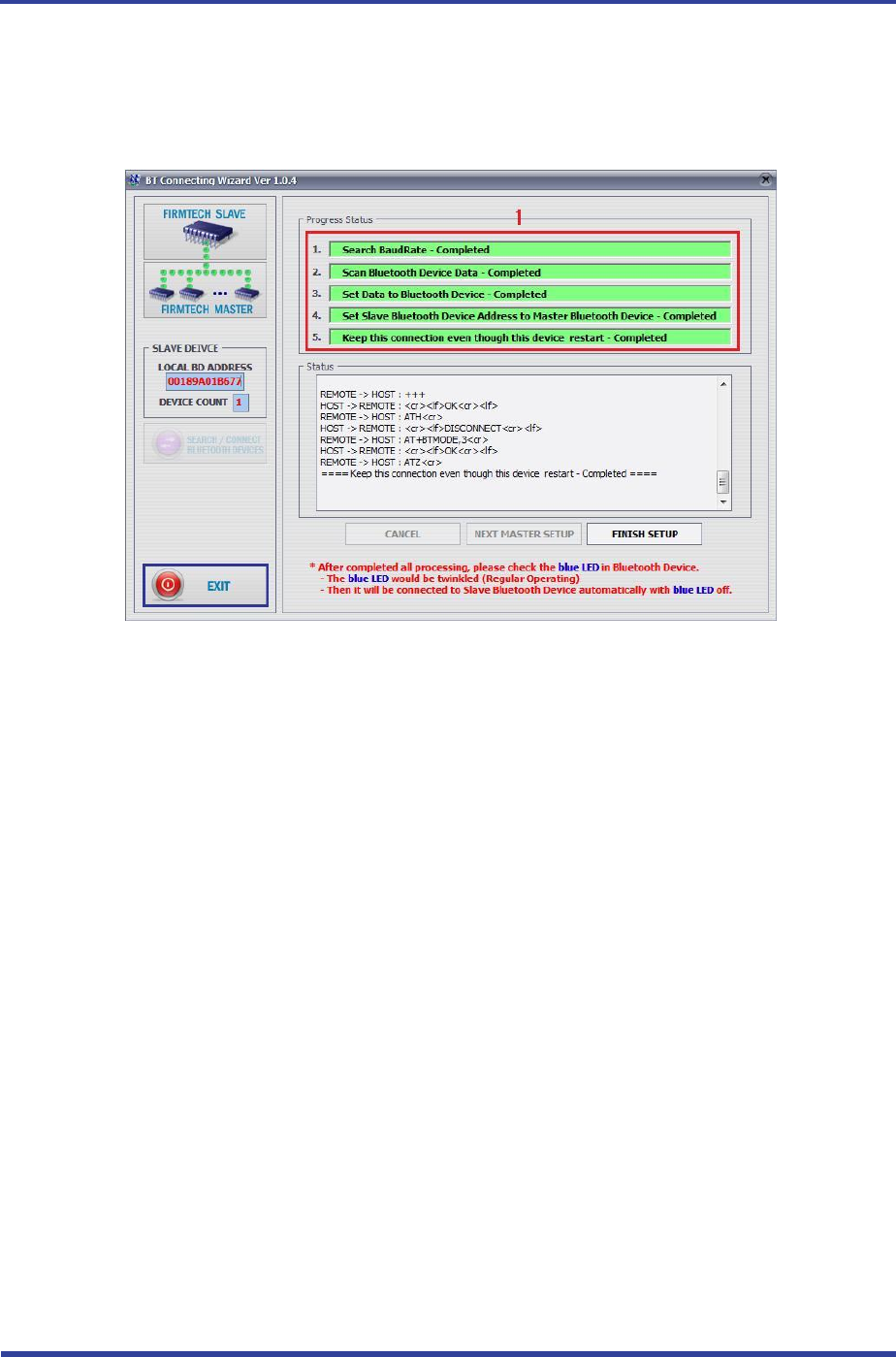

<Figure 10-6 Connection Wizard Step 6>
(9) If the Status Display of Procedures (<Figure 10-6> N.1 red borders) changes color into green,
Connection Set-up is completed. With Clicking the End button(<Figure 10-6> Blue borders), finish
the C-Wizard
(10) Set Function Dip Switch #3 to MASTER after turn the FB200AS-F(2)’s power off.
(11) Turn ON the FB100AS(2) and check status LED of FB100AS(2) is turns ON in 1~10seconds. If LED is
ON, the section of Bluetooth is connected properly and Data Transmission is usable
10.2 How to connect with Dip Switch Set-up
FB200AS-F can perform data communication once you change the Dip Switch Set-up.
The following is the method of setting the Dip Switch.
(1) Set Baud rate Dip Switch of FB200AS-F(1) to the proper speed for communication
(2) Set FUNCTION Dip Switch #3 of FB200AS-F(1) to SLAVE.
(3) Turn the power of FB200AS-F(1) on.
(4) Set Baud rate Dip Switch of FB200AS-F(2) to the proper speed for communication.
(5) Set FUNCTION Dip Switch #3 of FB200AS-F(2) to MASTER.
(6) Turn the power of FB200AS-F(2) ON.
(7) If Status LED of FB200AS-F is turned on shortly, it means the wireless section of Bluetooth is
properly connected, so Data transmission can be performed.
FB200AS-F User Guide Version 1.0
11 How to complete PC Configuration?
Page 19 / 27
11 How to complete PC Configuration?
The Baud rate or Role is selectable using Dip Switch. (In case, CONNECTION MODE is not MODE4.)
For other setting values, you can establish the setting using PC Configuration.
PC Configuration can be performed with two significant ways.
First way is to use Configuration tool provided by FIRMTECH Co., Ltd.
Second is to use the serial communication programs such as Hyper Terminal or Mincom provided by OS.
To set these are shown below.
11.1 PC Configuration using BTConfig tool
(1) After setting 4th Switch (PC Configuration Switch) of Function Dip Switch FB200AS-F ON and connect
the power. Check if red LED is flickers on Status LED.
(2) Execute BTConfig tool after connect FB200AS-F to USB port of PC.

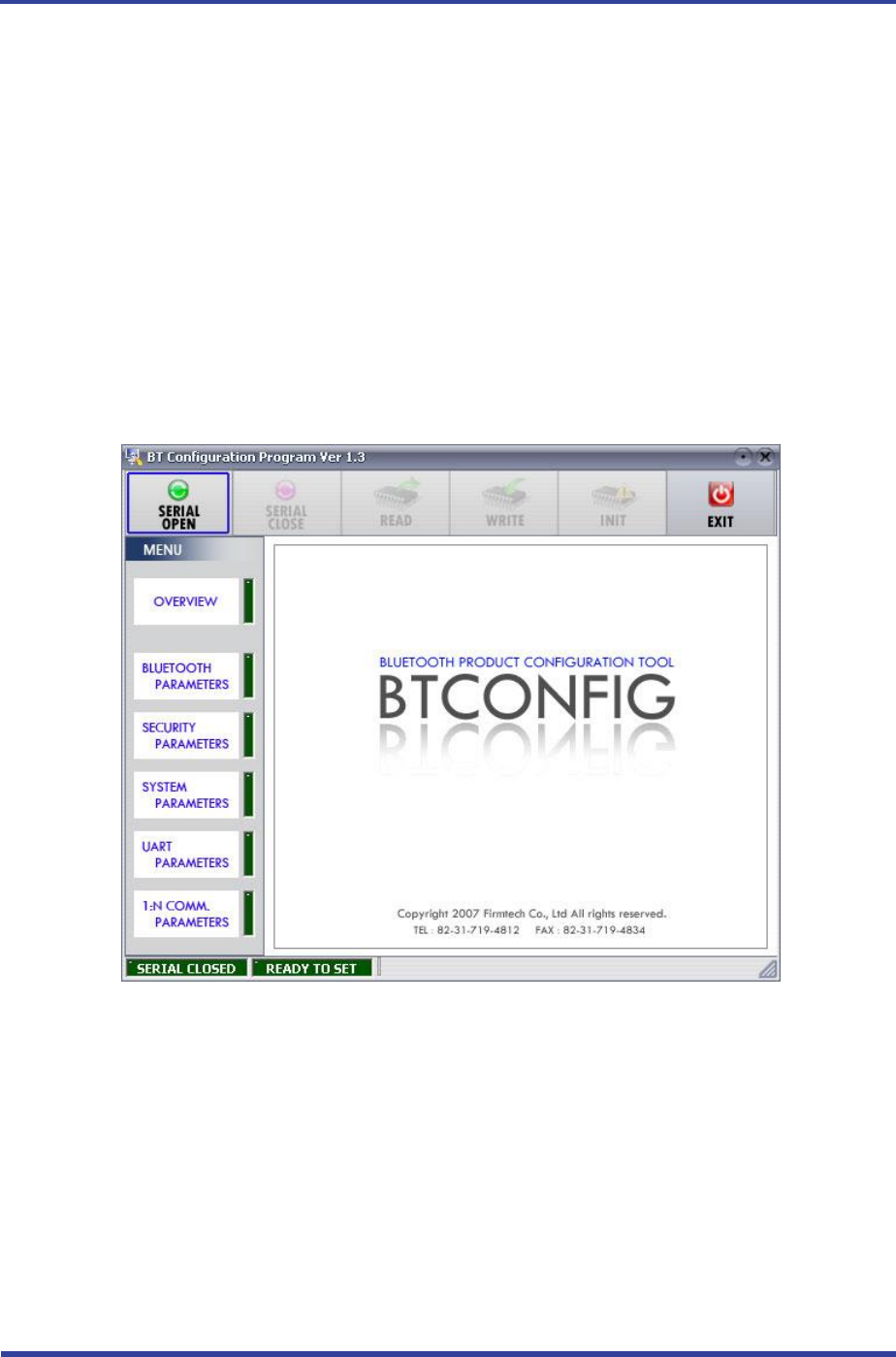

<Figure 11-1 BTConfig tool initialization>
(3) Click “SERIAL OPEN” button. (<Figure 11-1> blue borders)
FB200AS-F User Guide Version 1.0
11 How to complete PC Configuration?
Page 20 / 27

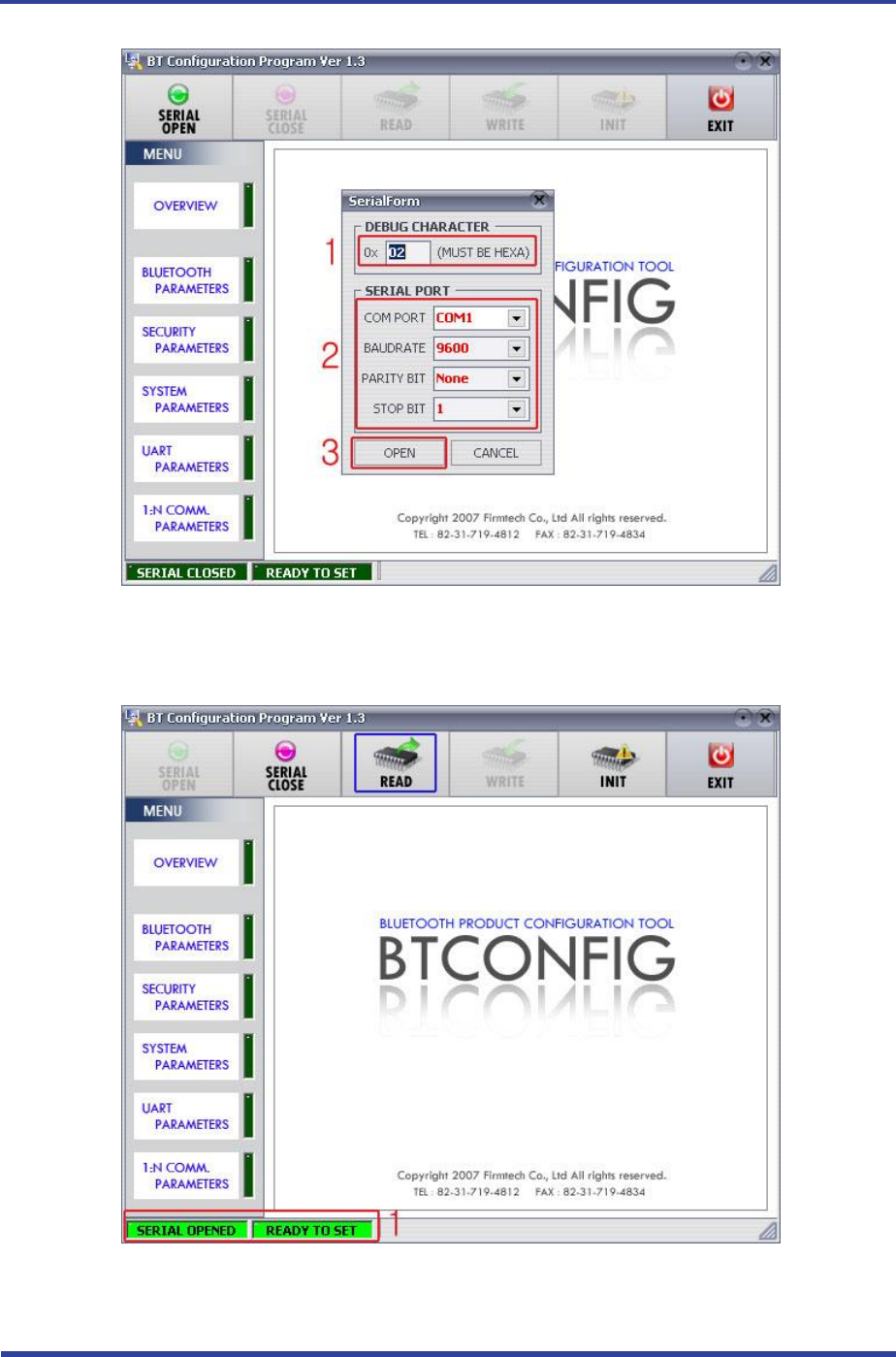

1 DEBUG CHARACTER : Default is 0x02. (refer to the appendix A about PC Configuration)
2 SERIAL PORT : COM PORT proper port, BAUDRATE 9600, PARITY BIT None, STOP BIT 1
<Figure 11-2 BTConfig tool Serial connection>
1 SERIAL OPENED, READ TO SET : BTConfig tool and communication status of products.
<Figure 11-3 BTconfig tool connection >
FB200AS-F User Guide Version 1.0
11 How to complete PC Configuration?
Page 21 / 27
(4) If the <Figure 11-2> comes up, set each blank (Red borders N.1~2) to (COM PORT – Port
connected to FB200AS-F, BAUDRATE – 9600, PARITY BIT – None, STOP BIT – 1). After the set-up,
click the OPEN button (Red borders N.3), then
Serial Connection
and
Ready To Set
(Red borders N.1)
lights become green as shown on <Figure 11-3> .
If the lights doesn’t change into green, check the COM PORT and execute BTConfig tool once again.
(5) If click the READ button (blue borders) as shown on <Figure 11-3> after BTConfig tool is connected
to products, MENU Buttons (<Figure 11-4> red borders N.1) are activated.

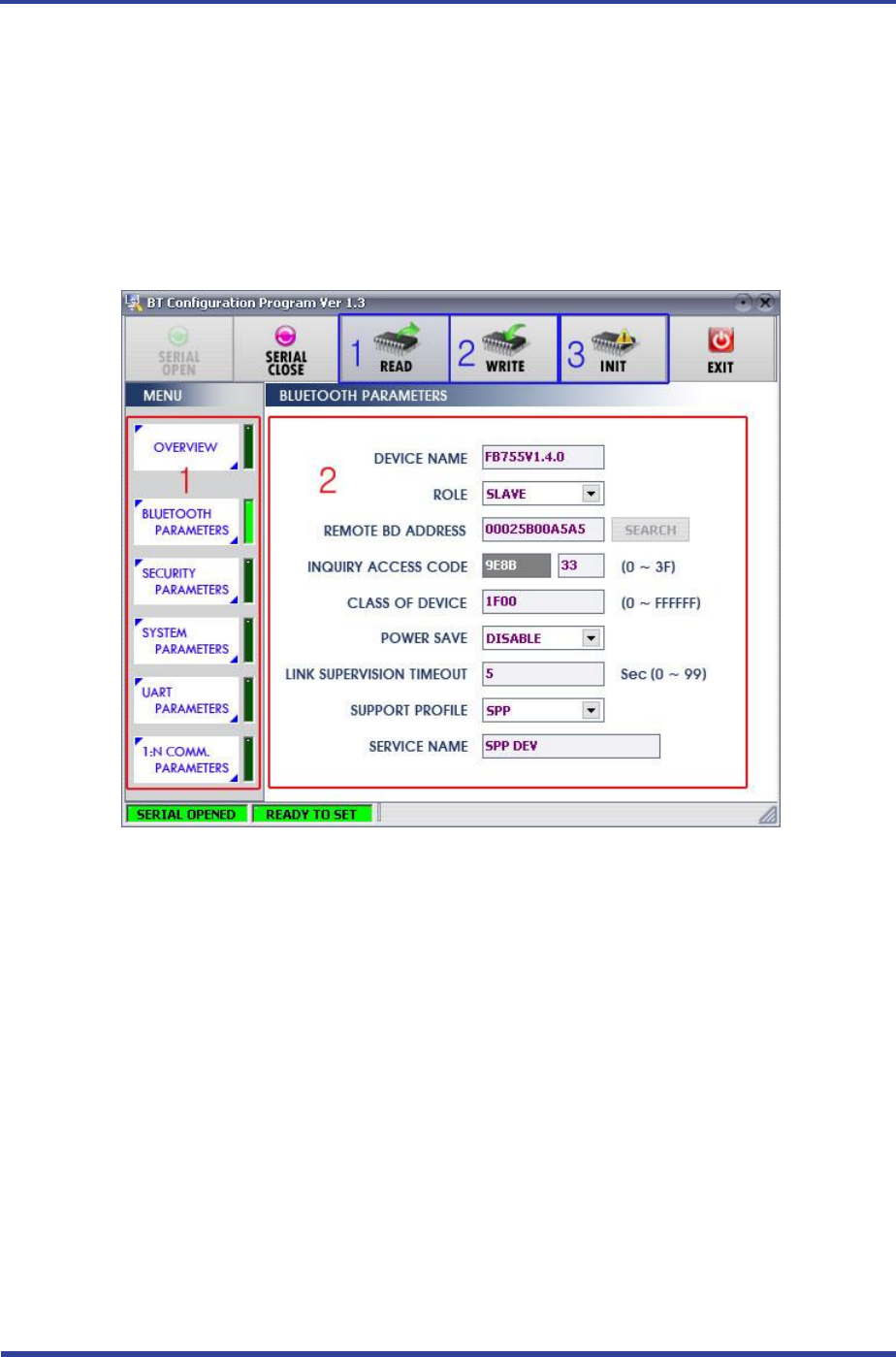

1 BLUETOOTH PARAMETERS: Set-up Group Button
2 Set-up window: change Set-up Groups and values
1 READ button: read set values. (During first initialization, value should be READ after BTConfig tools are
connected to products)
2 WRITE button: Save set values. (Serial port is automatically off after saving is completely.)
3 INIT button: Reset all the set values to Factory fix points.
<Figure 11-4 BTConfig tool Set-up >
(6) If you select any PARAMETERS(<Figure 11-4> red borders N.1), the window for Value Check and
Set-up comes up on the right
(7) Save the set values by clicking the WRITE button after Set-up completed.
FB200AS-F User Guide Version 1.0
11 How to complete PC Configuration?
Page 22 / 27

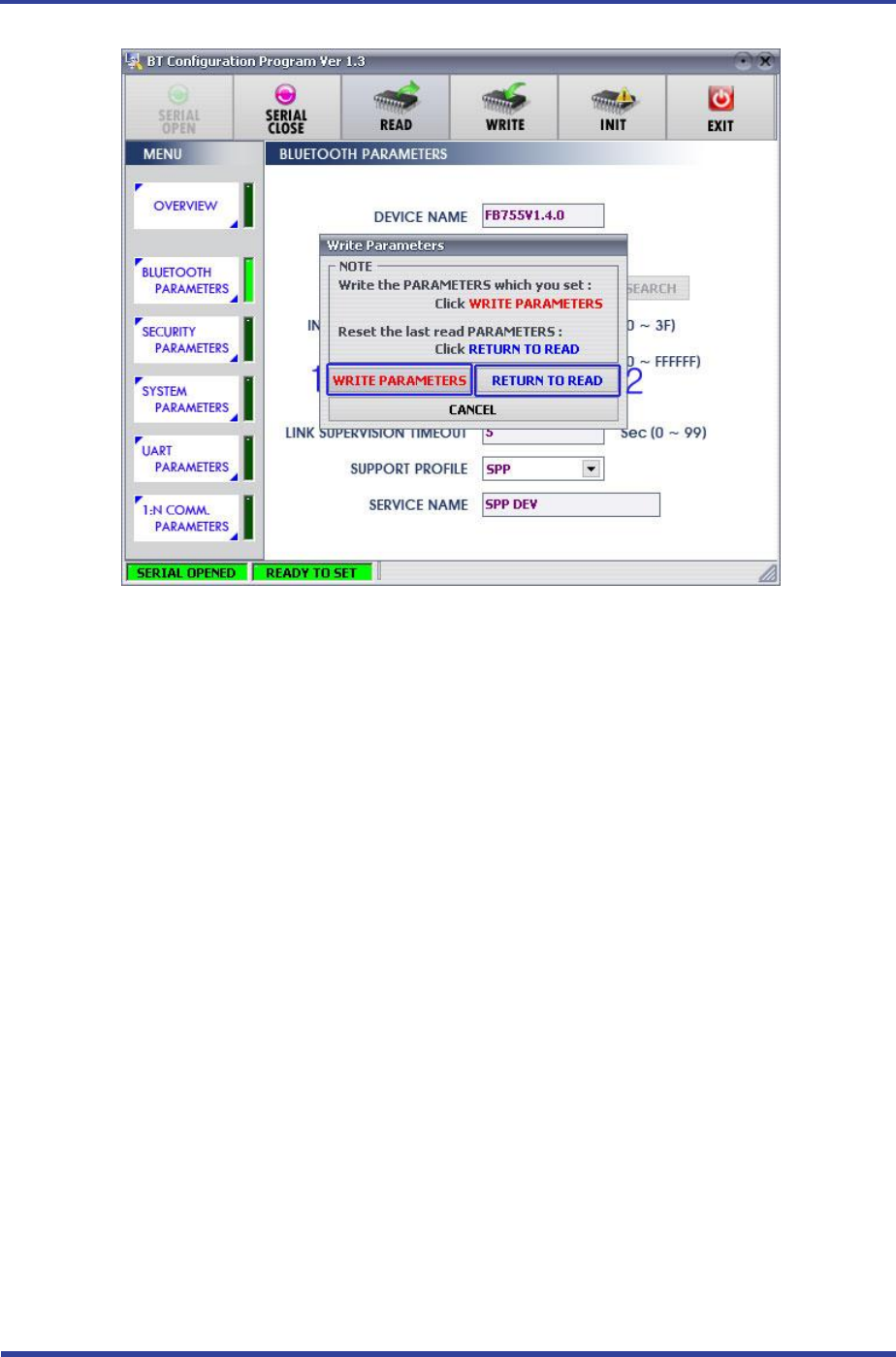

1 WRITE PARAMETERS: Save the currently set values.
2 RETURN TO READ: Set to the initial value.
<Figure 11-5 BTConfig tool WRITE >
Note:
Please refer to the
appendix A
of PC Configuration for the further description.
11.2 PC Configuration using Serial Communication (Hyper Terminal)
Program
11.2.1 To Execute Hyper Terminal
To set up PC Configuration using Hyper Terminal, following procedures shall be performed prior to the
power is being supplied after the FB200AS-F is connected to the PC.
To set up PC Configuration, the Serial Communication Program is required. We will use Hyper Terminal in
describing the procedures.
(1) Fix the number 4 switch of Function Dip Switch at ON.
(2) Connect FB200AS-F to the USB port of PC, and turn the power on.
FB200AS-F User Guide Version 1.0
11 How to complete PC Configuration?
Page 23 / 27
<Figure 11-6 Hyper Terminal Set up Window 1>

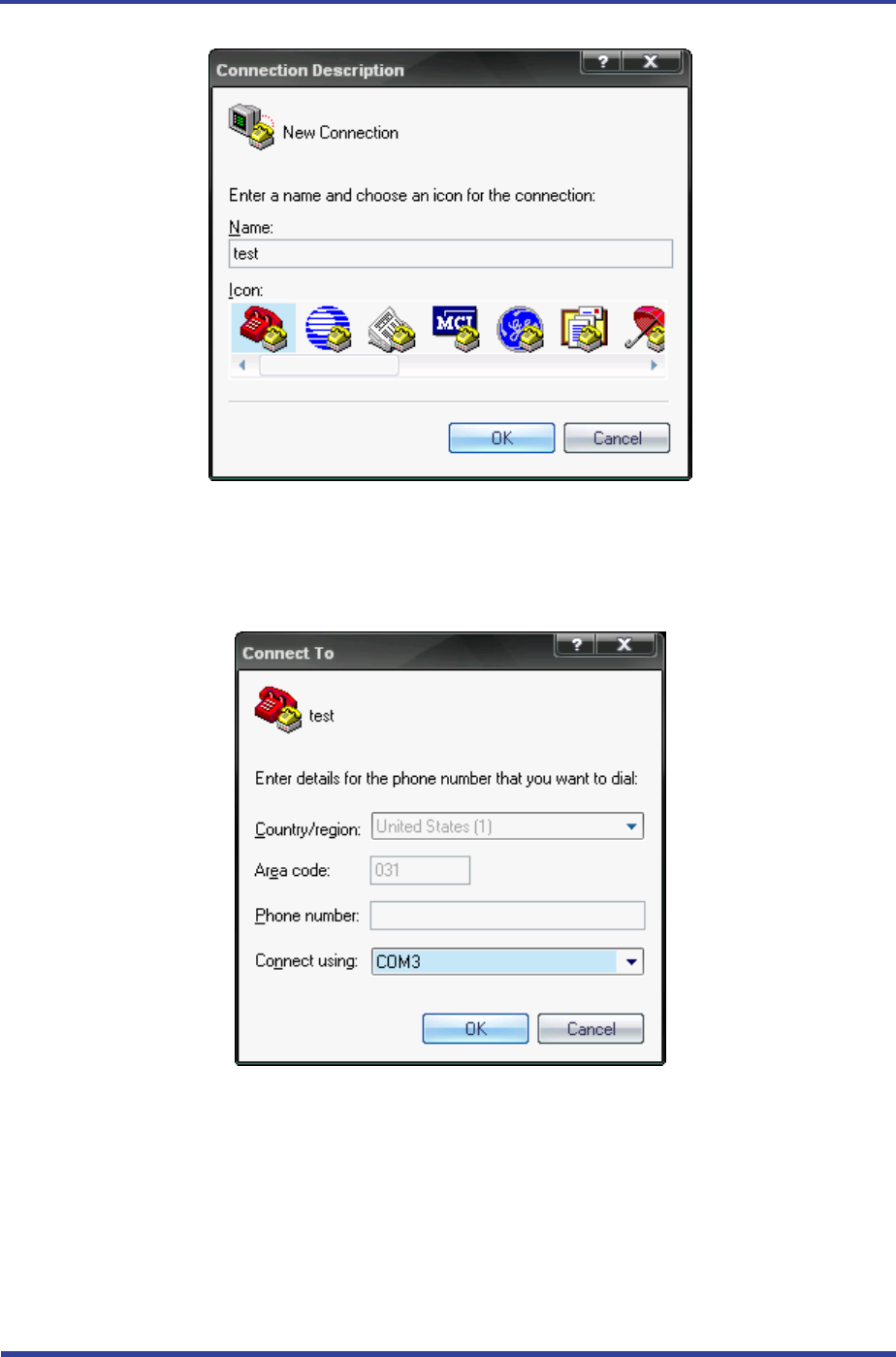

(3) Execute in the order of [start][All Programs][Accessories][Communications][Hyper
Terminal], then connection window will appear. Enter appropriate name and click.
<Figure 11-7 Hyper Terminal Set up Window 2>
(4) When the <Figure 11-7> comes up, select the COM port connected to FB200AS-F, and clicks the OK
button.
FB200AS-F User Guide Version 1.0
11 How to complete PC Configuration?
Page 24 / 27
<Figure 11-8 Hyper Terminal Set up Window 3>
(5) When Registration Information Window comes up as on <Figure 11-8>, select Bit per second :
9600, Data bit : 8, Parity : none, Stop bit : 1, Flow control : none, which will execute Hyper
Terminal.
<Figure 11-9 Hyper Terminal Set Up Window 4>
FB200AS-F User Guide Version 1.0
11 How to complete PC Configuration?
Page 25 / 27
(6) (6) Basically, the Hyper Terminal does not show the entered character. To make sure of the entered
character, select [File][Properties] on the Menu, then registration information window will appear
shown as on <Figure 11-9>, click the ASCII Setup button.
<Figure 11-10 Hyper Terminal Set Up Window 5>
(7) As shown on <Figure 11-10>, Check “Echo typed characters locally” and come out pressing the
acknowledge button. Now the Hyper Terminal program setting procedure is completed to use PC
Configuration.

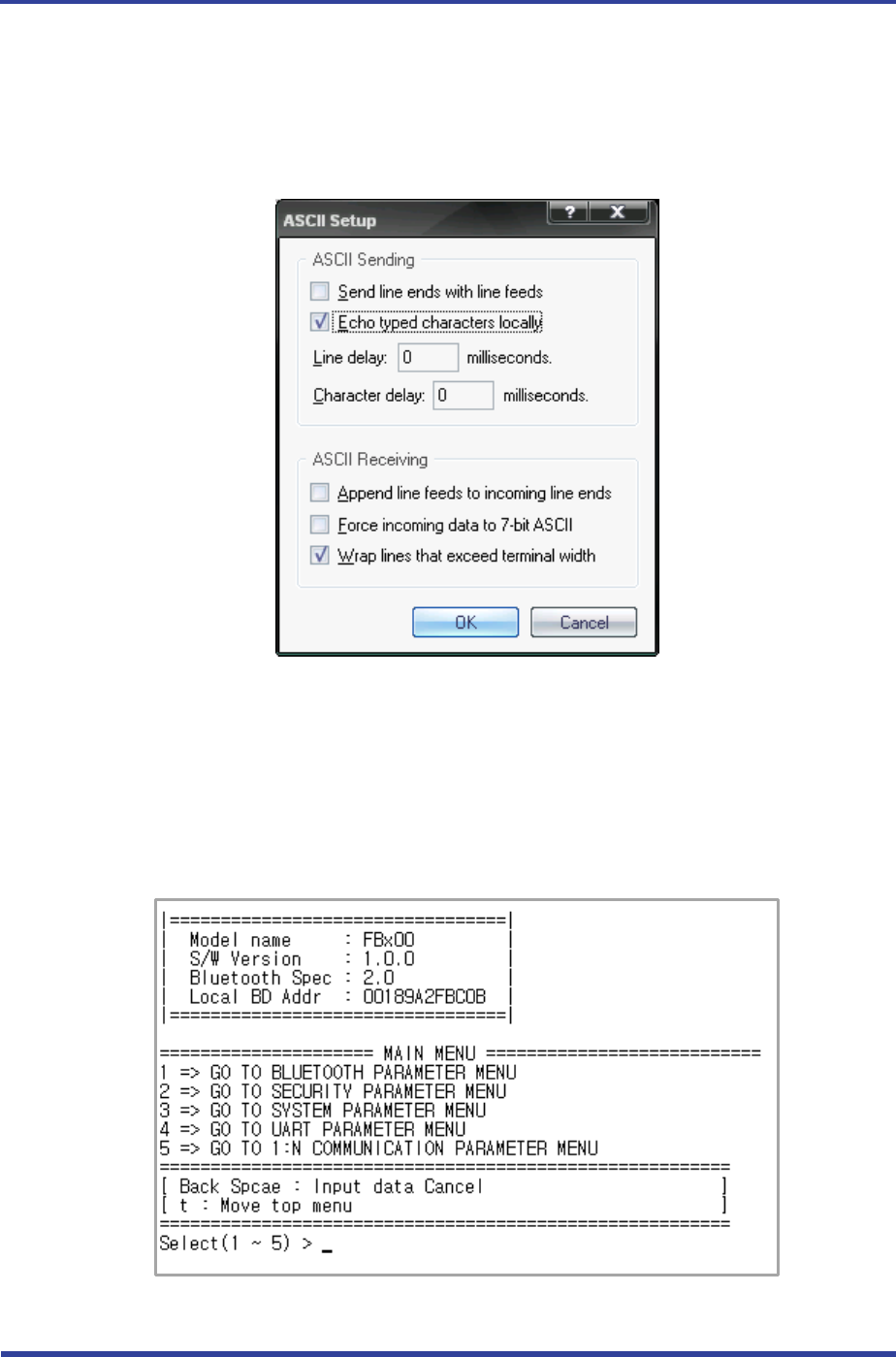

(8) Press enter with small character "t" for FB200, the menu such as <Figure 11-11> will appear on the
Hyper Terminal.
<Figure 11-11 PC Configuration Menu>
FB200AS-F User Guide Version 1.0
11 How to complete PC Configuration?
Page 26 / 27
11.2.2 How to Use PC Configuration Menu
The user may select the menu to change by selecting the given number in front of the left end menu.
For example : To change “DEVICE NAME”, enter : [1][Enter]
Note :
When Reset Button is pressed at <Figure 12-11>, all the set up value shall be reset to the initial
set up status (factory fix point).
Following is the order to use the menu.
(1) The execution will only be executed by pressing the “Enter” key.
(2) The small character “t” will always move to be positioned at upper side of the menu.
(3) To move menu, use the number in the end of left side. Please be sure to “Enter” key upon
completion of input.
(4) “←” key is used to delete the entered character currently.
(5) If the entered character is unreadable or is not supported at the appropriate menu, “Retry >”
message will be output.
(6) If the input message is more than 12 characters, “Overflow buffer” message will be output and then
“Retry >” message appeared as well.
Upon completion of PC Configuration setting up, turn off the FB200AS-F, and change the Function Dip
Switch #4 (PC configuration) to OFF position and turn the power ON, which will start the Bluetooth to
operate normally.
Note :
Please refer to the Appendix A, details of PC Configuration for detailed value description of PC
Configuration.
FB200AS-F User Guide Version 1.0
12 Approval Information
Page 27 / 27
12 Approval Information
12.1 KCC
12.2 FCC compliance Information
12.3 CE
12.4 TELEC
12.5 SIG
FB200AS-F User Guide Version 1.0
12 Approval Information
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
• Reori nt or relocate the receiving antenna.
• Incre se the separation between the equipment and receiver.
• Conn ct the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
• Consult the deal r or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired
operation
Hereby, Firmtech Co., Ltd declares that this FB200AS-F is in compliance with the
essential requirements and other relevant provisions of directive 2014/53/EU.
RF Frequency Range 2 402 ~ 2 480 MHz
RF Output Power Max. 12.34 dBm-EIRP
A contact address 807, 555, Dunchom-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
