First Alert D545B 2.4" DIGITAL WIRELESS LCD BABY MONITOR User Manual
First Alert 2.4" DIGITAL WIRELESS LCD BABY MONITOR
Users Manual
Caution
Do not open the cover! To avoid electric shock.
Do not Touch DC Convert parts to avoid electric shock.
In order to prevent improper operation of DC Converter, Please read user manual carefully.
Caution
For you safety, please use only the DC converter provided. (The manufacturer will not responsible
for any losses caused by DC converter not provided by the manufacturer).!! Important !! Please
only use the socket match with DC converter. Use of improper socket may cause electrical and fire
damager.
Safety Notice
z Do not use damaged Charger
z Do not use battery over the specified time period
z First use or the battery has not been for past several months; please recharge the battery
before use
z In order to protect your battery, please fully charge your battery before you use. The battery
must be fully discharge it before you charge it again
z Over charge and over discharge will shorten the life of battery. If the usage period of fully
charged battery is shorten than new battery, you need to change your battery
z Battery is consumable item, its life will be shorten from the time it is being used
z Don’t touches the DC converter with conductors e.g. rings etc
Main Features:

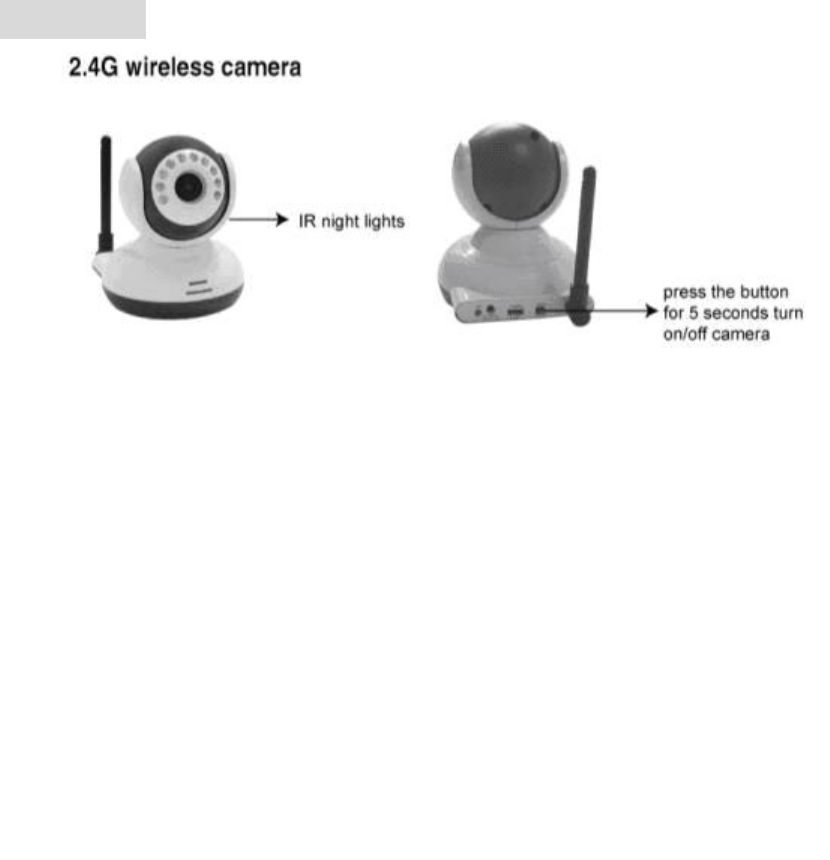

2.4G Wireless Camera
Main Parts
User Manual

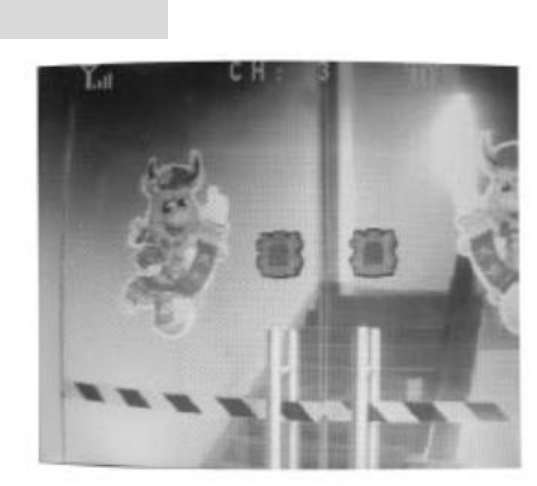

When wireless camera turn on , press "POWER" Button on LCD monitor receiver,baby
monitor start to work.It will show Signalstrength/Image/Battery Status
Product Specification
Model No: JLT-9020D
Item Value
Transmission Frequency 2400MHz-2480MHz
Transmission Power 0dBm
Unobstructed Effective Range 250m
Modulation Mode FHSS
Operating Temperature 0°-60°
Storage Temperature 25°
GENERAL
Operating Humidity 20%-80%RH
Imaging Sensor Type 1/3 CMOS
Picture Total Pixels 628x582(PAL) 510X492(NTSC)
Horizontal Resolution 360Line
View Angle 60°
Minimum Illumination 1.5Lux
Battery Working Time 8 hours
Motion Detection Distance >5m
Sound Control Sensitivity >60dBA
Consumption Current 150mA +15mA
Power Supply DC 5V
Dimensions(W×D×H) 100*86*86(mm)
Frame 25
CAMERA
Weight 141g
Accessories
5V DC Adapter * 2 pcs
2.4G wireless camera * 1pc
Instruction Menu * 1pc
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:1. This device may not cause harmful interference, and 2.
This device must accept any interference received, including interference that may
cause undesired operation.
